Phicomm UA204SA 150Mbps Wireless-N USB Adapter User Manual FWN 651ND

Shanghai Feixun Communication Co., Ltd. 150Mbps Wireless-N USB Adapter FWN 651ND

Contents

User manual_FWN-651ND

150Mbps Wireless N USB Adapter
FWN-651ND
User Manual
User Manual / V2.0
2
Copyright Statement
PHICOMM is the registered trademark of Shanghai Feixun Communication Co., Ltd. Other
trademark or trade name mentioned herein are the trademark or registered trademark of the
company. Copyright of the whole product as integration, including its accessories and software,
belongs to Shanghai Feixun Communication Co., Ltd. Without the permission of Shanghai
Feixun Communication Co., Ltd., individual or party is not allowed to copy, plagiarize, imitate or
translate it into other languages.
All the photos and product specifications mentioned in this manual are for references only, as
the upgrading of software and hardware, there will be changes. And if there are changes,
PHICOMM is not responsible for informing in advance. If you want to know more information
about our products, please visit our website at www.phicomm.com.
i
Table of Contents
150Mbps Wireless N USB Adapter
www.phicomm.com
CONTENTS
Chapter 1: Get to Know the Product
.............................. 1
Product Overview ............................................................................................... 1
Main Features ....................................................................................................... 2
Chapter 2: Install Driver & Utility
.................................. 3
Chapter 3: How to Use the Product
................................ 5
Use under Client Mode ..................................................................................... 5
Connect to a Wireless Network .........................................................................................5
Enable WPS Function ............................................................................................................7
Manage Connection Profile ............................................................................................. 12
Share Files between PCs ................................................................................................... 15

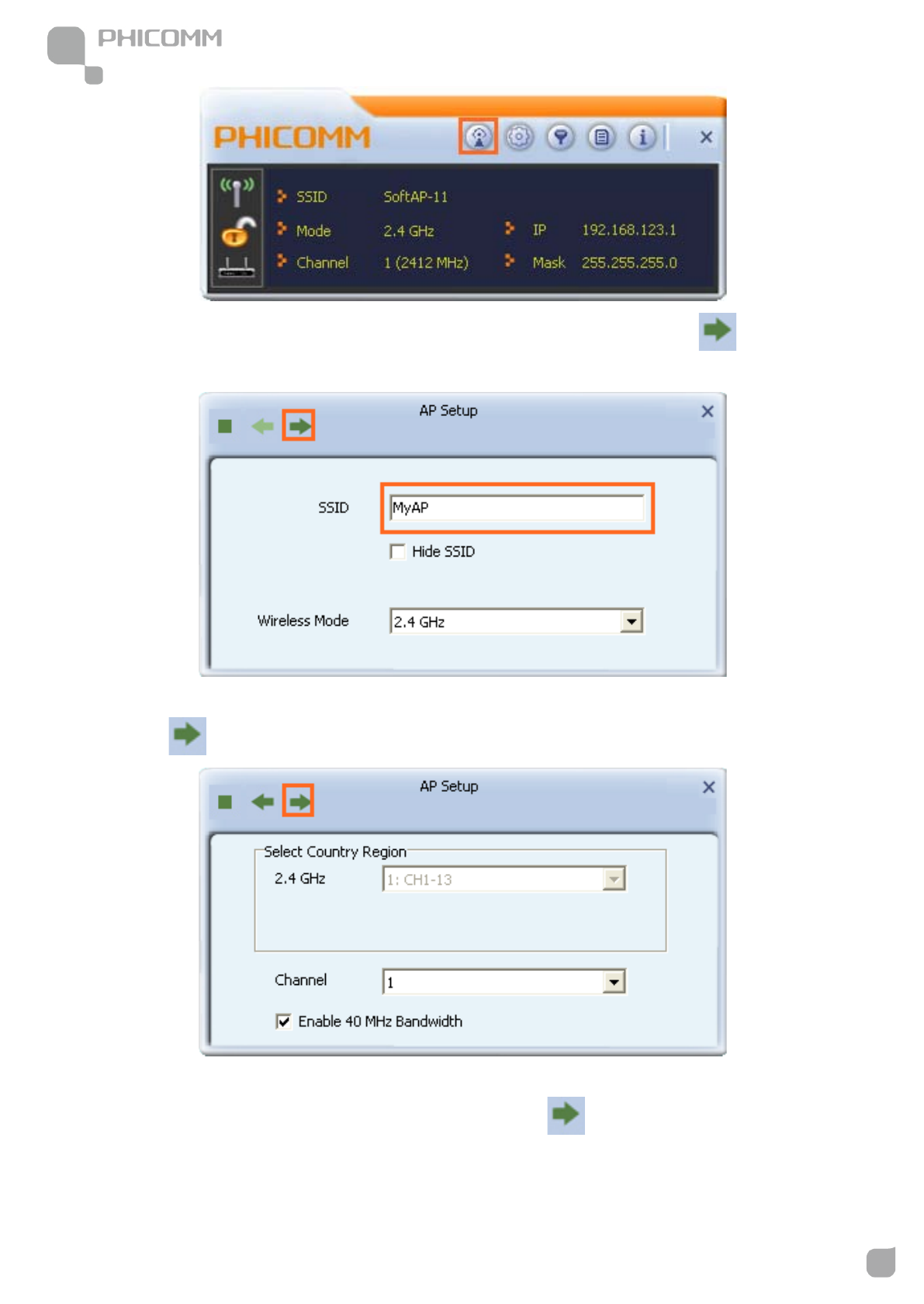

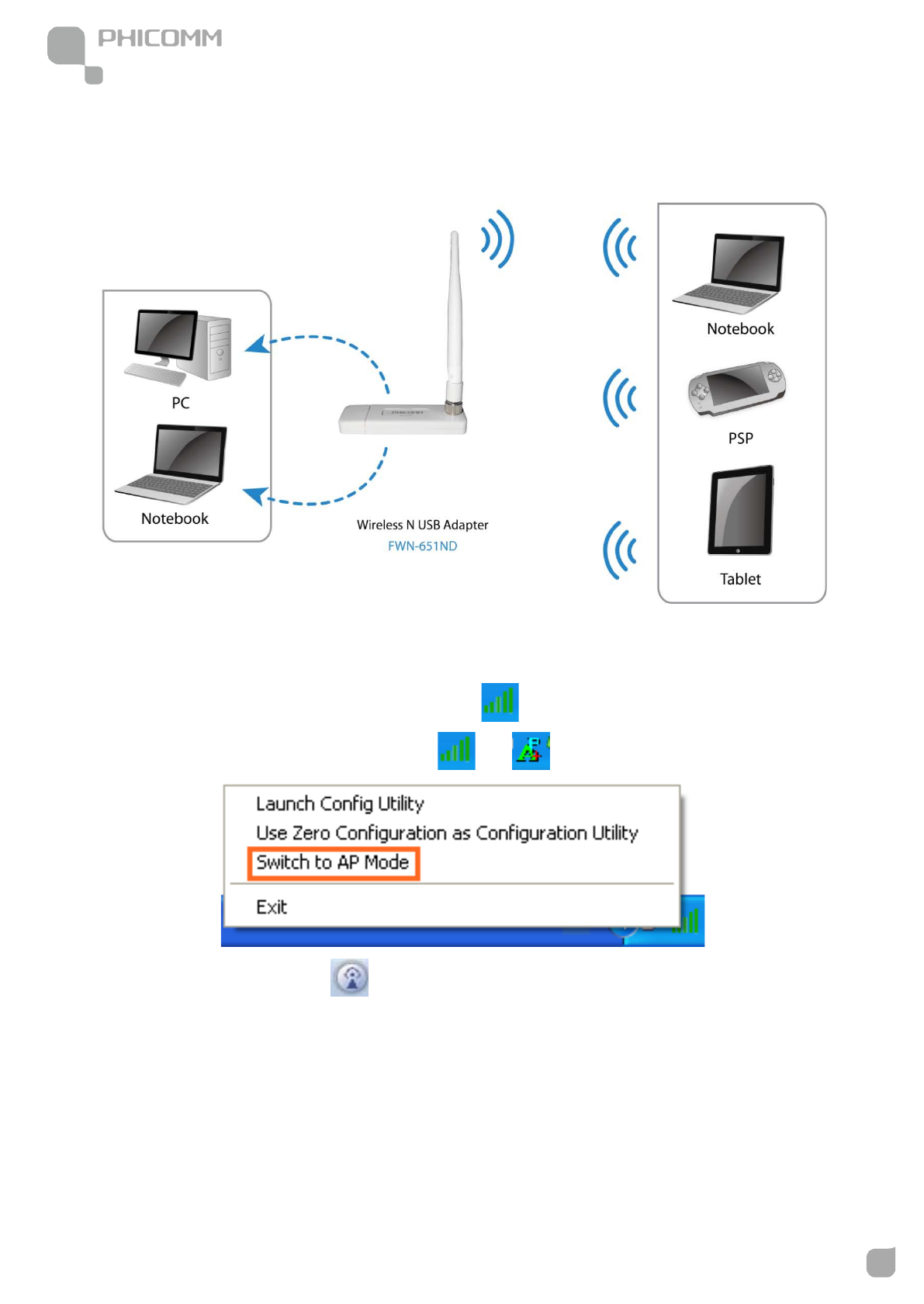

Use under AP Mode ........................................................................................ 20
Set Up a Wireless Network ............................................................................................... 20
Chapter 4: Specification
............................................ 23
Appendix A: Troubleshooting
..................................... 24
Appendix B: Certification
.......................................... 26
FCC Statement .................................................................................................. 26
CE Mark Warning ............................................................................................. 27
Appendix C: Glossary
................................................ 28
150Mbps Wireless N USB Adapter
www.phicomm.com
1
Chapter 1: Get to Know the Product
Chapter 1: Get to Know the Product
Product Overview
Thank you for choosing PHICOMM 150Mbps Wireless N USB Adapter FWN-651ND.
FWN-651ND allows users to connect desktop computer or notebook to the internet anywhere in
your house without the hassle of messy wires. Designed with high performance wireless N
technology, the adapter is ideal for you to watch movies, transfer photos, and download music
with the speed of up to 150Mbps. By adopting a detachable antenna, you could change to use
any other antennas at your desire. And the antenna provides better signal and expands the
wireless coverage, which enable you to enjoy internet from your couch, home office or the
backyard with ease. Wi-Fi Protected Setup (WPS) button provides a quick and secure wireless
connection at the push of a button.
150Mbps Wireless N USB Adapter
www.phicomm.com
2
Chapter 1: Get to Know the Product

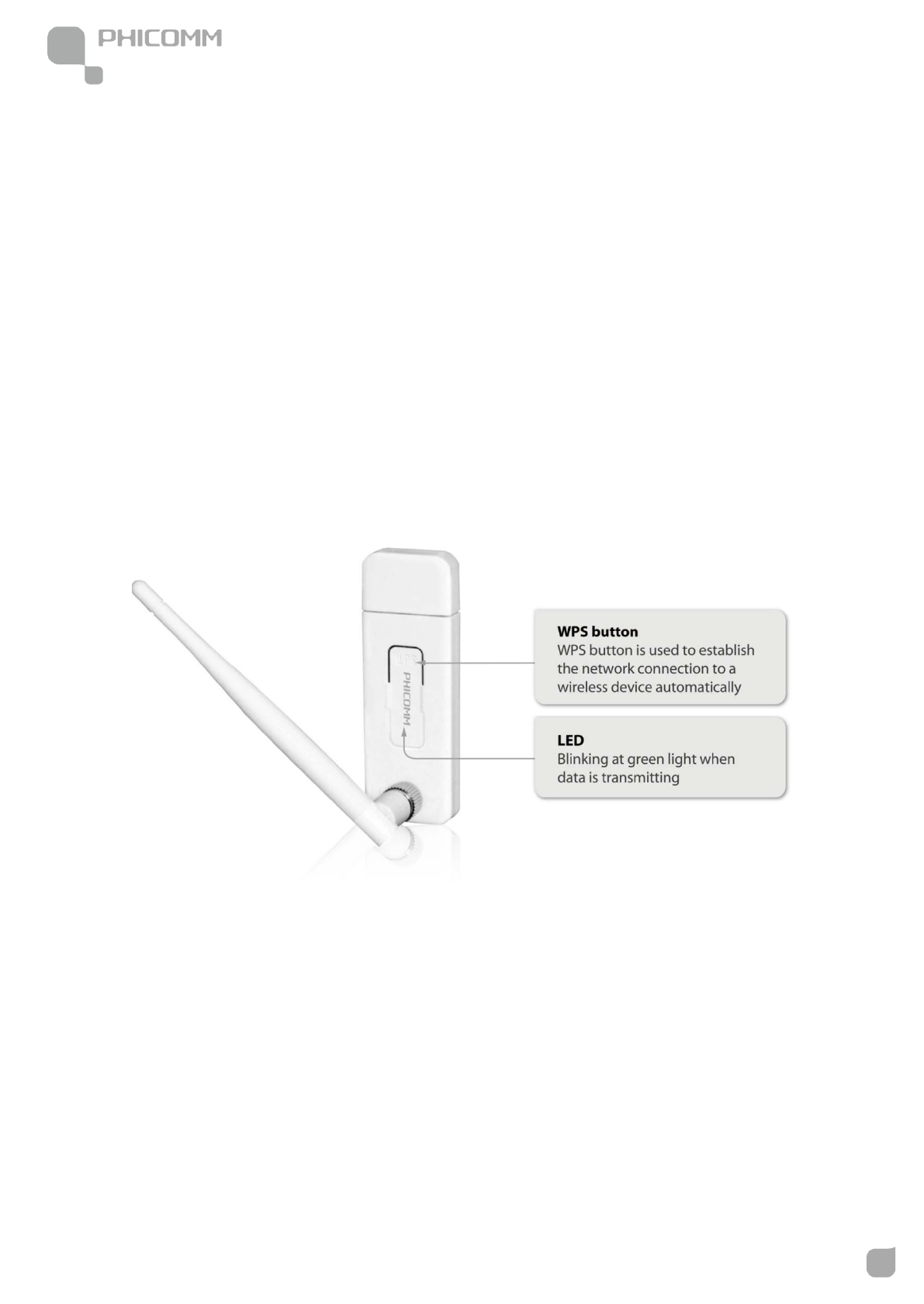

Main Features
Detachable antenna ensures excellent wireless signal and speed
Wireless speed up to 150Mbps, ideal for surfing, emailing, online gaming and even HD video
streaming
Gets your secure wireless network up and running in seconds by using the Resource CD
Advanced wireless security WPA/WPA2 encryption standards get you up and running safely
Easily setup a WPA2 encrypted secure connection at a push of the WPS button
Supports Infrastructure and Ad-Hoc modes
Supports Wi-Fi Direct
Supports Soft AP
Supports Windows 2000/XP/Vista/7
Fully compatible with all IEEE 802.11b/g/n products
150Mbps Wireless N USB Adapter
www.phicomm.com
3
Chapter 2: Install Driver & Utility
Chapter 2: Install Driver & Utility

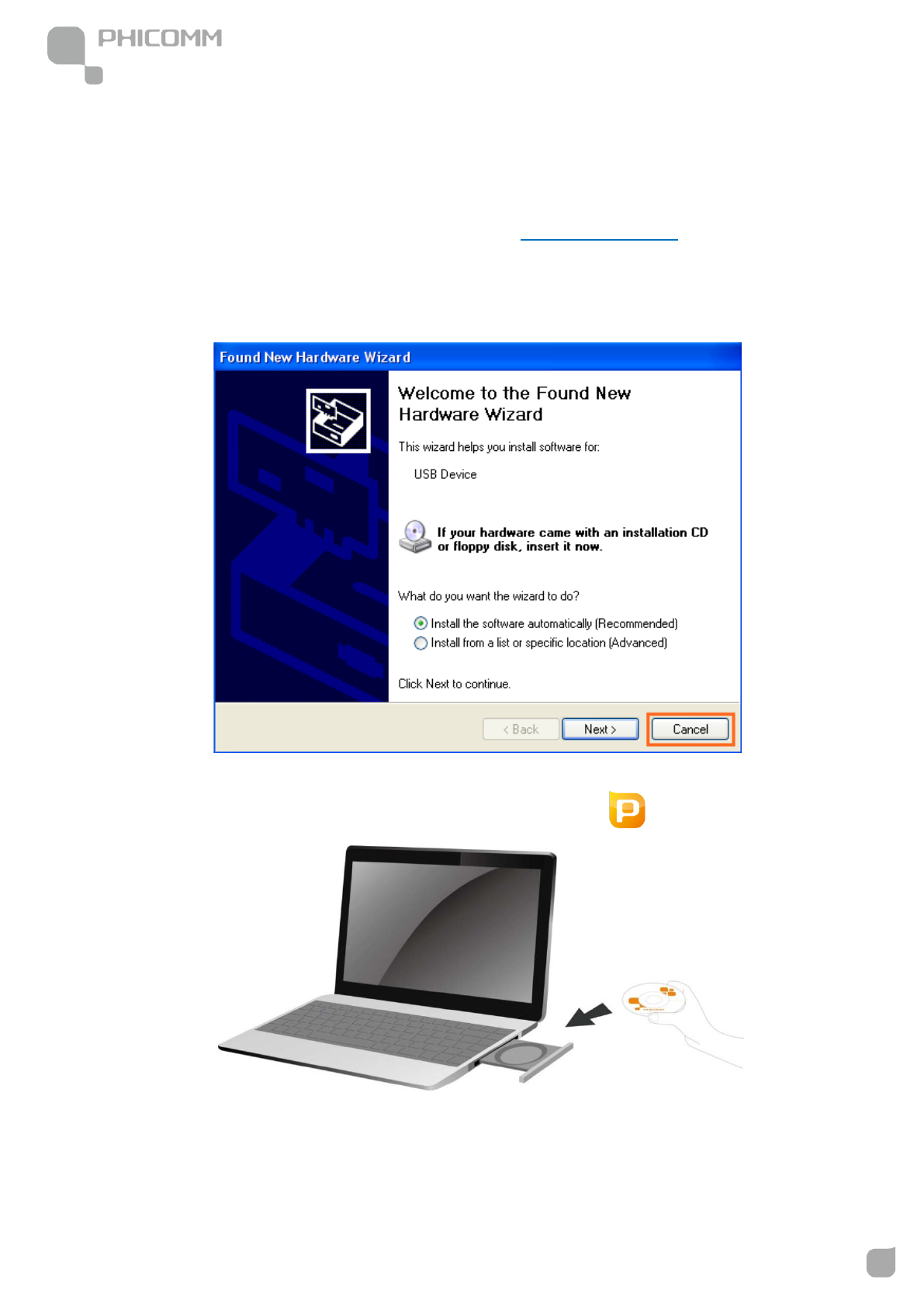

Note: Please download the driver from our website www.phicomm.com
1. Fix the enclosed antenna onto the USB adapter, and then plug it into your computer. The
window as below might be popped up. Click Cancel.
if your computer is
not equipped with CD drive.
2. Insert the Resource CD into your computer, the Setup Wizard will pop up on the screen
automatically. Or please click My Computer > CD-ROM Drive ( Autorun.exe).
150Mbps Wireless N USB Adapter
www.phicomm.com
4
Chapter 2: Install Driver & Utility

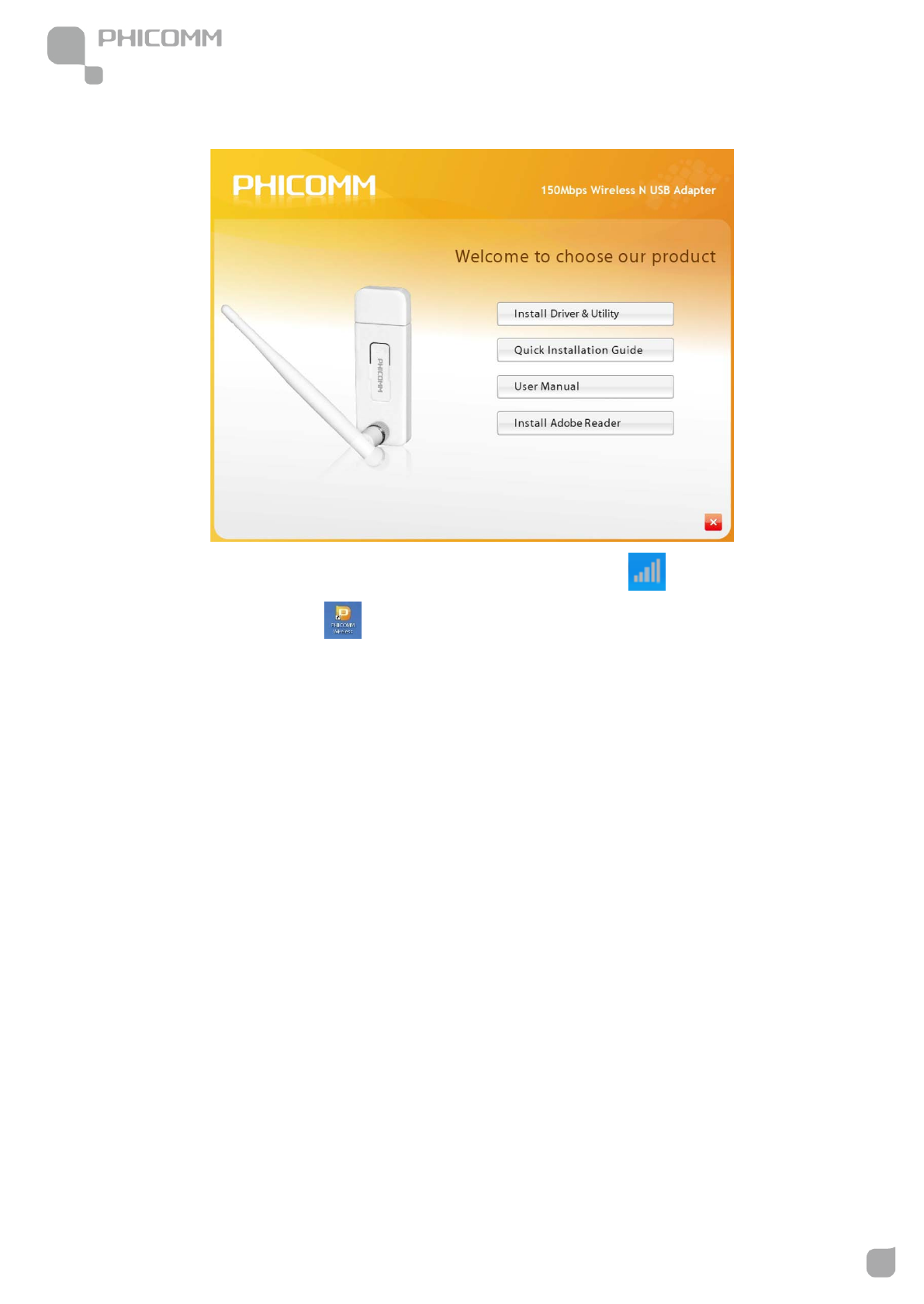

3. Click Install Driver & Utility and follow the step-by-step instructions to finish the driver and
utility installation.
After installing the driver and utility, a PHICOMM Wireless Utility icon will appear on your
taskbar, and a utility shortcut will show on your desktop.
150Mbps Wireless N USB Adapter
www.phicomm.com
5
Chapter 3: How to Use the Product
Chapter 3: How to Use the Product
Use under Client Mode

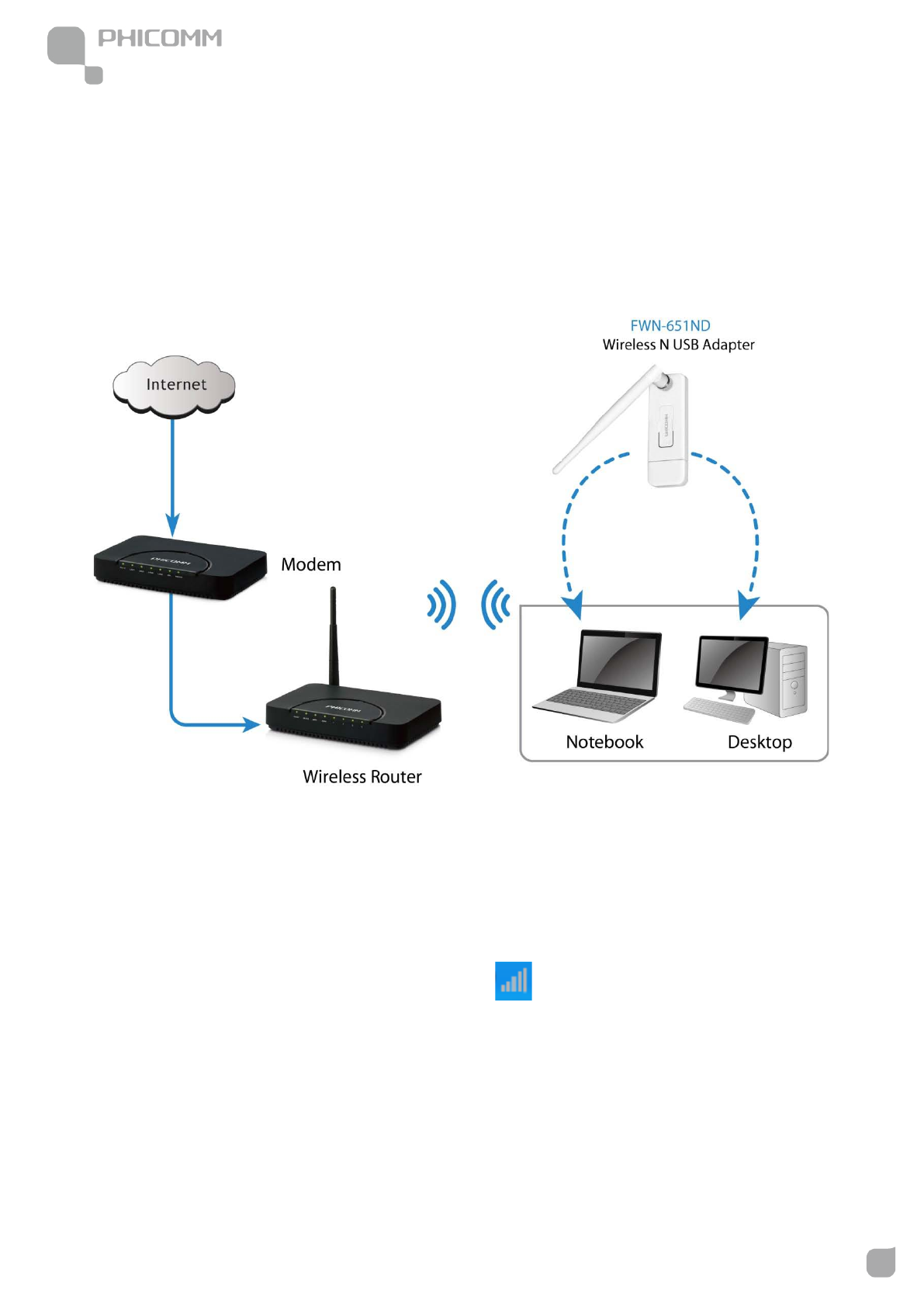

FWN-651ND is defaulted to working under Client mode as a wireless signal receiver, you can link
your device to a wireless network by plugging the adapter into your network device.
Under this mode, many functions can be realized such as network connecting, WPS, profile
management and Wi-Fi direct connection etc.
Connect to a Wireless Network

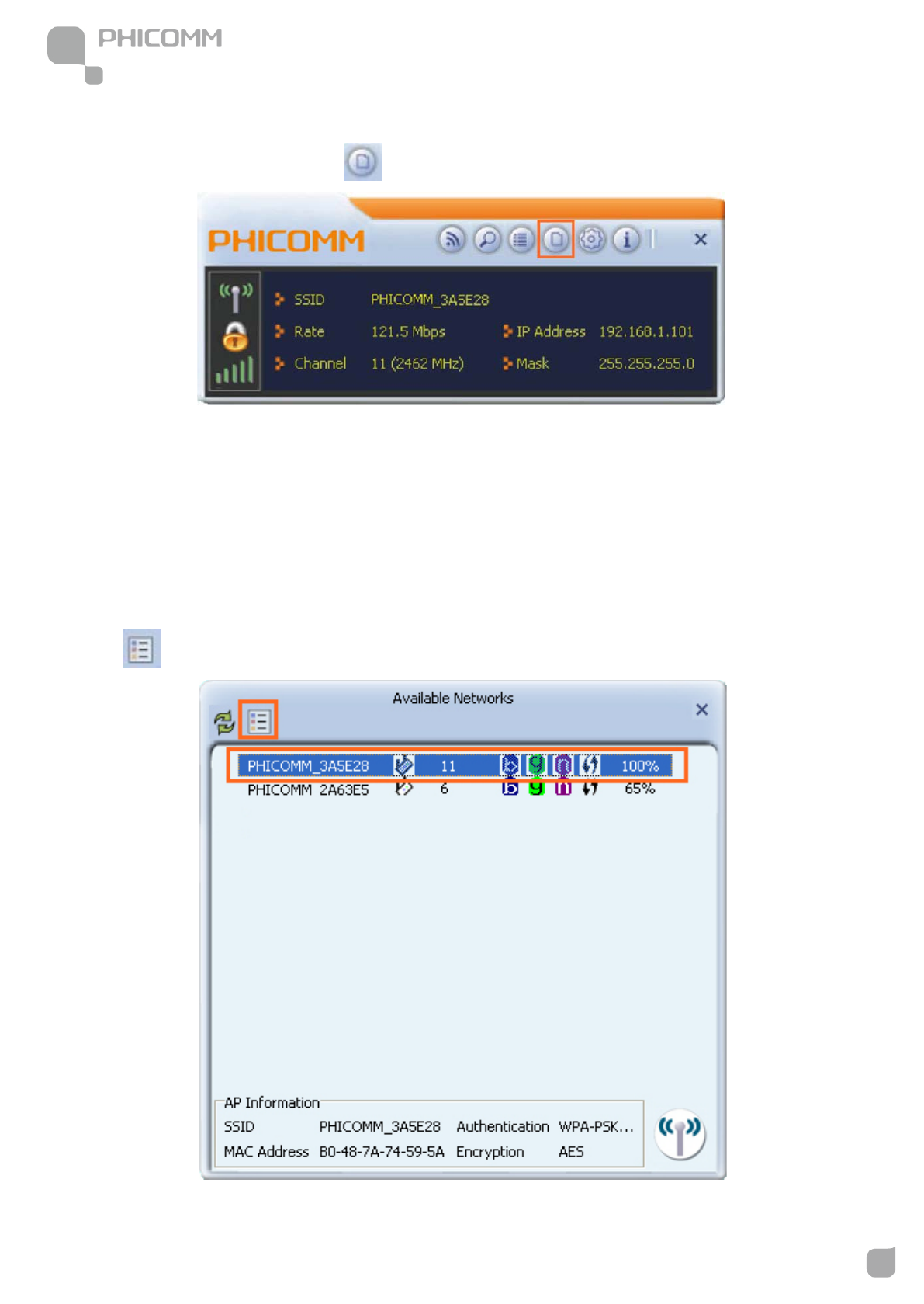

1. Double click the PHICOMM Wireless Utility icon on your taskbar. The utility window
will pop up.
150Mbps Wireless N USB Adapter
www.phicomm.com
6
Chapter 3: How to Use the Product
2. Double click the network that you would like to connect from the Available Networks Table
on the right. Click the icon to get into the next step.
3. Input the password of your wireless network, and then click the icon .
150Mbps Wireless N USB Adapter
www.phicomm.com
7
Chapter 3: How to Use the Product

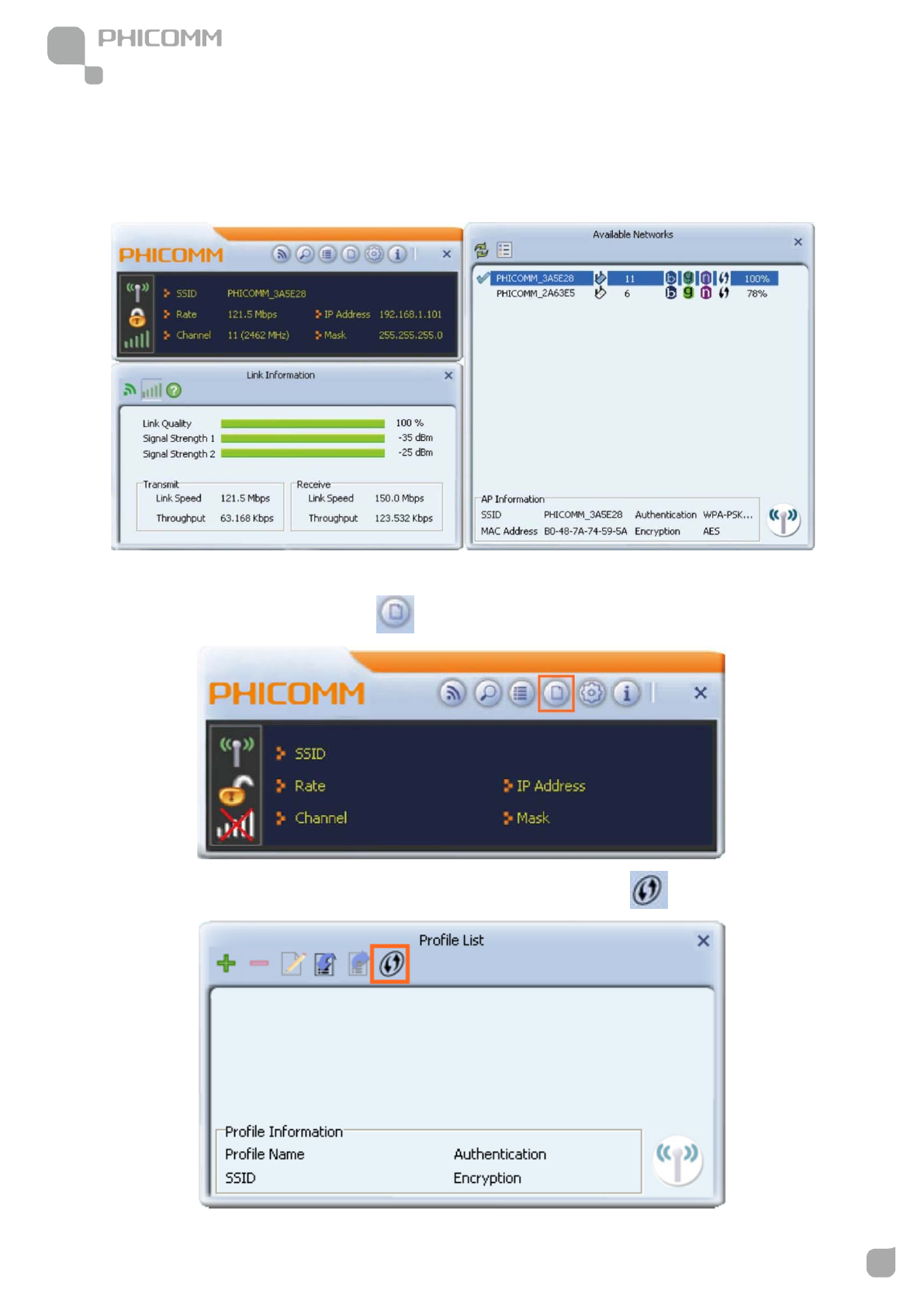

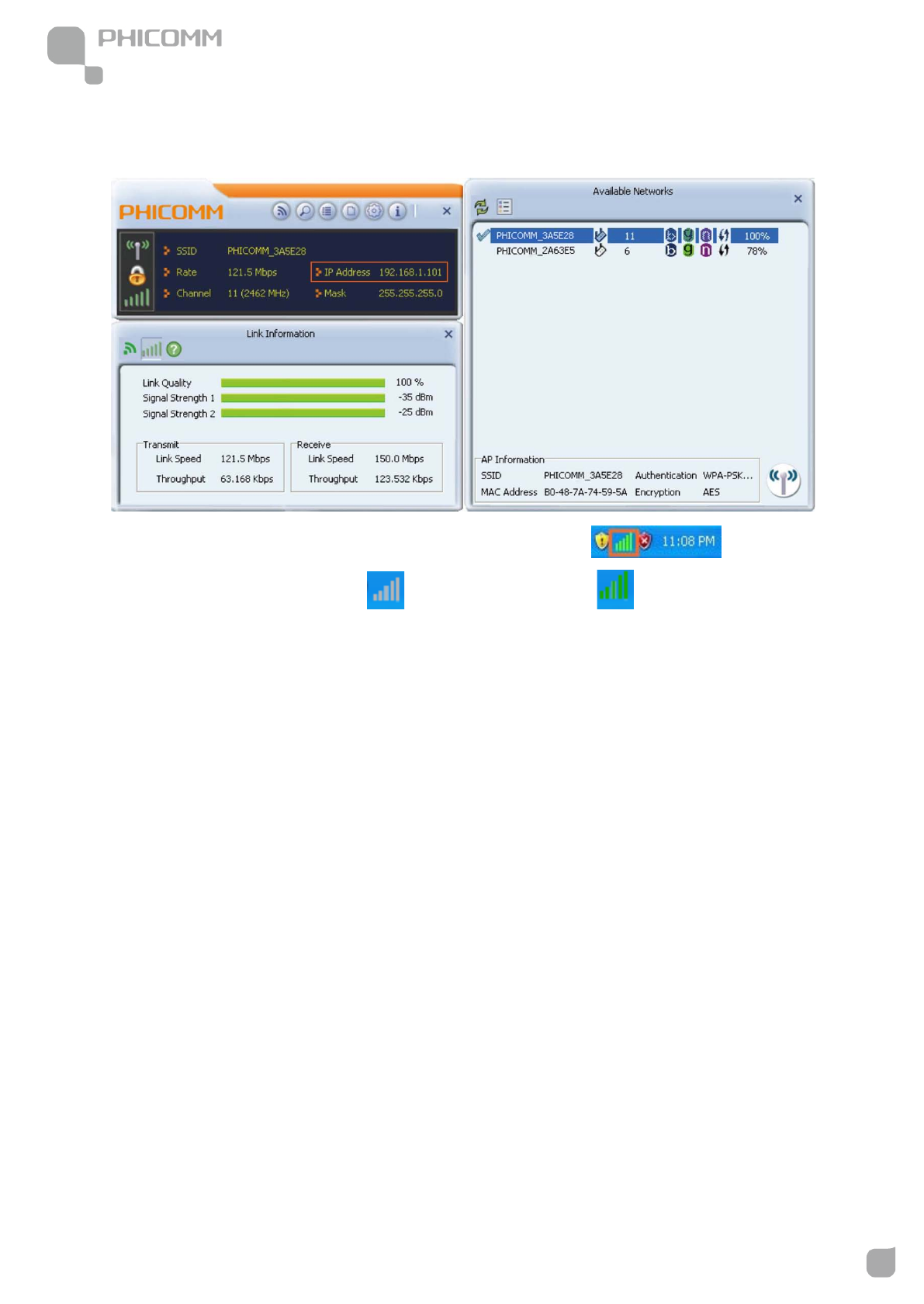

4. Wait for a second till the following page appears. If the IP Address displays as 0.0.0.0, you are
failed to connect to the network, please try again. If not, the wireless network connection is
successful.
The PHICOMM Wireless Utility icon on the taskbar will display as . Green bars
show the quality of wireless signal, means no signal while means full signal.
Enable WPS Function
You can apply WPS in three ways:
WPS Button (Recommended) - The device to which you are connecting must have a WPS
button available on its panel.
PBC - The device to which you are connecting must have a WPS button available on its panel
or as part of its software interface.
PIN Code - Use this method if the device to which you are connecting has no WPS button.
150Mbps Wireless N USB Adapter
www.phicomm.com
8
Chapter 3: How to Use the Product
A. Connect via the WPS button
1. Push the WPS button on the front panel of the Wireless Router.
2. Within two minutes, press and hold the WPS button on the adapter for 2 to 3 seconds.
3. Wait for the adapter to connect to the Wireless Router.
B. Connect via the PBC
1. Click the Profile Settings button on the PHICOMM Wireless Utility.
2. The Profile List screen displays. In this page, click the WPS button .
150Mbps Wireless N USB Adapter
www.phicomm.com
9
Chapter 3: How to Use the Product

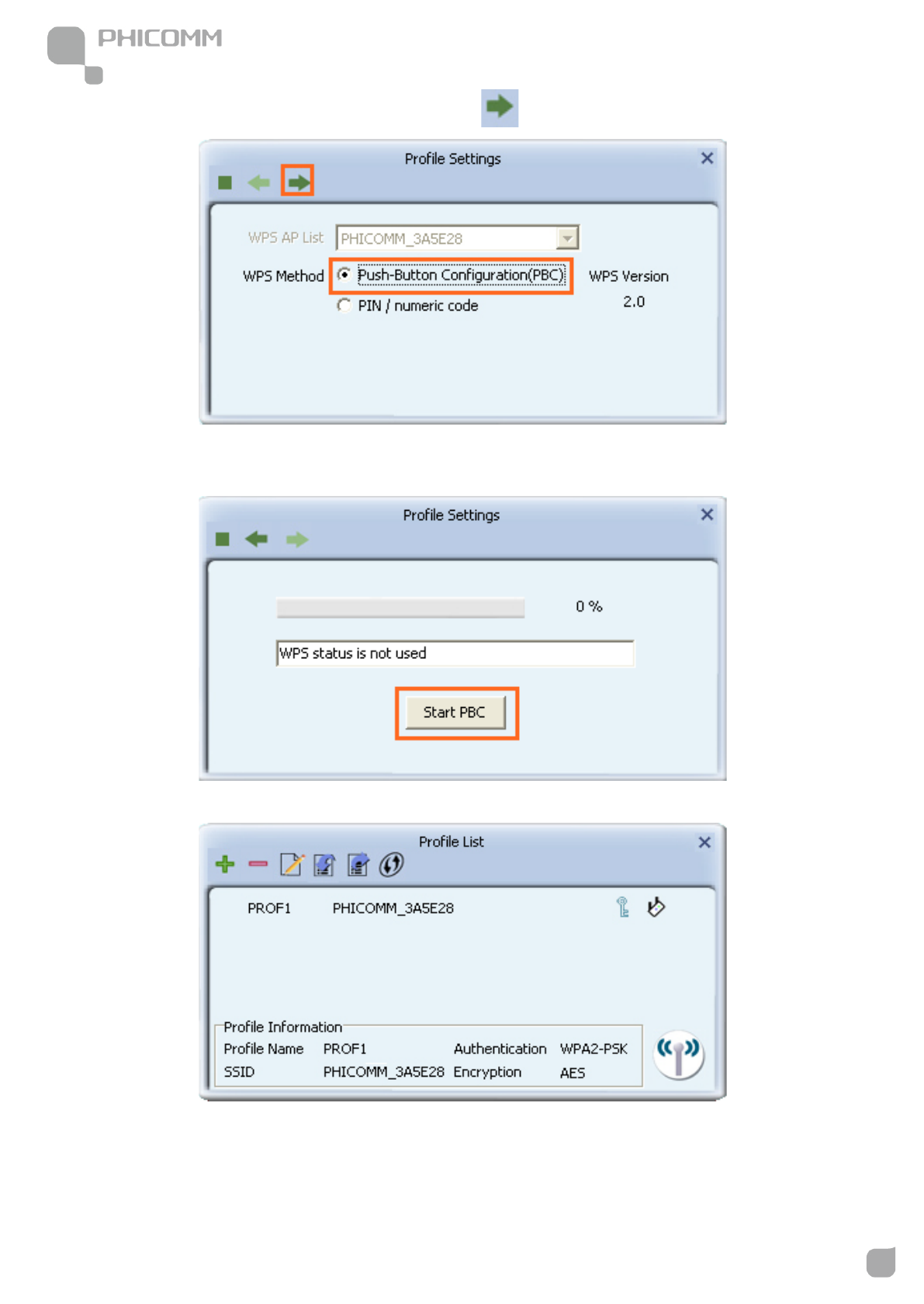

3. Select Push-Button Configuration (PBC). Click to continue.
4. Click Start PBC. At the same time (within 120 seconds) click the WPS button on the device
to which you are connecting.
5. Once connected, your WPS profile appears in the Profile List.
150Mbps Wireless N USB Adapter
www.phicomm.com
10
Chapter 3: How to Use the Product

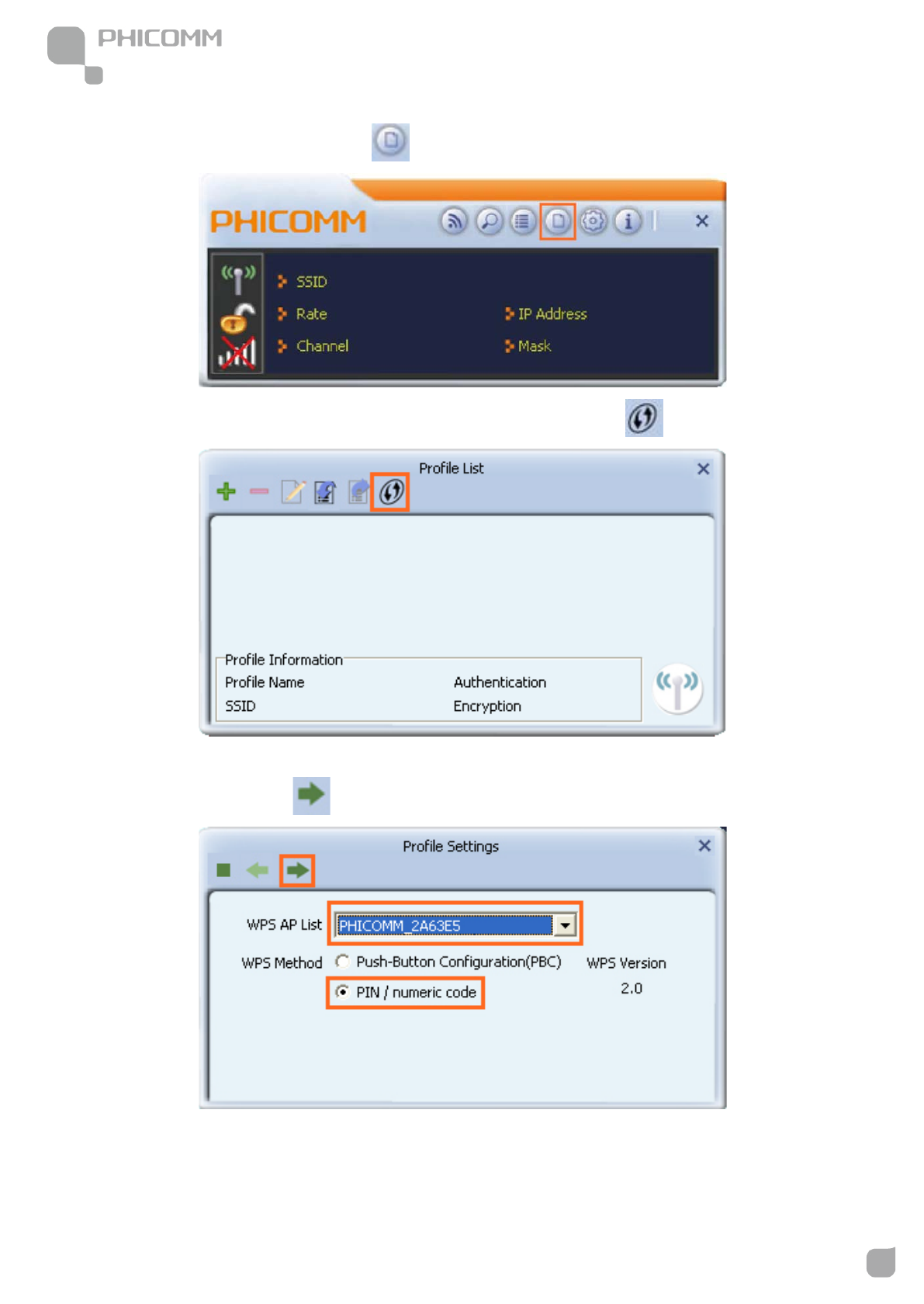

C. Connect via the PIN code
1. Click the Profile Settings button in the PHICOMM Wireless Utility.
2. The Profile List screen displays. In this page, click the WPS button .
3. Select PIN / numeric code, in the WPS AP List field, select the name of the network to which
you connecting. Click to save your settings.
150Mbps Wireless N USB Adapter
www.phicomm.com
11
Chapter 3: How to Use the Product

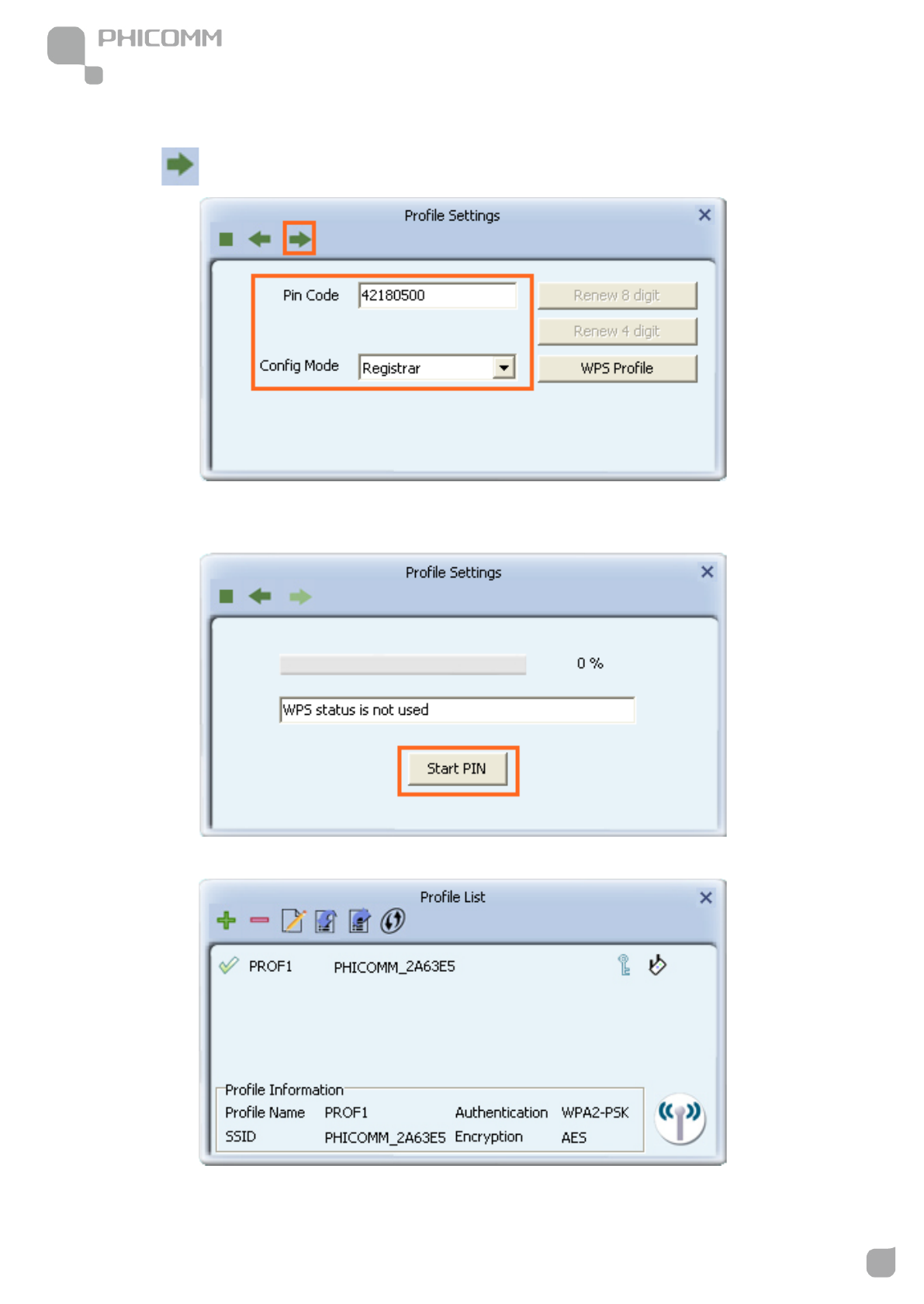

4. Select Registrar In the Config Mode field, input the PIN Code provided by the device to
which you are connecting (Usually you can find the PIN code on the label of the device). And
click to save your settings.
5. Click Start PIN. And then (within two minutes) to activate the corresponding WPS PIN
connection function on the device to which you are connecting.
6. Once connected, your WPS profile appears in the Profile List.
150Mbps Wireless N USB Adapter
www.phicomm.com
12
Chapter 3: How to Use the Product
Manage Connection Profile
Click the Profile Settings button to display the Profile List screen.
If you need to connect to different wireless access points at different time, like the access point
of your home, office, cybercafé, or public wireless service, you can store the connection
parameters (encryption, passphrase, security etc.) as a profile for every access point, so you don’t
have to input these parameters every time when you want to connect to a specific wireless
access point.
A. Add a new profile
1. Select a network from the Available Networks Table, and click the Add to Profile button
.
150Mbps Wireless N USB Adapter
www.phicomm.com
13
Chapter 3: How to Use the Product

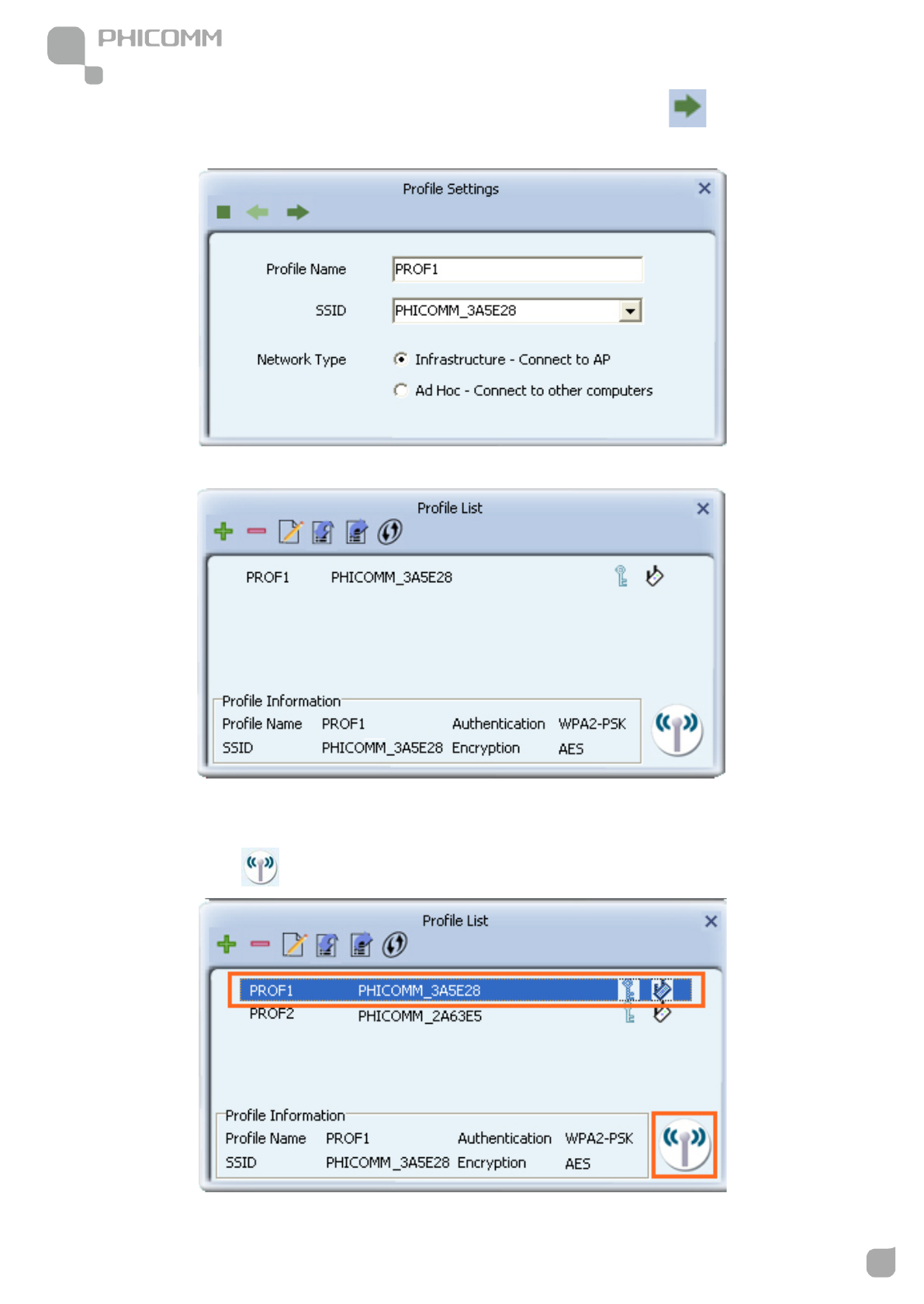

2. Settings of the selected network will be automatically displayed. Click to finish. If
required, enter security settings such as the security key for your network.
3. After you have set up a profile, it appears in the Profile List.
B. Use the profile to connect to network
1. In the Profile List, select the profile for the network to which you are connecting. Click the
Connect button .
150Mbps Wireless N USB Adapter
www.phicomm.com
14
Chapter 3: How to Use the Product

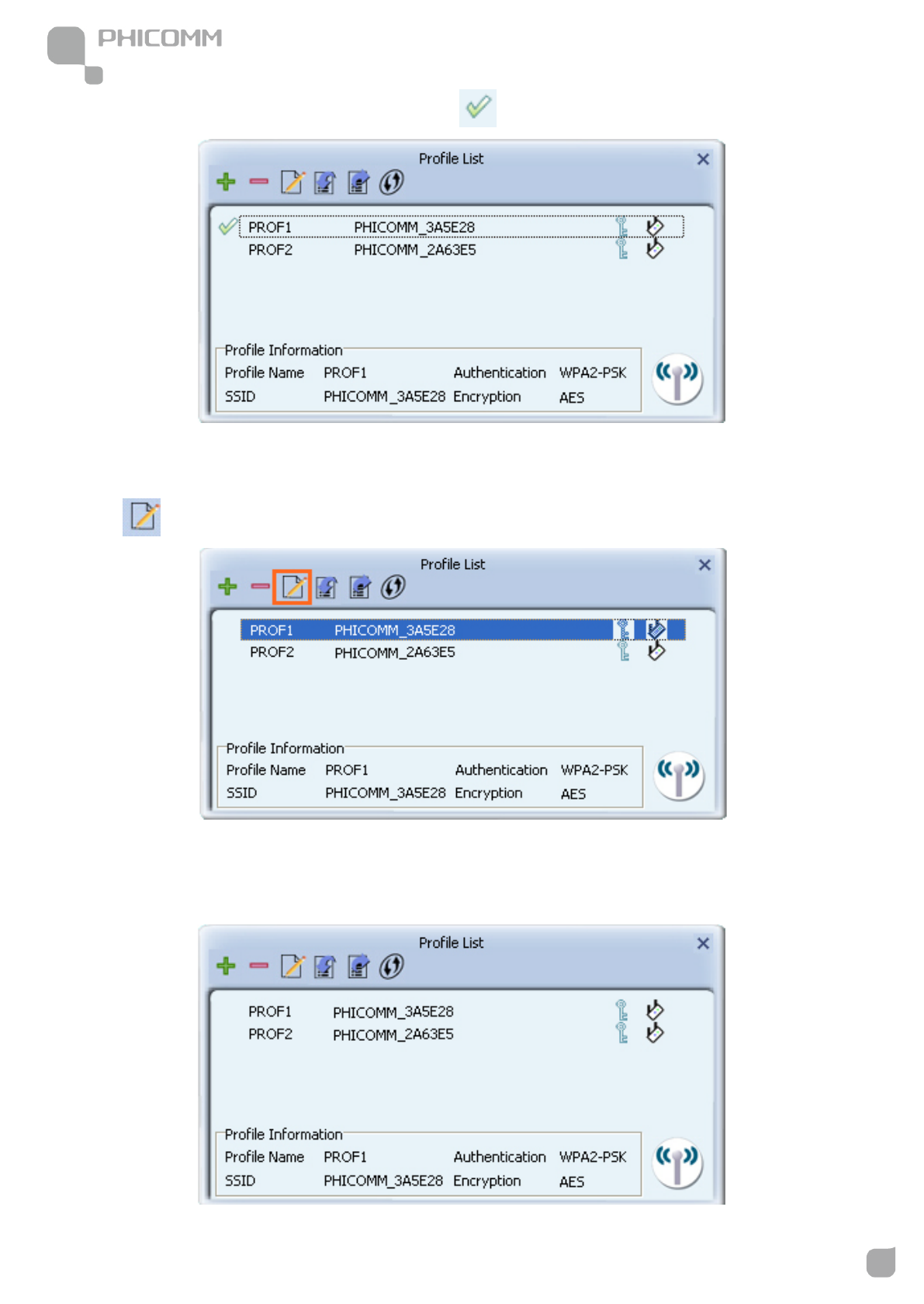

2. If the connection is successful, the tick icon appears.
C. Edit an existing profile
1. Select the profile which you want to edit from the Profile List, and click the Edit button
.
2. Follow the step-by-step instructions to edit the settings. After you have completed it, it
appears in the Profile List.
150Mbps Wireless N USB Adapter
www.phicomm.com
15
Chapter 3: How to Use the Product

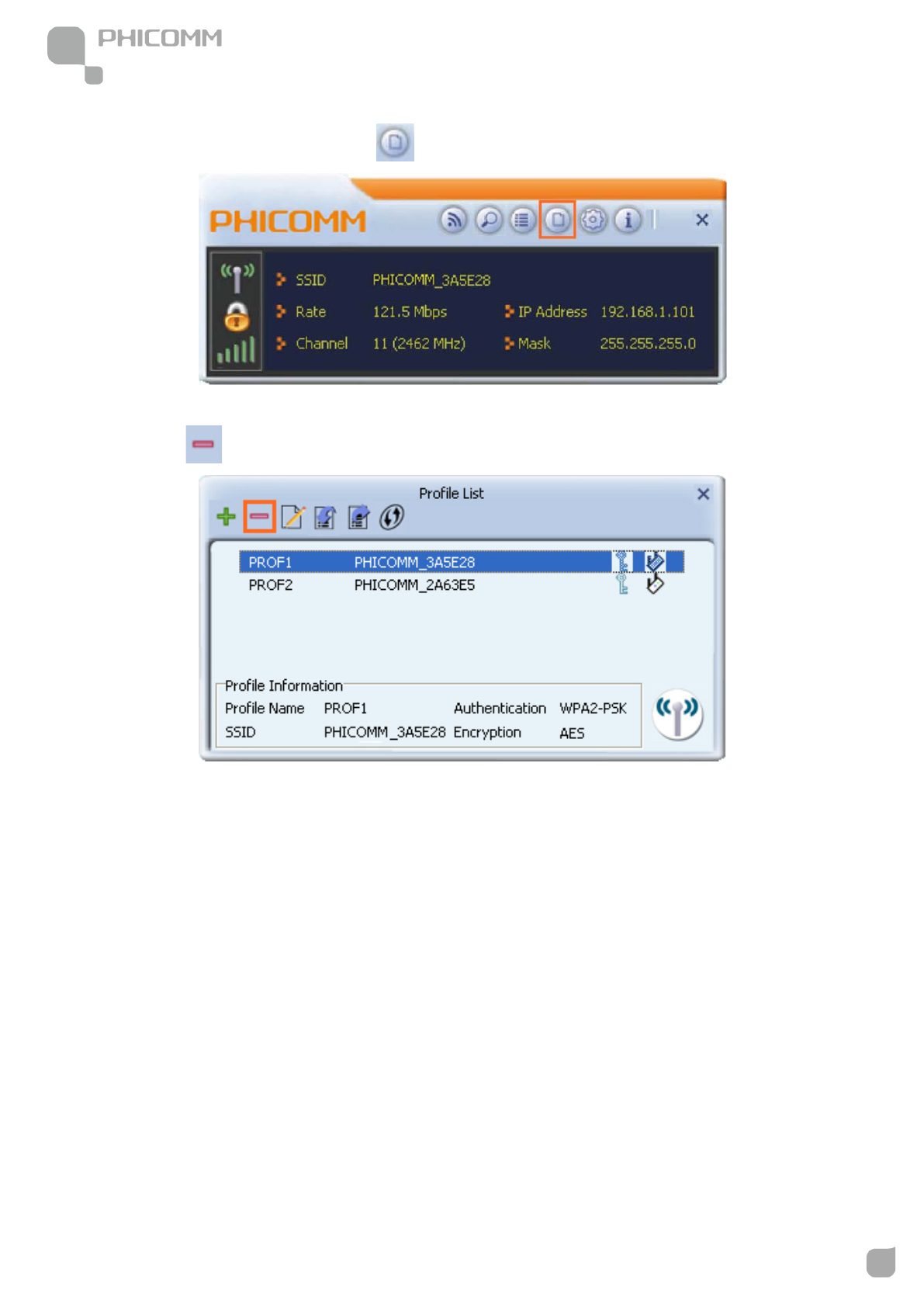

D. Remove an existing profile
1. Click the Profile Settings button to display the Profile List screen.
2. Select the profile which you want to remove from the Profile List, and click the Delete
button to remove it.
Share Files between PCs
Our product also supports you to connect one computer or device with another using Wi-Fi
direct connecting function. With this function, there is no need for an AP or wireless router. In
comparison to alternatives such as Bluetooth, Wi-Fi Direct offers faster speeds (up to 250 Mbps
depending on your network environment), with a greater range (up to 219 yards/ 200 meters)
with stronger security (WPA2-PSK with AES encryption).
For instructions on making and accepting a Wi-Fi Direct connection using the PHICOMM
Wireless Utility, follow the steps given below.
150Mbps Wireless N USB Adapter
www.phicomm.com
16
Chapter 3: How to Use the Product

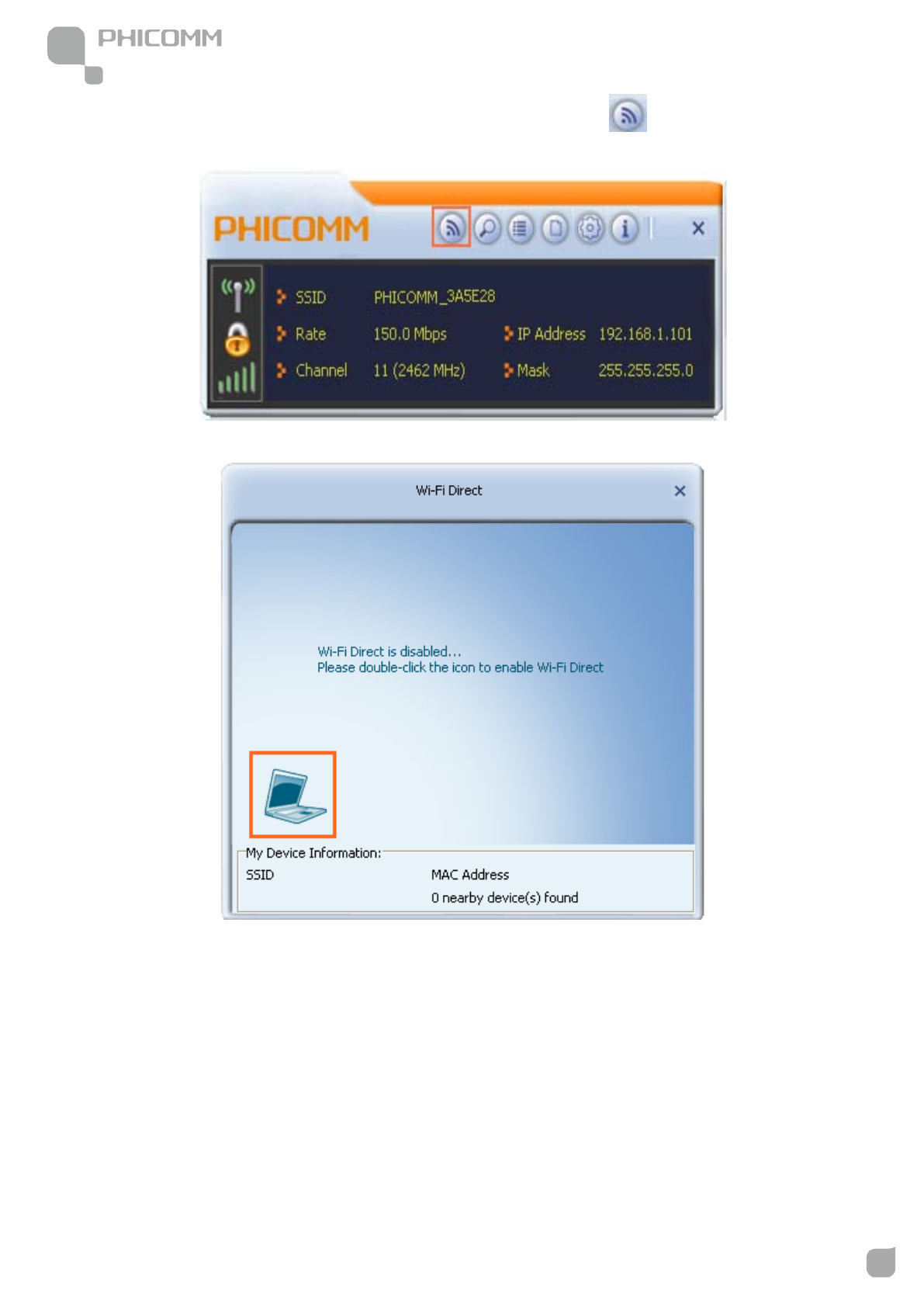

1. To access the Wi-Fi Direct screens, click the Wi-Fi Direct button on the PHICOMM
Wireless Utility.
2. The Wi-Fi Direct screen displays. To enable Wi-Fi Direct, double-click the notebook icon.
150Mbps Wireless N USB Adapter
www.phicomm.com
17
Chapter 3: How to Use the Product

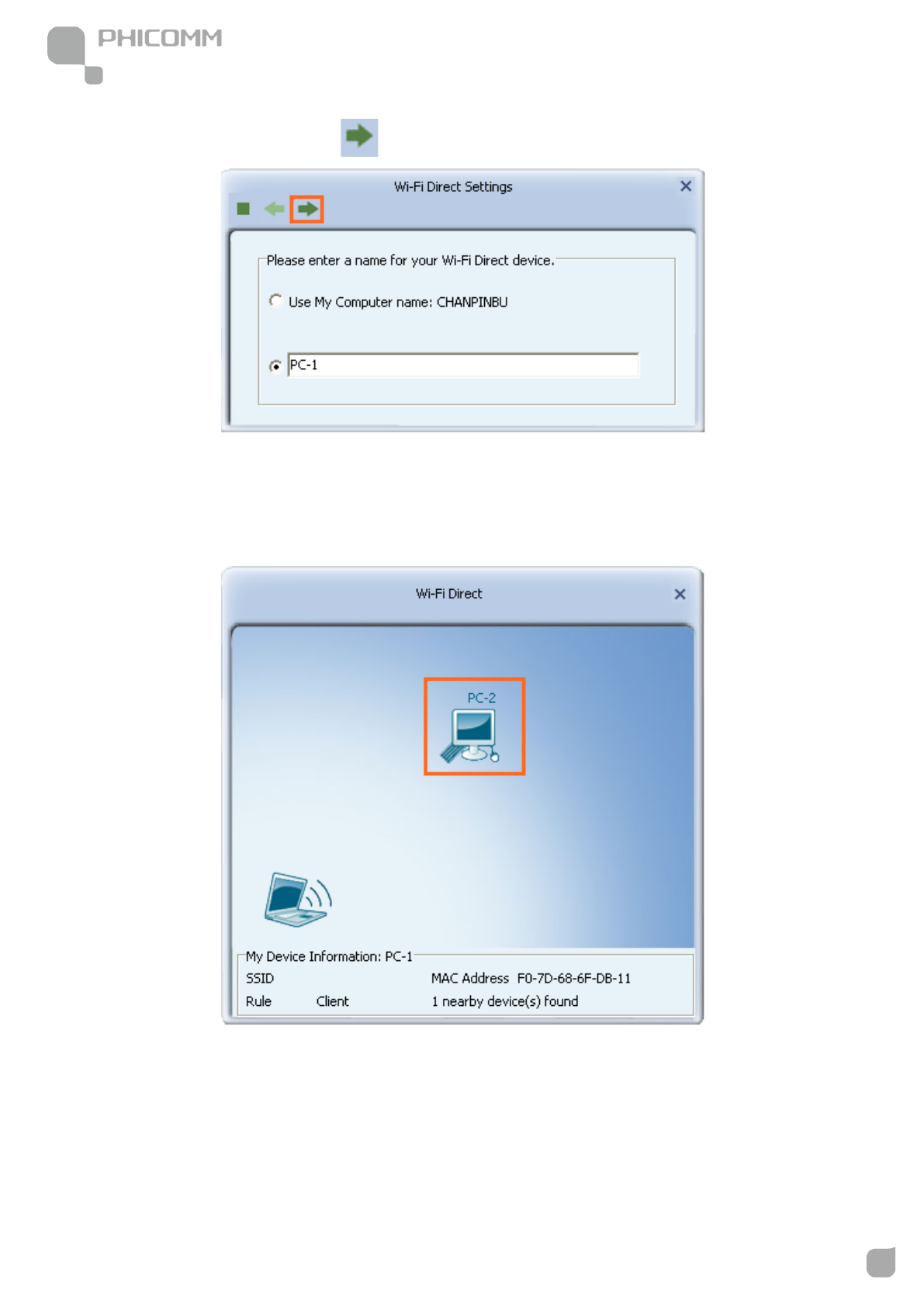

3. To identify your computer to other Wi-Fi Direct enabled devices, select Use My Computer
name or type a name. Click to save your settings.
4. The following screen displays available Wi-Fi Direct enabled computers and devices.
Right-click the notebook icon, select Scan to refresh and wait several seconds until all
available devices are detected.
To connect to a computer or device, double-click its icon.
150Mbps Wireless N USB Adapter
www.phicomm.com
18
Chapter 3: How to Use the Product
5. Select your connecting method and follow the step-by-step instructions. If your connection
is succeed, the connection details are shown on the screen that displays.

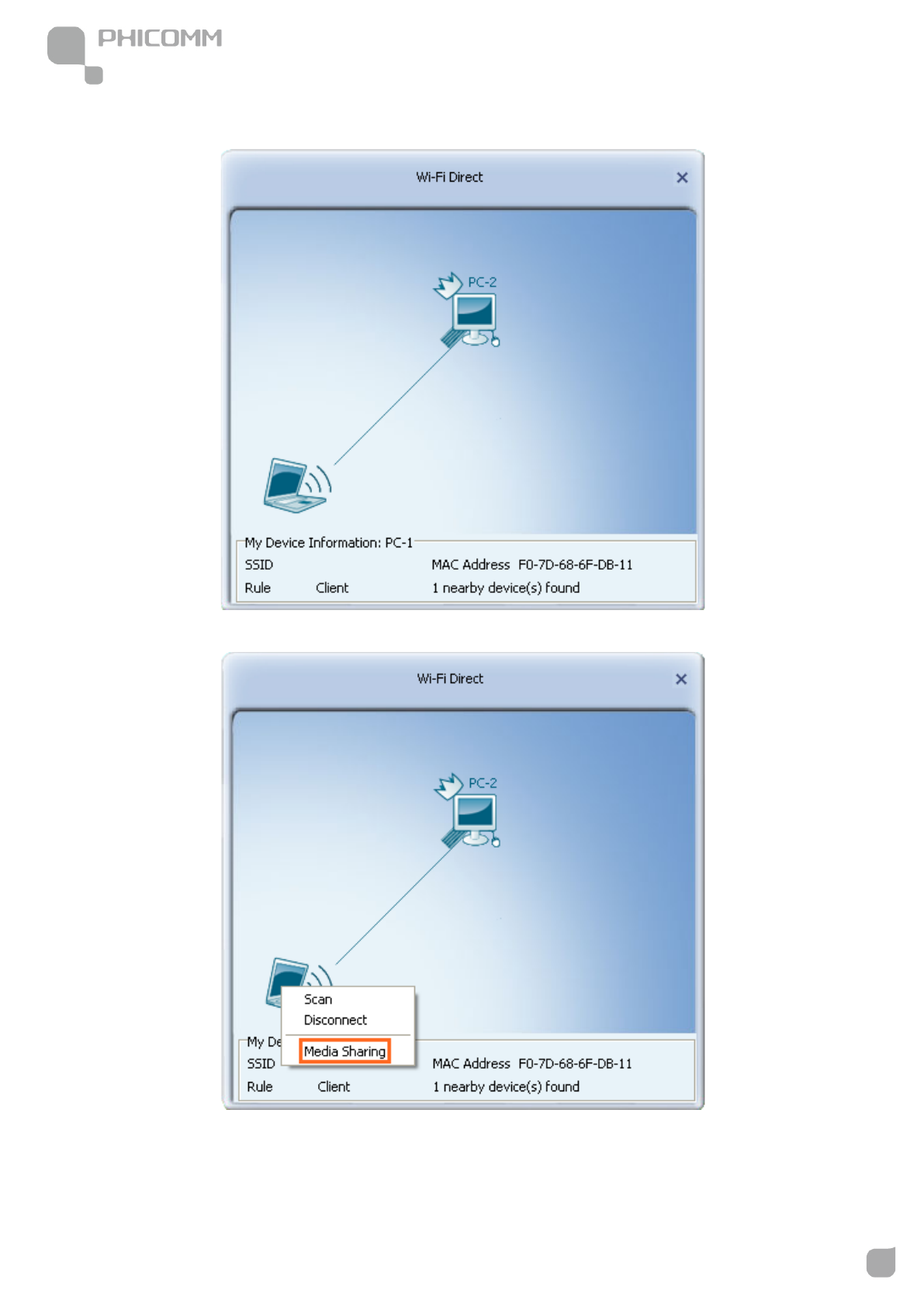

6. In the Wi-Fi Direct screen, right-click on the notebook icon and select Media Sharing.
150Mbps Wireless N USB Adapter
www.phicomm.com
19
Chapter 3: How to Use the Product
7. In the Media Sharing window, click to enable the server and begin sharing media
files located in the Media Sharing folder.
8. The files shared by the media server can now be accessed on the connecting computer. Use
a media player on the connecting computer to locate the server and the media files, and
view them or begin playback.
9. To finish sharing using the PHICOMM Media Server, in the Media Sharing window, press the
stop button .
150Mbps Wireless N USB Adapter
www.phicomm.com
20
Chapter 3: How to Use the Product
Use under AP Mode
The device can also serve as an Access Point to transmit wireless signals and to create a wireless
network, allowing other wireless devices to connect to internet by accessing its network.
Set Up a Wireless Network
1. Right-click the PHICOMM Wireless Utility icon on your taskbar, and then click Switch
to AP Mode. The tray icon will turn from to .
2. Click the AP Setup button to begin setting up your AP.
150Mbps Wireless N USB Adapter
www.phicomm.com
21
Chapter 3: How to Use the Product
3. Set the name of your network (SSID) using up to 32 ASCII characters. Click to
navigate to the next screen.
4. In the Select Country Region drop-down list, leave at the default settings for your region.
Click .

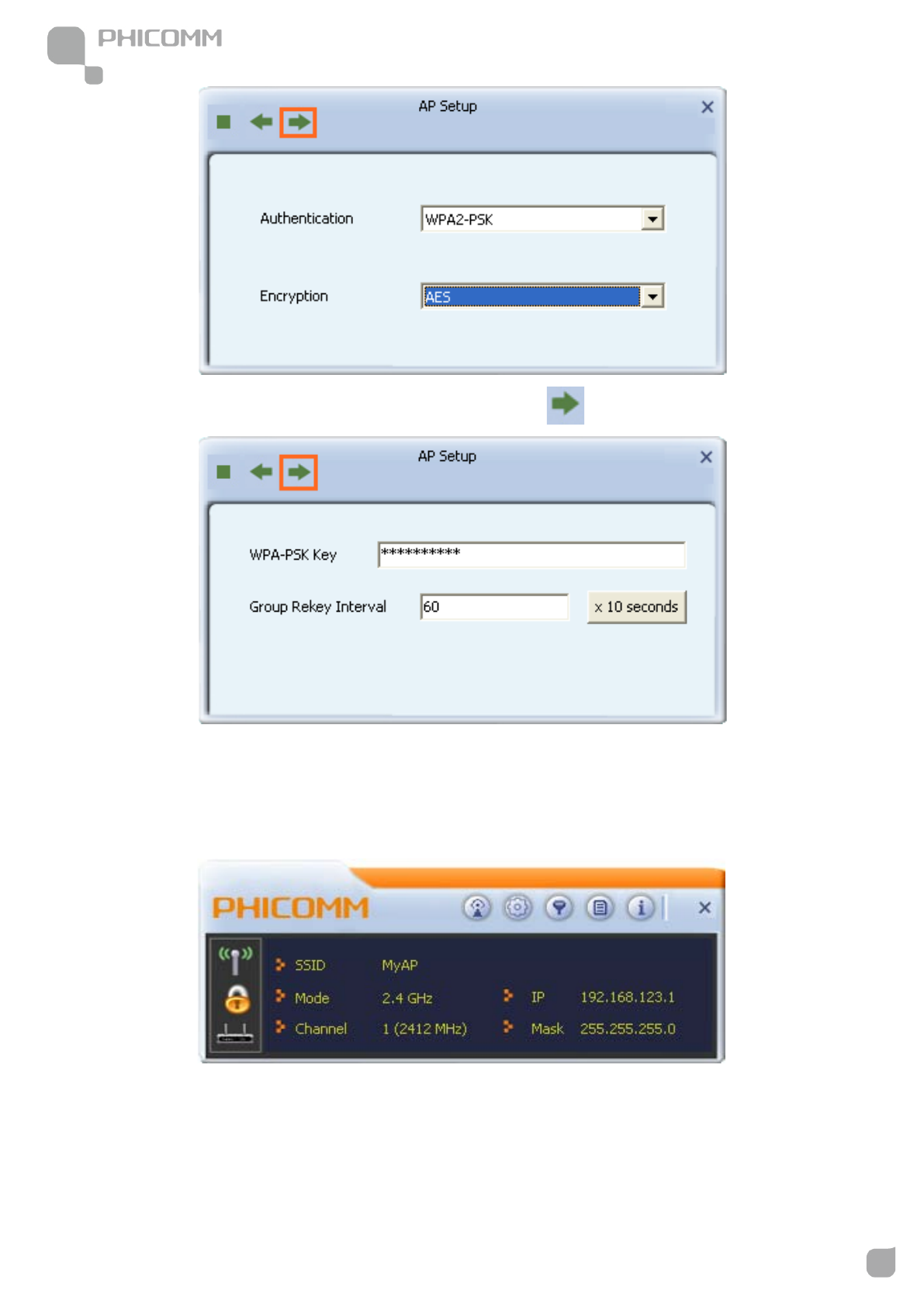

5. Set up wireless security for your network. Select the security method that supported by the
devices using your network (e.g. WPA2-PSK AES). Click .
150Mbps Wireless N USB Adapter
www.phicomm.com
22
Chapter 3: How to Use the Product
6. In the WPA-PSK Key field, type a security key, and click .
Note: Record your wireless security key safely for use when adding other computers or devices
to your wireless network.
7. Once your AP is set up, the Utility displays the name of your network and your AP's IP
address for use when adding computers and devices to your network.
You have completed setting up a wireless network. Other wireless-enabled computers and
devices may now join your network using the same wireless settings as those you configured on
your PHICOMM Wireless Utility.
150Mbps Wireless N USB Adapter
www.phicomm.com
23
Chapter 4: Specification
Chapter 4: Specification
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Interface USB 2.0
Button WPS Button
Data Rate
11n: 150Mbps
11g: 54Mbps
11b: 11Mbps
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power < 20dBm
Antenna 1 x 4dBi Detachable Omni-directional Antenna
Modulation Type DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receive Sensitivity
150M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
System Requirements Microsoft® Windows® 2000, XP, Vista and Windows 7
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -40°C~70°C (-40°F~158°F)
Relative Humidity 10%~90%, non-condensing
Storage Humidity 5%~95%, non-condensing
Dimensions (W x D x H) 73mm x 25mm x 10mm
Certifications FCC, CE, RoHS
Package Contents
1 x Wireless N Adapter
1 x Resource CD
1 x Omni-directional Antenna
1 x USB Extension Cable
1 x Quick Installation Guide
*All references to speed and range are for comparison purposes only. Product specifications, size, and shape are
subject to change without notice, and actual product appearance may differ from that depicted herein.
150Mbps Wireless N USB Adapter
www.phicomm.com
24
Appendix A: Troubleshooting
Appendix A: Troubleshooting
1. How do I know if my adapter is installed properly?

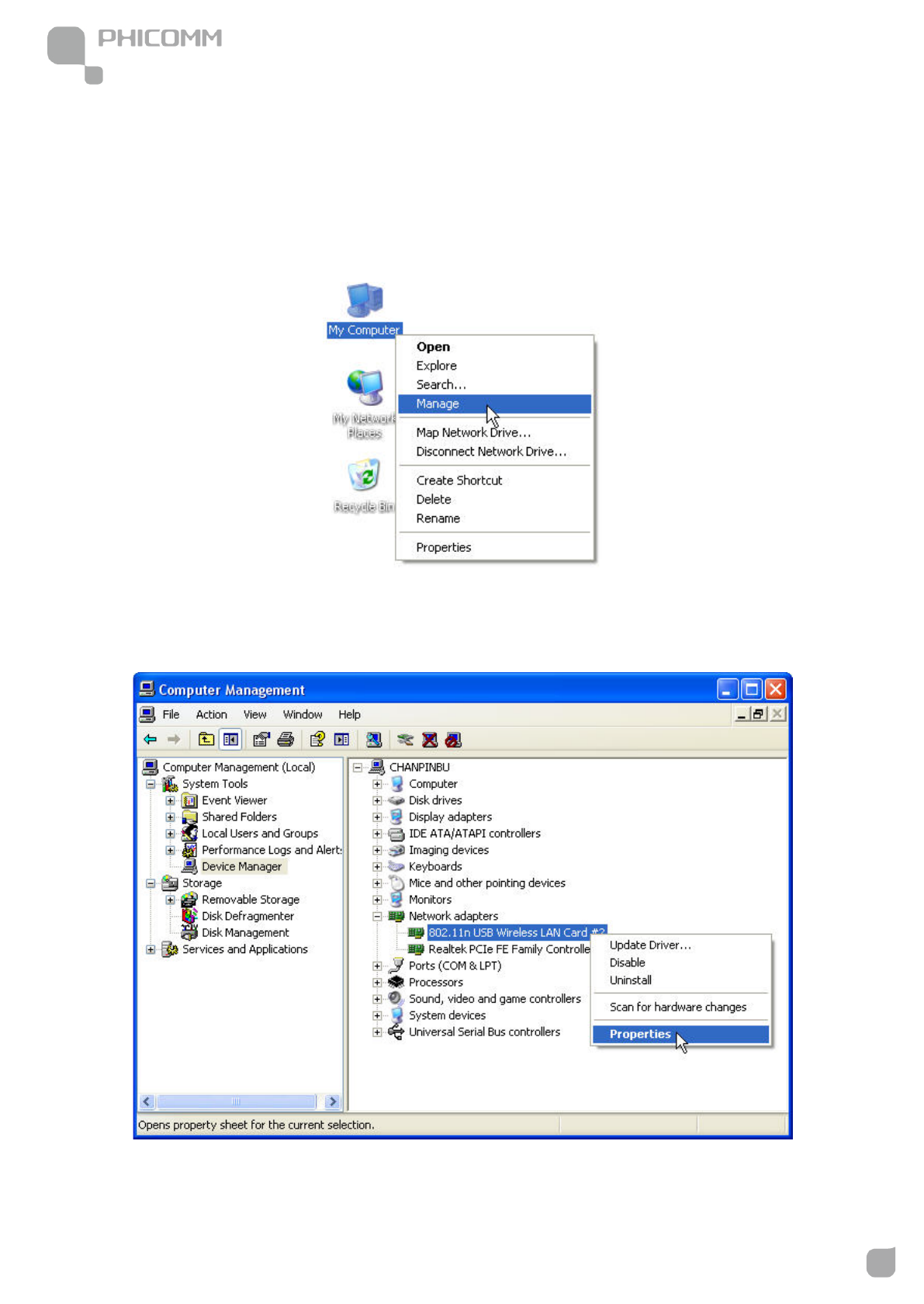

Right click on My Computer icon on your desktop screen, and then choose Manage.
Expand Network Adapters.
Right-click on 802.11n USB Wireless LAN Card, choose Properties.
150Mbps Wireless N USB Adapter
www.phicomm.com
25
Appendix A: Troubleshooting

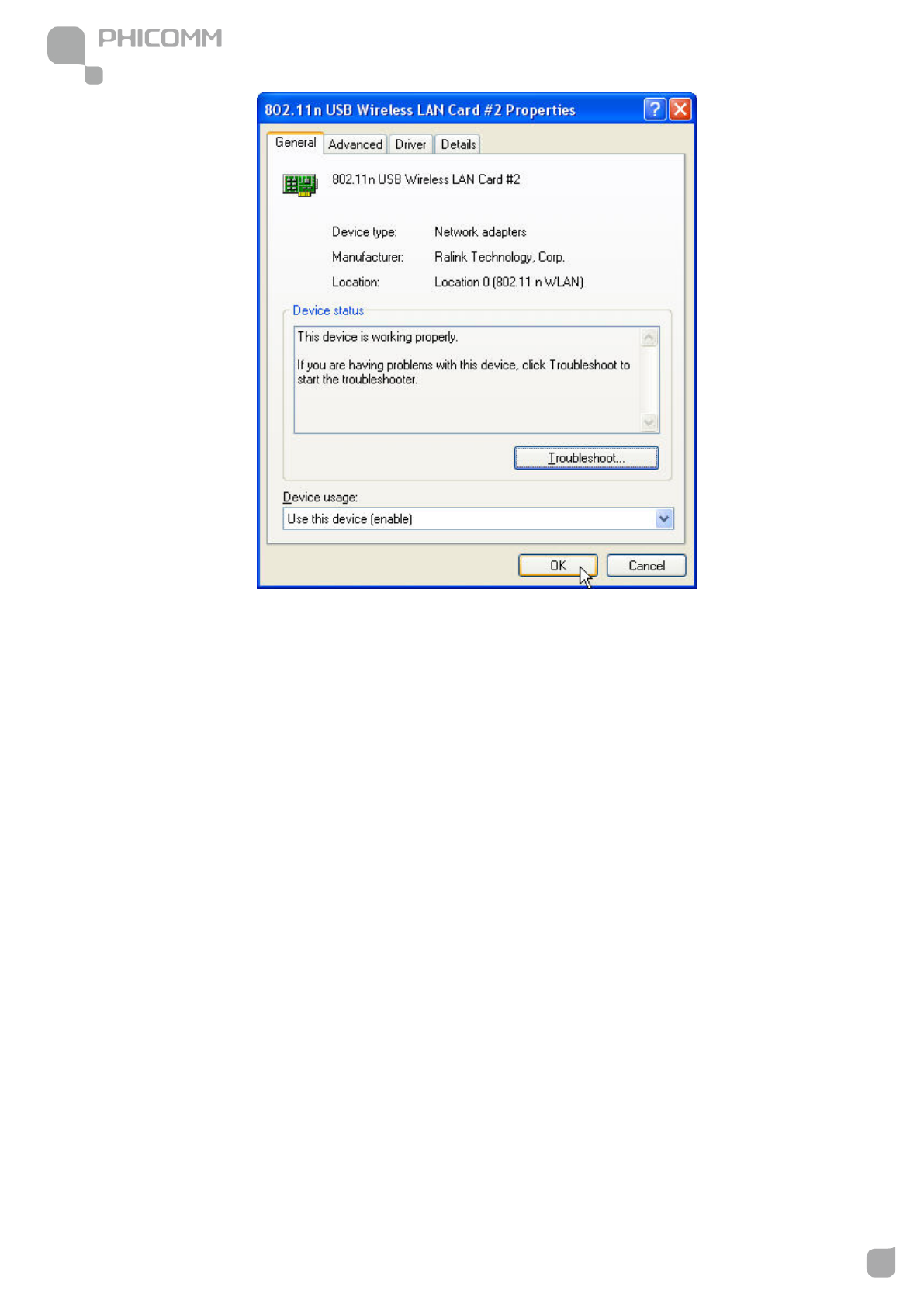

Look under Device Status to check that the device is working properly.
2. The computer does not recognize the wireless network Adapter.
Make sure that the Wireless Network Adapter is properly seated in the computer’s USB port.
If Windows does not detect the hardware upon insertion of the adapter, make sure to
completely remove drivers that were previously loaded.
3. Cannot connect to any access points.
Verify that the wireless network adapter is in infrastructure mode.
Verify that the SSID of your wireless network adapter is set to the same SSID of your access
point.
Verify that the encryption type is the same as that of an access point. If you enabled WEP
encryption, you must also set the same WEP Keys on both sides.
4. The network is slow /having problem when transferring large files.
Move closer to the place where access point is located.
There could be too much people using the same radio channel. Ask the owner of the access
point to change the channel number.
150Mbps Wireless N USB Adapter
www.phicomm.com
26
Appendix B: Certification
Appendix B: Certification
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
• Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
FCC Caution
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
• For product available in the USA market, only channel 1~11 can be operated. Selection of
other channels is not possible.
• This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
• This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
150Mbps Wireless N USB Adapter
www.phicomm.com
27
Appendix B: Certification
CE Mark Warning
Marking with the above symbol indicates compliance with the
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
essential requirements and other
relevant provisions of Directive 1999/5/EC.
National restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and public
service
France
Outdoor use limited to 10 mW
e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz band has
been ongoing in recent years to allow current relaxed
regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area within
a radius of 20 km from the centre of Ny-Ålesund
Russian
Federation None Only for indoor applications
Note: Please don’t use the product outdoors in France.
150Mbps Wireless N USB Adapter
www.phicomm.com
28
Appendix C: Glossary
Appendix C: Glossary
WLAN: Wireless Local Area Network.
802.11: A family of specifications developed by the IEEE for WLAN technology.
802.11a: An extension to 802.11 WLAN standard that provides up to 54 Mbps transmission in
the 5 GHz UNI radio band.
802.11b: An extension to 802.11 WLAN standard that provides up to 11 Mbps transmission in
the 2.4 GHz ISM radio band. 802.11b uses DSSS modulation.
802.11g: An extension to 802.11 WLAN standard that provides up to 54 Mbps transmission in
the 2.4 GHz ISM radio band. 802.11b uses OFDM modulation and is backwards compatible with
802.11b.
802.11n: 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) was formed to help accelerate the IEEE 802.11n development process and promote a
technology specification for interoperability of next-generation wireless local area networking
(WLAN) products.
Ad-Hoc: A group of computers each with wireless adapters, connected as an independent
WLAN.
AES: Advanced Encryption Standard.
SSID: Service Set Identifier. A 32-character unique identifier attached to the header of packets
sent over a WLAN that acts as a password when a mobile device tries to connect to the BSS.
TCP/IP: Transmission Control Protocol/Internet Protocol.
TKIP: Temporal Key Integrity Protocol.
WEP: Wired Equivalent Privacy. A security protocol for WLANs defined in the IEEE 802.11
standard.
WPA: Wi-Fi Protected Access.
WPA2: Wi-Fi Protected Access 2. The next generation of Wi-Fi security, based on the 802.11i
standard.
WPA2-PSK: Wi-Fi Protected Access 2-Pre-shared Keys.
WPA-PSK: Wi-Fi Protected Access-Pre-shared Keys.
Shanghai Feixun Communication Co., Ltd.
E-mail: support@phicomm.com
Website: www.phicomm.com
Copyright © 2011 Shanghai Feixun Communication Co., Ltd. All rights reserved.

Navigation menu
