Philio Technology PSE02 Multi Sound Siren User Manual
Philio Technology Corporation Multi Sound Siren
User Manual.pdf
Multi Sound Siren PSE02
The multi sound siren PSE02 is a wireless siren, based on Z-WaveTM
technology. Z-WaveTM is a wireless communication protocol designed
for home automation, specifically to remotely control applications in
residential and light commercial environments. The technology uses a
low-power RF radio embedded or retrofitted into home electronics
devices and systems, such as lighting, home access control,
entertainment systems and household appliances.
This device is one component of the Z-WaveTM system and is designed
to work with all other Z-WaveTM enabled devices in a home control
network. The device adopt the Z-WaveTM 400 series chip, when your Z-
WaveTM network system is all made by Z-WaveTM 400 series devices. The
network system will have the advantages as below.
•Concurrent multi-channel support reduces external interference.
•Better RF range, improve about 10 meters in indoor.
•Support 100 Kbps transmit speed, speed up communication.
Product Overview
Adding to Z-WaveTM Network
There are one tamper key behind the device. It could inclusion,
exclusion, reset or association from Z-WaveTM network.
In the first time, add the device into the Z-WaveTM network. First, make
sure the primary controller is in the inclusion mode. And then power on
the device. The device will auto start the NWI (Network Wide Inclusion)
mode. And it should be included in 5 seconds. You will see the LED
light ON one second.
Function Description
Inclusion
1. Have Z-WaveTM Controller entered inclusion mode.
2. Pressing tamper key three times within 1.5 seconds
will enter inclusion mode.
3. After inclusion successful, the device will wake to
receive the setting command from Z-WaveTM
Controller about 20 seconds.
1

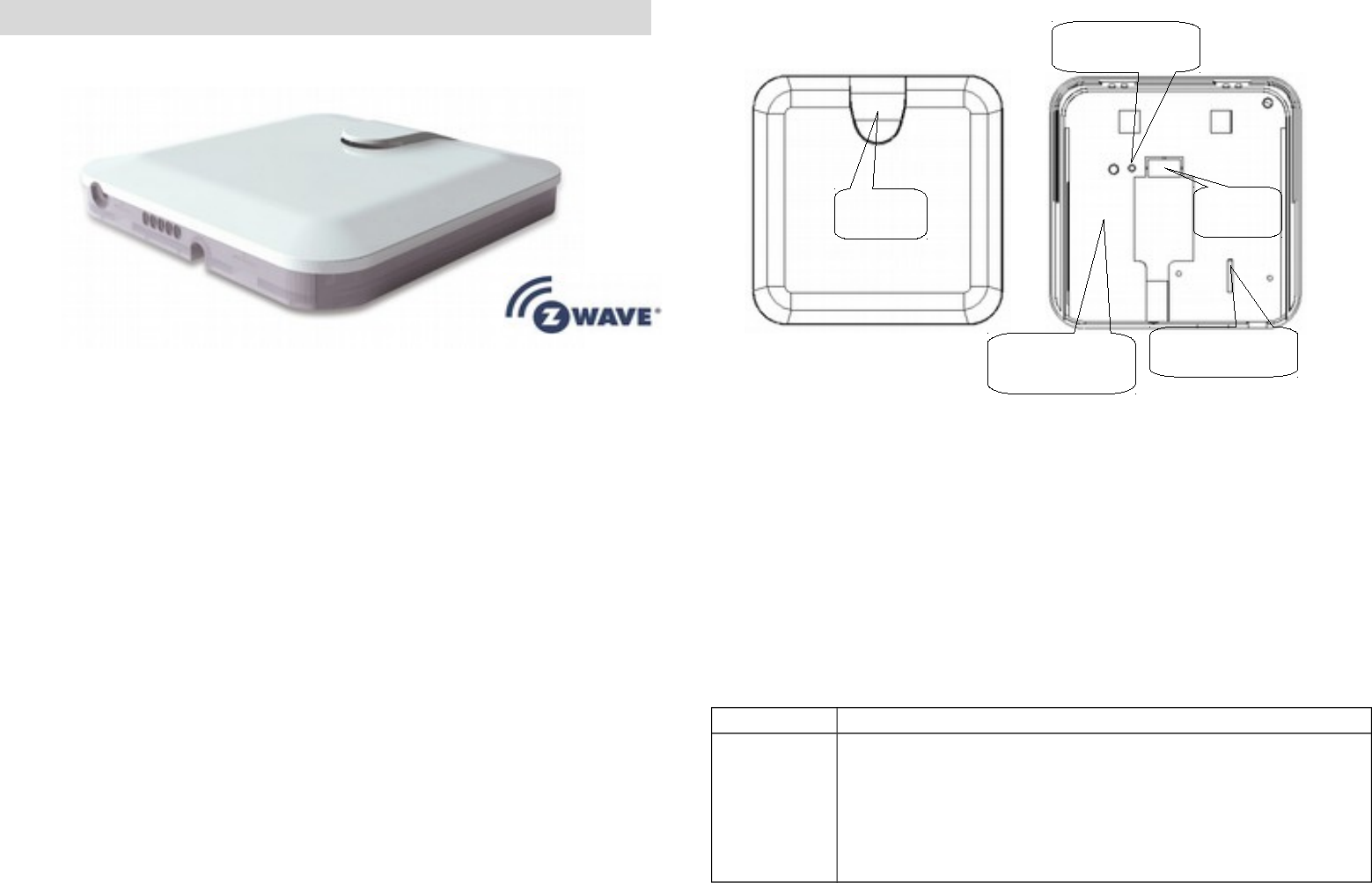

Siren
Tamper Key
Circle Button
Battery
(Optional)
DC Jack
Exclusion
1. Have Z-WaveTM Controller entered exclusion mode.
2. Pressing tamper key three times within 1.5 seconds
will enter exclusion mode.
Node ID has been excluded.
Reset
1. Pressing tamper key four times within 1.5 seconds
and do not release the tamper key in the 4th
pressed, and the LED will turn ON.
2. After 3 seconds the LED will turn OFF, after that
within 2 seconds, release the tamper key. If
successful, the LED will light ON one second.
Otherwise, the LED will flash once.
3. IDs are excluded and all settings will reset to
factory default.
Association
1. Have Z-WaveTM Controller entered association
mode.
2. Pressing tamper key three times within 1.5 seconds
will enter association mode.
Note: The device support 6 groups.
The group 1 is for receiving the report message, like
tamper event.
The group 2 to 6 will map to different sound, when the
device got the BASIC Set 0xFF, it will check is the node
in which group, and play the mapping sound.
The group 2 mapping to emergency alarm.
The group 3 mapping to fire alert.
The group 4 mapping to ambulance sound.
The group 5 mapping to police car sound.
The group 6 mapping to door chime.
•Including a node ID allocated by Z-WaveTM Controller means
inclusion. Excluding a node ID allocated by Z-WaveTM
Controller means exclusion.
•Failed or success in including/excluding the node ID can be
viewed from Z-WaveTM Controller.
Notice 1: Always RESET a Z-WaveTM device before trying to add it to a
Z-WaveTM network.
Notice 2: When the device into NWI mode, any tamper key and
sensor functionality will useless. The NWI will timeout after 3 minutes.
Z-WaveTM Message Report
* Tamper Report:
When the tamper key is pressed over 5 seconds. The device will into
the alarm state. In that state, if the tamper key be released, the device
will unsolicited to send the “Sensor Binary Report” to the nodes in the
group 1.
Sensor Type: Tamper (0x08)
Sensor Value: 0xFF
* Siren Alarm State Report:
When the siren start playing or stop the alarm sounds, the device will
unsolicited to send the “Sensor Binary Report” to the nodes in the
group 1.
Sensor Type: General Purpose (0x01)
Sensor Value: 0xFF (Start play), or 0x00 (Stop play)
Power Up Procedure
When the power on, the device will check is it already adding to the
network? If doesn't, it will auto start the NWI mode. The LED will flash
in every second and continue 3 minutes. Until timeout or the device
successful to inclusion by controller.
2
Play Sound
The device supports using BASIC SET or SWITCH_MULTILEVEL SET to
play the sound. The sound ID is define as follow:
1: Emergency sound.
2: Fire alert.
3: Ambulance sound.
4: Police car sound.
5: Door chime.
6~99: Beep Beep.
0: means stop the sound, but will check the priority.
And the 255 is a special one, if the node priority is 1 or 7, the device
will play the last sound.
The priority 2 will play emergency sound.
The priority 3 will play fire alert.
The priority 4 will play ambulance sound.
The priority 5 will play police car sound.
The priority 6 will play door chime.
Priority Specification
The association group 1 to 6, not only for report message and mapping
to the play sound. It also setting the priority number too. For instance
the node added in the group 3 and this node's priority number will be
3 too. And the node not find in any group, its priority will be 7. The
smaller priority number will have higher priority.
When the device is playing the sound ID 1, only the node with priority
1 or 2 can stop it or change playing another sound.
Playing sound ID 2, stop by priority 3,2,1.
Playing sound ID 3, stop by priority 4,3,2,1.
Playing sound ID 4, stop by priority 5,4,3,2,1.
Manual Battery Shutdown
When the DC power is dropped. The system will auto switch to use the
battery power. If you want to really shutdown the system, please follow
instructions as below.
1. Press and hold the circle button.
2. Click the tamper 3 times in 1.5 seconds.
3. Release the circle button.
4. If shutdown successful, the LED will flash 3 times.
After the battery shutdown, the system won't work anymore, unless the
DC power recovery.
Z-Wave Configuration Settings
Notice: The data size of the configuration settings is 1.
NO. Name Default Valid
Values Description
2 Alarm Duration 6 0~127
Play alarm sound duration, 1 tick is 30
seconds. Default is 3 minutes, maximum
is 63.5 minutes
0: means never auto stop.
Z-Wave Supported Command Class
COMMAND_CLASS_SWITCH_MULTILEVEL
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_VERSION
COMMAND_CLASS_SENSOR_BINARY_V2
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
3
Specifications
Power by DC 5V, and support backup lithium battery (Optional).
Signal (Frequency):
868.4 MHz(EU), 869.85 MHz(EU)
908.4 MHz(US/Canada), 916.0 Mhz(US/Canada)
922~927 Mhz(JP/TW)
921.4 MHz(Australia /New Zealand),
919.8 MHz(Australia /New Zealand)
Range:
Minimum 30 meters indoor,
70 meters outdoor line of sight.
Operating Temperature: -10oC ~ 40oC
For indoor use only.
Specifications subject to change without notice due to continuing
product improvement.
FCC ID: RHHPSE02
FCC Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Warning
Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities. Contact your local government for
information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging
your health and well-being.
When replacing old appliances with new once, the retailer is legally
obligated to take back your old appliance for disposal at least for free
of charge.
4
