Contents
1 Important 4
Safety 4
Notice 5
2 Your Entertainment System 8
Introduction 8
What’s in the box 8
What else you need 8

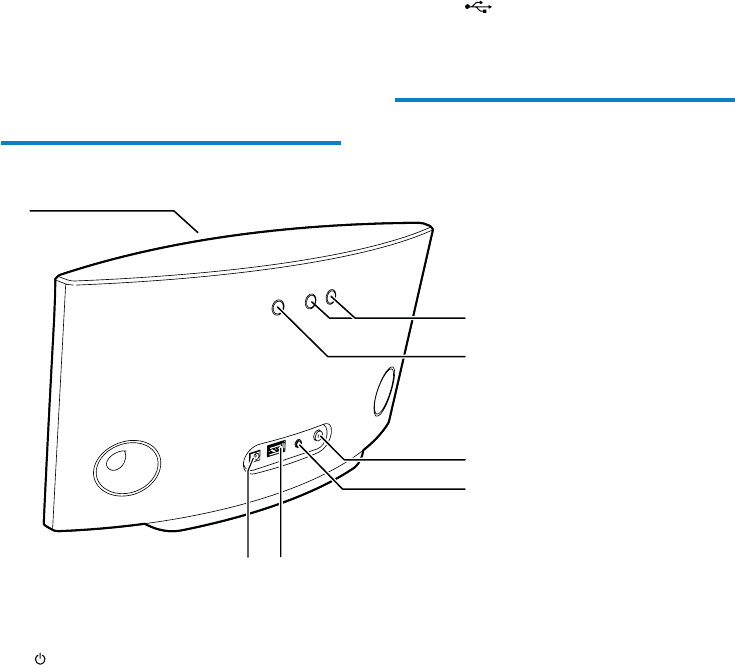

Overview of the main unit 9
Get started to use AirPlay 9
3 Prepare 10

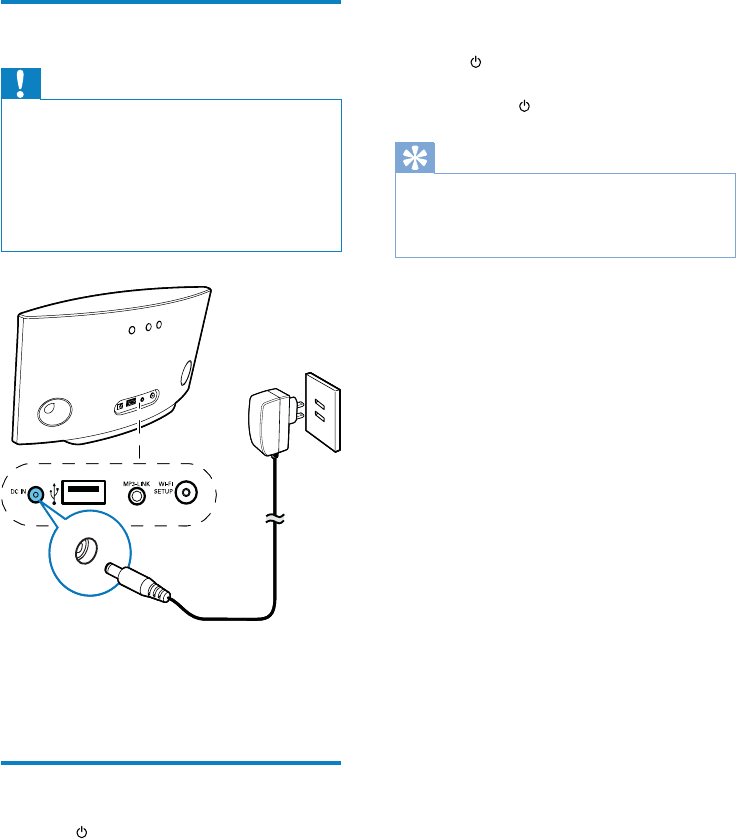

Connect power 10
Turn AD7000W on 10
4 Connect to your home Wi-Fi network for
AirPlay 11

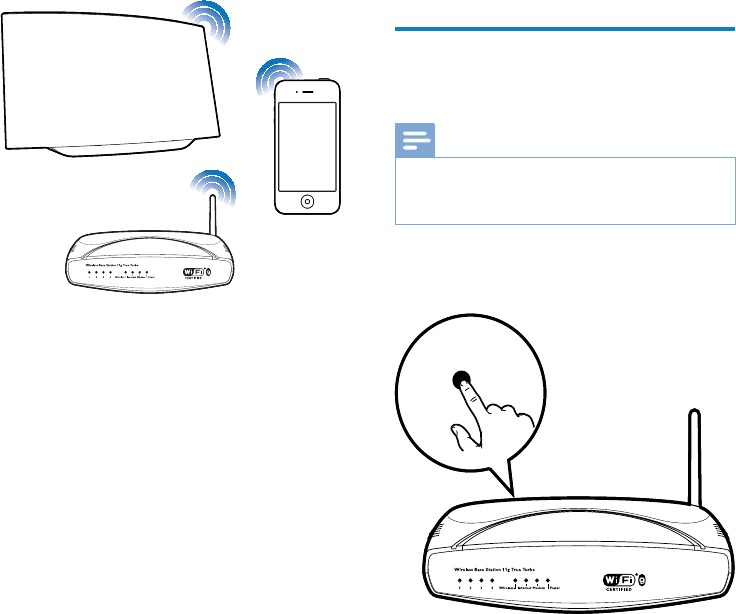

Scenario 1: Connect to a WPS router 11

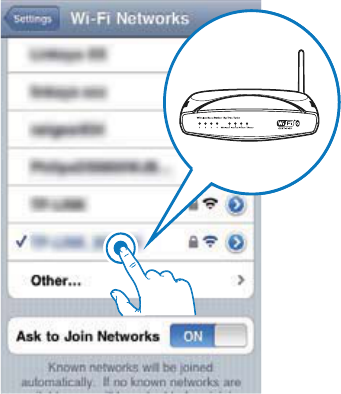

Scenario 2: Connect to a non-WPS router 12
5 Play 20

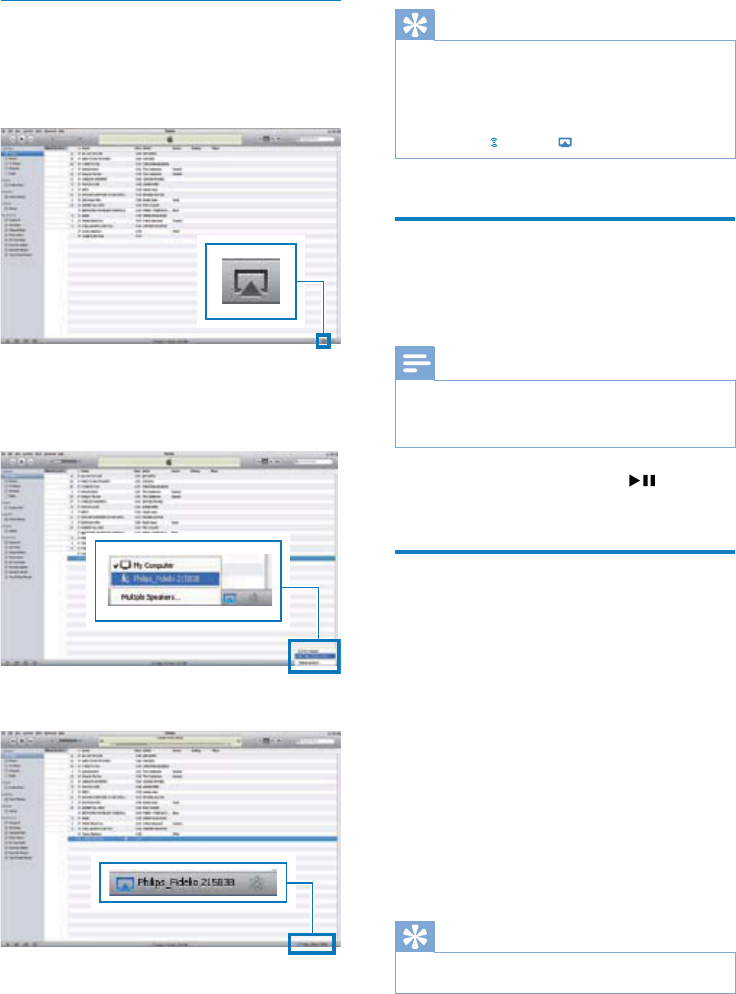

Stream audio from your iTunes music library to
AD7000W 20
Control play 21
Use advanced sound settings 21

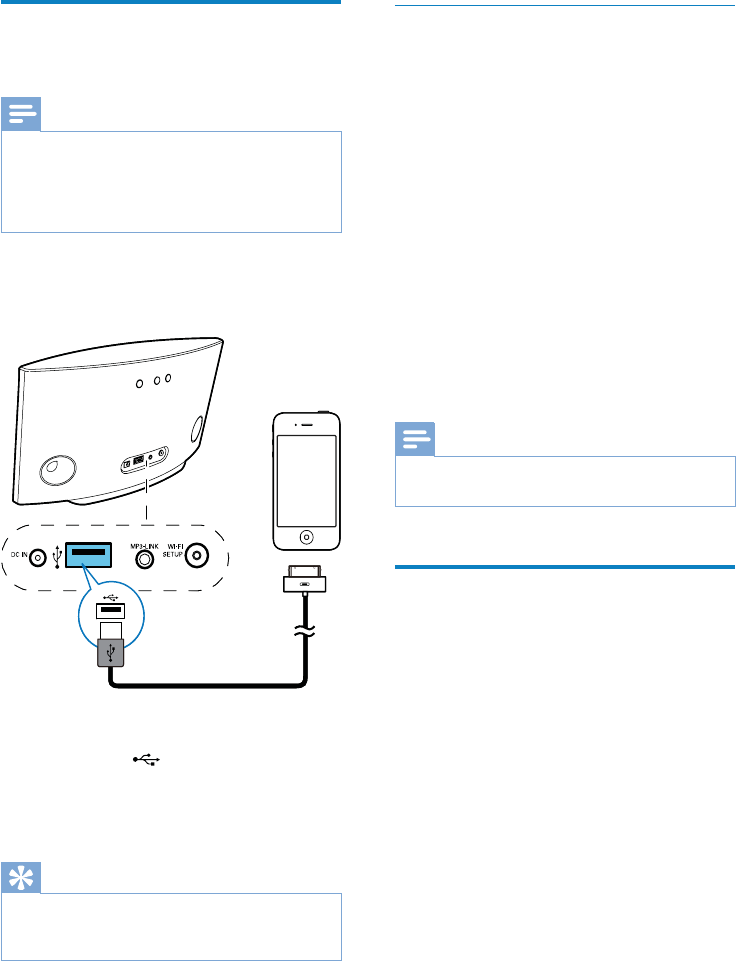

Play/charge your iPod/iPhone/iPad through USB
socket 22
Play from an external device 22
Update firmware 23
6 Product information 26
Specifications 26
7 Troubleshooting 27
EN
4
k Only use attachments/accessories
specified by the manufacturer.
l Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
m Unplug this apparatus during lightning
storms or when unused for long periods
of time.
n Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
o Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
Install all batteries correctly, + and - as
marked on the unit.
Remove batteries when the unit is not
used for a long time.
Perchlorate Material-special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate.
p Apparatus shall not be exposed to
dripping or splashing, keep it away from
direct sunlight,naked flames or heat.
•
•
•
1 Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
i Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or the
third prong are provided for your safety.
If the provided plug does not fit into
your outlet, consult an electrician for
replacement of the obsolete outlet.
j Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
EN
5
separation distance of at least 20 cm from
all persons and must not be collocated or
operating in conjunction with any other
antenna or transmitter. Installers must
ensure that 20cm separation distance
will be maintained between the device
(excluding its handset) and users.
FCC rules
This equipment has been tested and found
to comply with the limits for a Class B
digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy
and, if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
Canada:
This Class B digital apparatus complies with
Canadian ICES-003.
•
•
•
•
Warning
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never place this apparatus on other electrical
equipment.
Keep this apparatus away from direct sunlight, naked
flames or heat.
Ensure that you always have easy access to the power
cord, plug or adaptor to disconnect this apparatus from
the power.
•
•
•
•
•
Risk of overheating! Never install this apparatus
in a confined space. Always leave a space of
at least four inches around this apparatus for
ventilation. Ensure curtains or other objects
never cover the ventilation slots on this
apparatus.
Notice
Notice of compliance
Modifications
The user is cautioned that changes or
modifications not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the equipment.
FCC & RSS compliance statement
This device complies with Part 15 of the FCC
Rules and Industry Canada licence-exempt
RSS standard(s). Operation is subject to the
following two conditions:
a This device may not cause harmful
interference, and
b This device must accept any interference
received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC’s and
IC’s RF radiation exposure limits set forth
for an uncontrolled environment. The
antenna(s) used for this transmitter must
be installed and operated to provide a
EN
6
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Information about the use of batteries:
Caution
Risk of leakage: Only use the specified type of batteries.
Do not mix new and used batteries. Do not mix
different brands of batteries. Observe correct polarity.
Remove batteries from products that are not in use for
a longer period of time. Store batteries in a dry place.
Risk of injury: Wear gloves when handling leaking
batteries. Keep batteries out of reach of children and
pets.
Risk of explosion: Do not short circuit batteries. Do
not expose batteries to excessive heat. Do not throw
batteries into the fire. Do not damage or disassemble
batteries. Do not recharge non-rechargeable batteries.
•
•
•
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Disposal of your old product and
batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Powered by an ENERGY STAR® qualified
adaptor for a better environment.
Modifications
Modifications not authorized by the
manufacturer may void user’s authority to
operate this product.
Disposal of your old product and
batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
EN
7
“Made for iPod,” “Made for iPhone,” and “Made
for iPad” mean that an electronic accessory
has been designed to connect specifically to
iPod, iPhone, or iPad, respectively, and has
been certified by the developer to meet
Apple performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and regulatory
standards. Please note that the use of this
accessory with iPod, iPhone, or iPad may affect
wireless performance.
AirPlay, iPod, and iPhone are trademarks of
Apple Inc., registered in the U.S. and other
countries. iPad is a trademark of Apple Inc.
Class II equipment symbol:
CLASS II apparatus with double insulation, and
no protective earth provided.
Note
The type plate is located on the bottom of the
apparatus.
•
EN
8
With AD7000W, you can also:
charge your iPod/iPhone/iPad through
the USB socket with an Apple USB
cable (not supplied).
play your iTunes music library on your
iPod/iPhone/iPad through the USB
socket directly while charging.
play music from other audio devices
through the MP3-LINK socket.
What’s in the box
Check and identify the contents of your
package:
Main unit (with a built-in Wi-Fi
module)
1 x AC power adapter
1 x MP3 link cable
User manual (in CD-ROM)
Quick start guide
What else you need
To stream audio wirelessly by AirPlay, you need:
A Wi-Fi certified router
A host for your iTunes music library,
for example, an iPod touch/iPhone/
iPad installed with iOS 4.3 (or later)
or a Wi-Fi enabled PC/Mac installed
with iTunes 10 (or later)
Your AD7000W should be connected to the
same local network as your iTunes host device
through the Wi-Fi router.
List of compatible iTunes host devices
for AirPlay
In terms of AirPlay, AD7000W is compatible
with:
a Wi-Fi enabled PC/Mac installed with
iTunes 10 (or later); and
the following iPod/iPhone/iPad models
installed with iOS 4.3 (or later):
iPad 2
•
•
•
•
•
•
•
•
•
•
•
•
•
2 Your
Entertainment
System
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Introduction
Apple AirPlay technology enables you to play
your iTunes music library, hosted on a Mac, PC,
iPhone, iPod touch, or iPad on any AirPlay-
enabled device (for example, your AD7000W)
connected to the Wi-Fi network.
With an AirPlay-enabled device (for example,
your AD7000W), you can:
stream audio from your iTunes music
library to any room in your house
choose which AirPlay-enabled devices
you want to play music on (if you
have more than one such devices in
your house)
stream audio to multiple AirPlay-
enabled devices at the sam time (from
the iTunes music library on your
PC/Mac only)
Tip
Please visit www.philips.com/welcome for information
about more Philips AirPlay-enabled devices.
•
•
•
•
EN
9
g USB
Connect an iPod/iPhone/iPad through
an Apple USB cable (not supplied).
Get started to use AirPlay
To get started with AirPlay, you need to:
1 Upgrade your iPod touch/iPhone/iPad to
the latest iOS version (iOS 4.3 or later).
Or install the latest version of iTunes
(iTunes 10 or ater) on your PC/Mac.
2 Connect power to AD7000W, then turn it
on (see ‘Prepare’ on page 10).
3 Connect AD7000W to your existing home
Wi-Fi network (see ‘Connect to your
home Wi-Fi network for AirPlay’ on page
11).
4 Make sure that your iPod touch/iPhone/
iPad or PC/Mac are also connected to the
same Wi-Fi network.
•
•
iPad
iPhone 4
iPhone 3GS
iPod touch (2nd, 3rd, and 4th
generation)
Overview of the main unit
a Power indicator
b
Turn the unit on/off.
c +/-
Adjust volume.
(Press and hold both buttons) reset
the unit.
d WI-FI SETUP button/indicator
Connect the unit to a Wi-Fi network.
Show the Wi-Fi connection status of
the unit.
e MP3-LINK
Connect an external audio player
through the supplied MP3 link cable.
f DC IN
Connect the power adaptor.
•
•
•
•
•
•
•
•
•
•
•
f
a
g
e
d
b
c
f
a
g
e
d
b
c
EN
10
The boot-up takes about 35 seconds.
During boot-up, the Wi-Fi SETUP
indicator on the back of the unit blinks
green quickly.
After boot-up, if no Wi-Fi connection
has been set up for AD7000W, the
Wi-Fi SETUP indicator starts to blink
green slowly.
To switch the unit to Eco standby mode,
press again.
To switch the unit on from Eco standby
mode, press again.
Tip
If the unit stays idle for more than 30 minutes, the unit
turns off automatically. You can change this setting on
the Philips Fidelio application available on the App
Store. It is a free application offered by Philips.
•
»
»
»
•
•
3 Prepare
Always follow the instructions in this chapter in
sequence.
Connect power
Caution
Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.
Risk of electric shock! When you unplug the AC
adaptor, always pull the plug from the socket. Never
pull the cord.
Before you connect the AC adaptor, make sure that you
have completed all the other connections.
•
•
•
Connect the AC power cord to
the DC IN socket on the back of the
unit.
the wall power socket.
Turn AD7000W on
1 Press on the back to turn the unit on.
2 Wait for successful boot-up of the unit.
•
•
•
EN
11
1 Make sure that your Wi-Fi router is
powered on and working properly.
2 Make sure that AD7000W has been
powered on and booted up successfully
(see ‘Turn AD7000W on’ on page 10).
3 Identify the type of your Wi-Fi router (see
the user manual of your Wi-Fi router for
details).
Scenario 1: Connect to a
WPS router
Note
Before you press any button on AD7000W, make sure
that AD7000W has been booted up successfully (see
‘Turn AD7000W on’ on page 10).
•
1 Press the WPS button on your home Wi-Fi
router.

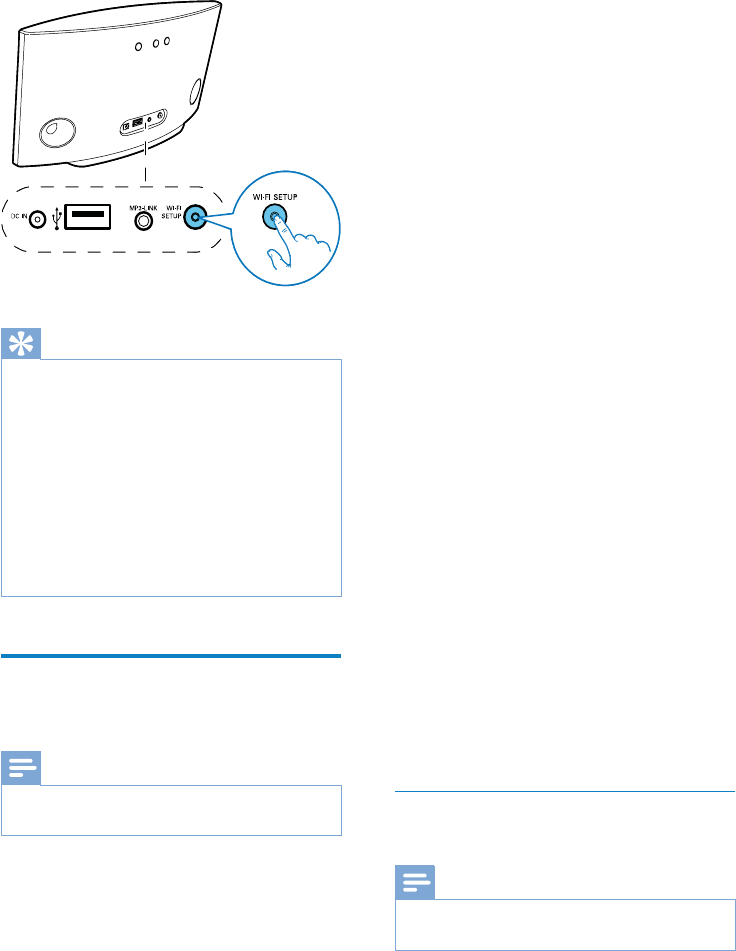

2 Shortly after step 1, press Wi-Fi SETUP on
the back of AD7000W.
The Wi-Fi SETUP indicator blinks red,
yellow and green alternately.
Within 2 minutes, the WI-FI SETUP
indicator stops blinking and stays green,
and the unit beeps.
»
»
WPSWPS
4 Connect to
your home Wi-
Fi network for
AirPlay
To connect AD7000W to your existing home
Wi-Fi network, you need to apply your home
Wi-Fi settings to AD7000W.
You can do this in two ways (depending on
which type of Wi-Fi router you use):
Automatically - if your Wi-Fi router
is WPS (Wi-Fi Protected Setup)-
enabled and supports PBC (Push
Button Connection) (see ‘Scenario 1:
Connect to a WPS router’ on page
11)
Manually - if your Wi-Fi router does
not support WPS (see ‘Scenario 2:
Connect to a non-WPS router’ on
page 12)
Once connected successfully, AD7000W will
remember your home Wi-Fi settings. Then
you can enjoy AirPlay whenever AD7000W is
powered on and connected to your home Wi-
Fi network automatically.
Before connection of AD7000W to you home
Wi-Fi network, check the points below.
•
•
EN
12
for temporary Wi-Fi connection to AD7000W.
The Wi-Fi enabled device can be an iPod touch/
iPhone/iPad or a Wi-Fi enabled PC/Mac.
Follow the sequence below for connection of
AD7000W to a non-WPS wi-Fi router.
1 Collect settings of your home Wi-Fi router
and write down on paper for use during
AD7000W Wi-Fi setup (see ‘Collect
settings of your home Wi-Fi router’ on
page 12).
2 Switch AD7000W to Assisted Wi-Fi Setup
mode (see ‘Switch AD7000W to Assisted
Wi-Fi Setup mode’ on page 13).
A new Wi-Fi network created by
AD7000W will appear, with the
network name (SSID) of Philips Fidelio
AirPlay.
3 Connect your Wi-Fi enabled device to the
created new Wi-Fi network temporarily
(see ‘Connect your Wi-Fi enabled device to
the newly created Wi-Fi network’ on page
13).
4 Open the built-in web page of AD7000W
with the Internet Browser of your Wi-Fi
enabled device (see ‘Open the built-in web
page of AD7000W’ on page 15).

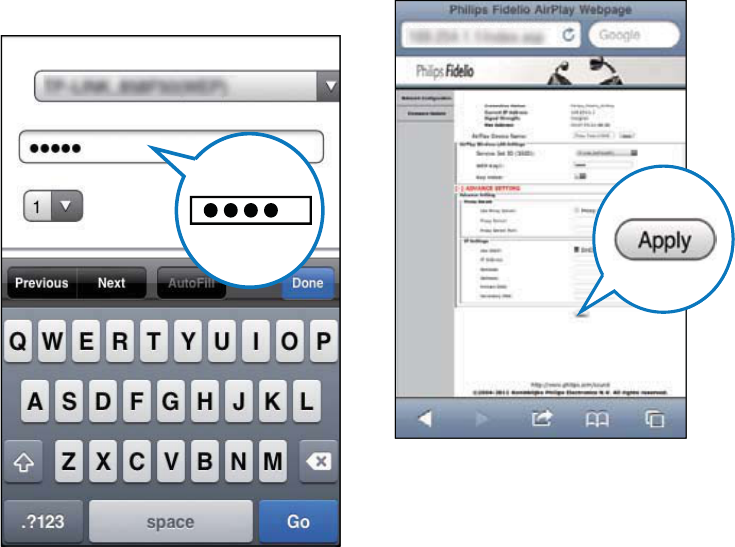

5 Change the internal Wi-Fi settings of
AD7000W based on the settings you
wrote on paper at step 1 (see ‘Change the
internal Wi-Fi settings of AD7000W’ on
page 16).
6 Restore your Wi-Fi enabled device back
to your existing home Wi-Fi settings (see
‘Restore your Wi-Fi enabled device back to
your existing home Wi-Fi setting’ on page
18).
Collect settings of your home Wi-Fi
router
Note
Always consult the user manual of your home Wi-Fi
router for detailed instructions.
•
»
AD7000W is connected to your home
Wi-Fi network successfully.
Tip
For some Wi-Fi routers, you may need to hold the
WPS button for Wi-Fi connection or enable the WPS
PBC function from the router configuration pages. See
the user manuals of the specific routers for details.
If the Wi-Fi SETUP indicator on AD7000W blinks
yellow, it means that the Wi-Fi connection has failed.
Please wait for 2 minutes and try again. If the problem
remains, try to set up the Wi-Fi connection manually
(see ‘Scenario 2: Connect to a non-WPS router’ on
page 12).
If the Wi-Fi connection fails again, press and hold both
the + and - buttons on the back of AD7000W to reset
it, and then try again.
•
•
•
Scenario 2: Connect to a
non-WPS router
Note
You can also follow the procedures below to connect
AD7000W to a WPS router manually.
•
To connect AD7000W to a Wi-Fi router
manually, you need access to AD7000W’s
built-in configuration web page for change of
its internal Wi-Fi settings. To do so, you need a
Wi-Fi enabled device with an Internet browser
»
EN
13

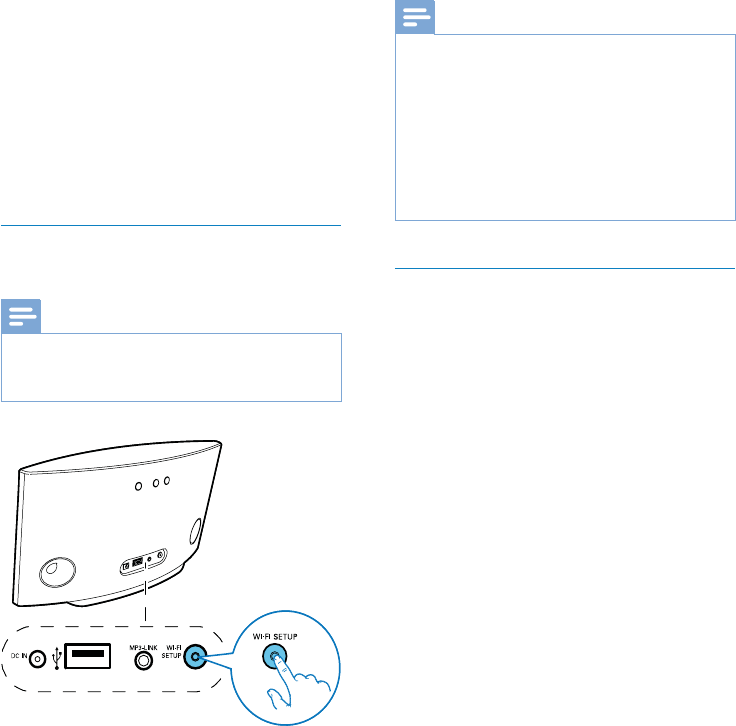

Press and hold Wi-Fi SETUP on the back
of AD7000W for more than 5 seconds.
The Wi-Fi SETUP indicator blinks
green and yellow alternately.
A new Wi-Fi network created by
AD7000W will appear, with the
network name (SSID) of Philips Fidelio
AirPlay.
It may take up to 45 seconds for
successful creation of this new Wi-Fi
network.
Note
After you finish manual Wi-Fi setup for AD7000W,
the new Wi-Fi network created by AD7000W will
disappear.
If you fail to enter Assisted Wi-Fi Setup mode, power
off AD7000W and power on it, then try again after
successful boot-up.
Make sure that there are no other Philips AirPlay-
enabled devices in Assisted Wi-Fi Setup mode at the
same time. Multiple Wi-Fi networks created this way
may interfere with each other.
•
•
•
Connect your Wi-Fi enabled device to
the newly created Wi-Fi network
The new Wi-Fi network created by AD7000W
only allows access of one Wi-Fi enabled device.
To avoid interference from any other Wi-Fi
devices, you are recommended to temporarily
disable the Wi-Fi function on your other Wi-Fi
devices.

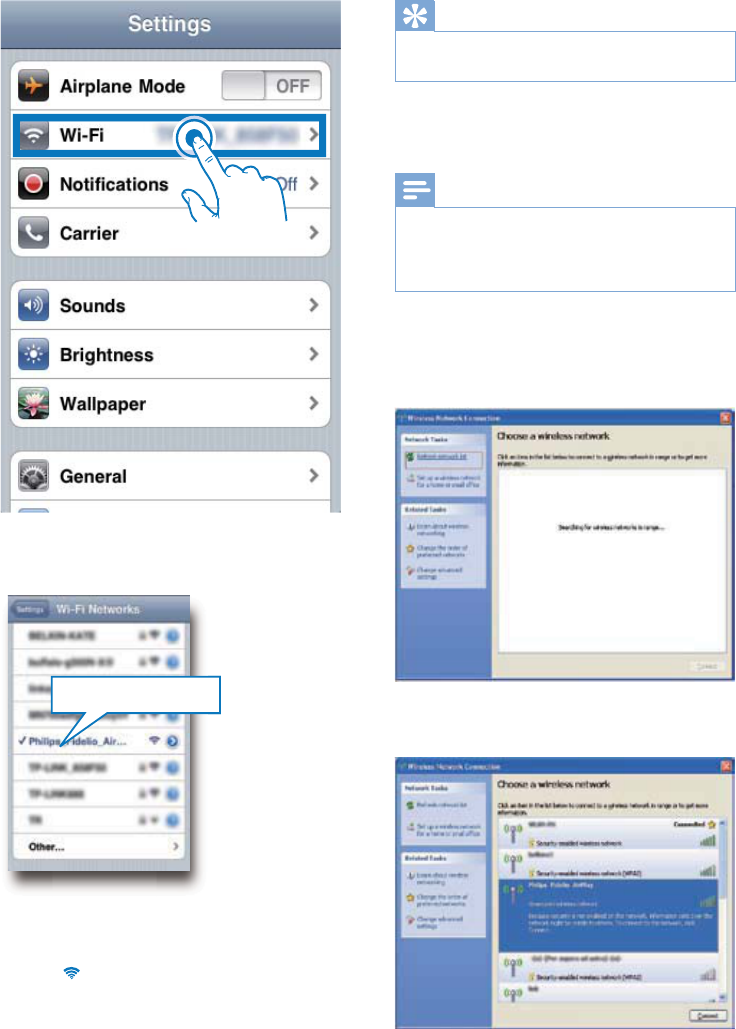

Option 1: Use your iPod touch/iPhone/iPad
1 Select Settings -> Wi-Fi on your iPod
touch/iPhone/iPad.
•
»
»
»
1 Connect your Wi-Fi enabled device to
your existing home Wi-Fi network.
2 Launch the Internet browser (for example,
Apple Safari or Microsoft Internet
Explorer) on your Wi-Fi enabled device.
3 Enter the IP address of your home Wi-Fi
router at the web page address bar of your
Wi-Fi enabled device.
The configuration page of your home
Wi-Fi router is displayed.
4 Find the Wi-Fi settings tab and write down
the following information on paper:
A Network name (SSID)
B Wi-Fi security mode (usually WEP,
WPA or WPA2 if enabled)
C Wi-Fi password (if Wi-Fi security is
enabled)
D DHCP mode (enabled or disabled)
E Static IP address settings (if DHCP
mode is disabled)
Switch AD7000W to Assisted Wi-Fi
Setup mode
Note
Before you press any button on AD7000W, make sure
that AD7000W has been booted up successfully (see
‘Turn AD7000W on’ on page 10).
•
»
EN
14
Tip
If Philips Fidelio AirPlay is not in the list, try to scan the
available Wi-Fi networks again.
•
Use your Wi-Fi enabled PC/Mac
Note
See the user manual of your PC/Mac for how to
connect your PC/Mac to a Wi-Fi network.
During Wi-Fi network connection, do not connect any
network cable to your PC/Mac.
•
•
1 Open the Wi-Fi setup tool or control
panel on your PC/Mac.
2 Scan the available Wi-Fi networks.
3 Select Philips Fidelio AirPlay from the list
of available networks.
2 Select Philips Fidelio AirPlay from the list
of available networks.
3 Wait until successful Wi-Fi connection on
your iPod touch/iPhone/iPad.
is displayed at the upper left corner
of your iPod touch/iPhone/iPad.
»
Philips Fidelio AirplayPhilips Fidelio Airplay
EN
15

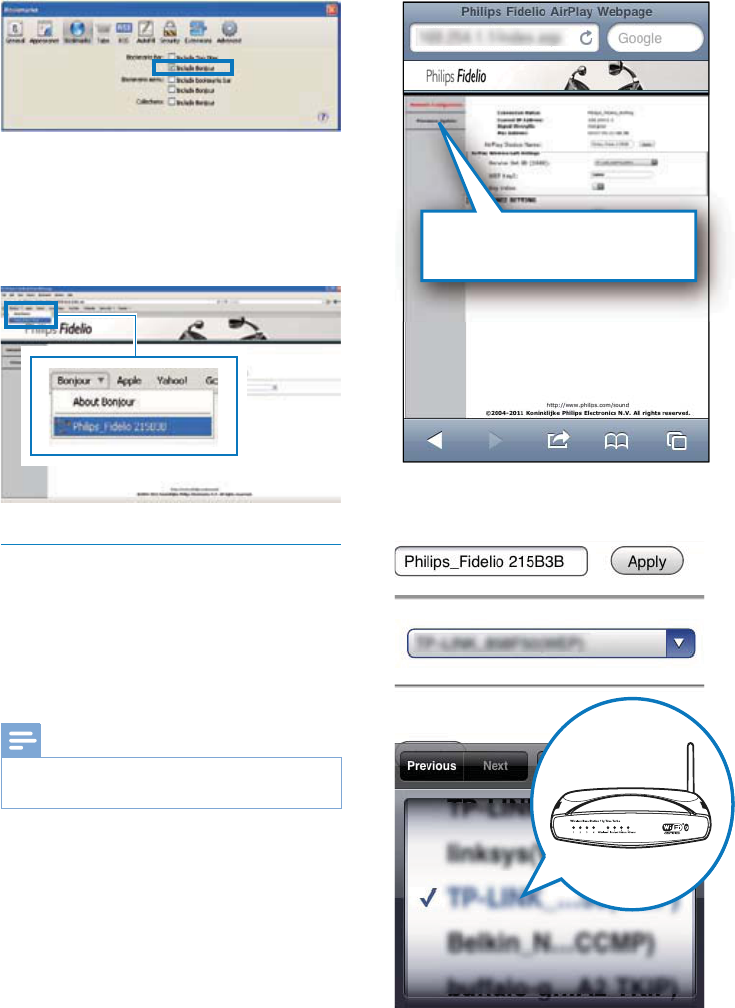

If you use Safari on your Wi-Fi enabled PC/
Mac, you can also select ‘Philips_Fidelio XXX’
from the Bonjour pull-down list to enter the
AD7000W configuration web page directly.
1 Click -> Preferences.
The Bookmarks menu is displayed.
2 Tick Include Bonjour for Bookmarks bar.
»
192.168.1.1192.168.1.1
4 Wait until successful Wi-Fi connection on
your PC/Mac.
Tip
If Philips Fidelio AirPlay is not in the list, try to scan the
available Wi-Fi networks again.
•
Open the built-in web page of
AD7000W
1 Launch Apple Safari browser or any other
Internet browser on your Wi-Fi enabled
device.
2 Type in 192.168.1.1 at the browser
address bar and confirm.
The AD7000W configuration
web page is displayed.
»
EN
16
2 Select your network name (SSID) from the
pull-down list of Service Set ID (SSID).
Network ConfigurationNetwork Configuration
3 Select ‘Philips_Fidelio XXX’ from the
Bonjour pull-down list shown at the
bookmarks bar.
The AD7000W configuration web
page is displayed.
Change the internal Wi-Fi settings of
AD7000W
On the AD7000W configuration web page,
you can change the internal Wi-Fi settings of
AD7000W for connection of AD7000W to
your existing home Wi-Fi network.
Note
Make sure that the settings at steps 2 to 4 below match
your home Wi-Fi network settings you wrote on paper.
•
1 Select the Network Configuration tab.
»
EN
17
6 Click OK on the popup menu to confirm
your change.
After a while, the WI-FI SETUP
indicator on the back of AD7000W
stops blinking and stays green, and the
unit beeps.
AD7000W is connected to your
existing home Wi-Fi network
successfully.
»
»
3 Enter your network key if required.
4 If DHCP mode is disabled in your home
Wi-Fi router, tick DHCP under Advance
Setting.
5 Click Apply at the bottom of the page to
apply your new settings.
A menu for confirmation of your
change pops up.
»
EN
18
Restore your Wi-Fi enabled device
back to your existing home Wi-Fi
setting
Note
Make sure that the settings at steps 2 to 3 below match
your home Wi-Fi network settings you wrote on paper.
•
1 Select Settings -> Wi-Fi on your iPod
touch/iPhone/iPad.
Or open the list of available Wi-Fi
networks on your PC/Mac.
2 Select your network name (SSID) from the
list of available wireless networks.
•
Note
If the WI-FI SETUP indicator on AD7000W does not
stay green steadily, it means that the Wi-Fi connection
has failed. Please power off both your Wi-Fi router
and AD7000W and then power on them again to see
whether AD7000W can be connected to your home
Wi-F network. If the problem remains, try the above
procedures again.
After you finish the above changes or power-off and
power-on of AD7000W, the new Wi-Fi network
created by AD7000W will disappear.
•
•
Tip
If you like, you can change the name of your
AD7000W in Airplay Device Name on the AD7000W
configuration web page. This is helpful when you have
multiple Philips AirPlay-enabled devices in your house
and you need to distinguish between them.
If you want to enter the network name (SSID) manually
(for example, if you want to hide your SSID), select
CONFIGURE MANUALLY from the pull-down list at
step 2 in the above.
•
•
EN
19
3 Enter the network key if required.
4 Wait until successful Wi-Fi connection to
your home Wi-Fi network.
EN
20
4 Select a media file and start play.
5 Wait until successful audio streaming to
AD7000W.
Note
If you fail to hear music after successful setup, do one of
the following on your iPod touch/iPhone/iPad:
(1) Disconnect and then re-connect to the same Wi-Fi
router again;
(2) Close all applications running at the background;
(3) Power off and then power on your iPod touch/
iPhone/iPad again.
•
•
•
•
5 Play
Stream audio from your
iTunes music library to
AD7000W
Note
Make sure that your iTunes host device is connected
to the same Wi-Fi network as AD7000W. Your iTunes
device can be an iPod touch/iPhone/iPad installed with
iOS 4.3 (or later) or a Wi-Fi enabled PC/Mac installed
with iTunes 10 (or later).
•
Stream from your iPod touch/iPhone/
iPad
1 Launch the iPod application on your iPod
touch/iPhone/iPad.
2 Tap on the AirPlay icon.
3 Select Philips_Fidelio XXXX (or user
customized name) from the AirPlay list.
EN
21
Tip
When you stream audio from your iTunes music library
on a PC/Mac, you can select more than one AirPlay-
enabled devices (if available) at step 3 to stream music
to all of them at the same time.
If you are using an earlier version of iTunes, the AirPlay
icon may be instead of .
•
•
Control play
You can select different play options from either
your iTunes host device or AD7000W.
Note
The operations below are based on AD7000W.
Make sure that you have successfully streamed audio
from your iTunes music library to AD7000W.
•
•
To start or pause play, press .
To adjust volume, press +/- repeatedly.
Use advanced sound settings
If your iTunes host device is an iPod touch/
iPhone/iPad:
For advanced sound settings and additional
features, you can use your iPod touch/iPhone/
iPad to download the Philips Fidelio application
from Apple App Store. It is a free application
from Philips.
If your iTunes host device is a Wi-Fi enabled
PC/Mac:
For advanced sound settings, you can use the
equalizer available on iTunes directly (View ->
Show Equalizer).
Tip
See the iTunes help documentation for more details.•
•
•
Stream from your PC/Mac
1 Launch iTunes 10 (or a later version) on
your PC/Mac.
2 Click the AirPlay icon on the window.
3 Select Philips_Fidelio_AirPlay XXXX (or
user customized name) from the AirPlay
list.
4 Select a media file and start play.
5 Wait until successful audio streaming to
AD7000W.
EN
22
Compatible iPod/iPhone/iPad
The USB socket supports play and charge of
the following iPod, iPhone, and iPad models.
iPad 2
iPad
iPhone 4
iPhone 3GS
iPhone 3G
iPhone
iPod classic
iPod 5G
iPod 4G
iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th
generation)
iPod touch (1st, 2nd, 3rd, and 4th
generation)
iPod mini
Note
iPod with color display, iPod classic, and iPod with video
are not compatible with power charging.
•
Play from an external device
You can also listen to an external audio player
through the unit.
•
•
•
•
•
•
•
•
•
•
•
•
Play/charge your iPod/iPhone/
iPad through USB socket
Note
The USB socket is only compatible with iPod/iPhone/
iPad.
To avoid possible damage to AD7000W, never try to
connect devices other than iPod/iPhone/iPad to the
USB socket on AD7000W.
•
•
You can play or charge your iPod/iPhone/iPad
through the USB socket with an Apple USB
cable (not supplied).
Connect an Apple USB cable (not
supplied) to:
the USB socket on the back of
AD7000W.
the dock connector on your iPod/
iPhone/iPad.
Tip
If you have stopped audio streaming by AirPlay, after
successful USB connection, the unit switches to the
USB source automatically.
•
•
•
•
EN
23
Download the update file
1 On your PC/Mac, go to www.philips.com/
support.
2 Enter the model number to find the latest
firmware upgrade file available.
3 Save the upgrade file to your hard drive.
Update from the configuration page
Warning
Always connect your AD7000W to AC power for
firmware upgrade. Never power off your AD7000W
during firmware upgrade.
•
Note
To use an Internet browser other than Apple Safari
on your PC/Mac, remember to go to the Wi-Fi router
configuration page and write down the IP address of
your AD7000W. See the user manual of your Wi-Fi
router for how to find the IP addresses of devices
connected to the Wi-Fi router.
•
1 Power on AD7000W (see ‘Turn
AD7000W on’ on page 10).
It takes about 35 seconds for the unit
to boot up. During boot-up, the WI-FI
»
www.philips.com/support
DS XXXX
www.philips.com/support
DS XXXX
Connect the supplied MP3 link cable to:
the DC IN socket on the back of the
unit.
the headphone jack on an external
audio player.
Note
If you have stopped both audio streaming by AirPlay
and play through the USB socket, the unit switches to
the MP3 link source automatically.
•
Update firmware
Note
You can only update the firmware from a PC/Mac.•
•
•
•
EN
24
5 Click Choose File to select the
downloaded firmware update file, then
click Open.
6 Click Upload to upload the file, then
compare the current and new file versions.
7 After you make sure that the downloaded
update file is the latest, click Ok to start
firmware update.
A progress bar is displayed.
8 At completion of the update process, click
Ok to confirm.
»
Firmware upload status: 100% completed.
The upload process finished successfully.
Wait until the new firmware is started and then press the button.
Firmware upload status: 100% completed.
The upload process finished successfully.
Wait until the new firmware is started and then press the button.
SETUP indicator on the back of the
unit blinks green quickly.
After boot-up, you can hear a beep
and the WI-FI SETUP indicator
turns to green steadily. AD7000W is
connected to the last configured Wi-Fi
network automatically.
2 Make sure that AD7000W and your
PC/Mac are connected to the same Wi-Fi
router.
3 Open Apple Safari on your PC/Mac, then
select ‘Philips_Fidelio XXX’ from the
Bonjour pull-down list.
Or open any other Internet browser
on your PC/Mac, then type in the IP
address of AD7000W (available on
the Wi-Fi router configuration page)
at the address bar.
The AD7000W configuration
web page is displayed.
4 Select the Firmware Update tab, then
follow the on-screen instruction to enter
the next page.
»
•
»
EN
25
Note
In case the firmware update fails, you can try the above
procedures again.
After successful firmware update, if there is any
problem with the Wi-Fi connection, press and hold
both the + and - buttons on AD7000W for more than
5 seconds at the same time to reset the device, and
then try to set up the Wi-Fi network for AD7000W
again (see ‘Connect to your home Wi-Fi network for
AirPlay’ on page 11).
•
•
EN
26
General information
AC power Input: 100 - 240 V~,
50/60 Hz 1.2 A
Output: 12 V
3.0 A
Operation Power
Consumption
10 W
Dimensions
- Main Unit (L x W x H)
298 x 106 x 168
mm
Weight
- With Packing
- Main Unit
4.83 kg
1.31 kg
6 Product
information
Note
Product information is subject to change without prior
notice.
•
Specifications
Amplifier
Rated Output Power 2 X 5 W RMS
Frequency Response 20 - 20000 Hz, ±3 dB
Signal to Noise Ratio > 90 dB
MP3 Link 650 mV RMS 20 kohm
Speakers
Speaker Impedance 8 ohm
Speaker Driver 62 mm full range
Sensitivity 78 dB/m/W
Wireless
Wireless
standard
802.11n, backwards compatible
to 802.11b/g
Wireless
security
WEP (64 or 128 bit),
WPA/WPA2 (8-63 characters)
Frequency
range
2412 - 2462 MHz (CH1-CH11)
(for /79, /37, /55, /97)
2412 - 2472 MHz (CH1-CH13)
(for /12, /05)
Wireless
protected
setup
(WPS)
Ye s
EN
27
If your Wi-Fi router is Wi-Fi 802.11n
certified, make sure to enable the 802.11b/
g mode. AD7000W does not support
connection to routers with 802.11n only.
This device does not support the WPS-
PIN method.
If your Wi-Fi router supports WPS and the
WPS-PBC method but fails to connect to
AD7000W, try the manual Wi-Fi setup
method (see ‘Scenario 2: Connect to a
non-WPS router’ on page 12).
Enable SSID broadcast on the Wi-Fi router.
Avoid using Wi-Fi channel which is using
or much overlapped by the nearby Wi-Fi
network.
Keep away from potential sources of
interference which may affect Wi-Fi signal,
such as microwave ovens.
If you fail to use your PC for Wi-Fi network
setup, check whether your PC is using a
Wi-Fi network. You cannot use Ethernet
connection for AirPlay network setup.
If the problem remains, it is strongly
recommended to use iPod Touch/iPhone/
iPad/Mac to do the first-time Wi-Fi setup
as some PC settings may affect the Wi-Fi
network setup.
Make sure that the SSID name of your
home router consists of normal characters
or digits, with no space or special
characters like %/#/* inserted.
If you choose to rename the AirPlay device
‘Philips_Fidelio XXXX’ in the setting
menu, do not use special characters or
symbols.
For some new types of Wi-Fi routers, a
network name (SSID) may be created
automatically when you use WPS for
connection. Always change the default
network name (SSID) to a simple one that
consists of alphanumerical characters, and
also change the Wi-Fi security mode to
secure your network.
Occasional breaking of AirPlay music
streaming
Do one or all of the following:
•
•
•
•
•
•
•
•
•
•
7 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Make sure that the AC power plug of the
device is connected properly.
Make sure that there is power at the AC
outlet.
No sound
Adjust the volume.
Check the Wi-Fi network connection.
Set up the network again if needed (see
‘Connect to your home Wi-Fi network for
AirPlay’ on page 11).
No response from the unit
Press and hold both the + and - buttons
on AD7000W for more than 5 seconds
to reset the device. Then set up the
Wi-Fi network for AD7000W again (see
‘Connect to your home Wi-Fi network for
AirPlay’ on page 11).
Disconnect and reconnect the AC power
plug, and then switch on the device again.
Wi-Fi network connection failed
Check if your Wi-Fi router is Wi-Fi
802.11b/g certified. This device is only
compatible with Wi-Fi 802.11b/g certified
routers.
•
•
•
•
•
•
•
EN
28
Move AD7000W closer to your Wi-Fi
router.
Remove any obstacles between AD7000W
and your Wi-Fi router.
Enable the Auto Channel Scan option (if
available on the Wi-Fi router).
Enable the Quality of Service (QoS)
option (if available on the Wi-Fi router).
Turn off other Wi-Fi routers.
No AirPlay icon on my iTunes host device
Make sure that AD7000W is already
connected to your home Wi-Fi network.
Before you open iTunes, make sure that
you have enabled Bonjour service in
your PC. Take Windows XP for example:
to enable the service, you can click
Start->Control Panel, and double-click
Administrative Tools-> Services->Bonjour
Service, then click Start followed by OK
on the pop-up menu.
If the problem remains, try to restart
AD7000W.
AirPlay connection failed with Mac or PC
Temporarily disable the firewall and
security software to see whether it blocks
the ports that AirPlay uses to stream
content. See the help documentation of
your firewall and security software on how
to unblock the ports.
Check if your network speed is fast enough
(in cases where multiple devices share the
same router, the AirPlay performance may
be affected). Turn off the other devices
connected to your home router.
In case of audio streaming break or
disconnection when you use iPod Touch/
iPhone/iPad/iMac/PC for AirPlay, restart
your iPod Touch/iPhone/iPad, iTunes or
AD7000W.
Browsing Internet content like news, music,
video and etc. via your home router may
affect the AirPlay performance. In case
of AirPlay break or disconnection, it is
recommended to stop any Internet surfing
or disconnect from the Internet.
•
•
•
•
•
•
•
•
•
•
•
•
EN
