User Manual-I

www.philips.com/welcome
User manual
Always there to help you
Register your product and get support at

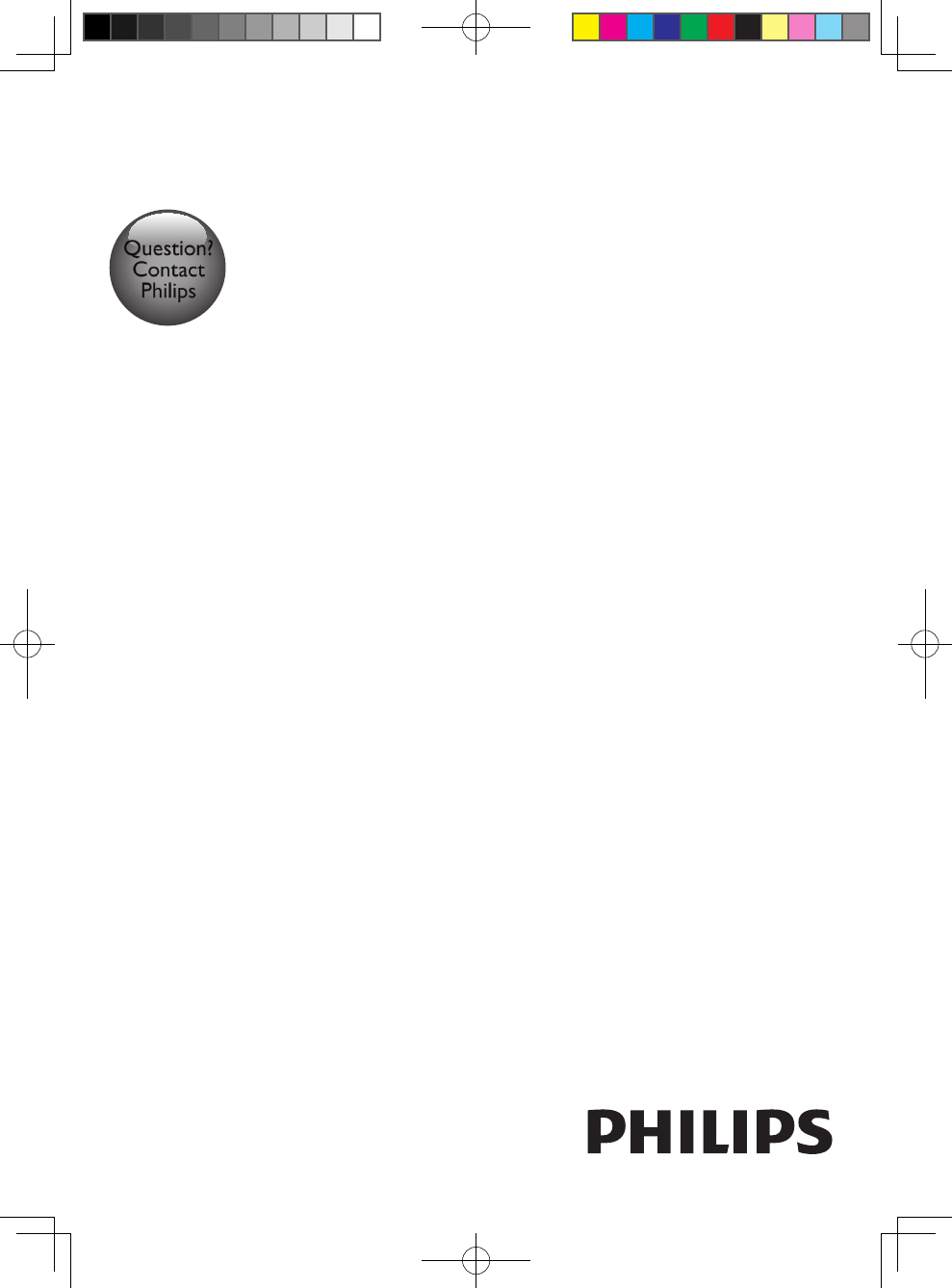

Question?
Contact
Philips
CSS2133B_F7_UM_EN.indd 1 2013/1/31 9:25:23
CSS2133B_F7_UM_EN.indd 2 2013/1/31 9:25:23
1EN
Contents
1 Important 2
Important safety instructions 2
Care for your product 3
Care of the environment 3
Help and support 4
2 Your SoundBar 5
Main unit 5
Remote control 5
Connectors 6
3 Connect 8
Subwoofer 8
Connect audio from TV and other devices 8
4 Use your SoundBar 10
Play audio from TV or other devices 10
Adjust the volume 10
Choose your sound 10
Night mode 10
MP3 player 11
Play audio through Bluetooth 11
Auto standby 11
Apply factory settings 12
5 Wall mount 13
6 Productspecications 14
7 Troubleshooting 15
8 Notice 16
Notice of compliance 16
Trademarks 16
CSS2133B_F7_UM_EN.indd 1 2013/1/31 9:25:23
2EN
1 Important
Read and understand all instructions before you
use your product. If damage is caused by failure
to follow instructions, the warranty does not
apply.
Important safety instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
Do not install near any heat sources
such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that
produce heat.
Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. If the provided
plug does not t into your outlet, consult
an electrician for replacement of the
obsolete outlet.
Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
Only use attachments/accessories
specied by the manufacturer.
Use only with the cart, stand, tripod,
bracket or table specied by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning
storm or when unused for long periods of
time.
Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
Battery usage CAUTION - To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
Install all batteries correctly, + and - as
marked on the unit.
Do not mix batteries (old and new or
carbon and alkaline, etc.).
Remove batteries when the unit is not
used for a long time.
The batteries shall not be exposed to
excessive heat such as sunshine, re or
the like.
Perchlorate Material - special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate.
The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
CSS2133B_F7_UM_EN.indd 2 2013/1/31 9:25:23
3EN
If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
Apparatus shall not be exposed to
dripping or splashing.
Do not place any sources of danger on
the apparatus (for example. liquid lled
objects, lighted candles).
This apparatus may contain lead and
mercury. Dispose according to local, State
or Federal laws. For disposal or recycling
information, please contact your local
authorities. For additional assistance on
recycling options, please contact www.
mygreenelectronics.com or www.eiae.org
or www.recycle.philips.com.
Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Do not place this apparatus on the
furniture that is capable of being tilted by a
child and an adult leaning, pulling, standing
or climbing on it. A falling apparatus can
cause serious injury or even death.
This apparatus should not be placed in a
built-in installation such as a bookcase or
rack unless proper ventilation is provided.
Make sure to leave a space of 7.8 inches
(20cm) or more around this apparatus.
Class II equipment symbol
This symbol indicates that the unit has a double
insulation system.
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING: To reduce the risk of re or
electric shock, this apparatus should not be
exposed to rain or moisture and objects lled
with liquids, such as vases, should not be placed
on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Care for your product
Use only microber cloth to clean the product.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused. Please
visit www.recycle.philips.com for additional
information on a recycling center in your area.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
CSS2133B_F7_UM_EN.indd 3 2013/1/31 9:25:24
4EN
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
The batteries supplied do not contain the heavy
metals mercury and cadmium. Nevertheless,
in many areas batteries may not be disposed
of with your household waste. Please ensure
you dispose of batteries according to local
regulations.
For perchlorate material, special handling may
apply. Visit www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Help and support
Philips provides extensive online support. Visit
our website at www.philips.com/support to:
download the user manual and the quick
start guide
watch video tutorials (available only for
selected models)
nd answers to frequently answered
questions (FAQs)
email us a question
chat with our support representative.
Follow the instructions on the website to select
your language, and then enter your product
model number.
Alternatively, you can contact Philips Consumer
Care in your country. Before you contact
Philips, note down the model number and
serial number of your product. You can nd this
information on the back or bottom of your
product.
CSS2133B_F7_UM_EN.indd 4 2013/1/31 9:25:24
5EN
2 Your SoundBar
Congratulations on your purchase, and
welcome to Philips! To fully benet from
the support that Philips offers, register your
SoundBar at www.philips.com/welcome.
Main unit
a SURR
Lights up when virtual surround mode is
on.
Blinks three times when Dolby Digital
audio is detected.
b Source indicators
COAX/OPT: Lights up when you
switch to coaxial or optical input
source. Blinks when an unsupported
audio format is detected.
AUX: Lights up when you switch to
analog input source.
MUSIC iLINK: Lights up when you
switch to Music iLink input source
(3.5mm jack).
Bluetooth: Lights up when you
switch to Bluetooth mode and
Bluetooth devices are paired: Blinks
when you switch to Bluetooth mode
and Bluetooth devices are not paired.
12
Remote control
a (Standby-On)
Switch the SoundBar on or to standby.
b Source buttons
AUX: Switch your audio source to the
AUX connection.
Bluetooth: Switch to Bluetooth
mode.
COAX/OPT: Switch your audio source
to the coaxial or optical connection.
MUSIC iLINK: Switch your audio
source to the MUSIC iLINK
connection.
c SURROUND
Switch virtual surround mode on or off.
d TREBLE +/-
a
b
c
d
e
f
g
CSS2133B_F7_UM_EN.indd 5 2013/1/31 9:25:24
6EN
Increase or decrease treble.
e VOL +/-
Increase or decrease volume.
f BASS +/-
Increase or decrease bass.
g MUTE
Mute or restore volume.
Replace battery
Warning
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
The product/remote control may or may not contain a
coin/button type battery, which can be swallowed. Keep
the battery out of reach of children at all times!
Caution
The battery contains perchlorate material, handle
it with care. For information see www.dtsc.ca.gov/
hazardouswaste/perchlorate.
1 Open the battery compartment.
2 Insert one CR2025 battery, with the
polarity (+/-) as indicated.
3 Close the battery compartment.
Connectors
This section includes an overview of the
connectors available on your SoundBar.
3
1
2
CSS2133B_F7_UM_EN.indd 6 2013/1/31 9:25:25
7EN
Side right
MUSIC iLINK
Audio input from an MP3 player.
Rear left
a SUBWOOFER
Connect to the supplied subwoofer.
b AUDIO IN-AUX
Connect to an analog audio output on the
TV or an analog device.
c DIGITAL IN-COAXIAL
Connect to a coaxial audio output on the
TV or a digital device.
d DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
SUBWOOFER (8Ω)
L
(WHITE)
R
(RED)
AUDIO IN
AUX
COAXIAL
OPTICAL
DIGITAL IN
12 3 4
Rear right
AC MAINS~
Connect to the power supply.
AC MAINS~
CSS2133B_F7_UM_EN.indd 7 2013/1/31 9:25:25
8EN
3 Connect
This section helps you connect your SoundBar
to a TV and other devices.
For information about the basic connections of
your SoundBar and accessories, see the quick
start guide.
Note
For identication and supply ratings, refer to the type
plate at the back or bottom of the product.
Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Subwoofer
Follow the steps below to position and connect
your subwoofer.
Position
Place the subwoofer at least one meter (three
feet) away from either to the left or right of
your SoundBar, and ten centimeter away from
the wall.
For best results, place your subwoofer as shown
below.
Connect
Connect your subwoofer to your SoundBar as
described in the quick start guide.
Connect audio from TV and
other devices
Play audio from TV or other devices through
your SoundBar. Use the best quality connection
available on other devices.
The audio connections in this user manual
are only recommendations. You can use other
connections too.
If you play audio from the TV through the
SoundBar, make sure that the TV is muted.
Option 1: Connect audio through a
digital optical cable
Best quality audio
1 Using an optical cable, connect the
OPTICAL connector on your SoundBar to
the OPTICAL OUT connector on the TV
or other device.
The digital optical connector might be
labeled SPDIF or SPDIF OUT.
Option 2: Connect audio through a
digital coaxial cable
Good quality audio
TV
CSS2133B_F7_UM_EN.indd 8 2013/1/31 9:25:26
9EN
1 Using a coaxial cable, connect the
COAXIAL connector on your SoundBar
to the COAXIAL/DIGITAL OUT
connector on the TV or other device.
The digital coaxial connector might be
labeled DIGITAL AUDIO OUT.
Option 3: Connect audio through
analog audio cables
Basic quality audio
1 Using an analog cable, connect the AUX
connectors on your SoundBar to the
AUDIO OUT connectors on the TV or
other device.
DVD
CSS2133B_F7_UM_EN.indd 9 2013/1/31 9:25:26
10 EN
4 Use your
SoundBar
This section helps you use the SoundBar to play
audio from connected devices.
Before you start
Make the necessary connections described
in the quick start guide and the user
manual.
Switch the SoundBar to the correct source
for other devices.
Play audio from TV or other
devices
Press the Source buttons to select the audio
output of the connected device.
Adjust the volume
To increase or decrease volume, press VOL +/-.
The Source indicators on the front panel
blink once when the volume is set to
either minimum or maximum.
To mute sound, press MUTE.
The current Source indicator on the front
panel blinks continuously.
To restore the sound, press MUTE again or
press VOL +/-.
Choose your sound
This section helps you choose the ideal sound
for your music.
Change treble or bass
Change the high frequency (treble) or low
frequency (bass) settings of the SoundBar to
suit your music.
Press TREBLE +/- or BASS +/- to increase or
decrease treble or bass.
The Source indicators on the front panel
blink once when the treble or bass is set to
either minimum or maximum.
Surround sound mode
Experience an immersive audio experience with
surround sound modes.
Press SURROUND repeatedly to switch
surround mode on or off.
» When surround mode is on, the SURR on
the front panel lights up.
Night mode
For quiet listening, decrease the volume of loud
sounds when audio is played. Night mode is
only available for Dolby Digital soundtracks.
1 Press and hold SURROUND for three
seconds to turn night mode on or off.
» When night mode is turned on, the
AUX indicator on the front panel
blinks twice.
CSS2133B_F7_UM_EN.indd 10 2013/1/31 9:25:27
11EN
» When night mode is turned off, the
MUSIC iLINK indicator on the front
panel blinks twice.
MP3 player
Connect your MP3 player to play your audio
les or music.
What you need
An MP3 player.
A 3.5mm stereo audio cable.
Play music
1 Connect the MP3 player to the SoundBar
as described in the Quick start guide.
2 Press MUSIC iLINK.
» MUSIC iLINK indicator on the front
panel lights up.
3 Press the buttons on the MP3 player to
select and play audio les or music.
Play audio through Bluetooth
Through Bluetooth, connect the SoundBar with
your Bluetooth device (such as an iPad, iPhone,
iPod touch, Android phone, or laptop), and then
you can listen to the audio les stored on the
device through your SoundBar speakers.
What you need
A Bluetooth device which supports
Bluetooth prole A2DP, and with Bluetooth
version as 3.0 + EDR.
The operational range between the
SoundBar and a Bluetooth device is
approximately 10 meters (30 feet).
1 Press Bluetooth on the remote control
to switch the SoundBar to Bluetooth
mode.
» The Bluetooth indicator blinks.
2 On the Bluetooth device, switch on
Bluetooth, search for and select Philips
CSS2133B to start connection (see the
user manual of the Bluetooth device on
how to enable Bluetooth).
» During connection, the Bluetooth
indicator blinks.
3 Wait until you hear a beep sound from the
SoundBar.
» When the Bluetooth connection
succeeds, and the Bluetooth
indicator lights up.
» If the connection fails, the Bluetooth
indicator blinks continually.
4 Select and play audio les or music on
your Bluetooth device.
During play, if a call is coming, music
play is paused. Play resumes when the
call ends.
5 To exit Bluetooth, select other source.
When your switch back to Bluetooth
mode, Bluetooth connection remains
active.
Note
The music streaming may be interrupted by obstacles
between the device and SoundBar, such as wall, metallic
casing that covers the device, or other devices nearby
that operate in the same frequency.
If you want to connect your SoundBar with another
Bluetooth device, press and hold Bluetooth on the
remote control to disconnect the currently connected
Bluetooth device.
Philips does not guarantee 100% compatibility with all
Bluetooth devices.
Auto standby
When playing media from a connected device,
the SoundBar automatically switches to standby
if:
no button is pressed for 30 minutes, and
no audio playback is detected from a
connected device.
CSS2133B_F7_UM_EN.indd 11 2013/1/31 9:25:27
12 EN
Apply factory settings
You can reset your SoundBar to the default
settings programmed at the factory.
1 In AUX mode, within three seconds, press
BASS+, VOL-, and Treble+.
» When the factory settings restore is
complete, the SoundBar automatically
switches off and restarts.
CSS2133B_F7_UM_EN.indd 12 2013/1/31 9:25:27
13EN
5 Wall mount
Note
Koninklijke Philips Electronics N.V. bears no
responsibility for improper wall mounting that results
in accident, injury or damage. If you have any query,
contact Philips Consumer Care in your country.
Before wall mounting, make sure the wall can support
the weight of your SoundBar.
Before wall mount, you need not remove the two
rubber feet at the bottom of the SoundBar, otherwise
the rubber feet cannot be xed back.
Screw length/diameter
Depending on the type of wall mounting your
SoundBar, make sure that you use screws of a
suitable length and diameter.
For information about how to wall mount your
SoundBar, see the quick start guide.
> 25mm
3-4mm
4mm
CSS2133B_F7_UM_EN.indd 13 2013/1/31 9:25:27
14 EN
6 Product
specifications
Note
Specications and design are subject to change without
notice.
Amplier
FTC total output power: 34W
Left/right speaker (built-in): 16W
(1%THD, 4ohm, 300Hz-20kHz)
Subwoofer: 18W (1%THD, 8ohm,
40Hz-70Hz)
RMS total output power: 60W (+/- 0.5 dB,
30% THD)
Frequency response: 20 Hz-20 kHz / ±3
dB
Signal-to-noise ratio: > 65 dB (CCIR) /
(A-weighted)
Input sensitivity:
AUX: 600 mV
Music iLink: 250 mV
Audio
S/PDIF Digital audio input:
Coaxial: IEC 60958-3
Optical: TOSLINK
Bluetooth
Bluetooth proles: A2DP
Bluetooth version: 3.0 + EDR
Main unit
Power supply: 110-127 V~, 60 Hz
Power consumption: 20 W
Standby power consumption: ≤ 0.5 W
Speaker impedance: 4 ohm woofer, 4 ohm
tweeter
Speaker drivers: 25 x 120 mm (1 x 5")
woofer, 38 mm (1.5") tweeter
Frequency response: 150 Hz-20 kHz
Dimensions (WxHxD): 708 x 47 x 65 mm
Weight: 1.1 kg
Subwoofer
Impedance: 8 ohm
Speaker drivers: 130 mm (5.25") woofer
Frequency response: 20 Hz-150 Hz
Dimensions (WxHxD): 165 x 240 x 295
mm
Weight: 2.6 kg
Cable length: 3 m
Remote control batteries
1 x CR2025
CSS2133B_F7_UM_EN.indd 14 2013/1/31 9:25:27
15EN
7 Troubleshooting
Warning
Risk of electric shock. Never remove the casing of the
product.
To keep the warranty valid, never try to repair
the product yourself.
If you have problems using this product, check
the following points before you request service.
If you still have a problem, get support at www.
philips.com/support.
Sound
No sound from SoundBar speakers.
Connect the correct audio cable from your
SoundBar to your TV or other devices.
On your SoundBar remote control, press
the Source buttons to select the correct
audio input.
Make sure that the SoundBar is not muted.
Press VOL +/- to restore the sound.
Distorted sound or echo.
If you play audio from the TV through the
SoundBar, make sure that the TV is muted.
Bluetooth
A device cannot connect with the SoundBar.
The device does not support the
compatible proles required for the
SoundBar.
You have not enabled the Bluetooth
function of the device. See the user manual
of the device on how to enable the
function.
The device is not correctly connected.
Connect the device correctly.
The SoundBar is already connected with
another Bluetooth device. Disconnect the
connected device, then try again.
Quality of audio play from a connected
Bluetooth device is poor.
The Bluetooth reception is poor. Move the
device closer to the SoundBar, or remove
any obstacle between the device and the
SoundBar.
The connected Bluetooth device connects and
disconnects constantly.
The Bluetooth reception is poor. Move the
device closer to the SoundBar, or remove
any obstacle between the device and the
SoundBar.
Turn off Wi-Fi function on the Bluetooth
device to avoid interference.
For some Bluetooth, the Bluetooth
connection can be deactivated
automatically to save power. This does not
indicate any malfunction of the SoundBar.
CSS2133B_F7_UM_EN.indd 15 2013/1/31 9:25:28
16 EN
8 Notice
This section contains the legal and trademark
notices.
Notice of compliance
This set complies with the FCC rules, Part 15
and with 21 CFR 1040.10. Operation is subject
to the following two conditions:
a This device may not cause harmful
interference, and
b This device must accept any interference
received, including interference that may
cause undesired operation.
FCC rules
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
Relocate the receiving antenna.
Increase the separation between
equipment and receiver.
Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC Radiation Exposure Statement:This
equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with a minimum distance of
20cm between the radiator and your body.
This transmitter must not be co-located or
operated in conjunction with any other antenna
or transmitter.
Warning: Changes or modications made to
this equipment not expressly approved by
Philips may void the FCC authorization to
operate this equipment.
Model number: PHILIPS CSS2133B/F7
Trade Name: Philips
Responsible Party:P&F USA, Inc. PO Box 2248
Alpharetta, GA 30023-2248; 1-866-310-0744
La operación de este equipo está sujeta a las
siguientes dos condiciones: (1) es posible que
este equipo o dispositivo no cause interferencia
perjudicial y (2) este equipo o dispositivo debe
aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.
Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following Two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This Class B digital apparatus complies with
Canadian ICES-003.
Trademarks
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips is
under license.
CSS2133B_F7_UM_EN.indd 16 2013/1/31 9:25:28
17EN
P&F USA Inc. PO Box 2248 Alpharetta, GA 30023-2248
ONE (1) YEAR LIMITED WARRANTY
WARRANTY COVERAGE:
This warranty obligation is limited to the terms set forth
below.
WHO IS COVERED:
This product is warranted to the original purchaser or the per-
son receiving the product as a gift against defects in materials and
workmanship as based on the date of original purchase
(“Warranty Period”) from an Authorized Dealer. The original
sales receipt showing the product name and the purchase date
from an authorized retailer is considered such proof.
WHAT IS COVERED:
This warranty covers new products if a defect in material
or workmanship occurs and a valid claim is received within
the Warranty Period. At its option, the company will either (1)
repair the product at no charge, using new or refurbished
replacement parts, or (2) exchange the product with a product
that is new or which has been manufactured from new, or ser-
viceable used parts and is at least functionally equivalent or most
comparable to the original product in current inventory,
or (3) refund the original purchase price of the product.
The company warrants replacement products or parts provided
under this warranty against defects in materials and workmanship
from the date of the replacement or repair for ninety (90) days
or for the remaining portion of the original product’s warranty,
whichever provides longer coverage for you. When a product or
part is exchanged, any replacement item becomes your property
and the replaced item becomes the company property. When a
refund is given, your product becomes the company property.
Note: Any product sold and identified as refurbished or
renewed carries a ninety (90) day limited warranty.
Replacement product can only be sent if all warranty
requirements are met. Failure to follow all requirements
can result in delay.
WHAT IS NOT COVERED - EXCLUSIONS AND LIMI-
TATIONS:
This Limited Warranty applies only to the new products that
can be identified by the trademark, trade name, or logo affixed
to it. This Limited Warranty does not apply to any non-Philips
hardware product or any software, even if packaged or sold
with the product. Non-Philips manufacturers, suppliers, or
publishers may provide a separate warranty for their own
products packaged with the bundled product.
The company is not liable for any damage to or loss of any ,
programs data, or other information stored on any media
contained within the product, or any non-Philips product or part
not covered by this warranty. Recovery or reinstallation of
programs, data or other information is not covered under this
Limited Warranty.
This warranty does not apply (a) to damage caused by accident,
abuse, misuse, neglect, misapplication, or non-Philips product, (b)
to damage caused by service performed by anyone other than
an Authorized Service Location, (c) to a product or
a part that has been modified without written permission,
or (d) if any serial number has been removed or defaced,
or (e) product, accessories or consumables sold “AS IS”
without warranty of any kind by including refurbished Philips
product sold “AS IS” by some retailers.
This Limited Warranty does not cover:
Shipping charges to return defective product.
Labor charges for installation or setup of the product, adjust-
ment of customer controls on the product, and installation or
repair of antenna/signal source systems outside of the product.
Product repair and/or part replacement because of improper
installation or maintenance, connections to improper voltage
supply, power line surge, lightning damage, retained images or
screen markings resulting from viewing fixed stationary con-
tent for extended periods, product cosmetic appearance items
due to normal wear and tear, unauthorized repair or other
cause not within the control of the company.
Damage or claims for products not being available for use, or
for lost data or lost software.
Damage from mishandled shipments or transit accidents when
returning product.
A product that requires modification or adaptation to enable
it to operate in any country other than the country for which
it was designed, manufactured, approved and/or authorized, or
repair of products damaged by these modifications.
A product used for commercial or institutional purposes
(including but not limited to rental purposes).
Product lost in shipment and no signature verification receipt
can be provided.
Failure to operate per Owner’s Manual.
TO OBTAIN ASSISTANCE IN THE U.S.A., CANADA,
PUERTO RICO, OR U.S. VIRGIN ISLANDS…
Contact Customer Care Center at:
1-866-310-0744
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-
SUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN-
TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD-
UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE
LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT
IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
Some states do not allow the exclusions or limitation of inciden-
tal or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may
not apply to you.
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
CSS2133B_F7_UM_EN.indd 17 2013/1/31 9:25:28
CSS2133B_F7_UM_EN.indd 18 2013/1/31 9:25:29
CSS2133B_F7_UM_EN.indd 19 2013/1/31 9:25:30
Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
CSS2133B_F7_UM_V1.0
P&F USA, Inc.
PO Box 2248 Alpharetta, GA 30023-2248
Reproductor de Disco de Video Digital CSS2133B/F7

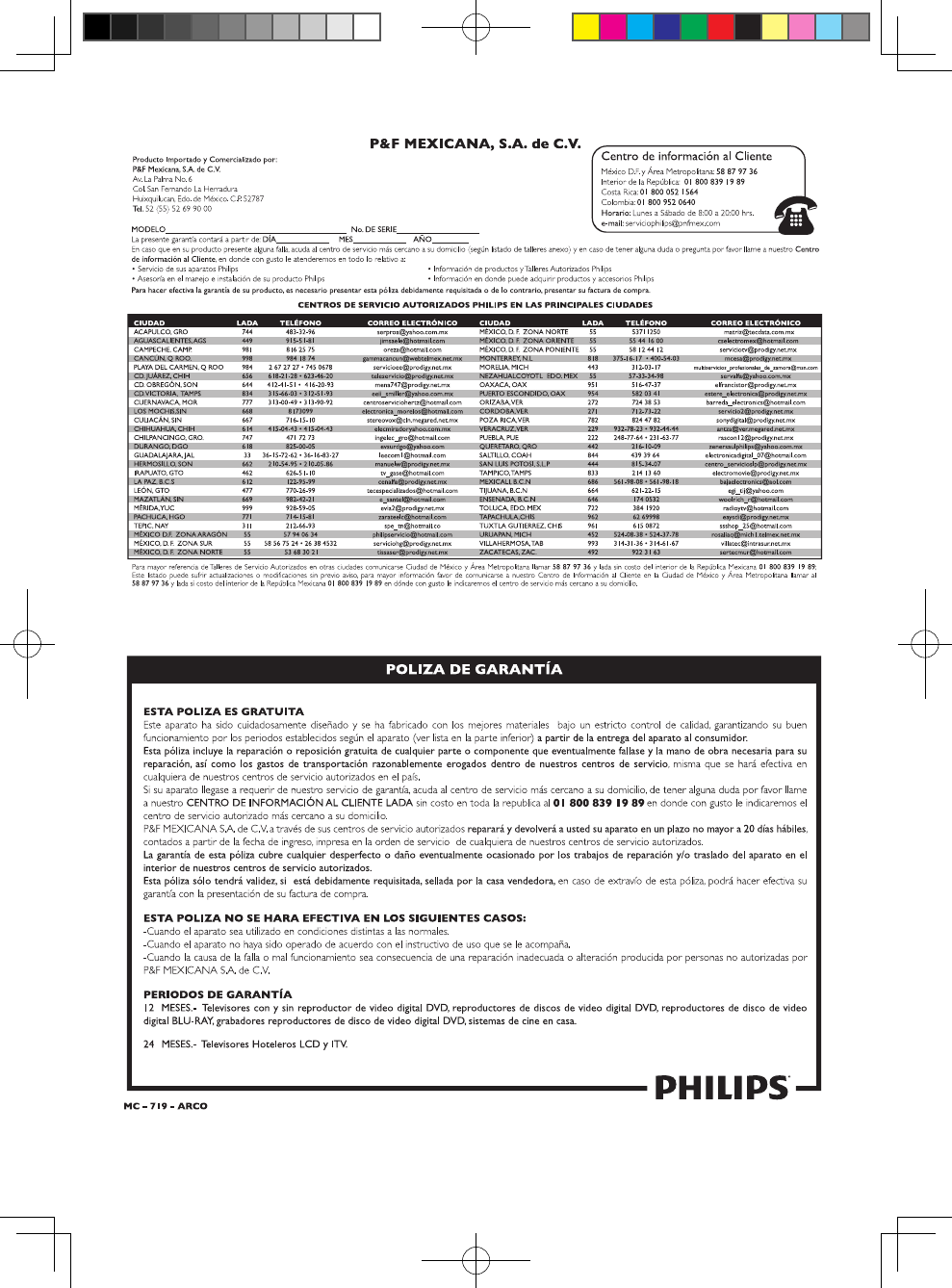

IMPORTADOR:
P&F MEXICANA. S.A. DE C.V.
Av. La Palma #6.
Col. San Fernando La Herradura
Huixquilucan, Edo. México.
MEXICO C.P.52787.
Tel: 52 (55) 5269 - 9000
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
Comercializadopor :
P&F MEXICANA. S.A. DE C.V.
EXPORTADOR: P&F USA Inc.
HECHO EN: CHINA
GARANTIA INCLUIDA EN EL INSTRUCTIVO DE USO
110-127 V~, 60 Hz 20 W
hW 02acirtcélE aígrenE ed omusnoC
Consumo de Energía Eléctrica del aparato en Modo de Espera 0.5Wh
CSS2133B_F7_UM_EN.indd 20 2013/1/31 9:25:30

Navigation menu
