Philips Consumer Lifestyle HSB3280SW Soundbar Speaker Subwoofer User Manual BOU HSB3280 135M HSB3280 rev1

Philips Consumer Lifestyle Soundbar Speaker Subwoofer BOU HSB3280 135M HSB3280 rev1

Contents

User manual part1

Register your product and get support at HSB3280Thank you for choosing Philips.Need help fast? Philips vous remercie de votre confiance.Besoin d'une aide rapide?Gracias por escoger PhilipsNecesita ayuda inmediata?Read your Quick Use Guide and/orOwner's Manual first for quick tips that make using your Philips product more enjoyable.If you have read your instructions and still need assistance,you may access our online help atwww.philips.com/welcomeor call1-888-PHILIPS (744-5477) while with your product.(and Model / Serial number)Les Guide d'utilisation rapide et Manuel de l'utilisateur regorgent d'astuces destinées à simplifier l'utilisation de votre produit Philips.Toutefois, si vous ne parvenez pas à résoudre votre probléme, vous pouvez accéder à notre aide en ligne à l'adressewww.philips.com/welcomeou formez le1-800-661-6162 (Francophone)1-888-PHILIPS (744-5477) (English speaking)Veillez à avoir votre produit àportée de main.(et model / serial nombre)Lea primero la Guía de uso rápido o elManual del usuario, en donde encontraráconsejos que le ayudarán a disfrutar plenamente de su producto Philips.Si después de leerlo aún necesita ayuda,consulte nuestro servicio de asistencia en línea enwww.philips.com/welcomeo llame al teléfono1-888-PHILIPS (744-5477)y tenga a mano el producto.(y número de model / serial)EN User manual 3BLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF
BLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

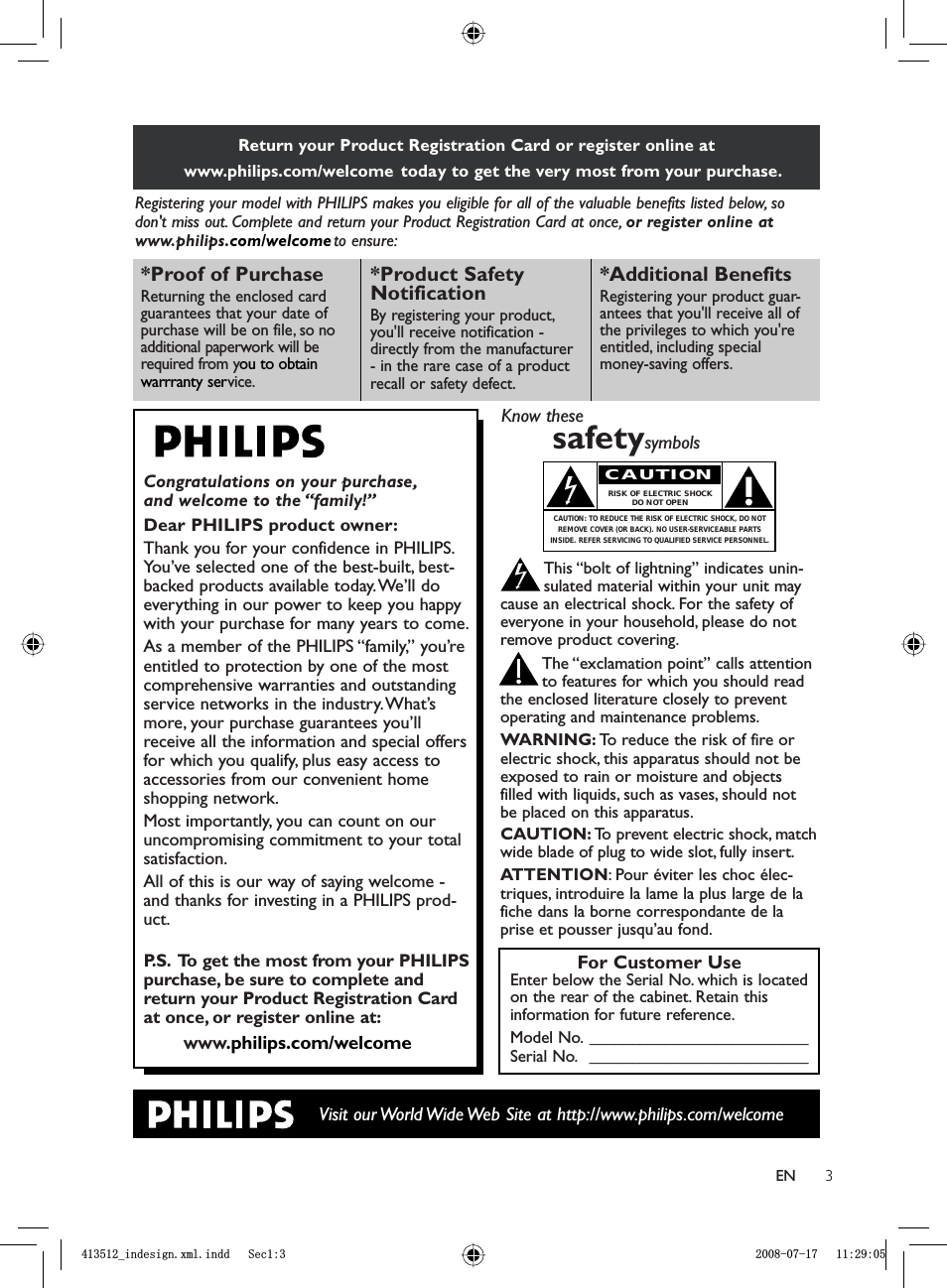

3ENReturn your Product Registration Card or register online at www.philips.com/welcome today to get the very most from your purchase.Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, sodon't miss out. Complete and return your Product Registration Card at once, or register online atwww.philips.com/welcome to ensure:Visit our World Wide Web Site at http://www.philips.com/welcomeCongratulations on your purchase,and welcome to the “family!”Dear PHILIPS product owner:Thank you for your confidence in PHILIPS.You’ve selected one of the best-built, best-backed products available today.We’ll doeverything in our power to keep you happywith your purchase for many years to come.As a member of the PHILIPS “family,” you’reentitled to protection by one of the mostcomprehensive warranties and outstandingservice networks in the industry.What’smore, your purchase guarantees you’llreceive all the information and special offersfor which you qualify, plus easy access toaccessories from our convenient homeshopping network.Most importantly, you can count on ouruncompromising commitment to your totalsatisfaction.All of this is our way of saying welcome -and thanks for investing in a PHILIPS prod-uct.P.S. To get the most from your PHILIPSpurchase, be sure to complete andreturn your Product Registration Cardat once, or register online at:www.philips.com/welcome*Proof of Purchase Returning the enclosed cardguarantees that your date ofpurchase will be on file, so noadditional paperwork will berequired from you to obtain warrranty service.*Product Safety NotificationBy registering your product,you'll receive notification -directly from the manufacturer- in the rare case of a productrecall or safety defect.*Additional Benefits Registering your product guar-antees that you'll receive all ofthe privileges to which you'reentitled, including specialmoney-saving offers.For Customer UseEnter below the Serial No. which is locatedon the rear of the cabinet. Retain thisinformation for future reference.Model No. __________________________Serial No. __________________________Know thesesafetysymbolsThis “bolt of lightning” indicates unin-sulated material within your unit maycause an electrical shock. For the safety ofeveryone in your household, please do notremove product covering.The “exclamation point” calls attentionto features for which you should readthe enclosed literature closely to preventoperating and maintenance problems.WARNING: To reduce the risk of fire orelectric shock, this apparatus should not beexposed to rain or moisture and objectsfilled with liquids, such as vases, should notbe placed on this apparatus.CAUTION: To prevent electric shock, matchwide blade of plug to wide slot, fully insert.ATTENTION: Pour éviter les choc élec-triques, introduire la lame la plus large de lafiche dans la borne correspondante de laprise et pousser jusqu’au fond.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOTREMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTSINSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.BLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

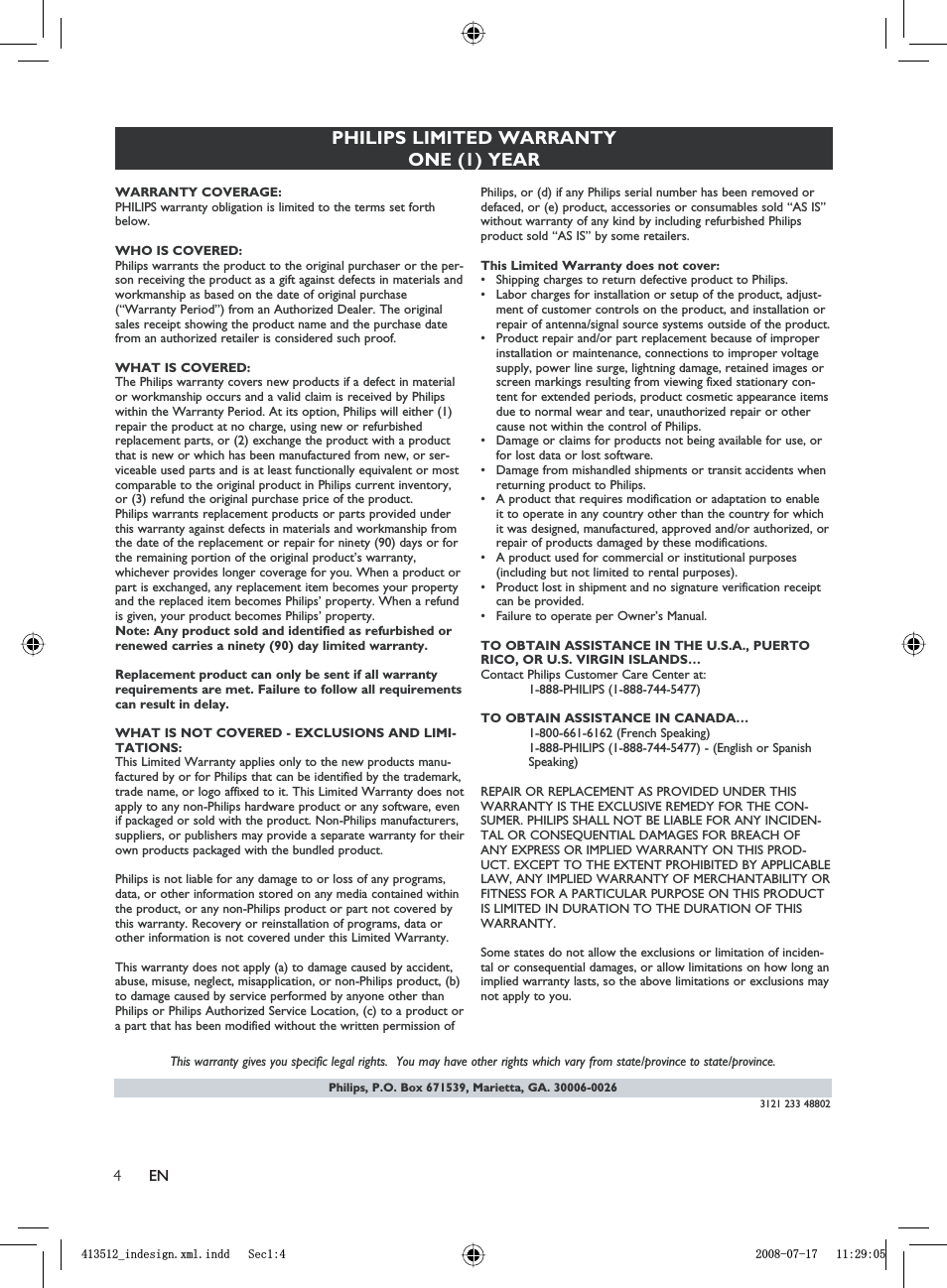

4ENPhilips, P.O. Box 671539, Marietta, GA. 30006-0026PHILIPS LIMITED WARRANTYONE (1) YEARWARRANTY COVERAGE:PHILIPS warranty obligation is limited to the terms set forthbelow.WHO IS COVERED: Philips warrants the product to the original purchaser or the per-son receiving the product as a gift against defects in materials andworkmanship as based on the date of original purchase(“Warranty Period”) from an Authorized Dealer. The originalsales receipt showing the product name and the purchase datefrom an authorized retailer is considered such proof. WHAT IS COVERED:The Philips warranty covers new products if a defect in materialor workmanship occurs and a valid claim is received by Philipswithin the Warranty Period. At its option, Philips will either (1)repair the product at no charge, using new or refurbishedreplacement parts, or (2) exchange the product with a productthat is new or which has been manufactured from new, or ser-viceable used parts and is at least functionally equivalent or mostcomparable to the original product in Philips current inventory,or (3) refund the original purchase price of the product.Philips warrants replacement products or parts provided underthis warranty against defects in materials and workmanship fromthe date of the replacement or repair for ninety (90) days or forthe remaining portion of the original product’s warranty,whichever provides longer coverage for you. When a product orpart is exchanged, any replacement item becomes your propertyand the replaced item becomes Philips’ property. When a refundis given, your product becomes Philips’ property. Note: Any product sold and identified as refurbished orrenewed carries a ninety (90) day limited warranty.Replacement product can only be sent if all warrantyrequirements are met. Failure to follow all requirementscan result in delay. WHAT IS NOT COVERED - EXCLUSIONS AND LIMI-TATIONS:This Limited Warranty applies only to the new products manu-factured by or for Philips that can be identified by the trademark,trade name, or logo affixed to it. This Limited Warranty does notapply to any non-Philips hardware product or any software, evenif packaged or sold with the product. Non-Philips manufacturers,suppliers, or publishers may provide a separate warranty for theirown products packaged with the bundled product. Philips is not liable for any damage to or loss of any programs,data, or other information stored on any media contained withinthe product, or any non-Philips product or part not covered bythis warranty. Recovery or reinstallation of programs, data orother information is not covered under this Limited Warranty.This warranty does not apply (a) to damage caused by accident,abuse, misuse, neglect, misapplication, or non-Philips product, (b)to damage caused by service performed by anyone other thanPhilips or Philips Authorized Service Location, (c) to a product ora part that has been modified without the written permission ofPhilips, or (d) if any Philips serial number has been removed ordefaced, or (e) product, accessories or consumables sold “AS IS”without warranty of any kind by including refurbished Philipsproduct sold “AS IS” by some retailers.This Limited Warranty does not cover:• Shipping charges to return defective product to Philips. • Labor charges for installation or setup of the product, adjust-ment of customer controls on the product, and installation orrepair of antenna/signal source systems outside of the product.• Product repair and/or part replacement because of improperinstallation or maintenance, connections to improper voltagesupply, power line surge, lightning damage, retained images orscreen markings resulting from viewing fixed stationary con-tent for extended periods, product cosmetic appearance itemsdue to normal wear and tear, unauthorized repair or othercause not within the control of Philips.• Damage or claims for products not being available for use, orfor lost data or lost software.• Damage from mishandled shipments or transit accidents whenreturning product to Philips.• A product that requires modification or adaptation to enableit to operate in any country other than the country for whichit was designed, manufactured, approved and/or authorized, orrepair of products damaged by these modifications. • A product used for commercial or institutional purposes(including but not limited to rental purposes).• Product lost in shipment and no signature verification receiptcan be provided.• Failure to operate per Owner’s Manual.TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTORICO, OR U.S. VIRGIN ISLANDS…Contact Philips Customer Care Center at:1-888-PHILIPS (1-888-744-5477)TO OBTAIN ASSISTANCE IN CANADA…1-800-661-6162 (French Speaking)1-888-PHILIPS (1-888-744-5477) - (English or Spanish Speaking)REPAIR OR REPLACEMENT AS PROVIDED UNDER THISWARRANTY IS THE EXCLUSIVE REMEDY FOR THE CON-SUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDEN-TAL OR CONSEQUENTIAL DAMAGES FOR BREACH OFANY EXPRESS OR IMPLIED WARRANTY ON THIS PROD-UCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLELAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY ORFITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCTIS LIMITED IN DURATION TO THE DURATION OF THISWARRANTY.Some states do not allow the exclusions or limitation of inciden-tal or consequential damages, or allow limitations on how long animplied warranty lasts, so the above limitations or exclusions maynot apply to you.This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.3121 233 48802BLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

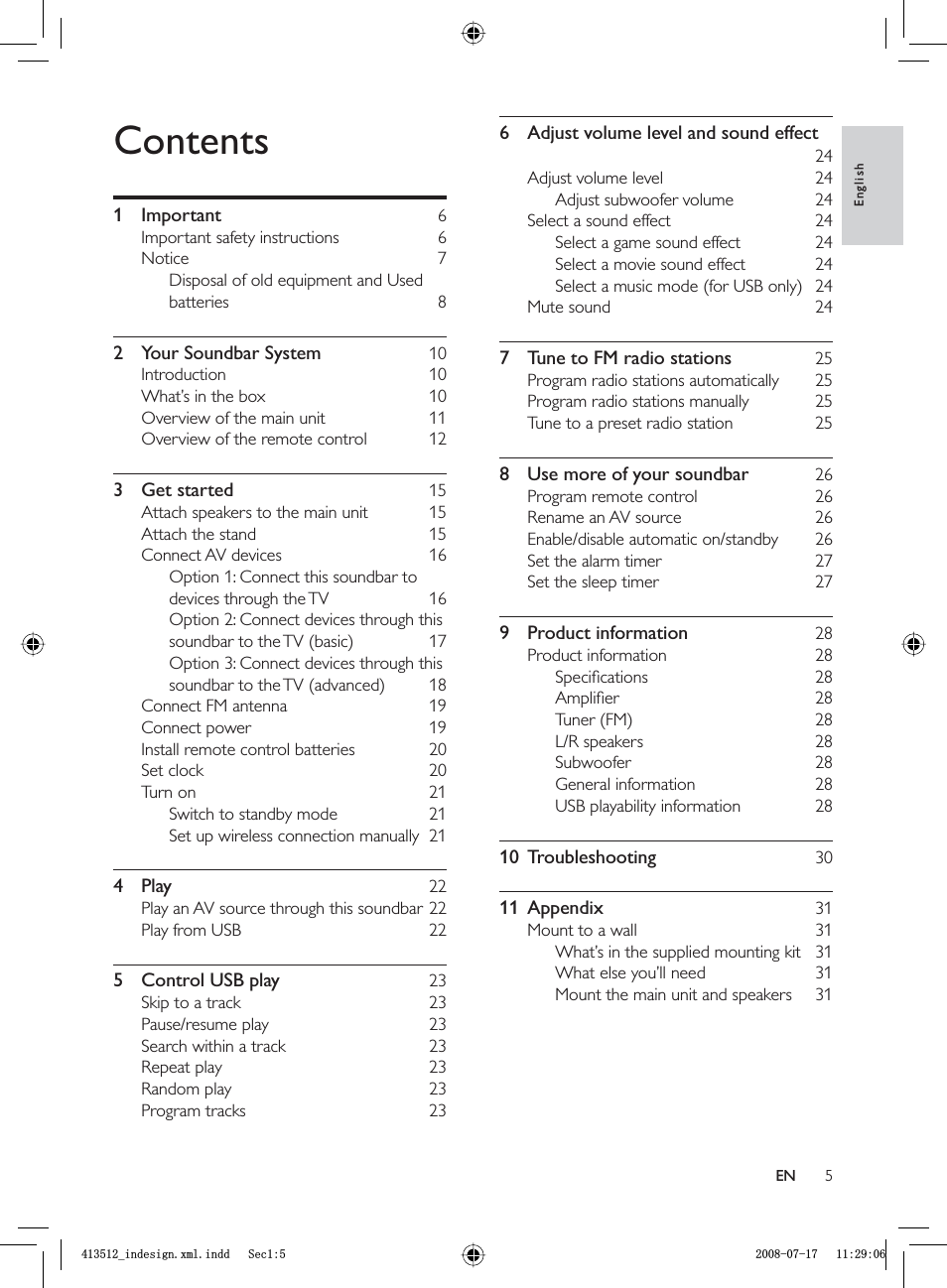

56 Adjust volume level and sound effect 24Adjust volume level 24Adjust subwoofer volume 24Select a sound effect 24Select a game sound effect 24Select a movie sound effect 24Select a music mode (for USB only) 24Mute sound 247 Tune to FM radio stations 25Program radio stations automatically 25Program radio stations manually 25Tune to a preset radio station 258 Use more of your soundbar 26Program remote control 26Rename an AV source 26Enable/disable automatic on/standby 26Set the alarm timer 27Set the sleep timer 279 Product information 28Product information 28Specifi cations 28Amplifi er 28Tuner (FM) 28L/R speakers 28Subwoofer 28General information 28USB playability information 2810 Troubleshooting 3011 Appendix 31Mount to a wall 31What’s in the supplied mounting kit 31What else you’ll need 31Mount the main unit and speakers 31Contents1 Important 6Important safety instructions 6Notice 7Disposal of old equipment and Used batteries 82 Your Soundbar System 10Introduction 10What’s in the box 10Overview of the main unit 11Overview of the remote control 123 Get started 15Attach speakers to the main unit 15Attach the stand 15Connect AV devices 16Option 1: Connect this soundbar to devices through the TV 16Option 2: Connect devices through this soundbar to the TV (basic) 17Option 3: Connect devices through this soundbar to the TV (advanced) 18Connect FM antenna 19Connect power 19Install remote control batteries 20Set clock 20Turn on 21Switch to standby mode 21Set up wireless connection manually 214 Play 22Play an AV source through this soundbar 22Play from USB 225 Control USB play 23Skip to a track 23Pause/resume play 23Search within a track 23Repeat play 23Random play 23Program tracks 23EnglishENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

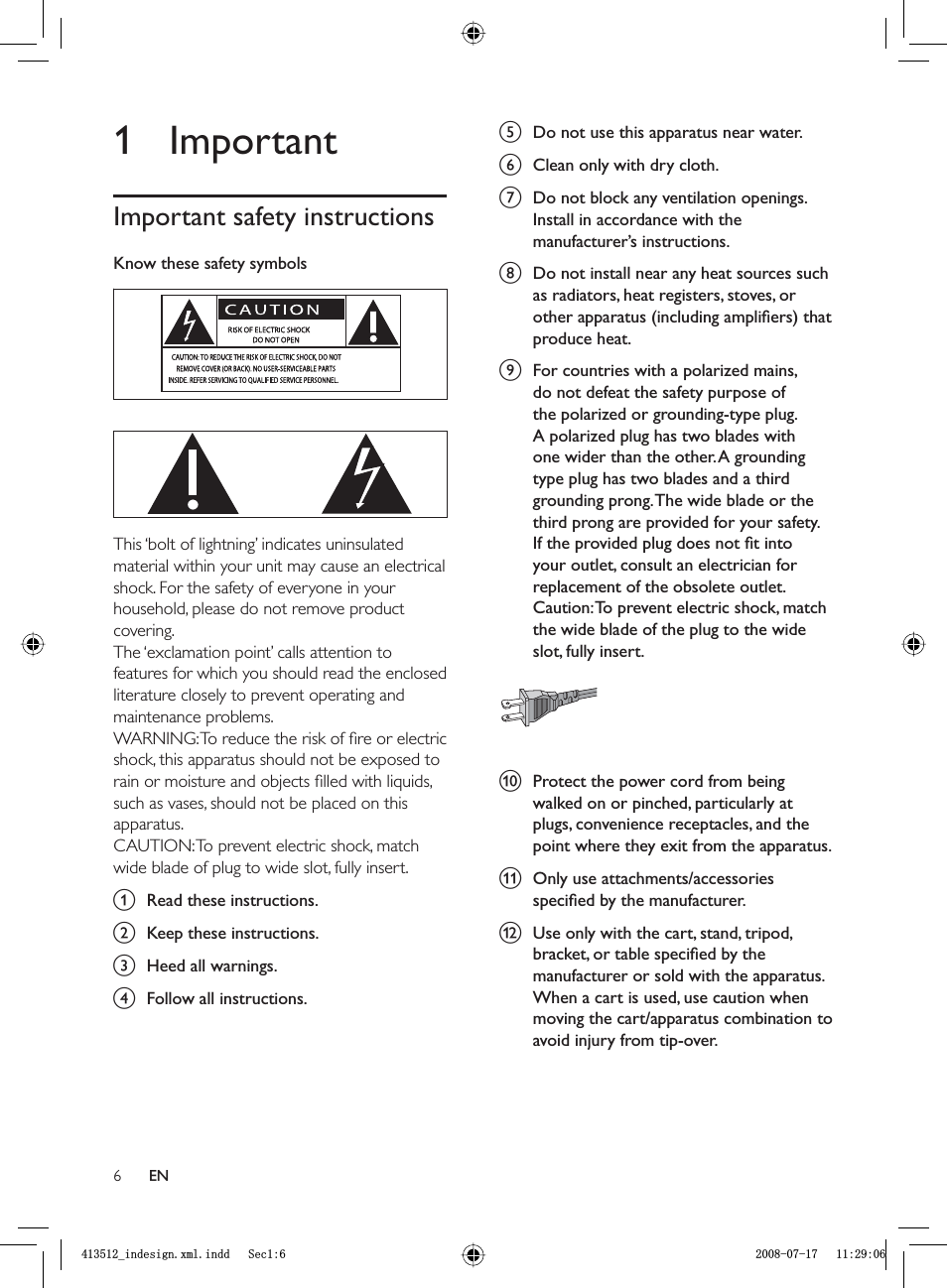

6e Do not use this apparatus near water.f Clean only with dry cloth.g Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.h Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. i For countries with a polarized mains, do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet.Caution: To prevent electric shock, match the wide blade of the plug to the wide slot, fully insert.j Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.k Only use attachments/accessories specifi ed by the manufacturer.l Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 1 ImportantImportant safety instructionsKnow these safety symbols This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of fi re or electric shock, this apparatus should not be exposed to rain or moisture and objects fi lled with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. a Read these instructions.b Keep these instructions.c Heed all warnings.d Follow all instructions.ENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

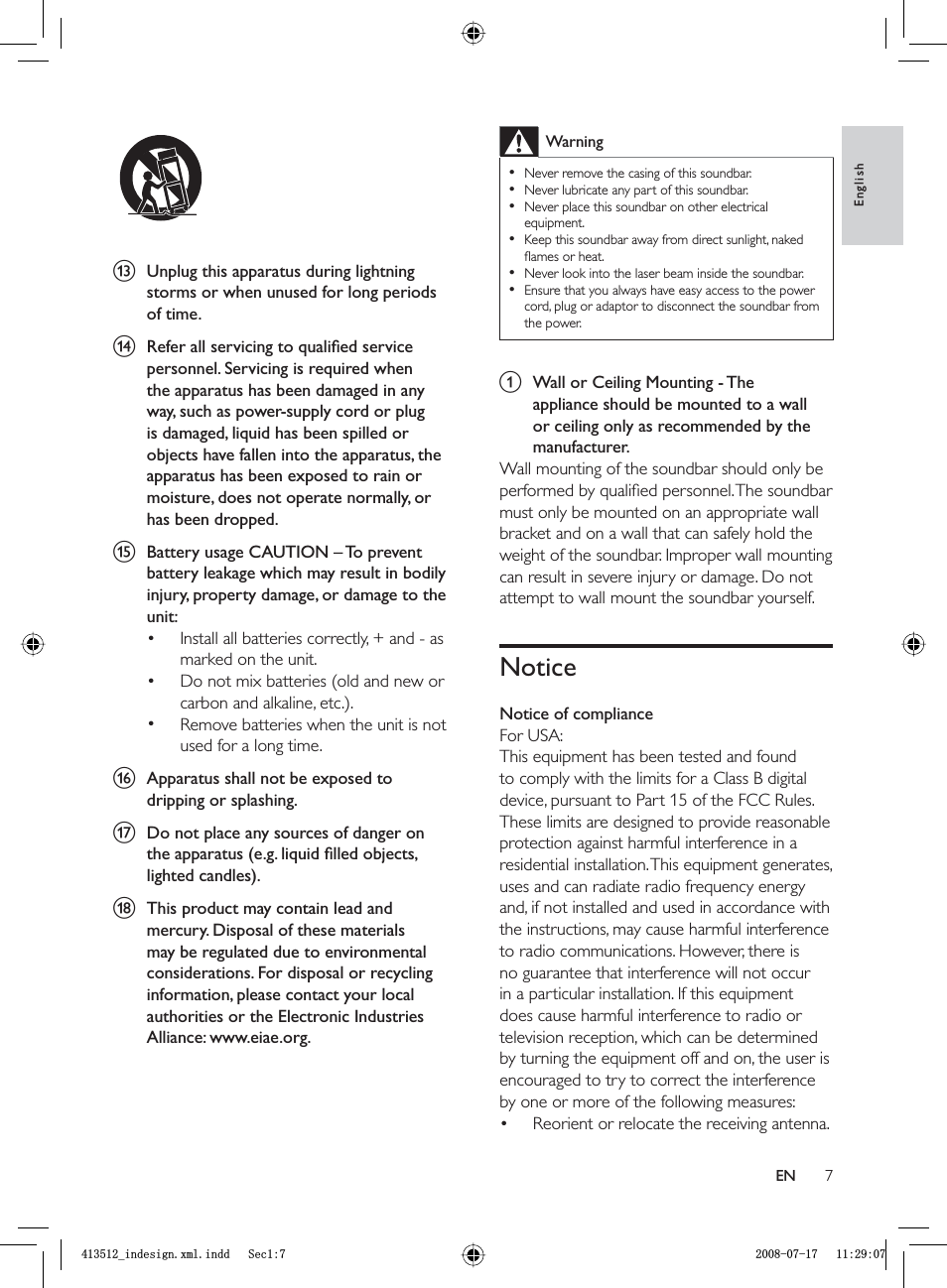

7WarningNever remove the casing of this soundbar. Never lubricate any part of this soundbar.Never place this soundbar on other electrical equipment.Keep this soundbar away from direct sunlight, naked fl ames or heat. Never look into the laser beam inside the soundbar.Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the soundbar from the power.••••••a Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.Wall mounting of the soundbar should only be performed by qualifi ed personnel. The soundbar must only be mounted on an appropriate wall bracket and on a wall that can safely hold the weight of the soundbar. Improper wall mounting can result in severe injury or damage. Do not attempt to wall mount the soundbar yourself.NoticeNotice of complianceFor USA: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.•m Unplug this apparatus during lightning storms or when unused for long periods of time. n Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.o Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit: Install all batteries correctly, + and - as marked on the unit. Do not mix batteries (old and new or carbon and alkaline, etc.).Remove batteries when the unit is not used for a long time.p Apparatus shall not be exposed to dripping or splashing. q Do not place any sources of danger on the apparatus (e.g. liquid fi lled objects, lighted candles). r This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.•••EnglishENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

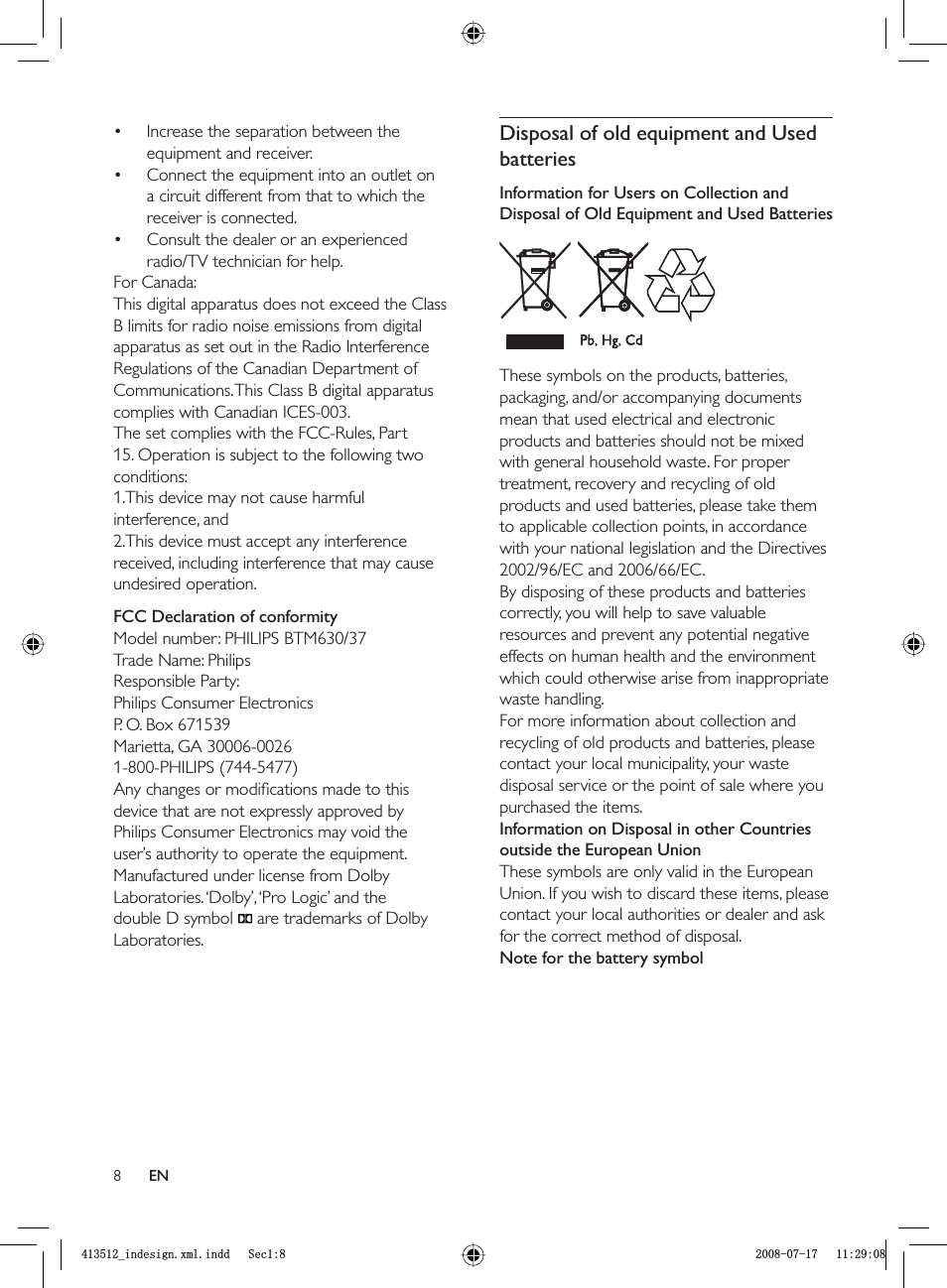

8Disposal of old equipment and Used batteriesInformation for Users on Collection and Disposal of Old Equipment and Used BatteriesThese symbols on the products, batteries, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.Information on Disposal in other Countries outside the European UnionThese symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.Note for the battery symbolIncrease the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.For Canada: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003.The set complies with the FCC-Rules, Part 15. Operation is subject to the following two conditions:1.This device may not cause harmful interference, and2.This device must accept any interference received, including interference that may cause undesired operation.FCC Declaration of conformityModel number: PHILIPS BTM630/37Trade Name: PhilipsResponsible Party: Philips Consumer ElectronicsP. O. Box 671539Marietta, GA 30006-00261-800-PHILIPS (744-5477)Any changes or modifi cations made to this device that are not expressly approved by Philips Consumer Electronics may void the user’s authority to operate the equipment.Manufactured under license from Dolby Laboratories. ‘Dolby’, ‘Pro Logic’ and the double D symbol are trademarks of Dolby Laboratories.•••ENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

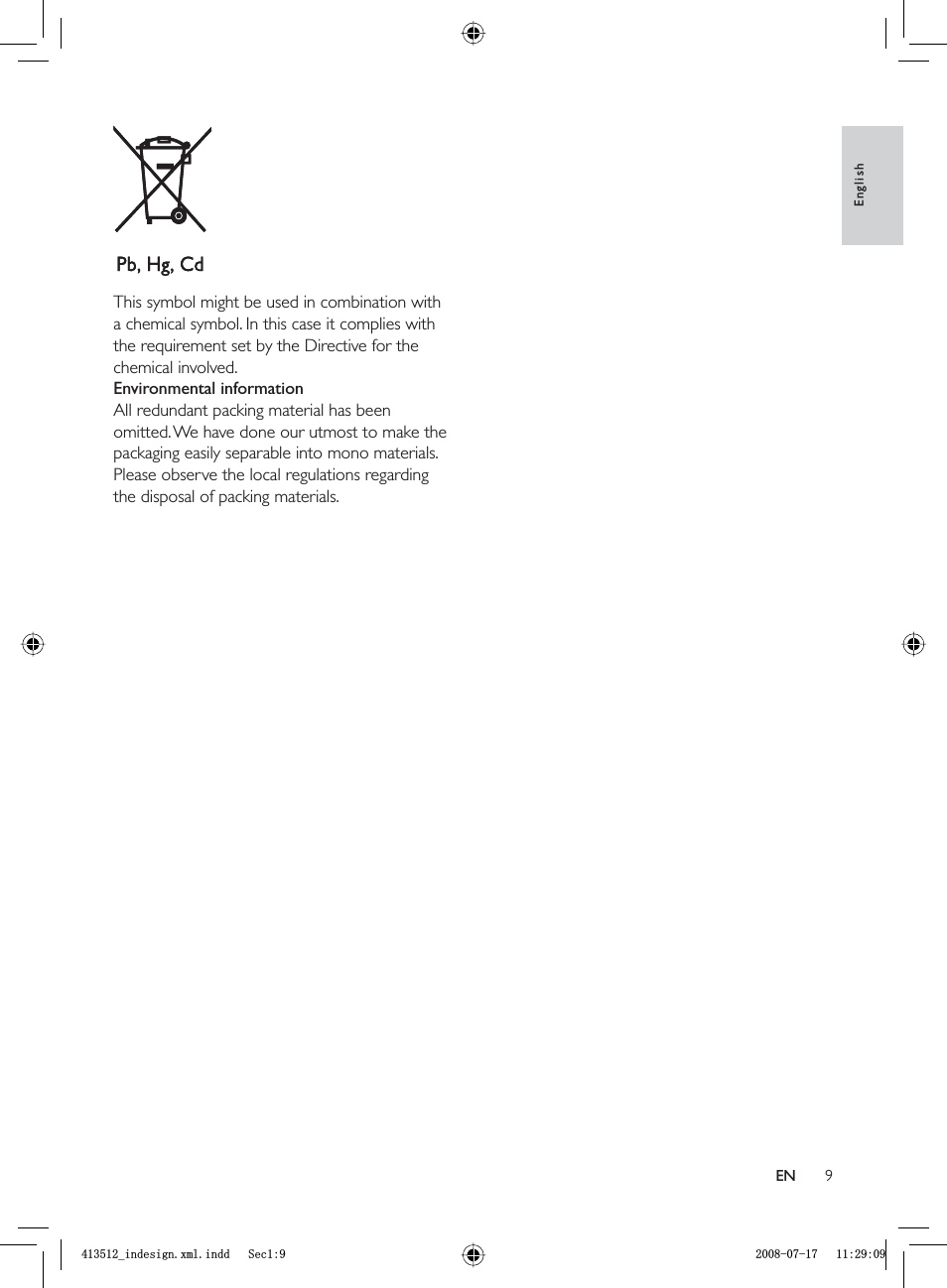

9This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.Environmental informationAll redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials.Please observe the local regulations regarding the disposal of packing materials.EnglishENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

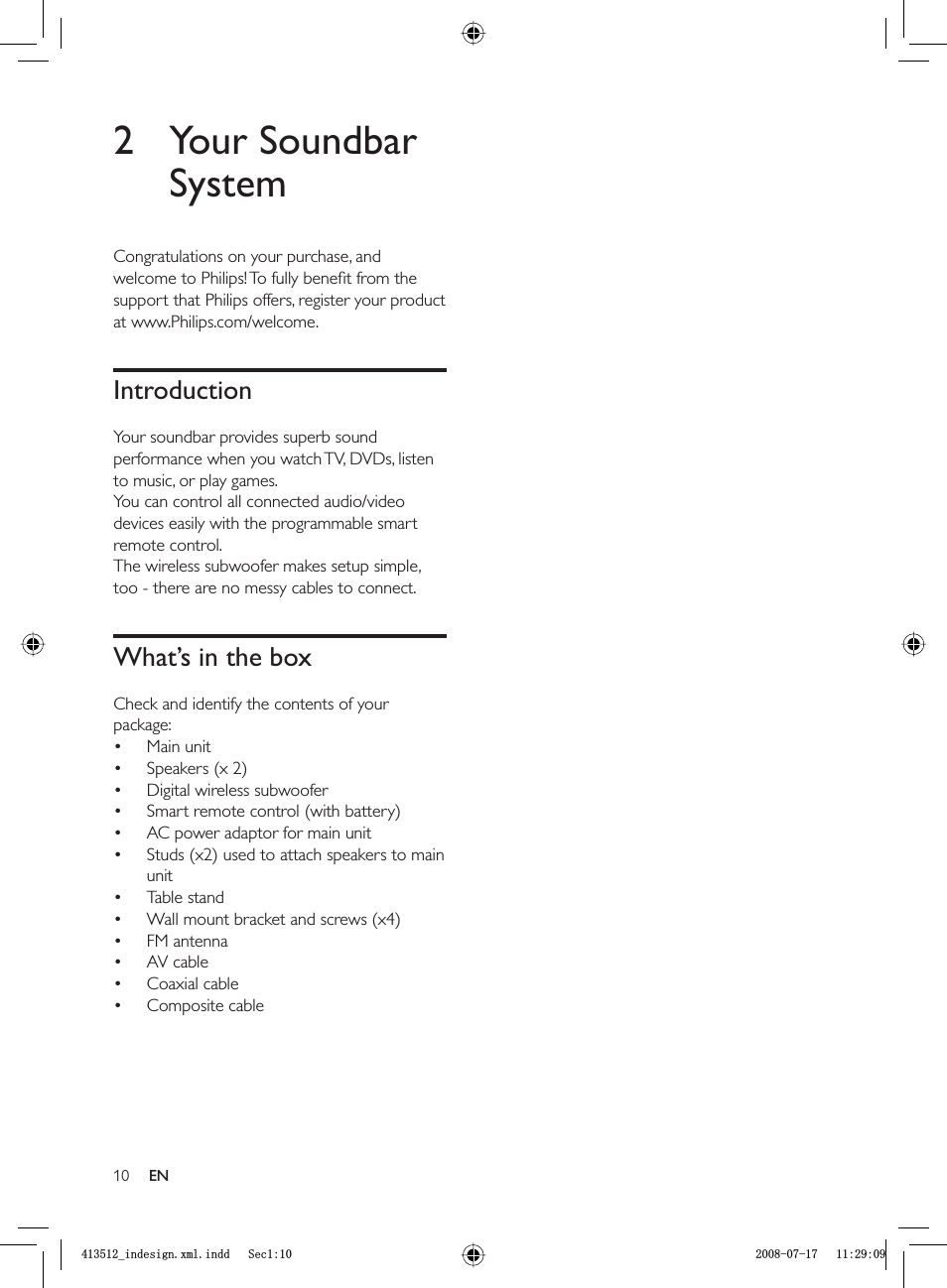

102 Your Soundbar SystemCongratulations on your purchase, and welcome to Philips! To fully benefi t from the support that Philips offers, register your product at www.Philips.com/welcome.IntroductionYour soundbar provides superb sound performance when you watch TV, DVDs, listen to music, or play games.You can control all connected audio/video devices easily with the programmable smart remote control.The wireless subwoofer makes setup simple, too - there are no messy cables to connect.What’s in the boxCheck and identify the contents of your package:Main unitSpeakers (x 2)Digital wireless subwooferSmart remote control (with battery)AC power adaptor for main unitStuds (x2) used to attach speakers to main unitTable standWall mount bracket and screws (x4)FM antennaAV cable Coaxial cableComposite cable••••••••••••ENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

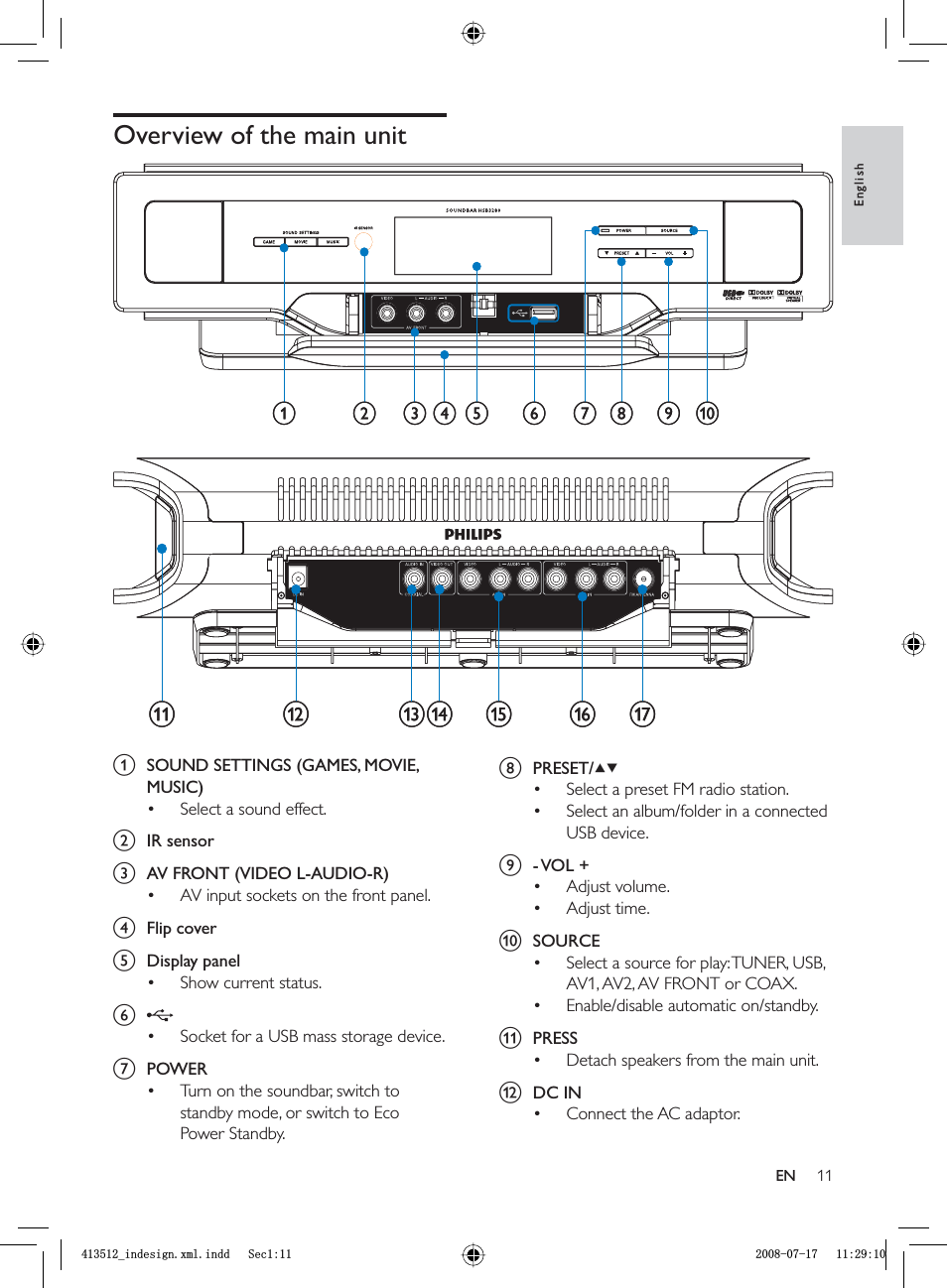

11hPRESET/Select a preset FM radio station.Select an album/folder in a connected USB device.i- VOL + Adjust volume.Adjust time.jSOURCESelect a source for play: TUNER, USB, AV1, AV2, AV FRONT or COAX.Enable/disable automatic on/standby.kPRESSDetach speakers from the main unit.lDC IN Connect the AC adaptor.••••••••Overview of the main unitaSOUND SETTINGS (GAMES, MOVIE, MUSIC)Select a sound effect.b IR sensorcAV FRONT (VIDEO L-AUDIO-R) AV input sockets on the front panel. d Flip covere Display panelShow current status.fSocket for a USB mass storage device.gPOWER Turn on the soundbar, switch to standby mode, or switch to Eco Power Standby.•••••abedigjcfhabedigjcfhk lqnm o pk lqnm o pEnglishENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF
12mAUDIO IN - COAXIAL Coaxial audio output socket.nVIDEO OUT Socket for composite video output. oAV2 IN (VIDEO L - AUDIO - R) AV input sockets.pAV1 IN (VIDEO L - AUDIO - R) AV input sockets. qFM ANTENNA Connect the FM antenna.•••••ENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

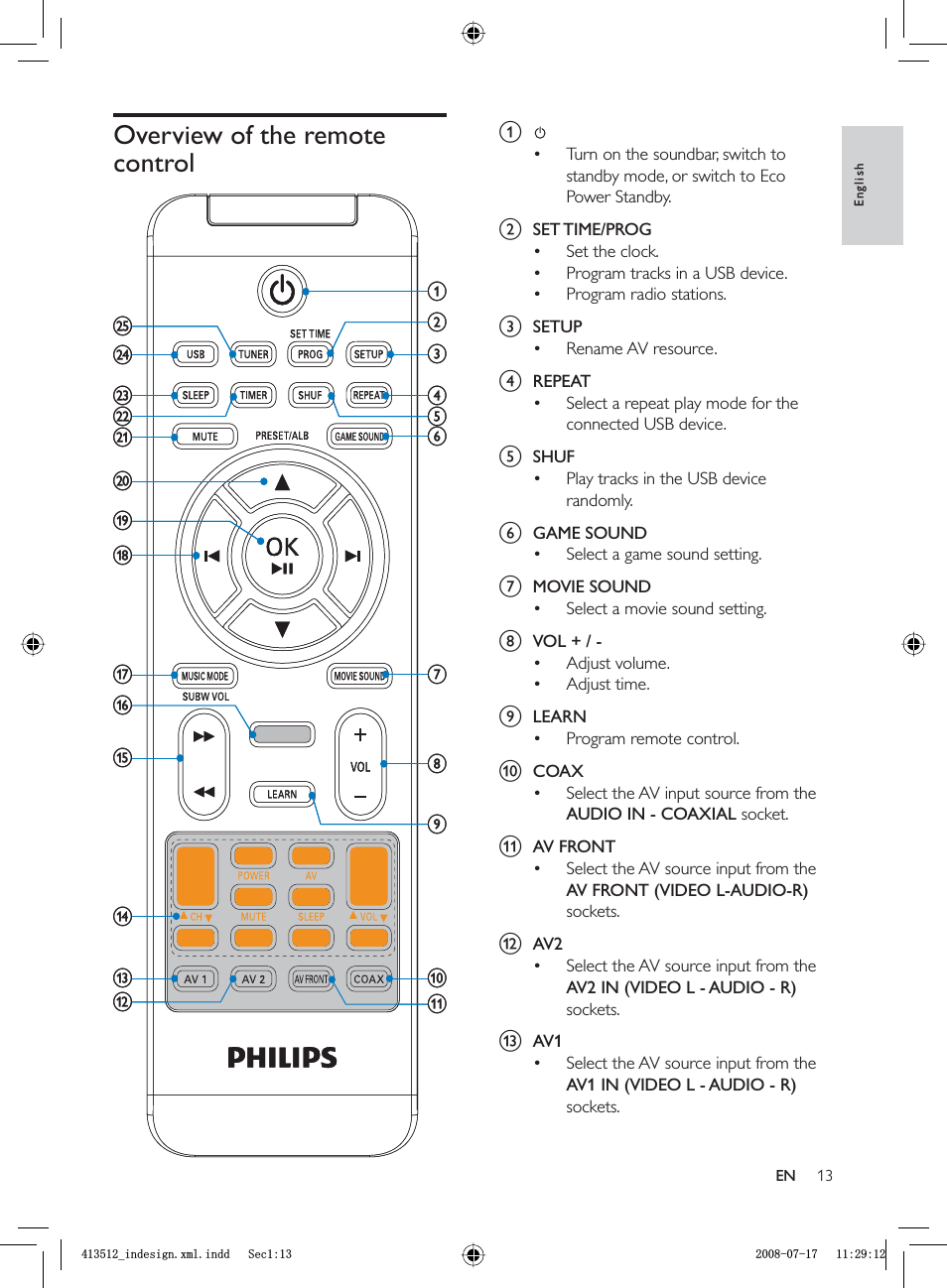

13aTurn on the soundbar, switch to standby mode, or switch to Eco Power Standby.bSET TIME/PROG Set the clock.Program tracks in a USB device.Program radio stations.cSETUPRename AV resource.dREPEAT Select a repeat play mode for the connected USB device.eSHUFPlay tracks in the USB device randomly.fGAME SOUND Select a game sound setting.gMOVIE SOUND Select a movie sound setting.hVOL + / - Adjust volume.Adjust time.iLEARNProgram remote control.jCOAX Select the AV input source from the AUDIO IN - COAXIAL socket.kAV FRONT Select the AV source input from the AV FRONT (VIDEO L-AUDIO-R)sockets.lAV2 Select the AV source input from the AV2 IN (VIDEO L - AUDIO - R)sockets.mAV1 Select the AV source input from the AV1 IN (VIDEO L - AUDIO - R)sockets.••••••••••••••••Overview of the remote controlwxyuqomlptsrvdcbafghjkienwxyuqomlptsrvdcbafghjkienEnglishENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

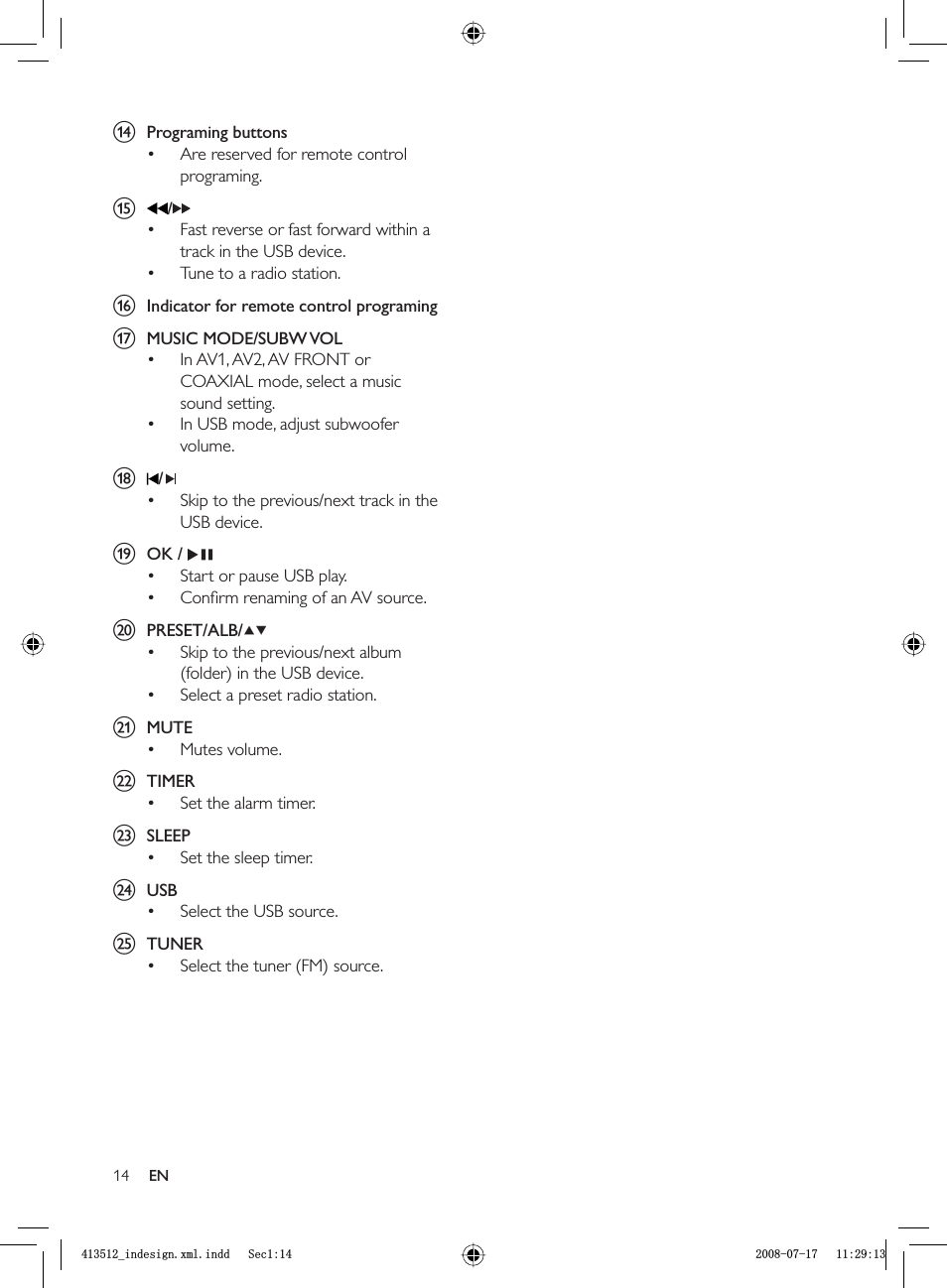

14n Programing buttonsAre reserved for remote control programing.o/Fast reverse or fast forward within a track in the USB device.Tune to a radio station.p Indicator for remote control programingqMUSIC MODE/SUBW VOL In AV1, AV2, AV FRONT or COAXIAL mode, select a music sound setting.In USB mode, adjust subwoofer volume.r/Skip to the previous/next track in the USB device.s OK / Start or pause USB play.Confi rm renaming of an AV source.tPRESET/ALB/Skip to the previous/next album (folder) in the USB device.Select a preset radio station.uMUTEMutes volume.vTIMERSet the alarm timer.wSLEEPSet the sleep timer.xUSBSelect the USB source.yTUNERSelect the tuner (FM) source.•••••••••••••••ENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

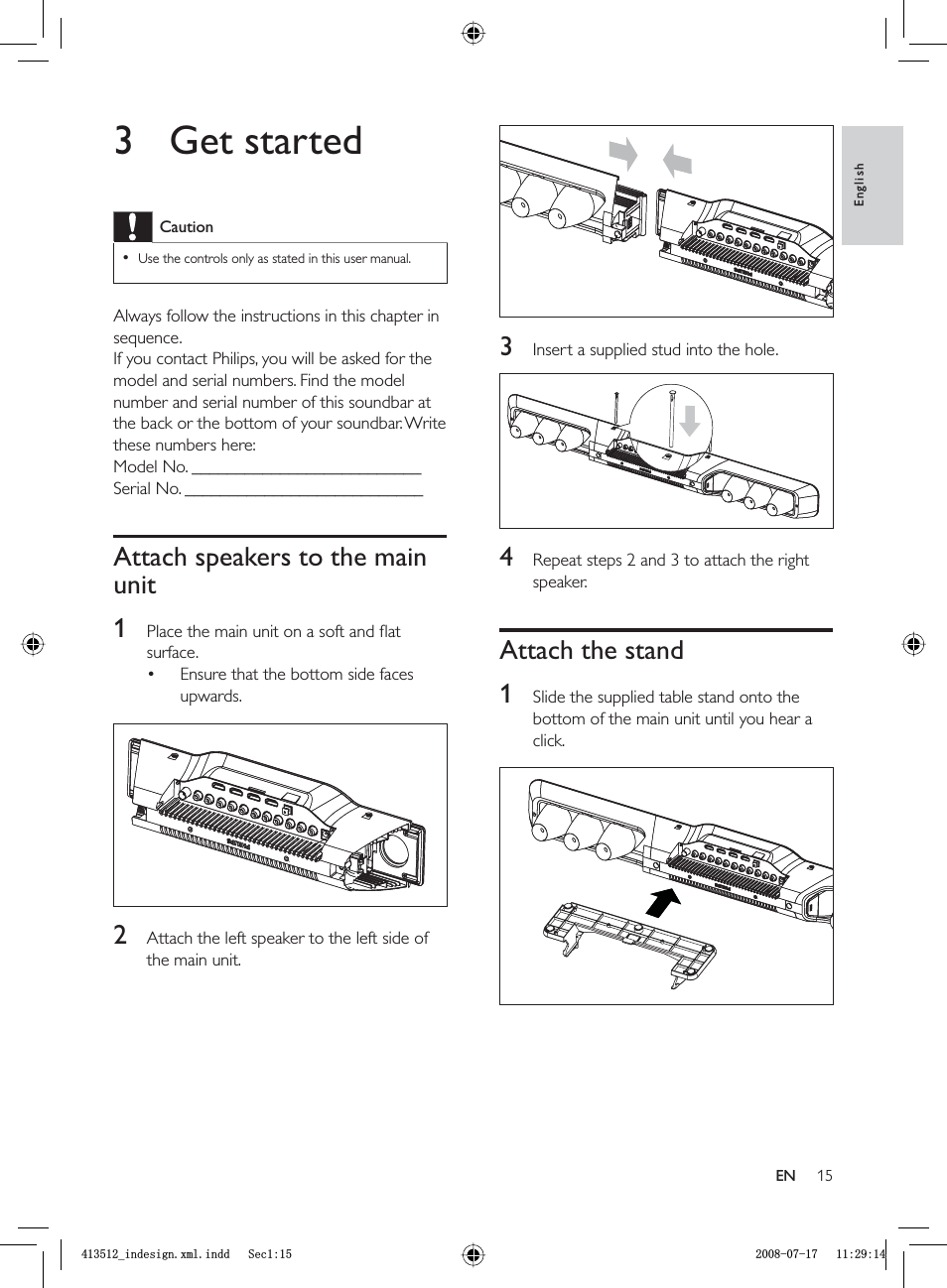

153 Insert a supplied stud into the hole.4 Repeat steps 2 and 3 to attach the right speaker.Attach the stand1 Slide the supplied table stand onto the bottom of the main unit until you hear a click.3 Get startedCautionUse the controls only as stated in this user manual.•Always follow the instructions in this chapter in sequence.If you contact Philips, you will be asked for the model and serial numbers. Find the model number and serial number of this soundbar at the back or the bottom of your soundbar. Write these numbers here: Model No. __________________________Serial No. ___________________________Attach speakers to the main unit1 Place the main unit on a soft and fl at surface.Ensure that the bottom side faces upwards.2 Attach the left speaker to the left side of the main unit.•EnglishENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

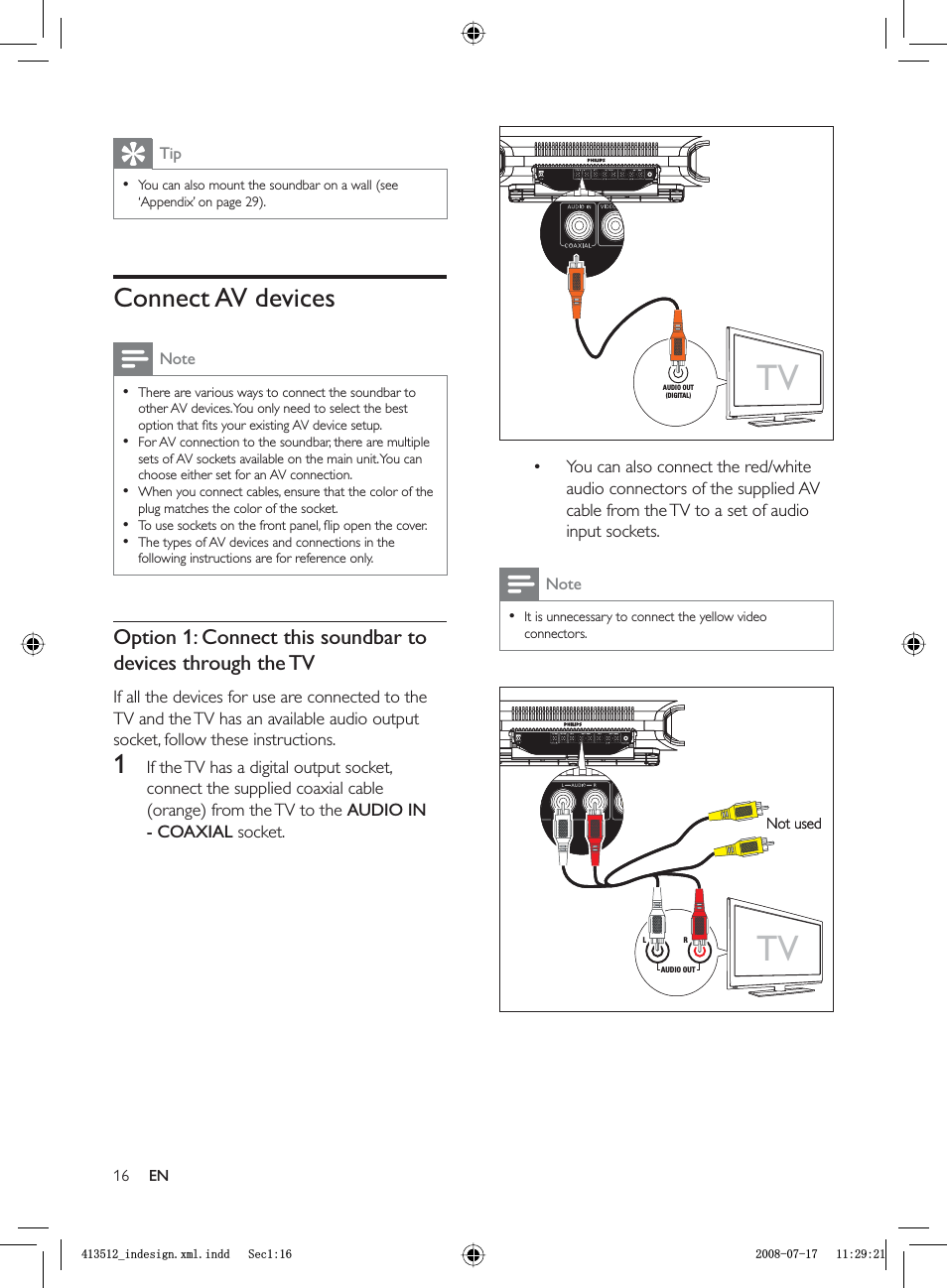

16You can also connect the red/white audio connectors of the supplied AV cable from the TV to a set of audio input sockets.NoteIt is unnecessary to connect the yellow video connectors.••TVAUDIO OUT(DIGITAL)TVAUDIO OUT(DIGITAL)TVLRAUDIO OUTNot usedTVLRAUDIO OUTNot usedTipYou can also mount the soundbar on a wall (see ‘Appendix’ on page 29).•Connect AV devicesNoteThere are various ways to connect the soundbar to other AV devices. You only need to select the best option that fi ts your existing AV device setup.For AV connection to the soundbar, there are multiple sets of AV sockets available on the main unit. You can choose either set for an AV connection. When you connect cables, ensure that the color of the plug matches the color of the socket. To use sockets on the front panel, fl ip open the cover.The types of AV devices and connections in the following instructions are for reference only.•••••Option 1: Connect this soundbar to devices through the TVIf all the devices for use are connected to the TV and the TV has an available audio output socket, follow these instructions.1 If the TV has a digital output socket, connect the supplied coaxial cable (orange) from the TV to the AUDIO IN - COAXIAL socket.ENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF

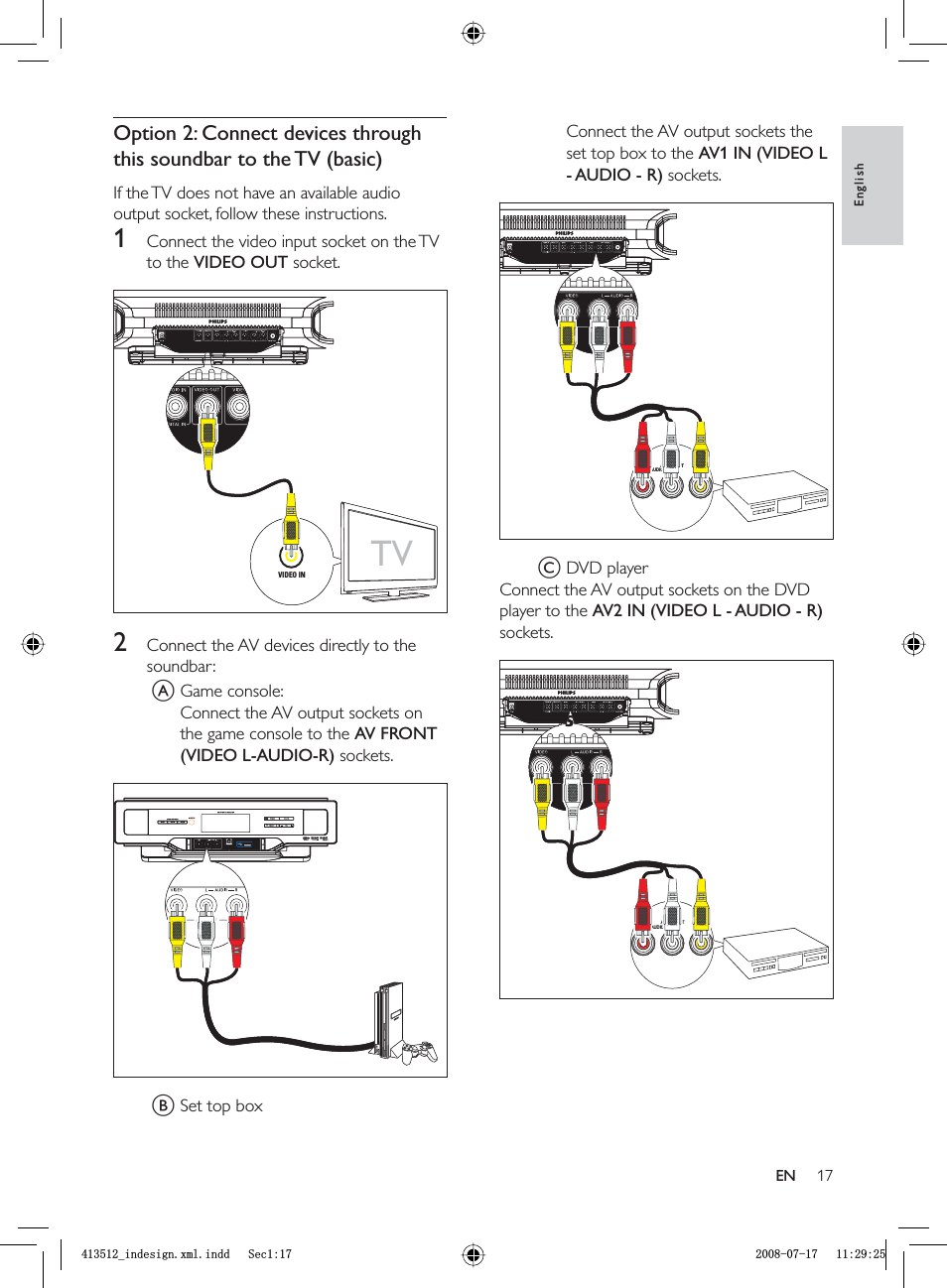

17Connect the AV output sockets the set top box to the AV1 IN (VIDEO L - AUDIO - R) sockets.C DVD playerConnect the AV output sockets on the DVD player to the AV2 IN (VIDEO L - AUDIO - R)sockets.AUDIO VIDEOAUDIO OUTLRAUDIO VIDEOAUDIO OUTLRAUDIO VIDEOAUDIO OUTLRAUDIO VIDEOAUDIO OUTLROption 2: Connect devices through this soundbar to the TV (basic)If the TV does not have an available audio output socket, follow these instructions.1 Connect the video input socket on the TV to the VIDEO OUT socket.2 Connect the AV devices directly to the soundbar:A Game console:Connect the AV output sockets on the game console to the AV FRONT (VIDEO L-AUDIO-R) sockets. B Set top boxTVVIDEO INTVVIDEO INEnglishENBLQGHVLJQ[POLQGG6HFBLQGHVLJQ[POLQGG6HF
