1EN
Contents
1 Important 2
Important safety instructions 2
Care for your product 3
Care of the environment 3
Help and support 4
2 Your SoundBar 5
Indicators on the main unit 5
Remote control 6
Connectors 6
Wireless speakers 7
Wireless subwoofer 8
3 Connect and set up 9
Charge speakers 9
Pair up with speakers/subwoofer 9
Place speakers 10
Connect to TV 11
Connect digital devices through HDMI 11
Connect audio from TV and other
devices 11
4 Use your SoundBar 13
Adjust the volume 13
Choose your sound 13
MP3 player 14
Play music via Bluetooth 14
Auto standby 15
Apply factory settings 15
5 Wall mount your SoundBar 16
Wall mount 16
6 Productspecications 17
7 Troubleshooting 18
8 Notice 19
Notice of compliance 19
2 3ENEN
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
•Apparatus shall not be exposed to
dripping or splashing.
•Do not place any sources of danger on
the apparatus (forexample.liquidlled
objects, lighted candles).
•This apparatus may contain lead and
mercury. Dispose according to local, State
or Federal laws. For disposal or recycling
information, please contact your local
authorities. For additional assistance on
recycling options, please contact www.
mygreenelectronics.com or www.eiae.org
or www.recycle.philips.com.
•Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
•Do not place this apparatus on the
furniture that is capable of being tilted by a
child and an adult leaning, pulling, standing
or climbing on it. A falling apparatus can
cause serious injury or even death.
• This apparatus should not be placed in a
built-in installation such as a bookcase or
rack unless proper ventilation is provided.
Make sure to leave a space of 7.8 inches
(20cm) or more around this apparatus.
Class II equipment symbol
This symbol indicates that the unit has a double
insulation system.
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING:Toreducetheriskofreor
electric shock, this apparatus should not be
exposedtorainormoistureandobjectslled
with liquids, such as vases, should not be placed
on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Care for your product
Useonlymicroberclothtocleantheproduct.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused. Please
visit www.recycle.philips.com for additional
information on a recycling center in your area.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
1 Important
Read and understand all instructions before you
use your product. If damage is caused by failure
to follow instructions, the warranty does not
apply.
Important safety instructions
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
•Do not install near any heat sources
such as radiators, heat registers, stoves, or
otherapparatus(includingampliers)that
produce heat.
•Do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. If the provided
plugdoesnottintoyouroutlet,consult
an electrician for replacement of the
obsolete outlet.
•Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
•Only use attachments/accessories
speciedbythemanufacturer.
•Use only with the cart, stand, tripod,
bracketortablespeciedbythe
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
•Unplug this apparatus during lightning
storm or when unused for long periods of
time.
•Refer all servicing toqualiedservice
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
•Battery usage CAUTION - To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
• Install all batteries correctly, + and - as
marked on the unit.
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove batteries when the unit is not
used for a long time.
• The batteries shall not be exposed to
excessiveheatsuchassunshine,reor
the like.
• Perchlorate Material - special handling
may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate.
• The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
4 5ENEN
2 Your SoundBar
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfrom
the support that Philips offers, register your
SoundBar at www.philips.com/welcome.

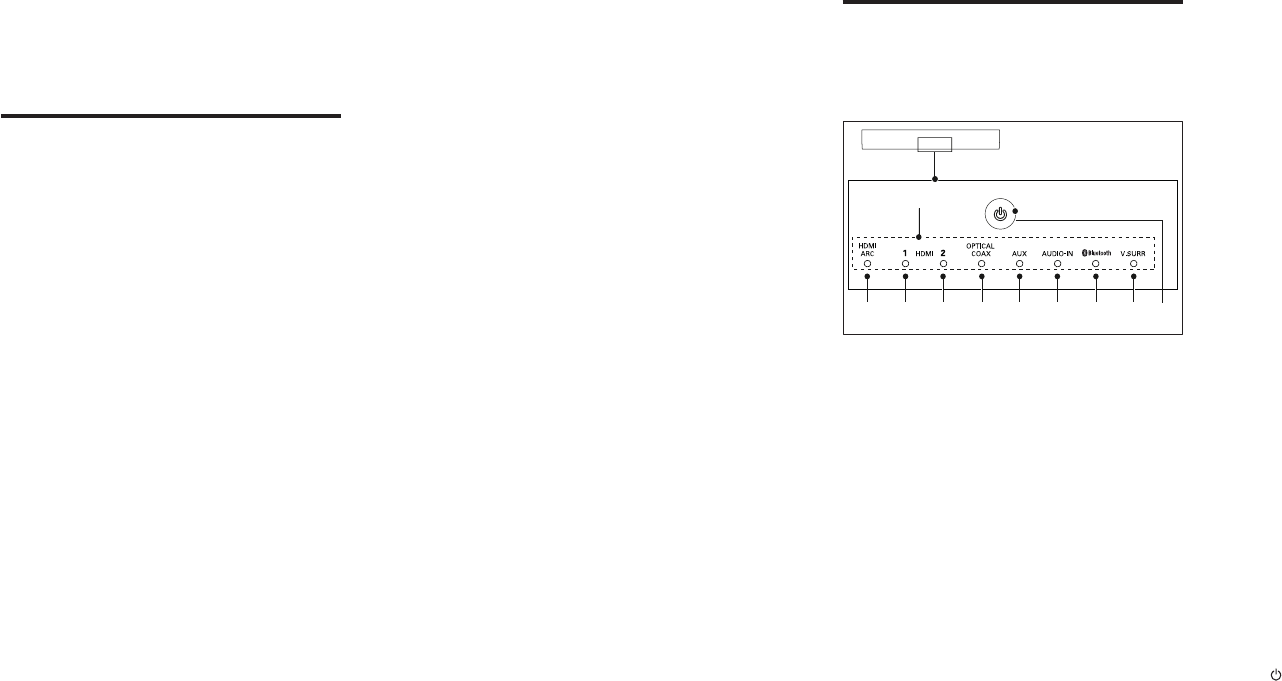

Indicators on the main unit
This section describes the information of the
LED indicators on the main unit.
a Volume indicator
• When you change volume, one
or multiple indicators (up to eight
indicators) light up to indicate the
volume level.
Wireless pairing indicators
• During wireless pairing between the
main unit and the surround speakers,
eight indicators blink one by one.
• When the pairing succeeds, eight
indicators light up for three seconds.
• If the pairing fails, eight indicators blink
three times.
b HDMI ARC
• Lights up when you select HDMI ARC
as the input source.
• Blinks when no audio from the
selected HDMI ARC source is
detected, or when an unsupported
audio format is detected.
a
cdefghibj
c HDMI 1
Lights up when you select HDMI IN 1 as
the input source.
d HDMI 2
Lights up when you select HDMI IN 2 as
the input source.
e OPTICAL/COAX
• Lights up when you switch to optical
or coaxial input source.
• Blinks when an unsupported audio
format is detected.
f AUX
Lights up when you switch to AUX input
source.
g AUDIO-IN
Lights up when you switch to AUDIO-IN
source (3.5mm jack).
h Bluetooth
• Lights up when you switch to
Bluetooth mode and Bluetooth devices
are paired.
• Blinks when you switch to Bluetooth
mode and Bluetooth devices are not
paired.
i V. SURR indicator
• Lights up when surround mode is
selected.
• Off when stereo mode is selected.
• Blinks once when night mode/auto
volume is enabled.
• Blinks twice when Dolby Digital audio
is input.
• Blinks twice when night mode/auto
volume is disabled.
• Blinks three times when DTS audio is
input.
j (Standby-On/Standby indicator)
When the SoundBar is in standby, the
standby indicator turns red.
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
The batteries supplied do not contain the heavy
metals mercury and cadmium. Nevertheless,
in many areas batteries may not be disposed
of with your household waste. Please ensure
you dispose of batteries according to local
regulations.
For perchlorate material, special handling may
apply. Visit www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Help and support
Philips provides extensive online support. Visit
our website at www.philips.com/support to:
• download the user manual and the quick
start guide
• watch video tutorials (available only for
selected models)
• ndanswerstofrequentlyanswered
questions (FAQs)
• email us a question
• chat with our support representative.
Follow the instructions on the website to select
your language, and then enter your product
model number.
Alternatively, you can contact Philips Consumer
Care in your country. Before you contact
Philips, note down the model number and
serialnumberofyourproduct.Youcanndthis
information on the back or bottom of your
product.
6 7ENEN
Rear connectors
a AC MAINS~
Connect to the power supply.
b TO TV-HDMI OUT (ARC)
Connect to the HDMI (ARC) input on the
TV.
c HDMI IN 2
Connect to the HDMI output on a digital
device.
d HDMI IN 1
Connect to the HDMI output on a digital
device.
e DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
f DIGITAL IN-COAXIAL
Connect to a coaxial audio output on the
TV or a digital device.
g AUDIO IN-AUX
Connect to an analog audio output on the
TV or an analog device.
h AUDIO-IN
Audio input from, for example, an MP3
player (3.5mm jack).
bc ef
gh
d
a
Wireless speakers
The SoundBar comes with 2 wireless surround
speakers (left and right).
* The illustration above is for the right speaker's
top view and bottom view.
a Speaker indicator
• During wireless pairing between the
main unit and the speaker, the indicator
blinks red quickly.
• When the pairing succeeds, the
indicator turns into solid white
(undocked from the main unit), or the
indicator lights up white 30 seconds
then fades off (being docked into the
main unit).
• When the pairing fails or pairing
remains undone, the indicator blinks
red slowly.
• When the speaker is being charged
(docked into the main unit), the
indicator lights up amber.
• When the speaker goes to standby, the
indicator blinks amber.
b Connection key
Press with a pin to enter the pairing mode
for the speaker.
c POWER ON
Press to turn on the wireless speaker if it
automatically goes to standby.
POWER ON
abc

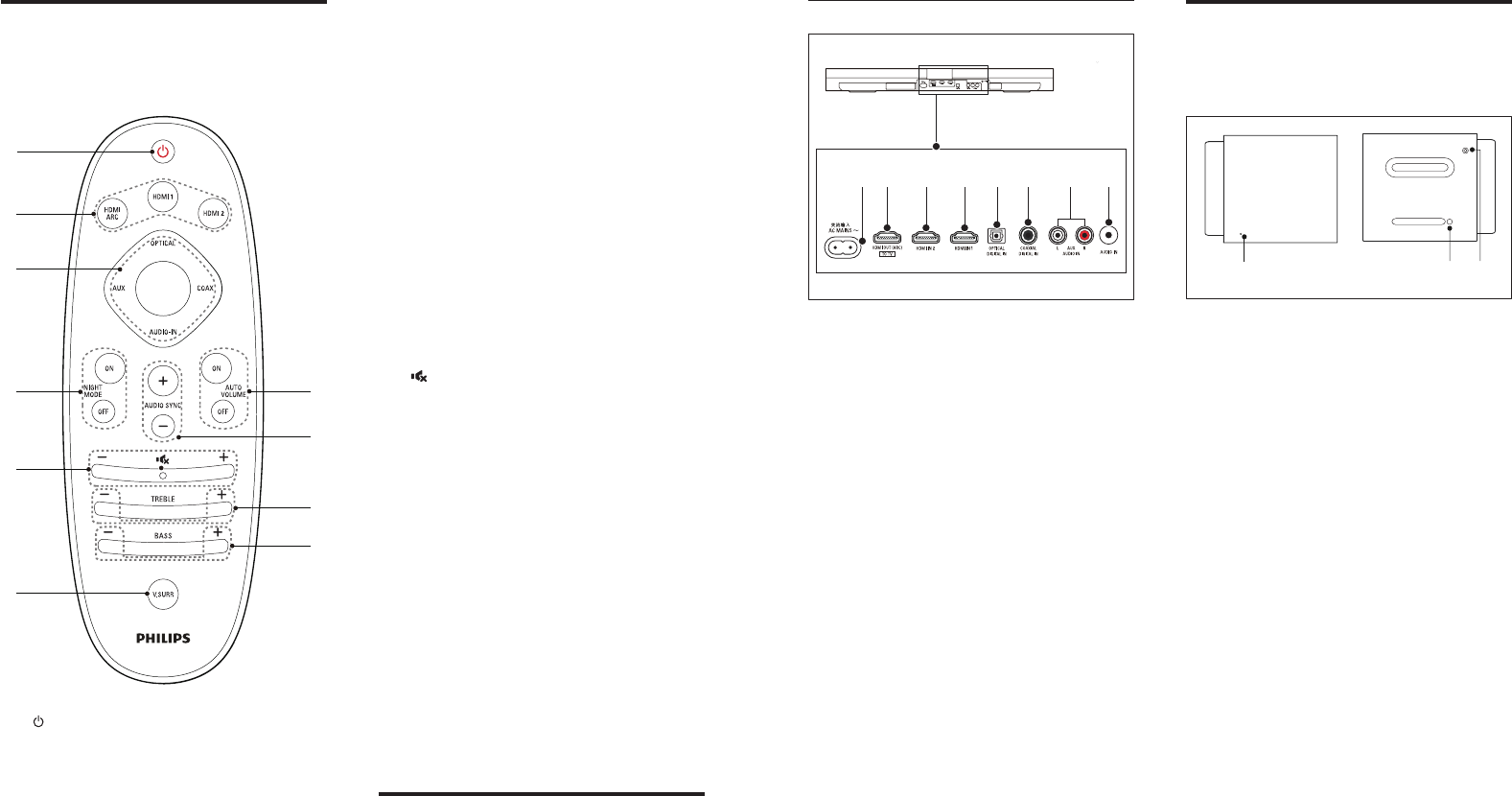

Remote control
This section includes an overview of the
remote control.
a (Standby-On)
• Switch the SoundBar on or to standby.
• When EasyLink is enabled, press
and hold for at least three seconds
to switch all connected HDMI CEC
compliant devices to standby.
b HDMI selection
HDMI ARC: Switch your source to HDMI
ARC connection.
HDMI 1: Switch your source to the HDMI
IN 1 connection.
Bluetooth
a
j
i
h
g
f
d
c
e
b
HDMI 2: Switch your source to the HDMI
IN 2 connection.
c Source buttons
OPTICAL: Switch your audio source to
the optical connection.
COAX: Switch your audio source to the
coaxial connection.
AUDIO-IN: Switch your audio source to
the AUDIO-In connection (3.5mm jack).
AUX: Switch your audio source to the
AUX connection.
Bluetooth: Switch to Bluetooth mode.
d NIGHT MODE ON/OFF
Turn night mode on or off.
e Volume control
+/-: Increase or decrease volume.
: Mute or restore volume.
f V.SURR
• Toggle between stereo and virtual
surround sound.
• In HDMI-in mode (connected via
HDMI IN 1 or HDMI IN 1), press and
hold to switch audio output through
the SoundBar speaker or TV speaker.
g BASS +/-
Increase or decrease bass.
h TREBLE +/-
Increase or decrease treble.
i AUDIO SYNC +/-
Increase or decrease audio delay.
j AUTO VOLUME ON/OFF
Turn auto volume or or off.
Connectors
This section includes an overview of the
connectors available on your SoundBar.
8 9ENEN
3 Connect and set
up
This section helps you connect your SoundBar
to a TV and other devices, and then set it up.
For information about the basic connections of
your SoundBar and accessories, see the quick
start guide.
Note
•Foridenticationandsupplyratings,seethetypeplate
at the back or bottom of the product.
•Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Charge speakers
If the wireless surround speaker is undocked
from the main unit, its battery level is indicated
by the indicator on the speaker.
• Light up white: full battery
• Light up red: low battery level (less than
30% remaining)
• Flash red: near empty (less than 10%
remaining)
1 Dock your speakers onto the main unit to
charge the speakers.
2 Turn on the main unit.
» During charging, the indicator on the
speaker lights up amber.
» When fully charged, the indicator on
the speaker lights up white for 30
seconds.
Note
•It may take around 2 hours to fully charge the speakers.
•If the charging lasts more than 4 hours during standby
of the main unit, the speakers automatically switch to
standby.
Pair up with speakers/
subwoofer
The wireless speakers and subwoofer
automatically pair up with the SoundBar for
wireless connection when you turn on the
SoundBar, the speakers and the subwoofer.
If no audio from the wireless speakers and
subwoofer can be heard, manually pair up the
speakers and the subwoofer.
Pair up with the speakers
1 Turn on the SoundBar and the surround
speaker.
» If the connection to the SoundBar is
lost, the indicator on the speaker blinks
red slowly.
2 Press the Connection key on the speaker
with a pin to enter the pairing mode.
» The indicator on the speaker blinks
red quickly.
3 On the remote control, press AUX, and
then press TREBLE -, BASS + and +
(Volume) within three seconds.
» If the pairing succeeds, the indicator on
the speaker lights up white (undocked
from the main unit), or the indicator
on the speaker lights up white for 30
seconds (being docked into the main
unit).

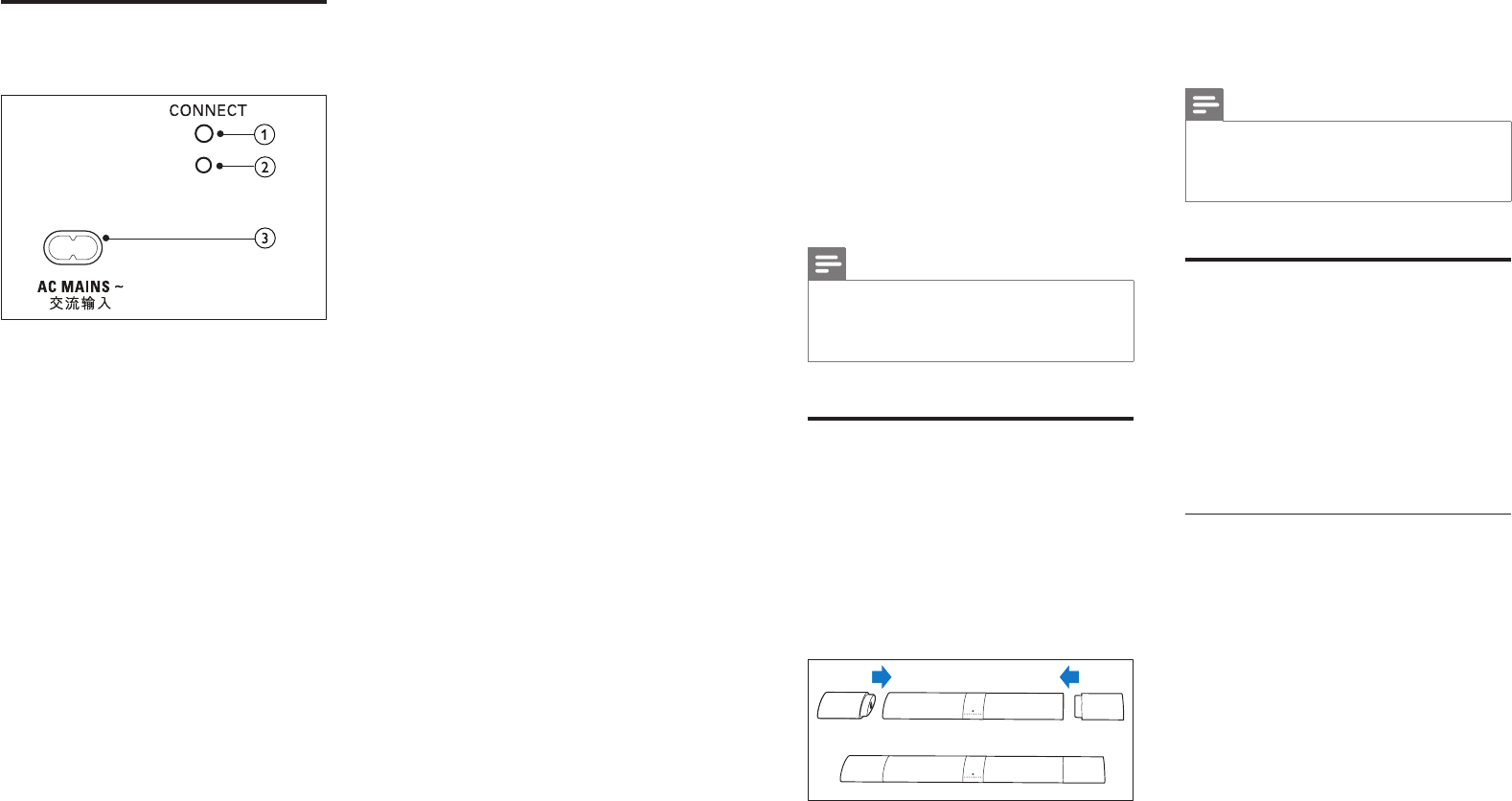

Wireless subwoofer
The SoundBar comes with a wireless subwoofer.
a CONNECT
Press to to enter the pairing mode for the
subwoofer.
b Subwoofer indicator
• When the power is turned on, the
indicator lights up.
• During wireless pairing between the
subwoofer and the main unit, the
indicator blinks white quickly.
• When the pairing succeeds, the
indicator lights up white.
• When the pairing fails, the indicator
blinks white slowly.
c AC MAINS~
Connect to the power supply.
10 11ENEN
Connect to TV
Connect your SoundBar to a TV. You can listen
to audio from TV programs through your
SoundBar. Use the best quality connection
available on your SoundBar and TV.
Connect to TV through HDMI (ARC)
Your SoundBar supports HDMI with Audio
Return Channel (ARC). If your TV is HDMI ARC
compliant, you can hear the TV audio through
your SoundBar by using a single HDMI cable.
1 Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on your
SoundBar to the HDMI ARC connector
on the TV.
• The HDMI ARC connector on the TV
might be labeled differently. For details,
see the TV user manual.
2 On your TV, turn on HDMI-CEC
operations. For details, see the TV user
manual.
TV
Note
•If your TV is not HDMI ARC compliant, connect
an audio cable to hear the TV audio through your
SoundBar. (see 'Connect audio from TV and other
devices' on page 11)
•If your TV has a DVI connector, you can use an HDMI/
DVI adapter to connect to TV. However, some of the
features may not be available.
Connect digital devices
through HDMI
Connect a digital device such as a set-top box,
DVD/Blu-ray player, or games console to your
SoundBar through a single HDMI connection.
When you connect the devices in this way and
playaleorgame,the
• video is automatically displayed on your
TV, and
• audio is automatically played on your
SoundBar.
1 Using a High Speed HDMI cable, connect
the HDMI OUT connector on your digital
device to the HDMI IN 1/2 on your
SoundBar.
2 Connect your SoundBar to TV through
HDMI OUT (ARC).
• If the TV is not HDMI CEC compliant,
select the correct video input on your
TV.
3 On the connected device, turn on HDMI-
CEC operations. For details, see the user
manual of the device.
Connect audio from TV and
other devices
Play audio from TV or other devices through
your Soundbar speakers.
Use the best quality connection available on
your TV, Soundbar, and other devices.
» If the pairing fails, the indicator on the
speaker blinks red slowly.
4 If the pairing fails, repeat the steps above.
5 Repeat the steps above to pair up the
other surround speaker with the main unit.
Pair up with the subwoofer
1 Turn on the SoundBar and the subwoofer.
» If the connection to the SoundBar is
lost, the indicator on the subwoofer
blinks white slowly.
2 Press the CONNECT button on the
subwoofer to enter the pairing mode.
» The indicator on the subwoofer blinks
white quickly.
3 On the remote control, press AUX, and
then press TREBLE -, BASS + and +
(Volume) within three seconds.
» If the pairing succeeds, the indicator on
the subwoofer lights up white.
» If the pairing fails, the indicator on the
subwoofer blinks white slowly.
4 If the pairing fails, repeat the steps above.

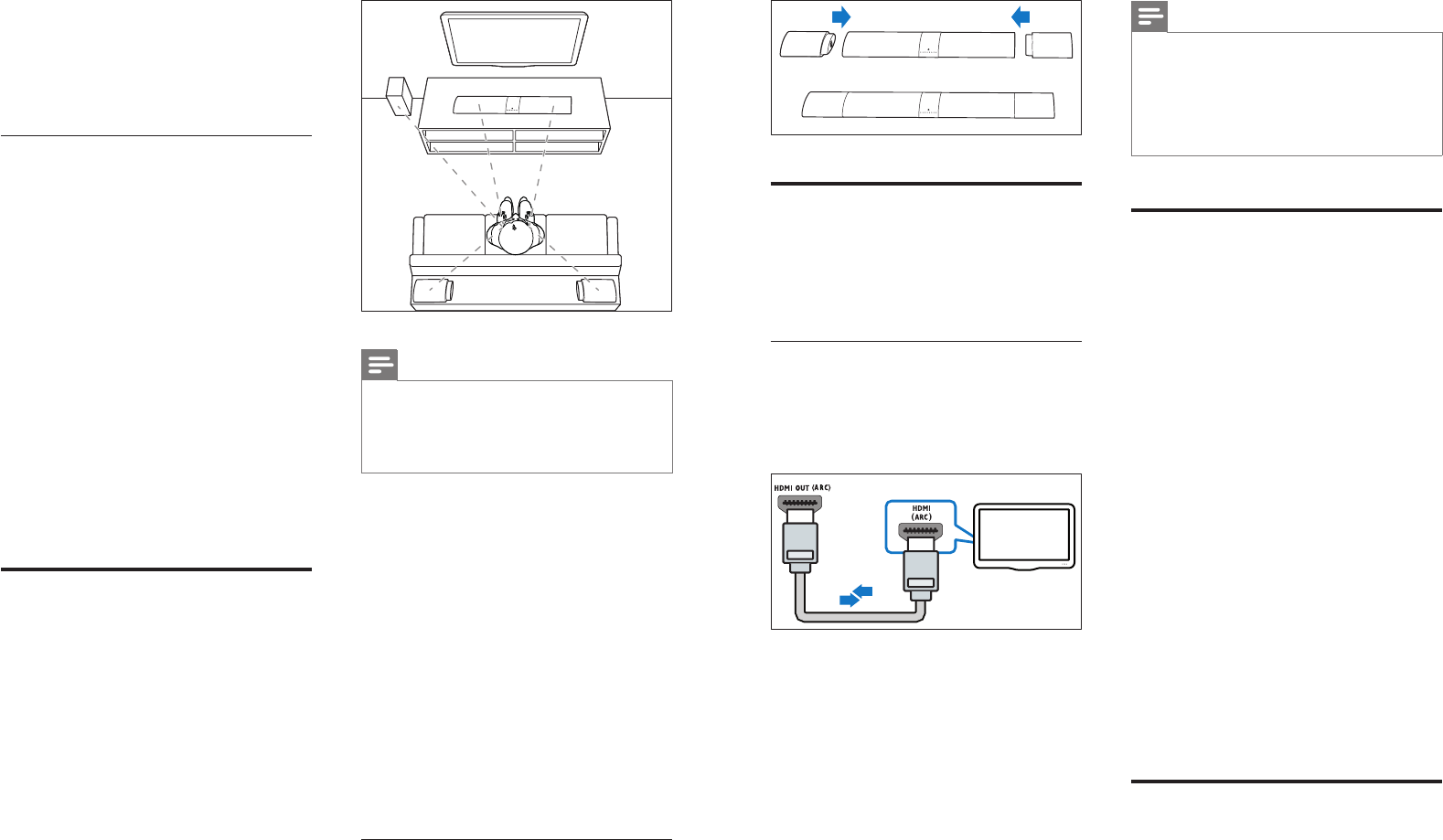

Place speakers
For best sound effect, position all the speakers
towards the seating position and place them
close to your ear level (seated).
Note
•Surround sound depends on factors such as room
shape and size, type of wall and ceiling, windows and
reectivesurfaces,andspeakeracoustics.Experiment
withthespeakerpositionstondtheoptimumsetting
for you.
Follow these general guidelines for speakers
placement.
1 Seating position:
This is the center of your listening area.
2 Place the SoundBar in front of the seating
position.
3 REAR L (rear left) and REAR R (rear right)
surround speakers:
Place the rear surround speakers to the
left and right side of your seating position,
either in line with it or slightly behind it.
4 SUBWOOFER (subwoofer):
Place the subwoofer at least one meter
to the left or right of the TV. Leave about
10-centimeter clearance from the wall.
Dock the surround speakers
You can also dock your surround speakers onto
the main unit to listen to audio, for example,
watching TV shows and news.
SUB
WOOFER
REAR RREAR L
12 13ENEN
4 Use your
SoundBar
This section helps you use the SoundBar to play
audio from connected devices.
Before you start
• Make the necessary connections described
in the quick start guide and the user
manual.
• Switch the SoundBar to the correct source
for other devices.
Adjust the volume
1 Press +/- (Volume) to increase or decrease
a volume level.
• To mute sound, press (Mute).
• To restore the sound, press (Mute)
again or press +/- (Volume).
Volume indicator
• When you change volume, one or multiple
Volume indicator (up to 8 indicators) on
the main unit light up to indicate a volume
level. The more indicators light up, the
higher the volume level is.
• Ifyoudonotpressthevolumekeyforve
seconds, the volume indicators light off, and
the current source indicator and the sound
mode indicator light up.
Choose your sound
This section helps you choose the ideal sound
for your video or music.
04
5
Surround sound mode
Experience an immersive audio experience with
surround sound modes.
1 Press V.SURR to select a surround mode.
• Surround: Creates a surround listening
experience. The V.SURR indicator on
the main unit lights up.
• Stereo: Two-channel stereo sound.
Ideal for listening to music.
Equalizer
Change the high frequency (treble) and low
frequency (bass) settings of the SoundBar.
1 Press TREBLE +/- or BASS +/- to change
the frequency.
Treble/bass indicator
• When you change frequency levels, one
or multiple indicator (up to 8 indicators)
on the main unit light up to indicate a
frequency level. The more indicators light
up, the more the treble or bass is.
Auto volume
Turn the auto volume on to keep the volume
constant when you switch to a different source.
It also compresses the sound dynamics,
increasing the volume for quiet scenes and
decreasing the volume for loud scenes.
1 Press AUTO VOLUME ON/OFF to turn
auto volume on or off.
» When auto volume is turned on, the
V.SURR indicator blinks once.
» When auto volume is turned off, the
V.SURR indicator blinks twice.
-4 4
Note
•When your Soundbar and TV are connected through
HDMI ARC, an audio connection is not required.
Option 1: Connect audio through a
digital optical cable
Best quality audio
1 Using an optical cable, connect the
OPTICAL connector on your SoundBar to
the OPTICAL OUT connector on the TV
or other device.
• The digital optical connector might be
labeled SPDIF or SPDIF OUT.
Option 2: Connect audio through a
digital coaxial cable
Good quality audio
1 Using a coaxial cable, connect the
COAXIAL connector on your SoundBar
to the COAXIAL/DIGITAL OUT
connector on the TV or other device.
• The digital coaxial connector might be
labeled DIGITAL AUDIO OUT.
TV
Option 3: Connect audio through
analog audio cables
Basic quality audio
1 Using an analog cable, connect the AUX
connectors on your SoundBar to the
AUDIO OUT connectors on the TV or
other device.
DVD
14 15ENEN
• When your switch back to Bluetooth
mode, Bluetooth connection remains
active.
Note
•The music streaming may be interrupted by obstacles
between the device and SoundBar, such as wall, metallic
casing that covers the device, or other devices nearby
that operate in the same frequency.
•If you want to connect your SoundBar with another
Bluetooth device, disable the currently connected
Bluetooth device.
•Philips does not guarantee 100% compatibility with all
Bluetooth devices.
Auto standby
When playing media from a connected device,
the SoundBar automatically switches to standby
if:
• no source button is pressed for 30
minutes, and
• no audio/video playback is detected from a
connected device.
Apply factory settings
You can reset your SoundBar to the default
settings programmed at the factory.
1 In AUX mode, press and hold NIGHT
MODE OFF for 5 seconds.
» When the factory settings restore is
complete, the SoundBar automatically
switches off and restarts.
Synchronize picture and sound
If the audio and video are not synchronized,
delay the audio to match the video.
1 Press AUDIO SYNC +/- to synchronize
the audio with the video.
• AUDIO SYNC + increases the sound
delay, and AUDIO SYNC - decreases
the sound delay.
» When you change the value of sound
delay, the more value/delay you set,
the more indicators on the main unit
light up.
Night mode
For quiet listening, decrease the volume of loud
sounds when audio is played. Night mode is
only available for Dolby Digital soundtracks.
1 Press NIGHT MODE ON/OFF to turn
night mode on or off.
» When night mode is turned on, the
V.SURR indicator blinks once.
» When night mode is turned off, the
V.SURR indicator blinks twice.
Note
•If auto volume is set to turned on, you cannot enable
the night mode.
MP3 player
Connect your MP3 player to play your audio
lesormusic.
What you need
• An MP3 player.
• A 3.5mm stereo audio cable.
1 Using the 3.5mm stereo audio cable,
connect the MP3 player to the AUDIO-IN
connector on your SoundBar.
2 Press AUDIO-IN.
3 Press the buttons on the MP3 player to
selectandplayaudiolesormusic.
• On the MP3 player, it is recommended
to set the volume in the range of 80%
maximum volume.
Play music via Bluetooth
Through Bluetooth, connect the SoundBar with
your Bluetooth device (such as an iPad, iPhone,
iPod touch, Android phone, or laptop), and then
youcanlistentotheaudiolesstoredonthe
device through your SoundBar speakers.
What you need
• A Bluetooth device which supports
BluetoothproleA2DP,andwithBluetooth
version as 2.1 + EDR.
• The operational range between the
SoundBar and a Bluetooth device is
approximately 10 meters (30 feet).
1 Press Bluetooth on the remote control to
switch the SoundBar to Bluetooth mode.
» The Bluetooth indicator blinks.
2 On the Bluetooth device, switch on
Bluetooth, search for and select Philips
HTL9100 to start connection (see the
user manual of the Bluetooth device on
how to enable Bluetooth).
» During connection, the indicator blinks.
3 Wait until you hear a beep sound from the
SoundBar.
» The Bluetooth indicator lights up.
» If the connection fails, the Bluetooth
indicator blinks continually.
4 Selectandplayaudiolesormusicon
your Bluetooth device.
• During play, if a call is coming, music
play is paused. Play resumes when the
call ends.
• If music streaming is interrupted, place
the Bluetooth device closer to the
Soundbar.
5 To exit Bluetooth, select other source.
16 17ENEN
6 Product
specifications
Note
•Specicationsanddesignaresubjecttochangewithout
notice.
Amplier
• FTC total output power: 42W
• Woofer L + Woofer R: 32W ( 1%
THD, 3ohm, 180Hz-6KHz )
• Tweeter L + Tweeter R: 10W ( 1%
THD, 12ohm, 7KHz-20KHz)
• Subwoofer:
• Total output power:
• 210W RMS (+/- 0.5 dB, 30% THD)
• 168W RMS (+/- 0.5 dB, 10% THD)
• Frequency response: 20 Hz-20 kHz / ±3
dB
• Signal-to-noise ratio: > 65 dB (CCIR) /
(A-weighted)
• Input sensitivity:
• AUX: 400 mV
• AUDIO-IN: 200 mV
Audio
• S/PDIF Digital audio input:
• Coaxial: IEC 60958-3
• Optical: TOSLINK
Bluetooth
•Bluetoothproles:A2DP
•Bluetooth version: 2.1 + EDR
Main unit
•Power supply: 120 V~, 60 Hz
•Power consumption: 50 W
•Standbypowerconsumption:≤0.5W
• Speaker impedance:
• Woofer: 8 ohm
• tweeter: 8 ohm
• Speaker drivers: 2 x 63.5 mm (2.5") woofer
+ 2 x 25.4 mm (1") tweeter
•Dimensions (WxHxD): 1035 x 73 x 156
mm (with 2 surround speakers attached)
•Weight: 3.9 kg
Surround speakers
• Speaker impedance: 8 ohm
• Speaker drivers: 2 x 63.5 mm (2.5") full
range
• Dimensions (WxHxD): 191 x 73 x 156
mm
• Weight: 0.7 kg/each
Subwoofer
• Power supply: 120 V~, 60 Hz
• Power consumption: 30 W
• Standbypowerconsumption:≤0.5W
• Impedance: 4 ohm
• Speaker drivers: 1 x 165 mm (6.5") woofer
• Dimensions (WxHxD): 200 x 510 x 201
mm
• Weight: 4.9 kg
Wall mount
•Dimensions (WxHxD): 40 x 100 x 26.5
mm
•Weight: 0.1 kg/each
Remote control batteries
• 2 x AAA-R03-1.5 V
5 Wall mount
your SoundBar
Before you mount your SoundBar on the wall,
read all safety precautions.
Wall mount
Note
•You must detach the surround speakers from the main
unit before wall mounting or un-mounting.
•Koninklijke Philips Electronics N.V. bears no
responsibility for improper wall mounting that results
in accident, injury or damage. If you have any query,
contact Philips Consumer Care in your country.
•Secure the wall mount to a wall that can support the
combined weight of the product and the wall mount.
•Before wall mount, you need not remove the four
rubber feet at the bottom of the soundbar, otherwise
therubberfeetcannotbexedback.
Screw length/diameter
Depend on the type of wall mounting this wall
mount bracket, make sure that you use screws
of a suitable length and diameter.
For information about how to wall your
SoundBar, see the wall mount guide.
> 25mm
3 - 3.5mm
18 19ENEN
8 Notice
This section contains the legal and trademark
notices.
Notice of compliance
This set complies with the FCC rules, Part 15
and with 21 CFR 1040.10. Operation is subject
to the following two conditions:
a This device may not cause harmful
interference, and
b This device must accept any interference
received, including interference that may
cause undesired operation.
FCC rules
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy
and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
• Relocate the receiving antenna.
• Increase the separation between
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
FCC Radiation Exposure Statement:This
equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with a minimum distance of
20cm between the radiator and your body.
This transmitter must not be co-located or
operated in conjunction with any other antenna
or transmitter.
Warning:Changesormodicationsmadeto
this equipment not expressly approved by
Philips may void the FCC authorization to
operate this equipment.
Model number: PHILIPS HTL7180/F7
Trade Name: Philips
Responsible Party:P&F USA, Inc. PO Box 2248
Alpharetta, GA 30023-2248; 1-866-310-0744
Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is
subject to the following Two conditions: (1) this
device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This Class B digital apparatus complies with
Canadian ICES-003.
7 Troubleshooting
Warning
•Risk of electric shock. Never remove the casing of the
product.
To keep the warranty valid, never try to repair
the product yourself.
If you have problems using this product, check
the following points before you request service.
If you still have a problem, get support at www.
philips.com/support.
Main unit
The buttons on the SoundBar do not work.
• Disconnect the SoundBar from the power
supply for a few minutes, then reconnect.
Sound
No sound from SoundBar speakers.
• Connect the audio cable from your
SoundBar to your TV or other devices.
However, you do not need a separate
audio connection when:
• the SoundBar and TV are connected
through HDMI ARC connection, or
• a device is connected to the HDMI IN
connector on your SoundBar.
• Reset your SoundBar to its factory settings.
• On the remote control, select the correct
audio input.
• Make sure that the SoundBar is not muted.
No sound from the wireless surround
speakers.
• Wirelessly connect the speakers to the
main unit (see 'Pair up with the speakers'
on page 9).
• Dock the wireless surround speakers into
the main unit to charge the battery.
No sound from the wireless subwoofer.
• Wirelessly connect the subwoofer to the
main unit (see 'Pair up with the subwoofer'
on page 10).
Distorted sound or echo.
• If you play audio from the TV through the
SoundBar, make sure that the TV is muted.
Audio and video are not synchronized.
• Press AUDIO SYNC +/- to synchronize
the audio with the video.
Bluetooth
A device cannot connect with the SoundBar.
• The device does not support the
compatibleprolesrequiredforthe
SoundBar.
• You have not enabled the Bluetooth
function of the device. See the user manual
of the device on how to enable the
function.
• The device is not correctly connected.
Connect the device correctly.
• The SoundBar is already connected with
another Bluetooth device. Disconnect the
connected device, then try again.
Quality of audio play from a connected
Bluetooth device is poor.
• The Bluetooth reception is poor. Move the
device closer to the SoundBar, or remove
any obstacle between the device and the
SoundBar.
The connected Bluetooth device connects and
disconnects constantly.
• The Bluetooth reception is poor. Move the
device closer to the SoundBar, or remove
any obstacle between the device and the
SoundBar.
• Turn off Wi-Fi function on the Bluetooth
device to avoid interference.
• For some Bluetooth, the Bluetooth
connection can be deactivated
automatically to save power. This does not
indicate any malfunction of the SoundBar.
This device complies with Industry Canada RSS-210. Operation is subject to the following two
conditions: (1) this device may not cause interference, and(2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
RSS-210. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioé
lectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102
and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF
exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de
RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information
canadienne sur l'exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre
antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance
minimum de 20 centimètres entre le radiateur et votre corps.
Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number: 000000000000
