User Manual SCD510
SCD510
2
3
2
4
SCD510
ENGLISH 6
6
IMPORTANT SAFETY
INSTRUCTIONS
Some of the following information may not apply to your particular
product; however, when using baby monitor equipment, basic safety
precautions should always be followed to reduce the risk of re, electric
shock and injury to persons, including the following:
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including ampliers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11 Only use attachments/accessories specied by the manufacturer.
12 Unplug this appliance during lightning storms or when not used for
long periods of time.
13 Refer all servicing to qualied service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
14 This baby monitor is intended as an aid. It is not a substitute for
responsible and proper adult supervision and should not be used as
such.
15 Use this appliance only for its intended use as described in this manual.
16 Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
17 Products should not be used while you are in a bathtub, shower or
pool. Immersion of the product in water could cause an electrical
shock.
18 This product should be operated only from the type of power source
indicated on the type plate of the adapters (A15,B9). If you are not
sure of the type of power supply to your home, consult your dealer or
local power company.
19 Do not overload wall outlets and extension cords as this can result in
the risk of re or electric shock.
ENGLISH
20 Never push objects of any kind into this product through casing slots as
they may touch dangerous voltage points or short out parts that could
result in a risk of re or electric shock. Never spill liquid of any kind on
the product.
21 To reduce the risk of electric shock, do not disassemble this product,
but call 1-800-54-AVENT (1-800-542-8368) for assistance. Opening or
removing covers (except battery compartment lids) may expose you
to dangerous voltage or other risks. Incorrect reassembly can cause
electric shock when the appliance is subsequently used.
22 To prevent strangulation with power cord, never place monitor within
reach of child. Do not use with extension cords.
If your product utilizes batteries, the following additional
precautions should be observed:
1 Use only the type and size of batteries specied in the user manual.
2 Do not dispose of batteries in re. They may explode. Check with local
regulations for possible special disposal instructions.
3 Exercise care in handling batteries in order not to short out the
batteries with conducting materials such as rings, bracelets and
keys. Overcharging, short circuiting, reverse charging, mutilation, or
incineration of batteries must be avoided to prevent one or more
of the following occurrences: release of toxic materials, release of
hydrogen and/or oxygen gas, rise in surface temperature.
4 Do not attempt to recharge batteries provided with or identied
for use with this product that are not intended to be charged. The
batteries may leak corrosive electrolyte or explode.
5 Do not attempt to rejuvenate the batteries provided with or identied
for use with this product by heating them. Sudden release of battery
electrolyte may occur, causing burns or irritation to eyes or skin.
6 If and when necessary, the batteries must be replaced with identical
new ones from the same manufacturer. If a battery to be replaced
is connected with other batteries in series, it is recommended that
the other batteries be replaced with new ones at the same time.
7 Reverse polarity installation of the batteries in the end product must
be avoided. Reverse insertion of batteries can cause charging, and that
may result in leakage or explosion.
8 Remove batteries from this product if you store the product over 30
days because the batteries could leak and damage the product.
9 Discard ‘dead’ batteries as soon as possible since ‘dead’ batteries are
more likely to leak in a product. If a battery has leaked or vented, it
should be replaced immediately using protective gloves.
10 Do not store this product, or the batteries provided with or identied
for use with this product, in high-temperature areas. Batteries that
are stored in a freezer or refrigerator for the purpose of extending
shelf life should be protected from condensation during storage and
defrosting. Batteries should be stabilized at room temperature prior to
use after cold storage.
11 If your product uses rechargeable batteries, charge the batteries only
in accordance with the instructions and limitations specied in the user
manual.
12 There is a risk of explosion if batteries are replaced with an
incorrect type. For the parent unit, always use the SCD510 NiMH
rechargeable battery pack as supplied with the appliance.
ENGLISH 7
SAVE THESE
INSTRUCTIONS
CAUTION:THE SYMBOL SHOWN IN FIGURE 1 MEANS
THAT THERE IS A RISK OF EXPLOSION OF THE
BATTERIES AND/OR OF SERIOUS DAMAGE TO THE
BABY MONITOR IF THE BATTERIES OR THE ADAPTER
ARE REPLACED WITH AN INCORRECT TYPE.
Adapter for baby unit:
Input: 120 VAC 60 Hz
Output: 7.5 VDC 400 mA
Adapter no. UD075040B
Adapter for parent unit:
Input: 120 VAC 60 Hz
Output: 4.5 VDC 400 mA
Adapter no. UD045040B
The socket-outlet shall be installed near the equipment and shall be easily
accessible.
For the baby unit, only use 1.5V AA alkaline batteries (batteries not
supplied).
For the parent unit, only use the SCD510 NiMH rechargeable battery pack
as supplied with the appliance.
Dispose of used batteries according to the instructions.
Compliance information
The FCC ID number is located on the casing bottom of the parent unit
and in the battery compartment of the baby unit.
The term ‘IC’ before the certication number signies that Industry
Canada technical specications were met.This certication means that
the equipment meets certain radio communications and operational
requirements. This device complies with Part 15 of the FCC Rules and
ICES-003 of Industry Canada. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that
may cause undesired operation.This device complies also with RSS-213 of
Industry Canada.
Radio interference
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules and
applicable Industry Canada specications. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
-
-
-
-
-
-
-
ENGLISH8
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20 centimeters between the radiator
and your body. For handheld operation, this equipment has been tested
and meets the FCC RF exposure guidelines. For body-worn operation,
this product has been tested and meets the FCC RF exposure guideline
when used with the belt clip or neck strap supplied with this product. This
transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. This equipment also complies with Industry
Canada RSS-102 with respect to Canada’s Health Code 6 for Exposure of
Humans to RF Fields.
Do not attempt to repair or modify this equipment
Any repairs or alterations made by the user to the equipment may
void the warranty and compliance of the equipment. Refer servicing to
authorized or designated service centers.
Introduction
Congratulations on your purchase and welcome to Philips AVENT! To fully
benet from the support that Philips offers, register your product at www.
philips.com/welcome.
Philips AVENT is dedicated to producing caring, reliable products
that give parents the reassurance they need. This Philips AVENT baby
monitor provides round-the-clock support by ensuring you can always
hear your baby clearly without any distracting noise. The DECT technology
guarantees zero interference from other wireless appliances and a crystal
clear signal between the baby unit and the parent unit.

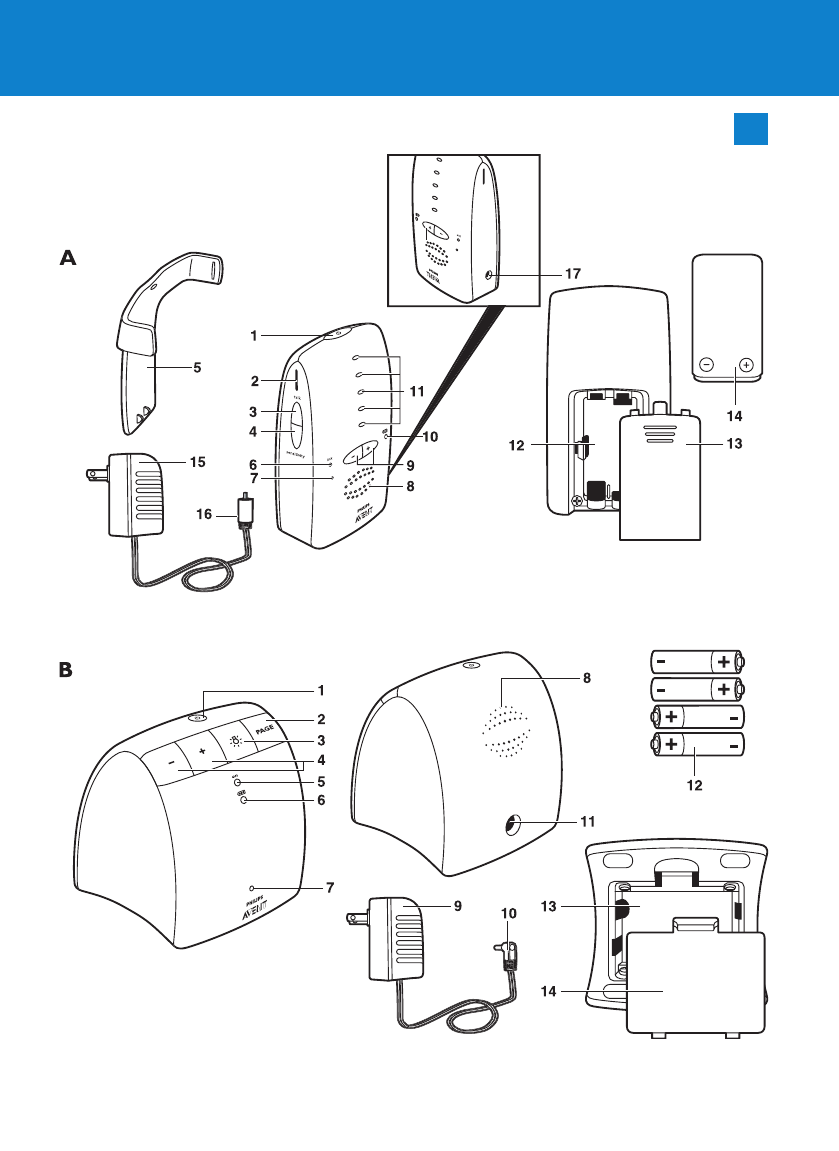

General description (Fig. 2)
A Parent unit
1 On/off button 3
2 Slot for belt clip
3 TALK button
4 SENSITIVITY button
5 Belt clip
6 LINK light
7 Microphone
8 Loudspeaker
9 Volume +/- buttons
10 Battery light T
11 Sound level lights
12 Compartment for rechargeable battery pack
13 Lid of compartment for rechargeable battery pack
14 Rechargeable battery pack (included)
15 Adapter
16 Small appliance plug
17 Socket for small appliance plug
-
-
-
ENGLISH 9
B Baby unit
1 On/off button 3
2 PAGE button
3 Nightlight button Q
4 Volume +/– buttons
5 Power-on light
6 Battery light T
7 Microphone
8 Loudspeaker
9 Adapter
10 Large appliance plug
11 Socket for large appliance plug
12 Non-rechargeable batteries (not included)
13 Compartment for non-rechargeable batteries
14 Lid of compartment for non-rechargeable batteries
Important
Read the user manual carefully before you use the appliance and save
it for future reference.
This baby monitor is intended as an aid. It is not a substitute for
responsible and proper adult supervision and should not be used as
such.
This monitor is not intended to be used as a medical monitor and its
use should not replace adult supervision.
Check if the voltage indicated on the adapter corresponds to the
local electrical voltage before you connect the appliance.
Use and store the appliance at a temperature between 50°F (10°C)
and 104°F (40°C).
This appliance is suitable for electrical outlet voltages of 120V.
Do not expose the baby monitor to extreme cold or heat or to
direct sunlight.
Make sure the baby unit and the power cord are always out of reach
of the baby (at least 3 feet/1 meter away).
Never place the baby unit inside the baby’s bed or playpen.
Never cover the baby monitor with a towel or blanket.
Never immerse any part of the baby monitor in water or any other
liquid.
Never use the baby monitor in moist places or close to water.
Except for the battery compartments, do not open the housing of
the baby unit and parent unit in order to prevent electric shock.
Only use the adapters supplied.
The adapters contain a transformer. Do not cut off the adapters
to replace them with other plugs, as this will cause a hazardous
situation.
If one of the adapters is damaged, always have it replaced with one of
the original type in order to avoid a hazard.
If you place the parent unit next to a transmitter or other DECT
appliance (e.g. a DECT telephone), the connection with the baby unit
may be lost.
The power outlet should be located near the appliance and easily
accessible.
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
ENGLISH10
Preparing for use
Baby unit
You can use the baby unit corded or on non-rechargeable batteries. Even
if you are going to use the unit corded, we advise you to insert the non-
rechargeable batteries. This guarantees automatic back-up in case of power
failure.
Cord operation
1 Put the large appliance plug in the baby unit and put the adapter in a
wall socket.
The power-on light goes on.
Battery operation (non-rechargeable batteries)
The baby unit runs on four 1.5V R6 AA batteries (not included). We
recommend you to use Philips LR6 PowerLife batteries or an equivalent
type.
Do not use rechargeable batteries, as the baby unit does not have a
charging function.
Unplug the baby unit and make sure your hands and the unit are dry
when you insert the non-rechargeable batteries.
1 Remove the lid of the compartment for non-rechargeable batteries.
2 Insert four non-rechargeable batteries.
Note: Make sure the + and - poles point in the right direction.
3 Reattach the lid.
Note: When the batteries are low, the battery light on the baby unit ashes red.
Parent unit
Battery operation (rechargeable battery pack)
The parent unit comes with a SCD510 NiMH rechargeable battery pack.
Charge the parent unit before you use it for the rst time or when the
battery light indicates that the battery pack is low. The battery light ashes
red when the battery pack is low. The battery light starts to ash red 30
minutes before the battery pack is completely empty.
Note: If the battery pack is completely empty, the parent unit automatically
switches off and loses contact with the baby unit.
,
ENGLISH 11
1 Remove the lid of the compartment for the rechargeable battery
pack.
2 Insert the rechargeable battery pack.
Note: Make sure the + and - poles of the battery pack point in the right
direction.
3 Reattach the lid.
4 Put the small appliance plug in the parent unit and put the adapter in
a wall socket.
5 Leave the parent unit plugged in until the battery pack is fully
charged.
During charging, the battery light lights up red continuously.
When the battery pack is fully charged, the battery light lights up
green continuously.
When you charge the parent unit for the rst time or after a long
period of disuse, switch it off and let it charge continuously for at least
10 hours.
Charging normally takes 8 hours, but it takes longer when the parent
unit is switched on while charging. To keep the charging time as short
as possible, switch off the parent unit during charging.
When the battery pack is fully charged, the parent unit can be used
cordlessly for at least 24 hours.
Note: When the parent unit is charged for the rst time, the operating time
is less than 24 hours. The battery pack only reaches its full capacity after you
have charged and discharged it four times.
Note: When the parent unit is not connected to a power outlet or even when
the parent unit is switched off, the battery pack gradually discharges.
,
,
-
-
-
ENGLISH12
Using the appliance
1 Place the parent unit and the baby unit in the same room to test the
connection.
Make sure the baby unit is at least 3 feet/1 meter away from the parent
unit.
2 Press and hold the on/off button 3 on the baby unit until the green
power-on light goes on.
Note: The power-on light always lights up green, even when there is no
connection with the parent unit.
The nightlight lights up briey and then goes out again.
The battery light T lights up briey and then goes out again.
3 Press and hold the on/off button 3 on the parent unit until the
sound level lights light up briey.
The battery light lights up briey.
The LINK light ashes red.
,
,
,
,
ENGLISH 13
The LINK light on the parent unit turns green and lights up
continuously when a connection has been established between the
baby unit and parent unit.
If no connection is established, the LINK light on the parent
unit stops ashing and lights up red. The parent unit beeps from time
to time.
Positioning the baby monitor
1 Place the baby unit at least 3 feet/1 meter away from your baby.
2 Place the parent unit within the operating range of the baby unit.
Make sure it is at least 3 feet/1 meter away from the baby unit to
avoid acoustic feedback.
For more information on the operating range, see section ‘Operating range’
below.
Operating range
The operating range of the baby monitor is 330 meters/1000 feet in open
air. Depending on the surroundings and other disturbing factors, this range
may be smaller. Indoors the operating range is up to 50 meters/150 feet.
Dry materials Material thickness Loss of range
Wood, plaster, cardboard, glass
(without metal, wires or lead)
< 30cm/12in 0-10%
Brick, plywood < 30cm/12in 5-35%
Reinforced concrete < 30cm/12in 30-100%
Metal grilles or bars < 1cm /0.4in 90-100%
,
,
ENGLISH14
Dry materials Material thickness Loss of range
Metal or aluminum sheets < 1cm/0.4in 100%
For wet and moist materials, the range loss may be up to 100%.
Features
Adjusting loudspeaker volume
1 Press the volume + or - button on the baby unit until the desired
loudspeaker volume for the baby unit has been reached.
Note: You only have to adjust the baby unit volume when you use the talk
function (see below).
2 Press the volume + or – button on the parent unit until the desired
loudspeaker volume for the parent unit has been reached.
Note: If the volume is set to a high level, the units consume more power.
Talk function
You can use the TALK button on the parent unit to talk to your baby (e.g.
to comfort your baby).
1 Press and hold the TALK button and talk clearly into the microphone
from a distance of 15-30cm/6-12in.
The green LINK light starts ashing.
2 Release the TALK button when you have nished talking.
Sound level lights
The parent unit continuously monitors the sound level in your baby´s room
and the sound level lights let you know if there is any activity. If your baby
cries, you see the sound level lights light up on the parent unit.
As long as the baby unit does not detect a sound, all sound level lights
on the parent unit are out.
When the baby unit picks up a sound, one or more sound level lights
on the parent unit go on. The number of lights that go on is related to
the loudness of the sound picked up by the baby unit.
,
-
-
ENGLISH 15
Nightlight
1 Press the nightlight button Q on the baby unit to switch on the
nightlight.
2 Press the nightlight button Q again to switch off the nightlight.
The nightlight dims gradually before it goes out completely.
Tip: Switch off the nightlight when you operate the baby unit on the non-
rechargeable batteries. This saves power.
Paging the parent unit
If you have misplaced the parent unit and its volume is switched off, you
can use the PAGE button on the baby unit to locate the parent unit.
Note: The paging function only works when the parent unit is switched on.
1 Press the PAGE button on the baby unit.
The parent unit produces a paging alert tone.
2 To stop the paging alert tone, press the PAGE button again or press
any button on the parent unit.
Out of range alert
When the parent unit is out of range of the baby unit, the parent unit
beeps from time to time. The LINK light on the parent unit ashes red.
Note: The LINK light on the parent unit also ashes red when the baby unit is
switched off.
Microphone sensitivity
You can set the microphone sensitivity of the baby unit to the desired level
with the SENSITIVITY button on the parent unit. You can only change the
microphone sensitivity when a connection between the baby unit and the
parent unit has been established, i.e. when the LINK light on the parent unit
lights up green continuously.
1 Briey press the SENSITIVITY button on the parent unit.
The sound level lights light up for approx. 2 seconds to indicate the
current sensitivity level.
2 Briey press the volume + and - buttons on the parent unit until
the desired microphone sensitivity level for the baby unit has been
reached.
one light on = minimum sensitivity level
all lights on = maximum sensitivity level
Note: When the microphone sensitivity of the baby unit is set to a high level, it
picks up more sounds and therefore transmits more often. As a result, the units
consume more power.
,
,
,
,
,
ENGLISH16
Reset function
This function allows you to reset the parent unit and the baby unit to
the default settings. You can use this function if problems occur that you
cannot solve by following the suggestions in chapter ‘Frequently asked
questions’. You have to reset each unit separately.
1 Press the on/off button to switch off the parent unit. Remove the
small plug from the parent unit and the adapter from the wall socket.
2 Press and hold the volume down (-) button. Put the small appliance
plug in the parent unit and put the adapter in the wall socket.
3 Wait for the parent unit to complete its automatic restart at its
default settings before you release the volume down (-) button.
4 Proceed in the same way to reset the baby unit.
Default settings
Parent unit
Loudspeaker volume: 1
Microphone sensitivity: 3
Baby unit
Loudspeaker volume: medium
Nightlight: off
Accessories
Belt clip
If the battery pack of the parent unit is sufciently charged, you can take
the unit with you inside and outside the house if you attach the unit to
your belt with the belt clip. This allows you to monitor your baby while you
are moving around.
Connecting the belt clip
1 Snap the belt clip onto the parent unit.
Disconnecting the belt clip
1 Pull the belt clip off the parent unit.
Cleaning and maintenance
Do not immerse the parent unit or the baby unit in water and do not
clean them under the tap.
Do not use cleaning spray or liquid cleaners.
1 Unplug the baby unit or the parent unit if they are connected to an
electrical outlet.
2 Clean the parent unit and the baby unit with a damp cloth.
Make sure the units are dry before you connect them to an electrical
outlet.
-
-
-
-
ENGLISH 17
3 Clean the adapters with a dry cloth.
This appliance has no other user-serviceable parts. For assistance call 1-
800-54-AVENT (1-800-542-8368).
Storage
When you are not going to use the baby monitor for some time,
remove the non-rechargeable batteries from the baby unit and the
rechargeable battery pack from the parent unit. Store the parent unit,
the baby unit and the adapters in a cool and dry place.
Do not wrap cord around the monitor when storing. Store cord in a
safe location where it will not be cut or damaged.
Replacement
Baby unit
Batteries
Only replace the non-rechargeable batteries of the baby unit with four
1.5V R6 AA batteries.
Note: We recommend you to use Philips LR6 powerLife batteries or an
equivalent type.
Adapter
Only replace the adapter of the baby unit with an adapter of the original
type. For assistance call 1-800-54-AVENT (1-800-542-8368) or visit our
website: www.philips.com/AVENT.
Parent unit
Batteries
Only replace the SCD510 NiMH rechargeable battery pack with a pack of
the original type. For assistance, call 1-800-54-AVENT (1-800-542-8368) or
visit our website: www.philips.com/AVENT.
Adapter
Only replace the adapter of the parent unit with an adapter of the original
type.For assistance call 1-800-54-AVENT (1-800-542-8368) or visit our
website: www.philips.com/AVENT.
Assistance
For assistance call 1-800-54-AVENT (1-800-542-8368) or visit our website:
www.philips.com/AVENT.
-
-
ENGLISH18
Environment
Dispose of batteries properly. Do not incinerate. Batteries may
explode if overheated. Do not wrap in metal or aluminum foil. Wrap in
newspaper before discarding.
It is suggested that you contact your local town or city to determine
proper battery redemption site(s) in your area.
Warranty
FULL TWO-YEAR WARRANTY
Philips Electronics North America Corporation (USA) and Philips
Electronics Ltd (CANADA) warrant each new Philips AVENT product,
model SCD510/00, against defects in materials or workmanship for a
period of two years from the date of purchase, and agrees to repair or
replace any defective product without charge. IMPORTANT: This warranty
does not cover damage resulting from accident, misuse or abuse, lack
of reasonable care, or the afxing of any attachment not provided with
the product. NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. In order to obtain
warranty service, simply call toll-free 1-800-54-AVENT.
Frequently asked questions
This chapter lists the questions most frequently asked about the appliance.
If you cannot nd the answer to your question, call 1-800-54-AVENT (1-
800-542-8368) for assistance.
Question Answer
Why don’t both the power-
on light of the baby unit and
the LINK light of the parent
unit come on when I press
the on/off buttons of the
units?
Perhaps the rechargeable battery pack of the parent unit is empty and
the parent unit is not connected to an electrical outlet. Insert the small
appliance plug into the parent unit and put the adapter in a wall socket.
Then press the on/off button to establish connection with the baby unit.
Perhaps the non-rechargeable batteries of the baby unit are empty and
the baby unit is not connected to an electrical outlet. Replace the non-
rechargeable batteries or connect the baby unit to an electrical outlet.
Then press the on/off button to establish connection with the parent
unit.
The baby unit and the parent unit may be out of range of each other.
Move the parent unit closer to the baby unit, but not closer than 3
feet/1 meter.
If the LINK light on the parent unit still does not start to ash, use the
reset function to reset the units to their default settings.
-
-
ENGLISH 19
Question Answer
Why does the LINK light on
the parent unit ash red?
The baby unit and the parent unit are out of range of each other. Move
the parent unit closer to the baby unit.
The baby unit may be switched off. Switch on the baby unit.
Why does the battery light
on the baby unit ash red?
The non-rechargeable batteries of the baby unit are running low.
Replace the non-rechargeable batteries or connect the baby unit to an
electrical outlet (see chapter ‘Preparing for use’).
Why does the parent unit
beep?
If the parent unit beeps while the LINK light ashes red, the connection
with the baby unit is lost. Move the parent unit closer to the baby unit.
If the parent unit beeps and the battery light ashes red, the
rechargeable battery pack of the parent unit is running low. Recharge
the battery pack.
The baby unit may be switched off. Switch on the baby unit.
Why does the appliance
produce a high-pitched noise?
The units may be too close to each other. Make sure the parent unit
and the baby unit are at least 3 feet/1 meter away from each other.
The volume of the parent unit may be set too high. Decrease the
volume of the parent unit.
Why don’t I hear a sound/
Why can’t I hear my baby
cry?
The volume of the parent unit may be set too low or may be switched
off. Increase the volume of the parent unit.
The microphone sensitivity level of the baby unit may be set too low.
Increase the microphone sensitivity level with the SENSITIVITY button
on the parent unit.
The baby unit and the parent unit may be out of range of each other.
Reduce the distance between the units.
Why does the parent unit
react too quickly to other
sounds?
The baby unit also picks up other sounds than those of your baby. Move
the baby unit closer to the baby (but observe the minimum distance of
3 feet/1 meter).
The microphone sensitivity level of the baby unit may be set too high.
Decrease the microphone sensitivity level with the SENSITIVITY button
on the parent unit.
Why does the parent unit
react slowly to the baby’s
crying?
The microphone sensitivity level of the baby unit may be set too low.
Increase the microphone sensitivity level with the SENSITIVITY button
on the parent unit.
Why do the non-
rechargeable batteries of the
baby unit run low quickly?
The microphone sensitivity level of the baby unit may be set too high,
which causes the baby unit to transmit more often. Decrease the
microphone sensitivity level with the SENSITIVITY button on the parent
unit.
The volume on the baby unit may be set too high, which causes the
baby unit to consume a lot of energy. Decrease the volume of the baby
unit.
Perhaps you have switched on the nightlight. If you want to use the
nightlight, we advise you to run the baby unit on electrical power.
ENGLISH20
Question Answer
Why does the charging time
of the parent unit exceed 8
hours?
The parent unit may be switched on during charging. Switch off the
parent unit during charging.
The specied operating range
of the baby monitor is 330
meters/1000 feet. Why does
my baby monitor manage a
much smaller distance than
that?
The specied range is only valid outdoors in open air. Inside your house,
the operating range is limited by the number and type of walls and/or
ceilings in between. Inside the house, the operating range is up to 50
meters/150 feet.
Why is the connection lost
every now and then?
Why are there sound
interruptions?
The baby unit and the parent unit are probably close to the outer limits
of the operating range. Try a different location or decrease the distance
between the units. Please note that it takes about 30 seconds each time
before a connection between the units is established.
What happens during a
power failure?
If the parent unit is sufciently charged, it continues to operate during a
power failure, both connected to and disconnected from the adapter. If
there are batteries in the baby unit, it also continues to operate during
a power failure.
Is my baby monitor secure
from eavesdropping and
interference?
The DECT technology of this baby monitor guarantees no interference
from other equipment and no eavesdropping.
The operating time of the
parent unit is supposed to
be at least 24 hours. Why
is the operating time of my
parent unit shorter?
When the parent unit has been charged for the rst time, the operating
time is less than 24 hours. The rechargeable battery pack only reaches
its full capacity after you have charged and discharged it at least four
times.
The volume of the parent unit may be set too high, which causes the
parent unit to consume a lot of energy. Decrease the volume of the
parent unit
The microphone sensitivity level of the baby unit may be set too high,
which causes the parent unit to consume a lot of energy. Decrease the
microphone sensitivity level with the SENSITIVITY button on the parent
unit.
Why doesn’t the battery light
of the parent unit light up
when I start to recharge the
parent unit?
It may take a few minutes before the battery light of the parent unit
lights up when you charge the parent for the rst time or after a long
period of disuse.
ENGLISH 21
22
23
24
25
0682
4222.002.7094.1
In US manufactured for Philips Consumer Lifestyle,
a division of Philips Electronics North America
Corporation. 1600 Summer Street, 5 Fl., Stamford,
CT 06905-5125
In Canada imported for Philips Electronics Ltd,
281 Hillmount Road, Markham, ON L6C2S3
Call TOLL-FREE 1.800.54.AVENT
En EE.UU. fabricado para Philips Consumer Lifestyle,
una división de Philips Electronics North America
Corporation. 1600 Summer Street, 5 Fl., Stamford,
CT 06905-5125
En Canadá importado para Philips Electronics Ltd,
281 Hillmount Road, Markham, ON L6C2S3
Llame gratuítamente: 1.800.54.AVENT
Aux États-Unis fabriqué pour : Mode de Vie/
Consommateurs Philips, une division de Philips
Electronics North America Corporation, 1600
Summer Street, 5 Fl., Stamford, CT 06905-5125.
Au Canada importé pour Philips Électronique Ltée,
281 Hillmount Road, Markham, ON L6C2S3
Appelez SANS FRAIS: 1.800.54.AVENT
/AVENT
