Philips Consumer Lifestyle SCD600H Baby Cam Parent Unit User Manual A5

Philips Consumer Lifestyle Baby Cam Parent Unit A5

User Manual

25
0000.0000.00.00
2 3
45 6 23 24
1 3 4 5
6 7 8 9
10 11 12 13
14 15 16 17
18 19 20
1
2
2
21
1
16
22
21
20
15
14
17
13
12
11
10
918 19
2
3
4
5
7
8
1
2
3
4
6
10
11
8
712
14
13
5
6
9
2
22 23 24 25
26 27
usi 03
28 29
30 31
SCD600
ENGLISH 8
8
IMPORTANT SAFETY INSTRUCTIONS
Some of the following information may not apply to your particular product; however, when using
baby monitor equipment, basic safety precautions should always be followed to reduce the risk of
re, electric shock and injury to persons, including the following:
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus
(including ampliers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specied by the manufacturer.
12 Unplug this appliance during lightning storms or when unused for long periods of time.
13 Servicing is required when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped. For assistance visit our website www.philips.com/AVENT or call 1-800-54-AVENT (1-
800-542-8368).
14 This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult
supervision and should not be used as such.
15 Use this appliance only for its intended use as described in this manual.
16 Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners.
17 Products should not be used while you are in a bathtub, shower or pool. Immersion of the
product in water could cause an electrical shock.
18 This product should be operated only from the type of power source indicated on the type
plate of the adapters (A10, B5). If you are not sure of the type of power supply to your home,
consult your dealer or local power company.
19 Do not overload wall outlets and extension cords as this can result in the risk of re or electric
shock.
20 Never push objects of any kind into this product through casing slots as they may touch
dangerous voltage points or short out parts that could result in a risk of re or electric shock.
Never spill liquid of any kind on the product.
21 To reduce the risk of electric shock, do not disassemble this product, but visit our website www.
philips.com/AVENT or call 1-800-54-AVENT (1-800-542-8368) for assistance. Opening or
removing covers (except battery compartment lids) may expose you to dangerous voltage or
other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently
used.
22 To prevent strangulation with power cord, never place monitor within reach of child. Do not use
with extension cords.
If your product utilizes batteries, the following additional precautions should be
observed:
1 Use only the type and size of batteries specied in the user manual.
ENGLISH
2 Do not dispose of batteries in re. They may explode. Dispose of batteries according to
the instructions.
3 Exercise care in handling batteries in order not to short out the batteries with conducting
materials such as rings, bracelets and keys. Overcharging, short circuiting, reverse charging,
mutilation, or incineration of batteries must be avoided to prevent one or more of the following
occurrences: release of toxic materials, release of hydrogen and/or oxygen gas, rise in surface
temperature.
4 Do not attempt to recharge batteries provided with or identied for use with this product that
are not intended to be charged. The batteries may leak corrosive electrolyte or explode.
5 Do not attempt to rejuvenate the batteries provided with or identied for use with this product
by heating them. Sudden release of battery electrolyte may occur, causing burns or irritation to
eyes or skin.
6 If and when necessary, the batteries must be replaced with identical new ones from the same
manufacturer. If a battery to be replaced is connected with other batteries in series, it is
recommended that the other batteries be replaced with new ones at the same time.
7 Reverse polarity installation of the batteries in the end product must be avoided. Reverse
insertion of batteries can cause charging, and that may result in leakage or explosion.
8 Remove batteries from this product if you store the product over 30 days because the batteries
could leak and damage the product.
9 Discard ‘dead’ batteries as soon as possible since ‘dead’ batteries are more likely to leak in a
product. If a battery has leaked or vented, it should be replaced immediately using protective
gloves.
10 Do not store batteries in high-temperature areas. Batteries that are stored in a freezer or
refrigerator for the purpose of extending shelf life should be protected from condensation
during storage and defrosting. Batteries should be stabilized at room temperature prior to use
after cold storage.
11 If your product uses rechargeable batteries, charge the batteries only in accordance with the
instructions and limitations specied in the user manual.
12 There is a risk of explosion if batteries are replaced with an incorrect type. For the parent
unit, always use the SCD600 Li-Ion rechargeable battery pack as supplied with the
appliance.
SAVE THESE INSTRUCTIONS
CAUTION:THE SYMBOL SHOWN IN FIGURE 1 MEANS THAT THERE IS A
RISK OF EXPLOSION OF THE BATTERIES AND/OR OF SERIOUS DAMAGE
TO THE BABY MONITOR IF THE BATTERIES OR THE ADAPTER ARE
REPLACED WITH AN INCORRECT TYPE. (Fig. 1)
Adapter for baby unit:
Input: 100-240 VAC 50/60Hz
Output: 6.0 VDC 0.8A
Adapter no. OH-1048A0600800U1
Adapter for parent unit:
Input: 100-240 VAC 50/60Hz
Output: 6.0 VDC 0.8A
Adapter no. OH-1048A0600800U1
The electrical outlet shall be installed near the equipment and shall be easily accessible.
For the baby unit, only use 1.5V AAA alkaline batteries (batteries not supplied).
For the parent unit, only use the SCD600 Li-Ion rechargeable battery as supplied with the appliance.
Dispose of used batteries according to the instructions.
Compliance information
The FCC ID number is located on the casing bottom of the parent unit and in the battery
compartment of the baby unit.
-
-
-
-
-
-
-
ENGLISH 9
The term ‘IC’ before the certication number signies that Industry Canada technical specications
were met.This certication means that the equipment meets certain radio communications and
operational requirements. This device complies with Part 15 of the FCC Rules and ICES-003 of
Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.This device complies also with RSS-213 of Industry
Canada.
Radio interference
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules and applicable Industry Canada specications. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 7 3/4
inches / 20 centimeters between the radiator and your body. For handheld operation, this
equipment has been tested and meets the FCC RF exposure guidelines. For body-worn operation,
this product has been tested and meets the FCC RF exposure guideline when used with the belt
clip supplied with this product. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. This equipment also complies with Industry Canada RSS-102
with respect to Canada’s Health Code 6 for Exposure of Humans to RF Fields.
Do not attempt to repair or modify this equipment
Any repairs or alterations made by the user to the equipment may void the warranty and
compliance of the equipment. For assistance visit our website www.philips.com/AVENT or call 1-
800-54-AVENT (1-800-542-8368).
Introduction
Congratulations on your purchase and welcome to Philips AVENT! To fully benet from the support
that Philips AVENT offers, register your product at www.philips.com/welcome.
The Philips AVENT video monitor provides you with round-the-clock support and it allows you to
see your baby day and night from anywhere in the house. The latest digital technology guarantees
crystal-clear sound and the clearest image of your baby. This gives you an additional sense of security
without entering your baby’s room and disturbing their sleep.

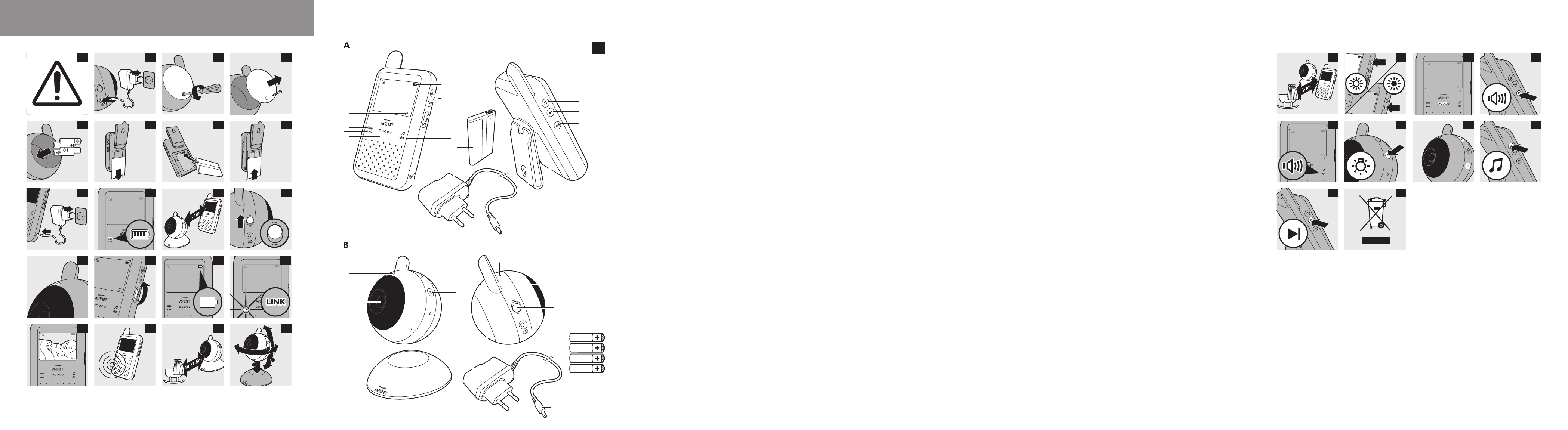

General description (Fig. 2)
A Parent unit
1 Antenna
2 Signal strength symbol
3 Video display
4 Lullaby symbol
5 Battery/power-on light
-
-
-
ENGLISH10
6 LINK light
7 Sound level lights
8 Loudspeaker
9 Socket for appliance plug
10 Adapter
11 Rechargeable battery
12 Automatic screen activation light
13 Lullaby light
14 Volume wheel with power-off position
15 Brightness adjustment buttons
16 Battery symbol
17 Small plug
18 Belt clip/stand
19 Battery compartment lid
20 Automatic screen activation button
21 ’Next lullaby’ button
22 Lullaby play/stop button
B Baby unit
1 Antenna
2 Power-on light
3 Lens
4 Stand
5 Adapter
6 Battery compartment lid
7 Microphone
8 Nightlight button
9 Nightlights
10 Loudspeaker
11 On/off switch
12 Socket for appliance plug
13 Non-rechargeable batteries (not included)
14 Small plug
Important
Read this user manual carefully before you use the appliance and save it for future reference.
Check if the voltage indicated on the adapters of the baby unit and the parent unit corresponds
to the local mains voltage before you connect the appliance.
Only use the adapters supplied to connect the baby unit and the parent unit to the electrical
outlet.
The adapters contain a transformer. Do not cut off the adapters to replace them with other
plugs, as this causes a hazardous situation.
If the adapters are damaged, always have them replaced with one of the original type in order
to avoid a hazard. For the correct type, see chapter ‘Replacement’.
Never use the baby monitor in moist places or close to water.
Children should be supervised to ensure that they do not play with the appliance.
Use and store the appliance at a temperature between 50°F (10°C) and 95°F (35°C).
Do not expose the baby unit and parent unit to extreme cold or heat or to direct sunlight. Do
not put the baby unit and the parent unit close to a heating source.
Make sure the baby unit and the cord are always out of reach of the baby (at least 1 metre/3
feet away).
Never place the baby unit inside or mount it on the baby’s bed or playpen.
Never cover the parent unit and the baby unit with anything (e.g. a towel or blanket).
-
-
-
-
-
-
-
-
-
-
-
ENGLISH 11
The operating range of the baby monitor is 150 metres/490 feet in open air. Depending on the
surroundings and other disturbing factors, this range may be smaller.
If you have any combination of cordless phones, wireless video, Wi-Fi networks, microwave or
Bluetooth on 2.4Ghz, connection problems may occur. The connection between the parent unit
and the baby unit could be lost for some seconds or may cause interference with other devices.
We advise you to use the parent unit corded to save energy. The baby video monitor consumes
more energy than a standard baby monitor (without video).
This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult
supervision and should not be used as such.
This monitor is not intended to be used as a medical monitor and its use should not replace
adult supervision.
Preparing for use
Baby unit
You can use the baby unit corded or on non-rechargeable batteries. Even if you are going to use the
unit corded, we advise you to insert non-rechargeable batteries. This guarantees automatic back-up
in case of power failure.
Corded operation
1 Put the appliance plug in the baby unit and put the adapter in a wall outlet (Fig. 3).
Operation on non-rechargeable batteries
The baby unit runs on four 1.5V R6 AAA batteries (not included). We recommend you use Philips
R06 PowerLife batteries or an equivalent type.
Do not use rechargeable batteries, as the baby unit does not have a charging function.
Unplug the baby unit and make sure your hands and the unit are dry when you insert non-
rechargeable batteries.
1 Removethescrewinthebatterycompartmentlidwithaatheadscrewdriver(Fig.4).
2 Remove the battery compartment lid. (Fig. 5)
3 Insert four non-rechargeable batteries (Fig. 6).
Note: Make sure the + and - poles of the batteries point in the right direction.
4 Reattach the lid.
5 Fastenthescrewwithaatheadscrewdriver.
Parent unit
Battery operation (rechargeable battery)
Unplug the parent unit and make sure your hands and the unit are dry when you insert the
rechargeable battery.
The parent unit comes with a rechargeable Li-ion 1050mAh battery.
Charge the parent unit before you use it for the rst time or when the parent unit indicates that the
battery is low (when the empty battery symbol ashes on the video display and the battery light on
the parent unit ashes green).
Note: If the battery is completely empty, the parent unit automatically switches off and loses contact with
the baby unit.
1 Slide down the battery compartment lid to remove it (Fig. 7).
2 Insert the rechargeable battery (Fig. 8).
-
-
-
-
-
ENGLISH12
Note: Make sure the + and - poles of the battery point in the right direction.
3 Reattach the lid (Fig. 9).
4 Insert the appliance plug into parent unit and put the adapter in a wall outlet (Fig. 10).
The battery light on the parent unit lights up blue and the video display shows a battery
symbol (Fig. 11).
When the battery is fully charged, the battery light turns green.
When you charge the parent unit for the rst time or after a long period of non-use, switch it
off and let it charge continuously for at least 4 hours.
Charging normally takes 3.5 hours, but it takes longer when the parent unit is switched on
during charging. To keep the charging time as short as possible, switch off the parent unit during
charging.
When the batteries are fully charged, the parent unit can be used cordlessly for at least 8 hours
if it is in automatic screen activation mode. If the video is on continuously, the parent unit can be
used cordlessly for approx. 6 hours.
Note: When the parent unit has been charged for the rst time, the operating time is less than 6 hours.
The rechargeable battery only reaches its full capacity after you have charged and discharged it four
times.
Note: The battery gradually discharges, even when the parent unit is switched off.
Using the appliance
Use the video monitor for its intended household use as described in this manual.
1 Place the parent unit and the baby unit in the same room to test the connection (Fig. 12).
Make sure the baby unit is at least 1 metre/3 feet away from the parent unit.
2 Set the ON/OFF switch on the baby unit to the ON position. (Fig. 13)
The green power-on light goes on. (Fig. 14)
Note: The power-on light always lights up green, even when there is no connection with the parent unit.
3 To switch on the parent unit, turn the volume wheel in the ‘ON’ direction to the desired
volume level. (Fig. 15)
The power-on/battery light goes on. If the parent unit is charging, the power-on/battery light
is blue. When the parent unit is fully charged, the power-on/battery light turns green.
Note: The power-on/battery light always goes on, even when there is no connection with the baby unit.
The video display goes on and the battery symbol appears on it (Fig. 16).
TheLINKlightashesredtoindicatethattheparentunitissearchingforaconnectionwith
a baby unit. (Fig. 17)
The LINK light on the parent unit turns green and lights up continuously when a connection
has been established between the baby unit and parent unit. The baby is shown on the video
display. (Fig. 18)
Note: If no connection can be established, the LINK light on the parent unit ashes red, the parent
unit beeps and ‘OUT OF RANGE’ appears on the display. (Fig. 19)
Positioning the baby monitor
Keep the baby unit out of the reach of the baby. Never place the baby unit inside or mount it on
the baby’s bed or playpen.
Note: If you use a Wi-Fi network, microwave oven or a DECT-system and you experience interference on
either the parent unit or baby unit, move the parent unit further away until there is no more interference.
,
,
-
-
-
,
,
,
,
,
ENGLISH 13
1 Place the baby unit at least 1 metre/3 feet away from your baby, but no further than 1.5
metres/5 feet away (Fig. 20).
2 Place the stand of the baby unit on a stable, level and horizontal surface.
Tip: Position the baby unit at a higher level to get a good overview of the baby’s bed or playpen.
3 Place the baby unit on the stand and adjust its position in a way that ensures the best
visibility of your baby (Fig. 21).
Do not position the baby unit with the microphone facing downwards. When the microphone
is blocked by the base, the baby unit does not pick up sounds properly.
4 Place the parent unit within the operating range of the baby unit. Make sure it is at least 1
metre/3 feet away from the baby unit to avoid acoustic feedback (Fig. 22).
For more information on the operating range, see section ‘Operating range’ below.
Operating range
The operating range of the baby monitor is 150 metres/490 feet in open air. Depending on the
surroundings and other disturbing factors, this range may be smaller.
Dry materials Material thickness Loss of range
Wood, plaster, cardboard, glass
(without metal, wires or lead)
< 30cm/12in 0-10%
Brick, plywood < 30cm/12in 5-35%
Reinforced concrete < 30cm/12in 30-100%
Metal grilles or bars < 1cm /0.4in 90-100%
Metal or aluminum sheets < 1cm/0.4in 100%
For wet and moist materials, the range loss may be up to 100%.
Features
Adjusting loudspeaker volume
You can adjust the loudspeaker volume of the parent unit to the level you prefer.
1 Turn the volume wheel up or down to adjust the volume. (Fig. 15)
Note: If the volume is set to a high level, the parent unit consumes more power.
Adjusting display brightness
You can adjust the display brightness of the parent unit to the level you prefer.
1 Press the brightness adjustment buttons on the parent unit to adjust the brightness of the
video display. (Fig. 23)
Note: If the brightness is set to a high level, the parent unit consumes more power.
Sound level lights
The parent unit continuously monitors the sound level in your baby’s room and the sound level
lights let you know if there is any activity. If your baby cries, the green sound level lights light up on
the parent unit.
As long as the baby unit does not detect a sound, all sound level lights on the parent unit are
out.
-
ENGLISH14
When the baby unit picks up a sound, one or more sound level lights on the parent unit go on.
The number of lights that go on is related to the loudness of the sound picked up by the baby
unit. The sound level lights also go on when the parent unit is set to a low volume or when the
automatic screen activation mode is activated (see section ‘Automatic screen activation’
below) (Fig. 24).
Automatic screen activation
The parent unit continuously monitors the sound level in your baby´s room. When the automatic
screen activation mode is activated, the video display only switches on when the baby unit picks up
a sound. As long as no sound is detected, the video display is off to save power.
1 To activate the automatic screen activation mode, press the automatic screen activation
button on the parent unit. (Fig. 25)
The automatic screen activation light on the parent unit goes on (Fig. 26).
When the baby unit detects a sound, the video display on the parent unit automatically goes
on to show the baby. When no sound is detected for 30 seconds, the video display goes out
again.
2 To switch off the automatic screen activation mode, press the automatic screen activation
button on the parent unit again.
Nightlights
1 Press the nightlight button on the baby unit to switch on the nightlights. (Fig. 27)
The nightlights on the baby unit go on. (Fig. 28)
2 Press the nightlight button again to switch off the nightlights.
Tip: Switch off the nightlights when you operate the baby unit on non-rechargeable batteries. This saves
power.
Lullaby function
Note: When the baby unit plays a lullaby, it consumes more power.
1 Press the play/stop button to start the lullaby (Fig. 29).
The lullaby starts to play on the baby unit and repeats continuously.
2 To stop the lullaby, press the play/stop button on the parent unit again.
3 To select another lullaby when a lullaby is playing:
Press the ‘next lullaby’ button on the parent unit. (Fig. 30)
If you want a different lullaby, press the ‘next lullaby’ button on the parent unit again.
Out-of-range alert
When the parent unit is out of range of the baby unit, the parent unit beeps once and the
message ‘Out of range’ appears on the video display. The LINK light on the parent unit ashes red.
Note: The message ‘Out of range’ also appears on the video display of the parent unit when the baby unit
is switched off.
Night vision
The camera has infrared lights that allow you to see your baby clearly, even in a dark room. When
the lens detects low light levels, the infrared lights are activated automatically. Place the baby unit 1
to 1.5 metres/3 to 5 feet away from the baby to ensure a clear view.
-
,
,
,
,
-
-
ENGLISH 15
Belt clip/stand
If the rechargeable battery of the parent unit is sufciently charged, you can take the unit with you
inside and outside the house by attaching the unit to your belt or waistband with the belt clip. This
allows you to monitor your baby while you are moving around.
Cleaning and maintenance
Do not immerse the parent unit and the baby unit in water and do not clean them under the tap.
Do not use cleaning spray or liquid cleaners.
1 Switch off the baby unit and the parent unit and unplug them from the power outlet.
2 Clean the parent unit and the baby unit with a damp cloth.
Note: Fingerprints or dirt on the lens of the baby unit may affect the camera’s performance. Avoid
touching the lens with your ngers.
Make sure the baby unit and parent unit are dry before you connect them to the power outlet
again.
3 Clean the adapters with a dry cloth.
Storage
When you are not going to use the baby monitor for some time, remove the non-rechargeable
batteries from the baby unit and the rechargeable battery from the parent unit. Store the parent
unit, the baby unit and the adapters in a cool and dry place.
Do not wrap cords around the monitors when storing. Store cords in a safe location where
they will not be cut or damaged.
Replacement
Baby unit
Batteries
Only replace the non-rechargeable batteries of the baby unit with four 1.5V R6 AAA batteries.
Note: We recommend you to use Philips non-rechargeable batteries or an equivalent type.
Adapter
Only replace the adapter of the baby unit with an adapter of the original type. For assistance visit
our website www.philips.com/AVENT or call 1-800-54-AVENT (1-800-542-8368).
Parent unit
Batteries
Only replace the SCD600 Li-Ion battery pack of the parent unit with a pack of the original type. For
assistance visit our website www.philips.com/AVENT or call 1-800-54-AVENT (1-800-542-8368).
Adapter
Only replace the adapter of the parent unit charger with an adapter of the original type. For
assistance visit our website www.philips.com/AVENT or call 1-800-54-AVENT (1-800-542-8368).
Assistance
For assistance call 1-800-54-AVENT (1-800-542-8368) or visit our website: www.philips.com/
AVENT.
-
-
ENGLISH16
Assistance
For assistance visit our website www.philips.com/AVENT or call 1-800-54-AVENT (1-800-542-
8368).
Environment
Dispose of batteries properly. Do not incinerate. Batteries may explode if overheated. Do not
wrap in metal or aluminum foil. Wrap in newspaper before discarding (Fig. 31).
Warranty
FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation (USA) and Philips Electronics Ltd (CANADA)
warrant each new Philips AVENT product, model SCD600, against defects in materials or
workmanship for a period of two years from the date of purchase, and agrees to repair or replace
any defective product without charge. IMPORTANT: This warranty does not cover damage resulting
from accident, misuse or abuse, lack of reasonable care, or the afxing of any attachment not
provided with the product. NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES. In order to obtain warranty service, simply call toll-free 1-800-
54-AVENT (1-800-542-8368).
Frequently asked questions
This chapter lists the questions most frequently asked about the appliance. If you cannot nd the
answer to your question, visit our website www.philips.com/AVENT or call 1-800-54-AVENT (1-
800-542-8368) for assistance.
Question Answer
Why don’t the power-on
light of the baby unit and
the parent unit go on
when I switch on the
units?
Perhaps the rechargeable battery of the parent unit is empty and the
parent unit is not connected to the power outlet. Insert the
appliance plug into the parent unit and put the adapter in a wall
outlet. Then move the volume wheel in the ‘ON’ direction to switch
on the parent unit and to establish connection with the baby unit.
Perhaps the baby unit is not connected to the power outlet and the
non-rechargeable batteries in the baby unit are empty or there are no
non-rechargeable batteries in the baby unit at all. Put full non-
rechargeable batteries in the baby unit or connect the baby unit to
the power outlet. Then set the on/off switch to ‘ON’ to switch on the
baby unit and to establish connection with the parent unit.
Why does the LINK light
on the parent unit ash
red?
The baby unit and the parent unit are out of range of each other.
Move the parent unit closer to the baby unit.
The baby unit may be switched off. Switch on the baby unit.
Why does the battery/
power-on light on the
parent unit ash green?
The rechargeable battery of the parent unit is running low. Recharge
the battery (see chapter ‘Preparing for use’).
Why does the parent
unit beep?
If the parent unit beeps while the LINK light lights up red continuously,
the connection with the baby unit is lost. Move the parent unit closer
to the baby unit.
The baby unit may be switched off. Switch on the baby unit.
-
ENGLISH 17
Question Answer
Why does the video
monitor produce a high-
pitched noise?
The units may be too close to each other. Make sure the parent unit
and the baby unit are at least 1 metre/3 feet away from each other.
The volume of the parent unit may be set too high. Decrease the
volume of the parent unit.
Why don’t I hear a
sound/Why can’t I hear
my baby cry?
The volume of the parent unit may be set too low or may be
switched off. Turn the volume wheel to a higher volume level.
Perhaps you have switched on the automatic screen activation. If the
automatic screen activation is activated, the video display only
switches on when the baby unit picks up a sound. As long as no sound
is detected, the video display is off to save power.
Why does the parent
unit react too quickly to
other sounds?
The baby unit also picks up other sounds than those of your
baby. Move the baby unit closer to the baby (but observe the
minimum distance of 1 metre/3 feet).
Why do the non-
rechargeable batteries of
the baby unit run low
quickly?
Perhaps you have switched on the nightlights. If you want to use the
nightlights, we advise you to use the baby unit corded.
Perhaps you are playing lullabies. The baby unit consumes a lot of
energy when you play lullabies. If you play lullabies, we advise you to
use the baby unit corded.
Why does the charging
time of the parent unit
exceed 3.5 hours?
The parent unit may be switched on during charging. Switch off the
parent unit during charging.
The specied operating
range of the baby
monitor is 150
metres/490 feet. Why
does my baby monitor
manage a much smaller
distance than that?
The specied range is only valid outdoors in open air. Inside your
house, the operating range is limited by the number and type of walls
and/or ceilings between the parent unit and the baby unit.
Why can’t I establish a
connection? Why is the
connection lost every
now and then? Why are
there sound
interruptions?
The baby unit and the parent unit are probably close to the outer
limits of the operating range or there is interference from other
2.4GHz wireless devices. Try a different location, decrease the distance
between the units or switch off other 2.4GHz wireless devices. Please
note that it takes about 5 seconds each time before a connection
between the units is established.
What happens during a
power failure?
If the parent unit is sufciently charged, it continues to operate during
a power failure. If there are batteries in the baby unit, it also continues
to operate during a power failure.
ENGLISH18
Question Answer
The operating time of
the parent unit is
supposed to be at least 6
hours. Why is
the operating time of my
parent unit shorter?
When the parent unit has been charged for the rst time, the
operating time is shorter because the battery has not reached its full
capacity yet. The rechargeable battery only reaches its full capacity
after you have charged and discharged it at least four times. After
this, the operating time is 6 hours if the automatic screen activation is
not activated and 8 hours if the automatic screen activation mode is
activated.
The parent unit consumes a lot of energy when the video display is
switched on continuously. Activate the automatic screen activation
mode to increase the operating time (see chapter ‘Features’, section
‘Automatic screen activation’).
The volume of the parent unit may be set too high, which causes the
parent unit to consume a lot of energy. Decrease the volume of the
parent unit
Why do I get
interference on the
parent unit?
Interference may occur when the parent unit is out of range of the
baby unit. Interference may also occur if there are too many walls or
ceilings between the parent unit and the baby unit or when other
2.4GHz wireless devices are switched on (e.g. microwave, internet).
Put the parent unit in a different place, closer to the baby unit, or
switch off other wireless devices.
Why does the parent
unit make a buzzing
sound?
Interference may occur when the parent unit is out of range of the
baby unit. Interference may also occur if there are too many walls or
ceilings between the parent unit and the baby unit or when other
2.4GHz wireless devices are switched on (e.g. microwave, internet).
Put the parent unit in a different place, closer to the baby unit, or
switch off other wireless devices.
The rechargeable battery of the parent unit may need to be charged.
Why does the video
display icker?
Interference may occur when the parent unit is out of range of the
baby unit. Interference may also occur if there are too many walls or
ceilings between the parent unit and the baby unit or when other
2.4GHz wireless devices are switched on (e.g. microwave, internet).
Put the parent unit in a different place, closer to the baby unit, or
switch off other wireless devices.
The rechargeable battery of the parent unit may need to be charged.
Why isn’t there any
image on the video
display when the power-
on light is on?
The parent unit may be in the automatic screen activation mode.
Press the automatic screen activation button again to switch on the
video display.
Why isn’t the image on
the video display clear?
The display brightness may be set too low. Increase the display
brightness (see chapter ‘Features’).
Why doesn’t the parent
unit work in the
automatic screen
activation mode?
The distance between the baby and the baby unit may be too large.
Make sure that the baby unit is placed 1 to 1.5 metres/3 to 5
feet away from the baby.
ENGLISH 19
21
Question Answer
Why isn’t the image on
the video display clear
in night vision?
The distance between the baby and the baby unit may be too large.
Make sure that the baby unit is placed 1 to 1.5 metres/3 to 5
feet away from the baby.
Why doesn’t the battery
symbol appear on the
video display of the
parent unit when I start
to charge the parent
unit?
It may take a few minutes before the battery symbol appears on the
video display of the parent unit when you charge the parent for the
rst time or after a long period of non-use.
Why doesn’t the parent
unit charge when I have
plugged it in?
The rechargeable battery may have reached the end of its life.
Replace the rechargeable battery.
ENGLISH20
22

Navigation menu
