English
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
Intended use
The product is intended for measuring the
temperature of the human body.
The device is intended for all ages in a home
environment.
General
This Philips ear thermometer has been developed
for accurate and fast human body temperature
measurements in the ear in the adjusted mode.
Research indicates that the ear is an ideal site for
taking the body temperature. The body core
temperature is regulated by the hypothalamus
(Fig. 2). The hypothalamus (1) shares the same
blood supply as the tympanic membrane (2).
Measurement results can be transmitted via
Bluetooth® Smart to the Philips HealthSuite health
app for charting and tracking purposes.

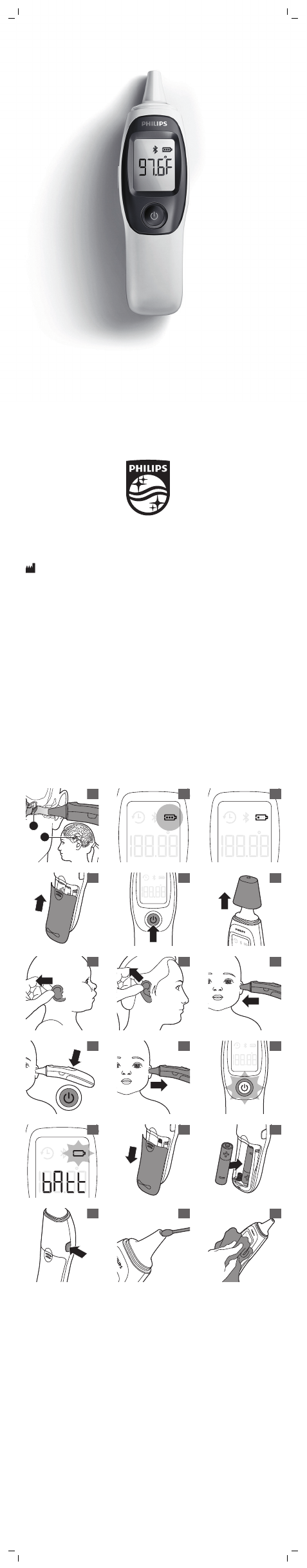

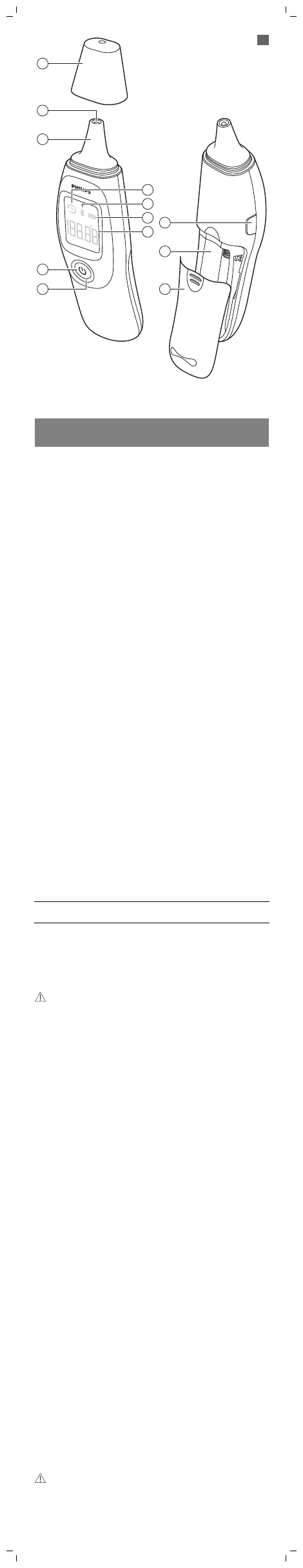

General description (Fig. 1)
1 Protection cap
2 Infrared sensor
3 Probe tip
4 History icon
5 Bluetooth® Smart icon
6 Battery symbol
7 Temperature display
8 Power button
9 Temperature light ring
10 °F/°C selection button
11 Battery compartment
12 Battery cover
IMPORTANT SAFEGUARDS
Warning: READ ALL INSTRUCTIONS BEFORE
USING
When using battery-operated products, especially
when children are present, basic safety
precautions should always be followed, including
the following:
Warning
- Do not measure the body temperature at the
ear site if the ear is inflamed or infected.
- Stop using the device in the occurrence of any
pain. It is likely to damage the ear canal.
- If the measured body temperature exceeds
100.4°F / 38°C and the person whose
temperature is being measured feels
uncomfortable, contact your physician.
- It is recommended not to use the device if you
suffer from ear disease, including otitis externa
and tympanitis.
- Keep the device out of the reach of children
and pets to avoid inhalation or swallowing of
small parts. Children may not be able to use the
device according to the instructions in this user
manual. It is not a toy.
- Do not throw disposable batteries into fire.
Batteries may explode.
- Do not put the device in a wet ear canal after
swimming or bathing. This may cause injury to
the ear canal.
- Do not use the device if it is broken or
damaged. Using a broken or damaged device
may cause injury.
- Do not use the thermometer under temperature
extremes (below 59°F / 15°C or over 95°F / 35°C)
or humidity extremes (below 20%RH or over
80%RH). If you do, this may cause inaccurate
measurements.
- Do not expose the thermometer to temperature
extremes (below 14°F / -10°C or over 131°F /
55°C) or humidity extremes (below 20%RH or
over 90%RH). If you do, this may cause
inaccurate measurements.
- Do not store the device in extreme temperature
(below -4°F / -20°C or over 140°F / 60°C) or in
extreme levels of humidity (below 15%RH or
over 85%RH). If you do, this may cause
inaccurate measurements.
Caution
- Only use the device as described in this user
manual. Do not use it for any other purpose.
1
2
9
8
4
6
5
7
11
10
12
3
1
- The device is not intended as a substitute for
consulting a doctor. Measurement results are
for reference only.
- When the device is used to measure the
temperature of a child, it has to be operated by
an adult. Adults can measure their own
temperature.
- If you clean the ear, wait 5-10 minutes before
you use the device.
- Earwax in the ear canal may cause inaccurate
measurements. Make sure the ear canal is clean
before you use the device.
- Do not take apart, repair or change any part of
the device at any time, except for replacing
batteries.
- Keep the infrared sensor dry, clean and
undamaged to ensure accurate measurements.
- Do not touch or blow at the infrared sensor. A
dirty infrared sensor may cause inaccurate
measurements.
- Never clean the device with an abrasive
cleaner, thinner, benzene or immerse the
device in water or other liquids.
- When the temperature of the storage area
differs from the temperature of the measuring
area, wait at least 30 minutes for the device to
acclimatize before you use the device.
- If you do not intend to use the device for a long
period of time, it is advised to remove the
batteries before storing. This is to prevent
possible damage due to leakage of the
batteries. If the batteries leak, remove them
carefully and replace with new batteries.
SAVE THESE INSTRUCTIONS
Compliance with standards
- The device meets the relevant standards for this
type of Class IIa medical device for home use.
- This Philips device complies with all applicable
standards and regulations regarding exposure
to electromagnetic fields and complies with IEC
60601-1-2
- Skin contact parts (ABS, TPU, metal) comply
with ISO 10993-5 and ISO 10993-10.
Cytotoxicity, sensitization and irritation test
results meet the requirements.
- Based on the current science and technology,
other potential allergic reactions are unknown.
Clinical accuracy:
Sub
ject
age
gro
up
O
per
a
tion
m
ode
M
ea
sur
ing
site
Ref
er
en
ce
bo
dy
site
Clinical
bias
(Δcb)
Limits
of
agree
ment
(LA)
Clinical
repea
tability
(σr)
A1 -0.020 0.203 0.07
A2 -0.033 0.195 0.09
B -0.014 0.198 0.08
C
Ad
just
ed
m
ode
Ear Bo
dy
core
tem
per
a
ture -0.016 0.199 0.08
Display
Symbol Description Explanation
History icon Display shows last
measurement result
when switching on the
device.
Bluetooth®
Smart icon
The device uses
Bluetooth® Smart for
communication.
Battery
symbol
Battery symbol
indicating status of
battery.
Battery status indications
Battery full
To indicate that the battery is fully charged the
battery symbol shows a full battery (Fig. 3).
Battery low
To indicate that the battery is low, the battery
symbol shows a nearly empty battery (Fig. 4).
When using 2x 1.5V AAA, Alkaline batteries,
approximately 500 measurements can be realized
(73.4 ºF ± 9 °F, 50 ± 20% RH).
Preparing for use
The batteries (2x 1.5V AAA) are included with the
device. Remove the battery strip from the battery
compartment before first use. (Fig. 15)
Slide the battery cover back until it locks into place
(Fig. 5).
Pairing the thermometer to your mobile
device
Your Philips ear thermometer is equipped with
Bluetooth® Smart. Download the Philips
HealthSuite health app from the App Store or
Google Play. Use the search term: Philips
HealthSuite health app. The Philips health app is
available for iOS® 8.0+ and AndroidTM 4.4+.
1 Download the Philips HealthSuite health app
on your mobile device, start the Setup wizard
and follow the steps to create a user profile and
add the thermometer.
2Make sure the Philips health app is active and
Bluetooth on your mobile device is on when
pairing is in progress.
3 Press the power button once, to switch on the
thermometer (Fig. 6).
- The app identifies the thermometer and
requests to pair.
- The Bluetooth icon lights up when the
thermometer is connected to your mobile
device.
4 The thermometer switches off automatically
after 30 seconds of no activity.
- When the thermometer has paired successfully
with your mobile device, your personal
measurement results are automatically
transmitted to your mobile device via
Bluetooth.
Note: Only when the Philips HealthSuite health
app is active, your personal health data can be
transmitted.
Cleaning the infrared sensor
To achieve accurate measurements, it is important
to check if the infrared sensor is clean. Use a
cotton swab to clean the infrared sensor.
See chapter Cleaning and storage for instructions.
After cleaning, wait approximately 5-10 minutes
before you use the device.
Cleaning the ear
Earwax in the ear canal may cause inaccurate
measurements. Make sure the ear canal is clean
before you use the device.
Carefully clean your ear canal. If you clean your
ear, wait for 5-10 minutes before you use the
device.
Resetting the thermometer
If you press the °F/°C selection button on the side
of the thermometer for longer than 10 seconds, all
measurements are deleted from the device and all
settings return to the factory values.
Measuring temperature
Tips for proper measurement
External factors can influence your body
temperature. In the following cases, wait at
least 30 minutes before taking your temperature:
- When you have been lying on your ear
- When you had your ears covered
- When you have been exposed to very low or
very high temperatures
- When you have been swimming or bathing
- If you wear earplugs or hearing aids, remove
them first
We do not advise you to use the device in the
following circumstances as this may cause
inaccurate measurements:
- When the temperature of the storage area
differs from the temperature of the measuring
area. In this case, wait at least 30 minutes
before you use the device.
Body temperature
Normal body temperature is a range. A person's
normal temperature range tends to decrease with
age. The following table shows normal
temperature ranges by age.
The range of normal body temperature varies from
person to person and can be influenced by many
factors such as time of day, level of activity and
emotions.
Age Temperature in
°Fahrenheit
Temperature in
°Celsius
0-2
years
97.5 - 100.4 °F 36.4 - 38.0 °C
3-10
years
97.0 - 100.0 °F 36.1 - 37.8 °C
11-65
years
96.6 - 99.7 °F 35.9 - 37.6 °C
> 65
years
96.4 - 99.5 °F 35.8 - 37.5 °C
Source: Chamberlain, J.M., et al., Determination of
Normal Ear Temperature with an Infrared Emission
Detection Thermometer, Annals of Emergency
Medicine, January 1995, Vol. 25, pp. 15-20.
Performing a measurement
Note: Before measuring, make sure that the probe
tip of the device is clean.
1 Remove the protection cap before you use the
device (Fig. 7).
2 Press the power button to switch on the device.
-The display shows the last measurement
result as well as the history icon.
3 Hold the outer ear and gently pull it towards the
rear of the head to straighten the ear canal.
-Children under the age of 1: hold the outer
ear and gently pull it straight back. (Fig. 8)
-Children aged 1 year or older: hold the outer
ear and gently pull the ear up and back (Fig.
9).
4 Insert the probe tip very gently and slowly into
the ear canal (Fig. 10).
-Make sure the probe tip points straight
towards the eardrum when you hold it.
-Always insert the probe tip into the same
ear, in the same direction and at the
same depth.
Note: A temperature measurement taken in the
right ear may differ from a measurement taken
in the left ear.
5 Press the power button to start the
measurement. (Fig. 11)
-When the measurement is done, you hear 2
beeps.
6 Remove the probe tip from the ear canal (Fig.
12).
-The display shows the measured
temperature and the temperature light ring
around the power button lights up red, if the
measured temperature is above 100.4° F/
38.0°C.
Note: The temperature display on the device
shows the measurement result for 30 seconds or
until you perform a new measurement.
Temperature light ring
This device is equipped with a temperature light
ring around the power button (Fig. 13).
After the measurement, the ring lights up red,
depending on the measured temperature.
- When the temperature light ring lights up red,
the measured temperature is between 100.4 °F
(38.0 °C) and 109.2 °F (42.9 °C).
Transmit and display personal
measurement results in the app
Note: Your personal measurement data is only
stored and displayed in the Philips HealthSuite
health app.
1 Start up the Philips HealthSuite health app and
switch on Bluetooth on your mobile device.
2 The Bluetooth symbol will light up on the
display of the thermometer to indicate it is
connected to your mobile device.
- Once successfully connected, the measurement
results will be automatically transmitted to your
mobile device via Bluetooth.
- If the data transmission is successful, the
measurement results are displayed in the
Philips HealthSuite health app.
- The time and date of each measurement is
shown in the Philips HealthSuite health app.
Removing/inserting batteries
When the batteries are almost empty, the display
shows a flashing battery symbol and the text "bAtt'
(Fig. 14).
When the battery low symbol appears on
the display (Fig. 4) or if the device does not
function at all, replace the batteries as soon as
possible. The device works on 2x 1.5V AAA Alkaline
batteries.
Data will be lost when the batteries are completely
empty or are taken out of the thermometer.
1 Slide the battery cover downwards to open the
battery compartment and remove the empty
batteries (Fig. 15).
2 Insert two new batteries in the battery
compartment according to the polarity
indications ( + and - ) marked inside the
compartment. Press down the batteries until
they click into place (Fig. 16).
3 Slide the battery cover back until it locks into
place (Fig. 5).
Setting the measurement unit
You can select either Fahrenheit (°F) or Celsius (°C)
for measuring temperature.
1 Switch on the device.
2 Press and hold the °F/°C selection button for 3
seconds to change the measurement unit (Fig.
17).
Cleaning and storage
Caution: Do not expose the device to extreme
temperatures (below -4 °F/-20 °C or over
140 °F/60 °C), extreme levels of humidity (below
15%RH or over 85%RH), direct sunlight or shock.
This may result in inaccurate measurements.
Use a cotton swab to clean the infrared sensor. For
hygienic reasons, the device should be cleaned
after each use
1 Moisten the cotton swab with a few drops of
alcohol and wipe the surface of the infrared
sensor gently with the swab (Fig. 18).
2 Immediately wipe the surface dry with a clean
cotton swab.
3 Use a soft dry cloth to clean the body of the
device (Fig. 19).
4 Store the device in a clean, dry place at room
temperature.
Calibration
The device has been calibrated when it was
manufactured. If the device is used according to
the instructions, periodic recalibration is not
required. If you question the accuracy of the
measurement at any time, call 1-844-531-6861 for
assistance.
Accessories
Philips accessories may be purchased at a store
near you, or on our website
www.philips.com/store.
This device has no other user-serviceable parts.
For assistance call 1-844-531-6861.
Specifications
Power supply 2 x AAA non-rechargeable
alkaline batteries
Temperature
measuring
range
90.3 °F - 109.2 °F / 32.4 °C -
42.9 °C
In-ear
measurement
accuracy
±0.4 °F (±0.2 °C) within the range
of 90.3 °F - 109.2 °F / 32.4°C -
42.9°C
Dimensions 5.3" (L) x 1.5" (W) x 1.1" (H) mm
Weight About 0.12 lb / 54.6 g (without
battery)
Operating
conditions
50.0 °F - 104.0 °F (10.0 °C -
40.0 °C) with a relative humidity
of 15% - 85%, 86 kPa to 106 kPa
Storage and
transport
conditions
-4 °F - 140 °F (-20 °C - 60 °C) with
a relative humidity of 15% - 85%,
86 kPa to 106 kPa
Disposal
This product may contain lead and mercury.
Disposal of these materials may be regulated due
to environmental considerations. For disposal or
recycling information, please contact your local
authorities or visit www.recycle.philips.com.
This product contains batteries:
- Dispose of batteries properly. Do not incinerate.
Batteries may explode if overheated.
- Do not wrap in metal or aluminum foil. Tape the
waste battery terminals before discarding.
- It is suggested that you contact your local town
or city to determine proper battery redemption
site(s) in your area.
- Battery must be removed from the device
before discarding.
Troubleshooting
This chapter summarizes the most common
problems you could encounter with the device. If
you are unable to solve the problem with the
information below, visit www.philips.com/support
for a list of frequently asked questions or call
1-844-531-6861 for assistance.
Problem Possible
cause
Solution
The device
does not
respond or
resets
automatically
when I pull
out the
battery strip.
The batteries
are empty.
Replace the
batteries.
Problem Possible
cause
Solution
The poles of
the batteries
point in the
wrong
direction.
Remove the
batteries and
reinsert them
properly.
The batteries
are not
making
proper
contact.
Remove the
batteries and
reinsert them
properly.
The
measured
temperature
is lower than
90.3 °F /
32.4 °C or
higher than
109.2 °F /
42.9 °C.
Follow the
instructions in the
user manual for
proper
measurement.
Temperature
is out of
temperature
measuring
range.
Use the
thermometer in
the range of
operating
conditions.
The
thermometer
seems to be
inaccurate or
the
measurement
results seem
questionable.
The infrared
sensor is not
clean
enough.
Clean the infrared
sensor with a
cotton swab
according to user
manual.
You are not
measuring
temperature
in the correct
way.
Make sure that
you have read the
user manual and
know how to use
the device
properly.
Your room
temperature
is too low or
too high.
Use your
thermometer at
room
temperatures
between 50.0 °F
and 104.0 °F
(10.0 °C and
40.0 °C).
You are using
the device
outdoors.
The device is only
intended for
indoor use.
You have
held the
device in
your hand
too long.
Put the device on
the table in the
room where the
measurement is
taking place and
let it cool down
first.
The battery
symbol
flashes on
the display,
or the display
is blank.
The batteries
are empty.
Replace the
empty batteries
with new ones.
The display
shows Err0
Self-test error Remove and
replace the
batteries. If the
error persists, call
1-844-531-6861
for assistance.
The display
shows Err2
Stabilization
error
Wait 30 minutes
and measure
again.
The display
shows Err3
Battery level
low
Replace the
empty batteries
with new ones.
Assistance
For assistance, visit our website:
www.philips.com/support or call toll free
1-844-531-6861
Online information is available 24 hours a day, 7
days a week.
Full Two-Year Warranty
Philips Electronics North America Corporation
warrants each new Philips product, Model DL8740,
against defects in materials or workmanship for a
period of two years from the date of purchase and
agrees to repair or replace any defective product
without charge.
IMPORTANT: This warranty does not cover
damage resulting from accident, misuse or abuse,
lack of reasonable care, the affixing of any
attachment not provided with the product or loss
of parts or subjecting the product to any but the
specified battery.*
NO RESPONSIBILITY IS ASSUMED FOR ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
In order to obtain warranty service, simply go to
www.philips.com/support or call toll-free
1-844-531-6861. It is suggested that for your
protection you return shipments of product by
insured mail, insurance prepaid. Damage occurring
during shipment is not covered by this warranty.
NOTE: No other warranty, written or oral, is
authorized by Philips Electronics North America
Corporation. This warranty gives you specific legal
rights, and you may also have other rights which
vary from state to state. Some states do not allow
the exclusion or limitation of incidental or
consequential damages, so the above exclusion
and limitations may not apply to you.
* Read enclosed instructions carefully.
In U.S. only manufactured for: Philips Personal
Health Solutions, High tech Campus 37, 5656 AE
Eindhoven, The Netherlands.
PHILIPS and Philips Shield are Registered
Trademarks of Koninklijke Philips N.V.
BlueTooth wordmark
The BlueTooth® Smart wordmark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Philips is under
license.
App Store and iPhone
App Store and iPhone are trademarks of Apple
Inc., registered in the U.S. and other countries. App
Store is a service mark of Apple Inc.
Google Play and Android
Google Play and Android are trademarks of Google
Inc.
EMC Guidance
- The ear thermometer needs special precautions
regarding EMC and needs to be installed and
put into service according to the EMC
information provided in this document.
- Wireless communications equipment such as
wireless home network devices, mobile phones,
cordless telephones and their base stations,
walkie-talkies can affect this equipment and
should be kept at least a distance d = 3.3 m
away from the equipment.
Note: As indicated in IEC 60601-1-2:2007 for ME
equipment, a typical cell phone with a maximum
output power of 2 W yields d = 3.3 m at an
immunity level of 3V/m.
FCC Compliance information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Radio interference
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
RF Radiation exposure statement
This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. For handheld/body-worn operation,
this equipment has been tested and meets the
FCC RF exposure guidelines. This transmitter must
not be co-located or operating in conjunction with
any other antenna or transmitter. Use of other
accessories may not ensure compliance with FCC
RF guidelines.
Do not attempt to repair or modify this equipment.
Any repairs or alterations made by the user to the
equipment may void the warranty and compliance
of the equipment. Changes or modifications made
to this equipment not expressly approved by
Philips may void the FCC authorization to operate
this equipment. For assistance visit our website
www.philips.com/support or call toll-free
1-844-531-6861.
Electromagnetic emissions and
immunity
The device is approved according to EMC safety
standard IEC 60601-1-2. It is designed to be used
in typical domestic environments.
Table 1 Guidance and manufacturer's
declaration – electromagnetic emissions
- for all ME equipment and ME systems
Guidance and manufacturer’s declaration –
electromagnetic emissions
The device is intended for use in the
electromagnetic environment specified below. The
customer or the user of the device should assure
that it is used in such an environment.
Emissions test Com
pliance
Electromagnetic
environment -
guidance
RF emissions
CISPR 11
Group 1 The device must emit
electromagnetic
energy in order to
perform its intended
function. Nearby
electronic equipment
may be affected.
RF emissions
CISPR 11
Class B
Harmonic
emissions IEC
61000-3-2
Not
applica
ble
Voltage
fluctua
tions/flicker
emissions IEC
61000-3-3
Not
applica
ble
Guidance and manufacturer's declaration
– electromagnetic immunity – for all ME
equipment and ME systems
Guidance and manufacturer’s declaration –
electromagnetic immunity
The device is intended for use in the
electromagnetic environment specified below. The
customer or the user of the device should assure
that it is used in such an environment.
Immuni
ty test
IEC
60601
test
level
Com
pliance
level
Electromagnetic
environment -
guidance
Electro
static
dis
charge
(ESD)
IEC
61000-
4-2
±6 kV
contact
±8 kV air
±6 kV
contact
±8 kV
air
Floors should be
wood, concrete or
ceramic tile. If
floors are covered
with synthetic
material, the
relative humidity
should be at least
30%.
Power
fre
quency
(50/60
Hz)
magnet
ic field
IEC
61000-
4-8
3A/m 3A/m Power frequency
magnetic fields
should be at levels
characteristic of a
typical location in
a typical
commercial or
hospital
environment.
Table 4 Guidance and manufacturer's
declaration – electromagnetic immunity
–for ME equipment and ME systems that
are not life supporting
Guidance and manufacturer’s declaration –
electromagnetic immunity .The device is intended
for use in the electromagnetic environment
specified below. The customer or the user of the
device should assure that it is used in such an
environment.
IMMUNITY
test
IEC 60601 TEST
LEVEL
Compliance
level
Conducted RF
IEC
61000-4-6
3 Vrms
150 kHz to
80 MHz
3 Vrms
Radiated RF
IEC
61000-4-3
3 V/m
80 MHz to 2.5
GHz
3 V/m
Electromagnetic environment - guidance
Portable and mobile RF communications
equipment should be used no closer to any part of
the device, including cables, than the
recommended separation distance calculated from
the equation applicable to the frequency of the
transmitter.
Recommended separation distance:
d = 1.167 ÖP
d = 1.167 ÖP 80 MHz to 800MHz
d = 2.333 ÖP 800 MHz to 2.5 GHz
where P is the maximum output power rating of
the transmitter in watts (W) according to the
transmitter manufacturer and d is the
recommended separation distance in metres (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey (a),
should be less than the compliance level in each
frequency range (b).
Interference may occur in the vicinity of equipment
marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher
frequency range applies.
NOTE 2 These guidelines may not apply in all
situations. Electromagnetic propagation is affected
by absorption and reflection from structures,
objects and people.
(a) Field strengths from fixed transmitters, such as
base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio,
AM and FM radio broadcast and TV broadcast
cannot be predicted theoretically with accuracy. To
assess the electromagnetic environment due to
fixed RF transmitters, an electromagnetic site
survey should be considered. If the measured field
strength in the location in which the device is used
exceeds the applicable RF compliance level
above, the device should be observed to verify
normal operation. If abnormal performance is
observed, additional measures may be necessary,
such as re-orienting or relocating the device.
(b) Over the frequency range 150 kHz to 80 MHz,
field strengths should be less than 3V/m.
Table 6 Recommended separation
distances between portable and mobile
RF communications equipment and the
ME equipment or ME system – for ME
equipment and ME systems that are not
life supporting
Recommended separation distances between
portable and mobile RF communications
equipment and the device.
The device is intended for use in an
electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the
user of the device can help prevent
electromagnetic interference by maintaining a
minimum distance between portable and mobile
RF communications equipment (transmitters) and
the device as recommended below, according to
the maximum output power of the
communications equipment.
Separation distance according to
frequency of transmitter (m)
Rated
maximum
output
power of
transmitter
(W)
150 kHz to
80 MHz
d = 1.167 Ö
P
80 MHz
to 800
MHz
d = 1.167 Ö
P
800 MHz
to 2.5 GHz
d = 2.333
0.01 0.117 0.117 0.233
0.1 0.369 0.369 0.738
1 1.167 1.167 2.333
10 3.690 3.690 7.378
Separation distance according to
frequency of transmitter (m)
100 11.67 11.67 23.33
For transmitters rated at a maximum output power
not listed above, the recommended separation
distance d in metres (m) can be estimated using
the equation applicable to the frequency of the
transmitter, where P is the maximum output power
rating of the transmitter in watts (W) according to
the transmitter manufacturer.
NOTE 1 At 80MHz and 800MHz, the separation
distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all
situations. Electromagnetic propagation is affected
by absorption and reflection from structures,
objects and people.

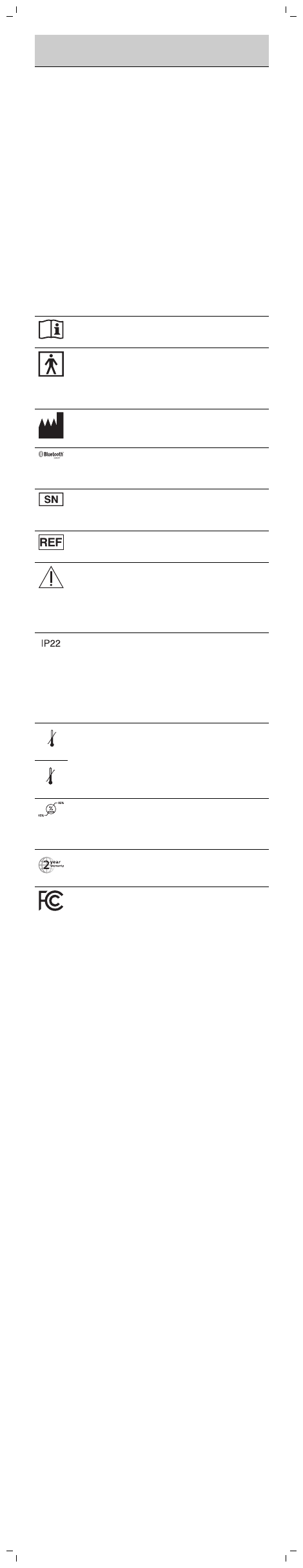

Explanation of symbols
The warning signs and symbols are essential to
ensure that you use this product safely and
correctly and to protect you and others from injury.
Below you find the meaning of the warning signs
and symbols on the label and in the user manual.
Read the user manual before you use the
device.
This symbol means that the part of the
device that comes into physical contact
with the user (also known as the applied
part, probe tip) is of type BF (Body
Floating) according to IEC 60601-1.
Indicates the manufacturer.
Symbol for the 'Bluetooth Smart mark'.
The device uses Bluetooth for
communication.
Indicates the manufacturer's serial
number so that a specific medical device
can be identified.
Indicates manufacturer's catalog number
of the device.
Indicates caution.The user should consult
the instructions for use for important
cautionary information such as warnings
and precautions that cannot, for a variety
of reasons, be presented on the medical
device itself.
IP22: The first number 2: Protected against
solid foreign objects of 12,5 mm Ф and
greater. The second number: Protected
against vertically falling water drops when
enclosure is tilted up to 15°. Vertically
falling drops shall have no harmful effects
when the enclosure is tilted at any angle
up to 15° on either side of the vertical.
–20ºC
60ºC
–4ºF
140ºF
Indicates the storage and transportation
temperature limits to which the medical
device can be safely exposed: -4°F -
140°F / -20°C to 60°C.
Indicates the storage and transportation
relative humidity limits to which the
medical device can be safely exposed:
15% - 85%
Symbol for the 2 year Philips warranty.
This symbol is a certification mark. It is
used on electronic products
manufactured or sold in the United States.
It confirms that the electromagnetic
interference from the device is lower than
the limits approved by the FCC.
