Taking a First Look
Pronto:
The Home Theater Control Panel
Pronto is a Home Theater Control Panel that allows maximum flexibility and
customization for even the most sophisticated home entertainment system. It can
control almost any device that understands infrared (IR) remote control signals. Its
intuitive interface makes it a perfect remote control for every user.
Pronto is easy to configure. It contains a huge universal database where IR codes
are stored to control different brands for all kinds of video, audio devices and even
home automation equipment. By default Pronto is set up to control Philips or
Marantz devices. For other brands you simply choose the brands of your devices
when you use Pronto for the first time.
Pronto offers you some extra powerful features:
■You can create and edit macros, allowing you to send a series of commands
with one single touch.
■You can choose to have Pronto working with radio frequency (RF) signals to
operate devices from a distance or from an adjacent room. To do this, you
need an optional RF Extender that converts Pronto RF signals into IR signals.
With ProntoEdit software you can create your own screens and define a personal
look. ProntoEdit’s Online Help system (accessible via the ‘Help’ icon in ProntoEdit)
will guide you through the process. You can find ProntoEdit on the included CD-
ROM and on the Philips website www.pronto.philips.com. See “ProntoEdit” on
page 37 for more information.
ProntoII.qxd 03-09-2002 09:24 Pagina 3
User Guide
4

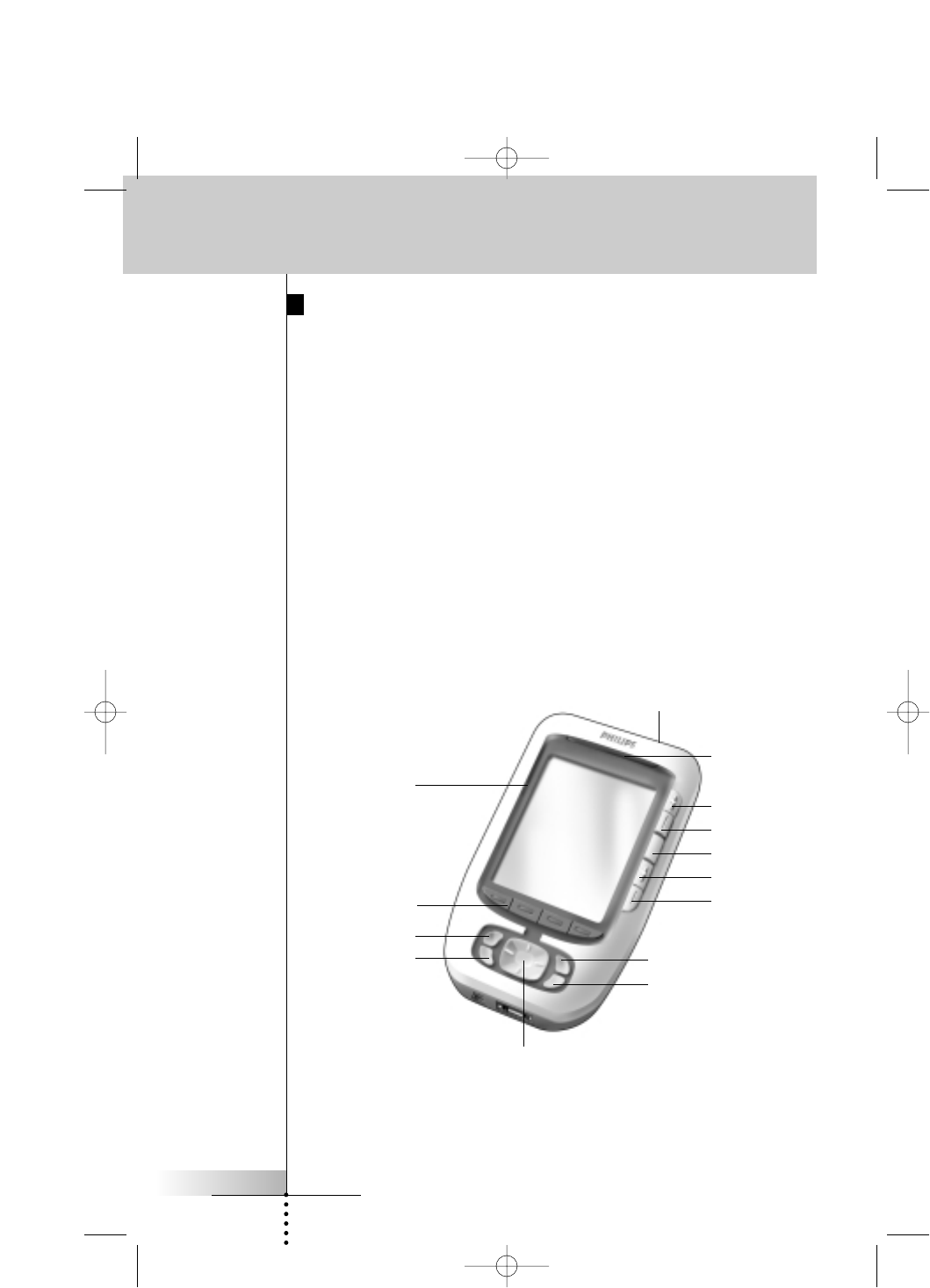

The Device
Pronto has several hard buttons. Some are freely programmable, some have a
predefined function:
■The buttons on the left side of Pronto and the buttons at the right side of the
screen have predefined functions.
■The utter left button below the touch screen has a predefined function.
The two middle buttons below the touch screen and the utter right button are
freely programmable.
You can reprogram the function of these buttons and change the label on the
touch screen.
■The cursor buttons and buttons on the right side of the cursor are programmed
to operate devices, for instance for navigating through the on screen menu of
your TV.
All these buttons are freely programmable. However, these buttons each have
a predefined function. If you learn one of these buttons or assign a macro to it,
its predefined function for that database will be permanently lost.
Taking a First Look
Learning eye
LCD touch screen
Buttons
SmartSurfer
Toggle button
Cursor navigation
Volume up
Volume down
Mute
Channel up
Channel down
Light sensor
OK
Home
ProntoII.qxd 03-09-2002 09:24 Pagina 4
User Guide
5
Taking a First Look

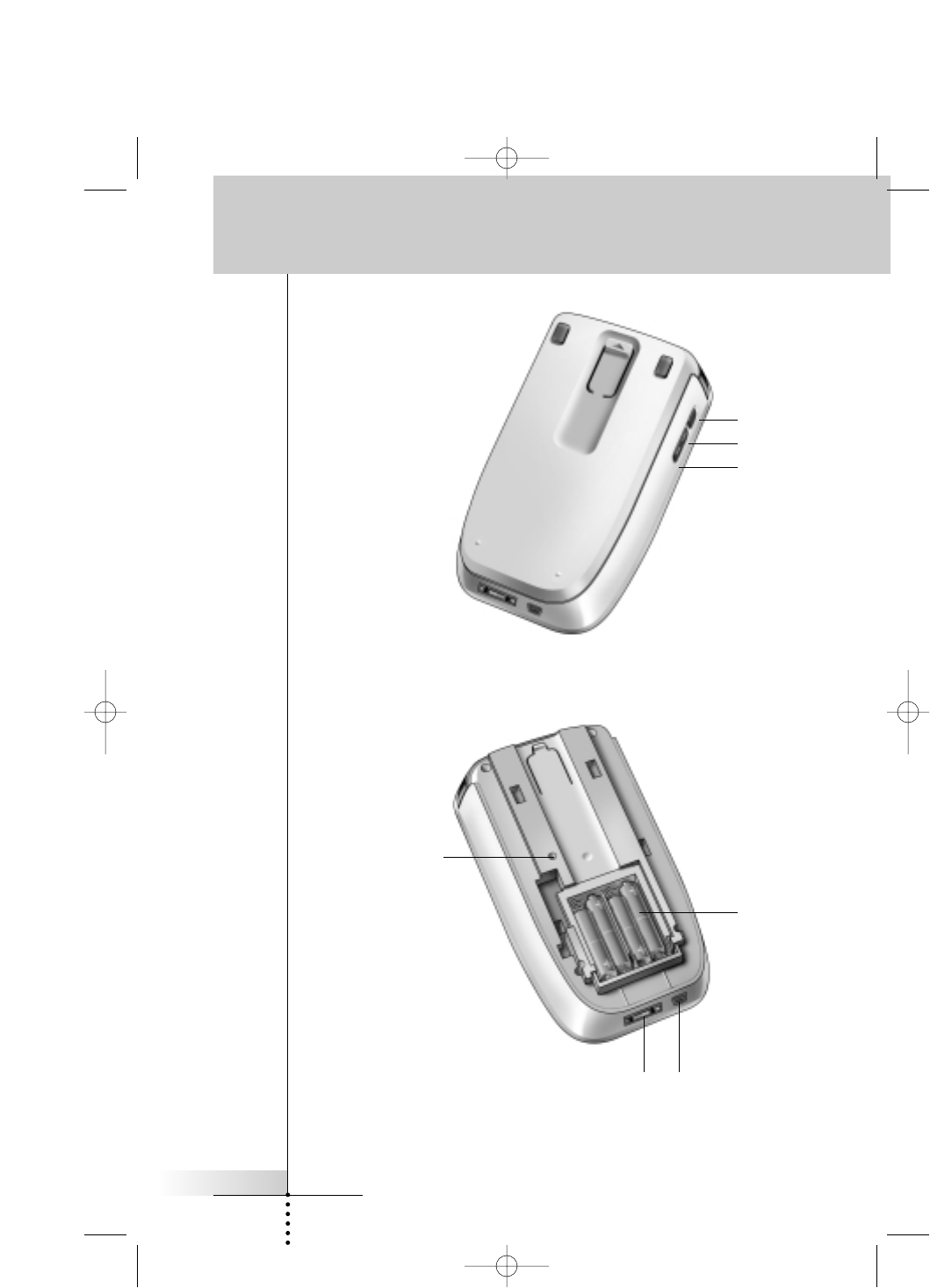

Backlight
Page up
Page down
USB port
Reset button
Connection to docking station
Battery
compartment
ProntoII.qxd 03-09-2002 09:24 Pagina 5
User Guide
6
Taking a First Look

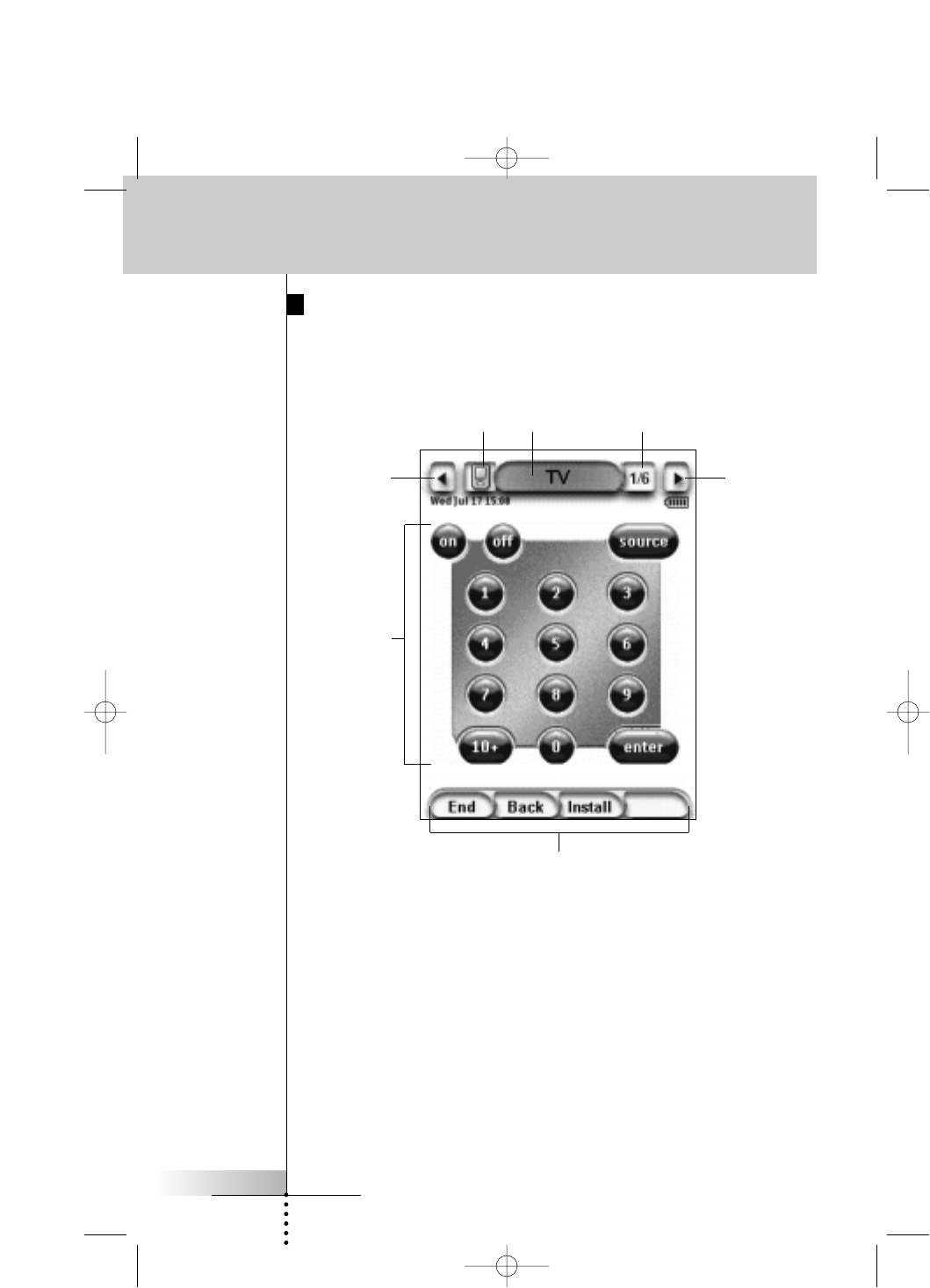

The Touch Screen
Labels for
the hard
buttons
Next
Device
Previous
Device
Pronto
Icon
Device
Overview
button
Page
Overview
button
Soft
buttons
ProntoII.qxd 03-09-2002 09:24 Pagina 6
User Guide
7
Taking a First Look
What’s New for Pronto Next Generation?
This new Pronto offers several new features compared to the previous model.
The most important ones are:
■Light Sensor
The Light Sensor on your Pronto causes the backlight to switch on
automatically according to the ambient light of your own home theater
environment.
■Page Overview
The Page Overview offers you a list of all the pages for one device. Every
device comes with a Page Overview, making it easier and faster to browse
through the device pages.
■16 Gray Scales
The number of gray scales has increased from 4 to 16. Therefore the buttons
look much more natural.
■Transparency
Pronto supports transparency in buttons and other objects. This allows the
user to create complex user interfaces in an easy way.

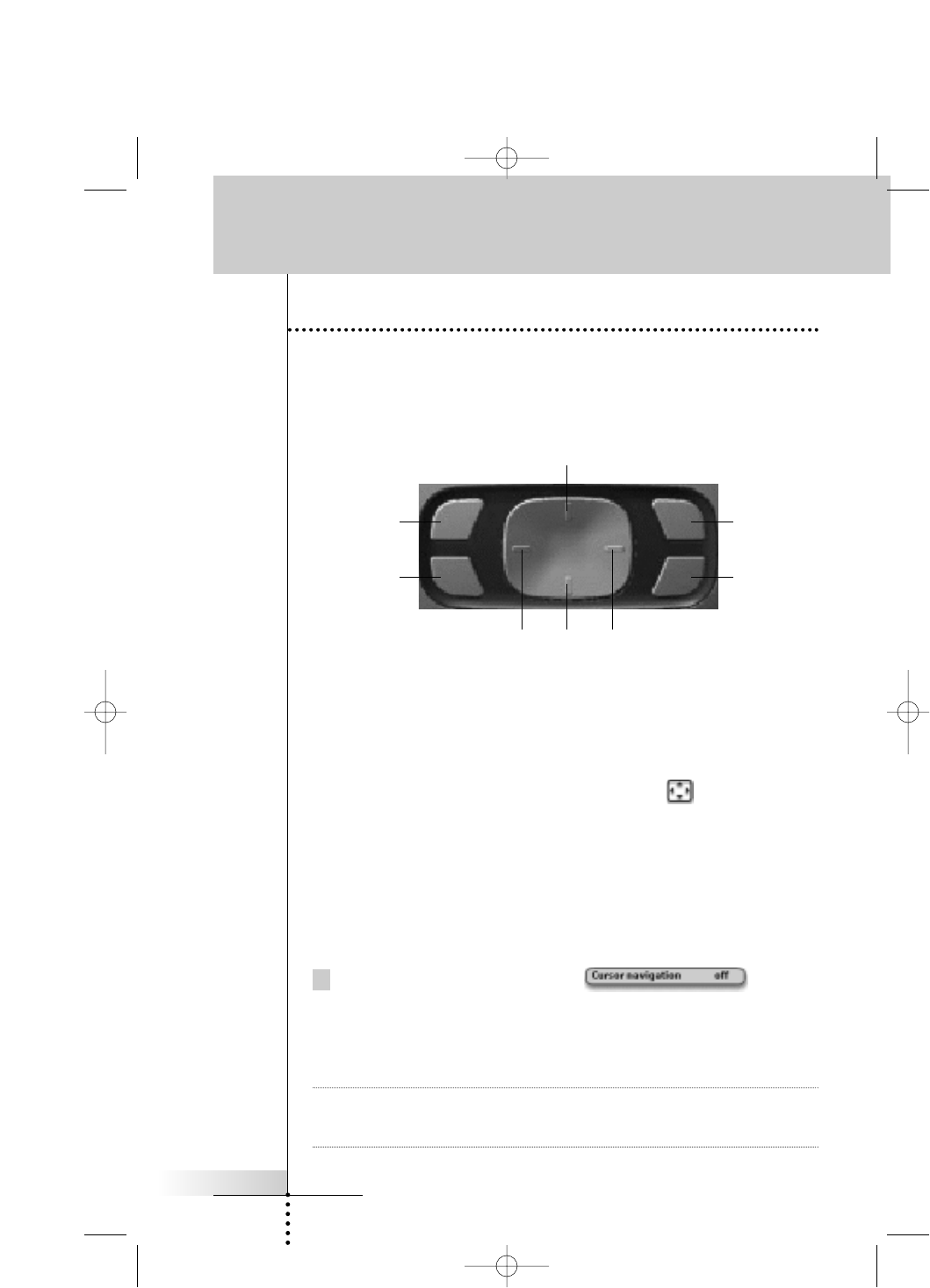

■Cursor Navigation
By default the cursor is programmed to operate devices. The functions
assigned to the cursor button depend on the device active on the Pronto.
Pronto also offers you the possibility to use the cursor for navigating through
devices and pages on the screen. The Left and Right cursor buttons allow you
to scroll through the devices, with the Up and Down cursor buttons you scroll
through the different pages.
.■Animation Mode
Pronto provides navigation feedback through graphical animations of mode
transitions and page transitions. You can enable and disable the animations of
your Pronto in the Setup Page.
ProntoII.qxd 03-09-2002 09:24 Pagina 7
User Guide
8

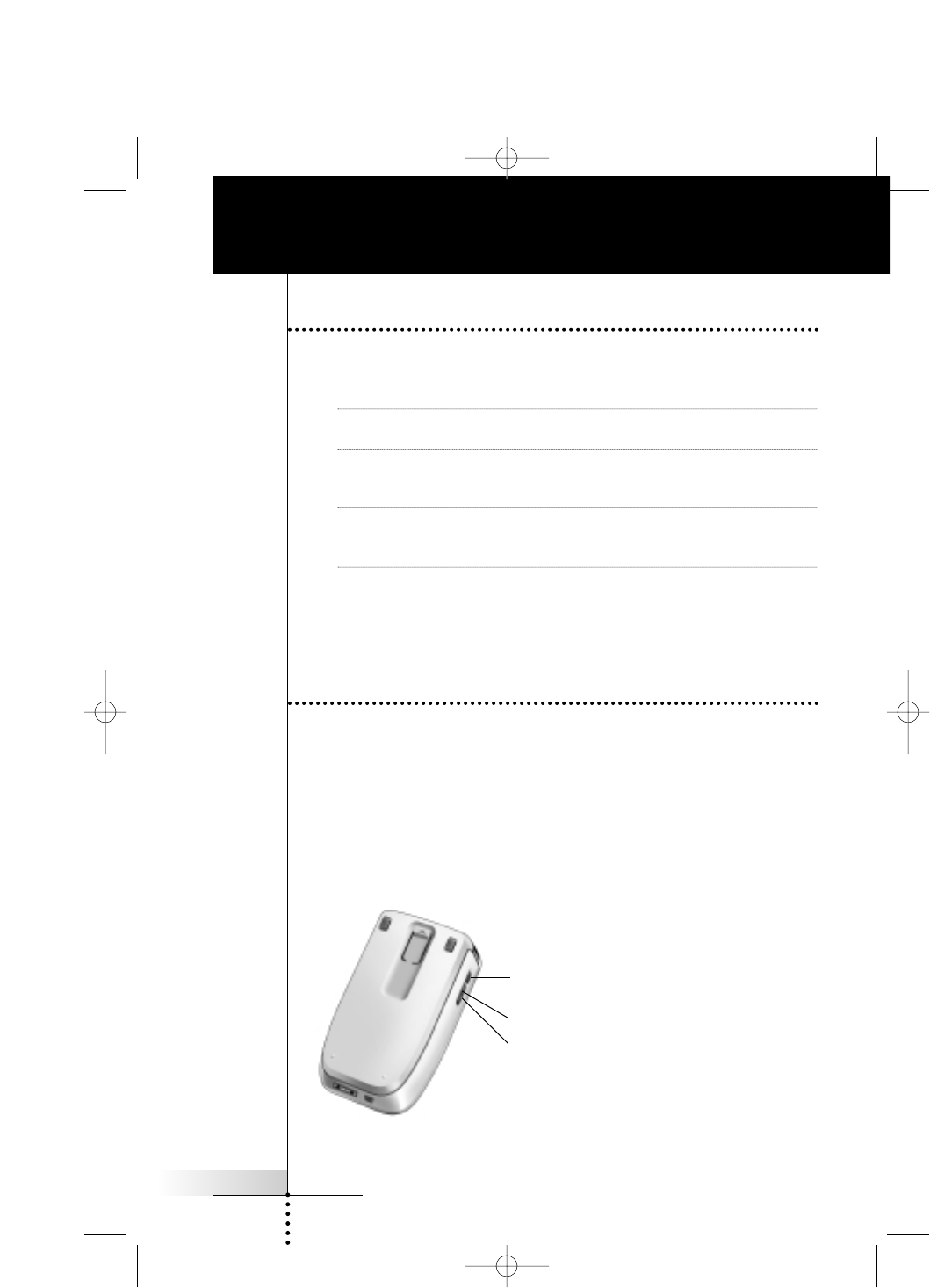

Placing the Batteries
When you use Pronto for the first time, you will have to place 4 AAA batteries.
You can use rechargeable or non-rechargeable AAA batteries.

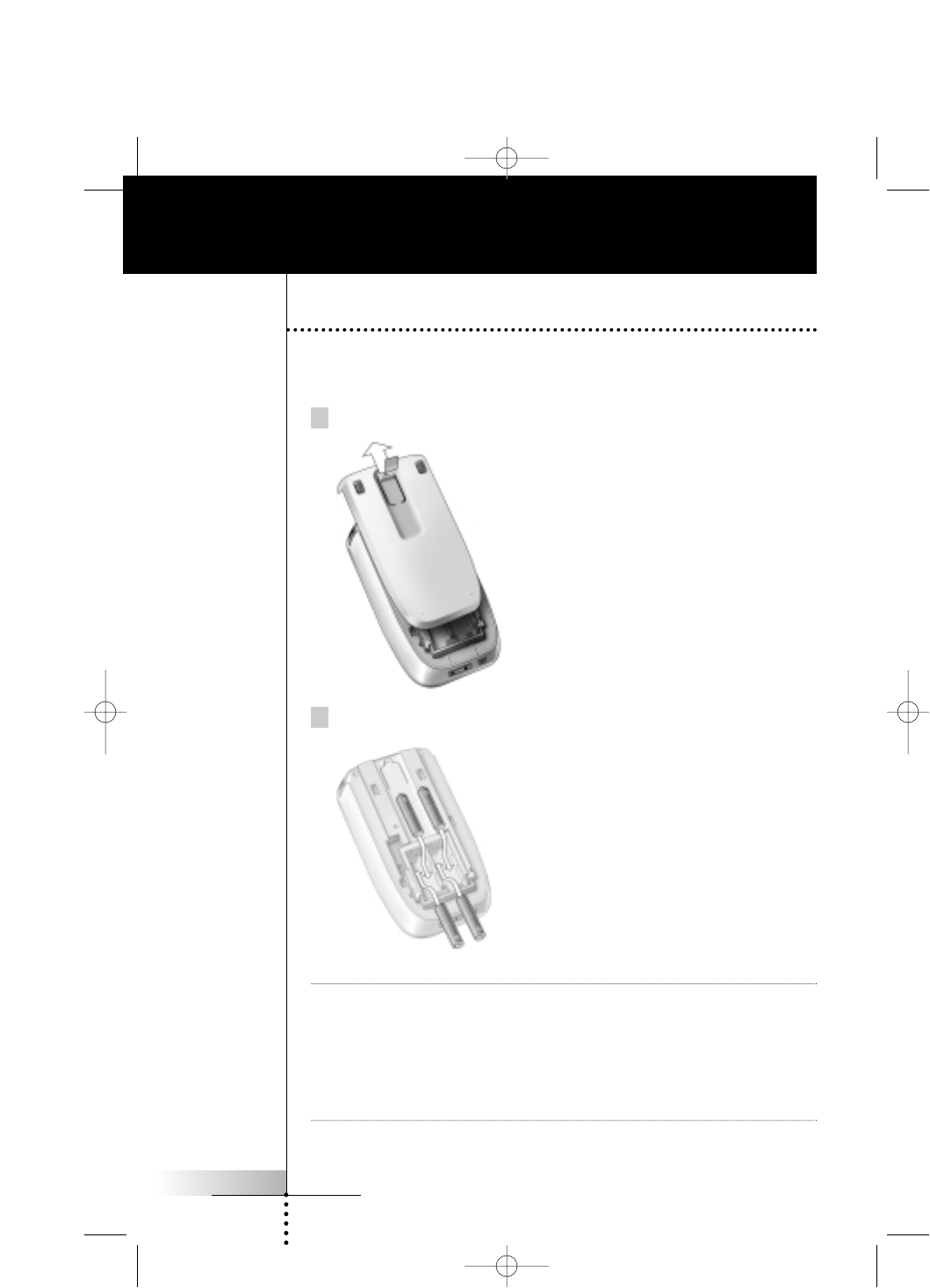

1 Slide off the battery cover from the back of Pronto.
2 Place the batteries in the battery compartment.
Notes When the batteries are running low, the Low Battery icon appears over the
battery icon in the right upper corner of the screen. Pronto retains all its settings
when the batteries have run out. You will only have to set the time.
See “Changing the Time” on page 10 for more information.
You can also use a docking station and a battery pack to recharge your Pronto.
The docking station and the battery pack are optional.
Before You Start
ProntoII.qxd 03-09-2002 09:24 Pagina 8
User Guide
9
Turning on Pronto
Pronto can be turned on in three different ways:
■Tap the touch screen.
Note Only use your finger or a blunt soft object like a pencil eraser to operate the
touch screen.
■Press one of the hard buttons.
Note When you press a hard button on Pronto, the according function will be
executed immediately, while the buttons below the touch screen will activate
the display.
■Press the Backlight button.
Getting Started
Setting the Contrast
You can set the contrast level and switch on the backlight of Pronto using the hard
buttons on the left side of the device.
■To decrease the contrast, press and hold the upper button and at the same
time press the “-” hard button.
To increase the contrast, press and hold the upper button and at the same
time press the “+” hard button.
■To switch on the backlight, press the upper button.
Backlight
& contrast
+
-
ProntoII.qxd 03-09-2002 09:24 Pagina 9
User Guide
10
Setting Time and Date
When you have installed the batteries and turned on the Pronto, you might want to
set the current time and date. To go to the Setup Pages, tap the Pronto icon in
the top center of the touch screen.
Changing the Time Format
There are two different formats:
■12 hour (AM/PM): This is the default format.
■24 hour
You can select the Time Format by tapping the Time Format button
in the first Setup Page. The Time Format button toggles between the two
formats.
Changing the Time
Note When the batteries are replaced, the time is reset to 0.00 a.m.
1 Tap the Time button in the first Setup Page.
The Time button is selected. The labels ‘+’ and ‘-‘ appear for the two middle
hard buttons.
2 To increase the time, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the time, press (and hold) the hard button labeled ‘-’.
3 Tap the Time button again.
The new time is set.
Changing the Date
To change the year
1 Tap the Year button in the first Setup Page.
The Year button is selected. The labels ‘+’ and ‘-‘ appear for the two middle
hard buttons.
2 To increase the years, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the years, press (and hold) the hard button labeled ‘-’.
3 Tap the Year button again.
The new year is set.
Getting Started
ProntoII.qxd 03-09-2002 09:24 Pagina 10
User Guide
11
To change the month
1 Tap the Month button in the first Setup Page.
The Month button is selected. The labels ‘+’ and ‘-‘ appear for the two middle
hard buttons.
2 To increase the months, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the months, press (and hold) the hard button labeled ‘-’.
3 Tap the Month button again.
The new month is set.
To change the day
1 Tap the Day button in the first Setup Page.
The Day button is selected. The labels ‘+’ and ‘-‘ appear for the two middle
hard buttons.
2 To increase the days, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the days, press (and hold) the hard button labeled ‘-’.
3 Tap the Day button again.
The new day is set.
Getting Started
ProntoII.qxd 03-09-2002 09:24 Pagina 11
User Guide
12
Getting Started
Operating Pronto
Pronto contains a series of customizable devices, each consisting of several device
pages. All active devices on your Pronto are listed in the Device Overview. All the
available device pages are listed per device in the Page Overview.
Device Overview
The Device Overview offers you a list of all the devices you can control with
Pronto. To view the Device Overview, press the middle button at the top of the
touch screen.
You can navigate between the devices in two
different ways:
■Tap the device you want to operate from the Device
Overview.
■Tap the Device Left button at the top of the
touch screen to navigate to the previous device.
Tap the Device Right button at the top of the
touch screen to navigate to the next device.
By default you navigate through Pronto using this touch screen navigation. When
cursor navigation is enabled, the Device Left and Device Right button disappear.
You then navigate through the devices and pages using the cursor. For more
information on changing the touch screen navigation to cursor navigation, see
“Operating Pronto with the Cursor” on page 33.
Page Overview
The Page Overview offers you a list of all the pages for one
device. To view the Page Overview, tap the Page Number
in the upper area of touch screen.
You can navigate between the different pages in two
different ways:
■Tap the page you want to operate from the
Page Overview.
■Press the Up or Down hard button on the left
side of Pronto.
Device
Overview
button
Page
Overview
button
ProntoII.qxd 03-09-2002 09:24 Pagina 12
User Guide
13
Customizing Pronto
What makes Pronto so powerful, is the ability to extend its functionality in multiple
ways, like programming additional functions, adding supplementary devices and
changing the interface as it suits you best.
For full editing you can use ProntoEdit software. See “ProntoEdit” on page 37 for
more information.
Using the Tools
Pronto provides different tools. For customizing Pronto you have to switch to the
appropriate tool. Pronto offers 8 different tools, each providing different
functionalities:
■Brand Tool:
Defining the brands of your audio/video equipment (page 13);
■Learn Tool:
Learning IR codes from other remote controls (page 19);
■Label Tool:
Labelling buttons, devices and pages (page 21);
■Add Tool:
Adding new devices or copying existing devices (page 23);
■Delete Tool:
Deleting button actions or devices (page 25);
■Move Tool:
Moving devices in the Device Overview (page 26);
■Macro Tool:
Programming a sequence of commands for one single button (page 30);
■RF IR Tool:
Defining to operate Pronto with IR signals or RF signals (page 34).
Defining the Brand for a Device
Pronto contains a huge list of brands and their according IR codes in its database.
Pronto uses these IR codes to control devices. Because there are several brands
using specific IR codes, you have to define the brands and the corresponding code
sets for each device. You can either have Pronto autodetect the brand or select it
yourself. If a device’s brand contains more than one IR code set, you also have to
select it.
On the Device Overview you find buttons for the most common video and audio
devices. Pronto is set by default to operate Philips and Marantz devices. For all
devices other than Philips or Marantz, you first have to define the brand before you
can operate them with Pronto.
ProntoII.qxd 03-09-2002 09:24 Pagina 13
User Guide
14
Customizing Pronto
Searching the Brand and Code Set for your device

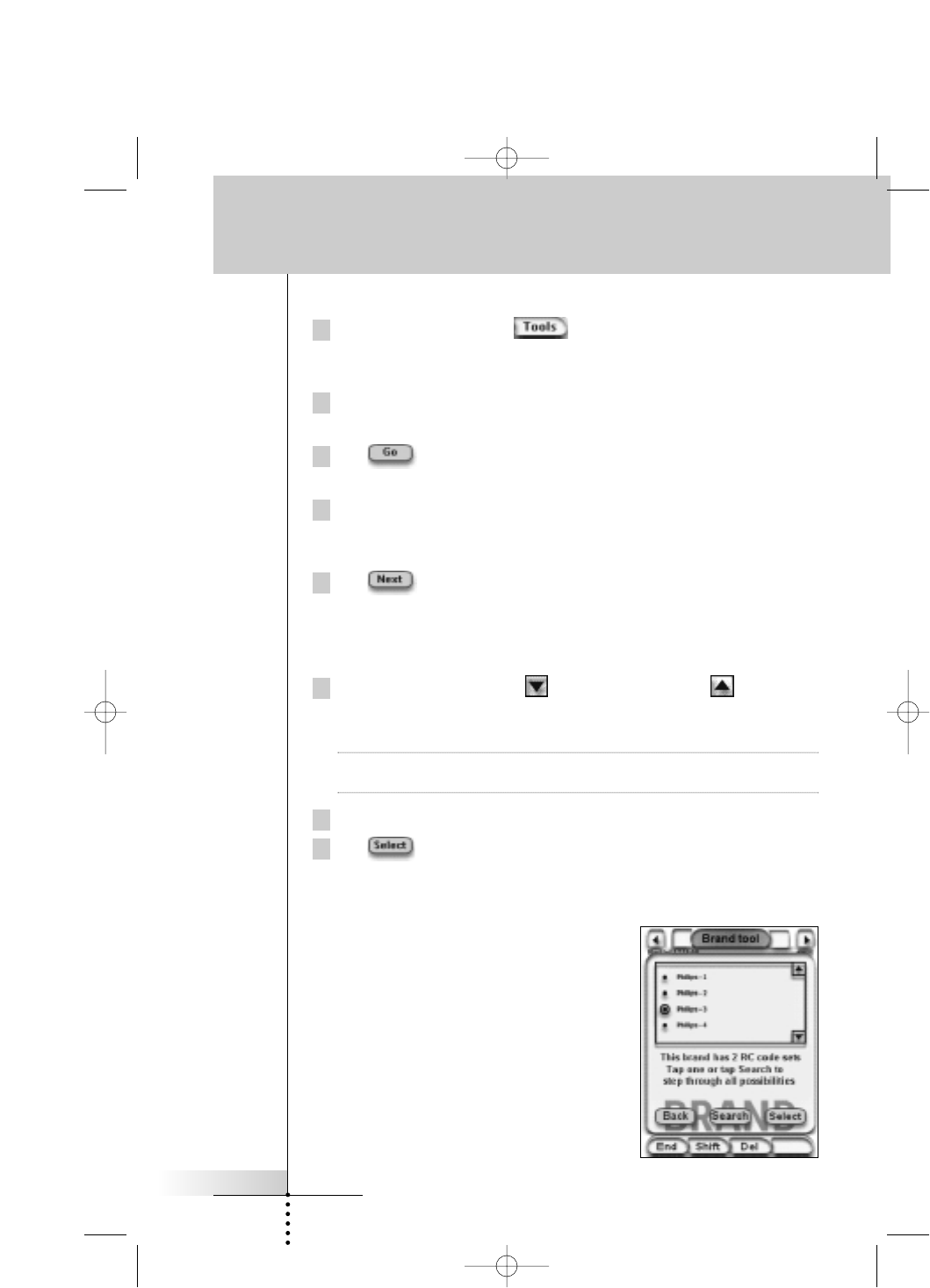

1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Brand in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Select the Device for which you want to define
the brand.
The ‘Brands’ screen appears.
Searching the brand
1 Tap in the ‘Brands’ screen.
The ‘Searching the Brand’ screen appears.
2 Tap and point Pronto at the device.
The ‘Searching’ screen appears. Pronto searches through the list of brands by
sending out an IR code for each brand.
3 When the device for which you are defining
the brand responds to the IR code,
tap in the ‘Searching’ screen.
The ‘Installing the Brand’ screen appears.
ProntoII.qxd 03-09-2002 09:24 Pagina 14
User Guide
15
Customizing Pronto
Installing the brand
1 Tap in the ‘Installing the Brand’ screen.
The first Page of the selected Device appears.
2 Tap different buttons to see if the device is responding to the IR codes
for the selected brand and code set.
3 Press the left hard button .
The IR codes for the selected brand and code set are installed.
-or-
Press and tap again.
4 Press the left hard button below the touch screen to exit
Brand Tool.
Selecting the Brand and searching the Code Set for your device
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Brand in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define
the brand.
The ‘Defining the Brand’ appears.
5 Tap in the ‘Defining the Brand’ screen.
The ‘Brands’ screen appears.
Selecting the brand
1 You can tap the Scroll Down button or the Scroll Up button
next to the Brands List.
The Brands List scrolls down/up.
Note You can also select the brand via the virtual keyboard by tapping one or more
of the brand’s name characters.
ProntoII.qxd 03-09-2002 09:24 Pagina 15
User Guide
16
Customizing Pronto
2 Tap the brand for the selected Device in the Brands List.
The selected Device is highlighted.
3 Tap in the ‘Brands’ screen.
If there is only one code set, the ‘Installing the Brand’ screen appears.
-or-
If there is more than one possible code set,
the ‘Code Sets’ screen appears.
Searching the code set
1 Tap in the ‘Code Sets’ screen.
The ‘Searching the Brand’ screen appears.
2 Tap and point Pronto at the device.
The ‘Searching’ screen appears. Pronto searches through the list of code sets
for the selected brand, by sending out an IR code for each code set.
3 Tap in the ‘Searching’ screen.
The ‘Installing the Brand’ screen appears.
4 To install the brand and code set, follow the instructions described in
“Installing the brand” on page 15.
ProntoII.qxd 03-09-2002 09:24 Pagina 16
User Guide
17
Customizing Pronto
Selecting the Brand and Code Set for your Device
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Brand in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define
the brand.
The Defining the ‘Brand’ screen appears.
5 Tap in the Defining the ‘Brand’ screen.
The ‘Brands’ screen appears.
Selecting the brand
1 Tap the Scroll Down button or the Scroll Up button next to the
Brands List.
The Brands List scrolls down/up.
Note You can also select the brand via the virtual keyboard by tapping one or more
of the brand’s name characters.
2 Tap the brand for the selected Device in the Brands List.
3 Tap in the ‘Brands’ screen.
If there is only one code set, the ‘Installing the Brand’ screen appears.
-or-
If there is more than one possible code
set, the ‘Code Sets’ screen appears.
ProntoII.qxd 03-09-2002 09:24 Pagina 17
User Guide
18
Customizing Pronto

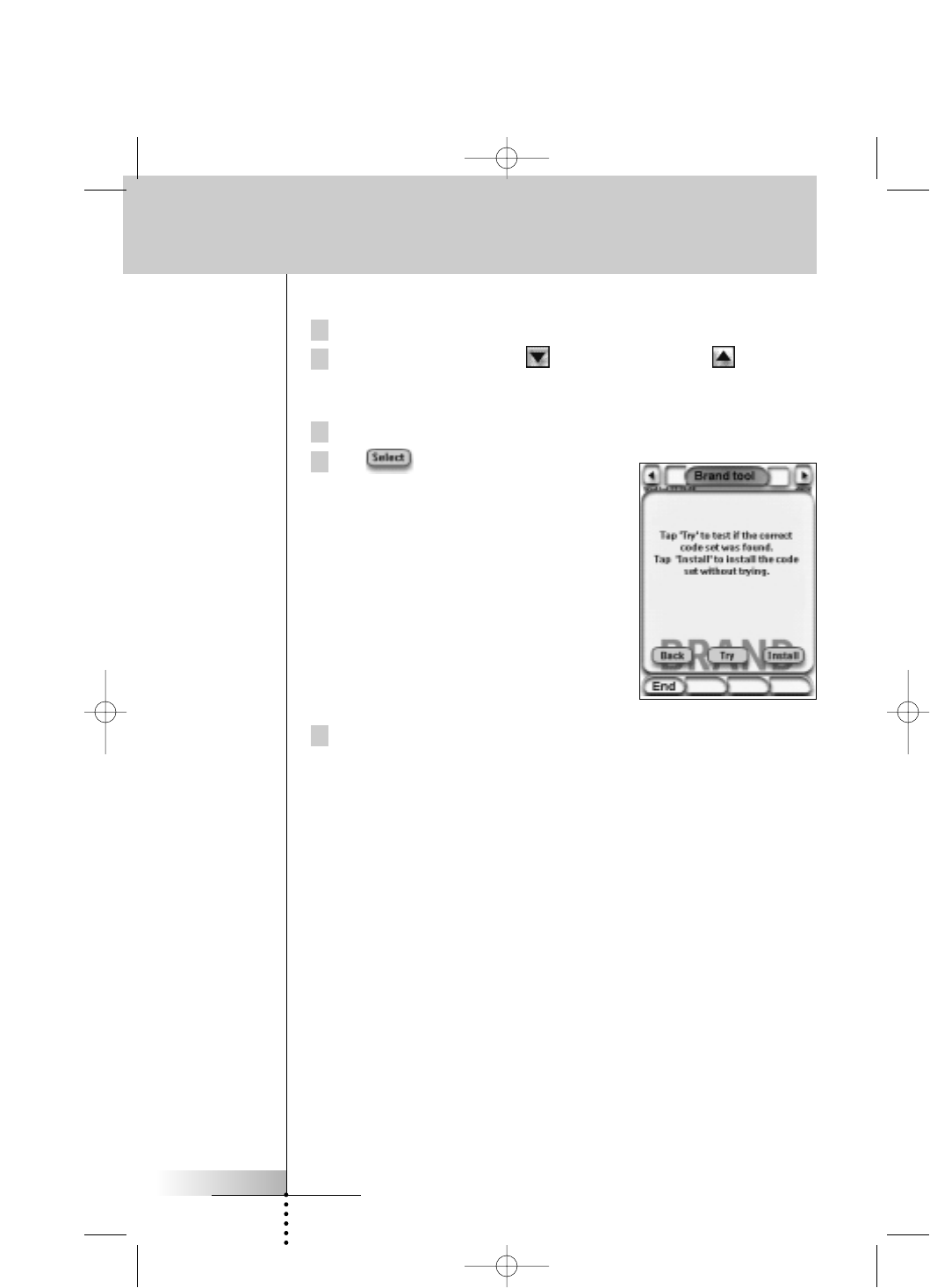

Selecting the code set
1 Select the brand of your device.
2 Tap the Scroll Down button or the Scroll Up button next to the
Code Sets list.
The Code Sets List scrolls down/up.
3 Tap the Code Set for the selected Device in the Code Sets list.
4 Tap in the ‘Code Sets’ screen.
The ‘Installing the Brand’ screen appears.
5 To install the brand and code set, follow the instructions described in
“Installing the brand” on page 15.
ProntoII.qxd 03-09-2002 09:24 Pagina 18
User Guide
19
Customizing Pronto
Learning Commands
If an IR code is not in the database, you can program Pronto commands by
transmitting IR signals from your existing remote control to Pronto’s learning eye.
The Learn Tool allows you to learn a button or a device action. A device action
is an action that is executed automatically when you select a device. E.g. when
you select TV, you can learn your Pronto to switch on the TV at the same time.
You can also use the Learn Tool to relearn commands that do not work properly.
Note Once you have learned a button, the button will not be overwritten if you select
another brand in Brand Mode.
Learning eye
Learning a Button
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Learn in the Tools Menu.
The ‘Learn Tool’ screen appears.
3 Tap .
The last page you have visited appears.
4 Navigate to the Device and the Page that contains the button you want
to learn.
5 Tap the button you want to learn.
A Learning indication appears in the top center of the touch screen.
ProntoII.qxd 03-09-2002 09:24 Pagina 19
User Guide
20
Customizing Pronto

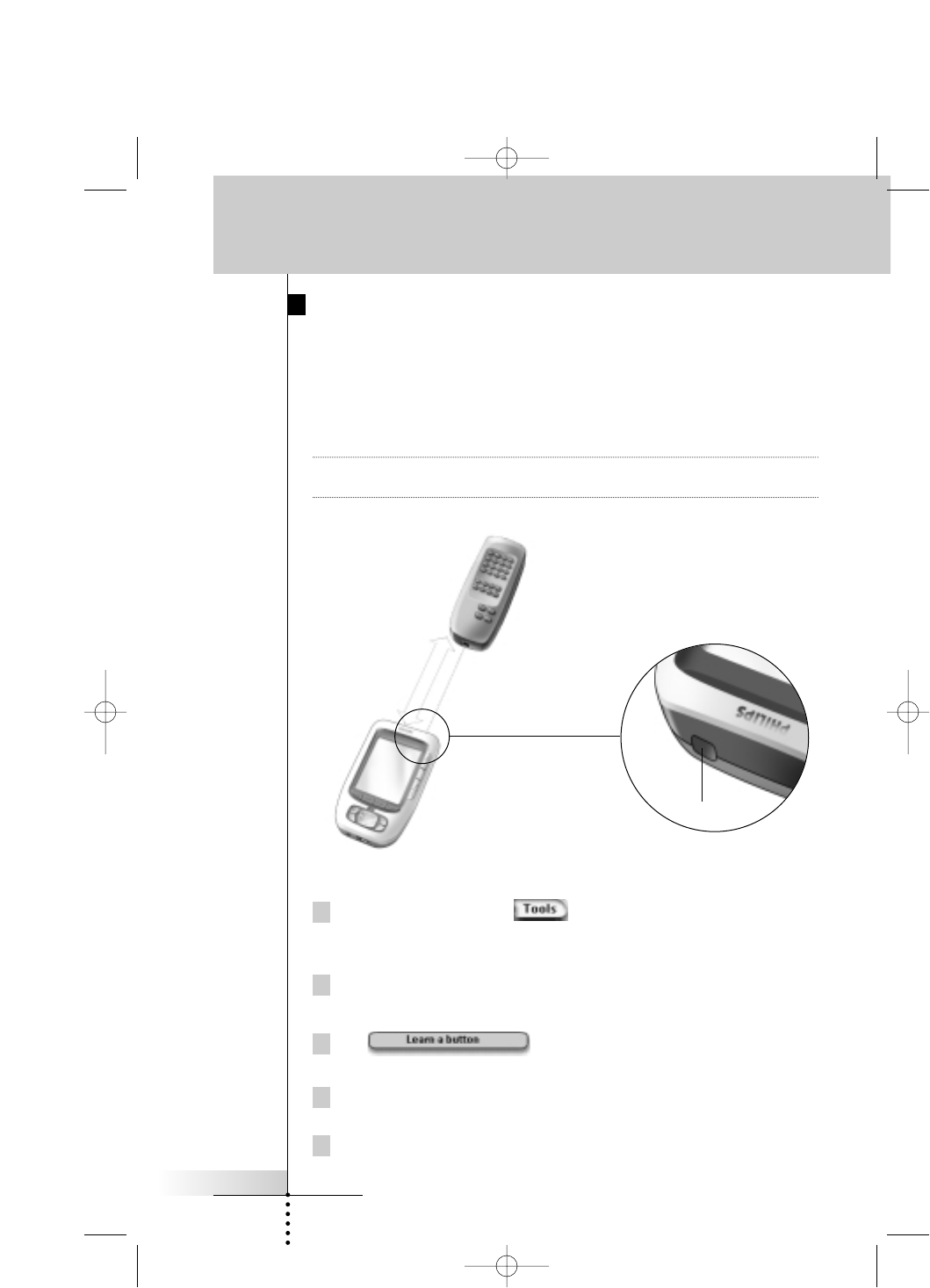

6 Position Pronto and the remote control as illustrated above.
Note Make sure that you aim Pronto’s learning eye at the remote control’s
IR window.
The distance between Pronto and the remote control should be between
4 and 8 inches (10 and 20 cm).
7 Press the key on the other remote control within 5 seconds.
If learning succeeded, you will get an OK message.
If learning failed, you will get a Failure message.
See “Pronto will not learn commands” on page 41 for more information.
8 Select other buttons on Pronto you want to learn.
9 Press the left hard button below the touch screen to exit
Learn Tool.
Learning a Device Action
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Learn in the Tools Menu.
The ‘Learn Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the Device for which you want to learn a Device Action.
A Learning indication appears in the top center of the touch screen.
5 Position Pronto and the remote control as illustrated above.
Note Make sure that you aim Pronto’s learning eye at the remote control’s
IR window.
The distance between Pronto and the remote control should be between
4 and 8 inches (10 and 20 cm).
6 Press the key on the other remote control.
If learning succeeded, you will get an OK message.
If learning failed, you will get a Failure message.
7 Select other Devices on the Device Overview you want to learn.
8 Press the left hard button below the touch screen to exit
Learn Tool.
ProntoII.qxd 03-09-2002 09:24 Pagina 20
User Guide
21
Customizing Pronto
Labeling Elements

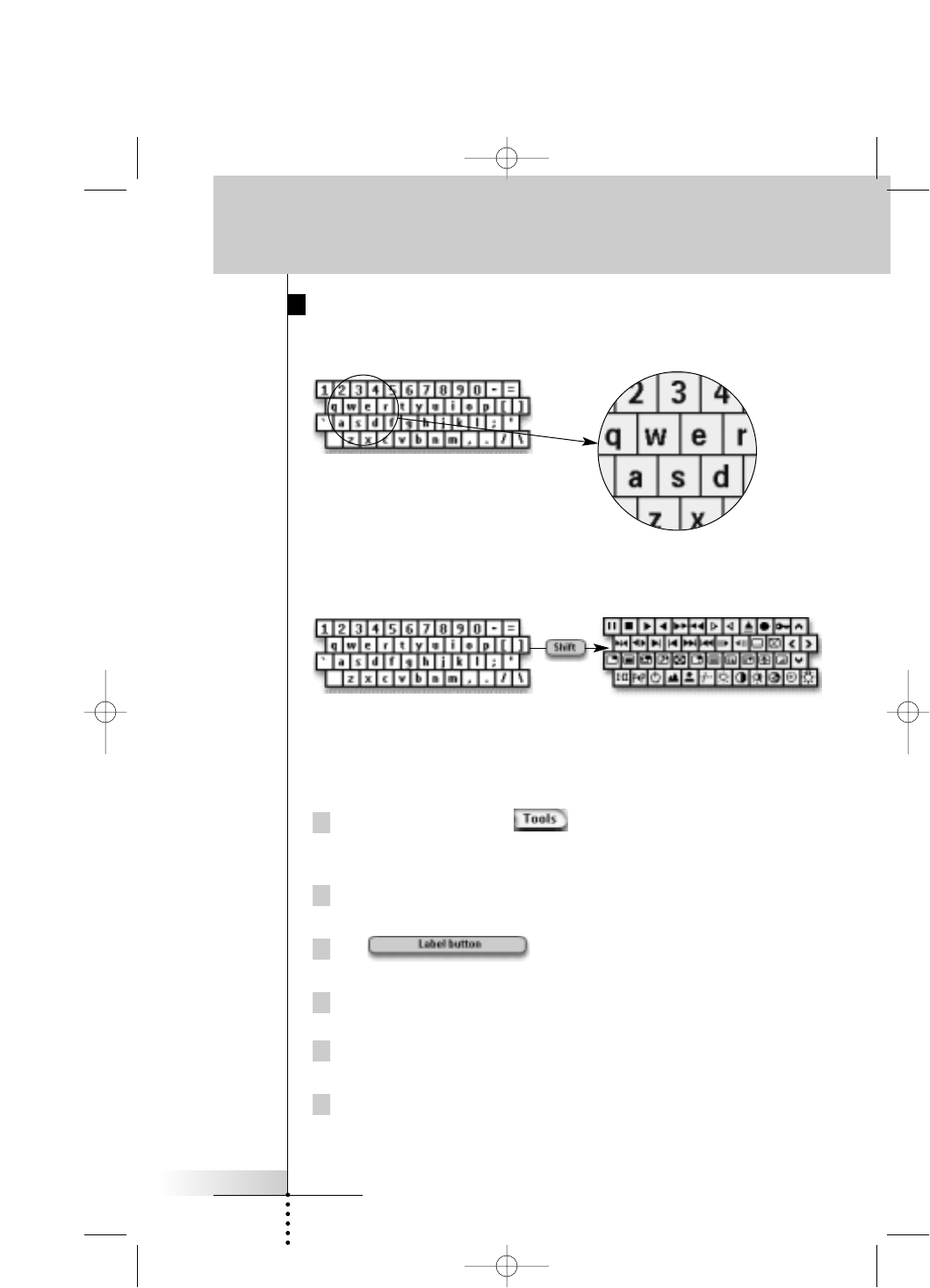

The Label tool allows you to label a button, a device or a page. In the Label Tool
you can find a virtual keyboard. This keyboard zooms in when you tap a character.
The keyboard contains four different character sets, including a series of symbols
you can use for labeling. You use the Shift button to switch between the four
character sets on the keyboard.
For a complete list of the symbols, see “List of Symbols” on page 43.
Labeling a Button
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Label in the Tools Menu.
The ‘Label Tool’ screen appears.
3 Tap .
The page you last visited appears.
4 Navigate to the Device and the Page that contains the button you want
to label.
5 Tap the button you want to label.
The ‘Labeling’ screen appears.
6 Tap the keyboard.
The keyboard zooms in.
ProntoII.qxd 03-09-2002 09:24 Pagina 21
User Guide
22
7 Tap the character you want to add to the label.
The character is added to the label. The keyboard automatically zooms again.
1 To zoom out with adding a character to the label, tap the Unzoom
button.
The character is not added to the label. The keyboard is zoomed out.
2 To use other characters and symbols, tap .
The character set on the keyboard switches.
You can choose from four different character sets.
3 To remote characters, tap .
The character in front of the cursor is removed.
8 You can add other characters to the label.
9 Tap .
The label of the selected button is changed. The last visited page appears
again.
10 You can select other buttons on Pronto to label.
11 Press the left hard button below the touch screen to exit
Label Tool.
Labeling a Device
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Label in the Tools Menu.
The ‘Label Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the Device you want to label.
The ‘Labeling’ screen appears.
5 Follow the instructions 5 to 8 of “Labeling a button” on page 21.
6 Press .
The label of the selected Device is changed. The Device Overview appears
again.
7 You can select other Devices in the Device Overview to label.
8 Press the left hard button below the touch screen to exit
Label Tool.
Customizing Pronto
ProntoII.qxd 03-09-2002 09:24 Pagina 22
User Guide
23
Labeling a Page
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Label in the Tools Menu.
The ‘Label Tool’ screen appears.
3 Tap in the ‘Label Tool’ screen.
The Page Overview appears.
4 Tap the Page you want to label.
The ‘Labeling’ screen appears.
5 Follow the instructions 5 to 8 of “Labeling a button” on page 21.
6 Press .
The label of the selected Page is changed. The Page Overview appears again.
7 You can select another Page in the Page Overview to label.
8 Press the left hard button below the touch screen below the
touch screen to exit Label Tool.
Adding Devices
The Add Tool allows you to add a new device or copy an existing device.
When you add a new device, a device template stored on your Pronto is used to
create the device pages, buttons and functions. Philips IR codes are used when
you add a new device. Then you have to program the new device using the
Brand Tool (page 13) or the Learn Tool (page 19).
Copying an existing device saves time. The personal settings you defined for
that device will also be copied. If you want to add e.g. a second CD player, you
do not have to learn or create macros again, you just copy them from the existing
CD player already programmed on your Pronto.
Adding a New Device
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Add in the Tools Menu.
The ‘Add Tool’ screen appears.
3 Tap in the ‘Add Tool’ screen.
The ‘Adding’ screen appears.
Customizing Pronto
ProntoII.qxd 03-09-2002 09:24 Pagina 23
User Guide
24
4 Tap the device template you want to add.
The ‘IR Code’ screen appears.
5 Tap in the’ IR Code’ screen.
The Device is added to Pronto with IR codes.
-or-
Tap in the ‘IR Code’ screen.
The Device is added to Pronto without IR codes.
6 To operate this device, you have to learn every button of the device.
Note Added devices are automatically positioned at the end of the Device Overview.
You can move devices with the Move Tool. See “Moving” on page 26 for more
information.
Copying an Existing Device
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Add in the Tools Menu.
The ‘Add Tool’ screen appears.
3 Tap in the ‘Add Tool’ screen.
The ‘Adding’ screen appears.
4 Tap the Device you want to copy.
The ‘IR Code’ screen appears.
5 Tap in the ‘IR Code’ screen.
The Device is copied to Pronto with IR codes.
-or-
Tap in the ‘IR Code’ screen.
The Device is copied to Pronto without IR codes.
Note Added devices are automatically positioned at the end of the Device Overview.
You can move devices with the Move Tool. See “Moving” on page 26 for more
information.
Customizing Pronto
ProntoII.qxd 03-09-2002 09:24 Pagina 24
User Guide
25
Deleting Elements
The Delete Tool allows you to delete a button or a device. When you delete a
button, only its action will be deleted. The button becomes invisible, but you can
still see and edit it with the Learn Tool.
Deleting a Button Action
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Delete in the Tools Menu.
The ‘Delete Tool’ screen appears.
3 Tap .
The last visited page on the Pronto appears.
4 Navigate to the Device and the Page that contains the button you want
to delete.
5 Tap the button you want to delete.
The button action is deleted.
The label ‘Undo’ appears above the right hard button.
6 You can press the right hard button UNDO to undo the last action, i.e.
you restore the button.
The button you just deleted is restored.
7 You can select other buttons on Pronto to delete.
8 Press the left hard button below the touch screen to exit the
Delete Tool.
Deleting a Device
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Delete in the Tools Menu.
The ‘Delete Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the device you want to delete.
The device is deleted.
The label ‘Undo’ appears above the right hard button.
Customizing Pronto
ProntoII.qxd 03-09-2002 09:24 Pagina 25
User Guide
26
5 You can press the right hard button UNDO to undo the last action, i.e.
you restore the device.
The device you just deleted is restored.
6 You can select other devices on Pronto to delete.
7 Press the left hard button below the touch screen to exit the
Delete Tool.
Moving Devices
The Move Tool allows you to move a device up or down the Device Overview,
enabling you to put your most used devices at the top of the list.
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Move in the Tools Menu.
The ‘Move Tool’ screen appears.
3 Tap the Device you want to move in the Device List.
4 Tap the Move Up or Move Down button in the ‘Moving’
screen.
The selected Device moves up/down in the Device List.
5 Tap in the ‘Moving’ screen.
The Device is moved.
Customizing Pronto
ProntoII.qxd 03-09-2002 09:24 Pagina 26
User Guide
27
Adjusting the Settings
In the Setup Page you can adjust several settings. You can:
■Set the time and date as described earlier, on page 10.
■Set the timeout of the LCD screen;
■Set the timeout of the LCD backlight;
■Set the level of the light sensor;
■Set the animation mode;
■Set the volume level;
■Calibrate the touch screen.
■You can go to the Setup Pages by tapping the Pronto icon in the top
center of the touch screen.
Setting the Timeout of the LCD Screen
The timeout of the LCD screen determines how long the LCD touch screen stays
active before turning off. Shortening the active time will increase Pronto’s battery
life.
Note The LCD screen will only time out when you are not using Pronto.
1 Tap in the first Setup Page.
The LCD Timeout button is selected. The ‘+’ and ‘-‘ labels appear on the two
middle hard buttons below the touch screen.
2 To increase the timeout, press (and hold) the button labeled ‘+’.
-or-
To decrease the timeout, press (and hold) the button labeled ‘-’.
3 Tap again.
The new LCD screen timeout is set.
Customizing Pronto
ProntoII.qxd 03-09-2002 09:24 Pagina 27
User Guide
28
Customizing Pronto
Setting the Timeout of the LCD Backlight
The timeout of the LCD backlight determines how long the backlight of the touch
screen and the buttons stays active. Shortening the active time will increase
Pronto’s battery life. The backlight timeout and the LCD screen timeout can work
independently.
1 Tap in the first Setup Page.
The Backlight Timeout button is selected. The ‘+’ and ‘-‘ labels appear on the
two middle hard buttons below the touch screen.
2 To increase the timeout, press (and hold) the button labeled ‘+’.
-or-
To decrease the timeout, press (and hold) the button labeled ‘-’.
3 Tap again.
The new LCD backlight timeout is set.
Setting the Switch Level of the Light Sensor
The light sensor on your Pronto causes the backlight to switch on automatically
according to the ambient light of your home theater environment. The light level is
indicated in the bar.
The indicator is the threshold you set, while the gray area indicates the actual
light level, measured by the light sensor. When actual light level reaches the
threshold you set, the backlight on your Pronto will switch on.
1 Tap in the first Setup Page.
The Light Sensor button is selected. The ‘+’ and ‘-‘ labels appear on the two
middle hard buttons below the touch screen.
2 To increase the level, press (and hold) the hard button labeled ‘+’.
-or-
To decrease the level, press (and hold) the hard button labeled ‘-’.
3 Tap again.
The Light Sensor button is deselected again. The new level for the light sensor
is set.
ProntoII.qxd 03-09-2002 09:24 Pagina 28
User Guide
29
Customizing Pronto
Setting the Animation Mode
Pronto provides navigation feedback through graphical animations of mode
transitions and page transitions. You can enable and disable the animations of
your Pronto in the Setup Page:
■You can disable the animations by choosing ‘No animations’. By disabling all
animations you use the absolute maximum of your Pronto’s processing speed.
■When changing pages with the ‘Page transition’ animation, one page seems
to slide out of the screen, while the second page slides in.
■The ‘Mode transition’ animation makes a page ‘drop’ out of the top of the
touch screen.
■With the option ‘Full animations’ you can enable both animations at the
same time.
Setting the Volume Level
You can set the volume level from the hard buttons as well as from the touch
screen buttons. The volume of the button refers to the loudness of the beep you
hear when you press or tap a button.
Setting the Volume Level of the Hard Buttons
To adjust the volume of the hard buttons, tap in the
second Setup Page.
You can either select 1 of the 3 volume levels or choose to mute. Every time
you press, the volume level increases with one step up to level 3.
Setting the Volume Level of the Touch Screen
To adjust the volume level of the touch screen, tap in the
second Setup Page.
You can either select 1 of the 3 volume levels or choose to mute. Every time
you tap, the volume level increases with one step up to level 3.

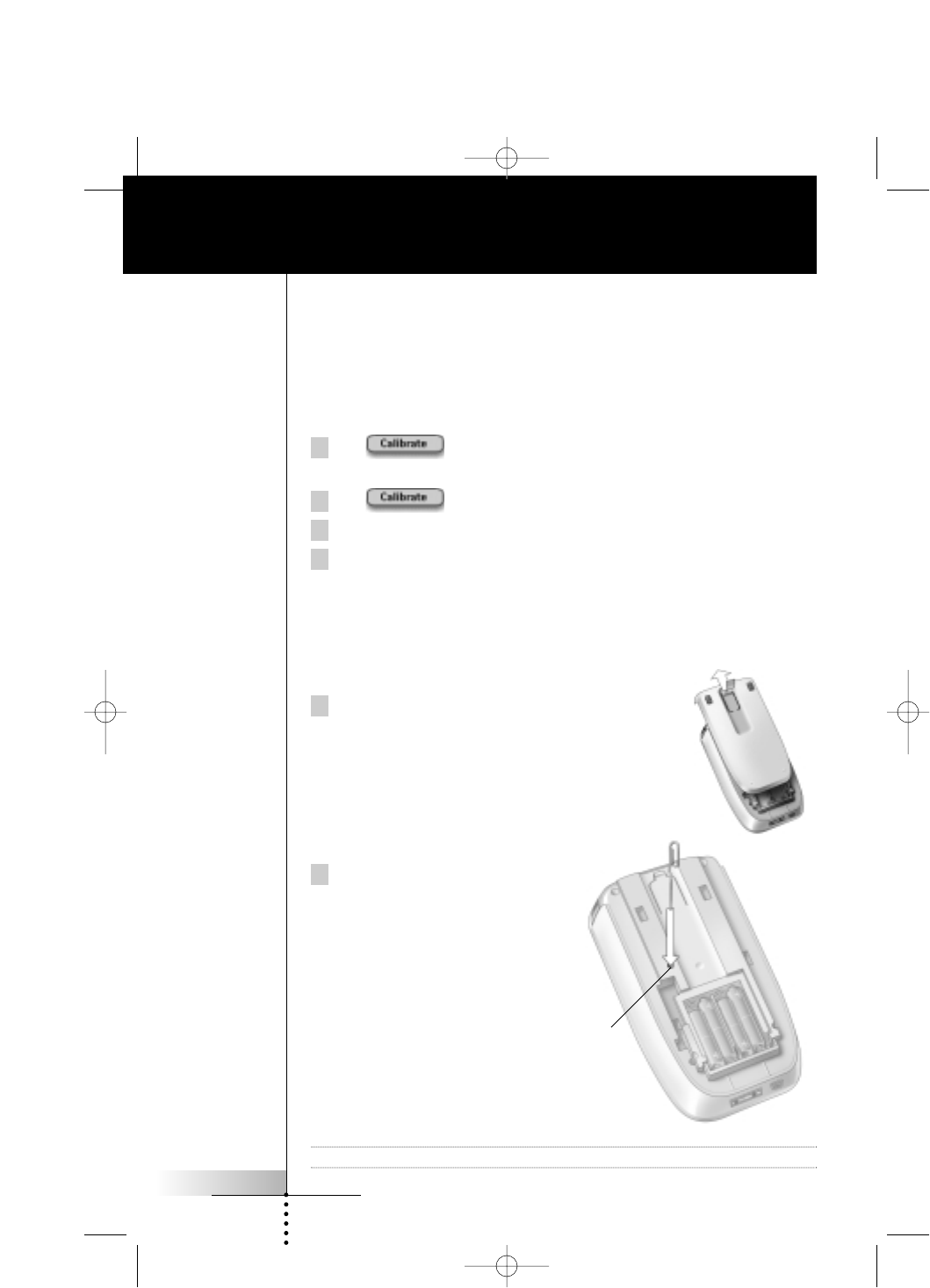

Calibrating the Touch Screen
When you first use your Pronto, the touch screen is already calibrated. However, if
you notice that your Pronto does not send out the commands in accordance with
what is indicated on the touch screen, it is advised to recalibrate the touch screen.
1 Tap in the second Setup Page.
The ‘Calibration’ screen appears.
2 Tap in the ‘Calibration’ screen.
3 Tap the upper left corner on the touch screen.
4 Tap the lower right corner on the touch screen.
The touch screen is calibrated.
ProntoII.qxd 03-09-2002 09:24 Pagina 29
User Guide
30
Using the Power Features
Creating and Editing Macros
A macro allows you to send a sequence of commands when tapping one single
button. You can for instance switch on your TV, turn on a movie channel and
prepare your VCR for recording by rewinding the videotape. The macro contains an
action list. The action list can be created and edited in the Macro Tool.
Note Once you have programmed a macro, the button will not be overwritten when you
select another brand in the Brand Tool.
Possible actions you can use in a macro are:
■Adding an IR code;
■Creating a link to another button;
■Adding a delay;
■Adding a beep.
Creating a Macro
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap Macro in the Tools Menu.
The ‘Macro Tool’ screen appears.
3 Tap in the ‘Macro Tool’ screen.
The last visited page appears.
4 Navigate to the Device and the Page that contains the button you want
to use for a macro.
5 Tap the button you want to select as a
target button.
If you can use the button to program a macro,
the ‘Macro’ screen appears.
-or-
If you cannot use the button, you hear a Failure beep.
ProntoII.qxd 03-09-2002 09:24 Pagina 30
User Guide
31
Using the Power Features
To add an action to the action list
1 Tap in the ‘Macro’ screen.
The last visited page appears again.
2 Navigate to the Device and the Page that contains the button you want
to add to the macro.
3 Tap the button you want to add to the macro.
The ‘Macro’ screen appears.
The action of the selected button is added at the bottom of the Action List.
4 You can select other buttons to add to the macro.
To add a delay to the action list
You can add a delay to the action list e.g. to insert a short pause between turning
on a device and sending commands to it, allowing the device to warm up.
1 Tap in the ‘Macro’ screen.
The ‘+’ button and ‘-’ button appear on the two middle hard buttons below the
touch screen.
2 To increase the delay, tap (and hold) the ‘+’ button.
-or-
To decrease the delay, tap (and hold) the ‘-’ button.
To add a beep to the action list
To determine when the macro execution is finished, it is useful to add a beep as
final command in the action list.
1 Select the action in the action list, where you want to add a beep.
The action is selected.
2 Tap in the ‘Macro’ screen.
A default beep is added to the action list, after the selected action.
To finish the macro
1 Tap in the ‘Macro’ screen.
The macro is created and assign to the button you selected as a target.
2 Press the left hard button below the touch screen to exit the
Macro Tool.
ProntoII.qxd 03-09-2002 09:24 Pagina 31
User Guide
32
Editing a Macro
Moving an Action in the action list
1 To display the ‘Macro’ screen with the action list assigned to the
button, follow the instructions 1 to 5 as described in “Creating a
Macro” on page 30.
2 Tap the action in the action list you want to move in the ‘Macro’ screen.
The selected action is highlighted.
3 Tap the Move Up button or Move Down button in the ‘Macro’
screen.
The selected action moves up/down in the action list.
4 You can select other actions to move.
Deleting an Action from the action list
1 To display the ‘Macro’ screen with the action list assigned to the
button, follow the instructions 1 to 5 as described in “Creating a
Macro” on page 30.
2 Tap the action in the action list you want to delete in the ‘Macro’
screen.
The selected action is highlighted.
3 Tap in the ‘Macro’ screen.
The selected action is deleted from the action list.
4 You can select other actions to delete.
Testing the Macro
You do not have to exit the Macro Tool to try out the macro you created or edited.
From within the Macro Tool you can test the macro. Pronto executes all actions as
you defined them in the action list.
1 To display the ‘Macro’ screen with the action list assigned to the
button, follow the instructions 1 to 5 as described in “Creating a
Macro” on page 30.
2 Tap in the ‘Macro’ screen.
Pronto executes the actions in the action list.
Note Make sure that you keep Pronto aimed at your Home Theater equipment during
the macro execution.
Using the Power Features
ProntoII.qxd 03-09-2002 09:24 Pagina 32
User Guide
33
Operating Pronto with the Cursor
The cursor is set by default to operate the devices, e.g. to navigate through an on-
screen TV menu. The cursor contains 4 cursor keys: Right, Left, Up and Down. Each
cursor key contains an action list. This list depends on the device that is being
operated.
The cursor can also be used to navigate through devices and pages on Pronto
touch screen.
When you enable the cursor navigation in the Setup Pages, the touch screen
navigation with the Left Device and Right Device buttons at the top area of the
touch screen disappears and the cursor navigation button appears in the top
left corner. You use the cursor for navigating, and not for operating your devices,
until you disable the cursor navigation again.
You may want to switch the use of the cursor easily from controlling audio/video
equipment to navigating on Pronto. By pressing the Toggle hard button the cursor
is enabled or disabled for cursor navigation.
You can enable/disable cursor navigation and activate/deactivate the Toggle hard
button in the second Setup Page.
To enable the cursor navigation, tap in the
second Setup Page.
The cursor navigation is enabled. The Toggle hard button is activated.
Use this toggle button to define whether you want to use the cursor to
navigate through the screens.
Note When you select Cursor Navigation, the cursor can only be used for navigating
through devices and pages on Pronto touch screen, not for controlling audio/video
equipment.
Using the Power Features
OK
Home
Toggle button
SmartSurfer
Up
DownLeft Right
ProntoII.qxd 03-09-2002 09:24 Pagina 33
User Guide
34

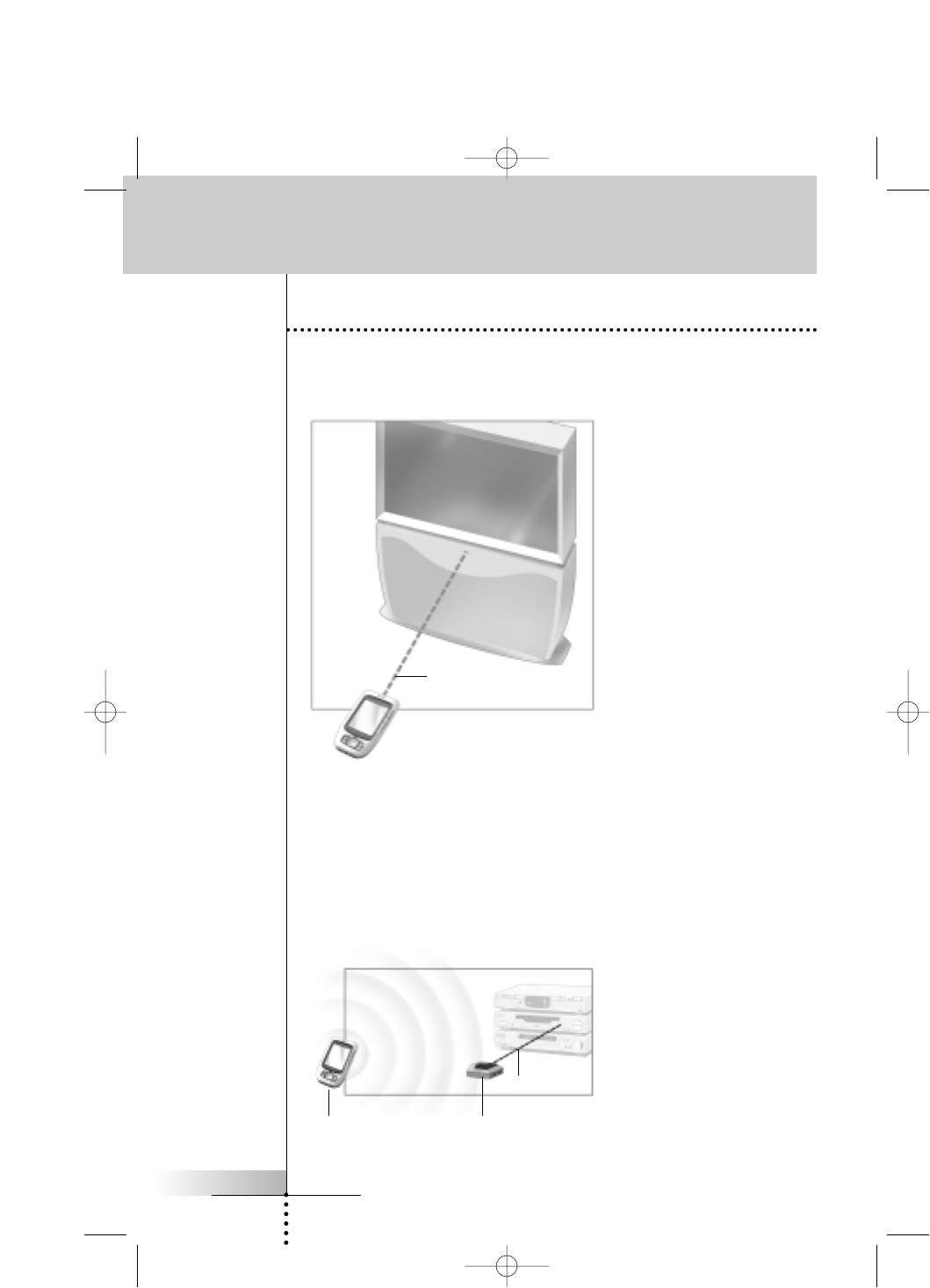

Operating Pronto with RF
By default, Pronto uses infrared (IR) signals to operate devices. IR signals have an
operating distance of approximately 33 ft (10 m).
However, you can choose to have Pronto working with radio frequency (RF) signals
to operate devices from a distance or from an adjacent room. An RF Extender (not
included) is therefore required.
The RFX6000 is an RF Extender that can be used in combination with Pronto.
The RF Extender receives RF signals from Pronto and converts them into IR signals,
sent out to the device. Therefore, the RF Extender has to be placed near the device
you are operating with the RF Extender’s sending eye pointed towards the device.
Using the Power Features
IR signals
IR signals
RF signals
Pronto RF Extender
ProntoII.qxd 03-09-2002 09:24 Pagina 34
User Guide
35
Selecting RF to Operate your Devices
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap RF IR in the Tools Menu.
The ‘RF IR Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the Device for which you want to select RF.
The ‘Select IR or RF’ screen appears. By default IR is selected in the Sending
Signals list.
The Define RF is disabled.
5 Choose RF in the Sending Signals list.
The Define RF button is enabled.
6 Tap .
The ‘RF Settings’ screen appears.
7 Select the RF Channel in the RF Channel list you use for the
RF Extender.
The RF Channel on the RFX6000 has to be the same as the RF Channel on
Pronto.
8 Select the Extender ID in the Extender ID list you use for the
RF Extender.
The Extender ID on the RFX6000 has to be the same as the Extender ID on
Pronto.
Note You can use several RF Extenders with your Pronto. For each RF Extender you use
for your devices, you need to set the RF Channel and the Extender ID.
The RF Channel is identical for all RF Extenders. The Extender ID on the RFX6000
is unique for each RF Extender.
9 Tap in the ‘RF Settings’ screen.
Pronto will send out RF signals for the selected device.
Note Try to keep Pronto and the RF Extender away from metal objects, as this will have
a negative impact on the range.
Using the Power Features
ProntoII.qxd 03-09-2002 09:24 Pagina 35
User Guide
36
Selecting IR to Operate your Devices
1 Press the left hard button below the touch screen for
2 seconds.
The TOOLS menu appears.
2 Tap RF IR in the Tools Menu.
The ‘RF IR Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the Device for which you want to select IR.
The ‘Select IR or RF’ screen appears. RF is selected in the Sending Signals list.
5 Choose IR in the Sending Signals list.
Pronto will send out IR signals for the selected device.
Using the Power Features
ProntoII.qxd 03-09-2002 09:24 Pagina 36
User Guide
37
If you want to personalize your Pronto even more beyond its standard programming
features, ProntoEdit is the tool for you to use. ProntoEdit is Pronto’s companion
software that you find on the included CD-ROM. You can find more information on
http://www.pronto.philips.com.
With ProntoEdit you can:
■Upload and download new configurations to and from your Pronto.
You do this with the PC cable included with your Pronto:
■Plug one end of the cable in the USB port on your computer.
■Plug the other end of the cable in the USB port on your Pronto.
■Add, delete, modify and move control panels, devices and commands
anywhere on the touch screen;
■Save, duplicate and share configuration files, codes or devices with other
Prontos;
■Import new graphics to create new buttons and designs;
■Personalize configuration files to optimize the use of your Pronto;
■Preview new configuration files on Pronto Simulator, to check what Pronto’s
interface will look like.
ProntoEdit
USB port
ProntoII.qxd 03-09-2002 09:24 Pagina 37
User Guide
38
Why don’t my buttons work properly?
When you find that your Pronto does not send out the commands in accordance
with what is indicated on the touch screen, it is advised to recalibrate the touch
screen. Calibration enables Pronto to place the icons on the touch screen in line
with their predefined functions.
How do I calibrate the touch screen?
1 Tap in the second Setup Page.
The ‘Calibration’ screen appears.
2 Tap in the ‘Calibration’ screen.
3 Tap the upper left corner on the touch screen.
4 Tap the lower right corner on the touch screen.
The touch screen is calibrated.
How do I reset Pronto?
Normally, resetting Pronto is not necessary. However, if Pronto’s touch screen
freezes or if you notice unusual behaviour, you need to perform a reset to get
Pronto running again.
1 Slide the battery cover off the back of Pronto.
You can find the Reset button in the battery
compartment.
2 Use an unfolded paperclip
or a sharp pencil to carefully
press the Reset button.
Pronto restarts.
Pronto beeps twice to indicate
it is ready for use.
Note If you reset Pronto, all saved and programmed commands or macros are retained.
FAQ
Reset button
ProntoII.qxd 03-09-2002 09:24 Pagina 38
User Guide
39
Why does a device respond to some RF signals and not to others?
Philips cannot guarantee that all commands for all devices work properly with
RF signals.
If a device does not respond properly to RF signals sent out by Pronto, you might
better reconfigure Pronto to operate the device with IR signals.
Can I program a button to execute more than one command?
With Pronto you can only create a macro to execute one sequence of commands.
However, you can program a button to execute more than one command with
ProntoEdit.
FAQ
ProntoII.qxd 03-09-2002 09:24 Pagina 39
User Guide
40
General Problems
Pronto shuts off automatically
This is a timeout feature of Pronto to save power. You can change the time Pronto
stays active in the Settings.
See “Setting the Timeout of the LCD Screen” on page 27 for more information.
The touch screen buttons on the Pronto do not respond properly
If the touch screen buttons on the Pronto do not respond properly, calibrate the
touch screen.
See “Calibrating the Touch Screen” on page 29 for more information.
Devices do not respond to commands from Pronto
Make sure the Pronto’s sending eye is pointed towards the device you are
operating.
■Check if the Low Battery icon is placed over the battery icon in the right upper
corner of the screen. If so, replace the batteries.
■Check if you have defined the correct brands for your devices. (p.13)
■Check if you have defined the correct code set for your devices. (p.14)
■Check if the button you are trying to use is assigned properly via Brand Tool or
via Learn Tool. (p.19)
■Check if your device understands Philips-Marantz RC codes. Normally you can
find this in the documentation of your device.
■If you have set up your Pronto to operate devices with RF signals:
■Check in the RF IR Tool if the devices you want to operate are set up
properly. (p.35)
■Check if the Extender ID and the Channel on your Pronto match the ID and
the Channel on the RF Extender.
■Make sure the RF Extender is placed near the devices you want to use
with RF signals.
■Make sure that the RF Extender’s sending eye is pointed towards the device.
■Change the Channel if you notice interferences from other RF channels.
■If you want to use RF signals for devices on different locations, you need more
than one RF Extender.
Customizing Problems
Buttons are not sending the correct commands
■Check if you have defined the correct brands for your devices. (p.13)
■Check if you have defined the correct code set for your devices. (p.14)
■Check if you should calibrate your screen. (p.29)
■Check whether the button of the device is learned properly. (p.19)
■Check whether the macro recorded properly. (p.30)
Troubleshooting
ProntoII.qxd 03-09-2002 09:24 Pagina 40
User Guide
41
Macros do not work
■Make sure Pronto’s sending eye is pointed towards the device the entire time
the macro is being executed.
The sending eye is located at the top of Pronto.
■Insert delays to allow devices to start up properly.
■Check for inactive buttons in your macro.
■Check if you did not reprogram the buttons. Macros do not store commands,
they store buttons. If you reprogram a button, the macro executes the new
command assigned to the button.
Pronto will not learn commands
■Make sure your Pronto and the remote control are positioned correctly.
When the sending eye of your existing remote control is not pointed towards
the learning eye of the Pronto, Pronto might not receive the signals properly.
Align the remote controls as correctly as possible.
When the distance between your existing remote control and the Pronto is too
short or too long, Pronto might not receive the signals properly. Try out several
distances between 4 and 8 inches (10 and 20 centimeters) to learn the
commands.
■Avoid programming Pronto under bright fluorescent light: it might affect the
infrared signals.
■Make sure the batteries in the Pronto are not low.
The configuration file is corrupted
When the configuration file is corrupted, you can use Pronto Edit to upload a new
configuration file. Taken into account that all your customized commands, devices
and macros will be lost and you will have to reprogram your Pronto. Therefore it is
recommended to save the configuration by uploading to the PC with ProntoEdit.
Storage Problems
Storage problems can be the cause of Pronto not saving a macro. Storage
problems can be caused by a full memory or by a low battery.
Pronto error messages
If one of the following error messages occurs, please contact your dealer or the
Philips customer service:
■Can’t open configuration file;
■Configuration file error;
■No configuration file found;
■Invalid configuration file version.
Troubleshooting
ProntoII.qxd 03-09-2002 09:24 Pagina 41
User Guide
42
Maintaining Pronto
Important Notices
Take care not to scratch the touch screen
Use your finger to tap the touch screen or use plastic-tipped pens intended for use
with touch screen.
Never use an actual pen, pencil or other sharp object on the touch screen.
Protect Pronto from temperature extremes
Keep Pronto away from heaters and other heat sources.
Pronto is not waterproof
Pronto should not be exposed to rain or moisture.
Do not store or use Pronto in any location that is extremely damp or wet.
When you have spilled water on your Pronto, you have to take out the batteries
and let Pronto dry for 48 hours before you replace the batteries.
When you have spilled other liquids on your Pronto, you can clean it with distilled
water.
The touch screen of Pronto contains a glass element
Do not drop Pronto or subject it to any strong impact.
Cleaning Pronto
■Use a soft, damp cloth to clean Pronto.
■If the touch screen of Pronto is spoiled, clean it with a soft cloth moistened
with a diluted window-cleaning solution.
■Do not use a corrosive detergent or an abrasive sponge.
■Avoid the use of abundant water.
ProntoII.qxd 03-09-2002 09:24 Pagina 42
User Guide
43
List of Symbols
Pause
Stop
Normal run; normal speed
Normal run; normal speed
Fast run; fast speed
Fast run; fast speed
Slow run; slow speed
Slow run; slow speed
Eject
Recording, general
Key
Navigate
Still mode
Tape running direction
Next track
Previous track
Fast forward to index
Rewind to index
Frame by frame, general
Frame by frame, general
Subtitle
Cancel picture
Picture-in-picture mode
Menu
Picture-in-picture shift
Picture-in-picture swap
Multi-picture display
Picture-in-picture select
Teletext mode
ProntoII.qxd 03-09-2002 09:24 Pagina 43
User Guide
44
List of Symbols
Page number up
Page number down
Page enlargement
TV and text mixed
1st or 2nd language
Last view; previous program
Stand-by
Zone focus: long distance
Zone focus: very short distance
Single or multi-digit selection
Brightness; brilliance
Contrast
Brightness/contrast
Color saturation
Lamp; lighting; illumination
Split screen freeze / double screen freeze
Split screen swap / double screen swap
Split screen / double screen
Movie expand
Personal preference
Picture-in-picture freeze
Main index page
Picture freeze
Programmable timer; general
Enter
Application assistance
Actual time on screen
EPG / Electronic Program Guide
Video output
ProntoII.qxd 03-09-2002 09:24 Pagina 44
User Guide
45

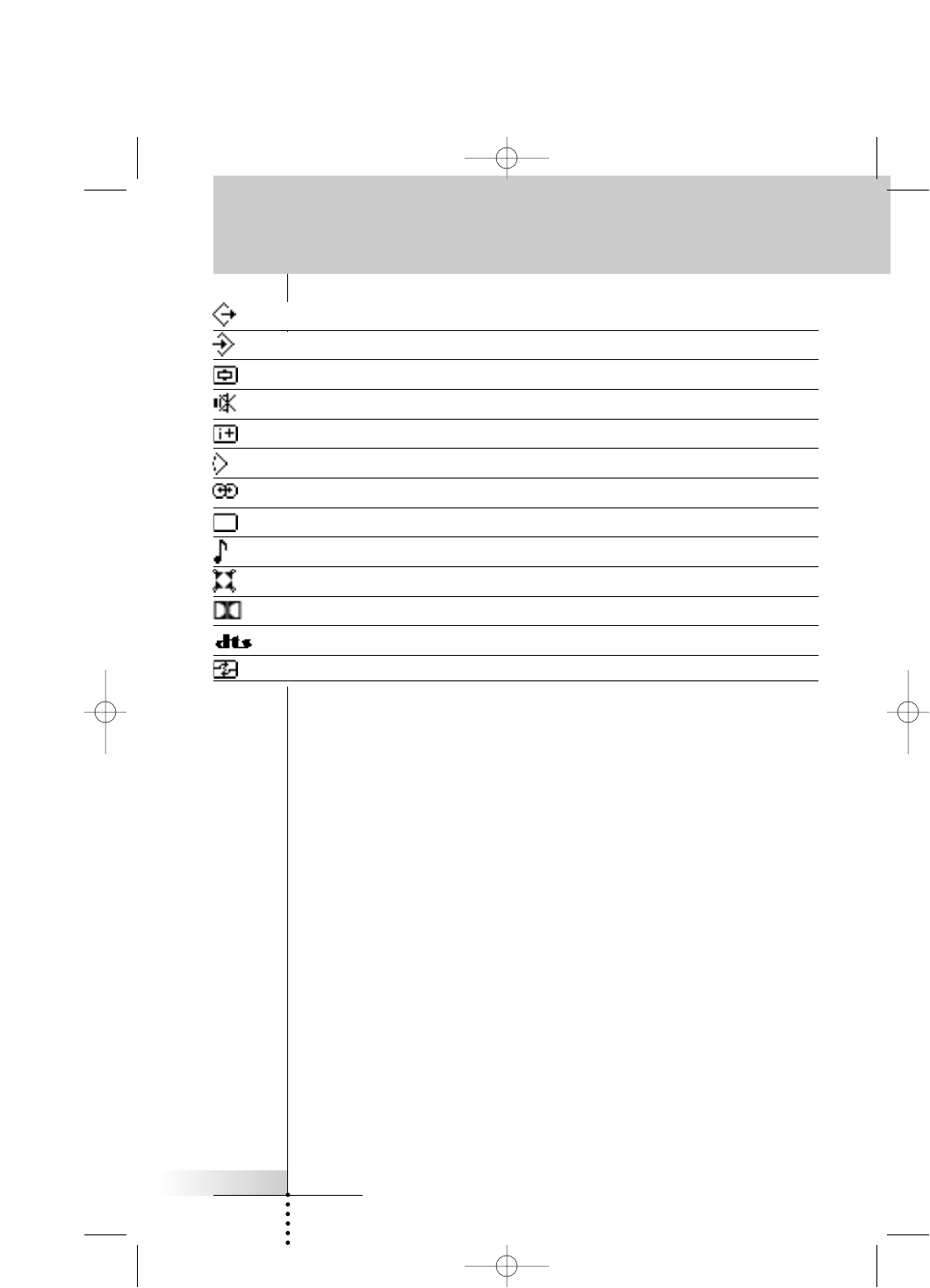

List of Symbols
Read data from store
Write data into store
Page hold
Sound muting
Additional information on screen
Viewing angle
Spatial sound effect
Television; video
Sound; audio
Surround sound
Dolby Digital
Digital Theater Systems
Active control
ProntoII.qxd 03-09-2002 09:24 Pagina 45
User Guide
46
The specifications and design of this product are subject to change without notice.
Display Monochrome touch screen LCD with 16 gray scales and digital
contrast control
Resolution: 320x240 pixels
Blue EL-backlight for LCD and buttons
Interface USB-port connector
Software Database with IR codes to operate more than 500 brands
Built-in Philips IR codes
Total number of devices only limited by memory
Infrared (IR) 4 high performance IR-sending LEDs, 1 receiver LED
Operating distance of approximately 33 ft (10m)
Learning frequency up to 78 KHz and 455 KHz
Radio frequency Band: 418 MHz
(RF) 16 Extender ID’s and 4 Channels
Memory 4 MByte
Batteries AAA batteries (4x1.5 V)
Power Power on by tapping the touch screen, by pressing a button
management Power off automatically
Dimensions 6.07 inch x 3.64 inch x 1.10 inch (154,2mm x 92,4mm x 27,8mm)
(HxWxD)
Accessories Included:
USB cable for PC connection
CD-ROM with ProntoEdit software
4 AAA batteries
Not included:
Docking station
Battery pack
RF Extender (RFX6000)
ProntoEdit PC requirements:
Windows 98/ME, NT 4.0/2000, XP
16 MB of RAM
25 MB of free hard disk space
Free USB port
CD-ROM player
IR-database information:
Redesigned by UEI Technology
Licensed under U.S. Patent 5,689,353
Portions © UEI 1999
Specifications
ProntoII.qxd 03-09-2002 09:24 Pagina 46
User Guide
47
Action An action is a command that will be executed by Pronto. An action can
be an IR code, a link, a delay or a beep. You can assign one or more
actions to a button or a hard button. It is the same as a macro.
Action list An action list is a list of actions assigned to a button or a hard button.
An action list can contain up to 255 actions.
Animation mode Pronto provides navigation feedback through graphical animations.
These animations can be found in the Animation mode. You can enable
and disable the animations of your Pronto in the Setup Pages.
Branding Pronto contains a list of brands and their according IR codes in its
database. Pronto uses IR codes to control devices. Because there are
several brands using specific IR codes, you have to define the brand and
code set for each device.
Button alias See Link.
Calibration Calibrating the touch screen enables Pronto to exactly match the icons
on the touch screen with their predefined functions.
Code set A code set is a list of IR codes. Audio and video devices of different
brands use different code sets. A device can only receive and execute
functions from the correct code set.
Cursor navigation There are two ways of navigating through Pronto: using the touch screen
or using the cursor for navigation. When you select cursor navigation,
the cursor can only be used for navigating through devices and pages on
Pronto touch screen, not for controlling audio/video equipment.
Delay A delay is a pause between two actions. A delay gives the device
enough time to execute the first action before it receives an impulse to
execute a second action.
Device Every device in the configuration file appears on the Device Overview
Page of Pronto and in the tree view in ProntoEdit. A device represents
the equipment you want to control with Pronto. The device contains a
number of pages with buttons.
Device action A device action is an action that is executed automatically when you
select a device. E.g. when you select TV, you can learn your Pronto to
switch on the TV at the same time.
Device overview You use the Device Overview on Pronto to access the different devices.
The Device Overview contains buttons for each device in the
configuration. By pressing these buttons you navigate to the first page
of the selected device.
Device settings The device settings are the type of device, the brand, the IR code set
and the functions. In order to control a device with your Pronto, you first
have to set the device settings.
Hard button A hard button is a button that can be pressed and generates an event.
Hard buttons can be found on Pronto. Their layout and visual aspects
cannot be changed. You can configure the functions of the hard buttons,
just like the buttons on the touch screen.
Glossary
ProntoII.qxd 03-09-2002 09:24 Pagina 47
User Guide
48
Glossary
IR Short for infrared.
IR code Pronto sends out infrared (IR) signals to operate devices. IR codes for all
kinds of video and audio device brands are stored in Pronto’s universal
database. By selecting IR codes and assigning them to buttons and hard
buttons, you can program your Pronto to operate your equipment. When
IR codes are not present in the database, you can always learn them
from the conventional remote control of your equipment.
Label A label is the text you want to put on a soft button.
LCD Short for liquid crystal display.
LCD backlight LCD backlight is a special light source that is placed behind the LCD
screen, enhancing the visibility of this screen.
Light sensor The light sensor on your Pronto causes the backlight to switch on
automatically according to the ambient light of your home theater
environment.
Link A link, also called a button alias, is a shortcut from the action list of one
button to the action list of another button. Instead of adding the same
actions to several buttons or hard buttons, you can create a link and
reuse the action list. When your Pronto is executing an action list and
comes across a link, the action list referred to by that link is executed.
Macro A macro is a sequence of actions executed when pressing a single
button on Pronto. Every button or hard button can act as a macro and
perform a list of commands. It is the same as an action list.
Page A page of a device is the area of 320 by 240 pixels on Pronto’s touch
screen containing buttons or other objects.
Page transition When you switch from one page to another, the first page slides out of
the screen and the second page slides in the screen. This is called a
‘page transition’.
Pronto Pronto is a universal remote control with a touch screen. You can
customize and fully configure Pronto to your personal needs: the devices
you want to operate, the functions you want to perform and the layout
on Pronto.
ProntoEdit ProntoEdit is the visual editor for creating and configuring Pronto
Configuration Files.
RF Short for Radio Frequency.
RF code You can choose to operate your devices with RF signals instead of IR
signals. To use RF signals, you need an RF Extender. The advantage of
RF is that it spreads in all directions and that it pervades walls. In other
words, you can operate your devices from an adjacent room.
RF Extender An RF Extender is a converter box that receives RF signals and turns
them into IR signals to operate devices. When your Pronto sends out RF
codes, the RF Extender receives them and sends out IR codes to your
devices.
ProntoII.qxd 03-09-2002 09:24 Pagina 48
User Guide
49
Glossary
RFX6000 The RFX6000 is an RF Extender that can be used in combination with
Pronto.
Setup Page The Setup Pages allow you to adjust several settings. You can:
■Consult the battery level
■Set the time
■Set the timeout of the LCD screen
■Set the timeout of the LCD backlight
■Switch the level of the light sensor
■Set the animation mode
■Set the volume level
■Calibrate the touch screen
■Consult the software version free memory
Simulator Pronto simulator is a separate application in ProntoEdit package, which
simulates every aspect of your Pronto. You use Pronto simulator to test
your PCF without the need to download it to your Pronto. When you
make changes in Pronto simulator, they will not be saved in the
configuration file.
Soft button A soft button is a button that can be found on the touch screen. The
layout and the visual aspects of a soft button can be changed. You can
also configure the functions of the soft buttons.
Template You can create a template from a device in ProntoEdit Advanced Mode.
When you add a new device on Pronto, this template will be used.
Touch screen The touch screen of your Pronto is the centered area that contain soft
buttons you can use to operate the remote control.
USB USB (Universal Serial Bus) is a “plug and play” interface between a
computer and add-on devices (such as audio players, joysticks,
keyboards, telephones, scanners, and printers).
ProntoII.qxd 03-09-2002 09:24 Pagina 49
User Guide
50
Index
A
action, 31
action list
action, 31
beep, 31
delay, 31
Add Tool, 23
adding
action, 31
beep, 31
delay, 31
new device, 23
adjusting
LCD backlight timeout, 28
LCD screen timeout, 27
light sensor, 28
volume level, 29
animation mode, 7
mode transition, 29
page transition, 29
B
batteries, 8
battery compartment, 8
battery cover, 8
beep, 31
brand
installing, 15
searching, 14
selecting, 17, 18
Brand Tool, 13
button, 4
backlight, 5, 9
contrast, 9
cursor, 4, 33
hard buttons, 4
labeling, 21
learning, 19
Page down, 5
Page up, 5
reset, 5
Toggle, 33
button action deleting, 25
C
calibrating the touch screen, 29
changing
date, 10
time, 10
time format, 10
channel
channel down, 4
channel up, 4
clock settings. See time
code set
searching, 16
selecting, 18
connection to docking station, 5
contrast, 9
copying existing device, 24
creating macro, 30
cursor, 4, 33
cursor navigation, 7
D
date, 10
delay, 31
Delete Tool, 25
deleting
action in a macro, 32
button action, 25
device, 25
device
adding, 23
copying, 24
deleting, 25
labeling, 22
moving, 26
device action learning, 20
Device Overview, 12
download, 37
E
error message, 41
H
Home Theater Control Panel, 3
ProntoII.qxd 03-09-2002 09:24 Pagina 50
User Guide
51
Index
I
infrared, 34
installing brand, 15
IR signals, 34
K
keyboard, 21
symbols, 21
zoom, 21
L
Label Tool, 21
labeling
button, 21
device, 22
page, 23
symbols, 21
LCD backlight timeout, 28
LCD screen, 4
LCD screen timeout, 28
Learn Tool, 19
learning
button, 19
device action, 20
light sensor, 4
M
macro, 30
action, 31
beep, 31
creating, 30
delay, 31
deleting action, 32
move, 32
testing, 32
troubleshooting, 40
Macro Tool, 30
move action in a macro, 32
Move Tool, 26
Moving a Device, 26
N
navigation
cursor navigation, 7, 33
touch screen navigation, 33
O
operating the Remote Control cursor
navigation, 33
RF signals, 34
touch screen navigation, 33
troubleshooting, 40
Overview
Device, 12
Page, 12
P
page labeling, 23
Page Overview, 7, 12
page transition, 29
ProntoEdit, 37
ProntoEdit Simulator, 37
R
radio frequency, 34
Remote Control, 3
adjusting the settings, 27
customizing, 13
device, 4
Device Overview, 12
maintaining, 42
operating, 12
Page Overview, 12
resetting, 38
specifications, 46
touch screen, 6
turning on, 9
USB cable, 37
USB port, 37
resetting the Remote Control, 38
RF Extender, 34
RF IR Tool, 34
RF signals, 34, 41
S
screen, 4, 6
backlight, 28
calibrating, 29
light sensor, 7, 28
timeout, 27
searching
brand, 14
code set, 16
ProntoII.qxd 03-09-2002 09:24 Pagina 51
User Guide
52
© Royal Philips Electronics NV
All rights are reserved. Reproduction in whole or in part is prohibited without the prior
written consent of the copyright owner.
Documentation concept and elaboration: The Human Interface Group,
de Regenboog 11, 2800 Mechelen, Belgium.
http://www.higroup.com
selecting
brand, 15, 17
code set, 18
settings, 27
animation mode, 29
calibrating the touch screen, 29
date, 10
LCD backlight timeout, 28
LCD screen timeout, 28
light sensor,28
time, 10
time format, 10
volume level, 29
setup, 27
Simulator, 37
specifications, 46
storage problems, 41
symbols, 21, 43
T
testing the macro, 32
time, 10
time format, 10
Toggle button, 33
Tool, 13
Add, 23
Brand, 13
Delete, 25
Label, 21
Learn, 19
Macro, 30
Moving, 26
RF IR, 34
touch screen, 4, 6
calibrating, 26, 38
transparancy, 7
turning on Pronto, 9
U
upload, 37
USB cable, 37
USB port, 5, 37
V
volume
mute, 4
volume down, 4
volume level, 29
volume up, 4
volume level
hard buttons, 29
touch screen buttons, 29
Index
3104 205 3275.1
ProntoII.qxd 03-09-2002 09:24 Pagina 52
