Philips Consumer Lifestyle TSU3500 Entertainment device Remote Control User Manual ProntoNG 0705 ML 1EN
Philips Consumer Lifestyle Entertainment device Remote Control ProntoNG 0705 ML 1EN
Manual
EN
User Guide
Guía del usuario
Mode d’emploi
Pronto
ENESFR
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 1
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 2
User Guide
1
EN
Pronto User Guide
© Copyright 2005 Royal Philips Electronics, Interleuvenlaan 72 - 74, 3000 Leuven
(Belgium)
Remark:
All rights are reserved. Reproduction in whole or in part is prohibited without prior
consent of the copyright owner.
Royal Philips Electronics is not liable for omissions or for technical or editorial
errors in this manual or for damages directly or indirectly resulting from the use of
the TSU 3500 / SBC RU960 Pronto.
The information in this user guide may be subject to change without prior notice.
All brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
Pronto
User Guide
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 1
User Guide
2
Table of Contents
Taking a First Look 4
Pronto: The Home Theater Control Panel 4
The Device 5
The Touch Screen 7
The Docking Station 8
What’s New for Pronto? 8
Before You Start 10
Installing the Battery Pack 10
Charging the Pronto 11
Getting Started 13
Turning on Pronto 13
Setting the Contrast 13

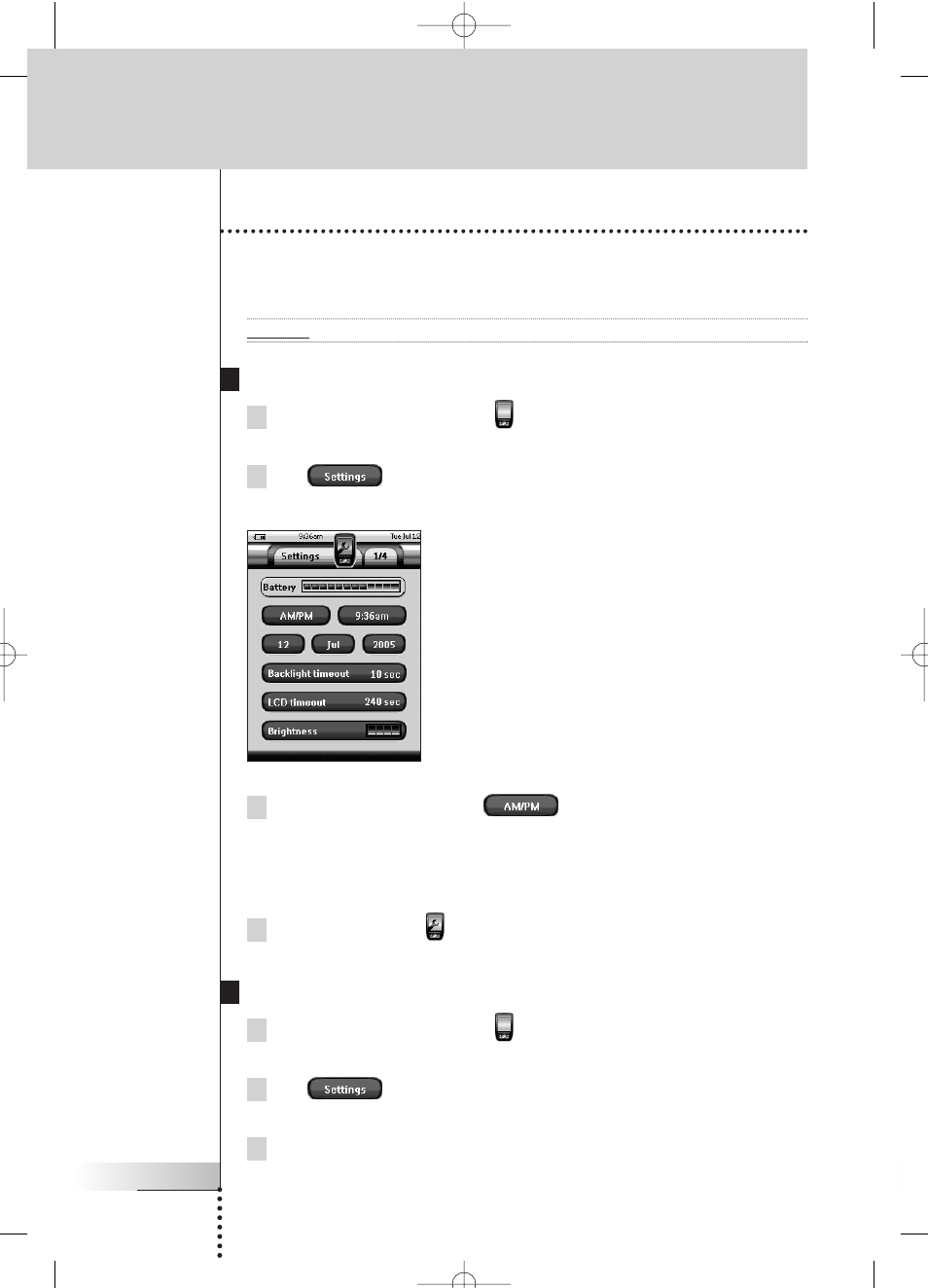

Setting Time and Date 14
Changing the Time Format 14
Changing the Time 14
Changing the Date 15

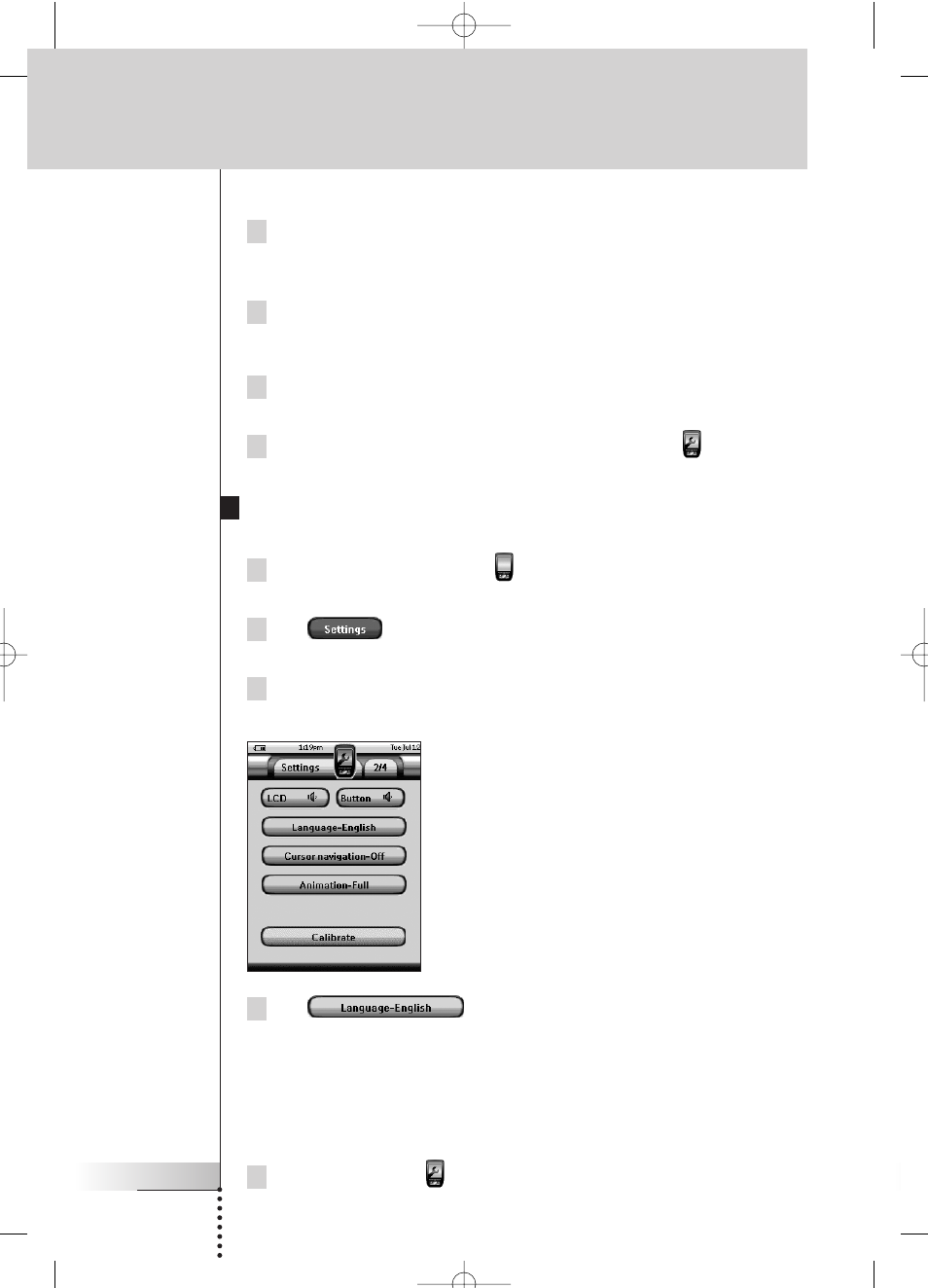

Setting the Language 16
Operating Pronto 17

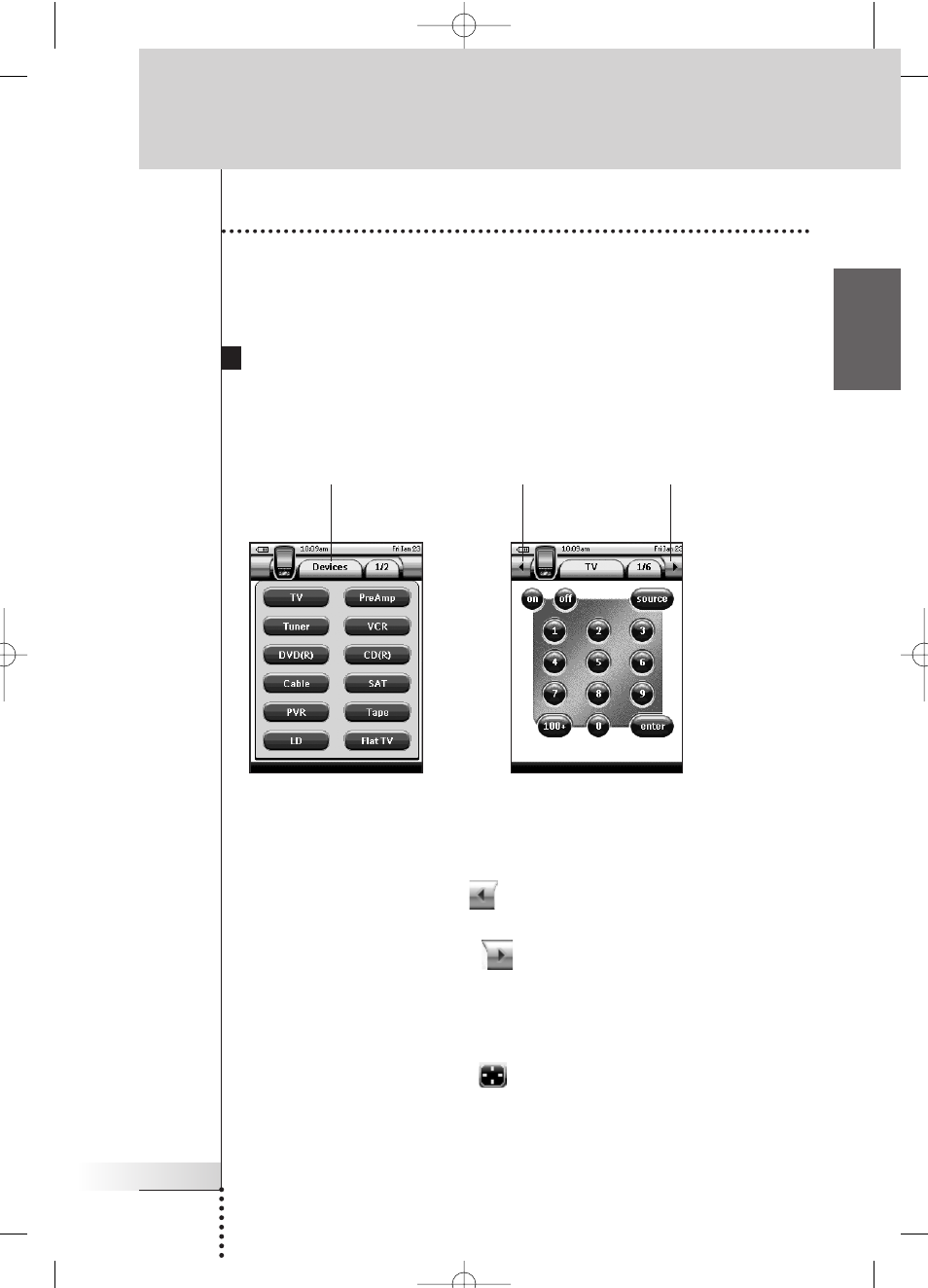

Device Overview 17

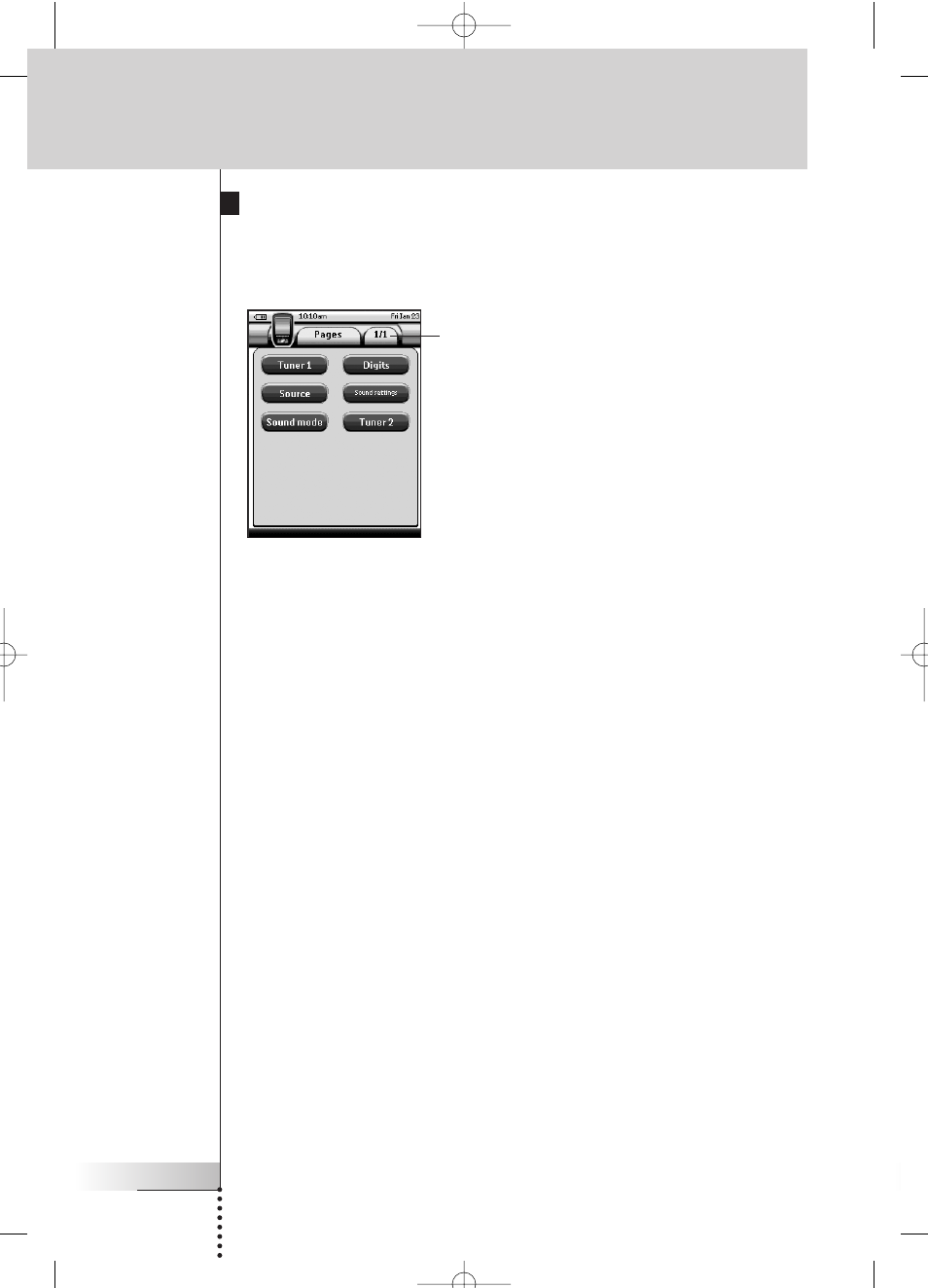

Page Overview 18
Customizing Pronto 19
Using the Tools 19

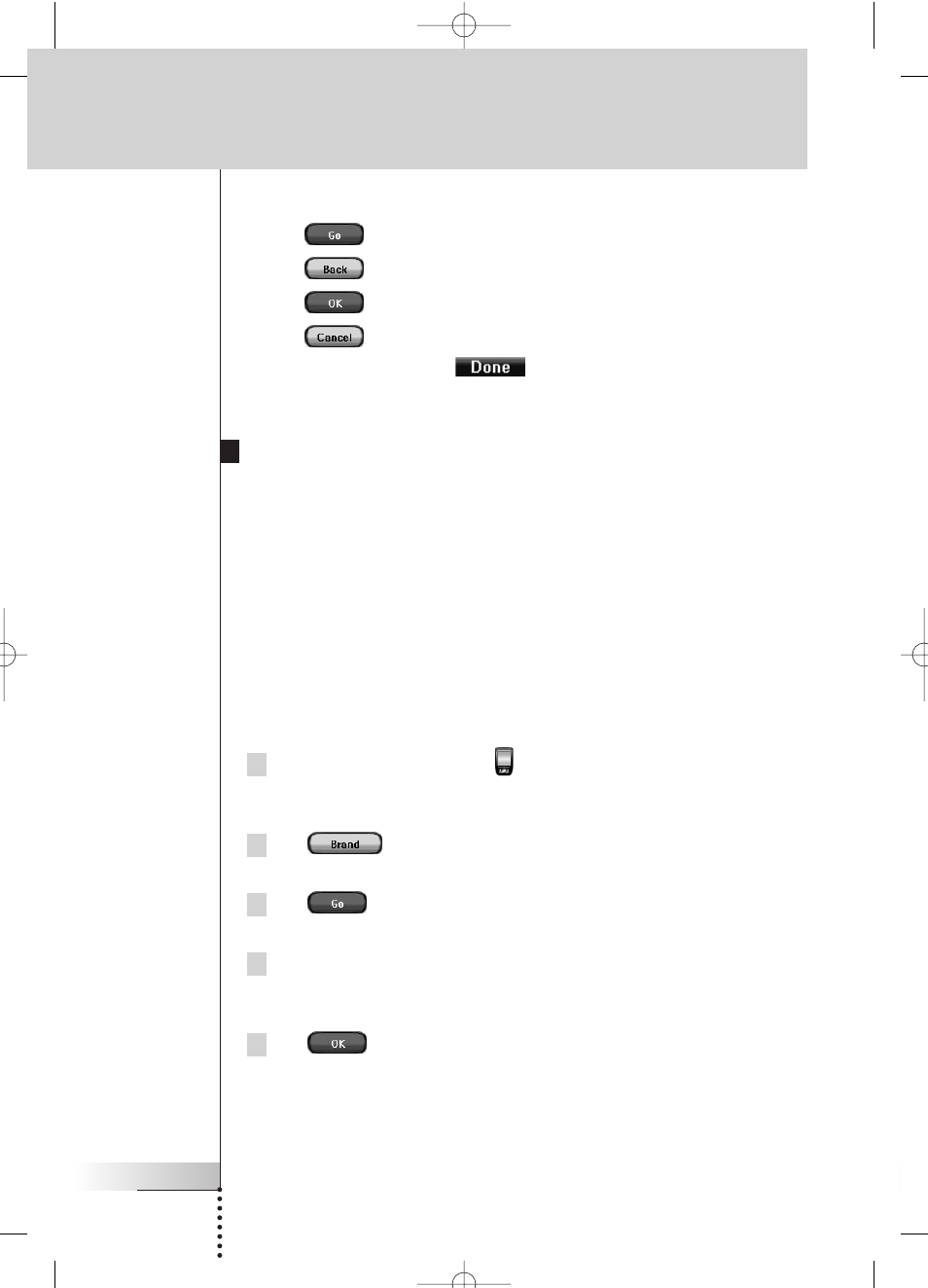

Defining the Brand for a Device 20
Learning Commands 23

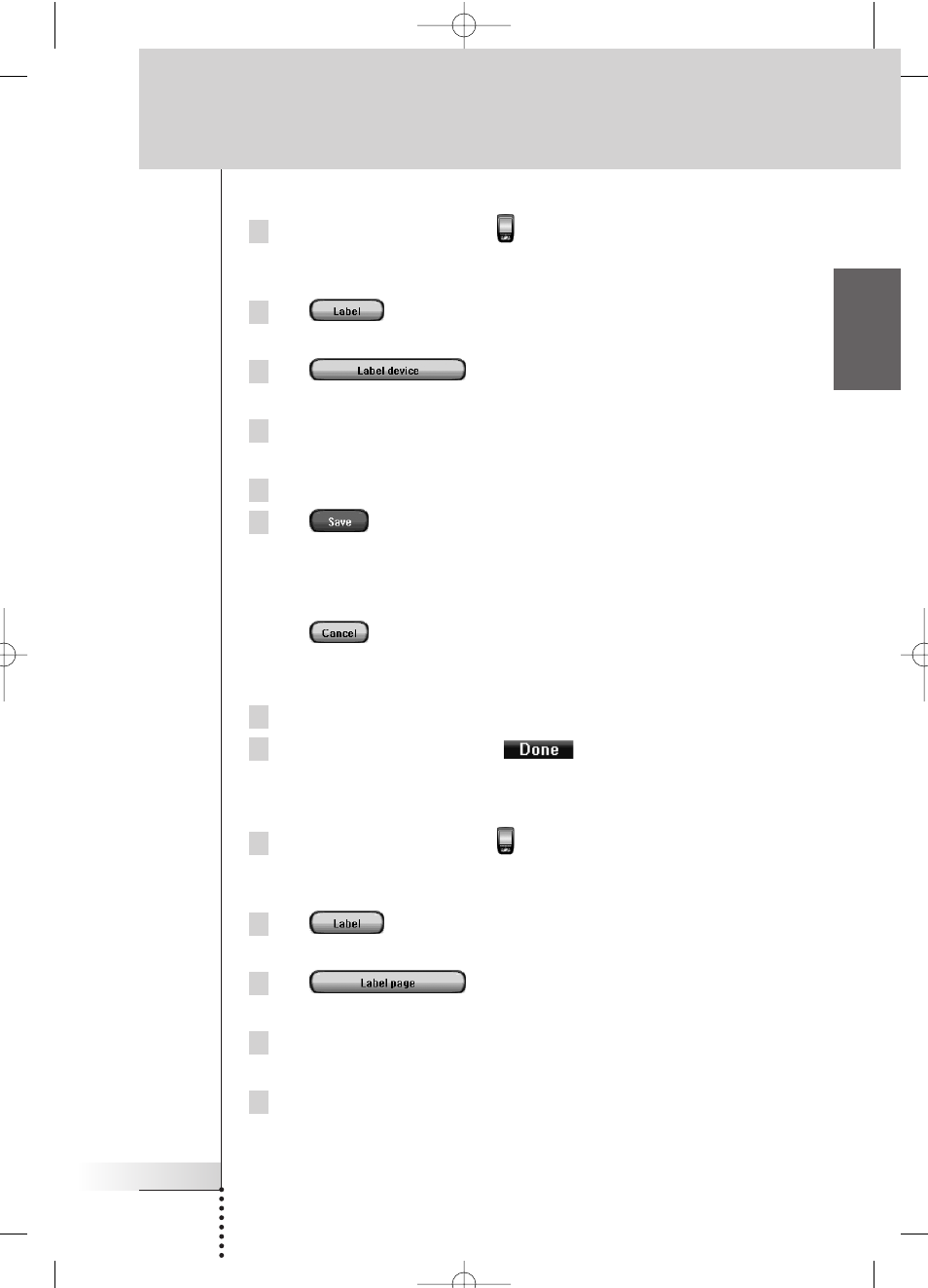

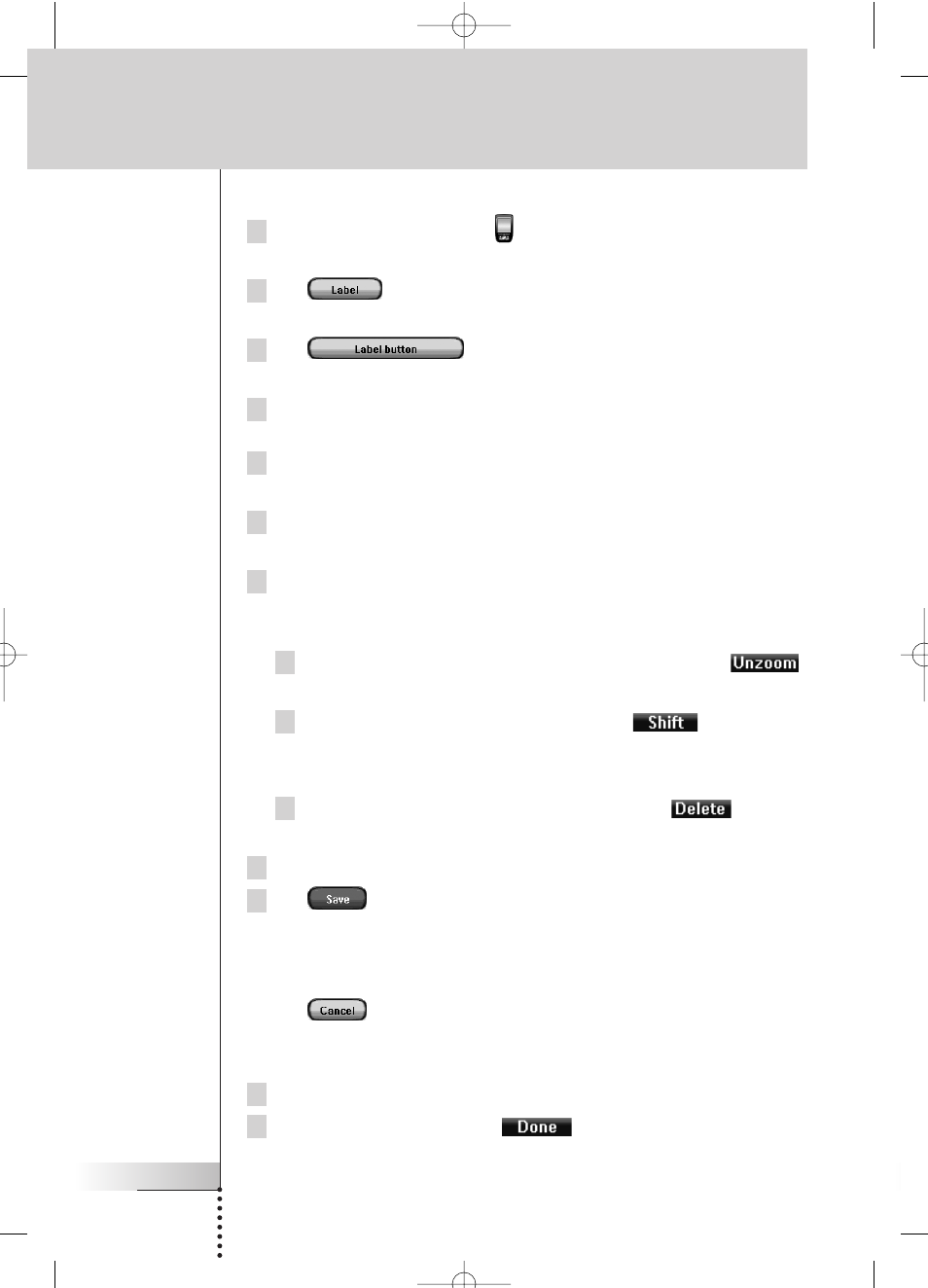

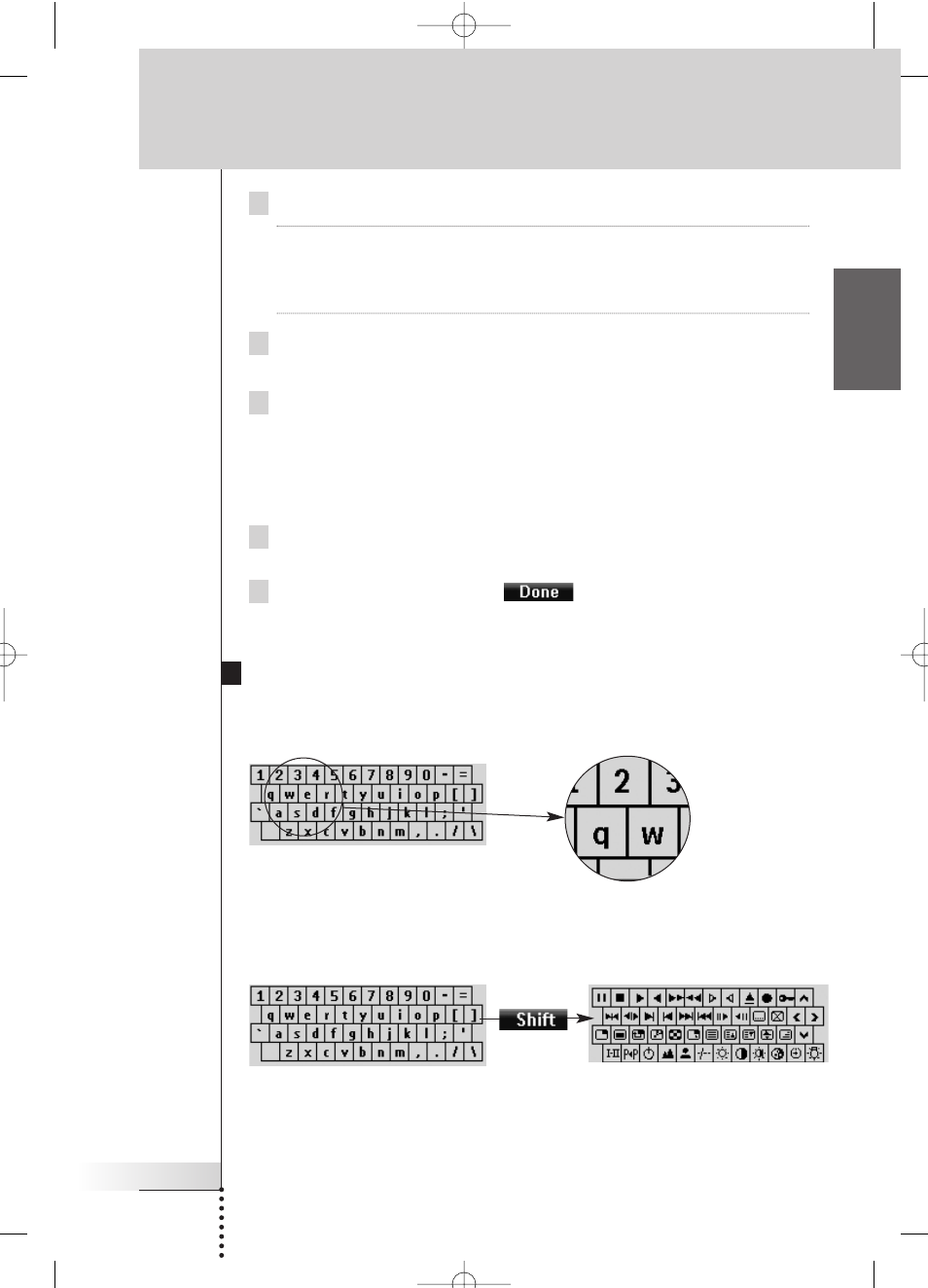

Labeling Elements 25

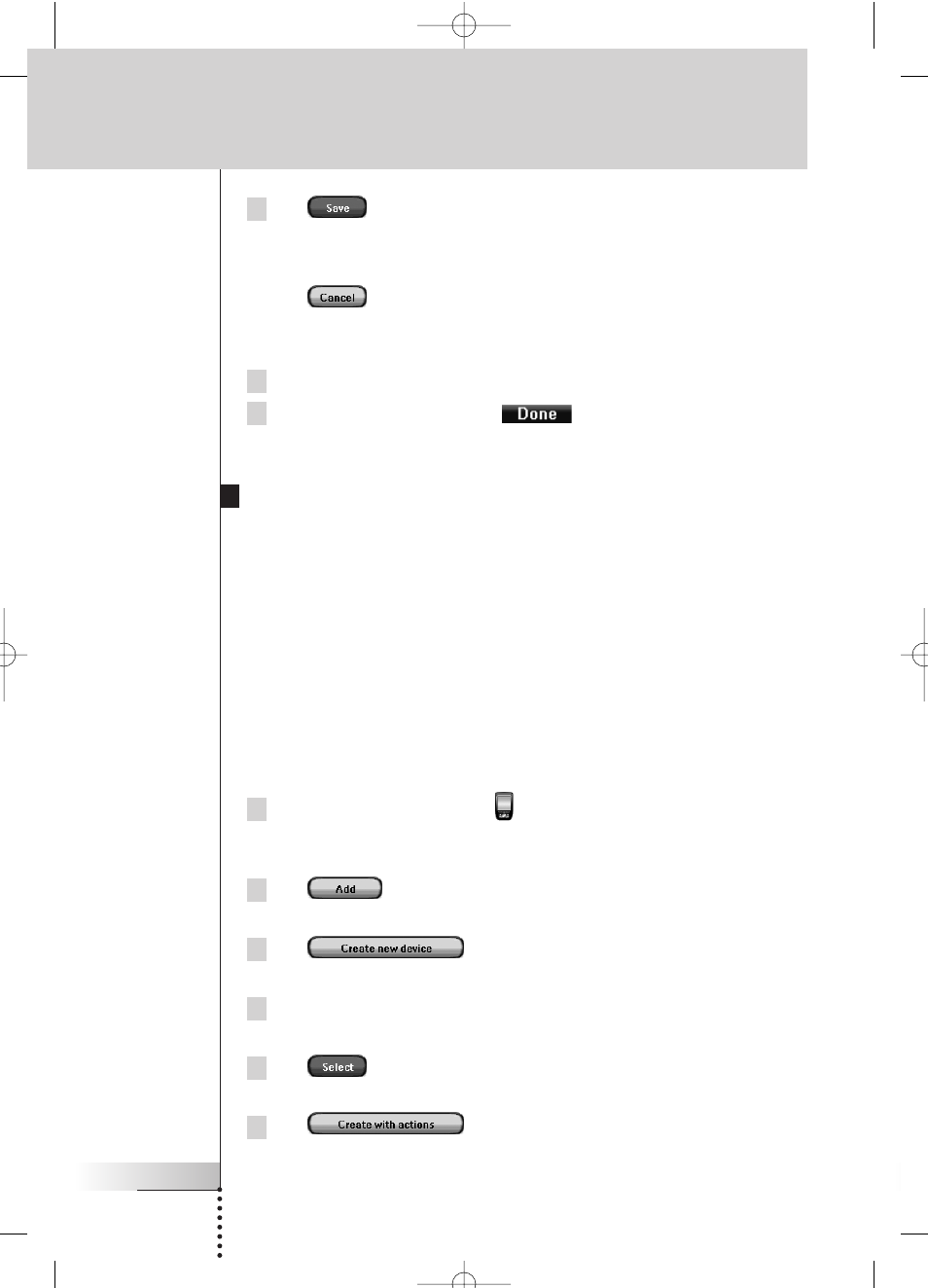

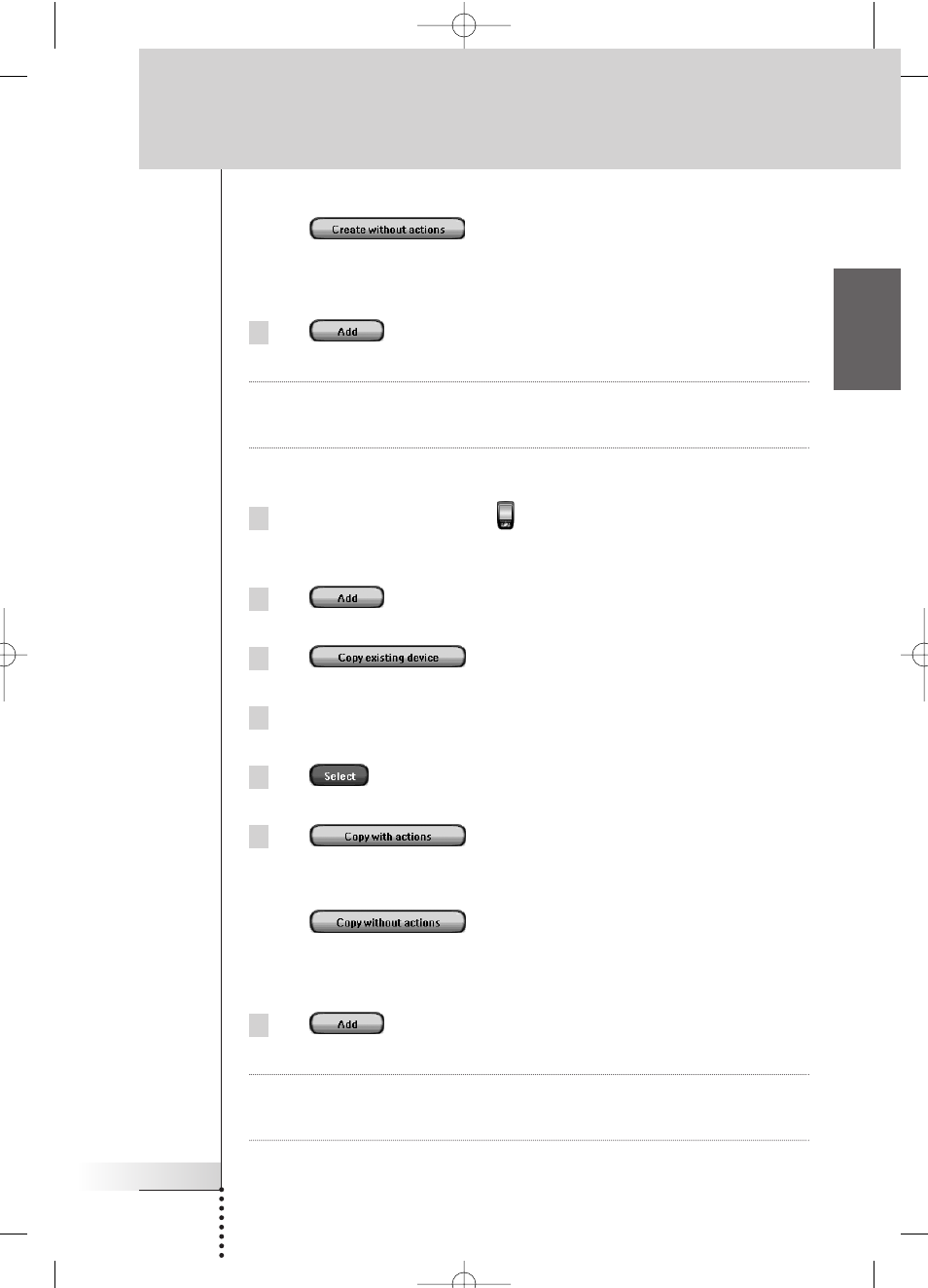

Adding Devices 28
Deleting Elements 30
Moving Devices 31

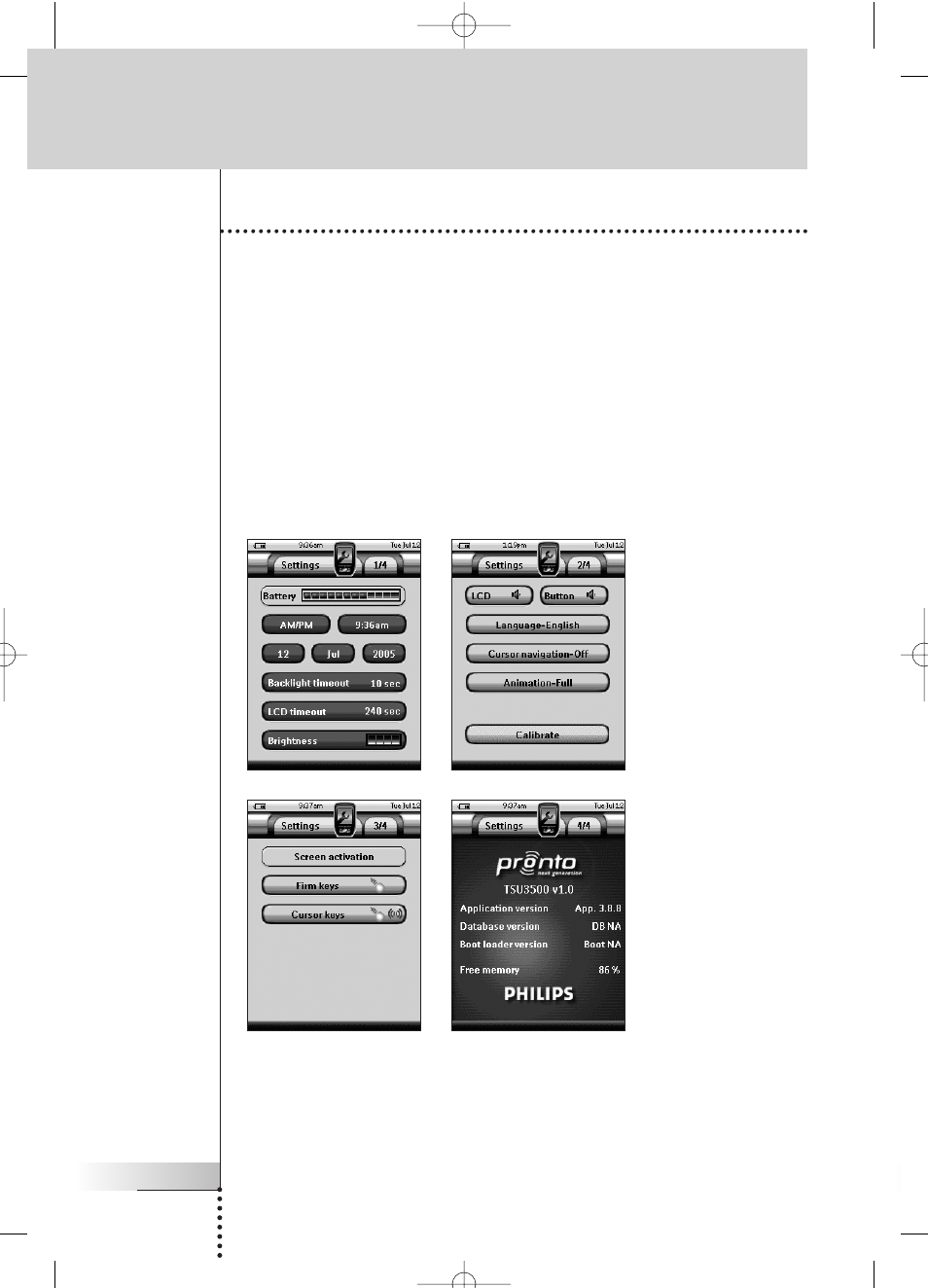

Adjusting the Settings 32
Setting the Brightness of the Backlight 33
Setting the Timeout of the Button Backlight 33
Setting the Timeout of the LCD Screen 34
Setting the Volume Level 34
Setting the Navigation for Pronto 35
Setting the Animation Mode 35
Calibrating the Touch Screen 35

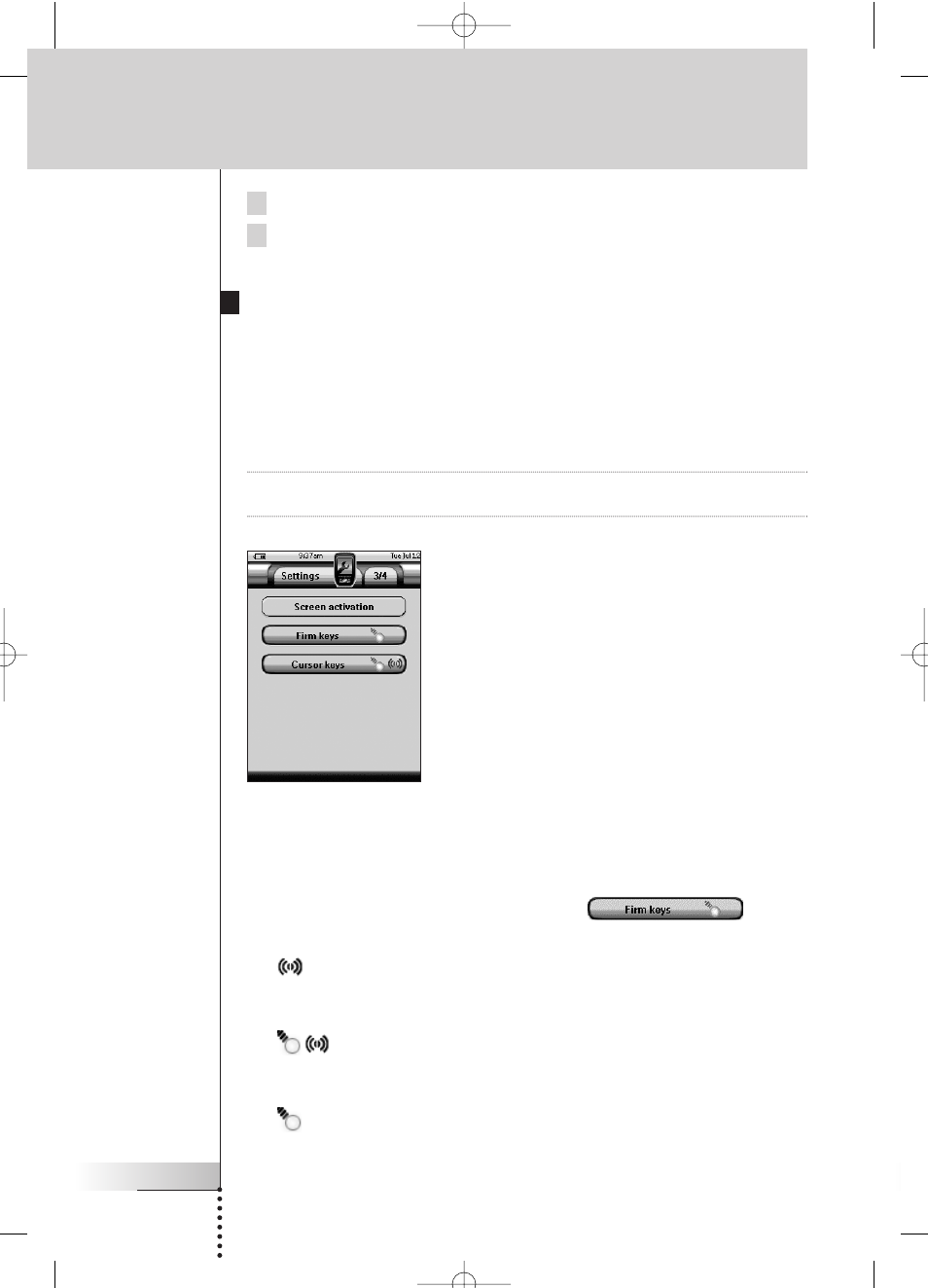

Adjusting the Screen Activation Settings 36
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 2
User Guide
3
EN
Table of Contents
Using the Power Features 38
Creating and Editing Macros 38

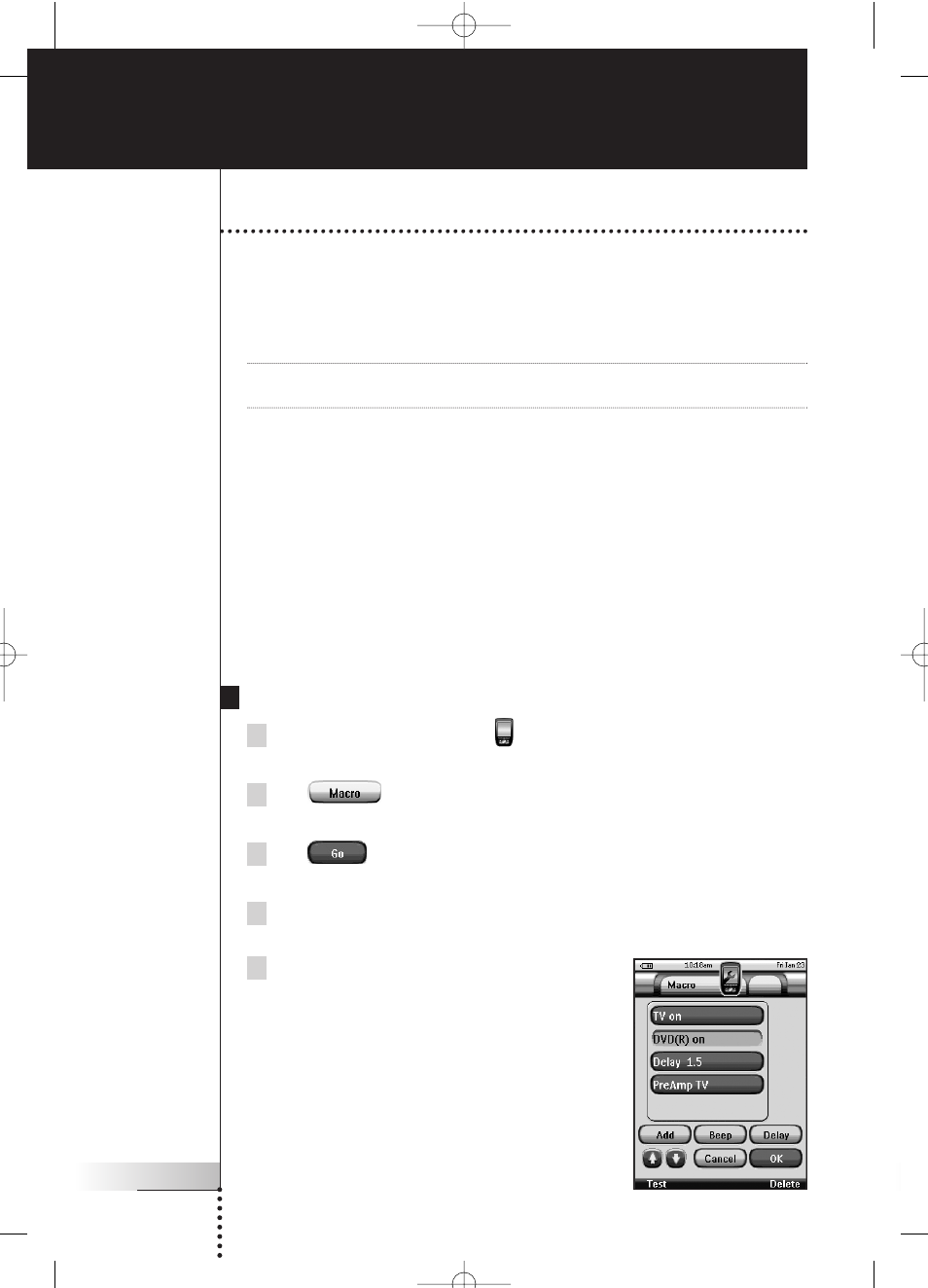

Creating a Macro 38
Editing a Macro 40

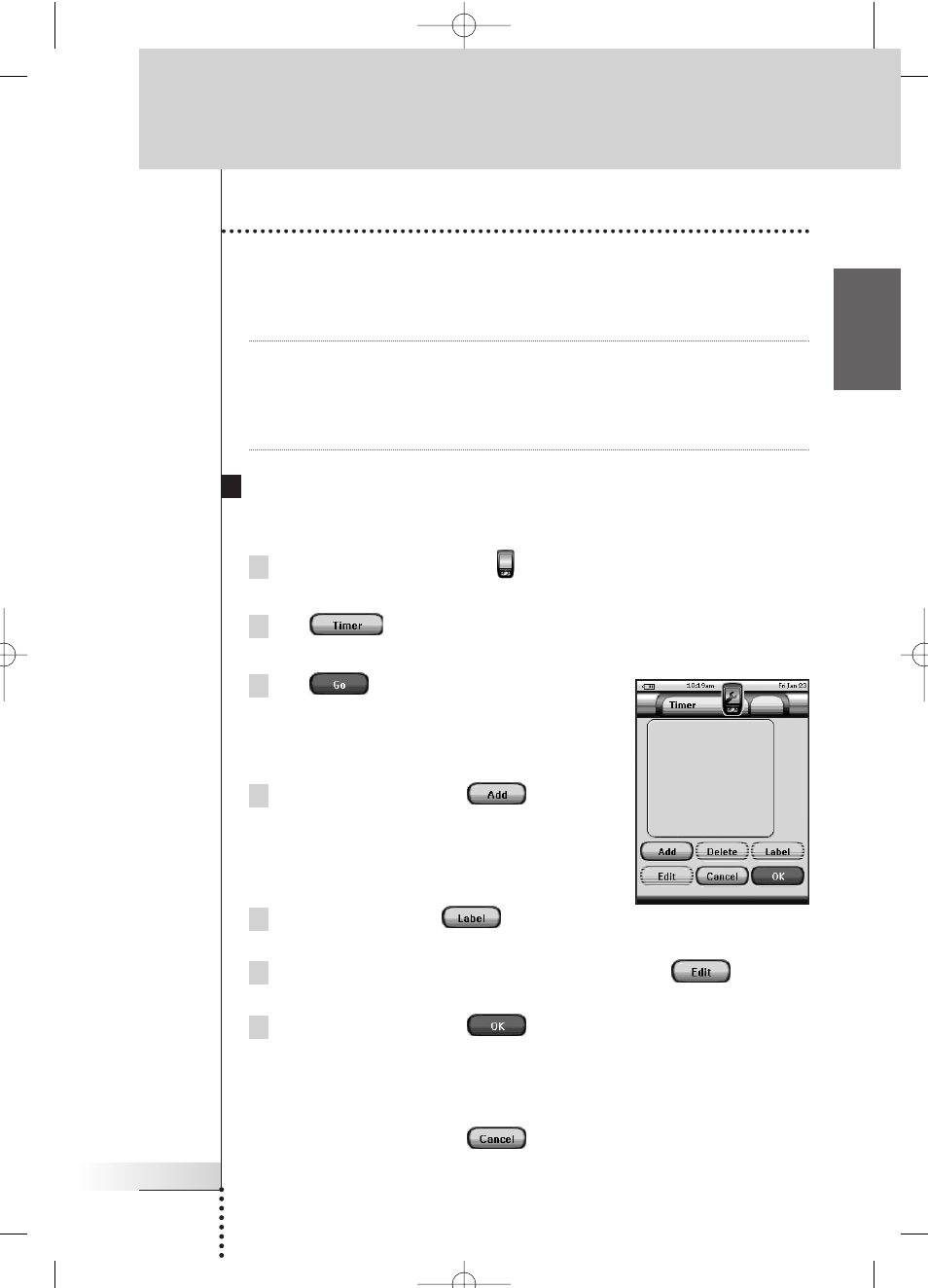

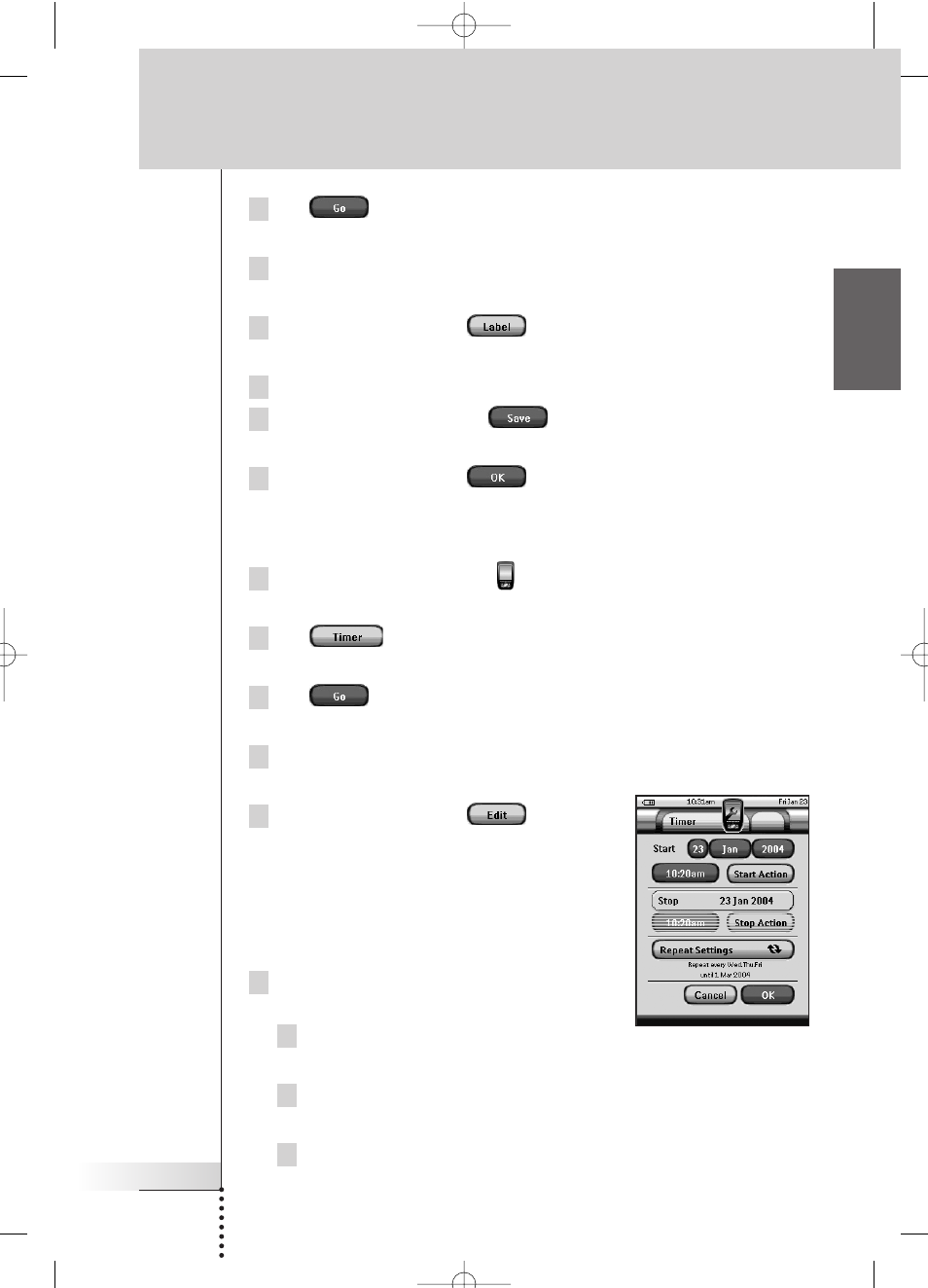

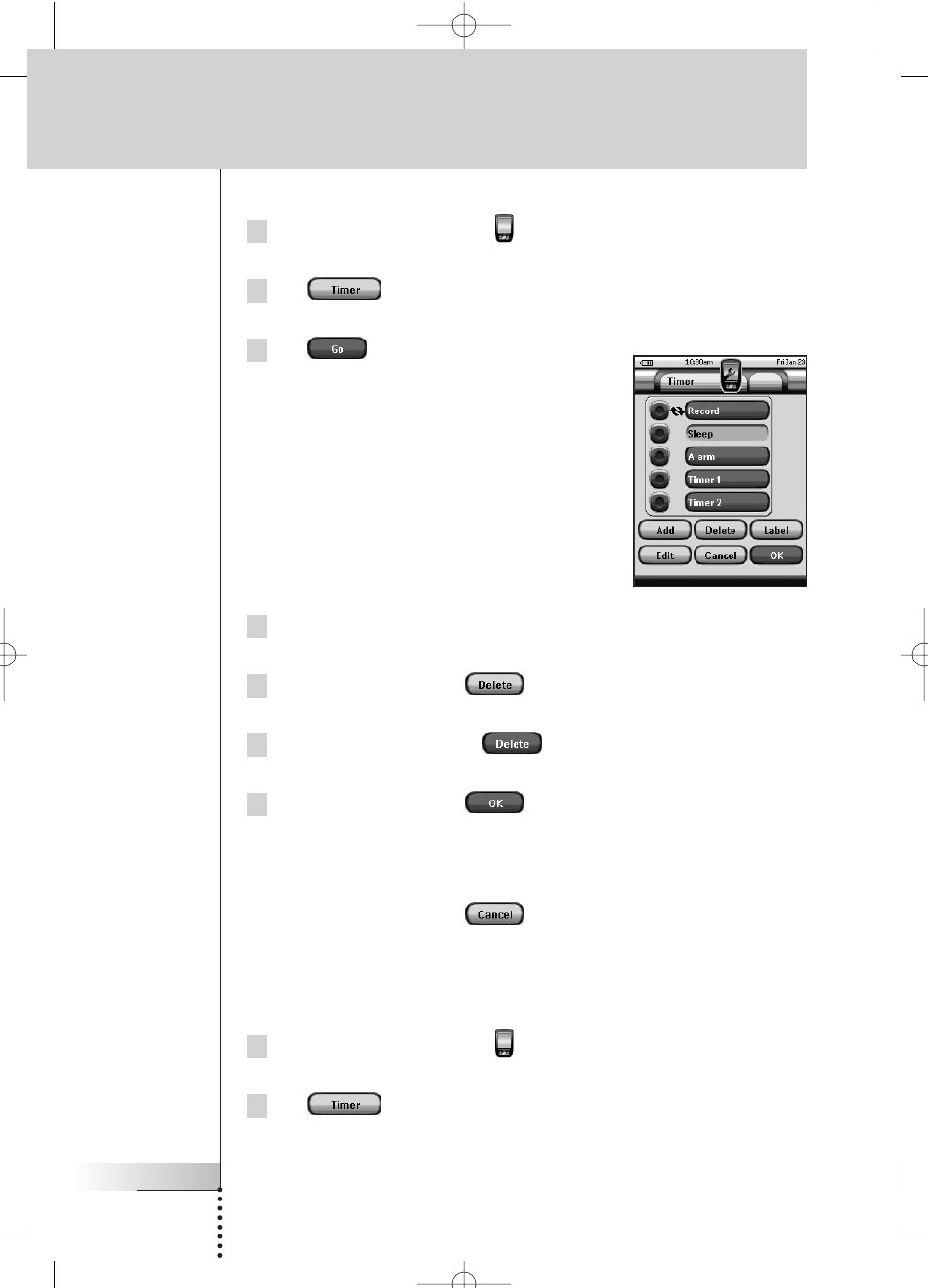

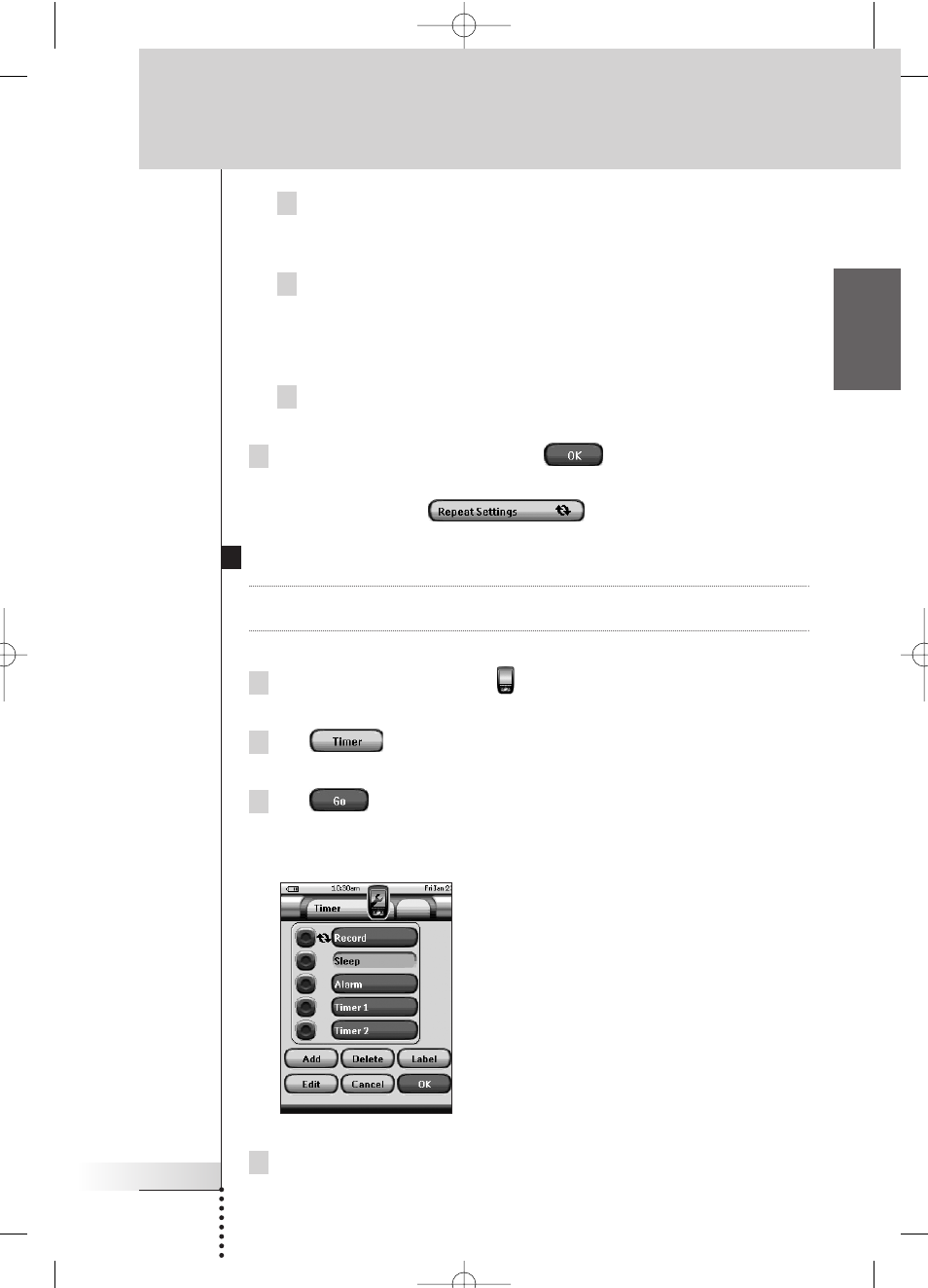

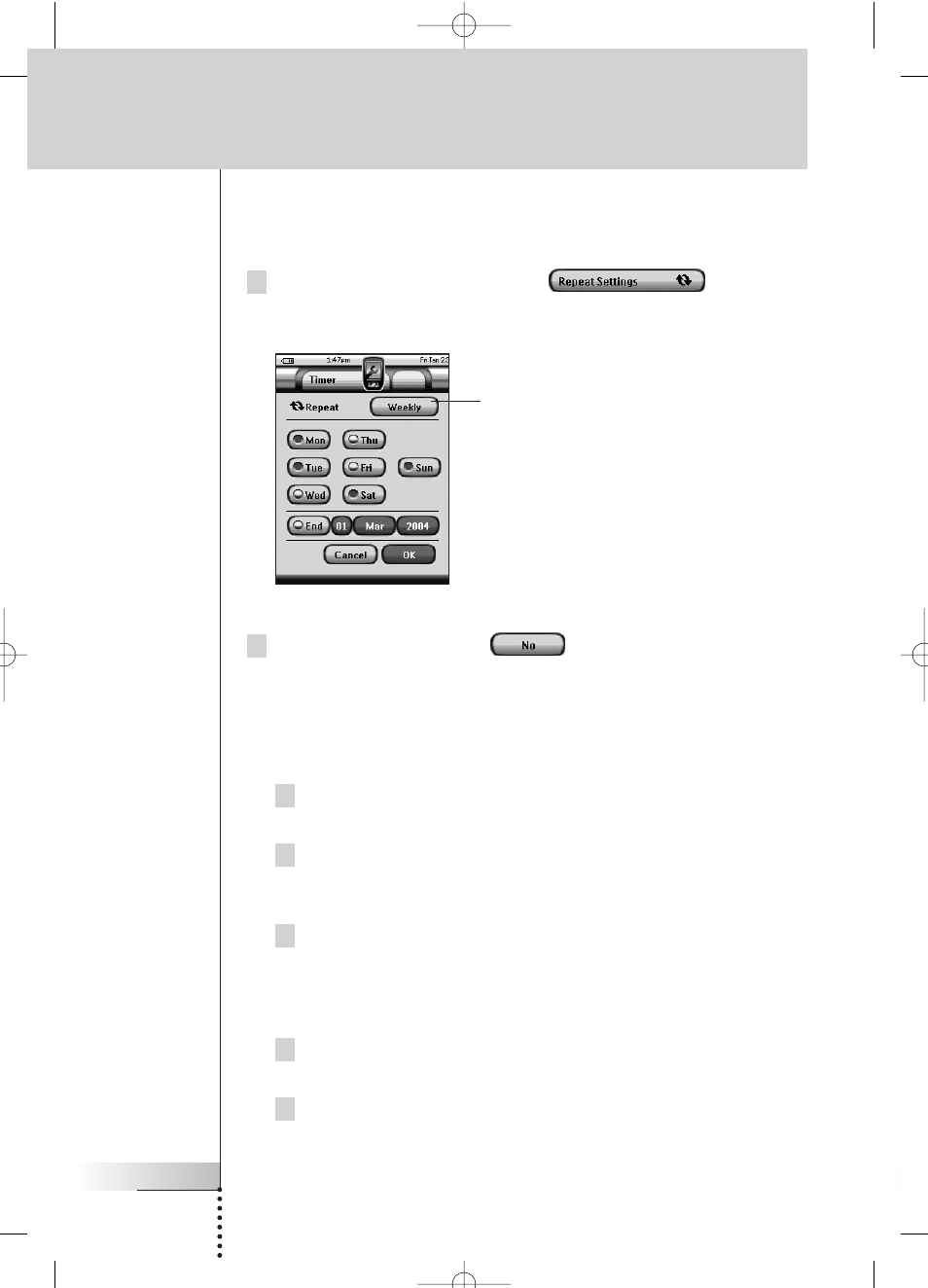

Creating and Editing Timers 41
Creating and Editing Timers 41
Activating Timers 47

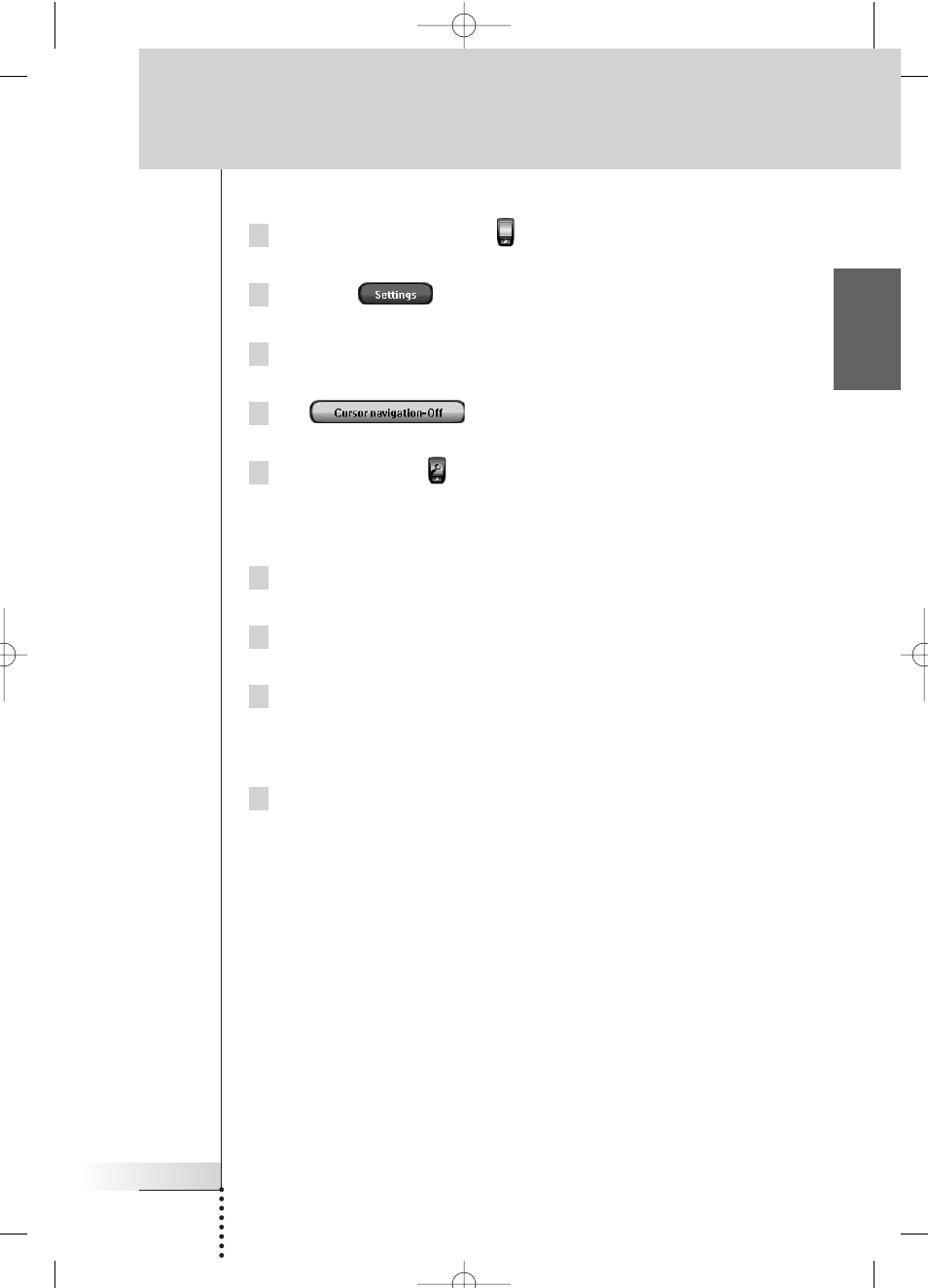

Operating Pronto with the Cursor 48

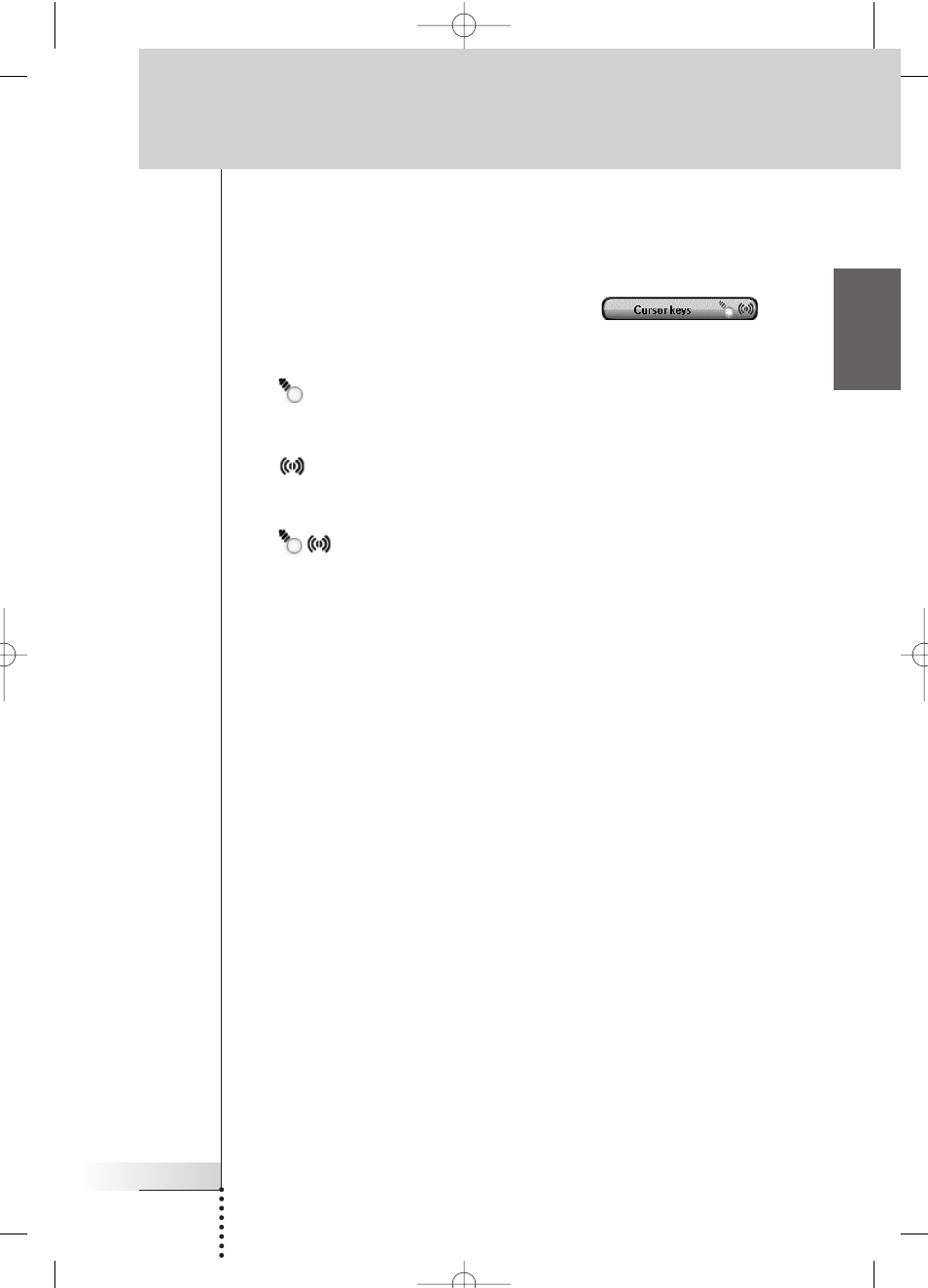

Operating Pronto with RF 50
Selecting RF to Operate your Devices 51
Selecting IR to Operate your Devices 52
ProntoEdit 53
FAQ 55
Troubleshooting 57
General Problems 57
Customizing Problems 58
Memory Storage Problems 59
Pronto error messages 59
Connection to the PC 59
Maintaining Pronto 60
Important Notices 60
Cleaning Pronto 60
Upgrading Pronto 60

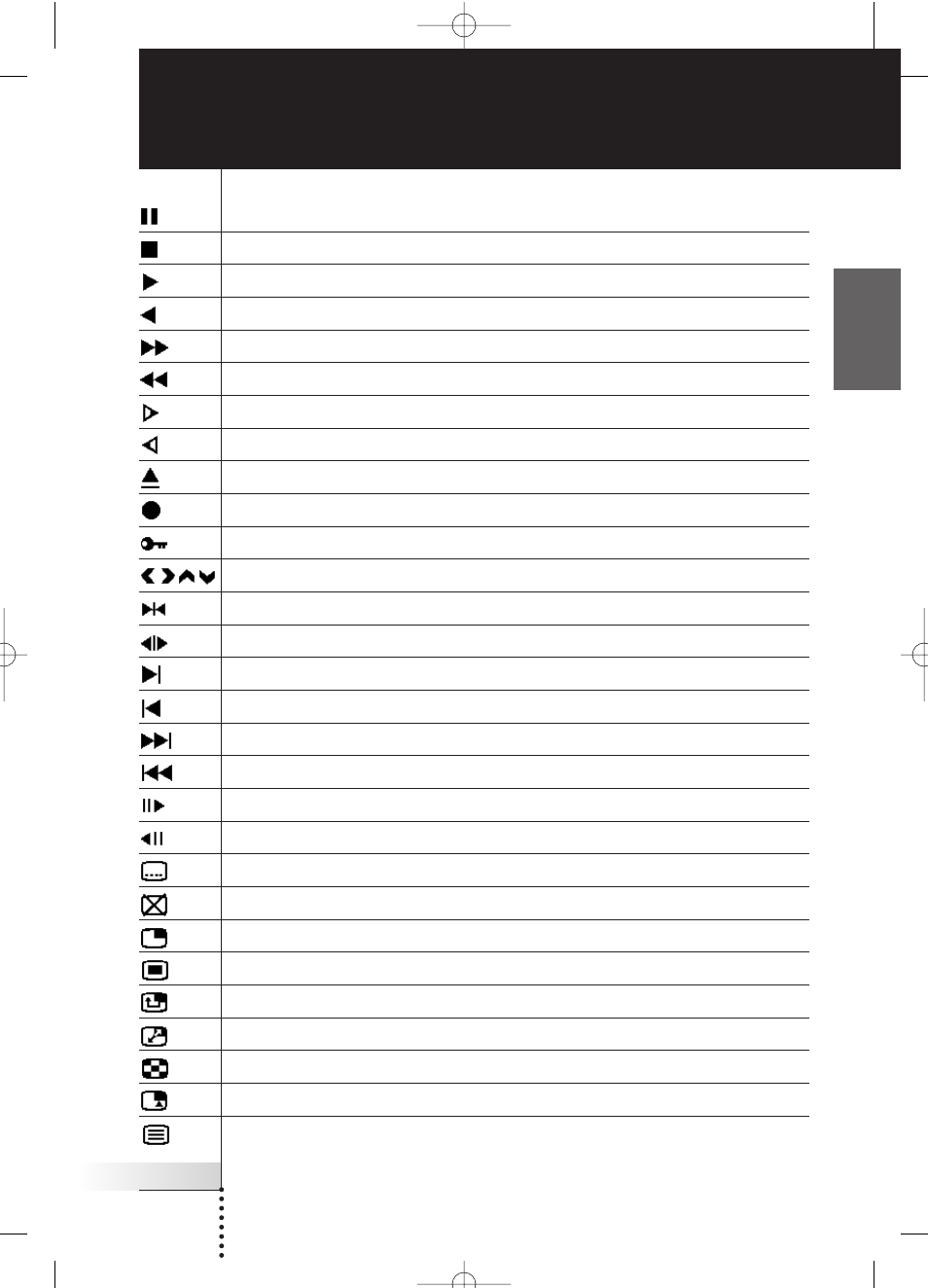

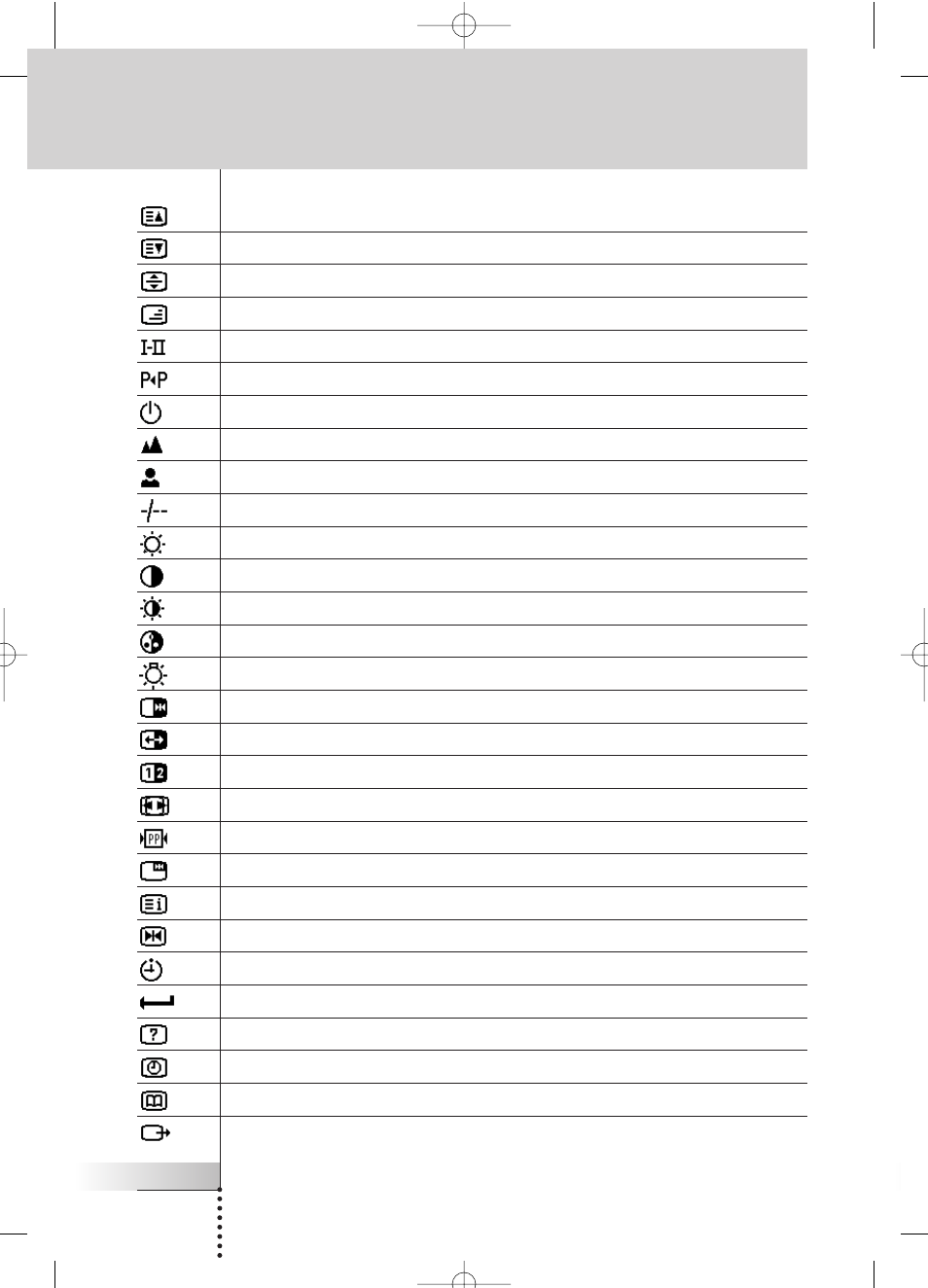

List of Symbols 61
Specifications 64
Glossary 65
Index 68
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 3
User Guide
4
Taking a First Look
Pronto:
The Home Theater Control Panel
Pronto is a Home Theater Control Panel that allows maximum flexibility and
customization for even the most sophisticated home entertainment system. It can
control almost any device that works with infrared (IR) remote control signals.
Its intuitive interface makes it a perfect remote control for every user.
Pronto is easy to configure. It contains a huge universal database where
IR codes are stored to control different brands for all kinds of video, audio devices
and even home automation equipment. By default Pronto is set up to control
Philips and Marantz devices. For other brands you simply choose the brands of
your devices when you use Pronto for the first time.
Pronto offers you some extra powerful features:
■You can create and edit macros, allowing you to send a series of commands
with one single touch.
■You can set timers for certain actions to be carried out at predefined times,
e.g. switching on your lights or recording your favorite daily TV-show with
your VCR.

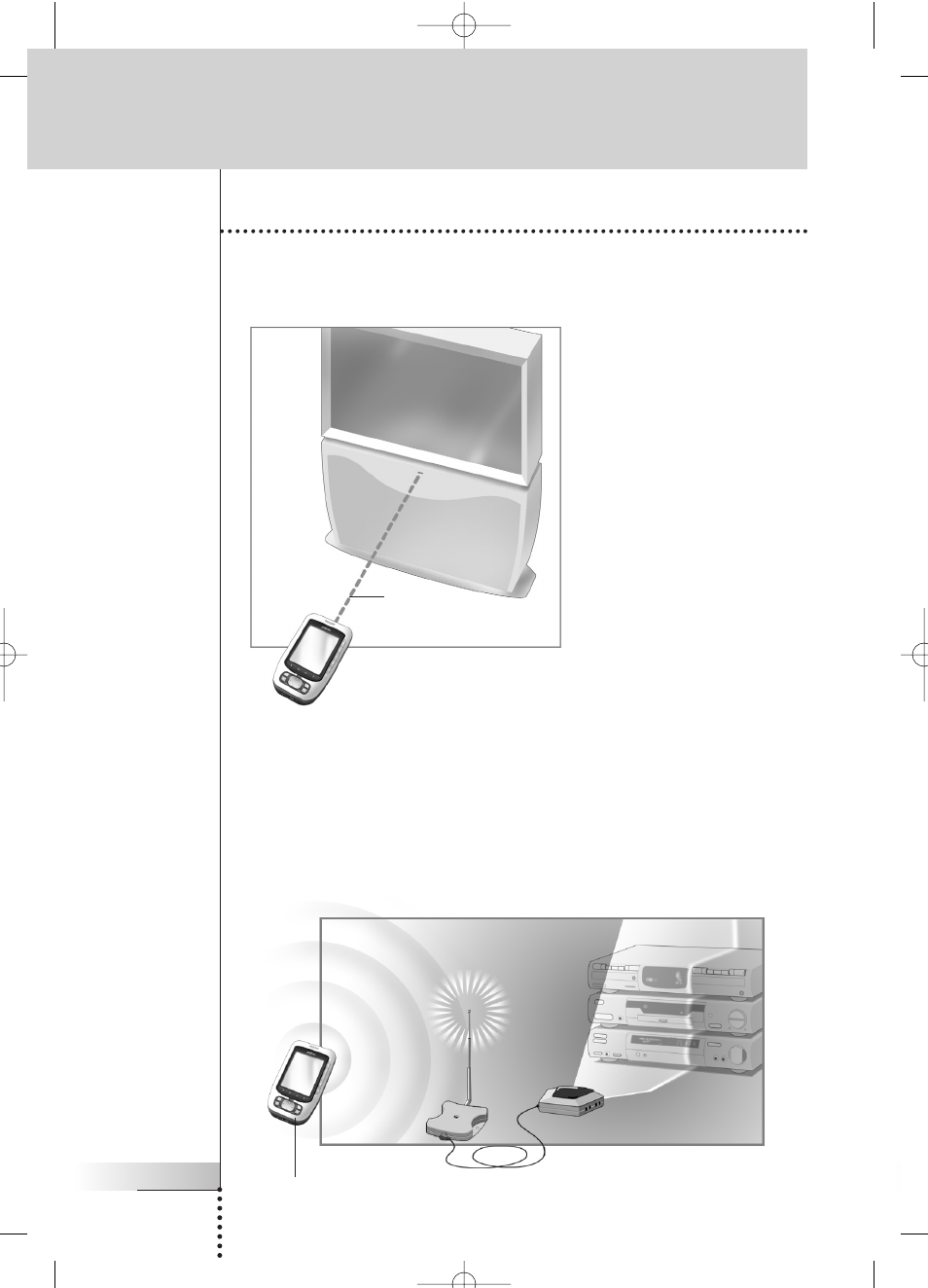

■You can choose to have Pronto working with radio frequency (RF) signals to
operate devices from a distance or from an adjacent room. To do this, you
need an optional RF Extender that converts Pronto RF signals into IR signals.
With ProntoEdit software you can create your own screens and define a personal
look. ProntoEdit’s Online Help system (accessible via the ‘Help’ icon in ProntoEdit)
will guide you through the process.
See ‘ProntoEdit’ on page 53 for more information. You can find ProntoEdit on the
included CD-ROM and on the Philips website www.pronto.philips.com. In the
Downloads section of the website you can also find the latest upgrades for your
Pronto software.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 4
User Guide
5
EN
Taking a First Look

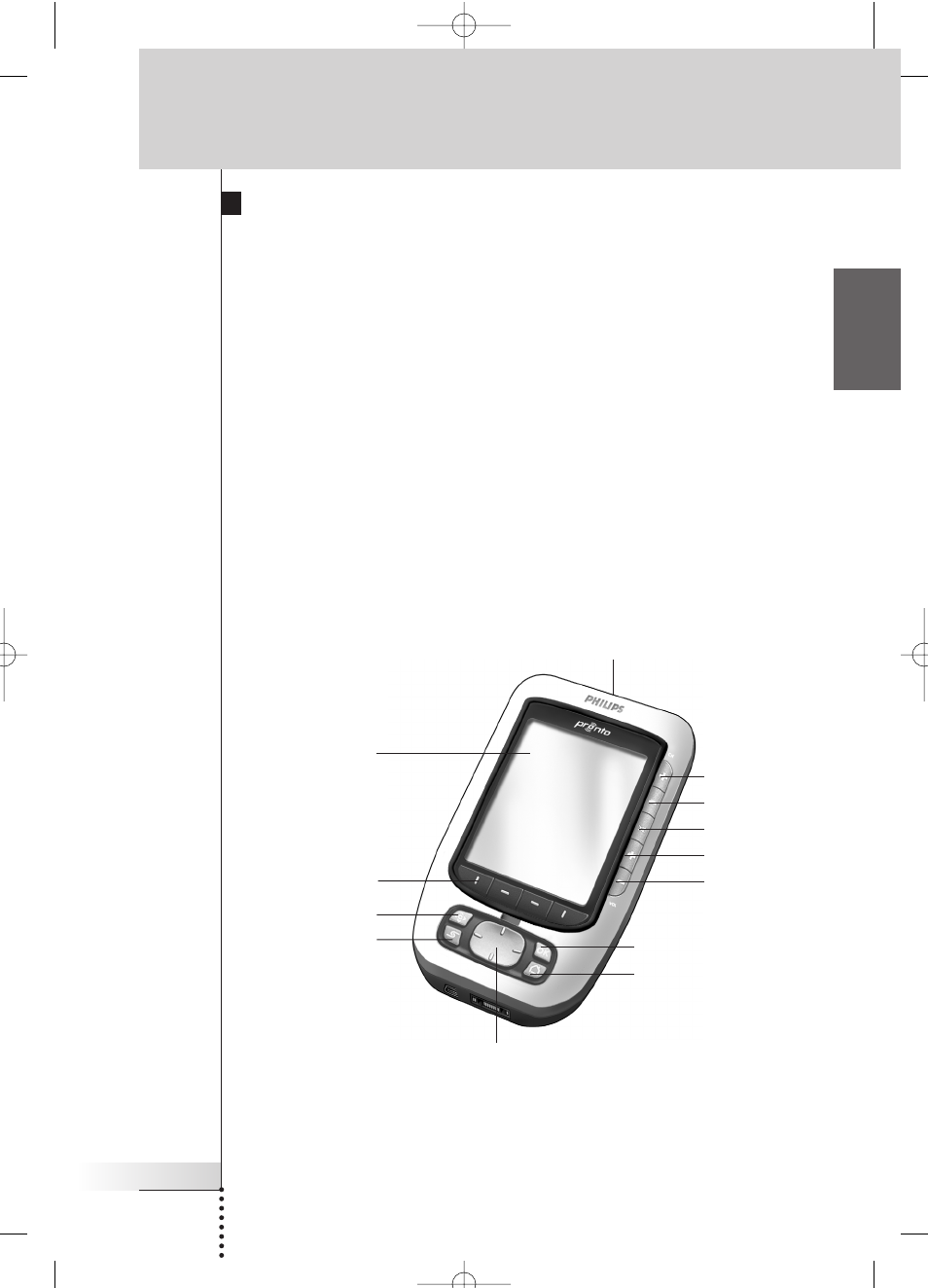

The Device
Pronto has several hard buttons. Most are freely programmable, some have a
predefined function:
■The buttons on the left side of the Pronto screen have predefined functions:
Page up, Page down and Backlight.
■The 4 firm keys below the touch screen are freely programmable. You can
reprogram the function of these buttons and change the label on the touch
screen.
■The cursor and the OK and Home buttons on the right side of the cursor are
programmed to operate devices (e.g. navigating through the on screen menu of
your TV).
With the Toggle button you can change the working of the cursor.
The free programmable button is meant for future purposes.
■The buttons on the right side of the screen are used to control the volume and
channel: Channel up, Channel down, Mute, Volume up and Volume
down. Although these buttons each have a predefined function, you can
program them yourself. If you learn one of these buttons or assign a macro to
it, its predefined function will be permanently lost.
Learning eye
LCD touch screen
Firm keys
Free programmable
Toggle button
Cursor
Channel up
Channel down
Mute
Volume up
Volume down
OK
Home
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 5
User Guide
6
Taking a First Look

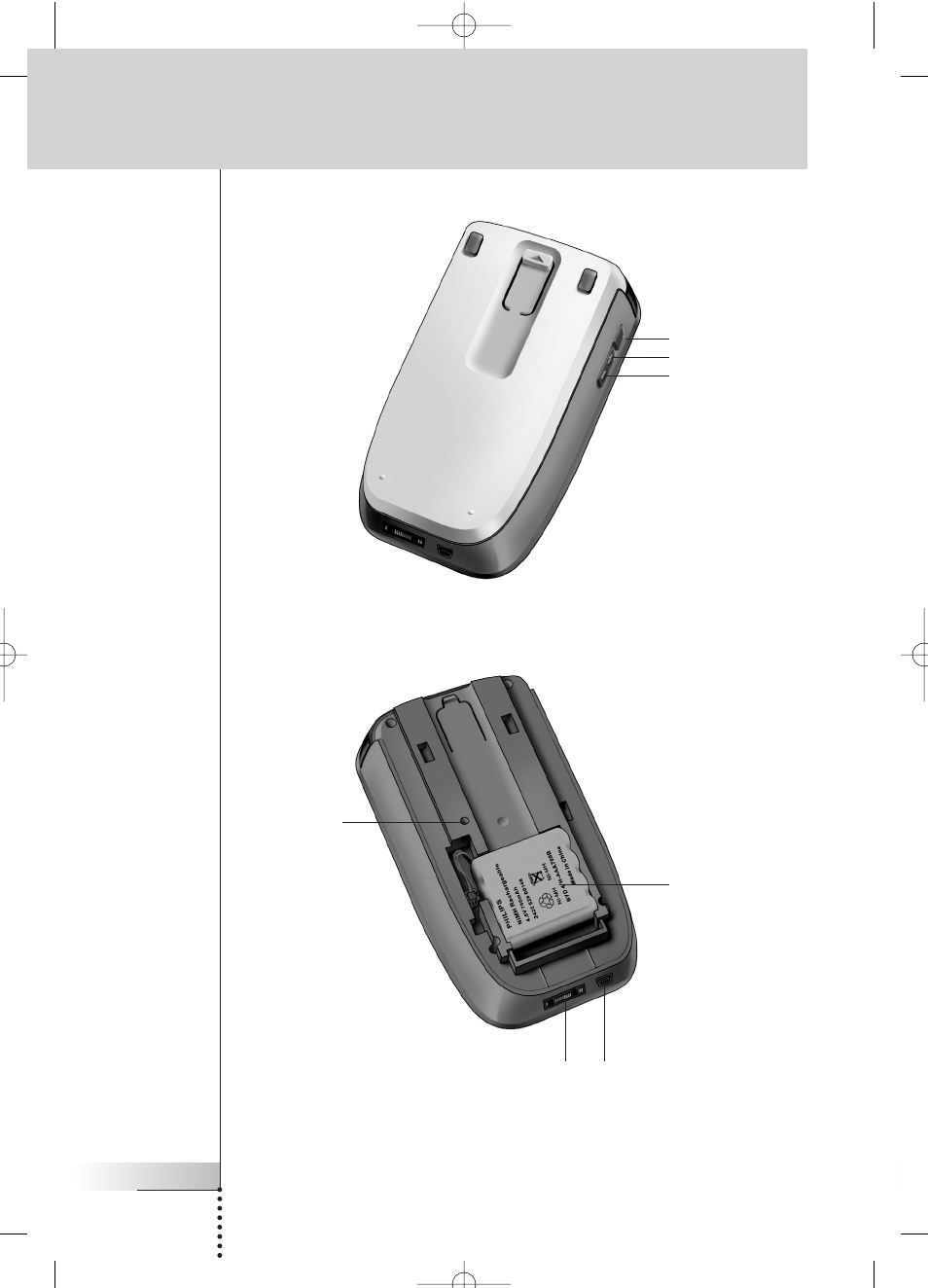

Backlight
Page up
Page down
USB port
Reset button
Connection to docking station
Battery
compartment
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 6
User Guide
7
EN
Taking a First Look
Labels for the
firm keys
Next
Device
Previous
Device
Pronto Icon
Device
Overview
button
Page
Overview
button
Soft
buttons

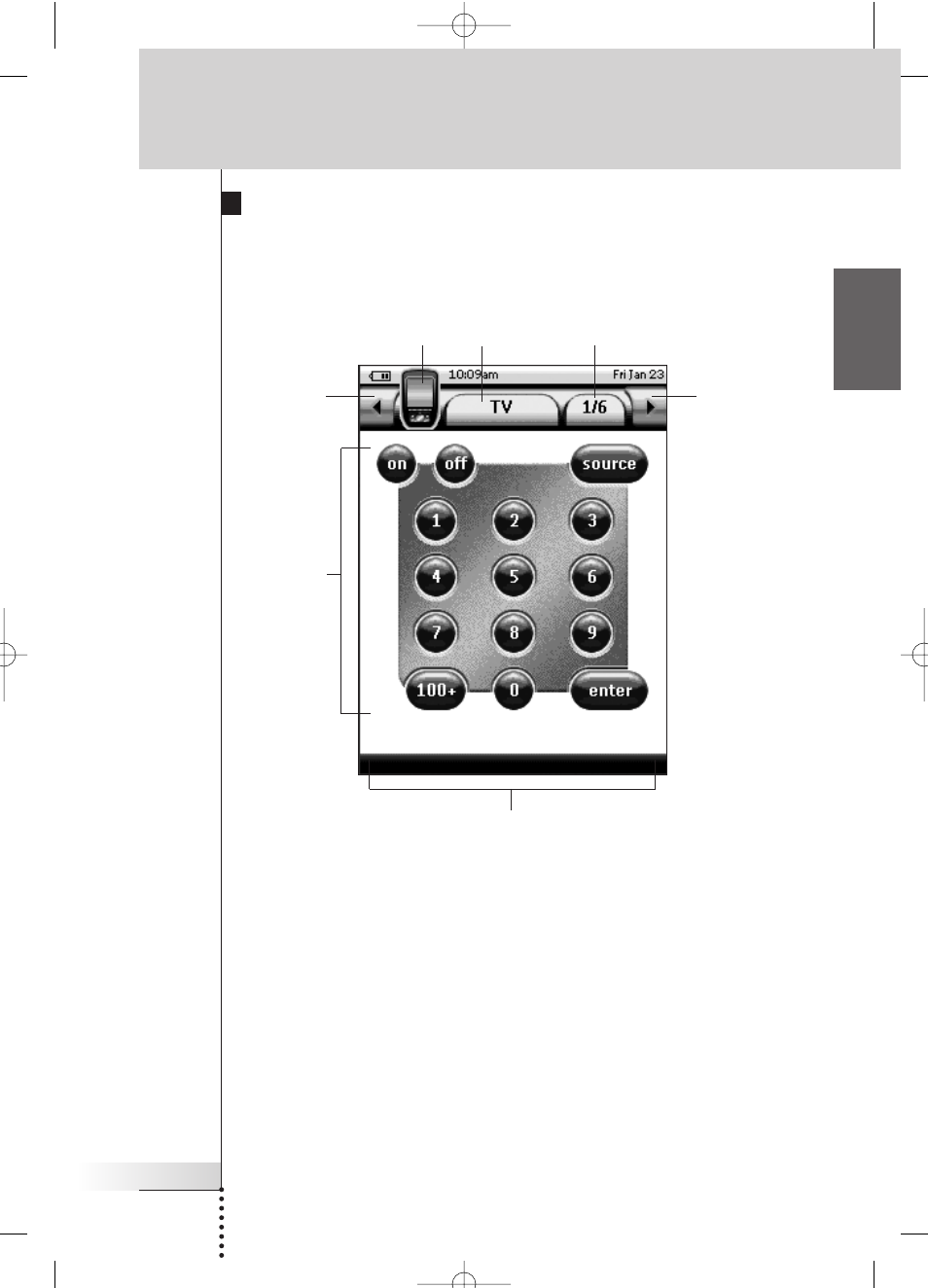

The Touch Screen
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 7
User Guide
8
The Docking Station
The docking station is used to charge the Pronto’s battery pack.

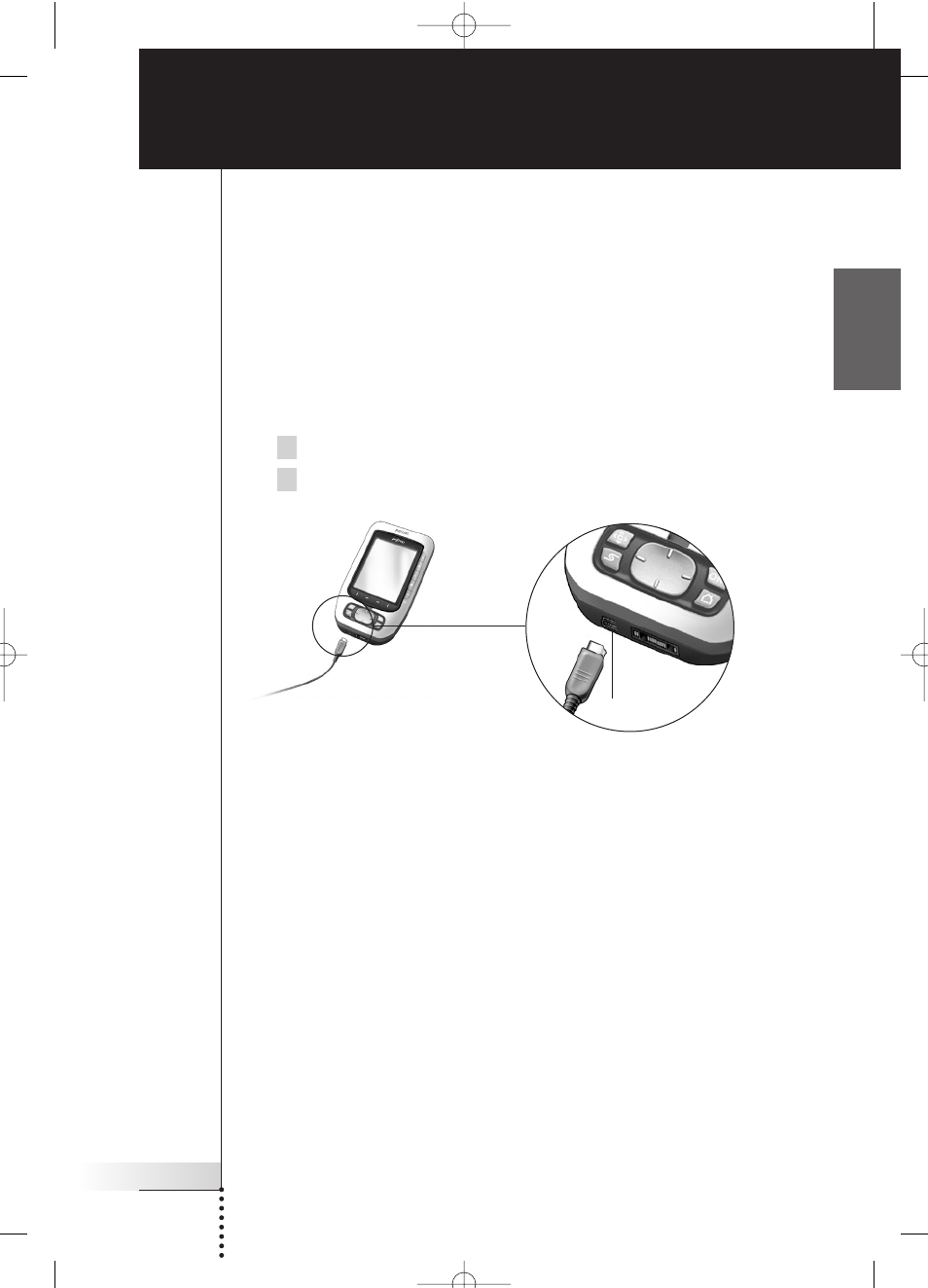

When your Pronto is placed in the docking station, you can connect Pronto to your
computer via the USB port of the docking station, instead of the USB port of the
Pronto.
USB port
Connector for
Pronto
Adapter Connector
What’s New for Pronto?
This new Pronto offers several new features compared to the previous model of
Pronto. The most important ones are:
■Transparency
Pronto supports transparency in buttons and other objects. This makes it easier
to create complex user interfaces. You can now place buttons with a
transparent background on top of a background image and let transparent
buttons overlap.
■16 gray scales
The number of gray scales has increased from 4 to 16. Therefore the buttons
look much more natural.
Taking a First Look
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 8
User Guide
9
EN
■USB
Pronto has a USB port to make downloading and uploading easier.
■4 MB of Memory
Pronto has 4 Megabyte of memory. This enables you to download larger
configuration files to Pronto.
■Integrated Macros
Macros are now better integrated in the configuration file. Each button can be
a macro, this means each button can contain more than one action.
■More advanced Timers
Your Pronto is able to set timers for certain actions to be carried out at any
time you choose. Timers are not an entirely new feature of Pronto, but they are
easier to use and better integrated with the configuration file. You can
activate and deactivate the timers you created and you can also set them to
repeat daily or weekly. For instance, you can have the lights switched on every
day at sunset. You can also create a timer to set your VCR to record your
favorite TV-show on Wednesday and Saturday.
■RF
By default, Pronto operates your devices with IR signals. However, you can
choose to have Pronto working with radio frequency (RF) signals to operate
devices from a distance or from an adjacent room. An RF Extender (not
included) is therefore required.
■Page Overview
The Page Overview offers you a list of all the pages for one device. Every
device comes with a Page Overview, making it easier and faster to browse
through the device pages.
■Cursor Navigation
By default the cursor is programmed to operate devices. The functions
assigned to the cursor button depend on the device active on Pronto.
Pronto also offers you the possibility to use the cursor for navigating through
devices and pages on the screen. The Left and Right cursor buttons allow you
to scroll through the devices, with the Up and Down cursor buttons you scroll
through the different pages.
■Animation Mode
Pronto provides navigation feedback through graphical animations of mode
transitions and page transitions. You can enable and disable the animations of
your Pronto in the Settings Pages.
■Multi Language Support
Pronto now supports besides English also Spanish, French, German and Dutch.
Taking a First Look
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 9
User Guide
10

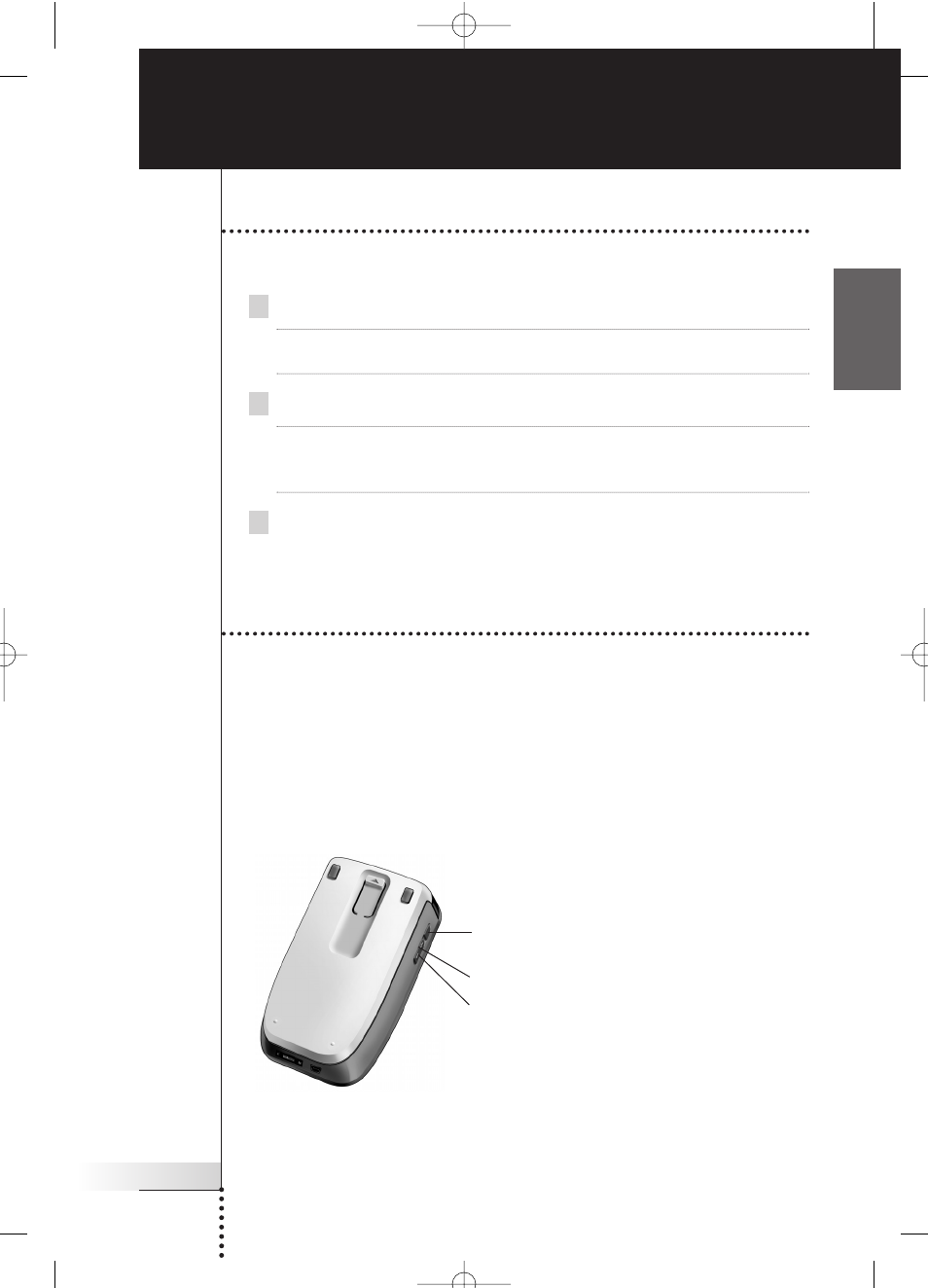

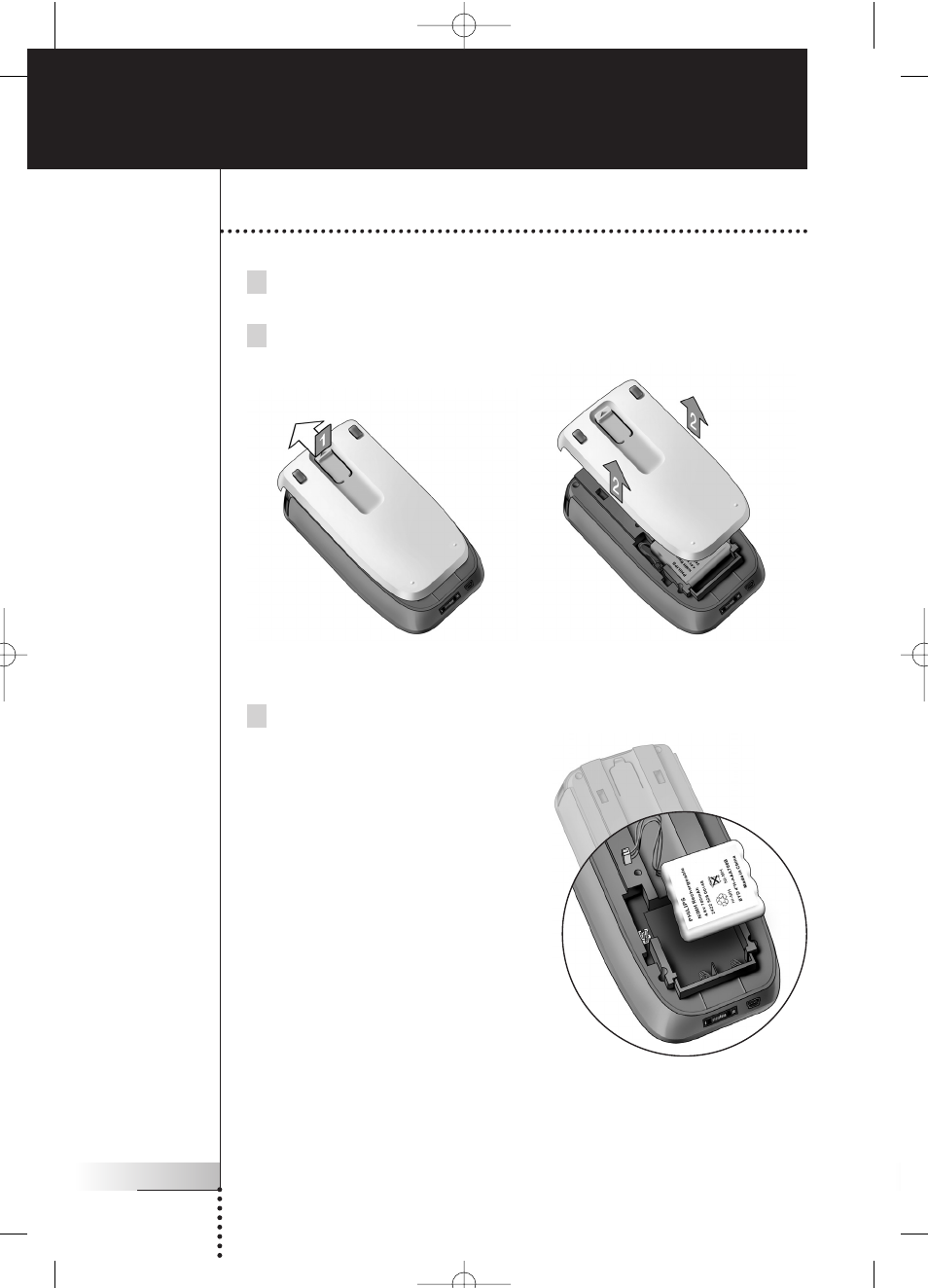

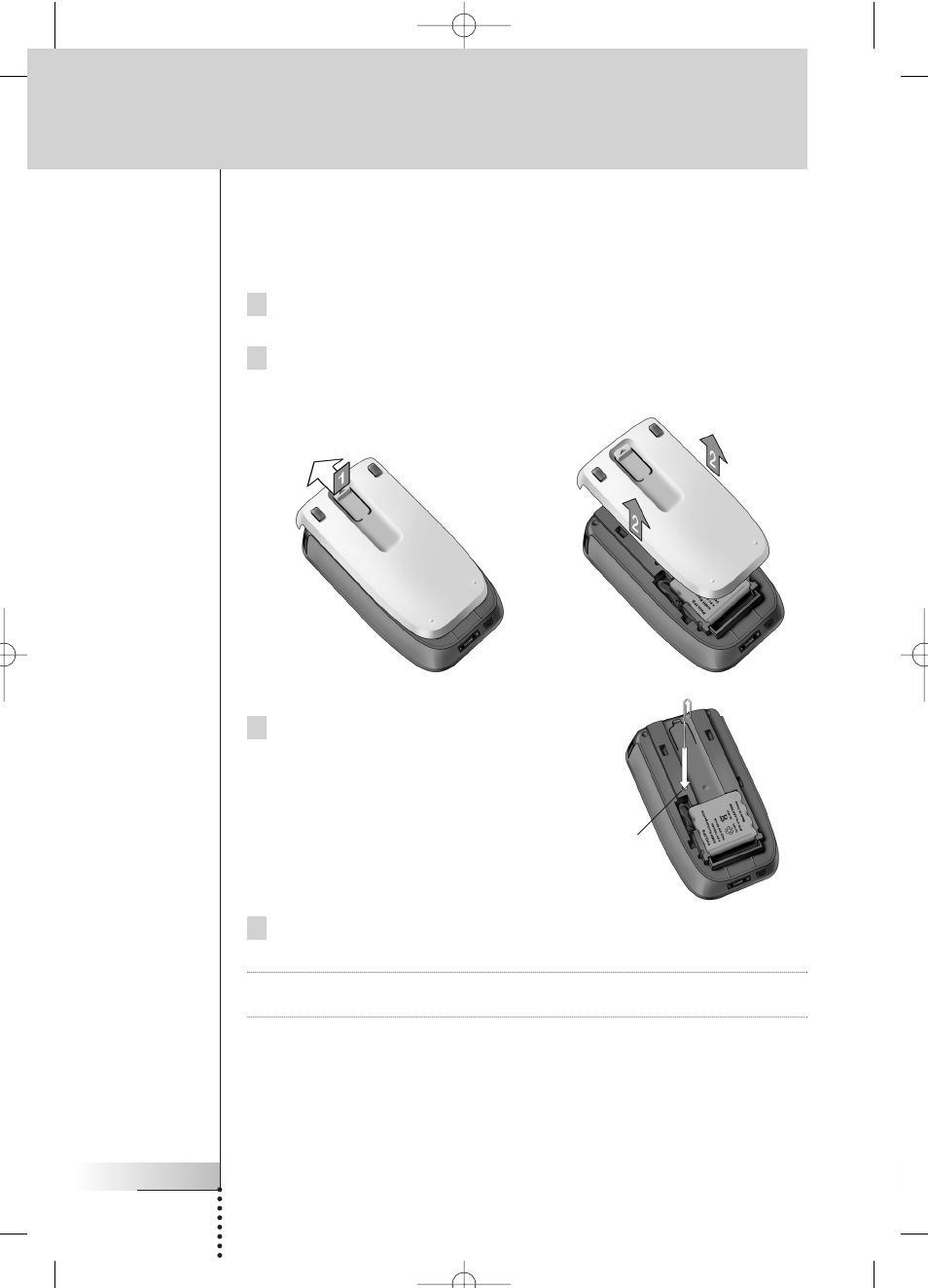

Installing the Battery Pack
1Press the latch on the battery cover with your thumb and then slide the
cover forward firmly.
2 Lift up the battery cover.
Before You Start
3Place the battery pack in the battery compartment.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 10
User Guide
11
EN

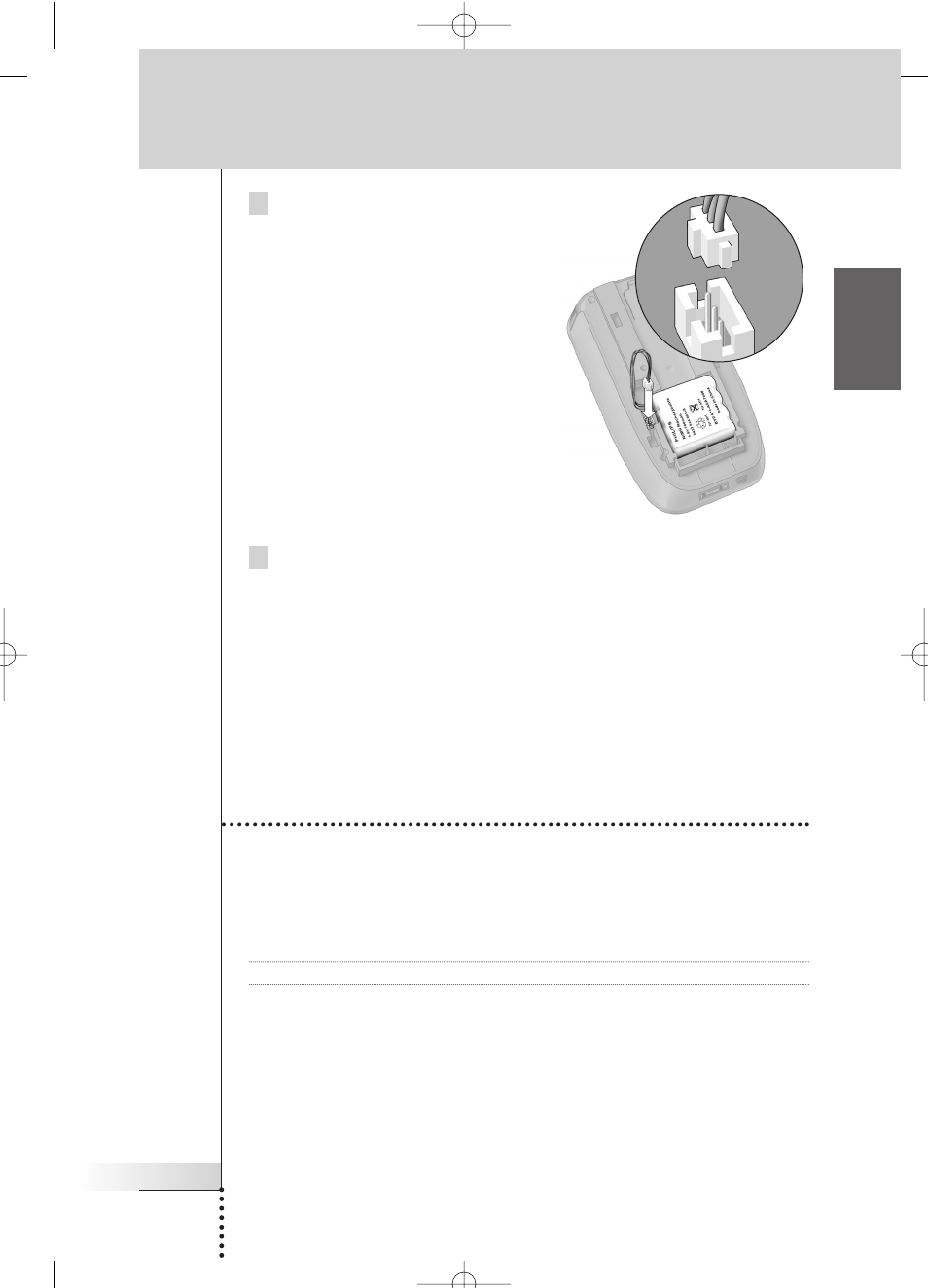

4Plug the cable of the battery pack in
the connector.
5Slide the battery cover back on.
Make sure the wires of the battery pack do not get stuck while sliding the
cover on.
After a few seconds, the Pronto starts up automatically and an introduction
screen appears. The Pronto beeps twice to indicate that it has finished starting
up.
Because the battery pack is not fully pre-charged, you need to charge it as
described below.
Charging the Pronto
For charging the Pronto, you have to place it in the docking station. When the
battery pack is running low, the Low Battery icon will appear on the Pronto.
You can charge the Pronto at any time; the battery pack does not have to be
entirely empty before recharging.
Note You can continue using the Pronto while it is being charged.
When the battery pack is empty, the Pronto’s settings are retained. You only need
to set the clock. However, you should recharge the Pronto as soon as possible to
ensure perfect performance.
Before You Start
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 11
User Guide
12
Before You Start
30° to 45°

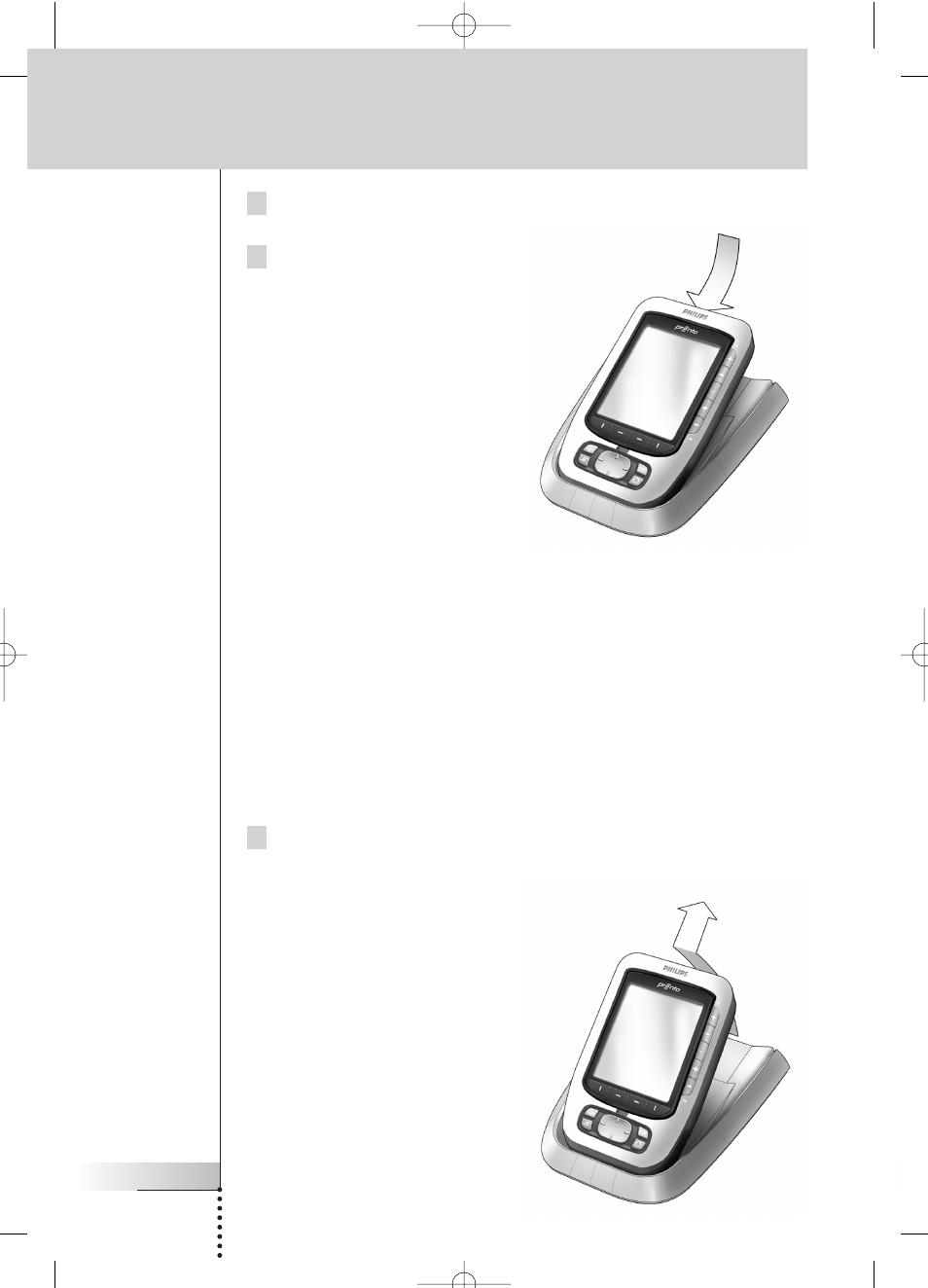

1Plug the power adapter into a wall outlet and connect it to the docking
station.
2 Slide the Pronto in the
docking station until it clicks.
Charging starts immediately. The blue charging LEDs on the front of the docking
station indicate that the battery pack is being charged.
When the Pronto is fully charged, the charging LEDs switch off. Normal charging
time is 2 to 3 hours, depending on the condition of the battery pack.
When the charging LEDs are flashing, an error has occurred. Try one of the
following:
■Make sure the battery pack is properly installed in your Pronto.
■Make sure the Pronto is placed properly in the docking station.
■Check if the connector in the docking station is clean and free of obstructions.
■Cool down the battery pack.
3When the Pronto is fully charged, take it out of the docking station.
Make sure that you first tilt the Pronto to an angle of 30° to 45° and then take
it out of the docking station.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 12
User Guide
13
EN
Turning on Pronto
Pronto can be turned on in three different ways:
Tap the touch screen.
Note Only use your finger, a stylus or a blunt soft object like a pencil eraser to
operate the touch screen.
Press one of the 4 firm keys below the screen to activate the display.
Note When you press a hard button on Pronto, the according function will be
executed immediately, while the 4 firm keys below the touch screen will
activate the display.
Press the Backlight button.
Setting the Contrast
You can set the contrast level and switch on the backlight of Pronto NG using the
hard buttons on the left side of the device.
■To decrease the contrast, press and hold the Backlight button and at the
same time press the ‘-’ hard button.
To increase the contrast, press and hold the Backlight button and at the
same time press the ‘+’ hard button.
■To switch on the backlight, press the Backlight button.
Getting Started
Backlight
& contrast
+
-
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 13
User Guide
14
Getting Started
Setting Time and Date
When you have placed the battery pack and turned on Pronto, you have to set the
current time.
Attention Every time you reset your Pronto you will have to set the time again.
Changing the Time Format
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap button in the Tools Menu.
The first Settings Page appears.
3Tap the Time Format button in the first Settings Page.
The Time Format button toggles between the three time formats:
■12 hour (AM/PM): This is the default format;
■24 hour;
■No time.
4Tap the Pronto icon to exit the Settings Tool.
Changing the Time
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The first Settings Page appears.
3Tap the Time button in the first Settings Page.
The Time button is selected. The labels ‘+’ and ‘-’ appear for the two middle
firm keys.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 14
4To increase the time, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the time, press (and hold) the firm key labeled ‘-’.
5Tap the Time button again.
The new time is set.
6Tap the Pronto icon to exit the Settings Tool.
Changing the Date
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The first Settings Page appears.
To change the day
1Tap the Day button in the first Settings Page.
The Day button is selected. The labels ‘+’ and ‘-’ appear for the two middle
firm keys.
2To increase the days, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the days, press (and hold) the firm key labeled ‘-’.
3Tap the Day button again.
The new day is set.
4When you have changed the date, tap the Pronto icon to exit the
Settings Tool.
To change the month
1Tap the Month button in the first Settings Page.
The Month button is selected. The labels ‘+’ and ‘-’ appear for the two middle
firm keys.
2To increase the months, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the months, press (and hold) the firm key labeled ‘-’.
3Tap the Month button again.
The new month is set.
4When you have changed the date, tap the Pronto icon to exit the
Settings Tool.
User Guide
15
EN
Getting Started
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 15
User Guide
16
Getting Started
To change the year
1Tap the Year button in the first Settings Page.
The Year button is selected. The labels ‘+’ and ‘-’ appear for the two middle
firm keys.
2To increase the years, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the years, press (and hold) the firm key labeled ‘-’.
3Tap the Year button again.
The new year is set.
4When you have changed the date, tap the Pronto icon to exit the
Settings Tool.
Setting the Language
You can change the language used on your Pronto.
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The first Settings Page appears.
3Press the Page down hard button.
The second Settings Page appears.
4Tap in the second Settings Page.
The Language button toggles between five languages:
■English;
■German;
■French;
■Dutch;
■Spanish.
5Tap the Pronto icon to exit the Settings Tool.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 16
User Guide
17
EN
Getting Started
Operating Pronto
Pronto contains a series of customizable devices, each consisting of several device
pages. All active devices on your Pronto are listed in the Device Overview. All the
available device pages are listed per device in the Page Overview.
Device Overview
The Device Overview offers you a list of all the devices you can control with
Pronto. To view the Device Overview, press the Device Overview button at the
top of the touch screen.
You can navigate between the devices in two different ways:
■Tap the device you want to operate from the Device Overview.
■Tap the Device Left button at the top of the touch screen to navigate to
the previous device.
Tap the Device Right button at the top of the touch screen to navigate
to the next device.
By default you navigate through Pronto, using this touch screen navigation. When
cursor navigation is enabled, the Device Left and Device Right button disappear
and the Cursor Navigation icon appears at the top left. You then navigate
through the devices and pages using the cursor. For more information on changing
the touch screen navigation to cursor navigation, see ‘Operating Pronto with the
Cursor’ on page 48.
Device Right
button
Device Left
button
Device Overview
button
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 17
User Guide
18
Getting Started
Page Overview
The Page Overview offers you a list of all the pages for one device. To view the
Page Overview, tap the Page Overview button, that displays the page number in
the upper area of the touch screen.
You can navigate between the different pages in two different ways:
■Tap the page you want to operate from the Page Overview.
■Press the Page Up or Page Down hard button on the left side of
Pronto.
Page
Overview
button
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 18
Settings Tool:
Defining the settings of your Pronto
(p. 32)
Brand Tool:
Defining the brands of your
audio/video equipment (p. 20)
Label Tool:
Labeling buttons, devices and
pages (p. 25)
Delete Tool:
Deleting buttons or devices
(p. 30)
Macro Tool:
Programming a sequence of
commands for one single button
(p. 38)
Timer Tool:
Defining timer actions to be carried
out at predefined times (p. 41)
Learn Tool:
Learning IR codes from other remote
controls (p. 23)
Add Tool:
Adding new devices or copying
existing devices (p. 28)
Move Tool:
Moving devices in the Device
Overview (p. 31)
RF IR Tool:
Defining to operate Pronto with IR
signals or RF signals
(p. 50)
User Guide
19
EN
What makes Pronto so powerful, is the ability to extend its functionality in multiple
ways, like programming additional functions, adding supplementary devices and
changing the interface as it suits you best.
For full editing you can use ProntoEdit software. See ‘ProntoEdit’ on page 53 for
more information.
Using the Tools
Pronto provides different tools. For customizing Pronto you have to switch to the
appropriate tool. Pronto offers 10 different tools in the Tools Menu, each providing
different functionalities:
Customizing Pronto
To enter the Tools Menu, you have to tap and hold the Pronto icon in the
upper left corner of the touch screen for 3 seconds.
You can exit all Tools by tapping the Pronto icon .
Keep in mind that your latest changes to the current page will not be saved
automatically.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 19
User Guide
20
In general, in the Tools:
■Tap to start using the Tool.
■Tap to go back to the Tools Menu.
■Tap to confirm an action and save the changes you made.
■Tap to cancel an action without saving the changes.
■Press the firm key labeled to end a series of actions and go back to
the Tools Menu.
Defining the Brand for a Device
Pronto contains a huge list of brands and their corresponding IR codes in its
database. Pronto uses these IR codes to control devices. Because there are several
brands using specific IR codes, you have to define the brands and the
corresponding code sets for each device. You can either have Pronto autosearch
the brand or select it yourself. If a device’s brand contains more than one IR code
set, you also have to select it.
On the Device Overview you find buttons for the most common video and audio
devices. Pronto is set by default to operate Philips and Marantz devices. For all
devices other than Philips or Marantz, you first have to define the brand before you
can operate them with Pronto.
Selecting the Brand and Code Set for your Device
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds.
The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Brand Tool’ screen appears.
3Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4In the Device Overview, tap the Device for which you want to define
the brand.
A message screen appears.
5Tap .
The ‘Brands’ screen appears.
Customizing Pronto
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 20
User Guide
21
EN
Customizing Pronto
Selecting the brand
1Tap the Scroll Down button or the Scroll Up button next to the
Brands list.
The Brands list scrolls down/up.
Note You can also select the brand via the virtual keyboard by tapping one or more
of the brand’s name characters.
2Tap the brand for the selected Device in the Brands list.
3Tap in the ‘Brands’ screen.
If there is only one code set, the ‘Installing the Brand’ screen appears.
Go to ‘Installing the brand’ below.
-or-
If there is more than one possible code set, a message screen appears.
4Tap .
The ‘Code sets’ screen appears.
Selecting the code set
1If necessary, tap the Scroll Down button or the
Scroll Up button next to the Code Sets list.
The Code Sets list scrolls down/up.
2Tap the code set for the selected Device in the Code Sets list.
3Tap in the ‘Code Sets’ screen.
The ‘Installing the Brand’ screen appears.
Installing the brand
1Tap in the ‘Installing the Brand’ screen.
The first Page of the selected Device appears.
2Tap different buttons to see if the device is responding to the IR codes
for the selected brand and code set.
3Press the left firm key, labeled .
The ‘Installing the Brand’ screen appears again.
4Tap in the ‘Installing the Brand’ screen.
The IR codes for the selected brand and code set are installed.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 21
User Guide
22
Customizing Pronto
Selecting the Brand and searching the Code Set for your device
Note Make sure the device for which you are searching the brand is turned on.
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Brand Tool’ screen appears.
3Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4In the Device Overview, tap the Device for which you want to define
the brand.
A message screen appears.
5Tap .
The ‘Brands’ screen appears.
6Select the brand of your device as described in ‘Selecting the brand’
on page 21.
Searching the code set
1Tap in the ‘Code Sets’ screen.
The ‘Searching the Code Set’ screen appears.
2Tap and point Pronto at the device.
The ‘Searching’ screen appears. Pronto searches through the list of code sets
for the selected brand, by sending out an IR code for each code set.
3When the device for which you are defining the brand, turns off,
tap in the ‘Searching’ screen.
The ‘Installing the Brand’ screen appears.
4To install the brand and code set, follow the instructions described in
‘Installing the brand’ on page 21.
Searching the Brand and Code Set for your device
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Brand Tool’ screen appears.
3Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 22
User Guide
23
EN
Customizing Pronto
4In the Device Overview, tap the Device for which you want to define
the brand.
A message screen appears.
5Tap .
The ‘Brands’ screen appears.
Searching the brand
1Tap in the ‘Brands’ screen.
The ‘Searching the Brand’ screen appears.
2Tap and point Pronto at the device.
The ‘Searching’ screen appears. Pronto searches through the list of brands, by
sending out an IR code for each brand.
3When the device for which you are defining the brand, turns off,
tap in the ‘Searching’ screen.
The ‘Installing the Brand’ screen appears.
4To install the brand and code set, follow the instructions described in
‘Installing the brand’ on page 21.
Learning Commands
If an IR code is not in the database, you can program Pronto commands by
transmitting IR signals from your existing remote control to Pronto’s learning eye.
The Learn Tool allows you to learn a button
or a device action. A device action is an
action that is executed automatically when
you select a device. E.g. when you select TV,
your Pronto can learn to switch on the TV at
the same time. You can also use the Learn
Tool to relearn commands that do not work
properly.
Note Changing the Brand in the Brand Tool
will not have an impact on the learned
codes.

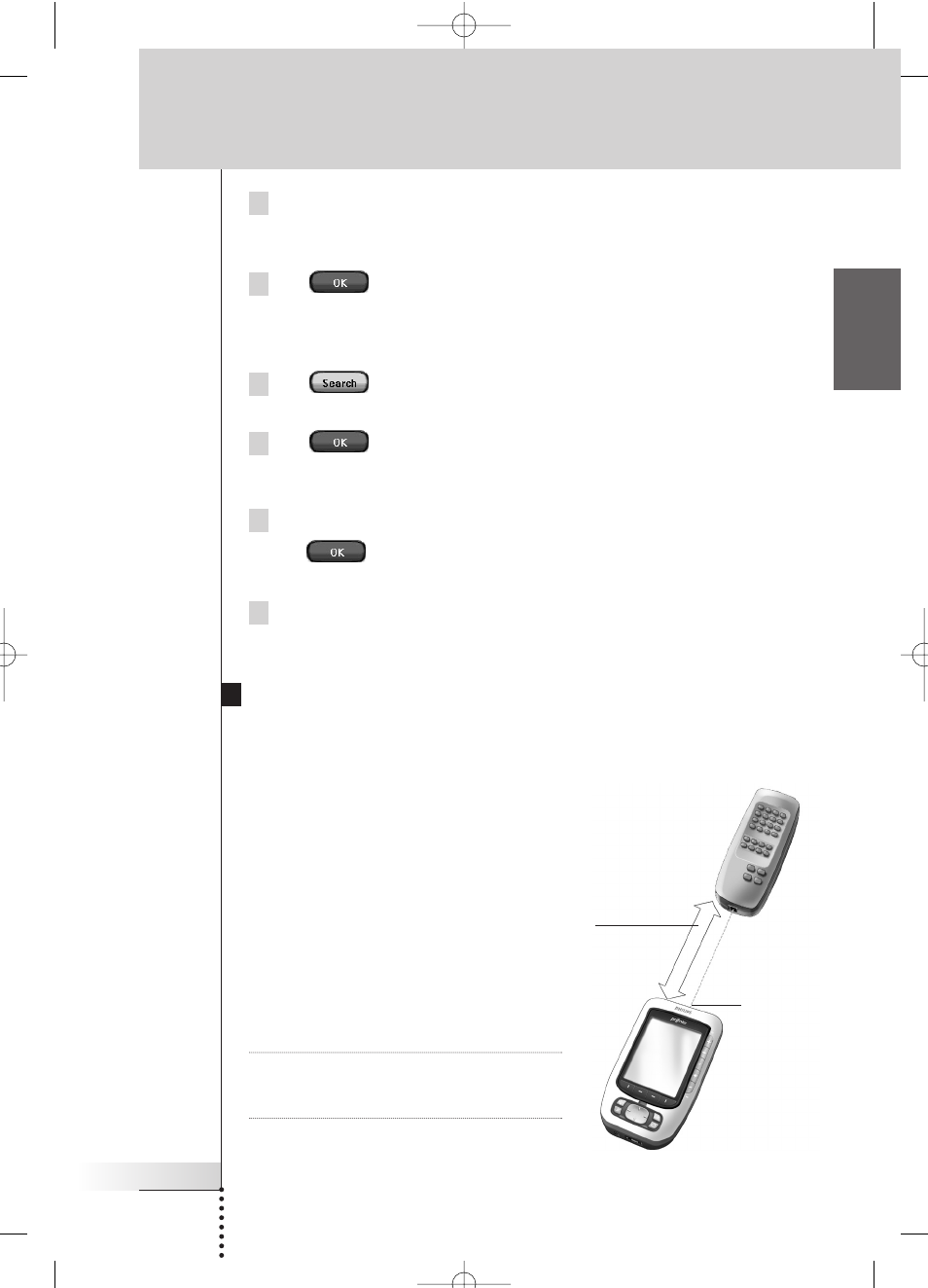

Learning
eye
4 - 8 inches
10 - 20 cm
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 23
User Guide
24
Learning a Button
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds.
The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Learn Tool’ screen appears.
3Tap .
The last page you have visited appears.
4Navigate to the Device and the Page that contains the button you want
to learn.
5Position Pronto and the remote control as illustrated above.
Note Make sure that you aim Pronto’s learning eye at the remote control’s
IR window.
The distance between Pronto and the remote control should be between
4 and 8 inches (10 and 20 cm).
6Tap the button you want to learn.
A Learning indication appears in the upper right corner of the touch screen.
7Press and hold the key on the other remote control for 1 second.
Make sure you press the key within 5 seconds.
If learning succeeded, you will get an OK message.
If learning failed, you will get a Failure message.
See ‘Pronto will not learn commands’ on page 58 for more information.
8When you want Pronto to learn other buttons, repeat steps
6 and 7.
9Press the left firm key labeled below the touch screen to
stop learning.
Learning a Device Action
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds.
The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Learn Tool’ screen appears.
3Tap .
The Device Overview appears.
Customizing Pronto
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 24
User Guide
25
EN
4Position Pronto and the remote control as illustrated above.
Note Make sure that you aim Pronto’s learning eye at the remote control’s
IR window.
The distance between Pronto and the remote control should be between
4 and 8 inches (10 and 20 cm).
5Tap the Device for which you want to learn a Device Action.
A Learning indication appears in the upper right corner of the touch screen.
6Press and hold the key on the other remote control for 1 second.
Make sure you press the key within 5 seconds.
If learning succeeded, you will get an OK message.
If learning failed, you will get a Failure message.
See ‘Pronto will not learn commands’ on page 58 for more information.
7When you want Pronto to learn other device actions, repeat steps
5 and 6.
8Press the left firm key labeled below the touch screen to
stop learning.
Labeling Elements
The Label Tool allows you to label a button, a device or a page. In the Label Tool
you can find a virtual keyboard. This keyboard zooms in when you tap a character.
The keyboard contains four different character sets, including a series of symbols
you can use for labeling. You use the Shift button to switch between the four
character sets on the keyboard.
For a complete list of the symbols, see ‘List of Symbols’ on page 61.
Customizing Pronto
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 25
User Guide
26
Labeling a Button
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Label Tool’ screen appears.
3Tap .
The page you last visited appears.
4Navigate to the Device and the Page that contains the button you want
to label.
5Tap the button you want to label.
The ‘Labeling’ screen appears.
6Tap the keyboard.
The keyboard zooms in.
7Tap the character you want to add to the label.
The character is added to the label. The keyboard automatically zooms out
again.
To zoom out without adding a character to the label, press .
The character is not added to the label. The keyboard is zoomed out.
To use other characters and symbols, press .
The character set on the keyboard switches.
You can choose from four different character sets.
To remove characters, press the firm key labeled .
The character in front of the cursor is removed.
8You can add other characters to the label.
9Tap .
The label of the selected button is changed. The last visited page appears
again.
-or-
Tap .
The last visited page appears again, without changing the label of the selected
button.
10 You can select other buttons on Pronto to label.
11 Press the left firm key labeled below the touch screen to exit
the Label Tool.
Customizing Pronto
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 26
User Guide
27
EN
Labeling a Device
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds.
The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Label Tool’ screen appears.
3Tap .
The Device Overview appears.
4Tap the Device you want to label.
The ‘Labeling’ screen appears.
5Follow the instructions 6 to 8 of ‘Labeling a Button’ on page 26.
6Tap .
The label of the selected Device is changed. The Device Overview appears
again.
-or-
Tap .
The Device Overview appears again, without changing the label of the
selected device.
7You can select other Devices in the Device Overview to label.
8Press the left firm key labeled below the touch screen to exit
the Label Tool.
Labeling a Page
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds.
The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Label Tool’ screen appears.
3Tap in the ‘Label Tool’ screen.
The Page Overview appears.
4Tap the Page you want to label.
The ‘Labeling’ screen appears.
5Follow the instructions 6 to 8 of ‘Labeling a Button’ on page 26.
Customizing Pronto
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 27
User Guide
28
6Tap .
The label of the selected Page is changed. The Page Overview appears again.
-or-
Tap .
The Page Overview appears again, without changing the label of the selected
page.
7You can select another Page in the Page Overview to label.
8Press the left firm key labeled below the touch screen to exit
the Label Tool.
Adding Devices
The Add Tool allows you to add a new device or copy an existing device.
When you add a new device, a device template stored on your Pronto is used to
create the device pages, buttons and functions. By default Philips IR codes are
used when you add a new device. For your brand of device, you then have to
program the new device using the Brand Tool (page 22) or the Learn Tool (page 24).
Copying an existing device saves time. The personal settings you defined for that
device will also be copied.
For instance, if you want to add a second VCR player, you do not have to define the
brand, learn or create macros again. You can just copy them from the existing VCR
player already programmed on your Pronto.
Adding a New Device
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds.
The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Add Tool’ screen appears.
3Tap in the ‘Add Tool’ screen.
The ‘Adding’ screen appears.
4Tap the device template you want to add in the Device Templates list.
The ‘IR Code’ screen appears.
5Tap .
The ‘Actions’ screen appears.
6Tap in the ’Actions’ screen.
The Device is added to Pronto with its actions like IR codes, beeps and delays.
Customizing Pronto
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 28
User Guide
29
EN
-or-
Tap in the ‘Actions’ screen.
The Device is added to Pronto without its actions like IR codes, beeps and
delays. To operate this device, you have to learn every button of the device
with the Learn Tool.
7 Tap .
The Device is added and the Tools Menu appears again.
Note Added devices are automatically positioned at the end of the Device Overview.
You can move devices with the Move Tool. See ‘Moving Devices’ on page 31 for
more information.
Copying an Existing Device
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds.
The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Add Tool’ screen appears.
3Tap in the ‘Add Tool’ screen.
The ‘Adding’ screen appears.
4Tap the Device you want to copy in the Devices list.
The ‘IR Code’ screen appears.
5Tap .
The ‘Actions’ screen appears.
6Tap in the ‘Actions’ screen.
The Device is copied to Pronto with its actions like IR codes, beeps and delays.
-or-
Tap in the ‘Actions’ screen.
The Device is copied to Pronto without its actions like IR codes, beeps and
delays. To operate this device, you have to learn every button of the device
with the Learn Tool.
7 Tap .
The Device is added and the Tools Menu appears again.
Note Added devices are automatically positioned at the end of the Device Overview.
You can move devices with the Move Tool. See ‘Moving Devices’ on page 31 for
more information.
Customizing Pronto
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 29
User Guide
30
Customizing Pronto
Deleting Elements
The Delete Tool allows you to delete a button or a device.
Deleting a Button
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Delete Tool’ screen appears.
3Tap .
The last visited page on the Pronto appears.
4Navigate to the Device and the Page that contains the button you want
to delete.
5Tap the button you want to delete.
A message screen appears.
6Tap .
The button is deleted.
7You can select other buttons on Pronto to delete.
-or-
Press the right firm key labeled to undo the deletion.
The button is restored.
8Press the left firm key labeled below the touch screen to exit
the Delete Tool.
Deleting a Device
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Delete Tool’ screen appears.
3Tap .
The Device Overview appears.
4Tap the Device you want to delete.
A message screen appears.
5Tap .
The Device is deleted.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 30
User Guide
31
EN
Customizing Pronto
6You can select other Devices on Pronto to delete.
-or-
Press the right firm key labeled to undo the deletion.
The Device is restored.
7Press the left firm key labeled below the touch screen to exit
the Delete Tool.
Moving Devices
The Move Tool allows you to move a device up or down the Device Overview,
enabling you to put your most used devices at the top of the list.
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Move Tool’ screen appears.
3Tap the Device you want to move in the Devices list.
4Tap the Move Up or Move Down button below the Devices list
in the ‘Moving’ screen.
The selected Device moves up/down in the Device List.
5Tap in the ‘Moving’ screen.
The Device is moved.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 31
User Guide
32
Customizing Pronto
Adjusting the Settings
In the Settings Pages you can adjust several settings. You can:
■Set the time and date as described earlier, on page 14.
■Set the brightness of the backlight;
■Set the timeout of the LCD screen;
■Set the volume level;
■Set the language of the Pronto, as described earlier, on page 16.
■Set Pronto to operate with the Cursor;
■Set the animation mode;
■Calibrate the touch screen;
■Adjust the screen activation settings.
In the fourth Settings Page you can consult the version information and the
available memory.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 32
User Guide
33
EN
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Select .
The first Settings Page appears.
Setting the Brightness of the Backlight
You can adjust the intensity of the LCD backlight. There are 4 levels of backlight
brightness.
1Tap the button in the first Settings Page.
The Brightness button is selected. The ‘+’ and ‘-’ labels appear on the two
middle firm keys below the touch screen.
2To increase the brightness, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the brightness, press (and hold) the firm key labeled ‘-’.
3Tap the button again.
The new Backlight Brightness is set.
Setting the Timeout of the Button Backlight
The timeout of the Button backlight determines how long the backlight of the
buttons stays active. Shortening the active time will increase Pronto’s battery life.
The button backlight timeout and the LCD screen timeout can work independently.
1Tap in the first Settings Page.
The Backlight Timeout button is selected. The ‘+’ and ‘-’ labels appear on the
two middle hard buttons below the touch screen.
2To increase the timeout, press (and hold) the button labeled ‘+’.
-or-
To decrease the timeout, press (and hold) the button labeled ‘-’.
3Tap again.
The new button backlight timeout is set.
Customizing Pronto
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 33
User Guide
34
Customizing Pronto
Setting the Timeout of the LCD Screen
The timeout of the LCD screen determines how long the LCD touch screen stays
active before turning off. Shortening the active time will increase Pronto’s battery
life.
Note The LCD screen will only time out when you are not using Pronto.
1Tap in the second Settings Page.
The LCD Timeout button is selected. The ‘+’ and ‘-’ labels appear on the two
middle firm keys below the touch screen.
2To increase the timeout, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the timeout, press (and hold) the firm key labeled ‘-’.
3Tap again.
The new LCD screen timeout is set.
Setting the Volume Level
You can set the volume level for the hard buttons as well as for the touch screen
buttons. The volume of the button refers to the loudness of the beep you hear
when you press or tap a button.
Setting the Volume Level of the Hard Buttons
To adjust the volume of the hard buttons, tap in the second
Settings Page.
You can either select 1 of the 3 volume levels or choose to mute. Every time
you press, the volume level increases with one step up to level 3.
Setting the Volume Level of the Touch Screen
To adjust the volume level of the touch screen, tap in the
second Settings Page.
You can either select 1 of the 3 volume levels or choose to mute. Every time
you tap, the volume level increases with one step up to level 3.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 34
User Guide
35
EN
Customizing Pronto
Setting the Navigation for Pronto
The cursor is used by default to operate your devices. You then navigate the Pronto
with the touch screen buttons. However, you can also set the cursor to browse
through Pronto’s devices and pages. For more information on operating the Pronto
with the cursor, see ‘Operating Pronto with the Cursor’ on page 48.
To set the navigation for the Pronto, tap in the second
Settings Page:
■You can select Cursor Navigation-Off to navigate the Pronto with the touch
screen buttons.
■You can select Cursor Navigation-On to navigate the Pronto with the cursor.
Setting the Animation Mode
Pronto provides navigation feedback through graphical animations. Switching
pages is done with a page transition, switching from Use Mode to one of the Tools
is accompanied with a mode transition. You can enable and disable the animations
of your Pronto in the second Settings Page:
■You can disable the animations by choosing ‘None’ (no animations).
By disabling all animations you use the absolute maximum of your Pronto’s
processing speed.
■When changing pages with the ‘Page Only’ animation, one page seems to
slide out of the screen, while the second page slides in.
■The ‘Mode Only’ animation shifts the Pronto icon at the top area of the touch
screen.
■With the option ‘Full’ you can enable both animations at the same time.
Calibrating the Touch Screen
When you first use your Pronto, the touch screen is already calibrated. However, if
you notice that your Pronto does not send out the commands in accordance with
what is indicated on the touch screen, it is advised to recalibrate the touch screen.
Attention Never use an actual pen, pencil or other sharp object on the touch screen. Use a
pointy object like a plastic-tipped pen or a stylus intended for use with touch
screens.
1Tap in the second Settings Page.
The ‘Calibration’ screen appears.
2Tap the upper left corner on the touch screen.
3Tap the lower right corner on the touch screen.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 35
User Guide
36
Customizing Pronto
4 Tap the upper right corner on the touch screen.
5 Tap the lower left corner on the touch screen.
The touch screen is calibrated.
Adjusting the Screen Activation Settings
In the third Settings Page you can adjust the screen activation settings. You can
define when or if you want the LCD backlight to be activated. You can also set
when or if you want the Pronto to send out IR codes or perform button actions.
You can adjust the following screen activation settings:
■Firm keys settings;
■Cursor keys settings.
Tip You can adjust the timeout for the LCD backlight. For more information, see
Setting the Timeout of the LCD Screen on page 34.
Adjusting the Firm Keys Settings
You can set the firm keys settings to 3 different states. The firm keys are located
below the touch screen of your Pronto.
To adjust the firm keys settings of the Pronto, tap in the
third Settings Page. You can now toggle between the following 3 firm keys states:
■: This setting implies that when you press one of the 4 firm keys, your
Pronto will send out the IR code or perform the action assigned to this key.
The LCD backlight will not be activated when pressing a firm key.
■: This setting implies that when you press one of the 4 firm keys, the
LCD backlight will be activated and your Pronto will send out the IR code or
perform the action assigned to this key.
■: This is the default setting of your Pronto. It implies that when you press
one of the 4 firm keys, the LCD backlight will be activated.
The Pronto will not send out an IR code nor perform the button action.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 36
User Guide
37
EN
Customizing Pronto

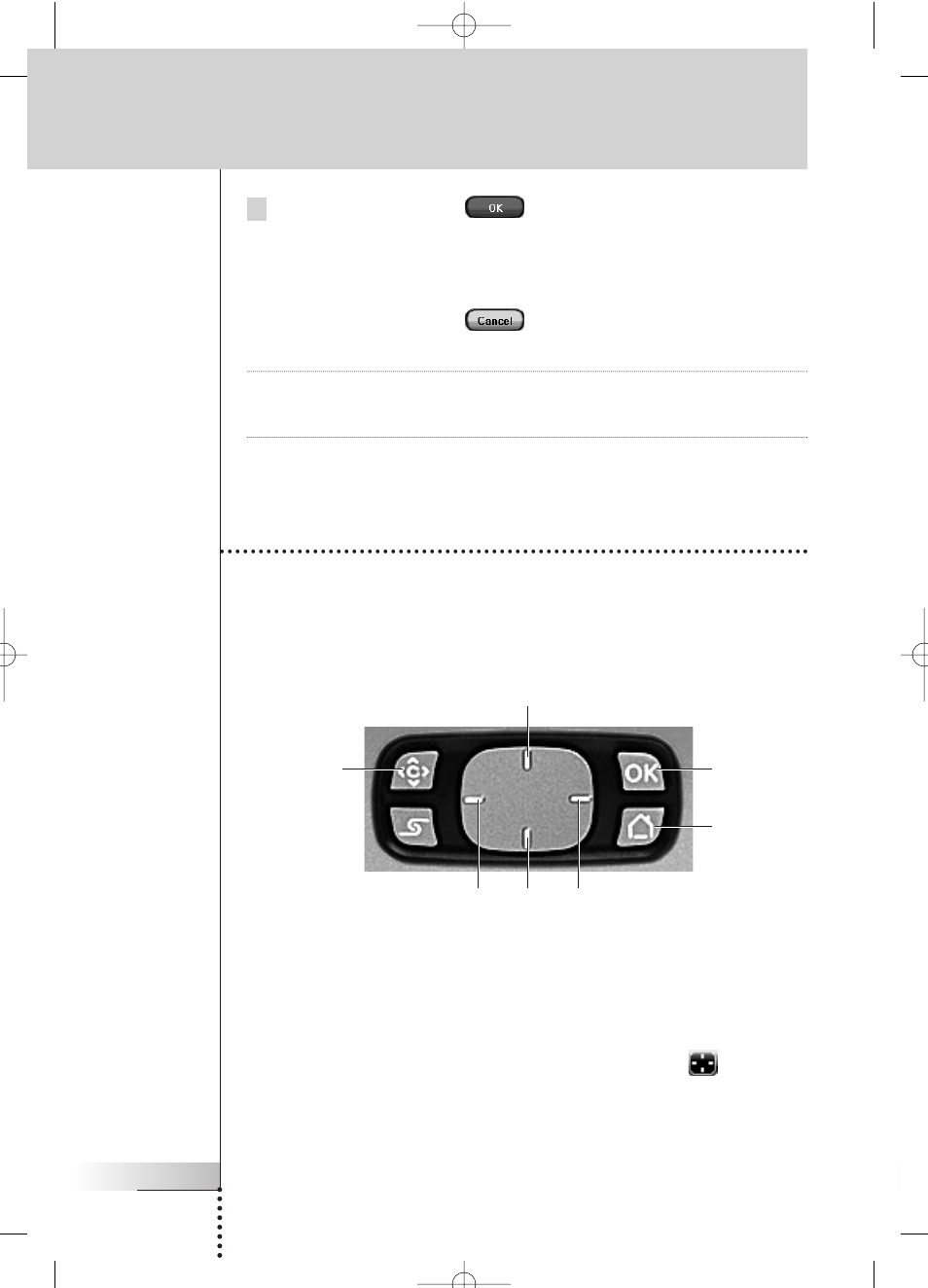

Adjusting the Cursor Keys Settings
You can set the cursor keys settings to 3 different states.
For more information on the cursor keys, see ‘Operating Pronto with the Cursor’ on
page 48.
To adjust the cursor keys settings of the Pronto, tap in the
third Settings Page. You can now toggle between the following 3 cursor keys
states:
■: This setting implies that when you press one of the cursor keys, the LCD
backlight will be activated.
The Pronto will not send out an IR code nor perform the button action.
■: This setting implies that when you press one of the cursor keys, your
Pronto will send out the IR code or perform the action assigned to this key.
The LCD backlight will not be activated when pressing a cursor key.
■: This is the default setting of your Pronto. It implies that when you
press one of cursor keys, the LCD backlight will be activated and your Pronto
will send out the IR code or perform the action assigned to this key.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 37
User Guide
38
Creating and Editing Macros
A macro allows you to send a sequence of commands when tapping one single
button. You can for instance switch on your TV, turn on a movie channel and
prepare your VCR for recording by rewinding the videotape. The macro contains an
action list. The action list can be created and edited in the Macro Tool.
Note Once you have programmed a macro, the button actions will not be changed when
you select another brand in the Brand Tool.
In the Macro Tool you first have to select the button, that will contain the macro,
also called the target button. Then, one by one, you create an action list by
adding actions to this target button. You can do this by:
■Selecting another button and adding its actions to the action list of your
target button.
■Adding a delay to the action list.
■Adding a beep to the action list.
After creating the macro, all actions you added to the action list are executed
when you tap the button.

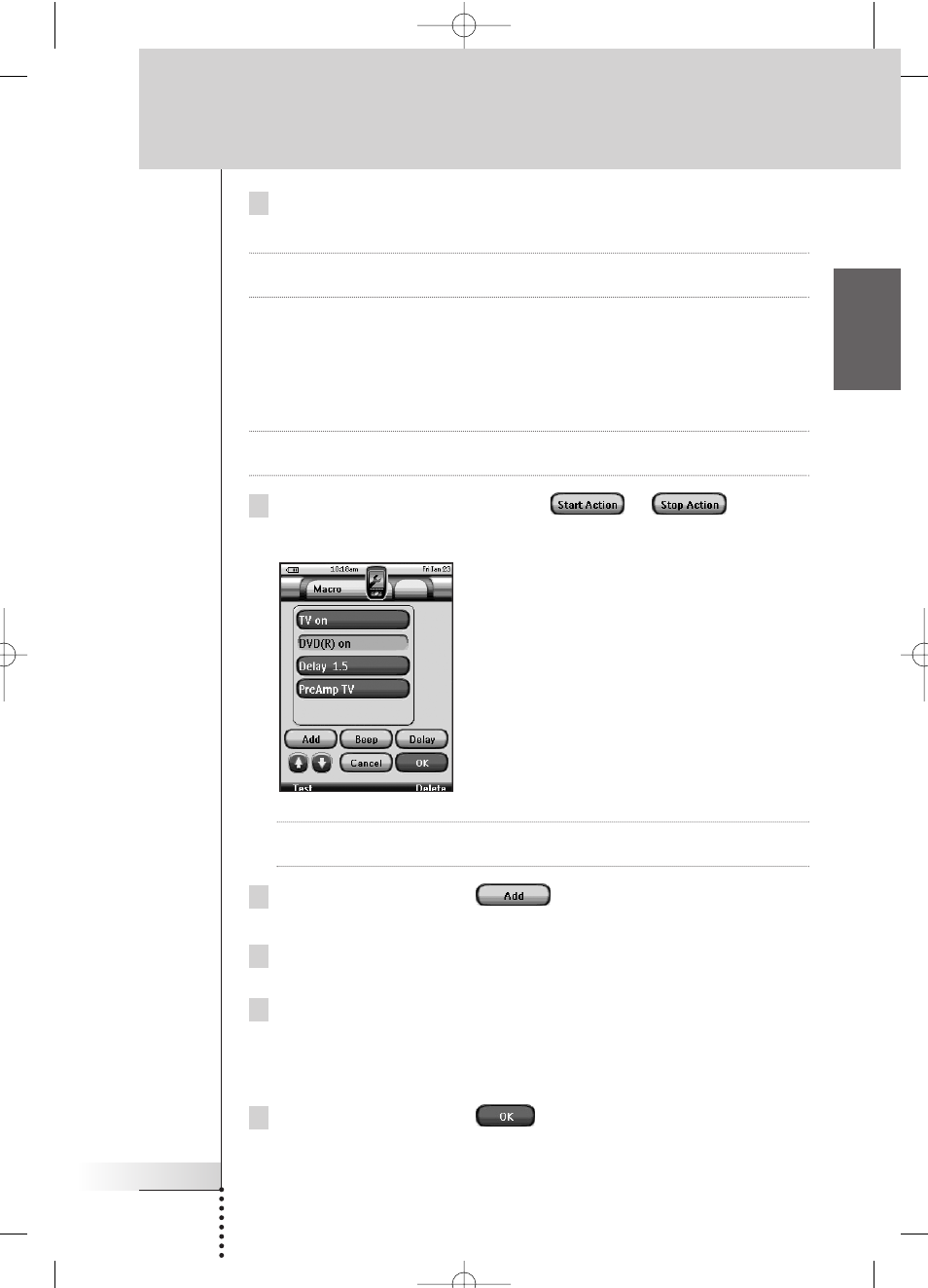

Creating a Macro
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Macro Tool’ screen appears.
3Tap in the ‘Macro Tool’ screen.
The last visited page appears.
4Navigate to the Device and the Page that contains the target button
you want to use for a macro.
5Tap the button you want to select as a target
button.
If you can use the button to program a macro,
the ‘Macro’ screen appears.
-or-
If you cannot use the button to program a
macro, you hear a Failure beep.
Using the Power Features
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 38
User Guide
39
EN
Note You can assign a macro to most buttons of your Pronto.
The hard buttons on the left side of Pronto (Backlight, Page Up and Page Down)
are fixed.
The Toggle and Home button (around the cursor) can only be reprogrammed with
ProntoEdit.
Please refer to ‘ProntoEdit’ on page 53.
To add an action to the action list
1Tap in the ‘Macro’ screen.
The last visited page appears again.
2Navigate to the Device and the Page that contains the button you want
to add to the macro.
3Tap the button with the action(s) you want to add to the macro.
The ‘Macro’ screen appears.
The name of the selected button is added at the bottom of the Action List.
The macro will execute all the actions that are assigned to this button.
4You can select other buttons to add to the macro.
To add a delay to the action list
You can add a delay to the action list e.g. to insert a short pause between turning
on a device and sending commands to it, allowing the device to warm up.
1Tap in the ‘Macro’ screen.
The ‘+’ button and ‘-’ button appear on the two middle firm keys below the
touch screen.
2To increase the delay, tap (and hold) the firm key labeled ‘+’.
-or-
To decrease the delay, tap (and hold) the firm key labeled ‘-’.
Note You can still change the delay later on.
To add a beep to the action list
To determine when the macro execution is finished, it is useful to add a beep as
final command in the action list.
1Select the action in the action list, where you want to add a beep.
The action is selected.
2Tap in the ‘Macro’ screen.
A default beep is added to the action list, after the selected action.
To test the macro
You do not have to exit the Macro Tool to try out the macro you created or edited.
From within the Macro Tool you can test the macro. Pronto executes all actions as
you defined them in the action list.
Using the Power Features
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 39
User Guide
40
In the ‘Macro’ screen, press the left firm key labeled .
Pronto executes the actions in the action list.
Note Make sure that you keep Pronto aimed at your Home Theater equipment during
the macro execution.
To finish the macro
Tap in the ‘Macro’ screen.
The macro is created and assigned to the button you selected as a target.
-or-
Tap in the ‘Macro’ screen.
The Tools Menu appears again without creating the macro.
Editing a Macro
Moving an action in the action list
1To display the ‘Macro’ screen with the action list assigned to the
button, follow the instructions 1 to 5 as described in ‘Creating a Macro’
on page 38.
2Tap the action in the action list you want to move in the ‘Macro’ screen.
The selected action is highlighted.
3In the ‘Macro’ screen, tap the Move Up button or the
Move Down button below the action list.
The selected action moves up/down in the action list.
4You can select other actions to move.
Deleting an action from the action list
1To display the ‘Macro’ screen with the action list assigned to the
button, follow the instructions 1 to 5 as described in ‘Creating a Macro’
on page 38.
2Tap the action in the action list you want to delete in the ‘Macro’
screen.
The selected action is highlighted.
3In the ‘Macro’ screen, press the right firm key labeled .
The selected action is deleted from the action list.
4You can select other actions to delete.
Using the Power Features
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 40
User Guide
41
EN
Creating and Editing Timers
With the Timer Tool you can define actions to be carried out at predefined times.
For instance, you can switch on the lights or program your VCR to record your
favorite daily TV-show.
Note When a timer is executed, you will hear a beep and a Timer message appears on
screen.
If Pronto is performing another task (sending out IR codes, testing a macro, ...)
when a timer is due to be executed, Pronto first continues performing the current
task.
Creating and Editing Timers
Adding a Timer
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3Tap .
The ‘Timer’ screen appears.
4In the ‘Timer’ screen, tap to add a
new timer to the list.
A new timer is added to the Timers list.
By default a new timer is labeled Timer and a
number. It has no start and stop actions defined.
5To label the timer, tap , as described
in ‘Labeling a Timer’ on page 42.
6To define the start and stop actions for the timer, tap , as
described in ‘Editing a Timer’ on page 43.
7In the ‘Timer’ screen, tap .
The ‘Timer’ screen closes and the Tools Menu appears again. The timer is
added.
-or-
In the ‘Timer’ screen, tap .
The Timer screen closes without adding the timer.
Using the Power Features
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 41
User Guide
42
Deleting a Timer
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3Tap .
The ‘Timer’ screen appears.
4Tap the label of the timer you want to delete.
The timer is highlighted.
5In the ‘Timer’ screen, tap .
A message screen appears.
6In the message screen, tap .
The timer is deleted from the list.
7In the ‘Timer’ screen, tap .
The ‘Timer’ screen closes and the Tools Menu appears again. The timer is
deleted.
-or-
In the ‘Timer’ screen, tap .
The Timer screen closes without deleting the Timer.
Labeling a Timer
The default name for a timer is ‘Timer’ followed by a number, for example Timer 5.
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
Using the Power Features
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 42
User Guide
43
EN
3Tap .
The ‘Timer’ screen appears.
4Tap the label of the timer you want to label.
The timer is highlighted.
5In the ‘Timer’ screen, tap .
The ‘Labeling’ screen appears.
6Label the timer as described in ‘Labeling Elements’ on page 25.
7In the ‘Labeling’ screen, tap .
The ‘Timer’ screen appears again and the timer is relabeled.
8In the ‘Timer’ screen, tap .
The Tools Menu appears again.
Editing a Timer
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3Tap .
The ‘Timer’ screen appears.
4Tap the label of the timer you want to edit.
The timer is highlighted.
5In the ‘Timer’ screen, tap .
The ‘Editing Timer’ screen appears.
6To edit the timer, execute the following
steps:
1Set the Start Date.
See ‘Setting the Start Date’ on page 44 for more information.
2Set the Start Time.
See ‘Setting the Start Time or Stop Time’ on page 44 for more information.
3Define the Start Action.
See ‘Defining the Start Action or Stop Action’ on page 45 for more details.
Using the Power Features
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 43
User Guide
44
4Set the Stop Time.
See ‘Setting the Start Time or Stop Time’ below for more information.
5Define the Stop Action.
See ‘Defining the Start Action or Stop Action’ on page 45 for more details.
6Define the Repeat Settings.
See ‘Defining the Repeat Settings’ on page 46 for more information.
7In the ‘Editing Timer’ screen, tap .
The timer settings are defined. The ‘Timer’ screen appears again.
8In the ‘Timer’ screen, tap .
The Tools Menu appears again.
Setting the Start Date
When you add a new timer the Start Date is the current date by default. The Stop
Date is calculated automatically based on the Start Date, the Start Time and the
Stop Time.
To change the Start Date:
1In the ‘Editing Timer’ screen, tap the Day button.
The Day button is selected. The labels ‘+’ and ‘-’ appear for the two middle
firm keys.
2To increase the value, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the value, press (and hold) the firm key labeled ‘-’.
3Tap the Day button again.
The Day is set.
4Repeat step 1 to 3 for the Month and the Year button.
The Start Date is set.
Setting the Start Time or Stop Time
1In the ‘Editing Timer’ screen, tap the Start Time button or Stop Time
button.
The Start Time button or Stop Time button is selected. The labels ‘+’ and ‘-’
appear for the two middle firm keys.
2To increase the time, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the time, press (and hold) the firm key labeled ‘-’.
Using the Power Features
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 44
User Guide
45
EN
3Tap the Time button again.
The new Start Time or Stop Time is set.
Note If the Stop Time lies before the Start Time, the Stop Date automatically jumps to
the next day.
Defining the Start Action or Stop Action
Pronto uses a similar procedure to define the Action List for the Start Action or the
Stop Action of the selected timer as in the Macro Tool. See ‘Creating and Editing
Macros’ on page 38 for more information.
Example Some examples of timer actions are: switching on your lights at a specific time
or recording your favorite daily TV-show with your VCR.
1In the ‘Editing Timer’ screen, tap the or button.
The ‘Macro’ screen appears.
Note You have to define a Start Action before you can define a Stop Action.
The Stop Action button is grayed out until a Start Action is set.
2In the ‘Macro’ screen, tap .
The last visited page appears again.
3Navigate to the Device and the Page that contains the button you want
to add to the macro.
4Tap the button you want to add to the action list of the timer.
The ‘Macro’ screen appears.
The name of the selected button is added at the bottom of the Action List.
The macro will execute all the actions that are assigned to this button.
5In the ‘Macro’ screen, tap .
The Start Action or Stop Action is defined. The ‘Editing Timer’ screen appears
again.
Using the Power Features
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 45
User Guide
46
Using the Power Features
Defining the Repeat Settings
If you want the timer to repeat itself on more than one occasion, you can use the
repeat settings.
1In the ‘Editing Timer’ screen, tap the button.
The ‘Repeat Settings’ screen appears.
2Tap the repeat toggle button .
By default ‘No’ is selected.
The Repeat button toggles between the three settings:
■No: This is the default setting;
■Daily;
■Weekly.
1To change the setting to ‘Daily’, tap the button again.
Every day of the week is automatically selected.
2If you want to set an end date for the repeating timer, select the
End Date check box.
The End Date is enabled.
3Define the End Date, as described in ‘Setting the Start Date’ on
page 44.
The End Date is defined.
-or-
1To change the setting to ‘Weekly’, tap the button again.
The current day is selected.
2Select or deselect the different days of the week on which the
timer has to be executed.
Repeat toggle
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 46
User Guide
47
EN
Using the Power Features
3If you want to set an end date for the repeating timer, select the
End Date check box.
The End Date is enabled.
4Define the End Date, as described in ‘Setting the Start Date’ on
page 44.
The End Date is defined.
-or-
To change the setting to ‘No’, tap the button again.
The timer will not be repeated.
3In the ‘Repeat Settings’ screen, tap .
The ‘Editing Timer’ screen appears again. Feedback about the repeat settings
is provided below the button.
Activating Timers
Note You can only activate timers if the start time is in the future and a start action is
defined for the timer.
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3Tap in the ‘Timer Tool’ information
screen.
The ‘Timer’ screen appears.
4Tap the check box in front of the timer that you want to activate.
The timer is activated.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 47
5In the ‘Timer’ screen, tap .
The ‘Timer’ screen closes and the Tools Menu appears again. The Timer icon
appears next to the time indication.
-or-
In the ‘Timer’ screen, tap .
The Timer screen closes without activating the timer.
Note In the Timers list, activated timers are displayed first, followed by the not-
activated timers. Both activated and not-activated timers are listed
chronologically.
Operating Pronto with the Cursor
The cursor is set by default to operate the devices, e.g. to navigate through an
on-screen TV menu. The cursor contains 4 cursor keys: Right, Left, Up and Down.
Each cursor key contains an action list. This list depends on the device that is
being operated.
The cursor can also be used to navigate through devices and pages on Pronto’s
touch screen.
When you enable the cursor navigation in the Settings Pages, the touch
screen navigation with the Left Device and Right Device buttons at the top area
of the touch screen disappears and the Cursor Navigation icon appears in
the top left corner. You use the cursor for navigating, and not for operating your
devices, until you disable the cursor navigation again.
User Guide
48
Using the Power Features
OK
Home button
Toggle button
Up
DownLeft Right
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 48
User Guide
49
EN
Using the Power Features
To set the cursor navigation:
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Select the .
The first Settings Page appears.
3Press the Page Down hard button at the left side of the Pronto.
The second Settings Page appears.
4Tap in the second Settings Page.
The cursor navigation is enabled. The Toggle hard button is activated.
5Tap the Pronto icon in the top center of the touch screen to exit the
Settings Tool.
To use the cursor for navigating the Pronto:
6Press the Left and Right buttons of the cursor.
Pronto navigates through the devices.
7Press the Up and Down buttons of the cursor.
Pronto navigates through the pages.
8Press the Toggle button to easily switch from navigating on
Pronto to control audio/video equipment.
The Device Left and Device Right buttons appear in the top area of the
touch screen and the cursor is used for controlling audio/video equipment.
9Press the Toggle hard button again to switch back to cursor navigation.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 49
User Guide
50
Using the Power Features
Operating Pronto with RF
By default, Pronto uses infrared (IR) signals to operate devices. IR signals have an
operating distance of approximately 33 ft (10 m).
However, you can choose to have Pronto working with radio frequency (RF)
signals to operate devices from a distance or from an adjacent room. An RF
Extender (not included) is therefore required.
The RF Extender receives RF signals from Pronto and converts them into IR signals,
sent out to the device. Therefore, the RF Extender has to be placed near the device
you are operating with the RF Extender’s sending eye pointed towards the device.
IR signals
Pronto RF Extender
RF signals IR signals
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 50
User Guide
51
EN
Using the Power Features
Selecting RF to Operate your Devices
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Tap in the Tools Menu.
The ‘RF IR Tool’ screen appears.
3Tap .
The Device Overview appears.
4Tap the Device for which you want to select RF.
The ‘Select IR or RF’ screen appears. By default IR is selected in the Sending
Signals list.
The Define RF button is disabled.
5Choose RF in the Sending Signals list.
The Define RF button is enabled.
6Tap .
The ‘RF Settings’ screen appears.
7Select the RF Channel in the RF Channel ID list you use for the
RF Extender.
The RF Channel on the RF Extender has to be the same as the RF Channel on
Pronto.
8Select the Extender ID in the Extender ID list you use for the
RF Extender.
The Extender ID on the RF Extender has to be the same as the Extender ID on
Pronto.
Note You can use several RF Extenders with your Pronto. For each RF Extender you
use for your devices, you need to set the RF Channel and the Extender ID.
The RF Channel is identical for all RF Extenders. The Extender ID is unique for
each RF Extender.
9Tap in the ‘RF Settings’ screen.
The RF settings are saved.
Pronto will send out RF signals for the selected device.
Note Try to keep Pronto and the RF Extender away from metal objects, as this will have
a negative impact on the range.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 51
User Guide
52
Using the Power Features
Selecting IR to Operate your Devices
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds.
The Tools Menu appears.
2Tap in the Tools Menu.
The ‘RF IR Tool’ screen appears.
3Tap .
The Device Overview appears.
4Tap the Device for which you want to select IR.
The ‘Select IR or RF’ screen appears. RF is selected in the Sending Signals list.
5Choose IR in the Sending Signals list.
The ‘Define RF’ button is disabled.
6Tap in the ‘Select IR or RF’ screen.
Pronto will send out IR signals for the selected device.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 52
User Guide
53
EN
ProntoEdit
If you want to personalize your Pronto even more beyond its standard programming
features, ProntoEdit is the tool for you to use. ProntoEdit is Pronto’s companion
software that you find on the included CD-ROM. Please check the website to make
sure that you have the latest version. You can find more information on
http://www.pronto.philips.com.
To learn how to work properly with ProntoEdit, consult its online help system
accessible via the Help menu or by pressing F1.
With ProntoEdit you can:
■Upload and download new configurations to and from your Pronto.
You do this with the PC cable included with your Pronto:
1Plug one end of the cable in the USB port on your computer.
2Plug the other end of the cable in the USB port on Pronto.
■Add, delete, modify and move control panels, devices and commands
anywhere on the touch screen;
■Save, duplicate and share configuration files, codes or devices with other
Pronto users;
■Import new graphics to create new buttons and designs;
■Use .BMP -graphic files. You can now place buttons with a transparent
background on top of a background image and let transparent buttons overlap.
You use the color in the upper left corner of the bitmap as transparency color.
■Personalize configuration files to optimize the use of your Pronto;
■Copy, Paste and Edit plain IR codes that you can exchange with other
Pronto users;
■Preview new configuration files on ProntoEdit Simulator, to check what
Pronto’s interface will look like.
■Create and edit macros. In ProntoEdit you have access to the more advanced
features for macros.
USB port
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 53
User Guide
54
Some example screens of what you can accomplish with ProntoEdit:
ProntoEdit
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 54
User Guide
55
EN
Why don’t my buttons work properly?
When you find that your Pronto does not send out the commands in accordance
with what is indicated on the touch screen, it is advised to recalibrate the touch
screen. Calibration is necessary when you notice that tapping a button activates
one of the adjacent buttons or when you have to tap next to a button to activate it.
Calibration enables Pronto to place the icons on the touch screen in line with their
predefined functions.
Attention Never use an actual pen, pencil or other sharp object on the touch screen. Use a
pointy object like a plastic-tipped pen or a stylus intended for use with touch
screens.
How do I calibrate the touch screen?
1Tap and hold the Pronto icon in the upper left corner of the touch
screen for 3 seconds. The Tools Menu appears.
2Select .
The first Settings Page appears.
3Press the Page Down button at the left side of the Pronto.
The second Settings Page appears.
4Tap in the second Settings Page.
The ‘Calibration’ screen appears.
5Tap the upper left corner on the touch screen.
6Tap the lower right corner on the touch screen.
7 Tap the upper right corner on the touch screen.
8 Tap the lower left corner on the touch screen.
The touch screen is calibrated.
-or-
Press the middle firm key, labeled .
The second Settings Page appears again without calibrating the touch screen.
9Tap the Pronto icon again to exit the Settings Tool.
FAQ
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 55
User Guide
56
How do I reset Pronto?
Normally, resetting Pronto is not necessary. However, if Pronto’s touch screen
freezes or if you notice unusual behavior, you need to perform a reset to get Pronto
running again.
1 Press the latch on the battery cover with your thumb and then slide the
cover forward firmly.
2 Lift off the battery cover.
You can find the Reset button in the battery compartment.
FAQ
3Use an unfolded paperclip or a sharp
pencil to carefully press the Reset
button.
Pronto restarts.
Pronto beeps twice to indicate
it is ready for use.
4Set the time again. See ‘Changing the Time’ on page 14 for more
information.
Note If you reset Pronto, all personal changes like saved and programmed commands,
IR codes, timers and macros are retained.
Why does a device respond to some RF signals and not to others?
Not all commands for all devices work properly with RF signals.
If a device does not respond properly to RF signals sent out by Pronto, you have to
reconfigure Pronto to operate the device with IR signals.
Reset button
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 56
User Guide
57
EN
General Problems
Pronto shuts off automatically
This is a timeout feature of Pronto to save power. You can change the time Pronto
stays active in the Settings Tool.
See ‘Setting the Timeout of the LCD Screen’ on page 34 for more information.
The touch screen buttons on the Pronto do not respond properly
If the touch screen buttons on the Pronto do not respond properly, calibrate the
touch screen.
See ‘Calibrating the Touch Screen’ on page 35 for more information.
Devices do not respond to commands from Pronto
■Make sure the Pronto’s sending eye is pointed towards the device you are
operating.
■Check if the Low Battery icon has appeared on screen. If so, recharge the
batteries.
■Check if your device understands Philips-Marantz RC codes. Normally you can
find this in the documentation of your device.
■Make sure you have defined the correct brands for your devices. (p. 20)
■Make sure you have defined the correct code set for your devices. (p. 21)
■Check if the button you are trying to use is assigned properly via Brand Tool or
via Learn Tool. (p. 23)
■Check if your device is in RF mode. Switch your device back to IR mode. (p. 52)
■If you have set up your Pronto to operate devices with RF signals:
■Check in the RF IR Tool if the devices you want to operate are set up
properly. (p. 51)
■Check if the Extender ID and the Channel on your Pronto match the ID and
the Channel on the RF Extender.
■Make sure the RF Extender is placed near the devices you want to use
with RF signals.
■Make sure that the RF Extender’s sending eye is pointed towards the
device.
■Change the Channel if you notice interferences from other RF channels.
■If you want to use RF signals for devices on different locations, you need more
than one RF Extender. See the User Guide of the RF Extender for more
information.
Troubleshooting
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 57
User Guide
58
Troubleshooting
Customizing Problems
Buttons are not sending the correct commands
■Make sure you have defined the correct brands for your devices. (p. 20)
■Make sure you have defined the correct code set for your devices. (p. 21)
■Make sure you calibrate your screen correctly. (p. 35)
■Check whether the button of the device is learned properly. (p. 23)
■Check whether the macro recorded properly. (p. 38)
Macros do not work
■Make sure Pronto’s sending eye is pointed towards the device the entire time
the macro is being executed.
■The sending eye is located at the top of Pronto.
■Insert delays to allow devices to start up properly.
■Check for inactive buttons in your macro.
■Check if you did not reprogram the buttons. Macros do not store commands,
they store buttons. If you reprogram a button, the macro executes the new
command assigned to the button.
Pronto will not learn commands
■Make sure your Pronto and the remote control are positioned correctly.
■When the sending eye of your existing remote control is not pointed
towards the learning eye of the Pronto, Pronto might not receive the
signals properly. Align the remote controls as correctly as possible.
■When the distance between your existing remote control and the Pronto
is too short or too long, Pronto might not receive the signals properly.
Try out several distances between 4 and 8 inches (10 and 20 centimeters)
to learn the commands.
■Avoid programming Pronto under bright fluorescent light or in sunlight:
it might affect the infrared signals.
■Make sure the batteries in the Pronto are not low.
■Press and hold the key on the other remote control for more than one second.
The configuration file is corrupted
When the configuration file is corrupted, you can use ProntoEdit to download a
new configuration file. Taken into account that all your customized commands,
devices and macros will be lost and you will have to reprogram your Pronto.
Therefore it is recommended to save the configuration by uploading it to the PC
with ProntoEdit.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 58
User Guide
59
EN
Troubleshooting
Timers do not work
■Check if the timer has been activated. (Activating Timer, p. 47)
■Make sure a Start Action for the timer has been defined properly. (p. 45)
■Check whether the date and time of your Pronto are set properly. (p. 14)
Memory Storage Problems
Memory storage problems can be the cause of Pronto not saving a macro. Storage
problems can be caused by a full memory or by low batteries.
■Consult the fourth Settings Page to see how much memory is available. (p. 32)
■Consult the first Settings Page or the battery icon at the top of your screen to
check the battery status. Recharge the batteries if necessary. (p. 11)
Pronto error messages
If one of the following error messages occurs, please contact your dealer or the
Philips customer service:
■Invalid CF version or corrupt flash;
■Incorrect software version.
When your Pronto does not respond and the screen stays blank:
1Download the configuration file again.
2When downloading the configuration file again does not work,
download the firmware from http://www.pronto.philips.com.
Connection to the PC
■Make sure the batteries in the Pronto are not low while using ProntoEdit to
download or upload.
■Do not pull out the USB cable while uploading or downloading a configuration
file.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 59
User Guide
60
Maintaining Pronto
Important Notices
Take care not to scratch the touch screen
Use your finger to tap the touch screen or use plastic-tipped pens intended for use
with touch screen.
Never use an actual pen, pencil or other sharp object on the touch screen.
Protect Pronto from temperature extremes
Keep Pronto away from heaters and other heat sources.
Pronto is not waterproof
Pronto should not be exposed to rain or moisture.
Do not store or use Pronto in any location that is extremely damp or wet.
When you have spilled water on Pronto, you have to take out the batteries and let
Pronto dry for 48 hours before you insert the batteries again.
The touch screen of Pronto contains a glass element
Do not drop Pronto or subject it to any strong impact.
Cleaning Pronto
■Use a soft, damp cloth to clean Pronto.
■If the touch screen of Pronto is spoiled, clean it with a soft cloth moistened
with a diluted window-cleaning solution.
■Do not use a corrosive detergent or an abrasive sponge.
■Avoid the use of abundant water.
Upgrading Pronto
You can find the latest upgrades of your Pronto software (when available) on
http://www.pronto.philips.com. Navigate to the Downloads section. If you are
already registered you can enter your username and password to log in. Otherwise
you can register and become a ProntoZone member for free.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 60
EN
User Guide
61
List of Symbols
Pause
Stop
Normal run; normal speed
Normal run; normal speed
Fast run; fast speed
Fast run; fast speed
Slow run; slow speed
Slow run; slow speed
Eject
Recording, general
Key
Navigate
Still mode
Tape running direction
Next track
Previous track
Fast forward to index
Rewind to index
Frame by frame, general
Frame by frame, general
Subtitle
Cancel picture
Picture-in-picture mode
Menu
Picture-in-picture shift
Picture-in-picture swap
Multi-picture display
Picture-in-picture select
Teletext mode
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 61
User Guide
62
List of Symbols
Page number up
Page number down
Page enlargement
TV and text mixed
1st or 2nd language
Last view; previous program
Stand-by
Zone focus: long distance
Zone focus: very short distance
Single or multi-digit selection
Brightness; brilliance
Contrast
Brightness/contrast
Color saturation
Lamp; lighting; illumination
Split screen freeze / double screen freeze
Split screen swap / double screen swap
Split screen / double screen
Movie expand
Personal preference
Picture-in-picture freeze
Main index page
Picture freeze
Programmable timer; general
Enter
Application assistance
Actual time on screen
EPG / Electronic Program Guide
Video output
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 62
EN
User Guide
63
List of Symbols
Read data from store
Write data into store
Page hold
Sound muting
Additional information on screen
Spatial sound effect
Television; video
Sound; audio
Surround sound
Dolby Digital
Digital Theater Systems
Active control
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 63
User Guide
64
Specifications
The specifications and design of this product are subject to change without notice.
Display Monochrome 3.8” touch screen LCD with 16 gray scales and
digital contrast control
320x240 pixels resolution
White LED-backlight for LCD and buttons
Interface USB 1.1-port connector
Software Database with IR codes to operate more than 800 brands
Built-in Philips IR codes
Total number of devices only limited by memory
Infrared (IR) 4 high performance IR-sending LEDs, 1 receiver LED
Operating distance of approximately 33 ft (10 m)
Learning frequency up to 78 KHz and 455 KHz
Radio frequency 16 Extender ID’s and 4 Channels
(RF) TSU3500: Band: 418 MHz SBC RU960: Band: 434 MHz
Memory 4 Mbytes
Power Power on by tapping the touch screen or by pressing a button
Power off automatically
Dimensions 6.07 inch x 3.64 inch x 1.10 inch
(HxWxD) (154,2 mm x 92,4 mm x 27,8 mm )
Operating 41°-113° F
temperature (5° – 45° C)
Accessories Included:
USB cable for PC connection
CD-ROM with ProntoEdit software
Docking station
AAA rechargeable battery pack (4x1.2 V)
Not included:
RF Extender
ProntoEdit PC requirements:
Windows 98SE, ME, 2000, XP
64 MB of RAM
75 MB of free hard disk space
Free USB Port
CD-ROM player
IR-database information:
Redesigned by UEI Technology
Licensed under U.S. Patent 5,689,353
Portions © UEI 1999
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 64
User Guide
65
EN
Action An action is a command that will be executed by Pronto. An action can
be an IR code, a link, a delay or a beep. You can assign one or more
actions to a button or a hard button. It is the same as a macro.
Action list An action list is a list of actions assigned to a button or a hard button.
An action list can contain up to 250 actions.
Animation mode Pronto provides navigation feedback through graphical animations.
These animations can be found in the Animation mode. You can enable
and disable the animations of your Pronto in the Settings Pages.
Branding Pronto contains a list of brands and their according IR codes in its
database. Pronto uses IR codes to control devices. Because there are
several brands using specific IR codes, you have to define the brand and
code set for each device.
Button alias See Link.
Button backlight The Button backlight is a special light source that is placed behind the
hard buttons on your Pronto, enhancing the visibility of these buttons.
Calibration Calibrating the touch screen enables Pronto to exactly match the icons
on the touch screen with their predefined functions.
Code set A code set is a list of IR codes. Audio and video devices of different
brands use different code sets. A device can only receive and execute
functions from the correct code set.
Cursor navigation There are two ways of navigating through Pronto: using the touch screen
or using the cursor for navigation. When you select cursor navigation,
the cursor can only be used for navigating through devices and pages on
Pronto touch screen, not for controlling audio/video equipment.
Delay A delay is a pause between two actions. A delay gives the device
enough time to execute the first action before it receives an impulse to
execute a second action.
Device Every device in the configuration file appears on the Device Overview
Page of Pronto and in the tree view in ProntoEdit. A device represents
the equipment you want to control with Pronto, for instance a TV, VCR,
CD player, Amplifier, Satellite receiver or any device operated by an IR
remote. The device contains a number of pages with buttons.
Device action A device action is an action that is executed automatically when you
select a device. E.g. when you select TV, you can learn your Pronto to
switch on the TV at the same time.
Device Overview You use the Device Overview on Pronto to access the different devices.
The Device Overview contains buttons for each device in the
configuration. By pressing these buttons you navigate to the first page
of the selected device.
Device settings The device settings are the type of device, the brand, the IR code set
and the functions. In order to control a device with your Pronto, you first
have to set the device settings.
Glossary
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 65
User Guide
66
Glossary
Device template You can create a template from a device in ProntoEdit Advanced Mode.
When you add a new device on Pronto, this template will be used.
Firm key Pronto has 4 firm keys located below the touch screen. The label of a
firm key is displayed at the bottom of the touch screen. You can
configure the functions of the firm keys, just like most hard buttons and
the buttons on the touch screen. The strength of the firm keys is that
you can also configure their label, so they can always indicate the
function assigned to them.
Hard button A hard button is a button that can be pressed and generates an event.
Hard buttons can be found on Pronto. Their layout and visual aspects
cannot be changed. You can configure the functions of the hard buttons,
just like the firm keys and the buttons on the touch screen.
IR Short for infrared.
IR code Pronto sends out infrared (IR) signals to operate devices. IR codes for all
kinds of video and audio device brands are stored in Pronto’s universal
database. By selecting IR codes and assigning them to buttons and hard
buttons, you can program your Pronto to operate your equipment. When
IR codes are not present in the database, you can always learn them
from the conventional remote control of your equipment.
Label A label is the text you want to put on a soft button or a firm key.
LCD Short for liquid crystal display.
LCD backlight LCD backlight is a special light source that is placed behind the LCD
screen, enhancing the visibility of the screen.
Link A link, also called a button alias, is a shortcut from the action list of one
button to the action list of another button. Instead of adding the same
actions to several buttons or hard buttons, you can create a link and
reuse the action list. When your Pronto is executing an action list and
comes across a link, the action list referred to by that link is executed.
Macro A macro is a sequence of actions executed when pressing a single
button on Pronto. Every button or hard button can act as a macro and
perform a list of commands. It is the same as an action list.
Mode animation When you switch from using the Pronto to the Tools Menu, the Pronto
icon shifts at the top area of the touch screen. This is called a ‘mode
animation’.
Page A page of a device is the area of 320 by 240 pixels on Pronto's touch
screen containing buttons or other objects.
Page animation When you switch from one page to another, the first page slides out of
the screen and the second page slides in the screen. This is called a
‘page animation’.
Pronto Pronto is a universal remote control with a touch screen. You can
customize and fully configure Pronto to your personal needs: the devices
you want to operate, the functions you want to perform and the layout
on Pronto.
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 66
User Guide
67
EN
Glossary
ProntoEdit ProntoEdit is the visual editor for creating and configuring Pronto
Configuration Files.
RF Short for Radio Frequency.
RF code You can choose to operate your devices with RF signals instead of IR
signals. To use RF signals, you need an RF Extender. The advantage of
RF is that it spreads in all directions and that it pervades walls. In other
words, you can operate your devices from an adjacent room.
RF Extender An RF Extender is a converter box that receives RF signals and turns
them into IR signals to operate devices. When your Pronto sends out RF
codes, the RF Extender receives them and sends out IR codes to your
devices.
Settings Tool The Settings Tool allow you to consult and adjust several settings, for
instance consulting the battery level, setting the date and time,
calibrating the touch screen, ...
Simulator Pronto simulator is a separate application in ProntoEdit package, which
simulates every aspect of your Pronto. You use Pronto simulator to test
your PCF without the need to download it to your Pronto. When you
make changes in Pronto simulator, they will not be saved in the
configuration file.
Soft button A soft button is a button that can be found on the touch screen. The
layout and the visual aspects of a soft button can be changed. You can
also configure the functions of the soft buttons.
Timer A timer allows you to define actions to be carried out at predefined
times. For instance, you can set an alarm or program your VCR to record
your favorite daily TV-show.
Touch screen The touch screen of your Pronto is the centered area that contains soft
buttons you can use to operate the remote control.
USB USB (Universal Serial Bus) is a ‘plug and play’ interface between a
computer and add-on devices (such as audio players, joysticks,
keyboards, telephones, scanners, and printers).
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 67
User Guide
68
Index
A
action, 39
action list
action, 39
beep, 39
delay, 39
activating timer, 47
Add Tool, 28
adding
action, 39
beep, 39
delay, 39
new device, 28
timer, 41
adjusting
button backlight timeout, 33
LCD screen timeout, 34
light level, 33
volume level, 34
animation mode, 9, 35
full, 35
mode, 35
none, 35
page, 35
B
batteries, 10
battery compartment, 6
battery cover, 10
battery pack, 10
battery pack installing, 10
beep, 39
brand
installing, 21
searching, 22
selecting, 21, 22
Brand Tool, 20
button, 5
backlight, 6, 33
contrast, 13
cursor, 5, 48
hard buttons, 5
labeling, 26
learning, 24
Page down, 6
Page up, 6
reset, 6
Toggle, 49
button action deleting, 30
Button backlight timeout, 33
C
calibrating the touch screen, 35
changing
date, 15
language, 16
time, 14
time format, 14
channel
channel down, 5
channel up, 5
charging Pronto, 11
clock settings. See time
code set
searching, 22
selecting, 21
connection to docking station, 6
contrast, 13
copying existing device, 29
creating macro, 38
cursor, 5, 48
cursor navigation, 9, 35
D
date, 14
delay, 39
Delete Tool, 30
deleting
action in a macro, 40
button, 30
device, 30
timer, 42
device
adding, 28
copying, 29
deleting, 30
labeling, 27
moving, 31
device action learning, 24
Device Overview, 17
docking station, 8, 12
download, 53
E
editing
macro, 40
timer, 43
error message, 59
H
Home Theater Control Panel, 4
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 68
User Guide
69
EN
Index
I
infrared, 50
installing battery pack, 10
installing brand, 21
IR signals, 50, 51, 52
K
keyboard, 25
symbols, 25, 61
zoom, 25
L
Label Tool, 25
labeling
button, 26
device, 27
page, 27
symbols, 25, 61
timer, 42
language, 16
LCD backlight timeout, 32
LCD screen, 5
LCD screen timeout, 33
Learn Tool, 23
learning
button, 24
device action, 24
remote control, 23
M
macro, 9
action, 39
beep, 39
creating, 38
delay, 39
deleting action, 40
editing, 40
move, 40
testing, 39
troubleshooting, 58
Macro Tool, 38
memory, 9
mode animation, 35
move action in a macro, 40
Move Tool, 31
Moving a Device, 31
multi language support, 9
N
navigation
cursor, 9, 35, 48
touch screen, 35, 48
O
operating the Pronto
cursor navigation, 48
RF signals, 50
touch screen navigation, 48
troubleshooting, 57
Overview
Device, 17
Page, 18
P
page animation, 35
page labeling, 27
Page Overview, 9, 18
Pronto, 4
adjusting the settings, 32
appliance, 5
charging, 11
customizing, 19
Device Overview, 17
IR signals, 52
maintaining, 60
operating, 17
Page Overview, 18
resetting, 56
RF signals, 51
specifications, 64
touch screen, 7
turning on, 13
upgrading, 60
USB cable, 53
USB port, 53
ProntoEdit, 53
ProntoEdit Simulator, 53
R
radio frequency, 50
Remote Control, 4
repeat settings, 46
resetting the Pronto, 56
RF Extender, 50
RF IR Tool, 50
RF signals, 50, 56
S
screen, 5, 7
calibrating, 35
light level, 33
timeout, 34
searching
brand, 22
code set, 22
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 69
User Guide
70
Index
selecting
brand, 20, 22
code set, 21
settings, 32
animation mode, 35
button backlight timeout, 33
calibrating the touch screen, 35
date, 14, 15
language, 16
LCD backlight timeout, 32
LCD screen timeout, 33
switch level, 32
time, 14
time format, 14
volume level, 34
Simulator, 53
specifications, 64
start action, 45
start date, 44
start time, 44
stop action, 45
stop time, 44
storage problems, 59
symbols, 25, 26, 61
T
testing the macro, 39
time, 14
time format, 14
timer, 9
activating, 47
adding, 41
deleting, 42
editing, 43
labeling, 42
repeat settings, 46
start action, 45
start date, 44
start time, 44
stop action, 45
stop time, 44
Timer Tool, 41
Toggle button, 48
Tool, 19
Add, 28
Brand, 20
Delete, 30
Label, 25
Learn, 23
Macro, 38
Moving, 31
RF IR, 50
Timer, 41
touch screen, 5, 7
touch screen calibration, 35, 55
transparency, 9
turning on Pronto, 13
U
upgrading, 60
upload, 53
USB, 9
USB cable, 53
USB port, 6, 53
V
volume
mute, 5
volume down, 5
volume level, 34
volume up, 5
volume level
hard buttons, 34
touch screen buttons, 34
Documentation concept and elaboration:
The Human Interface Group, De Regenboog 11, 2800 Mechelen, Belgium,
http://www.higroup.com
ProntoNG_0705_ML_1EN.qxd 22-08-2005 10:57 Pagina 70
