Users Manual
ProntoPro NG
TSU7000
Home Theater Control
Panel
User Guide
FCC Compliancy....................................................................................4
FCC Information for User..................................................................... 4
@@@CE Compliancy............................................................................ 4
Taking a First Look...............................................................................5
ProntoPro NG: The Home Theater Control Panel.............................. 5
The Device....................................................................................... 5
The Touch Screen ............................................................................ 6
The Docking Station ........................................................................ 7
What’s New for ProntoPro Next Generation? ..................................... 8
Before You Start...................................................................................9
Placing the Battery Pack........................................................................ 9
Installing the Battery Pack .................................................................... 9
Charging the ProntoPro NG................................................................ 10
Getting Started ..................................................................................11
Turning on ProntoPro NG................................................................... 11
Setting Time and Date.......................................................................... 11
Changing the Time Format ............................................................ 11
Changing the Time......................................................................... 12
Changing the Date.......................................................................... 12
Setting the Language...................................................................... 13
Operating ProntoPro NG..................................................................... 14
Device Overview............................................................................ 14
Page Overview............................................................................... 14
Customizing ProntoPro NG ................................................................16
Using the Tools...................................................................................... 16
Defining the Brand for a Device .................................................... 17
Learning Commands...................................................................... 19
Labeling Elements.......................................................................... 20
Adding Devices.............................................................................. 23
Deleting Elements.......................................................................... 24
Moving Devices ............................................................................. 24
Adjusting the Settings .......................................................................... 26
Setting the Timeout of the LCD Screen......................................... 26
Setting the Brightness of the Backlight.......................................... 27
Setting the Volume Level .............................................................. 27
Setting the Navigation for ProntoPro NG ...................................... 27
Setting the Animation Mode .......................................................... 27
Calibrating the Touch Screen......................................................... 28
Using the Power Features ..................................................................29
Creating and Editing Macros .............................................................. 29
Creating a Macro............................................................................ 29
Editing a Macro.............................................................................. 31
Activating Timers ................................................................................. 31

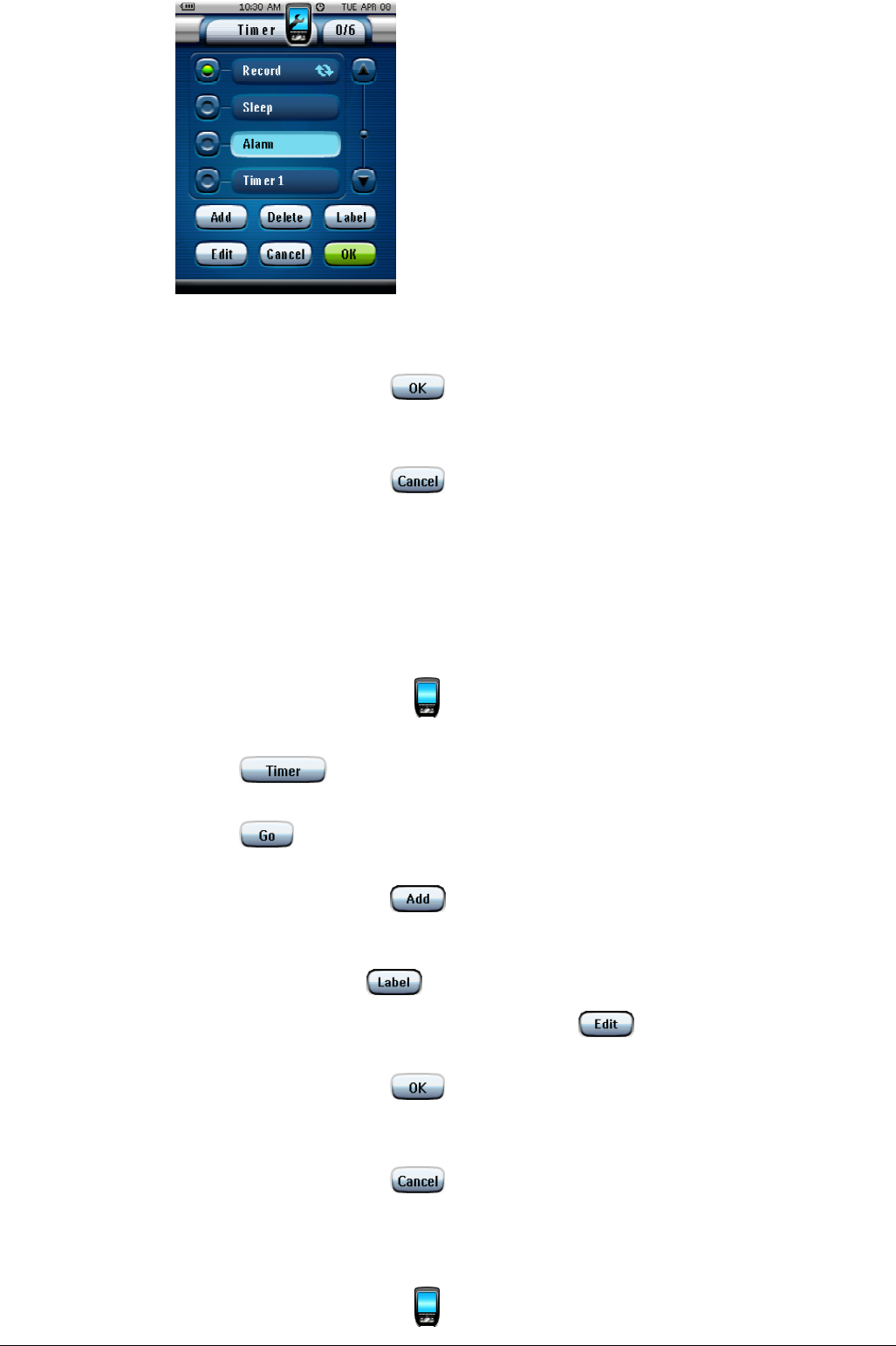

Creating and Editing Timers............................................................... 32
Operating ProntoPro NG with the Cursor......................................... 37
Operating ProntoPro NG with RF...................................................... 37
Selecting RF to Operate your Devices ........................................... 38
Selecting IR to Operate your Devices............................................ 39
ProntoProEdit NG ...............................................................................40
FAQ.....................................................................................................41
Troubleshooting .................................................................................43
General Problems ................................................................................. 43
Customizing Problems ......................................................................... 43
Memory Storage Problems .................................................................. 44
ProntoPro NG error messages............................................................. 44
Connection to the PC............................................................................ 44
Maintaining ProntoPro NG .................................................................45
Important Notices................................................................................. 45
Cleaning ProntoPro NG....................................................................... 45
List of Symbols ...................................................................................46
Specifications .....................................................................................48
Glossary..............................................................................................49
Index..................................................................................................52
Copyright............................................................................................54
FCC Compliancy 4
FCC Compliancy
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rule. These limits are designed to provide reasonable protection against
harmful interference in residential installations. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If the equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a different circuit from the receiver.
Consult the dealer or an experienced radio/TV technician for help.
FCC Information for User
Caution
Changes or modifications made by the user not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
@@@CE Compliancy
SBC RU980
Made in Belgium / Fabriqué en Belgique
CE0682 (!)
This device can be used in:
AT BE DE DK GR ES FI FR
IRE IT LU NL NO PT SE UK
Taking a First Look 5
Taking a First Look
ProntoPro NG: The Home Theater Control Panel
ProntoPro NG is a Home Theater Control Panel that allows maximum flexibility and customization
for even the most sophisticated home entertainment system. It can control almost any device that
understands infrared (IR) remote control signals. Its intuitive interface makes it a perfect remote
control for every user.
ProntoPro NG is easy to configure. It contains a huge universal database where IR codes are stored to
control different brands for all kinds of video, audio devices and even home automation equipment.
By default ProntoPro NG is set up to control Philips and Marantz devices. For other brands you
simply choose the brands of your devices when you use ProntoPro NG for the first time.
Furthermore the ProntoPro NG is equiped with a color touch screen. This TFT-display supports 65536
colors so you can upload any color picture.
ProntoPro NG offers you some extra powerful features:
You can create and edit macros, allowing you to send a series of commands with one single touch.
You can set timers for certain actions to be carried out at predefined times, e.g switching on your
lights or recording your favourite daily TV-show with your VCR.
You can choose to have ProntoPro NG working with radio frequency (RF) signals to operate
devices from a distance or from an adjacent room. To do this, you need an optional RF Extender
that converts ProntoPro NG RF signals into IR signals.
With ProntoProEdit NG software you can create your own screens and define a personal look.
ProntoProEdit NG’s Online Help system (accessible via the ‘Help’ icon in ProntoProEdit NG) will
guide you through the process. You can find ProntoProEdit NG on the included CD-ROM and on the
Philips website www.pronto.philips.com. See “ProntoProEdit NG” on page 40 for more information.
The Device
ProntoPro NG has several hard buttons. Most are freely programmable, some have a predefined
function:
The buttons on the left side of ProntoPro NG of the screen have predefined functions: Page up,
Page down and Backlight
The 4 firm keys below the touch screen are freely programmable. You can reprogram the function
of these buttons and change the label on the touch screen.
The cursor and the OK and Home buttons on the right side of the cursor are programmed to
operate devices (e.g. navigating through the on screen menu of your TV). With the Toggle button
you can change the working of the cursor.
The buttons on the right side of the screen are used to control the volume and channel: Channel up,
Channel down, Mute, Volume up and Volume down.
Although these buttons each have a predefined function, you can program them yourself. If you
learn one of these buttons or assign a macro to it, its predefined function for that database will be
permanently lost.
Learning eye
Taking a First Look 6
The Touch Screen
Channel up
Channel down
Mute
Volume up
LCD touch screen
Firm keys
Cursor
USB port
Volume down
Reset button
Battery
compartment
Connection to
docking station
Backlight
Page down
O
K
Home
Page up
Free
p
rogrammable
Toggle
button
Taking a First Look 7
@@@
The Docking Station
The docking station is used to charge the ProntoPro NG’s battery pack.
When your ProntoPro NG is placed in the docking station, you can connect ProntoPro NG to your
computer via the USB port of the docking station, instead of the USB port of the ProntoPro NG.
Pronto
Icon Device
Overview
button
Page
Overview
button
Previous
Device
Next
Device
Soft
buttons
Labels for the
firm keys
USB
port
A
dapter
Connector
Connector for
Pronto
Taking a First Look 8
What’s New for ProntoPro Next Generation?
This new ProntoPro NG (TSU7000) offers several new features compared to the previous model of
ProntoPro (TSU6000). The most important ones are:
Transparency
ProntoPro NG supports transparency in buttons and other objects. This makes it easier to create
complex user interfaces. You can now place buttons with a transparent background on top of a
background image, let transparent buttons overlap or create transparency effects within buttons.
65536 colors
The number of colors has increased from 256 to 65536 (64k). Therefore the buttons look much
more natural.
Integrated Macros
Macros are now better integrated in the configuration file. Each button can be a macro, this means
each button can contain more than one action.

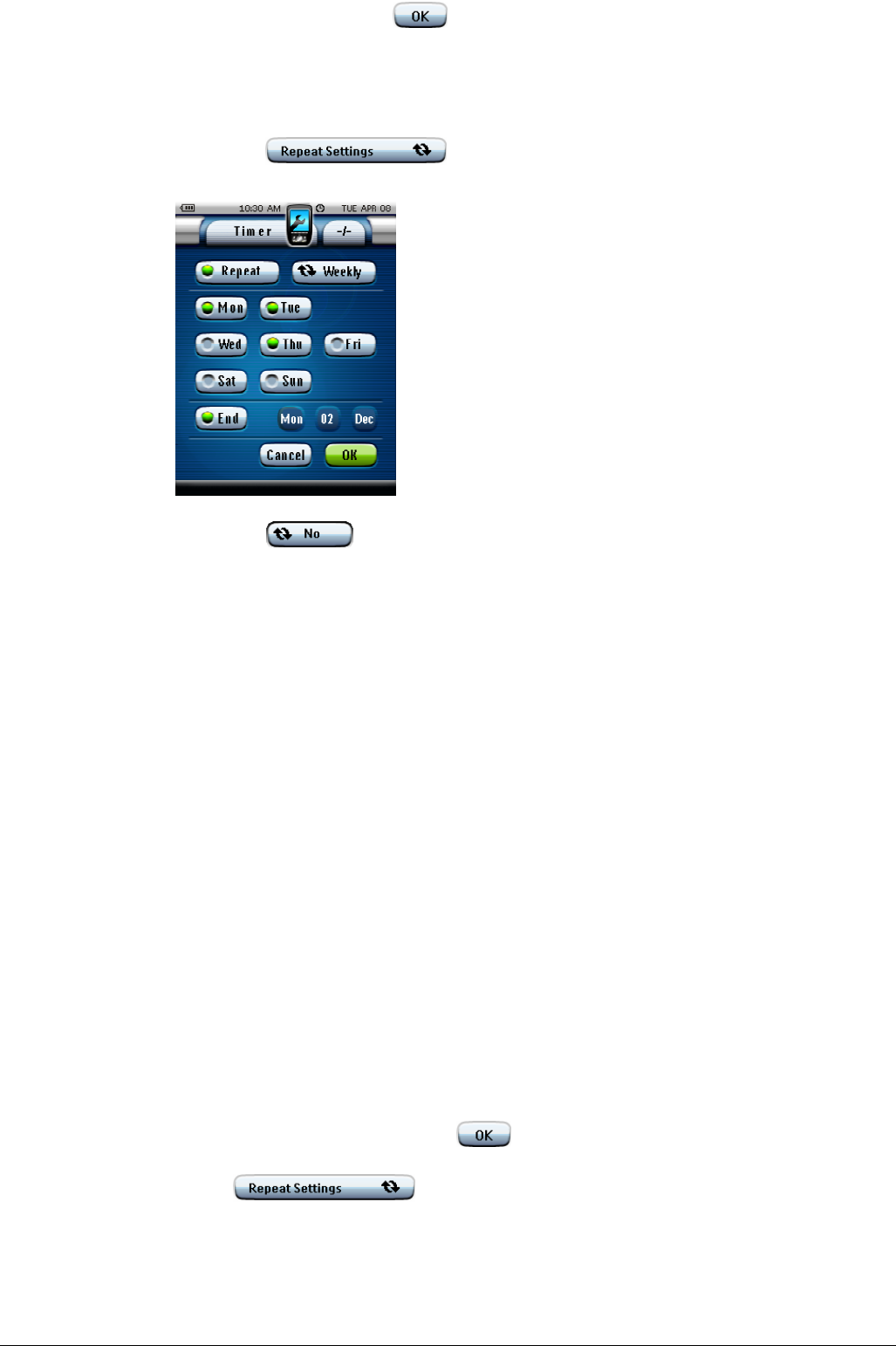

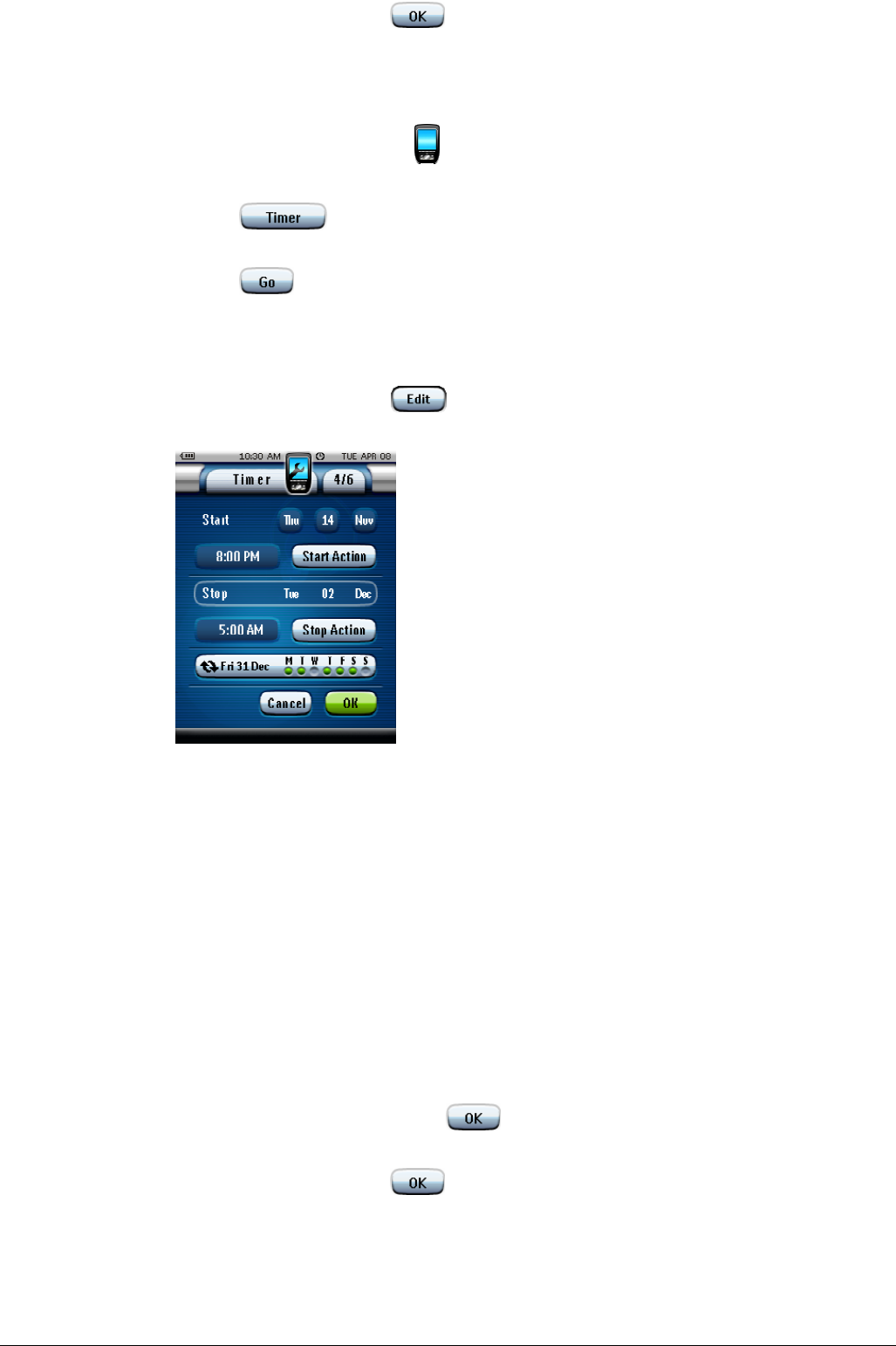

More advanced Timers
Your ProntoPro NG is able to set timers for certain actions to be carried out at any time you
choose. Timers are not an entirely new feature of ProntoPro, but they are easier to use and better
integrated with the configuration file. You can activate and deactivate the timers you created and
you can also set them to repeat daily or weekly. For instance, you can have the lights switched on
every day at sundown. You can also create a timer to set your VCR to record your favourite TV-
show on wednesday and saturday.
Page Overview
The Page Overview offers you a list of all the pages for one device. Every device comes with a
Page Overview, making it easier and faster to browse through the device pages.

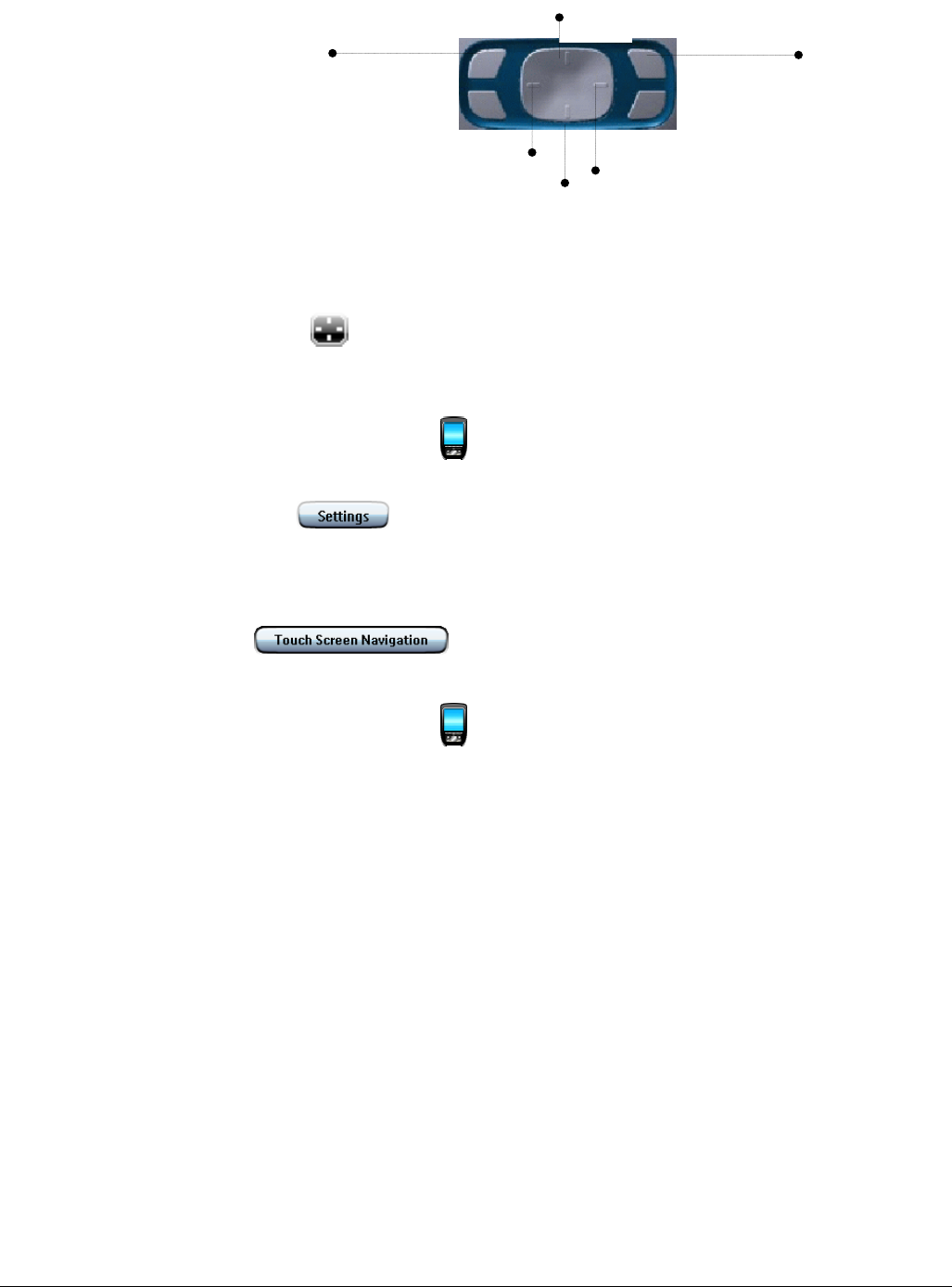

Cursor Navigation
By default the cursor is programmed to operate devices. The functions assigned to the cursor
button depend on the device active on ProntoPro NG.
ProntoPro NG also offer you the possibility to use the cursor for navigating through devices and
pages on the screen. The Left and Right cursor buttons allow you to scroll through the devices,
with the Up and Down cursor buttons you scroll through the different pages.

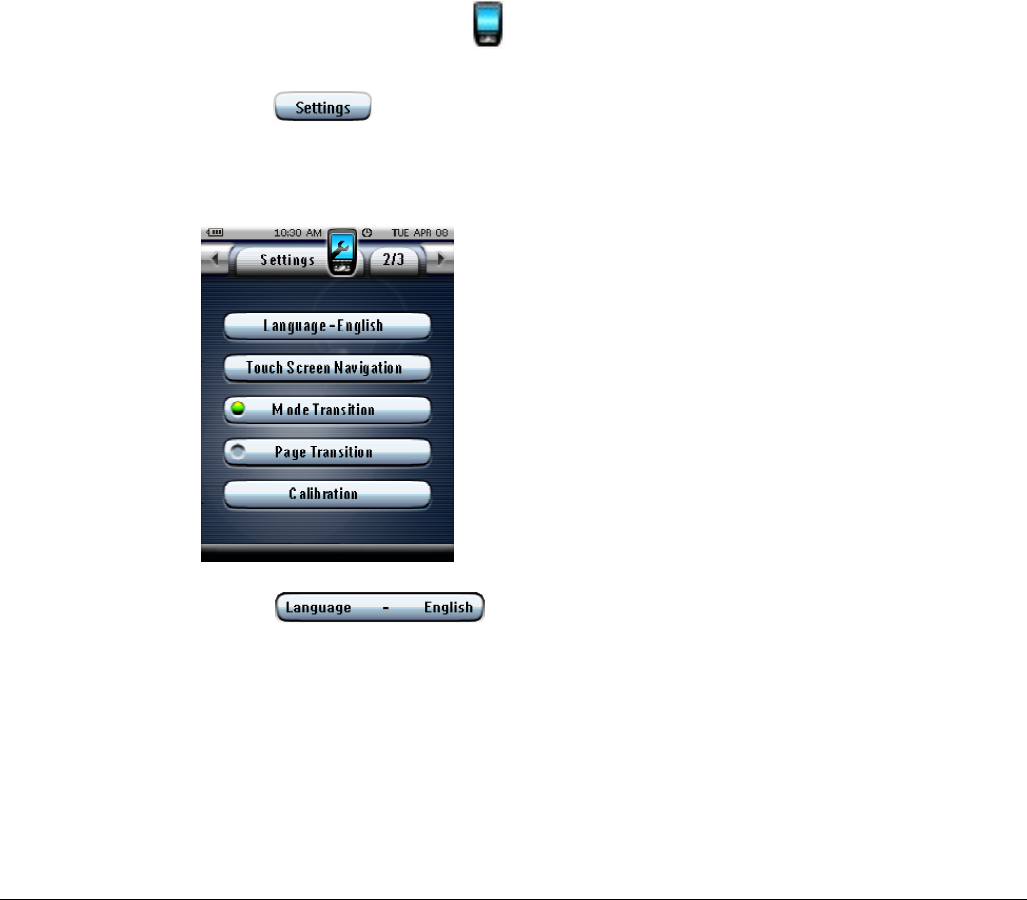

Animation Mode
ProntoPro NG provides navigation feedback through graphical animations of mode transitions and
page transitions. You can enable and disable the animations of your ProntoPro NG in the Settings
Pages.
USB
ProntoPro NG is provided with a USB port. The USB port makes downloading much easier.
16 MB of Memory
ProntoPro NG has 16 MegaByte of memory (extendable to 32 MB). This enables you to download
larger configuration files to ProntoPro NG.
.
Before You Start 9
Before You Start

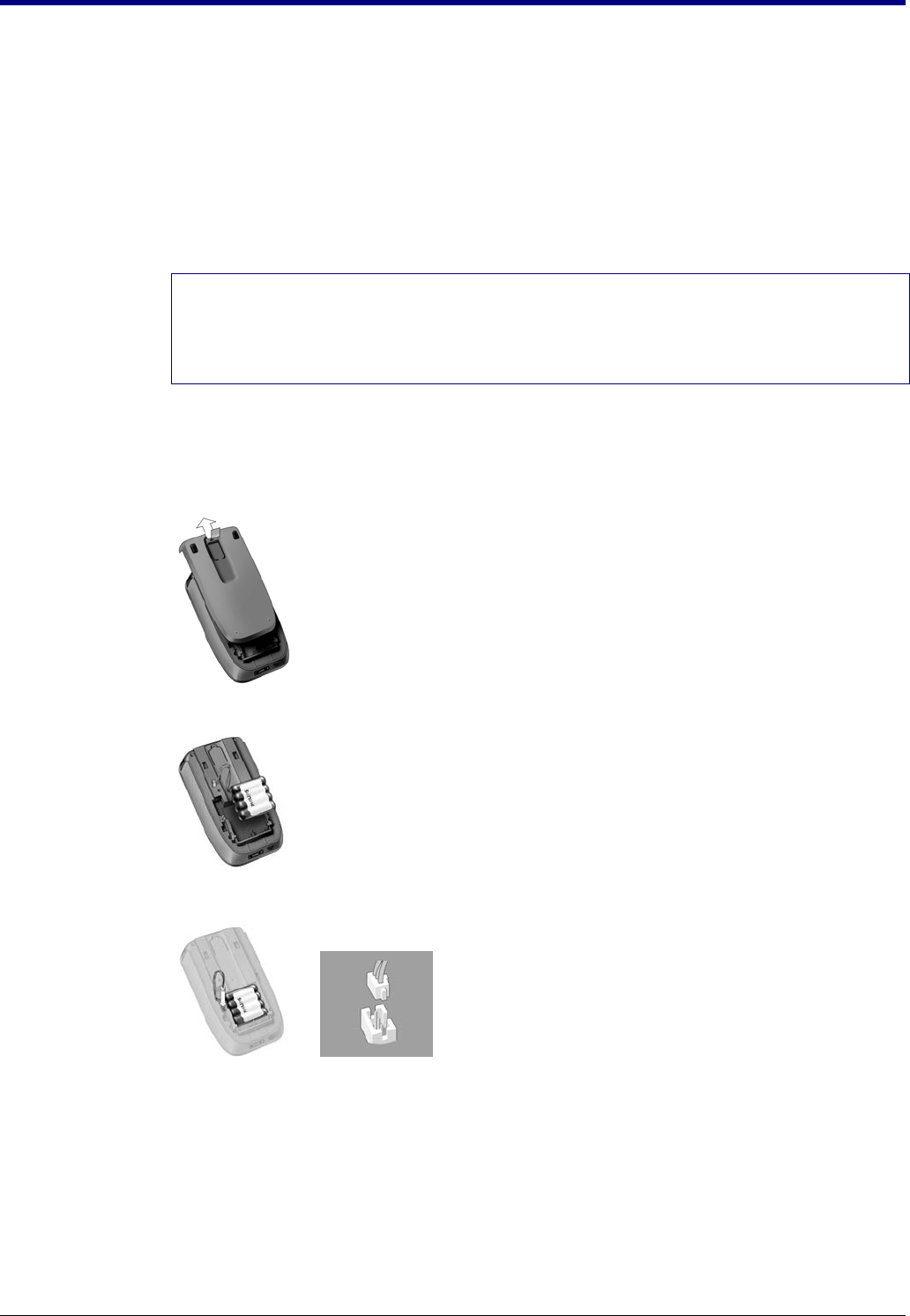

Placing the Battery Pack
When you use ProntoPro NG for the first time, you will have to:
install the battery pack;
place ProntoPro NG in the docking station and charge it.
Attention
Use the docking station only with the Philips NiMH rechargeable battery pack.
Never plug other appliances (like mobile phones, PDA’s, …) into the docking station. This causes
damage to the connector and the appliance.
Installing the Battery Pack
1 Press the latch on the battery cover and remove the battery cover from the ProntoPro NG.
2 Place the battery pack in the battery compartment.
3 Plug the cable of the battery pack in the connector.
@@@ darken ProntoPro and integrate callout with plug
4 Slide the battery cover back on.
Make sure the wires of the battery pack do not get stuck while sliding the cover on.
After a few seconds, the ProntoPro NG starts up automatically and an Introduction screen
appears. The ProntoPro NG beeps twice to indicate that it has finished starting up.
Because the battery pack is not fully pre-charged, you need to charge it as described below.
Before You Start 10
Charging the ProntoPro NG
For charging the ProntoPro NG, you have to place in the docking station. When the battery pack is
running low, the Low Battery icon will appear on the ProntoPro NG.
You can charge the ProntoPro NG at any time; the battery pack does not have to be entirely empty
before recharging.
Note
You can continue using the ProntoPro NG while it is being charged.
When the battery pack is empty, the ProntoPro NG’s settings are retained. You only need to set the
clock. However, you should recharge the ProntoPro NG as soon as possible to ensure perfect
performance.
1 Plug the power adapter into a wall outlet and connect it to the docking station.
2 Slide the ProntoPro NG in the docking station until it clicks.
Make sure you hold the ProntoPro NG at an angle of 30° to 45° when you place it in the docking
station.
Charging starts immediately. The blue charging LEDs on the front of the docking station indicate that
the battery pack is being charged.
When the ProntoPro NG is fully charged, the charging LEDs go off. Normal charging time is 2 to 3
hours, depending on the condition of the battery pack.
When the charging LEDs are flashing, an error occurs. Try one of the following:
Make sure the battery pack is properly installed in your ProntoPro NG.
Make sure the ProntoPro NG is placed properly in the docking station.
Check if the connector in the docking station is clean and free of obstructions.
Cool down the battery pack.
Getting Started 11
Getting Started
Turning on ProntoPro NG
ProntoPro NG can be turned on in four different ways:
Tap the touch screen.
Note
Only use your finger, a stylus or a blunt soft object like a pencil eraser to operate the touch screen.
Press one of the 4 firm keys below the screen to activate the display.
Note
When you press a hard button on ProntoPro NG, the according function will be executed immediately,
while the 4 firm keys below the touch screen will activate the display.
Press the Backlight button.
Tilt ProntoPro NG more than 50 degrees.
Setting Time and Date
When you have installed the battery pack and turned on ProntoPro NG, you have to set the current
time.
Attention
Every time you reset your ProntoPro NG you will have to set the time again.
Changing the Time Format
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap button in the Tools Menu.
The first Settings Page appears.
50°
Getting Started 12
@@@
3 Tap the Time Format button in the first Settings Page.
The Time Format button toggles between the three time formats:
12 hour (AM/PM): This is the default format;
24 hour;
No time.
Changing the Time
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The first Settings Page appears.
3 Tap the Time button in the first Settings Page.
The Time button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
4 To increase the time, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the time, press (and hold) the firm key labeled ‘-’.
5 Tap the Time button again.
The new time is set.
Changing the Date
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The first Settings Page appears.
To change the day
1 Tap the Day button in the first Settings Page.
The Day button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
2 To increase the days, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the days, press (and hold) the firm key labeled ‘-’.
3 Tap the Day button again.
The new day is set.
Getting Started 13
To change the month
1 Tap the Month button in the first Settings Page.
The Month button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
2 To increase the months, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the months, press (and hold) the firm key labeled ‘-’.
3 Tap the Month button again.
The new month is set.
To change the year
1 Tap the Year button in the first Settings Page.
The Year button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
2 To increase the years, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the years, press (and hold) the firm key labeled ‘-’.
3 Tap the Year button again.
The new year is set.
Setting the Language
You can change the language used on your ProntoPro NG.
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The first Settings Page appears.
3 Press the Page down hard button.
The second Settings Page appears.
@@@ new labels, 1 animation button
4 Tap in the second Settings Page.
The Language button toggles between five languages:
English;
French;
German;
Spanish;
Dutch.
Getting Started 14
Operating ProntoPro NG
ProntoPro NG contains a series of customizable devices, each consisting of several device pages. All
active devices on your ProntoPro NG are listed in the Device Overview. All the available device
pages are listed per device in the Page Overview.
Device Overview
The Device Overview offers you a list of all the devices you can control with ProntoPro NG. To view
the Device Overview, press the Device Overview button at the top of the touch screen.
@@@
You can navigate between the devices in two different ways:
Tap the device you want to operate from the Device Overview.
Tap the Device Left button at the top of the touch screen to navigate to the previous device.
Tap the Device Right button at the top of the touch screen to navigate to the next device.
By default you navigate through ProntoPro NG, using this touch screen navigation. When cursor
navigation is enabled, the Device Left and Device Right button disappear and the Cursor Navigation
icon appears. You then navigate through the devices and pages using the cursor. For more
information on changing the touch screen navigation to cursor navigation, see “Operating ProntoPro
NG with the Cursor” on page 37.
Page Overview
The Page Overview offers you a list of all the pages for one device. To view the Page Overview, tap
the Page Overview button, that displays the page number in the upper area of touch screen.
@@@
Device Overvie
w
button
Page
Overview
button
Device Right
button
Device Left
button
Getting Started 15
You can navigate between the different pages in two different ways:
Tap the page you want to operate from the Page Overview.
Press the Page Up or Page Down hard button on the left side of ProntoPro NG.
Customizing ProntoPro NG 16
Customizing ProntoPro NG
What makes ProntoPro NG so powerful, is the ability to extend its functionality in multiple ways, like
programming additional functions, adding supplementary devices and changing the interface as it suits
you best.
For full editing you can use ProntoProEdit NG software. See “ProntoProEdit NG” on page 40 for
more information.
Using the Tools
ProntoPro NG provides different tools. For customizing ProntoPro NG you have to switch to the
appropriate tool. ProntoPro NG offers 10 different tools in the Tools Menu, each providing different
functionalities:
Settings Tool:
Defining the settings of your ProntoPro NG
(p. 26).
Timer Tool:
Defining timer actions to be carried out at
predefined times (p 31).
Brand Tool:
Defining the brands of your audio/video
equipment (page 17)
Learn Tool:
Learning IR codes from other remote controls
(page 17)
Label Tool:
Labeling buttons, devices and pages (page 20)
Add Tool:
Adding new devices or copying existing devices
(page 23)
Delete Tool:
Deleting button actions or devices (page 24)
Move Tool:
Moving devices in the Device Overview (page
24)
Macro Tool:
Programming a sequence of commands for one
single button (page 29)
RF IR Tool:
Defining to operate ProntoPro NG with IR
signals or RF signals (page 37)
To enter the Tools Menu, you have to tap the ProntoPro NG icon in the top center of the touch
screen. You can exit all Tools by tapping the ProntoPro NG icon . Keep in mind that your
latested changes to the current page will not be saved. In the Tools:
Tap to start using the Tool.
Tap to go back to the Tools Menu.
Tap to confirm an action and save the changes you made.
Tap to cancel an action without saving the changes.
Press the firm key labeled to end a series of actions and go back to the Tools Menu.
Customizing ProntoPro NG 17
Defining the Brand for a Device
ProntoPro NG contains a huge list of brands and their according IR codes in its database. ProntoPro
NG uses these IR codes to control devices. Because there are several brands using specific IR codes,
you have to define the brands and the corresponding code sets for each device. You can either have
ProntoPro NG autosearch the brand or select it yourself. If a device’s brand contains more than one IR
code set, you also have to select it.
On the Device Overview you find buttons for the most common video and audio devices. ProntoPro
NG is set by default to operate Philips and Marantz devices. For all devices other than Philips or
Marantz, you first have to define the brand before you can operate them with ProntoPro NG.
Selecting the Brand and Code Set for your Device
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define the brand.
A message screen appears.
5 Tap .
The ‘Brands’ screen appears.
Selecting the brand
1 Tap the Scroll Down button or the Scroll Up button next to the Brands list.
The Brands list scrolls down/up.
Note
You can also select the brand via the virtual keyboard by tapping one or more of the brand’s name
characters.
2 Tap the brand for the selected Device in the Brands list.
3 Tap in the ‘Brands’ screen.
A message screen appears.
If there is only one code set, the ‘Installing the Brand’ screen appears. Go to “Installing the
brand” on page 17.
-or-
If there is more than one possible code set, a message screen appears.
4 Tap .
The ‘Code sets’ screen appears.
Selecting the code set
1 Tap the Scroll Down button or the Scroll Up button next to the Code Sets list.
The Code Sets list scrolls down/up.
2 Tap the code set for the selected Device in the Code Sets list.
3 Tap in the ‘Code Sets’ screen.
The ‘Installing the Brand’ screen appears.
Installing the brand
1 Tap in the ‘Installing the Brand’ screen.
Customizing ProntoPro NG 18
The first Page of the selected Device appears.
2 Tap different buttons to see if the device is responding to the IR codes for the selected brand and
code set.
3 Press the left firm key labeled .
The IR codes for the selected brand and code set are installed.
-or-
Press the right firm key labeled .
The ‘Code Set’ screen appears again without installing the code set.
Selecting the Brand and searching the Code Set for your device
Note
Make sure the device for which you are searching the brand is turned on.
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define the brand.
A message screen appears.
5 Tap .
The ‘Brands’ screen appears.
6 Select the brand of your device as described in “Selecting the brand” on page 17.
Searching the code set
1 Tap in the ‘Code Sets’ screen.
The ‘Searching the Code Set’ screen appears.
2 Tap and point ProntoPro NG at the device.
The ‘Searching’ screen appears. ProntoPro NG searches through the list of code sets for the
selected brand, by sending out an IR code for each code set.
3 When the device for which you are defining the brand, responds to the IR code, tap in the
‘Searching’ screen.
The ‘Installing the Brand’ screen appears.
4 To install the brand and code set, follow the instructions described in “Installing the brand” on
page 17.
Searching the Brand and Code Set for your device
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Brand Tool’ screen appears.
3 Tap in the ‘Brand Tool’ screen.
The Device Overview appears.
4 In the Device Overview, tap the Device for which you want to define the brand.
Customizing ProntoPro NG 19
A message screen appears.
5 Tap .
The ‘Brands’ screen appears.
Searching the brand
1 Tap in the ‘Brands’ screen.
The ‘Searching the Brand’ screen appears.
2 Tap and point ProntoPro NG at the device.
The ‘Searching’ screen appears. ProntoPro NG searches through the list of brands, by sending out
an IR code for each brand.
3 When the device for which you are defining the brand, turns off, tap in the ‘Searching’
screen.
The ‘Installing the Brand’ screen appears.
4 To install the brand and code set, follow the instructions described in “Installing the brand” on
page 17.
Learning Commands
If an IR code is not in the database, you can program ProntoPro NG commands by transmitting IR
signals from your existing remote control to ProntoPro NG’s learning eye.
The Learn Tool allows you to learn a button or a device action. A device action is an action that is
executed automatically when you select a device. E.g. when you select TV, you can learn your
ProntoPro NG to switch on the TV at the same time. You can also use the Learn Tool to relearn
commands that do not work properly.
Note
Once you have learned a button, the button will not be changed if you select another brand in Brand
Mode.
@@@ distance in inch above the line, in cm below the line
Learning a Button
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
Learning eye 4 – 8 inches
10 – 20 cm
Customizing ProntoPro NG 20
2 Tap in the Tools Menu.
The ‘Learn Tool’ screen appears.
3 Tap .
The last page you have visited appears.
4 Navigate to the Device and the Page that contains the button you want to learn.
5 Position ProntoPro NG and the remote control as illustrated above.
Note
Make sure that you aim ProntoPro NG`s learning eye at the remote control’s IR window.
The distance between ProntoPro NG and the remote control should be between 4 and 8 inches (10
and 20 cm).
6 Tap the button you want to learn.
A Learning indication appears in the top center of the touch screen.
7 Press and hold the key on the other remote control for 1 second.
Make sure you press the key within 5 seconds.
If learning succeeded, you will get an OK message.
If learning failed, you will get a Failure message.
See “ProntoPro NG will not learn commands” on page 44 for more information.
8 Select other buttons on ProntoPro NG you want to learn.
9 Press the left firm key labeled below the touch screen to stop learning.
Learning a Device Action
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Learn Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Position ProntoPro NG and the remote control as illustrated above.
Note
Make sure that you aim ProntoPro NG’s learning eye at the remote control’s IR window.
The distance between ProntoPro NG and the remote control should be between 4 and 8 inches (10
and 20 cm).
5 Tap the Device for which you want to learn a Device Action.
A Learning indication appears in the top center of the touch screen.
6 Press the key on the other remote control.
If learning succeeded, you will get an OK message.
If learning failed, you will get a Failure message.
7 Select other Devices on the Device Overview you want to learn.
8 Press the left firm key labeled below the touch screen to stop learning.
Labeling Elements
The Label Tool allows you to label a button, a device or a page. In the Label Tool you can find a
virtual keyboard. This keyboard zooms in when you tap a character.
Customizing ProntoPro NG 21
The keyboard contains four different character sets, including a series of symbols you can use for
labeling. You use the Shift button to switch between the 5 character sets on the keyboard.
For a complete list of the symbols, see “List of Symbols” on page 45.
Labeling a Button
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Label Tool’ screen appears.
3 Tap .
The page you last visited appears.
4 Navigate to the Device and the Page that contains the button you want to label.
5 Tap the button you want to label.
The ‘Labeling’ screen appears.
6 Tap the keyboard.
The keyboard zooms in.
7 Tap the character you want to add to the label.
The character is added to the label. The keyboard automatically zooms out again.
1 To zoom out without adding a character to the label, tap .
The character is not added to the label. The keyboard is zoomed out.
2 To use other characters and symbols, tap .
The character set on the keyboard switches.
You can choose from four different character sets.
3 To remove characters, press the firm key labeled .
The character in front of the cursor is removed.
8 You can add other characters to the label.
9 Tap .
The label of the selected button is changed. The last visited page appears again.
-or-
Tap .
The last visited page appears again, without changing the label of the selected button.
10 You can select other buttons on ProntoPro NG to label.
11 Press the left firm key labeled below the touch screen to exit the Label Tool.
Customizing ProntoPro NG 22
Labeling a Device
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Label Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the Device you want to label.
The ‘Labeling’ screen appears.
5 Follow the instructions 6 to 8 of “Labeling a Button” on page 21.
6 Tap .
The label of the selected Device is changed. The Device Overview appears again.
-or-
Tap .
The Device Overview appears again, without changing the label of the selected device.
7 You can select other Devices in the Device Overview to label.
8 Press the left firm key labeled below the touch screen to exit the Label Tool.
Labeling a Page
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Label Tool’ screen appears.
3 Tap in the ‘Label Tool’ screen.
The Page Overview appears.
4 Tap the Page you want to label.
The ‘Labeling’ screen appears.
5 Follow the instructions 6 to 8 of “Labeling a Button” on page 21.
6 Tap .
The label of the selected Page is changed. The Page Overview appears again.
-or-
Tap .
The Page Overview appears again, without changing the label of the selected page.
7 You can select another Page in the Page Overview to label.
8 Press the left firm key labeled below the touch screen to exit the Label Tool.
Customizing ProntoPro NG 23
Adding Devices
The Add Tool allows you to add a new device or copy an existing device.
When you add a new device, a device template stored on your ProntoPro NG is used to create the
device pages, buttons and functions. Philips IR codes are used when you add a new device. For your
brand of device, you then have to program the new device using the Brand Tool (page 16) or the
Learn Tool (page 17).
Copying an existing device saves time. The personal settings you defined for that device will also be
copied. If you want to add e.g. a second CD player, you do not have to learn or create macros again,
you just copy them from the existing CD player already programmed on your ProntoPro NG.
Adding a New Device
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Add Tool’ screen appears.
3 Tap in the ‘Add Tool’ screen.
The ‘Adding’ screen appears.
4 Tap the device template you want to add in the Device Templates list.
The ‘IR Code’ screen appears.
5 Tap in the ’IR Code’ screen.
The Device is added to ProntoPro NG with its actions like IR codes, beeps, delays, and so forth.
-or-
Tap in the ‘IR Code’ screen.
The Device is added to ProntoPro NG without its actions like IR codes, beeps, delays, and so
forth.To operate this device, you have to learn every button of the device.
Note
Added devices are automatically positioned at the end of the Device Overview. You can move devices
with the Move Tool. See “Moving Devices” on page 24 for more information.
Copying an Existing Device
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Add Tool’ screen appears.
3 Tap in the ‘Add Tool’ screen.
The ‘Adding’ screen appears.
4 Tap the Device you want to copy in the Devices list.
The ‘IR Code’ screen appears.
5 Tap in the ‘IR Code’ screen.
The Device is copied to ProntoPro NG with its actions like IR codes, beeps, delays, and so forth.
-or-
Tap in the ‘IR Code’ screen.
The Device is copied to ProntoPro NG without its actions like IR codes, beeps, delays, and so
forth.
Customizing ProntoPro NG 24
Note
Added devices are automatically positioned at the end of the Device Overview. You can move devices
with the Move Tool. See “Moving Devices” on page 24 for more information.
Deleting Elements
The Delete Tool allows you to delete a button or a device.
Deleting a Button
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Delete Tool’ screen appears.
3 Tap .
The last visited page on the ProntoPro NG appears.
4 Navigate to the Device and the Page that contains the button you want to delete.
5 Tap the button you want to delete.
A message screen appears.
6 Tap .
7 The button is deleted.
You can select other buttons on ProntoPro NG to delete.
8 Press the left firm key labeled below the touch screen to exit the Delete Tool.
Deleting a Device
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Delete Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the Device you want to delete.
A message screen appears.
5 Tap .
The Device is deleted.
6 You can select other Devices on ProntoPro NG to delete.
7 Press the left firm key labeled below the touch screen to exit the Delete Tool.
Moving Devices
The Move Tool allows you to move a device up or down the Device Overview, enabling you to put
your most used devices at the top of the list.
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
Customizing ProntoPro NG 25
2 Tap in the Tools Menu.
The ‘Move Tool’ screen appears.
3 Tap the Device you want to move in the Devices list.
4 Tap the Move Up or Move Down button in the ‘Moving’ screen.
The selected Device moves up/down in the Device List.
5 Tap in the ‘Moving’ screen.
The Device is moved.
Customizing ProntoPro NG 26
Adjusting the Settings
In the Settings Page you can adjust several settings. You can:
Set the time and date as described earlier, on page 11.
Set the timeout of the LCD screen;
Setting the Brightness of the Backlight;
Set the timeout of the LCD backlight;
Set the volume level;
Set the animation mode;
Set the language of the ProntoPro NG,as described earlier, on page 13.
Set ProntoPro NG to operate with the Cursor;
Calibrate the touch screen.
@@@
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Select .
The first Settings Page appears.
Setting the Timeout of the LCD Screen
The timeout of the LCD screen determines how long the LCD touch screen stays active before turning
off. Shortening the active time will increase ProntoPro NG’s battery life.
Note
The LCD screen will only time out when you are not using ProntoPro NG.
1 Tap in the first Settings Page.
The LCD Timeout button is selected. The ‘+’ and ‘-’ labels appear on the two middle firm keys
below the touch screen.
2 To increase the timeout, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the timeout, press (and hold) the firm key labeled ‘-’.
3 Tap again.
The new LCD screen timeout is set.
Customizing ProntoPro NG 27
Setting the Brightness of the Backlight
You can adjust the intensity of the LCD backlight. There are 4 levels of backlight brightness.
1 Tap the button in the first Settings Page.
The Brightness button is selected. The ‘+’ and ‘-’ labels appear on the two middle firm keys
below the touch screen.
2 To increase the timeout, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the timeout, press (and hold) the firm key labeled ‘-’.
3 Tap the button again.
The new Backlight Brightness is set.
Setting the Volume Level
You can set the volume level for the hard buttons as well as for the touch screen buttons. The volume
of the button refers to the loudness of the beep you hear when you press or tap a button.
Setting the Volume Level of the Hard Buttons
To adjust the volume of the hard buttons, tap in the first Settings Page.
You can either select 1 of the 3 volume levels or choose to mute. Every time you press, the volume
level increases with one step up to level 3.
Setting the Volume Level of the Touch Screen
To adjust the volume level of the touch screen, tap in the first Settings Page.
You can either select 1 of the 3 volume levels or choose to mute. Every time you tap, the volume level
increases with one step up to level 3.
Setting the Navigation for ProntoPro NG
The cursor is used by default to operate your devices. You then navigate the ProntoPro NG with the
touch screen buttons. However, you can also set the cursor to browse through ProntoPro NG’s devices
and pages. For more information on operating the ProntoPro NG with the cursor, see ‘Operating
ProntoPro NG with the Cursor’ on page 37.
To set the navigation for the ProntoPro NG, tap in the second Settings
Page:
You can select Touch Screen Navigation to navigate the ProntoPro NG with the touch screen
buttons.
You can select Cursor Navigation to navigate the ProntoPro NG with the cursor.
Setting the Animation Mode
ProntoPro NG provides navigation feedback through graphical animations. Switching pages is done
with a page transition, switching from Use Mode to one of the Tools is accompanied with a mode
transition. You can enable and disable the animations of your ProntoPro NG in the second Settings
Page:
You can disable the animations by choosing ‘None’ (no animations). By disabling all animations
you use the absolute maximum of your ProntoPro NG’s processing speed.
When changing pages with the ‘Page Only’ animation, one page seems to slide out of the screen,
while the second page slides in.
The ‘Mode Only’ animation makes a page ‘drop’ out of the top of the touch screen.
With the option ‘Full’ you can enable both animations at the same time.
Customizing ProntoPro NG 28
Calibrating the Touch Screen
When you first use your ProntoPro NG, the touch screen is already calibrated. However, if you notice
that your ProntoPro NGdoes not send out the commands in accordance with what is indicated on the
touch screen, it is advised to recalibrate the touch screen.
Attention
Never use an actual pen, pencil or other sharp object on the touch screen. Use your finger or a pointy
object like a plastic-tipped pen intended for use with touch screens.
1 Tap in the second Settings Page.
The ‘Calibration’ screen appears.
2 Tap the upper left corner on the touch screen.
3 Tap the lower right corner on the touch screen.
The touch screen is calibrated.
Using the Power Features 29
Using the Power Features
Creating and Editing Macros
A macro allows you to send a sequence of commands when tapping one single button. You can for
instance switch on your TV, turn on a movie channel and prepare your VCR for recording by
rewinding the videotape. The macro contains an action list. The action list can be created and edited
in the Macro Tool.
Note
Once you have programmed a macro, the button will not be changed when you select another brand in
the Brand Tool.
In the Macro Tool you first have to select the button, that will contain the macro, also called the
target button. Then, one by one, you create an action list by adding actions to this target button. You
can do this by:
Selecting another button and adding its actions to the action list of your target button.
Adding a delay to the action list.
Adding a beep to the action list.
After creating the macro, all actions you added to the action list are executed when you tap the button.
Creating a Macro
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Macro Tool’ screen appears.
3 Tap in the ‘Macro Tool’ screen.
The last visited page appears.
4 Navigate to the Device and the Page that contains the target button you want to use for a macro.
5 Tap the button you want to select as a target button.
If you can use the button to program a macro, the ‘Macro’ screen appears.
-or-
If you cannot use the button to program a macro, you hear a Failure beep.
Using the Power Features 30
Note
You can assign a macro to most buttons of your ProntoPro NG. Only the hard buttons on the left side
of ProntoPro NG (Backlight, Page Up and Page Down) cannot be programmed.
To add an action to the action list
1 Tap in the ‘Macro’ screen.
The last visited page appears again.
2 Navigate to the Device and the Page that contains the button you want to add to the macro.
3 Tap the button with the action(s) you want to add to the macro.
The ‘Macro’ screen appears.
The actions of the selected button are added at the bottom of the Action List.
4 You can select other buttons to add to the macro.
To add a delay to the action list
You can add a delay to the action list e.g. to insert a short pause between turning on a device and
sending commands to it, allowing the device to warm up.
1 Tap in the ‘Macro’ screen.
The ‘+’ button and ‘-’ button appear on the two middle firm keys below the touch screen.
2 To increase the delay, tap (and hold) the firm key labeled ‘+’.
-or-
To decrease the delay, tap (and hold) the ‘-’ firm key labeled ‘-’.
To add a beep to the action list
To determine when the macro execution is finished, it is useful to add a beep as final command in the
action list.
1 Select the action in the action list, where you want to add a beep.
The action is selected.
2 Tap in the ‘Macro’ screen.
A default beep is added to the action list, after the selected action.
To test the Macro
You do not have to exit the Macro Tool to try out the macro you created or edited. From within the
Macro Tool you can test the macro. ProntoPro NG executes all actions as you defined them in the
action list.
In the ‘Macro’ screen, press the left firm key labeled .
ProntoPro NG executes the actions in the action list.
Note
Make sure that you keep ProntoPro NG aimed at your Home Theater equipment during the macro
execution.
To finish the macro
Tap in the ‘Macro’ screen.
The macro is created and assigned to the button you selected as a target.
-or-
Tap in the ‘Macro’ screen.
The Tools Menu appears again without creating the macro.
Using the Power Features 31
Editing a Macro
Moving an action in the action list
1 To display the ‘Macro’ screen with the action list assigned to the button, follow the instructions 1
to 5 as described in “Creating a Macro” on page 29.
2 Tap the action in the action list you want to move in the ‘Macro’ screen.
The selected action is highlighted.
3 Tap the Move Up button or the Move Down button in the ‘Macro’ screen.
The selected action moves up/down in the action list.
4 You can select other actions to move.
Deleting an action from the action list
1 To display the ‘Macro’ screen with the action list assigned to the button, follow the instructions 1
to 5 as described in “Creating a Macro” on page 29.
2 Tap the action in the action list you want to delete in the ‘Macro’ screen.
The selected action is highlighted.
3 In the ‘Macro’ screen, press the right firm key labeled .
The selected action is deleted from the action list.
4 You can select other actions to delete.
Activating Timers
With the Timer Tool you can define actions to be carried out at predefined times. For instance, you
can switch on the lights or program your VCR to record your favourite daily TV-show.
Note
When a timer is executed, you will hear a double beep and a Timer message appears on screen.
If ProntoPro NG is performing another task (sending out IR codes, testing a macro, ...) when a timer is
due to be executed, ProntoPro NG first continues performing the current task.
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3 Tap in the ‘Timer Tool’ information screen.
The ‘Timer’ screen appears.
Using the Power Features 32
@@@ Page 0/6
4 Tap the check box in front of the timer that you want to activate.
The Timer is activated.
5 In the ‘Timer’ screen, tap .
The ‘Timer’ screen closes and the Tools Menu appears again. The Timer icon @@ appears next
to the time indication.
-or-
In the ‘Timer’ screen, tap .
The Timer screen closes without activating the Timer.
Creating and Editing Timers
Adding a Timer
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3 Tap .
The ‘Timer’ screen appears.
4 In the ‘Timer’ screen, tap to add a new timer to the list.
A new timer is added to the Timers list.
By default a new timer is labeled Timer and a number. It has no start and stop actions defined.
5 To label the timer, tap , as described in Labeling a Timer on page 33
6 To define the start and stop actions for the timer, tap , as described in Editing a Timer on
page 34.
7 In the ‘Timer’ screen, tap .
The ‘Timer’ screen closes and the Tools Menu appears again. The Timer icon @@ appears next
to the time indication.
-or-
In the ‘Timer’ screen, tap .
The Timer screen closes without activating the Timer.
Deleting a Timer
1 Tap the ProntoPro NG icon in the top center of the touch screen.
Using the Power Features 33
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3 Tap .
The ‘Timer’ screen appears.
4 Tap the label of the timer you want to delete.
The timer is highlighted.
@@@
5 In the ‘Timer’ screen, tap .
A message screen appears.
6 In the message screen, tap Delete.
The timer is deleted from the list.
7 In the ‘Timer’ screen, tap .
The ‘Timer’ screen closes and the Tools Menu appears again. The Timer icon @@ appears next
to the time indication.
-or-
In the ‘Timer’ screen, tap .
The Timer screen closes without activating the Timer.
Labeling a Timer
The default name for a timer is ‘Timer’ followed by a number, for example Timer 5.
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3 Tap .
The ‘Timer’ screen appears.
4 Tap the label of the timer you want to label.
The timer is highlighted.
5 In the ‘Timer’ screen, tap .
The ‘Labeling’ screen appears.
6 Label the timer as described in Labeling Elements on page 20.
7 In the ‘Labeling’ screen, tap .
The ‘Timer’ screen appears again and the timer is relabeled.
Using the Power Features 34
8 In the ‘Timer’ screen, tap .
The Tools Menu appears again.
Editing a Timer
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘Timer Tool’ information screen appears.
3 Tap .
The ‘Timer’ screen appears.
4 Tap the label of the timer you want to edit.
The timer is highlighted.
5 In the ‘Timer’ screen, tap .
The ‘Editing Timer’ screen appears.
@@@
6 To edit the timer, execute the following steps:
1 Set the Start Date.
See Setting the Start Date on page 34 for more information.
2 Set the Start Time.
See Setting the Start Time or Stop Time on page 35 for more information.
3 Define the Start Action.
See Defining the Start Action or Stop Action on page 35 for more details.
4 Set the Stop Time.
See Setting the Start Time or Stop Time on page 35 for more information.
5 Define the Stop Action.
See Defining the Start Action or Stop Action on page 35 for more details.
6 Define the Repeat Settings.
See Defining the Repeat Settings on page 36 for more information.
7 In the ‘Editing Timer’ screen, tap .
The timer settings are defined. The ‘Timer’ screen appears again.
8 In the ‘Timer’ screen, tap .
The Tools Menu appears again.
Setting the Start Date
When you add a new timer the Start Date is the current date by default. The Stop Date is calculated
automatically based on the Start Date, the Start Time and the Stop Time.
To change the Start Date:
Using the Power Features 35
1 In the ‘Editing Timer’ screen, tap the Day button.
The Day button is selected. The labels ‘+’ and ‘-’ appear for the two middle firm keys.
2 To increase the value, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the value, press (and hold) the firm key labeled ‘-’.
3 Tap Day button again.
The Month is set.
4 Repeat step 1 to 3 for Month button.
The Start Date is set.
Setting the Start Time or Stop Time
1 In the ‘Editing Timer’ screen, tap the Start Time button or Stop Time button.
The Start Time button or Stop Time button is selected. The labels ‘+’ and ‘-’ appear for the two
middle firm keys.
2 To increase the time, press (and hold) the firm key labeled ‘+’.
-or-
To decrease the time, press (and hold) the firm key labeled ‘-’.
3 Tap the Time button again.
The new Start Time or Stop Time is set.
Note
If the Stop Time lies before the Start Time, the Stop Date automatically jumps to the next day.
Defining the Start Action or Stop Action
ProntoPro NG uses a similar procedure to define the Action List for the Start Action or the Stop
Action of the selected timer as in the Macro Tool. See Creating and Editing Macros on page 29 for
more information.
Example
Some examples of timer actions are: switching on your lights at a specific time or recording your
favourite daily TV-show with your VCR.
1 In the ‘Editing Timer’ screen, tap the or button.
The ‘Macro’ screen appears.
2 In the ‘Macro’ screen, tap .
The last visited page appears again.
3 Navigate to the Device and the Page that contains the button you want to add to the macro.
4 Tap the button you want to add to the action list of the timer.
The ‘Macro’ screen appears.
The action of the selected button is added at the bottom of the Action List.
Using the Power Features 36
5 In the ‘Macro’ screen, tap .
The Start Action or Stop Action is defined. The ‘Editing Timer’ screen appears again.
Defining the Repeat Settings
If you want the timer to repeat itself on more than one occasion, you can use the repeat settings.
1 Tap the button.
The `Repeat Settings` screen appears.
@@@
2 Tap the toggle button.
By default `No` is selected.
The Repeat button toggles between the three setting:
No: This is the default setting;
Daily;
Weekly.
1 To change the setting to ‘Daily’, tap the button again.
Every day of the week is automatically selected.
2 If you want to set an end date for the repeating timer, select the End Date check box.
The End Date is enabled.
3 Define the End Date, as described in Setting the Start Date on page 34.
The End Date is defined.
-or-
1 To change the setting to ‘Weekly’, tap the button again.
The currect day is selected.
2 Select or deselect the different days of the week on which the timer has to be executed.
3 If you want to set an end date for the repeating timer, select the End Date check box.
The End Date is enabled.
4 Define the End Date, as described in Setting the Start Date on page 34.
The End Date is defined.
-or-
To change the setting to ‘No’, tap the button again.
The timer will not be repeated.
3 In the ‘Repeat Settings’ screen, tap .
The ‘Editing Timer’ screen appears again. Feedback about the repeat settings is provided below
the button.
Using the Power Features 37
Operating ProntoPro NG with the Cursor
The cursor is set by default to operate the devices, e.g. to navigate through an on-screen TV menu.
The cursor contains 4 cursor keys: Right, Left, Up and Down. Each cursor key contains an action list.
This list depends on the device that is being operated.
The cursor can also be used to navigate through devices and pages on ProntoPro NG’s touch screen.
When you enable the cursor navigation in the Settings Pages, the touch screen navigation with the
Left Device and Right Device buttons at the top area of the touch screen disappears and the cursor
navigation icon appears in the top left corner. You use the cursor for navigating, and not for
operating your devices, until you disable the cursor navigation again.
To set the cursor navigation:
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Select the .
The first Settings Page appears.
3 Press the Page Down hard button at the left side of the ProntoPro NG.
The second Settings Page appears.
4 Tap in the second Settings Page.
5 The cursor navigation is enabled. The Toggle hard button is activated.
6 Tap the ProntoPro NG icon in the top center of the touch screen to exit the Settings Tool.
To use the cursor for navigating the ProntoPro NG:
7 Press the Left and Right buttons of the cursor.
ProntoPro NG navigates through the devices.
8 Press the Up and Down buttons of the cursor.
ProntoPro NG navigates through the pages.
9 Press the Toggle button to easily switch from navigating on ProntoPro NG to controlling
audio/video equipment.
The Device Left and Device Right buttons appear in the top area of the touch screen and the
cursor is used for controlling audio/video equipment.
10 Press the Toggle hard button again to switch back to cursor navigation.
Operating ProntoPro NG with RF
By default, ProntoPro NG uses infrared (IR) signals to operate devices. IR signals have an operating
distance of approximately 33 ft (10 m).
Toggle button Up
Left
Down
Right
OK
Using the Power Features 38
However, you can choose to have ProntoPro NG working with radio frequency (RF) signals to operate
devices from a distance or from an adjacent room. An RF Extender (not included) is therefore
required.
The RFX6000 is an RF Extender that can be used in combination with ProntoPro NG. The RF
Extender receives RF signals from ProntoPro NG and converts them into IR signals, sent out to the
device. Therefore, the RF Extender has to be placed near the device you are operating with the RF
Extender’s sending eye pointed towards the device.
Selecting RF to Operate your Devices
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘RF IR Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the Device for which you want to select RF.
The ‘Select IR or RF’ screen appears. By default IR is selected in the Sending Signals list.
The Define RF button is disabled.
5 Choose RF in the Sending Signals list.
The Define RF button is enabled.
6 Tap .
The ‘RF Settings’ screen appears.
RF Extender
ProntoPro NG
R
F
s
ignals
I
R signals
I
R si
g
nals
Using the Power Features 39
7 Select the RF Channel in the RF Channel list you use for the RF Extender.
The RF Channel on the RFX6000 has to be the same as the RF Channel on ProntoPro NG.
8 Select the Extender ID in the Extender ID list you use for the RF Extender.
The Extender ID on the RFX6000 has to be the same as the Extender ID on ProntoPro NG.
Note
You can use several RF Extenders with your ProntoPro NG. For each RF Extender you use for your
devices, you need to set the RF Channel and the Extender ID.
The RF Channel is identical for all RF Extenders. The Extender ID on the RFX6000 is unique for
each RF Extender.
9 Tap in the ‘RF Settings’ screen.
The RF settings are saved.
10 Tap in the ‘Select IR or RF’ screen.
ProntoPro NG will send out RF signals for the selected device.
Note
Try to keep ProntoPro NG and the RF Extender away from metal objects, as this will have a negative
impact on the range.
Selecting IR to Operate your Devices
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Tap in the Tools Menu.
The ‘RF IR Tool’ screen appears.
3 Tap .
The Device Overview appears.
4 Tap the Device for which you want to select IR.
The ‘Select IR or RF’ screen appears. RF is selected in the Sending Signals list.
5 Choose IR in the Sending Signals list.
The ‘Define RF’ button is disabled.
6 Tap in the ‘Select IR or RF’ screen.
ProntoPro NG will send out IR signals for the selected device.
ProntoProEdit NG 40
ProntoProEdit NG
If you want to personalize your ProntoPro NG even more beyond its standard programming features,
ProntoProEdit NG is the tool for you to use. ProntoProEdit NG is ProntoPro NG’s companion
software that you find on the included CD-ROM. Please check the website to make sure that you have
the latest version. You can find more information on http://www.pronto.philips.com.
With ProntoProEdit NG you can:
Upload and download new configurations to and from your ProntoPro NG. You do this with the
PC cable included with your ProntoPro NG:
1 Plug one end of the cable in the USB port on your computer.
2 Plug the other end of the cable in the USB port on ProntoPro NG.
Add, delete, modify and move control panels, devices and commands anywhere on the touch
screen;
Save, duplicate and share configuration files, codes or devices with other ProntoPro NG;
Import new graphics to create new buttons and designs;
Use .PNG graphic files that support transparency. You can now place buttons with a transparent
background on top of a background image, let transparent buttons overlap or create transparency
effects within buttons. You can use the color in the upper left corner as transparency color or you
can select a transparency color from a drop-down list.
Personalize configuration files to optimize the use of your ProntoPro NG;
Copy, Paste and Edit plain IR codes that you can exchange with other ProntoPro NG users;
Preview new configuration files on ProntoProEdit NG Simulator, to check what ProntoPro NG’s
interface will look like.
@@@
FAQ 41
FAQ
Why don’t my buttons work properly?
When you find that your ProntoPro NG does not send out the commands in accordance with what is
indicated on the touch screen, it is advised to recalibrate the touch screen. Calibration enables
ProntoPro NG to place the icons on the touch screen in line with their predefined functions.
Attention
Never use an actual pen, pencil or other sharp object on the touch screen. Use your finger or a pointy
object like a plastic-tipped pen intended for use with touch screens.
How do I calibrate the touch screen?
1 Tap the ProntoPro NG icon in the top center of the touch screen.
The Tools Menu appears.
2 Select .
The first Settings Page appears.
3 Press the Page Down hard button at the left side of the ProntoPro NG.
The second Settings Page appears.
4 Tap in the second Settings Page.
The ‘Calibration’ screen appears.
5 Tap the upper left corner on the touch screen.
6 Tap the lower right corner on the touch screen.
The touch screen is calibrated.
7 Tap the ProntoPro NG icon again to exit the Settings Tool.
How do I reset ProntoPro NG?
Normally, resetting ProntoPro NG is not necessary. However, if ProntoPro NG’s touch screen freezes
or if you notice unusual behaviour, you need to perform a reset to get ProntoPro NG running again.
1 Slide the battery cover off the back of ProntoPro NG.
You can find the Reset button in the battery compartment.
2 Use an unfolded paperclip or a sharp pencil to carefully press the Reset button.
ProntoPro NG restarts.
ProntoPro NG beeps twice to indicate it is ready for use.
Reset button
FAQ 42
Note
If you reset ProntoPro NG, all personal changes like saved and programmed commands, IR codes,
timers and macros are retained. Only the time will be reset to 12.00 am.
Why does a device respond to some RF signals and not to others?
Not all commands for all devices work properly with RF signals.
If a device does not respond properly to RF signals sent out by ProntoPro NG, you have to reconfigure
ProntoPro NG to operate the device with IR signals.
.
Troubleshooting 43
Troubleshooting
General Problems
ProntoPro NG shuts off automatically
This is a timeout feature of ProntoPro NG to save power. You can change the time ProntoPro NG
stays active in the Settings Tool.
See “Setting the Timeout of the LCD Screen” on page 26 for more information.
The touch screen buttons on the ProntoPro NG do not respond properly
If the touch screen buttons on the ProntoPro NG do not respond properly, calibrate the touch screen.
See “Calibrating the Touch Screen” on page 28 for more information.
Devices do not respond to commands from ProntoPro NG
Make sure the ProntoPro NG’s sending eye is pointed towards the device you are operating.
Check if the Low Battery icon has appeared on screen. If so, place the ProntoPro NG in the
docking station and recharge the battery pack.
Check if your device understands Philips-Marantz RC codes. Normally you can find this in the
documentation of your device.
Check if you have defined the correct brands for your devices. (p.16)
Check if you have defined the correct code set for your devices. (p17)
Check if the button you are trying to use is assigned properly via Brand Tool or via Learn Tool.
(p.19)
Check if your device is in RF mode. Switch your device back to IR mode (p. @@@).
If you have set up your ProntoPro NG to operate devices with RF signals:
Check in the RF IR Tool if the devices you want to operate are set up properly (p.38).
Check if the Extender ID and the Channel on your ProntoPro NG match the ID and the
Channel on the RF Extender.
Make sure the RF Extender is placed near the devices you want to use with RF signals.
Make sure that the RF Extender’s sending eye is pointed towards the device.
Change the Channel if you notice interferences from other RF channels.
If you want to use RF signals for devices on different locations, you need more than one RF
Extender. See the User Guide of the RF Extender for more information.
Customizing Problems
Buttons are not sending the correct commands
Check if you have defined the correct brands for your devices. (p.16)
Check if you have defined the correct code set for your devices. (p17.)
Check if you should calibrate your screen. (p.28)
Check whether the button of the device is learned properly. (p.19)
Check whether the macro recorded properly. (p.29)
Macros do not work
Make sure ProntoPro NG’s sending eye is pointed towards the device the entire time the macro is
being executed.
Troubleshooting 44
The sending eye is located at the top of ProntoPro NG.
Insert delays to allow devices to start up properly.
Check for inactive buttons in your macro.
Check if you did not reprogram the buttons. Macros do not store commands, they store buttons. If
you reprogram a button, the macro executes the new command assigned to the button.
ProntoPro NG will not learn commands
Make sure your ProntoPro NG and the remote control are positioned correctly.
When the sending eye of your existing remote control is not pointed towards the learning eye
of the ProntoPro NG, ProntoPro NG might not receive the signals properly. Align the remote
controls as correctly as possible.
When the distance between your existing remote control and the ProntoPro NG is too short
or too long, ProntoPro NG might not receive the signals properly. Try out several distances
between 10 and 20 centimeters (4 and 8 inches) to learn the commands.
Avoid programming ProntoPro NG under bright fluorescent light: it might affect the infrared
signals.
Make sure the battery pack in the ProntoPro NG is not empty.
The configuration file is corrupted
When the configuration file is corrupted, you can use ProntoProEdit NG to download a new
configuration file. Taken into account that all your customized commands, devices and macros will be
lost and you will have to reprogram your ProntoPro NG. Therefore it is recommended to save the
configuration by uploading it to the PC with ProntoProEdit NG.
Timers do not work
Check if the timer has been activated (p. 31).
Make sure a Start Action for the timer has been defined properly (p. 35).
Check whether the date and time of your ProntoPro NG are set properly (p. 11).
Memory Storage Problems
Memory storage problems can be the cause of ProntoPro NG not saving a macro. Storage problems
can be caused by a full memory or by a low battery pack.
ProntoPro NG error messages
If one of the following error messages occurs, please contact your dealer or the Philips customer
service:
Invalid CF version or corrupt flash;
Incorrect software version.
When your ProntoPro NG does not respond and the screen stays blank:
1 Download the configuration file again.
2 When downloading the configuration file again does not work, download the firmware from
http://www.pronto.philips.com.
Connection to the PC
Make sure the ProntoPro NG battery pack is sufficiently charged while using ProntoProEdit NG to
download or upload.
Do not pull out the USB cable while uploading or downloading a configuration file.
Maintaining ProntoPro NG 45
Maintaining ProntoPro NG
Important Notices
Take care not to scratch the touch screen
Use your finger to tap the touch screen or use plastic-tipped pens intended for use with touch screen.
Never use an actual pen, pencil or other sharp object on the touch screen.
Protect ProntoPro NG from temperature extremes
Keep ProntoPro NG away from heaters and other heat sources.
ProntoPro NG is not waterproof
ProntoPro NG should not be exposed to rain or moisture.
Do not store or use ProntoPro NG in any location that is extremely damp or wet.
When you have spilled water on ProntoPro NG, you have to take out the battery pack and let
ProntoPro NG dry for 48 hours before you replace the battery pack.
The touch screen of ProntoPro NG contains a glass element
Do not drop ProntoPro NG or subject it to any strong impact.
Cleaning ProntoPro NG
Use a soft, damp cloth to clean ProntoPro NG.
If the touch screen of ProntoPro NG is spoiled, clean it with a soft cloth moistened with a diluted
window-cleaning solution.
Do not use a corrosive detergent or an abrasive sponge.
Avoid the use of abundant water.
List of Symbols 46
List of Symbols
Pause
Stop
Normal run; normal speed
Normal run; normal speed
Fast run; fast speed
Fast run; fast speed
Slow run; slow speed
Slow run; slow speed
Eject
Recording, general
Key
Navigate
Still mode
Tape running direction
Next track
Previous track
Fast forward to index
Rewind to index
Frame by frame, general
Frame by frame, general
Subtitle
Cancel picture
Picture-in-picture mode
Menu
Picture-in-picture shift
Picture-in-picture swap
Multi-picture display
Picture-in-picture select
Teletext mode
Page number up
Page number down
Page enlargement
TV and text mixed
1st or 2nd language
Last view; previous program
Stand-by
Zone focus: long distance
Zone focus: very short distance
Single or multi-digit selection
Brightness; brilliance
List of Symbols 47
Contrast
Brightness/contrast
Color saturation
Lamp; lighting; illumination
Split screen freeze / double screen freeze
Split screen swap / double screen swap
Split screen / double screen
Movie expand
Personal preference
Picture-in-picture freeze
Main index page
Picture freeze
Programmable timer; general
Enter
Application assistance
Actual time on screen
EPG / Electronic Program Guide
Video output
Read data from store
Write data into store
Page hold
Sound muting
Additional information on screen
Spatial sound effect
Television; video
Sound; audio
Surround sound
Dolby Digital
Digital Theater Systems
Active control
Specifications 48
Specifications
The specifications and design of this product are subject to change without notice.
Display 64k color TFT 3.8” touch screen LCD
320x240 pixels (QVGA) resolution
White LED-backlight for LCD and buttons
Interface USB 1.1-port connector
Software Database with IR codes to operate more than 800 brands
Built-in Philips IR codes
Total number of devices only limited by memory
Infrared (IR) 4 high performance IR-sending LEDs, 1 receiver LED
Operating distance of approximately 33 ft (10m)
Learning frequency up to 78 KHz and 455 KHz
Radio frequency
(RF)
Band: 418 MHz
16 Extender ID’s and 4 Channels
Memory 16 Mbyte (extendable to 32 Mbyte)
Power
management
Power on by tapping the touch screen, by tilting the ProntoPro
NG or by pressing a button
Power off automatically
Dimensions
(HxWxD)
6.07 inch x 3.64 inch x 1.10 inch (154,2mm x 92,4mm x
27,8mm)
Operating
temperature
41°-113° F (5° – 45° C)
Accessories Included:
USB cable for PC connection
CD-ROM with ProntoProEdit NG software
AAA rechargeable battery pack (4x1.2 V)
Docking station
Not included:
RF Extender (RFX6000)
ProntoProEdit
NG
PC requirements:
Windows 98SE, ME, 2000, XP
64 MB of RAM
75 MB of free hard disk space
Free USB Port
CD-ROM player
IR-database information:
Redesigned by UEI Technology
Licensed under U.S. Patent 5,689,353
Portions UEI 1999
Glossary 49
Glossary
Action
An action is a command that will be executed by ProntoPro NG. An action can be an IR
code, a link, a delay or a beep. You can assign one or more actions to a button or a hard
button. It is the same as a macro.
Action list An action list is a list of actions assigned to a button or a hard button. An action list can
contain up to 255 actions.
Animation mode
ProntoPro NG provides navigation feedback through graphical animations. These
animations can be found in the Animation mode. You can enable and disable the
animations of your ProntoPro NG in the Settings Pages.
Branding
ProntoPro NG contains a list of brands and their according IR codes in its database.
ProntoPro NG uses IR codes to control devices. Because there are several brands using
specific IR codes, you have to define the brand and code set for each device.
Button alias See Link.
Button backlight The Button backlight is a special light source that is placed behind the hard buttons on
your ProntoPro NG, enhancing the visibility of these buttons.
Calibration Calibrating the touch screen enables ProntoPro NG to exactly match the icons on the
touch screen with their predefined functions.
Code set
A code set is a list of IR codes. Audio and video devices of different brands use
different code sets. A device can only receive and execute functions from the correct
code set.
Cursor navigation
There are two ways of navigating through ProntoPro NG: using the touch screen or
using the cursor for navigation. When you select cursor navigation, the cursor can only
be used for navigating through devices and pages on ProntoPro NG touch screen, not for
controlling audio/video equipment.
Delay A delay is a pause between two actions. A delay gives the device enough time to
execute the first action before it receives an impulse to execute a second action.
Device
Every device in the configuration file appears on the Device Overview Page of
ProntoPro NG and in the tree view in ProntoProEdit NG. A device represents the
equipment you want to control with ProntoPro NG. The device contains a number of
pages with buttons.
Device action
A device action is an action that is executed automatically when you select a device.
E.g. when you select TV, you can learn your ProntoPro NG to switch on the TV at the
same time.
Device Overview
You use the Device Overview on ProntoPro NG to access the different devices. The
Device Overview contains buttons for each device in the configuration. By pressing
these buttons you navigate to the first page of the selected device.
Device settings
The device settings are the type of device, the brand, the IR code set and the functions.
In order to control a device with your ProntoPro NG, you first have to set the device
settings.
Device template You can create a template from a device in ProntoProEdit NG Advanced Mode. When
you add a new device on ProntoPro NG, this template will be used.
Firm keys
ProntoPro NG has 4 firm keys located below the touch screen. The label of a firm key is
displayed at the bottom of the touch screen. You can configure the functions of the firm
keys, just like most hard buttons and the buttons on the touch screen. The strength of the
firm keys is that you can also configure their label, so they can always indicate the
function assigned to them.
Hard button
A hard button is a button that can be pressed and generates an event. Hard buttons can
be found on ProntoPro NG. Their layout and visual aspects cannot be changed. You can
configure the functions of the hard buttons, just like the firm keys and the buttons on the
touch screen.
IR Short for infrared.
Glossary 50
IR code
ProntoPro NG sends out infrared (IR) signals to operate devices. IR codes for all kinds
of video and audio device brands are stored in ProntoPro NG’s universal database. By
selecting IR codes and assigning them to buttons and hard buttons, you can program
your ProntoPro NG to operate your equipment. When IR codes are not present in the
database, you can always learn them from the conventional remote control of your
equipment.
Label A label is the text you want to put on a soft button or a firm key.
LCD Short for liquid crystal display.
LCD backlight LCD backlight is a special light source that is placed behind the LCD screen, enhancing
the visibility of this screen.
Light sensor The light sensor on your ProntoPro NG causes the backlight to switch on automatically
according to the ambient light of your home theater environment.
Link
A link, also called a button alias, is a shortcut from the action list of one button to the
action list of another button. Instead of adding the same actions to several buttons or
hard buttons, you can create a link and reuse the action list. When your ProntoPro NG is
executing an action list and comes across a link, the action list referred to by that link is
executed.
Macro
A macro is a sequence of actions executed when pressing a single button on ProntoPro
NG. Every button or hard button can act as a macro and perform a list of commands. It
is the same as an action list.
Mode animation When you switch from using the ProntoPro NG to the Tools Menu, the ProntoPro NG
icon slides to the top middle of the screen. This is called a ‘mode animation’.
Page A page of a device is the area of 320 by 240 pixels on ProntoPro NG's touch screen
containing buttons or other objects.
Page animation When you switch from one page to another, the first page slides out of the screen and
the second page slides in the screen. This is called a ‘page animation’.
ProntoPro NG
ProntoPro NG is a universal remote control with a touch screen. You can customize and
fully configure ProntoPro NG to your personal needs: the devices you want to operate,
the functions you want to perform and the layout on ProntoPro NG.
ProntoProEdit NG ProntoProEdit is the visual editor for creating and configuring ProntoPro Configuration
Files.
RF Short for Radio Frequency.
RF code
You can choose to operate your devices with RF signals instead of IR signals. To use
RF signals, you need an RF Extender. The advantage of RF is that it spreads in all
directions and that it pervades walls. In other words, you can operate your devices from
an adjacent room.
RF Extender
An RF Extender is a converter box that receives RF signals and turns them into IR
signals to operate devices. When your ProntoPro NG sends out RF codes, the RF
Extender receives them and sends out IR codes to your devices.
RFX6000 The RFX6000 is an RF Extender that can be used in combination with ProntoPro NG.
Settings Tool The Settings Tool allow you to consult and adjust several settings, for instance
consulting the battery level, setting the date and time, calibrating the touch screen, ...
Simulator
ProntoPro NG simulator is a separate application in ProntoProEdit NG package, which
simulates every aspect of your ProntoPro NG. You use ProntoPro NG simulator to test
your PCF without the need to download it to your ProntoPro NG. When you make
changes in ProntoPro NG simulator, they will not be saved in the configuration file.
Soft button
A soft button is a button that can be found on the touch screen. The layout and the visual
aspects of a soft button can be changed. You can also configure the functions of the soft
buttons.
Timer A timer allows you to define actions to be carried out at predefined times. For instance,
you can set an alarm or program your VCR to record your favorite daily TV-show.
Touch screen The touch screen of your ProntoPro NG is the centered area that contains soft buttons
you can use to operate the remote control.
USB USB
(
Universal Serial Bus
)
is a "
p
lu
g
and
p
la
y
" interface between a com
p
uter and ad
d
-
51
on devices (such as audio players, joysticks, keyboards, telephones, scanners, and
printers).
Index 52
Index
A
action ......................................................................................... 30
action list
action.................................................................................... 30
beep ......................................................................................30
delay ..................................................................................... 30
Add Tool.................................................................................... 23
adding
action.................................................................................... 30
beep ......................................................................................30
delay ..................................................................................... 30
new device............................................................................ 23
adjusting
brightness ............................................................................. 27
LCD screen timeout.............................................................. 26
volume level ......................................................................... 27
animation mode ........................................................................... 8
full ........................................................................................28
mode..................................................................................... 28
none...................................................................................... 28
page ......................................................................................28
B
battery compartment .................................................................... 6
beep ........................................................................................... 30
brand
installing............................................................................... 18
searching .............................................................................. 18
selecting.......................................................................... 17, 18
Brand Tool................................................................................. 17
button........................................................................................... 5
backlight................................................................................. 6
cursor................................................................................ 5, 37
hard buttons............................................................................ 5
labeling................................................................................. 21
learning................................................................................. 20
Page down ..............................................................................6
Page up................................................................................... 6
reset ........................................................................................6
Toggle .................................................................................. 37
button action deleting ................................................................ 24
C
calibrating the touch screen ....................................................... 28
changing
date ....................................................................................... 12
time....................................................................................... 12
time format ........................................................................... 11
channel
channel down..........................................................................5
channel up .............................................................................. 5
clock settings ................................................................... See time
code set
searching .............................................................................. 18
selecting................................................................................17
connection to docking station ...................................................... 6
copying existing device ............................................................. 23
creating macro ........................................................................... 29
cursor ..................................................................................... 5, 37
navigating............................................................................. 27
cursor navigation ......................................................................... 8
D
date ............................................................................................12
delay...........................................................................................30
Delete Tool ................................................................................24
deleting
action in a macro...................................................................31
button action .........................................................................24
device....................................................................................24
device
adding ...................................................................................23
copying .................................................................................23
deleting .................................................................................24
labeling .................................................................................22
moving..................................................................................24
device action learning ................................................................20
Device Overview .......................................................................14
docking station.............................................................................7
download ...................................................................................40
E
error message.............................................................................45
H
Home Theater Control Panel........................................................5
I
infrared.......................................................................................38
installing brand ..........................................................................18
IR signals ...................................................................................38
K
keyboard ....................................................................................21
symbols.................................................................................21
zoom .....................................................................................21
L
Label Tool..................................................................................21
labeling
button....................................................................................21
device....................................................................................22
page ......................................................................................22
symbols.................................................................................21
LCD screen ..................................................................................5
LCD screen timeout ...................................................................26
Learn Tool .................................................................................19
learning
button....................................................................................20
device action.........................................................................20
M
macro
action ....................................................................................30
beep ......................................................................................30
creating .................................................................................29
delay .....................................................................................30
deleting action ......................................................................31
move .....................................................................................31
testing ...................................................................................30
Index 53
troubleshooting..................................................................... 45
Macro Tool ................................................................................ 29
mode animation ......................................................................... 28
move action in a macro.............................................................. 31
Move Tool ................................................................................. 24
Moving a Device ....................................................................... 24
N
navigation
cursor.................................................................................... 27
cursor navigation ..............................................................8, 37
touch screen.......................................................................... 27
touch screen navigation ........................................................37
O
operating the ProntoPro NG
cursor navigation ..................................................................37
RF signals............................................................................. 38
touch screen navigation ........................................................37
troubleshooting..................................................................... 44
Overview
Device .................................................................................. 14
Page...................................................................................... 14
P
page animation........................................................................... 28
page labeling..............................................................................22
Page Overview....................................................................... 8, 14
ProntoPro NG ..............................................................................5
adjusting the settings ............................................................ 26
appliance ................................................................................5
customizing .......................................................................... 16
Device Overview.................................................................. 14
docking station ....................................................................... 7
maintaining...........................................................................47
operating...............................................................................14
Page Overview ..................................................................... 14
resetting................................................................................ 42
specifications........................................................................ 50
touch screen............................................................................7
turning on ............................................................................. 11
USB cable............................................................................. 40
USB port............................................................................... 40
ProntoProEdit NG...................................................................... 40
ProntoProEdit Simulator............................................................ 40
R
radio frequency.......................................................................... 38
remote control
learning................................................................................. 19
Remote Control............................................................................5
resetting the ProntoPro NG........................................................ 42
RF Extender............................................................................... 38
RF IR Tool................................................................................. 38
RF signals ............................................................................ 38, 43
S
screen.......................................................................................5, 7
calibrating.............................................................................28
timeout..................................................................................26
searching
brand.....................................................................................18
code set.................................................................................18
selecting
brand...............................................................................17, 18
code set.................................................................................17
settings.......................................................................................26
animation mode ....................................................................28
brightness..............................................................................27
calibrating the touch screen ..................................................28
date .................................................................................11, 12
LCD screen timeout..............................................................26
time.................................................................................11, 12
time format ...........................................................................11
volume level .........................................................................27
setup...........................................................................................26
Simulator ...................................................................................40
specifications .............................................................................50
storage problems ........................................................................45
symbols................................................................................21, 48
T
testing the macro........................................................................30
time ............................................................................................12
time format.................................................................................11
Toggle button.............................................................................37
Tool............................................................................................16
Add .......................................................................................23
Brand ....................................................................................17
Delete....................................................................................24
Label.....................................................................................21
Learn.....................................................................................19
Macro....................................................................................29
Moving .................................................................................24
RF IR ....................................................................................38
touch screen .............................................................................5, 7
calibrating.......................................................................28, 42
transparency.................................................................................8
turning on ProntoPro NG...........................................................11
U
upload ........................................................................................40
USB cable ..................................................................................40
USB port ................................................................................6, 40
V
volume
mute........................................................................................5
volume down ..........................................................................5
volume level .........................................................................27
volume up ...............................................................................5
volume level
hard buttons ..........................................................................27
touch screen buttons .............................................................27
Copyright 54
Copyright
© 2003 Royal Philips Electronics NV
All rights are reserved. Reproduction in whole or in part is prohibited without prior consent of the
copyright owner.
