Philips Electronics Singapore BC15348A RF Remote Control User Manual

Philips Electronics Singapore Pte Ltd RF Remote Control

Users Manual

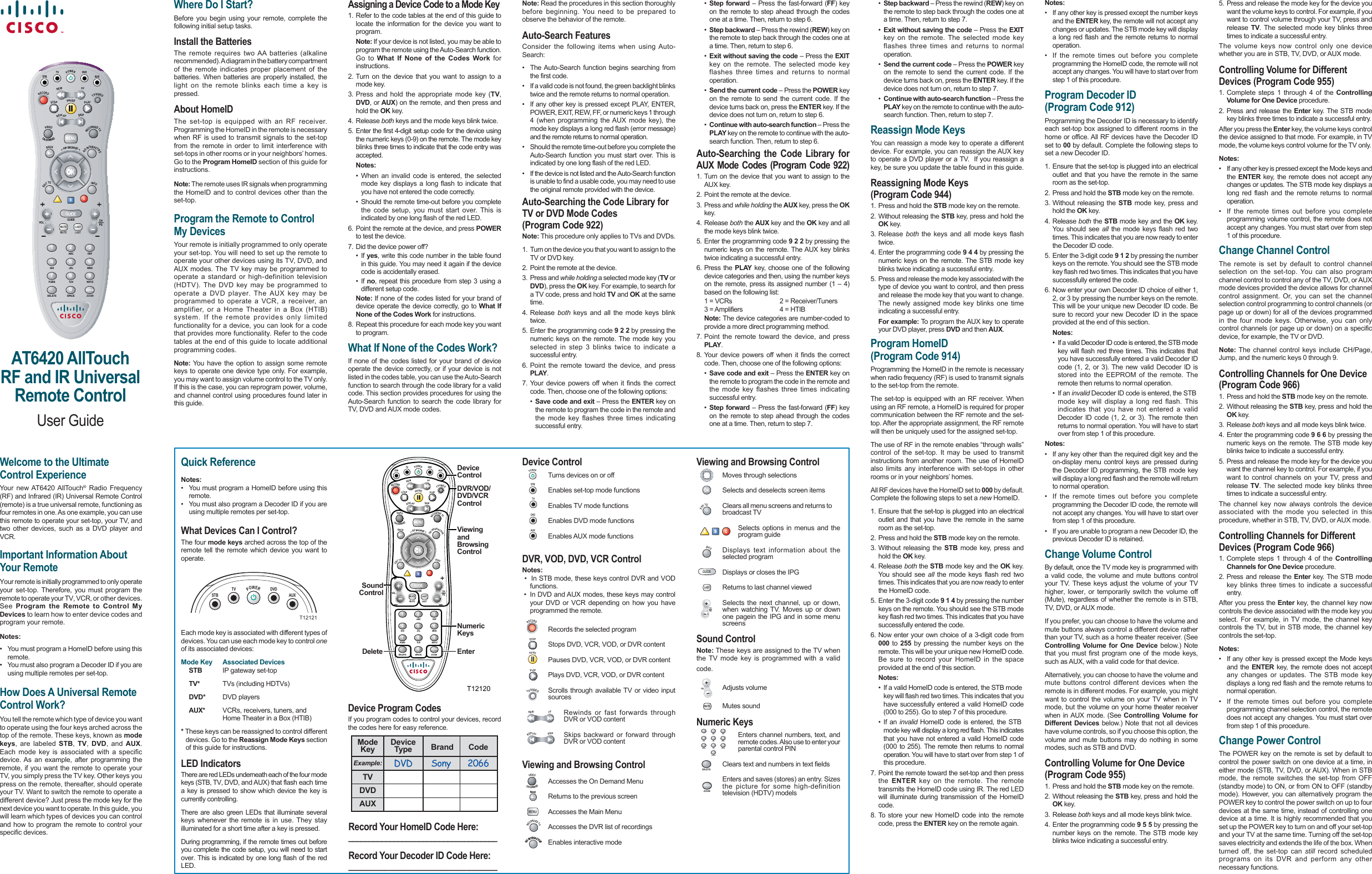

AT6420 AllTouch RF and IR UniversalRemote ControlUser Guide1 2 34 5 67 8 9GUIDEMENU0ENTERABC DEFJKL MNOTUVGHIPQRS WXYZSPACEMUTEVOL GUIDE CHPGLASTMUTE LASTPIPiBROWSEINFOEXTOITGOIINTERACTIVEVIDEOBACKON IDEMANDSTOPPOWERRECORDREPLAYSKIPPAUSEPLAYREWFFTV/VIDEOSTBTVAUXDVDRECORDEDITVBCATVDELETE ZOOMWelcome to the Ultimate Control ExperienceYour new AT6420 AllTouch® Radio Frequency (RF) and Infrared (IR) Universal Remote Control (remote) is a true universal remote, functioning as four remotes in one. As one example, you can use this remote to operate your set-top, your TV, and two other devices, such as a DVD player and VCR.Important Information About Your RemoteYour remote is initially programmed to only operate your set-top. Therefore, you must program the remote to operate your TV, VCR, or other devices. See Program the Remote to Control My Devices to learn how to enter device codes and program your remote.Notes:• You must program a HomeID before using this remote.• You must also program a Decoder ID if you are using multiple remotes per set-top.How Does A Universal Remote Control Work?You tell the remote which type of device you want to operate using the four keys arched across the top of the remote. These keys, known as mode keys, are labeled STB, TV, DVD, and AUX.Each mode key is associated with a specific device. As an example, after programming the remote, if you want the remote to operate your TV, you simply press the TV key. Other keys you press on the remote, thereafter, should operate your TV. Want to switch the remote to operate a different device? Just press the mode key for the next device you want to operate. In this guide, you will learn which types of devices you can control and how to program the remote to control your specific devices. Where Do I Start?Before you begin using your remote, complete the following initial setup tasks.Install the BatteriesThe remote requires two AA batteries (alkaline recommended). A diagram in the battery compartment of the remote indicates proper placement of the batteries. When batteries are properly installed, the light on the remote blinks each time a key is pressed.About HomeIDThe set-top is equipped with an RF receiver. Programming the HomeID in the remote is necessary when RF is used to transmit signals to the set-top from the remote in order to limit interference with set-tops in other rooms or in your neighbors’ homes. Go to the Program HomeID section of this guide for instructions.Note: The remote uses IR signals when programming the HomeID and to control devices other than the set-top.Program the Remote to Control My Devices Your remote is initially programmed to only operate your set-top. You will need to set up the remote to operate your other devices using its TV, DVD, and AUX modes. The TV key may be programmed to operate a standard or high-definition television (HDTV). The DVD key may be programmed to operate a DVD player. The AUX key may be programmed to operate a VCR, a receiver, an amplifier, or a Home Theater in a Box (HTIB) system. If the remote provides only limited functionality for a device, you can look for a code that provides more functionality. Refer to the code tables at the end of this guide to locate additional programming codes. Note: You have the option to assign some remote keys to operate one device type only. For example, you may want to assign volume control to the TV only. If this is the case, you can reprogram power, volume, and channel control using procedures found later in this guide.Assigning a Device Code to a Mode Key1. Refer to the code tables at the end of this guide to locate the information for the device you want to program. Note: If your device is not listed, you may be able to program the remote using the Auto-Search function. Go to What If None of the Codes Work for instructions.2. Turn on the device that you want to assign to a mode key.3. Press and hold the appropriate mode key (TV, DVD, or AUX) on the remote, and then press and hold the OK key.4. Release both keys and the mode keys blink twice.5. Enter the first 4-digit setup code for the device using the numeric keys (0-9) on the remote. The mode key blinks three times to indicate that the code entry was accepted. Notes: • When an invalid code is entered, the selected mode key displays a long flash to indicate that you have not entered the code correctly. • Should the remote time-out before you complete the code setup, you must start over. This is indicated by one long flash of the red LED.6. Point the remote at the device, and press POWER to test the device.7. Did the device power off? • If yes, write this code number in the table found in this guide. You may need it again if the device code is accidentally erased. • If no, repeat this procedure from step 3 using a different setup code. Note: If none of the codes listed for your brand of device operate the device correctly, go to What If None of the Codes Work for instructions.8. Repeat this procedure for each mode key you want to program.What If None of the Codes Work?If none of the codes listed for your brand of device operate the device correctly, or if your device is not listed in the codes table, you can use the Auto-Search function to search through the code library for a valid code. This section provides procedures for using the Auto-Search function to search the code library for TV, DVD and AUX mode codes. Note: Read the procedures in this section thoroughly before beginning. You need to be prepared to observe the behavior of the remote.Auto-Search FeaturesConsider the following items when using Auto-Search:• The Auto-Search function begins searching from the first code.• If a valid code is not found, the green backlight blinks twice and the remote returns to normal operation.• If any other key is pressed except PLAY, ENTER, POWER, EXIT, REW, FF, or numeric keys 1 through 4 (when programming the AUX mode key), the mode key displays a long red flash (error message) and the remote returns to normal operation.• Should the remote time-out before you complete the Auto-Search function you must start over. This is indicated by one long flash of the red LED.• If the device is not listed and the Auto-Search function is unable to find a usable code, you may need to use the original remote provided with the device.Auto-Searching the Code Library for TV or DVD Mode Codes (Program Code 922)Note: This procedure only applies to TVs and DVDs.1. Turn on the device you that you want to assign to the TV or DVD key.2. Point the remote at the device.3. Press and while holding a selected mode key (TV or DVD), press the OK key. For example, to search for a TV code, press and hold TV and OK at the same time.4. Release both keys and all the mode keys blink twice.5. Enter the programming code 9 2 2 by pressing the numeric keys on the remote. The mode key you selected in step 3 blinks twice to indicate a successful entry.6. Point the remote toward the device, and press PLAY.7. Your device powers off when it finds the correct code. Then, choose one of the following options: • Save code and exit – Press the ENTER key on the remote to program the code in the remote and the mode key flashes three times indicating successful entry. • Step forward – Press the fast-forward (FF) key on the remote to step ahead through the codes one at a time. Then, return to step 6. • Step backward – Press the rewind (REW) key on the remote to step back through the codes one at a time. Then, return to step 6. • Exit without saving the code – Press the EXIT key on the remote. The selected mode key flashes three times and returns to normal operation. • Send the current code – Press the POWER key on the remote to send the current code. If the device turns back on, press the ENTER key. If the device does not turn on, return to step 6. • Continue with auto-search function – Press the PLAY key on the remote to continue with the auto- search function. Then, return to step 6.Auto-Searching the Code Library for AUX Mode Codes (Program Code 922)1. Turn on the device that you want to assign to the AUX key.2. Point the remote at the device.3. Press and while holding the AUX key, press the OK key.4. Release both the AUX key and the OK key and all the mode keys blink twice. 5. Enter the programming code 9 2 2 by pressing the numeric keys on the remote. The AUX key blinks twice indicating a successful entry.6. Press the PLAY key, choose one of the following device categories and then, using the number keys on the remote, press its assigned number (1 – 4)based on the following list: 1 = VCRs 2 = Receiver/Tuners 3 = Amplifiers 4 = HTIB Note: The device categories are number-coded to provide a more direct programming method.7. Point the remote toward the device, and press PLAY. 8. Your device powers off when it finds the correct code. Then, choose one of the following options: • Save code and exit – Press the ENTER key on the remote to program the code in the remote and the mode key flashes three times indicating successful entry. • Step forward – Press the fast-forward (FF) key on the remote to step ahead through the codes one at a time. Then, return to step 7. • Step backward – Press the rewind (REW) key on the remote to step back through the codes one at a time. Then, return to step 7. • Exit without saving the code – Press the EXIT key on the remote. The selected mode key flashes three times and returns to normal operation. • Send the current code – Press the POWER key on the remote to send the current code. If the device turns back on, press the ENTER key. If the device does not turn on, return to step 7. • Continue with auto-search function – Press the PLAY key on the remote to continue with the auto- search function. Then, return to step 7.Reassign Mode KeysYou can reassign a mode key to operate a different device. For example, you can reassign the AUX key to operate a DVD player or a TV. If you reassign a key, be sure you update the table found in this guide.Reassigning Mode Keys(Program Code 944)1. Press and hold the STB mode key on the remote.2. Without releasing the STB key, press and hold the OK key.3. Release both the keys and all mode keys flash twice.4. Enter the programming code 9 4 4 by pressing the numeric keys on the remote. The STB mode key blinks twice indicating a successful entry.5. Press and release the mode key associated with the type of device you want to control, and then press and release the mode key that you want to change. The newly assigned mode key blinks one time indicating a successful entry. For example: To program the AUX key to operate your DVD player, press DVD and then AUX.Program HomeID(Program Code 914)Programming the HomeID in the remote is necessary when radio frequency (RF) is used to transmit signals to the set-top from the remote.The set-top is equipped with an RF receiver. When using an RF remote, a HomeID is required for proper communication between the RF remote and the set-top. After the appropriate assignment, the RF remote will then be uniquely used for the assigned set-top.The use of RF in the remote enables “through walls” control of the set-top. It may be used to transmit instructions from another room. The use of HomeID also limits any interference with set-tops in other rooms or in your neighbors’ homes.All RF devices have the HomeID set to 000 by default. Complete the following steps to set a new HomeID.1. Ensure that the set-top is plugged into an electrical outlet and that you have the remote in the same room as the set-top.2. Press and hold the STB mode key on the remote.3. Without releasing the STB mode key, press and hold the OK key.4. Release both the STB mode key and the OK key. You should see all the mode keys flash red two times. This indicates that you are now ready to enter the HomeID code.5. Enter the 3-digit code 9 1 4 by pressing the number keys on the remote. You should see the STB mode key flash red two times. This indicates that you have successfully entered the code.6. Now enter your own choice of a 3-digit code from 000 to 255 by pressing the number keys on the remote. This will be your unique new HomeID code. Be sure to record your HomeID in the space provided at the end of this section. Notes: • If a valid HomeID code is entered, the STB mode key will flash red two times. This indicates that you have successfully entered a valid HomeID code (000 to 255). Go to step 7 of this procedure. • If an invalid HomeID code is entered, the STB mode key will display a long red flash. This indicates that you have not entered a valid HomeID code (000 to 255). The remote then returns to normal operation. You will have to start over from step 1 of this procedure.7. Point the remote toward the set-top and then press the ENTER key on the remote. The remote transmits the HomeID code using IR. The red LED will illuminate during transmission of the HomeID code.8. To store your new HomeID code into the remote code, press the ENTER key on the remote again.Notes:• If any other key is pressed except the number keys and the ENTER key, the remote will not accept any changes or updates. The STB mode key will display a long red flash and the remote returns to normal operation.• If the remote times out before you complete programming the HomeID code, the remote will not accept any changes. You will have to start over from step 1 of this procedure.Program Decoder ID (Program Code 912)Programming the Decoder ID is necessary to identify each set-top box assigned to different rooms in the home or office. All RF devices have the Decoder ID set to 00 by default. Complete the following steps to set a new Decoder ID.1. Ensure that the set-top is plugged into an electrical outlet and that you have the remote in the same room as the set-top.2. Press and hold the STB mode key on the remote.3. Without releasing the STB mode key, press and hold the OK key.4. Release both the STB mode key and the OK key. You should see all the mode keys flash red two times. This indicates that you are now ready to enter the Decoder ID code.5. Enter the 3-digit code 9 1 2 by pressing the number keys on the remote. You should see the STB mode key flash red two times. This indicates that you have successfully entered the code.6. Now enter your own Decoder ID choice of either 1, 2, or 3 by pressing the number keys on the remote. This will be your unique new Decoder ID code. Be sure to record your new Decoder ID in the space provided at the end of this section. Notes: • If a valid Decoder ID code is entered, the STB mode key will flash red three times. This indicates that you have successfully entered a valid Decoder ID code (1, 2, or 3). The new valid Decoder ID is stored into the EEPROM of the remote. The remote then returns to normal operation. • If an invalid Decoder ID code is entered, the STB mode key will display a long red flash. This indicates that you have not entered a valid Decoder ID code (1, 2, or 3). The remote then returns to normal operation. You will have to start over from step 1 of this procedure.Notes:• If any key other than the required digit key and the on-display menu control keys are pressed during the Decoder ID programming, the STB mode key will display a long red flash and the remote will return to normal operation.• If the remote times out before you complete programming the Decoder ID code, the remote will not accept any changes. You will have to start over from step 1 of this procedure.• If you are unable to program a new Decoder ID, the previous Decoder ID is retained.Change Volume ControlBy default, once the TV mode key is programmed with a valid code, the volume and mute buttons control your TV. These keys adjust the volume of your TV higher, lower, or temporarily switch the volume off (Mute), regardless of whether the remote is in STB, TV, DVD, or AUX mode.If you prefer, you can choose to have the volume and mute buttons always control a different device rather than your TV, such as a home theater receiver. (See Controlling Volume for One Device below.) Note that you must first program one of the mode keys, such as AUX, with a valid code for that device.Alternatively, you can choose to have the volume and mute buttons control different devices when the remote is in different modes. For example, you might want to control the volume on your TV when in TV mode, but the volume on your home theater receiver when in AUX mode. (See Controlling Volume for Different Devices below.) Note that not all devices have volume controls, so if you choose this option, the volume and mute buttons may do nothing in some modes, such as STB and DVD.Controlling Volume for One Device (Program Code 955)1. Press and hold the STB mode key on the remote.2. Without releasing the STB key, press and hold the OK key.3. Release both keys and all mode keys blink twice.4. Enter the programming code 9 5 5 by pressing the number keys on the remote. The STB mode key blinks twice indicating a successful entry.T12121POWERSTBTVAUXDVDModeKey DeviceType Brand CodeExample: DVD Sony 2066TVDVDAUX5. Press and release the mode key for the device you want the volume keys to control. For example, if you want to control volume through your TV, press and release TV. The selected mode key blinks three times to indicate a successful entry.The volume keys now control only one device whether you are in STB, TV, DVD, or AUX mode.Controlling Volume for Different Devices (Program Code 955)1. Complete steps 1 through 4 of the Controlling Volume for One Device procedure.2. Press and release the Enter key. The STB mode key blinks three times to indicate a successful entry. After you press the Enter key, the volume keys control the device assigned to that mode. For example, in TV mode, the volume keys control volume for the TV only.Notes:• If any other key is pressed except the Mode keys and the ENTER key, the remote does not accept any changes or updates. The STB mode key displays a long red flash and the remote returns to normal operation.• If the remote times out before you complete programming volume control, the remote does not accept any changes. You must start over from step 1 of this procedure.Change Channel ControlThe remote is set by default to control channel selection on the set-top. You can also program channel control to control any of the TV, DVD, or AUX mode devices provided the device allows for channel control assignment. Or, you can set the channel selection control programming to control channels (or page up or down) for all of the devices programmed in the four mode keys. Otherwise, you can only control channels (or page up or down) on a specific device, for example, the TV or DVD.Note: The channel control keys include CH/Page, Jump, and the numeric keys 0 through 9. Controlling Channels for One Device(Program Code 966)1. Press and hold the STB mode key on the remote.2. Without releasing the STB key, press and hold the OK key.3. Release both keys and all mode keys blink twice.4. Enter the programming code 9 6 6 by pressing the numeric keys on the remote. The STB mode key blinks twice to indicate a successful entry.5. Press and release the mode key for the device you want the channel key to control. For example, if you want to control channels on your TV, press and release TV. The selected mode key blinks three times to indicate a successful entry.The channel key now always controls the device associated with the mode you selected in this procedure, whether in STB, TV, DVD, or AUX mode.Controlling Channels for Different Devices (Program Code 966)1. Complete steps 1 through 4 of the Controlling Channels for One Device procedure.2. Press and release the Enter key. The STB mode key blinks three times to indicate a successful entry. After you press the Enter key, the channel key now controls the device associated with the mode key you select. For example, in TV mode, the channel key controls the TV, but in STB mode, the channel key controls the set-top.Notes:• If any other key is pressed except the Mode keys and the ENTER key, the remote does not accept any changes or updates. The STB mode key displays a long red flash and the remote returns to normal operation.• If the remote times out before you complete programming channel selection control, the remote does not accept any changes. You must start over from step 1 of this procedure.Change Power ControlThe POWER key on the remote is set by default to control the power switch on one device at a time, in either mode (STB, TV, DVD, or AUX). When in STB mode, the remote switches the set-top from OFF (standby mode) to ON, or from ON to OFF (standby mode). However, you can alternatively program the POWER key to control the power switch on up to four devices at the same time, instead of controlling one device at a time. It is highly recommended that you set up the POWER key to turn on and off your set-top and your TV at the same time. Turning off the set-top saves electricity and extends the life of the box. When turned off, the set-top can still record scheduled programs on its DVR and perform any other necessary functions.1 2ABC3DEF4 5JKL6MNO7 8TUVGHIPQRS9WXYZ0SPACEMUTEVOL GUIDE CHPGLASTMUTE LASTGUIDEPIPBROWSEINFOEXIT TOGOINTERACTIVEVIDEOBACKON IDEMANDSTOPPOWERRECORDREPLAYSKIPMENUPAUSEPLAYREWFFTV/VIDEOSTBTVAUXDVDRECORDEDTVBCADELETE ZOOMENTERTVDeviceControlDVR/VOD/DVD/VCRControlViewingandBrowsingControlNumericKeysEnterSoundControlDeleteT12120Quick ReferenceNotes:• You must program a HomeID before using this remote.• You must also program a Decoder ID if you are using multiple remotes per set-top.What Devices Can I Control?The four mode keys arched across the top of the remote tell the remote which device you want to operate.Each mode key is associated with different types of devices. You can use each mode key to control one of its associated devices:Mode Key Associated Devices STB IP gateway set-top TV* TVs (including HDTVs) DVD* DVD players AUX* VCRs, receivers, tuners, and Home Theater in a Box (HTIB)* These keys can be reassigned to control different devices. Go to the Reassign Mode Keys section of this guide for instructions.LED Indicators There are red LEDs underneath each of the four mode keys (STB, TV, DVD, and AUX) that flash each time a key is pressed to show which device the key is currently controlling. There are also green LEDs that illuminate several keys whenever the remote is in use. They stay illuminated for a short time after a key is pressed. During programming, if the remote times out before you complete the code setup, you will need to start over. This is indicated by one long flash of the red LED.Device Program Codes If you program codes to control your devices, record the codes here for easy reference.Record Your HomeID Code Here:____________________________________Record Your Decoder ID Code Here:_____________________________Device ControlPOWER Turns devices on or offSTB Enables set-top mode functionsTV Enables TV mode functionsDVD Enables DVD mode functionsAUX Enables AUX mode functions DVR, VOD, DVD, VCR ControlNotes: • In STB mode, these keys control DVR and VOD functions. • In DVD and AUX modes, these keys may control your DVD or VCR depending on how you have programmed the remote.RECORD Records the selected programSTOP Stops DVD, VCR, VOD, or DVR contentPAUSE Pauses DVD, VCR, VOD, or DVR contentPLAY Plays DVD, VCR, VOD, or DVR contentTV/VIDEO Scrolls through available TV or video input sourcesREWFF Rewinds or fast forwards through DVR or VOD contentREPLAYSKIP Skips backward or forward through DVR or VOD contentViewing and Browsing ControlVIDEOON IDEMAND Accesses the On Demand MenuBACK Returns to the previous screenMENU Accesses the Main MenuRECORDEDTV Accesses the DVR list of recordingsGOIINTERACTIVE Enables interactive modeViewing and Browsing Control Moves through selections Selects and deselects screen itemsEXIT TOTV Clears all menu screens and returns to broadcast TVBCA Selects options in menus and the program guideINFO Displays text information about the selected programGUIDE Displays or closes the IPGLAST Returns to last channel viewedCHPG Selects the next channel, up or down, when watching TV. Moves up or down one pagein the IPG and in some menu screensSound ControlNote: These keys are assigned to the TV when the TV mode key is programmed with a valid code.VOL Adjusts volumeMUTE Mutes soundNumeric Keys 1 2ABC3DEF4 5JKL6MNO7 8TUVGHIPQRS9WXYZ0SPACE Enters channel numbers, text, and remote codes. Also use to enter your parental control PINDELETE Clears text and numbers in text fieldsZOOMENTER Enters and saves (stores) an entry. Sizes the picture for some high-definition television (HDTV) models

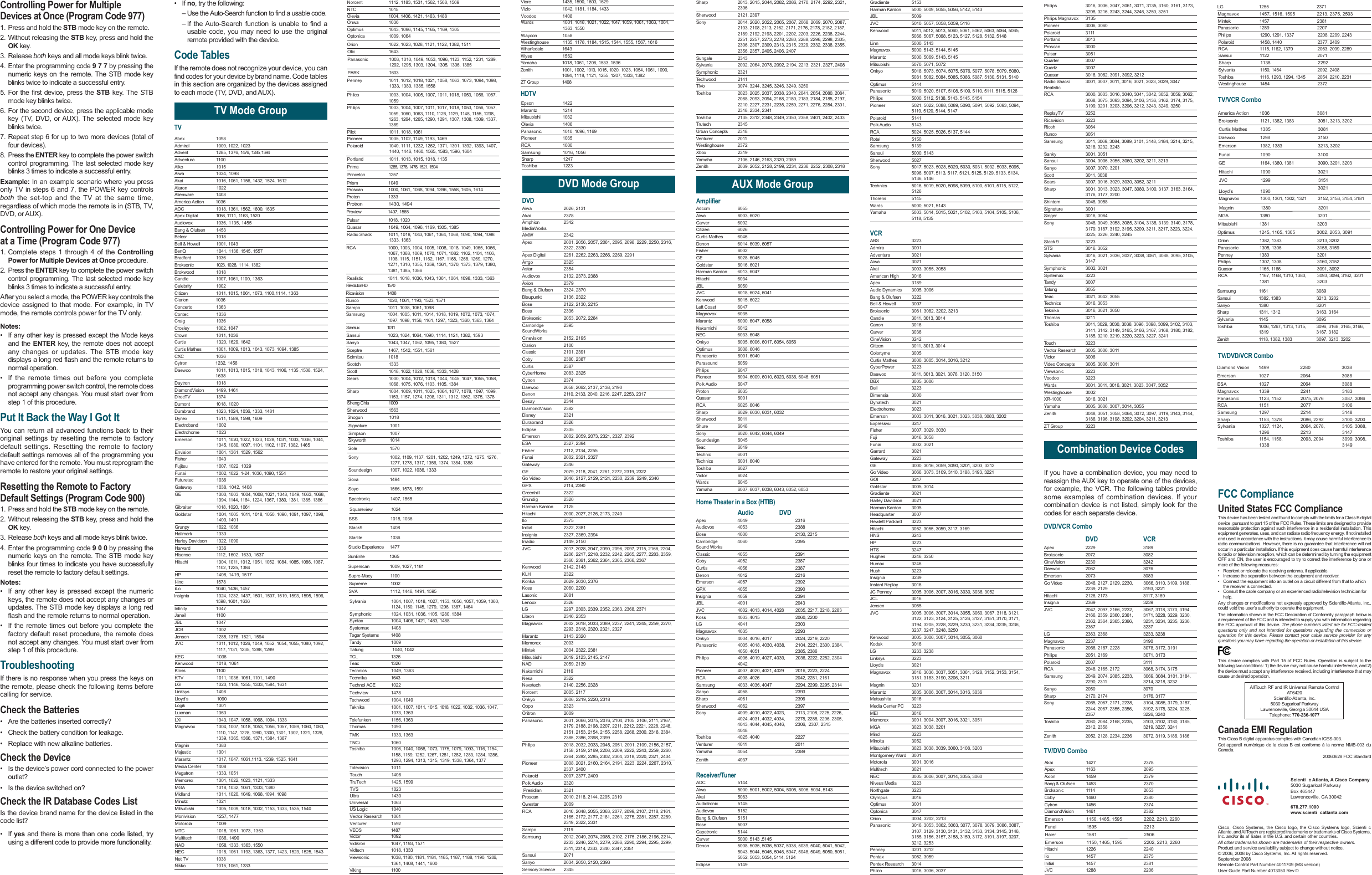

Controlling Power for Multiple Devices at Once (Program Code 977)1. Press and hold the STB mode key on the remote.2. Without releasing the STB key, press and hold the OK key.3. Release both keys and all mode keys blink twice.4. Enter the programming code 9 7 7 by pressing the numeric keys on the remote. The STB mode key blinks twice to indicate a successful entry.5. For the first device, press the STB key. The STB mode key blinks twice.6. For the second device, press the applicable mode key (TV, DVD, or AUX). The selected mode key blinks twice.7. Repeat step 6 for up to two more devices (total of four devices).8. Press the ENTER key to complete the power switch control programming. The last selected mode key blinks 3 times to indicate a successful entry.Example: In an example scenario where you press only TV in steps 6 and 7, the POWER key controls both the set-top and the TV at the same time, regardless of which mode the remote is in (STB, TV, DVD, or AUX).Controlling Power for One Device at a Time (Program Code 977)1. Complete steps 1 through 4 of the Controlling Power for Multiple Devices at Once procedure.2. Press the ENTER key to complete the power switch control programming. The last selected mode key blinks 3 times to indicate a successful entry.After you select a mode, the POWER key controls the device assigned to that mode. For example, in TV mode, the remote controls power for the TV only.Notes:• If any other key is pressed except the Mode keys and the ENTER key, the remote does not accept any changes or updates. The STB mode key displays a long red flash and the remote returns to normal operation.• If the remote times out before you complete programming power switch control, the remote does not accept any changes. You must start over from step 1 of this procedure.Put It Back the Way I Got ItYou can return all advanced functions back to their original settings by resetting the remote to factory default settings. Resetting the remote to factory default settings removes all of the programming you have entered for the remote. You must reprogram the remote to restore your original settings.Resetting the Remote to Factory Default Settings (Program Code 900)1. Press and hold the STB mode key on the remote.2. Without releasing the STB key, press and hold the OK key.3. Release both keys and all mode keys blink twice.4. Enter the programming code 9 0 0 by pressing the numeric keys on the remote. The STB mode key blinks four times to indicate you have successfully reset the remote to factory default settings.Notes:• If any other key is pressed except the numeric keys, the remote does not accept any changes or updates. The STB mode key displays a long red flash and the remote returns to normal operation.• If the remote times out before you complete the factory default reset procedure, the remote does not accept any changes. You must start over from step 1 of this procedure.TroubleshootingIf there is no response when you press the keys on the remote, please check the following items before calling for service.Check the Batteries• Are the batteries inserted correctly?• Check the battery condition for leakage.• Replace with new alkaline batteries.Check the Device• Is the device’s power cord connected to the power outlet?• Is the device switched on?Check the IR Database Codes ListIs the device brand name for the device listed in the code list?• If yes and there is more than one code listed, try using a different code to provide more functionality.DVD Mode GroupDVDAiwa 2026, 2131 Akai 2378Amphion 2342MediaWorksAMW 2342Apex 2001, 2056, 2057, 2061, 2095, 2098, 2229, 2250, 2316, 2322, 2330 A p e x Digital 2 2 6 1 , 2262, 226 3, 2 2 6 6 , 2269, 229 1 Arrgo 2325 Astar 2354Audiovox 2132, 2373, 2388 Axion 2379 Bang & Olufsen 2324, 2370 Blaupunkt 2136, 2322 Bose 2122, 2130, 2215 Boss 2336 Broksonic 2053, 2072, 2284 Cambridge 2395SoundWorks Cinevision 2152, 2195 Clarion 2100Classic 2101, 2391 Coby 2380, 2387 Curtis 2387CyberHome 2083, 2325 Cytron 2374Daewoo 2058, 2062, 2137, 2138, 2190Denon 2110, 2133, 2040, 2216, 2247, 2253, 2317 Desay 2344DiamondVision 2382Disney 2321Durabrand 2326Eclipse 2335Emerson 2002, 2059, 2073, 2321, 2327, 2392 ESA 2327, 2394 Fisher 2112, 2134, 2255Funai 2002, 2321, 2327Gateway 2346GE 2079, 2118, 2041, 2261, 2272, 2319, 2322 G o V i d e o 2 0 4 6 , 2 1 2 7 , 2 1 2 9 , 2 1 2 4 , 2 2 3 0 , 2 2 3 9 , 2 2 4 9 , 2 3 4 6 GPX 2114, 2390 Greenhill 2322Grundig 2320Harman Kardon 2125Hitachi 2000, 2027, 2126, 2173, 2240Ilo 2375Initial 2322, 2381 Insignia 2327, 2369, 2394Irradio 2149, 2150 JVC 2017, 2028, 2047, 2090, 2096, 2097, 2115, 2166, 2204, 2206, 2217, 2218, 2232, 2242, 2265, 2277, 2283, 2359, 2360, 2361, 2362, 2364, 2365, 2366, 2367Kenwood 2142, 2148 KLH 2322Konka 2029, 2030, 2376Koss 2060, 2200 Lasonic 2081Lenoxx 2326LG 2297, 2303, 2339, 2352, 2363, 2368, 2371Liteon 2346, 2353 Magnavox 2002, 2018, 2033, 2089, 2237, 2241, 2245, 2259, 2270, 2293, 2318, 2320, 2321, 2327 Marantz 2143, 2320 Memorex 2003Mintek 2004, 2322, 2381 Mitsubishi 2019, 2123, 2145, 2147 NAD 2059, 2139 Nakamichi 2116Nesa 2322Nexxtech 2140, 2256, 2328Norcent 2005, 2117 Onkyo 2006, 2219, 2220, 2318 Oppo 2323Oritron 2009Panasonic 2031, 2066, 2075, 2076, 2104, 2105, 2106, 2111, 2167, 2179, 2188, 2198, 2207, 2211, 2212, 2221, 2228, 2248, 2151, 2153, 2154, 2155, 2258, 2268, 2300, 2318, 2384, 2385, 2386, 2398, 2399Philips 2018, 2032, 2033, 2045, 2051, 2091, 2109, 2156, 2157, 2158, 2159, 2169, 2208, 2209, 2222, 2243, 2259, 2260, 2264, 2282, 2285, 2302, 2304, 2318, 2320, 2321, 2404Pioneer 2008, 2021, 2160, 2164, 2191, 2223, 2224, 2267, 2310, 2337, 2400Polaroid 2007, 2377, 2409Polk Audio 2320 Presidian 2321Proscan 2010, 2118, 2144, 2205, 2319Qwestar 2009 RCA 2010, 2048, 2055, 2063, 2077, 2099, 2107, 2118, 2161, 2165, 2172, 2177, 2181, 2261, 2275, 2281, 2287, 2289, 2319, 2322, 2331Sampo 2119Samsung 2012, 2049, 2074, 2085, 2102, 2175, 2186, 2196, 2214, 2233, 2246, 2274, 2279, 2286, 2290, 2294, 2295, 2299, 2311, 2314, 2333, 2340, 2347, 2351 Sansui 2071Sanyo 2034, 2050, 2120, 2393 Sensory Science 2345Sharp 2013, 2015, 2044, 2082, 2086, 2170, 2174, 2292, 2321, 2396 Sherwood 2121, 2397 Sony 2014, 2020, 2022, 2065, 2067, 2068, 2069, 2070, 2087, 2103, 2108, 2113, 2162, 2171, 2176, 2178, 2182, 2187, 2189, 2192, 2193, 2201, 2202, 2203, 2226, 2238, 2244, 2251, 2257, 2273, 2278, 2280, 2288, 2296, 2298, 2305, 2306, 2307, 2309, 2313, 2315, 2329, 2332, 2338, 2355, 2356, 2357, 2405, 2406, 2407Sungale 2343Sylvania 2002, 2064, 2078, 2092, 2194, 2213, 2321, 2327, 2408 Symphonic 2321Techwood 2141TiVo 3074, 3244, 3245, 3246, 3249, 3250Toshiba 2023, 2025, 2037, 2038, 2040, 2041, 2054, 2080, 2084, 2088, 2093, 2094, 2168, 2180, 2183, 2184, 2185, 2197, 2210, 2227, 2231, 2235, 2259, 2271, 2276, 2284, 2301, 2318, 2334, 2341 Toshiba 2135, 2312, 2348, 2349, 2350, 2358, 2401, 2402, 2403Trutech 2345Urban Concepts 2318Venturer 2011 Westinghouse 2372Xbox 2319Yamaha 2106, 2146, 2163, 2320, 2389Zenith 2039, 2052, 2128, 2199, 2234, 2236, 2252, 2308, 2318 AUX Mode GroupAmplifierAdcom 6055Aiwa 6003, 6020Carver 6002 Citizen 6026Curtis Mathes 6046Denon 6014, 6039, 6057 Fisher 6002GE 6028, 6045Goldstar 6016, 6021Harman Kardon 6013, 6047Hitachi 6034 JBL 6050JVC 6018, 6024, 6041Kenwood 6015, 6022Left Coast 6047Magnavox 6035Marantz 6000, 6047, 6058Nakamichi 6012NEC 6033, 6048Onkyo 6005, 6006, 6017, 6054, 6056Optimus 6008, 6046 Panasonic 6001, 6040Parasound 6059Philips 6047Pioneer 6004, 6009, 6010, 6023, 6036, 6046, 6051Polk Audio 6047Proton 6035Quasar 6001RCA 6025, 6046 Sharp 6029, 6030, 6031, 6032Sherwood 6011Shure 6048Sony 6020, 6042, 6044, 6049Soundesign 6045Teac 6019 Technic 6001Technics 6001, 6040Toshiba 6027Victor 6024Wards 6045Yamaha 6007, 6037, 6038, 6043, 6052, 6053Home Theater in a Box (HTIB)Audio DVD6132 9404 xepA8832 3504 xovoiduA5122 ,0312 0004 esoB5932 0604 egdirbmaCSound Works1932 5504 cissalC7832 2504 yboC7832 6504 sitruC6122 2104 noneD2932 7504 nosremE0932 5504 XPG4932 9504 aingisnI3402 1004 LBJJVC 4002, 4013, 4014, 4028 2035, 2217, 2218, 2283Koss 4003, 4015 2060, 22003032 1404 GL3922 5304 xovangaMOnkyo 4004, 4016, 4017 2024, 2219, 2220Panasonic 4005, 4018, 4030, 4038, 2104, 2221, 2300, 2384, 4050, 4051 2385, 2386Philips 4006, 4019, 4027, 4039, 2036, 2222, 2282, 2304 4042Pioneer 4007, 4020, 4021, 4029 2016, 2223, 2224 RCA 4008, 4026 2042, 2281, 2161Samsung 4033, 4036, 4047 2294, 2299, 2295, 23143932 8504 oynaS6932 1604 prahS7932 2604 doowrehSSony 4009, 4010, 4022, 4023, 2113, 2108, 2225, 2226, 4024, 4031, 4032, 4034, 2278, 2288, 2296, 2305, 4043, 4044, 4045, 4046, 2306, 2307, 23154048Toshiba 4025, 4040 22271102 1104 rerutneV9832 4504 ahamaYZenith 4037Receiver/TunerADC 5144Aiwa 5000, 5001, 5002, 5004, 5005, 5006, 5034, 5143Akai 5083Audiotronic 5145Audiovox 5152Bang & Olufsen 5151Bose 5007Capetronic 5144Carver 5000, 5143 ,5145Denon 5008, 5035, 5036, 5037, 5038, 5039, 5040, 5041, 5042, 5043, 5044, 5045, 5046, 5047, 5048, 5049, 5050, 5051, 5052, 5053, 5054, 5114, 5124Eclipse 5149Gradiente 5153Harman Kardon 5000, 5009, 5055, 5056, 5142, 5143JBL 5009JVC 5010, 5057, 5058, 5059, 5116Kenwood 5011, 5012, 5013, 5060, 5061, 5062, 5063, 5064, 5065, 5066, 5067, 5068, 5123, 5127, 5128, 5132, 5148Linn 5000, 5143Magnavox 5000, 5143, 5144, 5145Marantz 5000, 5069, 5143, 5145Mitsubishi 5070, 5071, 5072Onkyo 5018, 5073, 5074, 5075, 5076, 5077, 5078, 5079, 5080, 5081, 5082, 5084, 5085, 5086, 5087, 5130, 5131, 5140Optimus 5144Panasonic 5019, 5020, 5107, 5108, 5109, 5110, 5111, 5115, 5126Philips 5000, 5112, 5138, 5143, 5145, 5154Pioneer 5021, 5022, 5088, 5089, 5090, 5091, 5092, 5093, 5094, 5119, 5120, 5144, 5147Polaroid 5141Polk Audio 5143RCA 5024, 5025, 5026, 5137, 5144Rotel 5150Samsung 5139Sansui 5000, 5143Sherwood 5027Sony 5017, 5023, 5028, 5029, 5030, 5031, 5032, 5033, 5095, 5096, 5097, 5113, 5117, 5121, 5125, 5129, 5133, 5134, 5136, 5146Technics 5016, 5019, 5020, 5098, 5099, 5100, 5101, 5115, 5122, 5126Thorens 5145Wards 5000, 5021, 5143Yamaha 5003, 5014, 5015, 5021, 5102, 5103, 5104, 5105, 5106, 5118, 5135VCRABS 3223Admira 3001Adventura 3021Aiwa 3021Akai 3003, 3055, 3058American High 3016Apex 3189Audio Dynamics 3005, 3006Bang & Olufsen 3222Bell & Howell 3007Broksonic 3081, 3082, 3202, 3213Candle 3011, 3013, 3014Canon 3016Carver 3036CineVision 3242Citizen 3011, 3013, 3014Colortyme 3005Curtis Mathes 3000, 3005, 3014, 3016, 3212CyberPower 3223Daewoo 3011, 3013, 3021, 3076, 3120, 3150DBX 3005, 3006Dell 3223Dimensia 3000Dynatech 3021Electrohome 3023Emerson 3003, 3011, 3016, 3021, 3023, 3038, 3083, 3202Expressvu 3247Fisher 3007, 3029, 3030Fuji 3016, 3058Funai 3002, 3021Garrard 3021Gateway 3223GE 3000, 3016, 3059, 3090, 3201, 3203, 3212Go Video 3066, 3073, 3109, 3110, 3188, 3193, 3221GOI 3247Goldstar 3005, 3014Gradiente 3021Harley Davidson 3021Harman Kardon 3005Headquarter 3007Hewlett Packard 3223Hitachi 3052, 3055, 3059, 3117, 3169HNS 3243HP 3223HTS 3247Hughes 3246, 3250Humax 3246Hush 3223Insignia 3239Instant Replay 3016JC Penney 3005, 3006, 3007, 3016, 3030, 3036, 3052JCL 3016Jensen 3055JVC 3005, 3006, 3007, 3014, 3055, 3060, 3067, 3118, 3121, 3122, 3123, 3124, 3125, 3126, 3127, 3151, 3170, 3171, 3194, 3205, 3228, 3229, 3230, 3231, 3234, 3235, 3236, 3237, 3247, 3248, 3250Kenwood 3005, 3006, 3007, 3014, 3055, 3060Kodak 3016LG 3233, 3238Linksys 3223Lloyd’s 3021Magnavox 3016, 3036, 3037, 3051, 3061, 3128, 3152, 3153, 3154, 3181, 3183, 3190, 3206, 3211Magnin 3201Marantz 3005, 3006, 3007, 3014, 3016, 3036Matsushita 3016Media Center PC 3223MEI 3016Memorex 3001, 3004, 3007, 3016, 3021, 3051MGA 3023, 3038, 3201Mind 3223Minolta 3052Mitsubishi 3023, 3038, 3039, 3060, 3108, 3203Montgomery Ward 3001Motorola 3001, 3016Multitech 3021NEC 3005, 3006, 3007, 3014, 3055, 3060Niveus Media 3223Northgate 3223Olympus 3016Optimus 3001Optonica 3047Orion 3004, 3202, 3213Panasonic 3016, 3053, 3062, 3063, 3077, 3078, 3079, 3086, 3087, 3107, 3129, 3130, 3131, 3132, 3133, 3134, 3145, 3146, 3155, 3156, 3157, 3158, 3159, 3172, 3191, 3197, 3207, 3212, 3253Penney 3201, 3212Pentax 3052, 3059Pentex Research 3014Philco 3016, 3036, 3037• If no, try the following: – Use the Auto-Search function to find a usable code. – If the Auto-Search function is unable to find a usable code, you may need to use the original remote provided with the device.Code TablesIf the remote does not recognize your device, you can find codes for your device by brand name. Code tables in this section are organized by the devices assigned to each mode (TV, DVD, and AUX).TV Mode GroupTVPhilips 3016, 3036, 3047, 3061, 3071, 3135, 3160, 3161, 3173, 3208, 3216, 3243, 3244, 3246, 3250, 3251Philips Magnavox 3135Pioneer 3006, 3060Polaroid 3111Portland 3013Proscan 3000Pulsar 3051Quarter 3007Quartz 3007Quasar 3016, 3062, 3091, 3092, 3212Radio Shack/ 3001, 3007, 3011, 3016, 3021, 3023, 3029, 3047RealisticRCA 3000, 3003, 3016, 3040, 3041, 3042, 3052, 3059, 3062, 3068, 3075, 3093, 3094, 3106, 3136, 3162, 3174, 3175, 3199, 3201, 3203, 3206, 3212, 3243, 3249, 3250ReplayTV 3252Ricavision 3223Ricoh 3064Runco 3051Samsung 3011, 3069, 3084, 3089, 3101, 3148, 3184, 3214, 3215, 3218, 3232, 3243Sanky 3001, 3051Sansui 3004, 3006, 3055, 3060, 3202, 3211, 3213Sanyo 3007, 3070, 3201Scott 3011, 3038Sears 3007, 3016, 3029, 3030, 3052, 3211Sharp 3001, 3013, 3023, 3047, 3080, 3100, 3137, 3163, 3164, 3176, 3177, 3200Shintom 3048, 3058Signature 3001Singer 3016, 3064Sony 3048, 3049, 3058, 3085, 3104, 3138, 3139, 3140, 3178, 3179, 3187, 3192, 3195, 3209, 3211, 3217, 3223, 3224, 3225, 3226, 3240, 3245Stack 9 3223STS 3016, 3052Sylvania 3016, 3021, 3036, 3037, 3038, 3061, 3088, 3095, 3105, 3147Symphonic 3002, 3021Systemax 3223Tandy 3007Tatung 3055Teac 3021, 3042, 3055Technics 3016, 3053Teknika 3016, 3021, 3050Thomas 3211Toshiba 3011, 3029, 3030, 3038, 3096, 3098, 3099, 3102, 3103, 3141, 3142, 3149, 3165, 3166, 3167, 3168, 3180, 3182, 3185, 3210, 3219, 3220, 3223, 3227, 3241 Touch 3223Vector Research 3005, 3006, 3011Victor 3006Video Concepts 3005, 3006, 3011Viewsonic 3223Voodoo 3223Wards 3001, 3011, 3016, 3021, 3023, 3047, 3052Westinghouse 3002XR-1000 3016, 3021Yamaha 3005, 3006, 3007, 3014, 3055Zenith 3048, 3051, 3058, 3064, 3072, 3097, 3119, 3143, 3144, 3186, 3196, 3198, 3202, 3204, 3211, 3213ZT Group 3223Combination Device CodesIf you have a combination device, you may need to reassign the AUX key to operate one of the devices, for example, the VCR. The following tables provide some examples of combination devices. If your combination device is not listed, simply look for the codes for each separate device.DVD/VCR Combo DVD VCR 9813 9222 xepA2803 2702 cinoskorB2423 0322 noisiVeniC6703 2602 ooweaD3803 3702 nosremEGo Video 2046, 2127, 2129, 2230, 3066, 3110, 3109, 3188,2239, 2129 3193, 3221Hitachi 2126, 2173 3117, 31699323 9632 aingisnIJVC 2047, 2097, 2166, 2232, 3067, 3118, 3170, 3194, 2166, 2359, 2360, 2361, 3171, 3228, 3229, 3230, 2362, 2364, 2365, 2366, 3231, 3234, 3235, 3236, 7323 7632LG 2363, 2368 3233, 3238 0913 7322 xovangaMPanasonic 2066, 2167, 2228 3078, 3172, 3191Philips 2051, 2169 3071, 31731113 7002 dioraloPRCA 2048, 2165, 2172 3068, 3174, 3175Samsung 2049, 2074, 2085, 2233, 3069, 3084, 3101, 3184,2290, 2311 3214, 3218, 32320703 0502 oynaSSharp 2170, 2174 3176, 3177Sony 2065, 2067, 2171, 2238, 3104, 3085, 3179, 3187, 2244, 2067, 2355, 2356, 3192, 3178, 3224, 3225,0423 ,6223 7532Toshiba 2080, 2084, 2168, 2235, 3103, 3102, 3180, 3185, 2312, 2358 3219, 3227, 3241Zenith 2052, 2128, 2234, 2236 3072, 3119, 3186, 3186TV/DVD ComboTV/VCR ComboTV/DVD/VCR ComboitneicS  c Atlanta, A Cisco Company yawkraP faolraguS 0305 744564 xoB 24003 AG ,ellivecnerwaL 0001.772.876 itneics.www  catlanta.comCisco, Cisco Systems, the Cisco logo, the Cisco Systems logo, Scienti c Atlanta, and AllTouch are registered trademarks or trademarks of Cisco Systems, Inc. and/or its af liates in the U.S. and certain other countries.All other trademarks shown are trademarks of their respective owners.Product and service availability subject to change without notice.© 2006, 2008 by Cisco Systems, Inc. All rights reserved.September 2008Remote Control Part Number 4011709 (MS version)User Guide Part Number 4013050 Rev DFCC ComplianceUnited States FCC ComplianceThis device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against such interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna, if applicable.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the cable company or an experienced radio/television technician for help.Any changes or modifications not expressly approved by Scientific-Atlanta, Inc., could void the user’s authority to operate the equipment.The information shown in the FCC Declaration of Conformity paragraph below is a requirement of the FCC and is intended to supply you with information regarding the FCC approval of this device. The phone numbers listed are for FCC-related questions only and not intended for questions regarding the connection or operation for this device. Please contact your cable service provider for any questions you may have regarding the operation or installation of this device. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1) the device may not cause harmful interference, and 2) the device must accept any interference received, including interference that may cause undesired operation.AllTouch RF and IR Universal Remote ControlAT6420Scientific-Atlanta, Inc. 5030 Sugarloaf Parkway Lawrenceville, Georgia 30044 USATelephone: 770-236-1077Canada EMI RegulationThis Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la class B est conforme à la norme NMB-003 du Canada.20060628 FCC StandardAbex 1098Admiral 1009, 1022, 1023Advent 1285, 1376, 1476, 1285, 1594Adventura 1100Aiko 1015Aiwa 1034, 1098Akai 1016, 1061, 1156, 1432, 1524, 1612Alaron 1022Alienware 1408America Action 1036AOC 1018, 1361, 1562, 1600, 1635Apex Digital 1058, 1111, 1163, 1520Audiovox 1036, 1135, 1455Bang & Olufsen 1453Belcor 1018Bell & Howell 1001, 1043BenQ 1041, 1136, 1545, 1557Bradford 1036Broksonic 1023, 1028, 1114, 1382Brokwood 1018Candle 1007, 1061, 1100, 1363Celebrity 1002Citizen 1011, 1015, 1061, 1073, 1100,1114, 1363Clarion 1036Concerto 1363Contec 1036Craig 1036Crosley 1002, 1047Crown 1011, 1036Curtis 1320, 1629, 1642Curtis Mathes 1001, 1009, 1013, 1043, 1073, 1094, 1385CXC 1036Cytron 1232, 1456Daewoo 1011, 1013, 1015, 1018, 1043, 1106, 1135 ,1508, 1524, 1638 Daytron 1018DiamondVision 1499, 1461DirecTV 1374Dumont 1018, 1020Durabrand 1023, 1024, 1036, 1333, 1481Sceptre 1467, 1542, 1551, 1561 Scimitsu 1018 Samsux 1011RevolutionHD 1570 Ricavision 1408Protron 1430, 1494 Proview 1407, 1565 Princeton 1257 PARK 1603 Otic 1643Dynex 1511, 1589, 1598, 1609Electroband 1002Electrohome 1023Emerson 1011, 1020, 1022, 1023, 1028, 1031, 1033, 1036, 1044, 1045, 1080, 1097, 1101, 1102, 1107, 1382, 1465Envision 1061, 1361, 1529, 1562Fisher 1043Fujitsu 1007, 1022, 1029Funai 1002, 1022, 1-24, 1036, 1090, 1554Futuretec 1036Gateway 1038, 1042, 1408GE 1000, 1003, 1004, 1008, 1021, 1048, 1049, 1063, 1068, 1094, 1144, 1164, 1224, 1367, 1380, 1381, 1385, 1386Gibralter 1018, 1020, 1061Goldstar 1004, 1005, 1011, 1018, 1050, 1090, 1091, 1097, 1098, 1400, 1401Grunpy 1022, 1036Hallmark 1333Harley Davidson 1022, 1090Harvard 1036Hisense 1112, 1602, 1630, 1637Hitachi 1004, 1011, 1012, 1051, 1052, 1084, 1085, 1086, 1087, 1102, 1225, 1384HP 1408, 1419, 1517I-Inc 1578iLo 1040, 1436, 1457Insignia 1024, 1232, 1437, 1501, 1507, 1519, 1593, 1595, 1596, 1598, 1601, 1636JCB 1002Jensen 1285, 1376, 1521, 1594JVC 1011, 1012, 1026, 1049, 1052, 1054, 1055, 1080, 1092, 1117, 1131, 1235, 1288, 1299KEC 1036Kenwood 1018, 1061Kloss 1100KTV 1011, 1036, 1061, 1101, 1490LG 1020, 1146, 1255, 1333, 1584, 1631Linksys 1408Lloyd’s 1090Logik 1001Luxman 1363LXI 1043, 1047, 1058, 1068, 1094, 1333Magnavox 1004, 1007, 1018, 1053, 1056, 1057, 1059, 1060, 1083, 1110, 1147, 1228, 1260, 1300, 1301, 1302, 1321, 1326, 1339, 1365, 1366, 1371, 1384, 1387Magnin 1380Majestic 1001Marantz 1017, 1047, 1061,1113, 1239, 1525, 1641Media Center 1408Megatron 1333, 1051Memorex 1001, 1022, 1023, 1121, 1333MGA 1018, 1032, 1061, 1333, 1380Midland 1011, 1020, 1049, 1068, 1094, 1098Minutz 1021Mitsubishi 1005, 1009, 1018, 1032, 1153, 1333, 1535, 1540Monivision 1257, 1477Motorola 1009MTC 1018, 1061, 1073, 1363Multitech 1036, 1490NAD 1058, 1333, 1363, 1550NEC 1018, 1061, 1193, 1363, 1377, 1423, 1523, 1525, 1543Net TV 1038Olevia 1004, 1406, 1421, 1463, 1488Nikko 1015, 1061, 1333Norcent 1112, 1183, 1531, 1562, 1568, 1569NTC 1015Onwa 1036Optimus 1043, 1096, 1145, 1165, 1169, 1305Optonica 1009, 1064Orion 1022, 1023, 1028, 1121, 1122, 1382, 1511Panasonic 1003, 1010, 1049, 1053, 1096, 1123, 1152, 1231, 1289, 1292, 1295, 1303, 1304, 1305, 1306, 1385Penney 1011, 1012, 1018, 1021, 1058, 1063, 1073, 1094, 1098, 1333, 1380, 1385, 1558 Philco 1003, 1004, 1005, 1007, 1011, 1018, 1053, 1056, 1057, 1059Philips 1003, 1004, 1007, 1011, 1017, 1018, 1053, 1056, 1057, 1059, 1060, 1063, 1110, 1126, 1129, 1148, 1155, 1238, 1263, 1264, 1265, 1290, 1291, 1307, 1308, 1309, 1337, 1389Pilot 1011, 1018, 1061Pioneer 1035, 1102, 1149, 1193, 1469Polaroid 1040, 1111, 1232, 1262, 1371, 1391, 1392, 1393, 1407, 1440, 1446, 1460, 1565, 1583, 1596, 1604Portland 1011, 1013, 1015, 1018, 1135Prima 1285, 1376, 1476, 1521, 1594Prism 1049Proscan 1000, 1061, 1068, 1094, 1396, 1558, 1605, 1614Proton 1333Pulsar 1018, 1020Quasar 1049, 1064, 1096, 1169, 1305, 1385Radio Shack 1011, 1018, 1043, 1061, 1064, 1068, 1090, 1094, 1098 1333, 1363RCA 1000, 1003, 1004, 1005, 1008, 1018, 1049, 1065, 1066, 1067, 1068, 1069, 1070, 1071, 1082, 1102, 1104, 1106, 1108, 1115, 1151, 1162, 1167, 1168, 1268, 1269, 1270, 1271, 1310, 1355, 1359, 1361, 1370, 1373, 1379, 1380, 1381, 1385, 1386Runco 1020, 1061, 1193, 1523, 1571Sampo 1011, 1038, 1061, 1098Samsung 1004, 1005, 1011, 1014, 1018, 1019, 1072, 1073, 1074, 1097, 1098, 1156, 1161, 1297, 1323, 1360, 1363, 1364Sansui 1023, 1024, 1064, 1090, 1114, 1121, 1382, 1593Sanyo 1043, 1047, 1062, 1095, 1380, 1527Scotch 1333Scott 1018, 1022, 1028, 1036, 1333, 1428Sears 1000, 1004, 1012, 1018, 1044, 1045, 1047, 1055, 1058, 1068, 1075, 1076, 1103, 1105, 1384Sharp 1004, 1009, 1011, 1025, 1064, 1077, 1078, 1097, 1099, 1153, 1157, 1274, 1298, 1311, 1312, 1362, 1375, 1378Infinity 1047Janeil 1100JBL 1047Realistic 1011, 1018, 1036, 1043, 1061, 1064, 1098, 1333, 1363Sylvania 1004, 1007, 1018, 1027, 1153, 1056, 1057, 1059, 1060, 1124, 1150, 1145, 1279, 1296, 1387, 1464Symphonic 1024, 1031, 1036, 1105, 1280, 1384Tandy 1009Technics 1049, 1363Techwood 1004, 1049Teknika 1001, 1007, 1011, 1015, 1018, 1 022, 1032 , 10 36, 1047, 1073, 1363Telefunken 1156, 1363Thomas 1090TMK 1333, 1363Toshiba 1006, 1040, 1058, 1073, 1175, 1079, 1093, 1116, 1154, 1158, 1159, 1252, 1267, 1281, 1282, 1283, 1284, 1286, 1293, 1294, 1313, 1315, 1319, 1338, 1364, 1377Totevision 1011Universal 1063Victor 1092Vidtech 1018, 1333Viking 1100Wards 1001, 1018, 1021, 1022, 1047, 10 59, 1061, 1063, 1064, 1363, 1550Westinghouse 1135, 1178, 1184, 1515, 1544, 1555, 1567, 1616Yamaha 1018, 1061, 1206, 1533, 1536Zenit h 1001, 100 2, 1013, 1015, 10 20, 1023, 105 4, 1061, 1 090, 1094, 1118, 1121, 1255, 1207, 1333, 1382 Syntax 1004, 1406, 1421, 1463, 1488 Systemax 1408 Tagar Systems 1408Teac 1326Technika 1643 Technol ACE 1022Techview 1478 TNCi 1060 Touch 1408 TruTech 1425, 1599 TVS 1023 Ultra 1430 US Logic 1040Vector Research 1061 Venturer 1592 VEOS 1487 Vidikron 1047, 1193, 1571 Viewsonic 1038, 1180, 1181, 1184, 1185, 1187, 1188, 1190, 1206, 1361, 1408, 1441, 1600 Viore 1435, 1590, 1603, 1629 Vizio 1042, 1181, 1184, 1433 Voodoo 1408 Waycon 1058 Wharfedale 1643 Wyse 1562 ZT Group 1408 Epson 1422 Marantz 1214 Mitsubishi 1032 Olevia 1406 Panasonic 1010, 1096, 1169 Pioneer 1035 RCA 1000 Samsung 1016, 1056 Sharp 1247 Toshiba 1223 SVA 1112, 1446, 1491, 1595 Superscan 1009, 1027, 1181 SunBrite 1365 Studio Experience 1477 Stack9 1408 Sova 1494 Soyo 1566, 1578, 1591 Spectroniq 1407, 1565 Skyworth 1014 Sole 1570 Sheng Chia 1009 Sherwood 1563 Shogun 1018Signature 1001Simpson 1007Sony 1002, 1109, 1137, 1201, 1202, 1249, 1272, 1275, 1276, 1277, 1278, 1317, 1356, 1374, 1384, 1388Soundesign 1007, 1022, 1036, 1333Squareview 1024SSS 1018, 1036Starlite 1036Supre-Macy 1100Supreme 1002Tatung 1040, 1042TCL 1326 HDTV8732 7241 iakA5902 3611 xepA9732 9541 noixA0732 3541 nesfulO & gnaB3502 4111 cinoskorB0832 0641 yboC4732 6541 nortyC2832 1641 noisiVdnomaiD0422 6221 ihcatiH5732 7541 olI1832 7541 laitinI6022 8821 CVJ1732 5521 GL1832 7541 ketniM7022 9821 cinosanaPPhilips 1290, 1291, 1337 2208, 2209, 2243Polaroid 1458, 1440 2377, 2409RCA 1115, 1162, 1379 2063, 2099, 22891702 2211 iusnaSSylvania 1150, 1464 2092, 2408Toshiba 1116, 1293, 1294, 1345 2054, 2210, 22312732 4541 esuohgnitseW2202, 2213, 2260 1150, 1465, 1595 Emerson2213 1595 Funai2506 1581 Haier2202, 2213, 2260 1150, 1465, 1595 Emerson2213, 2375, 2503 1457, 1516, 1595 Magnavox2292 1138 SharpBroksonic 1121, 1382, 1383 3081, 3213, 32020513 8921 ooweaDEmerson 1382, 1383 3213, 3202GE 1164, 1380, 1381 3090, 3201, 32031513 9921 CVJMagnavox 1300, 1301, 1302, 1321 3152, 3153, 3154, 31811023 0831 ningaM1023 0831 AGM3023 1831 ihsibustiMOrion 1382, 1383 3213, 3202Panasonic 1305, 1306 3158, 31591023 0831 yennePPhilips 1307, 1308 3160, 3152Quasar 1165, 1166 3091, 30923081 1036 America Action3081 1385 Curtis Mathes3100 1090 Funai3021 1090 Hitachi3021 1090 Lloyd’s3002, 2053, 3091 1245, 1165, 1305 OptimusRCA 1167, 1168, 1310, 1380, 3093, 3094, 3162, 32013023 18319803 1611 gnusmaSSansui 1382, 1383 3213, 32021023 0831 oynaSSharp 1311, 1312 3163, 31645903 5411 ainavlySToshiba 1006, 1267, 1313, 1315, 3096, 3168, 3165, 3166,2813 ,7613 9131Zenith 1118, 1382, 1383 3097, 3213, 3202Magnavox 1339 2241 3183Panasonic 1123, 1152 2075, 2076 3087, 3086RCA 1151 2077 3106Samsung 1297 2214 3148Sharp 1153, 1378 2086, 2292 3100, 3200Sylvania 1027, 1124, 2064, 2078, 3105, 3088, 1296 2213 3147Toshiba 1154, 1158, 2093, 2094 3099, 3098, 1338 3149Diamond Vision 1499 2280 3038Emerson 1027 2064 3088ESA 1027 2064 3088
