Philips Electronics Singapore KWR101810 RF Remote Control User Manual

Philips Electronics Singapore Pte Ltd RF Remote Control Users Manual

Users Manual

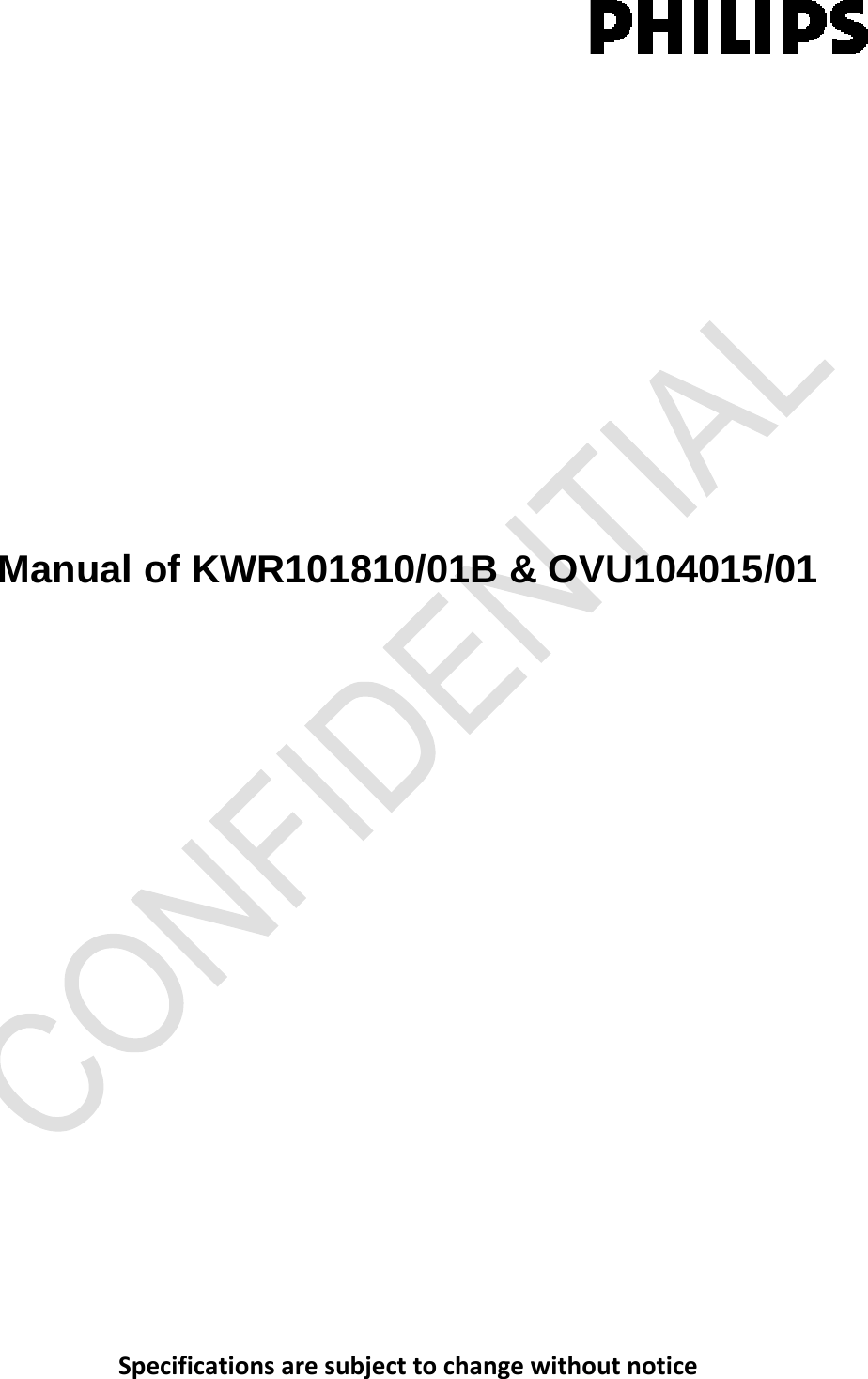

Specificationsaresubjecttochangewithoutnotice Manual of KWR101810/01B & OVU104015/01

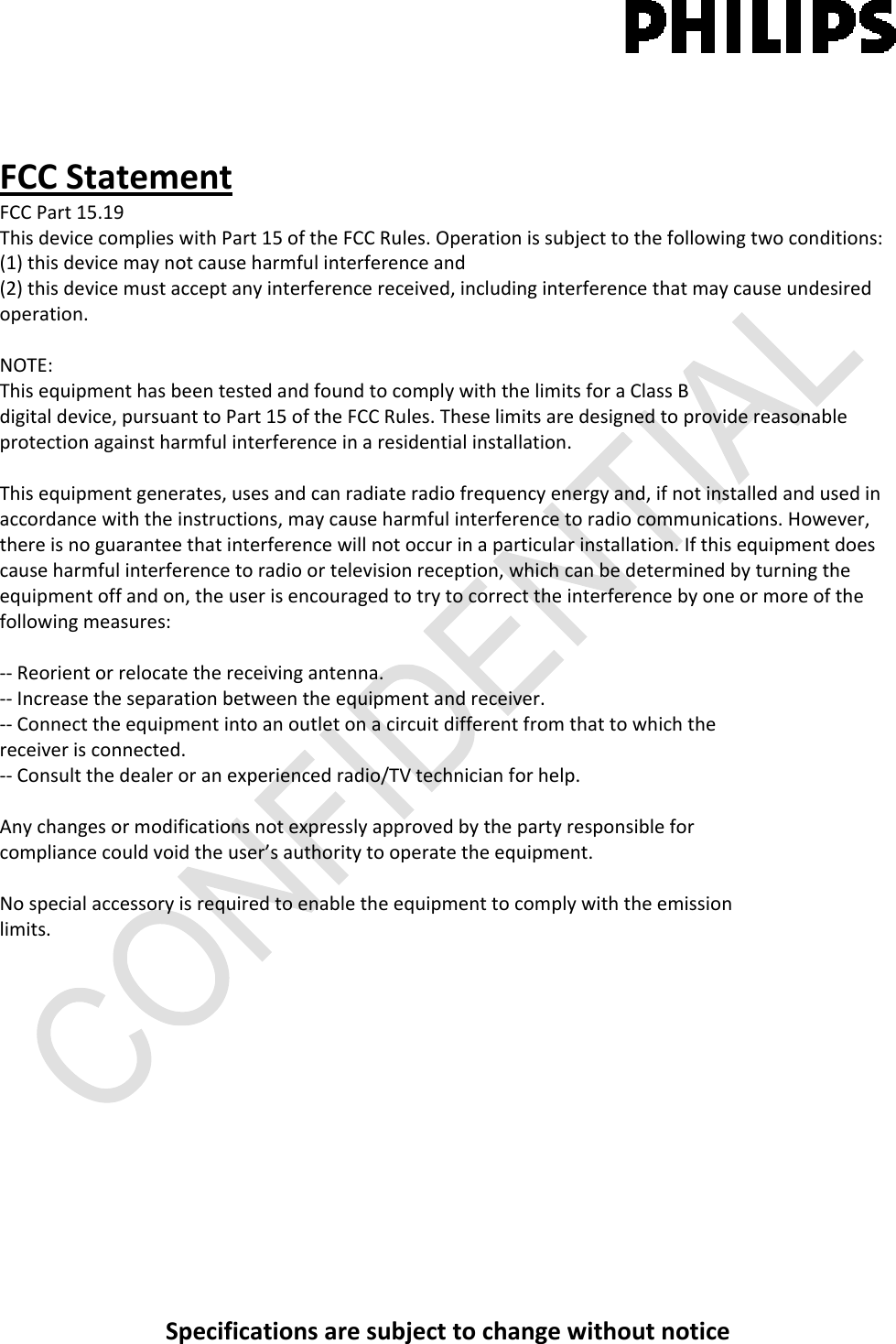

Specificationsaresubjecttochangewithoutnotice FCCStatementFCCPart15.19ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterferenceand(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:‐‐Reorientorrelocatethereceivingantenna.‐‐Increasetheseparationbetweentheequipmentandreceiver.‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.Nospecialaccessoryisrequiredtoenabletheequipmenttocomplywiththeemissionlimits.

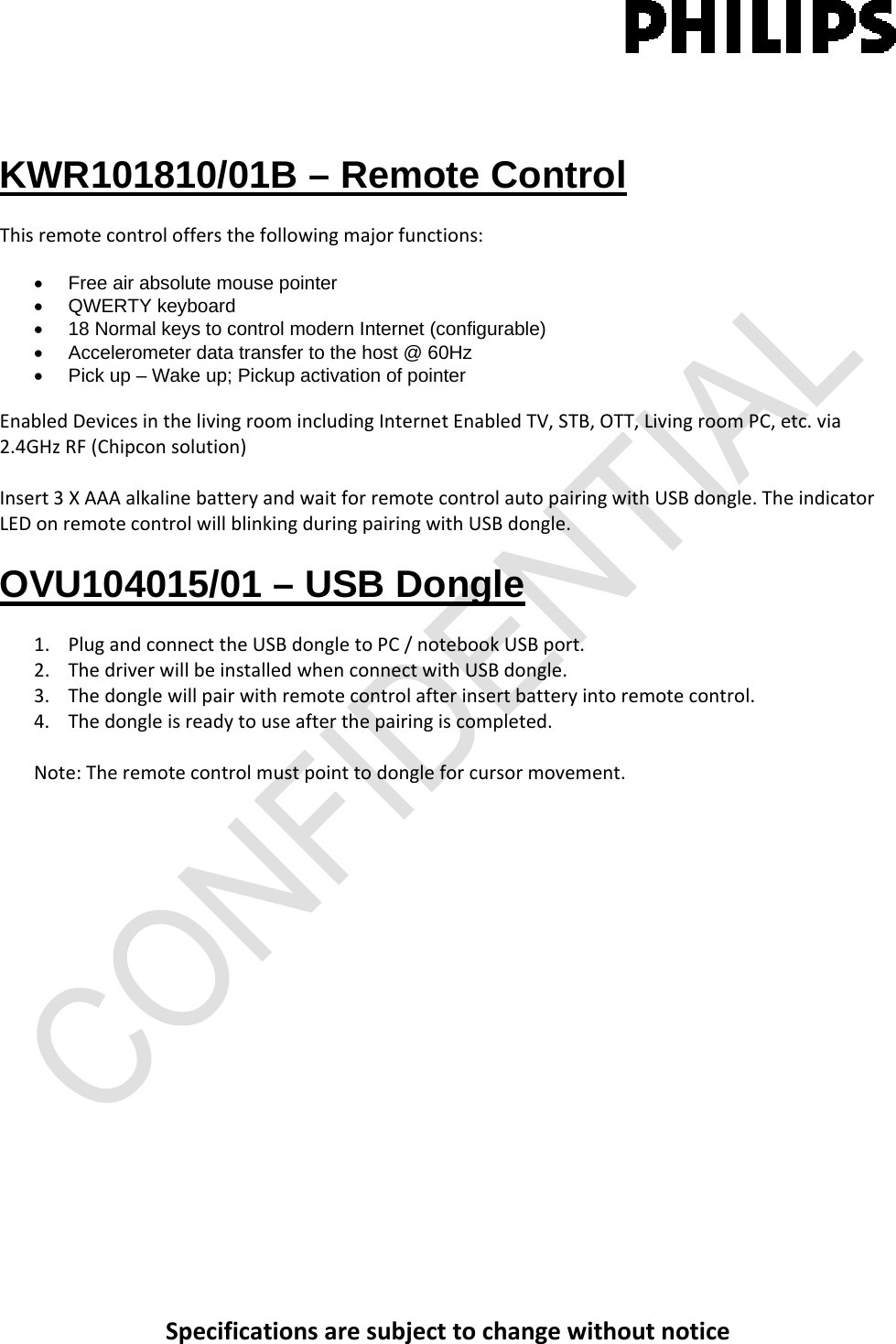

Specificationsaresubjecttochangewithoutnotice KWR101810/01B – Remote Control Thisremotecontroloffersthefollowingmajorfunctions:• Free air absolute mouse pointer • QWERTY keyboard • 18 Normal keys to control modern Internet (configurable) • Accelerometer data transfer to the host @ 60Hz • Pick up – Wake up; Pickup activation of pointer EnabledDevicesinthelivingroomincludingInternetEnabledTV,STB,OTT,LivingroomPC,etc.via2.4GHzRF(Chipconsolution)Insert3XAAAalkalinebatteryandwaitforremotecontrolautopairingwithUSBdongle.TheindicatorLEDonremotecontrolwillblinkingduringpairingwithUSBdongle.OVU104015/01 – USB Dongle 1. PlugandconnecttheUSBdongletoPC/notebookUSBport.2. ThedriverwillbeinstalledwhenconnectwithUSBdongle.3. Thedonglewillpairwithremotecontrolafterinsertbatteryintoremotecontrol.4. Thedongleisreadytouseafterthepairingiscompleted.Note:Theremotecontrolmustpointtodongleforcursormovement.

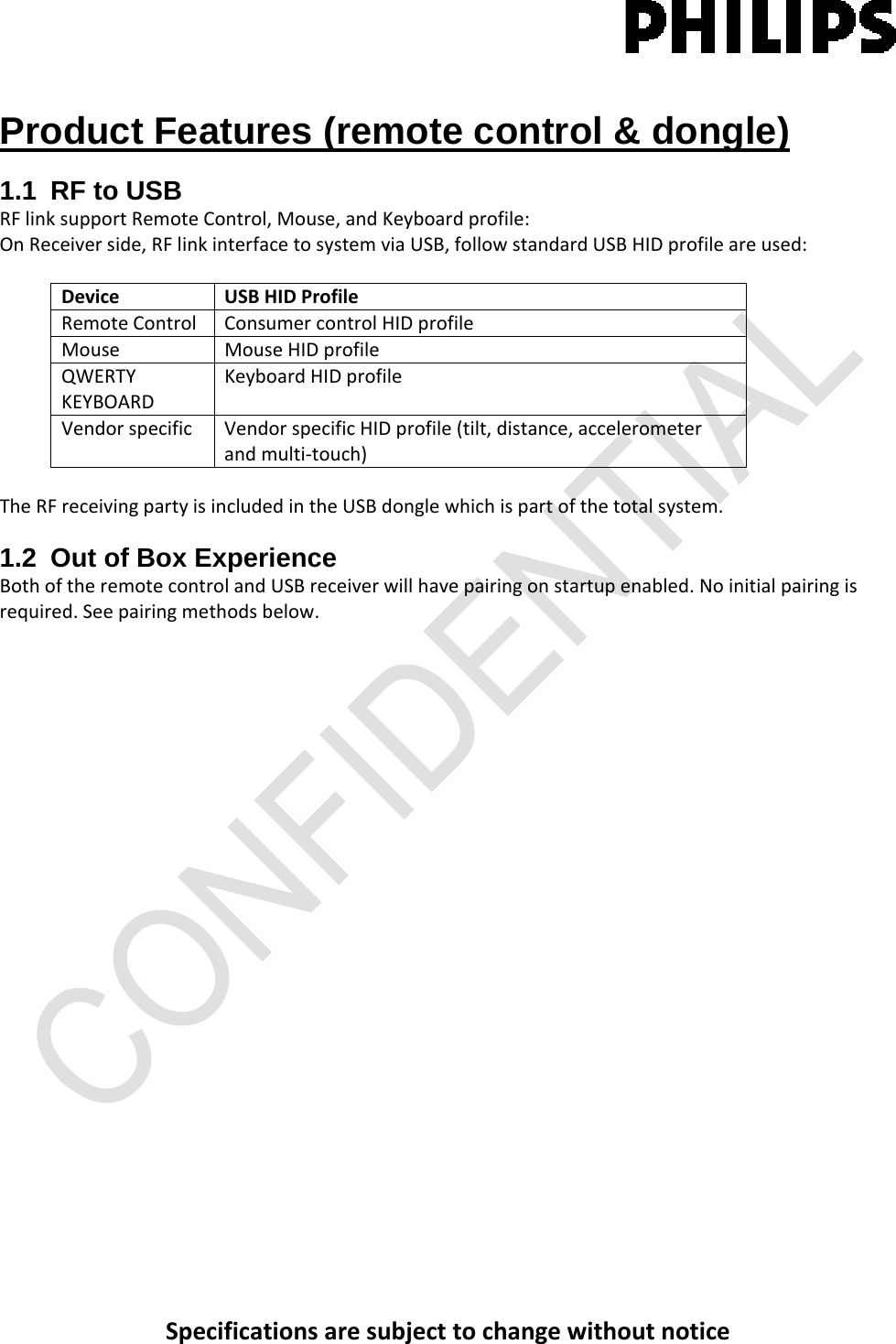

SpecificationsaresubjecttochangewithoutnoticeProduct Features (remote control & dongle) 1.1 RF to USB RFlinksupportRemoteControl,Mouse,andKeyboardprofile:OnReceiverside,RFlinkinterfacetosystemviaUSB,followstandardUSBHIDprofileareused:DeviceUSBHIDProfileRemoteControlConsumercontrolHIDprofileMouseMouseHIDprofileQWERTYKEYBOARDKeyboardHIDprofileVendorspecificVendorspecificHIDprofile(tilt,distance,accelerometerandmulti‐touch)TheRFreceivingpartyisincludedintheUSBdonglewhichispartofthetotalsystem.1.2 Out of Box Experience BothoftheremotecontrolandUSBreceiverwillhavepairingonstartupenabled.Noinitialpairingisrequired.Seepairingmethodsbelow.

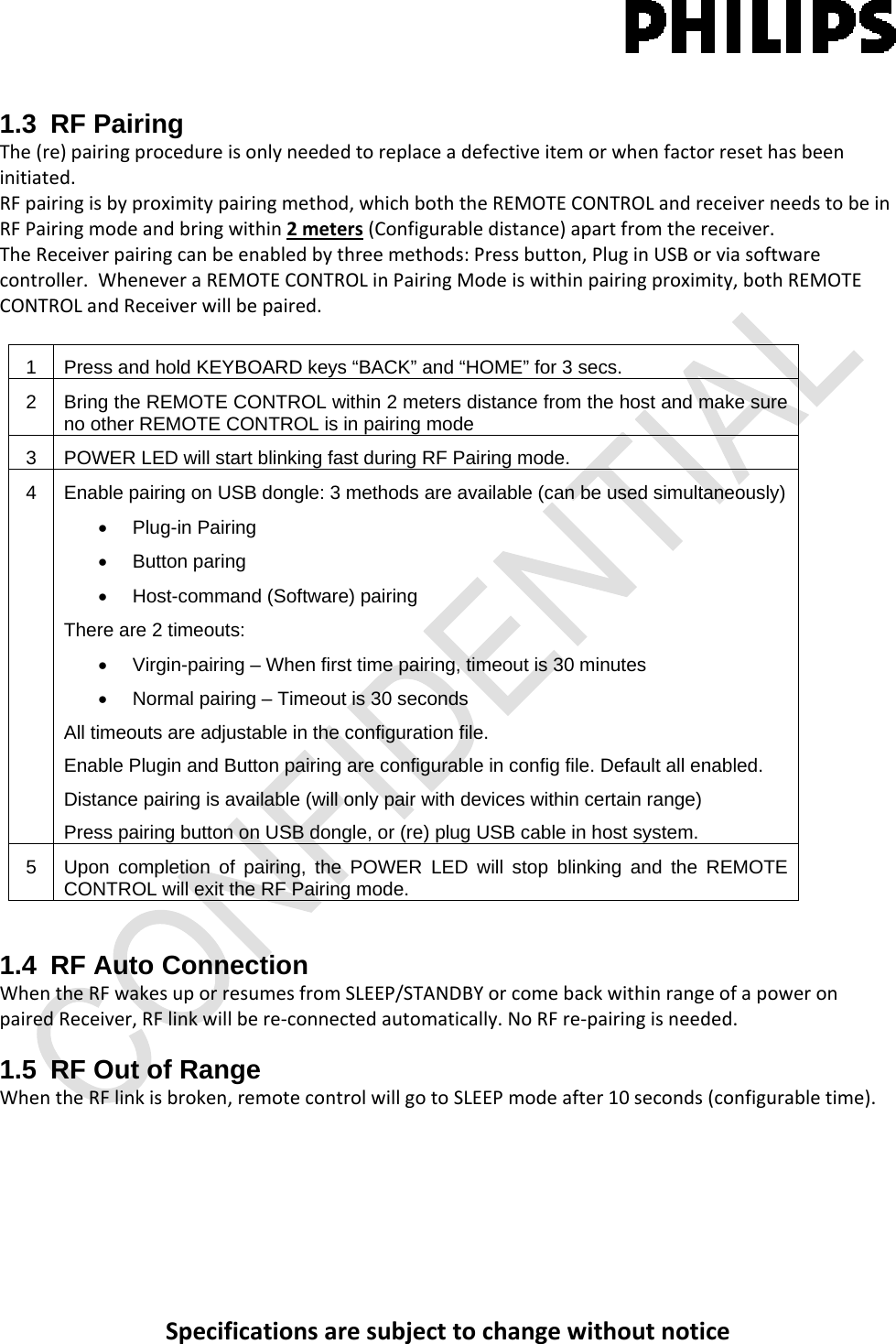

Specificationsaresubjecttochangewithoutnotice1.3 RF Pairing The(re)pairingprocedureisonlyneededtoreplaceadefectiveitemorwhenfactorresethasbeeninitiated.RFpairingisbyproximitypairingmethod,whichboththeREMOTECONTROLandreceiverneedstobeinRFPairingmodeandbringwithin2meters(Configurabledistance)apartfromthereceiver.TheReceiverpairingcanbeenabledbythreemethods:Pressbutton,PluginUSBorviasoftwarecontroller.WheneveraREMOTECONTROLinPairingModeiswithinpairingproximity,bothREMOTECONTROLandReceiverwillbepaired.1 Press and hold KEYBOARD keys “BACK” and “HOME” for 3 secs. 2 Bring the REMOTE CONTROL within 2 meters distance from the host and make sure no other REMOTE CONTROL is in pairing mode 3 POWER LED will start blinking fast during RF Pairing mode. 4 Enable pairing on USB dongle: 3 methods are available (can be used simultaneously) • Plug-in Pairing • Button paring • Host-command (Software) pairing There are 2 timeouts: • Virgin-pairing – When first time pairing, timeout is 30 minutes • Normal pairing – Timeout is 30 seconds All timeouts are adjustable in the configuration file. Enable Plugin and Button pairing are configurable in config file. Default all enabled. Distance pairing is available (will only pair with devices within certain range) Press pairing button on USB dongle, or (re) plug USB cable in host system. 5 Upon completion of pairing, the POWER LED will stop blinking and the REMOTE CONTROL will exit the RF Pairing mode. 1.4 RF Auto Connection WhentheRFwakesuporresumesfromSLEEP/STANDBYorcomebackwithinrangeofapoweronpairedReceiver,RFlinkwillbere‐connectedautomatically.NoRFre‐pairingisneeded.1.5 RF Out of Range WhentheRFlinkisbroken,remotecontrolwillgotoSLEEPmodeafter10seconds(configurabletime).

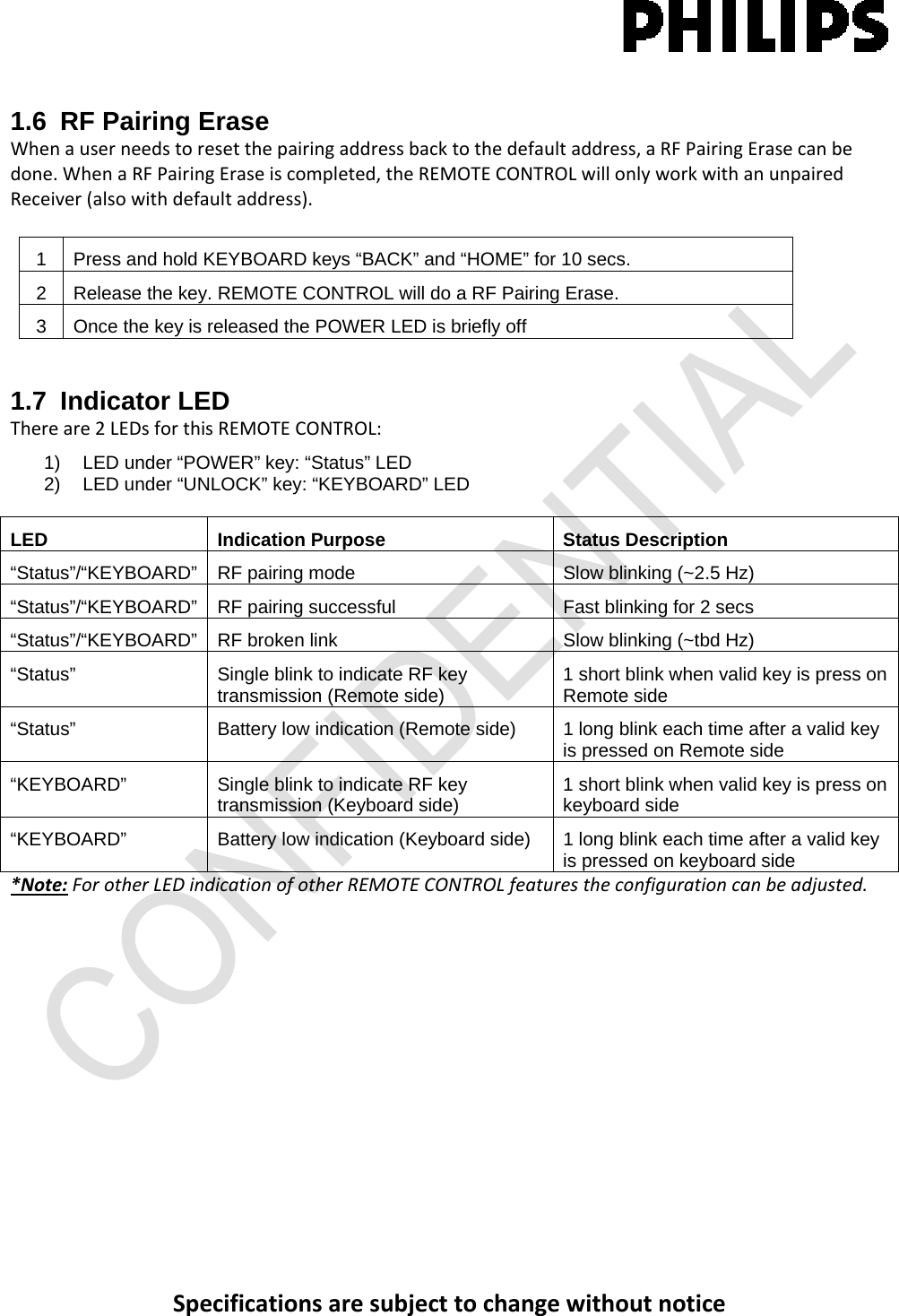

Specificationsaresubjecttochangewithoutnotice1.6 RF Pairing Erase Whenauserneedstoresetthepairingaddressbacktothedefaultaddress,aRFPairingErasecanbedone.WhenaRFPairingEraseiscompleted,theREMOTECONTROLwillonlyworkwithanunpairedReceiver(alsowithdefaultaddress).1 Press and hold KEYBOARD keys “BACK” and “HOME” for 10 secs. 2 Release the key. REMOTE CONTROL will do a RF Pairing Erase. 3 Once the key is released the POWER LED is briefly off 1.7 Indicator LED Thereare2LEDsforthisREMOTECONTROL:1) LED under “POWER” key: “Status” LED 2) LED under “UNLOCK” key: “KEYBOARD” LED LED Indication Purpose Status Description “Status”/“KEYBOARD” RF pairing mode Slow blinking (~2.5 Hz) “Status”/“KEYBOARD” RF pairing successful Fast blinking for 2 secs “Status”/“KEYBOARD” RF broken link Slow blinking (~tbd Hz) “Status” Single blink to indicate RF key transmission (Remote side) 1 short blink when valid key is press on Remote side “Status” Battery low indication (Remote side) 1 long blink each time after a valid key is pressed on Remote side “KEYBOARD” Single blink to indicate RF key transmission (Keyboard side) 1 short blink when valid key is press on keyboard side “KEYBOARD” Battery low indication (Keyboard side) 1 long blink each time after a valid key is pressed on keyboard side *Note:ForotherLEDindicationofotherREMOTECONTROLfeaturestheconfigurationcanbeadjusted.
