Philips Electronics Singapore RC1534542 Bluetooth Remote User Manual RC1534542 01BX

Philips Electronics Singapore Pte Ltd Bluetooth Remote RC1534542 01BX

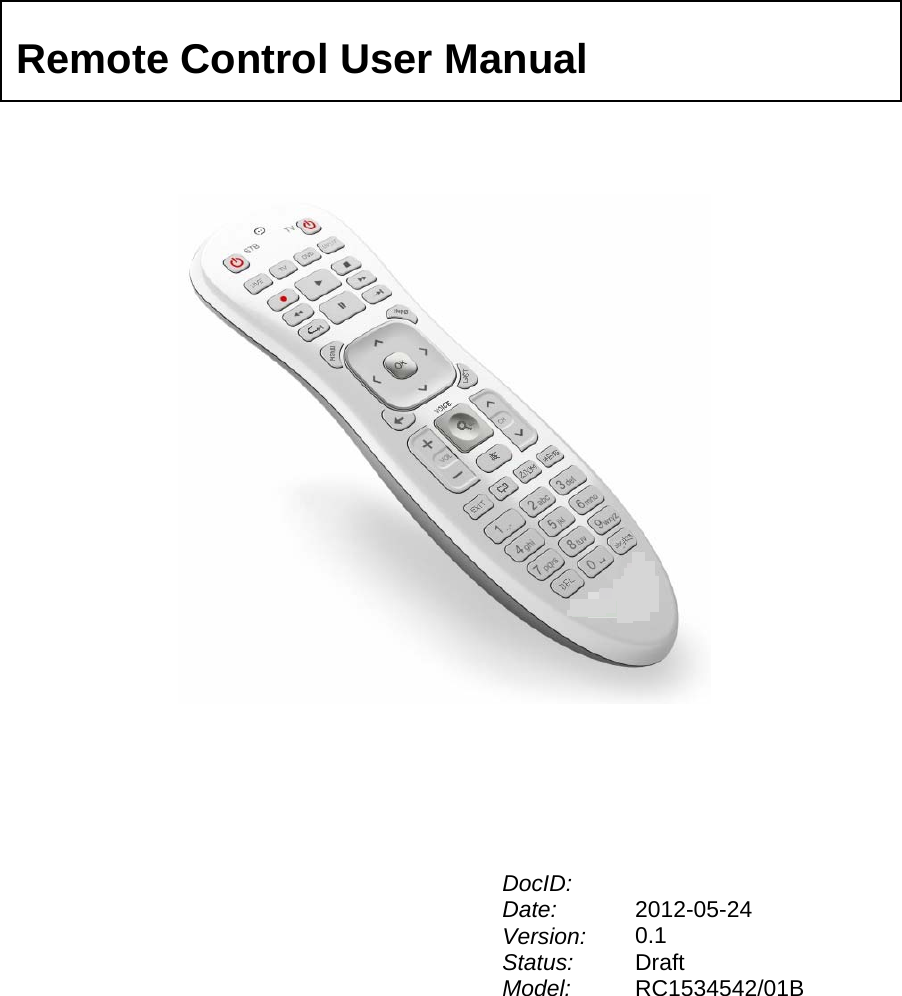

User Manual Draft 2

DocID: Date: 2012-05-24 Version: 0.1 Status: Model: Draft RC1534542/01B Remote Control User Manual

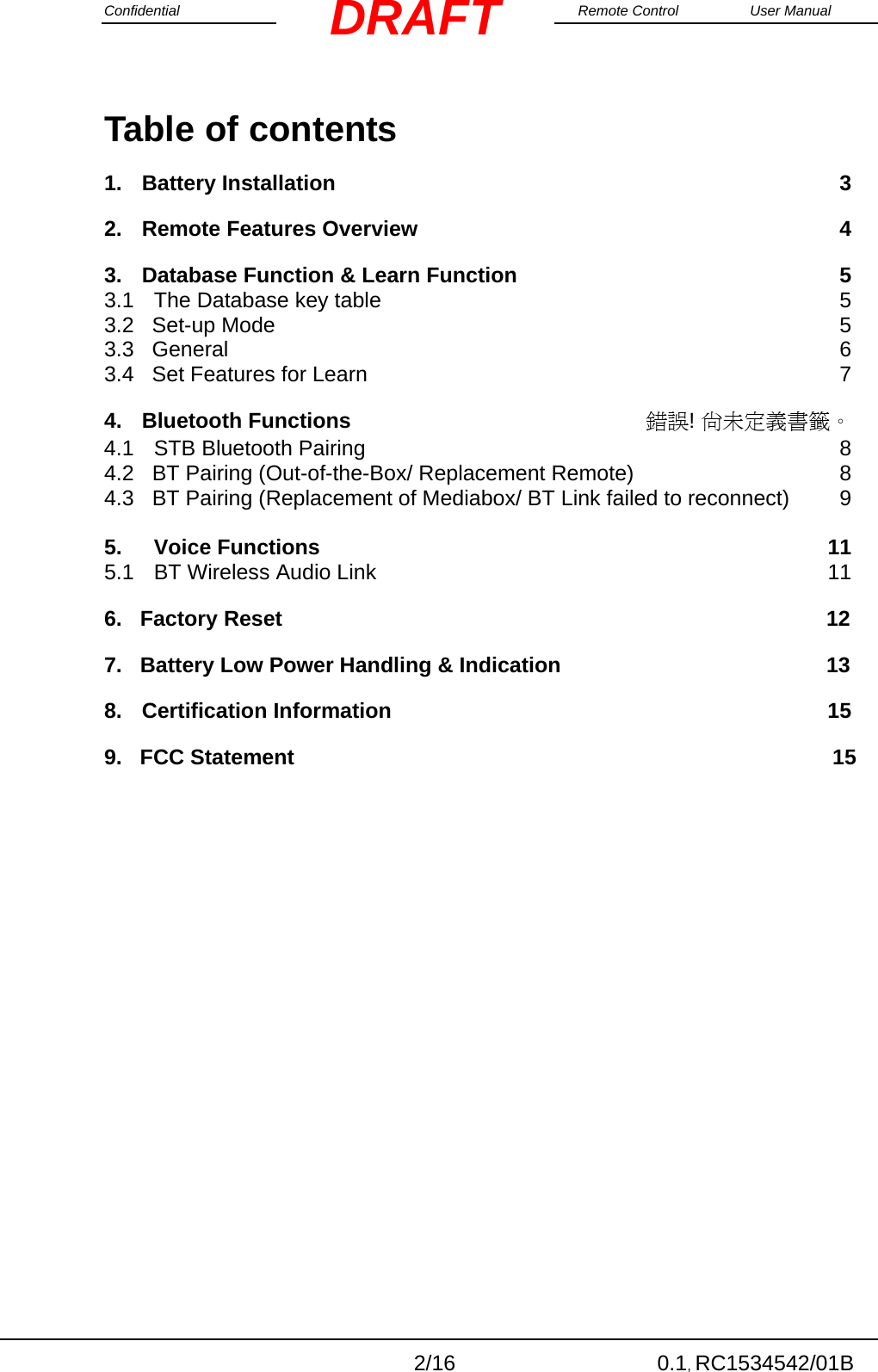

Confidential Remote Control User Manual 2/16 0.1, RC1534542/01B DRAFTTable of contents 1.Battery Installation 32.Remote Features Overview 43.Database Function & Learn Function 5 3.1The Database key table 53.2 Set-up Mode 5 3.3 General 6 3.4 Set Features for Learn 7 4.Bluetooth Functions 錯誤! 尚未定義書籤。 4.1STB Bluetooth Pairing 84.2 BT Pairing (Out-of-the-Box/ Replacement Remote) 8 4.3 BT Pairing (Replacement of Mediabox/ BT Link failed to reconnect) 9 5.Voice Functions 115.1BT Wireless Audio Link 116. Factory Reset 12 7. Battery Low Power Handling & Indication 13 8.Certification Information 15 9. FCC Statement 15

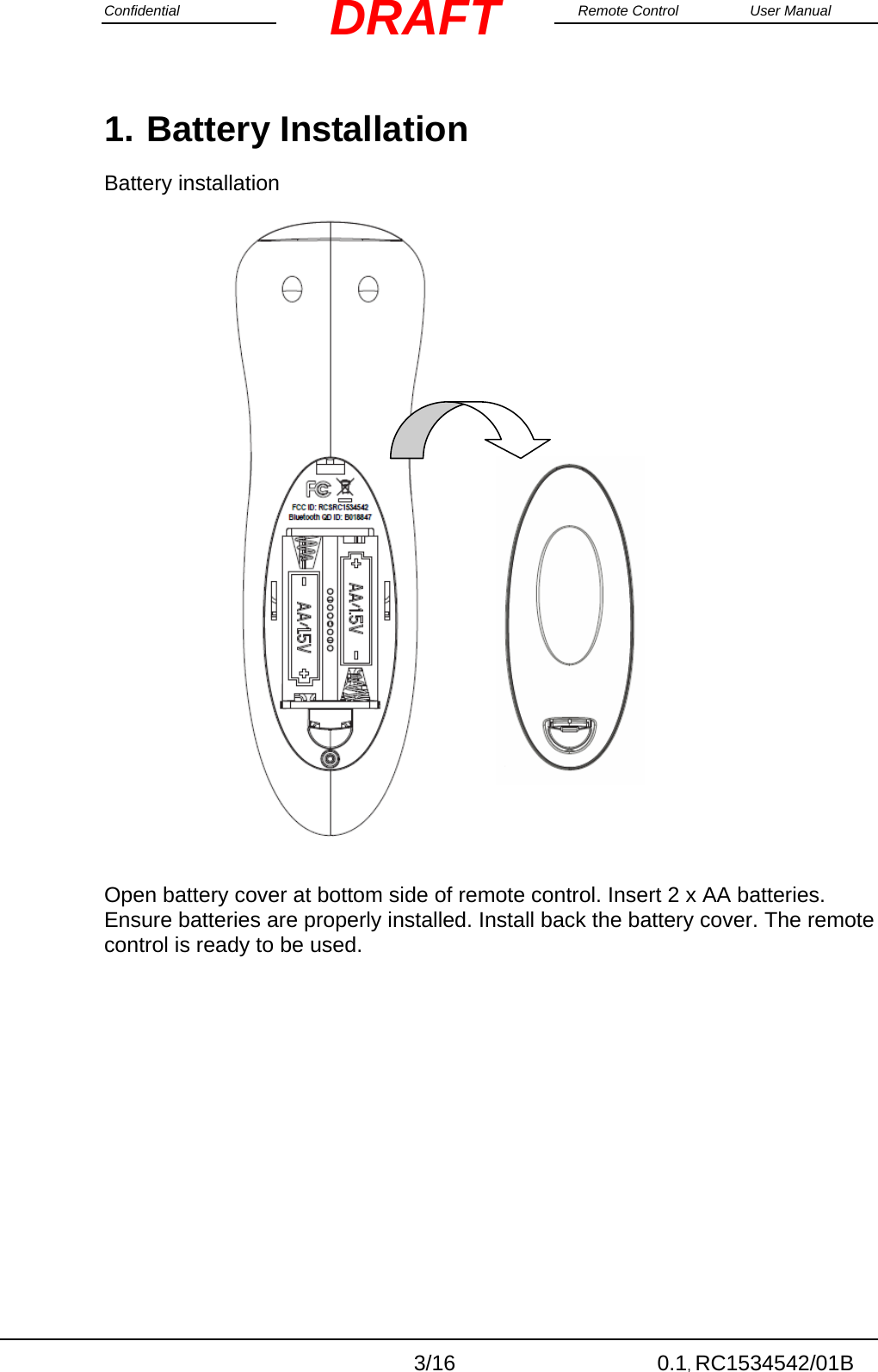

Confidential Remote Control User Manual 3/16 0.1, RC1534542/01B DRAFT1. Battery Installation Battery installation Open battery cover at bottom side of remote control. Insert 2 x AA batteries. Ensure batteries are properly installed. Install back the battery cover. The remote control is ready to be used.

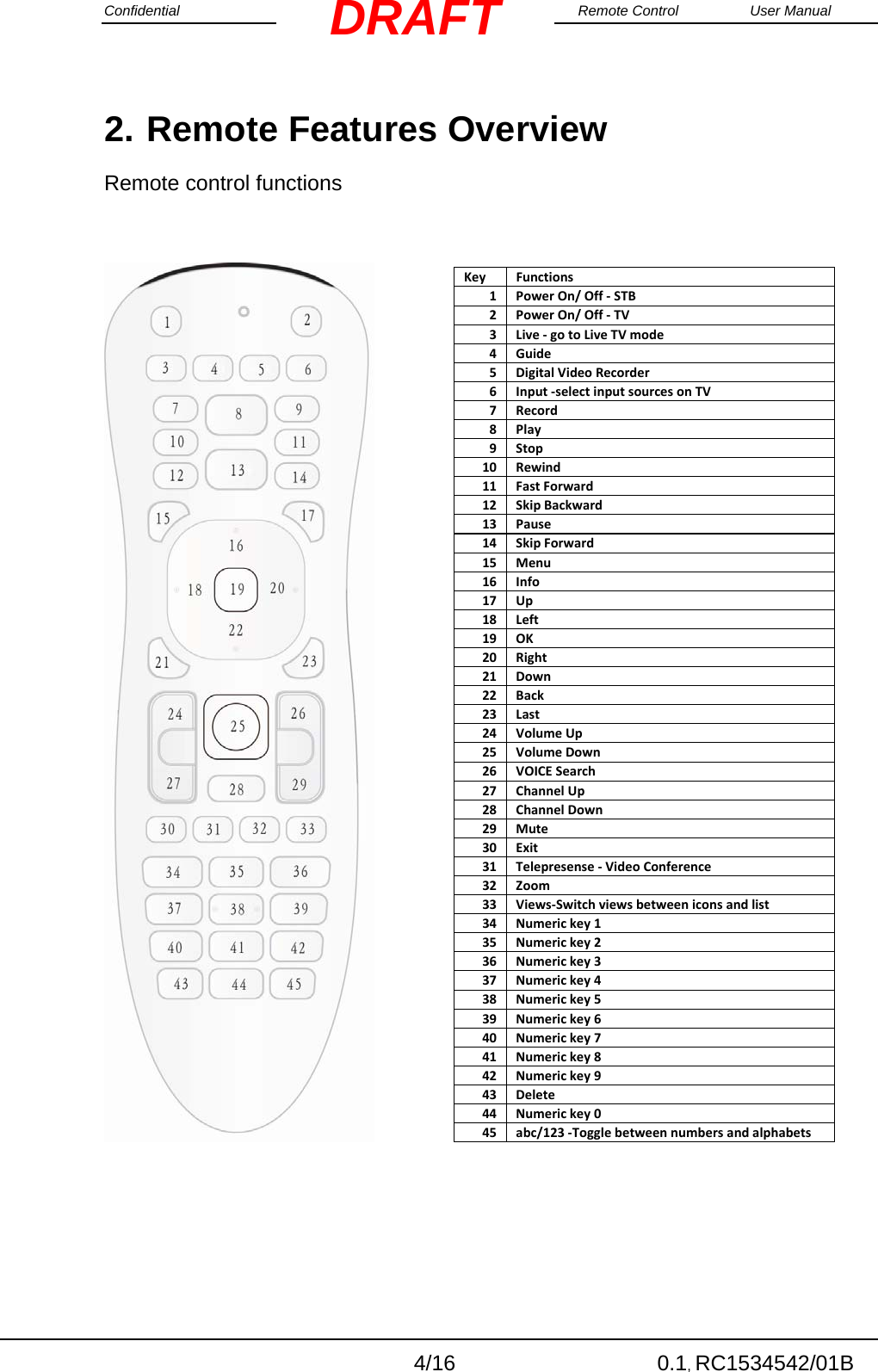

Confidential Remote Control User Manual 4/16 0.1, RC1534542/01B DRAFT2. Remote Features Overview Remote control functions KeyFunctions1PowerOn/Off‐STB2PowerOn/Off‐TV3Live‐gotoLiveTVmode4Guide5DigitalVideoRecorder6Input‐selectinputsourcesonTV7Record8Play9Stop10 Rewind11 FastForward12 SkipBackward13 Pause14 SkipForward15 Menu16 Info17 Up18 Left19 OK20 Right21 Down22 Back23 Last24 VolumeUp25 VolumeDown26 VOICESearch27 ChannelUp28 ChannelDown29 Mute30 Exit31 Telepresense‐VideoConference32 Zoom33 Views‐Switchviewsbetweeniconsandlist34 Numerickey135 Numerickey236 Numerickey337 Numerickey438 Numerickey539 Numerickey640 Numerickey741 Numerickey842 Numerickey943 Delete44 Numerickey045 abc/123‐Togglebetweennumbersandalphabets

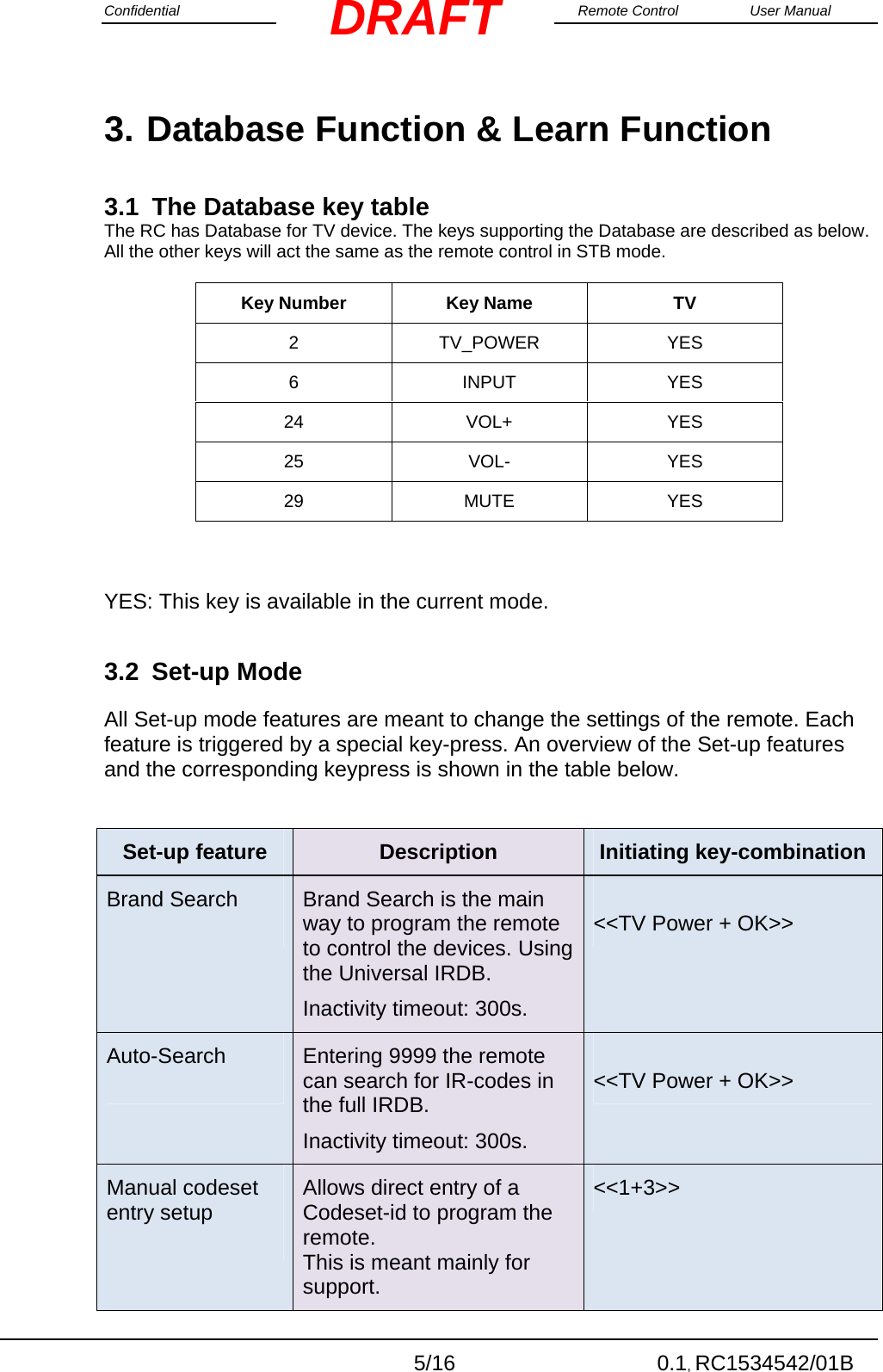

Confidential Remote Control User Manual 5/16 0.1, RC1534542/01B DRAFT3. Database Function & Learn Function 3.1 The Database key table The RC has Database for TV device. The keys supporting the Database are described as below. All the other keys will act the same as the remote control in STB mode. Key Number Key Name TV 2 TV_POWER YES 6 INPUT YES 24 VOL+ YES 25 VOL- YES 29 MUTE YES YES: This key is available in the current mode. 3.2 Set-up Mode All Set-up mode features are meant to change the settings of the remote. Each feature is triggered by a special key-press. An overview of the Set-up features and the corresponding keypress is shown in the table below. Set-up feature Description Initiating key-combinationBrand Search Brand Search is the main way to program the remote to control the devices. Using the Universal IRDB. Inactivity timeout: 300s. <<TV Power + OK>> Auto-Search Entering 9999 the remote can search for IR-codes in the full IRDB. Inactivity timeout: 300s. <<TV Power + OK>> Manual codeset entry setup Allows direct entry of a Codeset-id to program the remote. This is meant mainly for support. <<1+3>>

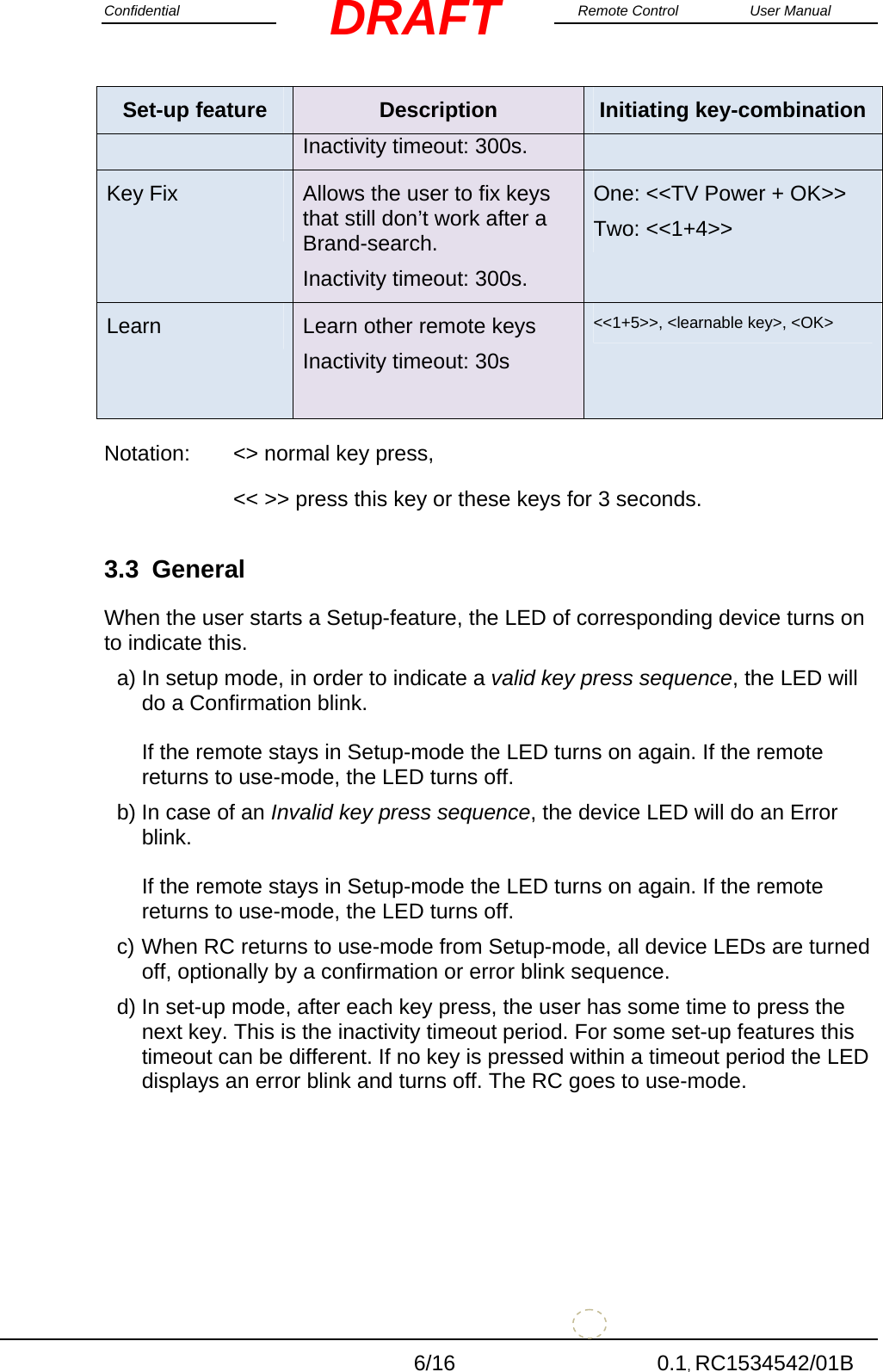

Confidential Remote Control User Manual 6/16 0.1, RC1534542/01B DRAFTSet-up feature Description Initiating key-combinationInactivity timeout: 300s. Key Fix Allows the user to fix keys that still don’t work after a Brand-search. Inactivity timeout: 300s. One: <<TV Power + OK>> Two: <<1+4>> Learn Learn other remote keys Inactivity timeout: 30s <<1+5>>, <learnable key>, <OK> Notation: <> normal key press, << >> press this key or these keys for 3 seconds. 3.3 General When the user starts a Setup-feature, the LED of corresponding device turns on to indicate this. a) In setup mode, in order to indicate a valid key press sequence, the LED will do a Confirmation blink. If the remote stays in Setup-mode the LED turns on again. If the remote returns to use-mode, the LED turns off. b) In case of an Invalid key press sequence, the device LED will do an Error blink. If the remote stays in Setup-mode the LED turns on again. If the remote returns to use-mode, the LED turns off. c) When RC returns to use-mode from Setup-mode, all device LEDs are turned off, optionally by a confirmation or error blink sequence. d) In set-up mode, after each key press, the user has some time to press the next key. This is the inactivity timeout period. For some set-up features this timeout can be different. If no key is pressed within a timeout period the LED displays an error blink and turns off. The RC goes to use-mode.

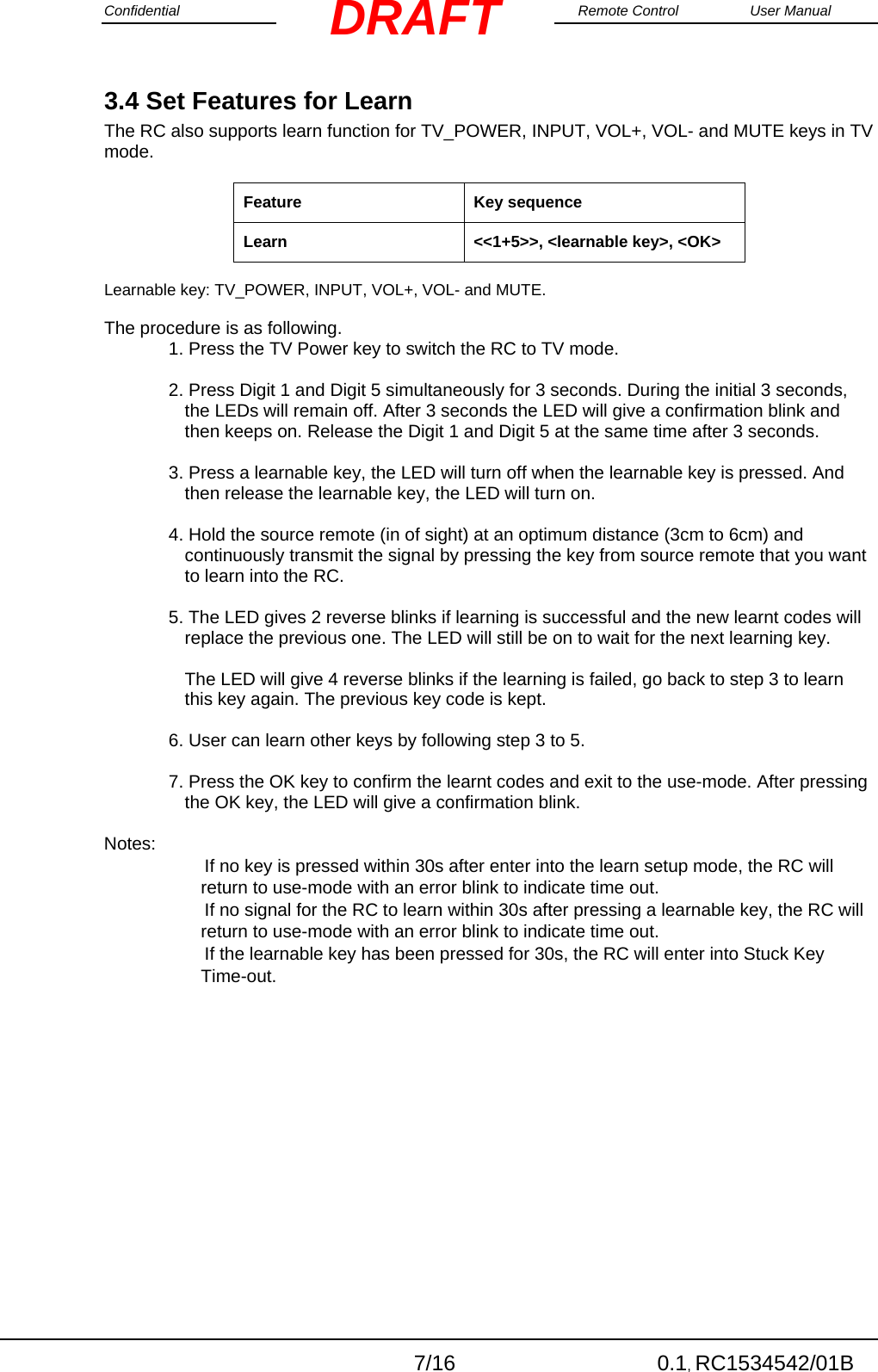

Confidential Remote Control User Manual 7/16 0.1, RC1534542/01B DRAFT3.4 Set Features for Learn The RC also supports learn function for TV_POWER, INPUT, VOL+, VOL- and MUTE keys in TV mode. Feature Key sequence Learn <<1+5>>, <learnable key>, <OK> Learnable key: TV_POWER, INPUT, VOL+, VOL- and MUTE. The procedure is as following. 1. Press the TV Power key to switch the RC to TV mode. 2. Press Digit 1 and Digit 5 simultaneously for 3 seconds. During the initial 3 seconds, the LEDs will remain off. After 3 seconds the LED will give a confirmation blink and then keeps on. Release the Digit 1 and Digit 5 at the same time after 3 seconds. 3. Press a learnable key, the LED will turn off when the learnable key is pressed. And then release the learnable key, the LED will turn on. 4. Hold the source remote (in of sight) at an optimum distance (3cm to 6cm) and continuously transmit the signal by pressing the key from source remote that you want to learn into the RC. 5. The LED gives 2 reverse blinks if learning is successful and the new learnt codes will replace the previous one. The LED will still be on to wait for the next learning key. The LED will give 4 reverse blinks if the learning is failed, go back to step 3 to learn this key again. The previous key code is kept. 6. User can learn other keys by following step 3 to 5. 7. Press the OK key to confirm the learnt codes and exit to the use-mode. After pressing the OK key, the LED will give a confirmation blink. Notes: 　　If no key is pressed within 30s after enter into the learn setup mode, the RC will return to use-mode with an error blink to indicate time out. 　　If no signal for the RC to learn within 30s after pressing a learnable key, the RC will return to use-mode with an error blink to indicate time out. 　　If the learnable key has been pressed for 30s, the RC will enter into Stuck Key Time-out.
Confidential Remote Control User Manual 8/16 0.1, RC1534542/01B DRAFT

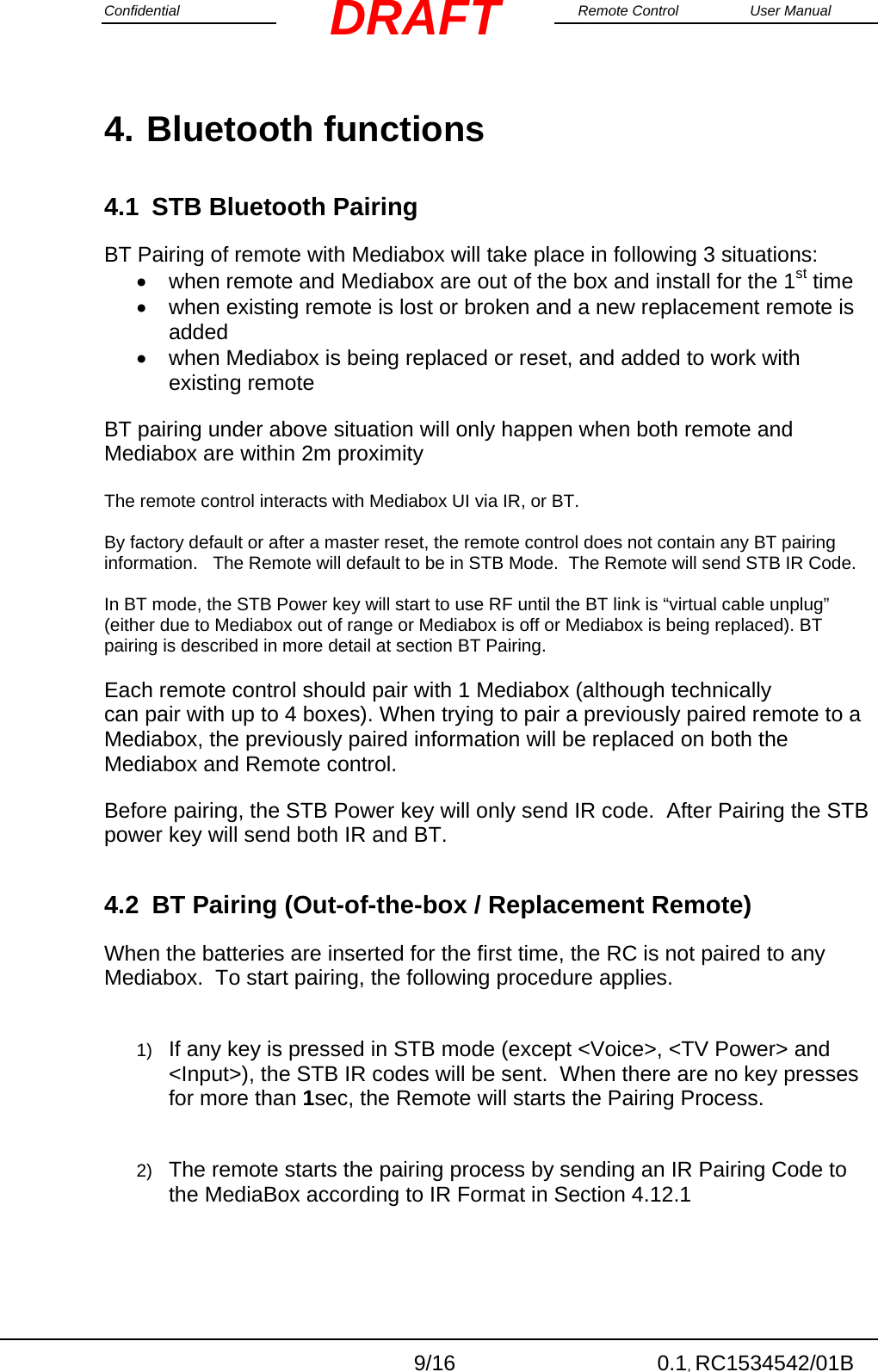

Confidential Remote Control User Manual 9/16 0.1, RC1534542/01B DRAFT4. Bluetooth functions 4.1 STB Bluetooth Pairing BT Pairing of remote with Mediabox will take place in following 3 situations:  when remote and Mediabox are out of the box and install for the 1st time  when existing remote is lost or broken and a new replacement remote is added  when Mediabox is being replaced or reset, and added to work with existing remote BT pairing under above situation will only happen when both remote and Mediabox are within 2m proximity The remote control interacts with Mediabox UI via IR, or BT. By factory default or after a master reset, the remote control does not contain any BT pairing information. The Remote will default to be in STB Mode. The Remote will send STB IR Code. In BT mode, the STB Power key will start to use RF until the BT link is “virtual cable unplug” (either due to Mediabox out of range or Mediabox is off or Mediabox is being replaced). BT pairing is described in more detail at section BT Pairing. Each remote control should pair with 1 Mediabox (although technically can pair with up to 4 boxes). When trying to pair a previously paired remote to a Mediabox, the previously paired information will be replaced on both the Mediabox and Remote control. Before pairing, the STB Power key will only send IR code. After Pairing the STB power key will send both IR and BT. 4.2 BT Pairing (Out-of-the-box / Replacement Remote) When the batteries are inserted for the first time, the RC is not paired to any Mediabox. To start pairing, the following procedure applies. 1) If any key is pressed in STB mode (except <Voice>, <TV Power> and <Input>), the STB IR codes will be sent. When there are no key presses for more than 1sec, the Remote will starts the Pairing Process. 2) The remote starts the pairing process by sending an IR Pairing Code to the MediaBox according to IR Format in Section 4.12.1

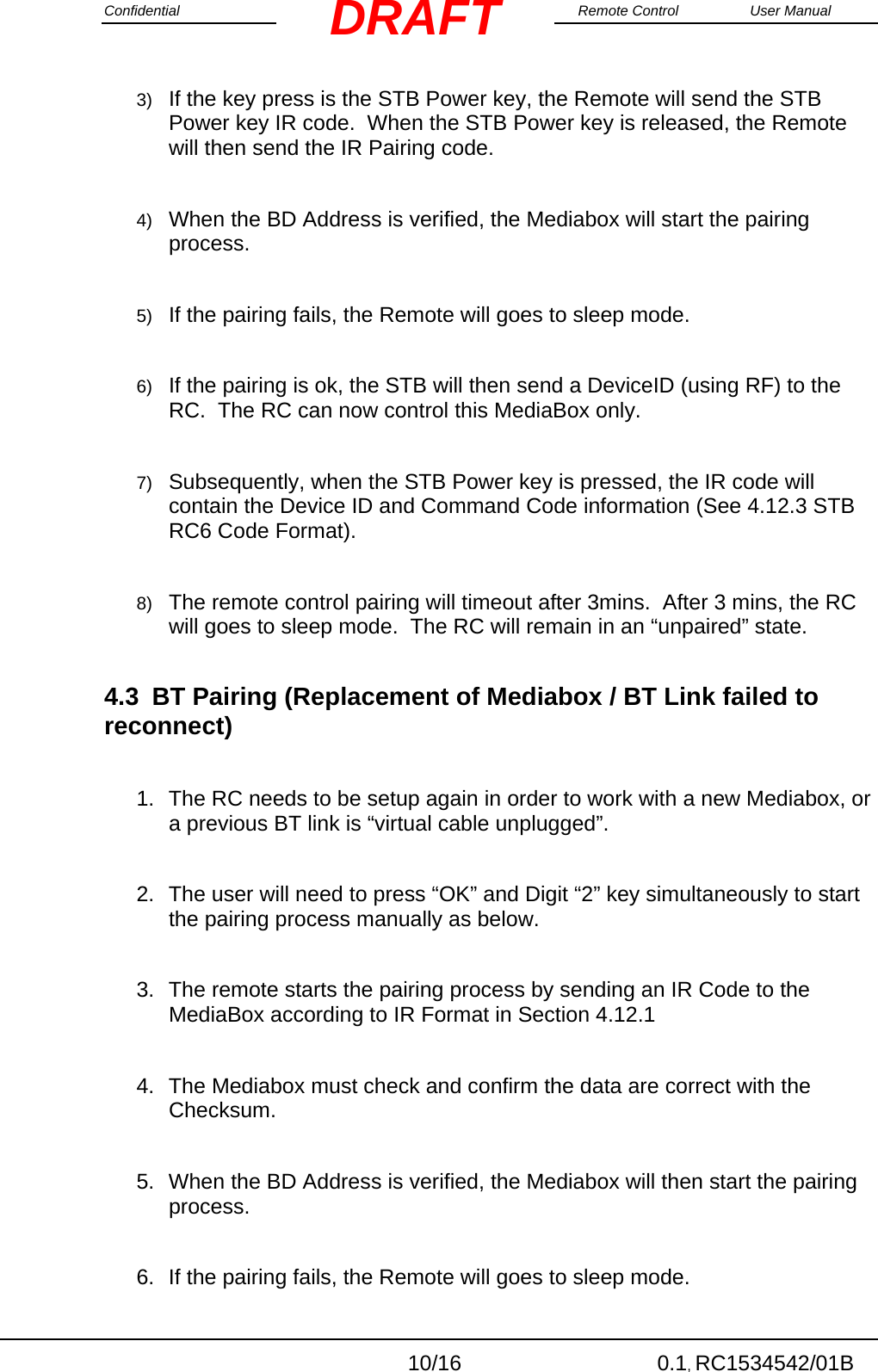

Confidential Remote Control User Manual 10/16 0.1, RC1534542/01B DRAFT3) If the key press is the STB Power key, the Remote will send the STB Power key IR code. When the STB Power key is released, the Remote will then send the IR Pairing code. 4) When the BD Address is verified, the Mediabox will start the pairing process. 5) If the pairing fails, the Remote will goes to sleep mode. 6) If the pairing is ok, the STB will then send a DeviceID (using RF) to the RC. The RC can now control this MediaBox only. 7) Subsequently, when the STB Power key is pressed, the IR code will contain the Device ID and Command Code information (See 4.12.3 STB RC6 Code Format). 8) The remote control pairing will timeout after 3mins. After 3 mins, the RC will goes to sleep mode. The RC will remain in an “unpaired” state. 4.3 BT Pairing (Replacement of Mediabox / BT Link failed to reconnect) 1. The RC needs to be setup again in order to work with a new Mediabox, or a previous BT link is “virtual cable unplugged”. 2. The user will need to press “OK” and Digit “2” key simultaneously to start the pairing process manually as below. 3. The remote starts the pairing process by sending an IR Code to the MediaBox according to IR Format in Section 4.12.1 4. The Mediabox must check and confirm the data are correct with the Checksum. 5. When the BD Address is verified, the Mediabox will then start the pairing process. 6. If the pairing fails, the Remote will goes to sleep mode.
Confidential Remote Control User Manual 11/16 0.1, RC1534542/01B DRAFT 7. If the pairing is ok, the STB will then send a DeviceID (using RF) to the RC. The RC can now control this MediaBox only. 8. Subsequently, when the STB Power Key is pressed, the IR code will contain the Device ID and IR Command Code information (See 4.12.2 STB IR Code Format). 9. The remote control pairing will timeout after 3mins. After 3min, the RC will goes to sleep mode. The RC will remain in the “unpaired” state. *Note :  After pairing, the STB keys will send BT only. Only the STB Power key will send IR and BT.  In TV Mode, only the 5 TV keys (TV Power, Input, Mute, Vol+, Vol-) will send IR.

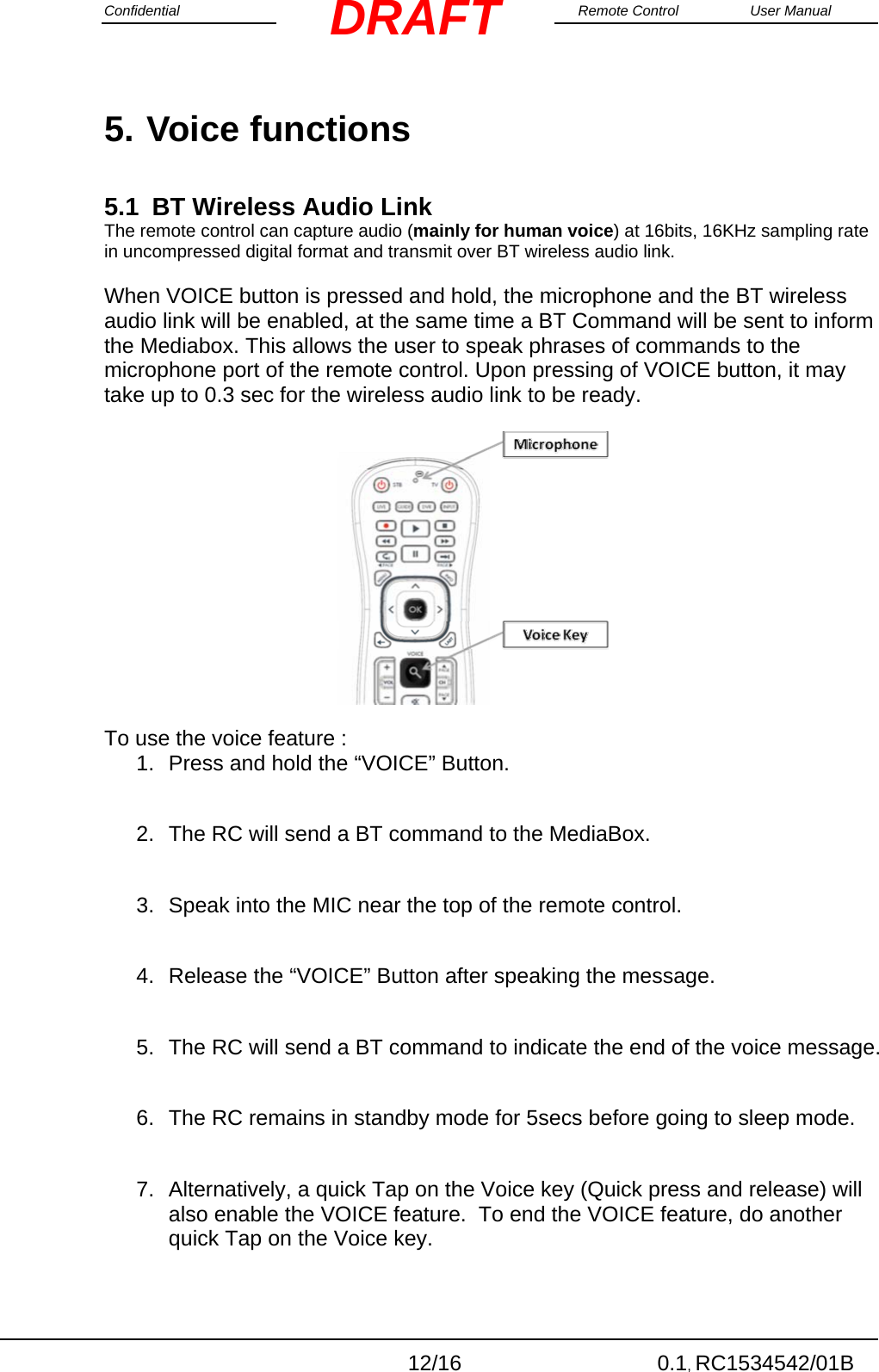

Confidential Remote Control User Manual 12/16 0.1, RC1534542/01B DRAFT5. Voice functions 5.1 BT Wireless Audio Link The remote control can capture audio (mainly for human voice) at 16bits, 16KHz sampling rate in uncompressed digital format and transmit over BT wireless audio link. When VOICE button is pressed and hold, the microphone and the BT wireless audio link will be enabled, at the same time a BT Command will be sent to inform the Mediabox. This allows the user to speak phrases of commands to the microphone port of the remote control. Upon pressing of VOICE button, it may take up to 0.3 sec for the wireless audio link to be ready. To use the voice feature : 1. Press and hold the “VOICE” Button. 2. The RC will send a BT command to the MediaBox. 3. Speak into the MIC near the top of the remote control. 4. Release the “VOICE” Button after speaking the message. 5. The RC will send a BT command to indicate the end of the voice message. 6. The RC remains in standby mode for 5secs before going to sleep mode. 7. Alternatively, a quick Tap on the Voice key (Quick press and release) will also enable the VOICE feature. To end the VOICE feature, do another quick Tap on the Voice key.

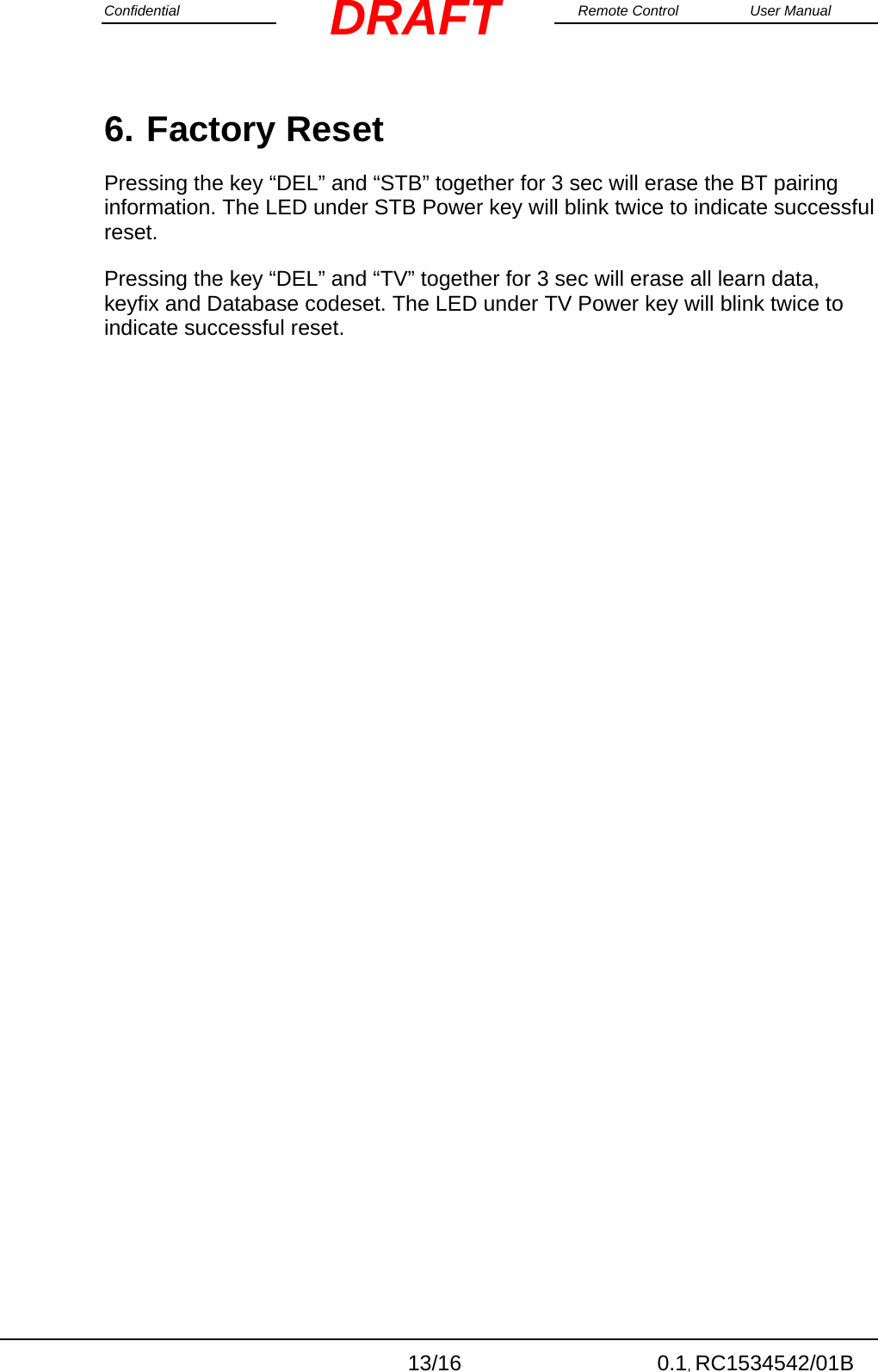

Confidential Remote Control User Manual 13/16 0.1, RC1534542/01B DRAFT6. Factory Reset Pressing the key “DEL” and “STB” together for 3 sec will erase the BT pairing information. The LED under STB Power key will blink twice to indicate successful reset. Pressing the key “DEL” and “TV” together for 3 sec will erase all learn data, keyfix and Database codeset. The LED under TV Power key will blink twice to indicate successful reset.

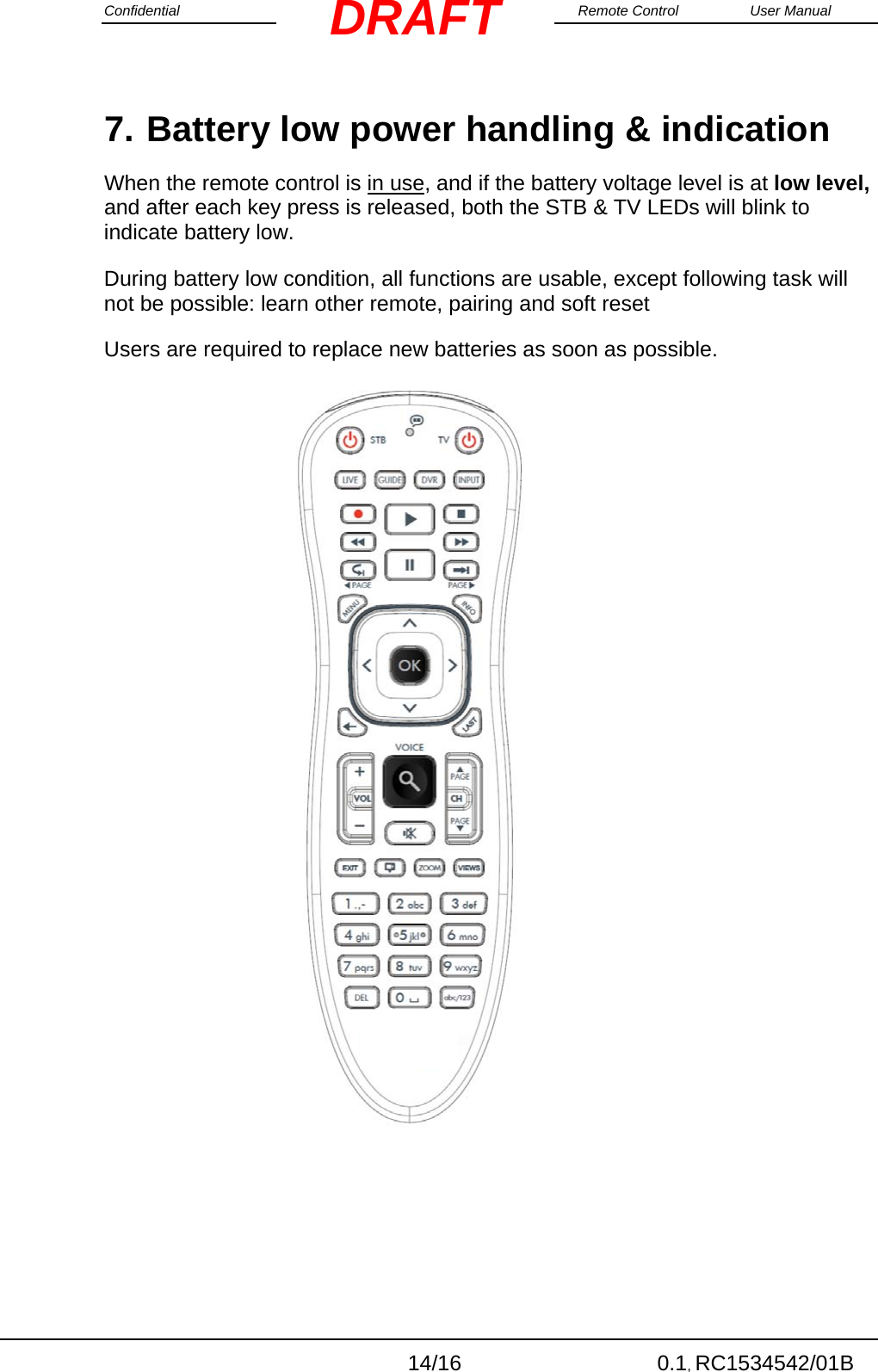

Confidential Remote Control User Manual 14/16 0.1, RC1534542/01B DRAFT7. Battery low power handling & indication When the remote control is in use, and if the battery voltage level is at low level, and after each key press is released, both the STB & TV LEDs will blink to indicate battery low. During battery low condition, all functions are usable, except following task will not be possible: learn other remote, pairing and soft reset Users are required to replace new batteries as soon as possible.

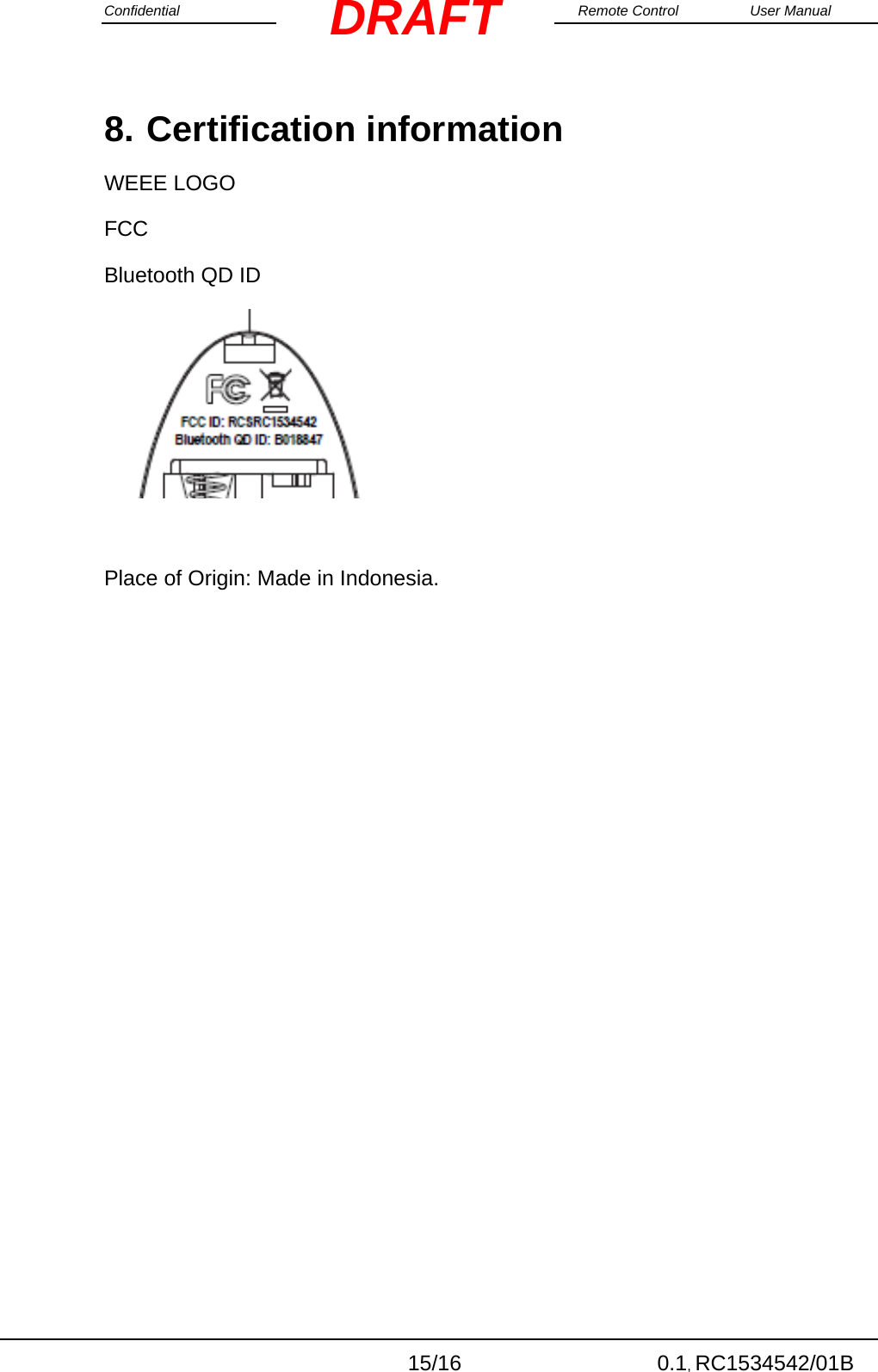

Confidential Remote Control User Manual 15/16 0.1, RC1534542/01B DRAFT8. Certification information WEEE LOGO FCC Bluetooth QD ID Place of Origin: Made in Indonesia.

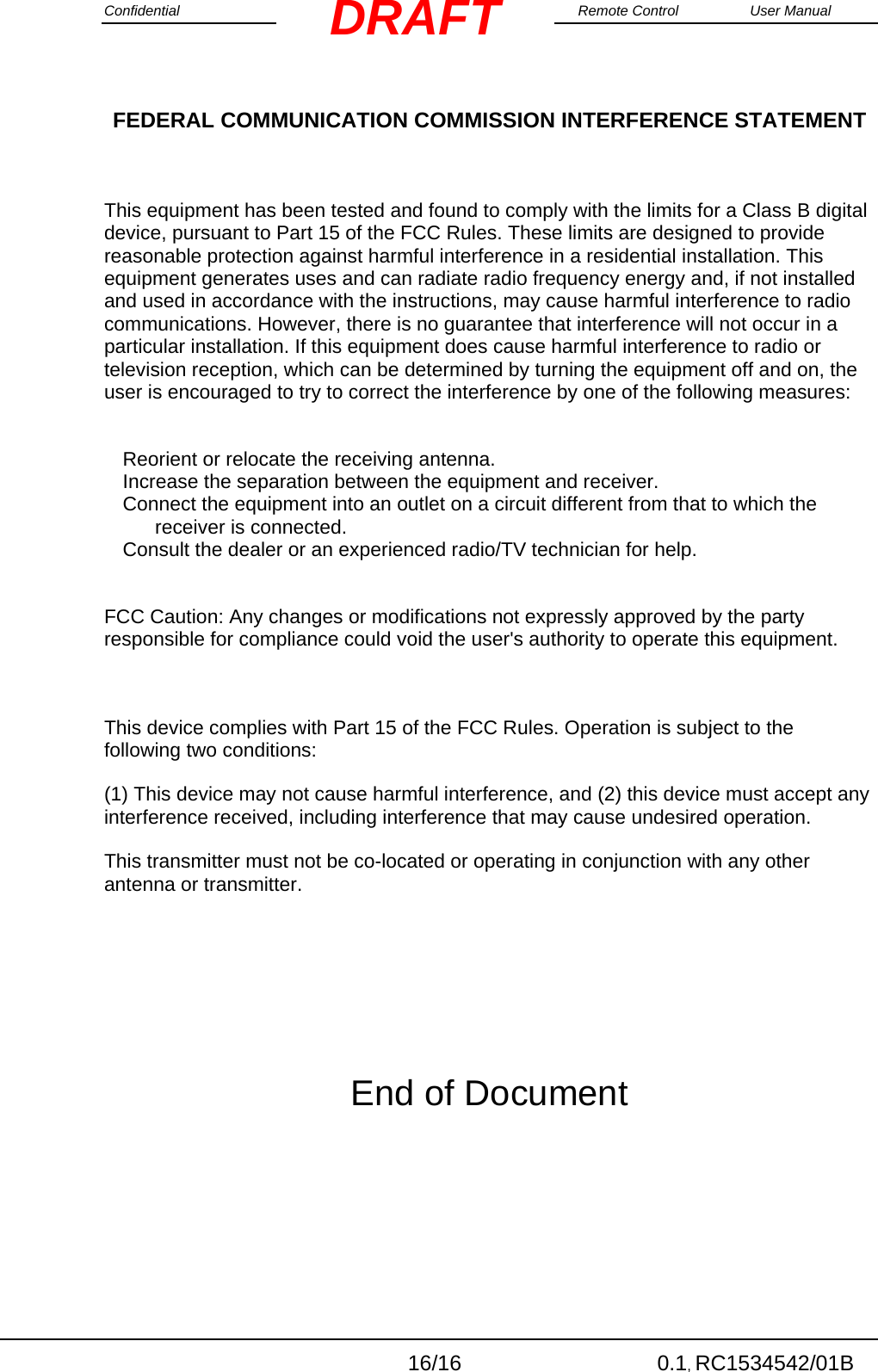

Confidential Remote Control User Manual 16/16 0.1, RC1534542/01B DRAFTFEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End of Document
