User manual

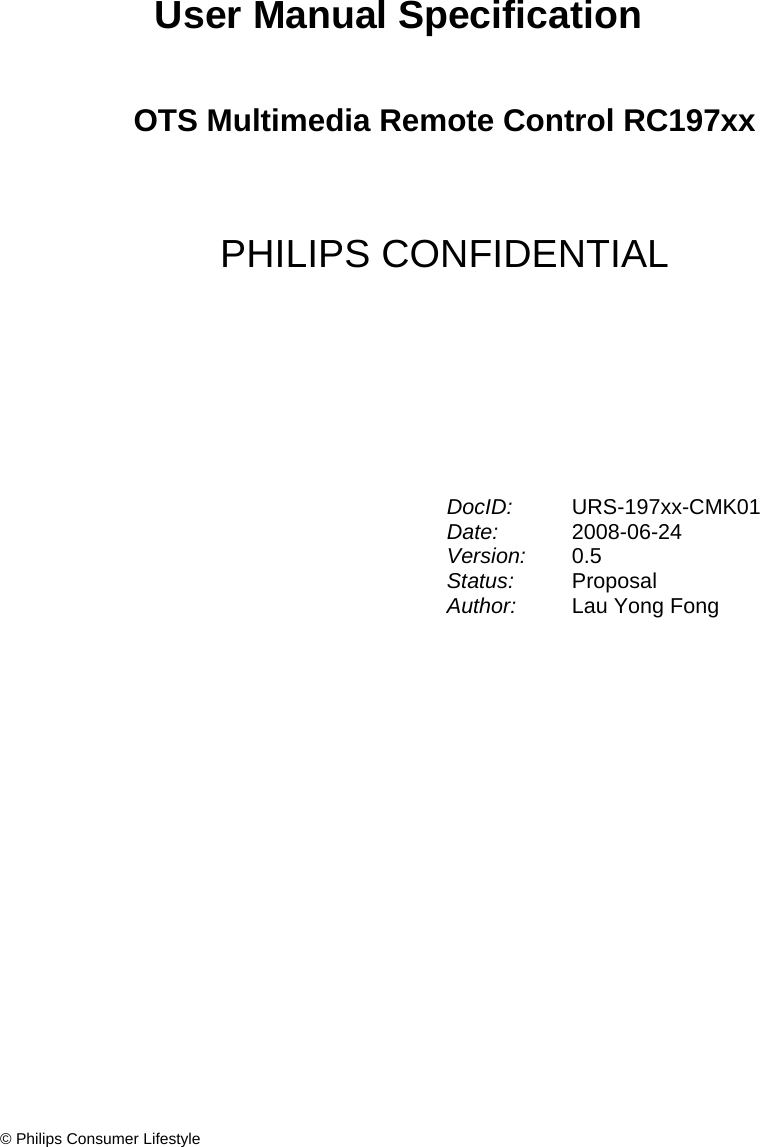

© Philips Consumer Lifestyle OTS Multimedia Remote Control RC197xx PHILIPS CONFIDENTIAL User Manual SpecificationDocID: URS-197xx-CMK01 Date: 2008-06-24 Version: 0.5 Status: Proposal Author: Lau Yong Fong

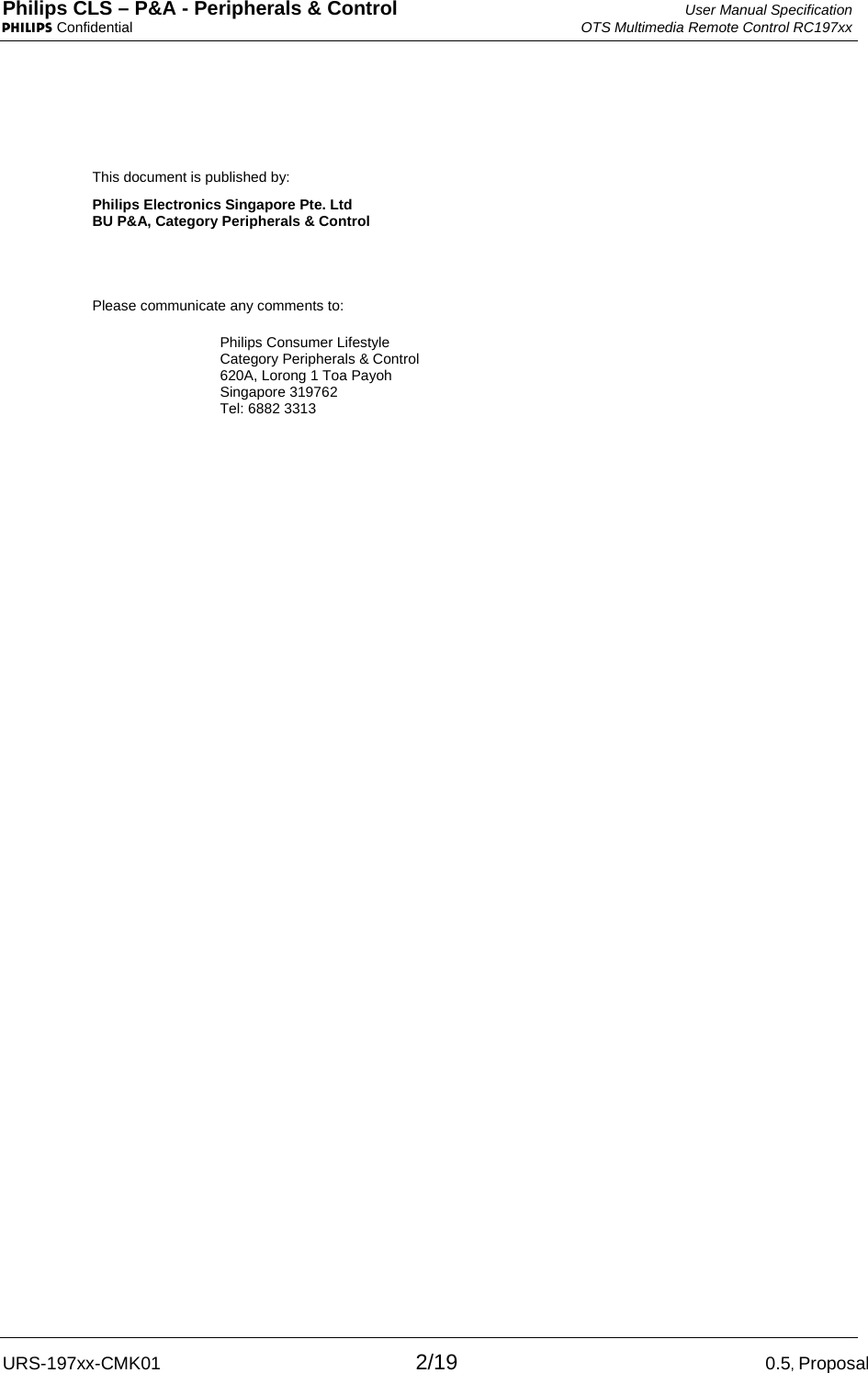

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 2/19 0.5, Proposal This document is published by: Philips Electronics Singapore Pte. Ltd BU P&A, Category Peripherals & Control Please communicate any comments to: Philips Consumer Lifestyle Category Peripherals & Control 620A, Lorong 1 Toa Payoh Singapore 319762 Tel: 6882 3313

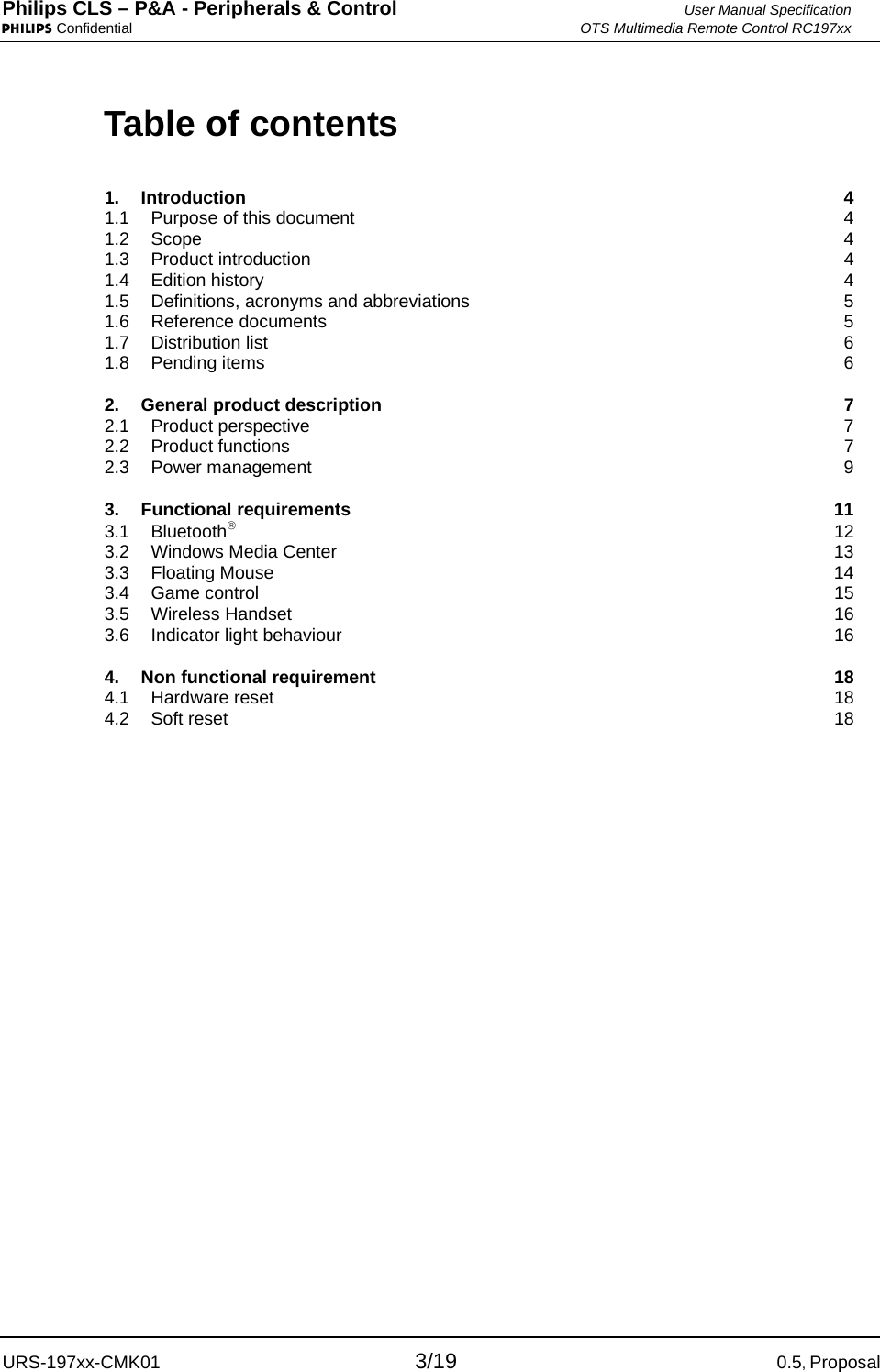

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 3/19 0.5, Proposal Table of contents 1. Introduction 4 1.1 Purpose of this document 4 1.2 Scope 4 1.3 Product introduction 4 1.4 Edition history 4 1.5 Definitions, acronyms and abbreviations 5 1.6 Reference documents 5 1.7 Distribution list 6 1.8 Pending items 6 2. General product description 7 2.1 Product perspective 7 2.2 Product functions 7 2.3 Power management 9 3. Functional requirements 11 3.1 Bluetooth® 12 3.2 Windows Media Center 13 3.3 Floating Mouse 14 3.4 Game control 15 3.5 Wireless Handset 16 3.6 Indicator light behaviour 16 4. Non functional requirement 18 4.1 Hardware reset 18 4.2 Soft reset 18

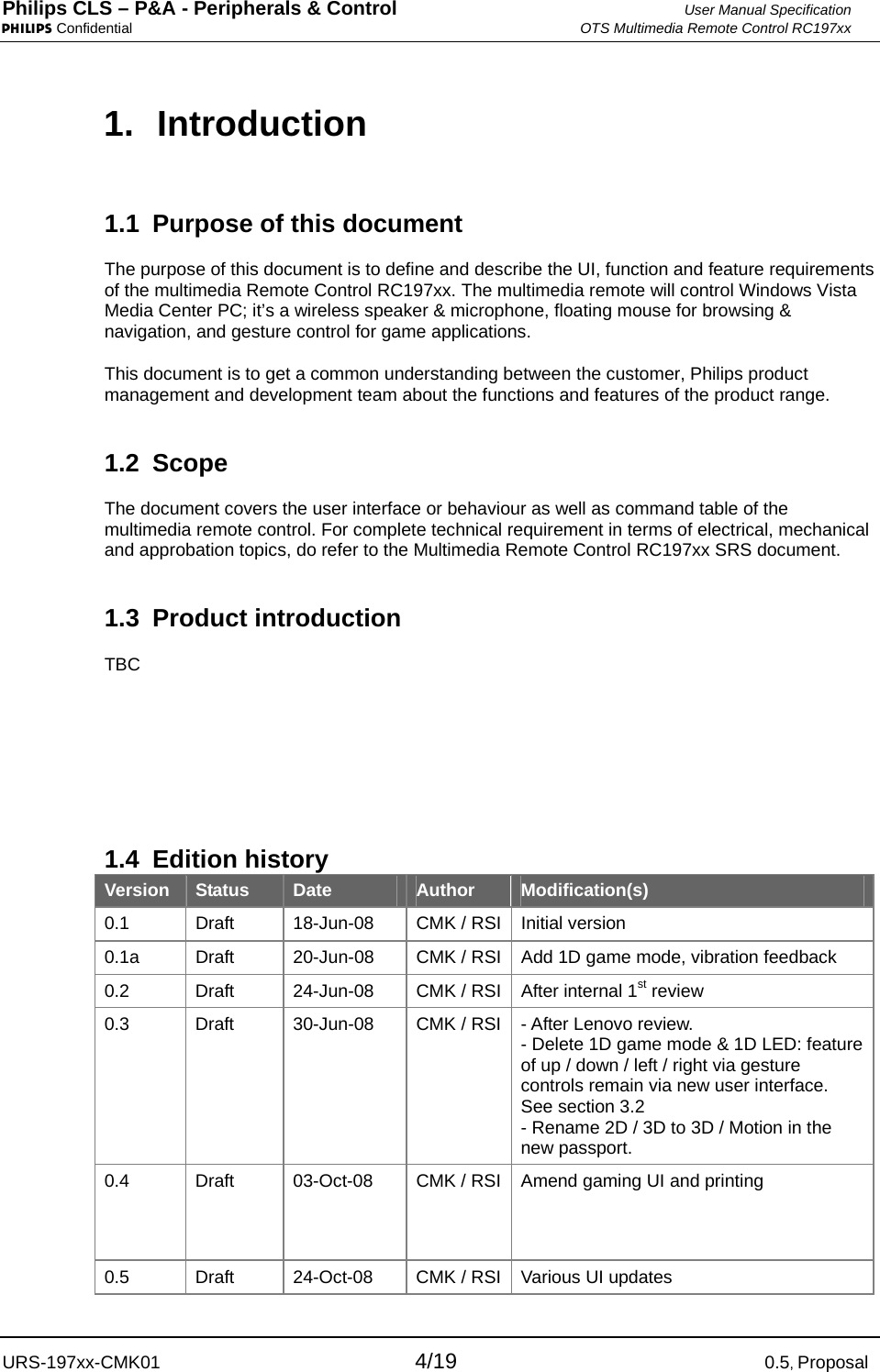

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 4/19 0.5, Proposal 1. Introduction 1.1 Purpose of this document The purpose of this document is to define and describe the UI, function and feature requirements of the multimedia Remote Control RC197xx. The multimedia remote will control Windows Vista Media Center PC; it’s a wireless speaker & microphone, floating mouse for browsing & navigation, and gesture control for game applications. This document is to get a common understanding between the customer, Philips product management and development team about the functions and features of the product range. 1.2 Scope The document covers the user interface or behaviour as well as command table of the multimedia remote control. For complete technical requirement in terms of electrical, mechanical and approbation topics, do refer to the Multimedia Remote Control RC197xx SRS document. 1.3 Product introduction TBC 1.4 Edition history Version Status Date Author Modification(s) 0.1 Draft 18-Jun-08 CMK / RSI Initial version 0.1a Draft 20-Jun-08 CMK / RSI Add 1D game mode, vibration feedback 0.2 Draft 24-Jun-08 CMK / RSI After internal 1st review 0.3 Draft 30-Jun-08 CMK / RSI - After Lenovo review. - Delete 1D game mode & 1D LED: feature of up / down / left / right via gesture controls remain via new user interface. See section 3.2 - Rename 2D / 3D to 3D / Motion in the new passport. 0.4 Draft 03-Oct-08 CMK / RSI Amend gaming UI and printing 0.5 Draft 24-Oct-08 CMK / RSI Various UI updates

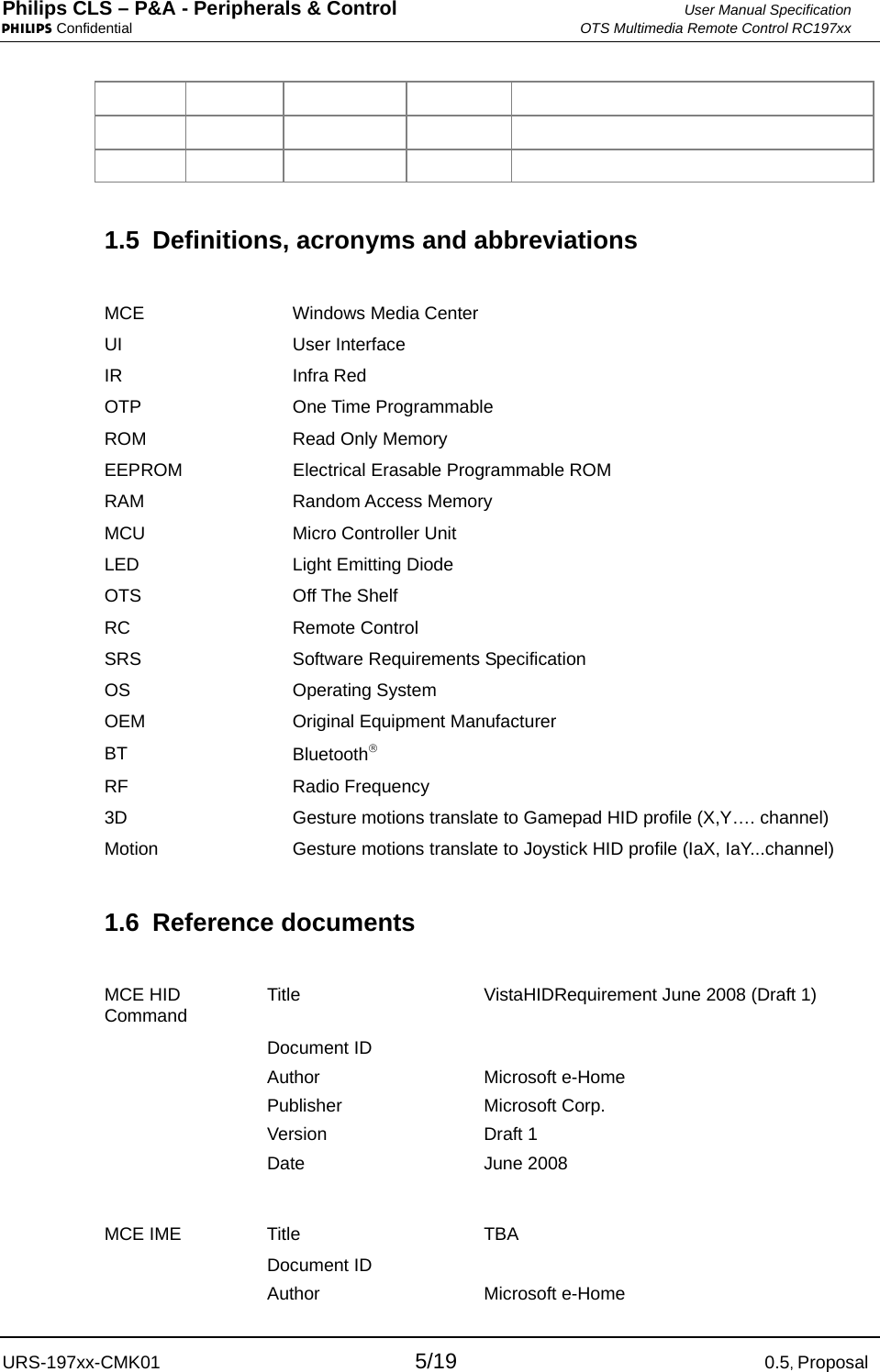

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 5/19 0.5, Proposal 1.5 Definitions, acronyms and abbreviations MCE Windows Media Center UI User Interface IR Infra Red OTP One Time Programmable ROM Read Only Memory EEPROM Electrical Erasable Programmable ROM RAM Random Access Memory MCU Micro Controller Unit LED Light Emitting Diode OTS Off The Shelf RC Remote Control SRS Software Requirements Specification OS Operating System OEM Original Equipment Manufacturer BT Bluetooth® RF Radio Frequency 3D Gesture motions translate to Gamepad HID profile (X,Y…. channel) Motion Gesture motions translate to Joystick HID profile (IaX, IaY...channel) 1.6 Reference documents MCE HID Command Title VistaHIDRequirement June 2008 (Draft 1) Document ID Author Microsoft e-Home Publisher Microsoft Corp. Version Draft 1 Date June 2008 MCE IME Title TBA Document ID Author Microsoft e-Home

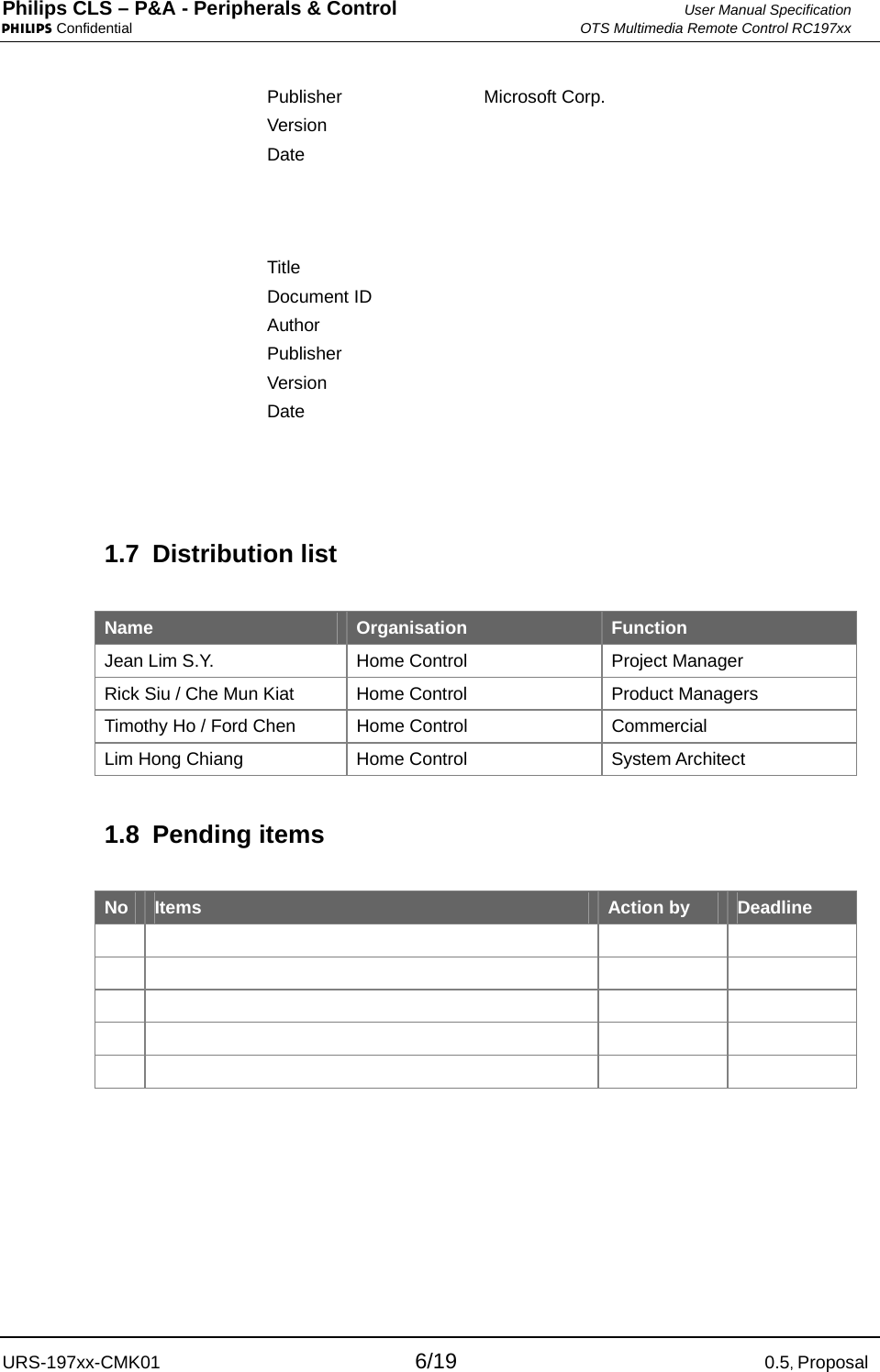

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 6/19 0.5, Proposal Publisher Microsoft Corp. Version Date Title Document ID Author Publisher Version Date 1.7 Distribution list Name Organisation Function Jean Lim S.Y. Home Control Project Manager Rick Siu / Che Mun Kiat Home Control Product Managers Timothy Ho / Ford Chen Home Control Commercial Lim Hong Chiang Home Control System Architect 1.8 Pending items No Items Action by Deadline

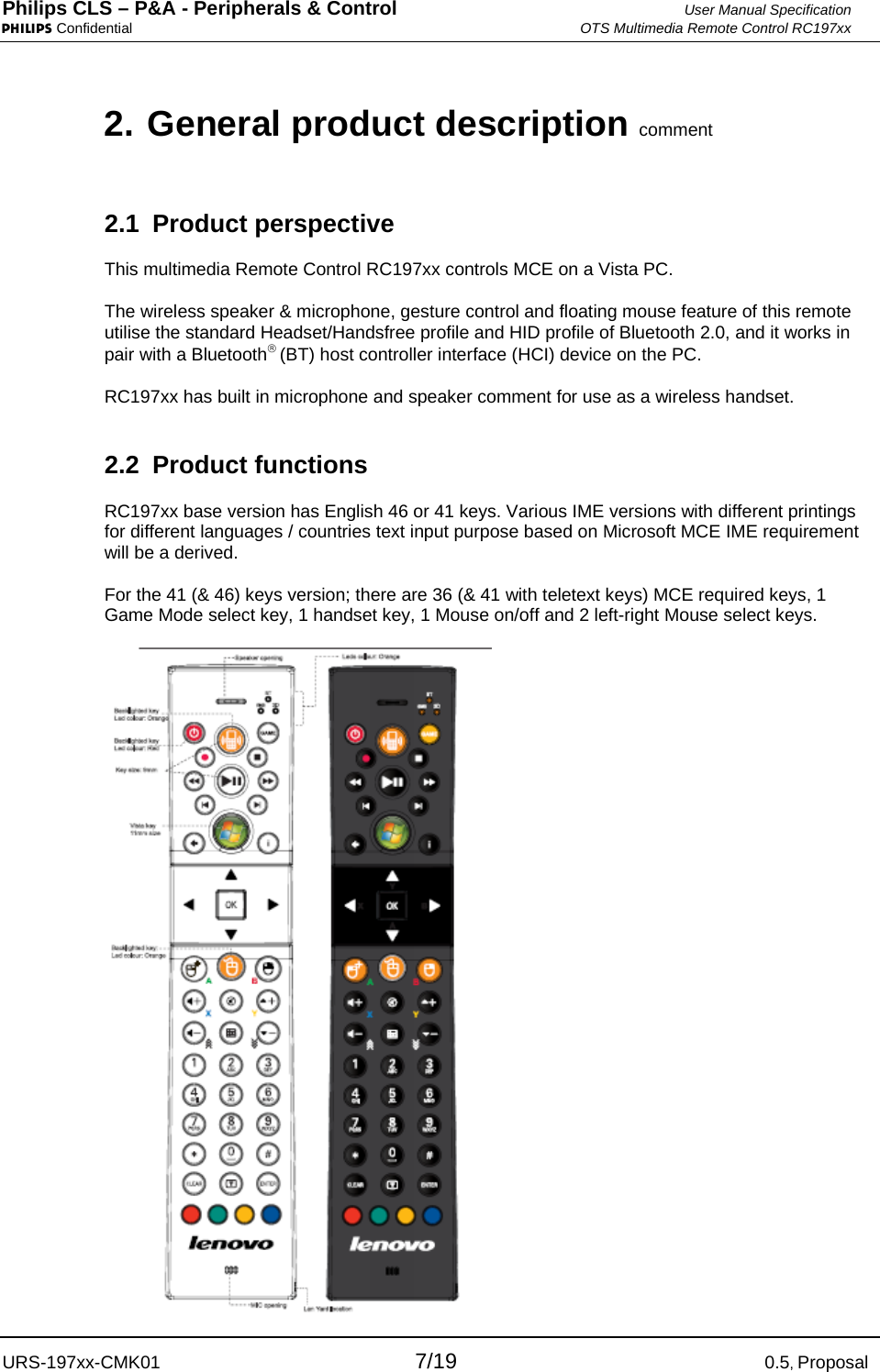

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 7/19 0.5, Proposal 2. General product description comment 2.1 Product perspective This multimedia Remote Control RC197xx controls MCE on a Vista PC. The wireless speaker & microphone, gesture control and floating mouse feature of this remote utilise the standard Headset/Handsfree profile and HID profile of Bluetooth 2.0, and it works in pair with a Bluetooth® (BT) host controller interface (HCI) device on the PC. RC197xx has built in microphone and speaker comment for use as a wireless handset. 2.2 Product functions RC197xx base version has English 46 or 41 keys. Various IME versions with different printings for different languages / countries text input purpose based on Microsoft MCE IME requirement will be a derived. For the 41 (& 46) keys version; there are 36 (& 41 with teletext keys) MCE required keys, 1 Game Mode select key, 1 handset key, 1 Mouse on/off and 2 left-right Mouse select keys.

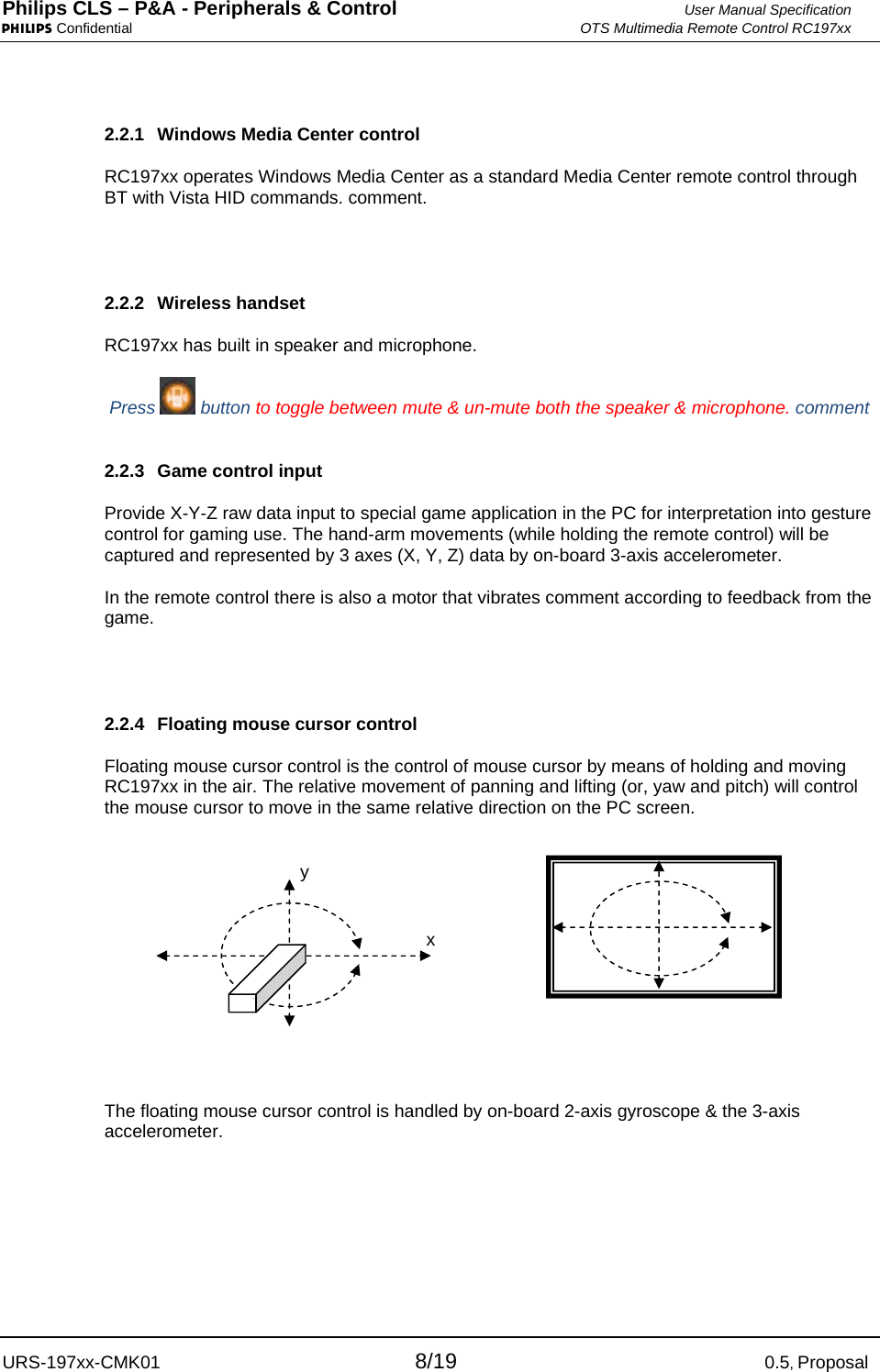

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 8/19 0.5, Proposal 2.2.1 Windows Media Center control RC197xx operates Windows Media Center as a standard Media Center remote control through BT with Vista HID commands. comment. 2.2.2 Wireless handset RC197xx has built in speaker and microphone. Press button to toggle between mute & un-mute both the speaker & microphone. comment 2.2.3 Game control input Provide X-Y-Z raw data input to special game application in the PC for interpretation into gesture control for gaming use. The hand-arm movements (while holding the remote control) will be captured and represented by 3 axes (X, Y, Z) data by on-board 3-axis accelerometer. In the remote control there is also a motor that vibrates comment according to feedback from the game. 2.2.4 Floating mouse cursor control Floating mouse cursor control is the control of mouse cursor by means of holding and moving RC197xx in the air. The relative movement of panning and lifting (or, yaw and pitch) will control the mouse cursor to move in the same relative direction on the PC screen. The floating mouse cursor control is handled by on-board 2-axis gyroscope & the 3-axis accelerometer. y x

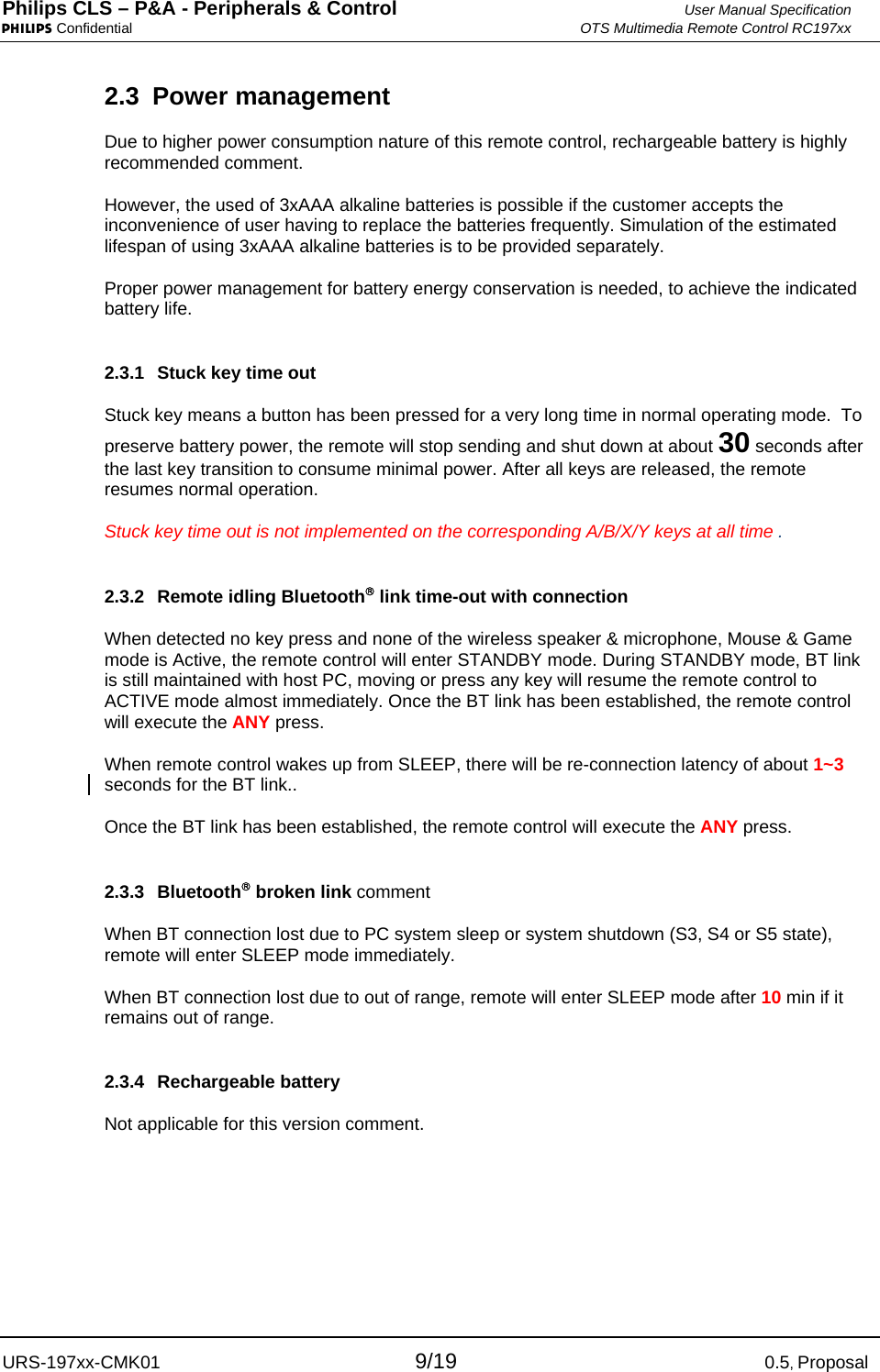

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 9/19 0.5, Proposal 2.3 Power management Due to higher power consumption nature of this remote control, rechargeable battery is highly recommended comment. However, the used of 3xAAA alkaline batteries is possible if the customer accepts the inconvenience of user having to replace the batteries frequently. Simulation of the estimated lifespan of using 3xAAA alkaline batteries is to be provided separately. Proper power management for battery energy conservation is needed, to achieve the indicated battery life. 2.3.1 Stuck key time out Stuck key means a button has been pressed for a very long time in normal operating mode. To preserve battery power, the remote will stop sending and shut down at about 30 seconds after the last key transition to consume minimal power. After all keys are released, the remote resumes normal operation. Stuck key time out is not implemented on the corresponding A/B/X/Y keys at all time . 2.3.2 Remote idling Bluetooth® link time-out with connection When detected no key press and none of the wireless speaker & microphone, Mouse & Game mode is Active, the remote control will enter STANDBY mode. During STANDBY mode, BT link is still maintained with host PC, moving or press any key will resume the remote control to ACTIVE mode almost immediately. Once the BT link has been established, the remote control will execute the ANY press. When remote control wakes up from SLEEP, there will be re-connection latency of about 1~3 seconds for the BT link.. Once the BT link has been established, the remote control will execute the ANY press. 2.3.3 Bluetooth® broken link comment When BT connection lost due to PC system sleep or system shutdown (S3, S4 or S5 state), remote will enter SLEEP mode immediately. When BT connection lost due to out of range, remote will enter SLEEP mode after 10 min if it remains out of range. 2.3.4 Rechargeable battery Not applicable for this version comment.

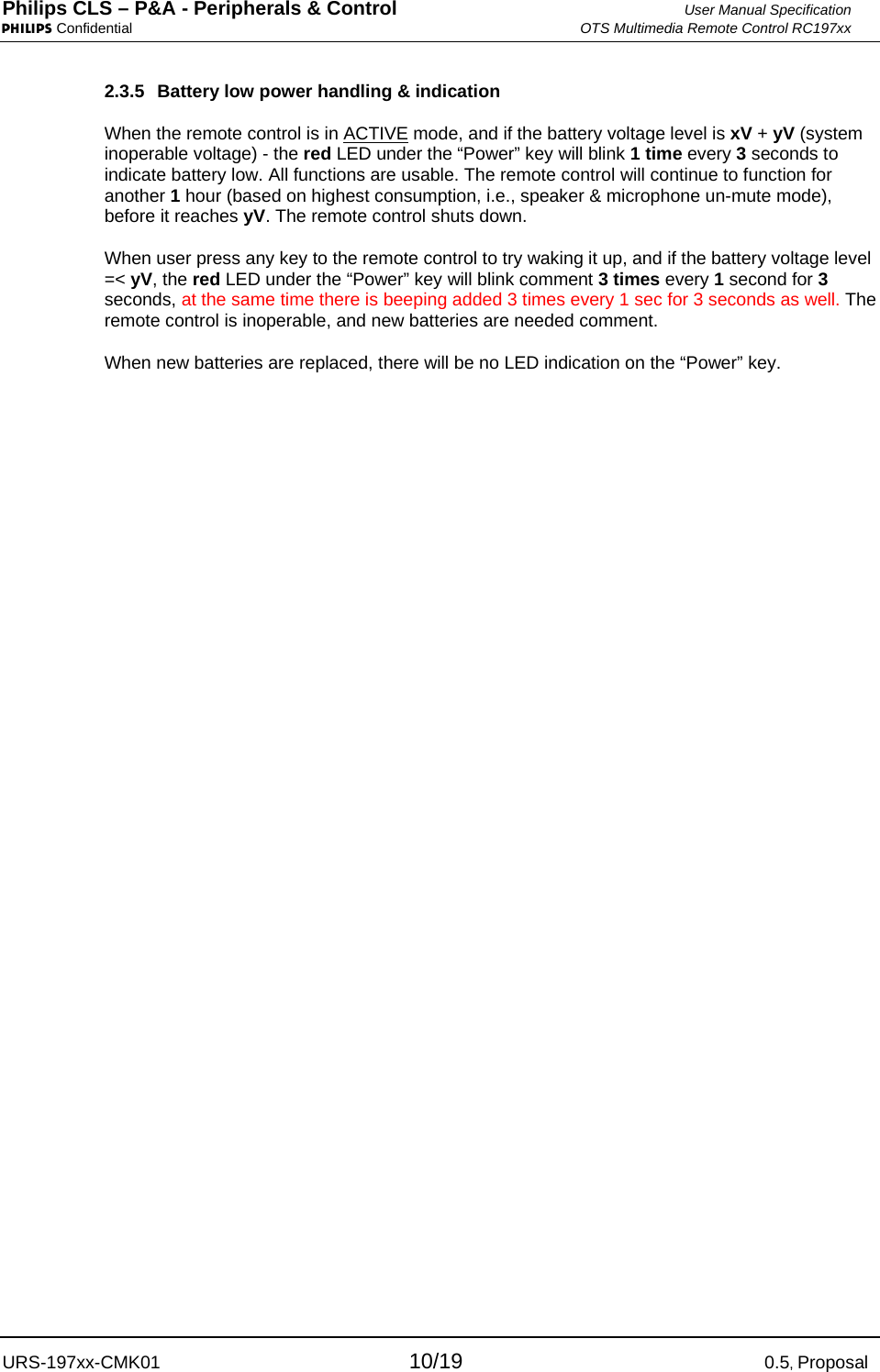

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 10/19 0.5, Proposal 2.3.5 Battery low power handling & indication When the remote control is in ACTIVE mode, and if the battery voltage level is xV + yV (system inoperable voltage) - the red LED under the “Power” key will blink 1 time every 3 seconds to indicate battery low. All functions are usable. The remote control will continue to function for another 1 hour (based on highest consumption, i.e., speaker & microphone un-mute mode), before it reaches yV. The remote control shuts down. When user press any key to the remote control to try waking it up, and if the battery voltage level =< yV, the red LED under the “Power” key will blink comment 3 times every 1 second for 3 seconds, at the same time there is beeping added 3 times every 1 sec for 3 seconds as well. The remote control is inoperable, and new batteries are needed comment. When new batteries are replaced, there will be no LED indication on the “Power” key.

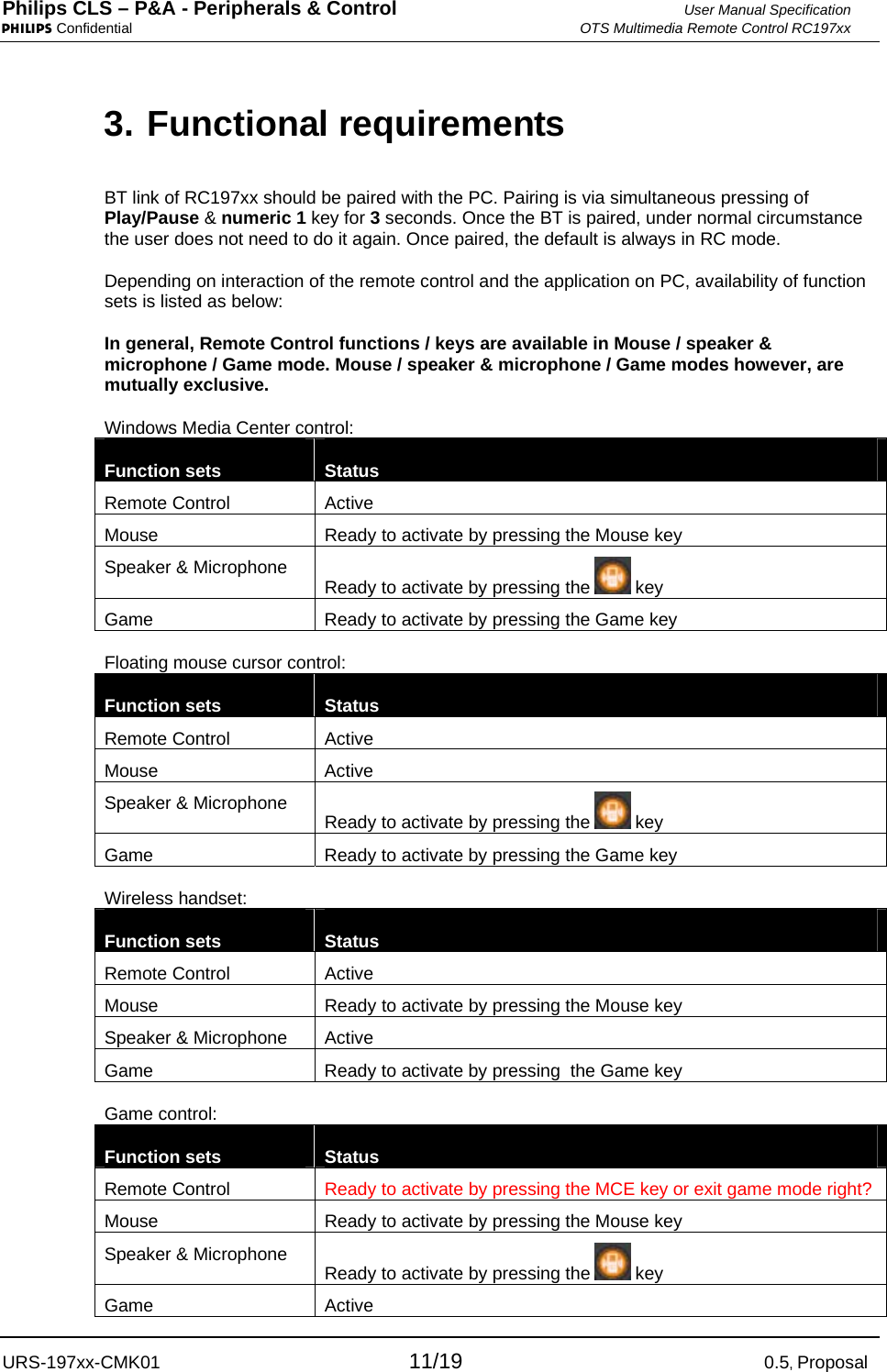

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 11/19 0.5, Proposal 3. Functional requirements BT link of RC197xx should be paired with the PC. Pairing is via simultaneous pressing of Play/Pause & numeric 1 key for 3 seconds. Once the BT is paired, under normal circumstance the user does not need to do it again. Once paired, the default is always in RC mode. Depending on interaction of the remote control and the application on PC, availability of function sets is listed as below: In general, Remote Control functions / keys are available in Mouse / speaker & microphone / Game mode. Mouse / speaker & microphone / Game modes however, are mutually exclusive. Windows Media Center control: Function sets Status Remote Control Active Mouse Ready to activate by pressing the Mouse key Speaker & Microphone Ready to activate by pressing the key Game Ready to activate by pressing the Game key Floating mouse cursor control: Function sets StatusRemote Control Active Mouse Active Speaker & Microphone Readyto activate by pressing the keyGame Ready to activate by pressing the Game key Wireless handset: Function sets StatusRemote Control Active Mouse Ready to activate by pressing the Mouse key Speaker & Microphone Active Game Ready to activate by pressing the Game key Game control: Function sets Status Remote Control Ready to activate by pressing the MCE key or exit game mode right? Mouse Ready to activate by pressing the Mouse key Speaker & Microphone Ready to activate by pressing the key Game Active

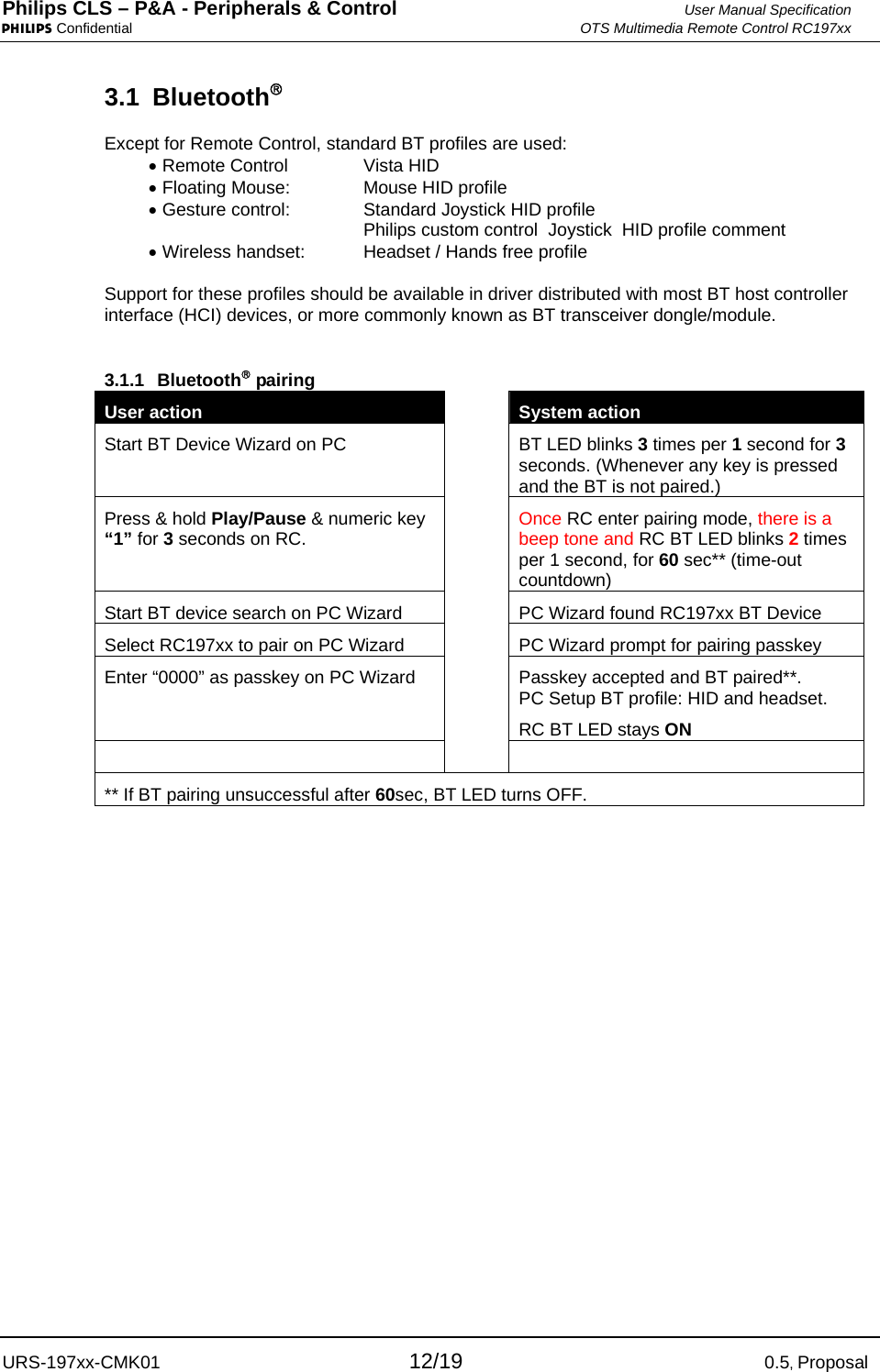

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 12/19 0.5, Proposal 3.1 Bluetooth® Except for Remote Control, standard BT profiles are used: • Remote Control Vista HID • Floating Mouse: Mouse HID profile • Gesture control: Standard Joystick HID profile Philips custom control Joystick HID profile comment • Wireless handset: Headset / Hands free profile Support for these profiles should be available in driver distributed with most BT host controller interface (HCI) devices, or more commonly known as BT transceiver dongle/module. 3.1.1 Bluetooth® pairing User action System action Start BT Device Wizard on PC BT LED blinks 3 times per 1 second for 3 seconds. (Whenever any key is pressed and the BT is not paired.) Press & hold Play/Pause & numeric key “1” for 3 seconds on RC. Once RC enter pairing mode, there is a beep tone and RC BT LED blinks 2 times per 1 second, for 60 sec** (time-out countdown) Start BT device search on PC Wizard PC Wizard found RC197xx BT DeviceSelect RC197xx to pair on PC Wizard PC Wizard prompt for pairing passkey Enter “0000” as passkey on PC Wizard Passkey accepted and BT paired**. PC Setup BT profile: HID and headset. RC BT LED stays ON ** If BT pairing unsuccessful after 60sec, BT LED turns OFF.

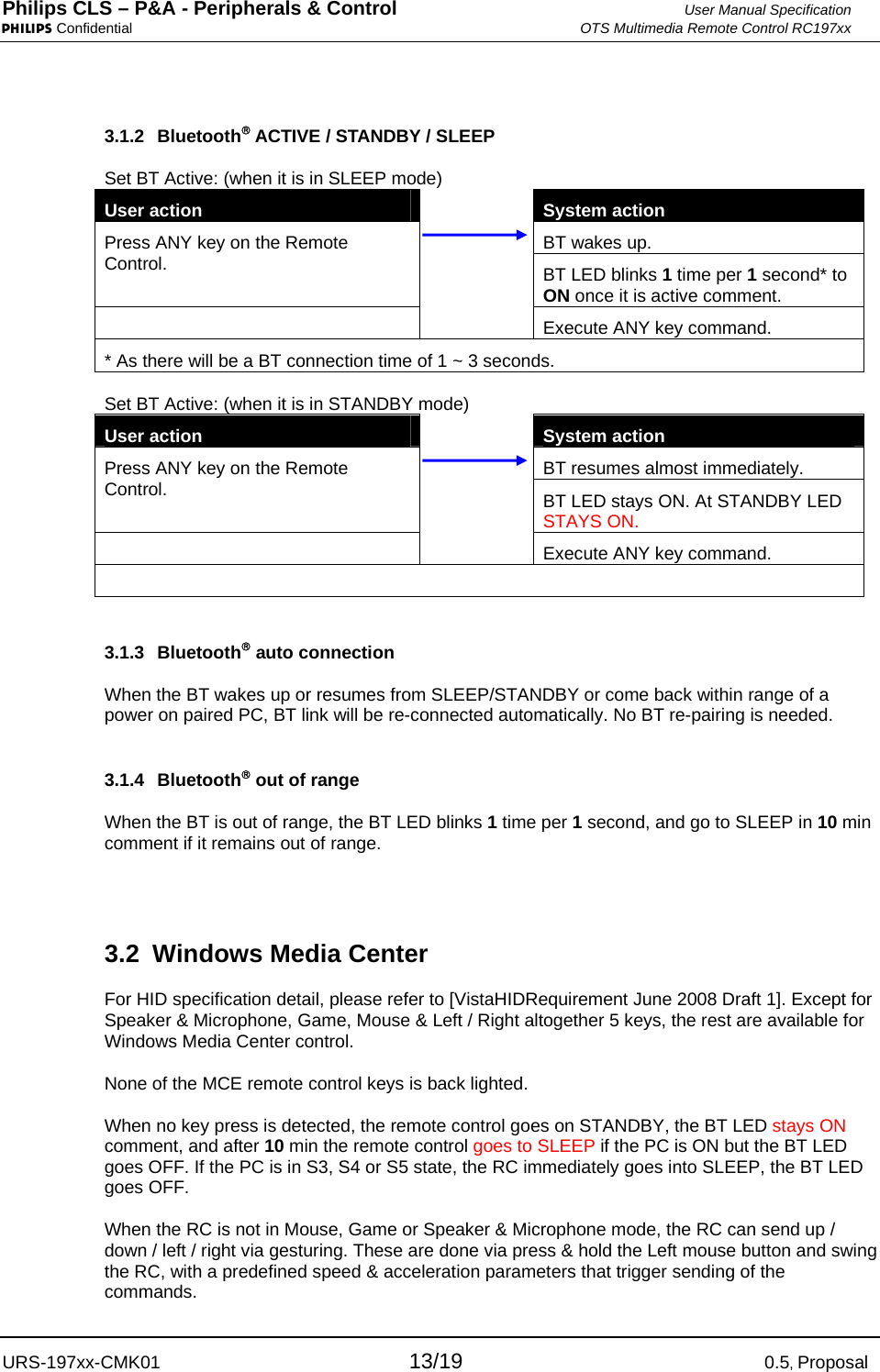

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 13/19 0.5, Proposal 3.1.2 Bluetooth® ACTIVE / STANDBY / SLEEP Set BT Active: (when it is in SLEEP mode) User action System action Press ANY key on the Remote Control. BT wakes up. BT LED blinks 1 time per 1 second* to ON once it is active comment. Execute ANY key command. * As there will be a BT connection time of 1 ~ 3 seconds. Set BT Active: (when it is in STANDBY mode) User action System actionPress ANY key on the Remote Control. BT resumes almost immediately. BT LED stays ON. At STANDBY LED STAYS ON. Execute ANY key command. 3.1.3 Bluetooth® auto connection When the BT wakes up or resumes from SLEEP/STANDBY or come back within range of a power on paired PC, BT link will be re-connected automatically. No BT re-pairing is needed. 3.1.4 Bluetooth® out of range When the BT is out of range, the BT LED blinks 1 time per 1 second, and go to SLEEP in 10 min comment if it remains out of range. 3.2 Windows Media Center For HID specification detail, please refer to [VistaHIDRequirement June 2008 Draft 1]. Except for Speaker & Microphone, Game, Mouse & Left / Right altogether 5 keys, the rest are available for Windows Media Center control. None of the MCE remote control keys is back lighted. When no key press is detected, the remote control goes on STANDBY, the BT LED stays ON comment, and after 10 min the remote control goes to SLEEP if the PC is ON but the BT LED goes OFF. If the PC is in S3, S4 or S5 state, the RC immediately goes into SLEEP, the BT LED goes OFF. When the RC is not in Mouse, Game or Speaker & Microphone mode, the RC can send up / down / left / right via gesturing. These are done via press & hold the Left mouse button and swing the RC, with a predefined speed & acceleration parameters that trigger sending of the commands.

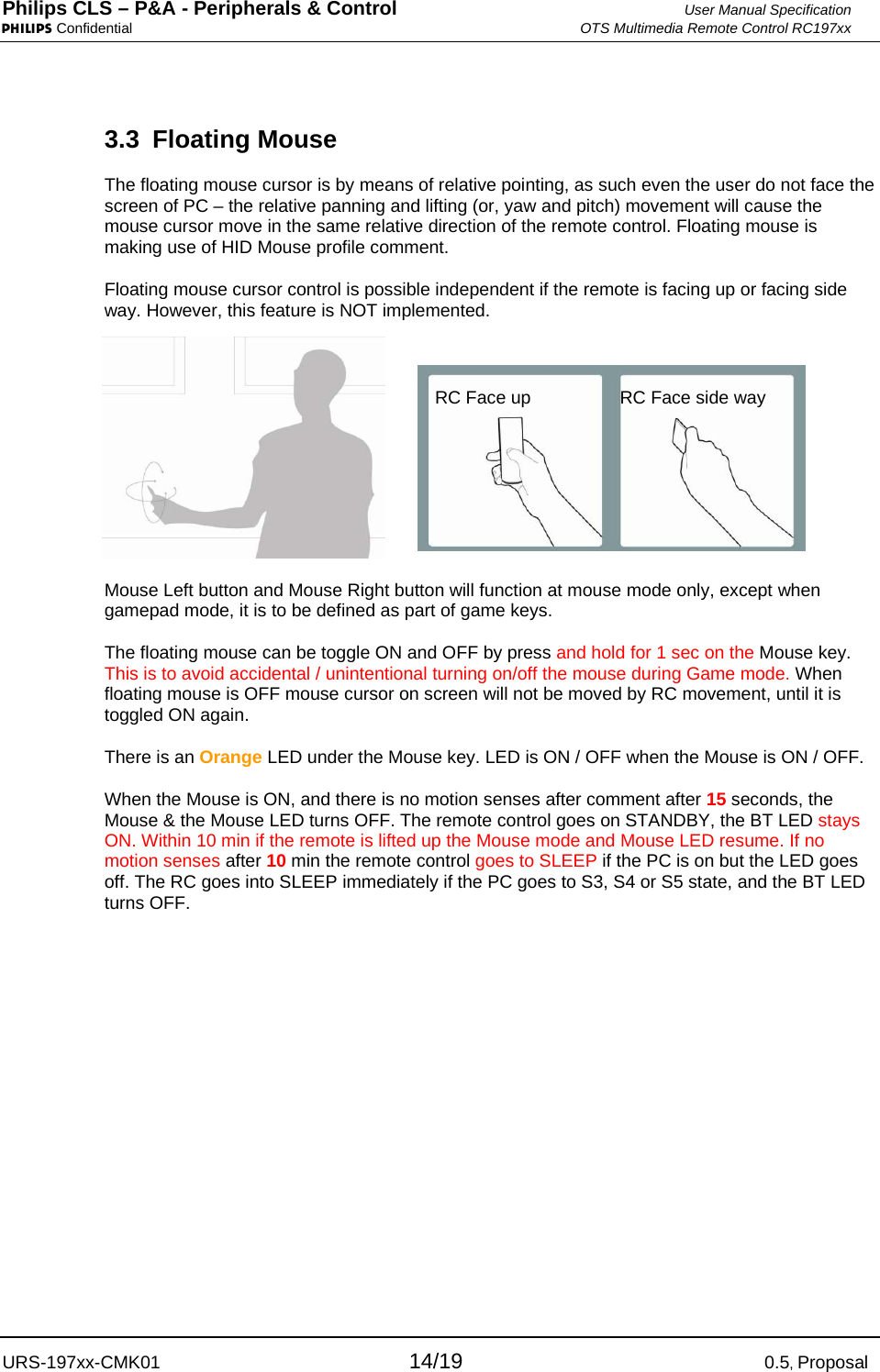

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 14/19 0.5, Proposal 3.3 Floating Mouse The floating mouse cursor is by means of relative pointing, as such even the user do not face the screen of PC – the relative panning and lifting (or, yaw and pitch) movement will cause the mouse cursor move in the same relative direction of the remote control. Floating mouse is making use of HID Mouse profile comment. Floating mouse cursor control is possible independent if the remote is facing up or facing side way. However, this feature is NOT implemented. Mouse Left button and Mouse Right button will function at mouse mode only, except when gamepad mode, it is to be defined as part of game keys. The floating mouse can be toggle ON and OFF by press and hold for 1 sec on the Mouse key. This is to avoid accidental / unintentional turning on/off the mouse during Game mode. When floating mouse is OFF mouse cursor on screen will not be moved by RC movement, until it is toggled ON again. There is an Orange LED under the Mouse key. LED is ON / OFF when the Mouse is ON / OFF. When the Mouse is ON, and there is no motion senses after comment after 15 seconds, the Mouse & the Mouse LED turns OFF. The remote control goes on STANDBY, the BT LED stays ON. Within 10 min if the remote is lifted up the Mouse mode and Mouse LED resume. If no motion senses after 10 min the remote control goes to SLEEP if the PC is on but the LED goes off. The RC goes into SLEEP immediately if the PC goes to S3, S4 or S5 state, and the BT LED turns OFF. RC Face up RC Face side way

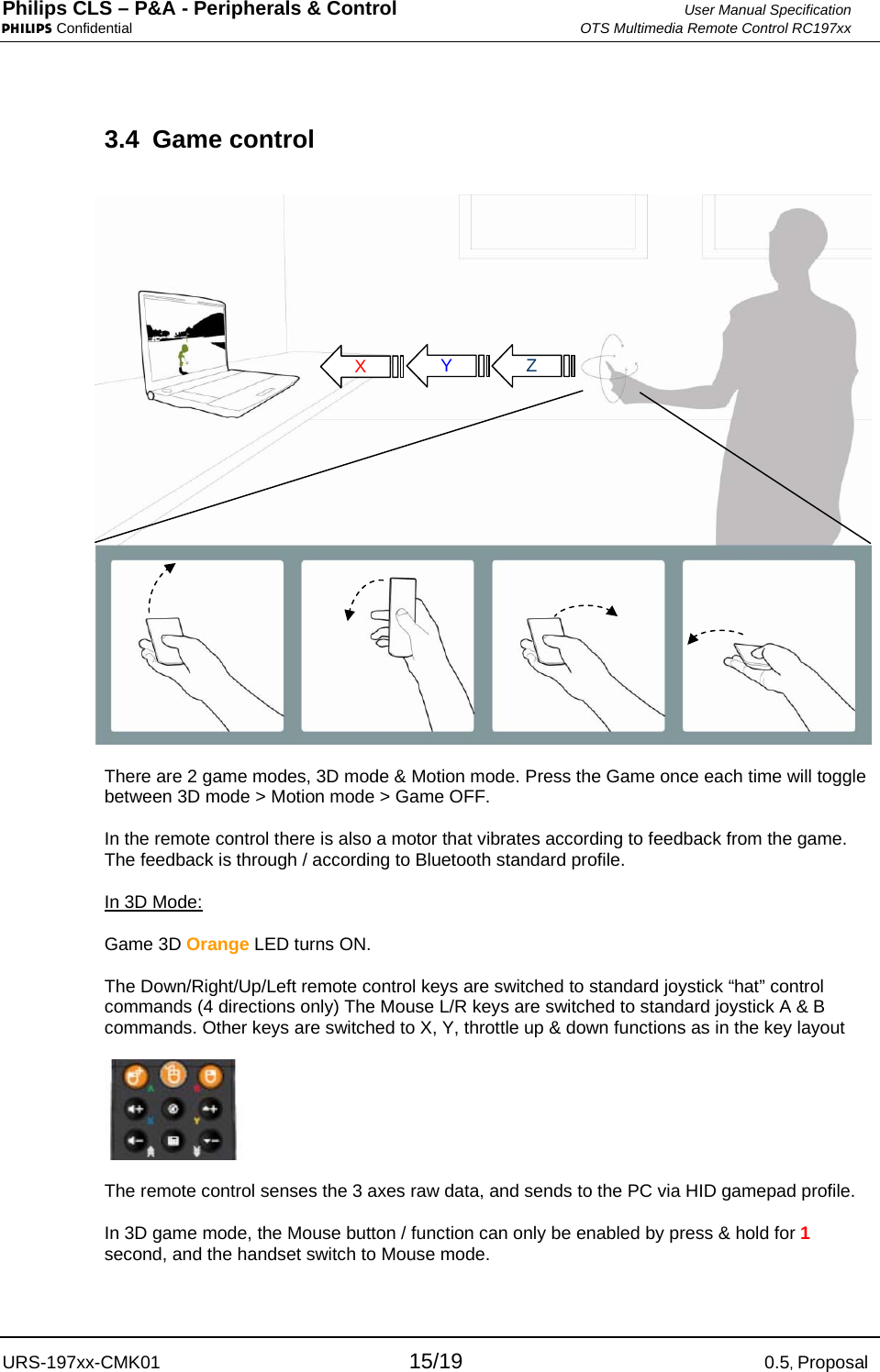

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 15/19 0.5, Proposal 3.4 Game control There are 2 game modes, 3D mode & Motion mode. Press the Game once each time will toggle between 3D mode > Motion mode > Game OFF. In the remote control there is also a motor that vibrates according to feedback from the game. The feedback is through / according to Bluetooth standard profile. In 3D Mode: Game 3D Orange LED turns ON. The Down/Right/Up/Left remote control keys are switched to standard joystick “hat” control commands (4 directions only) The Mouse L/R keys are switched to standard joystick A & B commands. Other keys are switched to X, Y, throttle up & down functions as in the key layout The remote control senses the 3 axes raw data, and sends to the PC via HID gamepad profile. In 3D game mode, the Mouse button / function can only be enabled by press & hold for 1 second, and the handset switch to Mouse mode. Z Y X

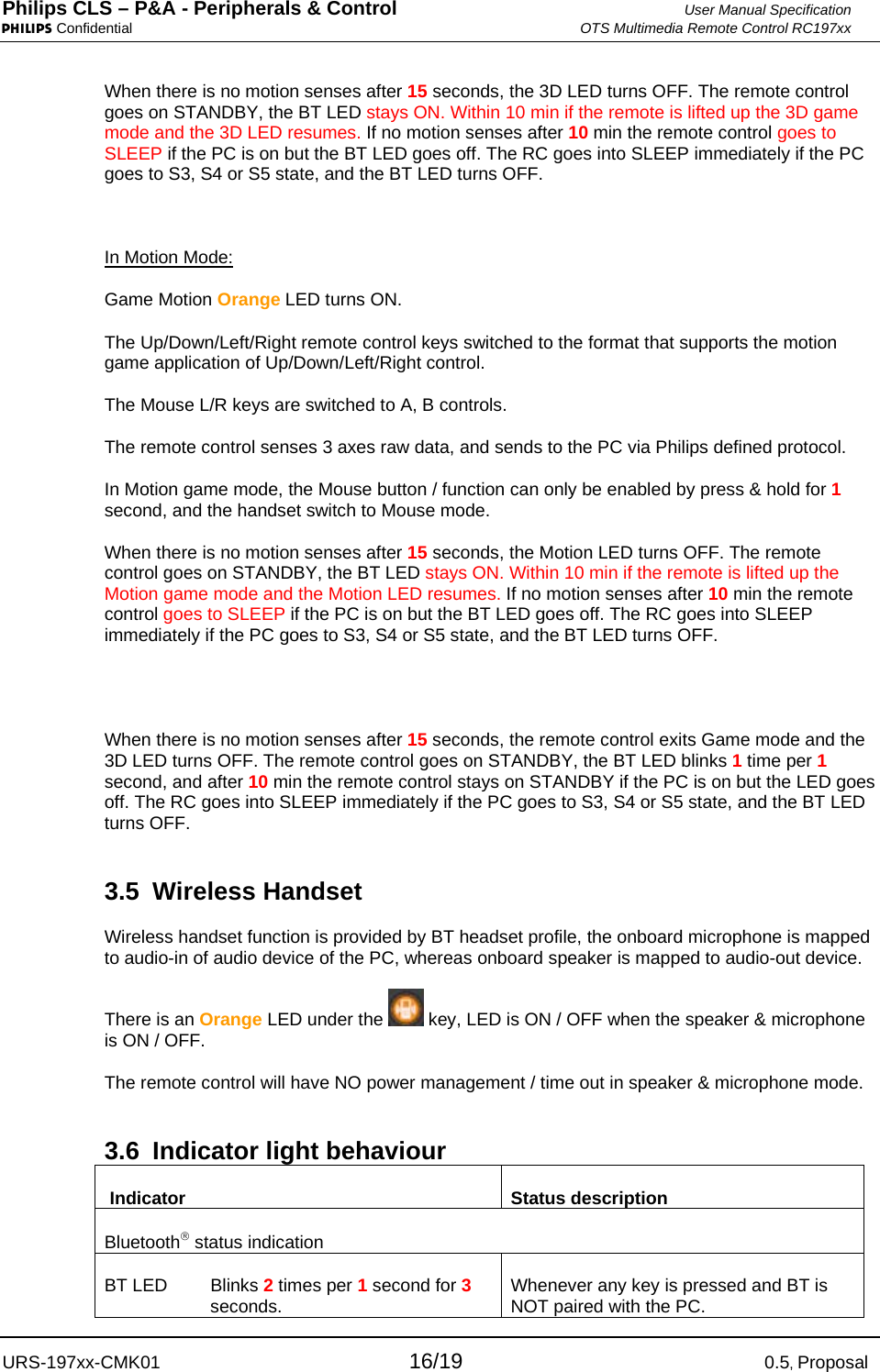

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 16/19 0.5, Proposal When there is no motion senses after 15 seconds, the 3D LED turns OFF. The remote control goes on STANDBY, the BT LED stays ON. Within 10 min if the remote is lifted up the 3D game mode and the 3D LED resumes. If no motion senses after 10 min the remote control goes to SLEEP if the PC is on but the BT LED goes off. The RC goes into SLEEP immediately if the PC goes to S3, S4 or S5 state, and the BT LED turns OFF. In Motion Mode: Game Motion Orange LED turns ON. The Up/Down/Left/Right remote control keys switched to the format that supports the motion game application of Up/Down/Left/Right control. The Mouse L/R keys are switched to A, B controls. The remote control senses 3 axes raw data, and sends to the PC via Philips defined protocol. In Motion game mode, the Mouse button / function can only be enabled by press & hold for 1 second, and the handset switch to Mouse mode. When there is no motion senses after 15 seconds, the Motion LED turns OFF. The remote control goes on STANDBY, the BT LED stays ON. Within 10 min if the remote is lifted up the Motion game mode and the Motion LED resumes. If no motion senses after 10 min the remote control goes to SLEEP if the PC is on but the BT LED goes off. The RC goes into SLEEP immediately if the PC goes to S3, S4 or S5 state, and the BT LED turns OFF. When there is no motion senses after 15 seconds, the remote control exits Game mode and the 3D LED turns OFF. The remote control goes on STANDBY, the BT LED blinks 1 time per 1 second, and after 10 min the remote control stays on STANDBY if the PC is on but the LED goes off. The RC goes into SLEEP immediately if the PC goes to S3, S4 or S5 state, and the BT LED turns OFF. 3.5 Wireless Handset Wireless handset function is provided by BT headset profile, the onboard microphone is mapped to audio-in of audio device of the PC, whereas onboard speaker is mapped to audio-out device. There is an Orange LED under the key, LED is ON / OFF when the speaker & microphone is ON / OFF. The remote control will have NO power management / time out in speaker & microphone mode. 3.6 Indicator light behaviour Indicator Status description Bluetooth® status indication BT LED Blinks 2 times per 1 second for 3 seconds. Whenever any key is pressed and BT is NOT paired with the PC.

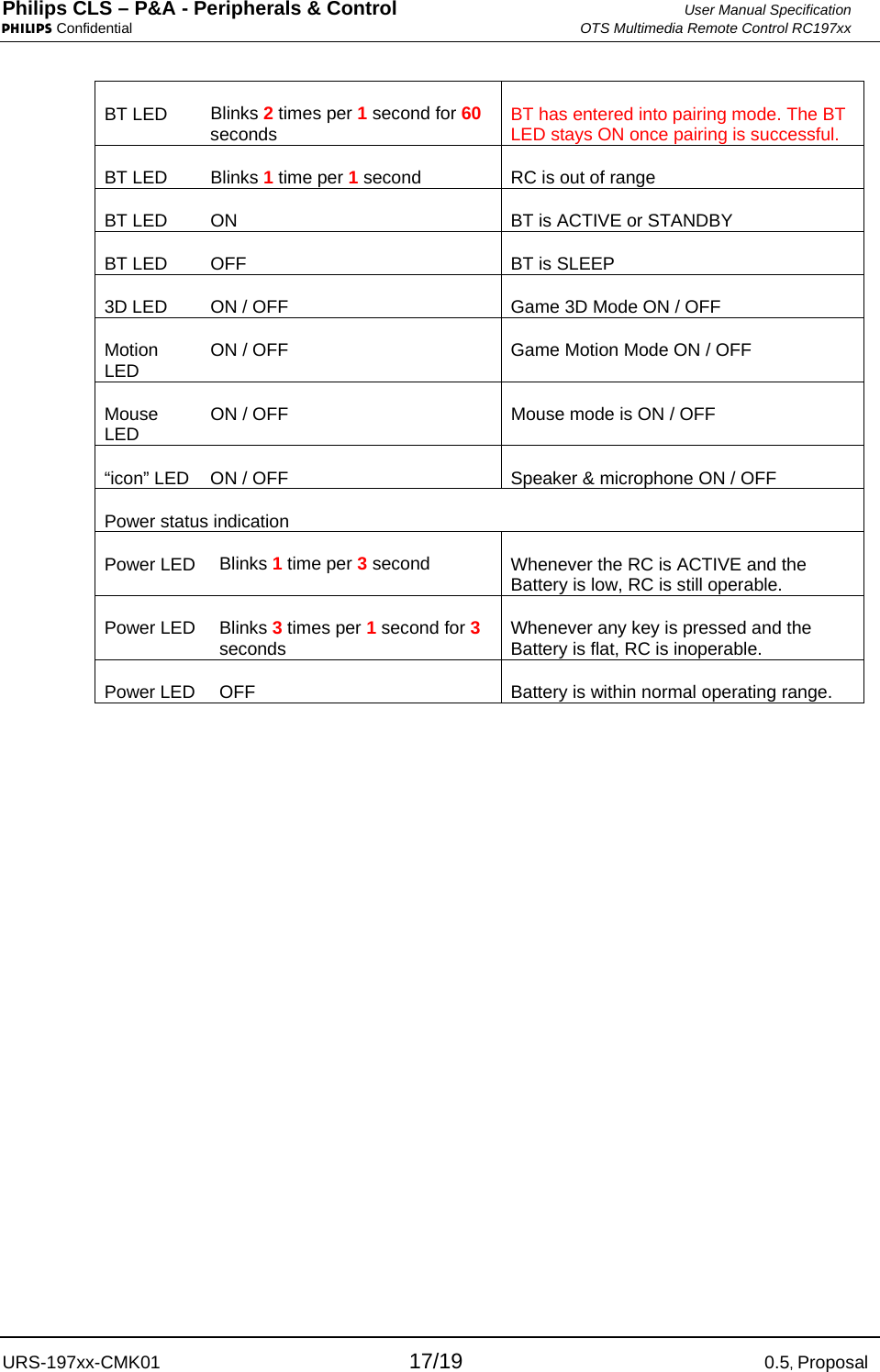

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 17/19 0.5, Proposal BT LED Blinks 2 times per 1 second for 60 seconds BT has entered into pairing mode. The BT LED stays ON once pairing is successful. BT LED Blinks 1 time per 1 second RC is out of range BT LED ON BT is ACTIVE or STANDBY BT LED OFF BT is SLEEP 3D LED ON / OFF Game 3D Mode ON / OFF Motion LED ON / OFF Game Motion Mode ON / OFF Mouse LED ON / OFF Mouse mode is ON / OFF “icon” LED ON / OFF Speaker & microphone ON / OFF Power status indication Power LED Blinks 1 time per 3 second Whenever the RC is ACTIVE and the Battery is low, RC is still operable. Power LED Blinks 3 times per 1 second for 3 seconds Whenever any key is pressed and the Battery is flat, RC is inoperable. Power LED OFF Battery is within normal operating range.

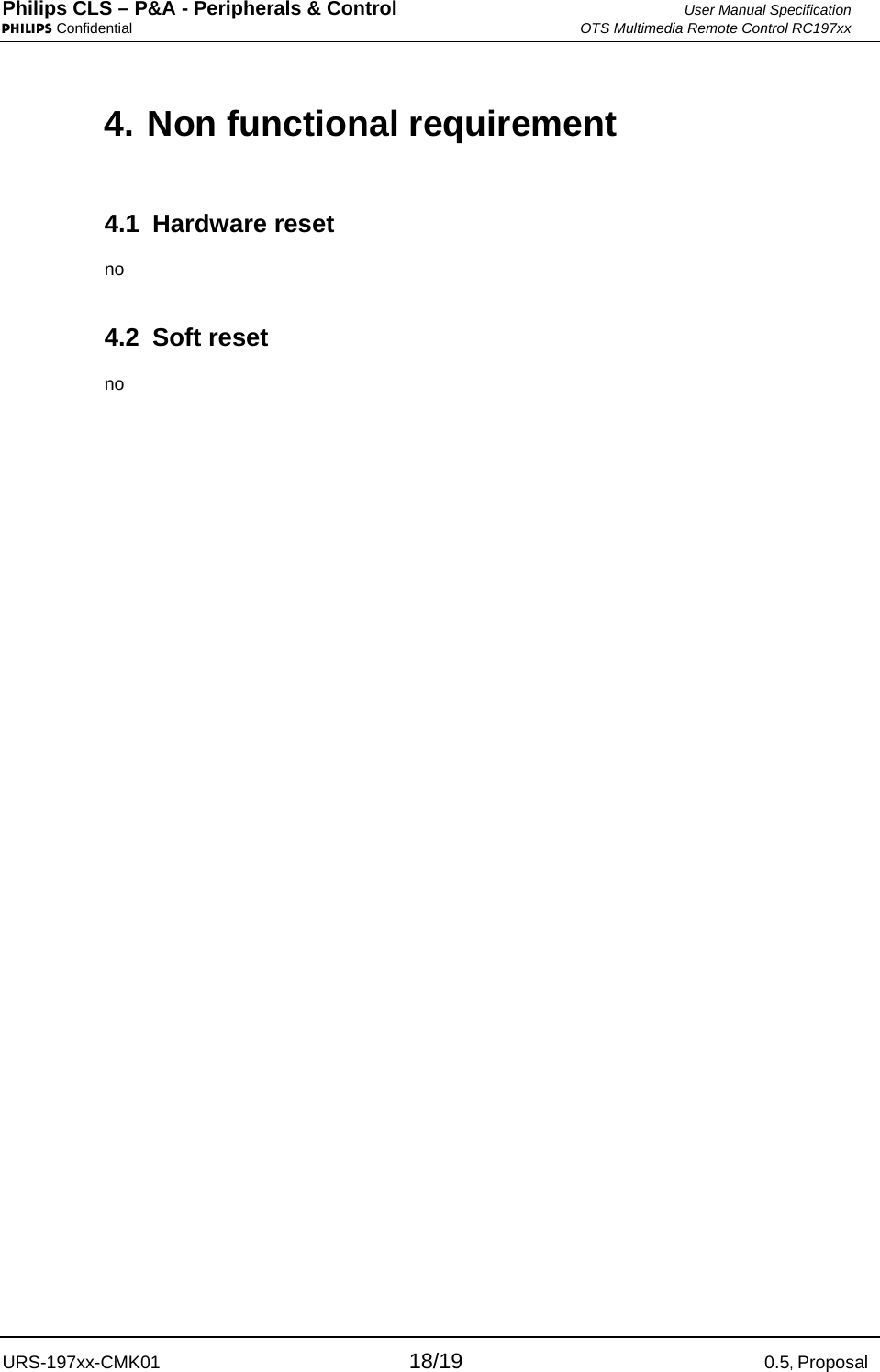

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 18/19 0.5, Proposal 4. Non functional requirement 4.1 Hardware reset no 4.2 Soft reset no

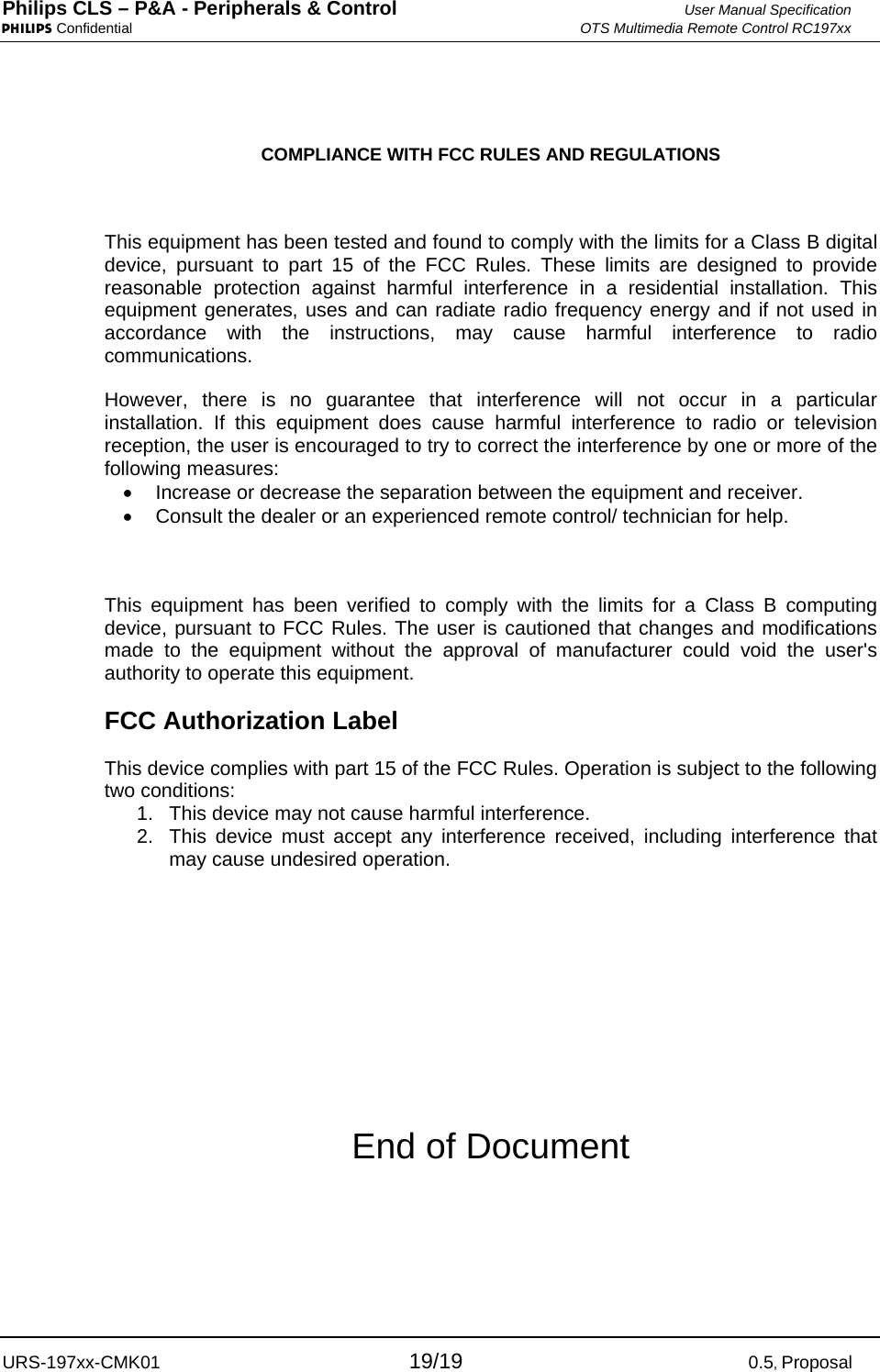

Philips CLS – P&A - Peripherals & Control User Manual Specification PHILIPS Confidential OTS Multimedia Remote Control RC197xx URS-197xx-CMK01 19/190.5, Proposal COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Increase or decrease the separation between the equipment and receiver. • Consult the dealer or an experienced remote control/ technician for help. This equipment has been verified to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. End of Document
