Philips Electronics Singapore RC229 Bluetooth Infrared Remote Control User Manual

Philips Electronics Singapore Pte Ltd Bluetooth Infrared Remote Control

User manual

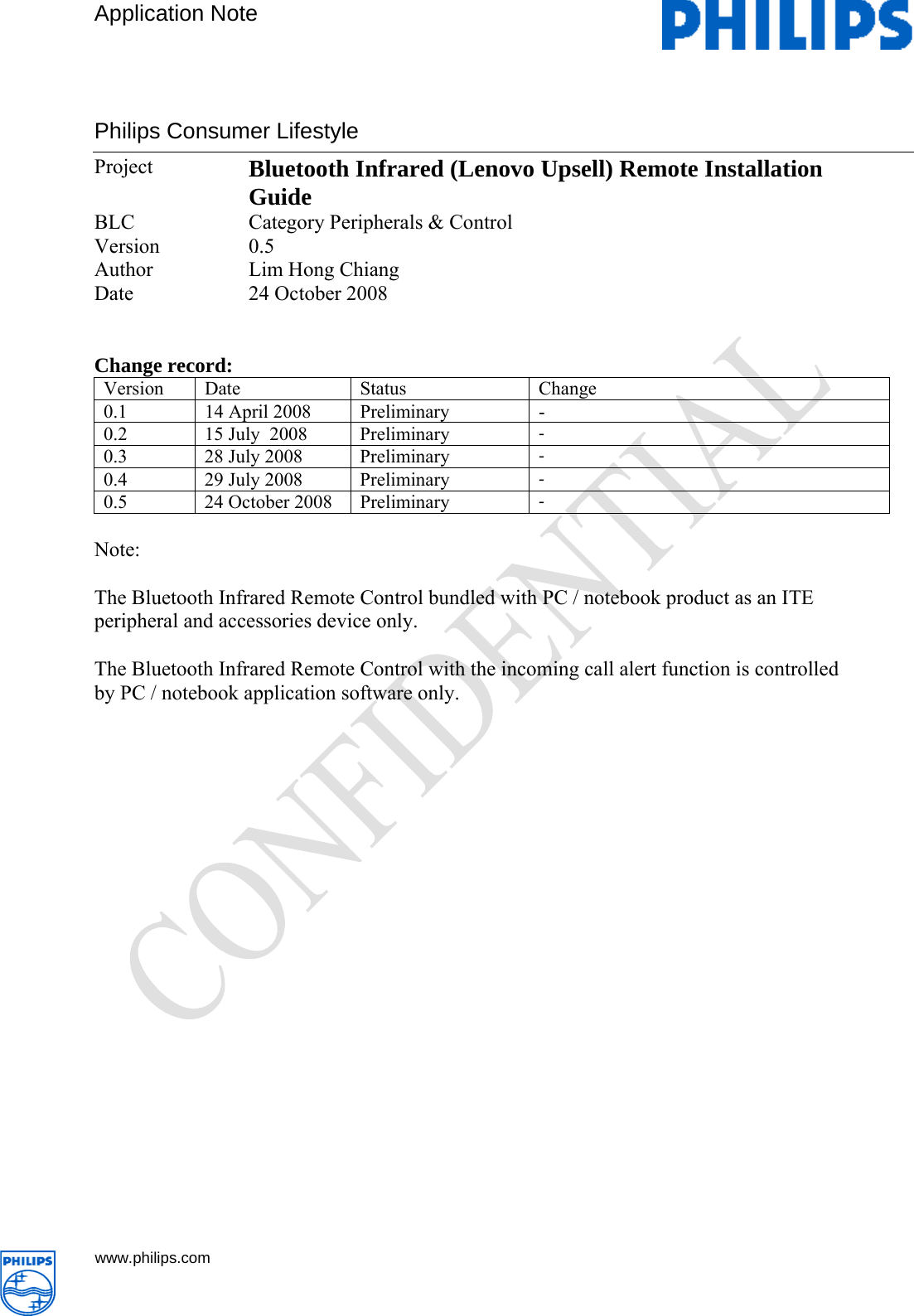

Application Note Philips Consumer Lifestyle www.philips.com Project Bluetooth Infrared (Lenovo Upsell) Remote Installation Guide BLC Category Peripherals & Control Version 0.5 Author Lim Hong Chiang Date 24 October 2008 Change record: Version Date Status Change 0.1 14 April 2008 Preliminary - 0.2 15 July 2008 Preliminary - 0.3 28 July 2008 Preliminary - 0.4 29 July 2008 Preliminary - 0.5 24 October 2008 Preliminary - Note: The Bluetooth Infrared Remote Control bundled with PC / notebook product as an ITE peripheral and accessories device only. The Bluetooth Infrared Remote Control with the incoming call alert function is controlled by PC / notebook application software only.

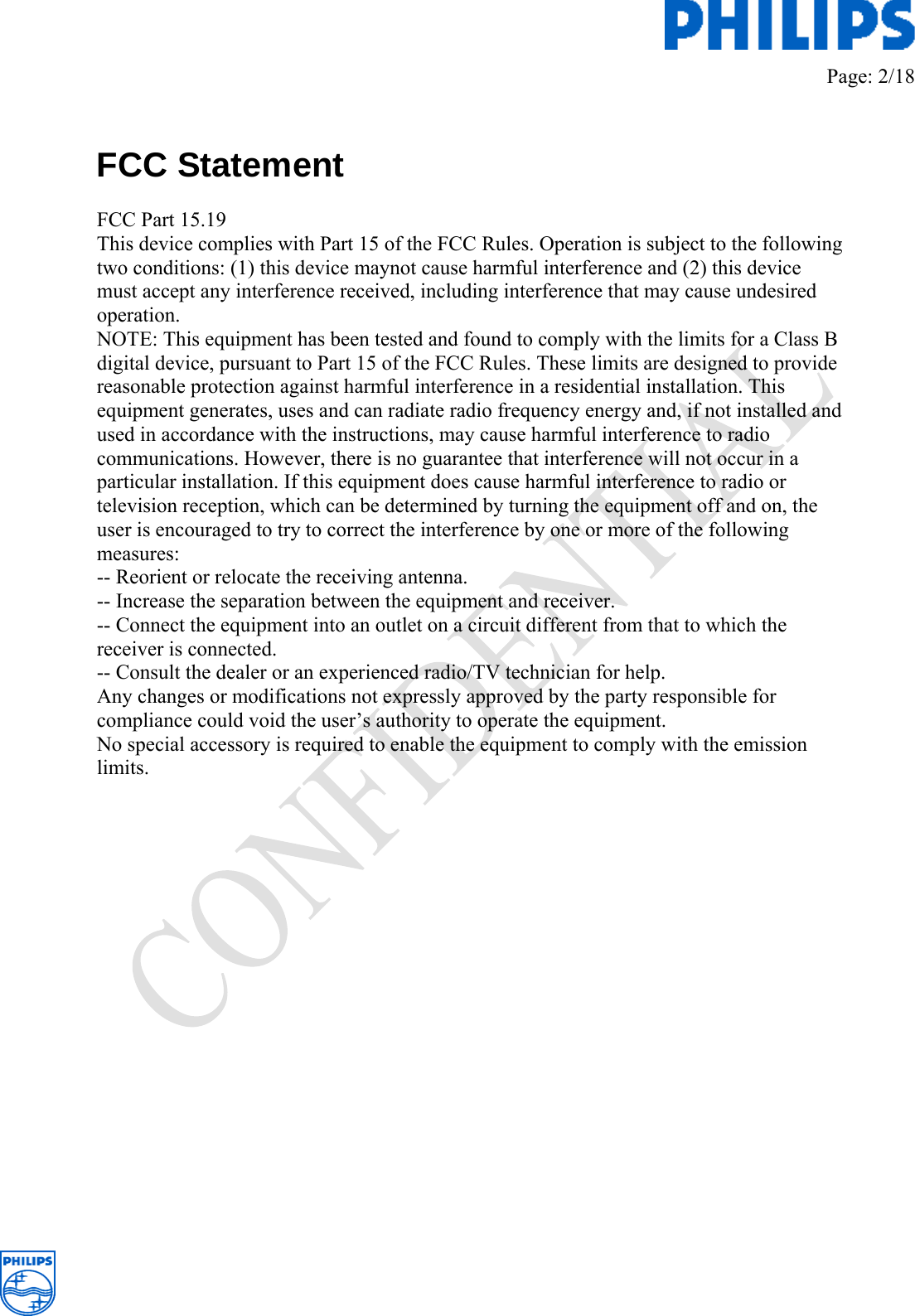

Page: 2/18 FCC Statement FCC Part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device maynot cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. No special accessory is required to enable the equipment to comply with the emission limits.

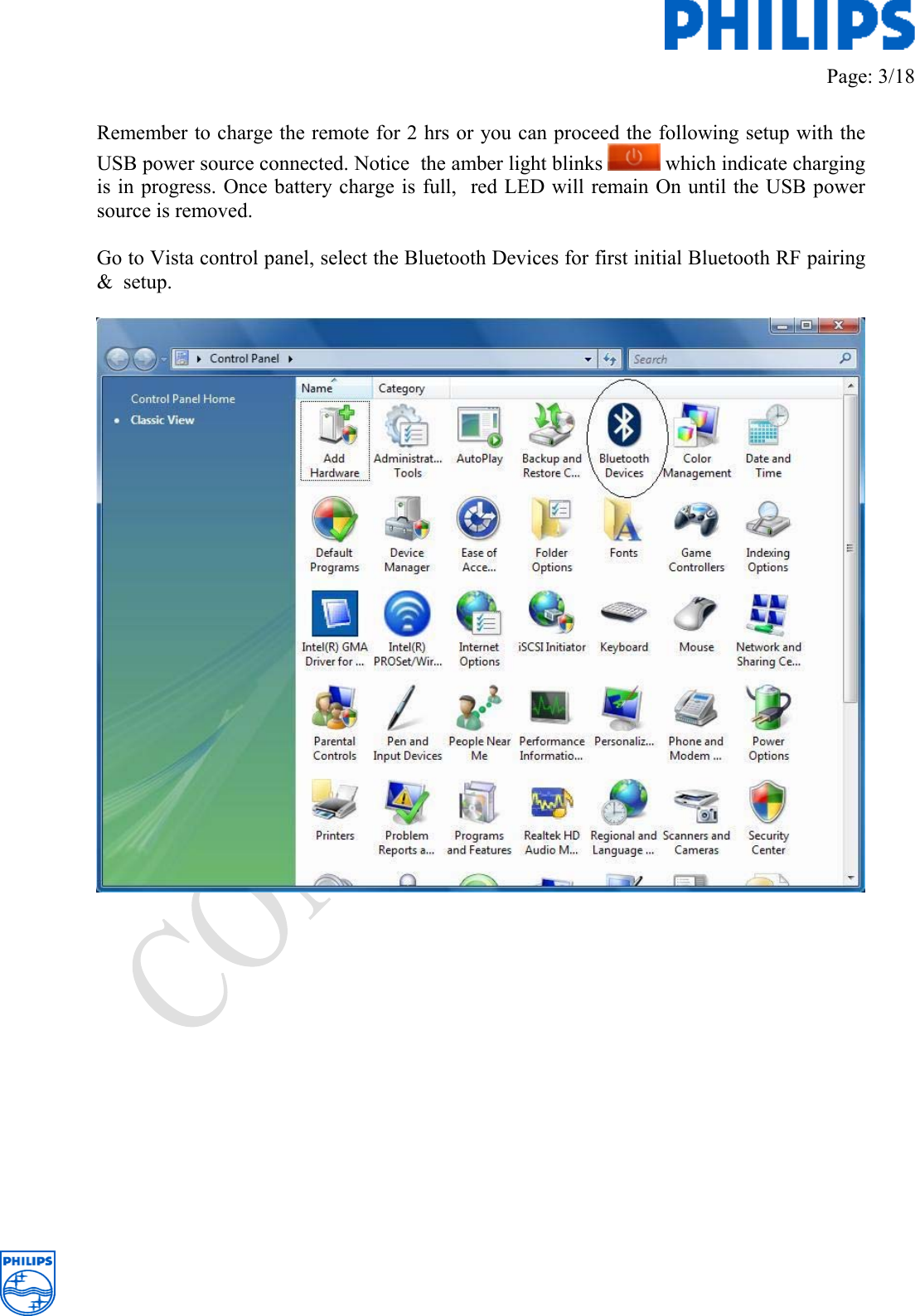

Page: 3/18 Remember to charge the remote for 2 hrs or you can proceed the following setup with the USB power source connected. Notice the amber light blinks which indicate charging is in progress. Once battery charge is full, red LED will remain On until the USB power source is removed. Go to Vista control panel, select the Bluetooth Devices for first initial Bluetooth RF pairing & setup.

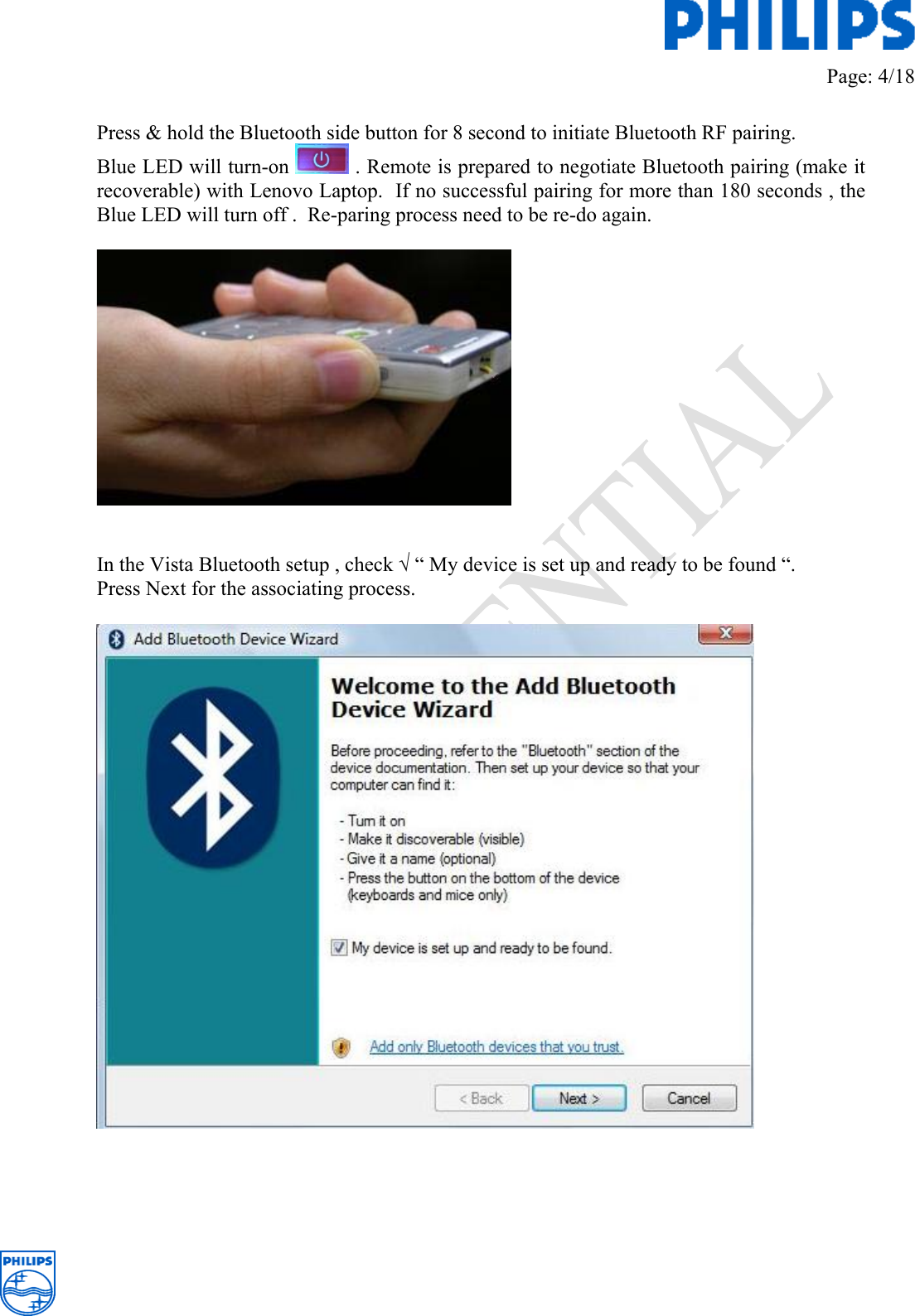

Page: 4/18 Press & hold the Bluetooth side button for 8 second to initiate Bluetooth RF pairing. Blue LED will turn-on . Remote is prepared to negotiate Bluetooth pairing (make it recoverable) with Lenovo Laptop. If no successful pairing for more than 180 seconds , the Blue LED will turn off . Re-paring process need to be re-do again. In the Vista Bluetooth setup , check √ “ My device is set up and ready to be found “. Press Next for the associating process.

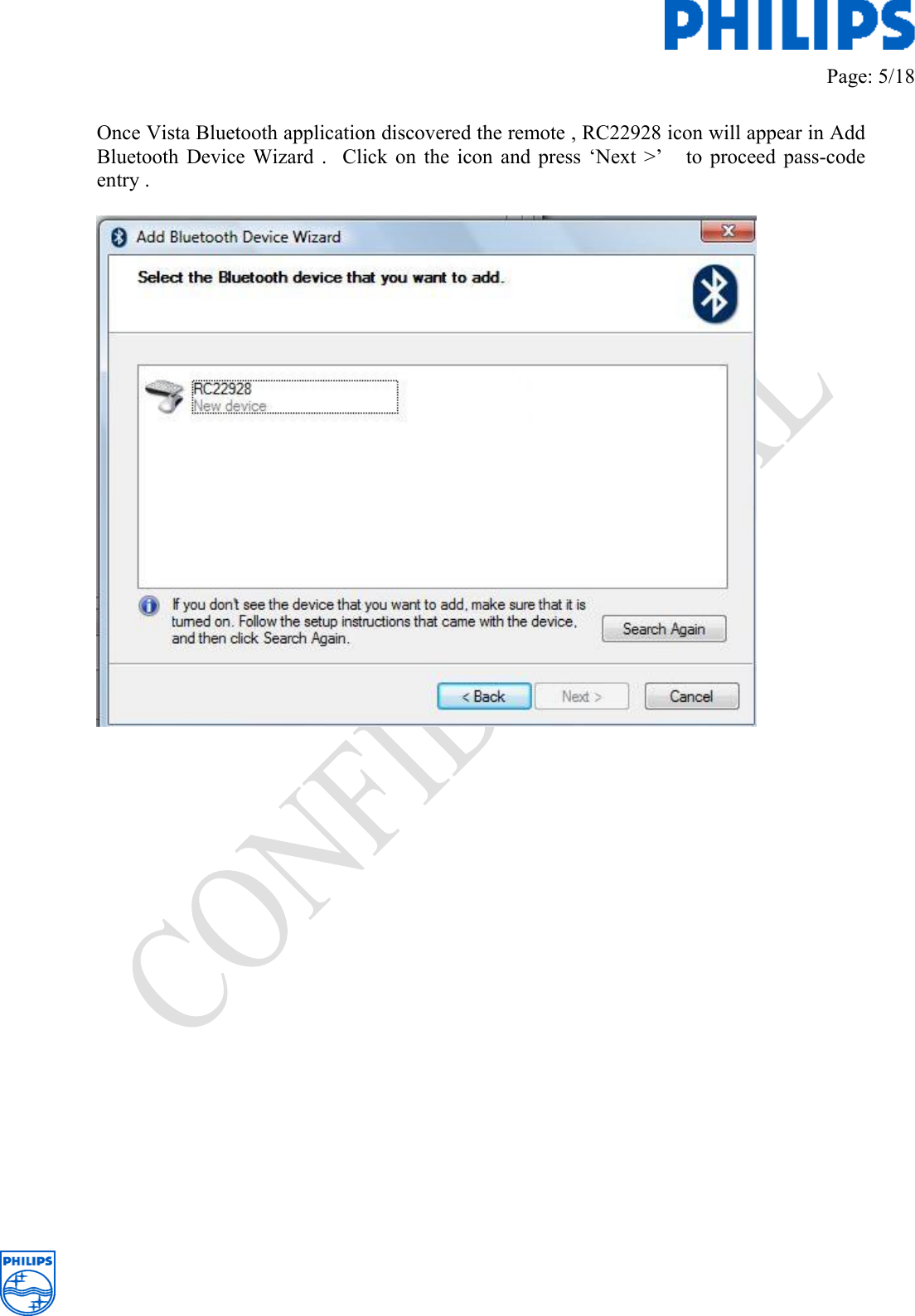

Page: 5/18 Once Vista Bluetooth application discovered the remote , RC22928 icon will appear in Add Bluetooth Device Wizard . Click on the icon and press ‘Next >’ to proceed pass-code entry .

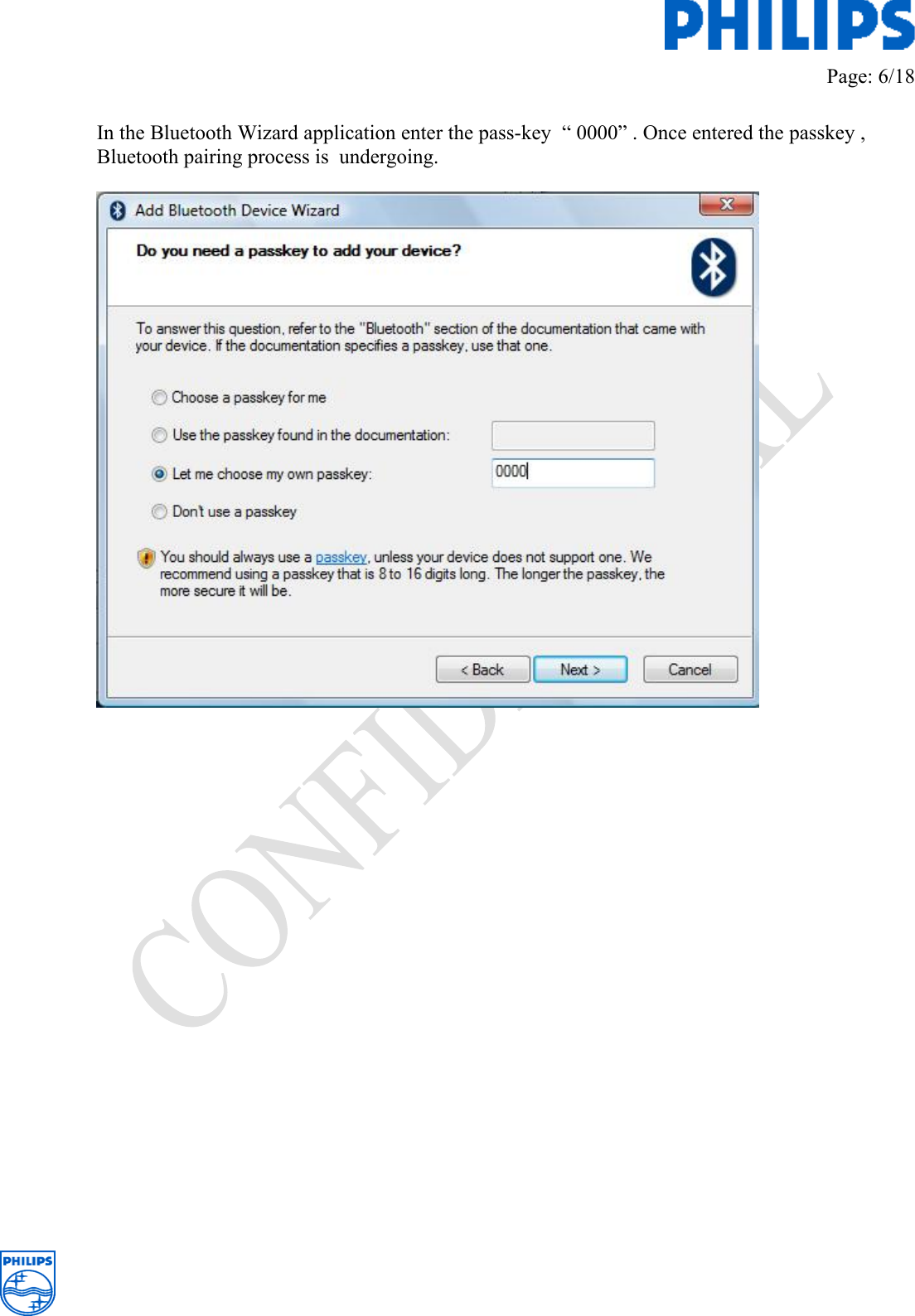

Page: 6/18 In the Bluetooth Wizard application enter the pass-key “ 0000” . Once entered the passkey , Bluetooth pairing process is undergoing.

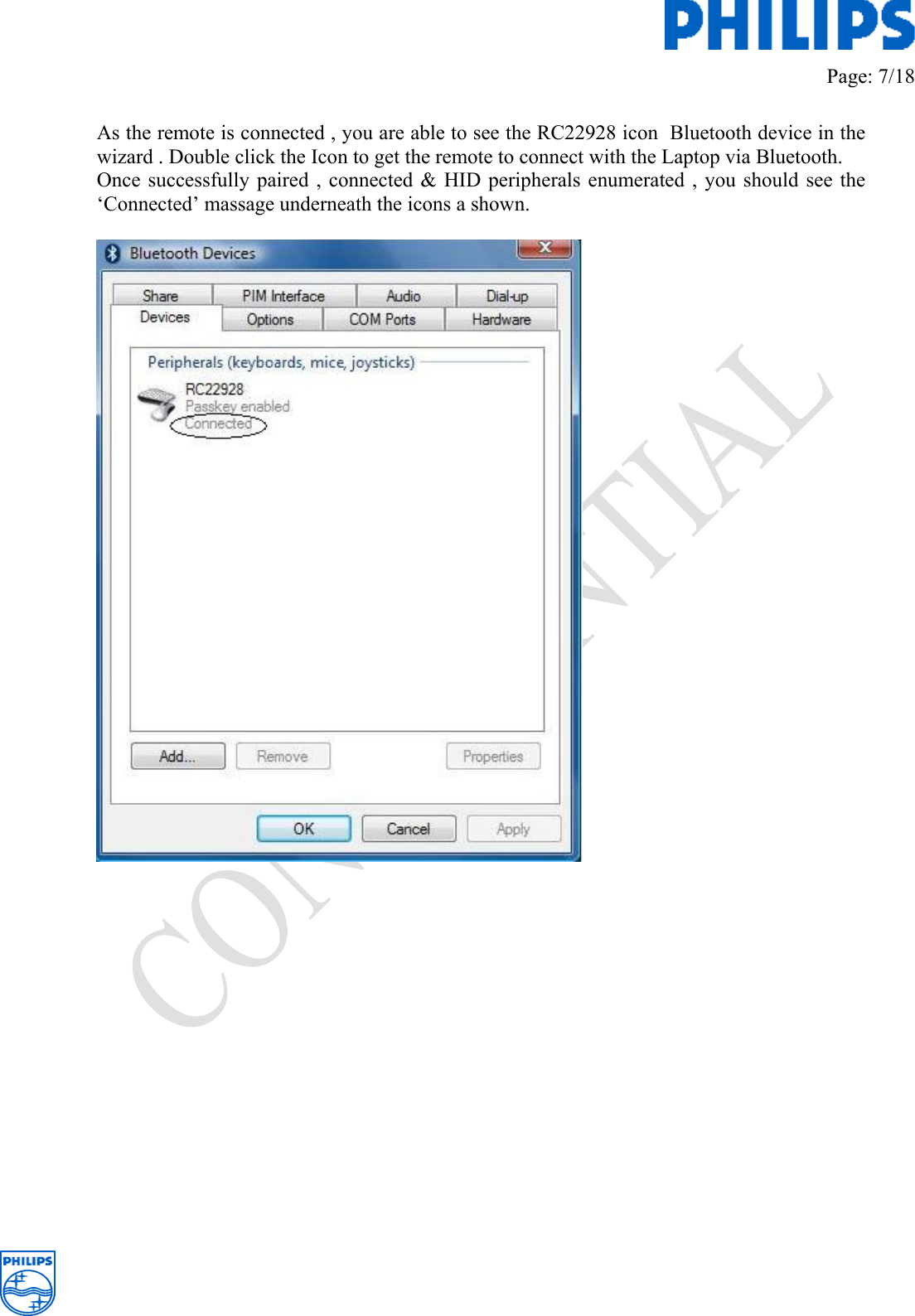

Page: 7/18 As the remote is connected , you are able to see the RC22928 icon Bluetooth device in the wizard . Double click the Icon to get the remote to connect with the Laptop via Bluetooth. Once successfully paired , connected & HID peripherals enumerated , you should see the ‘Connected’ massage underneath the icons a shown.

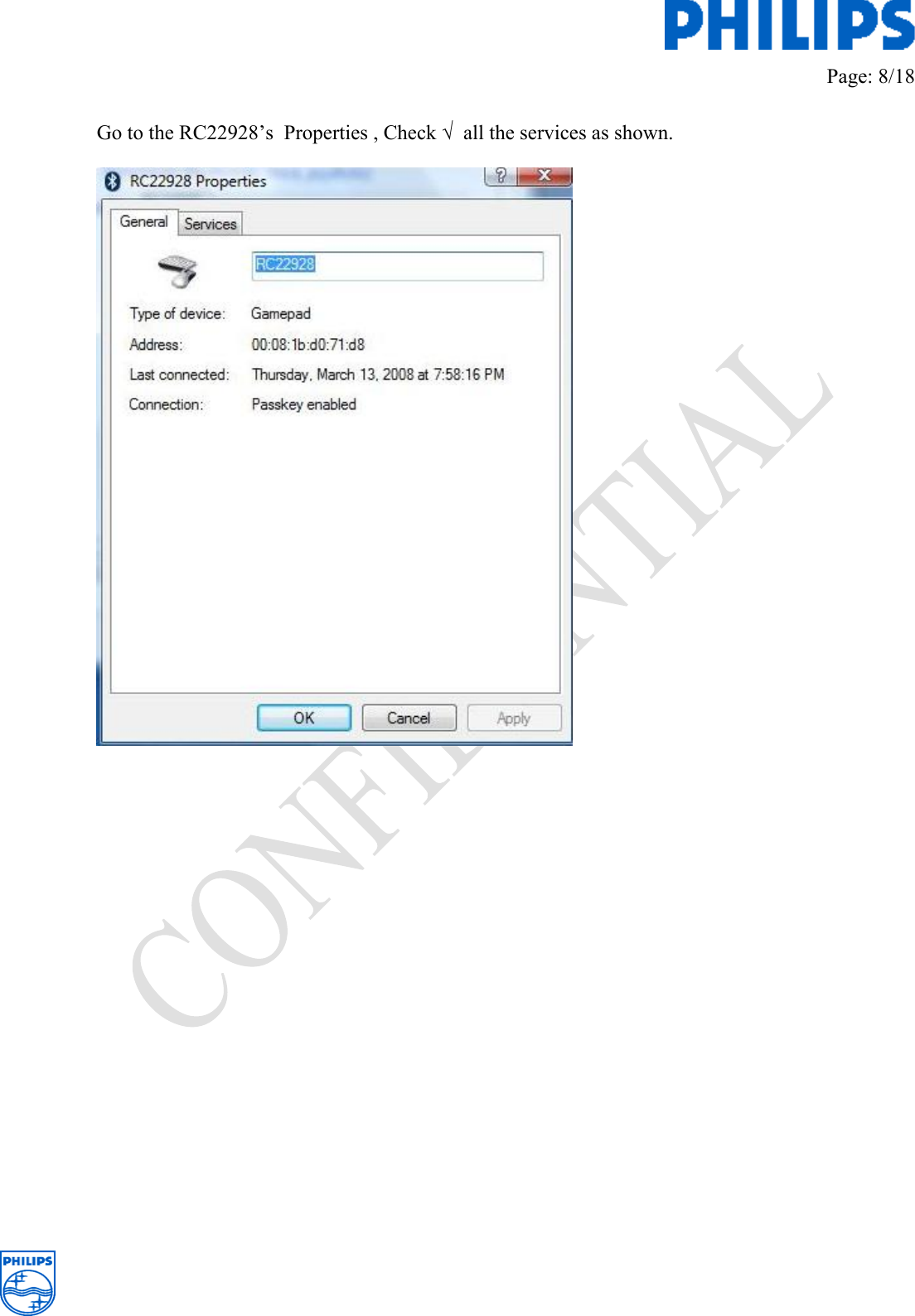

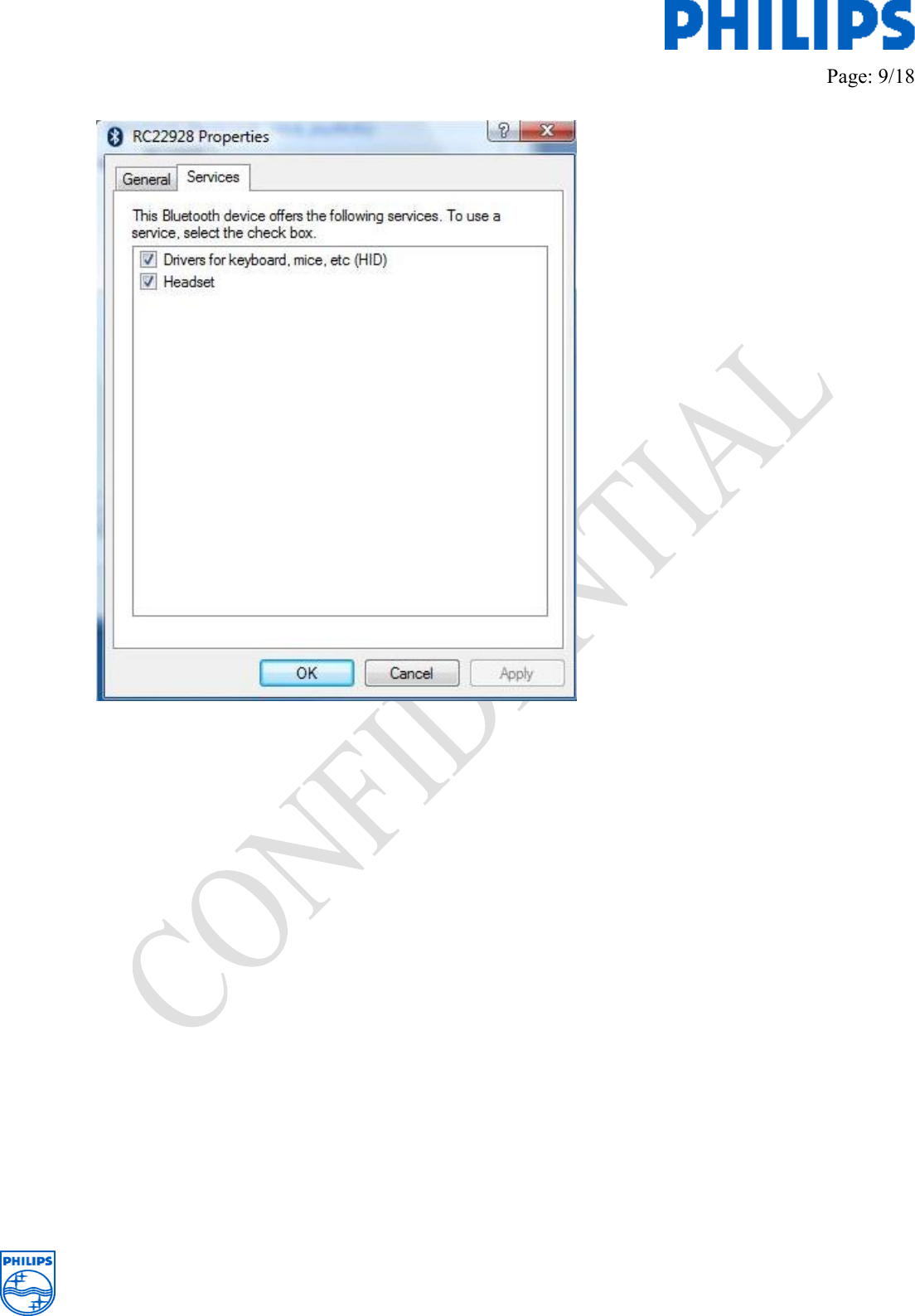

Page: 8/18 Go to the RC22928’s Properties , Check √ all the services as shown.
Page: 9/18

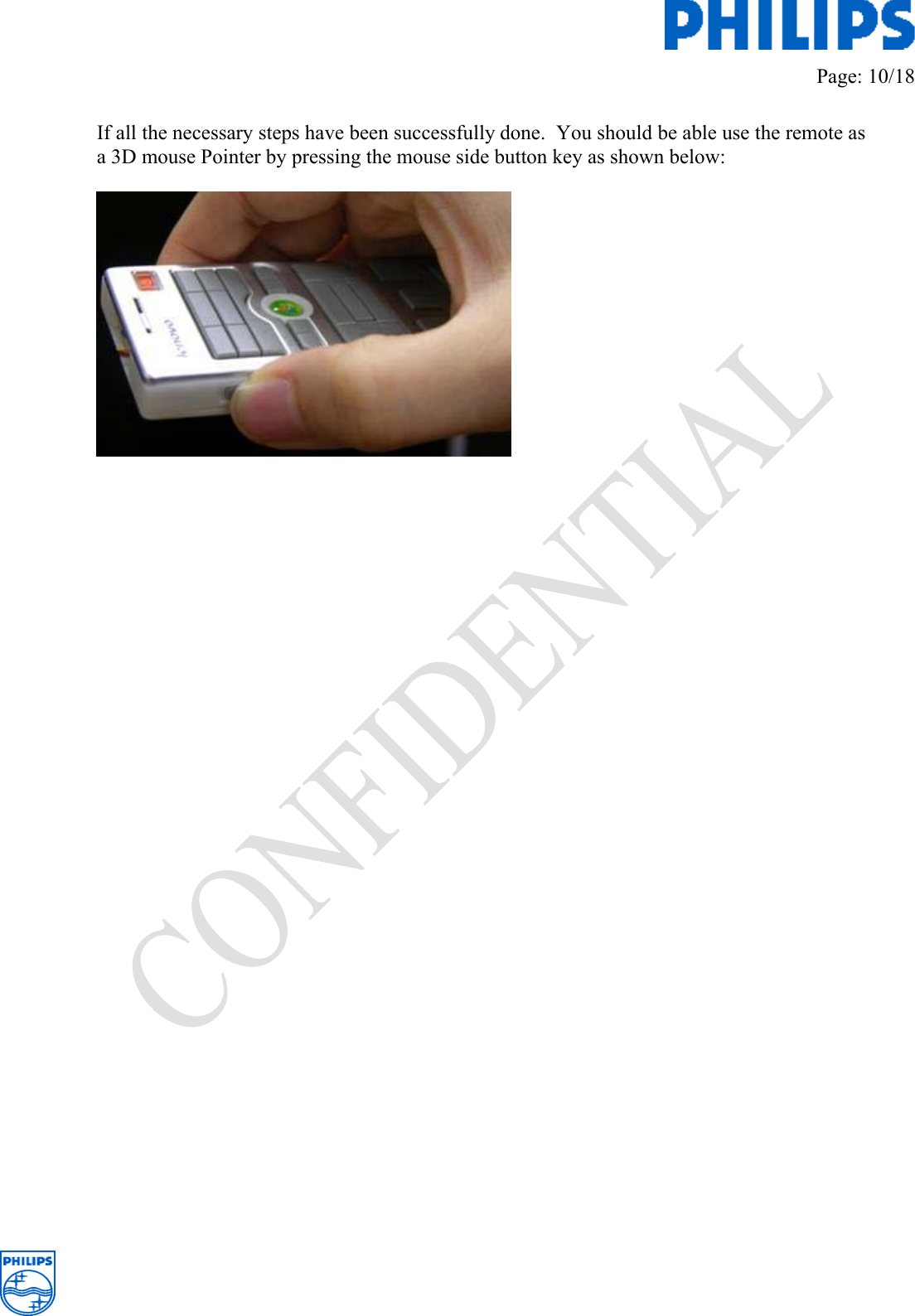

Page: 10/18 If all the necessary steps have been successfully done. You should be able use the remote as a 3D mouse Pointer by pressing the mouse side button key as shown below:

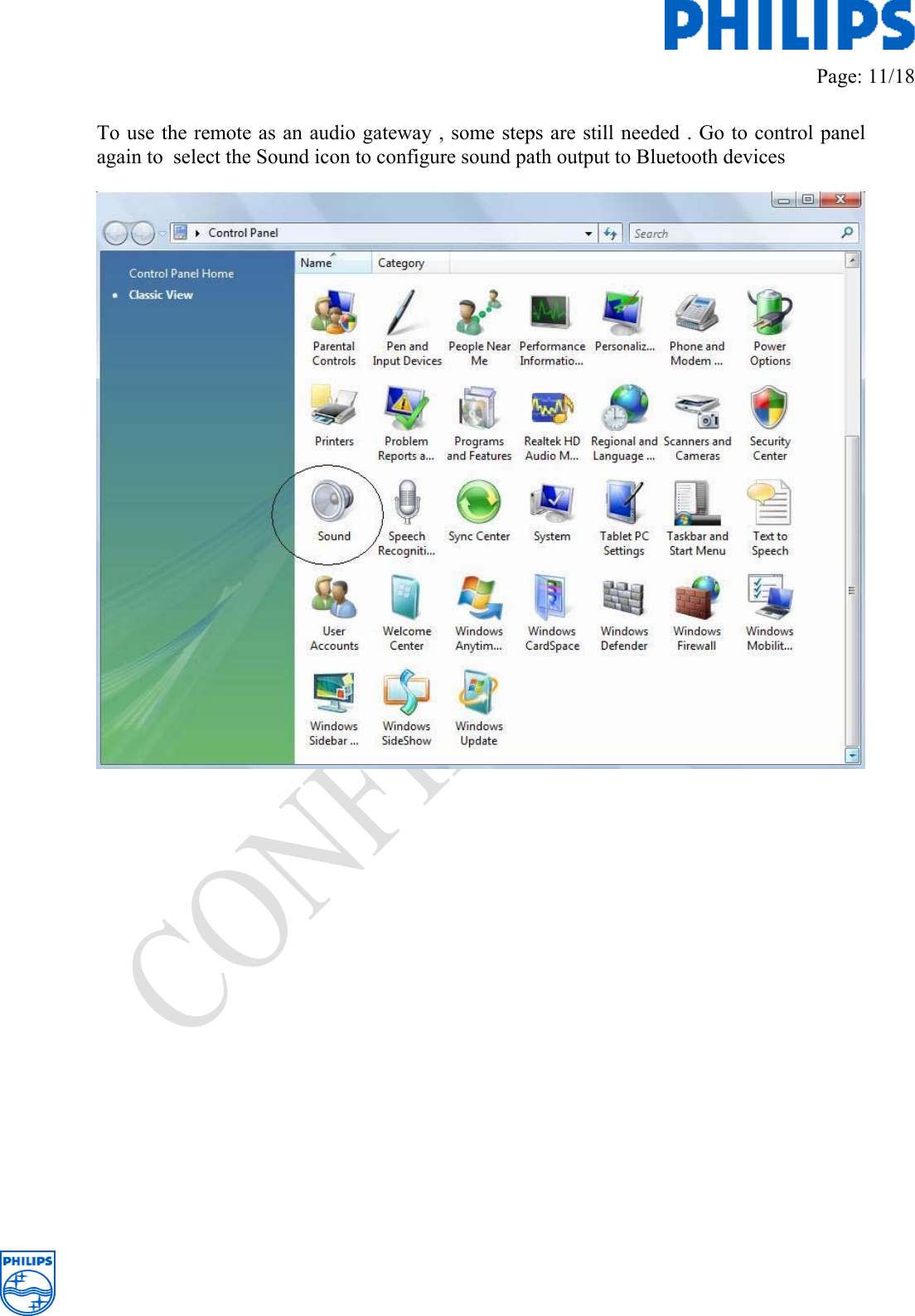

Page: 11/18 To use the remote as an audio gateway , some steps are still needed . Go to control panel again to select the Sound icon to configure sound path output to Bluetooth devices

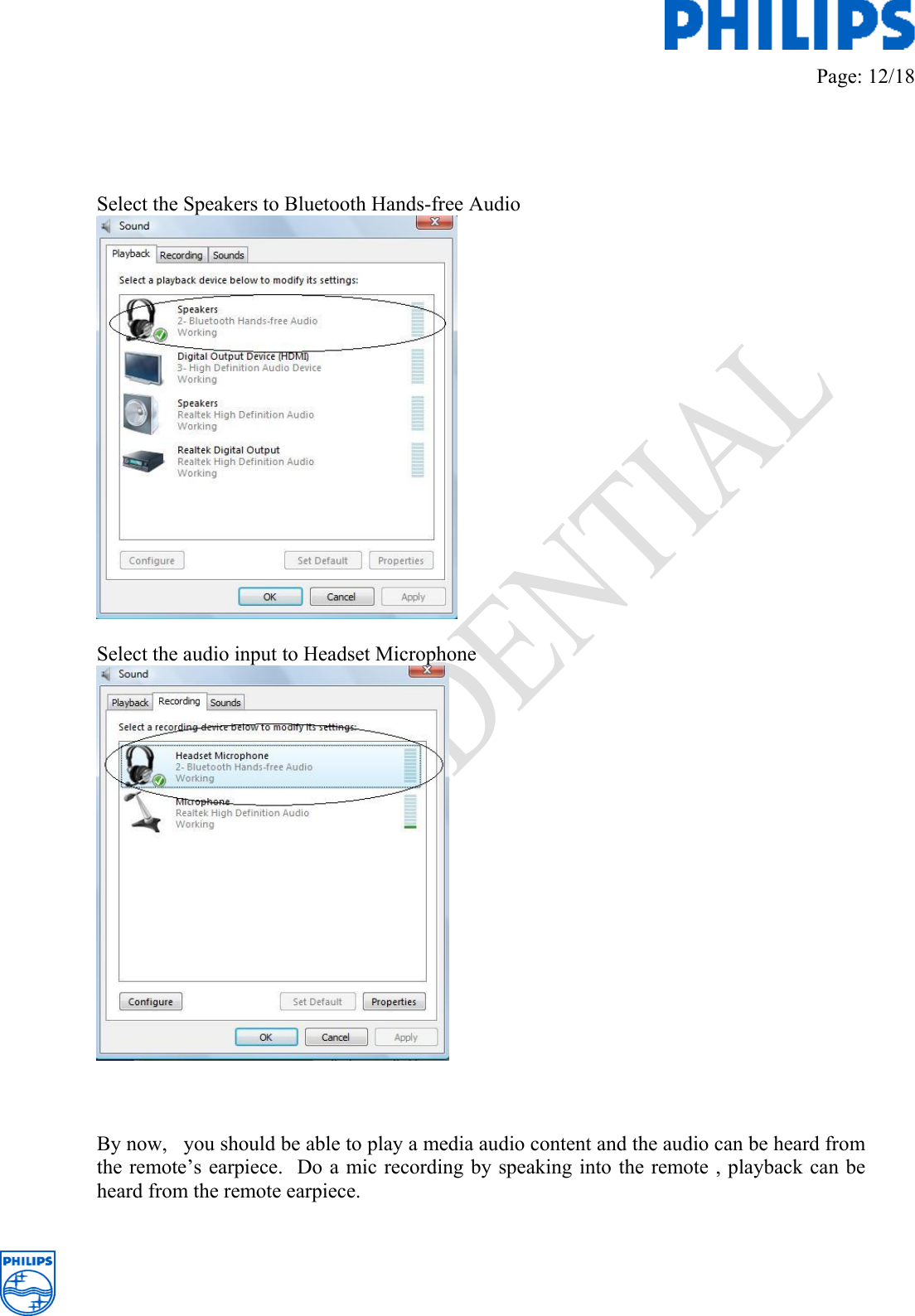

Page: 12/18 Select the Speakers to Bluetooth Hands-free Audio Select the audio input to Headset Microphone By now, you should be able to play a media audio content and the audio can be heard from the remote’s earpiece. Do a mic recording by speaking into the remote , playback can be heard from the remote earpiece.

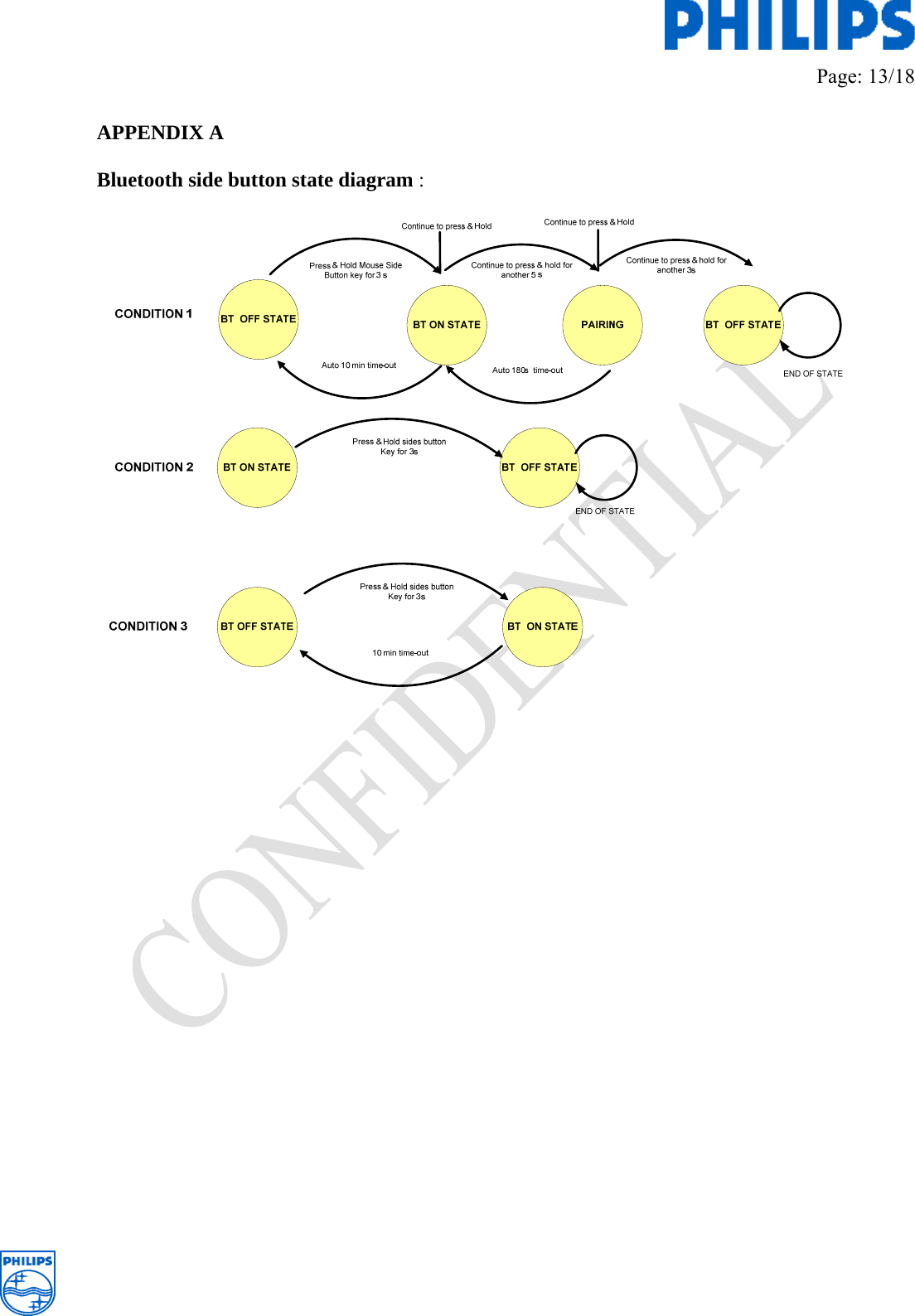

Page: 13/18 APPENDIX A Bluetooth side button state diagram :

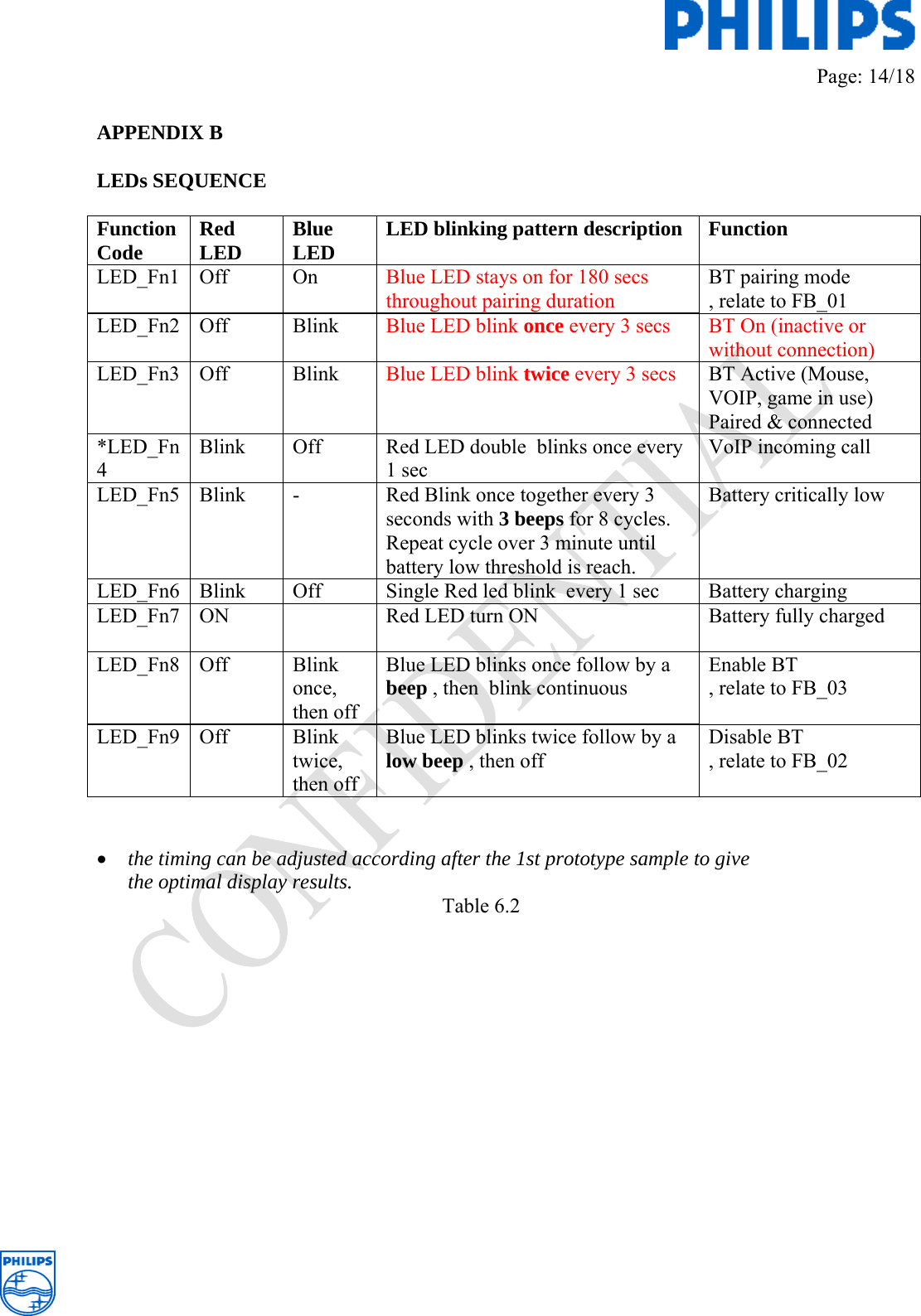

Page: 14/18 APPENDIX B LEDs SEQUENCE Function Code Red LED Blue LED LED blinking pattern description Function LED_Fn1 Off On Blue LED stays on for 180 secs throughout pairing duration BT pairing mode , relate to FB_01 LED_Fn2 Off Blink Blue LED blink once every 3 secs BT On (inactive or without connection) LED_Fn3 Off Blink Blue LED blink twice every 3 secs BT Active (Mouse, VOIP, game in use) Paired & connected *LED_Fn4 Blink Off Red LED double blinks once every 1 sec VoIP incoming call LED_Fn5 Blink - Red Blink once together every 3 seconds with 3 beeps for 8 cycles. Repeat cycle over 3 minute until battery low threshold is reach. Battery critically low LED_Fn6 Blink Off Single Red led blink every 1 sec Battery charging LED_Fn7 ON Red LED turn ON Battery fully charged LED_Fn8 Off Blink once, then off Blue LED blinks once follow by a beep , then blink continuous Enable BT , relate to FB_03 LED_Fn9 Off Blink twice, then off Blue LED blinks twice follow by a low beep , then off Disable BT , relate to FB_02 • the timing can be adjusted according after the 1st prototype sample to give the optimal display results. Table 6.2

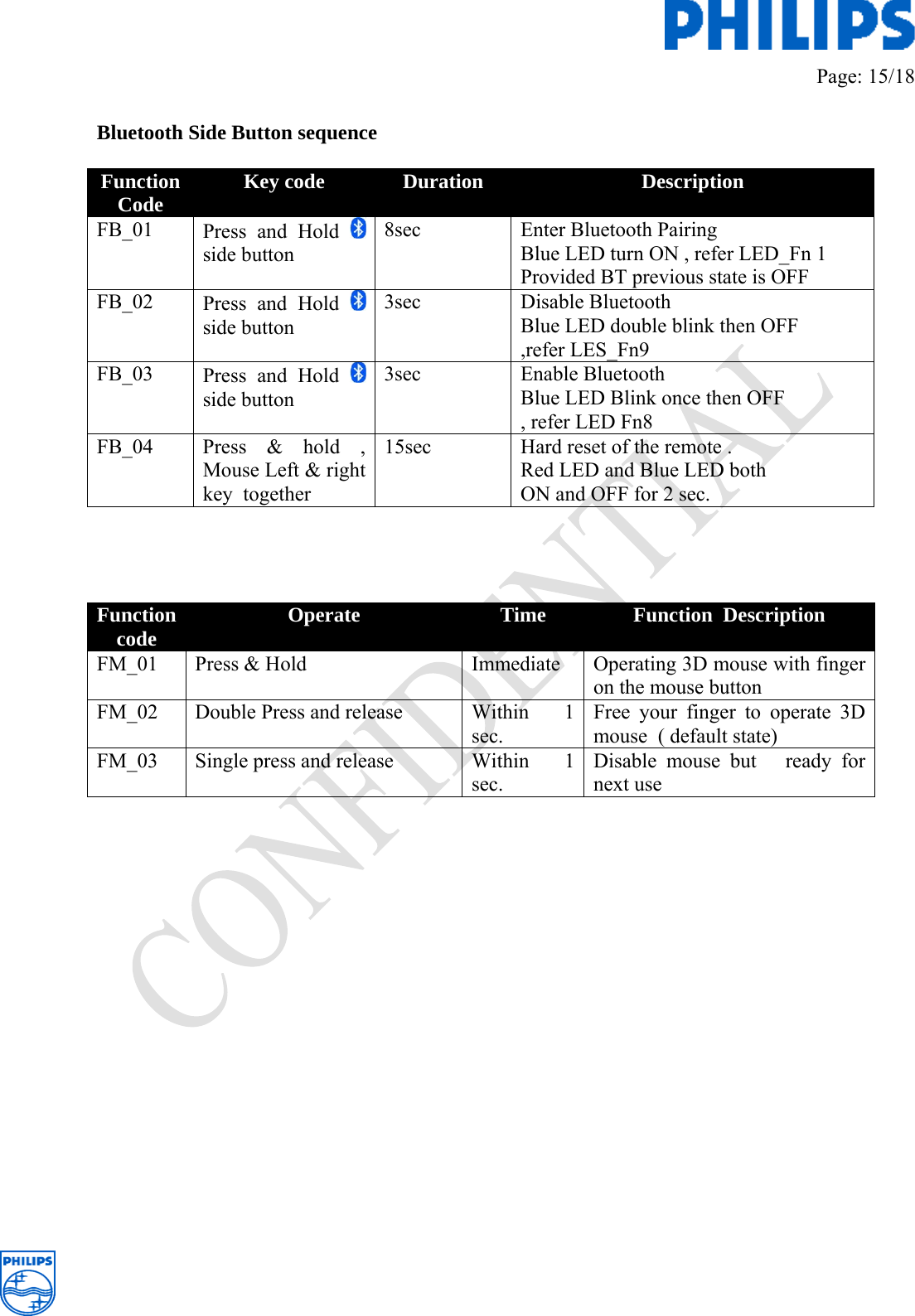

Page: 15/18 Bluetooth Side Button sequence Function Code Key code Duration Description FB_01 Press and Hold side button 8sec Enter Bluetooth Pairing Blue LED turn ON , refer LED_Fn 1 Provided BT previous state is OFF FB_02 Press and Hold side button 3sec Disable Bluetooth Blue LED double blink then OFF ,refer LES_Fn9 FB_03 Press and Hold side button 3sec Enable Bluetooth Blue LED Blink once then OFF , refer LED Fn8 FB_04 Press & hold , Mouse Left & right key together 15sec Hard reset of the remote . Red LED and Blue LED both ON and OFF for 2 sec. Function code Operate Time Function Description FM_01 Press & Hold Immediate Operating 3D mouse with finger on the mouse button FM_02 Double Press and release Within 1 sec. Free your finger to operate 3D mouse ( default state) FM_03 Single press and release Within 1 sec. Disable mouse but ready for next use

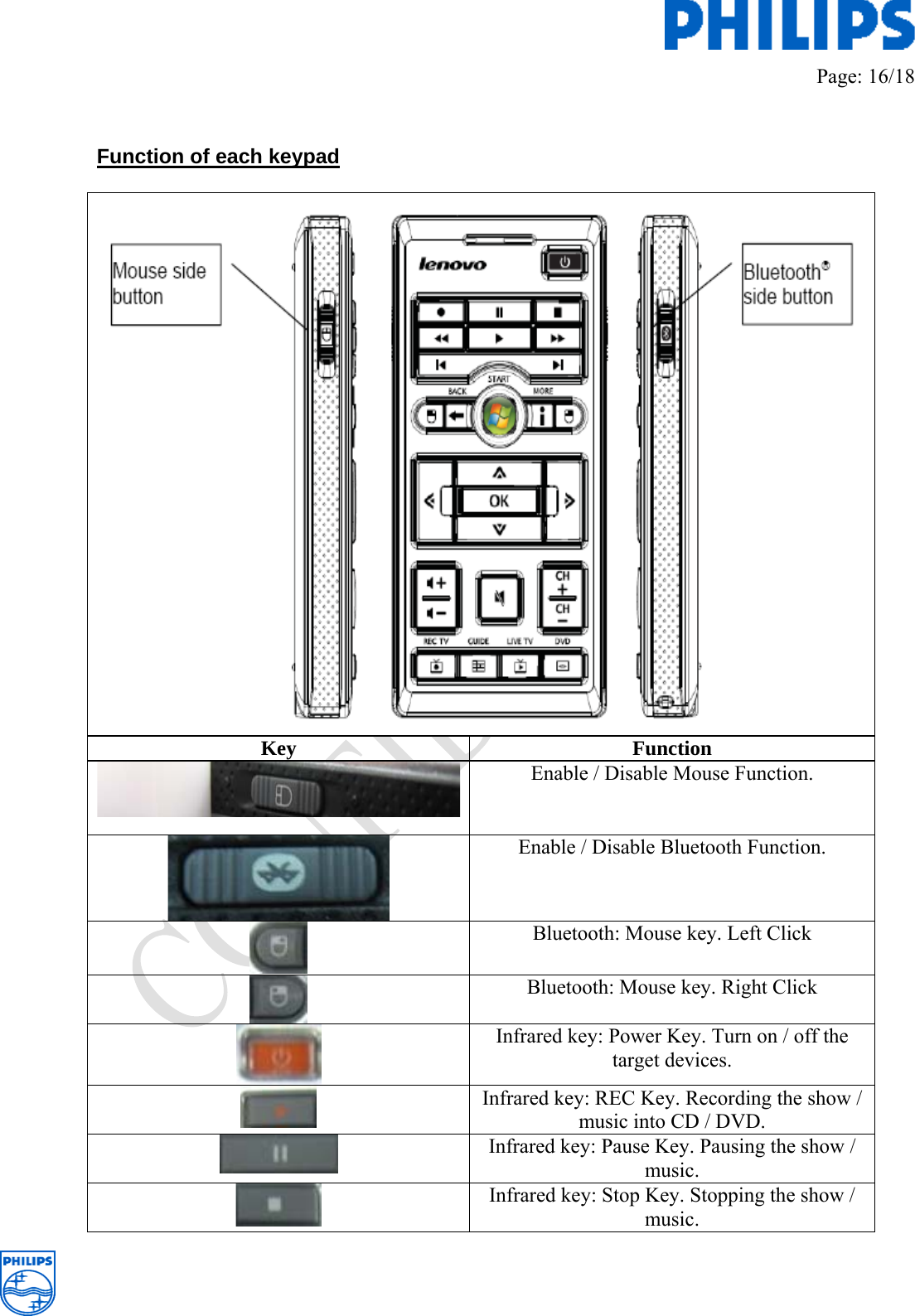

Page: 16/18 Function of each keypad Key Function Enable / Disable Mouse Function. Enable / Disable Bluetooth Function. Bluetooth: Mouse key. Left Click Bluetooth: Mouse key. Right Click Infrared key: Power Key. Turn on / off the target devices. Infrared key: REC Key. Recording the show / music into CD / DVD. Infrared key: Pause Key. Pausing the show / music. Infrared key: Stop Key. Stopping the show / music.

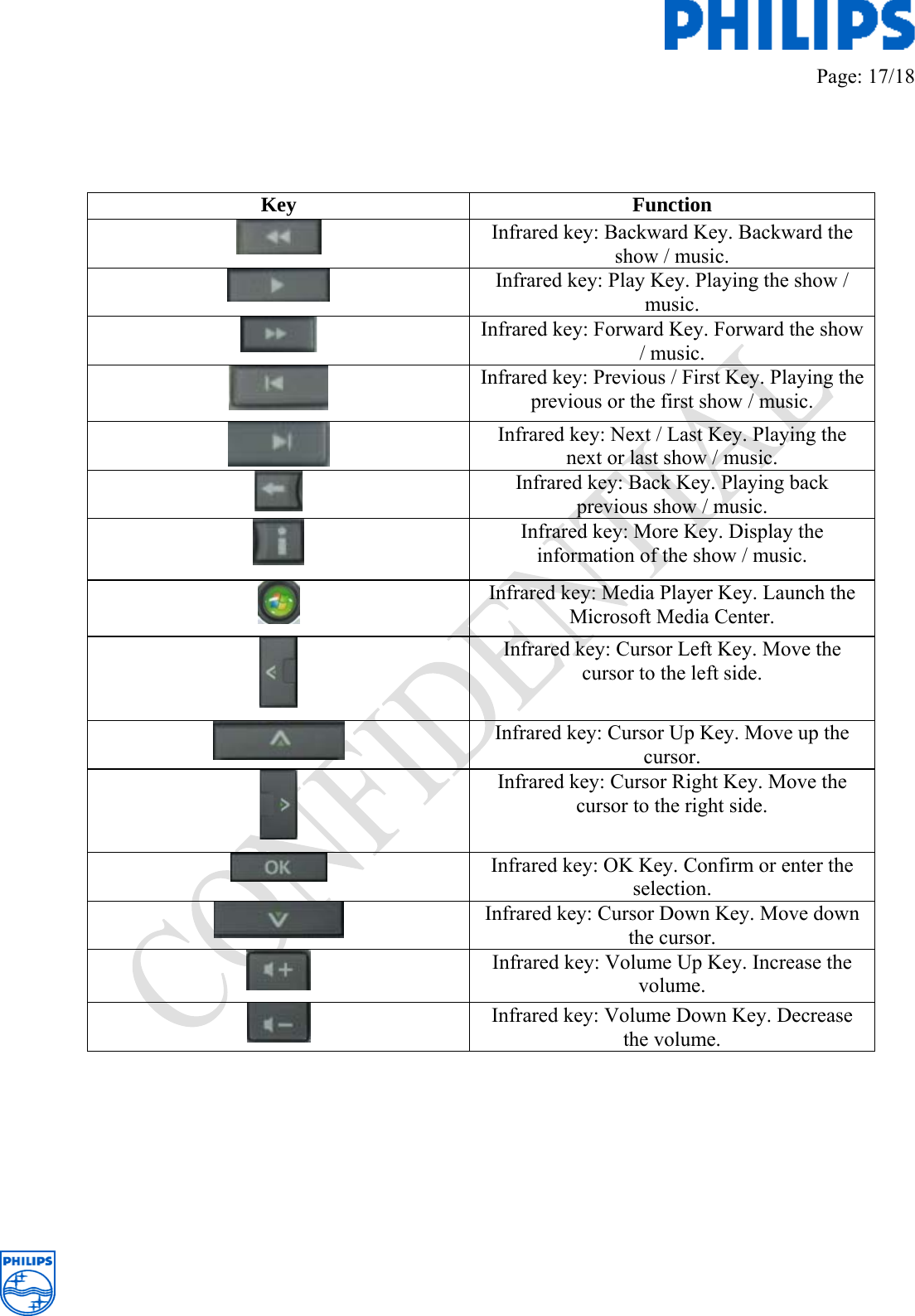

Page: 17/18 Key Function Infrared key: Backward Key. Backward the show / music. Infrared key: Play Key. Playing the show / music. Infrared key: Forward Key. Forward the show / music. Infrared key: Previous / First Key. Playing the previous or the first show / music. Infrared key: Next / Last Key. Playing the next or last show / music. Infrared key: Back Key. Playing back previous show / music. Infrared key: More Key. Display the information of the show / music. Infrared key: Media Player Key. Launch the Microsoft Media Center. Infrared key: Cursor Left Key. Move the cursor to the left side. Infrared key: Cursor Up Key. Move up the cursor. Infrared key: Cursor Right Key. Move the cursor to the right side. Infrared key: OK Key. Confirm or enter the selection. Infrared key: Cursor Down Key. Move down the cursor. Infrared key: Volume Up Key. Increase the volume. Infrared key: Volume Down Key. Decrease the volume.

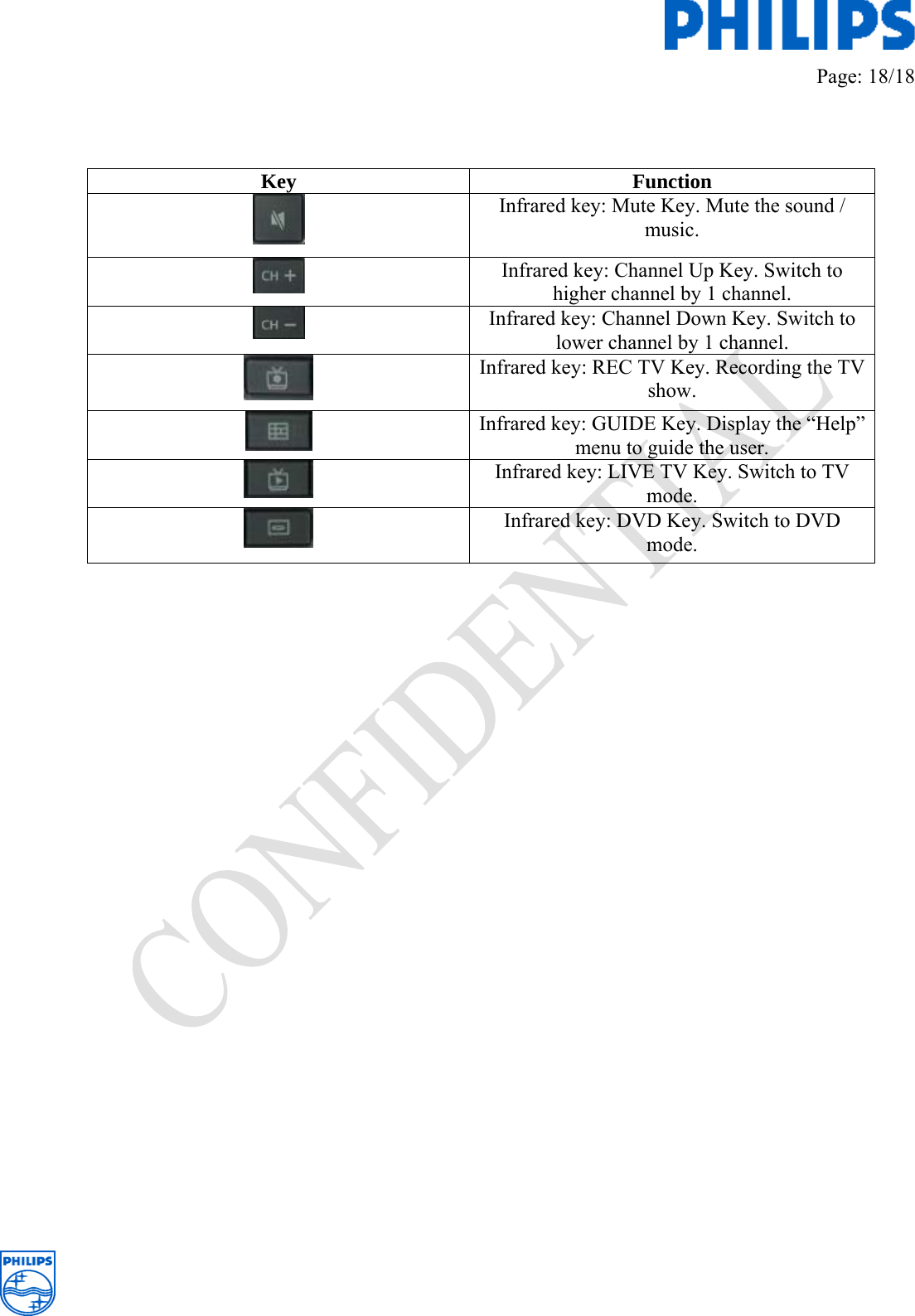

Page: 18/18 Key Function Infrared key: Mute Key. Mute the sound / music. Infrared key: Channel Up Key. Switch to higher channel by 1 channel. Infrared key: Channel Down Key. Switch to lower channel by 1 channel. Infrared key: REC TV Key. Recording the TV show. Infrared key: GUIDE Key. Display the “Help” menu to guide the user. Infrared key: LIVE TV Key. Switch to TV mode. Infrared key: DVD Key. Switch to DVD mode.
