Philips Electronics M120 Color Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd Color Monitor
User Manual
Product Information
Product Features • LightFrame™ for Windows • Technical Specifications •
Automatic Power Saving • Physical Specification • Pin Assignment • Product
Views
Product Features
107P40:
z17-inch (16.0" VIS) Real Flat color monitor featuring ICE technology for excellent front of
screen performance for use with MACs, PCs .
zAutoscan covers horizontal frequencies up to 97 kHz offering a maximum resolution of
1920 x 1440 with flicker free display of 1024 x 768 up to 115 Hz
zFlat aperture grille CRT with high-resolution 0.25 mm stripe pitch.
zLightFrame™ for brightest and sharpest display of movie and photo windows.
zMultimedia Base and USB Hub option
zsRGB for true on screen color representation.
zFCC, CE (in selected countries only) and ISO9241, ISO14001 certified
RETURN TO TOP OF THE PAGE
LightFrame™ for Windows
Introduction
Philips LightFrame™ feature enriches the experience of pictures and video on a Philips CRT
(picture tube) monitor. LightFrame™ will boost the brightness and sharpness of photos and
videos on the monitor screen.
To control the LightFrame™ feature in your monitor, you have to install the LightFrame™
application which you will find on this CD-ROM.
Note
Philips LightFrame™ will only work with monitors that have been built to use this software. Earlier
Philips monitors or other manufacturers’ monitors will not work with this special software. It is
recommended that you install this software only on a Philips monitor designed to use it. These
monitors can be identified by the LightFrame™ logo on the front of the monitor.
This software is not designed for use with LCD flat screen monitors.
LightFrame™ will work with true Windows-based programs and DOS-based programs that
operate in a Windows environment. It will not work with DOS-based programs operating only in a
DOS environment.
Language Selection
While English is the default language of LightFrame™, the User Interface can be set up to
Exhibit 3
Installstion and Operating Instructions

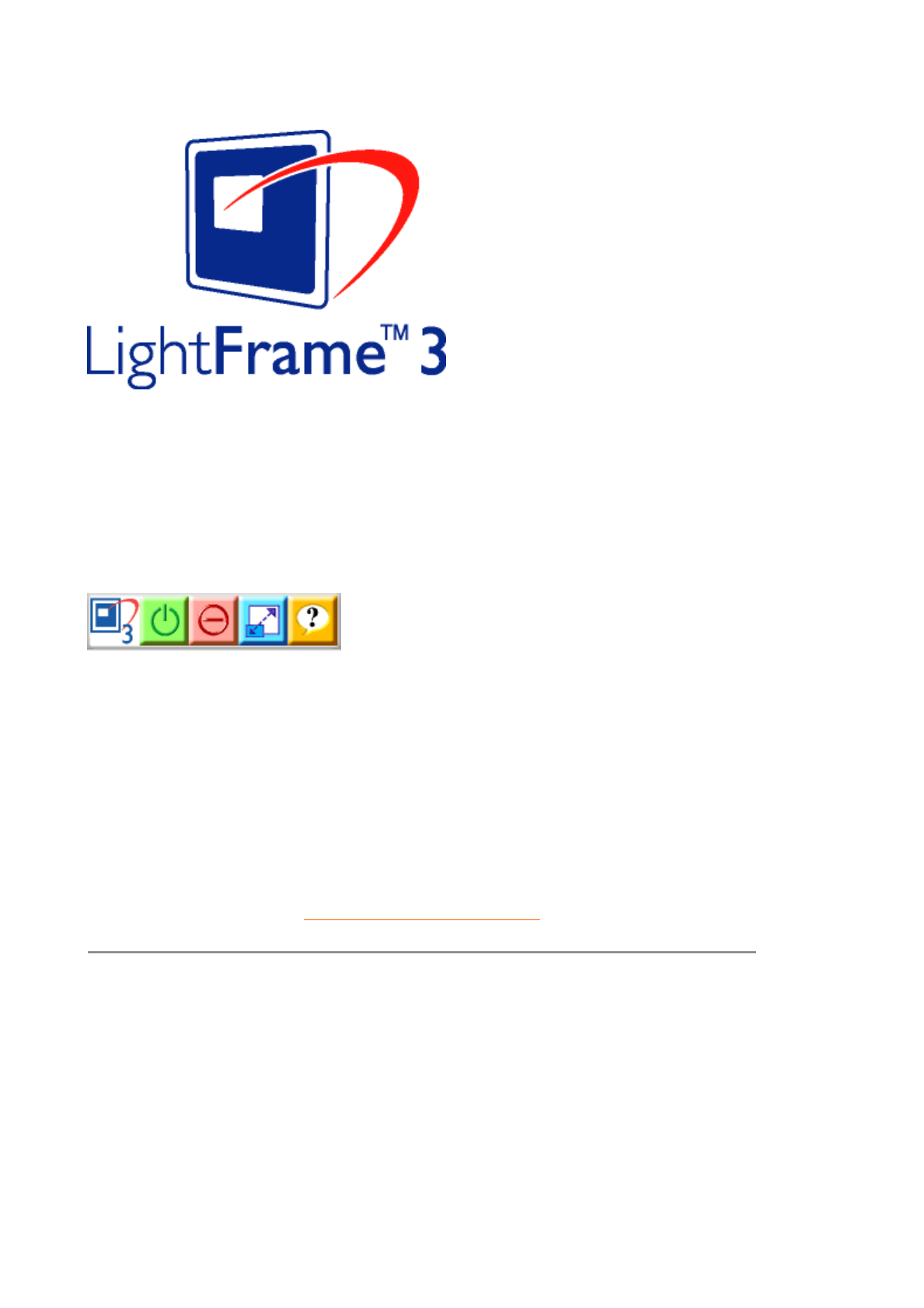

A: All Philips LightFrame™ 3 monitors display this logo on their front bezel:
Q: How do I use the LightFrame™ 3 control bar that appears at the top my screen?
A: The control bar is another upgrade that helps you run all LightFrame™ 3’s neat, new features.
The illustration below describes the tasks each button performs.
Accustomed to working with the original LightFrame™ tray icon? No problem: It’s still there and
can be used to turn LightFrame™ on or off and check LightFrame™ status.
RETURN TO TOP OF THE PAGE
Technical Specifications*
CRT
• Size and deflection 17 inch / 41 cm ; 90° deflection angle
• Grille pitch 0.25 mm
• Tube type Aperture grille, flat, high contrast, high brightness,anti-
glare, anti-static, anti reflection, light transmission 38%
• Phosphor B22
• Recommended display area 12.0" x 9.0" / 306 x 230 mm
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
• Maximum display area 12.8" x 9.6" / 325 x 244 mm
SCANNING
• Horizontal scanning 30 - 97 KHz
• Vertical scanning 50-160 Hz
VIDEO
• Video dot rate 203 MHz
• Input impedance
- Video 75 ohm
- Sync 2.2 kOhm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
• Sync polarities Positive and negative
WHITE COLOR TEMPERATURE
Chromaticity CIE coordinates:
• at 9300 degrees K x = 0.283 / y = 0.297
• at 6500 degrees K x = 0.313 / y = 0.329
• at 5500 degrees K x = 0.332 / y = 0.347
sRGB
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.
digital cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB
compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors
are calibrated and you can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to
a predefined setting as well as the color gamut. Therefore it is important to select the sRGB
setting in the monitor's OSD.
To do so, open the OSD by pressing the OK button on the front of your monitor. Use the
down button to go to Color temperature and press OK again. Then move the down button to
go to sRGB and press OK again.
Exit this OSD.
After this, please don't change the brightness or contrast setting of your monitor. If you
change either of these, the monitor will exit the sRGB mode and go to a color temperature
setting of 6500K.
For more information on sRGB, please visit: www.srgb.com
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor
can automatically reduce its power consumption when not in use. And if an input from a
keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The
following table shows the power consumption and signaling of this automatic power saving
features:
RETURN TO TOP OF THE PAGE
Physical Specifications
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE

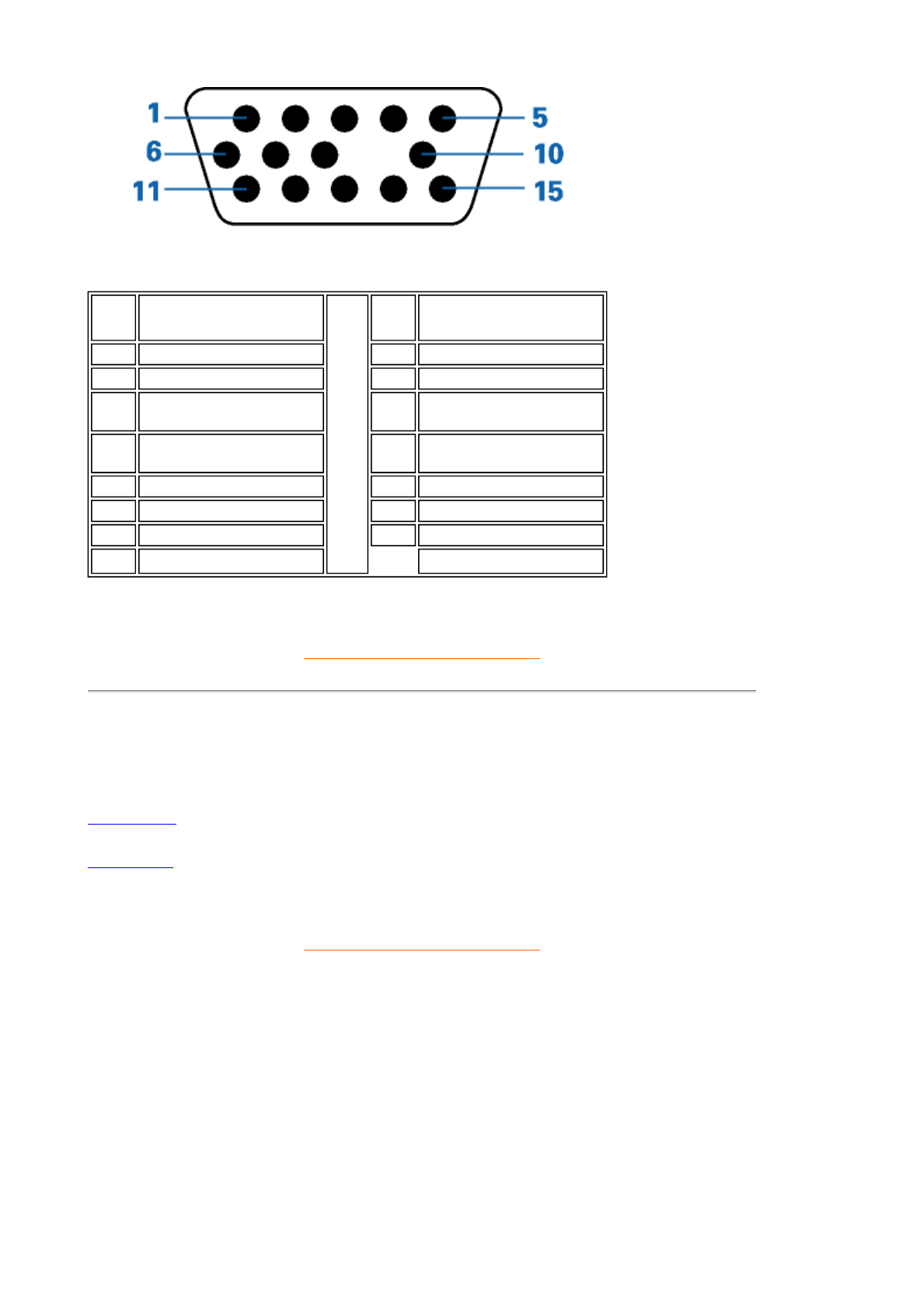

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable (IBM systems):
Power Management Definition
VESA's
Mode Video H-sync V-sync Power
Used
Power
Saving
(%)
LED
color
ON Active Yes Yes Typical 77
W 0 % Green
OFF Blanked No No < 2W 97% Yellow
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has
determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
• Dimensions 15.7" x 16.1" x 16.5" / 399 x 410 x 419 mm (including base)
15.7" x 14.7" x 16.5" / 399 x 373 x 419 mm (excluding base)
• Weight 17.5 kg
• Power supply 90 - 264 VAC, 50/60Hz
• Temperature (operating) 0° to 40°C / 32° to 104°F
• Temperature (storage) -25° to +65°C / -13° to +149°F
• Relative humidity(storage) 5% to 95%
* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.
RETURN TO TOP OF THE PAGE
Views
Follow the links to see various views of the monitor and its components.
Front View
Rear View
RETURN TO TOP OF THE PAGE
Pin
No. Assignment
Pin
No. Assignment
1 Red video input 9No pin
2 Green video input 10 Logic ground
3 Blue video input 11 Identical output -
connected to pin 10
4 Identical output -
connected to pin 10 12 Serial data line (SDA)
5 Ground 13 H. Sync
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
Installing your Monitor
Front View • Rear View • 6G3B11 Multimedia Base (option) • PCUH411 USB
Hub (option)

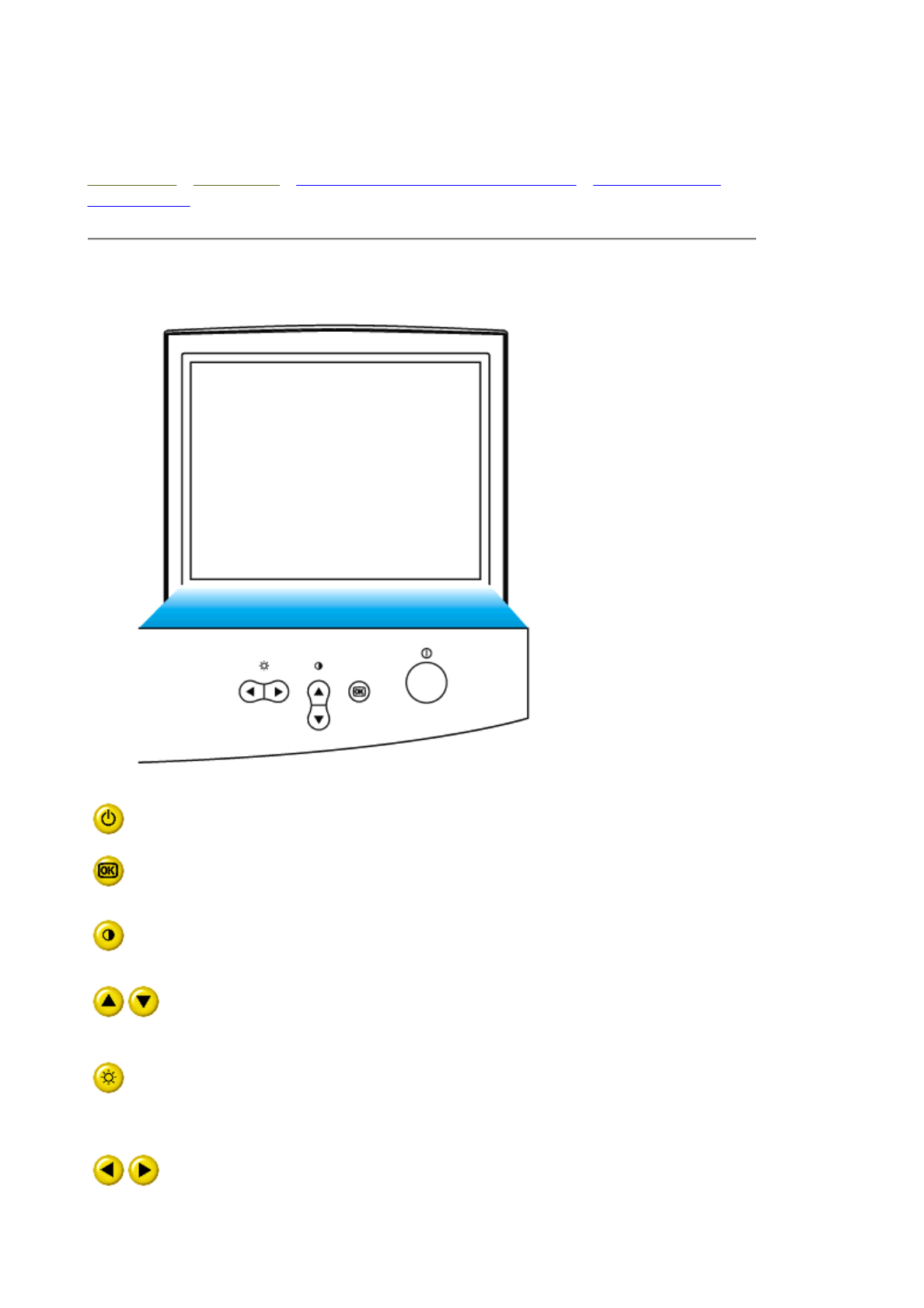

Front View
Power button switches your monitor on.
OK button which when pressed will take you to the OSD controls
Contrast hotkey. When the UP arrow is pressed, the adjustment
controls for the CONTRAST will show up.
UP and DOWN buttons are used when adjusting the OSD of your
monitor
Brightness hotkey. When the RIGHT arrow is pressed, the
adjustment controls for BRIGHTNESS will show up.
LEFT and RIGHT buttons, like the UP and DOWN buttons, are
also used in adjusting the OSD of your monitor.
RETURN TO TOP OF THE PAGE

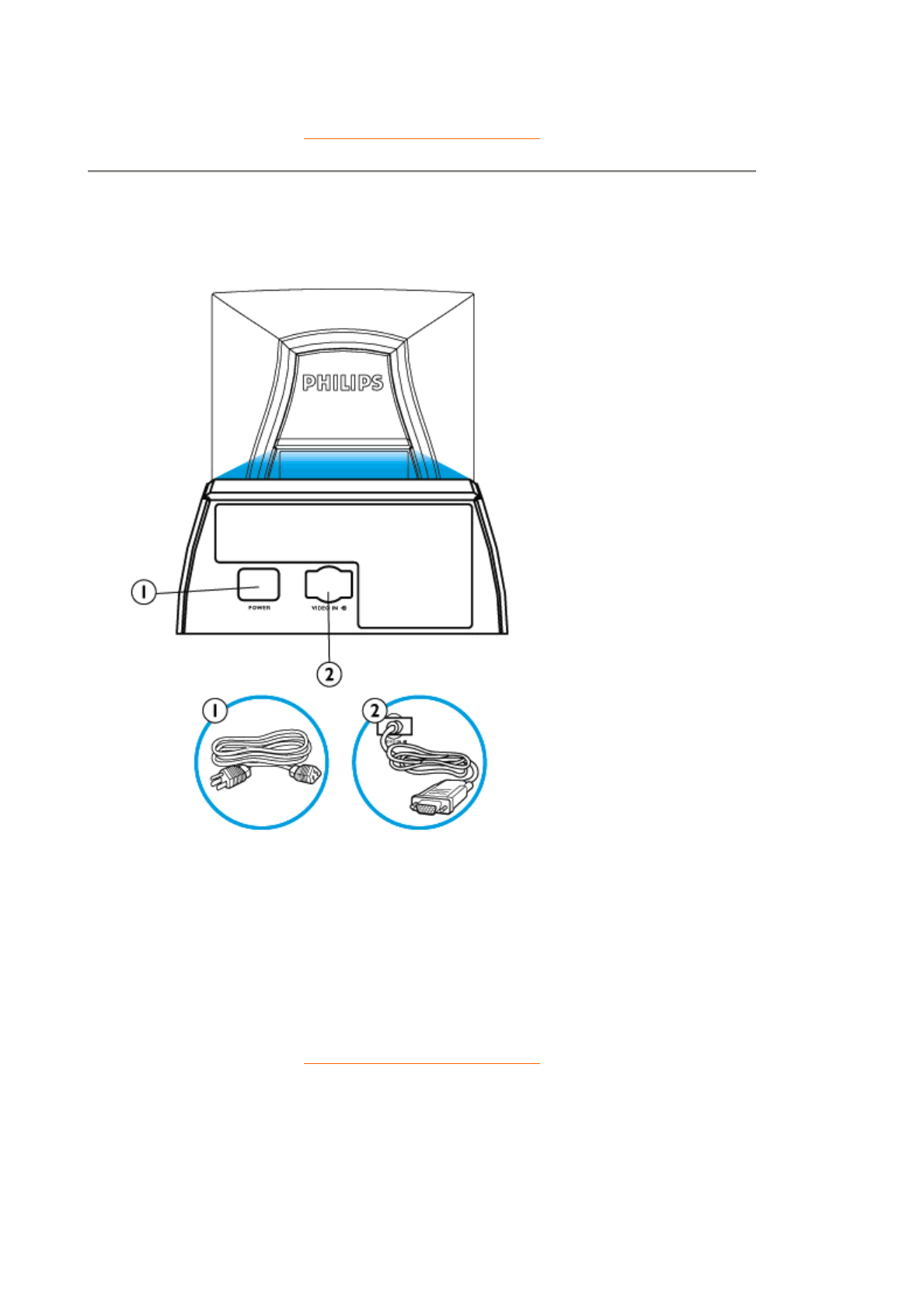

Rear View
1. Power in - attach power cable here.
2. Video In - this is a cable which is already attached to your monitor. Connect
the other end of the cable to your PC.
RETURN TO TOP OF THE PAGE
Regulatory Information
TCO '99 Information • TCO Environmental Requirements • CE Declaration of
Conformity • Energy Star Declaration • Federal Communications Commission
(FCC) Notice (U.S. Only) • Commission Federale de la Communication (FCC
Declaration) • EN 55022 Compliance (Czech Republic Only) • VCCI Class 2
Notice (Japan Only) • MIC Notice (South Korea Only) • Polish Center for Testing
and Certification Notice • North Europe Information (Nordic Countries) • BSMI
Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland) • Philips End-of-Life
Disposal • Information for UK only
Safety Precautions and Maintenance • Troubleshooting • Other Related
Information

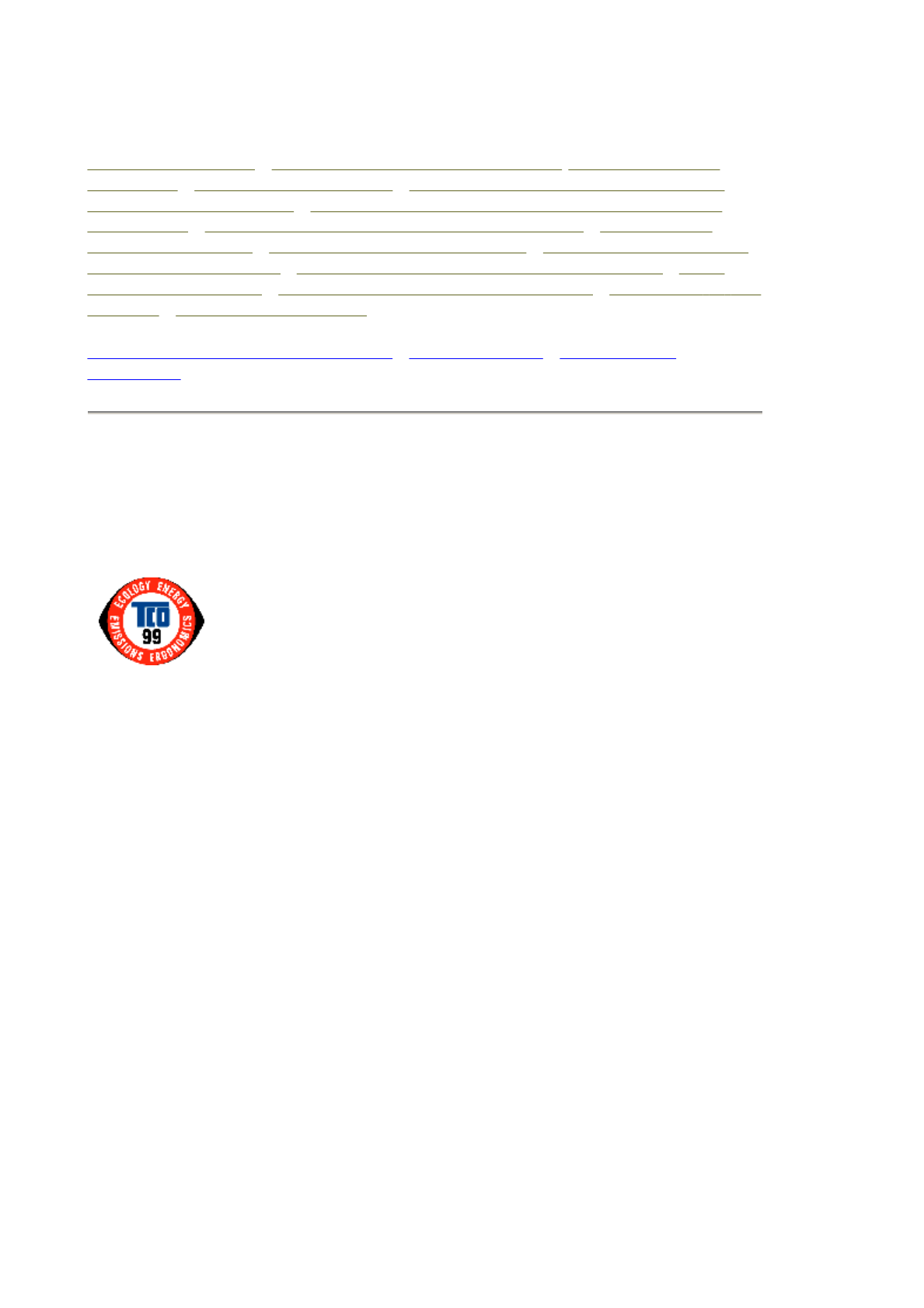

TCO '99 Information
• TCO '99 : Available on 107D, 107E ,107T, 107B, 107P, 109S, 109B.
Why do we have environmentally labeled computers?
In many countries, environmental labeling has become an established method for encouraging the
adaptation of goods and services to the environment. The main problem, as far as computers and
other electronics equipment are concerned, is that environmentally harmful substances are used
both in the products and during their manufacture. Since it is not so far possible to satisfactorily
recycle the majority of electronics equipment, most of these potentially damaging substances
sooner or later enter nature.
There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (internal) and natural (external) environments.
Since all methods of electricity generation have a negative effect on the environment (e.g. acidic
and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics
equipment in offices is often left running continuously and thereby consumes a lot of energy.
What does labeling involve?
This product meets the requirements for the TCO'99 scheme which provides for international and
environmental labeling of personal computers. The labeling scheme was developed as a joint
effort by the TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens
Energimyndighet (The Swedish National Energy Administration).
Approval requirements cover a wide range of issues: environment, ergonomics, usability,
emission of electric and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands impose restrictions on the presence and use of heavy metals,
Congratulations! You have just purchased a TCO '99
approved and labeled product! Your choice has provided you
with a product developed for professional use. Your
purchase has also contributed to reducing the burden on the
environment and also to the further development of
environmentally adapted electronics products.

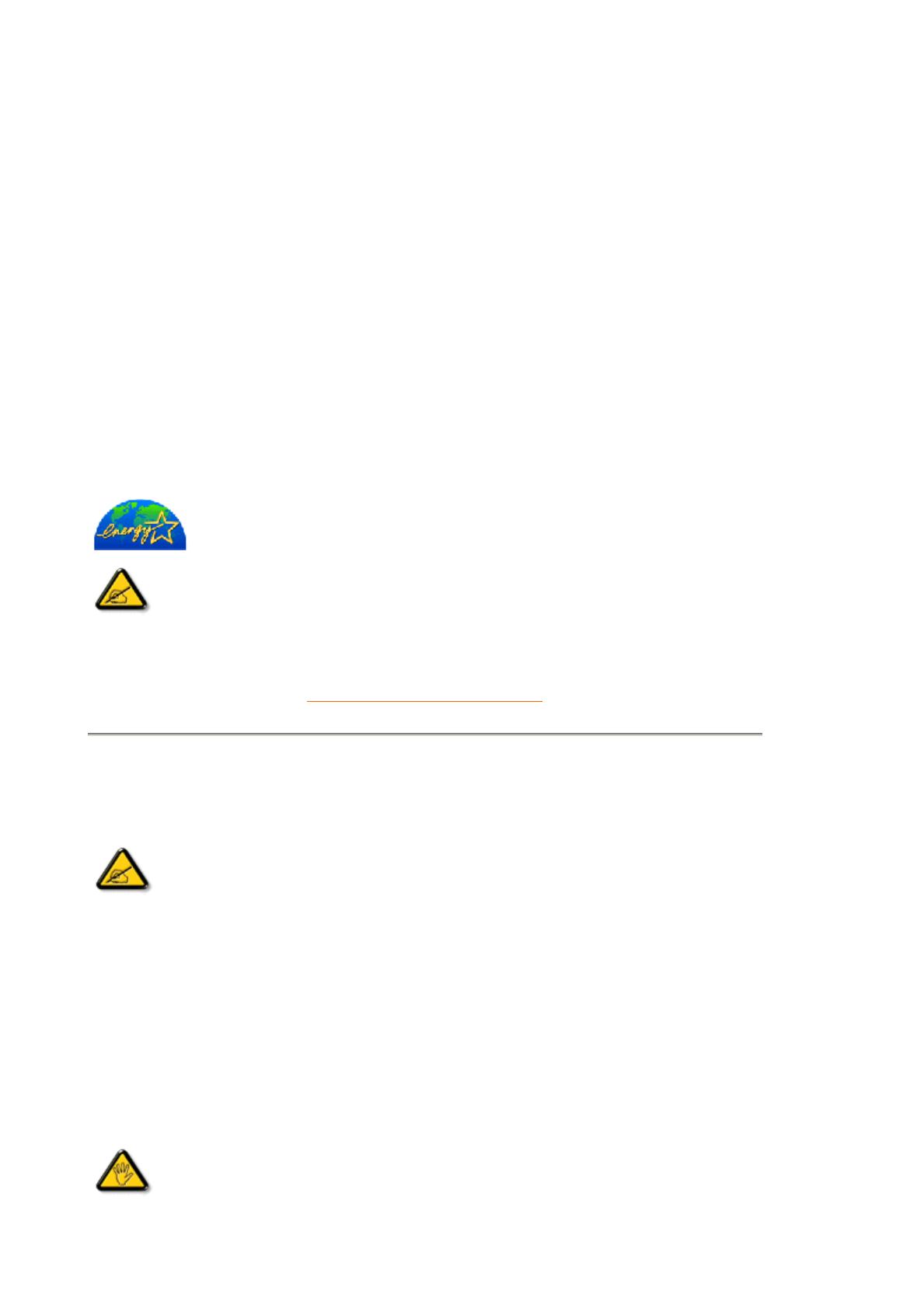

Energy Star Declaration
PHILIPS
107P4*
RETURN TO TOP OF THE PAGE
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
This monitor is equipped with a function for saving energy which supports the VESA Display
Power Management Signaling (DPMS) standard. This means that the monitor must be
connected to a computer which supports VESA DPMS to fulfill the requirements in the
NUTEK specification 803299/94. Time settings are adjusted from the system unit by
software.
NUTEK VESA State LED Indicator Power Consumption
Normal operation ON Green Typical 77W
Power Saving
Alternative2
One Step OFF Yellow < 2 W
As an ENERGY STAR® Partner, PHILIPS has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency.
We recommend you switch off the monitor when it is not in use for quite a long
time.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
EN 55022 Compliance (Czech Republic Only)
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
