Philips Electronics M123 Color Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd Color Monitor

User Manual

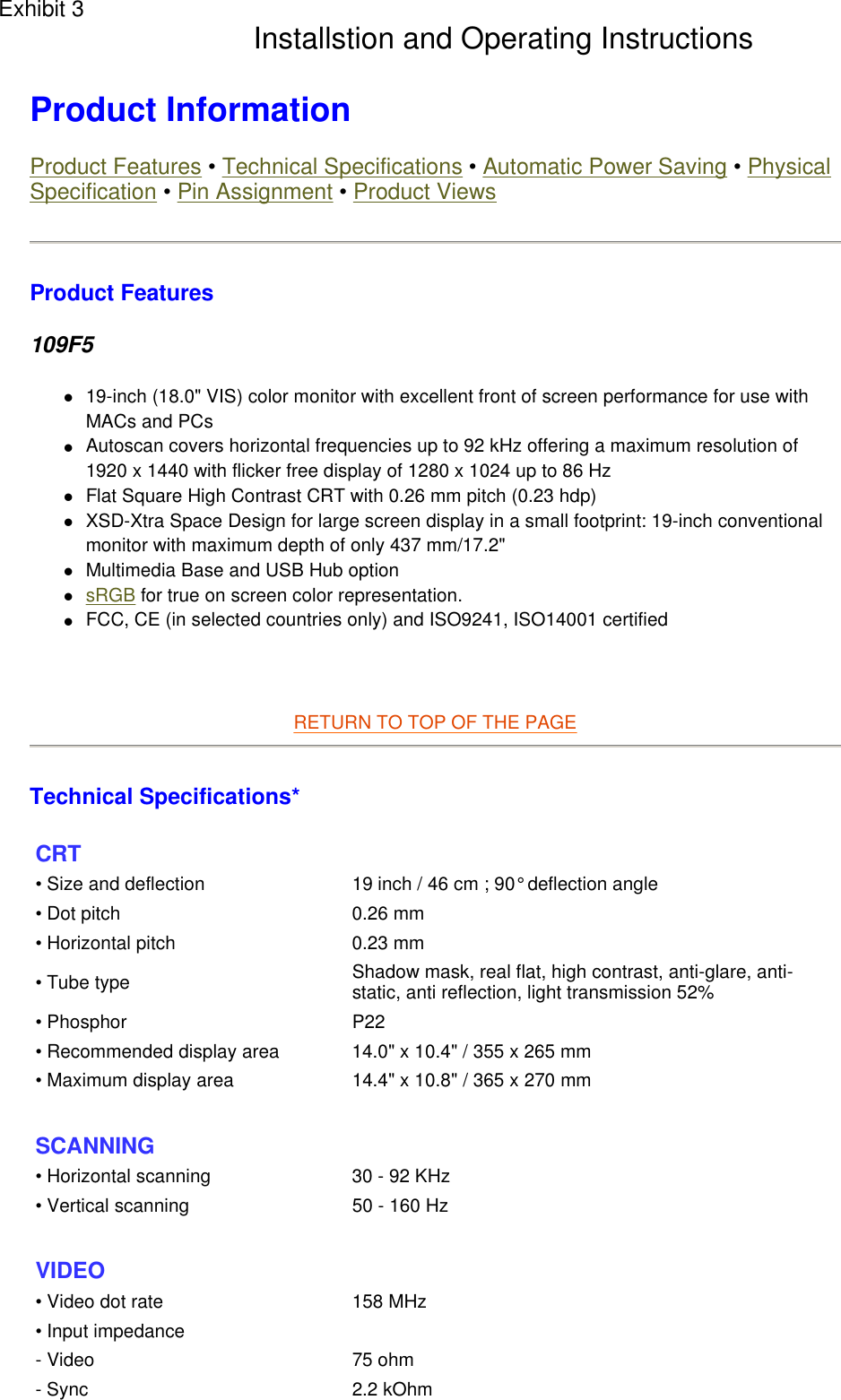

Product Information Product Features • Technical Specifications • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views Product Features 109F5 z19-inch (18.0" VIS) color monitor with excellent front of screen performance for use with MACs and PCs zAutoscan covers horizontal frequencies up to 92 kHz offering a maximum resolution of 1920 x 1440 with flicker free display of 1280 x 1024 up to 86 Hz zFlat Square High Contrast CRT with 0.26 mm pitch (0.23 hdp) zXSD-Xtra Space Design for large screen display in a small footprint: 19-inch conventional monitor with maximum depth of only 437 mm/17.2" zMultimedia Base and USB Hub option zsRGB for true on screen color representation. zFCC, CE (in selected countries only) and ISO9241, ISO14001 certified RETURN TO TOP OF THE PAGE Technical Specifications* CRT • Size and deflection 19 inch / 46 cm ; 90° deflection angle• Dot pitch 0.26 mm• Horizontal pitch 0.23 mm• Tube type Shadow mask, real flat, high contrast, anti-glare, anti-static, anti reflection, light transmission 52%• Phosphor P22• Recommended display area 14.0" x 10.4" / 355 x 265 mm• Maximum display area 14.4" x 10.8" / 365 x 270 mm SCANNING • Horizontal scanning 30 - 92 KHz• Vertical scanning 50 - 160 Hz VIDEO • Video dot rate 158 MHz• Input impedance- Video 75 ohm- Sync 2.2 kOhmExhibit 3 Installstion and Operating Instructions

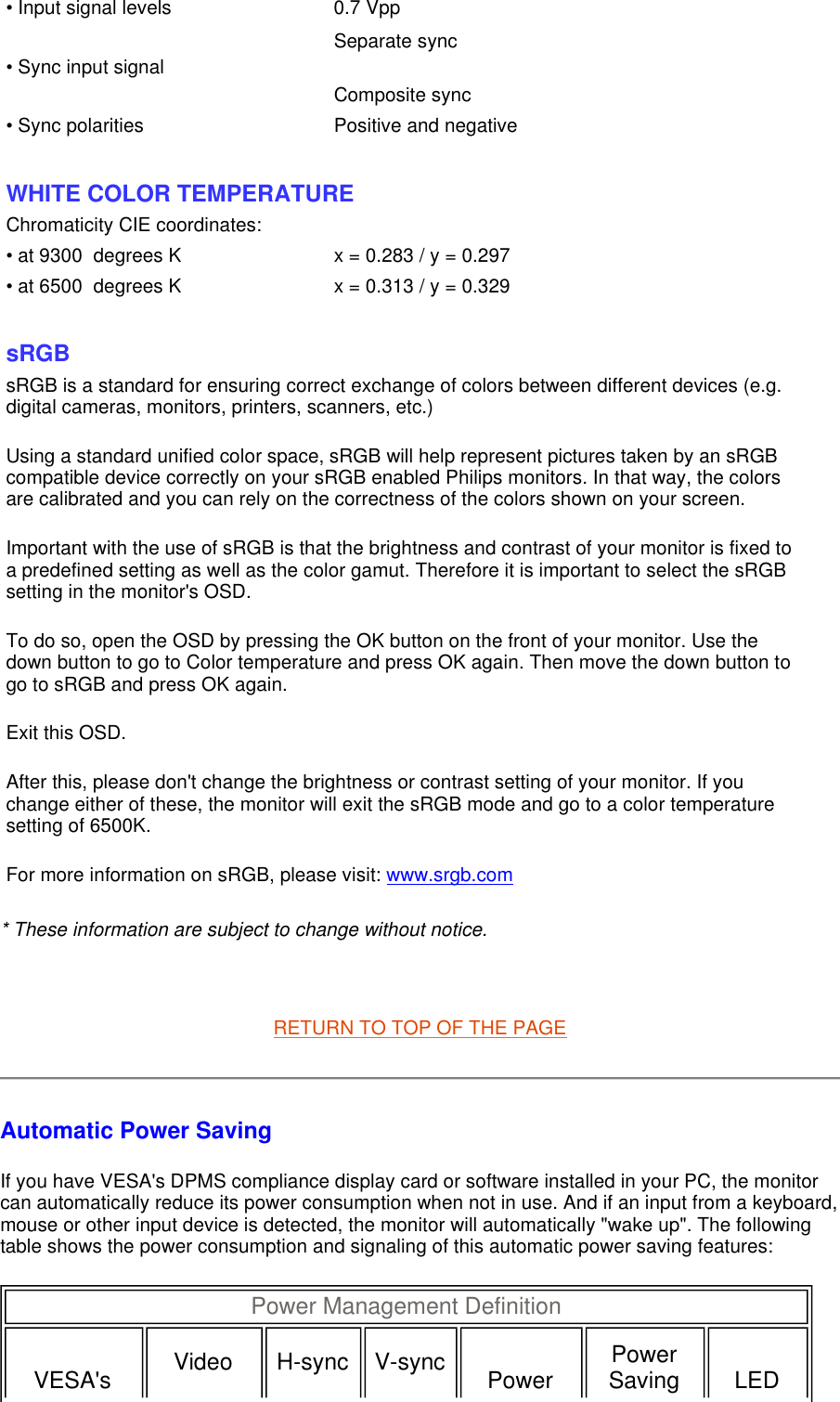

* These information are subject to change without notice. RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device is detected, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving features: • Input signal levels 0.7 Vpp• Sync input signal Separate sync Composite sync • Sync polarities Positive and negative WHITE COLOR TEMPERATURE Chromaticity CIE coordinates:• at 9300 degrees K x = 0.283 / y = 0.297• at 6500 degrees K x = 0.313 / y = 0.329 sRGB sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital cameras, monitors, printers, scanners, etc.) Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen. Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in the monitor's OSD. To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down button to go to Color temperature and press OK again. Then move the down button to go to sRGB and press OK again. Exit this OSD. After this, please don't change the brightness or contrast setting of your monitor. If you change either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 6500K. For more information on sRGB, please visit: www.srgb.com Power Management Definition VESA's Video H-sync V-sync Power Power Saving LED

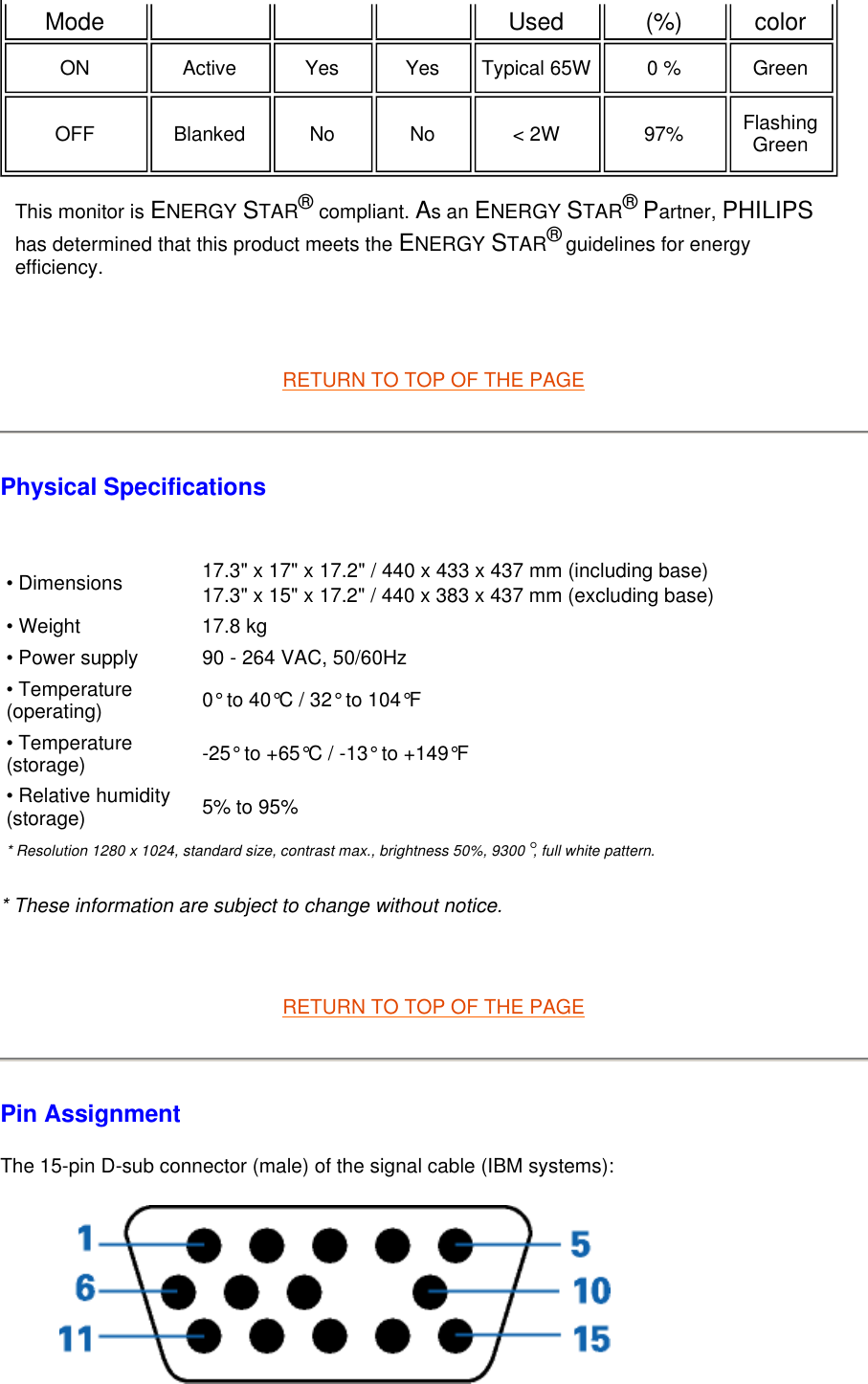

RETURN TO TOP OF THE PAGE Physical Specifications * These information are subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable (IBM systems): Mode Used (%) color ON Active Yes Yes Typical 65W 0 % Green OFF Blanked No No < 2W 97% Flashing Green This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.• Dimensions 17.3" x 17" x 17.2" / 440 x 433 x 437 mm (including base) 17.3" x 15" x 17.2" / 440 x 383 x 437 mm (excluding base) • Weight 17.8 kg• Power supply 90 - 264 VAC, 50/60Hz• Temperature (operating) 0° to 40°C / 32° to 104°F• Temperature (storage) -25° to +65°C / -13° to +149°F• Relative humidity (storage) 5% to 95%* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.

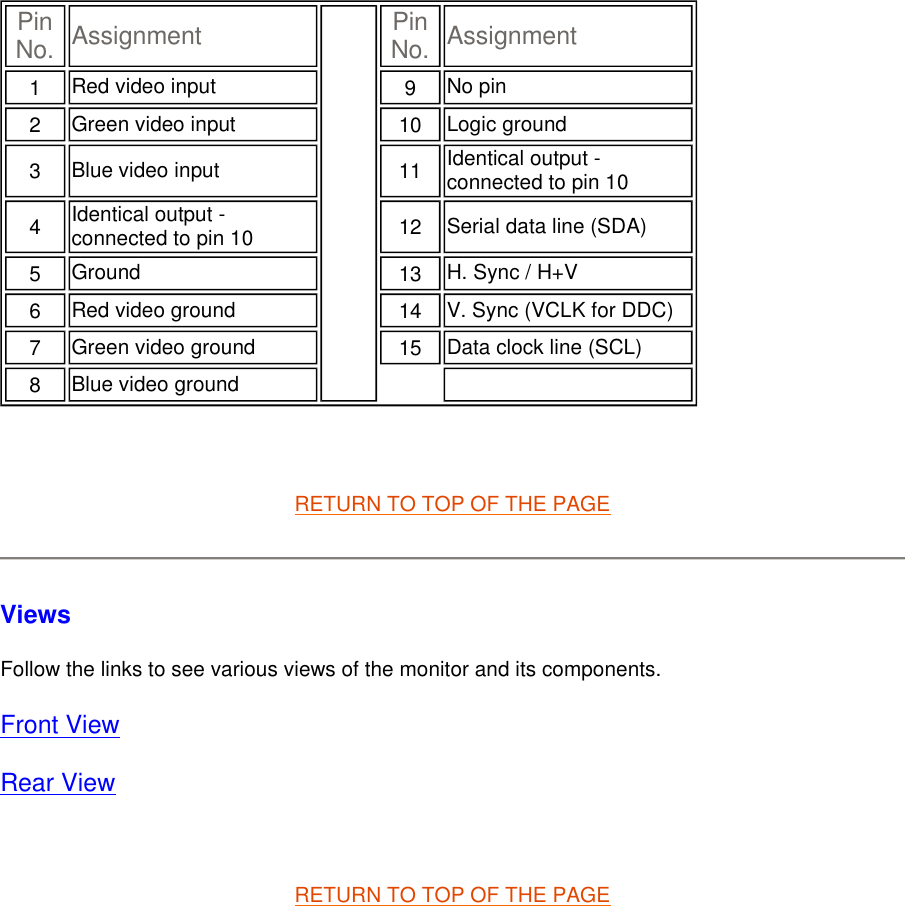

RETURN TO TOP OF THE PAGE Views Follow the links to see various views of the monitor and its components. Front View Rear View RETURN TO TOP OF THE PAGE Pin No. Assignment Pin No. Assignment1 Red video input 9 No pin 2 Green video input 10 Logic ground3 Blue video input 11 Identical output - connected to pin 104 Identical output - connected to pin 10 12 Serial data line (SDA)5 Ground 13 H. Sync / H+V6 Red video ground 14 V. Sync (VCLK for DDC)7 Green video ground 15 Data clock line (SCL)8 Blue video ground

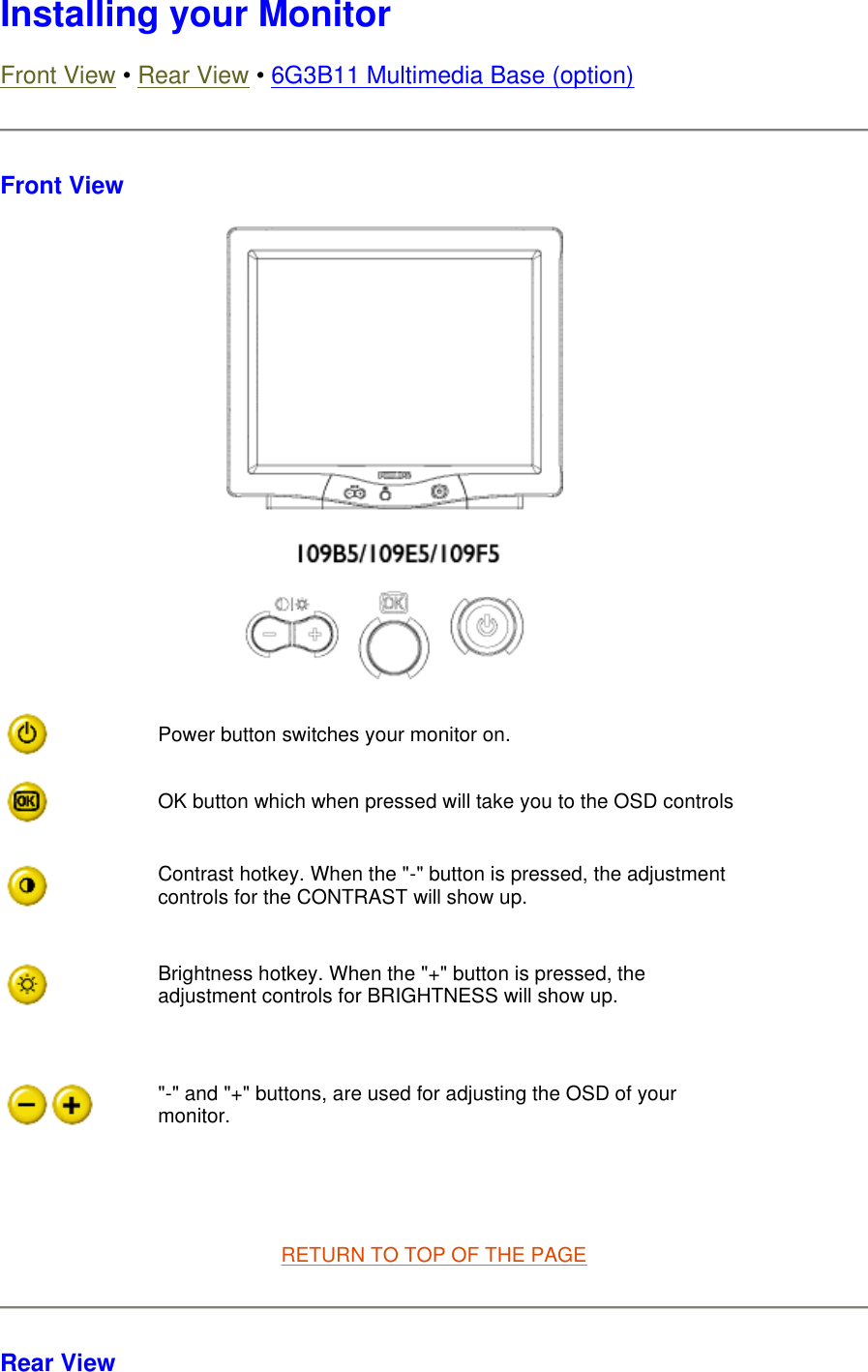

Installing your Monitor Front View • Rear View • 6G3B11 Multimedia Base (option) Front View RETURN TO TOP OF THE PAGE Rear View Power button switches your monitor on.OK button which when pressed will take you to the OSD controlsContrast hotkey. When the "-" button is pressed, the adjustment controls for the CONTRAST will show up.Brightness hotkey. When the "+" button is pressed, the adjustment controls for BRIGHTNESS will show up."-" and "+" buttons, are used for adjusting the OSD of your monitor.

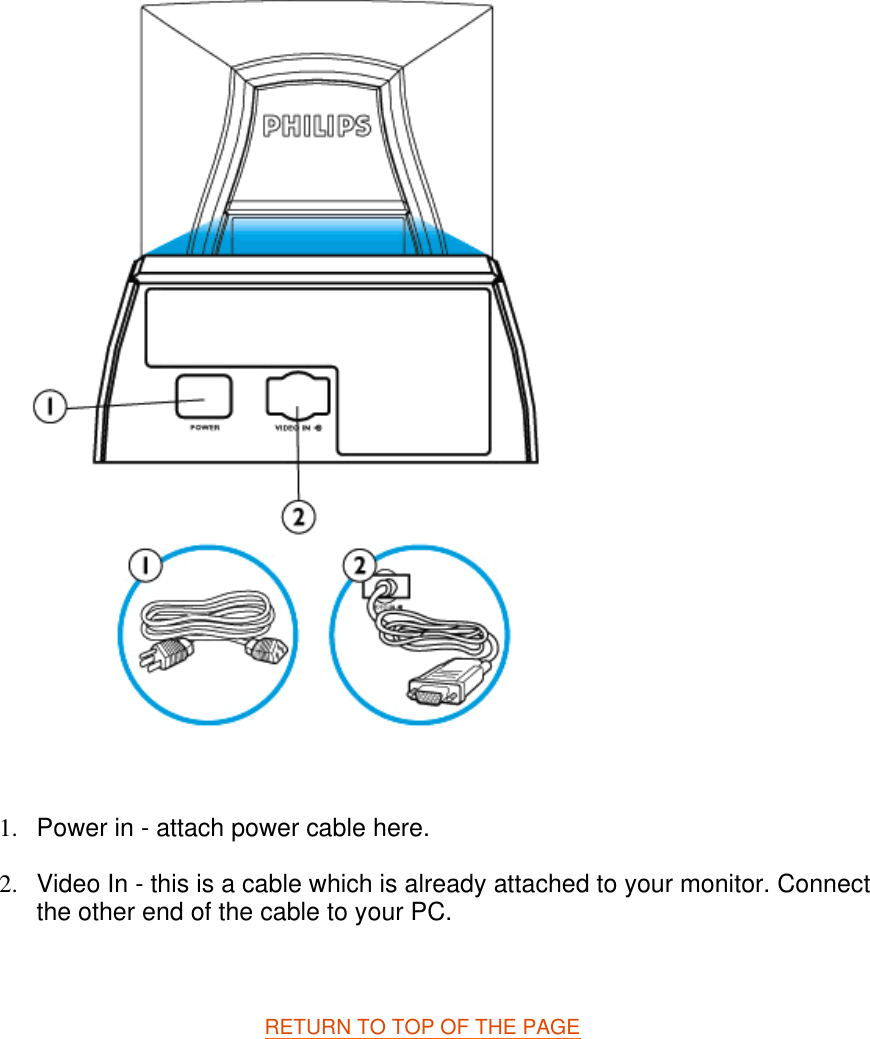

1. Power in - attach power cable here. 2. Video In - this is a cable which is already attached to your monitor. Connect the other end of the cable to your PC. RETURN TO TOP OF THE PAGE

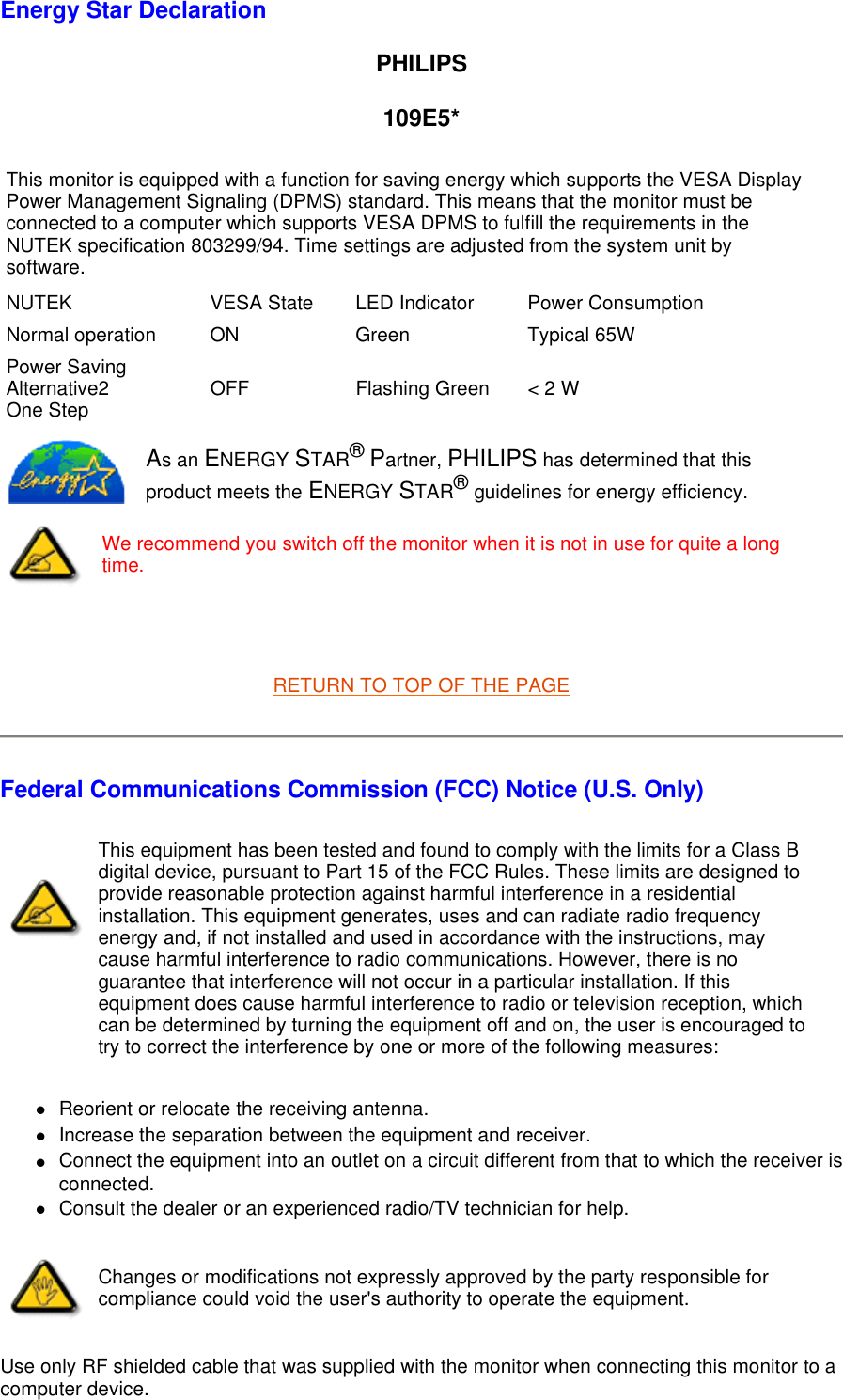

Energy Star Declaration PHILIPS 109E5* RETURN TO TOP OF THE PAGE Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software. NUTEK VESA State LED Indicator Power ConsumptionNormal operation ON Green Typical 65WPower Saving Alternative2 One Step OFF Flashing Green < 2 WAs an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.We recommend you switch off the monitor when it is not in use for quite a long time.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

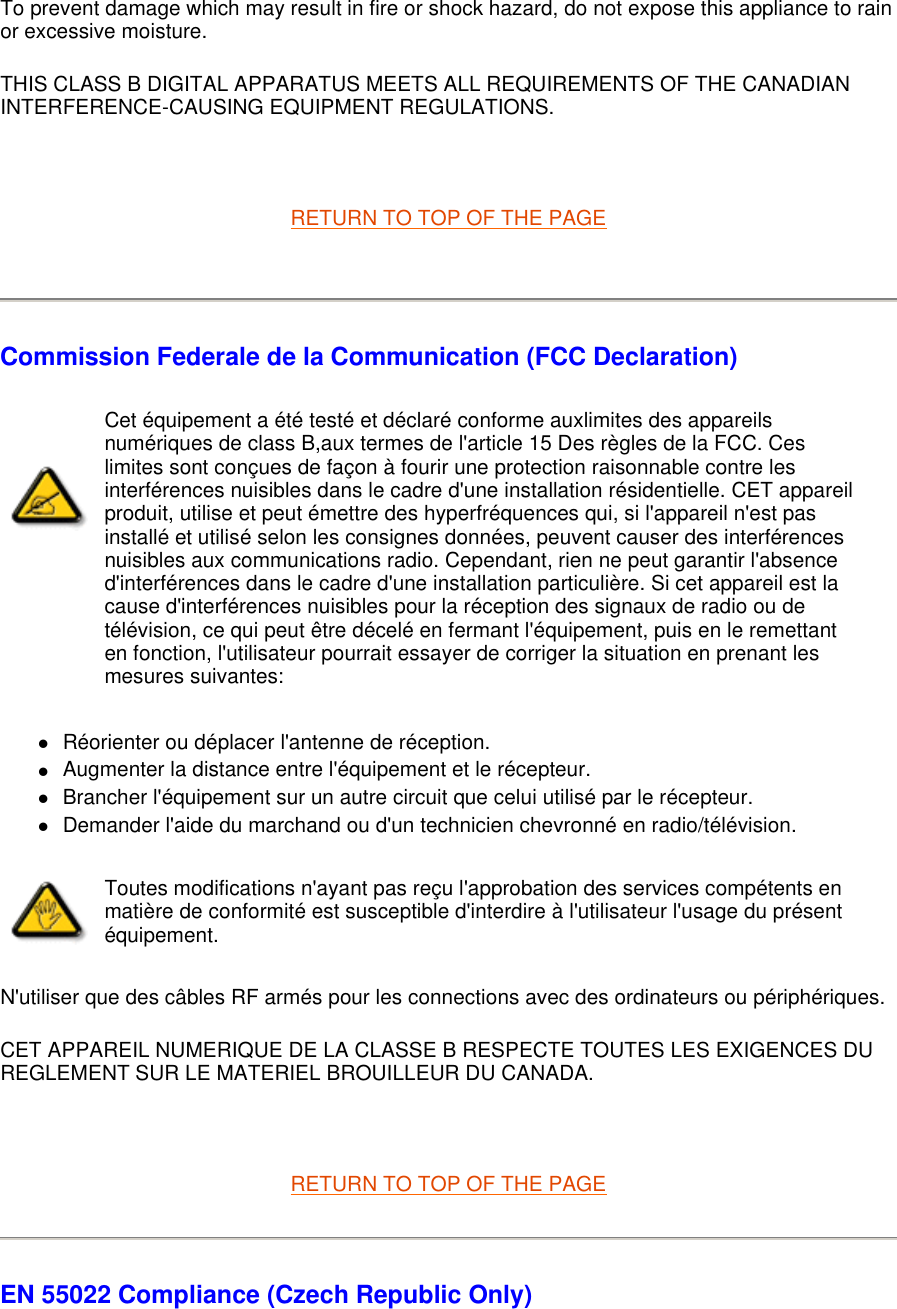

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE EN 55022 Compliance (Czech Republic Only) Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.
