Philips Electronics M125 LCD TV Monitor User Manual

Philips Electronics Industries (Taiwan) Ltd LCD TV Monitor

User Manual

Product Information Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product Views • Physical Function Product Features 150T4 z15-inch XGA LCD all-in-one Monitor TV with excellent display performance zMultiple video input allowing display of PC, TV, HD (the US/Canada/Korea/Taiwan), VCD, DVD, Progressive DVD and CamCorder zDigital High Definition Picture (1080i / 720P / 576P / 480P) zD-Sub to YPbPr component Video input adapter cable for DVD & HD zMultiSystem TV tuner-PAL/NTSC (available in most of the Asia Pacific area) RETURN TO TOP OF THE PAGE Technical Specifications* LCD PANEL • Type TFT LCD• Screen size 15 inch • Pixel Pitch 0.297 x 0.297mm• LCD Panel type 1024 x 768 pixels R.G.B. vertical stripe Anti-glare polarizer• Effective viewing area (H) 304.1 x (V) 228.1mm• Display Colors 8 bits interface (16.7M colors)PC SCANNING• Vertical refresh rate 56Hz-76Hz• Horizontal frequency 30kHz-63kHzPC VIDEO • Video dot rate 80 MHz• Input impedance- Video 75 ohm- Sync 2K ohm• Input signal levels 0.7 Vpp• Sync input signal Separate sync • Sync polarities Positive and negativeExhibit 3Installstion and Operating Instructions

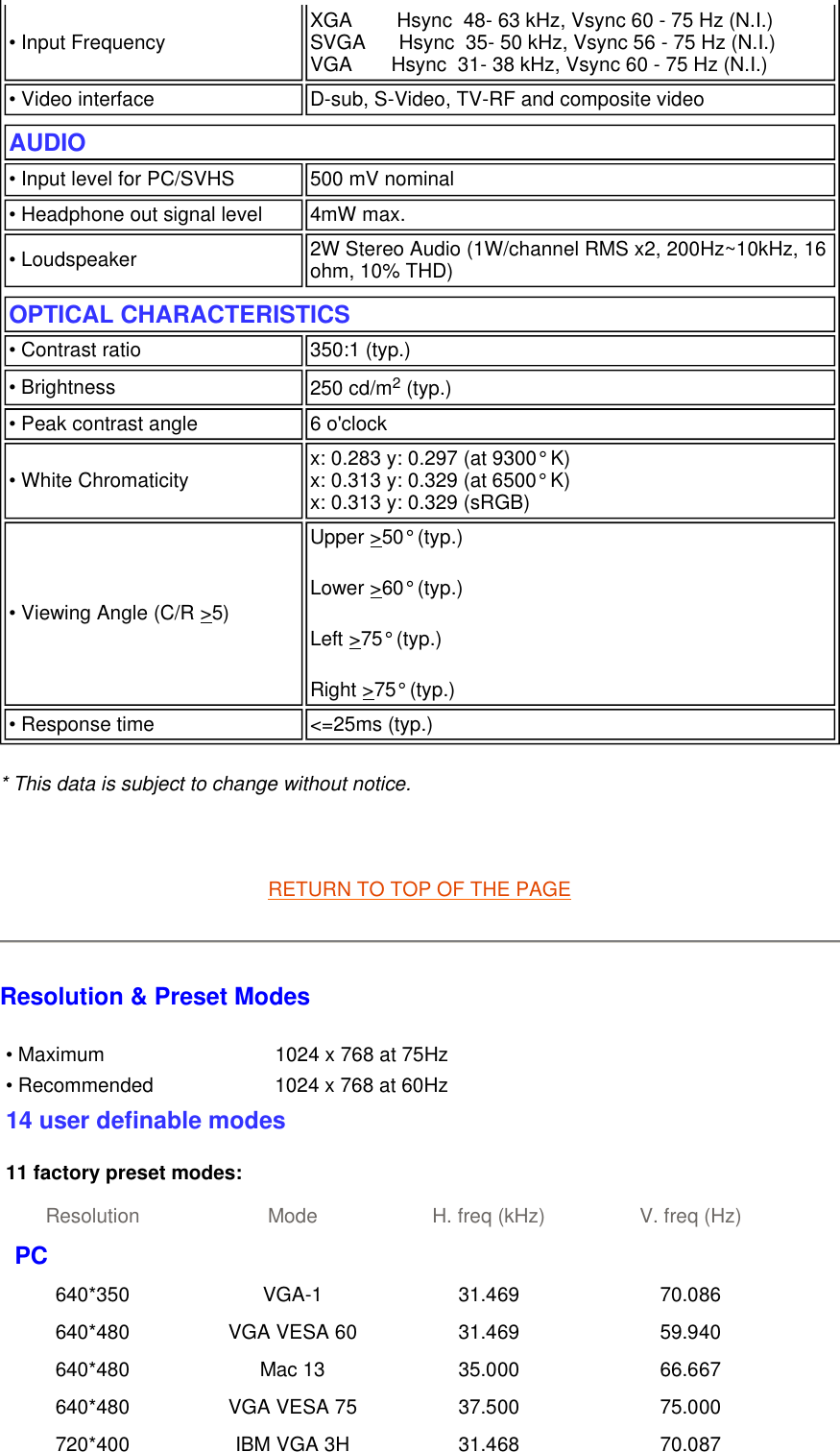

* This data is subject to change without notice. RETURN TO TOP OF THE PAGE Resolution & Preset Modes • Input Frequency XGA Hsync 48- 63 kHz, Vsync 60 - 75 Hz (N.I.) SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.) VGA Hsync 31- 38 kHz, Vsync 60 - 75 Hz (N.I.) • Video interface D-sub, S-Video, TV-RF and composite videoAUDIO • Input level for PC/SVHS 500 mV nominal• Headphone out signal level 4mW max. • Loudspeaker 2W Stereo Audio (1W/channel RMS x2, 200Hz~10kHz, 16 ohm, 10% THD)OPTICAL CHARACTERISTICS • Contrast ratio 350:1 (typ.)• Brightness 250 cd/m2 (typ.) • Peak contrast angle 6 o'clock• White Chromaticity x: 0.283 y: 0.297 (at 9300° K) x: 0.313 y: 0.329 (at 6500° K) x: 0.313 y: 0.329 (sRGB) • Viewing Angle (C/R >5) Upper >50° (typ.)Lower >60° (typ.) Left >75° (typ.) Right >75° (typ.) • Response time <=25ms (typ.) • Maximum 1024 x 768 at 75Hz • Recommended 1024 x 768 at 60Hz14 user definable modes 11 factory preset modes: Resolution Mode H. freq (kHz) V. freq (Hz) PC 640*350 VGA-1 31.469 70.086 640*480 VGA VESA 60 31.469 59.940 640*480 Mac 13 35.000 66.667 640*480 VGA VESA 75 37.500 75.000 720*400 IBM VGA 3H 31.468 70.087

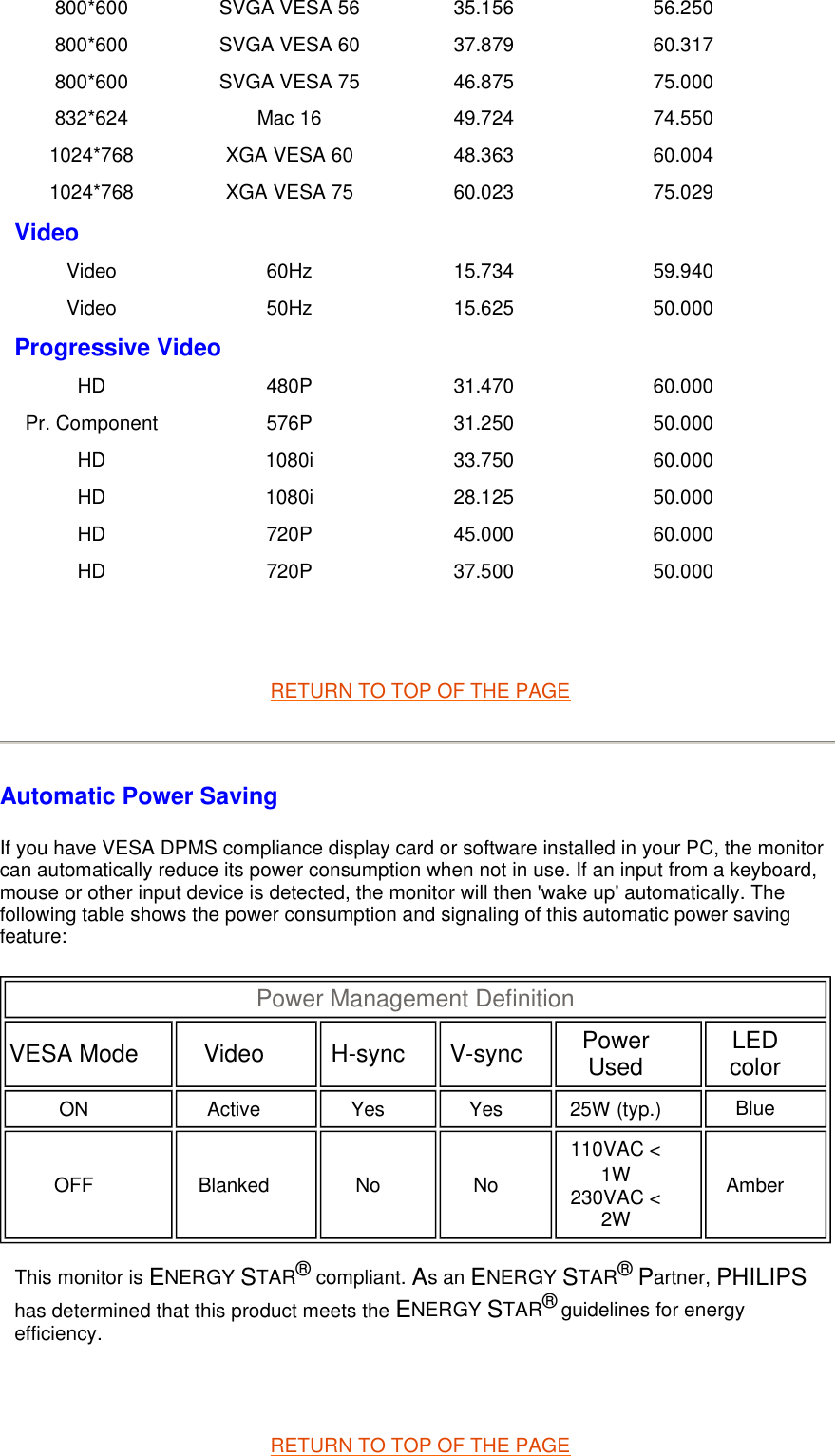

RETURN TO TOP OF THE PAGE Automatic Power Saving If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will then 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: RETURN TO TOP OF THE PAGE 800*600 SVGA VESA 56 35.156 56.250 800*600 SVGA VESA 60 37.879 60.317 800*600 SVGA VESA 75 46.875 75.000 832*624 Mac 16 49.724 74.550 1024*768 XGA VESA 60 48.363 60.004 1024*768 XGA VESA 75 60.023 75.029 Video Video 60Hz 15.734 59.940 Video 50Hz 15.625 50.000 Progressive Video HD 480P 31.470 60.000 Pr. Component 576P 31.250 50.000 HD 1080i 33.750 60.000 HD 1080i 28.125 50.000 HD 720P 45.000 60.000 HD 720P 37.500 50.000 Power Management Definition VESA Mode Video H-sync V-sync Power Used LED color ON Active Yes Yes 25W (typ.) Blue OFF Blanked No No 110VAC < 1W 230VAC < 2W Amber This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

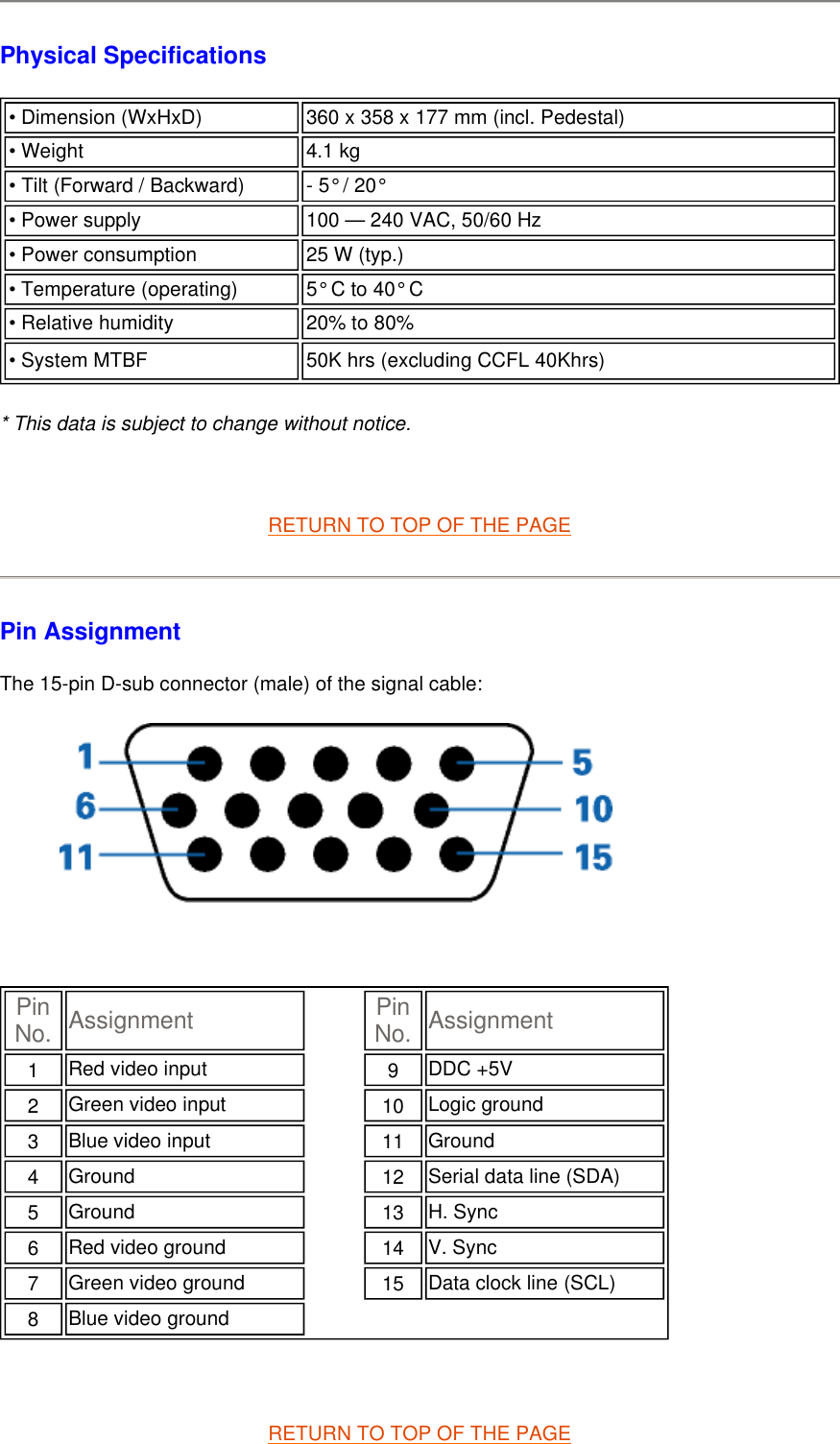

Physical Specifications * This data is subject to change without notice. RETURN TO TOP OF THE PAGE Pin Assignment The 15-pin D-sub connector (male) of the signal cable: RETURN TO TOP OF THE PAGE • Dimension (WxHxD) 360 x 358 x 177 mm (incl. Pedestal) • Weight 4.1 kg• Tilt (Forward / Backward) - 5° / 20°• Power supply 100 — 240 VAC, 50/60 Hz• Power consumption 25 W (typ.)• Temperature (operating) 5° C to 40° C• Relative humidity 20% to 80%• System MTBF 50K hrs (excluding CCFL 40Khrs) Pin No. Assignment Pin No. Assignment1 Red video input 9 DDC +5V 2 Green video input 10 Logic ground3 Blue video input 11 Ground4 Ground 12 Serial data line (SDA)5 Ground 13 H. Sync 6 Red video ground 14 V. Sync7 Green video ground 15 Data clock line (SCL)8 Blue video ground

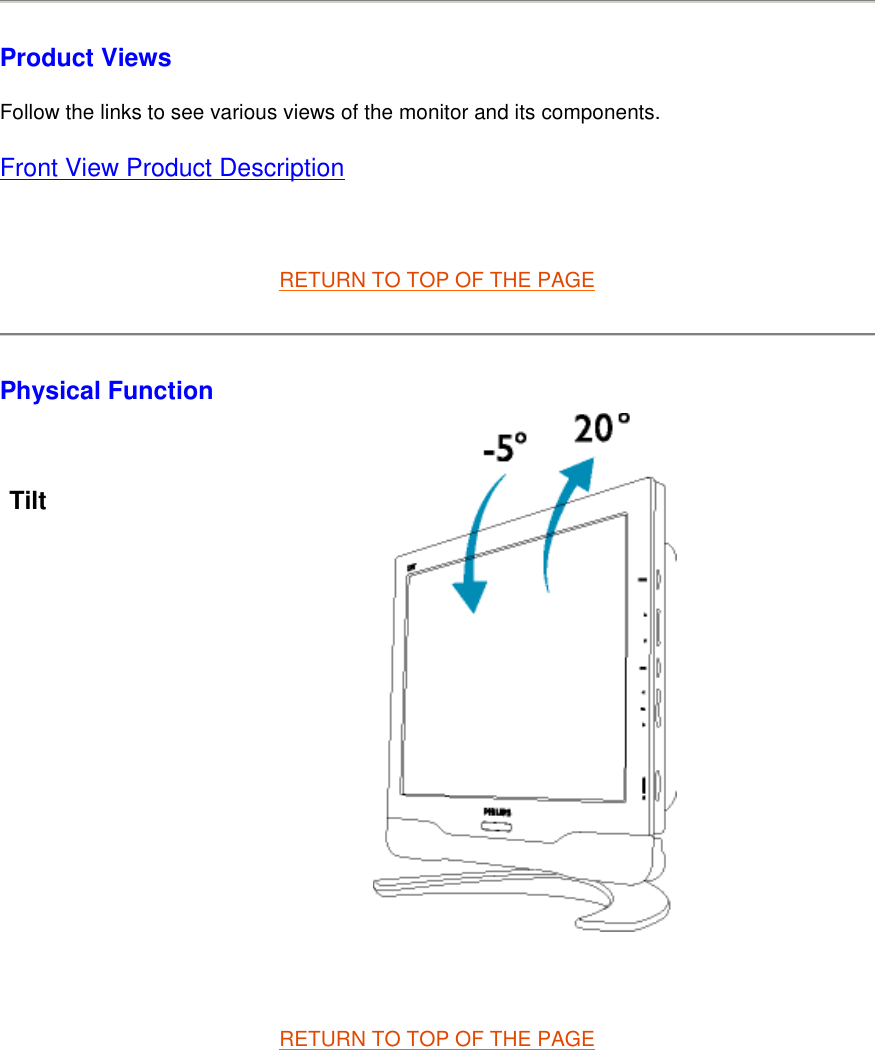

Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function RETURN TO TOP OF THE PAGETilt

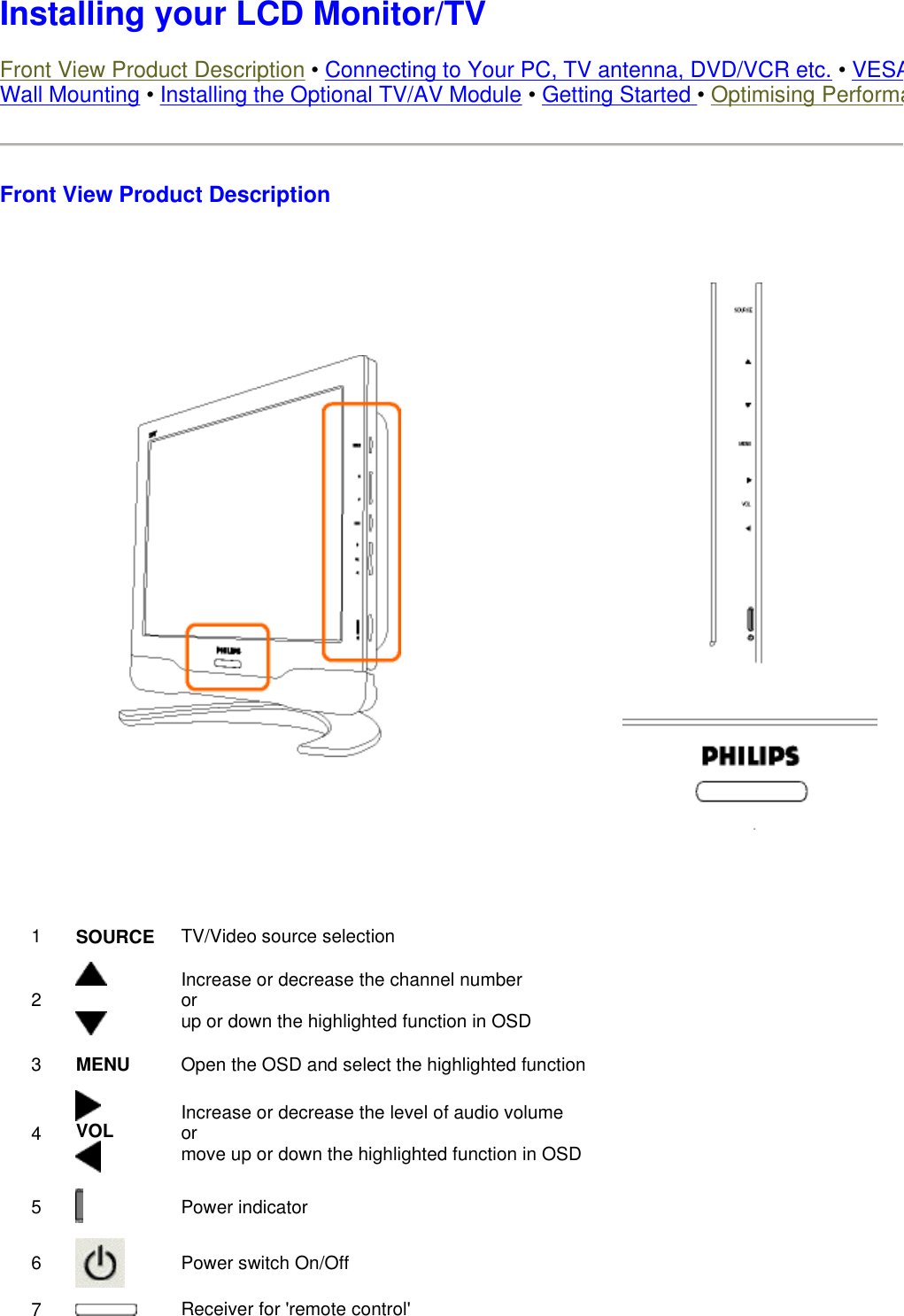

Installing your LCD Monitor/TV Front View Product Description • Connecting to Your PC, TV antenna, DVD/VCR etc. • VESAWall Mounting • Installing the Optional TV/AV Module • Getting Started • Optimising PerformaFront View Product Description 1 SOURCE TV/Video source selection2 Increase or decrease the channel number or up or down the highlighted function in OSD3 MENU Open the OSD and select the highlighted function4 VOL Increase or decrease the level of audio volume or move up or down the highlighted function in OSD5 Power indicator 6 Power switch On/Off7 Receiver for 'remote control'

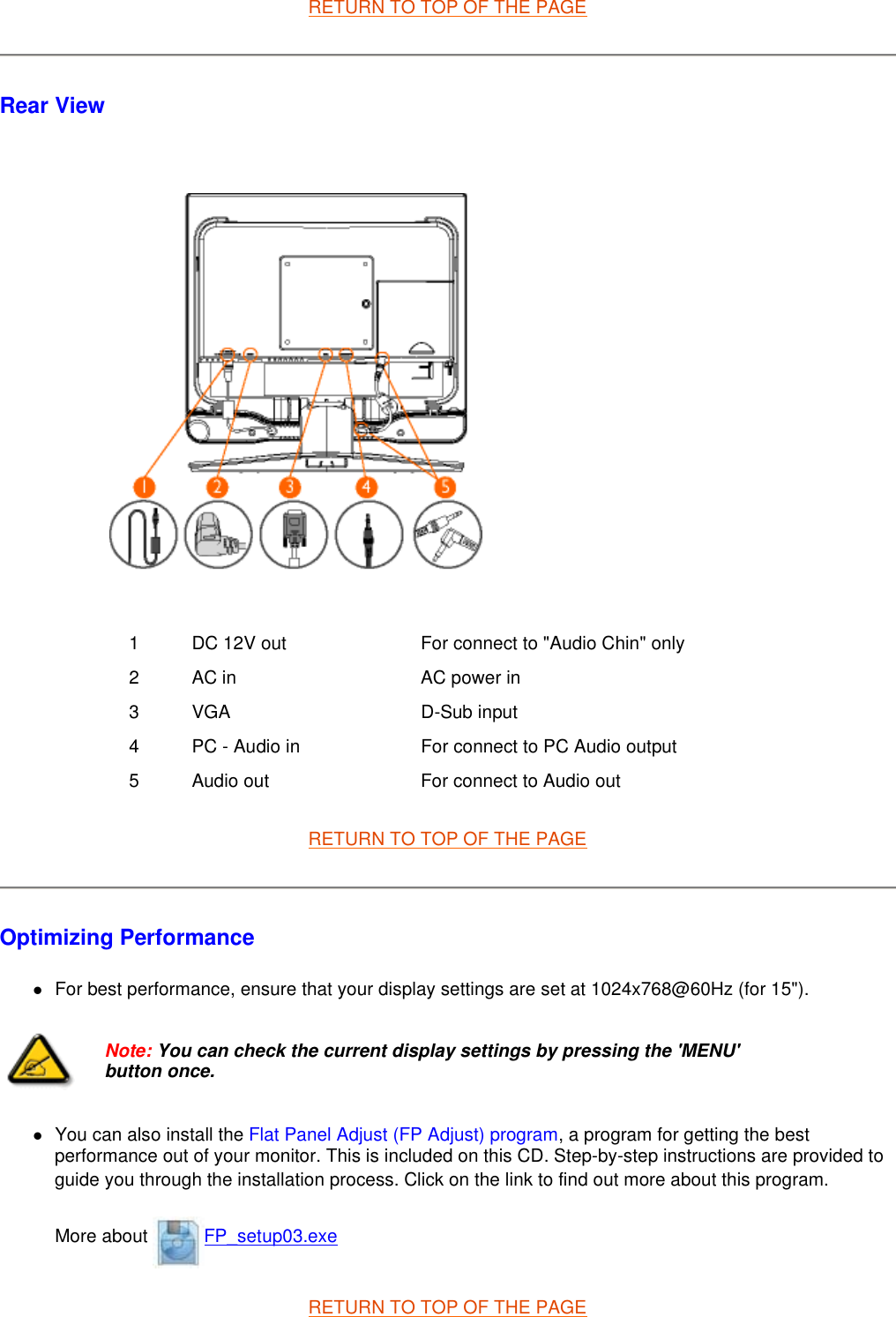

RETURN TO TOP OF THE PAGE Rear View RETURN TO TOP OF THE PAGE Optimizing Performance zFor best performance, ensure that your display settings are set at 1024x768@60Hz (for 15"). zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the installation process. Click on the link to find out more about this program. More about FP_setup03.exe RETURN TO TOP OF THE PAGE 1 DC 12V out For connect to "Audio Chin" only 2 AC in AC power in 3 VGA D-Sub input 4 PC - Audio in For connect to PC Audio output5 Audio out For connect to Audio outNote: You can check the current display settings by pressing the 'MENU' button once.

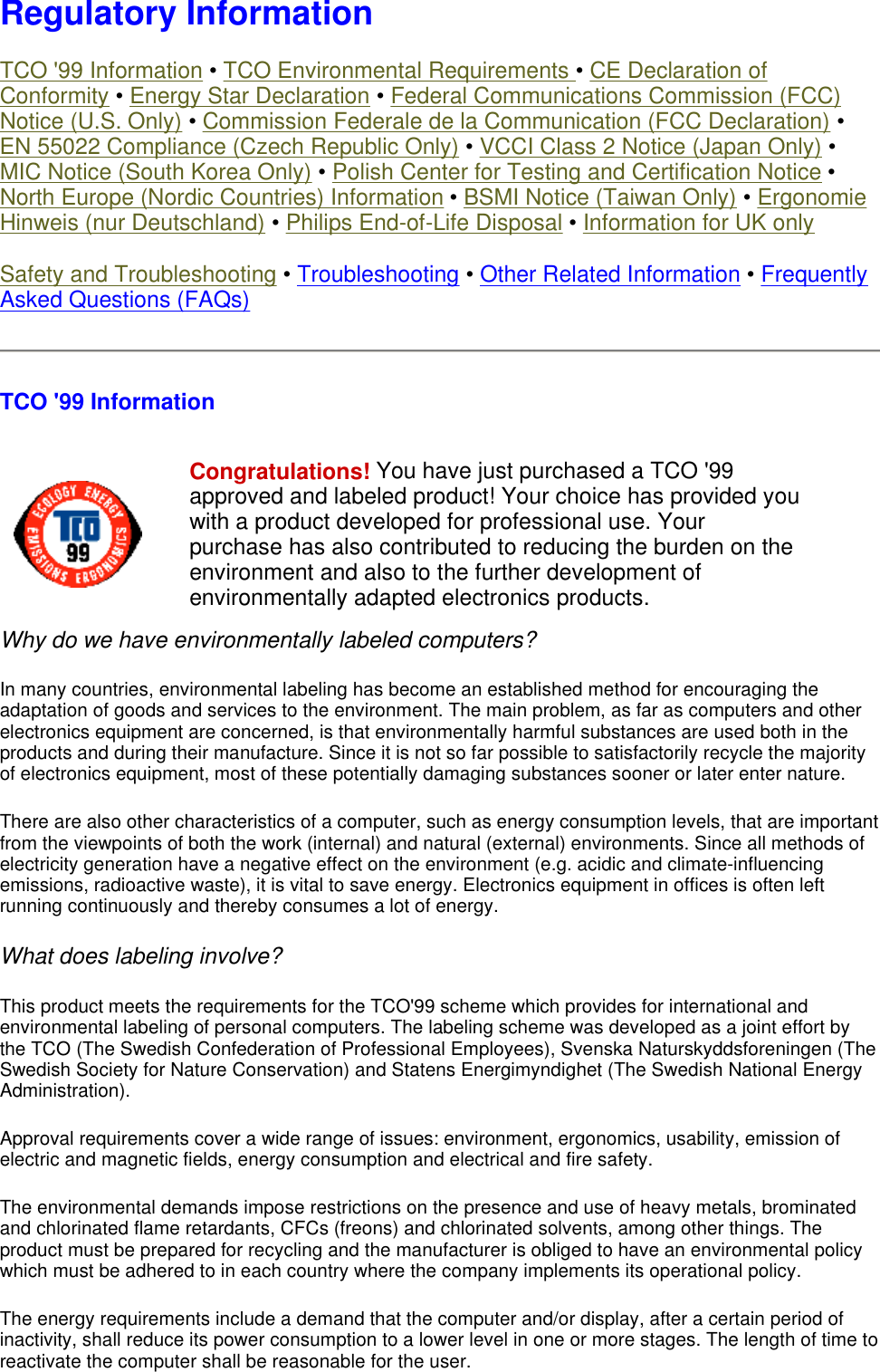

Regulatory Information TCO '99 Information • TCO Environmental Requirements • CE Declaration of Conformity • Energy Star Declaration • Federal Communications Commission (FCC) Notice (U.S. Only) • Commission Federale de la Communication (FCC Declaration) • EN 55022 Compliance (Czech Republic Only) • VCCI Class 2 Notice (Japan Only) • MIC Notice (South Korea Only) • Polish Center for Testing and Certification Notice • North Europe (Nordic Countries) Information • BSMI Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland) • Philips End-of-Life Disposal • Information for UK only Safety and Troubleshooting • Troubleshooting • Other Related Information • Frequently Asked Questions (FAQs) TCO '99 Information Why do we have environmentally labeled computers? In many countries, environmental labeling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy. What does labeling involve? This product meets the requirements for the TCO'99 scheme which provides for international and environmental labeling of personal computers. The labeling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety. The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Congratulations! You have just purchased a TCO '99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

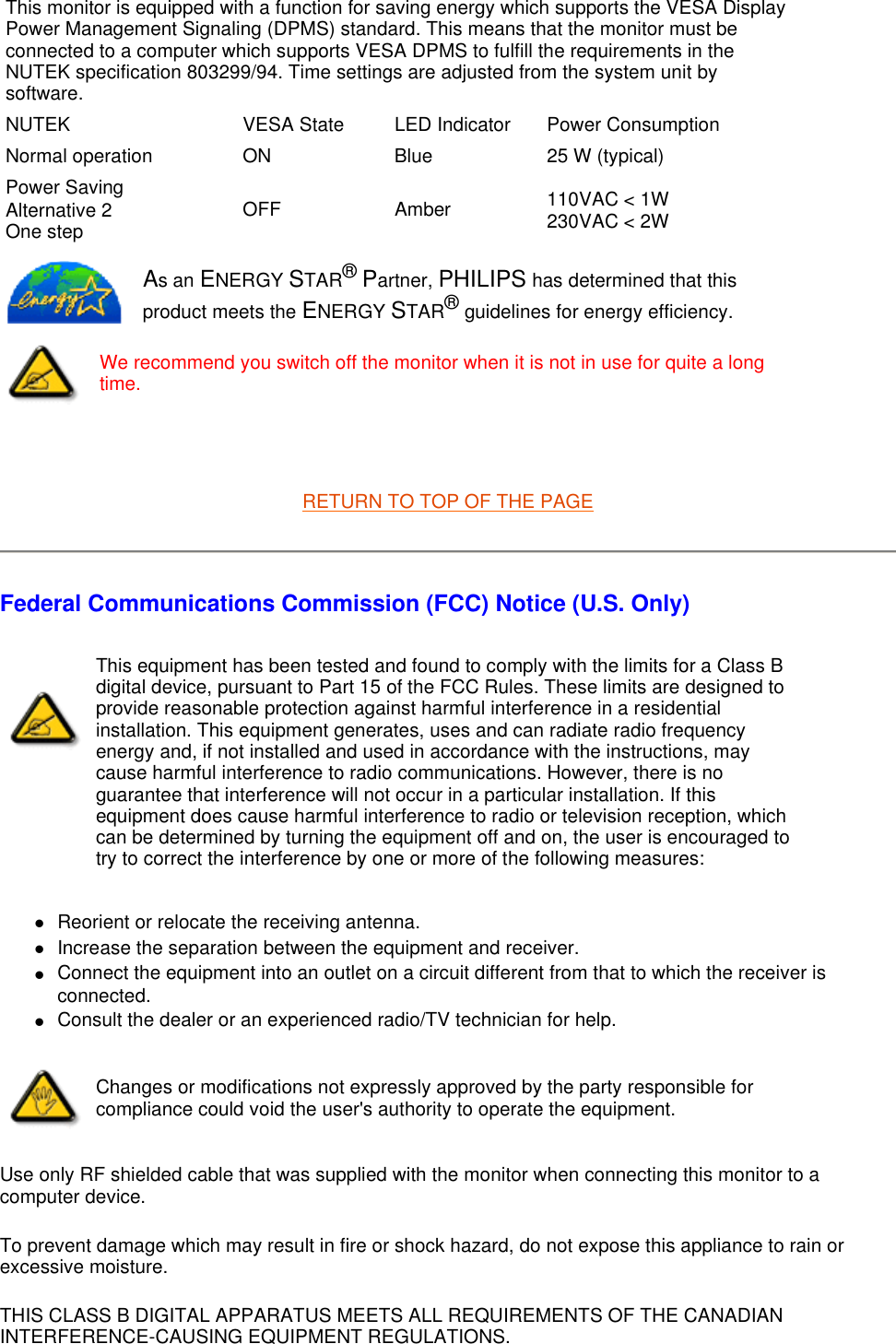

RETURN TO TOP OF THE PAGE Federal Communications Commission (FCC) Notice (U.S. Only) zReorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS. This monitor is equipped with a function for saving energy which supports the VESA Display Power Management Signaling (DPMS) standard. This means that the monitor must be connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK specification 803299/94. Time settings are adjusted from the system unit by software.NUTEK VESA State LED Indicator Power ConsumptionNormal operation ON Blue 25 W (typical)Power Saving Alternative 2 One step OFF Amber 110VAC < 1W 230VAC < 2W As an ENERGY STAR® Partner, PHILIPS has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.We recommend you switch off the monitor when it is not in use for quite a long time.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

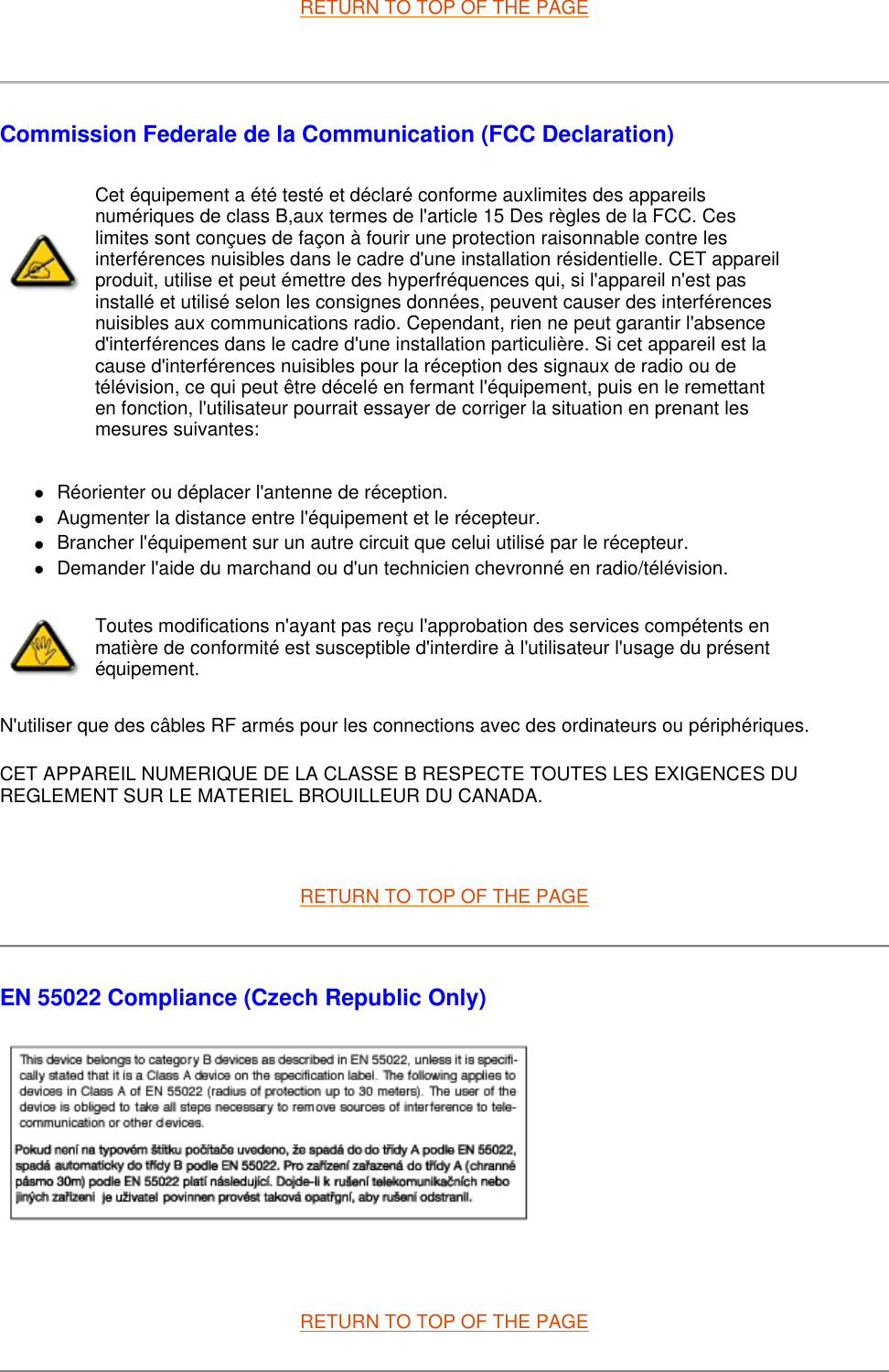

RETURN TO TOP OF THE PAGE Commission Federale de la Communication (FCC Declaration) zRéorienter ou déplacer l'antenne de réception. zAugmenter la distance entre l'équipement et le récepteur. zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur. zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision. N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE EN 55022 Compliance (Czech Republic Only) RETURN TO TOP OF THE PAGE Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues de façon à fourir une protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les mesures suivantes: Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.
