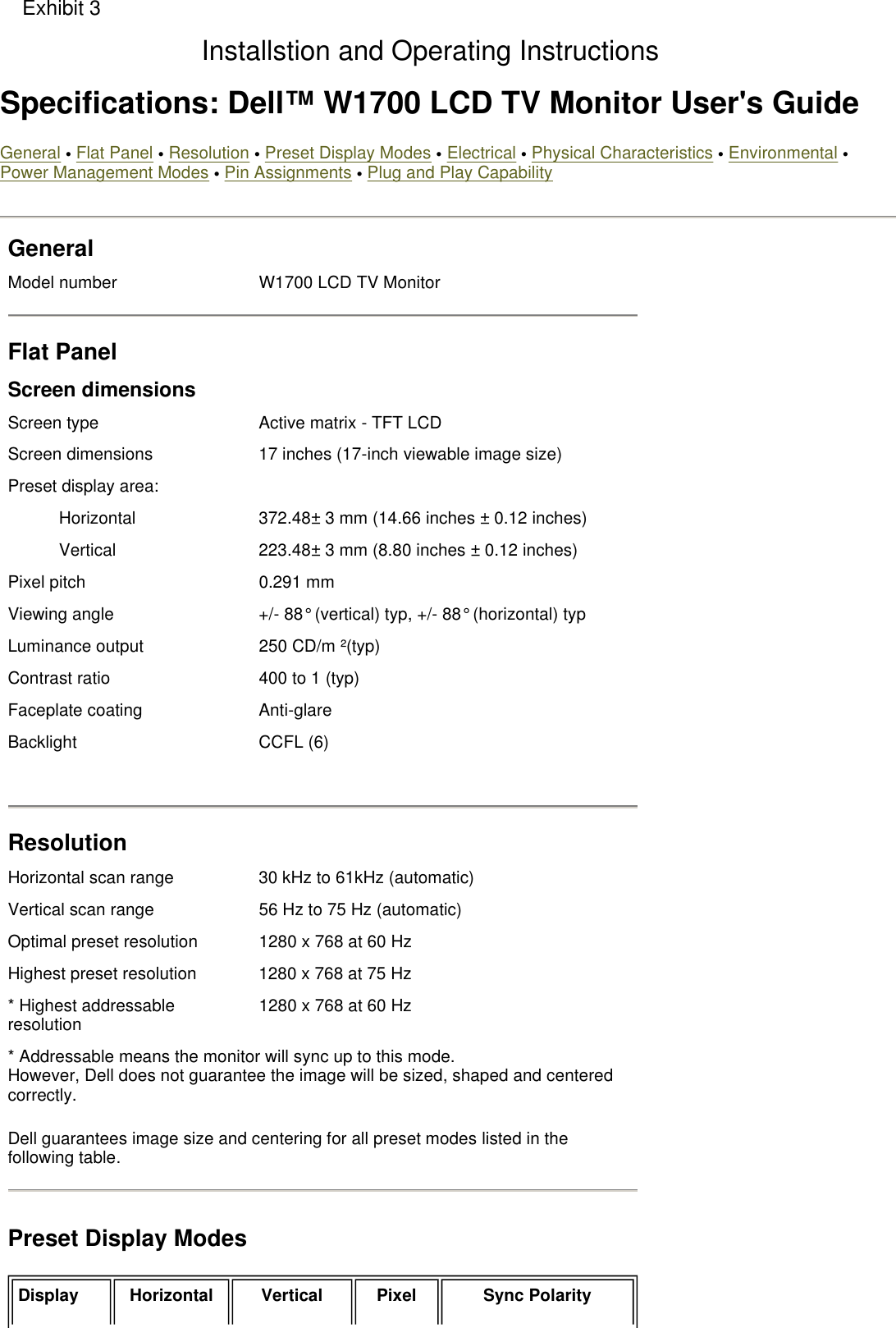

Specifications: Dell™ W1700 LCD TV Monitor User's Guide General • Flat Panel • Resolution • Preset Display Modes • Electrical • Physical Characteristics • Environmental • Power Management Modes • Pin Assignments • Plug and Play Capability General Model number W1700 LCD TV MonitorFlat Panel Screen dimensions Screen type Active matrix - TFT LCDScreen dimensions 17 inches (17-inch viewable image size)Preset display area:Horizontal 372.48± 3 mm (14.66 inches ± 0.12 inches)Vertical 223.48± 3 mm (8.80 inches ± 0.12 inches)Pixel pitch 0.291 mmViewing angle +/- 88° (vertical) typ, +/- 88° (horizontal) typ Luminance output 250 CD/m ²(typ) Contrast ratio 400 to 1 (typ) Faceplate coating Anti-glare Backlight CCFL (6) Resolution Horizontal scan range 30 kHz to 61kHz (automatic)Vertical scan range 56 Hz to 75 Hz (automatic)Optimal preset resolution 1280 x 768 at 60 HzHighest preset resolution 1280 x 768 at 75 Hz* Highest addressable resolution 1280 x 768 at 60 Hz * Addressable means the monitor will sync up to this mode. However, Dell does not guarantee the image will be sized, shaped and centered correctly. Dell guarantees image size and centering for all preset modes listed in the following table. Preset Display Modes Display Horizontal Vertical Pixel Sync Polarity Exhibit 3Installstion and Operating Instructions

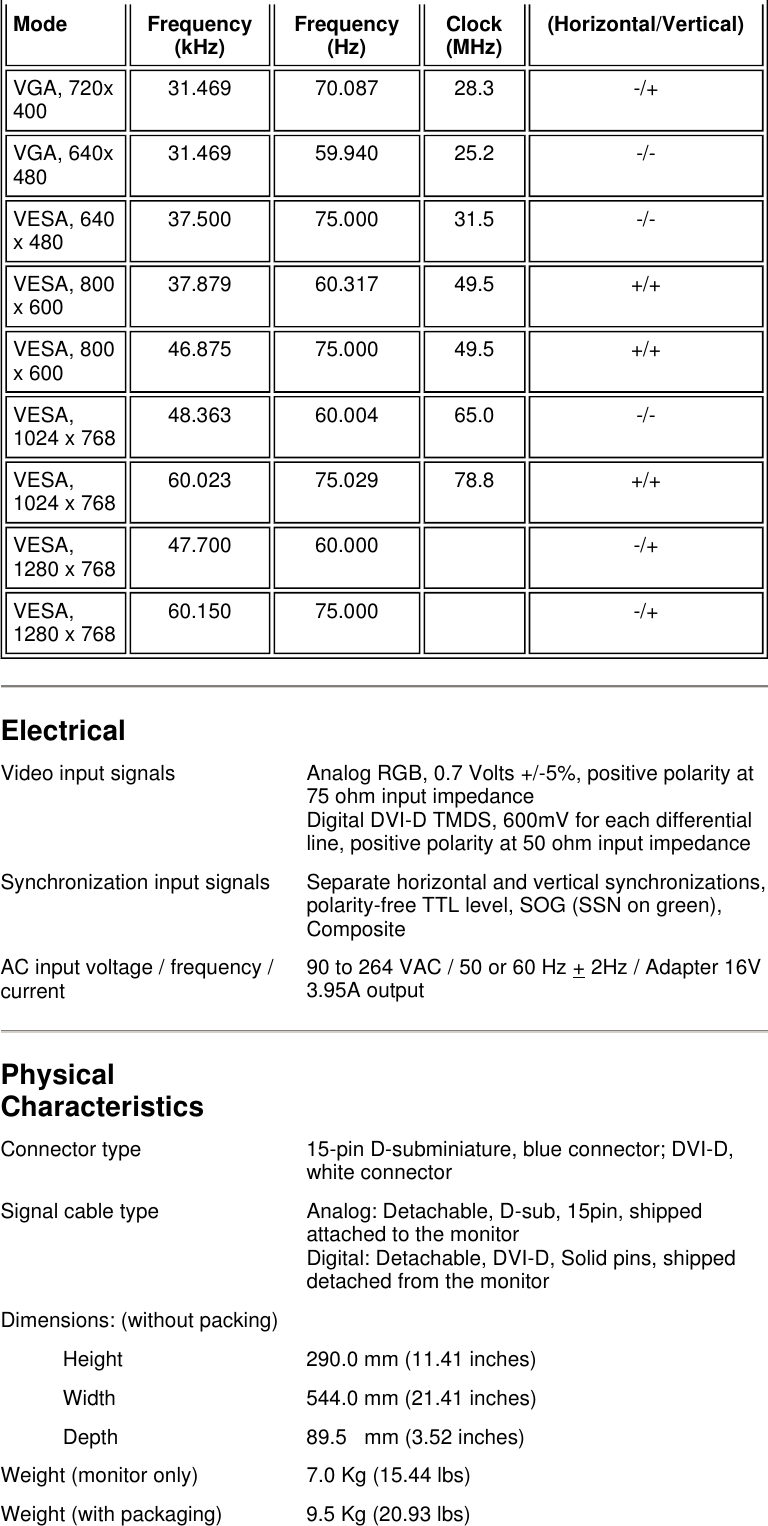

Mode Frequency (kHz) Frequency (Hz) Clock (MHz) (Horizontal/Vertical)VGA, 720x 400 31.469 70.087 28.3 -/+VGA, 640x 480 31.469 59.940 25.2 -/-VESA, 640 x 480 37.500 75.000 31.5 -/-VESA, 800 x 600 37.879 60.317 49.5 +/+VESA, 800 x 600 46.875 75.000 49.5 +/+VESA, 1024 x 768 48.363 60.004 65.0 -/-VESA, 1024 x 768 60.023 75.029 78.8 +/+VESA, 1280 x 768 47.700 60.000 -/+VESA, 1280 x 768 60.150 75.000 -/+Electrical Video input signals Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance Digital DVI-D TMDS, 600mV for each differential line, positive polarity at 50 ohm input impedanceSynchronization input signals Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (SSN on green), CompositeAC input voltage / frequency / current 90 to 264 VAC / 50 or 60 Hz + 2Hz / Adapter 16V 3.95A output Physical Characteristics Connector type 15-pin D-subminiature, blue connector; DVI-D, white connectorSignal cable type Analog: Detachable, D-sub, 15pin, shipped attached to the monitor Digital: Detachable, DVI-D, Solid pins, shipped detached from the monitorDimensions: (without packing)Height 290.0 mm (11.41 inches)Width 544.0 mm (21.41 inches)Depth 89.5 mm (3.52 inches)Weight (monitor only) 7.0 Kg (15.44 lbs)Weight (with packaging) 9.5 Kg (20.93 lbs)

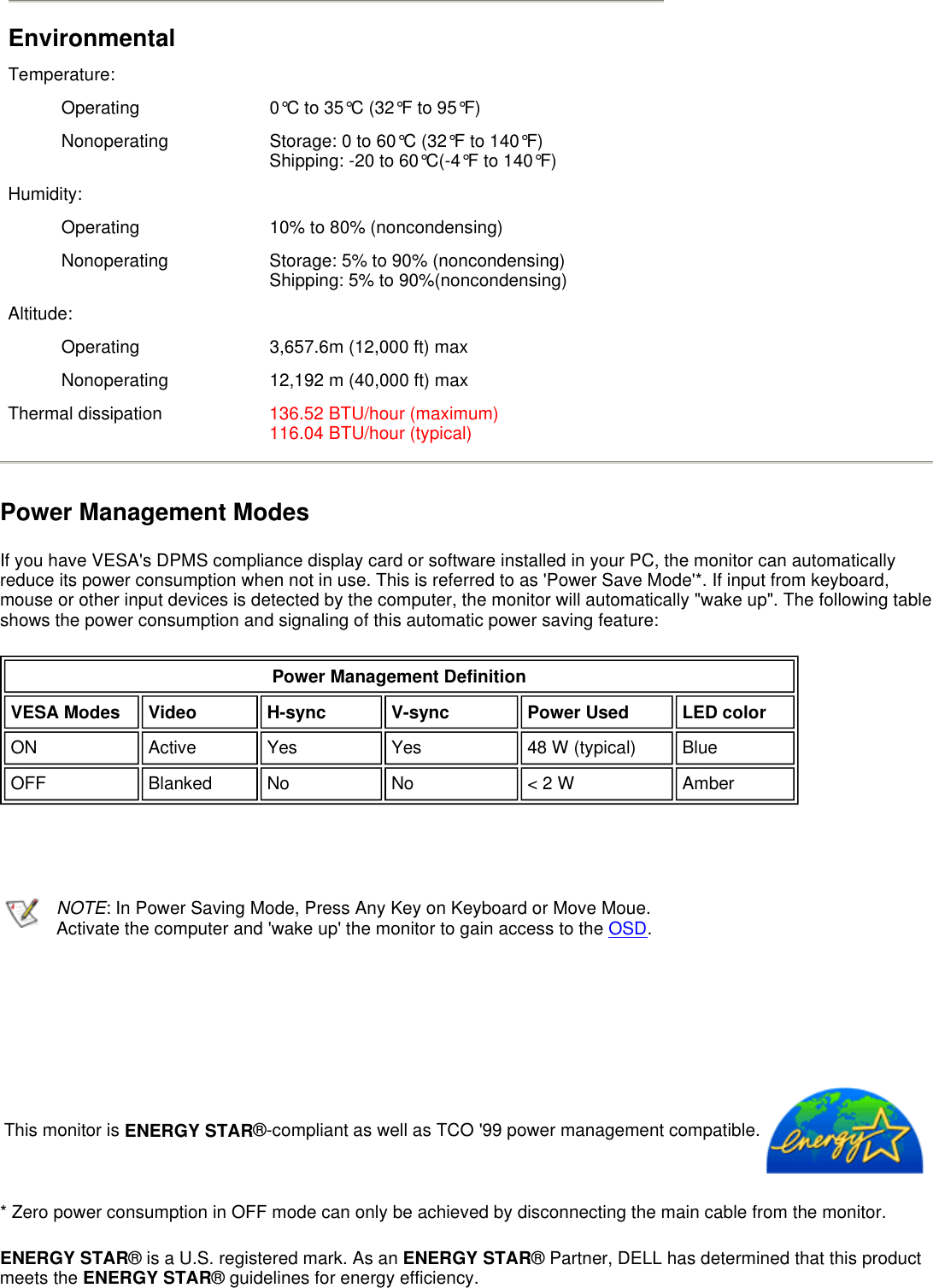

Power Management Modes If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as 'Power Save Mode'*. If input from keyboard, mouse or other input devices is detected by the computer, the monitor will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving feature: * Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor. ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, DELL has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Environmental Temperature:Operating 0°C to 35°C (32°F to 95°F)Nonoperating Storage: 0 to 60°C (32°F to 140°F) Shipping: -20 to 60°C(-4°F to 140°F)Humidity:Operating 10% to 80% (noncondensing)Nonoperating Storage: 5% to 90% (noncondensing) Shipping: 5% to 90%(noncondensing)Altitude:Operating 3,657.6m (12,000 ft) maxNonoperating 12,192 m (40,000 ft) maxThermal dissipation 136.52 BTU/hour (maximum) 116.04 BTU/hour (typical)Power Management Definition VESA Modes Video H-sync V-sync Power Used LED colorON Active Yes Yes 48 W (typical) BlueOFF Blanked No No < 2 W AmberNOTE: In Power Saving Mode, Press Any Key on Keyboard or Move Moue. Activate the computer and 'wake up' the monitor to gain access to the OSD. This monitor is ENERGY STAR®-compliant as well as TCO '99 power management compatible.

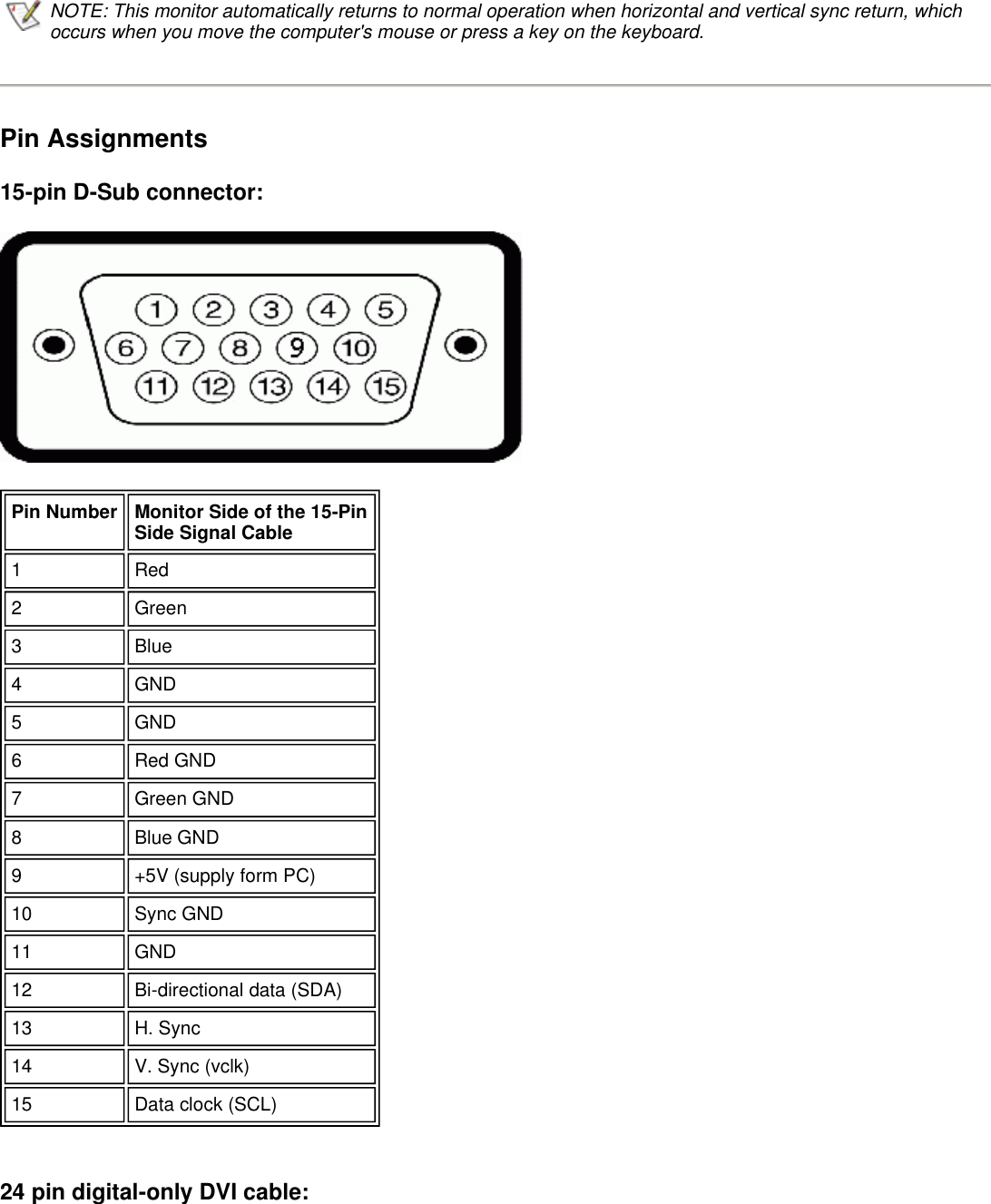

Pin Assignments 15-pin D-Sub connector: 24 pin digital-only DVI cable: NOTE: This monitor automatically returns to normal operation when horizontal and vertical sync return, which occurs when you move the computer's mouse or press a key on the keyboard.Pin Number Monitor Side of the 15-Pin Side Signal Cable1Red 2Green 3Blue 4GND5GND6Red GND7Green GND8Blue GND9+5V (supply form PC)10 Sync GND 11 GND12 Bi-directional data (SDA)13 H. Sync 14 V. Sync (vclk)15 Data clock (SCL)

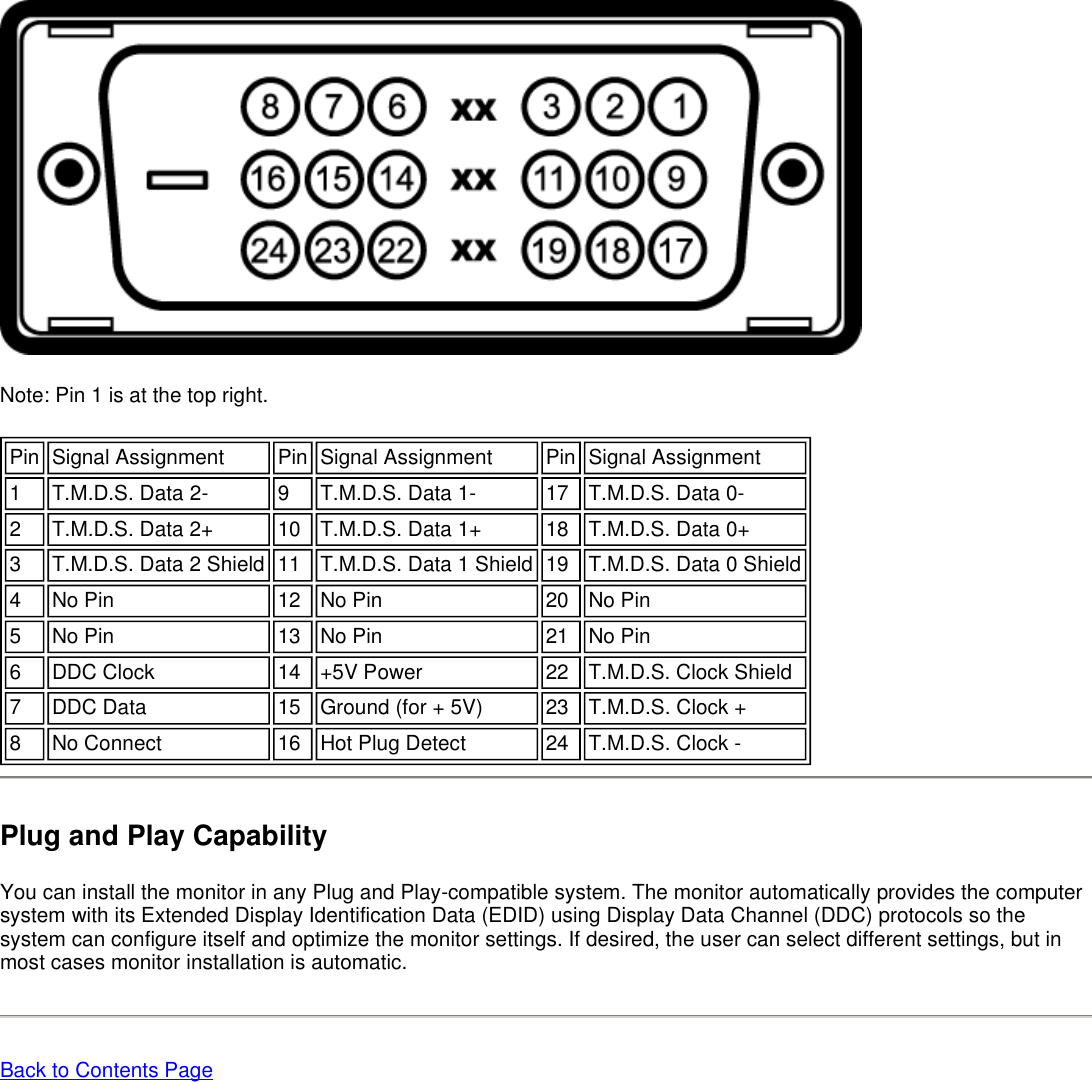

Note: Pin 1 is at the top right. Plug and Play Capability You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. If desired, the user can select different settings, but in most cases monitor installation is automatic. Back to Contents Page Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment1T.M.D.S. Data 2- 9T.M.D.S. Data 1- 17 T.M.D.S. Data 0-2T.M.D.S. Data 2+ 10 T.M.D.S. Data 1+ 18 T.M.D.S. Data 0+3T.M.D.S. Data 2 Shield 11 T.M.D.S. Data 1 Shield 19 T.M.D.S. Data 0 Shield4No Pin 12 No Pin 20 No Pin5No Pin 13 No Pin 21 No Pin6DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7DDC Data 15 Ground (for + 5V) 23 T.M.D.S. Clock +8No Connect 16 Hot Plug Detect 24 T.M.D.S. Clock -

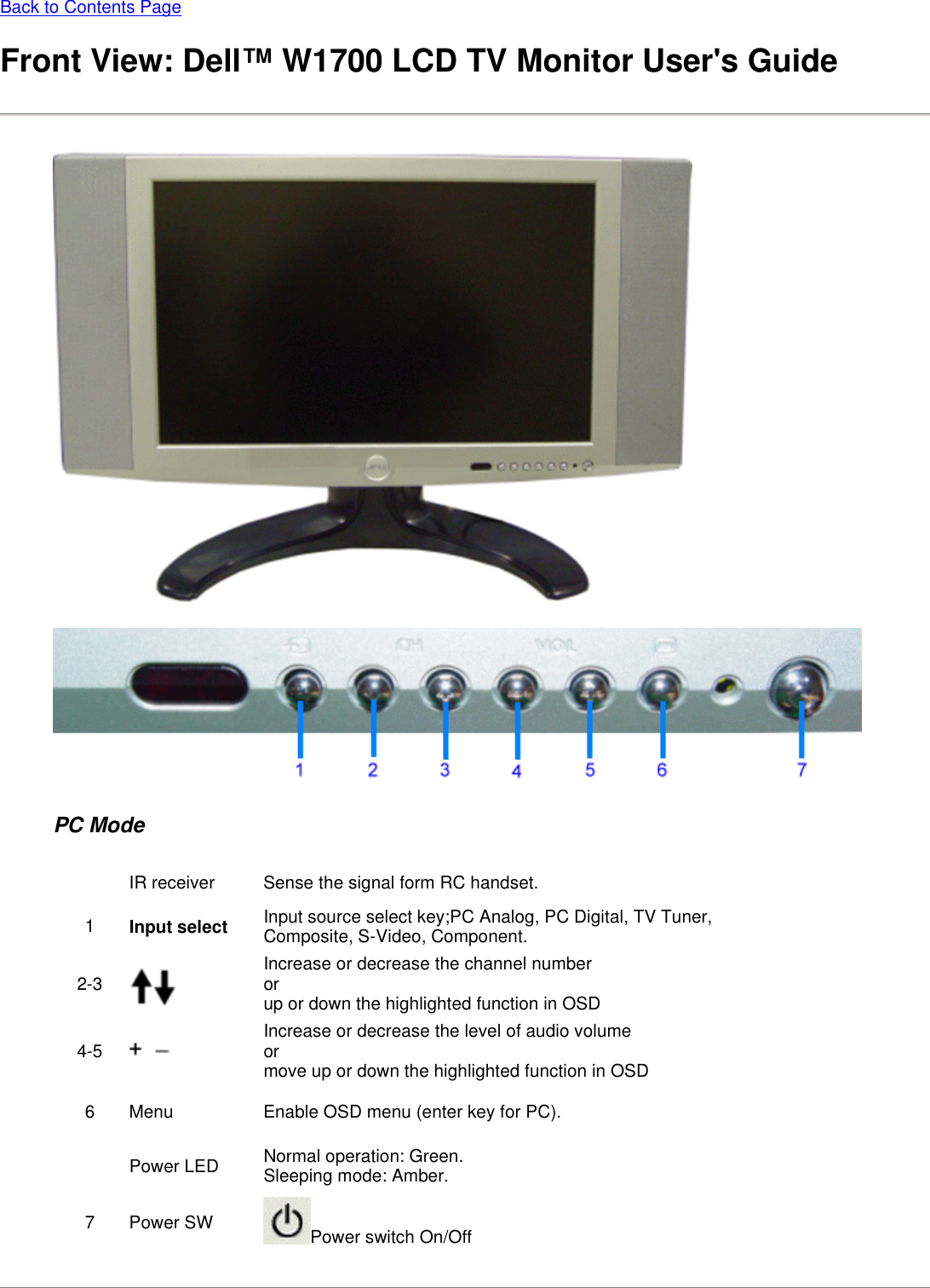

Back to Contents Page Front View: Dell™ W1700 LCD TV Monitor User's Guide PC Mode IR receiver Sense the signal form RC handset.1 Input select Input source select key;PC Analog, PC Digital, TV Tuner, Composite, S-Video, Component.2-3 Increase or decrease the channel number or up or down the highlighted function in OSD4-5 Increase or decrease the level of audio volume or move up or down the highlighted function in OSD6 Menu Enable OSD menu (enter key for PC).Power LED Normal operation: Green. Sleeping mode: Amber.7 Power SW Power switch On/Off

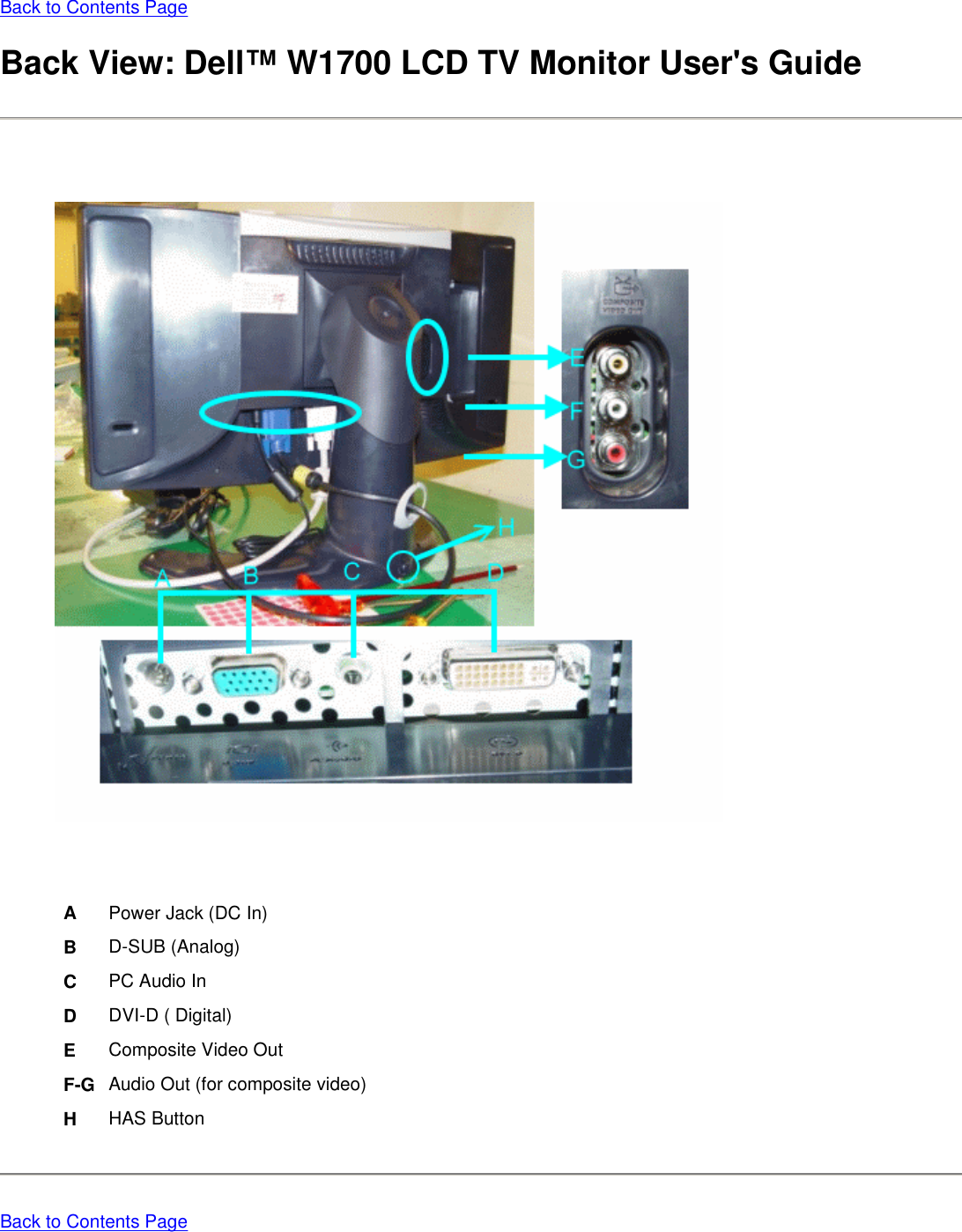

Back to Contents Page Back View: Dell™ W1700 LCD TV Monitor User's Guide Back to Contents Page APower Jack (DC In)BD-SUB (Analog)CPC Audio InDDVI-D ( Digital)EComposite Video OutF-G Audio Out (for composite video)HHAS Button

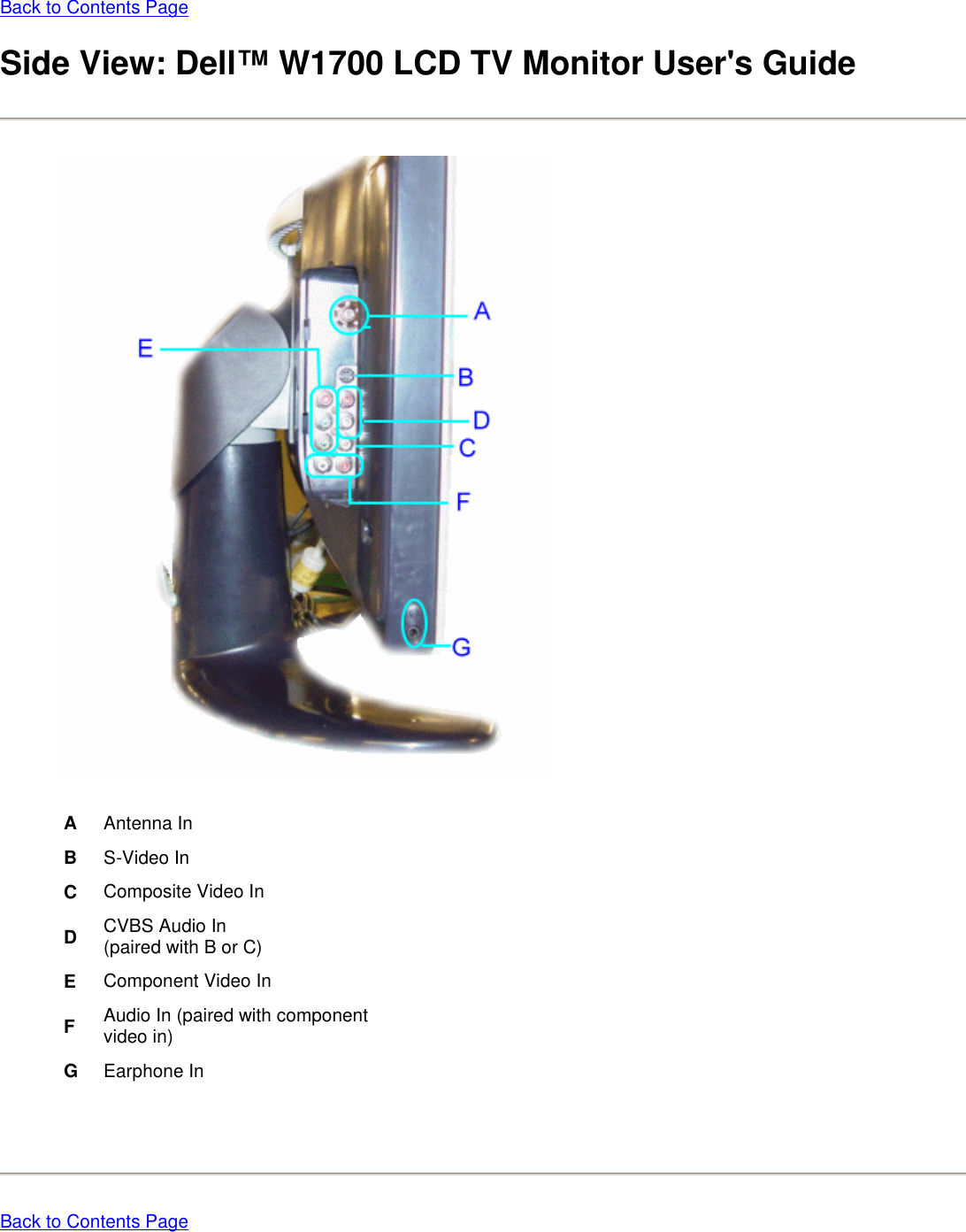

Back to Contents Page Side View: Dell™ W1700 LCD TV Monitor User's Guide Back to Contents Page AAntenna In BS-Video InCComposite Video InDCVBS Audio In (paired with B or C)EComponent Video InFAudio In (paired with component video in)GEarphone In

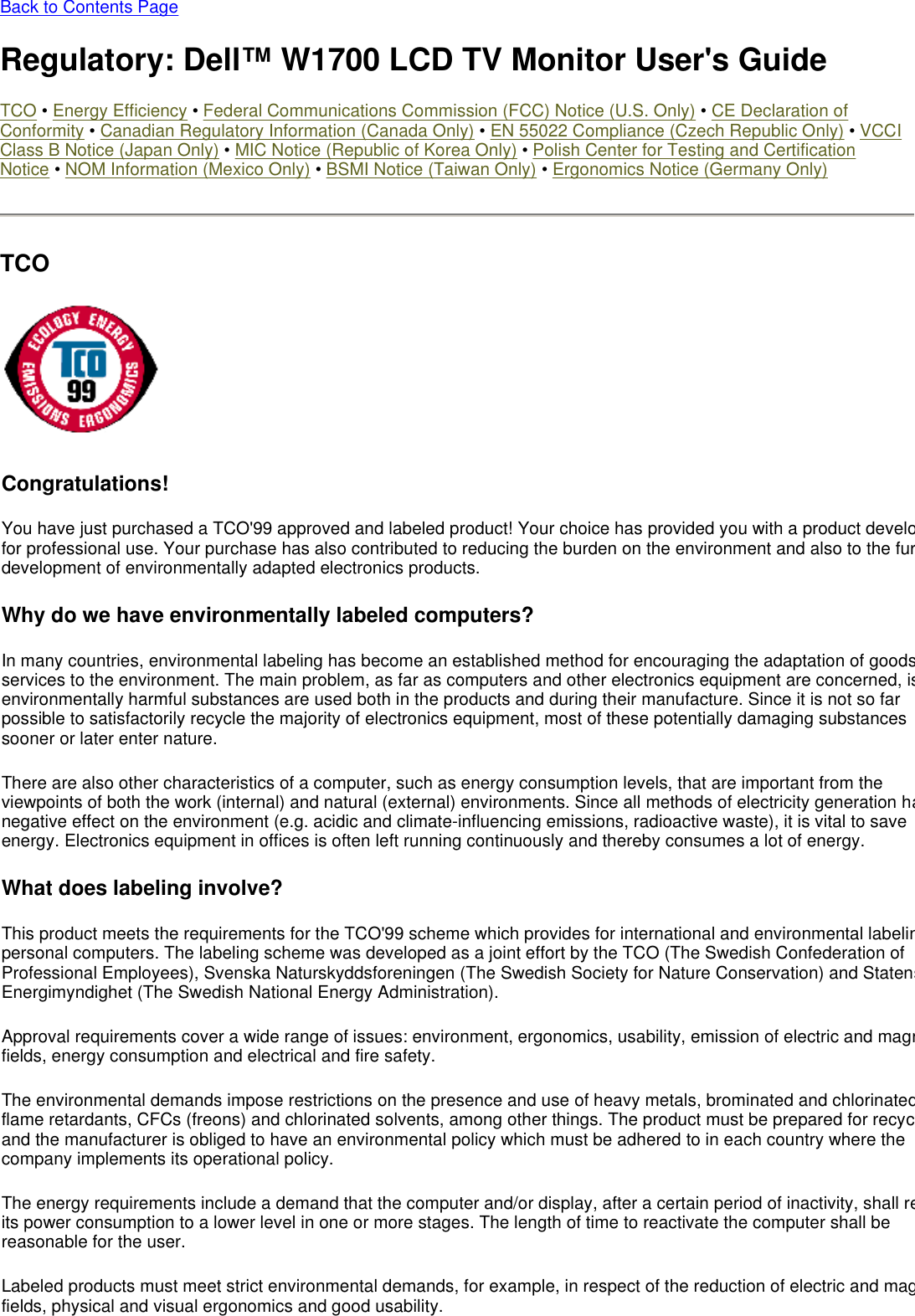

Back to Contents Page Regulatory: Dell™ W1700 LCD TV Monitor User's Guide TCO • Energy Efficiency • Federal Communications Commission (FCC) Notice (U.S. Only) • CE Declaration of Conformity • Canadian Regulatory Information (Canada Only) • EN 55022 Compliance (Czech Republic Only) • VCCI Class B Notice (Japan Only) • MIC Notice (Republic of Korea Only) • Polish Center for Testing and Certification Notice • NOM Information (Mexico Only) • BSMI Notice (Taiwan Only) • Ergonomics Notice (Germany Only) TCO Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product develofor professional use. Your purchase has also contributed to reducing the burden on the environment and also to the furdevelopment of environmentally adapted electronics products. Why do we have environmentally labeled computers? In many countries, environmental labeling has become an established method for encouraging the adaptation of goodsservices to the environment. The main problem, as far as computers and other electronics equipment are concerned, isenvironmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation hanegative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy. What does labeling involve? This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelinpersonal computers. The labeling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and StatensEnergimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnfields, energy consumption and electrical and fire safety. The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinatedflame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycand the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reits power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Labeled products must meet strict environmental demands, for example, in respect of the reduction of electric and magfields, physical and visual ergonomics and good usability.

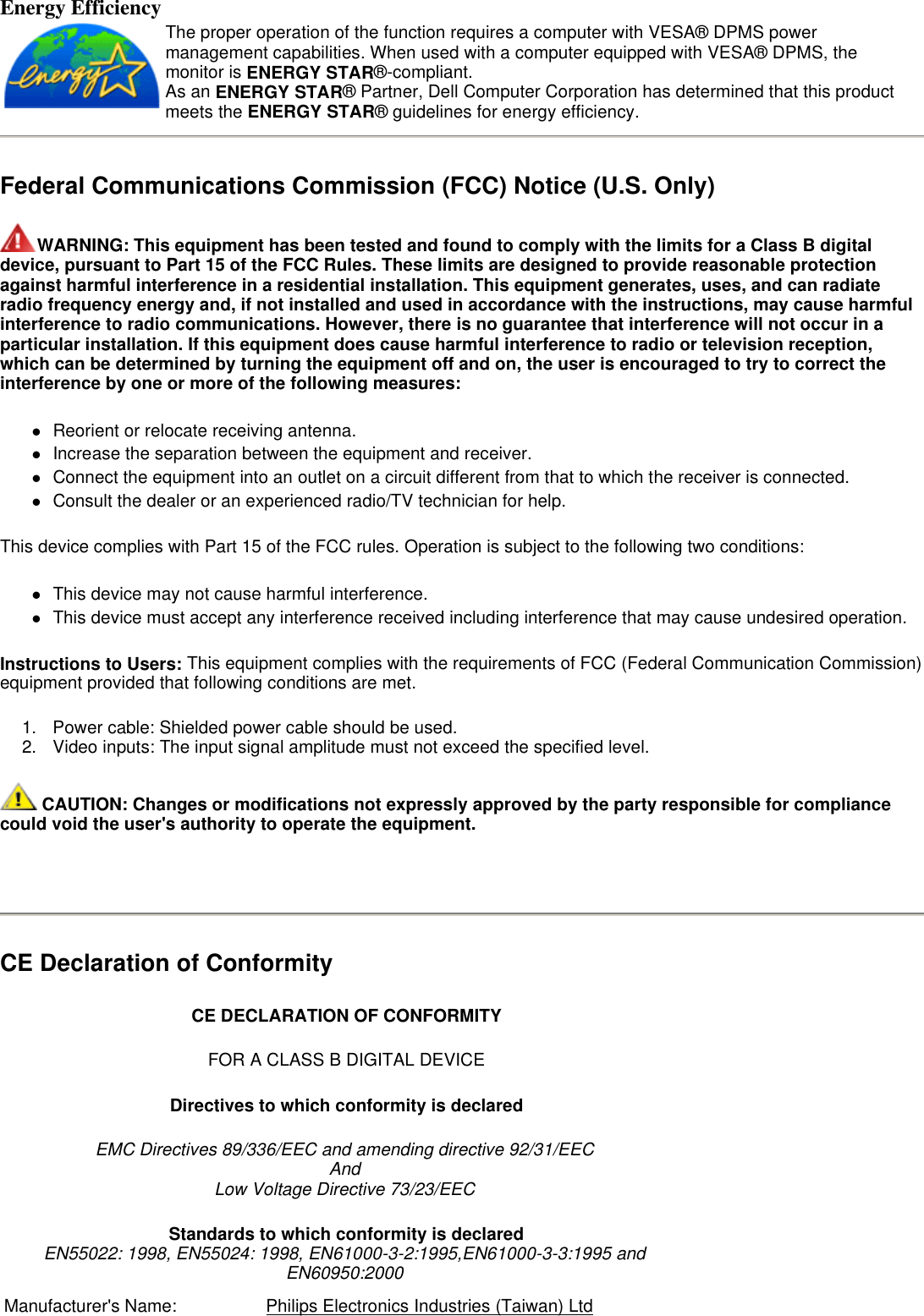

Energy Efficiency Federal Communications Commission (FCC) Notice (U.S. Only) WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: zThis device may not cause harmful interference. zThis device must accept any interference received including interference that may cause undesired operation. Instructions to Users: This equipment complies with the requirements of FCC (Federal Communication Commission) equipment provided that following conditions are met. 1. Power cable: Shielded power cable should be used. 2. Video inputs: The input signal amplitude must not exceed the specified level. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CE Declaration of Conformity The proper operation of the function requires a computer with VESA® DPMS power management capabilities. When used with a computer equipped with VESA® DPMS, the monitor is ENERGY STAR®-compliant. As an ENERGY STAR® Partner, Dell Computer Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. CE DECLARATION OF CONFORMITY FOR A CLASS B DIGITAL DEVICE Directives to which conformity is declared EMC Directives 89/336/EEC and amending directive 92/31/EEC And Low Voltage Directive 73/23/EEC Standards to which conformity is declared EN55022: 1998, EN55024: 1998, EN61000-3-2:1995,EN61000-3-3:1995 and EN60950:2000 Manufacturer's Name: Philips Electronics Industries (Taiwan) Ltd
