Philips Electronics M128 LCD Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd LCD Monitor
User Manual
Product Information
Product Features
150S5
zBest Total Cost of Ownership solution
{Lower power consumption-- savings 20 percent above the industry average
{Kensington anti-thief lock-ready for added security
zOutstanding front of screen performance
{Accurate color displaying and great detail with high resolution 1024 x 768 XGA
{Get the job done quicker with fast response time
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 15" visual
• Pixel Pitch 0.297 x 0.297 mm
• LCD Panel type 1024 x 768 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 304.1 x 228.1 mm
• Display Colors 16.7M colors
SCANNING
Vertical refresh rate 56 Hz-76 Hz
Horizontal Frequency 31 kHz-82 kHz
VIDEO
• Video dot rate 80 MHz
• Input impedance
- Video 75 ohm
- Sync 2K ohm
• Input signal levels 700m Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
• Input Frequency XGA Hsync 48- 61 kHz, Vsync 60 - 76 Hz (N.I.)
SVGA Hsync 35- 50 kHz, Vsync 56 - 75 Hz (N.I.)
VGA Hsync 31- 38 kHz, Vsync 60 - 76 Hz (N.I.)
• Video interface Analog (D-Sub)
Page 1 of 5
Exhibit 3
Installstion and Operating Instructions
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
Optical characteristics
• Contrast ratio 400:1 (typ.)
• Brightness 250 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
x: 0.313 y: 0.329 (at sRGB)
• Viewing Angle (C/R>10)
Upper >45° (typ.)
Lower >55° (typ.)
Left >65° (typ.)
Right >65° (typ.)
• Response time <16 ms (typ.)
sRGB
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.
digital cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB
compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors
are calibrated and you can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to
a predefined setting as well as the color gamut. Therefore it is important to select the sRGB
setting in the monitor's OSD.
To do so, open the OSD by pressing the OK button on the front of your monitor. Use the
down button to go to Adjust Color and press OK again. Then move the down button to go to
sRGB and press OK again.
Exit this OSD.
After this, please do not change the brightness or contrast setting of your monitor. If you
change either of these, the monitor will exit the sRGB mode and go to a color temperature
setting of 6500K.
For more information on sRGB, please visit: www.srgb.com
• Maximum 1024 x 768 at 75 Hz
• Recommended 1024 x 768 at 60 Hz
14 user definable modes
14 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.469 640*350 70.086
Product Information
Page 2 of 5
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
RETURN TO TOP OF THE PAGE
Physical Specifications
31.469 720*400 70.087
31.469 640*480 59.940
35.000 640*480 67.000
37.861 640*480 72.809
37.500 640*480 75.000
35.156 800*600 56.250
37.879 800*600 60.317
48.077 800*600 72.188
46.875 800*600 75.000
49.700 832*624 75.000
48.363 1024*768 60.004
56.476 1024*768 70.069
60.023 1024*768 75.029
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
ON Active Yes Yes < 20 W Green
OFF Blanked No No < 1 W Amber
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
• Dimension (WxHxD) * 342 x 364 x 170 mm (incl. Pedestal)
• Weight 3.6 Kg
• Tilt -5° ~ 25°
Product Information
Page 3 of 5
* This data is subject to change without notice.
* Resolution 1024x768, standard size, brightness max., contrast 50%, full white pattern, without
audio/USB.
RETURN TO TOP OF THE PAGE

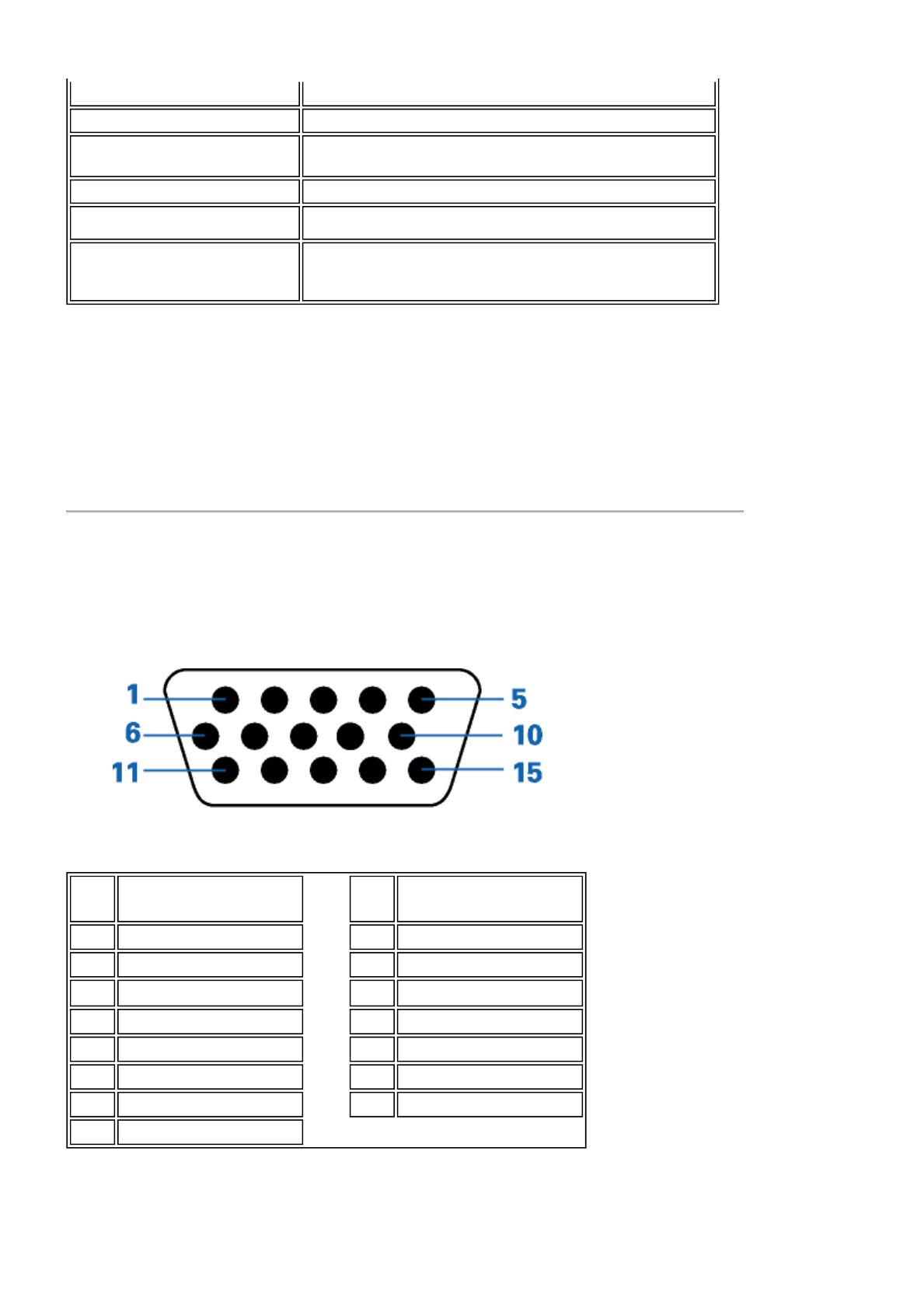

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable:
RETURN TO TOP OF THE PAGE
• Power supply 100 — 240 VAC, 50/60 Hz
• Power consumption 18 W* (typ.)
• Temperature 5° C to 40° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hours (CCFL 30K hours)
• Cabinet color 150S5FG: Light Gray
150S5FB: Black
150S5FS: Silver
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 DDC +5V
2 Green video input/SOG 10 Logic ground
3 Blue video input 11 Ground
4 Ground 12 Serial data line (SDA)
5 Cable detect 13 H. Sync / H+V
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
Product Information
Page 4 of 5
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
RETURN TO TOP OF THE PAGE

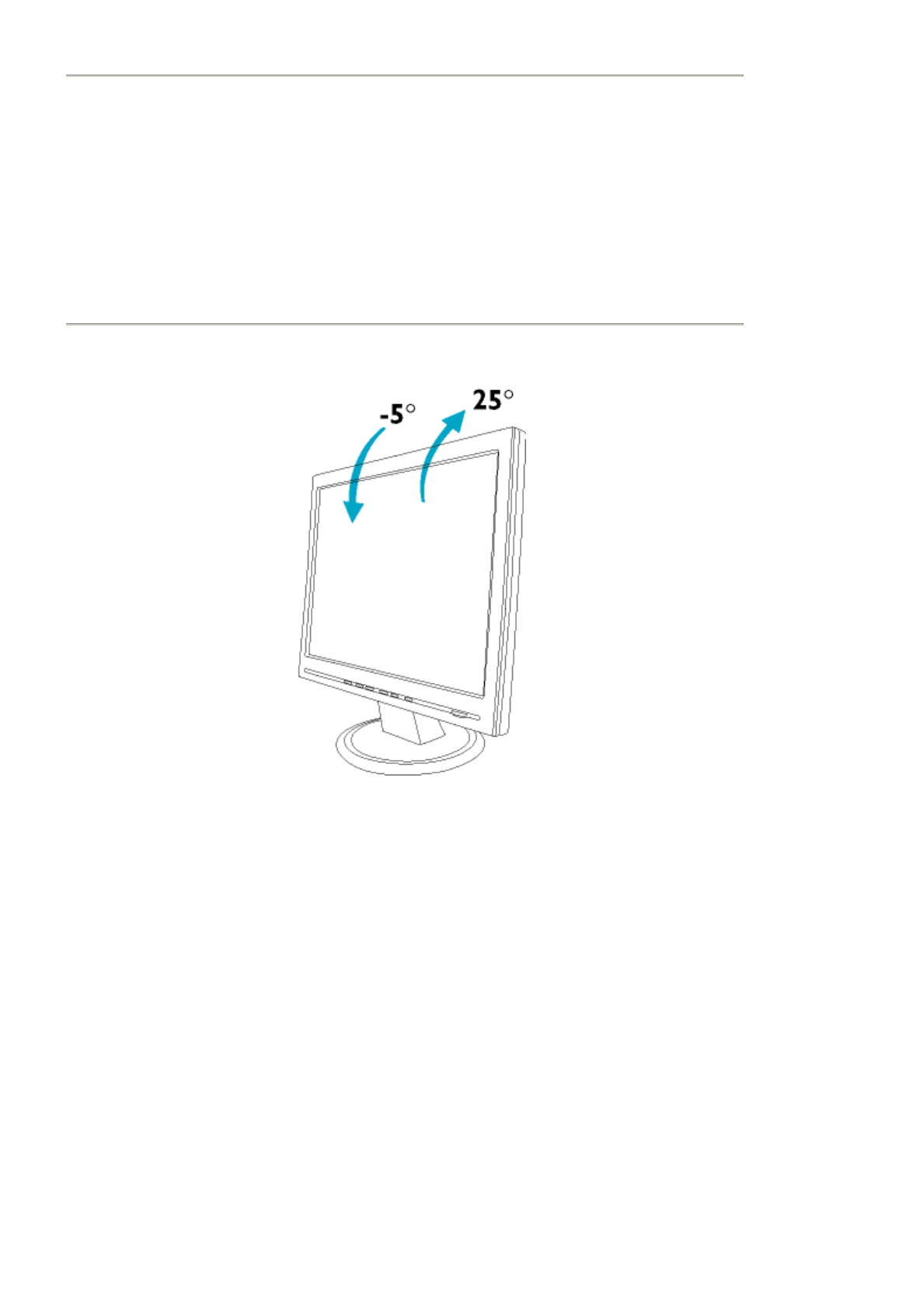

1) Tilt
Product Information
Page 5 of 5
Installing Your LCD Monitor
Front View Product Description
RETURN TO TOP OF THE PAGE
Rear View
UP and DOWN buttons are used when adjusting the OSD of your
monitor.
LEFT and RIGHT buttons, like the UP and DOWN buttons, are also
used in adjusting the OSD of your monitor.
BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are
pressed, the adjustment controls for the BRIGHTNESS will show
up.
OK button which when pressed will take you to the OSD controls.
POWER button switches your monitor on.
Automatically adjust the horizontal position, vertical position, phase
and clock setting.
Installing Your LCD Monitor
Page 1 of 2
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1024x768, 60Hz.
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the
best performance out of your monitor. This is included on this CD. Step-by-step instructions
are provided to guide you through the installtion process. Click on the link to know more
about this program.
More about FP_setup04.exe
RETURN TO TOP OF THE PAGE

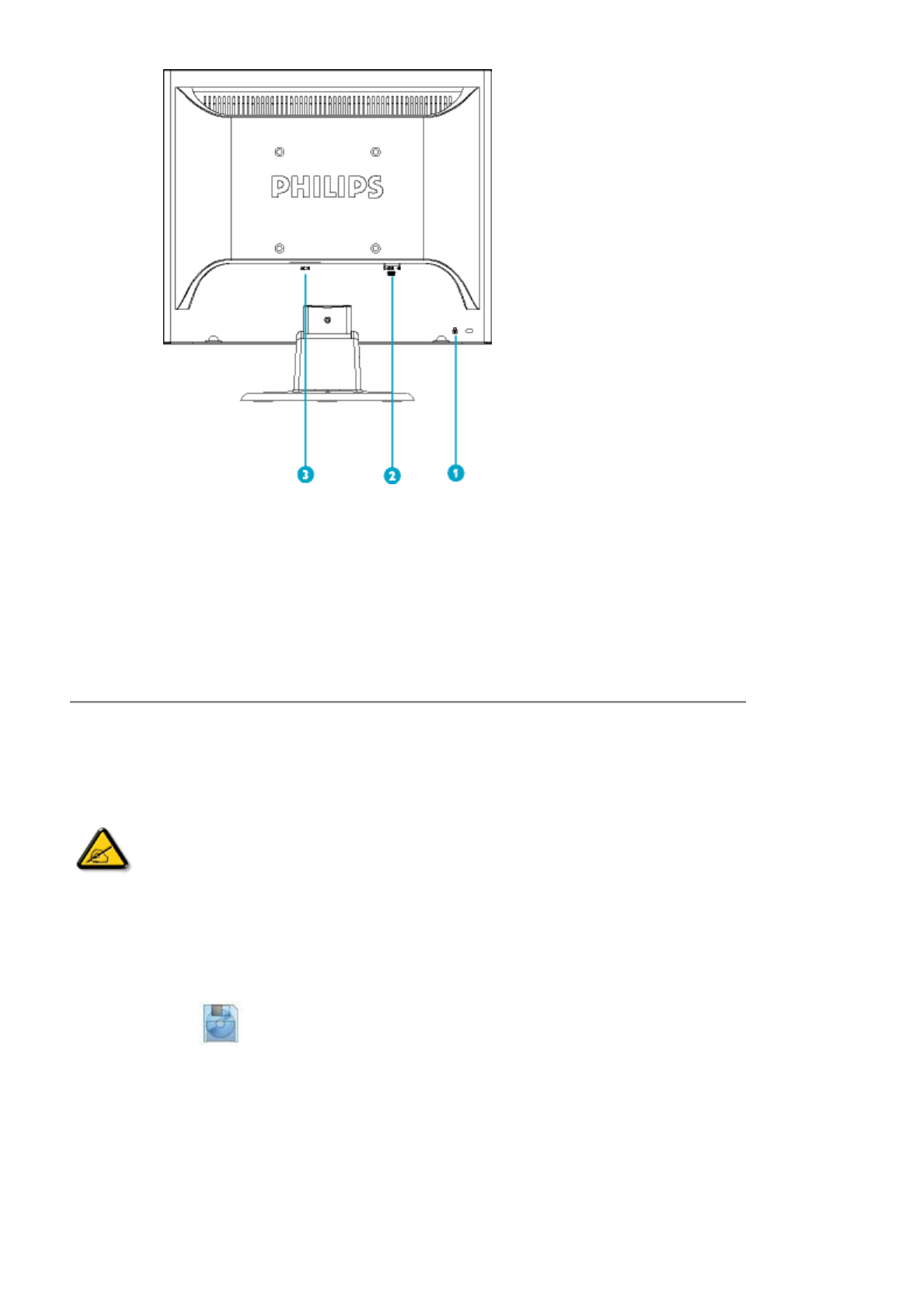

1 Kensington anti-thief lock
2 VGA input
3 AC power input
Note: You can check the current display settings by pressing the 'OK'
button once. Go into the Product Information. The current display mode is
shown on the item called RESOLUTION.
Installing Your LCD Monitor
Page 2 of 2
