Philips Electronics M129 17 Inches LCD Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd 17 Inches LCD Monitor
User Manual
Product Information
Product Features
170S5
zBest Total Cost of Ownership solution
{Lower power consumption ~ Less cost: up to 20% power savings than industry
average
{Kensington anti-theft lock ~ Added security prevents theft by locking monitor in place
zOutstanding front of screen performance
{Fast response time ~ Get the job done quicker with fast response time
{SXGA, 1280 x 1024 resolution ~ Accurate color displaying more than 1.3 million
pixels
{sRGB ready ~ What you see is what you get: Display matches printout
zGreat Convenience
{Embedded power supply ~ Power supply built into monitor
{VESA mounting hole ~ VESA mounting pattern for easy wall mounting your display
{FlexiHolder ~ Flexible card, photo, and notes holder to increase efficiency
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 17" / 43.2 cm diagonal
• Pixel Pitch 0.264 x 0.264 mm
• LCD Panel type 1280 x 1024 pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 337.9 x 270.3 mm
• Display Colors 16M colors
SCANNING
Vertical refresh rate 56 Hz-76 Hz
Horizontal Frequency 30k Hz-82 kHz
VIDEO
• Video dot rate 135 MHz
• Input impedance
- Video 75 ohm
- Sync 2.2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
2004/3/16file://W:\DFU\Philips\LCD\170B,S5_V.W72\ENGLISH\170S5\product\product.htm
Installstion and Operating Instructions
Exhibit 3
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
Sync on green
• Sync polarities Positive and negative
• Video interface D-Sub (analog)
Optical characteristics
• Contrast ratio 450:1 (typ.)
• Brightness 250 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
x: 0.313 y: 0.329 (at sRGB)
• Viewing Angle (C/R>5)
Upper >65° (typ.)
Lower >75° (typ.)
Left >80° (typ.)
Right >80° (typ.)
• Response time <16 ms (typ.)
sRGB
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.
digital cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB
compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors
are calibrated and you can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to
a predefined setting as well as the color gamut. Therefore it is important to select the sRGB
setting in the monitor's OSD.
To do so, open the OSD by pressing the OK button on the front of your monitor. Use the
down button to go to Adjust Color and press OK again. Then move the down button to go to
sRGB and press OK again.
Exit this OSD.
After this, please do not change the brightness or contrast setting of your monitor. If you
change either of these, the monitor will exit the sRGB mode and go to a color temperature
setting of 6500K.
For more information on sRGB, please visit: www.srgb.com
• Maximum 1280 x 1024 at 75 Hz
• Recommended 1280 x 1024 at 60 Hz
16 user definable modes
Page 2 of 5Product Information
2004/3/16file://W:\DFU\Philips\LCD\170B,S5_V.W72\ENGLISH\170S5\product\product.htm
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. If an input from a keyboard, mouse
or other input device is detected, the monitor will 'wake up' automatically. The following table
shows the power consumption and signaling of this automatic power saving feature:
RETURN TO TOP OF THE PAGE
15 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70
31.5 720*400 70
31.5 640*480 60
35.0 640*480 67
37.5 640*480 75
35.2 800*600 56
37.9 800*600 60
46.9 800*600 75
49.7 832*624 75
48.4 1024*768 60
60.0 1024*768 75
69.0 1152*870 75
71.8 1152*900 76
63.9 1280*1024 60
80.0 1280*1024 75
Power Management Definition
VESA Mode Video H-sync V-sync Power
Used LED
color
ON Active Yes Yes < 35 W Green
OFF Blanked No No < 1 W Amber
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
Page 3 of 5Product Information
2004/3/16file://W:\DFU\Philips\LCD\170B,S5_V.W72\ENGLISH\170S5\product\product.htm
Physical Specifications
* This data is subject to change without notice.
* Resolution 1280x1024, standard size, brightness max., contrast 50%, 9300° K, full white pattern,
without audio/USB.
RETURN TO TOP OF THE PAGE

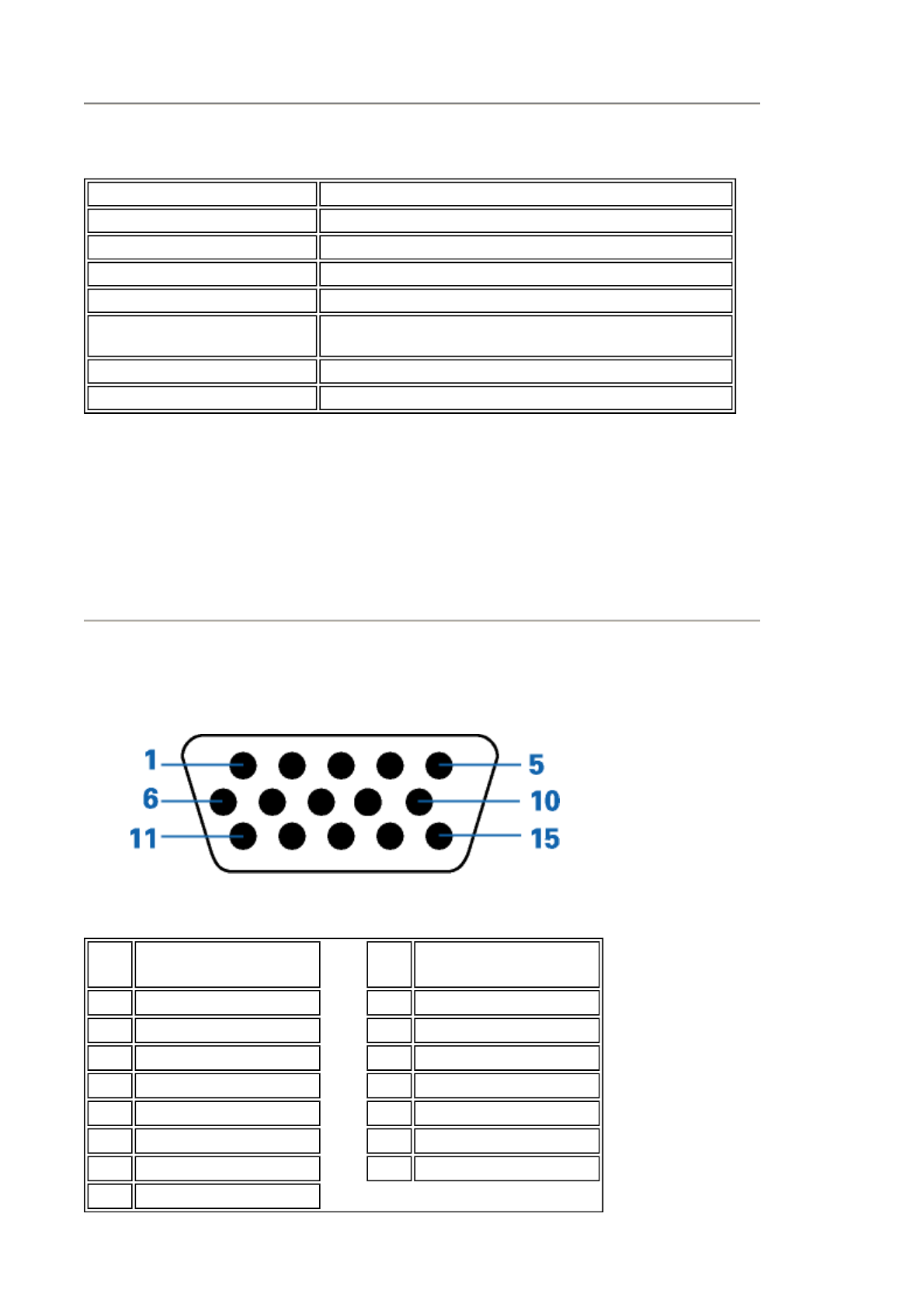

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable:
• Dimension (WxHxD) * 375 x 423 x 174 mm (incl. Pedestal)
• Weight 4.2 Kg
• Tilt -5° ~ 25°
• Power supply 100 — 240 VAC, 50/60 Hz
• Power consumption 30 W* (typ.)
• Temperature 5° C to 40° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hours (including CCFL 40K hours)
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 +5V
2 Green video input/SOG 10 Logic ground
3 Blue video input 11 Ground
4 Sense (GND) 12 Serial data line (SDA)
5 Hot Plug Detect 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
Page 4 of 5Product Information
2004/3/16file://W:\DFU\Philips\LCD\170B,S5_V.W72\ENGLISH\170S5\product\product.htm
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
RETURN TO TOP OF THE PAGE

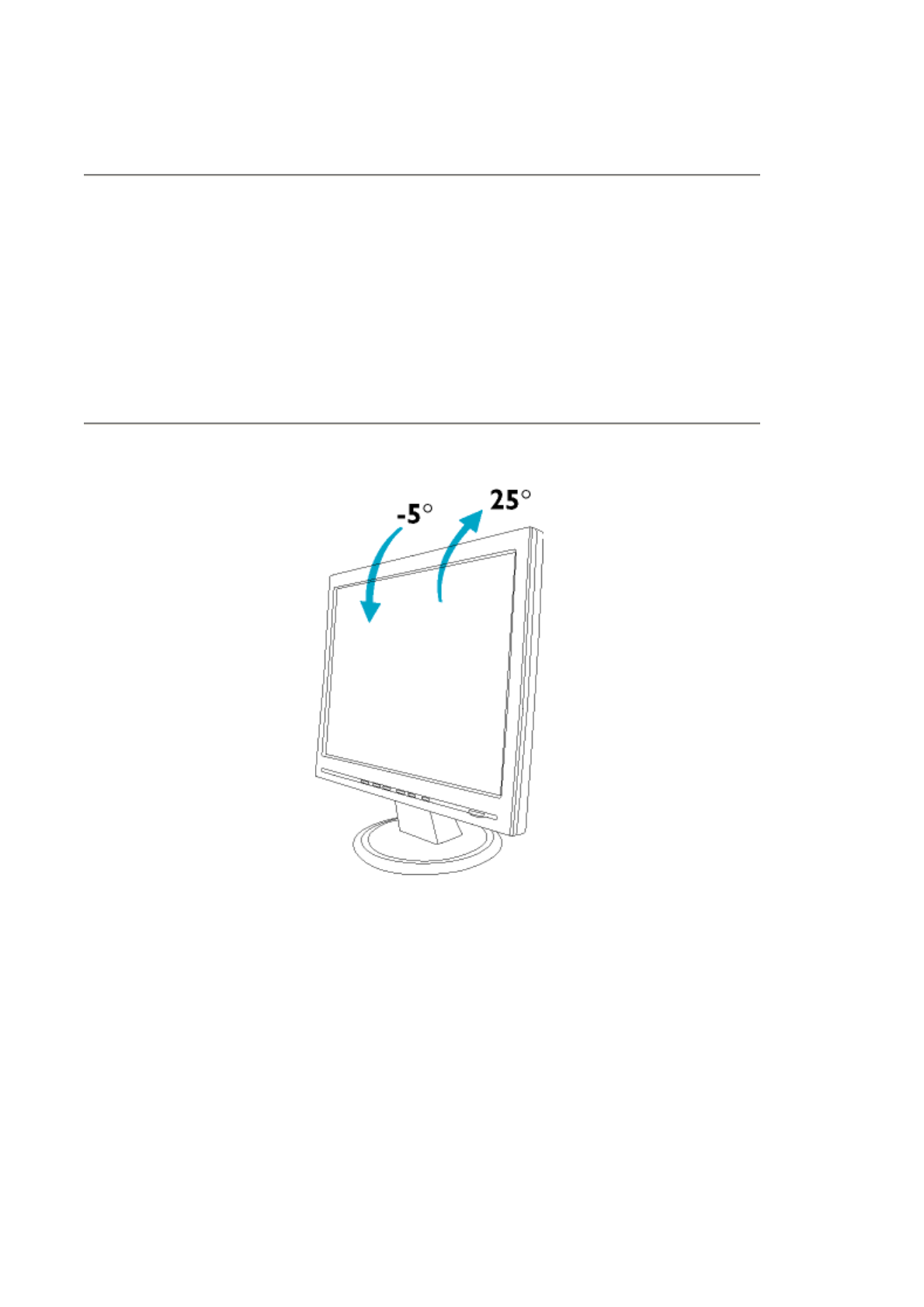

1) Tilt
Page 5 of 5Product Information
2004/3/16file://W:\DFU\Philips\LCD\170B,S5_V.W72\ENGLISH\170S5\product\product.htm
Installing Your LCD Monitor
Front View Product Description
RETURN TO TOP OF THE PAGE
Rear View

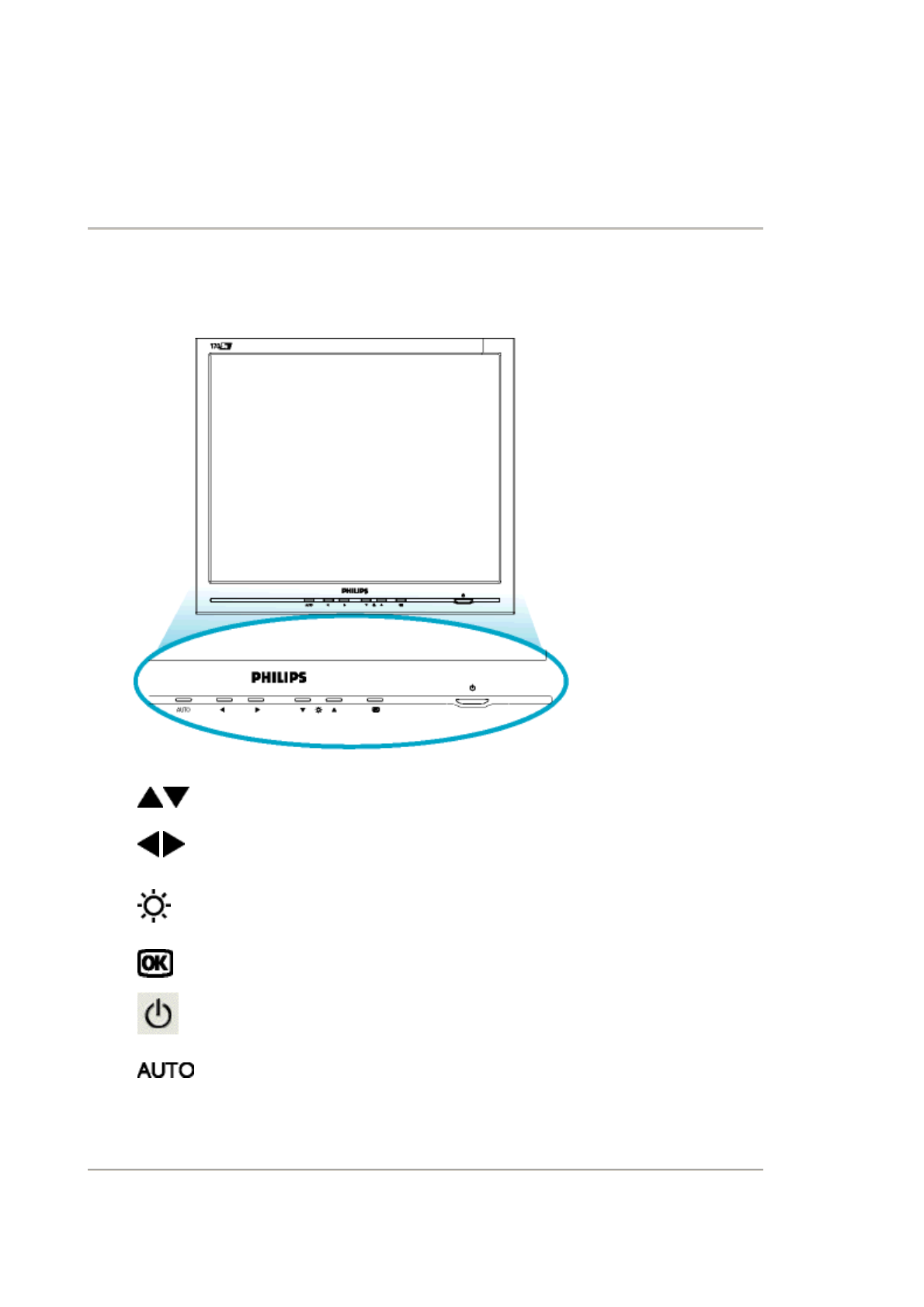

UP and DOWN buttons are used when adjusting the OSD of your
monitor.
LEFT and RIGHT buttons, like the UP and DOWN buttons, are also
used in adjusting the OSD of your monitor.
BRIGHTNESS hotkey. When the UP and DOWN arrow buttons are
pressed, the adjustment controls for the BRIGHTNESS will show
up.
OK button which when pressed will take you to the OSD controls.
POWER button switches your monitor on.
Automatically adjust the horizontal position, vertical position, phase
and clock setting.
Page 1 of 2Installing Your LCD Monitor
2004/3/16file://W:\DFU\Philips\LCD\170B,S5_V.W72\ENGLISH\170S5\install\install.htm
RETURN TO TOP OF THE PAGE
Optimizing Performance
zFor best performance, ensure that your display settings are set at 1280x1024, 60Hz.
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the
best performance out of your monitor. This is included on this CD. Step-by-step instructions
are provided to guide you through the installtion process. Click on the link to know more
about this program.
More about FP_setup04.exe
RETURN TO TOP OF THE PAGE

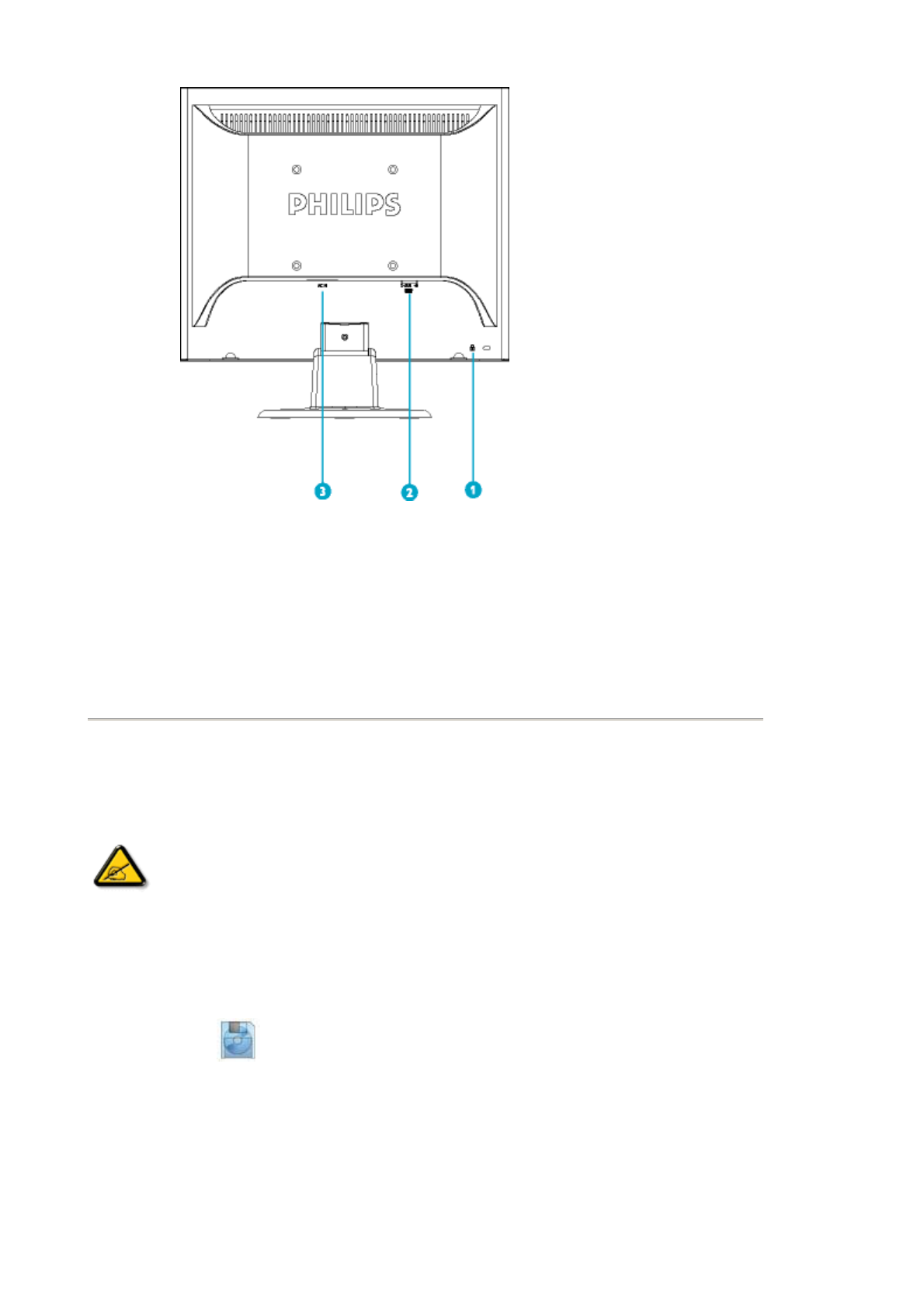

1 Kensington anti-thief lock
2 VGA input
3 AC power input
Note: You can check the current display settings by pressing the 'OK'
button once. Go into the Product Information. The current display mode is
shown on the item called RESOLUTION.
Page 2 of 2Installing Your LCD Monitor
2004/3/16file://W:\DFU\Philips\LCD\170B,S5_V.W72\ENGLISH\170S5\install\install.htm
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
Page 1 of 2Regulatory Information
2004/3/16file://W:\DFU\Philips\LCD\170B,S5_V.W72\ENGLISH\170S5\safety\regs\regulat.htm
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
