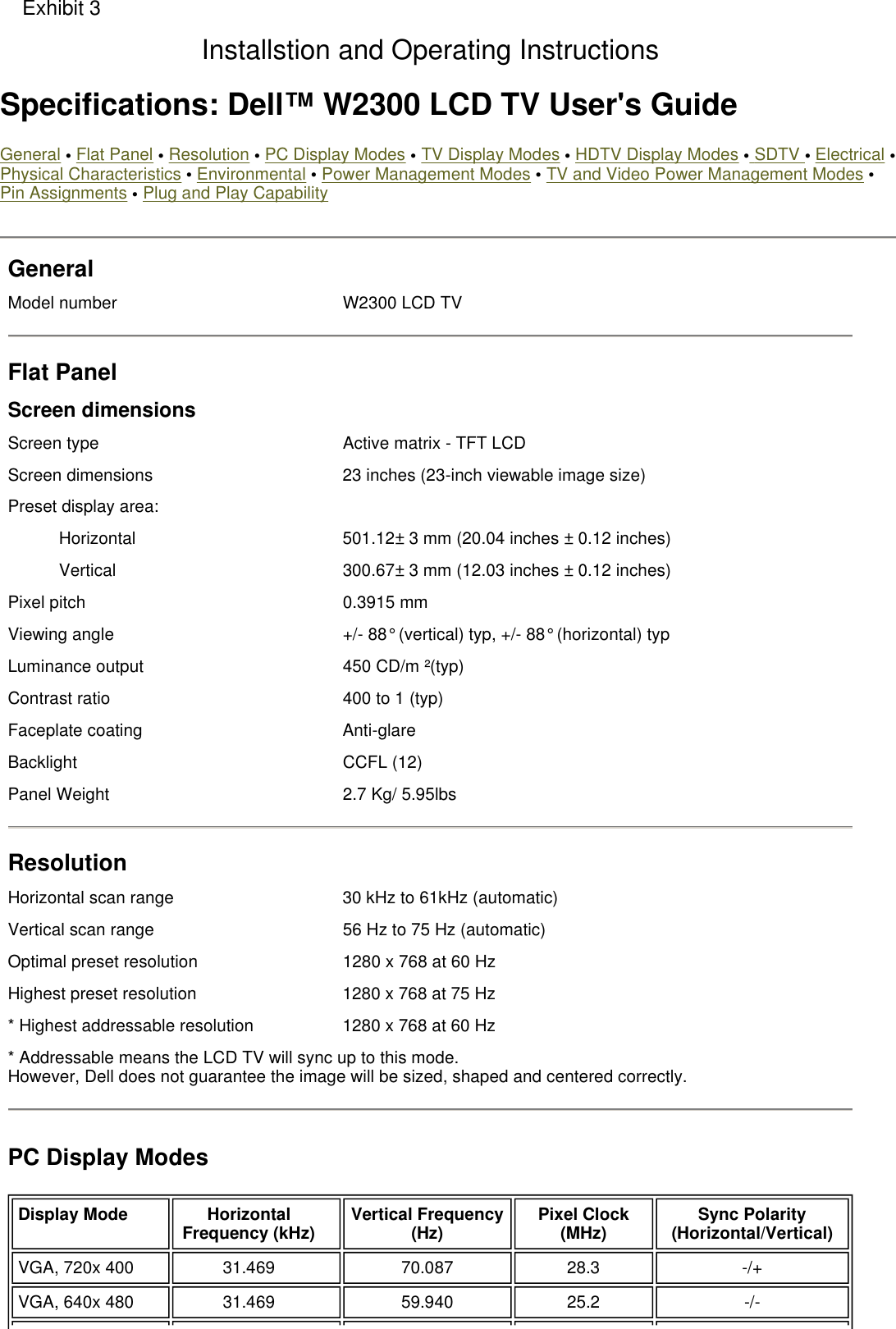

Specifications: Dell™ W2300 LCD TV User's Guide General • Flat Panel • Resolution • PC Display Modes • TV Display Modes • HDTV Display Modes • SDTV • Electrical •Physical Characteristics • Environmental • Power Management Modes • TV and Video Power Management Modes • Pin Assignments • Plug and Play Capability General Model number W2300 LCD TV Flat Panel Screen dimensions Screen type Active matrix - TFT LCDScreen dimensions 23 inches (23-inch viewable image size)Preset display area:Horizontal 501.12± 3 mm (20.04 inches ± 0.12 inches)Vertical 300.67± 3 mm (12.03 inches ± 0.12 inches)Pixel pitch 0.3915 mmViewing angle +/- 88° (vertical) typ, +/- 88° (horizontal) typ Luminance output 450 CD/m ²(typ) Contrast ratio 400 to 1 (typ) Faceplate coating Anti-glare Backlight CCFL (12) Panel Weight 2.7 Kg/ 5.95lbsResolution Horizontal scan range 30 kHz to 61kHz (automatic)Vertical scan range 56 Hz to 75 Hz (automatic)Optimal preset resolution 1280 x 768 at 60 HzHighest preset resolution 1280 x 768 at 75 Hz* Highest addressable resolution 1280 x 768 at 60 Hz * Addressable means the LCD TV will sync up to this mode. However, Dell does not guarantee the image will be sized, shaped and centered correctly.PC Display Modes Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (Horizontal/Vertical)VGA, 720x 400 31.469 70.087 28.3 -/+VGA, 640x 480 31.469 59.940 25.2 -/-Exhibit 3Installstion and Operating Instructions

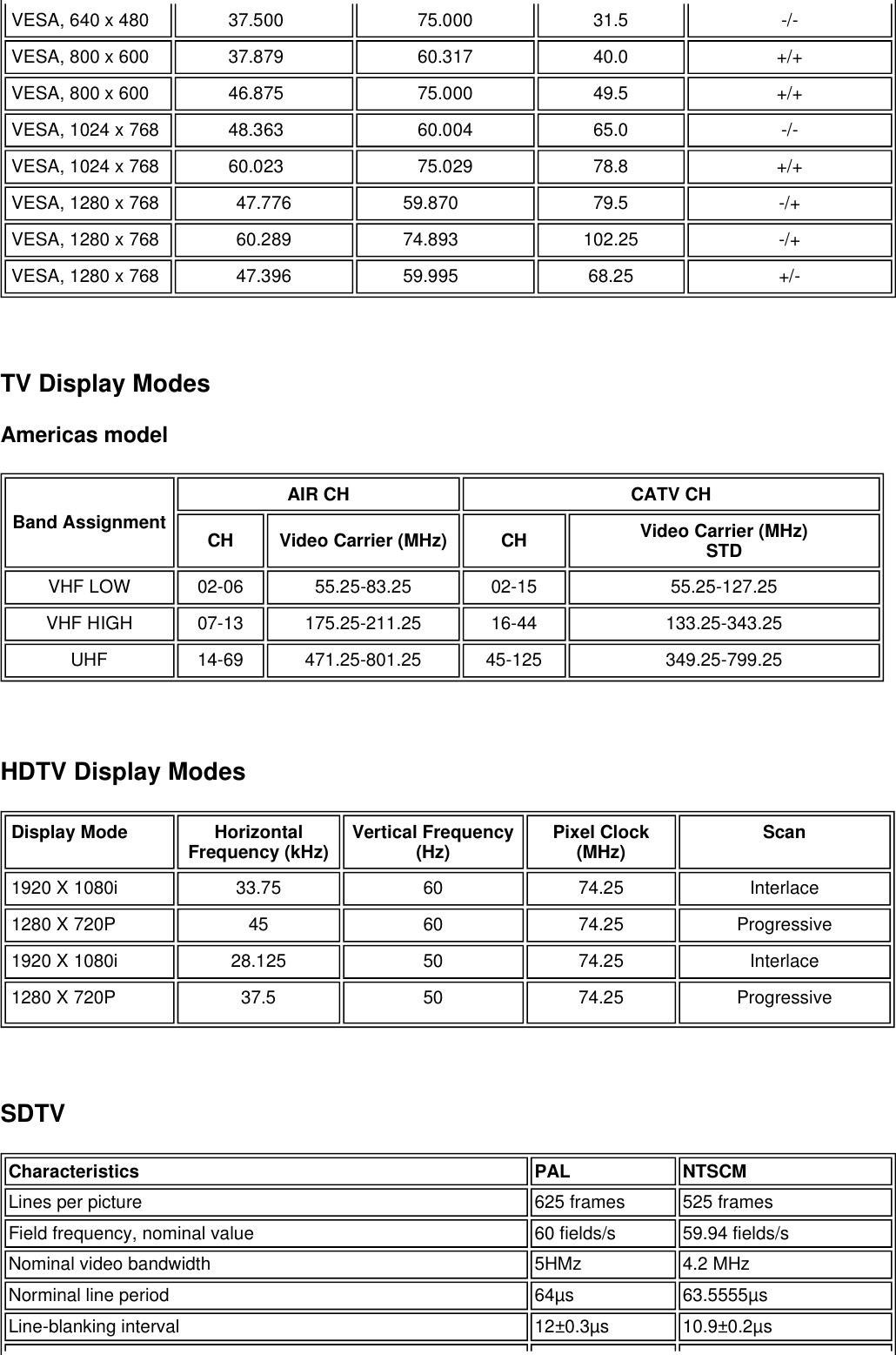

TV Display Modes Americas model HDTV Display Modes SDTV VESA, 640 x 480 37.500 75.000 31.5 -/-VESA, 800 x 600 37.879 60.317 40.0 +/+VESA, 800 x 600 46.875 75.000 49.5 +/+VESA, 1024 x 768 48.363 60.004 65.0 -/-VESA, 1024 x 768 60.023 75.029 78.8 +/+VESA, 1280 x 768 47.776 59.870 79.5 -/+VESA, 1280 x 768 60.289 74.893 102.25 -/+VESA, 1280 x 768 47.396 59.995 68.25 +/-Band AssignmentAIR CH CATV CHCH Video Carrier (MHz) CH Video Carrier (MHz) STD VHF LOW 02-06 55.25-83.25 02-15 55.25-127.25VHF HIGH 07-13 175.25-211.25 16-44 133.25-343.25UHF 14-69 471.25-801.25 45-125 349.25-799.25Display Mode Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Scan1920 X 1080i 33.75 60 74.25 Interlace1280 X 720P 45 60 74.25 Progressive1920 X 1080i 28.125 50 74.25 Interlace1280 X 720P 37.5 50 74.25 ProgressiveCharacteristics PAL NTSCMLines per picture 625 frames 525 framesField frequency, nominal value 60 fields/s 59.94 fields/sNominal video bandwidth 5HMz 4.2 MHzNorminal line period 64µs 63.5555µsLine-blanking interval 12±0.3µs 10.9±0.2µs

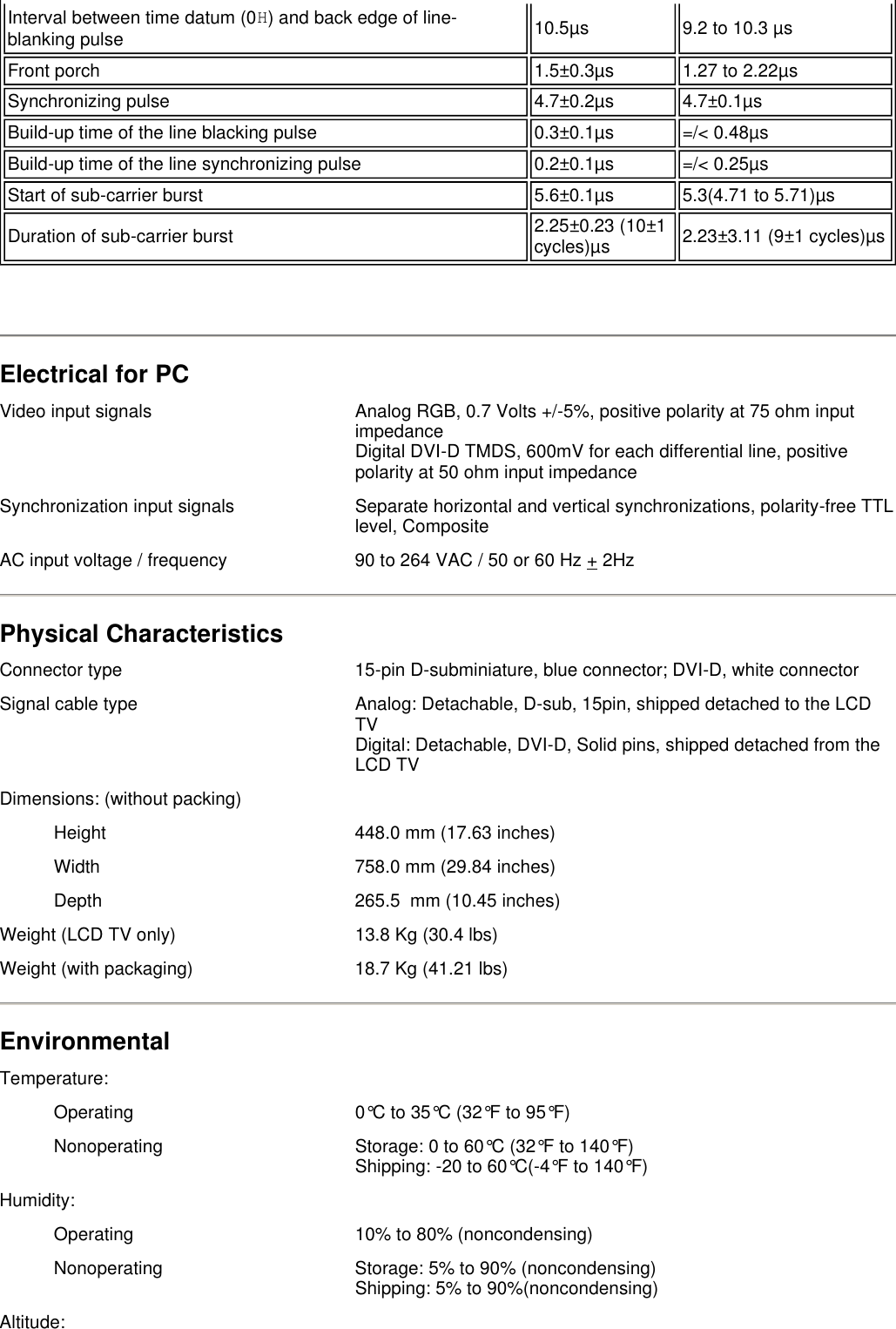

Interval between time datum (0H) and back edge of line-blanking pulse 10.5µs 9.2 to 10.3 µsFront porch 1.5±0.3µs 1.27 to 2.22µsSynchronizing pulse 4.7±0.2µs 4.7±0.1µsBuild-up time of the line blacking pulse 0.3±0.1µs =/< 0.48µsBuild-up time of the line synchronizing pulse 0.2±0.1µs =/< 0.25µsStart of sub-carrier burst 5.6±0.1µs 5.3(4.71 to 5.71)µsDuration of sub-carrier burst 2.25±0.23 (10±1 cycles)µs 2.23±3.11 (9±1 cycles)µsElectrical for PC Video input signals Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance Digital DVI-D TMDS, 600mV for each differential line, positive polarity at 50 ohm input impedanceSynchronization input signals Separate horizontal and vertical synchronizations, polarity-free TTL level, CompositeAC input voltage / frequency 90 to 264 VAC / 50 or 60 Hz + 2Hz Physical Characteristics Connector type 15-pin D-subminiature, blue connector; DVI-D, white connectorSignal cable type Analog: Detachable, D-sub, 15pin, shipped detached to the LCD TV Digital: Detachable, DVI-D, Solid pins, shipped detached from the LCD TVDimensions: (without packing)Height 448.0 mm (17.63 inches)Width 758.0 mm (29.84 inches)Depth 265.5 mm (10.45 inches)Weight (LCD TV only) 13.8 Kg (30.4 lbs)Weight (with packaging) 18.7 Kg (41.21 lbs)Environmental Temperature:Operating 0°C to 35°C (32°F to 95°F)Nonoperating Storage: 0 to 60°C (32°F to 140°F) Shipping: -20 to 60°C(-4°F to 140°F)Humidity:Operating 10% to 80% (noncondensing)Nonoperating Storage: 5% to 90% (noncondensing) Shipping: 5% to 90%(noncondensing)Altitude:

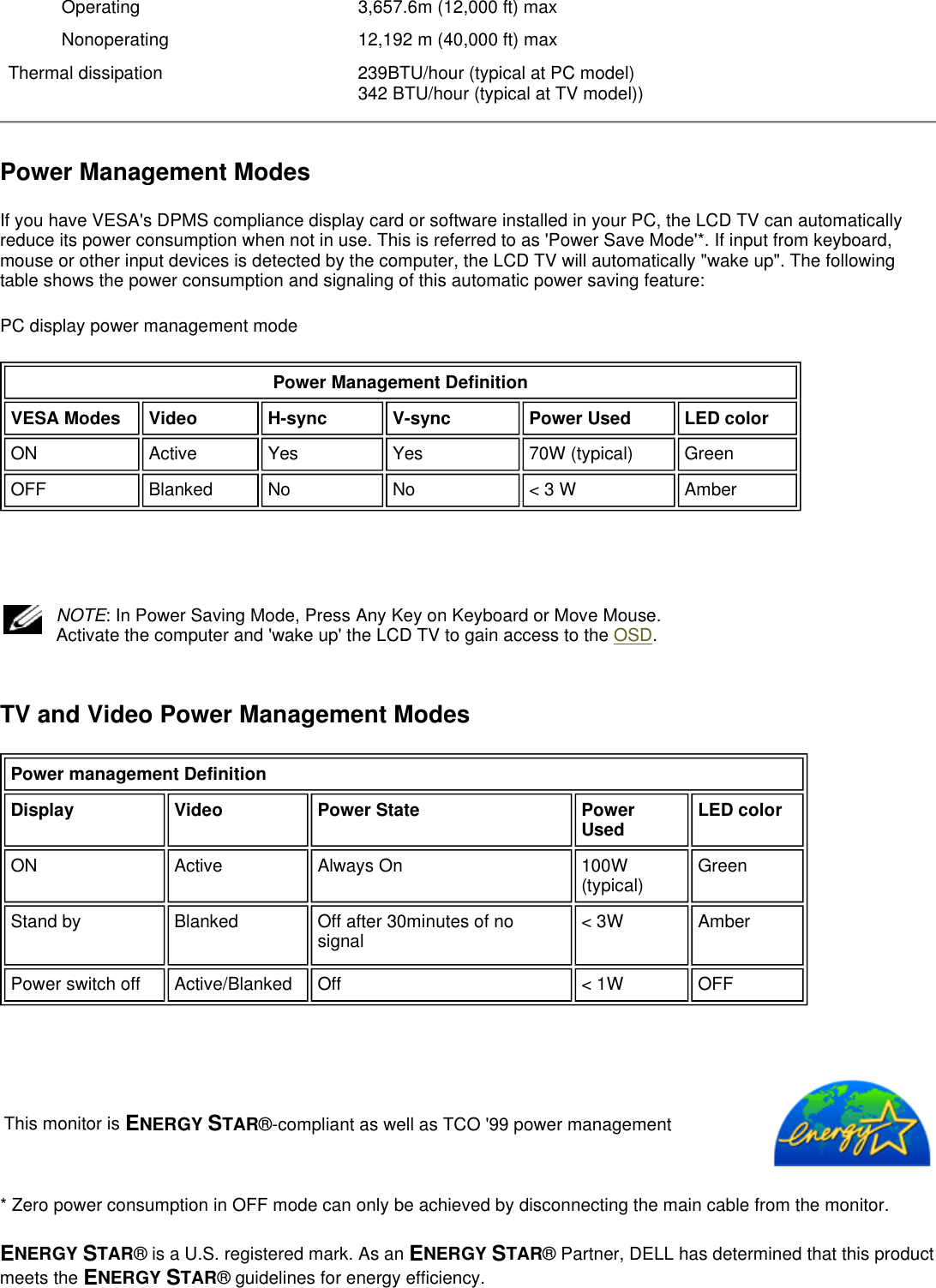

Power Management Modes If you have VESA's DPMS compliance display card or software installed in your PC, the LCD TV can automatically reduce its power consumption when not in use. This is referred to as 'Power Save Mode'*. If input from keyboard, mouse or other input devices is detected by the computer, the LCD TV will automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving feature: PC display power management mode TV and Video Power Management Modes * Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor. ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, DELL has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Operating 3,657.6m (12,000 ft) maxNonoperating 12,192 m (40,000 ft) maxThermal dissipation 239BTU/hour (typical at PC model) 342 BTU/hour (typical at TV model))Power Management Definition VESA Modes Video H-sync V-sync Power Used LED colorON Active Yes Yes 70W (typical) GreenOFF Blanked No No < 3 W AmberNOTE: In Power Saving Mode, Press Any Key on Keyboard or Move Mouse. Activate the computer and 'wake up' the LCD TV to gain access to the OSD. Power management DefinitionDisplay Video Power State Power Used LED colorON Active Always On 100W (typical) GreenStand by Blanked Off after 30minutes of no signal < 3W AmberPower switch off Active/Blanked Off < 1W OFFThis monitor is ENERGY STAR®-compliant as well as TCO '99 power management

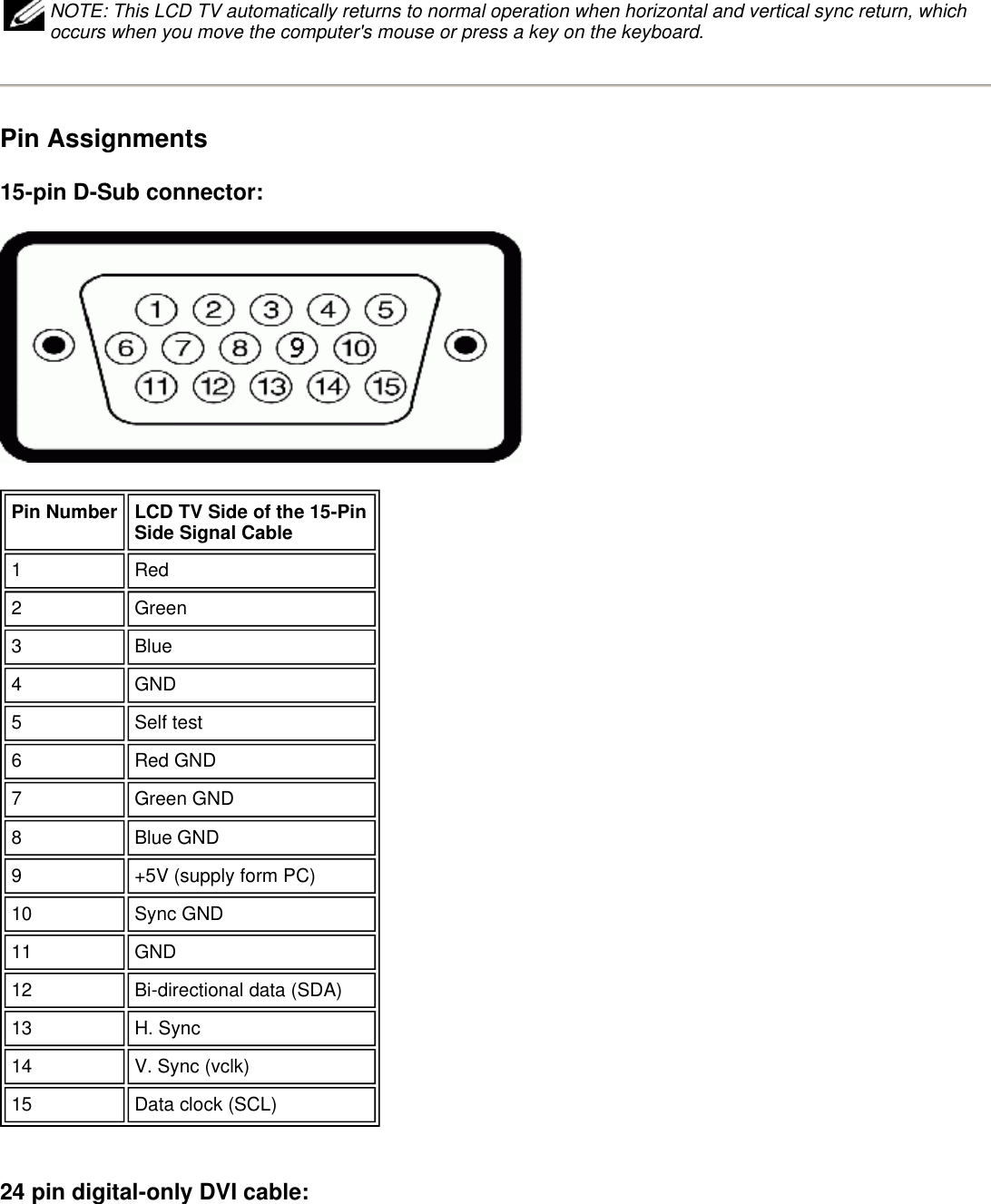

Pin Assignments 15-pin D-Sub connector: 24 pin digital-only DVI cable: NOTE: This LCD TV automatically returns to normal operation when horizontal and vertical sync return, which occurs when you move the computer's mouse or press a key on the keyboard.Pin Number LCD TV Side of the 15-Pin Side Signal Cable1Red 2Green 3Blue 4GND5Self test 6Red GND7Green GND8Blue GND9+5V (supply form PC)10 Sync GND 11 GND12 Bi-directional data (SDA)13 H. Sync 14 V. Sync (vclk)15 Data clock (SCL)
Note: Pin 1 is at the top right. Plug and Play Capability You can install the LCD TV in any Plug and Play-compatible system. The LCD TV automatically provides the computersystem with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the LCD TV settings. Back to Contents Page Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment1T.M.D.S. Data 2- 9T.M.D.S. Data 1- 17 T.M.D.S. Data 0-2T.M.D.S. Data 2+ 10 T.M.D.S. Data 1+ 18 T.M.D.S. Data 0+3T.M.D.S. Data 2 Shield 11 T.M.D.S. Data 1 Shield 19 T.M.D.S. Data 0 Shield4No Pin 12 No Pin 20 No Pin5No Pin 13 No Pin 21 No Pin6DDC Clock 14 +5V Power 22 T.M.D.S. Clock Shield7DDC Data 15 Self test 23 T.M.D.S. Clock +8No Connect 16 Hot Plug Detect 24 T.M.D.S. Clock -

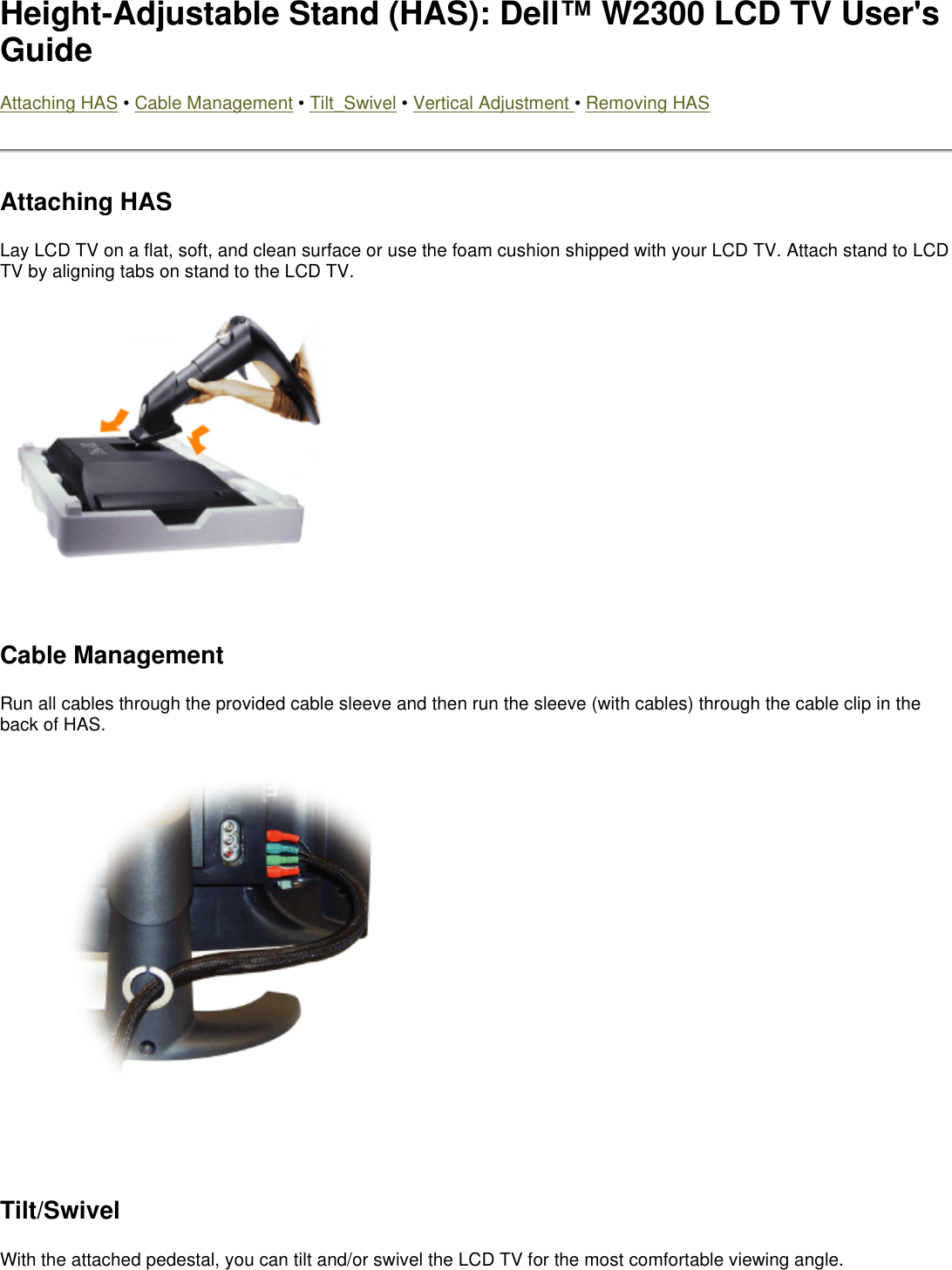

Height-Adjustable Stand (HAS): Dell™ W2300 LCD TV User's Guide Attaching HAS • Cable Management • Tilt_Swivel • Vertical Adjustment • Removing HAS Attaching HAS Lay LCD TV on a flat, soft, and clean surface or use the foam cushion shipped with your LCD TV. Attach stand to LCD TV by aligning tabs on stand to the LCD TV. Cable Management Run all cables through the provided cable sleeve and then run the sleeve (with cables) through the cable clip in the back of HAS. Tilt/Swivel With the attached pedestal, you can tilt and/or swivel the LCD TV for the most comfortable viewing angle.

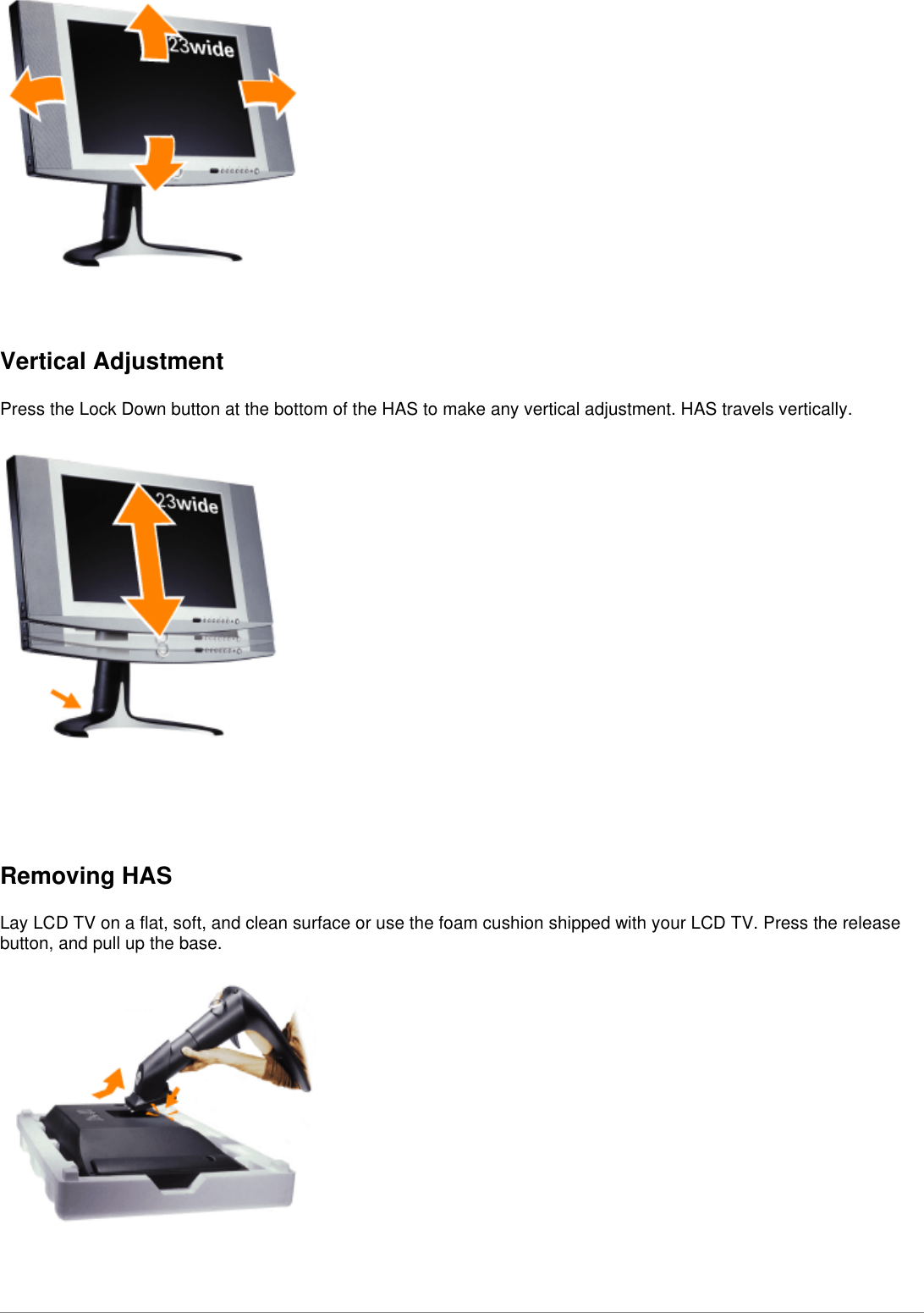

Vertical Adjustment Press the Lock Down button at the bottom of the HAS to make any vertical adjustment. HAS travels vertically. Removing HAS Lay LCD TV on a flat, soft, and clean surface or use the foam cushion shipped with your LCD TV. Press the release button, and pull up the base.
Attaching the Cables: Dell™ W2300 LCD TV User's Guide Connecting Your PC • Connecting as a TV • Connecting your DVD/VCD/VCR/CATV Box • Connecting A/V outputs Connecting your PC CAUTION: Before performing any of the setup procedures listed below, read and follow the safety instructions. A. Connection through blue VGA & lime green audio cable 1. Connect one end of the blue VGA cable to the VGA plug on W2300, and connect the other end to the VGA plug on your PC. 2. Connect one end of the lime green audio cable to the audio jack by the D-sub plug on W2300, and connect the other end to the Audio jack on your PC. OR B. Connection through white DVI cable & lime green audio cable 1. Connect one end of the white DVI cable to the DVI plug on W2300, and connect the other end to the DVI plug on your PC. 2. Connect one end of the lime green audio cable to the audio jack by the DVI plug on W2300, and connect the other end to the audio jack on your PC.
Connecting as a TV Cable TV • Antenna • TV to VCR Cable TV Antenna 1. If your Cable TV signal is a single, round cable (75 ohm), then you're ready to connect to the TV. Connect the TV cable to the ANTENNA/CABLE plug on the TV. 2. If you have a cable converter box, connect the cable TV signal to the IN (put) plug on the converter, connect the OUT(put) plug from the converter to the 75 (ohm) plug on the TV. 3. Verify that the On Screen Display (OSD) is set to Cable. Note: The connecting cable for the converter is supplied by the Cable TV company.

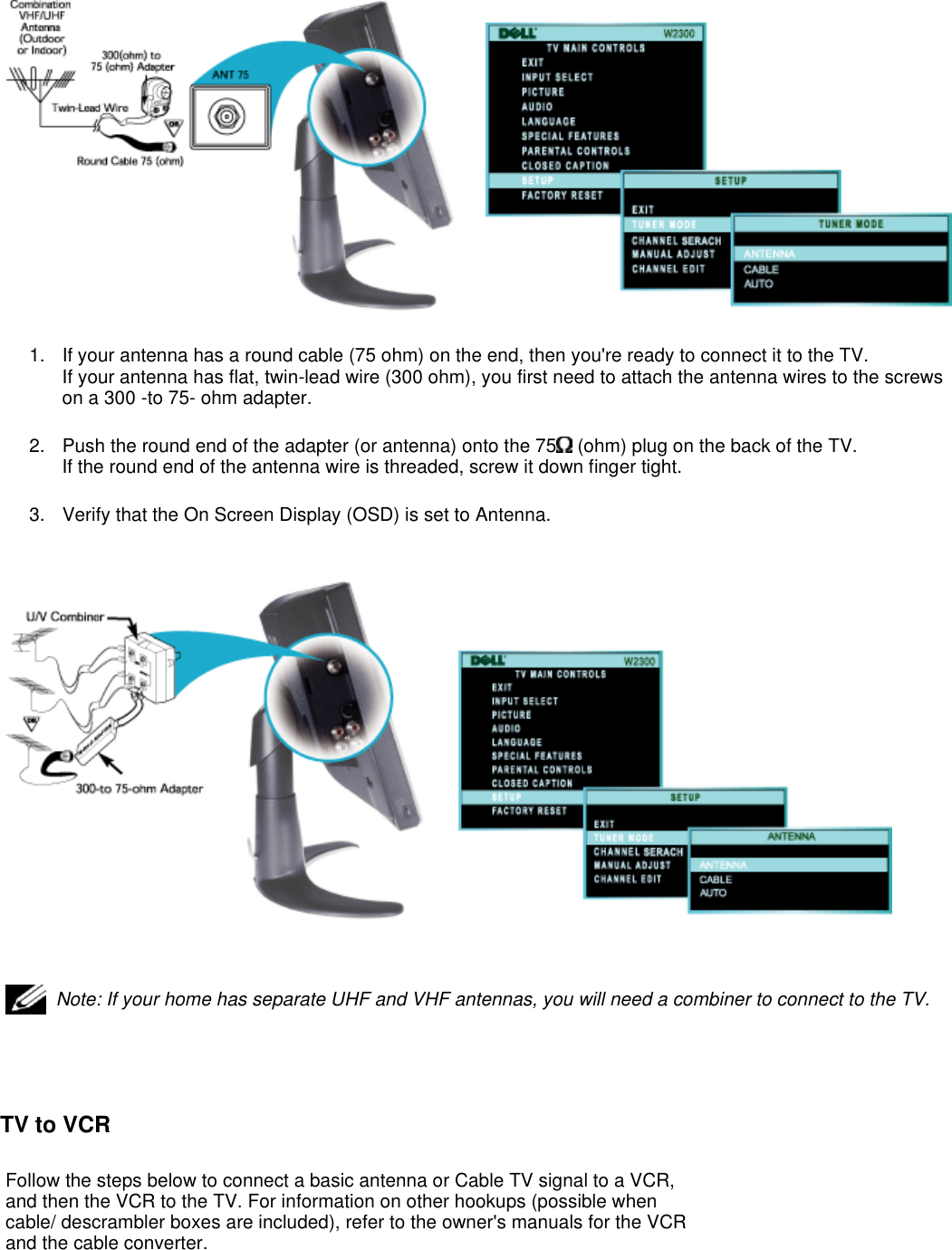

TV to VCR 1. If your antenna has a round cable (75 ohm) on the end, then you're ready to connect it to the TV. If your antenna has flat, twin-lead wire (300 ohm), you first need to attach the antenna wires to the screws on a 300 -to 75- ohm adapter. 2. Push the round end of the adapter (or antenna) onto the 75 (ohm) plug on the back of the TV. If the round end of the antenna wire is threaded, screw it down finger tight. 3. Verify that the On Screen Display (OSD) is set to Antenna. Note: If your home has separate UHF and VHF antennas, you will need a combiner to connect to the TV.Follow the steps below to connect a basic antenna or Cable TV signal to a VCR, and then the VCR to the TV. For information on other hookups (possible when cable/ descrambler boxes are included), refer to the owner's manuals for the VCR and the cable converter.

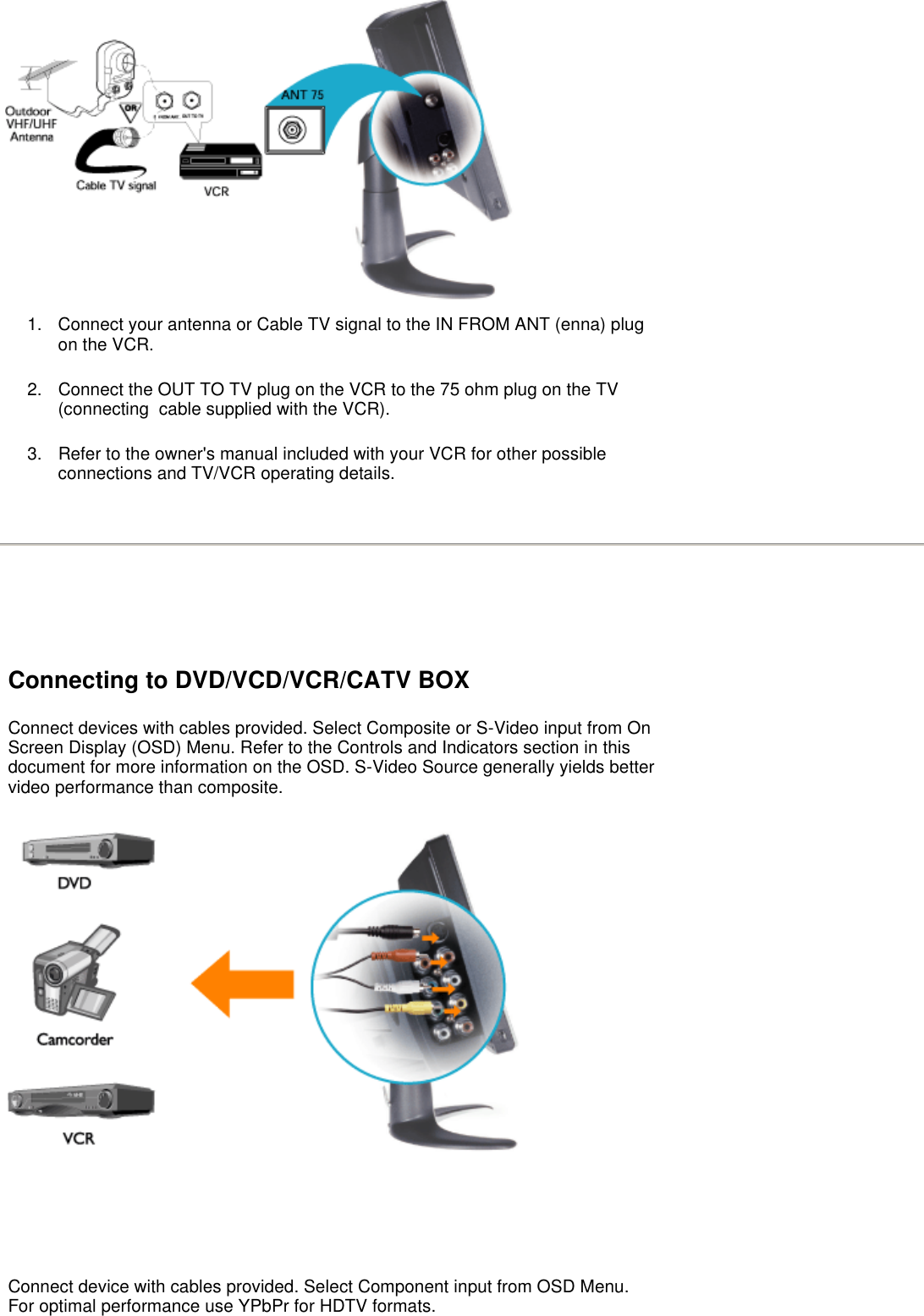

1. Connect your antenna or Cable TV signal to the IN FROM ANT (enna) plug on the VCR. 2. Connect the OUT TO TV plug on the VCR to the 75 ohm plug on the TV (connecting cable supplied with the VCR). 3. Refer to the owner's manual included with your VCR for other possible connections and TV/VCR operating details. Connecting to DVD/VCD/VCR/CATV BOX Connect devices with cables provided. Select Composite or S-Video input from On Screen Display (OSD) Menu. Refer to the Controls and Indicators section in this document for more information on the OSD. S-Video Source generally yields better video performance than composite. Connect device with cables provided. Select Component input from OSD Menu. For optimal performance use YPbPr for HDTV formats.

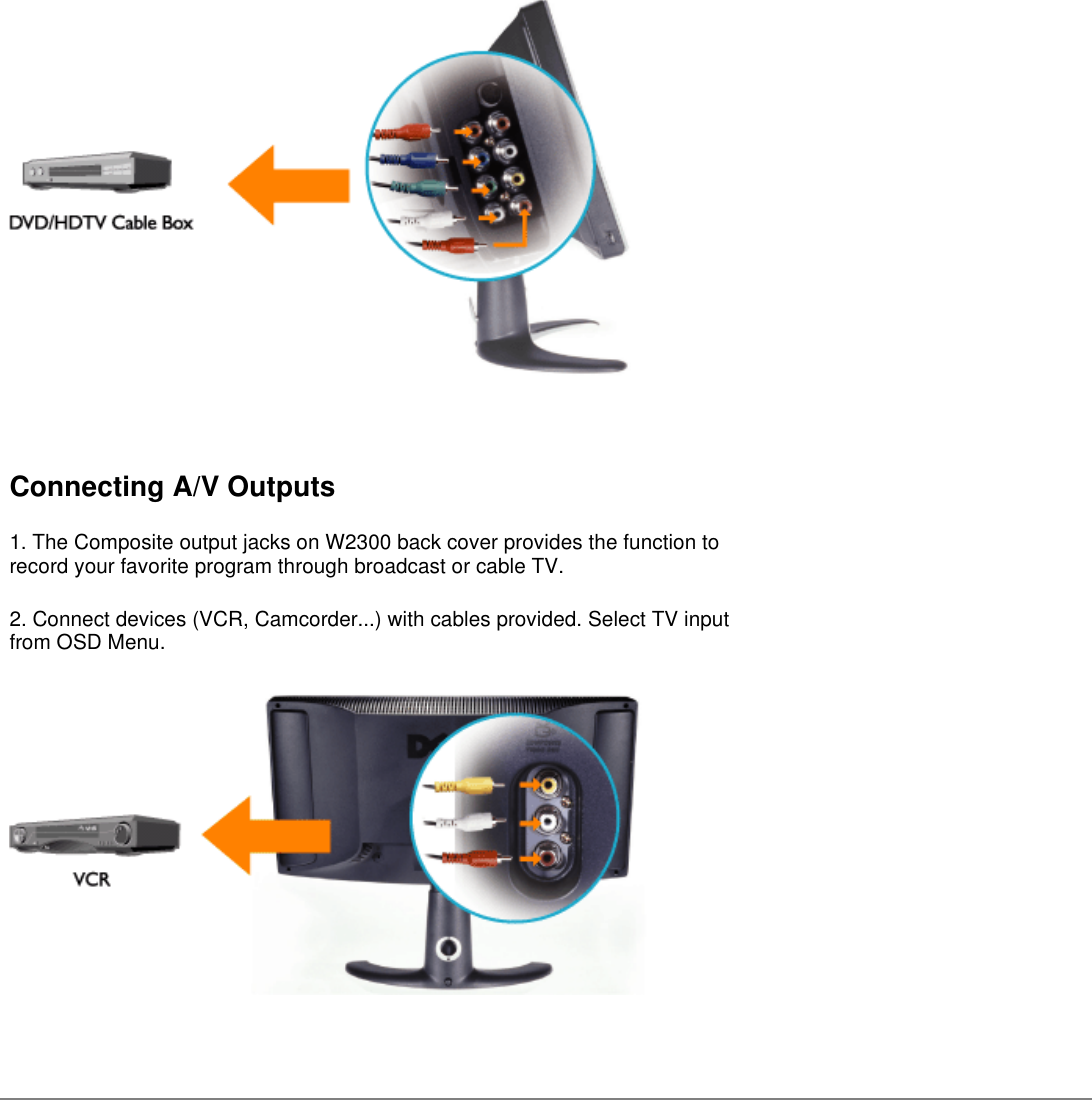

Connecting A/V Outputs 1. The Composite output jacks on W2300 back cover provides the function to record your favorite program through broadcast or cable TV. 2. Connect devices (VCR, Camcorder...) with cables provided. Select TV input from OSD Menu.

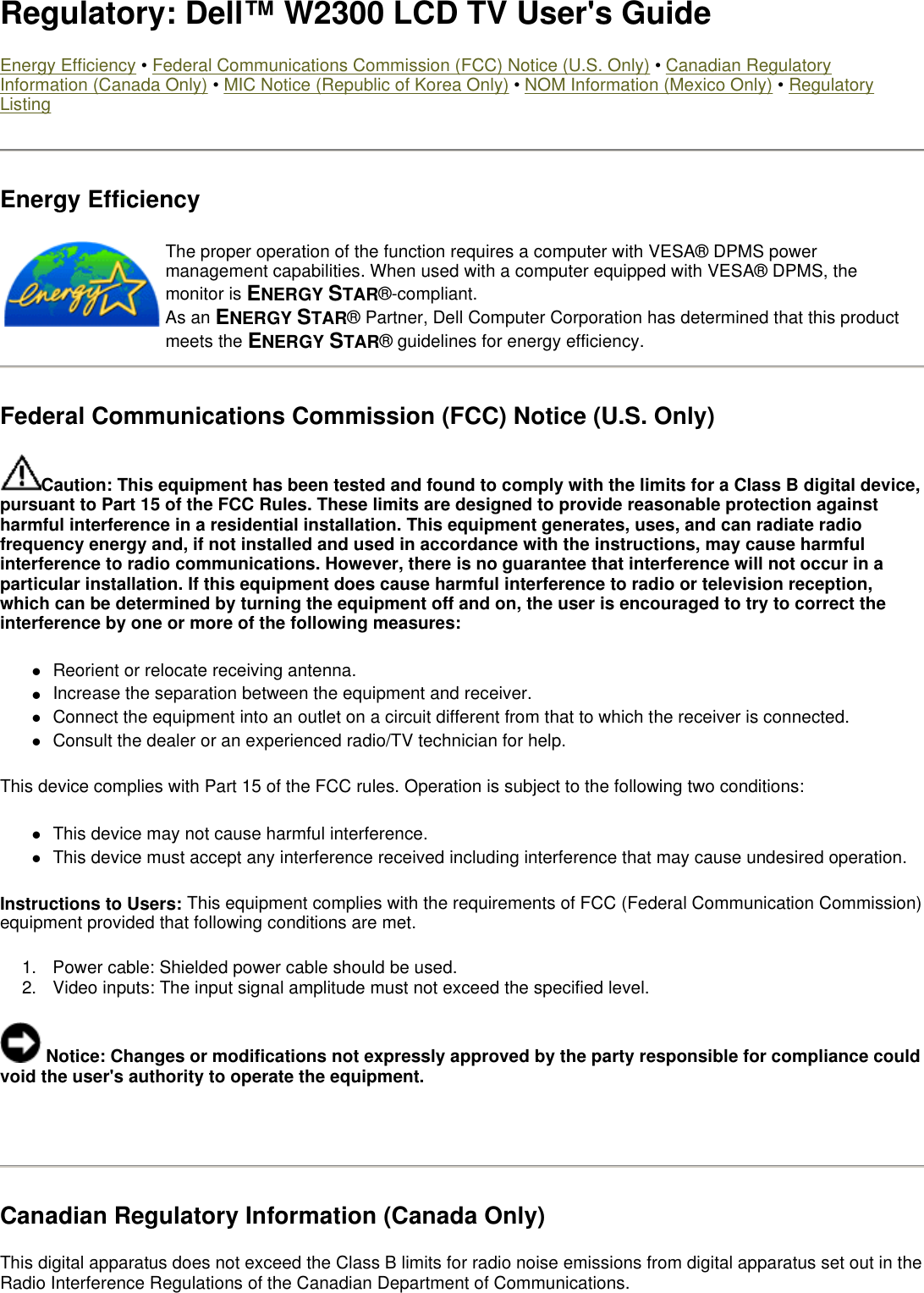

Regulatory: Dell™ W2300 LCD TV User's Guide Energy Efficiency • Federal Communications Commission (FCC) Notice (U.S. Only) • Canadian Regulatory Information (Canada Only) • MIC Notice (Republic of Korea Only) • NOM Information (Mexico Only) • Regulatory Listing Energy Efficiency Federal Communications Commission (FCC) Notice (U.S. Only) Caution: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: zThis device may not cause harmful interference. zThis device must accept any interference received including interference that may cause undesired operation. Instructions to Users: This equipment complies with the requirements of FCC (Federal Communication Commission) equipment provided that following conditions are met. 1. Power cable: Shielded power cable should be used. 2. Video inputs: The input signal amplitude must not exceed the specified level. Notice: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Canadian Regulatory Information (Canada Only) This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. The proper operation of the function requires a computer with VESA® DPMS power management capabilities. When used with a computer equipped with VESA® DPMS, the monitor is ENERGY STAR®-compliant. As an ENERGY STAR® Partner, Dell Computer Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.
