Philips Electronics M131 LCD / TV Monitor User Manual
Philips Electronics Industries (Taiwan) Ltd LCD / TV Monitor
User Manual
Product Information
Product Features • Technical Specifications • Resolution & Preset Modes •
Philips Pixel Defect Policy • Automatic Power Saving • Physical Specification •
Pin Assignment • Product Views
Product Features
300WN5
z29.5-inch WXGA (1280x768 resolution, 176 degree viewing angle) LCD all-in-one
Monitor TV with excellent display performance
zMultiple video input allowing display of PC, TV, HDTV, VCD, DVD, Progressive DVD
and Camcorder
zNetwork controllability via RS232 interface for managing the performances, setting, etc.
zDigital High Definition Picture (1080i, 720p, 576p, 576i, 480p, 480i)
zDCDiTM de-interlacinf technology for superior depiction of motion
zPicture-in-Picture (PIP) function in PC VGA mode
zLight sensor to adjust brightness automatically
zTeletext (available only in Asia Pacific and Western Europe)
zDigital Nicam/2CS stereo (available only in Asia Pacific and Western Europe)
zComponent Video Input (YPbPr/YCbCr) for DVD (available in AV and TV models only)
zEuroconnector (SCART) (available in Western Europe)
zMultiSystem TV tuner-PAL/NTSC (available in TV model only)
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 29.5 inch
• Pixel Pitch 0.5025 x 0.1675 mm x RGB
• LCD Panel type 1280 x 768 pixels
R.G.B. vertical stripe
Hard coating surface, anti-glare polarizer
• Effective viewing area (H) 643.2 x (V) 385.92mm
• Display Colors 8 bits interface (16.7M colors)
PC SCANNING
• Vertical refresh rate 58Hz-60Hz
• Horizontal frequency 31kHz-49kHz
PC VIDEO
• Video dot rate < 80 MHz
• Input impedance
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\PRODUCT\PRODUCT.HTM
Installstion and Operating Instructions
Exhibit 3
- Video 75 ohm
- Sync 2.2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
• Sync polarities Positive and negative
• Input Frequency WXGA Hsync 48 kHz, Vsync 60 Hz (N.I.)
SVGA Hsync 38 kHz, Vsync 60 Hz (N.I.)
VGA Hsync 31 kHz, Vsync 60 Hz (N.I.)
• Video interface D-sub, S-Video, TV-RF, SCART (Europe) or composite
and components video (others)
AUDIO
• Input level for
PC/SVHS/SCART 500 mV nominal
• Loudspeaker 5W Stereo Audio (2.5W/channel RMS x2, 200Hz~10kHz, 4
ohm, 10% THD)
OPTICAL CHARACTERISTICS
• Contrast ratio 500:1 (typ.)
• Brightness 500 cd/m2 (typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
x: 0.328 y: 0.344 (at 5700°K)
• Viewing Angle (C/R >5)
Upper >88° (typ.)
Lower >88° (typ.)
Left >88° (typ.)
Right >88° (typ.)
• Response time <=16ms (typ.)
sRGB
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.
digital cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB
compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors
are calibrated and you can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to
a predefined setting as well as the color gamut. Therefore it is important to select the sRGB
setting in the monitor's OSD.
To do so, at PC mode, open the OSD by pressing the MENU button of your monitor. Use the
down button to go to COLOR SETTINGS and press MENU again. Then move the down
Page 2 of 7Product Information
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\PRODUCT\PRODUCT.HTM
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor
can automatically reduce its power consumption when not in use. If an input from a keyboard,
mouse or other input device is detected, the monitor will then 'wake up' automatically. The
following table shows the power consumption and signaling of this automatic power saving
feature:
button to go to NORMAL COLOR and press MENU again.
For more information on sRGB, please visit: www.srgb.com
• Recommended 1280 x 768 at 60Hz
10 factory preset modes:
Resolution Mode H. freq (kHz) V. freq (Hz)
PC
640*480 VGA VESA 60 31.469 59.940
800*600 SVGA VESA 60 37.879 60.317
1024*768 XGA VESA 60 48.363 60.004
1280*768 GTF 60 47.700 60.000
Video
EDTV 480P 31.470 60.000
SDTV 480i 15.734 59.940
EDTV 576P 31.250 50.000
SDTV 576i 15.625 50.000
HDTV 1080i 33.750 60.000
HDTV 720P 45.000 60.000
Power Management Definition
Power LED
Page 3 of 7Product Information
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\PRODUCT\PRODUCT.HTM
RETURN TO TOP OF THE PAGE
Physical Specifications
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Pin Assignment

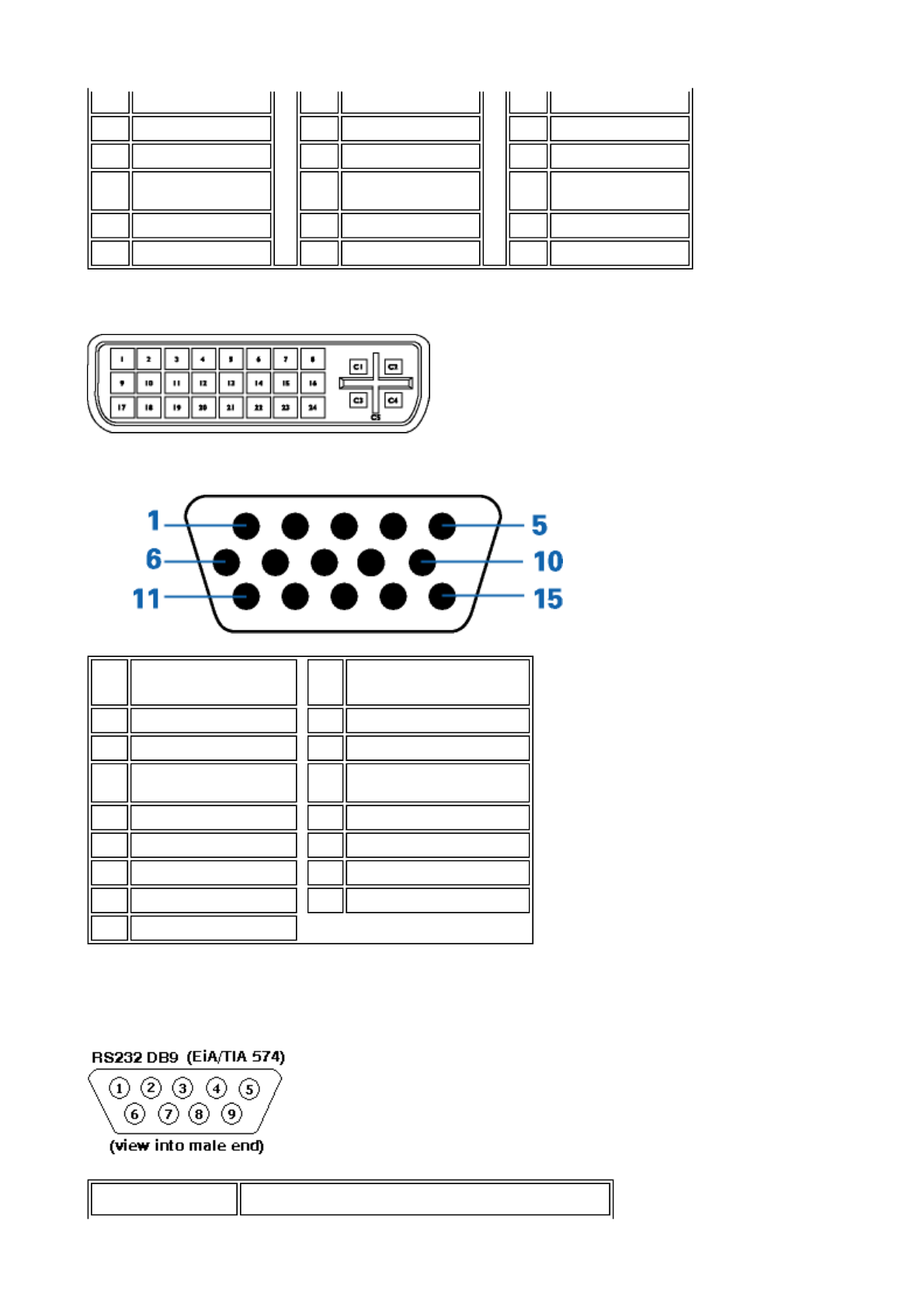

1. The digital only connector contains 24 signal contacts organized in three rows of eigh
contacts. Signal pin assignments are listed in the following table:
VESA Mode Video H-sync V-sync Used color
ON Active Pulse Pulse 130W (typ.) Blue
OFF Blanked No No < 5W Amber
AC OFF Blanked No No < 2W Off
This monitor is ENERGY STAR® compliant. As an ENERGY STAR® Partner, PHILIPS
has determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
• Dimension (WxHxD) * 867.7mm x 505mm x 183mm (incl. Pedestal, Speakers)
726.7mm x 469.3mm x 115mm (w/o Pedestal, Speakers)
• Weight 16.0 kg (incl. Pedestal, Speakers)
14.0 kg (w/o Pedestal, Speakers)
15.0 kg (w/o Pedestal, Speakers; with protective cover)
• Power supply 90 — 264 VAC, 50/60 Hz
• Power consumption PC Mode: 130 W (typ.)
TV Mode: 150 W (typ.)
• Temperature (operating) 0° C to 35° C
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 40Khrs)
Pin
No. Signal
Assignment Pin
No. Signal
Assignment Pin
No. Signal
Assignment
1 T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2 T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3 T.M.D.S. Data2/4 11 T.M.D.S. Data1/3 19 T.M.D.S. Data0/5
Page 4 of 7Product Information
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\PRODUCT\PRODUCT.HTM
2. The 15-pin D-sub connector (male) of the signal cable:
3. RS232 Connector
D-sub 9-pin male connector for communication with plasma engine or PC.
Shield
Shield
Shield
4 No connect 12 No connect 20 No connect
5 No connect 13 No connect 21 No connect
6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock
Shield
7 DDC Data 15 Hot Plug Detect 23 T.M.D.S. Clock+
8 No connect 16 Ground (for +5V) 24 T.M.D.S. Clock-
Pin
No. Assignment Pin
No. Assignment
1 Red video input 9 DDC +5V
2 Green video input 10 Cable detect
3 Blue video input 11 Identical output,
connected to pin 10
4 Ground 12 Serial data line (SDA)
5 NC 13 H. Sync / H+V
6 Red video ground 14 V. Sync
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
Pin No. RS-232 (EIA-232-A) Function
Page 5 of 7Product Information
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\PRODUCT\PRODUCT.HTM

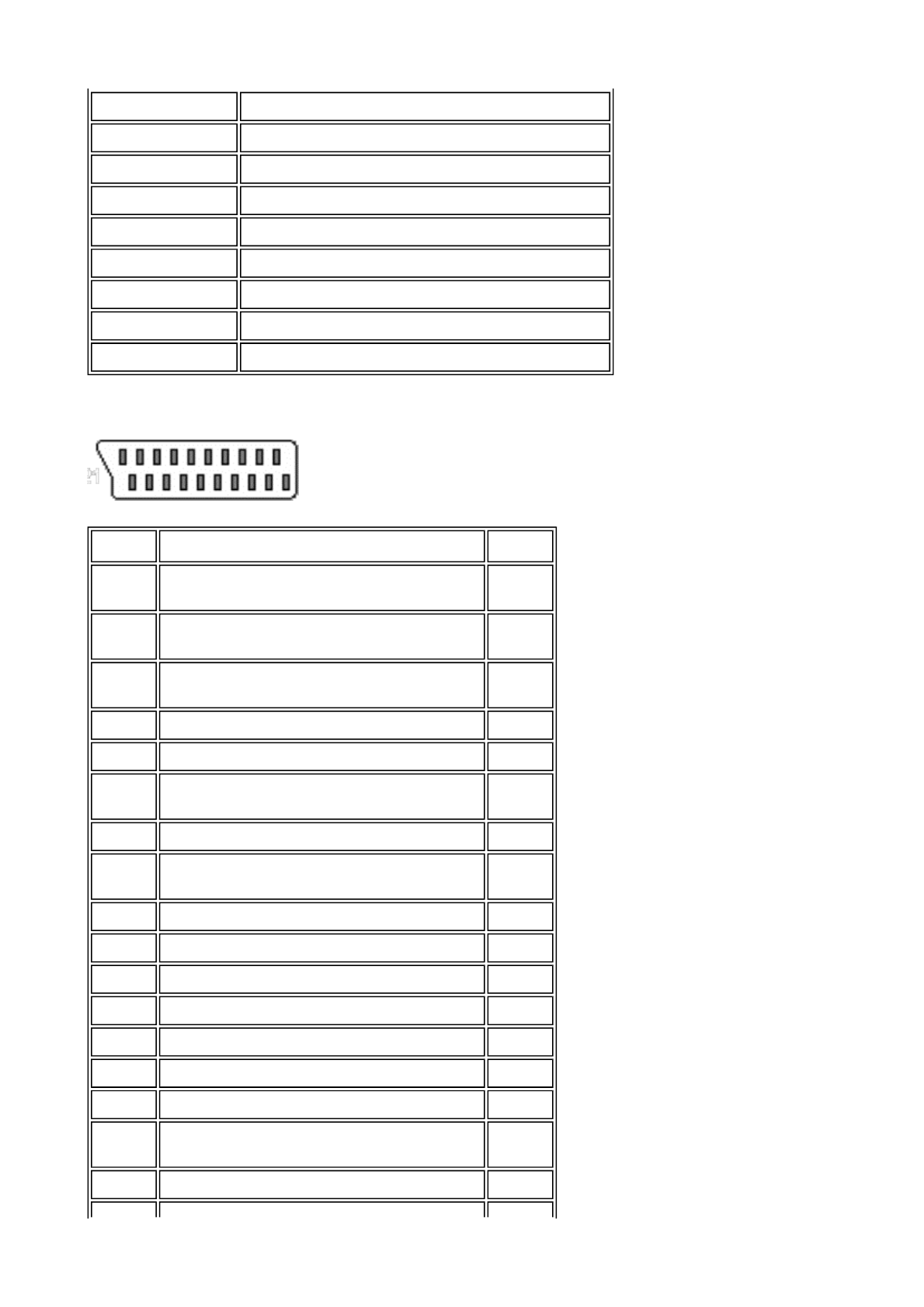

4. SCART Connector
3 Transmit Data (TD) from DTE to DCE
2 Receive Data (RD) from DCE to DTE
7 Request to Send (RTS)
8 Clear to Send (CTS)
6 DCE Ready (DSR)
5 Signal Ground (SG)
1 Received Line Signal Detector (DCD)
4 DTE Ready (DTR)
9 Ring Indicator
Pin No. Signal Pin No.
1 Audio right channel output (0.5 Vrms, < 1K
ohms) 2
2 Audio right channel input (0.5 Vrms, > 10K
ohms) 1
3 Audio left channel output (0.5 Vrms, < 1K
ohms) 6
4 Audio ground 4
5 Blue signal ground 5
6 Audio left channel input (0.5 Vrms, > 10K
ohms) 3
7 Blue signal I/O (0.7 Vp-p, 75 ohms) 7
8 Function switching I/O (L: < 2V, H: > 10V,
10K ohms) 8
9 Green signal ground 9
10 Intercommunication data line No. 1 10
11 Green signal I/O (0.7 Vp-p, 75 ohms) 11
12 Intercommunication data line No. 2 12
13 Red signal ground 13
14 Blanking signal ground 14
15 Red signal I/O (0.7 Vp-p, 75 ohms) 15
16 Blanking signal I/O (L: < 0.4V, H: >1.0V, 75
ohms) 16
17 Composite video signal ground 18
Page 6 of 7Product Information
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\PRODUCT\PRODUCT.HTM
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Product Description
RETURN TO TOP OF THE PAGE
18 Blanking signal ground 17
19 Composite video signal output (1 Vp-p, 75
ohms, sync: negative) 20
20 Composite video signal input (1 Vp-p, 75
ohms, sync: negative) 19
21 Plug shield (common ground) 21
Page 7 of 7Product Information
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\PRODUCT\PRODUCT.HTM
Installing your LCD Monitor/TV
Product Description • Connecting to Your PC, TV antenna, DVD/VCR etc. • Getting Started
Performance
Product Description

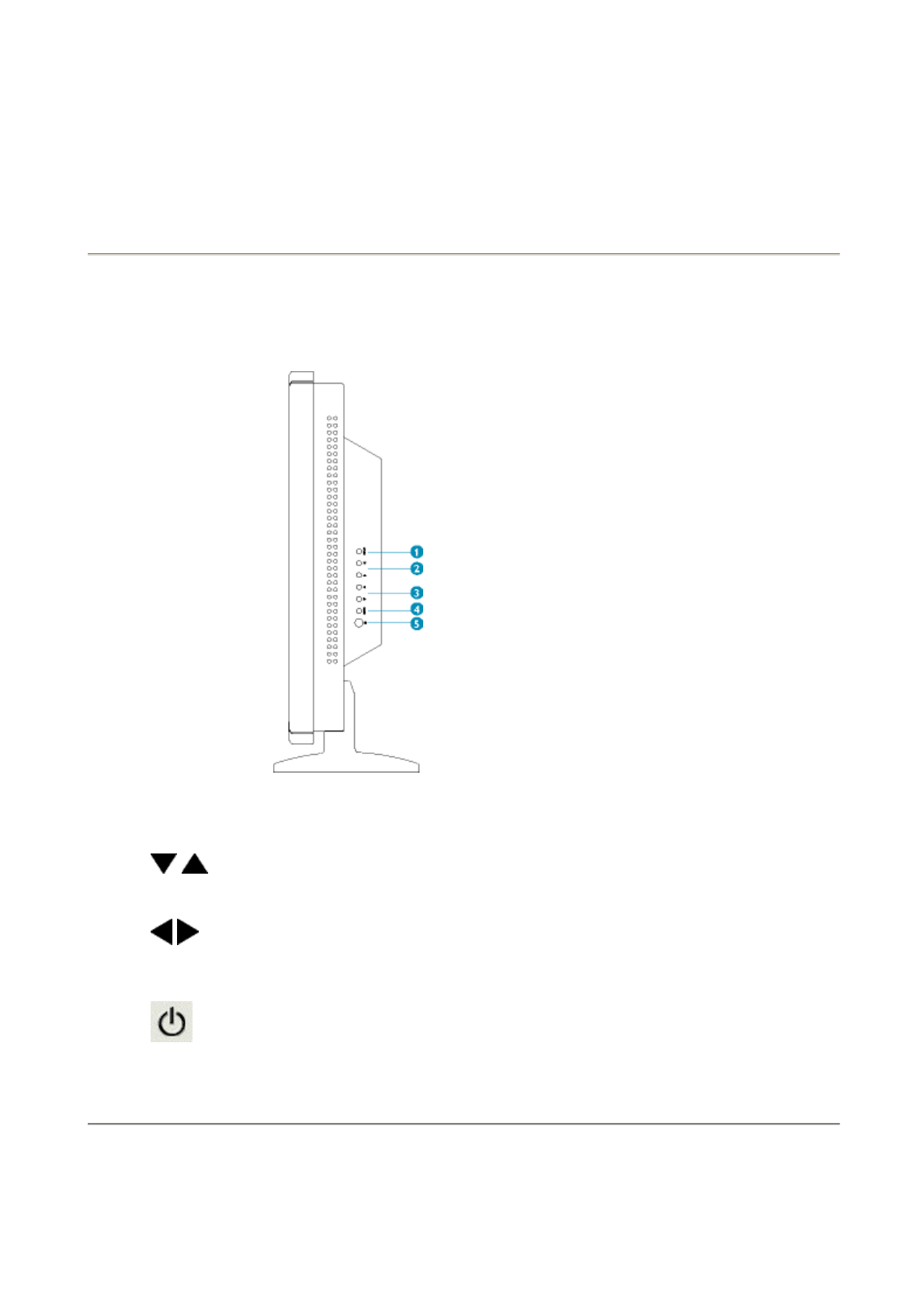

Side View (Left)
RETURN TO TOP OF THE PAGE

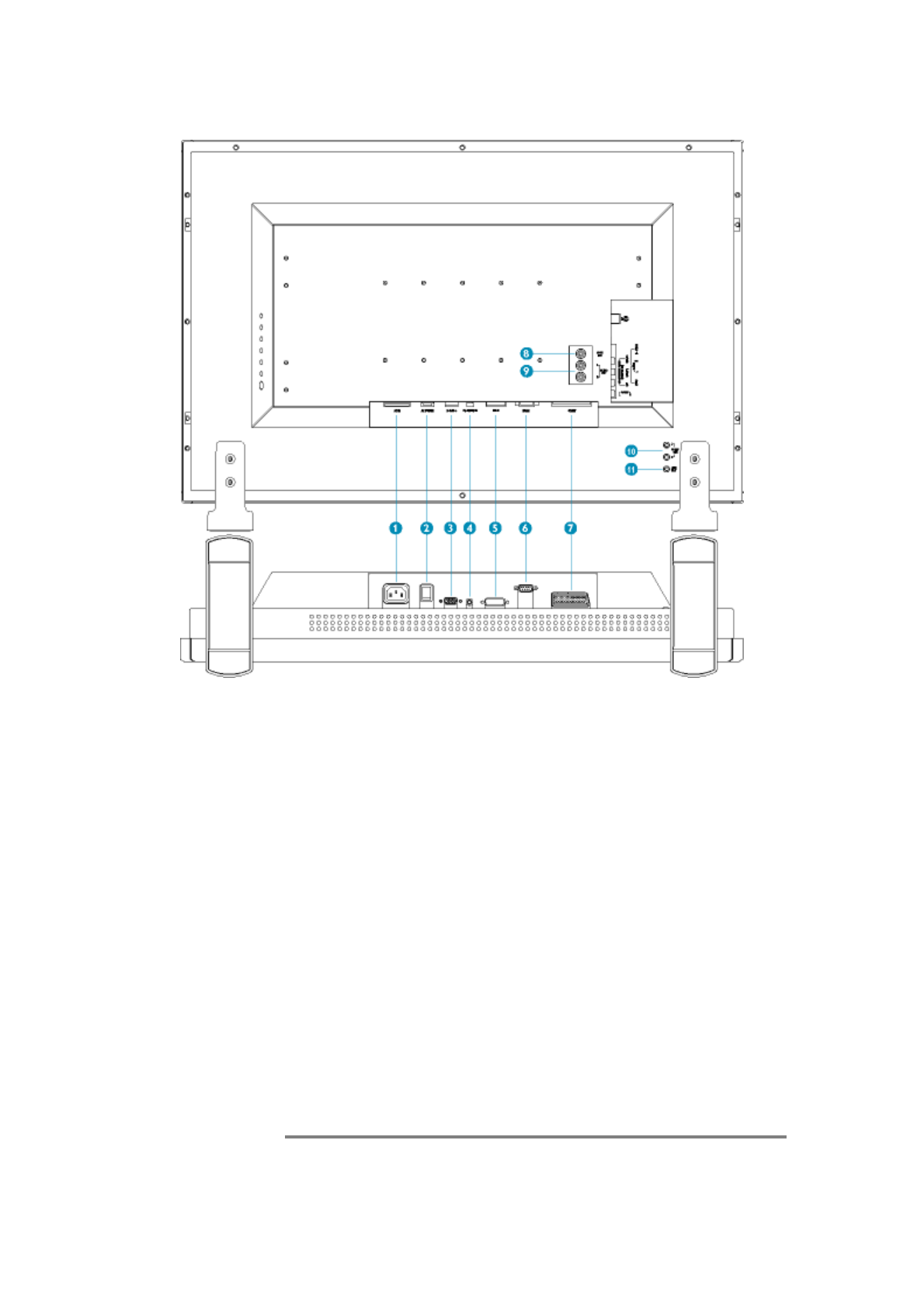

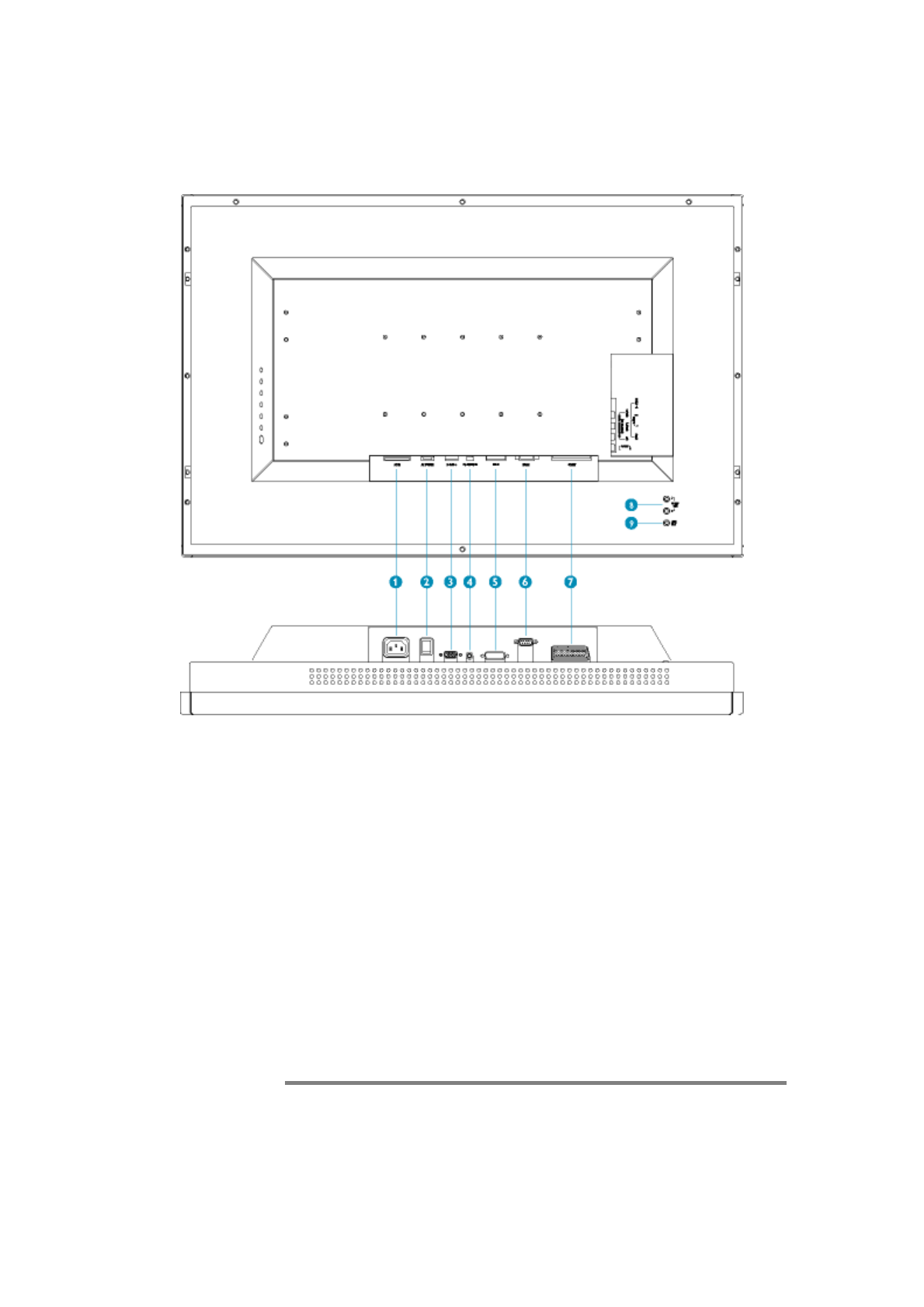

Rear View
TV version
1 INPUT Selecting input source
2
Increase or decrease the channel number
or
moving up or down to highlight the function in OSD
3
Increase or decrease the level of audio volume
or
moving left or right of to highlight the sub-menu in the selected
function of OSD
4 MENU Open the OSD or confirm the selected function
5 DC power switch On/Off
Page 1 of 7Installing your LCD Monitor/TV
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\INSTALL\INSTALL.HTM
RETURN TO TOP OF THE PAGE
Audio/Video version
1 AC IN AC power in
2 AC Power AC power switch
3 D-Sub PC analog D-Sub input
4 PC - Audio PC Stereo input
5 DVI-D PC
6 RS232 RS232 network connection
7 External/
EURO-AV SCART connection (for Europe only)
8 Composite Video Output Composite video CVBS ouput
9 Audio (L) Output Audio (L) output
Audio (R) Output Audio (R) output
10 Audio (L) Output Audio (L) output for the detachable speaker (L)
Audio (R) Output Audio (R) output for the detachable speaker (R)
11 Line out Audio output for external speakers
Page 2 of 7Installing your LCD Monitor/TV
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\INSTALL\INSTALL.HTM
RETURN TO TOP OF THE PAGE
Monitor version
1 AC IN AC power in
2 AC Power AC power switch
3 D-Sub PC analog D-Sub input
4 PC - Audio PC Stereo input
5 DVI-D PC
6 RS232 RS232 network connection
7 External/
EURO-AV SCART connection (for Europe only)
8 Audio (L) Output Audio (L) output for the detachable speaker (L)
Audio (R) Output Audio (R) output for the detachable speaker (R)
9 Line out Audio output for external speakers
Page 3 of 7Installing your LCD Monitor/TV
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\INSTALL\INSTALL.HTM
RETURN TO TOP OF THE PAGE
Side View (Right)
TV version
1 AC IN AC power in
2 AC Power AC power switch
3 D-Sub PC analog D-Sub input
4 PC - Audio PC Stereo input
5 DVI-D PC
6 RS232 RS232 network connection
7 Audio (L) Output Audio (L) output for the detachable speaker (L)
Audio (R) Output Audio (R) output for the detachable speaker (R)
8 Line out Audio output for external speakers
Page 4 of 7Installing your LCD Monitor/TV
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\INSTALL\INSTALL.HTM
RETURN TO TOP OF THE PAGE
Audio/Video version
1 Audio (L) Audio (L) for component video
2 Audio (R) Audio (R) for component video
3 Component Video Component video Y/Pb/Pr input
4 Composite Video Composite video CVBS input
5 Audio (L) Audio (L) for CVBS and S-Video
6 Audio (R) Audio (R) for CVBS and S-Video
7 S-Video S-Video input
8 RF 75 TV Antenna or CATV cable in
Page 5 of 7Installing your LCD Monitor/TV
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\INSTALL\INSTALL.HTM
RETURN TO TOP OF THE PAGE
Optimising Performance
zFor best performance, ensure that your display settings are set at 1280x768, 60Hz.
zYou can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performa
n
monitor. This is included on this CD. Step-by-step instructions are provided to guide you through the in
s
Click on the link to find out more about this program.
More about FP_setup04.exe
1 Audio (L) Audio (L) for component video
2 Audio (R) Audio (R) for component video
3 Component Video Component video Y/Pb/Pr input
4 Composite Video Composite video CVBS input
5 Audio (L) Audio (L) for CVBS and S-Video
6 Audio (R) Audio (R) for CVBS and S-Video
7 S-Video S-Video input
Note: You can check the current display settings by pressing the 'MENU' button
once.
Page 6 of 7Installing your LCD Monitor/TV
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\INSTALL\INSTALL.HTM
RETURN TO TOP OF THE PAGE
Page 7 of 7Installing your LCD Monitor/TV
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\INSTALL\INSTALL.HTM
Federal Communications Commission (FCC) Notice (U.S. Only)
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain
or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
zRéorienter ou déplacer l'antenne de réception.
zAugmenter la distance entre l'équipement et le récepteur.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Cet équipement a été testé et déclaré conforme auxlimites des appareils
numériques de class B,aux termes de l'article 15 Des règles de la FCC. Ces
limites sont conçues de façon à fourir une protection raisonnable contre les
interférences nuisibles dans le cadre d'une installation résidentielle. CET appareil
produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas
installé et utilisé selon les consignes données, peuvent causer des interférences
nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence
d'interférences dans le cadre d'une installation particulière. Si cet appareil est la
cause d'interférences nuisibles pour la réception des signaux de radio ou de
télévision, ce qui peut être décelé en fermant l'équipement, puis en le remettant
en fonction, l'utilisateur pourrait essayer de corriger la situation en prenant les
mesures suivantes:
Page 1 of 2Regulatory Information
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\SAFETY\REGS\REGULAT.H...
zBrancher l'équipement sur un autre circuit que celui utilisé par le récepteur.
zDemander l'aide du marchand ou d'un technicien chevronné en radio/télévision.
N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques.
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU
REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
RETURN TO TOP OF THE PAGE
Toutes modifications n'ayant pas reçu l'approbation des services compétents en
matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent
équipement.
Page 2 of 2Regulatory Information
2004/3/4file://W:\DFU\Philips\LCT-TV\300WN5\ENGLISH\300WN5\SAFETY\REGS\REGULAT.H...
