Philips Lighting North America LLC7260 CityTouch OLC User Manual
Philips Lighting North America Corporation CityTouch OLC
User Manual

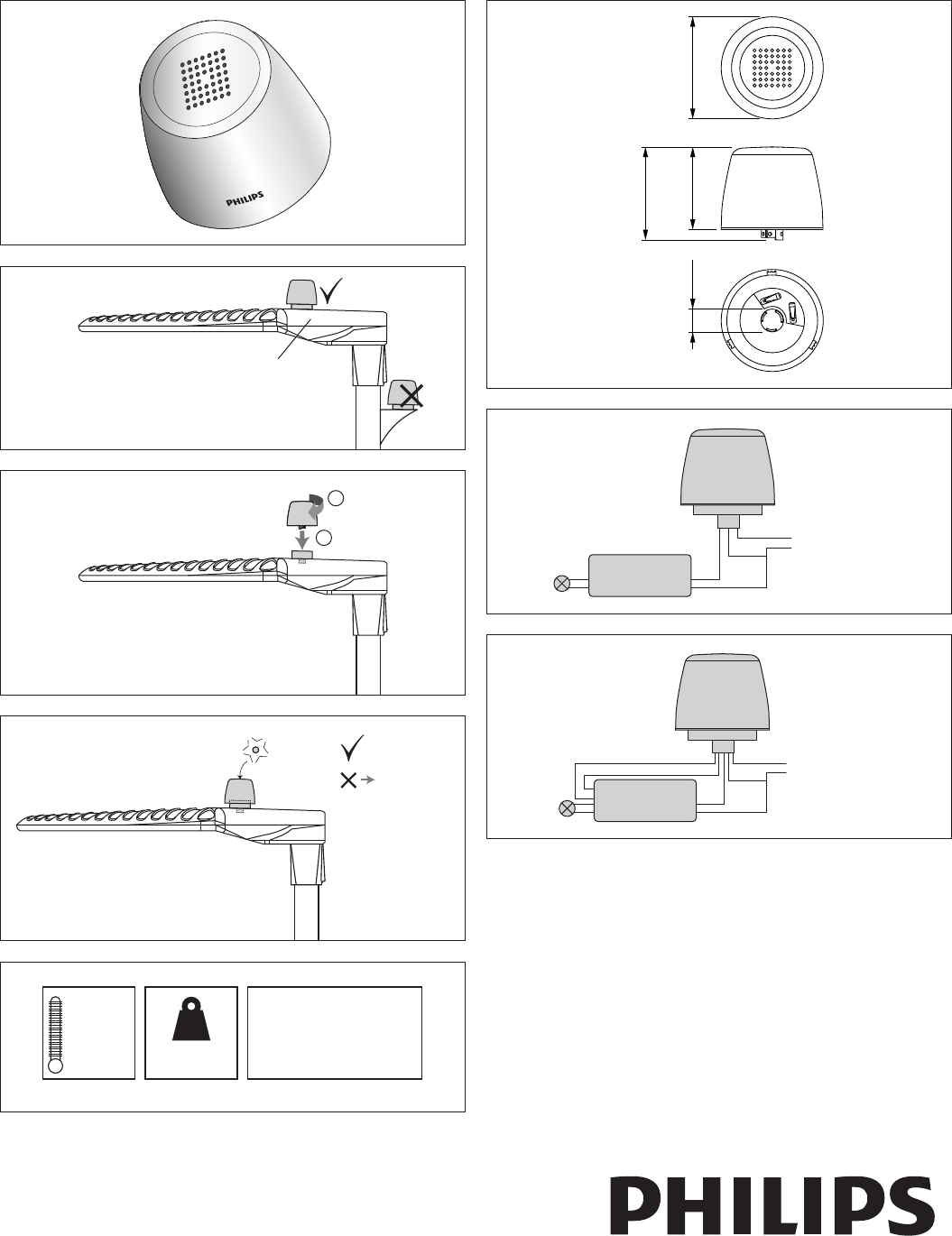

LLC7260 CityTouch Connector Node LV
Installation instructions
Instrucciones de montaje
Instructions de montage
88.8 mm
(3.5 in)
72 mm
(2.8 in)
ø18.9 mm
(0.7 in)
81.1 mm
(3.2 in)
L
N 120V-277V
50/60Hz
black
white
red
L
N
Driver
2
max 70˚ C
min -30˚ C
Un: 120V - 277V +10% -15%
ƒn: 50/60 Hz
kg
0.23 kg
1
2
Green LED
Check power
3
L
N 120V-277V
50/60Hz
violet
grey
red white
black
L
N
Driver
DA- / 0-10V-
DA+ / 0-10V+
ANSI C136.10
ANSI C136.41
© 2014 Koninklijke Philips N.V. All rights reserved.
Specications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
(Royal Philips) or their respective owners.
NA Customer Care: phone (1) 888.385.5742 or e-mail
citytouch.supportNA@philips.com
4422 107 02952, 2014-12-12 www.philips.com/CityTouch
metal only
1
Note: This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Notice:
1 Any changes or modications not expressly approved by the party
responsible for compliance could void your authority to operate the
equipment.
2 This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
3 This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20 centimeters between the radiator
and your body.
4 This product is intended for commercial use only, however operation of this
equipment in a residential area may cause harmful interference.
