Philips Lighting North America LLC7315 Wireless Outdoor Lighting Control User Manual
Philips Lighting North America Corporation Wireless Outdoor Lighting Control
User Manual
Starsense NEMA OLC (no dim) LLC7310/LLC7315
Installation Instructions
IP>=43
Do not
remove
barcode
from
Starsense
LOAD
BLK
WHT
RED
H
N
Photocontrol base *
* Photocontrol base is not supplied with Starsense
Light Sensor must
point NORTH

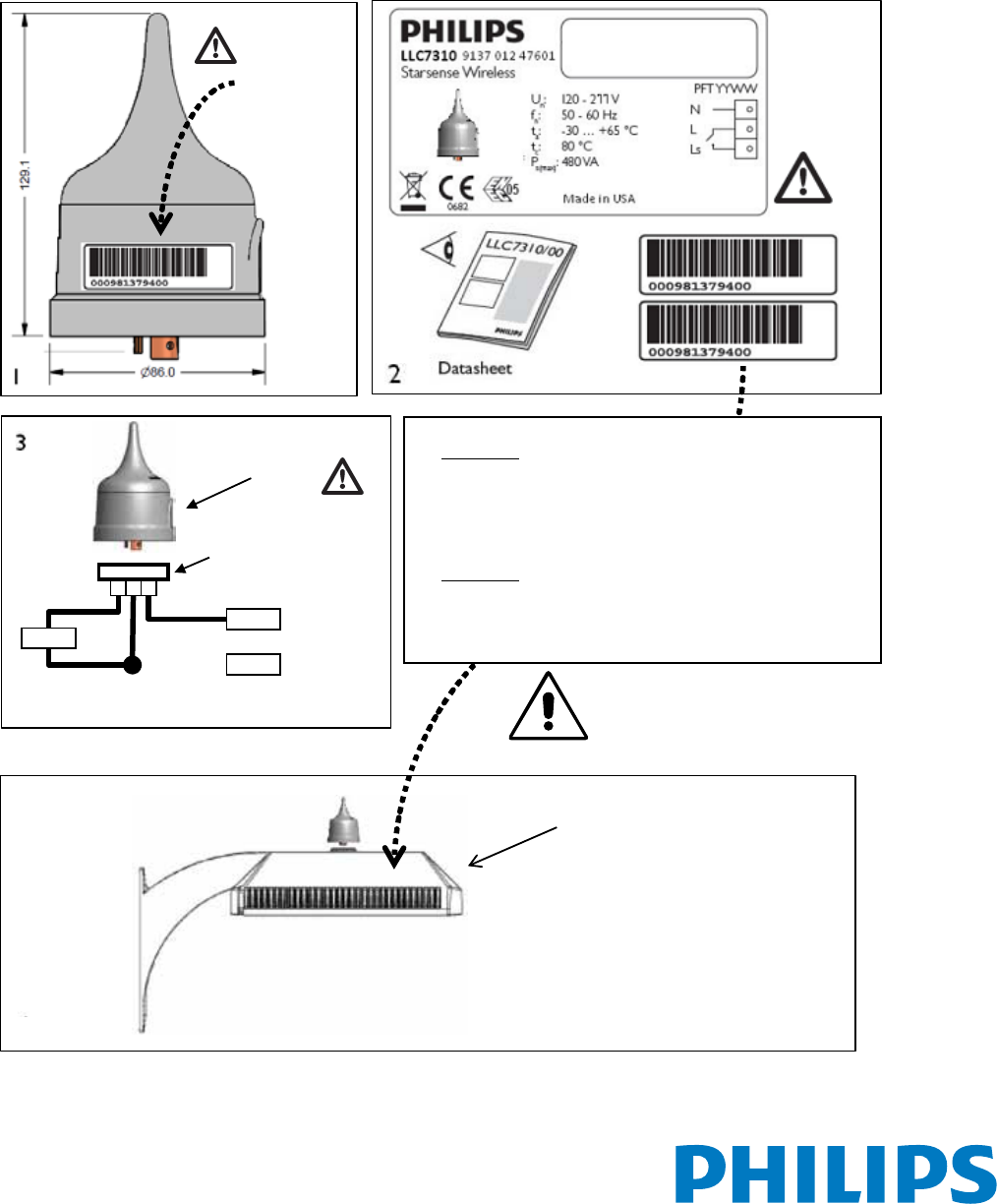

Wiring/Installation Diagram
Attach a copy of barcode
to luminaire interior
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by Philips could void the user’s authority
to operate the equipment. This product is intended for commercial use only.
4.
5
LLC7310
Output load
A. The OLC shall be able to operate a magnetic ballast load
with 8A rating at 120VAC and 3.6A rating at 277VAC.
B. The OLC shall be able to operate an electronic ballast load
with 4A rating at 120VAC and 2.3A rating at 277VAC.
LLC7315
Output load
A. The OLC shall be able to operate a magnetic ballast load
with 3.3A rating at 347VAC and 2.3A rating at 480VAC.
B. The OLC shall be able to operate an electronic ballast load
with 1.38A rating at 347VAC and 1A rating at 480VAC.
© 2012 Philips Lighting Electronics
All rights reserved.
Form No. PA-7480-B 9/12
Philips Lighting Electronics
10275 West Higgins Road
Rosemont, IL 60018
Tel: 800-322-2086 Fax: 888-423-1882
Customer Support/Technical Service: 855-476-4306
www.philips.com/starsense-na
