7180XL
7183XL
Rechargeable Tripleheader®
Cordless/Cord Razor
Register your product and get support at
www.philips.com/norelco
2
ENGLISH 4
ESPAÑOL 22
7180XL/7183XL
Congratulations on your purchase and
welcome to Philips Norelco!
To fully benefit from the support that Philips
Norelco offers, register your product at
www.philips.com/norelco
Felicitaciones en su compra y recepción
a Philips Norelco!
Beneficiar completamente de la ayuda
que las ofertas de Philips Norelco, colocan
su producto en www.philips.com/norelco
ENGLISH4ENGLISH 55
IMPORTANT SAFETY
INSTRUCTIONS
When using an electric razor, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a corded razor that has fallen into water.
Unplug immediately.
2. Use razor only in dry condition. Do not use a razor while
bathing or in a shower.
3. Do not submerge razor in water.
4. Do not place or store a razor where it can fall or be pulled into
a tub or sink. Do not place or drop a razor into water or other
liquid.
5. Always unplug this razor from the electrical outlet immediately
after use, except when razor is (re)charging.
6. Unplug and remove power supply cord from razor before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury
to persons:
1. Close supervision is necessary when this razor is used by, on,
or near children or invalids.
2. Use this razor for its intended household use as described in
this manual. Do not use attachments not recommended by
Philips Electronics North America Corporation.
3. Never operate this razor if it has a damaged cord or charging
plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water while plugged in. Return the
4
razor to the Philips Norelco Service Location for
examination and repair.
4. Keep the razor, cord and charging plug away from heated
surfaces.
5. Never drop or insert any object into any opening.
6. Do not charge or plug in razor outdoors or operate where
aerosol (spray) products are being used or where oxygen is
being administered.
7. Do not use this razor with a damaged or broken comb, as facial
injury may occur.
8. For corded use, always attach plug to razor first, then to outlet.
Be certain that plug is inserted firmly into razor, up to mark
indicated on plug.To disconnect, turn razor off then remove
charging plug from outlet.
9. Never put the razor in direct sunlight or store in a pouch at a
temperature above 140°F.
10. Razor can be rinsed under running tap water. Do not charge or
operate razor corded until fully dried.
11.To prevent possible damage to the cord, do not wrap cord
around the razor.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
ENGLISH 7ENGLISH6
Table of Contents
Features.........................................................8-9
Indications ......................................................10
Before First Use............................................10
Charging ...................................................11-12
Quick Charge................................................12
Put It To The Test & Shaving Tips ..............12
How To Shave With An
Electric Razor................................................13
Trimming.........................................................14
Cleaning....................................................14-18
Storage ............................................................19
Assistance.......................................................19
Accessories....................................................20
Warranty ........................................................21
Spanish ............................................................22
76
ENGLISH 9ENGLISH88
Spring-Release
Trimmer
Automatic
Worldwide Voltage
100V to 240V AC
Cleaning Brush
Rechargeable -
Initial 12-hour full
charge for up to
10 days of cordless
shave time
Quick Charge
Cord/Cordless -
To shave with or
without a cord
Full 2-Year Warranty

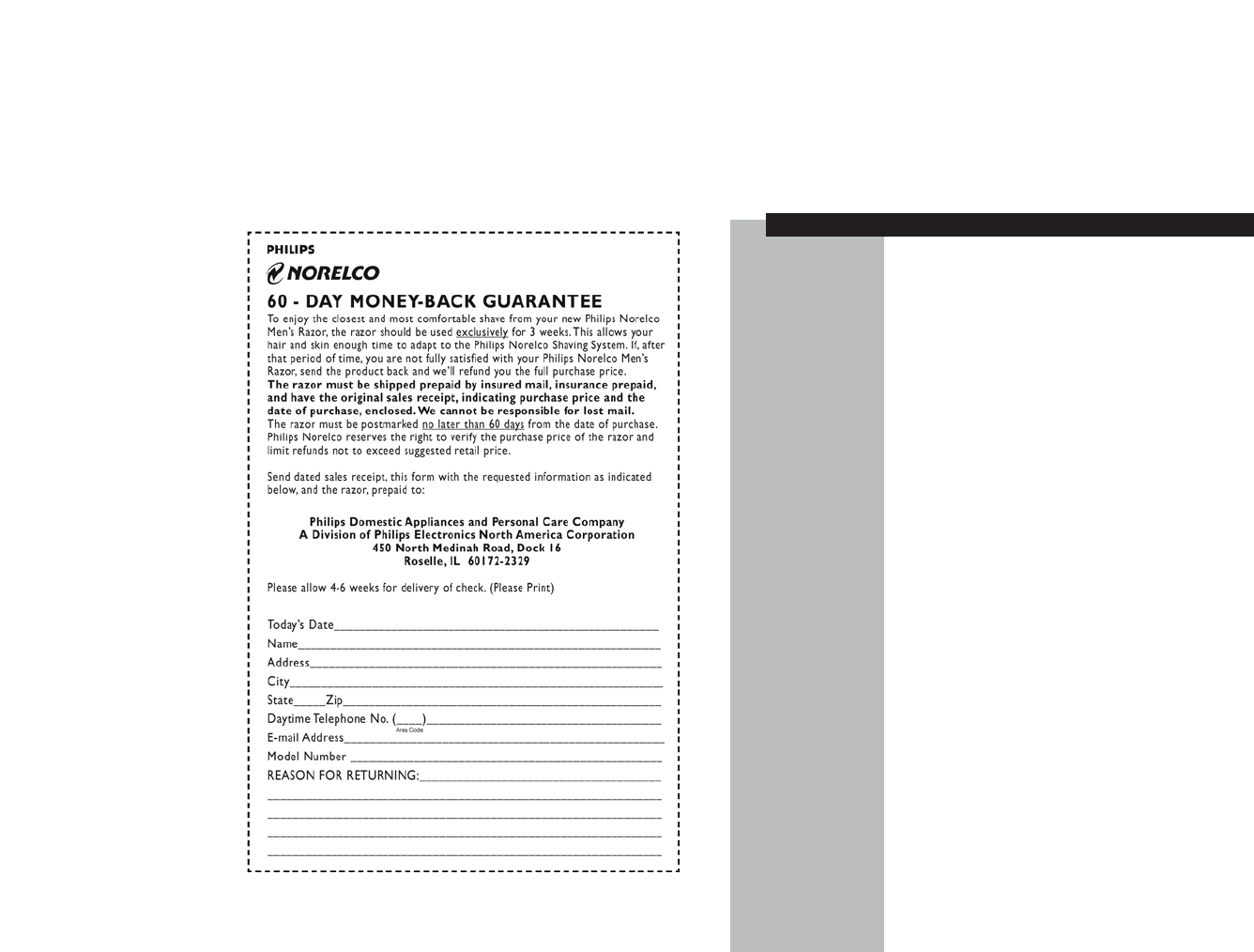

60-Day Money-
Back Guarantee
How the Unique Philips Norelco Lift and Cut®
Shaving System Makes Close Comfortable:
Groove channels beard
closer to cutting system
Lifter raises hair Blade cuts hair which
then drops below skin level
Features
Reflex Action
System
Razor Head Assembly
Protective Razor
Head Cap
Individually
Floating Heads
Razor Head Release
Button
• Hair Chamber
captures
shaven hair
Electronic ON/OFF
Button
LED Charge Indicator
Light
• Indicates razor is
(re) charging
• Indicates when razor
is fully charged
LED Battery Low
Indicator Light
Built-in Charger
ENGLISH10 ENGLISH 1110
Indications
C◗Low Battery Indicator
If the batteries run low, the red indicator light
will turn on while shaving. After razor has
been switched OFF, the red indicator light will
blink for 4 seconds.
◗Charging Indicator
When you charge razor, the green LED light
will light up and stay lit to indicate razor is
(re)charging.
C◗Full Charge Indicator
When the batteries have been fully charged,
the green LED light will blink.
Before First Use
◗Charge the razor before you start using it (see
‘Charging’). Make sure the razor is switched
off before you start charging it.
Important
◗Only use the power plug provided to charge
the razor.
◗The charging plug converts 100 – 240V AC to
less than 24V DC.
Charging
◗Battery performance is best if you recharge
only when the batteries are (almost)
completely empty.
◗Charging or recharging at temperatures below
40°F and higher than 95°F adversely affects
lifetime of batteries.
◗Continuously recharging or continuously using
as a corded razor will reduce life of batteries.
◗You may also shave using the cord provided.
This razor will not recharge while being used
corded.
◗First time charging and recharging after non-use
for 1 month or more requires a full 12 hours.
◗Do not charge/recharge or use razor corded
until fully dried.
C1 Connect cord directly to razor. Connect
the charging plug into any 100V to 240V AC
outlet. Use only the charging plug provided.
◗An adaptor plug may be necessary for charging
plug usage in some foreign countries. Use an
attachment plug adaptor of the proper
configuration for the power outlet.
The charging plug will automatically convert to
work on 100V to 240V AC systems.
2 First time charging requires 12 hours. After
initial charge, recharging requires
approximately 1 hour. A fully charged razor
has a cordless shaving time of up to
10 days.
ENGLISH12
How To Shave With An Electric Razor
◗Use this razor for its intended household use
as described in this manual.
◗Shaving with a clean, dry face gives the best
results.
C1Turn razor ON by pressing the on/off
button once.The green light ring around
the on/off button goes on to indicate the
razor is ON. Shave against the direction of
beard growth using both straight and
circular movements.
2Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press razor to skin so the floating heads can
follow the contours of your face. DO NOT
press too hard.Too much pressure can
pinch the skin into the combs.
3Turn razor OFF by pressing the on/off
button once.
The green light ring around the on/off button goes
OFF.
C4Put the protective razor head cap on the
razor to protect razor heads.
For optimal shaving results, replace Philips
Norelco razor heads (model #HQ8) once a year.
ENGLISH 1312
When batteries are fully charged, the charging
light blinks green.
Quick Charge
When batteries are totally depleted, recharging
the razor for approximately 6 minutes gives
enough energy for a 3-minute cordless shave.
Put It To The Test & Shaving Tips
◗21 Day Trial and Conversion Process.It is a fact
that your skin and beard need time to adjust to
a new shaving system.
◗Use your new razor exclusively for 3 weeks to
fully enjoy the closeness of a Philips Norelco
shave.
◗At first you may not get as close a shave as
you expect, or your face may even become
slightly irritated.This is normal since your
beard and skin will need time to adjust. Invest
3 weeks and you’ll soon experience the full
joy of your new razor.
◗Stick with it! If you alternate shaving methods
during the adjustment period,it may make it
more difficult to adapt to the Philips Norelco
shaving system.
◗If you are still not convinced after 21 days,
Philips Norelco will refund you the full
purchase price as long as the request is
received within 60 days of purchase.
ENGLISH14 ENGLISH 1514
Trimming
To groom sideburns and moustache:
1Turn razor ON.
C2Push down spring-release trimmer switch.
The trimmer can be activated while the razor is
running.
C3Hold trimmer as shown and move in
downward strokes with gentle pressure.
C4Close trimmer by pressing trimmer down.
5Turn razor OFF.
Cleaning
C◗The tap symbol on the back of the razor
indicates that the razor can be rinsed under
running tap water.
◗Regular cleaning guarantees better shaving
results.
◗Always switch Razor OFF, unplug and remove
power cord before cleaning.
◗Never clean, remove or replace head
assembly while motor is on.
◗Do not apply pressure to combs. Do not
touch razor heads with hard objects as this
may dent or damage precision-made slotted
combs.
◗Do not use razor if combs are damaged or
broken. Facial injury may occur.
Cleaning: Razor Heads
The easiest and most hygienic way to clean the
razor heads is to rinse them after each use or at
least once a week with hot water: Water from
the tap should be on a hot setting, BUT BE
CAREFUL TO TEST WATER FIRST SO AS NOT
TO BURN OR SCALD HANDS.
◗Regular cleaning guarantees better shaving
results.
◗Do not immerse razor in water.
C◗While rinsing razor heads,water may drip out of
the base of razor.This is a normal occurence.
1Always turn razor OFF, unplug from outlet
and remove cord from razor before
cleaning.
C2Press the Razor Head Release Button, flip
open the Razor Head Assembly.
C3Clean inside razor heads and hair chamber
by running under hot water.
ENGLISH16
C4Clean outside of Razor Head Assembly by
running under hot water.
5Close the Razor Head Assembly and shake
off excess water.
C6Open Razor Head Assembly again and
leave open to air dry.
NOTE: Do not wipe or dry the shaving heads
with a towel or tissue.This could damage the
shaving heads.
C7If the shaving unit becomes detached from
the razor, you can easily reattach it.
8You may also clean the hair chamber
without water by using the supplied brush.
Once A Month: Razor Heads
Do not mix up the cutters and combs as the
shaving performance may be adversely affected for
several weeks before optimal shaving performance
is restored.
1Turn razor OFF, remove the charging plug
from the outlet and cord from the razor.
C2Press the razor head release button to
open the Razor Head Assembly.
ENGLISH 17
C3Turn the black 3-pronged locking bracket
counterclockwise (1) and remove the
retaining frame (2).
C4Remove and clean one set of cutters and
combs at a time.
C5Separate the cutter from the comb and
rinse clean under hot water.
Do not clean more than one cutter and comb at a
time, since they are all matching sets. If you
accidentally interchange the cutters and combs, it
could take several weeks before optimal shaving
performance is restored.
C6Replace the set back into the Razor Head
Assembly so that the “wings” on the comb
fit within the brackets located towards the
center of the Assembly.
The set will only fit into the Razor Head Assembly
if the ‘wings’ are between the brackets. Make sure
that the two pointy edges of the head fit exactly
into the recesses.
7Repeat the process for the other two sets
of cutters and combs.
16
ENGLISH 19
Storage
◗Be sure razor is turned off. Remove cord from
outlet and razor before storing in a safe, dry
location where it will not be crushed, banged,
or subject to damage.
◗Do not wrap cord around razor when storing.
◗Store cord in a safe location where it will not
be cut or damaged.
◗Do not keep razor permanently plugged into
outlet.
◗Do not place or store razor where it can fall
or be pulled into a tub or sink, water or other
liquid while plugged in.
C◗Put the Protective Razor Head Cap on razor
to protect heads.
Assistance
◗For assistance, call toll free:
1-800-243-3050 or visit our website:
www.philips.com/norelco
◗Information is available 24 hours a day, 7 days
a week.
ENGLISH18
8Replace the frame.
C9Press down (1) and turn the black
3-pronged locking bracket clockwise (2)
until it locks into place.
10 Close the Razor Head Assembly.
Once A Month: Razor Heads
For optimum performance, razor cutters and
combs should be cleaned in a degreasing liquid
(e.g. rubbing alcohol) and lubricated with one drop
of mineral oil (in the center of the head). This
helps prevent wear of the shaving heads.
After Each Use: Trimmer
1Turn razor OFF.
2Push down spring-release trimmer switch.
C3Clean trimmer with the brush every time
you use it.
C4Lubricate the trimmer teeth with one
drop of mineral oil every 6 months.
5Close trimmer by pressing trimmer down.
This razor has no other user-serviceable parts.
Any other service should be performed by the
Philips Norelco Service Location.
ENGLISH20 ENGLISH 21
FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation warrants each new Philips Norelco Product, Model 7180XL,
7183XL (except cutters and combs) against defects in materials or workmanship for a period of two years
from the date of purchase, and agrees to repair or replace any defective product without charge.
IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of
reasonable care, the affixing of any attachment not provided with the product or loss of parts or
subjecting the product to any but the specified voltage.* Use of unauthorized replacement parts will void
this warranty.
PHILIPS ELECTRONICS NORTH AMERICA CORPORATION WILL NOT PAY FOR
WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR SERVICE AND
WILL NOT REIMBURSE THE CONSUMER FOR DAMAGE RESULTING FROM
WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR SERVICE. NO
RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
In order to obtain warranty service, simply ship the product postage prepaid to the Philips Norelco
Service Location(information available online at www.philips.com/norelco or at 1-800-243-3050). It is
suggested that for your protection you return shipments of product by insured mail, insurance prepaid.
Damage occurring during shipment is not covered by this warranty.
NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America
Corporation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above exclusion and limitations may not apply to you.
* Read enclosed instructions carefully.
Manufactured for:
Philips Domestic Appliances and Personal Care Company
A Division of Philips Electronics North America Corporation
1600 Summer Street - 5th Floor, Stamford, CT 06905-9991
This symbol on the product’s nameplate means it is
listed by Underwriters’ Laboratories, Inc.
Norelco, Reflex Action, Lift and Cut, and are Registered Trademarks of Philips Electronics North
America Corporation.
is a Trademark of Philips Electronics North America Corporation.
PHILIPS is a Registered Trademark of Koninklijke Philips Electronics N.V.
© 2007 Philips Electronics North America Corporation. All Rights Reserved.
TM
Accessories
◗Replacement Heads
Model HQ8 - For maximum razor
performance, replace your Philips Norelco
razor heads once a year.
◗Car Cord Adaptor Cable
HQ8010 - Charges razor from a 12V battery
in your car, truck, van, boat or camper.
◗Philips Norelco Razor Accessories may be
purchased at a store near you, or on our
website www.philips.com/norelco

Navigation menu
