Please visit www.philips.com/sleepdx

Alice 6 LDx diagnostic sleep system

Full-featured flexibility

What if you could have a PSG system

that helped you meet your ever changing

business and clinical needs? Pair the LDx

base station with either the LDxS or

LDxN head box to have a full-featured,

easy-to-understand system that allows

staff to focus more on patients and less

on equipment. The LDxS is the perfect

front-line head box for most sleep

center needs. Place the LDxN into use

when you need to step up from the 19

EEG inputs on the LDxS to a full 32 EEG

inputs. The LDx base station works with

either head box, so it’s easy to have the

right capability where, and when,

you need it.

• Integrated RIP driver, dedicated

differential pressure transducer, and

“keyhole” inputs (reduces the number

of connections during hook up)

• Patent-pending chin EMG technology that

monitors all three chin EMG inputs and

selects the best pair in real-time

• 7 ECG channels (3 physical and 4 derived)

• Continuous impedance recording for

quality control

• Up to 500Hz recording

• Meets or exceeds AASM standards

©2011 Koninklijke Philips Electronics N.V.

All rights are reserved.

Philips Healthcare reserves the right to make changes in specifications and/or to discontinue any product at any time without notice or

obligation and will not be liable for any consequences resulting from the use of this publication.

CAUTION: US federal law restricts these devices to sale by or on the order of a physician.

Geyer SB 06/13/11 MCI 4104289 PN 1091842

Respironics, Alice, and Sleepware are trademarks of Respironics, Inc. and its affiliates. All rights reserved. Masimo is a trademark of

Masimo Corporation. All other trademarks are the property of their respective owners.

Philips Healthcare is part of

Royal Philips Electronics

How to reach us

www.philips.com/healthcare

healthcare@philips.com

Asia

+49 7031 463 2254

Europe, Middle East, Africa

+49 7031 463 2254

Latin America

+55 11 2125 0744

North America

+1 425 487 7000

800 285 5585 (toll free, US only)

Philips Respironics

1010 Murry Ridge Lane

Murrysville, PA 15668

Customer Service

+1 724 387 4000

800 345 6443 (toll free, US only)

Philips Respironics International

Headquarters

+33 1 47 28 30 82

Philips Respironics Asia Pacific

+65 6882 5282

Philips Respironics Australia

+61 (2) 9666 4444

Philips Respironics China

+86 021 24127311

Philips Respironics Deutschland

+49 8152 93 06 0

Philips Respironics France

+33 2 51 89 36 00

Philips Respironics Italy

+39 039 203 1

Philips Respironics Sweden

+46 8 120 45 900

Philips Respironics Switzerland

+41 6 27 45 17 50

Philips Respironics United Kingdom

+44 800 1300 845

www.philips.com/respironics

*The AASM Manual for the Scoring of Sleep & Associated Events: Rules, Terminology and

Technical Specifications, 1st ed.

Recognizing the clinical and business

requirements of today’s sleep professional

The LDx sleep system supports your staff’s focus with

easy-to-identify and easy-to-connect inputs on the LDxS

and LDxN head box. The dedicated pressure transducer

and integrated RIP driver simplify set-up. One LDx sleep

system and your choice of either the LDxS or the LDxN

head box provides optimal value to your lab. Give

yourself flexibility to address each study with the right

equipment for patient clinical needs.

Value. Ease of use. Staff efficiencies.

The Alice 6 LDx supports the knowledge and skill of your

staff and your business goals.

• Choice of LDxS or LDxN head box

• The system architecture requires only two LAN cables

from the patient room to provide: data, Philips

Respironics therapy control, intercom, audio, and video

• The head box perfectly balances a compact form-factor

with easy-to-identify and easy-to-use inputs

• The system connects directly with the OmniLab

Advanced, eliminating the need for interface modules

and confusing cabling

Sleepware G3 diagnostic software

The Alice 6 LDxS and LDxN systems are powered by

Sleepware G3 sleep diagnostic software, the same

software used in our other Alice diagnostic products.

Sleepware G3 incorporates a robust platform offering

enhanced functionality to help busy lab managers better

meet their workflow needs, regardless of the size of

their lab:

• Control and protection against unwanted access to

patient data

• Innovative new composite channel type that is

especially useful when evaluating the BiPAP autoSV

Advanced on more complex patients

• Incorporates multiple therapy settings and patient

pressures into one composite display (breath-by-

breath basis or in a trend format)

• Helps clinicians assess patient needs quickly and

respond with the appropriate treatment settings

• Only Philips Respironics and Sleepware G3 can

provide this advanced composite channel

Cost-effective field-conversion plan for Alice 5 owners available.

Ask your Philips Respironics representative for details.

Philips Respironics is known for its service and support. Philips

Respironics is the most “recommended” diagnostics supplier by sleep

professionals in the U.S.*

For technical or product support, call us at: 1-800-345-6443.

*Data on file

Alice 5 and Alice 6 feature comparison Ordering information

Description Item no.

Alice 6 LDx system includes: 1063314

Alice 6 LDx base station, auto-switching

power supply, AC power cord,

patient cable, head box shoulder strap,

Alice 6 LDxS user's guide. Order separately

either the LDxS or the LDxN head box.

Alice 6 LDxS head box, domestic 1063552

Alice 6 LDxN head box, domestic 1063476

Alice 6 LDx system International includes: 1063315

Same parts as domestic, order separately

either the LDxS or the LDxN head box.

Alice 6 LDxS head box, International 1063553

Alice 6 LDxN head box, International 1063547

PC Direct 1022090

Warranty and service agreements

available upon request

Hardware requirements

To experience the greatest benefit from your Alice 6

LDxS and LDxN systems, it is recommended that you

are equipped with the following:

Windows* compatible personal computer running

Windows 7 Professional (32 or 64 bit),Windows Vista*

Business (32 or 64 bit), XP Professional (32 or 64 bit)

with a DVD drive. Windows Server 2003 and Windows

Server 2008 are also supported but limited to offline

use only.

• Dual core processors 2.3 GHz or greater or single

core processor 2.8 GHz or greater

• 2GB of RAM minimum

• 100 MB of free space for the Sleepware G3 application

• 5 GB of free space for SQL Server Express and

Sleepware G3 database

• 40 GB hard drive minimum. Estimated acquisition size

is 1GB with audio/video

• Windows-compatible keyboard and pointing device

(mouse)

• Microsoft* .NET framework 3.5 SP1 or later**

• Windows Installer 4.5 or later **

• Windows PowerShell*1.0 or later**

• SQL Server Express 2008 SP2 or later**

• Microsoft Word application (version 97 or later)

• PC direct

• 1 microphone (for intercom and audio recording/

playback)

• 1 set of speakers (for intercom and audio playback)

• Ethernet port

*Microsoft, SQL Server, and Windows are registered trademarks and

PowerShell is a trademark of Microsoft Corporation.

** Indicates that these are provided with the installation of Sleepware G3.

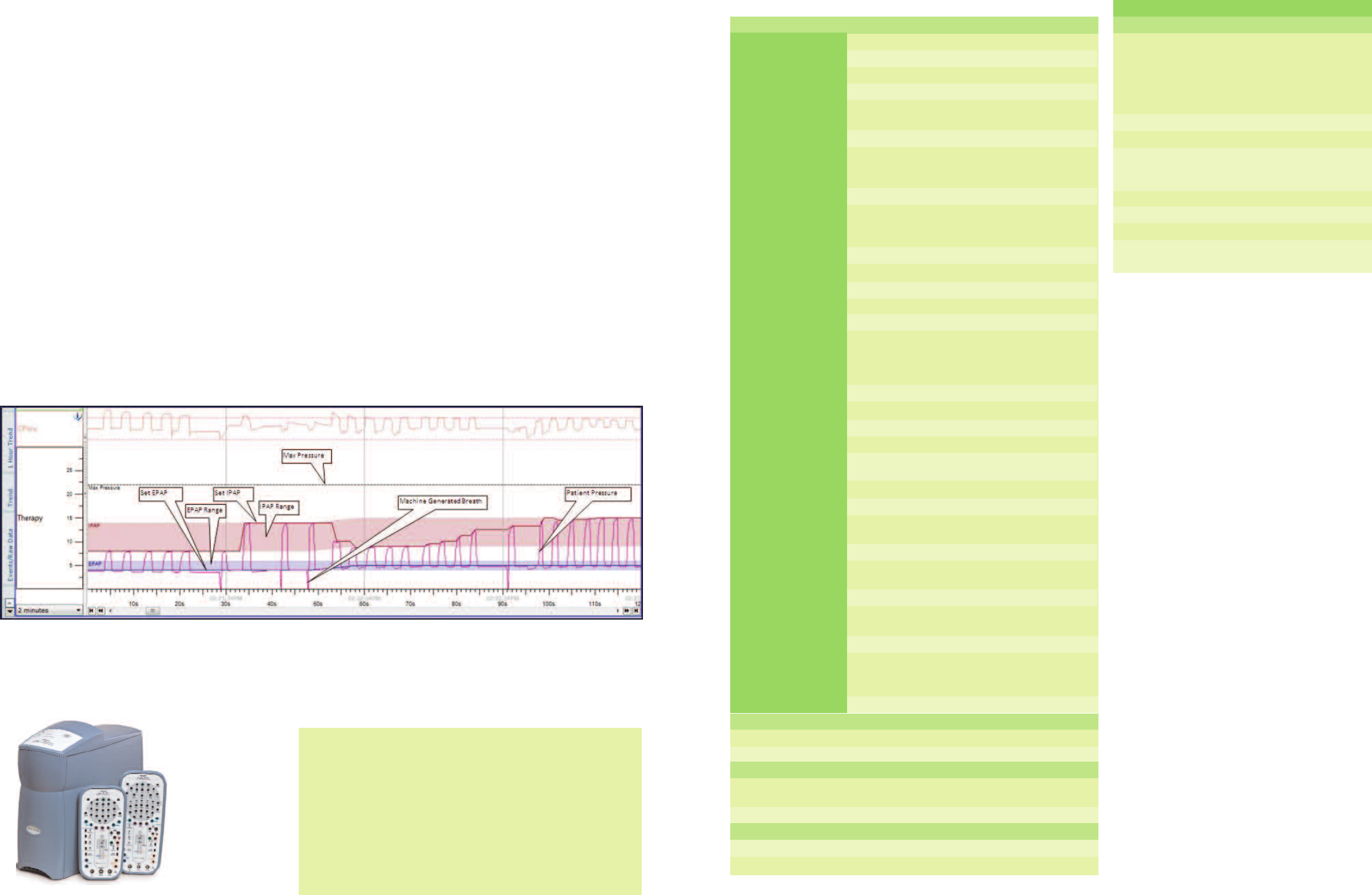

Sleepware G3 features an exclusive composite channel type, useful when titrating complex sleep apnea patients with the/BiPAP autoSV

Advanced. The channel integrates the various parameters available from the BiPAP autoSV so a clinician can see the relationships of the

various parameters on a breath-to-breath basis./Additionally this composite channel allows the clinician to eliminate the redundant

channels from view which provides them with better screen visibility to all of the data.

Alice LDx system

with LDxS and

LDxN head box.

Product features Alice 5 Alice 6 LDxS Alice 6 LDxN

T

otal channels 55 55 68

EEG inputs 19 19 32

Dedicated EMG channels 555

Chin EMG inputs 233

Automatic chin EMG NYY

referencing

EOG channels 222

ECG channels 6 7 7

(2 physical and (3 physical and (3 physical and

4 derived) 4 derived) 4 derived)

“V” ECG input NYY

Pressure transducer PTAF Lite Dedicated Dedicated

(flow only) differential differential

w/snore w/snore

Flow (thermal) Y YY

Snore Y Y Y

Body position 111

Actimeter inputs 222

Light sensor Optional accessory Optional accessory Optional accessory

Effort (chest/abdominal) Piezo, RIP zRIP zRIP

optional w/ DuraBelt DuraBelt

additional Integrated Integrated

module RIP driver RIP driver

Aux inputs/DC inputs 888

Battery NNN

Signal resolution/bit 10,12 & 16 bit 16 bit 16 bit

Max sampling rate 2000 Hz 2000 Hz 2000 Hz

Max storage rate 200 Hz, limited 500Hz 500 Hz

500 Hz

Pulse transit time Y Y Y

Electrode interface Intuitive image Intuitive image Intuitive image

Digital Philips Respironics Y YY

therapy device interface

Bedside display NNN

Connectivity Capable (wired Capable (wired Capable (wired

ethernet) ethernet) ethernet)

Pulse oximetry Masimo Masimo Masimo

Internal memory/ 60 GB 60 GB 60 GB

data storage hard drive hard drive hard drive

Video Networked Networked Networked

Audio Integrated Integrated Integrated

with video with video with video

+ VOIP intercom + VOIP intercom + VOIP intercom

Warranty 2 years 2 years 2 years

Alice 6 base station

Size 14L x 5W x 12.5H (in): 35.6 x 12.7 x 31.7 (cm)

Weight 7.8 lb; 3.5kg

Head box Alice 6 LDxS Alice 6 LDxN

Size 8L x 4W x 1.25H (in): 9L x 4W x 1.25H (in):

20.3 x 10.2 x 3.2 (cm) 22.9 x 10.2 x 3.2 (cm)

Weight 17 oz; 481.9g 19 oz; 538.6g

Alice 6 system power requirements

Power to main unit 6.25 VDC, 3 to 6 amps

Power supply MW116 power supply 100-240; VAC, 50-60 Hz, 0.5-1.5 A
