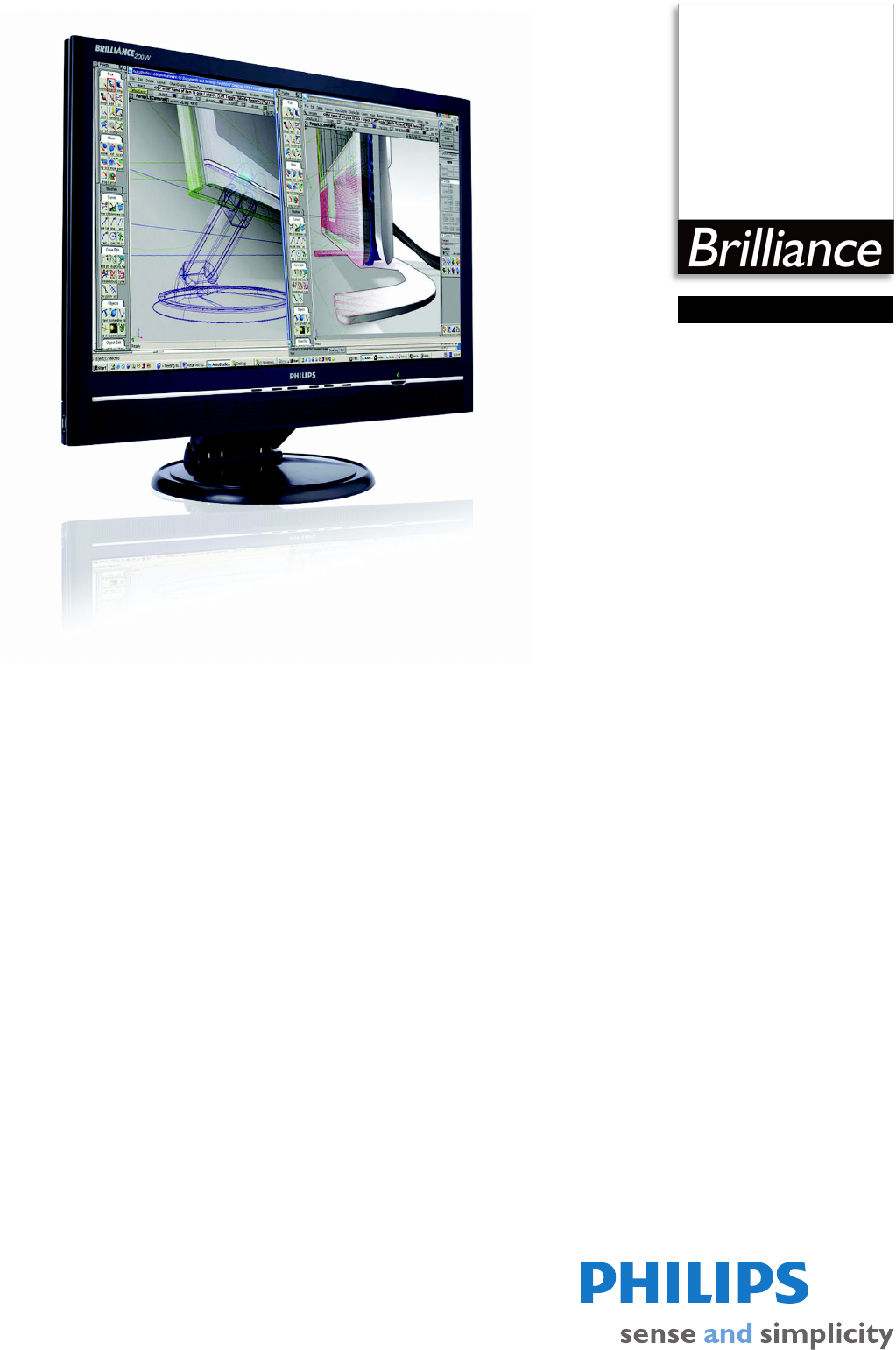

Philips Brilliance
LCD widescreen monitor
51 cm (20")
WSXGA
200W6CB
your best choice for big,
widescreen productivity
Get more done with true digital display: The big, wide screen 200W6 is your best choice
for great, sharp front-of-screen performance, the widest viewing angle, productivity-
enhancing remote asset management and lead-free design.
Outstanding front of screen performance
• WSXGA+, wide format 1680x1050 resolution for sharper display
• Fast 8ms On/off response time:Great text & graphics display
• Widest viewing angle up to 176 degrees
• Dual input accepts both analog VGA and digital DVI signals
Maximum comfort for maximum productivity
• SmartManage compatibility enables LAN-based asset management
• Display more images and content without scrolling
• Built-in speakers for audio without desktop clutter
• Stand-alone audio for efficient net conferencing
• Designed for 'just-right' height and angle adjustment
Great convenience
• USB port for convenient peripheral connections
• Easy plug-and-play DVI for a true digital experience
• Embedded power supply eliminates external power adaptors
200W6CB/27
Highlights
LCD widescreen monitor
51 cm (20") WSXGA
WSXGA+, wide format 1680x1050
Wide format, super extended graphics array is
a display specification that is capable of
displaying 1680 x 1050 resolution or
approximately 1.7 million pixels.
8ms response time (On/Off)
On-Off response time is the period required
for a liquid crystal cell to go from active (black)
to inactive (white) and back to active (black)
again. It is measured in milliseconds. Faster is
better: Lower response time means faster
transitions and, therefore, results in fewer
visible image artifacts in the display of
transition of text and graphics. On-Off
response time is a more important measure in
the display of business content like documents,
graphs and photos.
Widest viewing angle
The widest viewing angle up to 176 degree
provides the clearest display from any angle.
Dual input
Dual input provides connectors to
accommodate input of both analog VGA and
digital DVI signals.
SmartManage enabled
SmartManage is a system for monitoring,
managing and checking status of display devices
as well as delivering remote support to users
who experience difficulties - all accomplished
over a LAN.
Large viewing area
Viewing area is the visible portion of a monitor
screen available for displaying data.
Built-in speakers
A pair of high quality stereo speakers built into
a display device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Stand-Alone audio function
Built-in advanced firmware that delivers audio
output even if there is no video input.
Ergonomics design
Ergonomic design makes Philips monitors
'people friendly' with tilt, swivel and height
adjustment so each user can position the
monitor for maximum viewing comfort and
efficiency.
USB 2.0 port
USB port allows user to conveniently connect
their plug and play multimedia devices such as
USB memory devices, camera, portable HDD,
Web camera, PDA, Printer and many other
devices which has USB connection available.
The conveniently located USB 2.0 port on the
monitor allows USB 2.0 signals to pass thru to
the computer. Note that many devices like
cameras and HDD may need to be powered
On independently, as they have higher power
requirements than the monitor USB port can
provide
In-box DVI cable
A DVI cable is shipped with the product to
provide high quality digital display.
Embedded power supply
An embedded power supply is a power
adaptor built into the body of a display device
that replaces a bulky external power adaptor.
Issue date 2011-06-07
Version: 5.0.11
12 NC: 8639 000 16141
UPC: 0 37849 95984 8
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
200W6CB/27
Specifications
LCD widescreen monitor
51 cm (20") WSXGA
Picture/Display
• LCD panel type: 1680 x 1050 pixels, Anti-glare
polarizer, RGB vertical stripe
• Panel Size: 20.1"/ 51 cm
• Effective viewing area: 433.4 x 270.9 mm
• Pixel pitch: 0.258 x 0.258 mm
• Brightness (nits): 300 nit
• Contrast ratio (typical): 800:1
• Display colors: 16.7 M
• Viewing angle: @ C/R > 10
• Viewing angle (H / V): 176 / 176 degree
• Response time (typical): 8 (grey to grey) ms
• White Chromaticity, 6500K: x = 0.313 / y = 0.329
• White Chromaticity, 9300K: x = 0.283 / y = 0.297
• Maximum Resolution: 1680 x 1050 @ 75Hz
• Optimum resolution: 1680 x 1050 @ 60Hz
• Factory Preset Modes: 15 modes
• User definable modes: 39 modes
• Video Dot Rate: 165 MHz
• Horizontal Scanning Frequency: 30 - 93 kHz
• Vertical Scanning Frequency: 56 - 85 Hz
•sRGB
• Aspect ratio: 16:10
Connectivity
• Signal Input: VGA (Analog ), DVI-D, PC Audio in
• Audio output: Stereo Audio (3.5 mm jack) 1x
• USB: USB 2.0
• Sync Input: Composite Sync, Separate Sync, Sync
on Green
Convenience
• Built-in Audio: 2W RMS x 2 stereo speakers
• User convenience: On-screen Display,
SmartManage enabled
• Monitor Controls: Auto, Brightness Control, Left/
Right, Menu (OK), Power On/Off, Up/Down,
Volume control, Input, Size
• OSD Languages: English, French, German, Italian,
Simplified Chinese, Spanish
• Other convenience: Kensington lock compatible
• Plug & Play Compatibility: DDC/CI, sRGB,
Windows 98/ME/2000/XP
• Regulatory approvals: CE Mark, FCC-B, UL, CSA,
SEMKO, TCO '99, TÜV/GS, TÜV Ergo
• Swivel: +/- 125°
• Tilt: -5° to 20°
• VESA Mount: 100 x 100 mm
Accessories
• Included accessories: AC Power Cord, DVI cable,
PC audio cable, USB cable, VGA cable
• Optional accessories: Super Ergo Base
• User Manual
Dimensions
• Dimensions (with base) (W x H x D):
478 x 423.5 x 235 mm
• Height adjustment range: 45 mm
• MTBF: 50,000 hrs
• Relative humidity: 20% - 80%
• Temperature range (operation): 5°C to 35°C
• Temperature range (storage): -20°C to 60°C
•Weight: 7.6 kg
Power
• Complies with: NUTEK
•Consumption (On mode): 50 W (Typical)
• Consumption (Off Mode): 1.5 W or < 1.5 W
• Power LED indicator: Operation - green, Stand by/
sleep - Amber
• Power supply: Built-in, 90-264 VAC, 50/60 Hz
•
