Cover & Connection 1
How to make the optimal connection?
如何進行最佳連接?
Good
S-Video
Supplies a better picture than RF and
Composite connections.
Used with red/white audio cables.
S 視頻
提供比 RF 和复合連接
更好的画面質量。
配合紅色/白色音頻線使用。
Basic
Composite Audio/Video
Separate video (yellow) and audio (red/white)
cables that provide a basic connection from
the cable box and other devices.
Note: The color of audio inputs may differ,
e.g. red/ white or red/ black.
基本
复合音頻/視頻
分离視頻(黃色)和音頻(紅色/白色)線,
通過有線盒和其它設備提供基本連接。
注意:音頻輸入的顏色可能不同,
如紅色/白色或紅色/黑色。
RF
Provides a basic connection for antenna
or cable.
Provides both audio and video.
RF
為天線或有線提供基本連接。
提供音頻和視頻。
Better
Component Video input
Provides superior picture quality by separating
the green, blue and red luminance signals.
Typically used with red/white audio cables.
Best
HDMI
High-Definition Multimedia Interface provides
an uncompressed, all-digital audio/video
connection.
HDMI provides the ultimated connection
(Please use a certified HDMI cable.)
很好
分量視頻輸入
通過將綠色、藍色和紅色亮度信號分离,
提供卓越的画面質量。
通常配合紅色/白色音頻線使用。
最好
HDMI
高清晰多媒体接口提供無壓縮的全數字
音頻/視頻連接。
HDMI 提供的是終极的連接
(請使用通過認證的 HDMI 線纜。)
Cover & Connection 2

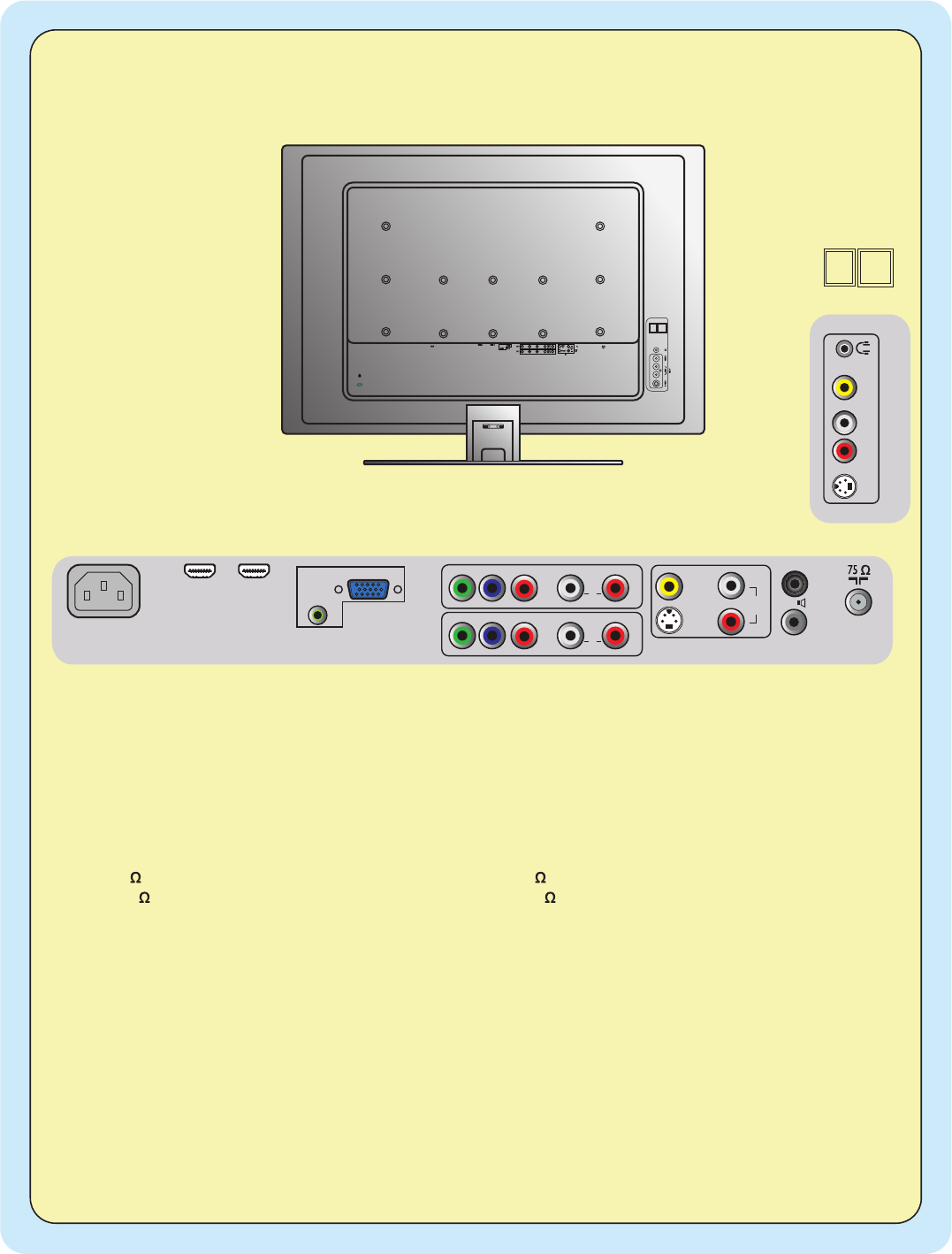

SIDE AV
S-VIDEO R - AUDIO - L VIDEO IN
32HF7445
DATA 1 DATA 2
8
YPb Pr RL
AUDIO
IN
YPb Pr RL
AUDIO
IN
CVI 1
CVI 2
AC IN
D-SUB
PC IN
AUDIO
AV
VIDEO
IN
S-VIDEO
R
L
AUDIO
IN
SPDIF
OUT
HDMI 1
8
HDMI 2
AC IN
HDMI 1 / HDMI 2
PC IN - Audio input, D-SUB
CVI - Component (YPbPr), Audio L/R input
CV2 - Component (YPbPr), Audio L/R input
AV - Video input, S-video, Audio L/R input
SPDIF output
8 Mono Audio out
75 /RF
Side AV - S-video, Audio L/R, Video input
Earphone
DATA 1 / DATA 2
AC IN
HDMI 1 / HDMI 2
PC IN - 音頻輸入、D-SUB
CVI – 分量 (YPbPr)、左/右音頻輸入
CV2 – 分量 (YPbPr)、左/右音頻輸入
AV – 視頻輸入、S 視頻、左/右音頻輸入
SPDIF 輸出
8 音頻輸出
75 /RF
Side AV – S 視頻、左/右音頻、視頻輸入
耳机
DATA1 / DATA 2
DATA 1
(RJ12)
DATA 2
(RJ45)
Cover & Connection 3
1
2
CABLE
IN
TO
TV
VIDEO
OUT S VIDEO
LR
AUDIO
OUT
3 4
OUTPUT
CH
Cable Box
Cable TV Signal
A
RF
分線盒
有線電視信號
A
The Cable TV signal
from Cable Company
來自有線電視公司
的有線電視信號
分線盒
CABLE
IN
TO
TV
3 4
OUTPUT
CH
75 coaxial cable
電視
TV
Cable Box
75 同軸線
Outdoor or Indoor Antenna
(Combination VHF/UHF)
Twin-lead wire
to 300-75 adapter
接300-75
適配器的扁平雙線
Antenna
with 75 cable
天線(75電纜)
or 或者
B
or
或者
*After setting up, please run the Auto store
function to set up the TV for the broadcast
or cable channels available in your area.
(please go to page10 for detail)
*在設置之後,請進行自動搜尋功能在電視
上設置您所在區域的廣播或有線頻道。
(詳細信息,請參見第10頁。)
*Use the AV button on the remote control to tune
to the AV channel for the cable box signal. Once
tuned, change channels at the cable box,
not the television.
D
*使用遙控器上的AV按鈕調到分線盒信號的AV頻道。
調整後,在分線盒(而不是電視)上更換頻道。
室內或室外天線
(VHF/UHF組合)
B
C
電視
TV
分線盒
(帶有RF輸入/輸出)
天線電視
Cable Box With
RF In / Outputs
Antenna TV
分線盒
(帶有聲音/視頻輸出)
Cable Box With
Audio / Video Outputs
S-Video
Composite
Audio/Video Input
AV按鍵
AV Button
Quick start quide
Cover & Connection 4
3
4
AV Player with A/V connectors
Accessory device equipped with
component video outputs
C
A
帶有A/V接口的AV播放機
帶有Component視頻輸出的附屬設備
*Use AV button on the remote control to select
AV or Side AV if you use the different jacks for the
hookup to watch VCR.
*Use AV button on the remote control to select CVI1 or
CVI 2 to watch DVD.
Note: The Y, Pb, Pr jacks do not provide audio, so
audio cables must be connected to provide sound.
AV按鍵
AV Button
C
AV按鍵
AV Button
*使用遙控器上的AV按鈕選擇AV(如果此連接方式使用
不同的插孔),還可選擇Side AV以觀看VCR內容。
*使用遙控器上的AV按鈕選擇CVI1或者
CVI2以觀看DVD。
注意:Y,Pb,Pr插孔不提供音頻,
必須連接音頻線才能提供聲音。
YPb Pr RL
AUDIO
IN
YPb Pr RL
AUDIO
IN
CVI 1
CVI 2
DVD Player Or Other
Video Devices With
Component Video
Connectors
Component
Video Input
DVD播放機或其它帶有
Component視頻連接器
的視頻設備
B
TV 電視
AV
VIDEO
IN
S-VIDEO
R
L
AUDIO
IN
SPDIF
OUT
8
VCR, DVD Player, Or
Other Devices With
RCA Connectors
TV
S-Video
VCR, DVD播放機或帶有
RCA 連接器的其它設備
電視
Composite
Audio/Video Input
BA
Cover & Connection 5
5
6
Computer
B
A
TV 電視
計算機
*Use AV button on the remote control to select PC to use your LCD TV
as a PC monitor.
AV按鍵
AV Button
C
*使用遙控器上的AV按鈕選擇PC,以將液晶電視用作PC顯示器。
DVD player
AV按鍵
AV Button
B
*Use AV button on the remote control to select HDMI 1
or HDMI 2 to watch DVD.
*使用遙控器上的AV按鈕選HDMI1或者HDMI2以觀看DVD。
YPb Pr RL
AUDIO
IN
YPb Pr RL
AUDIO
IN
CVI 1
CVI 2
D-SUB
PC IN
AUDIO
PC (Monitor)
Connections
PC (顯示器)連接
YPb Pr
YPb Pr
CVI 1
CVI 2
D-SUB
PC IN
AUDIO
HDMI 1HDMI 2
A
TV 電視
DVD Player With
HDMI Connector
HDMI
帶有HDMI 連接器的
DVD播放機
Welcome
1
Know these
safety symbols
This “bolt of lightning” indicates
uninsulated material within your unit
may cause an electrical shock. For the safety
of everyone in your household, please do not
remove product covering.
The “exclamation point” calls attention to
features for which you should read the
enclosed literature closely to prevent operating
and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be placed
on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Congratulations on your purchase,
and welcome to the “family!”
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You’ve
selected one of the best-built, best-backed products
available today. We’ll do everything in our power to
keep you happy with your purchase for many years to
come.
2
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings.
Install in accordance with the manufacturers instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including ampli-
fiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and third grounding prong. The wide blade or third
prong are provided for your safety. When the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Tilt/Stability - All televisions must comply with
recommended international global safety standards for tilt and
stability properties of its cabinet design.
• Do not compromise these design standards by applying
excessive pull force to the front, or top, of the cabinet which
could ultimately overturn the product.
• Also, do not endanger yourself, or children, by placing
electronic equipment/toys on the top of the cabinet. Such
items could unsuspectingly fall from the top of the set and
cause product damage and/or personal injury.
Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by the
manufacturer.
Power Lines - An outdoor antenna should be located away
from power lines.
Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver, be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built up static charges.
Object and Liquid Entry - Care should be taken so that
objects do not fall and liquids are not spilled into the enclosure
through openings.
Battery Usage CAUTION - To prevent battery leakage that
may result in bodily injury, property damage, or
damage to the unit:
• Install all batteries correctly, with + and - aligned as marked
on the unit.
• Do not mix batteries (old and new or carbon and
alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
For ventilation, leave at least 4” to 6” free all around the TV.
Do not place the TV on a carpet.
The equipment shall not be exposed to dripping or splashing.
The equipment shall not be exposed to rain or moisture and
objects filled with liquids, such as vases, shall be placed on the
apparatus.
The apparatus must be connected to a mains socket outlet
with a protected earthed connection.
The appliance coupler is used as the disconnect device of this
apparatus, the disconnect device shall remain readily operable.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
ADDITIONAL SAFETY PRECAUTIONS
ENSURE that LCD TV stand is tightened properly to the set on the right way of tightening of
the screw of the stand to the set. Improper tightening of screw may render the set unsafe.
If LCD TV is installed on the wall, installation should be carried out by qualified servicemen. Improper or incorrect
installation may render the set unsafe.
Disconnect main plug when :
cleaning the TV screen, never use abrasive cleaning agents.
there is a lightning storm.
the set is left unattended for a prolonged period of time.
Do not shift or move the LCD TV around when it is powered on.
Do not touch, push or rub the surface of the LCD screen with any sharp or hard objects.
When the surface of the LCD screen becomes dusty, wipe it gently with an absorbent cotton cloth or
other soft material like chamois. DO NOT USE acetone, toluene or alcohol to clean the surface of the screen.
These chemicals will cause damage to the surface.
Wipe off water or saliva as soon as possible. These liquids can cause deformation and color fading of the
LCD screen when left exposed for some time.
Be careful of condensation when temperature changes occur. Condensation can cause damage to the LCD
screen and electrically parts. After condensation fades, spots or blemishes will be present on the LCD screen.
POSITIONING THE LCD TELEVISION
Place the LCD TV on a solid, sturdy base or stand. Be sure the stand is strong enough to handle the weight of
the LCD TV.
Try to leave at least 6 of space around each side of the LCD TV cabinet to allow for proper ventilation.
Do not place the LCD TV near a radiator or other sources of heat.
Do not place the LCD TV where it can be exposed to rain or excessive moisture.
RECYCLING PROCEDURE/END OF LIFE DISPOSAL
To minimize harm to the environment, the batteries supplied with the LCD TV do not contain mercury or
nickel cadmium. If possible, when disposing of batteries, use recycling means available in your area.
The LCD TV uses materials that can be recycled. To minimize the amount of waste in the environment, check
your area for companies that will recover used televisions for dismantling and collection of reusable
materials, or contact your dealer for TV recycling tips.
Please dispose of the carton and packing material through the proper waste disposal management in your
area.
Precaution
3
4
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IMPORTANT SAFETY INSTRUCTIONS . . . . . .
Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Use of the remote control . . . . . . . . . . . . . . . . . . . .
Buttons on the TV . . . . . . . . . . . . . . . . . . . . . . . . . .
To use the menus . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessing the SETUP menu
Navigation
Setup menu items . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Channel Installation . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch On/ OSD . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Picture and Sound settings . . . . . . . . . . . . . . . . . . .
Security settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Guest menu items . . . . . . . . . . . . . . . . . . . . . . . . . .
Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . .
Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Picture Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless Smart Loader . . . . . . . . . . . . . . . . . . . . . .
Low battery check . . . . . . . . . . . . . . . . . . . . . . . . . .
Trouble shooting tips . . . . . . . . . . . . . . . . . . . . . . . .
Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2
3
4
5
5
5
6
7
7
7
8
8
9
10
10
11
11
12
12
13
14
15
16
17
18
19
20
21
Contents
Care of the screen See Tips, p. 20
Philips has paid a lot of attention to
producing an environmentally friendly product.
Your new TV contains several materials that can
be recycled for new uses. At the end of its life,
specialized companies can dismantle and recycle
this set. This will minimize the amount of
materials being disposed of. Please be sure to
dispose of this set in accordance with all state
and local regulations.
End of life directives - Recycling
5
Preparation
CABLE OR ANTENNA
75
CABLE
2IMDH1IMDHEC
CABLE OR ANTENNA
75
Cable box
/OUT
OUTPUT
(TO TV)
IN
CABLE
3
2
ANTENNA
ANTENNA
Do not insert the power plug in a wall socket before
all connections are made.
Place the TV on a solid surface.
For ventilation, leave at least 4 to 6” free all around the TV. Do
not place the TV on a carpet. To prevent any unsafe
situations, no naked ame sources, such as lighted candles,
should be placed in the vicinity. Avoid heat, direct sunlight and
exposure to rain or water. The equipment shall not be exposed
to dripping or splashing.
Mounting the TV on the wall
This TV set complies with the VESA standard for wall mounting.
Refer to specication page 21 for detail.
Caution: Installing the TV requires special skills that should
only be performed by qualied personnel. You should not
attempt to do the work yourself. Philips bears no
responsibility for improper mounting or mounting that
results in accident or injury.
Make sure that the wall mount is being xed securely enough so
that it meets safety standards.
1
To connect accessory devices, see Cover and Connection.
Refer to the bottom of the set (Model label) for the
correct operation voltage.
Insert the power cord into the wall socket.
Consult your local dealer if your main power supply voltage is
different than that indicated for the TV. Never place the TV
on top of the (AC) cord. Placing the TV on top of the AC cord
could cause are or electric shock.
Remote control:
Insert the two supplied AA batteries.
The batteries supplied do not contain the heavy metals mercury
and cadmium. Please determine and comply with local
regulations when disposing of depleted batteries.
Turn the TV on:
Press the power switch on the left side of the TV. An
indicator on the front of the TV lights up.
Press the POWER button on the remote control.
3
4
2
5
6
Buttons on the TV
Should your remote be lost or broken you can still change some of the basic settings with the control buttons on
your TV.
Press:
the button to switch the TV on or off.
the + VOLUME -button to adjust volume;
the + PROGRAM -buttons to select the TV channels or sources.
The MENU button can be used to display the Settings menu without the remote control.
MENU button can also Exit the menu.
Use:
the + VOLUME - buttons and the + PROGRAM - buttons to select menu items in the directions as shown;
the + VOLUME button to conrm your selection.
7
To use the menus
When the set is in the HIGH SECURITY mode, the SETUP menu can be accessed only by the Institutional Set-up
Remote Control (RC2573) by pressing the key. The Institutional Set-Up Remote Control is available as an
option.
When the set is in the STANDARD SECURITY mode, the SETUP menu may be accessed with the standard guest
remote control (RC2887) by a sequence of commands (3 1 9 7 5 3 MUTE).
Accessing the SETUP menu
TEXT SMART SLEEP
CC
POWER
RECALL
GUIDE
CHRESET
1
4
78
0
9
5 6
2
3
A B C D
E F G
CLOCK AV
A/CH
M
CHVOL
GUEST
DCM
SETUP
AV
TV
TEXT
RADIOINFOPAY TV
ON
OFF
ALARM
OK
RC2887 RC2573
(Optional)
Navigation
The current menu item can be selected by means of the Up/Down keys. Submenus can be accessed from menu items
indicated with a “>” symbol by pressing the Right key.
To exit any menu press “MENU” button
Select “YES” to activate/enable a setting, “NO” to deactivate/disable.
TV up/down (+/-), INFO up/down (+/-), PAY-TV up/down (+/-) and RADIO up/down (+/-) are
available when Setup menu had did the relevant settings.
8
LANGUAGE: Select the language of the Setup menu.
Options are “ENGLISH, “MELAYU” and “CHINESE”
Note: The Chinese Language is for the Guest Menu only.
COMMUNICATION: Please refer to the section for detail.
NO. OF CHANNELS: This sub menu allows setting the number
of TV, PAY-TV, INFO and RADIO channels.
CHANNEL INSTALL: In the CHANNEL INSTALL sub-menu,
various channel settings can be set. Please refer to the section on
Channel Installation for further details.
Setup menu items
Multi RC Set-up procedure:
1. Press the RC Menu key together with one of the coloured keys (Red/Green/Yellow/Blue) for at least 4 seconds.
2. Access the TV Set-Up Menu and select Multi RC option
3. Under Multi RC sub-menu, select the corresponding colour to match the colour selected in Step 1
Notes:
1. SP-SPI and SP-I2C refers to the Philips communication protocols that are used in conjunction with the Data 1 (RJ12) or/and
Data 2 (RJ45) connectivity to an external STB or Smart Card Xpress Box.
2. HM-Link is mainly used in conjunction with Data 1 (RJ12) connectivity to an external STB.
3. Multi RC feature requires specific remote control models RC2887/RC2886.
4. The Multi RC default colour code is BLUE (for TV and RC). The RC colour code will be automatically reset to default BLUE colour
when the RC batteries are changed.
5. To check the colour code status of TV and RC, just press the OK button on the RC for at least 4 seconds.
Channel Installation
SETUP
LANGUAGE
COMMUNICATION
NO. OF CHANNELS
CHANNEL INSTALL
CONFIGURATION
ENGLISH
>
>
>
>
CONFIGURATION
SWITCH ON/OSD
PICTURE/SOUND
SECURITY
CONTROL
FEATURES
>
>
>
>
>
CHANNEL INSTALL
CHANNEL
INPUT
SYSTEM
FREQUENCY
LABEL
STORE
FINE TUNE
MUTE
AUTO INSTALL TV
PROTECTION
TV 1
TUNER
AUTO
184.2500 >
( ) >
>
0
NONE
>
NO
COMMUNICATION
COMMUNICATION
STORE
RS232 ID
OFF
>
0
SETUP
LANGUAGE
COMMUNICATION
NO. OF CHANNELS
CHANNEL INSTALL
CONFIGURATION
ENGLISH
>
>
>
>
CONFIGURATION
SWITCH ON/OSD
PICTURE/SOUND
SECURITY
CONTROL
FEATURES
>
>
>
>
>
CHANNEL INSTALL
CHANNEL
INPUT
SYSTEM
FREQUENCY
LABEL
STORE
FINE TUNE
MUTE
AUTO INSTALL TV
PROTECTION
TV 1
TUNER
AUTO
184.2500 >
( ) >
>
0
NONE
>
NO
COMMUNICATION
COMMUNICATION
STORE
RS232 ID
OFF
>
0
CONFIGURATION: In the CONFIGURATION menu, various settings and features of the TV can be adjusted. Please
refer to the section on Configuration for further details.
Communication
COMMUNICATION: The Communication options SP-SPI,
SP-I2C, HM-Link and Multi RC. SP-SPI, SP-I2C and HM-Link
are for enabling interactive applications. Multi-RC is a feature to
program the TV and RC for a one to one matching in a multi TV
environment. Multi-RC allows up to four unique groups of TV-RC
matching. For normal stand-alone applications select “OFF” option
under the Communication sub menu.
STORE: To save your settings by pressing right key.
RS232 ID: To setup the TV ID.
DCM TYPE: To communicate with Smartport. (It’s available in SP-SPI and SP-I2C)
9
CHANNEL: The channel type can be selected with the cursor
Left/Right key. The available options are: “TV, “INFO, “PAY
TV” and “RADIO.
Note:
Use the numeric keys to enter the program number. For program number
below 10, enter the first digit as “0” followed by the program number.
Eg “01” for TV 1. Alternatively, enter the program number followed by
Up/Down key. Program number “0” or “00” are not allowed.
Channel Installation
In the CHANNEL INSTALLATION sub-menu, channel settings can be set.
INPUT: The “Input” menu item selects the desired input source that will be assigned to the program. Possible values
are Tuner, AV, Side AV, CVI 1, CVI 2, PC-A, HDMI 1 and HDMI 2.
SYSTEM: PAL 4.43 BG/I/DK and AUTO are available for /93 model.
NTSC 3.58 BG/I/DK/M, NTSC 4.43 BG/I/DK, PAL 4.43 BG/I/DK, and AUTO are available for /97 model.
FREQUENCY: Digits can be entered for a frequency in MHz. When you enter the first digit, other incomplete number
displayed as dashes “-”. Enter the first digit as “0” for frequencies below 100 MHz. You can also press the Right key to
start the auto search.
LABEL: This menu item will be used to add a label/name for each program.
o Press the Left/Right key to select the label digit; press the Up/Down key to insert alphanumeric characters.
o Press the MENU button to exit the Label menu item.
STORE: The channel information is stored after pressing the Left/Right key.
Press the MENU key to exit without storing.
FINE TUNE: Press the Left/Right key for fine-tuning.
MUTE: This item enables/disables picture and sound for the particular channel.
o NONE: normal picture and sound enabled
o VIDEO: picture is blanked for this channel (e.g. radio channel)
o AUDIO: sound is muted for this channel (e.g. information channel)
AUTO INSTALL TV: This sub menu allows the TV channels to be scanned and set automatically.
PROTECTION: This function is to protect a selected program for PAY TV purpose. Press the Left/Right key to toggle
the protection between “YES” and “NO”.
SETUP
LANGUAGE
COMMUNICATION
NO. OF CHANNELS
CHANNEL INSTALL
CONFIGURATION
ENGLISH
>
>
>
>
CONFIGURATION
SWITCH ON/OSD
PICTURE/SOUND
SECURITY
CONTROL
FEATURES
>
>
>
>
>
CHANNEL INSTALL
CHANNEL
INPUT
SYSTEM
FREQUENCY
LABEL
STORE
FINE TUNE
MUTE
AUTO INSTALL TV
PROTECTION
TV 1
TUNER
AUTO
184.2500 >
( ) >
>
0
NONE
>
NO
COMMUNICATION
COMMUNICATION
STORE
RS232 ID
OFF
>
0
10
Configuration
In the Configuration menu, various settings and features of the TV can be adjusted.
VIDEO ADJUSTMENT:
o HORIZONTAL: Adjust the horizontal placement of the picture
o VERTICAL: Adjust the vertial placement of the picture
o PHASE: Eliminates the horizontal interfering lines.
o CLOCK: Eliminates the vertical interfering lines.
o AUTO ADJUST: The PC mode will automatically adjust the best image position.
Switch On/OSD
In this sub menu the behavior of the TV after switching on and the behavior of the ON SCREEN DISPLAY can be selected.
WELCOME MESSAGE: Press Cursor Left/Right to display
Welcome message entry menu:
o WELCOME MESSAGE
o DISPLAY YES/NO
o LINE 1
o LINE 2
o CLEAR
With the Up/Down key you can set the message characters.
Pree Up key to insert alphabets, and Down key to insert digits.
SWITCH ON CHANNEL: This item sets the television’s channel at switch on.
SWITCH ON VOLUME: This item sets the television’s volume at switch on. Use the Right/Left key to adjust.
SWITCH ON PIC FMT: This item sets the television’s Picture Format at switch on. Use the Right/Left key to select
the desired format.
POWER ON: The POWER ON menu function defines the behavior of the television whenever AC Power is applied.
The available options are “FORCED ON”, “LAST STATUS, “STANDBY” and “ON.
o FORCED ON: TV will be automatically switched to ON mode whenever the mains power is turned ON or resumed
after a power interruption. Note that the remote control STANDBY key will no longer function when TV is set in this
mode. TV can only be switched OFF by means of the main switch or a set-up remote control or by ESP function
(Energy Saving Programmability controls the maximum continuous viewing time allowed).
o LAST STATUS: TV will be automatically switched to the last status (either STANDBY or ON) whenever the mains
power is turned ON or resumed after a power interruption.
SETUP
LANGUAGE
COMMUNICATION
NO. OF CHANNELS
CHANNEL INSTALL
CONFIGURATION
ENGLISH
>
>
>
>
CONFIGURATION
SWITCH ON/OSD
PICTURE/SOUND
SECURITY
CONTROL
FEATURES
>
>
>
>
>
CHANNEL INSTALL
CHANNEL
INPUT
SYSTEM
FREQUENCY
LABEL
STORE
FINE TUNE
MUTE
AUTO INSTALL TV
PROTECTION
TV 1
TUNER
AUTO
184.2500 >
( ) >
>
0
NONE
>
NO
COMMUNICATION
COMMUNICATION
STORE
RS232 ID
OFF
>
0
SWITCH ON/OSD
WELCOME MESSAGE
SWITCH ON CHANNEL
SWITCH ON VOLUME
SWITCH ON PIC FMT
POWER ON
VOLUME INDICATOR
CHANNEL DISPLAY
>
AV1
30
WIDESCREEN
LAST STATUS
YES
ALL
PICTURE/SOUND
BRIGHTNESS
COLOUR
CONTRAST
SHARPNESS
ACTIVE CONTROL
TREBLE
BASS
AVL
50
50
50
50
YES
50
50
ON
CONTROL
ESP
AUDIO/VIDEO MUTE
STEP TUNING
DIGIT TIMEOUT
MIN VOLUME
MAX VOLUME
SMARTPOWER
OFF
NO
NO
3.0
0
99
OFF
SECURITY
SECURITY
KEYBOARD LOCK
STANDARD
NO
SWITCH ON/OSD: In this sub-menu the SWITCH ON
characteristics and ON SCREEN DISPLAY settings of the TV.
PICTURE/SOUND: In this sub-menu, the PICTURE and
SOUND settings of the TV can be set.
SECURITY: In this sub-menu, the SECURITY settings of the TV
can be configured.
CONTROL: In this sub-menu, the CONTROL settings of the TV
can be configured.
FEATURES: sub-menu SMARTPOWER can change the backlight
settings of the TV.
IN PC mode, there is one more item.
11
o STANDBY: TV will be automatically switched to STANDBY mode (even if the last status was ON) whenever the mains
power is turned ON or resumed after a power interruption.
o ON: Similar function as “FORCED ON” but the
remote control STANDBY key function is enabled when TV is set to this mode.
VOLUME INDICATOR: To display volume indicator when adjusting volume, select “YES”.
Select “NO” to hide the volume indicator.
CHANNEL DISPLAY: CHANNEL DISPLAY values can be: NUMBER, LABEL, ALL, and NONE.
SWITCH ON/OSD
WELCOME MESSAGE
SWITCH ON CHANNEL
SWITCH ON VOLUME
SWITCH ON PIC FMT
POWER ON
VOLUME INDICATOR
CHANNEL DISPLAY
>
AV1
30
WIDESCREEN
LAST STATUS
YES
ALL
PICTURE/SOUND
BRIGHTNESS
COLOUR
CONTRAST
SHARPNESS
ACTIVE CONTROL
TREBLE
BASS
AVL
50
50
50
50
YES
50
50
ON
CONTROL
ESP
AUDIO/VIDEO MUTE
STEP TUNING
DIGIT TIMEOUT
MIN VOLUME
MAX VOLUME
SMARTPOWER
OFF
NO
NO
3.0
0
99
OFF
SECURITY
SECURITY
KEYBOARD LOCK
STANDARD
NO
Picture and Sound settings
TREBLE/BASS: This adjusts the level of treble and bass effects on the TVs sound output.
AVL (Automatic Volume Leveller): This option is used to limit the increase in sound level especially during programme
change or advertising slots.
Security settings
KEYBOARD LOCK: The Keyboard Lock function disables the television’s local keyboard for volume and program con-
trol.
SWITCH ON/OSD
WELCOME MESSAGE
SWITCH ON CHANNEL
SWITCH ON VOLUME
SWITCH ON PIC FMT
POWER ON
VOLUME INDICATOR
CHANNEL DISPLAY
>
AV1
30
WIDESCREEN
LAST STATUS
YES
ALL
PICTURE/SOUND
BRIGHTNESS
COLOUR
CONTRAST
SHARPNESS
ACTIVE CONTROL
TREBLE
BASS
AVL
50
50
50
50
YES
50
50
ON
CONTROL
ESP
AUDIO/VIDEO MUTE
STEP TUNING
DIGIT TIMEOUT
MIN VOLUME
MAX VOLUME
SMARTPOWER
OFF
NO
NO
3.0
0
99
OFF
SECURITY
SECURITY
KEYBOARD LOCK
STANDARD
NO
In this sub menu, the Picture and Sound settings of the TV can be selected.
BRIGHTNESS: This changes picture brightness.
COLOUR: This changes the intensity of the colour.
CONTRAST: This changes the difference between the light and
dark tones.
SHARPNESS: Adjust to improve detail.
ACTIVE CONTROL: This allows adjustment R. G. B. of picture.
Notes:
COLOUR and SHARPNESS are not available in the PC mode
In this sub menu, the Security settings of the TV can be configured.
SECURITY: The “SECURITY” function allows the user to select
one of two states - “HIGH” or “STANDARD”.
The default is “STANDARD”.
o When the set is in the SECURITY HIGH mode, the SETUP menu
can only be accessed by a Institutional Set-up Remote Control.
o When the set is in the SECURITY STANDARD mode, the SETUP
menu can be accessed with a guest remote control by a sequence
of commands (3 1 9 7 5 3 MUTE).
12
Control settings
In this sub menu, the CONTROL settings of the TV can be configured.
STEP TUNING: If YES is selected, TV programs (1 to 9) are tuned immediately when a digit is pressed. If NO is
selected, tuning is performed only after the dash (second digit) disappears.
DIGIT TIMEOUT: This is the time-out to enter the second digit of program number, e.g. for program number 10 and
above.
MIN VOLUME: This item sets the minimum volume level allowed for the television set. Use Right/Left key to adjust.
MAX VOLUME: This item sets the limit for the maximum volume allowed for the television set. Use Right/Left key to
adjust.
SMARTPOWER: This item sets the TV to reduce the power automatically. Use Right/Left key to toggle between OFF,
LOW, MEDIUM, and HIGH.
Guest menu items
SLEEPTIMER: This item is to select an automatic period for the TV to switch to Standby when the TV does not
receive any commands from the user. This is a useful feature for energy saving if hotel guests have left the room with the
TV still in the ON mode. Available periods are 15 mins, 30 mins, 45 mins, 60 mins, 90 mins, 120 mins, 180 mins, 240 mins
and OFF. Use the remote control Right/Left key to select the required period. (Note: SLEEPTIMER option is not
available when POWER ON is set to the “FORCED ON” mode. )
PICTURE FORMAT (* It is not available in PC mode):
Use the remote control Right/Left key to select the desired picture format. The following options are available: 4:3,
ZOOM 14:9, ZOOM 16:9, SUBTITLE ZOOM, WIDESCREEN, SUPER WIDE.
Language
For selecting Guest Menu language (ENGLISH/CHINESE/MELAYU)
PIP (* It is only available in PC mode):
This allows you change settings of PIP ON, SOURCE, and POSITION.
SWITCH ON/OSD
WELCOME MESSAGE
SWITCH ON CHANNEL
SWITCH ON VOLUME
SWITCH ON PIC FMT
POWER ON
VOLUME INDICATOR
CHANNEL DISPLAY
>
AV1
30
WIDESCREEN
LAST STATUS
YES
ALL
PICTURE/SOUND
BRIGHTNESS
COLOUR
CONTRAST
SHARPNESS
ACTIVE CONTROL
TREBLE
BASS
AVL
50
50
50
50
YES
50
50
ON
CONTROL
ESP
AUDIO/VIDEO MUTE
STEP TUNING
DIGIT TIMEOUT
MIN VOLUME
MAX VOLUME
SMARTPOWER
OFF
NO
NO
3.0
0
99
OFF
SECURITY
SECURITY
KEYBOARD LOCK
STANDARD
NO
MENU
BRIGHTNESS
COLOUR
CONTRAST
SHARPNESS
SLEEPTIMER
PICTURE FORMAT
LANGUAGE
50
50
50
50
Off
WIDESCREEN
ENGLISH
ESP: Energy Saving Programmability Mode (ESP) function controls
the maximum continuous viewing time allowed and its valid values
are 00 - 99 (in hours). 00 value means that the ESP function is OFF.
Note that if the TV is switched off, the ESP timer countdown will
be reset.
AUDIO/VIDEO MUTE: The Audio/Video Mute menu function
determines whether the video should be blanked and the audio
should be muted if the currently tuned channel has no signal.
BRIGHTNESS/COLOUR/CONTRAST/SHARPNESS
(SHARPNESS is not available in PC mode):
Use the remote control Right/Left key to change the picture
setting.
13
Remote control keys
Note: Pressing most buttons once will activate the assigned function. Pressing a second time will de-activate it.
When a button enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list.
The list will be removed automatically after six seconds or press MENU to remove immediately.
AV
TV
TEXT
RADIOINFOPAY TV
ON
OFF
ALARM
OK
(1)
(2)
(10)
(9)
(11)
(12)
(13)
(14)
(15)
(16)
(3)
(4)
(5)
(6)
(7)
(8)
(17)
(1) Alarm On / Off
No function.
(2) +Pay TV-
To move up or down a Pay TV channel.
(3) Smart Sound button
Press repeatedly to select among the 4
settings: PERSONAL, THEATRE, MUSIC,
or VOICE.
(4)MENU
Press menu to activate on screen menu
on/off.
(5) Cursor direction key
(6) VOL +/-
Press + or - to adjust the volume.
(7) Mute button
Press to eliminate or restore the LCD TV
sound. Mute will appear on the screen
when the sound is muted.
(8) Teletext (p.14)
It is only available in /97 model.
(17) AV button
Press to select the video input source:
Tuner, AV, Side AV, CVI 1, CVI 2, PC-A,
HDMI 1 and HDMI 2,
(9) STANDBY
Press to switch the TV to standby mode.
(10) +INFO-
To move up or down an INFO channel.
(11) RADIO
To move up or down a RADIO channel.
(12) Smart Picture button
Press repeatedly to select either RICH,
NATURE, SOFT, or PERSONAL of
picture setting.
(13) I-II button / Sound mode
To select 1st or 2nd language.
Note: Language availablility depends on
the transmission.
(14) OK
To activate a setting.
(15) + TV -
To move up or down a TV channel.
(16) Number button
Press the number buttons for direct
access to the TV channels. For 2 digit
channel, enter the 2nd digit after enter 1st
digit.
14
Teletext is an information system broadcast available in certain channels. In some countries, it also offers access to
subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks,
satellite channels, etc.).
Teletext
Press
iOK
To switch Teletext ON/OFF.
In Teletext mode, press
iOK
To enter a (3-digit) page number
iOK
For previous / next page
iOK
For previous / next page
iOK
Depending on indication of sreen, coloured buttons are
used to access the items or corresponding pages.
AV
TV
TEXT
RADIOINFOPAY TV
ON
OFF
ALARM
OK
For PC mode, the default picture format will be Wdiescree. Picture Format
will not be accessible.
15
Picture Formats
The pictures you receive may be transmitted in 16:9 format (wide screen) or 4:3 format (conventional screen). 16:9 pictures
sometimes have a black band at the top and bottom of the screen (letterbox format). This function allows you to optimize the
picture display on screen.
4:3
The picture is reproduced in 4:3 format and a black band is displayed on either side of
the picture.
ZOOM 14:9
The picture is enlarged to 14:9 format, a thin black band remains on both sides of the
picture.
ZOOM 16:9
The picture is enlarged to 16:9 format. This mode is recommended when displaying
pictures that have black bands at the top and bottom (letterbox format).
SUBTITLE ZOOM
This mode is used to display 4:3 pictures using the full surface of the screen leaving the
subtitles visible.
SUPER WIDE
This mode is used to display 4:3 pictures using the full surface of the screen by
enlarging the sides of the picture
WIDESCREEN
This mode restores the correct proportions of pictures transmitted in 16:9 using the
full screen display.
SUPER ZOOM
4:3
ZOOM 14:9
ZOOM 16:9
SUBTITLE ZOOM
WIDESCREEN
SUPER ZOOM
4:3
ZOOM 14:9
ZOOM 16:9
SUBTITLE ZOOM
WIDESCREEN
SUPER ZOOM
4:3
ZOOM 14:9
ZOOM 16:9
SUBTITLE ZOOM
WIDESCREEN
SUPER ZOOM
4:3
ZOOM 14:9
ZOOM 16:9
SUBTITLE ZOOM
WIDESCREEN
SUPER ZOOM
4:3
ZOOM 14:9
ZOOM 16:9
SUBTITLE ZOOM
WIDESCREEN
SUPER ZOOM
4:3
ZOOM 14:9
ZOOM 16:9
SUBTITLE ZOOM
WIDESCREEN
Using the different formats, the Picture Format can be set via the Guest Menu or Set-Up Menu.
16
Wireless Smart Loader
The Philips Wireless Smart-Loader 22AV1120/00 and 22AV1135/00 are installation tools especially designed for easy
and fast installation of Philips Institutional TV’s.
Preparation
i Make sure that the 3 R6/AA sized batteries are placed correctly in the battery compartment of the Wireless
Smart-Loader. Turn the power switch on at the left side of the product. A green LED at the top casing should light
up when pressing any button indicating operational batteries. When the LED light is red, it indicates that the
batteries need to be replaced.
The installation procedure consists of three steps:
1. Choosing the master TV
2. Programming the Wireless Smart-Loader
3. Installing a TV with the Wireless Smart-Loader
> Step 3 can be repeated on as many TV sets as required.
1. Choosing a Master TV
The master TV is the TV whose installation set-up has to be copied into other TV’s of the same type.
2. Programming the Wireless Smart-Loader
This step has to be done only once or the program of the Wireless Smart-Loader would be overwritten.
Point the Wireless Smart-Loader to the TVs infra red receiver (distance around 5 to 30cm).
Press theMENUKey on the Wireless Smart-Loader.
TV shows the following menu:
SMARTLOADER TO TV >
TV TO SMARTLOADER >
o Highlight TV TO SMARTLOADER”
o Press the right cursor key on the Wireless Smart-Loader for wireless method or on the TV
Remote Control for wired method.
> A number display shows from 1~100 the percentage of memory storage progress from the TV to the
Wireless Smart-Loader (100 = fully loaded).
TV TO SMARTLOADER |||-------- ##
> When the data transfer is completed, ## is “100, the following menu appears for 3 seconds:
SMARTLOADER READY >
> Now the Wireless Smart-Loader is programmed and can be used to install other TV sets.
3. Installing a TV with the Wireless Smart-Loader
Use a Wireless Smart-Loader programmed with the settings from a master TV of the same type.
Turn on the TV and point the Wireless Smart-Loader to the TVs infra red receiver (max. distance around 30cm).
---- Press theMENU Key on the Wireless Smart-Loader.
o Highlight SMARTLOADER TO TV
o Press the right arrow key on the Wireless Smart-Loader for wireless method.
17
> A number display shows from 1~100 the percentage of memory storage progress from the
Wireless Smart-Loader to the TV (100 = fully loaded).
SMARTLOADER TO TV |||-------- ##
> When data transfer is completed, ## is “100, the following menu appears for 3 seconds:
TV READY >
> After that, the following menu comes up
GOODBYE >
> The TV goes to standby now and your TV is installed and ready for start-up and use.
Problem Solution
The message WRONG VERSION” is
displayed on the screen.
The program stored into the Wireless Smart-Loader has a
software code incompatible with the actual TV.
Reprogram the Wireless Smart-Loader from a master TV
whose software code is compatible with the actual TV.
TV doesn’t respond to the Wireless Smart-
Loader.
-check if the LED on the Wireless Smart-Loader is green when
pressing any button and check if the batteries are in a good
condition. Replace batteries if necessary.
- try to bring the Wireless Smart-Loader more closer to the
TV infra red receiver and try again.
Tips:
1. Do not forget to write the software code and the type of relevant master TV on the sticker used on the back
of the Wireless Smart-Loader.
2. The Wireless Smart-Loader can retain without batteries, the stored information for ten years if required.
Note:
i Before putting the Wireless Smart-Loader into store for a long time, make sure that the batteries are all
taken out to prevent the batteries corroding the contacts.
Problems and Solutions:
Press the OK key for approximately 5 seconds. The following text then appears:
SERVICE
1 REMOTE BATTERY OK
If the wordLOWappears instead of “OK”, the remote control batteries are low and must be replaced.
Low battery check
18
Trouble Shooting Tips
Symptoms Items to Check and Actions to follow
“Ghost” or double
images
• This may be caused by obstruction to the antenna due to high rise buildings or hills.
Using a highly directional antenna may improve the picture.
No power • Check that the TVs AC power cord is plugged into the mains socket.
• Unplug the television, wait for 60 seconds. Then re-insert plug into the mains socket
and turn on the television again.
No picture • Check antenna connections at the bottom of the TV to see if they are properly connected to the TV.
• Possible broadcast station trouble. Try another channel.
• Adjust the contrast and brightness settings. Try another auto picture setting.
• Check if you selected the correct AV source.
No picture and power
switched on
• Your TV has a protective mode in case there is too much heat build-up. Check the
clearance around the vents of the device to be certain there are no blocking walls or
cabinets which would limit the air flow.
No photo, music or
video play or in poor
quality only
• Check if the source complies with a supported code.
No sound • Increase the VOLUME.
• Check that the TV is not muted, press the MUTE button on the remote control.
• When no signal is detected, the TV automatically switches off the sound. This is proper
operation and does not indicate a malfunction.
Good sound but poor
color or no picture
• Adjust the contrast, color, tint and brightness setting. Try another auto picture setting.
Snowish picture and
noise
• Check the antenna connection.
Television not
responding to
remote control
• Check whether the batteries are working. Replace if necessary.
• Clean the remote control sensor lens on the monitor.
• Operating range between TV and the remote control should not be more than approximately twenty feet.
• You can still use the buttons on the side of your TV.
• Check if the remote control is in the correct mode.
Control of accessory
devices
• The infrared signals of the screen may influence the reception sensibility of other peripherals Solution:
replace the batteries of the remote control of other devices. E.g. keep away a wireless headphone from
within a radius of approximately four feet.
PC modes do not
work
• Check whether connections are correct.
• Check whether the source is correctly selected. Press AV button to select the correct source.
• Check whether you have configured the computer on a compatible display resolution.
Standby Your TV consumes energy less than 3w in the standby mode.
After improper
shutdown
If your TV has been shutdown in an improper way (e.g. power drop, power cord plug out), starting up the
TV again will take a longer time than usual.
Miscellaneous See Extras, Specifications on this user manual.
Glossary
19
Glossary
Aspect Ratio The ratio between the width and height of the TV picture on the screen. In a normal TV set the aspect
ratio is 4 to 3 (4:3). The new aspect ratio in HDTV is 16:9 which resembles the aspect ratio in a movie
theatre (Widescreen). New TV systems support both 4:3 and 16:9 aspect ratio and can automatically
switch between them.
Audio Video (A/V) A term often used when discussing a channel on a TV receiver or on video equipment, which has been
especially designed to accept VCR audio-video signals. This channel automatically activates special circuitry
within the TV set to prevent picture distortion and skewing. It is also used for audio-video processors,
which handle both types of signals.
CVBS Composite Video Baseband Signal. In broadcast television this refers to the video signal, including the co-
lour information and syncs.
Component Video
Input (Y Pb Pr)
Component Video Input is a type of connection that uses a cinch-type connector to allow set top boxes
or analog DVD players to connect a signal to the TV. By offering the cinch-type input (YPbPr) the primary
colors, red, green and blue are connected from a set top box directly into the TV allowing for the signal to
display on the screen.
HDTV The generally agreed upon definition of HDTV is approximately twice the vertical and
horizontal picture resolution of todays NTSC TV, which essentially makes the picture twice as sharp.
HDTV also has a screen ratio of 16:9 as compared with most of today’s TV screens, which have a screen
ratio of 4:3. HDTV offers reduced motion artifacts (i.e. ghosting, dot crawl).
Progressive Scan In Progressive Scanning all the horizontal scan lines are scanned on to the screen at one time. The HDTV
Standards accept both Interlaced Scan and Progressive Scan broadcast and display methods.
Resolution Resolution: A measurement of the finest (smallest) detail that is visible in a video image. TV Resolutions
may be expressed as number of pixels in an image; or more commonly,
As Total Number of (horizontally scanned) Lines used to create the image.
Standard Digital TV Resolutions:
SDTV: 576i - The picture is 720x576 pixels, 576p - The picture is 720x576 pixels.
HDTV: 720p - The picture is 1280x720 pixels, 1080i - The picture is 1920x1080 pixels,
SPDIF SPDIF (Sony and Philips Digital Interconnect Format) is highly recommended for high quality digital sound
output.
Note: SPDIF only supports at HDMI source.
20
WARNING concerning stationary images on the TV
Screen: Do not leave fixed images on the screen for extended periods of time. This can cause uneven aging of the LCD
panel. Normal use of the TV should involve viewing of programs that have constantly moving or changing images. Do
not leave moving images on screen for extended periods of time. Do not display the same images too frequently; if you
do, subtle “ghost” images can be left on the LCD screen. Sources of stationary images may be Laser discs, video games,
Compact Discs Interactive (CD-i), paused Digital Video Discs (DVDs) or video tapes.
Here are some common examples of stationary images:
DVD menus list DVD content.
Letter box black bars that appear at the top and bottom of the TV screen when a wide screen (16:9) movie is viewed
on a TV with standard (4:3) aspect ratio. This occurs with some DVDs.
Video game images and scoreboards
Television station logos cause a problem if they are bright and stationary. Moving or low-contrast graphics are
less likely to damage the picture tube.
Stock market tickers may appear at the bottom of the TV screen if the TV programming covers this news.
Shopping channel logos, pricing displays may be bright and may appear constantly during the show.
These usually appear in the same location on the TV screen.
TV Location
To avoid cabinet warping, cabinet color changes, and an increased chance of TV failure, do not place the TV
where temperatures can become excessively hot -- for example, in direct sunlight or near a heating appliance.
Allow a free flow of air around the TV.
Cleaning
To avoid possible shock hazard, remove the TVs power cord from the electrical outlet before cleaning.
Regularly dust the TV with a dry, non-scratching duster.
When cleaning the TV, take care not to scratch or damage the screen surface. Avoid wearing jewelry or using
anything abrasive. Do not use household cleaners. Wipe the screen with a clean cloth dampened with water.
Use even, easy, vertical strokes when cleaning.
Occasionally vacuum the vents on the rear of the TV.
Never use thinners, insecticide sprays, or other chemicals on or near the cabinet. They may permanently blemish
the cabinet.
Care And Cleaning
21
Specification - TV
32HF7445
ON SCREEN DISPLAY
LANGUAGE
ENGLISH, CHINESE, MELAYU
CONNECTIVITY
Bottom
Side
AC IN
HDMI 1 / HDMI 2
PC IN - Audio input, D-Sub
CVI 1 - Component video (YPbPr), Audio L/R input
CVI 2 - Component video (YPbPr), Audio L/R input
AV - Video input, S-video, Audio L/R input
SPDIF output
8Mono Audio out
75Ω /RF
Side AV - S-video, Audio L/R input, Video input, Earphone
DATA 1 / DATA 2
WEIGHT &
DIMENSIONS:
Weight (incl. Packaging):
Weight (excl. Packaging):
Carton Dimension
(WxHxD):
Product Dimension
(WxHxD)
22 kg/48.5 lbs
18.3 kg/40.34 lbs
1070 x 668 x 251 mm
42.12” x 26.30” x 9.88”
791 x 604 x 251.5 mm
31.14” x 23.78” x 9.9
POWER
Power Consumption
Standby Power Consumption
Mains Power
150W (max.)
< 3W
100-240V, 60-50Hz
WALL MOUNT:
400 x 200mm
Metric 6 (10mm) screws are needed for wall mounting (not included).

Navigation menu
