Register your product and get support at
www.philips.com/welcome
NE User manual
32PFL3409/98
42PFL3609/98
47PFL3609/98
1
8 Product information 22
9 Troubleshooting 24
10 Index 26
Contents
1 Notice 2
2 Important
3
3 Your TV
5
TV overview 5
4 Use your TV 7
Switch your TV on/off or to standby 7
Switch channels 7
Watch connected devices 8
Adjust TV volume 8
5 Use more of your TV 9
Access TV menus 9
Change picture and sound settings 9
Create and use lists of favourite channels 12
Use timers 13
Use child control 13
Use the TV clock 14
Update the TV software 15
Change TV preferences 15
Start a TV demo 15
Reset the TV to factory settings 16
6 Install channels 17
Automatically install channels 17
Manually install channels 17
Rename channels 17
Rearrange channels 18
7 Connect devices 19
Back connectors 19
Side connectors 19
Connect a computer 20
Use Philips EasyLink 21
Use a Kensington lock 21
English
EN
2
Compliance with EMF
Koninklijke Philips Electronics N.V. manufactures
and sells many products targeted at consumers
which, like any electronic apparatus, in
general have the ability to emit and receive
electromagnetic signals.
One of Philips’ leading Business Principles is to
take all necessary health and safety measures
for our products, to comply with all applicable
legal requirements and to stay well within
the EMF standards applicable at the time of
producing the products.
Philips is committed to develop, produce and
market products that cause no adverse health
effects. Philips con rms that if its products are
handled properly for their intended use, they
are safe to use according to scienti c evidence
available today.
Philips plays an active role in the development
of international EMF and safety standards,
enabling Philips to anticipate further
developments in standardisation for early
integration in its products.
Copyright
All other registered and unregistered
trademarks are the property of their respective
owners.
® Kensington and Micro Saver are registered
US trademarks of ACCO World Corporation
with issued registrations and pending
applications in other countries throughout the
world.
VESA, FDMI and the VESA Mounting Compliant
logo are trademarks of the Video Electronics
Standards Association.
Portions of this software are copyright © The
FreeType Project (www.freetype.org).
1 Notice
2009 © Koninklijke Philips Electronics N.V. All
rights reserved.
Speci cations are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
The material in this manual is believed
adequate for the intended use of the system.
If the product, or its individual modules or
procedures, are used for purposes other than
those speci ed herein, con rmation of their
validity and suitability must be obtained. Philips
warrants that the material itself does not
infringe any United States patents. No further
warranty is expressed or implied.
Philips cannot be held responsible either for any
errors in the content of this document or for
any problems as a result of the content in this
document. Errors reported to Philips will be
corrected and published on the Philips support
website as soon as possible.
Pixel characteristics
This LCD product has a high number of
colour pixels. Although it has effective pixels of
99.999% or more, black dots or bright points of
light (red, green or blue) may appear constantly
on the screen. This is a structural property of
the display (within common industry standards)
and is not a malfunction.
Warranty
No components are user serviceable. Do not
open or remove covers to the inside of the
product. Repairs may only be done by Philips
Service Centres and of cial repair shops. Failure
to do so shall void any warranty, stated or
implied.
Any operation expressly prohibited in
this manual, any adjustments, or assembly
procedures not recommended or authorised in
this manual, shall void the warranty.
EN
3
Avoid force coming onto power
plugs. Loose power plugs can cause
arcing or  re.
Risk of injury or damage to the TV!
Two people are required to lift and
carry a TV that weighs more than
25 kg.
When stand mounting the TV, use
only the supplied stand. Secure the
stand to the TV tightly. Place the
TV on a  at, level surface that can
support the combined weight of the
TV and the stand.
When wall mounting the TV, use
only a wall mount that can support
the weight of the TV. Secure the wall
mount to a wall that can support the
combined weight of the TV and wall
mount. Koninklijke Philips Electronics
N.V. bears no responsibility for
improper wall mounting that result in
accident, injury or damage.
Risk of injury to children!Follow these
precautions to prevent the TV from
toppling over and causing injury to
children:
Never place the TV on a surface
covered by a cloth or other material
that can be pulled away.
Ensure that no part of the TV hangs
over the edge of the surface.
Never place the TV on tall furniture
(such as a bookcase) without
anchoring both the furniture and TV
to the wall or a suitable support.
Educate children about the dangers
of climbing on furniture to reach the
TV.
Risk of overheating! Never install the
TV in a con ned space. Always leave a
space of at least 10 cm around the TV
for ventilation. Ensure curtains or other
objects never cover the ventilation slots
on the TV.
Risk of damage to the TV! Before you
connect the TV to the power outlet,
ensure that the power voltage matches
•
•
•
•
•
•
•
•
•
•
•
•
2 Important
Read and understand all instructions before you
use your TV. If damage is caused by failure to
follow instructions, the warranty does not apply.
Safety
Risk of electric shock or  re!
Never expose the TV to rain or
water. Never place liquid containers,
such as vases, near the TV. If
liquids are spilt on or into the TV,
disconnect the TV from the power
outlet immediately. Contact Philips
Consumer Care to have the TV
checked before use.
Never place the TV, remote control
or batteries near naked ames or
other heat sources, including direct
sunlight.
To prevent the spread of  re, keep
candles or other  ames away from
the TV, remote control and batteries
at all times.
Never insert objects into the
ventilation slots or other openings on
the TV.
When the TV is swivelled ensure
that no strain is exerted on the
power cord. Strain on the power
cord can loosen connections and
cause arcing.
Risk of short circuit or  re!
Never expose the remote control or
batteries to rain, water or excessive
heat.
•
•
•
•
•
•
•
English
EN
4
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheeled bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences for the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules
on the separate collection of batteries. The
correct disposal of batteries helps prevent
potentially negative consequences for the
environment and human health.
the value printed on the back of the TV.
Never connect the TV to the power
outlet if the voltage is different.
Risk of injury,  re or power cord damage!
Never place the TV or any objects on the
power cord.
To easily disconnect the TV power cord
from the power outlet, ensure that you
have full access to the power cord at all
times.
When you disconnect the power cord,
always pull the plug, never the cable.
Disconnect the TV from the power outlet
and aerial before lightning storms. During
lightning storms, never touch any part of
the TV, power cord or aerial cable.
Risk of hearing damage! Avoid using
earphones or headphones at high
volumes or for prolonged periods of time.
If the TV is transported in temperatures
below 5°C, unpack the TV and wait
until the TV temperature matches room
temperature before connecting the TV to
the power outlet.
Screen care
Avoid stationary images as much as
possible. Stationary images are images
that remain on-screen for extended
periods of time. Examples include:
on-screen menus, black bars and time
displays. If you must use stationary
images, reduce screen contrast and
brightness to avoid screen damage.
Unplug the TV before cleaning.
Clean the TV and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the TV.
Risk of damage to the TV screen! Never
touch, push, rub or strike the screen with
any object.
To avoid deformations and colour fading,
wipe off water drops as soon as possible.
•
•
•
•
•
•
•
•
•
•
•
EN
5
Remote control
a ( Standby-On )
Switches the TV to standby if the TV
is on.
Switches the TV on if the TV is in
standby.
b MENU
Toggles the main menu on or off.
•
•
1
2
3
4
6
7
8
9
10
13
14
17
19
20
18
15
16
21
12
11
5
1
2
3
4
6
7
8
9
10
13
14
17
19
20
18
15
16
21
12
11
5
3 Your product
Congratulations on your purchase, and
welcome to Philips! To fully bene t from the
support that Philips offers; register your product
at www.philips.com/welcome.

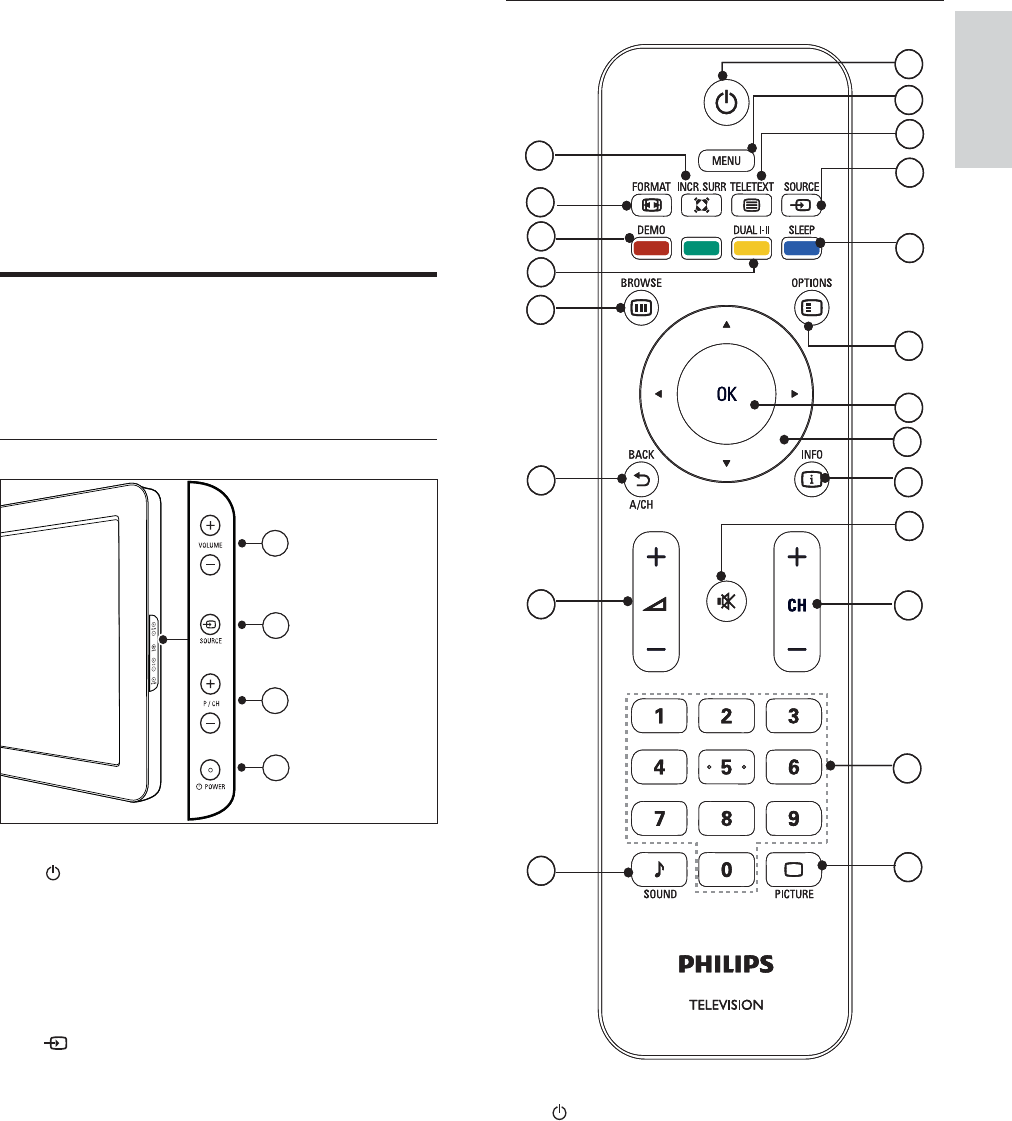

TV overview
This section gives you an overview of
commonly used TV controls and functions.
Side controls and indicators
a POWER : Switches the TV on or off.
The TV is not powered off completely
unless it is physically unplugged.
b P/CH +/- : Switches to the next or
previous channel.
c SOURCE : Selects connected devices.
d VOLUME +/- : Increases or decreases
volume.
3
4
2
1
3
4
2
1
English
EN
6
r DUAL
Switches Stereo and Nicam Stereo to
Mono. Selects  rst language (Dual I)
or second language (Dual II) in bilingual
programmes.
s DEMO
Toggles the demonstration menu on or
off.
t FORMAT
Selects a picture format.
u INCR. SURR
Enables Incredible Surround for stereo
sources. Enables spatial mode for mono
sources.
c TELETEXT (Not Used)
Toggles teletext on or off.
d SOURCE
Selects connected devices.
e SLEEP
Sets a delay after which the TV switches
to standby.
f OPTIONS
Accesses options relating to the current
activity or selection.
g OK
Con rms an entry or selection and
displays the channel grid, when watching
TV.
h ( Navigation buttons )
Navigates through the menus.
i INFO
Displays programme information, if
available.
j ( Mute )
Mutes or restores audio output.
k CH +/-
Switches to the next or previous channel.
l 0-9 ( Numeric buttons )
Selects a channel or setting.
m PICTURE ( Smart picture )
Launches the smart picture menu.
n
SOUND ( Smart Sound )
Launches the smart sound menu.
o +/-
Increases or decreases volume.
p BACK A/CH
Returns to a previous screen.
Toggles between the current channel
and the last viewed channel.
q BROWSE
Switches between channel grid and
programme list.
•
•
EN
7
Switch channels
Press BACK A/CH on the remote
control to return to the previously
viewed channel.
Press CH +/- on the remote control or
P/CH +/- on the side of the TV.
Press OK to use the channel matrix.
Enter a channel number using the
Numeric buttons .
Note
When you use a favourite list, you can only
select those channels in the list (see ‘Select a
favourite list’ on page 12 ) .
•
•
•
•
•
4 Use your product
This section helps you perform basic TV
operations.

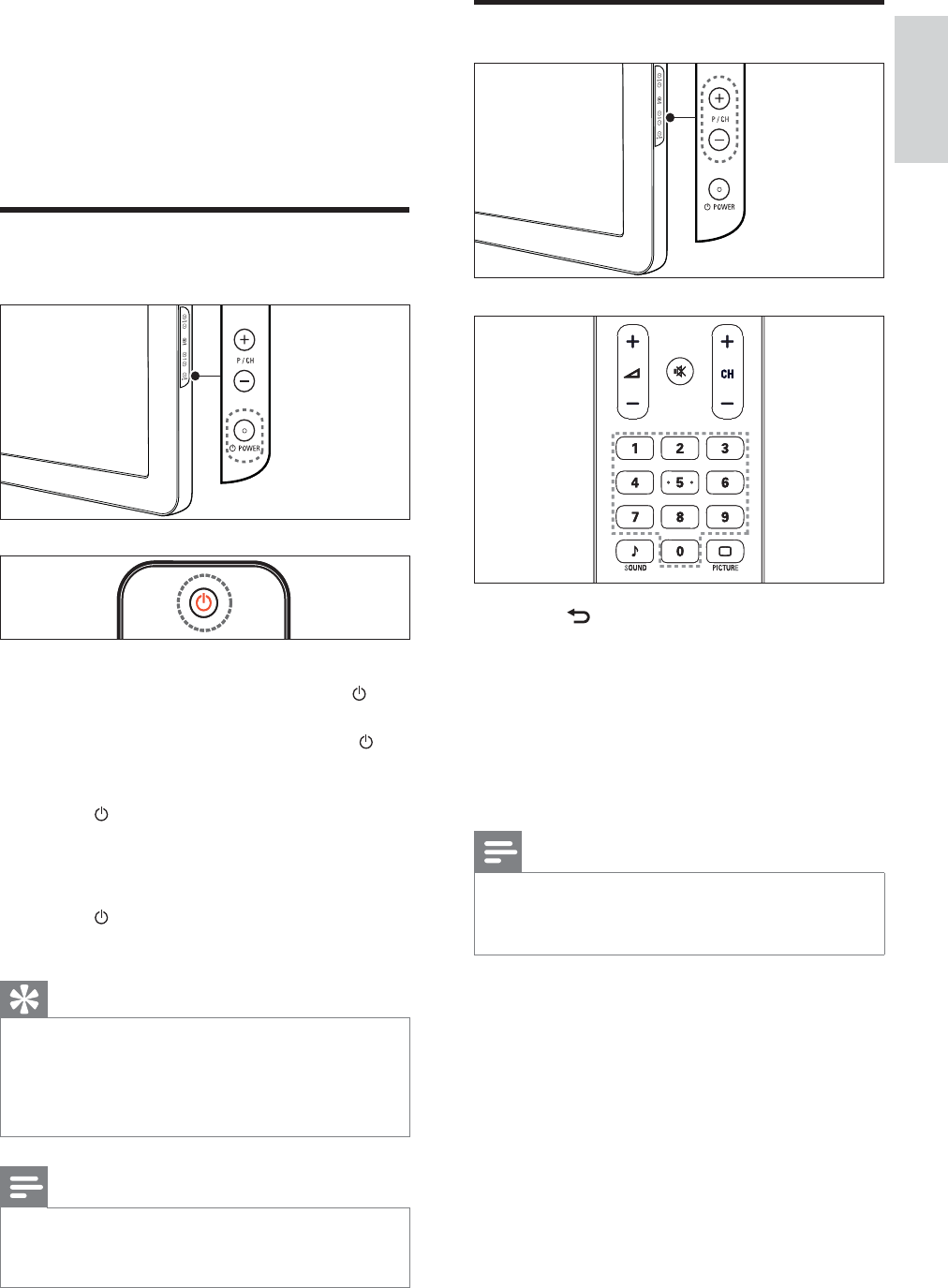

Switch your TV on/off or to
standby
To switch on
If the standby indicator is off, press
POWER at the side of the TV.
If the standby indicator is red, press
( Standby-On ) on the remote control.
To switch to standby
Press ( Standby-On ) on the remote
control.
The standby indicator switches to red.
To switch off
Press POWER at the side of the TV.
The standby indicator switches off.
Tip
Though your TV consumes very little power
when in standby, energy continues to be
consumed. When not in use for an extended
period of time, disconnect the TV power cable
from the power outlet.
•
Note
If you cannot locate your remote control and
want to switch on the TV from standby, press
P/CH +/- at the side of the TV.
•
•
•
•
»
•
»
English
EN
8
Watch connected devices

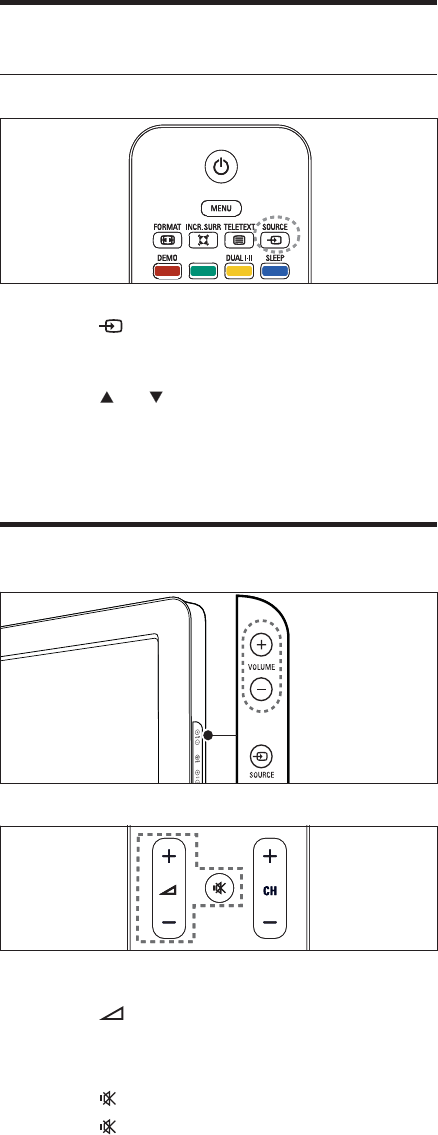

Use the source button
1 Press SOURCE .
The source list appears.
2 Press or to select the connected
device.
3 Press OK to watch the connected device.
Adjust TV volume
To increase or decrease volume
Press +/- .
Press VOLUME +/- on the side of the TV.
To mute or unmute sound
Press to mute the sound.
Press again to restore the sound.
»
•
•
•
•
EN
9
Change picture and sound
settings
Change picture and sound settings to suit your
preferences. You can apply pre-de ned settings
or change settings manually.
Use smart picture
Use smart picture to apply pre-de ned
picture settings.
1 Press PICTURE .
The [Smart picture] menu appears.
2 Press to select one of the following
smart picture settings.
[Personal] Lists customised personal
picture settings.
[Vivid] Maximises picture settings.
[Standard] Adjusts picture settings
to suit most environments and types
of video.
[Movie] Applies picture settings
ideally suited for movie viewing.
[Game] Applies picture settings
maximised for fast-moving games.
[Energy saving] Applies low-energy
picture settings.
3 Press OK to con rm your choice.
The selected smart picture setting is
applied.
Manually adjust picture settings
1 Press MENU .
2 Press OK to select [Picture] .
The [Picture] menu appears.
3 Press to select from the following
settings and adjust:
»
•
•
•
•
•
•
»
»
5 Use more of
your TV

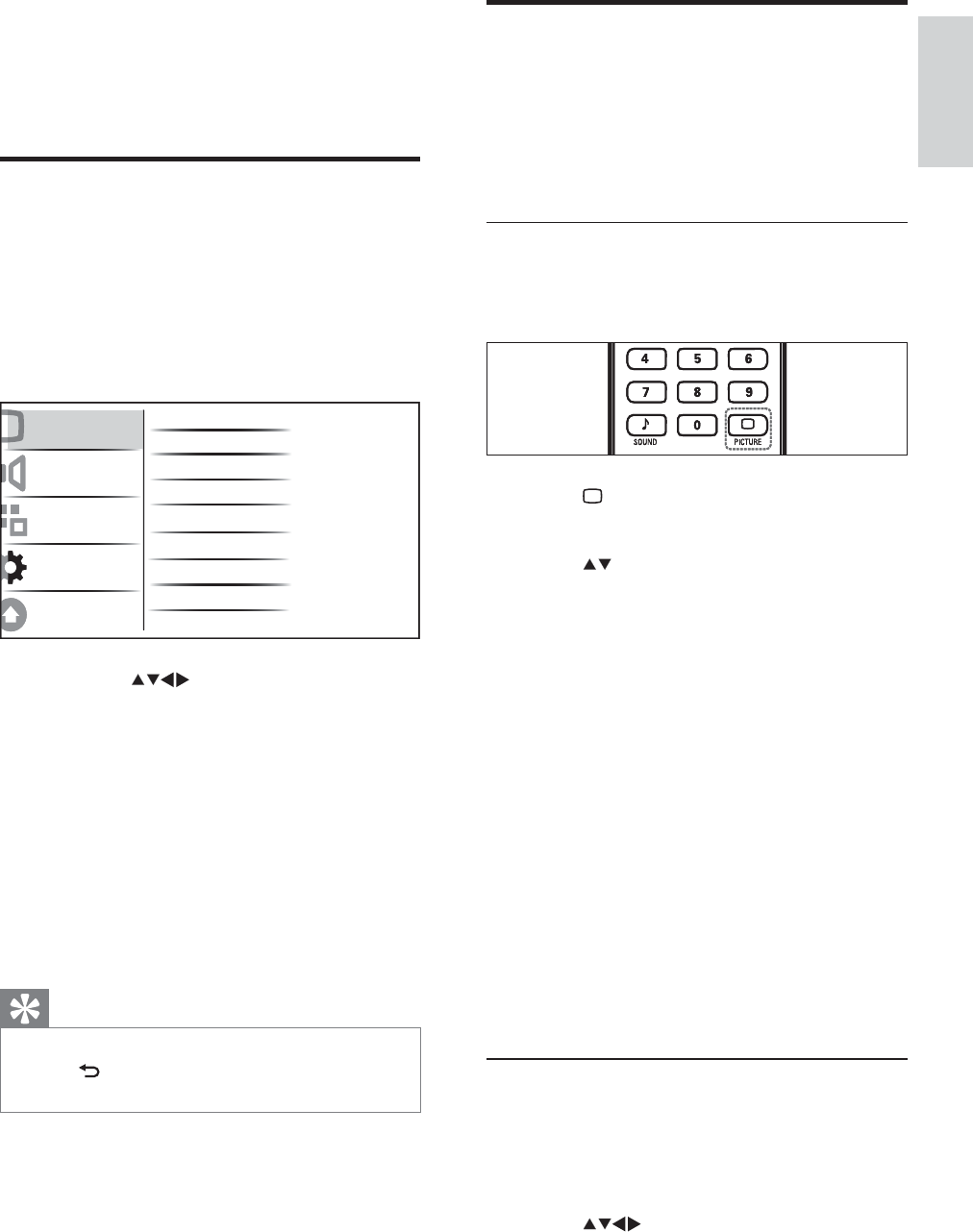

Access TV menus
Menus help you to install channels, change
picture and sound settings and access other
features.
1 Press MENU .
The menu screen appears.
2 Press the to select and navigate
through one of the following menus.
[Picture] Adjusts the picture setting
for optimal viewing.
[Sound] Adjusts the sound setting.
[Features] Accesses different features
like timer, TV lock and demo.
[Installation] Selects channel
installation menu, adjusts preferences
and resets the TV to factory settings.
3 Press OK to con rm your choice.
Tip
Press MENU at any time to exit the menu.
Press BACK A/CH to move back one
screen.
•
•
»
•
•
•
•
Installation
Sound
Brightness
Sharpness
Color
Smart picture
Software update
Features
Noise reduction
Contrast
Color Temperature
Tint
Dig. Crystal Clear
Installation
Sound
Brightness
Sharpness
Color
Smart picture
Software update
Features
Noise reduction
Contrast
Color Temperature
Tint
Dig. Crystal Clear
English
EN
10
Change picture format
1 Press FORMAT .
A picture format bar appears.
2 Press to select a picture format.
The selected picture format is
activated.
3 Press OK to con rm your choice.
»
»
[Smart picture] : Accesses pre-
de ned smart picture settings.
[Contrast] : Adjusts the intensity
of bright areas, keeping dark areas
unchanged.
[Brightness] : Adjusts the intensity
and details of dark areas.
[Colour] : Adjusts colour saturation.
[Hue] : Compensates colour
variations in NTSC encoded
transmissions.
[Sharpness] : Adjusts the level of
sharpness in image details.
[Noise reduction] : Filters and
reduces noise in an image.
[Colour temperature] : Introduces
more orange tones ( [Warm] ) or
blue tones ( [Cool] ) to the picture.
[Dig.CrystalClear] : Digitally adjusts
picture quality to optimal contrast,
colour and sharpness.
[Dynamic contrast] :
Automatically enhances contrast
in an image.
[Dynamic backlight] : Adjusts
the brightness of the TV
backlight to match lighting
conditions.
[Colour enhancement] : Makes
colours more vivid and improves
the resolution of details in bright
colours. You can switch this
feature on or off.
[PC mode] : Adjusts picture settings
when a PC is connected to the TV.
[Picture format] : Changes the
picture format.
[Horizontal shift] : Adjusts the
picture horizontally for PC-VGA or
HD input.
[Vertical shift] : Adjusts the picture
vertically for PC-VGA or HD input.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
EN
11
Use smart sound
Use smart sound to apply pre-de ned sound
settings.
1 Press SOUND .
The [Smart sound] menu appears.
2 Press to select one of the following
smart sound settings.
[Standard] Adjusts sound settings to
suit most environments and types of
audio.
[News] Applies sound settings ideally
suited for spoken audio, such as the
news.
[Movie] Applies sound settings ideally
suited for movies.
[Personal] Applies the settings that
were customised in the sound menu.
3 Press OK to con rm your choice.
The selected smart sound setting is
applied.
Adjust sound settings
1 Press MENU
2 Press to select [Sound] .
The [Sound] menu appears.
3 Press to select and adjust:
[Smart sound] Accesses pre-de ned
smart sound settings.
[Bass] Adjusts the bass level.
[Treble] Adjusts the treble level.
[Volume] Adjusts the volume.
[Balance] Adjusts the balance of the
right and left speakers to best suit
your listening position.
[Dual I-II] Selects between audio
languages if dual sound is broadcast.
»
•
•
•
•
»
»
•
•
•
•
•
•

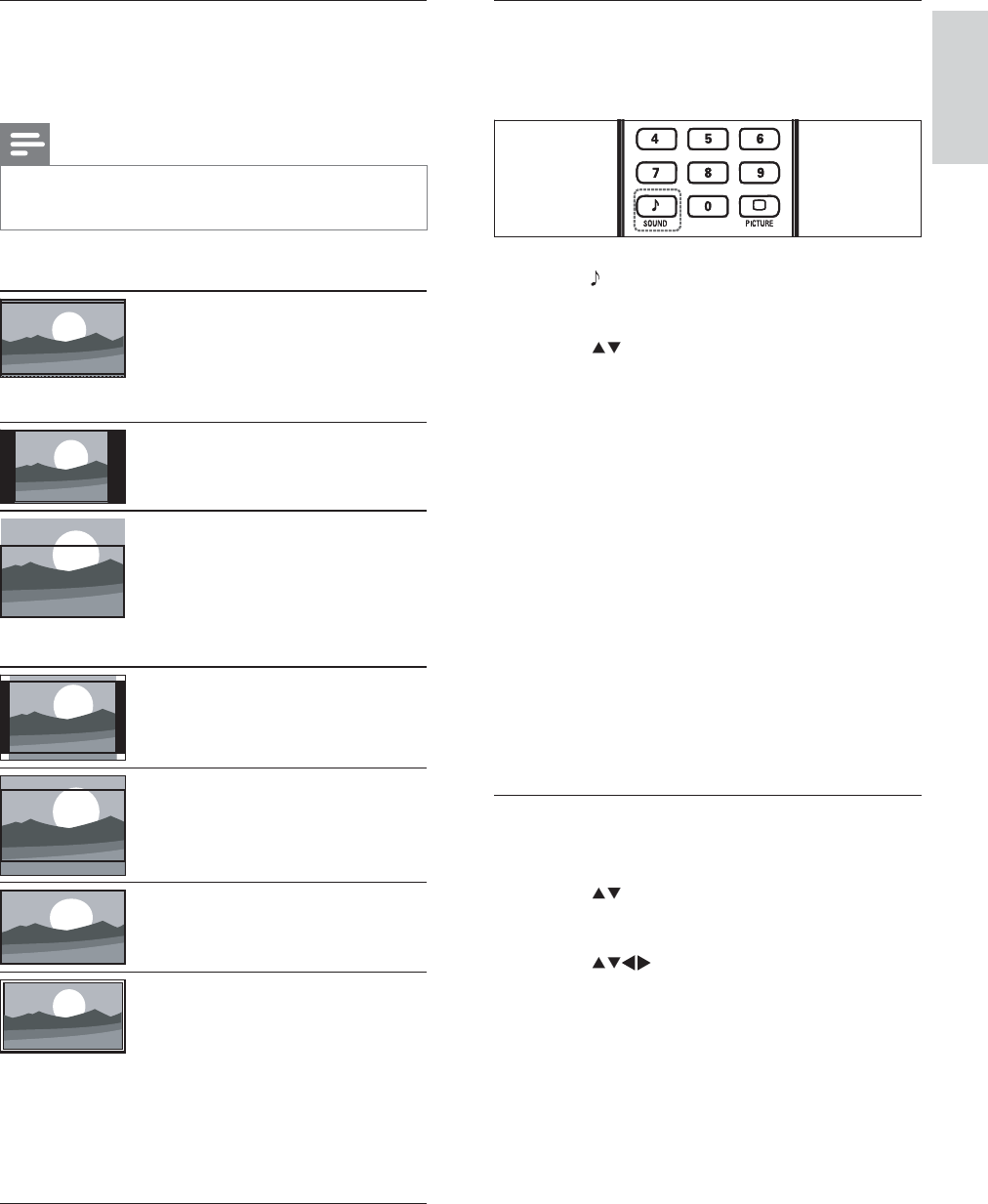

Summary of picture formats
The following picture settings can be
con gured.
Note
Depending on the format of the picture
source, some picture settings are not available.
•
[Super zoom] (Not for HD
and PC mode.) Removes
the black bars on the side
of 4:3 broadcasts. There is
minimal distortion.
[4:3] Shows the classic 4:3
format.
[Subtitle zoom] Displays
4:3 pictures over the full
area of the screen, with
sub-titles visible. Part of
the top of the picture is
clipped off.
[Movie exp.14:9] (Not for
HD and PC mode.) Scales
4:3 format to 14:9.
[Movie exp.16:9] (Not for
HD and PC mode.) Scales
4:3 format to 16:9.
[Wide screen] Stretches
the classic 4:3 format to
16:9.
[Unscaled] For HD and PC
mode only, and in selected
models only. Allows
maximum sharpness. Some
distortion may be present
due to the broadcaster’s
systems. Set your PC
resolution to wide screen
mode for best results.
English
EN
12

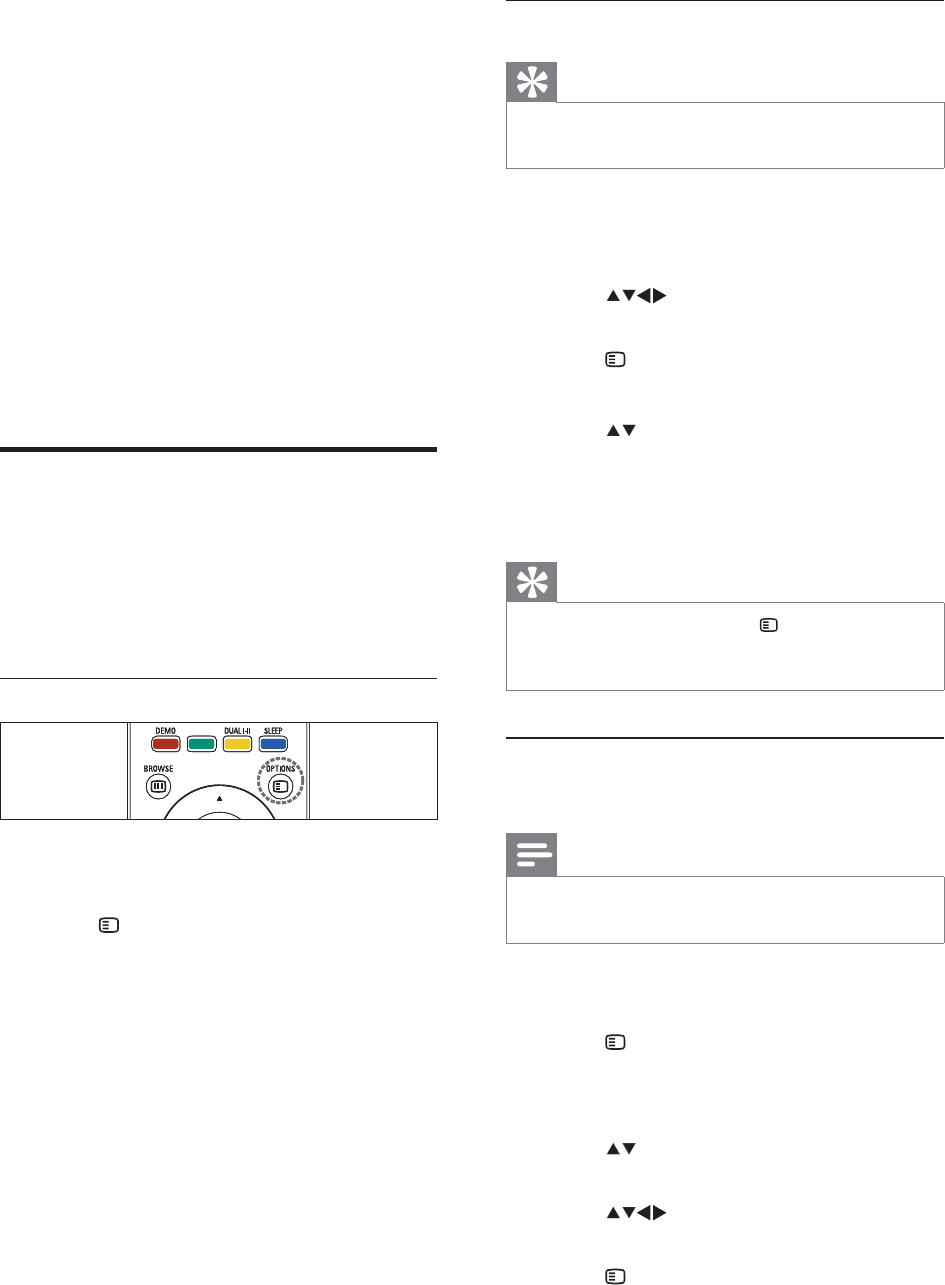

Add a channel to a favourite list
Tip
View all channels before adding a channel to a
favourite list.
•
1 When watching TV, switch to the channel
you want to add to a favourite list (see
‘Switch channels’ on page 7 ) .
2 Press to select a channel to add to
a favourite list.
3 Press OPTIONS .
The channel options menu appears.
4 Press to select [Mark as favourite] .
5 Press OK .
The channel is added to the favourite
list.
Tip
When watching TV, press OPTIONS
> [Mark as favourite] to save the current
channel into a favourite list.
•
Remove a channel from a favourite
list
Note
Select the favourite list to edit, before
removing a channel .
•
1 When watching TV, press OK to display
the channel grid.
2 Press OPTIONS .
The channel options menu appears.
3 Press OK to enter [Show favourite ch.] .
4 Press to select a favourite list and
press OK to con rm the choice.
5 Press to choose the channel that
you wish to remove from the list.
6 Press OPTIONS .
»
»
»
[Mono/Stereo] Selects between
mono or stereo if stereo is
broadcast.
[Surround] Enables spatial sound.
[Auto volume] Automatically
reduces sudden volume changes, for
example, when switching channels.
When enabled, this produces a more
consistent audio volume.
[Delta volume] Levels out volume
differences between channels or
connected devices. Switch to the
connected device before you change
the delta volume.
Create and use list of
favourite channels
You can create a list of your preferred TV
channels and radio stations so that you can  nd
those channels easily.
Select a favourite list
1 When watching TV, press OK to display
the channel grid.
2 Press OPTIONS .
The channel options menu appears.
3 Press OK to select [Select fav. list] >
[Favorite] .
The favourite list appears.
4 Press OK .
Only channels in the favourite list
appear in the channel grid.
•
•
•
•
»
»
»
EN
13
4 Press to select [Activate] and set a
day of the week or frequency.
5 Press OK to con rm.
6 Press to select [Time] and set the
starting time.
7 Press [Done] to con rm.
8 Press to select [Programme no.]
and set the channel.
9 Press OK to con rm.
10 Press MENU to exit.
Tip
Select [Off] to switch off [On timer] .
When [On timer] is switched off, only
[Activate] option is available.
Set the TV clock before you activate [On
timer] feature (see ‘Set the TV clock’ on page
14 ) .
•
•
•
Use child control
You can prevent your children from watching
certain programs or certain channels by locking
the TV controls.
Set or change your PIN code
1 Press MENU .
2 Press to select [Features] > [Set
code] .
3 Press to enter the code setup.
4 Enter your code with the Numeric
buttons .
5 Re-enter the same code in the new
dialogue box for con rmation.
If the code is set successfully, the
dialogue box will disappear. However,
if the code cannot be set, you will be
prompted to re-enter the code.
»
7 Press to select [Unmark as fav.] .
8 Press OK .
The channel is removed from the
favourite list.
Use timers
You can set timers to switch the TV on or
switch to standby at a speci ed time.
Automatically switch the TV to
standby (sleeptimer)
Sleeptimer switches the TV to standby after a
pre-de ned period of time.
Tip
You can always switch off your TV earlier or
reset the sleeptimer during the countdown.
•
1 Press MENU
2 Select [Features] > [Sleeptimer] .
The [Sleeptimer] menu appears.
3 Press to set the sleep time.
The sleeptimer can be up to 180
minutes in steps of  ve minutes. If
set to zero minutes, the sleeptimer is
switched off.
4 Press OK to activate the sleeptimer.
The TV switches to standby after the
pre-de ned period of time.
Automatically switch the TV on (on
timer)
You can switch the TV to a speci ed channel
at a speci ed time, from standby.
1 Press MENU .
2 Select [Features] > [On timer] .
3 Press to enter the [On timer] menu.
»
»
»
»
English
EN
14
5 For each selection, press OK to lock or
unlock the channel.
Use the TV clock
You can display a clock on the TV screen. The
clock displays the current time using time data
received from your TV service operator.
Display the TV clock
1 When watching TV, press OPTIONS .
The TV options menu appears.
2 Select [Clock] .
3 Press OK .
The clock is displayed.
Note
The clock is disabled automatically after ten
minutes. To disable the clock before that,
repeat this procedure.
•
Set the TV clock
1 Press MENU .
2 Select [Features] > [Clock] .
The [Clock] menu appears.
1 Press or Numeric buttons to
enter time.
2 Press [Done] to con rm.
3 Press MENU to exit.
Note
The clock is disabled automatically after three
seconds.
•
»
»
»
6 If you want to change the code, select
[Features] > [Change code] .
7 Enter your current code using the
Numeric buttons .
If the code is validated, a new dialogue
box will prompt you to enter your
new code.
8 Enter the new code using the Numeric
buttons.
A message appears prompting you
to enter the new code again for
con rmation.
Tip
If you forget your code, enter ‘8888’ to
override any existing codes.
•
Lock or unlock all channels and
connected devices
1 Press MENU .
2 Press to select [Features] > [TV
lock] .
3 Press to enter [TV lock] .
A screen prompting you to enter code
appears.
4 Enter your code.
5 Press to select [Lock] or [Unlock] .
6 Press OK .
All channels and connected devices are
locked or unlocked.
7 Press MENU to exit.
Lock or unlock one or more channels
1 When watching TV, press OK to display
the channel grid.
2 Press to select a channel to lock or
unlock.
3 Press OPTIONS .
4 Press to select [Lock/Unlock chan.] .
»
»
»
»
EN
15
Change TV preferences
The [Preferences] menu allows you to
customise various features and functions.
1 Press MENU .
2 Select [Installation] > [Preferences] .
3 Press to enter [Preferences] .
[Location] Optimises TV settings for
your location - home or shop.
[Volume bar] Displays the volume
bar when adjusting the volume.
[EasyLink] Enables one-touch play
and one-touch standby between
EasyLink-compliant devices.
[E-sticker] For shop mode only. Sets
the location of the e-sticker.
4 Press to select your preference.
5 Press OK .
6 Press MENU to exit.
Start a TV demo
You can use demonstrations to better
understand the features of your TV. Some
demos are not available on certain models.
When a demo is available, it is displayed in the
menu list.
1 Press DEMO on the remote control.
2 Press to select a demo and press OK
to view it.
3 Press DEMO to exit.
•
•
•
•
Update the TV software
Philips continuously tries to improve its
products and we recommend that you update
the TV software when updates are available.
Check www.philips.com/support for availability.
Check the current software version
1 Press MENU .
2 Select [Software update] > [Current
software] .
Download the software
1 On your PC, open a web browser and go
to www.philips.com/support.
2 Find information and software related
to your TV and download the latest
software upgrade  le to your PC.
3 Decompress the ZIP- le.
4 Copy the autorun.upg le to the root
directory of the USB device.
Update software (analogue
broadcasts)
Before performing this procedure be sure to:
Set aside some time to complete the
entire update.
Have available a USB storage device with
at least 64MB of storage space.
Have access to a computer with a USB
port and internet access.
1 Press MENU .
2 Select [Software update] > [Update
assistant] .
3 Select [Start] .
4 Connect the USB storage device to your
computer.
5 Follow the on-screen instructions to
complete the update.
•
•
•
English
EN
16
Reset the TV to factory
settings
You can restore the default picture and sound
settings of your TV. Channel installation settings
remain the same.
1 Press MENU .
2 Select [Installation] > [Factory settings] .
3 Press to enter the [Factory settings]
menu.
[Reset] is highlighted.
4 Press OK to reset to factory settings.
5 Press MENU to exit.
»
EN
17
6 Press OK to con rm.
7 Press MENU to exit.
Step 2 Search and store new TV
channels
1 Press MENU .
2 Select [Installation] > [Channel install.]
> [Analogue: Manual] .
The [Analogue: Manual] menu appears.
3 Press to select and enter [Search] .
4 Press or use Numeric buttons to
manually enter the three digit frequency.
5 Press OK to begin search.
6 Press when the new channel is found.
7 Press to select [Store new
channel] to store the new channel under
a new channel number.
8 Press to select [Yes] and press OK to
store new channel.
9 Press MENU to exit.
Rename channels
Channels can be renamed so that a name of
your choice appears whenever the channel is
selected.
1 When watching TV, press OK to display
the channel grid .
2 Select the channel you want to rename.
3 Press OPTIONS .
The channel options menu appears.
4 Press to select and enter [Rename
chan.] .
5 Press to select a character and press
to add another character.
6 Select [Done].
7 Press OK .
»
»
6 Install channels
The  rst time you set up your TV, you are
prompted to select a menu language and to
install TV and digital radio channels (if available).
This chapter provides instructions on how to
reinstall and  ne-tune channels.
Automatically install channels
This section describes how to search and store
channels automatically.
1 Press MENU .
2 Select [Installation] > [Channel install.]
> [Channel assistant] .
3 Press OK .
4 Follow the on-screen instructions to
install channels.
Manually install channels
This section describes how to search and store
analogue TV channels manually.
Step 1 Select your system
Note
Skip this step if your system settings are
correct.
•
1 Press MENU .
2 Select [Installation] > [Channel install.]
> [Analogue: Manual]
The [Analogue: Manual] menu appears.
3 Press to select and enter [Colour
system] .
4 Press OK to con rm.
5 Press to select and enter [Sound
system] .
»
English
EN
18
Rearrange channels
After you install channels, you can rearrange the
order in which they appear.
1 When watching TV, press OK to display
the channel grid .
2 Press OPTIONS .
The channel options menu appears.
3 Press to select and enter
[Reorder] .
4 Select the channel you want to reorder
and press OK .
5 Press to select the new position
for the channel.
6 Press OK to con rm the new position.
7 Press OPTIONS .
[ Done reordering ] appears.
8 Press OK to  nish reordering.
»
»
EN
19
f AV IN ( VIDEO and AUDIO L/R )
Analogue audio and video input from
analogue or digital devices such as DVD
players, satellite receivers and VCRs.
g CVI 1/2 ( Y Pb Pr and AUDIO L/R )
Analogue audio and video input from
analogue or digital devices such as DVD
players or game consoles.
Side connectors
a SERVICE
For software update.
b HDMI
Digital audio and video input from high-
de nition digital devices such as Blu-ray players.
c VIDEO
Composite video input from analogue
devices such as VCRs.
d AUDIO L/R
Audio input from analogue devices
connected to VIDEO .
e
Stereo audio output to headphones or
earphones.
1
2
5
3
4
1
2
5
3
4
7 Connect devices
This section describes how to connect
various devices with different connectors and
supplements examples provided in the Quick
Start.
Note
Different types of connectors may be used to
connect a device to your TV, depending on
availability and your needs.
•

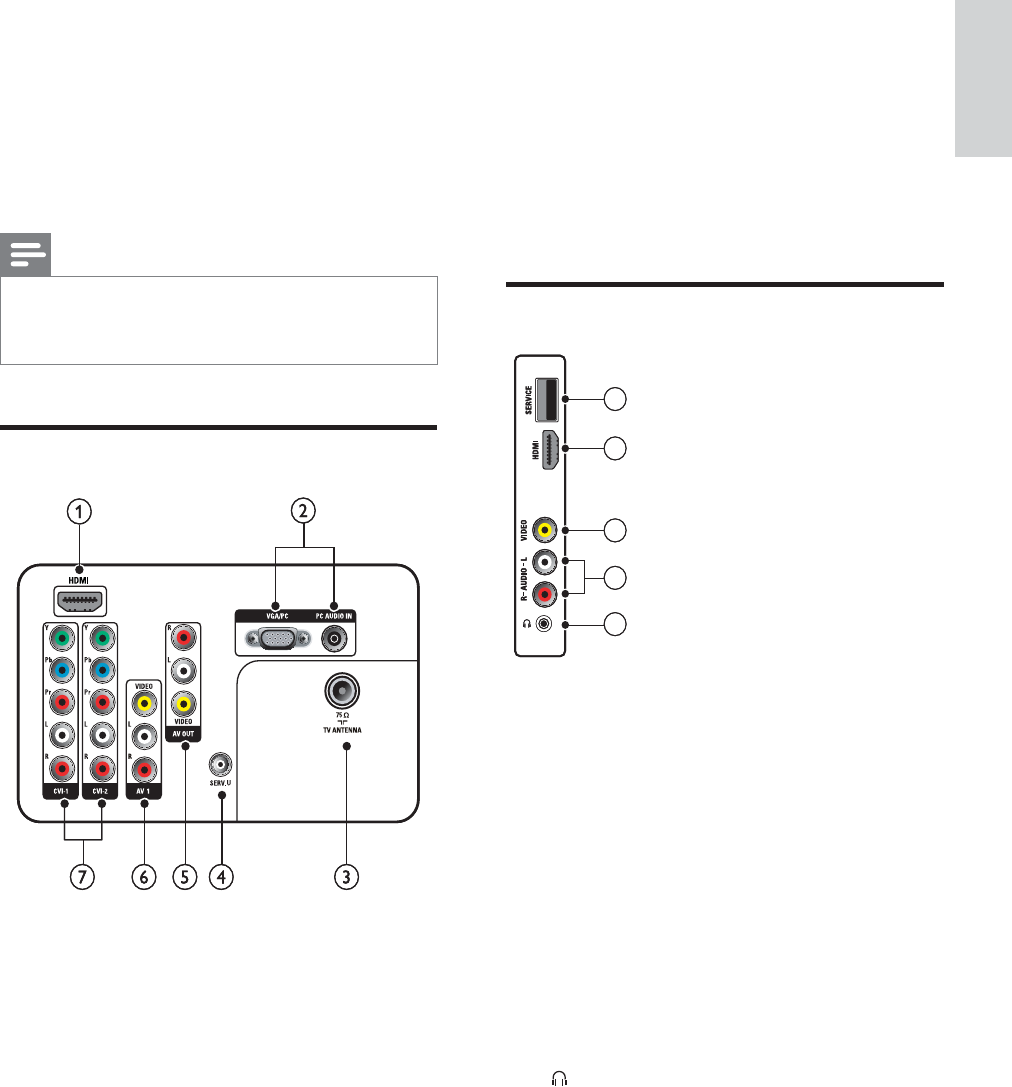

Back connectors
a HDMI
Digital audio and video input from high-
de nition digital devices such as Blu-ray players.
b VGA/PC and PC AUDIO IN
Audio and video input from a computer.
c TV ANTENNA
Signal input from an antenna, cable or
satellite.
d SERV. U
For use by service personnel only.
e AV OUT ( VIDEO and AUDIO L/R )
Audio and video output to analogue devices
such as another TV or a recording device.
English
EN
20
HDMI cable and HDMI-DVI adaptor
VGA cable
•
•
DVI
PC AUDIO IN/ PC IN(AUDIO)
DVI
PC AUDIO IN/ PC IN(AUDIO)
VGA
PC AUDIO IN/ PC IN(AUDIO)
VGA
PC AUDIO IN/ PC IN(AUDIO)

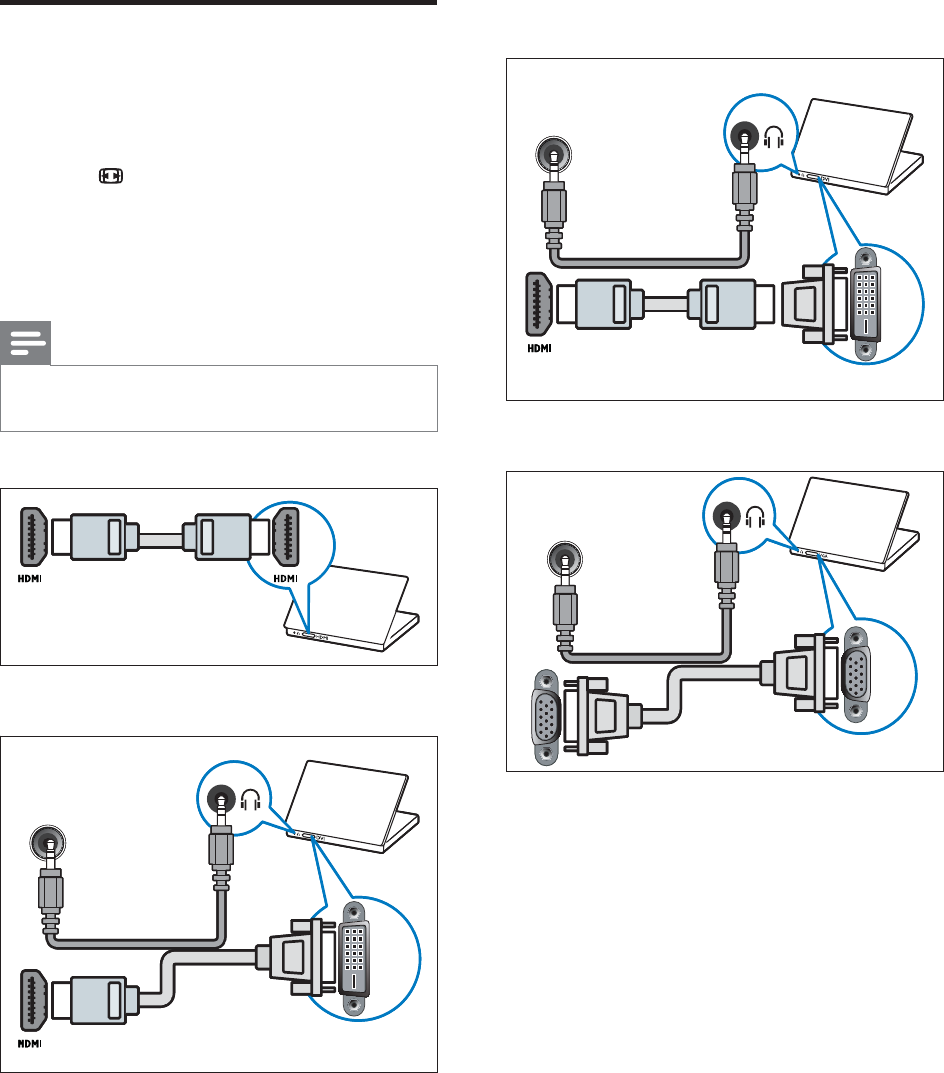

Connect a computer
Before you connect a computer to the TV
Set the monitor refresh rate on your
computer to 60Hz.
Press FORMAT and change the TV
picture format to [Unscaled] .
Connect a computer with one of the
following connectors:
Note
Connections via DVI or VGA require an
additional audio cable.
•
HDMI cable
DVI-HDMI cable
•
•
•
•
DVI
PC AUDIO IN/ PC IN(AUDIO)
DVI
PC AUDIO IN/ PC IN(AUDIO)
EN
21
Enable or disable EasyLink
Note
Do not enable Philips EasyLink if you do not
intend to use it.
•
1 Press MENU .
2 Select [Installation] > [Preferences] >
[EasyLink] .
3 Select [On] or [Off] .

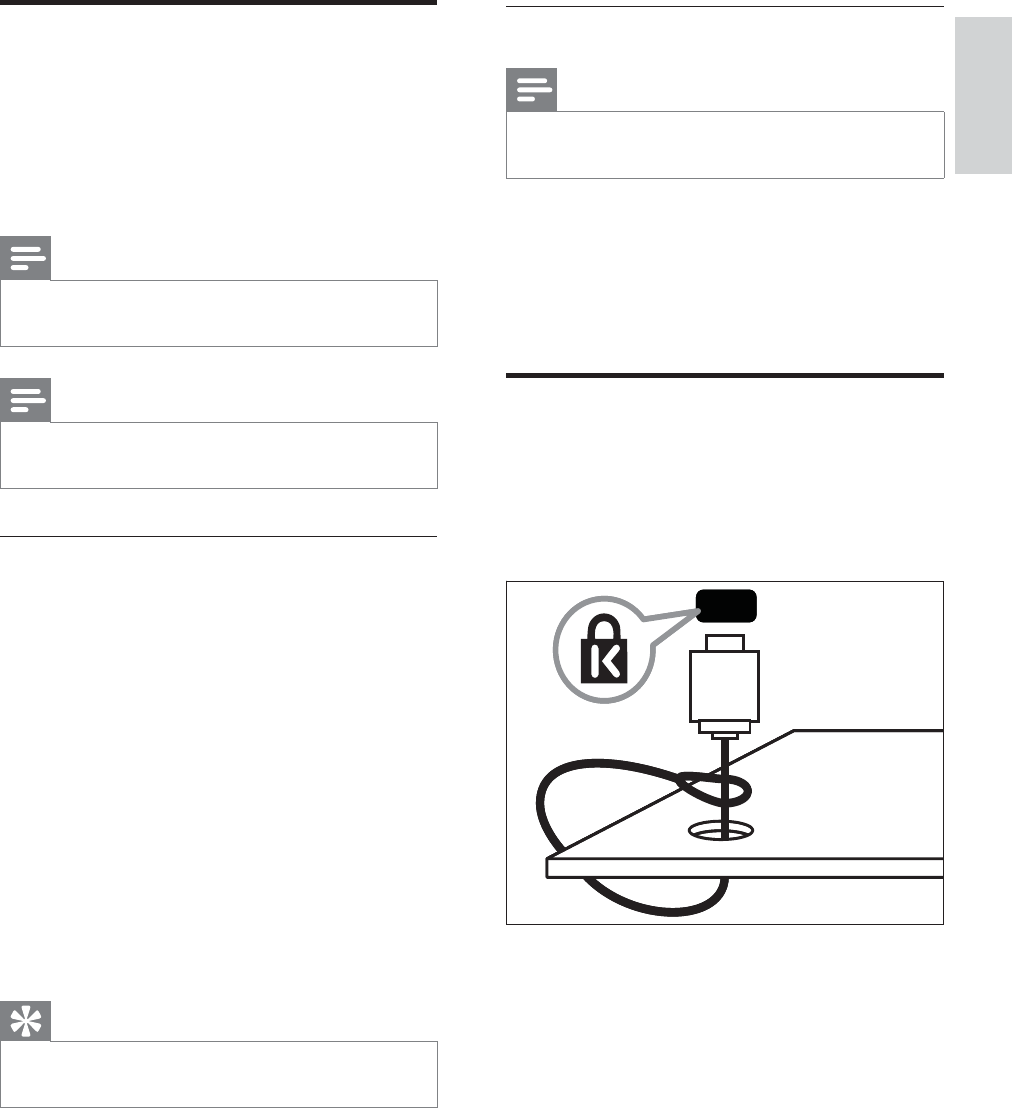

Use a Kensington lock
There is a Kensington security slot at the back
of the TV. Prevent theft by looping a Kensington
lock between the slot and a permanent object,
such as a heavy table.
Use Philips EasyLink
Your TV supports Philips EasyLink, which
uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI connectors
can be controlled by a single remote control.
Note
Philips does not guarantee 100%
interoperability with all HDMI CEC devices.
•
Note
The EasyLink-compliant device must be
switched on and selected as the source.
•
EasyLink features
One-touch play
When you connect your TV to devices that
support one-touch play, you can control your
TV and the devices with one remote control.
For example, when you press Play on your
DVD remote control, your TV automatically
switches to the correct channel to show the
DVD content.
One-touch standby
When you connect your TV to devices that
support standby, you can use your TV remote
control to put your TV and all connected
HDMI devices in standby mode.
Tip
Press TV to switch back to the aerial source
from EasyLink mode.
•
English
EN
22
Tuner/Reception/
Transmission
Antenna input: 75ohm coaxial (IEC75)
TV system: NTSC, PAL-M, PAL-N
Video playback: NTSC, SECAM, PAL
Remote control
Batteries: 2 x AAA (R03 type)
Connections
Headphone out (stereo mini-jack)
TV aerial
CVBS in
CVBS out
YPbPr: Component video (CVI in)
VGA in
HDMI
VGA Audio in
USB (for software update only)
Service connector
Power
Mains power: AC 110-240V (50-60Hz)
Standby power: < 0.3W
Ambient temperature: 5 to 35 degrees
Celsius
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
8 Product
information
Product information is subject to change
without notice. For detailed product
information, go to www.philips.com/support.
Supported display resolutions
Computer formats
HDMI :
Resolution Refresh rate (Hz)
640x480
800x600
1024x768
1280x768
1280x1024
1360x768
60, 72, 75, 85
60, 72, 75, 85
60, 70, 75, 85
60
60
60
VGA :
Resolution Refresh rate (Hz)
640x480
800x600
1024x768
1280x768
1280x1024
1360x768
60, 72, 75, 85
60, 72, 75, 85
60, 70, 75, 85
60
60
60
Video formats
Resolution Refresh rate (Hz)
720 x 480p
720 x 480i
720 x 576p
720 x 576i
1280 x 720p
1280 x 720p
1920 x 1080i
1920x 1080p
60
60
50
50
60
50
50, 60
24, 25, 30, 50, 60
EN
23
Supported TV mounts
To mount the TV, purchase a Philips TV mount
or a VESA-compatible TV mount. To prevent
damage to cables and connectors, be sure to
leave a clearance of at least 5.5 cm from the
back of the TV.
Warning
Follow all instructions provided with the TV
mount. Koninklijke Philips Electronics N.V.
bears no responsibility for improper TV
mounting that results in accident, injury or
damage.
•
TV
screen
size
VESA-compatible wall
bracket type
32”-37” 200 x 200 mm M6
42”-47” 400 x 400 mm M6 (42”),
M8 (47”)
English
EN
24
TV channel issues
Previously installed channels do not appear in
the channel list:
Check that the correct channel list is
selected.
No digital channels were found during the
installation:
Check that the TV supports DVB-T or
DVB-C in your country. See the listed
countries on the back of the TV.
Picture issues
The TV is on, but there is no picture:
Check that the antenna is properly
connected to the TV.
Check that the correct device is selected
as the TV source.
There is sound but no picture:
Check that the picture settings are
correctly set.
There is poor TV reception from an antenna
connection:
Check that the antenna is properly
connected to the TV.
Loudspeakers, unearthed audio devices,
neon lights, high buildings and other large
objects can in uence reception quality.
If possible, try to improve the reception
quality by changing the antenna direction
or moving devices away from the TV.
If reception on only one channel is poor,
ne tune this channel.
There is poor picture quality from connected
devices:
Check that the devices are connected
properly.
Check that the picture settings are
correctly set.
The TV did not save your picture settings:
Check that the TV location is set to the
home setting. This mode offers you the
exibility to change and save settings.
•
•
•
•
•
•
•
•
•
•
•
9 Troubleshooting
This section describes commonly encountered
issues and accompanying solutions.
General TV issues
The TV does not switch on:
Disconnect the power cable from the
power outlet. Wait for one minute then
reconnect it.
Check that the power cable is securely
connected.
The remote control is not working properly:
Check that the remote control batteries
are correctly inserted according to the
+/- orientation.
Replace the remote control batteries if
they are  at or weak.
Clean the remote control and TV sensor
lens.
The standby light on the TV blinks red:
Disconnect the power cable from the
power outlet. Wait until the TV cools
down before reconnecting the power
cable. If the blinking reoccurs, contact
Philips Consumer Care.
You forgot the code to unlock the child lock
feature
Enter ‘8888’.
The TV menu is in the wrong language
Change the TV menu to your preferred
language.
When turning the TV on/off/to standby, you
hear a creaking sound from the TV chassis:
No action is required. The creaking sound
is normal expansion and contraction of
the TV as it cools and warms up. This
does not impact performance.
•
•
•
•
•
•
•
•
•
EN
25
If a HDMI-to-DVI adaptor or HDMI to
DVI cable is used, check that an additional
audio cable is connected to AUDIO L/R
or AUDIO IN (mini-jack only).
Computer connection issues
The computer display on the TV is not stable:
Check that a supported resolution and
refresh rate is selected on the computer.
Set the TV picture format to unscaled.
Contact us
If you cannot resolve your problem, refer to
the FAQs for this TV at www.philips.com/
support.
If the problem remains unresolved, contact
Philips Consumer Care in your country as
listed in this User Manual.
Warning
Do not attempt to repair the TV yourself. This
may cause severe injury, irreparable damage to
your TV or void your warranty.
•
Note
Make a note of your TV model and serial
number before you contact Philips. These
numbers are printed on the back of the TV
and on the packaging.
•
•
•
•
The picture does not  t the screen; it is too
big or too small:
Try using a different picture format.
The picture position is incorrect:
Picture signals from some devices may
not t the screen correctly. Check the
signal output of the device.
Sound issues
There is a picture but no sound from the TV:
Note
If no audio signal is detected, the TV
automatically switches the audio output off
— this does not indicate malfunction.
•
Check that all cables are properly
connected.
Check that the volume is not set to 0.
Check that the sound is not muted.
There is a picture but the sound quality is
poor:
Check that the sound settings are
correctly set.
There is a picture but sound comes from one
speaker only:
Verify that sound balance is set to the
centre.
HDMI connection issues
There are problems with HDMI devices:
Note that HDCP support can delay the
time taken for a TV to display content
from a HDMI device.
If the TV does not recognise the HDMI
device and no picture is displayed, try
switching the source from one device to
another and back again.
If there are intermittent sound
disruptions, check that output settings
from the HDMI device are correct.
•
•
•
•
•
•
•
•
•
•
English
EN
26
Factory settings 16
Favourite list
select 12
set up 12
H
HDMI cable
troubleshooting 25
Home mode 15
I
Installation
automatic 17
manual 17
K
Kensington lock 21
L
Language
troubleshooting 24
Location 15
Lock
Kensington 21
TV 13
M
Menu
child lock 13
language 24
main menu 9
troubleshooting 24
Multimedia
technical speci cations 22
P
Picture format
troubleshooting 24
Picture settings 9
PIN code 24
Power 24
10 Index
B
Batteries 4 , 24
Bracket 23
C
Channel list
favourite 12
troubleshooting 24
update 12
Channels
favourite list 12
install
automatic 17
manual 17
rearrange 18
rename 17
Child lock
TV lock 13
Clock 14
Computer format
technical speci cations 22
Connections
HDMI
troubleshooting 25
technical speci cations 22
troubleshooting 25
D
Demo 15
Display
resolution 22
E
EasyLink
disable 21
enable 21
Environmental care 4
F
EN
27
TV lock
lock channels 14
lock connected devices 14
PIN code 24
V
Video format
technical speci cations 22
Volume
adjust 8
R
Reception 24
Remote control
overview 5
technical speci cations 22
troubleshooting 24
S
Safety 3
Sleep timer 13
Smart settings 9 , 11
Software
update
analogue 15
version 15
Sound settings 11
Standby
troubleshooting 24
T
Technical speci cations 22
Timer
on timer 13
sleeptimer 13
standby 13
Transmission
troubleshooting 24
Troubleshooting 24
TV
adjust volume 8
disconnect from mains 19
menu 9
position 21
safety 3
screen care 4
software 15
standby 7
switch channels 7
switch off 7
switch on 7
transporting 3
troubleshooting 24
technical speci cations 22
TV overview 5
wall mount 3 , 23
English
EN
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number: 72-CLICK0-X981D

Navigation menu
