User Manual: Philips 42HFL4373D/10 Brugervejledning Professionelt LCD-TV 42HFL4373D/10 | Philips42HFL4373D/10

Open the PDF directly: View PDF .
Page Count: 47

PrimeSuite xxHFL4373D/10 Page 1

Register your product and get support at

www.philips.com/welcome

EN User Manual

22HFL4373D/10

26HFL4373D/10

32HFL4373D/10

42HFL4373D/10

PrimeSuite xxHFL4373D/10 Page 2

Österreich 0810 000205 €0.07 pro Minute

België/Belgique 078250145 €0.06 Per minuut/Par minute

България +3592 489 99 96 Местен разговор

Hrvatska 01 6403 776 Lokalni poziv

Česká republika 800142840 Bezplatný hovor

Danmark 3525 8759 Lokalt opkald

Estonia 6008600 local

Suomi 09 2311 3415 paikallispuhelu

France 0821 611655 €0.09 Par minute

Deutschland 01803 386 852 €0.09 pro Minute

Ελλάδα0 0800 3122 1280 Κλήση χωρίς χρέωση

Magyarország 0680018189 Ingyenes hívás

Ireland North 0800 055 6882

South 1800-PHILIPS 7445477 free

Italia 840320086 €0.08 Al minute

Қазақстан +7 727 250 66 17 local

Latvia 67228896 local

Lithuania 52737691 local

Luxemburg/Luxembourg 40 6661 5644 Ortsgespräch/Appel local

Nederland 0900 8407 €0.10 Per minuut

Norge 2270 8111 Lokalsamtale

Polska (022) 3491504 połączenie lokalne

Portugal 800 780 903 Chamada local

România 031-810 71 25 0800-89 49 10 Apel localРоссия

Moscow (495) 961-1111

Outside Moscow 8-800-200-0880 Местный звонок

Србија +381 114 440 841 Lokalni poziv

Slovensko 0800 004537 Bezplatný hovor

Slovenija 00386 12 80 95 00 lokalni klic

España 902 888 784€0.10 Por minute

Sverige 08 5792 9100 Lokalsamtal

Suisse/Schweiz/Svizzera 0844 800 544 Appel local/Ortsgespräch

/Chiamata locale

Türkiye 0800 261 3302 Şehiriçi arama

United Kingdom General No: 0870 900 9070

General National Rate No:

0870 911 0036 local

Україна 8-800-500-69-70 Місцевий виклик

This information is correct at the time of press. For updated information, see

www.philips.com/support.

PrimeSuite xxHFL4373D/10 Page 3

Contents

1 Notice 2

2 Important 4

3 TV overview 6

Side controls and indicators 6

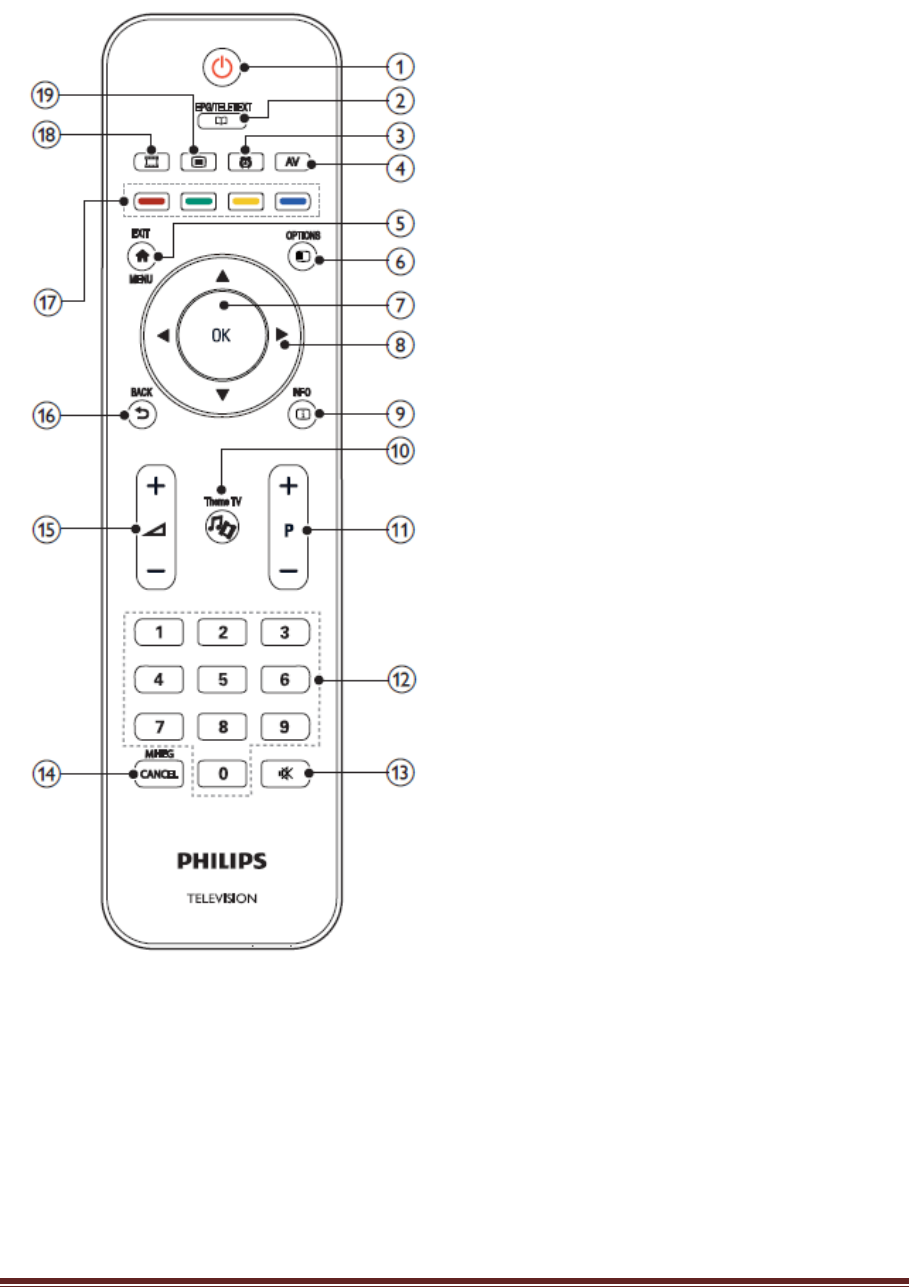

Guest remote control 7

Basic TV menus 8

Watch TV 10

Watch a connected device 12

4 Use more of your product 13

Use Teletext 13

Favourite channels 14

Use EPG 14

Use timers 15

Use locks 15

Use the TV clock 16

Use subtitles 16

Access multimedia 17

Use Scenea 18

Universal access 18

5 Set up the TV 20

Change picture and sound settings 20

Change channel settings 22

Install channels 23

Change language settings 25

Change other settings 26

Update software 27

Reinstall the TV 28

Introduction 29

Benefits of Professional mode 29

Professional Setup Remote control (2573

optional) 29

Activating the Professional mode setup

menu

7 Connect devices 38

Back connector 38

Side connector 39

Connect a computer 39

Use a Conditional Access Module 40

Use Philips EasyLink 41

Use a Kensington lock 41

8 Product information 42

Supported display resolutions 42

Multimedia 42

Tuner/Reception/Transmission 42

Remote control 42

Power 42

Supported TV mounts 43

9 Troubleshooting 44

General TV issues 44

TV channel issues 44

Picture issues 44

Sound issues 45

HDMI connection issues 45

Computer connection issues 45

Contact us 45

PrimeSuite xxHFL4373D/10 Page 4

1. Notice

2010 © Koninklijke Philips Electronics N.V. All

rights reserved.

Specifications are subject to change without

notice. Trademarks are the property of

Koninklijke Philips Electronics N.V or their

respective owners. Philips reserves the right to

change products at any time without being

obliged to adjust earlier supplies accordingly.

The material in this manual is believed

adequate for the intended use of the system. If

the product, or its individual modules or

procedures, are used for purposes other than

those specified herein, confirmation of their

validity and suitability must be obtained.

Philips warrants that the material itself does

not infringe any United States patents. No

further warranty is expressed or implied.

Warranty

• Risk of injury, damage to TV or void of

warranty! Never attempt to repair the TV

yourself.

• Use the TV and accessories only as intended

by the manufacturer.

• The caution sign printed on the back of the

TV indicates risk of electric shock. Never

remove the TV cover. Always contact

Philips Customer Support for service or

repairs.

Any operation expressly prohibited in this

manual, or any adjustments and assembly

procedures not recommended or

authorised in this manual shall void the

warranty.

Pixel characteristics

This LCD product has a high number of

colour pixels. Although it has effective

pixels of 99.999% or more, black dots or

bright points of light (red, green or blue)

may appear constantly on the screen. This

is a structural property of the display

(within common industry standards) and is

not a malfunction.

Open source software

This television contains open source

software. Philips hereby offers to deliver or

make available, upon request, for a charge

no more than the cost of physically

performing source distribution, a complete

machine-readable copy of the

corresponding source code on a medium

customarily used for software interchange.

This offer is valid for a period of 3 years

after the date of purchase of this product.

To obtain the source code, write to:

GBU Customer Care Manager

Customer Care department

Philips Lighting

GBU Hospitality

Hurksestraat 2c

5652 AJ Eindhoven

The Netherlands

Compliance with EMF

Koninklijke Philips Electronics N.V.

manufactures and sells many products

targeted at consumers which, like any

electronic apparatus, in general have the

ability to emit and receive electromagnetic

signals.

One of Philips’ leading Business Principles

is to take all necessary health and safety

measures for our products, to comply with

all applicable legal requirements and to

stay well within the EMF standards

applicable at the time of producing the

products.

Philips is committed to develop, produce

and market products that cause no

adverse health effects. Philips confirms

that if its products are handled properly for

their intended use, they are safe to use

according to scientific evidence available

today.

Philips plays an active role in the

development of international EMF and

safety standards, enabling Philips to

anticipate further developments in

PrimeSuite xxHFL4373D/10 Page 5

standardisation for early integration in its

products.

Mains fuse (UK only)

This TV is fitted with an approved molded

plug. Should it become necessary to

replace the mains fuse, this must be

replaced with a fuse of the same value as

indicated on the plug (example 10A).

1 Remove fuse cover and fuse.

2. The replacement fuse must comply with

BS 1362 and have the ASTA approval

mark. If the fuse is lost, contact your dealer

in order to verify the correct type.

3. Refit the fuse cover.

In order to maintain conformity to the EMC

directive, the mains plug on this product

must not be detached from the mains cord

cable.

Copyright

VESA, FDMI and the VESA Mounting

Compliant logo are trademarks of the

Video Electronics Standards Association.

® Kensington and Micro Saver are

registered US trademarks of ACCO World

Corporation with issued registrations and

pending applications in other countries

throughout the world.

Manufactured under license from Dolby

Laboratories. Dolby and the double-D

symbol are trademarks of Dolby

Laboratories.

All other registered and unregistered

trademarks are the property of their

respective owners

PrimeSuite xxHFL4373D/10 Page 6

2. Important

Read and understand all instructions before

you use your TV. If damage is caused by

failure to follow instructions, the warranty does

not apply.

Safety

• Risk of electric shock or fire!

• Never expose the TV to rain or water.

Never place liquid containers, such as

vases, near the TV. If liquids are spilt

on or into the TV, disconnect the TV

from the power outlet immediately.

Contact Philips Consumer Care to

have the TV checked before use.

• Never place the TV, remote control or

batteries near naked flames or other

heat sources, including direct sunlight.

To prevent the spread of fire, keep

candles or other flames away from the

TV, remote control and batteries at all

times.

• Never insert objects into the ventilation

slots or other openings on the TV.

• When the TV is swiveled ensure that no

strain is exerted on the power cord.

Strain on the power cord can loosen

connections and cause arcing.

• Risk of short circuit or fire!

• Never expose the remote control or

batteries to rain, water or excessive

heat.

• Avoid force coming onto power plugs.

Loose power plugs can cause arcing

or fire.

• Risk of injury or damage to the TV!

• Two people are required to lift and carry

a TV that weighs more than 25 kg.

• When stand mounting the TV, use only

the supplied stand. Secure the stand to

the TV tightly. Place the TV on a flat,

level surface that can support the

combined weight of the TV and the

stand.

• When wall mounting the TV, use only a

wall mount that can support the weight

of the TV. Secure the wall mount to a

wall that can support the combined

weight of the TV and wall mount.

Koninklijke Philips Electronics N.V.

bears no responsibility for improper

wall mounting that result in accident,

injury or damage.

• Risk of injury to children!Follow these

precautions to prevent the TV from

toppling over and causing injury to

children:

• Never place the TV on a surface covered

by a cloth or other material that can be

pulled away.

• Ensure that no part of the TV hangs over

the edge of the surface.

• Never place the TV on tall furniture (such

as a bookcase) without anchoring both

the furniture and TV to the wall or a

suitable support.

• Educate children about the dangers of

climbing on furniture to reach the TV.

• Risk of overheating! Never install the TV

in a confined space. Always leave a

space of at least 4 inches or 10 cm

around the TV for ventilation. Ensure

curtains or other objects never cover the

ventilation slots on the TV.

• Risk of damage to the TV! Before you

connect the TV to the power outlet,

ensure that the power voltage matches

the value printed on the back of the TV.

Never connect the TV to the power outlet

if the voltage is different

• Risk of injury, fire or power cord damage!

Never place the TV or any objects on the

power cord.

• To easily disconnect the TV power cord

from the power outlet, ensure that you

have full access to the power cord at all

times.

• When you disconnect the power cord,

always pull the plug, never the cable.

• Disconnect the TV from the power outlet

and aerial before lightning storms. During

lightning storms, never touch any part of

the TV, power cord or aerial cable.

PrimeSuite xxHFL4373D/10 Page 7

• Risk of hearing damage! Avoid using

earphones or headphones at high volumes

or for prolonged periods of time.

• If the TV is transported in temperatures

below 5°C, unpack the TV and wait until

the TV temperature matches room

temperature before connecting the TV to

the power outlet.

Screen care

• Avoid stationary images as much as

possible. Stationary images are images

that remain on-screen for extended

periods of time. Examples include: on-

screen menus, black bars and time

displays. If you must use stationary

images, reduce screen contrast and

brightness to avoid screen damage.

• Unplug the TV before cleaning.

• Clean the TV and frame with a soft, damp

cloth. Never use substances such as

alcohol, chemicals or household cleaners

on the TV.

• Risk of damage to the TV screen! Never

touch, push, rub or strike the screen with

any object.

• To avoid deformations and colour fading,

wipe off water drops as soon as possible

.

Disposal of your old product and batteries

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When this crossed-out wheeled bin symbol is

attached to a product it means that the product

is covered by the European Directive

2002/96/EC. Please inform yourself about the

local separate collection system for electrical

and electronic products.

Please act according to your local rules and do

not dispose of your old products with your

normal household waste.

Correct disposal of your old product helps to

prevent potential negative consequences for

the environment and human health.

Your product contains batteries covered by the

European Directive 2006/66/EC, which cannot

be disposed with normal household waste.

Please inform yourself about the local rules on

separate collection of batteries because

correct disposal helps to prevent negative

consequences for the environmental and

human health.

PrimeSuite xxHFL4373D/10 Page 8

3. TV overview

This section gives you an overview of

commonly used TV controls and functions.

Please read section 3 to 6 to set the basic

consumer menu first, and then follow the

instructions in section 7 to set the Professional

mode menu.

Side controls and indicators

: Increases or decreases

volume.In the home menu, press these

buttons to move horizontally.

 Home : Accesses the home

menu.Press again to launch an activity in

the home menu.

 P/CH +/- : Switches to the next or

previous channel. In the home menu,

press these buttons to move vertically.

 Power : Switches the TV on or off

.

PrimeSuite xxHFL4373D/10 Page 9

Guest remote control

1 (Standby-On)

• Switches the TV to standby if it is on.

• Switches on the TV if it is in standby.

2 EPG/TELETEXT

Accesses the browse menu to select

TV channel list, the Electronic

Programme Guide and teletext.

3 ALARM

Lauches [Alarm time] menu. (Only

applicable in [Hospitality] mode and in

some models.)

4 AV

Selects connected devices.

5 EXIT/MENU

Accesses the home menu.

6 OPTION

Options menus offer convenient

settings related to what is on screen.

7 OK

Confirms an entry or selection.

8 ▲▼◄► (Navigation buttons)

Navigates menus and selects items.

9 INFO

Displays program information, when

available. If the information spans

multiple pages, press OPTIONS to go

to the next page

10 Theme TV

11 P+/- (Programme +/-)

Switches to the next or previous

channel. When the TV menu is on, this

functions as Page Up / Down.

12 0-9 (Numeric buttons)

Selects a channel or setting.

13 (MUTE)

Mutes or restores audio output.

14 MHEG / CANCEL

UK only: Enables audio commentary

for the visually handicapped

.

PrimeSuite xxHFL4373D/10 Page 10

15 (Volume +/-)

Increases or decreases volume.

16 BACK

• Returns to a previous screen.

• Returns to the previously viewed

channel.

17 Colour buttons

• Selects tasks or options.

• When Professional mode is On, press to

operate Multi remote control function.

Red button(DEMO)

To select the red option, access digital

Interactive TV services or watch TV

demonstration clips.

Green button

To select the green option or the Eco

settings.

Yellow button

To select the yellow option or the Help

menu.

Blue button (Audio Descriptor)

(For RF Digital TV only)

UK only: Enables audio commentary for

the visually handicapped.

(MyChoice)

Opens MyChoice menu for entering

authorized PIN code.

Chanmel grid is not available in certain

functions

Remote control usage

When using the remote control, hold it close to

the TV and point it at the remote control

sensor. Make sure that the line-of-sight

between the remote control and TV is not

blocked by furniture, walls or other objects.

Basic TV Guest Menus

To view the TV Guest Menus, the TV PBS

Mode must be set to ‘On’. See page ….

Home

The home menu gives you easy access to

connected devices, picture and sound

settings, and other useful features.

1. Press .

2. Select an item in the home menu, then

press OK to access the menu.

3. To exit the home menu, press or .

To start an activity, select the desired item with

the Navigation buttons, then press OK:

• [Watch TV] : Switches back to the

antenna source if another source is

selected.

• [Browse USB] : If a USB storage device

is connected, accesses the content

browser.

• [Hotel Information] : Switches to the

Information wallpaper.

• [Guest Menu] : Accesses menus that

allow you to change picture, sound and

Sleep timer and Alarm settings.

PrimeSuite xxHFL4373D/10 Page 11

EPG/Teletext

The EPG/Teletext menu gives you easy

access to:

• Electronic program guide

• TV channel list

• Teletext

To access this menu, while watching TV,

press a. the EPG/Teletext button on the

remote control.

1. Press the Navigation buttons to select an

item:

• [Program guide] : Accesses the

Electronic Program Guide.

• [Channel list] : Accesses the TV channel

list.

• [Text] : Accesses Teletext.

2. Press OK to confirm your choice.

Channel List

The channel list displays the TV channels and

possible radio stations installed on your TV.

1. While watching TV, press the button

2. Select [Channel list], then press OK.

3. Select a channel, then press OK to access

the channel.

4. Press to exit the channel list without

changing the channel.

Options

Option menus offer convenient settings related

to what is on-screen.

1. Press to see what options are available.

2. To exit, press again.

Watch TV

Switch on/off or to standby

To switch on

• If the standby indicator is off, press

POWER at the side of the TV.

• If the standby indicator is red, press

(Standby-On) on the remote control.

Note

••

The front LED indicator does not turn on when the

TV is switched on.

••The TV requires some time to start up. During this

time, the TV will not respond to the remote control or

side controls. This is normal behavior.

To switch to standby

• Press (Standby-On) on the remote

control.

»»The front LED indicator switches to

red.

To switch off

• Press POWER at the side of the TV.

»»The standby indicator switches off.

Though your TV consumes very little power when in

standby, energy continues to be consumed. When not

in use for an extended period of time, disconnect the

TV power cable from the power outlet.

PrimeSuite xxHFL4373D/10 Page 12

Switch Channels

Press P +/- on the remote control or P /CH +/-

on the side of the TV.

• Press , then select [Channel list] to use

the channel list.

• Press to return to the previously-viewed

channel.

• Enter a channel number using the Numeric

buttons.

To view analogue or digital channels only

Filter the channel list to access analogue or

digital channels only.

1. In the channel list, press

2. Select [Select list] > [Analogue] or

[Digital], then press OK. Depending on

your selection, only digital or analogue

channels become available.

Adjust TV volume

To increase or decrease volume

• Press on the remote control.

• Press on the side of the TV.

To mute or unmute sound

• Press to mute the sound.

• Press again to restore the sound.

Use the [Sound] menu to adjust headphone

volume. For more information, see Setup the

TV > Change picture and sound settings >

More sound settings (Page 30).

Use Smart picture and sound

settings

1. Press .

2. Select [Guest Menu]

Use Smart sound settings

1. Select [Smart picture], then press OK.

2. Select one of the following settings:

• [Vivid] : Rich and dynamic settings,

ideal for daylight use.

• [Natural] : A natural picture setting.

• [Cinema] : Ideal settings for watching

movies.

• [Game] : Ideal settings for gaming.

PrimeSuite xxHFL4373D/10 Page 13

• [Energy saving] : The most energy-

conscious settings.

• [Standard] : Adjusts picture settings to

suit most environments and types of

video. Factory default settings.

• [Photo] : Ideal settings for viewing

photos.

• [Custom] : Allows you to use the

customize stored picture settings.

3. Press OK to confirm your choice.

4. Press to exit.

Use Smart sound settings

1. Select [Smart sound], then press OK.

2. Select one of the following settings:

• [Personal] : Sets the TV to your

personal preferences.

• [Standard] : Adjusts sound settings to

suit most environments and types of

audio.

• [News] : Applies sound settings ideally

suited for spoken audio, such as the

news.

• [Movie] : Applies sound settings ideally

suited for movies.

• [Game] : Ideal settings for gaming.

• [Drama] : Applies sound settings ideally

suited for drama.

• [Sports] : Applies sound settings ideally

suited for sports.

4. Press OK to confirm your choice.

5. Press to exit.

Change picture format

1. Select [Smart sound], then press OK.

2. Select one of the following settings:

• [Auto fill] : Automatically enlarges the

picture to fill the screen. Minimal picture

distortion, subtitles remain visible. Not

for PC input.

• [Auto zoom] : Automatically zooms the

picture in to fill the screen as much as

possible, without distortion. Black bars

may be visible. Not for PC input.

• [Super zoom] : Removes the black bars

on the sides of 4:3 broadcasts. Not for

HD or PC.

• [Movie expand 16:9] : Scales the classic

4:3 format to 16:9. Not recommended

for HD or PC.

• [Wide screen] : Stretches the classic 4:3

format to 16:9.

Watch a connected device

Add new device [not a Guest

feature]

Before watching a connected device, you must add it to

the home menu.

HDMI ARC compliant devices connected to the HDMI RC

connector on the TV are automatically added to the

home menu.

See page …. To add devices.

Watch connected device

1. Press

2. Select the device from the home menu.

3. Press OK to confirm your choice.

PrimeSuite xxHFL4373D/10 Page 14

4. Use more of your product

Use Teletext

Select a page

1. Press .

2. Select [Text], then press OK.

3. Select a page by:

• Entering the page number with the

Numeric buttons.

• Pressing ▲ or ▼ to view the next or

previous page.

• Pressing the Colour buttons to select a

colour coded item.

4. Press to exit teletext.

Access Teletext options

1. When in Teletext, press .

2. Select an option:

• [Freeze page] / [Unfreeze page] :

Freezes or unfreezes the current page.

• [Dual screen] / [Full screen] : Enables

or disables dual screen Teletext, which

splits the current channel or source to

the left of the screen, with Teletext on

the right.

• [T.O.P. overview] : Table Of Pages

(T.O.P.) Teletext broadcasts allow you

to jump from one subject to another

without using page numbers.

• [Enlarge] / [Normal view] : For more

comfortable reading, you can enlarge

the Teletext page. Press the Navigation

buttons to move around

• [Reveal] : Hides or reveals hidden

information on a page, such as solutions

to riddles or puzzles.

• [Cycle subpages] : Cycles through

subpages automatically if subpages are

available.

• [Language] : Switches to a different

language group to display a language

correctly when that language uses a

different character set.

3. Press to exit the options menu.

Select subpages

A teletext page number can hold several

subpages. These subpages are shown on a

bar next to the main page number.

When available on a teletext page, press ◄ or

► to select subpages.

Search teletext

1. When in teletext, press OK to highlight

the first word or number.

2. Press the Navigation buttons to skip to

the word or number to search.

3. Press OK to begin the search.

4. Press ▲ until no word or number is

highlighted to exit the search.

Use digital teletext

Some digital TV broadcasters offer dedicated

digital text or interactive services on their

digital TV channels, for example, BBC1.

When in digital teletext:

• Press the Navigation buttons to select

or highlight items.

• Use the Colour buttons to select an

option, then press OK to confirm or

activate.

Digital text services are blocked when subtitles are

broadcast and [Subtitles] are enabled. Read Use more of

your TV > Use subtitles (Page 25).

Use Teletext 2.5

Teletext 2.5 offers more colours and better

graphics than normal teletext. If Teletext 2.5 is

broadcast by a channel, it is switched on by

default.

PrimeSuite xxHFL4373D/10 Page 15

Use EPG

Overview

The Electronic Programme Guide (EPG) is an

on-screen guide available for digital channels.

EPG allows you to:

• View a list of digital programmes being

broadcast

• View upcoming programmes

• Group programmes by genre

• Set reminders when programmes start

• Set up preferred EPG channels

* EPG is not available in all countries.

Switch on EPG

1. Press

2. Select [Programme guide], then press

OK

Use timers

Sleep timer

Sleeptimer switches the TV to standby after

a pre-defined period of time. You can always

switch off your TV earlier or reset the

sleeptimer during the countdown.

1. Press .

2. Select [Sleep timer]

3. Press OK to activate the Sleep timer.

The TV switches to standby after the

pre-defined period of time.

See page …. To set the timer.

Alarm Clock

You can set an Alarm on a selected clock time

(related to the displayed clock time)

1. Press , [Guest Menu], [Alarm

settings], or alternatively press the

button

2. Pressing ▲ or ▼ to change the Alarm

hour.

3. Press OK or ► to enter the minute field.

4. Pressing ▲ or ▼ to change the Alarm

minutes.

• [Done] :To confirm the Alarm time.

• [Off] :To disable the Alarm time or stop

the Alarm buzzer.

Use the TV clock

You can display a clock on the TV screen. The

clock displays the current time using time data

received from your TV service operator.

• Please refer to page 31 “Clock setup” for more details

of Pro+ clock settings.

Display the TV clock

1. When watching TV, press

(OPTIONS). The TV option menu

appears.

2. Select [Clock].

3. Press OK.

• To disable the clock, repeat the above procedure.

Use subtitles

On analogue channels

1. Switch the TV to an analogue TV

channel.

2. Press , then select [Text] and press

OK.

3. Enter the three number page number of

the subtitles page (usually ‘888’).

4. Press to exit Teletext. Subtitles

display if available.

PrimeSuite xxHFL4373D/10 Page 16

Subtitle language

This feature is only supported on selected

digital channels.

1. While watching TV, press .

2. Select [Subtitles].

3. Select a subtitle language from the list,

then press OK.

Access multimedia

Browse USB

You can view photos or play music and videos

on TV from a USB storage device.

•Philips is not responsible if the USB storage device is not

supported nor is it responsible for damage or loss of

data from the device.

You can access the USB content browser

using one of the following methods:

When watching TV, connect the USB device to

the USB port on the side of your TV.

1. Press .

2. Select [Browse USB], then press OK.

View slideshow

Press the Navigation buttons to select a

picture, and then press OK.

• To pause or stop playback, press OK

again.

• To jump to the previous or next file,

press ◄ or ►.

• Press to exit content browser

Press to access or exit the following

settings:

• [Show info] : Displays the file

information.

• [Stop] : Stops slideshow.

• [Rotate] : Rotates the file.

• [Repeat] : Repeats the slideshow.

• [Play once] : Plays the file once.

• [Shuffle off] / [Shuffle on] : Enables or

disables random display of pictures in

the slideshow.

• [Slideshow speed] : Sets the display

time for each picture in the slideshow.

• [Slideshow transition] : Sets the

transition from one picture to the next.

Listen to music

Press the Navigation buttons to select a

music track, then press OK.

• Press ◄ / ► to fast rewind or fast

forward a track.

• Press to exit content browser.

Press to access or exit the following

settings :

• [Stop] : Stops audio playback.

• [Repeat] : Repeats a song or an album.

• [Play once] : Plays the file once.

• [Shuffle on] / [Shuffle off] : Enables or

disables random play of songs.

Watch video

Press the Navigation buttons to select a

video file, then press OK.

• Press ◄ or ► to rewind or fast forward a

file.

• Press to exit the content browser.

During video playback, press to access

the following settings:

• [Stop] : Stops playback.

• [Repeat] : Repeats a video.

• [Shuffle on] / [Shuffle off] : Enables or

disables random play of videos.

Listen to digital radio

If digital broadcasting is available, digital radio

channels are installed automatically during

installation.

1. While watching TV, press .

2. Select [Channel list:], then press OK.

3. In the channel list, press .

4. Select [Select list] > [Radio], then press

OK.

5. Select a radio channel, then press OK.

You can listen to satellite radio broadcast (if

available).

1. While watching TV, press

2. Select [Channel list], then press OK.

3. In the channel list, press .

PrimeSuite xxHFL4373D/10 Page 17

4. Select [TV/Radio] > [Radio], then

press OK.

Use Hotel Information

Activate Hotel Information

You can use Hotel Information to display a

picture as Information sheet on your TV. Make

sure that the location of your TV is set to

[Home] mode.

1. Press .

2. Select [Hotel Information] , then press OK.

The default or pre-loaded picture is displayed

Visually impaired

Some digital TV channels broadcast special

audio adapted for people who are visually

impaired. The normal audio is mixed with extra

commentary.

To switch on visually impaired audio (if

available)

1. While watching TV, press .

2. Select [Universal access], and press

the green button to enter [Visually

impaired].

3. Use the following buttons to select:

• Red - [Off] : Turn off visually impaired

audio.

• Green - [Speakers] : Hear visually

impaired audio from speakers only.

• Yellow - [Headphones] : Hear visually

impaired audio from headphones only.

• Blue - [Speakers + headphones] : Hear

visually impaired audio from speakers

and headphones only.

4. Press to exit.

•To verify whether visually impaired audio is available,

press and select [Audio language]. Languages with an

eye icon indicate visually impaired support.

Adjust volume for the visually impaired

1. In the [Universal access] menu, press

the yellow button to select [Mixed

volume].

2. Press the Navigation buttons to move

the slider up or down, then press OK.

3. Press to exit.

Audio feedback for the visually impaired

This feature enables audio feedback when

buttons are pressed on the remote control or

TV.

1. In the [Universal access] menu, press

the blue button to select [Key beep].

2. Press the green button to turn on audio

feedback or press the red button to turn

it off.

3. Press to exit.

PrimeSuite xxHFL4373D/10 Page 18

5. Set up the TV

Introduction

This TV is a special TV, that allows the TV to

be configured for a hotel application

This section describes how to install and

operate this TV. Before reading this section,

please also read section 4 to understand the

basic functionality of this TV.

Benefits of specific Hotel TVs

This TV is specially designed to operate in

Professional Mode. Professional Mode offers

the following benefits:

Access to the [TV Setup Menu] can be

blocked. This prevents users (e.g. guests)

from deleting or changing channel settings and

/ or modifying picture and sound settings. This

ensures that TVs are always set up correctly.

As example:

• A switch-on volume and channel can be

set. After switching on, the TV will always

start on the specified volume level and

channel.

• The maximum volume level of the TV can

be limited in order to prevent disturbance

to other guest.

• Channels can be blanked (Video only).

• The TV local buttons VOLUME +/-,

P/CH+/- and (Home) can be locked.

• Screen information can be suppressed.

Professional Setup Remote

control (22AV8573 optional)

To enter the Professional Setup menu:

• press RC5 Setup

• press Home/Menu

On a Guest remote:

Press [3, 1, 9, 7, 5, 3, ]

Setup mode should be used by Installer to make the

required settings.

PrimeSuite xxHFL4373D/10 Page 19

Professional mode options

This paragraph describes the functionality of each item in the Professional mode setup menu.

Enter the next layer by pressing [OK], or [>]. Return to a previous level by pressing [<].

Navigate in the current layer by pressing [^], or [v].

Layer 1

Layer 2

Layer 3

Layer 4

PBS

Setup

PBS Setup menu language

English, Français, Deutsch, Italiano

PBS Mode

Off / On

Room ID

# # # #

Switch on settings Switch on volume

[0..60] Slider [15]

Maximum volume

[0..60] Slider [60]

Switch on channel [List: AV & RF channels]

Welcome message Display message Off / On

Welcome Message Line 1 Edit text

Welcome Message Line 2

Edit text

Clear

Erase messages 1&2

Message timeout

20s, 25s, 30s

Control Settings

Local keyboard lock

Off / On / All

Remote control lock

Off / On

OSD display

Off / On

High security mode

Off / On

Welcome Logo

Off / On

Browse USB

Off / On

Auto scart

AV, Power On Scart, Off

Easylink Break-in

Off / On

Easylink control

Off / On

Easylink Application menu

Off / On

Auto USB

Off / On

SXP Baudrate 38400 / 19200

Enable CI Slot Off / On

Enable Teletext Off / On

Enable MHEG

Off / On

Enable EPG

Off / On

Subtitles at startup

Off / On / On during mute

Enable subtitles

Off / On

Enable Channel Map

Native / BDS

Power settings

Power on

On / Standby

Low power standby

Fast / Green

Smart power

On / Off

Auto switch off

On / Off

Delayed reboot On /

Off

Clock settings Display Standby Off / 1, 2, 3, 4, 5

Display On Off / 1, 2, 3, 4, 5

Time Setting

<Entry> on manual

Time Download

Automatic, manual

Download Country

[List: Countries]

Download Program

[List: RF channels]

Time Offset

<-12 – 0 – 12)

Buzzer Volume

Off / Low / High

Daylight saving

Off / On

Feature settings

Multi RC

Off / Blue, Green, Yellow, Red

MyChoice

On / Off

Theme TV

On / Off / Startup

VSecure

Mode

Stand Alone

/ Connected / RF

static

Load key to USB

<Action>

Load key to TV

<Action>

Vsecure self test

<Action>

Program Info

Frequency, Medium, Service ID,

ONID, NID, TSID, Symbol Rate,

Modulation

PrimeSuite xxHFL4373D/10 Page 20

Erase key option

Shared key, Odd key, Even key,

All

Erase key

<Action>

Speaker settings TV Speaker Enable

Off / On / EasyLink / EasyLink

autostart

Independent Main Speaker Mute Off / On

Default Main Speaker Volume

[0..60] Slider [15]

Factory default

<Action>

TV setup

Enter Consumer Mode <Action> OK / Cancel

Channel

setup Enter TV Channel Setup <Action>

Store

Settings Save all made changes <Action>

Smart

Clone

USB to TV

<Action>

TV to USB

<Action>

RF

Download

SW types

SSB Firmware / SSB NVM / Standby

Firmware / ThemeTV / Express Box,

Welcome Logo / Hotel Information / All

Program Info

Frequency, Medium, Service ID, ONID,

NID, TSID, Symbol Rate, Modulation

Start Download <Action>

Express

Box

Software Upgrade

<Action>

Clone Channels To Special

Map

<Action>

SP Communication

Setup communication protocol

No / SPI / I2C

PrimeSuite xxHFL4373D/10 Page 21

Setup settings

PBS Setup

[PBS Setup menu language]

Select Setup menu language to be English, French,

German or Italian.

[PBS Mode]

Enables / disables the Professional Hotel mode.

[On]: All settings in the Professional mode Setup

menu are in effect.

[Off]: The TV operates as a normal (consumer)

TV.

[Room ID]

Entry field to store 4 digits to identify Room

Identifier.

[Switch on settings]

[Switch on volume]

When the guest switches the TV on, it will play at

the specified volume level.

[Maximum volume]

This option specifies the maximum allowable

volume level of the TV.

[Switch on channel]

When the guest switches the TV on, it will play at

the specified channel.

[Welcome message]

The Welcome message function allows the TV to

show a customized greeting to the hotel guest

whenever the TV is switched on. This helps to

personalize the hotel experience for guests. The

Welcome message can consist of 2 lines of text,

with each line containing a maximum of 20

alphanumeric characters. Use Navigation buttons

on the remote control to compose the Welcome

message.

Welcome message is always disabled if PBS Mode

is Off

[Display message]:

Select to show the welcome message at power

up cycle:

[On] to activate, [Off] to disable

[Welcome message line 1]:

[Line 1]: Sets the characters of the first line

message.

[Welcome message line 2]:

[Line 2]: Sets the characters of the second line

message.

[Clear]:

Erases the text stored in line 1 and line 2.

[Message line 1]:

Select the time that at startup the welcome

message is displayed.

[Control Settings]

[Local Keyboard lock]

[Off]: The TV local buttons will function

normally.

[On]: The TV local buttons are locked, except

the [POWER] button.

[All]: All the TV local buttons are locked.

[Remote Control lock]

[Off]: All buttons on Guest remote control will

function normally.

[On]: All buttons on the Guest remote control

are disabled.

(It is still possible to enter the PBS Setup menu

using the setup RC or by pressing [3, 1, 9, 7, 5,

3, (MUTE)]).

[OSD display]

Set this function to show or hide screen

information.

[Off]: Screen information is suppressed.

[On]: Normal screen information is displayed.

[High security]

[Off]: Professional mode setup menu can be

accessed by both Guest remote control

(Press [3, 1, 9, 7, 5, 3 + (MUTE)] )and

the Professional setup remote control )

[On]: Professional mode setup menu can only

be accessed by the Professional setup

remote control

[Welcome Logo]

Enables / disables to show the stored welcome

Logo at start-up when TV starts up in Green

Mode (see Power Settings):

[On]: When set to On, the TV will show the

Welcome Logo at start-up.

PrimeSuite xxHFL4373D/10 Page 22

[Off]: When set to Off, the TV will hide the

Welcome Logo at start-up.

[Browse USB]

Enables / disables the USB Browse icon to be

presented in the Guest Menu.

[On]: When set to On, the TV will show the

USB icon in the Home menu.

[Off]: When set to Off, the TV will hide the

USB icon in the Home menu.

[Auto scart]

Enables auto scart switching (or break-in) in

Professional mode.

[AV]: Enables auto scart switching or break-in.

[Power On Scart] Enables auto TV start

On/Off when detecting scart break-in.

(never use this feature without a connected STB)

[Off]: Disables auto scart switching or break-

in.

[Easylink break-in]

Enables or disables HDMI-CEC standby feature

in Professional mode:

[Off]: Not able to switch on the TV by external

HDMI-CEC devices.

[On]: Able to switch on the TV by external

HDMI-CEC devices.

[Easylink control]

Enables or disables HDMI-CEC one touch play

feature in Professional mode:

[Off]: Disables TV functionality to control

external HDMI-CEC devices.

[On]: Enables TV functionality to control

external HDMI-CEC devices.

[Easylink Application Menu]

Allows menu to control external HDMI-CEC.

[Off]: Disables TV functionality to control

external HDMI-CEC devices.

[On]: Enables TV functionality to control

external HDMI-CEC devices.

[Auto USB]

Enables or disables USB break-in feature in

Professional mode:

[Off]: When USB device is plugged in, the

[Multimedia] menu will not appear

automatically, but users can access

[Multimedia] menu from the Guest menu.

[On]: When USB device is plugged in, the

[Multimedia] menu appears

automatically.

[SXP Baudrate]

Sets the Baudrate for the SerialExpress

communication channel to be 38200 or 19200

Baud (bits per second).

[Enable CI-slot]

Enables or disables the use of the integrated

CI/CI+ slot:

[Off]: No pass through of TV input signal via

the CI-Slot Card is possible; use of CI-

Card slot is not possible.

[On]: Pass through of TV input signal via the

CI-Slot Card is possible; use of CI-Crad

slot is possible. Check with your local

operator if CI-Card is compatible with

this TV.

[Enable Teletext]

Enables or disables the use of Teletext OSD on

pressing Teletext button:

[Off]: No Teletext services available (Prison

Mode)

[On]: Teletext services available

[Enable MHEG]

Enables or disables the use of MHEG OSD on

pressing MHEG button:

[Off]: No MHEG services available (Prison

Mode)

[On]: MHEG services available

[Enable EPG]

Enables or disables the use of EPG OSD on

pressing EPG button:

[Off]: No EPG services available (Prison

Mode)

[Now & Next]: EPG (Now/Next) services

available

[8 Day EPG]: EPG (8 Day) services available

[Subtitles at Startup]

Enables or disables the use of subtitles at start-

up:

[Off]: No subtitles services available (Prison

Mode)

[On]: Subtitles services available

[On during mute]: Subtitles services when TV

audio is muted

PrimeSuite xxHFL4373D/10 Page 23

[Enable Subtitles]

Enables or disables the use of subtitles in a

DVB broadcast channel:

[Off]: No subtitles services available (Prison

Mode)

[On]: Subtitles services available

[Enable Channel Map]

Select Channel Map to be viewed:

[Native]: Show standard default channel

map

[BDS]: To be used only if a STB is

connected

[Power settings]

[Power on]

The power on function allows the TV to enter a

specific mode ([On], [Standby], or [Last status]) of

operation when the mains power is activated (cold

start):

[On]: The TV will always turn on (show startup

channel) after the mains power is

activated.

[Standby]: When set, the TV will always turn to

standby (status as defined in Low power

standby option) after the mains power is

activated.

[Low power standby]

The Low power standby option defines the TV to

enter a specific standby mode after pressing the

On/Off button on the remote control. To wake-up

the TV both On/Off button on the RC or TV can

be pressed:

[Fast]: The TV will quickly turn on (show startup

channel. (This mode is having more

power consumption then the Green

mode).

[Green]: The TV will slower turn on (show

startup channel) then the Fast. (This

mode is having less power consumption

then the Fast mode).

[Smart power]

The power consumption for the Smart power

mode is defined by the Smart Picture setting in

the TV Setup part.

[Off]: The TV will start with Standard Smart

Picture setting, but the setting can be

changed in the guest setup mode.

[On]: The TV will start with default Smart

Picture setting and Smart Picture setup

and is not selectable in the guest setup

mode.(with this the power consumption

mode is predictable).

[Auto switch off]

Enables or disables the use of automatic switch

off the TV if no RC action is noticed after 240

minutes:

[Off]: TV will not switch off after 240 minutes

[On]: TV will switch of after 240 minutes

[Delayed reboot]

Enables or disables the use of delayed

standby:

[Off]: No delay added when guest presses

‘Off’ button.

[On]: Delay added when guest presses ‘Off’

button before going into standby; in case

of a wrong guest interaction, activating

the TV after this will be done directly

without any startup delay.

[Clock settings]

[Display Standby]

Defines the brightness level for the Clock LCD

backlight if the TV is in Standby mode:

[Set]: Off, 1, 2, 3, 4, 5

[Display On]

Defines the brightness level for the Clock LCD

backlight if the TV is in On mode:

[Set]: Off, 1, 2, 3, 4, 5

[Time Setting]

This is only available if the Time Download is set

to Manual and can be used to set the clock with

the remote control:

[Set]: Time entry field [xx:xx Hr]

Time to be set by using arrow keys and numeric

buttons

[Time Download]

Select source for clock time:

[Automatic]:

Clock time is retrieved from the

Download Program channel.

[Manual]:

The clock time is set using the Time

Setting option.

[Download Country]

Set selected country as source for clock time.

PrimeSuite xxHFL4373D/10 Page 24

[Download Program]

Set selected Download Program as source for

clock time.

Time Offset]

Offset time added to the downloaded clock time:

[Slider]: -12 to 12 hr

[Buzzer Volume]

Audio Clock Time Alarm (buzzer):

[Set]: Off, On

[Daylight saving]

Set the Daylight saving options:

[Set]: Off, On

[Feature settings]

[Multi RC]

This function allows that up to four televisions can

be installed in a room whereas every TV will listen

to its own RC. Once the TV is set, also every RC

can be set to remember its connected TV:

[Off] This function is not used; all TVs will

listen to a ‘blue’ RC.

[Blue] The TV will listen to a ‘blue’ RC.

Press and hold both the menu and blue

button on the RC for more than two

seconds.

[Green] The TV will listen to a ‘green’ RC.

Press and hold both the menu and green

button on the RC for more than two

seconds.

[Yellow] The TV will listen to a ‘yellow’ RC.

Press and hold both the menu and yellow

button on the RC for more than two

seconds.

[Red] The TV will listen to a ‘red’ RC.

Press and hold both the menu and red

button on the RC for more than two

seconds.

[MyChoice]

With MyChoice it is possible to activate two

channel rings: R0 when MyChoice PIN is valid,

and R1 if not.

[Off]: Single channel map as configured

during channel installation.

[On] Channel ring R0 to be available to

guest in case of valid PIN entered; R1 if

not.

[ThemeTV]

With ThemeTV it is possible to activate a

customizable UI to select upto 15 different themes

that contains Channle references. ThemeTV can

be presented on the display by means of pressing

the ThemeTV button on the RC, or automatically

after starting up the TV:

[On]: Show ThemeTV on the display after

pressing the ThemeTV button on the

RC.

[Off] ThemeTV disabled.

[Startup] Show ThemeTV on startup and able

to showd ThemeTV by pressing the

TTV button on the RC.

[VSecure]

VSecure is the hospitality content scrambling

method used by the Philips Hospitality TVs. With

its internal VSecure Authorization key a VSecure

Unprotect key can be generated. If this VSecure

Unprotect key is stored in the TV, the TV is able

to descramble protected content. Loading the

VSecure Unprotect key can be done by USB

memory device or via DVB RF:

[Mode]

[Stand alone]:

The VSecure Unprotect key is to be

stored once via USB and will remain

available until manual erasing it.

[Connected]:

The VSecure Unprotect key is to be

send via serialXpress RF and will

remain valid until power down or

receiving a successive VSecure

Unprotect key.

[RF Static]:

The VSecure Unprotect key is to be

stored via RF and will remain valid

until manual erasing it or receiving a

successive VSecure Unprotect key.

[Load key to USB]

[Action] Place a USB memory device in the

USB side I/O.

Press ‘>’ or ‘OK’ to copy the VSecure

Authorization key to the USB memory

device

[Load key to TV]

[Action] Place a USB memory device with a

valid VSecure Unprotect key in the

USB side I/O.

Press ‘>’ or ‘OK’ to copy the VSecure

Unprotect key to the USB memory

device

PrimeSuite xxHFL4373D/10 Page 25

[Vsecure self test]

[Action] Internal self test to validate VSecure.

After this load proper hotel specific

keys.

[Program Info]

This function is to set the necessary DVB

parameters to locate the proper VSecure RF

channel to load the VSecure RF Static or RF

Dynamic key(s):

[Frequency] Frequency of MUX (0362)

[Medium] Cable or Antenna (DVB T)

[Service ID] # # # # # (00001)

[ONID] # # # # # (00000)

[NID] # # # # # (00000)

[TSID] # # # # # (00000)

[Symbol Rate] # . # # # (6.900)

[Modulation] QAM16, QAM32, QAM64,

QAM128, QAM256

Above parameters must match head-end

configuration

[Erase key option]

This function is to set the stored VSecure

Unprotect key(s) to erase:

[Shared key] Erase the Shared key

[Odd key] Erase the Odd key

[Even key] Erase the Even key

[All keys] Erase the Shared, Odd and

Even keys

[Erase key option]

This function is erase the key that were selected

by the Erase key option:

[Action] Press ‘>’ or ‘OK’ to erase the

key(s).

[Speaker settings]

This function defines the simultaneously working of

the integrated main speakers and the

headphone/bathroom speaker:

[TV Speaker Enable]

[Off]: The main speakers are muted.

The RC can control the volume and

mute of the headphone/bathroom

speaker

[On]: The main speakers are active and the

behavior of the headphone/bathroom

speaker is defined by the Independent

Main Speaker Mute.

[EasyLink]: xxxx

[EasyLink autostart]: xxx

[Independent Main Speaker Mute]

[Off]: The RC volume and mute will control

the main speakers and headphone /

bathroom speaker simultaneously.

[On]: If the main speakers are muted by the

RC, the RC will control the volume of

the headphone/bathroom speaker

[Default Main Speaker Volume]

This option defines the volume level that will be

set to the main speakers when the TV is

unmuted and the Independent Main Speaker

Mute is set to ‘On’.

[Factory default]

Restore the factory picture and sound setting.

Channel installation is not changed.

PrimeSuite xxHFL4373D/10 Page 26

TV Setup

With this option, all basic TV functionality can be

configured. If any setting is changed within the PBS

Menu, they should be stored before pressing [OK],

otherwise they will be discarded.

Select Setup to make changes to the TV settings

Change picture and sound

settings (with PBS setup RC)

Picture settings

1 Press [Home/Menu] > [TV Setup>.

2 Select [Setup] > [TV settings] > [Picture]

, then press OK.

3. Select a setting to adjust and press

<OK>:

• [Smart picture]: Accesses pre-defined

smart picture settings.

• [Personal]: Sets the TV to your

personal preferences.

• [Vivid]: Rich and dynamic settings,

ideal for daylight use.

• [Natural]: A natural picture setting.

• [Cinema]: Ideal settings for watching

movies.

• [Game]: Ideal settings for gaming.

• [Energy saving] : The most energy-

conscious settings.

• [Standard]: Adjusts picture settings to

suit most environments and types of

video. Is Factory default setting.

• [Photo]: Ideal settings for viewing

photos.

• [Custom]: Allows you to customise and

store personal picture settings.

Press OK to confirm your choice.

• [Reset]: Resets to factory default

settings.

Press OK to confirm your choice.

• [Contrast]: Adjusts the intensity of

bright areas, keeping dark areas

unchanged.

Press OK to confirm your choice.

• [Brightness]: Adjusts the intensity and

details of dark areas.

Press OK to confirm your choice.

• [Colour]: Adjusts colour saturation.

Press OK to confirm your choice.

• [Hue]: Compensates colour variations

in NTSC encoded transmissions.

Press OK to confirm your choice.

• [Sharpness]: Adjusts sharpness in the

image.

Press OK to confirm your choice.

• [Noise reduction]: Filters and reduces

noise in an image.

Press OK to confirm your choice.

• [Tint]: Adjusts the colour balance in an

image.

Press OK to confirm your choice.

• [Custom tint]: Customises tint setting.

Press OK to confirm your choice.

• [Pixel Plus HD]: Accesses advanced

settings, including [HD Natural

Motion], [100 Hz Clear LCD],

[Advanced sharpness], [Dynamic

contrast], [Dynamic backlight], [MPEG

artifact reduction], [Colour

enhancement], [Gamma].

Press OK to confirm your choice.

• [PC mode]: Enables picture settings

adjustment when a PC is connected to

the TV via HDMI. If enabled, you can

select [Picture format] to be unscaled

which provides maximum detail for

display of PC content.

Press OK to confirm your choice.

• [Picture format]: Changes the picture

format.

Press OK to confirm your choice.

PrimeSuite xxHFL4373D/10 Page 27

• [Screen edges]: Changes the picture

size.

Press OK to confirm your choice.

• [Picture shift]: Adjusts the position of

the picture. Not applicable if selected

picture format is [Auto zoom] or

[Wide screen].

Press OK to confirm your choice.

4 Press [Back/PP] to return to TV Setup

Menu.

5 Press [Back/PP] to exit.

Smart sound settings

1 Press [Home/Menu] ] > [TV Setup>.

2 Select [Setup] > [TV settings] > [Sound],

then press OK.

3. Select a setting to adjust and press

<OK>:

• [Smart sound]: Accesses pre-defined

smart picture settings:

• [Personal]: Sets the TV to your

personal preferences.

• [Standard]: Adjusts sound settings to

suit most environments and types of

audio.

• [News]: Applies sound settings ideally

suited for spoken audio, such as the

news.

• [Movie]: Applies sound settings ideally

suited for movies.

• [Game]: Ideal settings for gaming.

• [Drama]: Applies sound settings ideally

suited for drama.

• [Sports]: Applies sound settings ideally

suited for sports.

Press OK to confirm your choice.

• [Reset]: Resets to factory default

settings.

Press OK to confirm your choice.

• [Bass]: Adjusts the bass level.

Press OK to confirm your choice.

• [Treble]: Adjusts the treble level.

Press OK to confirm your choice.

• [Surround]: Enables spatial sound.

Press OK to confirm your choice.

• [Headphones volume]: Adjusts

headphone volume.

Press OK to confirm your choice.

• [Auto volume leveling]: Automatically

reduces sudden volume changes,

for example, when switching

channels.

Press OK to confirm your choice.

• [Balance]: Adjusts the balance of the left

and right speakers to best suit your

listening position.

Press OK to confirm your choice.

4 Press [Back/PP] to return to TV Setup

Menu.

5 Press [Back/PP] to exit.

EasyLink

1 Press [Home/Menu] ] > [TV Setup>.

2 Select [Setup] > [TV settings] >

[EasyLink], then press OK.

3. Select a setting to adjust and press

<OK>:

• [EasyLink]: Enables /Disables EasyLink:

• [Off]: No EasyLink functionality

• [On]: EasyLink functionality enabled

Press OK to confirm your choice.

• [EasyLink Remote Control]: Enables

/Disables EasyLink RC:

• [Off]: No EasyLink functionality

• [On]: EasyLink functionality enabled

Press OK to confirm your choice.

• [TV Speakers]: Enables /Disables TV

Speakers EasyLink control:

• [Off]: No EasyLink functionality

• [On]: EasyLink functionality enabled

• [EasyLink]: No EasyLink functionality

• [EasyLink autostart]: EasyLink

functionality enabled

Press OK to confirm your choice.

• [HDMI 1 -ARC]: Enables /Disables Audio

Out on HDMI 1:

• [Off]: No EasyLink functionality

• [On]: EasyLink functionality enabled

PrimeSuite xxHFL4373D/10 Page 28

Press OK to confirm your choice.

4 Press [Back/PP] to return to TV Setup

Menu.

5 Press [Back/PP] to exit.

Preferences

1 Press [Home/Menu] ] > [TV Setup>.

2 Select [Setup] > [TV settings] >

[Preferences], then press OK.

3. Select a setting to adjust and press

<OK>:

• [Menu language]: Set the required menu

language.

Press OK to confirm your choice.

• [Sleep timer]: Set the required sleep

timer time-out [0..180 min].

Press OK to confirm your choice.

• [Location]: Set the location where the

TV is used.

Set always to [Home]

Press OK to confirm your choice.

• [Volume bar]: OSD.

[Off] No volume bar OSD

[On] Show volume bar OSD

Press OK to confirm your choice.

• [Channel information size]: OSD.

[Classic] Normal OSD

[Big] Larger sized OSD

Press OK to confirm your choice.

• [Auto switch off]: switch off after 240

min:

[Off] No automatic switch off

[On] Automatic switch off

Press OK to confirm your choice.

• [Universal access]:

[Off] No Universal Access

[On] Universal Access

Press OK to confirm your choice.

• [Key beep]:

[Off] No audio beep on pressing

RC button

[On] Audio beep on pressing RC

button

Press OK to confirm your choice.

• [Audio Out Delay]: Set delay on Audio

Out.

[Off] No delay

[On] delay inserted

Press OK to confirm your choice.

• [TV placement]: Set position off TV,

influence on audio quality.

[Wall mounted]

[On a TV stand]

Press OK to confirm your choice.

• [Text 2.5]: Set Teletext 2.5

[Off] Not set (older version used)

[On] 2.5 used

Press OK to confirm your choice.

• [Clock]: Set internal clock

[Auto clock mode] Not set

[Daylight saving] Not set

[Date] Not set

[Time] Not set

Press OK to confirm your choice.

4 Press [Back/PP] to return to TV Setup

Menu.

5 Press [Back/PP] to exit.

Reset to factory settings

Resetting your TV to factory settings restores

default picture and sound settings.

Channel installation settings remain the same.

1 Press [Home/Menu] ] > [TV Setup>.

2 Select [Setup] > [TV settings] >

[Factory settings] , then press OK.

TV settings are reset back to the factory

default.

PrimeSuite xxHFL4373D/10 Page 29

Reinstall TV

Starts a TV initialization to reset all settings to

default and replace (reinstall) all channels.

1 Press [Home/Menu] ] > [TV Setup>

[OK].

2 Select [Setup] > [TV settings] >

[Reinstall TV], then press OK.

TV will perform a power down cycle going into

standby and then starts-up again. If the TV

stays in Standby mode, wake TV up with

switch on button on remote control.

1 Region OSD is displayed:

Region Australia

Europe

Select [Europe] and press <OK>.

2 Select language OSD is displayed:

Select [xxxx] (i.e. language from list) and press

<OK>.

3 Select install country OSD is displayed:

Select [xxxx] (i.e. country from list) and press

<OK>.

4 Select TV placement OSD is displayed:

[Wall mounted]: in case of wall

mounting

[On a TV stand]: in case of stand

and press <OK>.

5 Select TV location OSD is displayed:

[Home]: Always select this

[Shop]: Shop mode, not to be used

and press <OK>.

6 Universal access for the visual and

hearing impaired OSD is displayed:

[No]: No special settings

[Yes]: Special settings configured

and press <OK>.

7 Press [Settings] to continue and install

channels.

Perform the following steps:

[Install TV channels] and press <OK>

[Continue]

[Settings]

A screen is displayed to make changes to set

the channel list/map configuration:

[Symbol rate mode]: Automatic

TV will use the preset

Symbol rate (6.900/6.875)

Manual

Option to set Symbol rate 1

and Symbol rate 2

[Symbol rate 1]: 0.000 (to set)

[Symbol rate 2]: 0.000 (to set)

[Frequency scan]: Quick scan

Install channels based on a

pre-configured data table

Full scan

Install channels based on

scanning the whole

frequency spectrum

[Frequency step]: 1 MHz

With Full scan, step size to

search for channels is 1 MHz

8 MHz

With Full scan, step size to

search for channels is 8 MHz

[Network Frequency Mode]: Automatic

TV will set the Network

frequency based on a pre-

configured data table

Manual

Option to set Network

frequency

[Network Frequency]: 000.00 (to set)

[Analogue channels]: On

TV will scan also analogue

channels

Off

TV will not scan analogue

channels

[LCN Sorting]: On

TV will scan also analogue

channels

Off

TV will not scan analogue

channels

[Reset]: On

[Done]: Once finished select

[Done] and press <OK>

PrimeSuite xxHFL4373D/10 Page 30

8 Press [Start] to continue.

9 If a preset Network Frequency is not

available, or the Network Frequency

Mode is set as manual, Enter the

Network Frequency and press [Done] to

continue.

Press [Cancel] if no DVB-C to install

(only DVB-T and Analogue).

10 Once the channel list is configured, the

TV shows how many digital and analog

channels are captured and returns to the

TV Setup OSD.

11 Press [Done] > [Skip] > [Finish] > [Close]

to return to the TV Setup Menu. If PBS Mode

is [On], the Guest menu is displayed.

More Channel Settings

1 Press [Home/Menu] > [TV Setup]> [OK].

2 Select [Setup] > [Channel settings], then

press OK.

3. Select a setting to adjust and press

<OK>:

• [Languages]: Set the required DVB

languages.

• [Primary audio]: Sets the Primary

audio channel to the selected country

language.

• [Secondary audio]: Sets the

Secondary audio channel to the selected

country language.

• [Primary subtitles]: Sets the Primary

subtitles to the selected country

language.

• [Secondary subtitles]: Sets the

Secondary subtitles to the selected

country language.

• [Primary text]: Sets the Primary text to

the selected country language.

• [Secondary text]: Sets the Secondary

text to the selected country language.

• [Visually impaired]: Sets the feature

Visually impaired to support:

[Off]:

[Speakers]:

[Headphones]:

[Speakers + headphones]:

• [Preferred audio format]: Sets the

feature preferred audio format:

[Standard]:

[Advanced]:

• [Mono/Stereo]: Sets the feature audio

format:

[Mono]:

[Stereo]:

Press OK to confirm your choice.

Channel installallation

Before starting to install channels specific

settings must be set to get the channels to be

installed (see reinstall, page 29)

1 Press [Home/Menu] > [TV Setup]> [OK].

2 Select [Setup] > [Channel settings], then

press OK.

3. Select a setting to adjust and press

<OK>:

• [Channel installation]: Configure the

proper installation settings:

• [Automatic Channel Update]: This TV

can automatically rescan the entire

channel configuration once every day if

this feature is set and the TV is in

Standby mode.

[Off]: No automatic updating

[On]: At TV clock 5.00 AM channel

updating starts

• [Channel Update Message]: Once the

TV has updated its channel list due to an

Automatic Channel Update, this OSD

will inform about the occurrence

[Off]: No updating message

[On]: After an update cycle an OSD

message will be displayed once the TV

is switched on.

• [Digital: Reception test]: Test scan

Will install channels that are available in the

setted MUX frequency

PrimeSuite xxHFL4373D/10 Page 31

[Symbol rate mode]: Automatic

TV will use the preset Symbol

rate (6.900/6.875)

Manual

Option to set Symbol rate 1

and Symbol rate 2

[Symbol rate 1]: 0.000 (to set)

[Symbol rate 2]: 0.000 (to set)

[Search]: Start the test scan

Set the frequency for the selected MUX

[000.00] and press [Search].

After finding the channels press [Done].

• [Analogue: Manual installation]:

Will install a analogue channels that is

available in the whole frequency spectrum.

Set the necessary values:

[System]: West Europe

East Europe

UK

France

[Find channel]: 000.00 (to set)

[Search] > [Done]

[Fine tune]: 000.00 (to set)

Press ▲▼ or ▼ to

fine tune the channel.

[Done]

[Store current channel]: Store the fine

tuned channel under

the current channel

store under a new

channel number.

[Store as new channel]: Store under a

new channel number.

4 Press [Back/PP] to return to TV Setup

Menu.

5 Press [Back/PP] to exit.

Child lock

Child lock is a mechanism to prevent viewing a

channel that has a higher Parental rating then

set with this feature.

1 Press [Home/Menu] > [TV Setup]> [OK].

2 Select [Setup] > [Child lock], then press

OK.

3. Select a setting to adjust and press

<OK>:

• [Parental rating]: Set the proper value

(only once a code has been set)

• [Channel lock]: Mark the channels that

are influenced by the Parental rating

• [set code]: Enter a 4 digit code and

press <OK>

4 Press [Back/PP] to return to TV Setup

Menu.

5 Press [Back/PP] to exit.

Decoder

Decoder is …….

1 Press [Home/Menu] > [TV Setup]> [OK].

2 Select [Setup] > [Decoder], then press

OK.

3. Select a setting to adjust and press

<OK>:

• [Channel]: Set the channel location of

the decoder.

• [Status]: Select

…………………………………….

4 Press [Back/PP] to return to TV Setup

Menu.

5 Press [Back/PP] to exit.

PrimeSuite xxHFL4373D/10 Page 32

Change channel settings

After installation, you may want to reorder the

channel list to suit your preference.

1 Press [Home/Menu] ► [Channel setup]

►

2. Select a channel to adjust and press

<OPTIONS>:

• [Rename] ►: Press <OK> to bring up

the virtual keyboard and edit the

name. Close this with [Done].

• [Done] <OK>: Select Done and

Press <OK> to store the channel

name.

• [Reorder] ►: Navigate to the selected

channel to change and press <OK>.

Move it to the desired location, then

press OK.

Select [Insert] to insert the channel

into the desired location, [Swap] to

swap location with another channel

or [Cancel] to cancel the reorder.

Press OK to activate.

• [Blank channels] ►: Mark the list that

needs to be blanked (Blank = hidden from

the channel map)

To view the channels again unmark this

field.

Press [Back/PP] to return to the Channel

setup page.

• [MyChoice setup] ►: MyChoice setup

feature enables configuration of the the

MyChoice PayTV channel list. When

MyChoice is activated, the MyChoice

channel list [R0] contains all channels that

are visible when the TV has stored a valid

MyChoice pin code. The free channel list

[R1] contains channels that will be visible

always.

1. select [PayTV] ► [R0] ►and mark

(all) the channels to include in the

MyChoice list and press <OK>.

Unmark a channel to remove it from

the list.

Once finished use [Back] button to

return.

2. select [PayTV] ► [R1] ►and mark the

channels to include in the Free to view

list and press <OK>.

Unmark a channel to remove it from

the list.

Once finished use [Back] button to

return.

3. Once finished all settings, use [Back]

button to return to Options menu.

• [ThemeTV setup] ►: ThemeTV setup

feature enables configuration of channels

into ThemeTV channel lists.

For scrolling themes, Theme 1 up to

Theme 12 can be configured.

For the fixed themes, Theme 13 up to

Theme 15 can be configured.

1. select [ThemeTV] and use the

Navigation buttons to select a

Theme1-Theme15.

Press ►and mark the channels to

include in the Theme channel list by

pressing <OK>.

Once finished use [Back] button to

return.

2. Repeat step 1 for all channels to

include in required Themes.

3. Once finished use [Back] button to

return to Channel Setup menu.

4 Press [Back/PP] to return to Channel

setup Menu.

5 Press [Back/PP] to exit.

Store Settings

To confirm the changes in the PBS Setup

menu the changes MUST

1. select [Store settings] and press OK.

be stored.

2. select [OK] to store settings

3. select [Cancel] to discard any

changes

PrimeSuite xxHFL4373D/10 Page 33

Smart Clone

With Smart Clone it is possible to copy to/from

a USB device TV the configuration data and

channel list data. Place a USB Memory stick in

the USB side I/O connector of the TV.

*USB device should be formatted as FAT or FAT32.

USB to TV

1. select [Smart Clone] and press OK.

2. select [USB to TV] and press OK.

3. Clone data will be loaded from USB

device into TV. To activate the loaded

settings, wait until the OSD message is

displayed to remove the power cord.

4. Remove and re-insert the power cord.

TV to USB

1. select [Smart Clone] and press OK.

2. select [TV to USB] and press OK.

3. Clone data will be loaded from TV into

USB device.

4. wait until the OSD message returns to its

earlier state before removing the USB

device

RF Download

Instead of using a USB memory device to do

cloning and firmware update, this upgrading is

also possible using the RF infrastructure. This

is supported by SmartInstall (Philips Hospitality

RF Download mechanism) and allows a

simultaneous upgrade of all installed

televisions.

[SW Types]

Defining the software parts to be upgraded:

[SSB Firmware] TV Firmware

[SSB NVM] TV settings

[StandBy Firmware] Firmware for the

StandBy CPU

[ThemeTV] All graphic files for

ThemeTV

[Express Box] Firmware SBB106

[Welcome Logo] Graphic file

[Hotel Information] Graphic file

[All] All of above (except

standby software)

[Program Info]

This function is to set the necessary DVB

parameters to locate the proper RF download

channel :

*[Frequency] Frequency of MUX (default: 0706)

*[Medium] Cable or Antenna (DVB T/C)

[Service ID] # # # # # (00001)

[ONID] # # # # # (00001)

[NID] # # # # # (00001)

[TSID] # # # # # (00001)

**[Symbol Rate] # . # # # (6.900)

**[Modulation] QAM16, QAM32, QAM64, QAM128,

QAM256

*Mandatory items

**Mandatory items, but DVB-C only

Above parameters must match head-end configuration

Start Download

To manual start a RF download action:

1. select [RF Download] and press OK.

2. select [Start Download] and press

OK.

The download action will start and search if

valid content is found on the RF network.

PrimeSuite xxHFL4373D/10 Page 34

6. Connect devices

This section describes how to connect various

devices with different connectors and

supplements examples provided in the Quick

Start.

••Different types of connectors may be used to

connect a device to your TV, depending on

availability and your needs.

Back connector

1) EXT 1 (CVBS and RGB)

Analogue audio and video input from analogue

or digital devices such as DVD players or

game consoles.

2) DIGITAL AUDIO OUT

Audio and video output to analogue devices

such as another TV or a recording device.

3) HDMI 1

Digital audio and video input from high-

definition digital devices such as Blu-ray

players.

Connections via DVI or VGA require an

additional audio cable.

4) AUDIO IN (DVI and VGA)

Audio input from a computer.

5) TV ANTENNA

Signal input from an antenna, cable or

satellite.

6) VGA

Video input from a computer.

PrimeSuite xxHFL4373D/10 Page 35

Side connector

1) COMMON INTERFACE

Slot for a Conditional Access Module

(CAM).

2) USB

Data input from USB storage devices.

3) HDMI

Digital audio and video input from high-

definition digital devices such as Blu-ray

players.

Connect a computer

Before you connect a computer to the TV

• Set the screen refresh rate on your

computer to 60Hz.

• Select a supported screen resolution on

your computer.

Connect a computer with one of the following

connectors:

••Connections via DVI or VGA require an additional

audio cable.

• HDMI cable

PrimeSuite xxHFL4373D/10 Page 36

• DVI-HDMI cable

• HDMI cable and HDMI-DVI adaptor

• VGA cable

Use a Conditional Access

Module

A Conditional Access Module (CAM) is

provided by digital TV service operators to

decode digital TV channels.

••If required, refer to documentation from your

operator on how to insert a smart card into the

Conditional Access Module. Proper working can

only guaranteed by your operator.

Insert and activate a CAM

••Be sure to follow the instructions described below.

Wrong insertion of a CAM may damage both the

CAM and your TV.

1. Switch off the TV.

2. Following the directions printed on the

CAM, gently insert the CAM into the

COMMON INTERFACE at the side of

the TV.

3. Push the CAM in as far as it will go.

4. Turn on the TV and wait for the CAM to

be activated. This may take several

minutes. Do not remove the CAM from

the slot when in use — removing the

CAM will deactivate digital services

Access CAM services

1. After inserting and activating the CAM,

press

2. Press Navigation buttons to select

[Common interface].

»»Applications provided by the digital TV

service operator appear on the screen.

••This menu option is available only if the CAM is

inserted and activated correctly.

PrimeSuite xxHFL4373D/10 Page 37

Use Philips EasyLink

Your TV supports Philips EasyLink, which

enables one-touch play and one-touch

standby between EasyLink-compliant devices.

••Compliant devices must be connected to your TV

via HDMI.

Enable or disable EasyLink

••Do not enable Philips EasyLink if you do not

intend to use it.

1. Press

2. Press Navigation buttons to select

[Setup] > [TV settings] > [EasyLink].

3. Select [On] or [Off].

Use one-touch play

1 After enabling EasyLink, press play on

your device.

»»The TV automatically switches to the

correct source.

Use one-touch standby

1. Press and hold Standby on the TV’s

or device’s remote control for at least

three seconds.

»»The TV and all connected HDMI

devices switch to standby.

Use a Kensington lock

There is a Kensington security slot at the back

of the TV. Prevent theft by looping a

Kensington lock between the slot and a

permanent object, such as a heavy table.

PrimeSuite xxHFL4373D/10 Page 38

7. Product information

Product information is subject to change

without notice. For detailed product

information, go to www.philips.com/support.

Supported display resolutions

Computer formats

• Resolution - refresh rate:

• 640 x 480 - 60Hz

• 800 x 600 - 60Hz

• 1024 x 768 - 60Hz

• 1280 x 720 - 60Hz

• 1280 x 768 - 60Hz

• 1280 x 1024 - 60 Hz

• 1360 x 768 - 60 Hz

• 1440 x 900 - 60Hz (For Full HD only)

• 1680 x 1050 - 60Hz (For Full HD only)

• Via HDMI/DVI input

Video formats

• Resolution - refresh rate:

• 480i - 60Hz

• 480p - 60Hz

• 576i - 50Hz

• 576p - 50Hz

• 720p - 50Hz, 60Hz

• 1080i - 50Hz, 60Hz

• 1080p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz

Multimedia

• Supported storage device: USB (Only

FAT or FAT 32 USB storage devices

are supported)

• Supported multimedia file formats:

• Images: JPEG

• Audio: MP3

• Video: MP4

••Multimedia file names must not exceed 128

characters.

Tuner/Reception/Transmission

• Aerial input: 75ohm coaxial (IEC75)

• DVB: DVB Terrestrial, DVB-T MPEG4

(only in some models)

• TV system: DVB COFDM 2K/8K; PAL I,

B/G, D/K; SECAM B/G, D/K, L/L’

• Video playback: NTSC, SECAM, PAL

• Tuner Bands: Hyperband, S-channel,

UHF, VHF

Remote control

• Type: RC-6

• Batteries: 2 x AAA (LR03 type)

Power

• Mains power: 220-240V, 50Hz ~ 60Hz

• Standby power: < 0.3W

• Ambient temperature: 5 to 40 degrees

Celsius

Supported TV mounts

To mount the TV, purchase a Philips TV

mount or a VESA-compatible TV mount. To

prevent damage to cables and connectors, be

sure to leave a clearance of at least 2.2 inches

or 5.5cm from the back of the TV.

Follow all instructions provided with the TV mount.

Koninklijke Philips Electronics N.V. bears no

responsibility for improper TV mounting that result

in accident, injury or damage

TV Screen Required Required

Size (inches pitch (mm) mounting bolts

22 75 x 75 4 x M4

26 75 x 75 4 x M4

32 200 x 200 4 x M6

42 400 x 300 4 x M6

PrimeSuite xxHFL4373D/10 Page 39

8. Troubleshooting

This section describes commonly encountered

issues and accompanying solutions.

General TV issues

The TV does not switch on:

••Disconnect the power cable from the

power outlet. Wait for one minute then

reconnect it.

••Check that the power cable is securely

connected.

The remote control is not working properly:

••Check that the remote control are

correctly inserted according to the +/-

orientation.

••Replace the remote control batteries if

they are flat or weak.

••Clean the remote control and TV sensor

lens.

The standby light on the TV blinks red:

••Disconnect the power cable from the

power outlet. Wait until the TV cools

down before reconnecting the power

cable. If the blinking reoccurs, contact

Philips Consumer Care.

You forgot the code to unlock the TV lock

feature

••Enter ‘8888’.

The TV menu is in the wrong language.

••Change the TV menu to your preferred

language.

When turning the TV on/off to standby, you

hear a creaking sound from the TV chassis:

••No action is required. The creaking

sound is normal expansion and

contraction of the TV as it cools down

and warms up. This does not impact

performance.

When TV start-up time is slow:

••Select [Fast] mode in [Low power

standby] menu.

TV channel issues

Previously installed channels do not

appear in the channel list:

••Check that the correct channel list is

selected.

No digital channels were found during the

installation:

••Check that the TV supports DVB-T or

DVB-C in your country. See the listed

countries on the back of the TV.

Picture issues

The TV is on, but there is no picture:

••Check that the antenna is properly

connected to the TV.

••Check that the correct device is selected

as the TV source.

There is sound but no picture:

••Check that the picture settings are

correctly set.

There is poor TV reception from an antenna

connection:

••Check that the antenna is properly

connected to the TV.

••Loudspeakers, unearthed audio devices,

neon lights, high buildings and other large

objects can influence reception quality. If

possible, try to improve the reception

quality by changing the antenna direction

or moving devices away from the TV.

••If reception on only one channel is poor,

fine tune this channel.

There is poor picture quality from

connected devices:

••Check that the devices are connected

properly.

••Check that the picture settings are

correctly set.

The TV did not save your picture settings:

• Check that the TV location is set to the

home setting. This mode offers you the

flexibility to change and save settings.

PrimeSuite xxHFL4373D/10 Page 40

The picture does not fit the screen; it is too

big or too small:

••Try using a different picture format.

The picture position is incorrect:

••Picture signals from some devices may

not fit the screen correctly. Check the

signal output of the device.

Sound issues

There is a picture but sound quality is

poor:

••If no audio signal is detected, the TV automatically

mutes the audio output — this does not indicate

malfunction

•Check that all cables are properly

connected.

••Check that the volume is not set to 0.

••Check that the sound is not muted.

There is a picture but the sound quality is

poor:

••Check that the sound settings are

correctly set.

There is a picture but sound comes from

one speaker only:

••Verify that sound balance is set to the

centre.

HDMI connection issues

There are problems with HDMI devices:

••Note that HDCP support can delay the

time taken for a TV to display content

from a HDMI device.

••If the TV does not recognize the HDMI

device and no picture is displayed, try

switching the source from one device to

another and back again.

••If there are intermittent sound

disruptions, check that output settings

from the HDMI device are correct.

••If a HDMI-to-DVI adaptor or HDMI to DVI

cable is used, check that an additional

audio cable is connected to AUDIO L/R

or AUDIO IN (mini-jack only)

.

Computer connection issues

The computer display on the TV is not stable:

••Check that a supported resolution and

refresh rate is selected on the computer.

••Set the TV picture format to unscaled.

Contact us

If you cannot resolve your problem, refer to the

FAQs for this product at:

www.philips.com/support.

If the problem remains unresolved, contact

Philips Consumer Care in your country as

listed in the warranty leaflet.

Warning

••Do not attempt to repair the product yourself.

This may cause severe injury, irreparable

damage to your product or void your warranty

Make a note of your TV model and serial number

before you contact Philips. These numbers are

printed on the back of the TV and on the packaging.

PrimeSuite xxHFL4373D/10 Page 41

9. A Attachment 1 0

This section describes commonly encountered

issues when installing DVB-T channels.

DVB-T installation issues

The TV does not switch on:

• Disconnect the power cable from the

power outlet. Wait for one minute then

reconnect it.

• Check that the power cable is securely

connected.

The remote control is not working properly:

PrimeSuite xxHFL4373D/10 Page 42

Index

A

age rating 15

Alarm 15

ALARM 7

audio language 23

Audio lip sync 26

B

Batteries 44

Blue mute 35

C

Channel list

PayTV channel 37

Troubleshooting 46

clock 16

Computer

Connect 41

display resolutions 44

Troubleshooting 47

Consumer setup 33

D

Digital channels

CAM 42

Display resolutions 44

E

EasyLink

disable 43

Enable 43

HDMI-CEC in 35

one-touch play 43

one-touch standby 43

F

factory settings 21

H

HDMI

HDMI-CEC in 35

Troubleshooting 47

Hearing impaired 25

home mode 27

I

Installation

K

Kensington lock 43

L

Language

Troubleshooting 46

Lock

Kensington lock 43

Local KB lock 34

RC lock 34

M

MENU

Professional mode setup menu 30

Troubleshooting 46

multimedia 17

Multimedia

Technical specifications 44

Multi remote control 36

MyChoice 37

O

One-touch play 43

One-touch standby 43

Option menu 10

PrimeSuite xxHFL4373D/10 Page 43

P

picture format 12

picture setting 20

picture settings 20

POWER 10

Technical specifications 44

Professional mode

Activate 30

Options 31

PBS mode 33

Store settings 37

R

Remote control

Multi remote control 36

Professional Setup Remote control 29

RC lock 34

Remote control usage 8

Technical specifications 44

Troubleshooting 46

Rename channel 22

Reorder channels 22

S

Safety 4

Scenea 18

Selectable AV 36

Shop mode 27

Skip scrambled signals 36

Sleep timer 15

Smart card 42

Smart picture 20

Smart power 33

Smart sound 21

sound settings 21

Store 37

T

Technical specifications 44

Teletext 8, 13

Troubleshooting 46

TV overview 6

U

Universal access 18

Remote control 8

USB

Enable USB 35

USB break-in 35

V

Video formats 44

Visually impaired 19

Volum 11

W

Wall mounts 44

Welcome message 34

PrimeSuite xxHFL4373D/10 Page 44

© 2011Koninklijke Philips Electronics N.V.

All rights reserved.

PrimeSuite xxHFL4373D/10 Page 45

PrimeSuite xxHFL4373D/10 Page 46

PrimeSuite xxHFL4373D/10 Page 47
