Philips Signage Solutions

Multi-Touch Display

43"

Powered by Android

Multi-touch

43BDL4051T

Discover a new level of interaction

using the power of Android

Get even closer to your audience than ever before. Fast, precise and extremely durable,

its high performance is matched by excellent reliability and functionality.

Supreme audience interaction

• Experience amazing interactivity with true Multi-Touch

• 10 points touch

• Anti-glare glass with low optical parallax

Innovative solutions for any signage application

• Android: Run your own app or choose your favourite app to run

•Integrated WiFi

• Save and play content with internal memory

• Enhance your connectivity with an integrated mPCIe slot.

Maximising the impact of your message

• CMND: Take control of your displays

Care about you, your business and your audience

• Keep your content up and running with FailOver

• Ensure your content is running with automatic screenshots

43BDL4051T/00

Highlights

Multi-Touch Display

43" Powered by Android, Multi-touch

Plug-and-Play Multi-Touch

A brand new level of interactivity is now

available thanks to integrated touch

technology. More flexibility and optimum

simultaneous touch performance coupled with

excellent operability opportunities give you

the ultimate in user interaction. Multi-Touch

displays are equipped with automatic touch

recognition. The USB connector is HID-

compliant, providing true plug-and-play

operation.

Anti-glare glass

With this integrated touch display, the anti-

glare glass with low optical parallax allows for

the most immersive touch experience. With

little to no glare and low reflection on the

display, images are crystal clear with pure

colour and great clarity.

Powered by Android

With Android OS integrated into the display,

you can work with the most developed OS on

the planet and save your own app directly into

the display. Or, choose from the large library

of Android apps and play content from there.

With the built-in scheduler, you can daypart

your apps and content based on your

customer and time of day and with the auto-

orientation feature, showing content in

portrait or landscape is as simple as turning the

display.

FailOver

Keeping your content up and running is critical

for demanding commercial applications. While

it is unlikely you will face a content disaster,

FailOver provides content protection with a

revolutionary technology that plays back-up

content on screen in the event of a media

player failure. FailOver automatically kicks in

when the primary input fails. Simply select a

primary input connection and a FailOver

connection and you're ready for instant

protection.

Internal Memory

Save and play content with internal memory.

Upload your media into the display and

playback content immediately. Working in

conjunction with the internal browser, it also

serves as a memory cache when streaming

online content. If the network ever fails, the

internal memory keeps content running by

playing a cached version of the content,

ensuring that your media stays up even if the

network goes down.

PCI Slot

With an integrated PCI slot, you can connect a

Wi-Fi, Bluetooth or 4G LTE module, allowing

for even greater communication with the

display. Machine-to-machine communication is

also enhanced, with numerous configurations

available for customers to use, such as the

ability to expand product features or signal-

handling capability.

CMND

A robust display management platform,

CMND puts the power back into your hands.

Update and manage content with CMND &

Create or control your settings with CMND &

Control. It's all possible with CMND.

Multi-Touch

Plug & Play

Issue date 2016-12-15

Version: 1.0.1

12 NC: 8670 001 37351

EAN: 87 12581 73967 6

© 2016 Koninklijke Philips N.V.

All Rights reserved.

Specifications are subject to change without notice.

Trademarks are the property of Koninklijke Philips N.V.

or their respective owners.

www.philips.com

43BDL4051T/00

Specifications

Multi-Touch Display

43" Powered by Android, Multi-touch

Picture/Display

• Diagonal screen size: 42.5 inch / 108.0 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 450 cd/m²

• Contrast ratio (typical): 1100:1

• Dynamic contrast ratio: 500,000:1

• Surface treatment: Anti-Glare coating

• Aspect ratio: 16:9

• Response time (typical): 12 ms

• Pixel pitch: 0.49 x 0.49 mm

• Display colours: 16.7 million

• Viewing Angle (H / V): 178 / 178 degree

• Picture enhancement: 3/2 - 2/2 motion pull down,

3D Combfilter, Motion compens. deinterlacing,

Progressive scan, 3D MA deinterlacing, Dynamic

contrast enhancement

Interactivity

• Multi-touch technology: Infrared touch

• Touch points: 10 simultaneous touch points

• Plug and play: HID compliant

• Protection glass: 5 mm tempered safety glass, Anti-

Glare, Anti-Reflective

Connectivity

• Video input: DisplayPort (1.2), HDMI (x 2), DVI-D,

USB, VGA (via DVI)

• Video output: DisplayPort, DVI-I, VGA (via DVI-D)

• Audio input: Audio Left/Right (RCA), 3.5-mm jack

• Audio output: Audio Left/Right (RCA), External

speaker connector

• External control: RJ45, IR (in/out) 3.5 mm jack,

RS232C (in/out) 2.5 mm jack

• Other connections: micro SD, micro USB, mPCIe,

USB power outlet (5 V. 2 amp)

Supported Display Resolution

•Computer formats

Resolution Refresh rate

640 x 480 60, 67, 72, 75 Hz

800 x 600 56, 60, 72, 75 Hz

1024 x 768 60 Hz

1280 x 768 60 Hz

1280 x 800 60 Hz

1280 x 1024 60 Hz

1360 x 768 60 Hz

1366 x 768 60 Hz

1440 x 900 60 Hz

1600 x 1200 60 Hz

1920 x 1080 60 Hz

1920 x 1200 60 Hz

•Video formats

Resolution Refresh rate

480i 60 Hz

480p 60 Hz

576p 50 Hz

576i 50 Hz

720p 50, 60 Hz

1080i 50, 60 Hz

1080p 50, 60 Hz

Convenience

• Placement: Landscape (24/7), Portrait (24/7)

• Signal Loop Through: RS232, VGA, IR Loop

through, DisplayPort, DVI

• Network controllable: RS232, RJ45, One Wire

(HDMI-CEC), HDMI (One Wire)

• Picture performance: Advanced colour control

• Picture in picture: PIP

• Screen-saving functions: Pixel Shift, Low Brightness

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

•Energy-saving functions: Smart Power

• Other convenience: Carrying handles

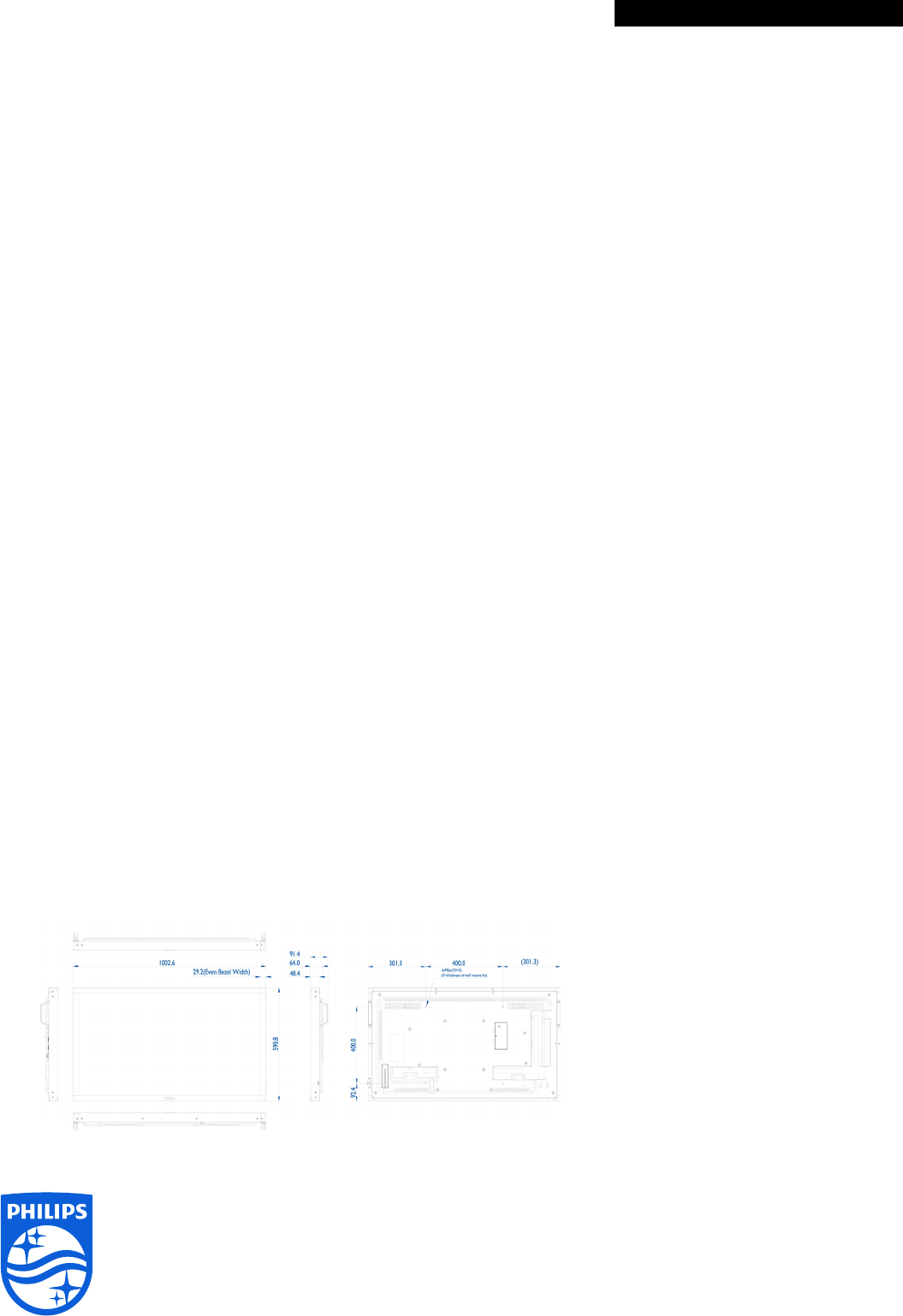

Dimensions

•Set dimensions (W x H x D):

1002.6 x 590.8 x 91.4 mm

• Set dimensions in inch (W x H x D):

39.47 x 23.26 x 3.60 inch

• Product weight: 19.4 kg

• Product weight (lb): 42.77 lb

•Bezel width: 29.2 mm

• VESA Mount: 400 x 400 mm, M6

Sound

• Built-in speakers: 2 x 10 W

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

• Altitude: 0 ~ 3000 m

• Temperature range (storage): -20 ~ 60 °C

Power

• Mains power: 100 ~ 240 VAC, 50/60 Hz

•Standby power consumption: <0.5 W

• Consumption (Typical): 59 W

Accessories

• Included accessories: AC Power Cord, RS232

cable, USB cable, Remote Control, Batteries for

remote control, Quick start guide

• Optional accessories: ColourCalibrationKit

(CCK4601)

• Stand: BM05922 (Optional)

Miscellaneous

• On-Screen Display Languages: Arabic, English,

French, German, Italian, Japanese, Polish, Spanish,

Turkish, Russian, Simplified Chinese, Traditional

Chinese, Danish, Dutch, Finnish, Norwegian,

Portuguese, Swedish

• Regulatory approvals: CE, CCC, FCC, Class B, UL/

cUL, RoHS, CB, C-Tick, BSMI, EnergyStar 7.0,

GOST, PSE, VCCI

• Warranty: 3-year warranty

Multimedia Applications

• USB Playback Audio: AAC, AIF, AIFF, ASF, LPCM,

M3U, M4A, MP3, MP4, WAV, WMA

• USB Playback Picture: BMP, GIF, JPEG, JPG, PDF

• USB Playback Video: M2TS, M4V, MK3D, MKV,

MP4, MPEG, MPG, MTS, TS, TTS, VOB, WMV

Internal Player

• CPU: Quad Core Cortex A9 1.8 GHz

• GPU: ARM Mali400 Quad Core 533 MHz

•Memory: 2 GB DDR3

• Storage: 16 GB EMMC

•
