Build a premium DRF
room like no other
Philips EasyDiagnost Eleva with DRF room solutions
“Having radiography in the same room where you
are able to provide uoroscopic evaluation is a
tremendous advantage in terms of efciency.”
Dr. Donald Frush, Chief of Pediatric Radiology, Duke Children’s Hospital and Health Center, North Carolina, USA
3
Give your DRF solution
the integrated edge
Philips upholds its Imaging 2.0 philosophy, a new way of thinking about radiology,
across various imaging rooms. For EasyDiagnost Eleva our initiative comes to life with
DRF room solutions which combine new levels of versatility, utilization and workow
efciency. The rooms bring together classic uoroscopy, proven Philips DRF benets
and exciting new advances in digital radiography.
Integrating Imaging 2.0
Imaging 2.0 is a direct result of research into the needs and issues of
medical professionals. A statement we frequently heard was the wish
to allow even more integrated procedures – in the DRF room and
beyond. We have responded by equipping our DRF, DR and mobile
DR with more mutual benets than ever before. A good example is
that you are now able to share a wireless portable detector between
the different solutions.
Your economic value improves
Inside your DRF room you can use a wireless portable detector
either for free exams or with a wireless tray in the table or in the
vertical stand, thereby enhancing exibility with just one digital
detector. Generally, your clearest cost efciency comes from the
high utilization you get by carrying out radiography and uoroscopy
exams in a single room.
Your staff collaborates
Having two modalities in one room provides straightforward
collaboration. At the workow continuity, network integration
and image processing levels, the Philips DRF rooms offer the Eleva
user interface and UNIQUE software. This way, facilities benet
from harmonized procedures for staff and across all premium
Philips DRF and DR modalities.
Your patients cooperate
Because UNIQUE image processing and the Eleva interface
streamline workow, technologists can focus on their patients.
The bandwidth of Philips uoroscopy and DR solutions means that
you can care for various patient types from pediatric to bariatric.
Another people-focused approach is to give center stage to X-ray
dose awareness.
4
The premium room
for uoroscopy
Do you want exceptional uoroscopy image quality with superb dose efciency?
The EasyDiagnost Eleva classic uoroscopy room is the right choice if your facility
has a high load of dedicated uoroscopy applications. Its user-friendly geometry
works with you to support fast and condent diagnoses.
5

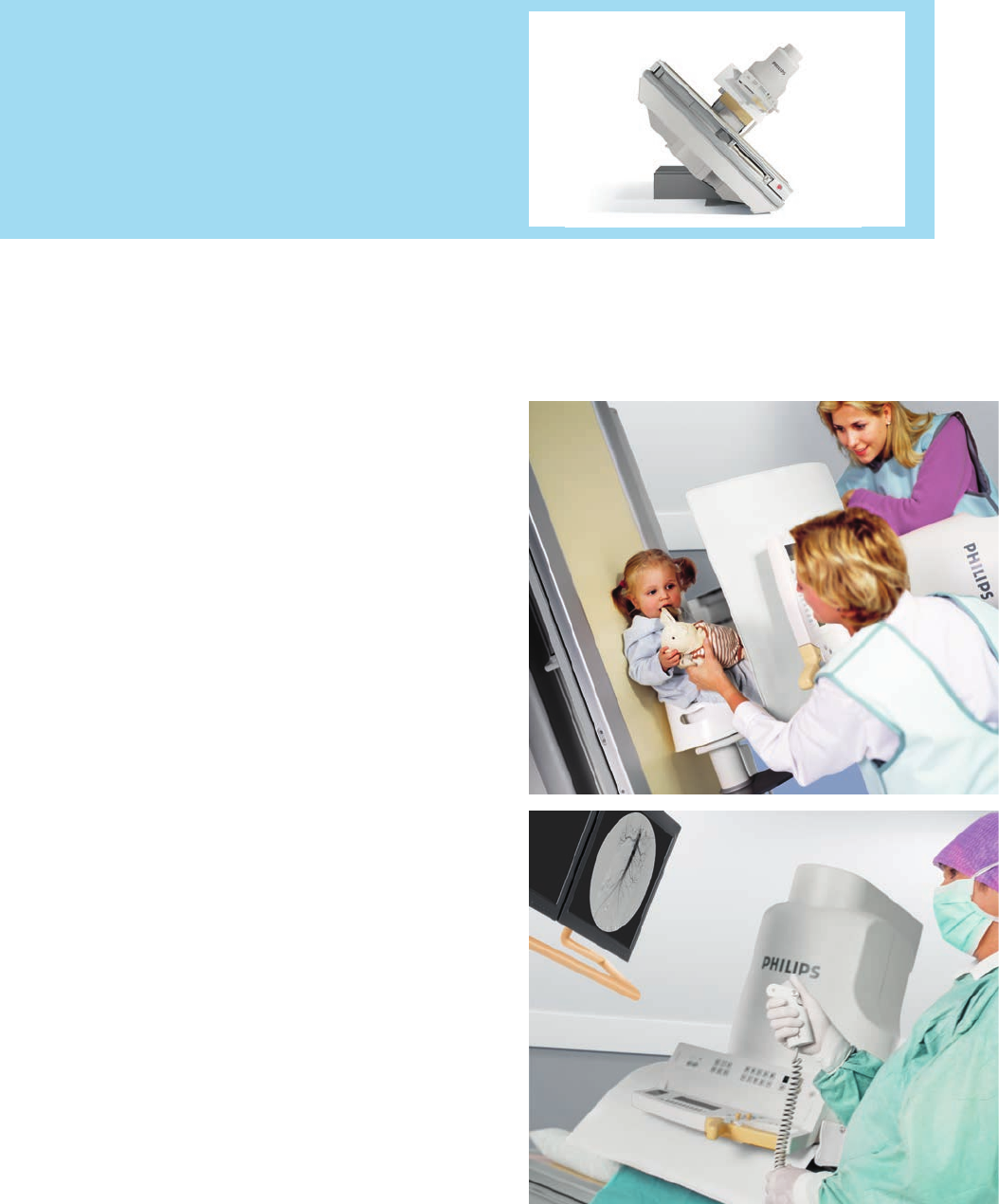

Classic uoroscopy because …
Philips classic uoroscopy room offers full clinical coverage
of all common uoroscopy applications. You can carry out
gastro-intestinal exams as well as various iodine and vascular
procedures with ease and premium image quality. The tiltable
table supports all standard barium and iodine contrast studies.
What’s more, you have excellent accessibility for vascular
procedures and even for interventions.
Excellence in details
Increase accuracy and patient capacity with operator-,
exam- and patient-related system pre-sets customized to
your preferences. Extended programmable defaults include
SpectraBeam RF lter selection, image quality and dose
settings, and pre-dened print formats. DoseWise X-ray dose
management rounds off the benets with Grid Controlled
Fluoroscopy (GCF) and Intelligent Exposure (IQX).
Next steps
The most common expansion option is to add radiography
to the classic uoroscopy room. Whether it’s a conventional
RF room, or a DRF room, the extension allows
you to increase your returns.
Your classic uoroscopy room benets
• Full clinical coverage for all classic uoroscopy applications
• Intuitive workow, customizable pre-sets and motorized
geometry movements
• Comprehensive X-ray dose management with DoseWise features
6
Classic RF because …
With EasyDiagnost Eleva you cover uoroscopy
applications ranging from gastro-intestinal and various
iodine to ERCP procedures and pain management.
Additionally, you can perform radiography overview exams
on uoroscopy patients and use the room for general
radiography during uoroscopy off-hours. For radiography
you benet from the enhanced ceiling suspension and the
vertical stand for more application exibility.

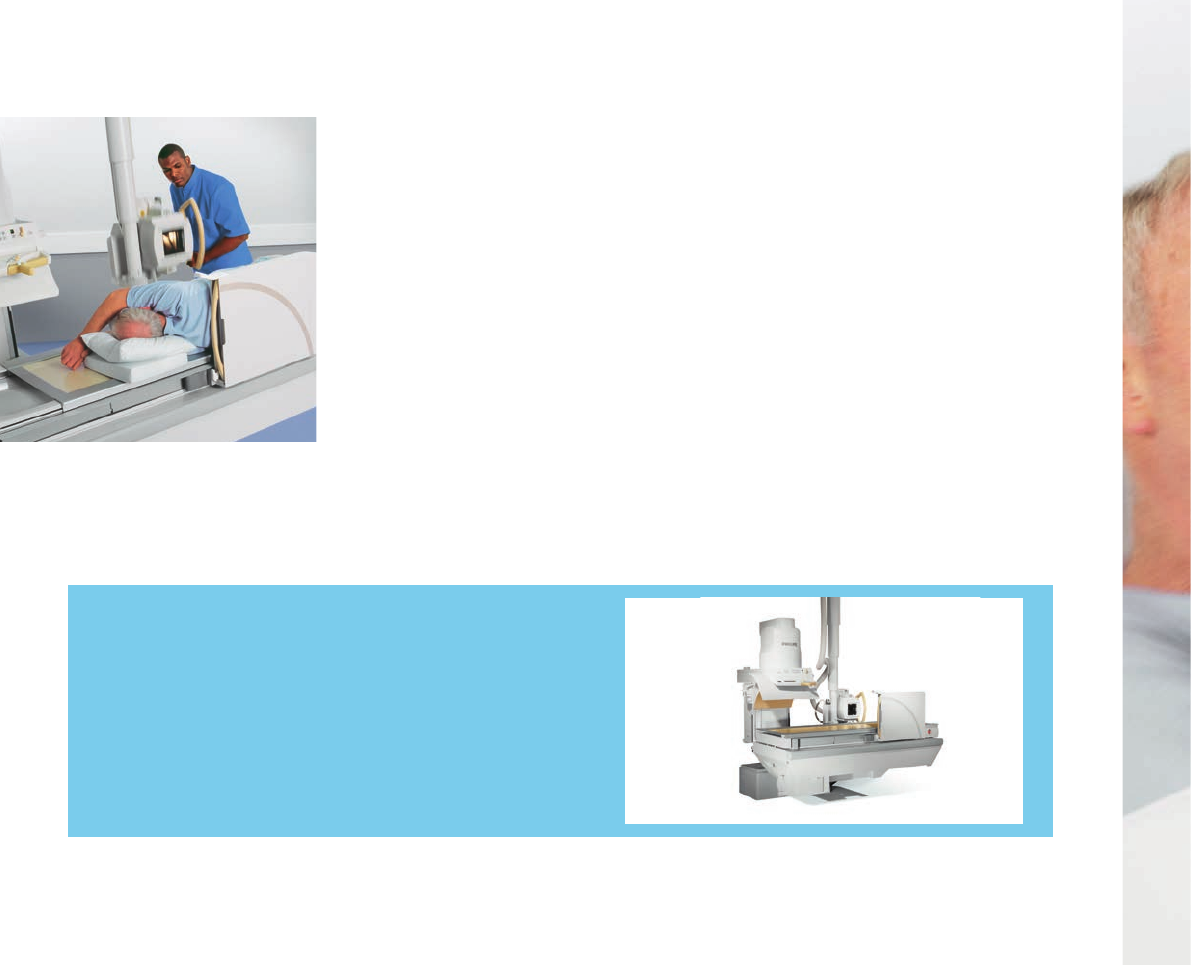

Enhance exibility with
the premium RF room
Combining uoroscopy and radiography in one room can create
cost-efcient utilization advantages. The EasyDiagnost Eleva classic
RF room provides superb dose efciency and high image quality for
uoroscopy and radiography. A digital migration route is possible to
link the images to the facility network.
Your classic RF room benets
• Enhanced room utilization with added radiography capabilities
• Philips fold-out cassette holder EasyLat for quickly available
lateral exposures
7

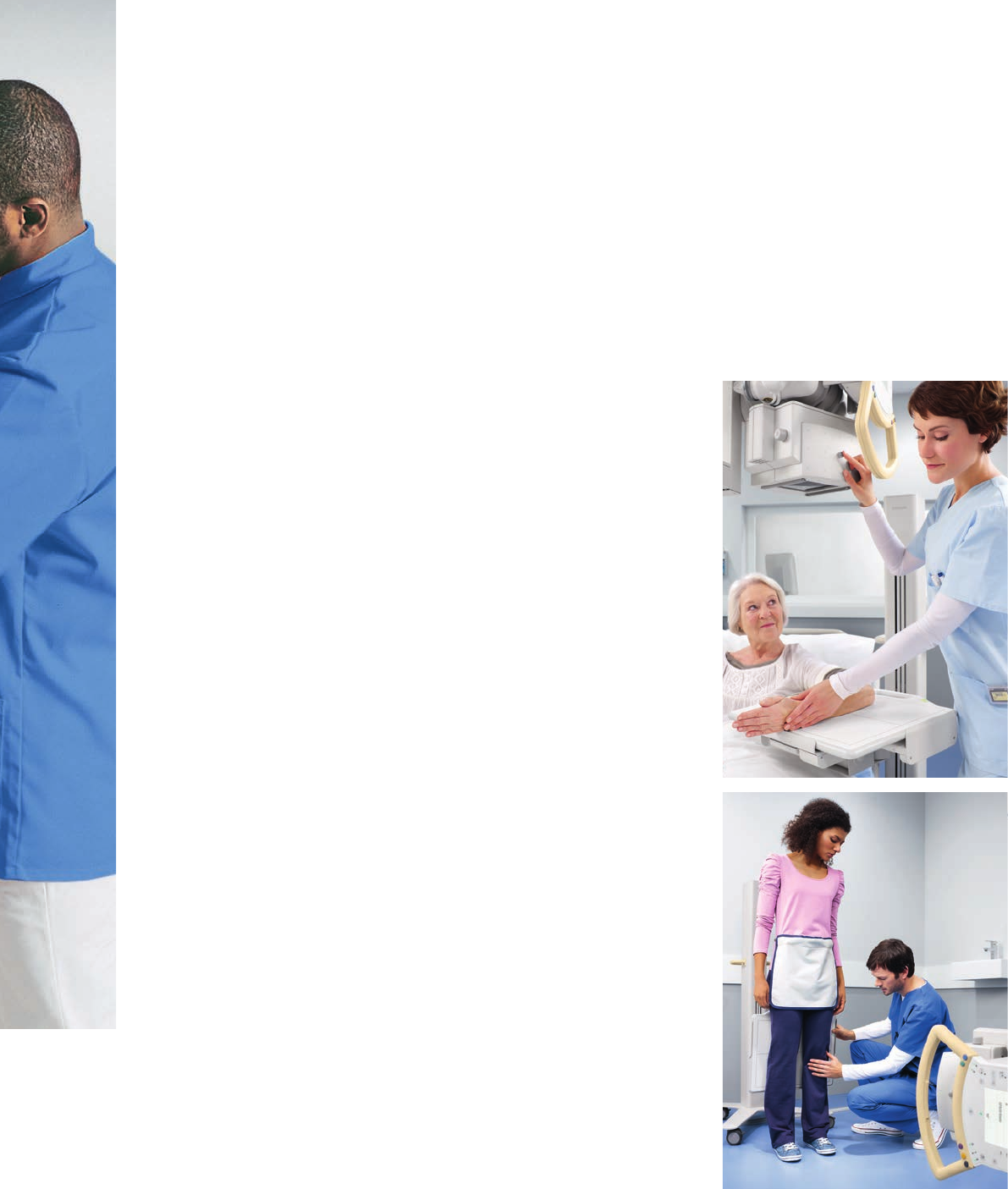

Excellence in application variety

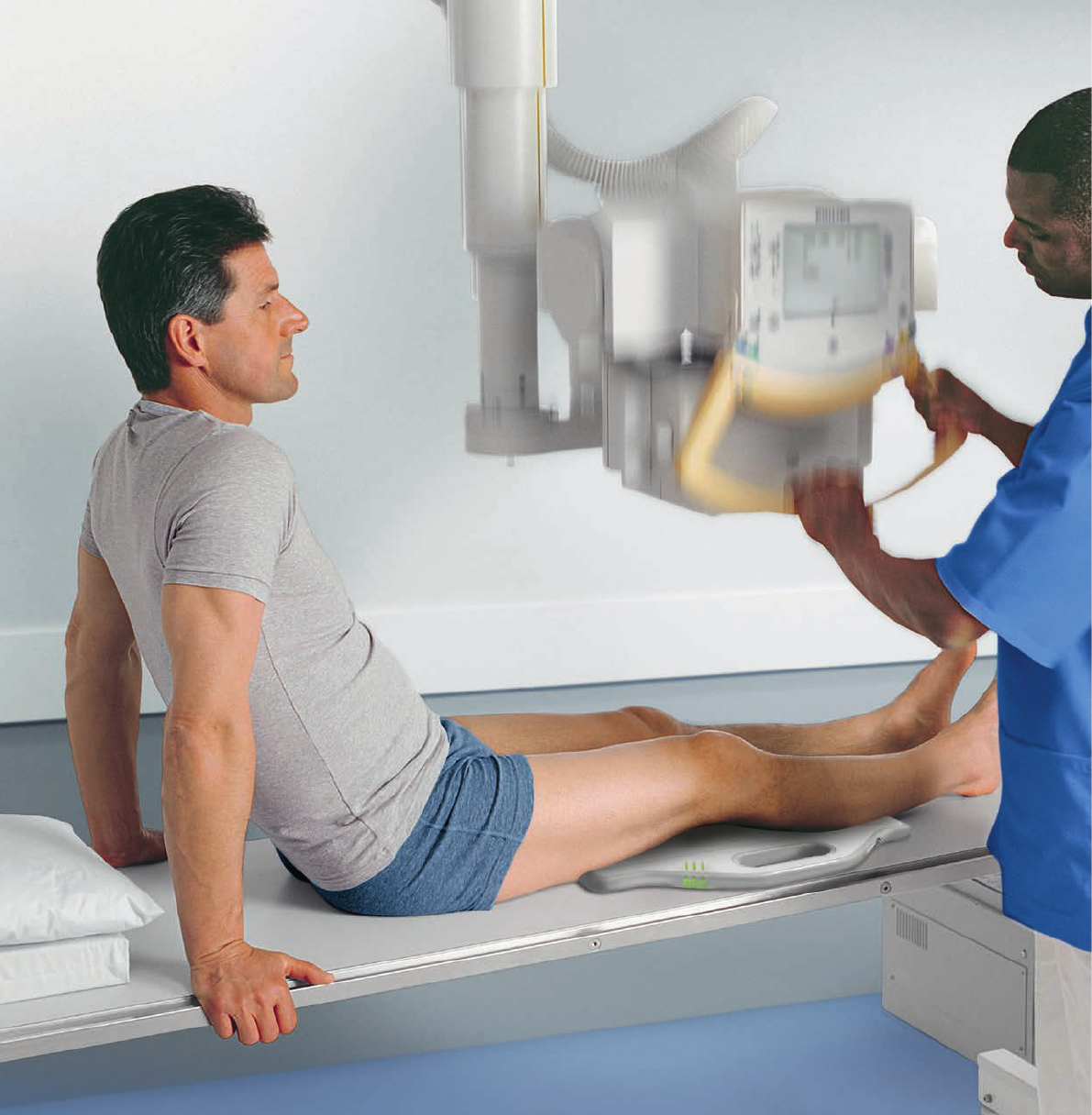

Lower leg radiographic exams are possible thanks to the long
vertical movement range of the ceiling suspension. The vertical
stand allows you to include chest, spine, skull, and upper and
lower extremities. At the table you can use our fold-out cassette
holder EasyLat to smoothly perform lateral exposures. Naturally,
DoseWise X-ray dose management is also used. Complement it with
the optional DoseAware measuring device which makes dose levels
visible to staff and allows them to manage their personal
X-ray dose exposure.
8
“The image quality in the DRF room is outstanding. The UNIQUE system
that they use to process their images is very detail oriented. Subtle things
are caught and seen much easier now.”
Anja Ancarana, Pediatric Radiological Technologist, Duke Children’s Hospital and Health Center, North Carolina, USA
Your DRF value room benets
• Attractively priced conguration for a wide variety of applications
• Enhanced room utilization and fast processes by adding digital
radiography
• Cost-efciency with the wireless portable detector for xed and
free exams
Optimize value with
the premium DRF room
DRF value because …
The “F” stands for a variety of uoroscopy applications from gastro-
intestinal and iodine to vascular procedures. “DR” means exible
digital radiography. Filmless procedures may result in fewer retakes
and shorter exam times. A high patient turnover can have a positive
impact on your nancial balance sheet. “Value” implies that you save
expenses by using one wireless portable detector for all radiography
exams carried out in this room.

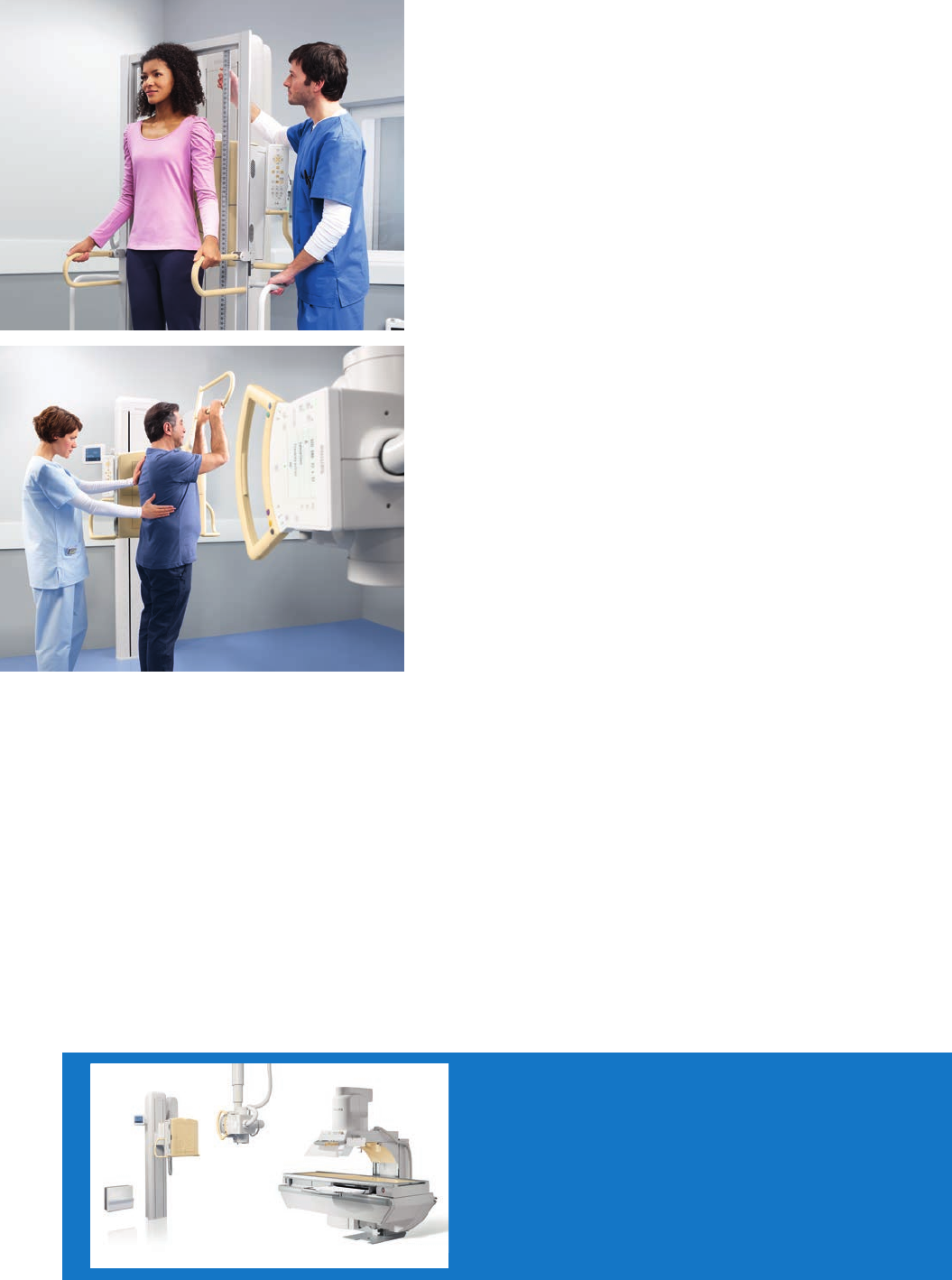

Excellence in swapping
Table and vertical stand have wireless trays to insert the wireless
portable detector and perform most standard radiography exams.
Outside the trays you can use it for free exposures and cross-table
laterals. Overall, you’ll benet from the top-tier features of Philips
premium direct radiography like the Eleva user interface and UNIQUE
image processing. UNIQUE harmonizes contrast and enhances image
details for the different anatomical areas.
Next gear
To upgrade your DRF value room you can add xed digital detectors.
When using the wireless portable detector for free exams you may
increase the comfort with optional accessories, for example detector
holders to reduce the physical involvement of staff.
The DRF value room covers classic uoroscopy and makes excellent use of the
wireless portable detector for direct radiography. Use it for free exams as well as for
table and vertical stand applications when the wireless portable detector is inserted
in the respective wireless tray.
Increase utilization with
the premium DRF room
On one hand, the DRF high performance room set-up contains full clinical coverage for all
classic uoroscopy applications. On the other hand, you have extended digital radiography
productivity with a xed digital detector in the vertical stand or in the table and a exible
wireless portable detector. The focus of this room may weigh towards digital radiography;
you may even use it as a back-up chest room.
11
“I believe that the digital room with the digital detectors has made
my life as an X-ray tech a lot easier. My workow has improved
tremendously because of the rapid images.”
Anja Ancarana, Pediatric Radiological Technologist, Duke Children’s Hospital and Health Center, North Carolina, USA
DRF high performance because …
You can perform a variety of uoroscopy applications such as leg
venography, intravenous pyelogram and MCU. For radiography you
can decide where to allocate the xed digital detector. Placed in
the vertical stand, it is benecial for chest or extremity exams.
The xed detector in the table makes sense if you need extended
coverage for table exams like abdomen applications. An additional
wireless detector enhances the projection exibility in your room.

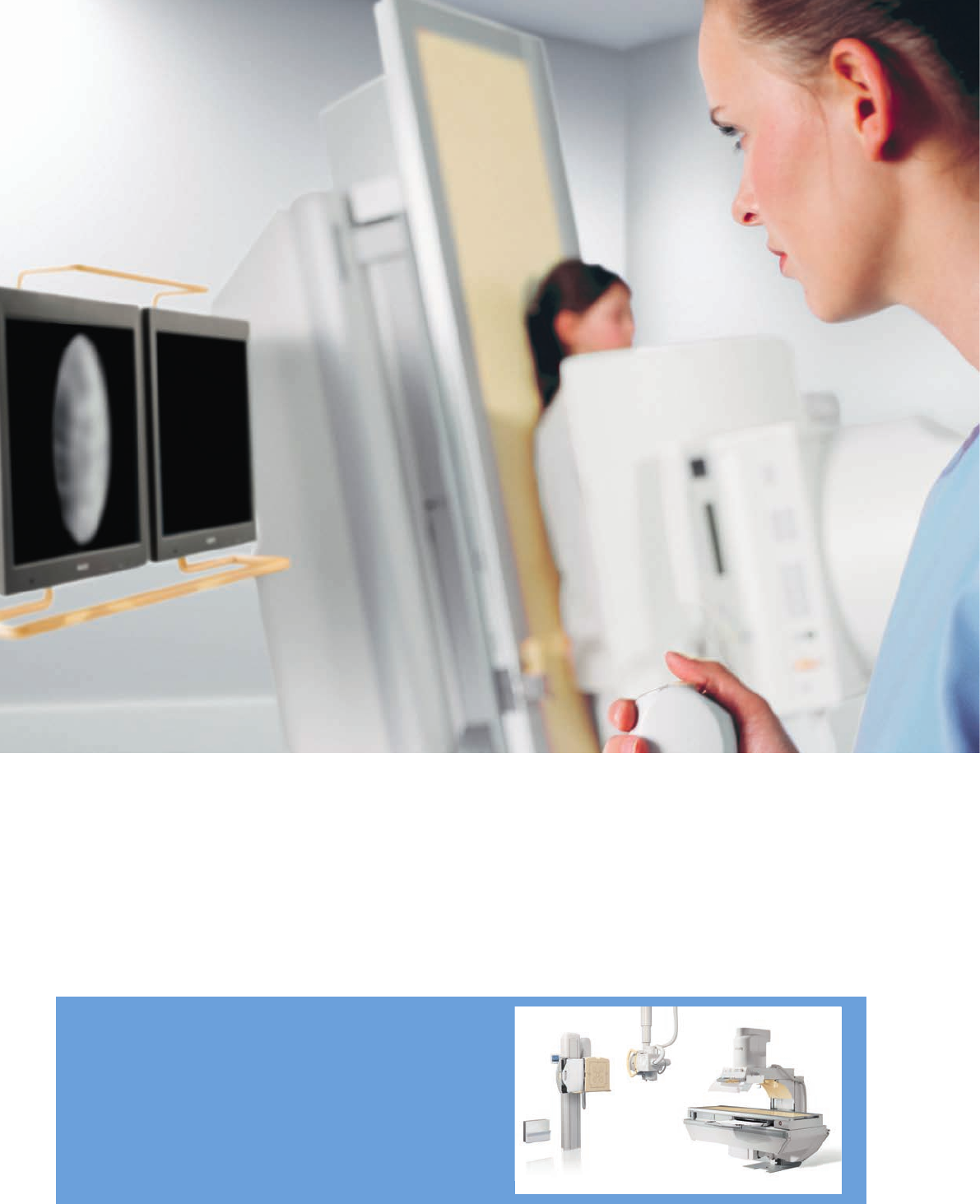

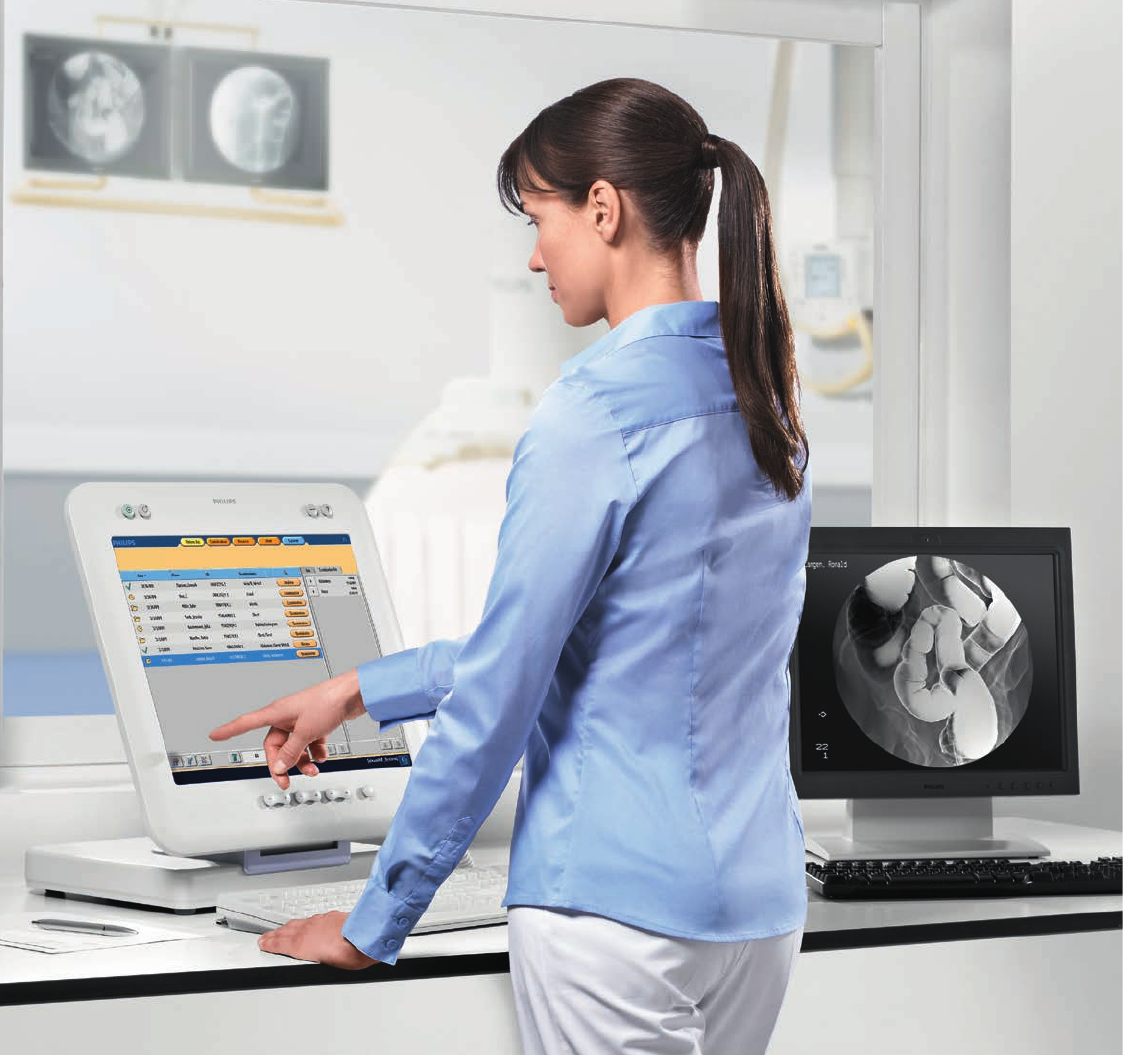

Excellence in workow
One of the major advances of Philips premium digital radiography
and uoroscopy solutions is the common Eleva user interface.
Eleva easily adjusts to accommodate different physical patient types,
a variety of exams and multiple operators. The touchscreen design
and intuitive layout provide a smooth workow with DR pre-images
available in seconds.
Next stitch
Utilizing an orthopedic patient support, the automatic image stitching
option facilitates dedicated orthopedic exams. Up to three images
are automatically acquired and composed together – a valuable tool
for orthopedic diagnoses. In terms of more general options, you can
add a second xed digital detector to enhance workow and coverage
even fur ther.
Your DRF high performance room benets
• Excellent room utilization with direct digital radiography
and uoroscopy
• More coverage and high patient turnover with one
17" x 17" digital detector
• One wireless portable detector for general radiography
and free exposures
12
Cover all dimensions with
the premium DRF room
DRF high performance bariatrics because …
Coverage and penetration are key issues for bariatric exams.
The two xed digital detectors in this room boast a 17" x 17"
(43 cm x 43 cm) plane which enables you, for example, to
adequately X-ray the abdomen or chest of bariatric patients.
Plus, you can achieve excellent uoroscopy image quality by
penetrating bariatric patients with Philips Grid Controlled
Fluoroscopy (GCF), our stand-out combination of in-pulse
control and grid switching.

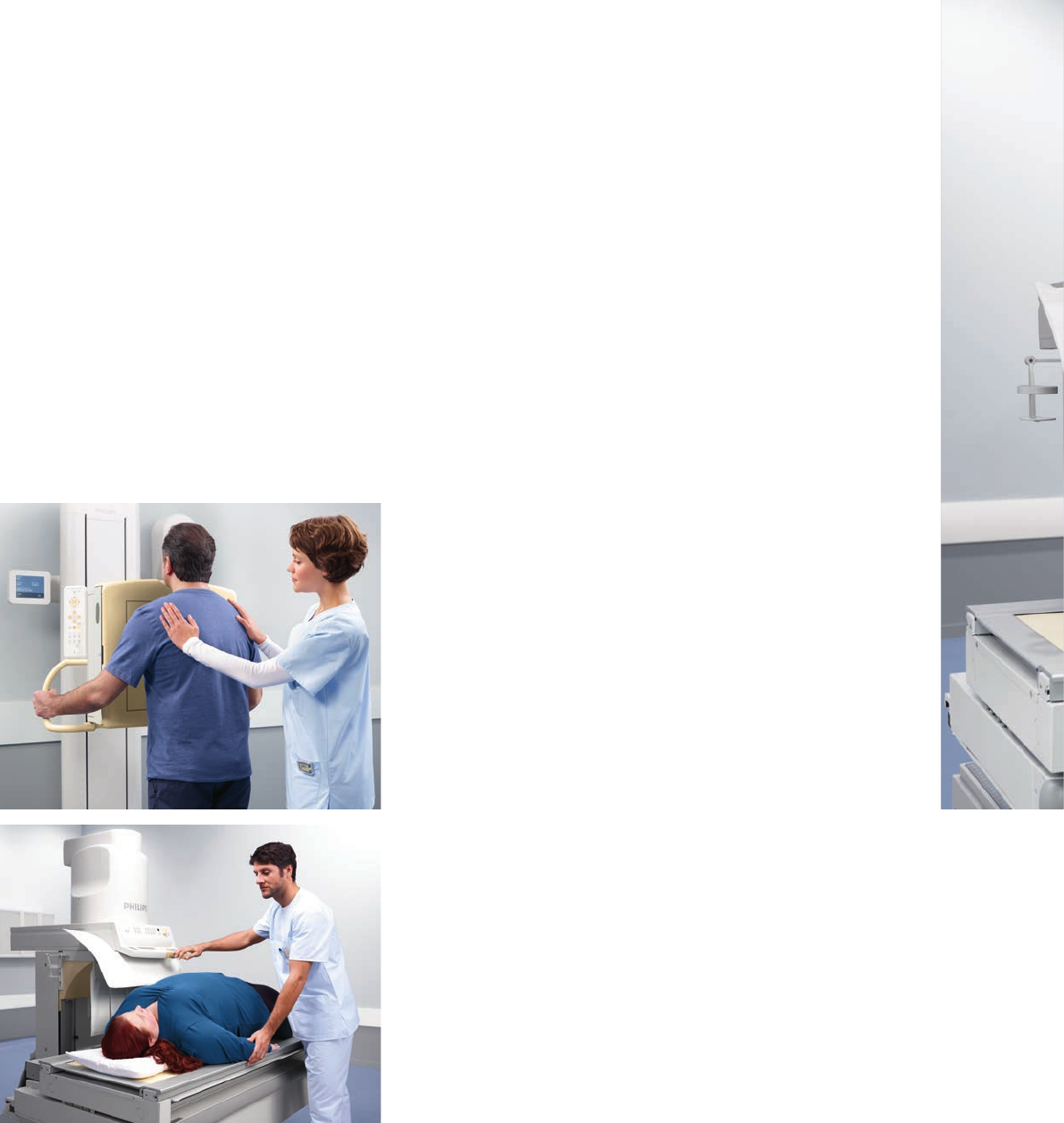

Excellence for high volume
The digital detectors in the vertical stand and in the table
also make this room set-up especially suited to high turnover
radiography and it can even be used as a back-up chest room.
Quality indicators include a resolution of up to 3.5 lp/mm
and a pixel size of 143 μm. Another benet, which makes
exams more comfortable, is the automatic tube and detector
tracking. Optional automatic image stitching is possible as
well.
Next generation
As a further option, add a wireless portable detector for
free radiographic exams and lateral table exams. If desired,
you can share this detector with other Philips DRF, DR or
mobile DR solutions to extend its utilization and create
more cost efciency.
Offering bariatric exams becomes increasingly relevant as the number of
obese people constantly rises – especially in North America and Europe.
The DRF high performance bariatrics room is aptly equipped to perform
digital radiographic procedures on all patient types. You can also carry out
uoroscopic exams on a diverse range of body sizes.
13
“I easily increased my room productivity by 65 %*. It was so intuitive to use,
the weekend technologists could operate it after only a short brieng. I have
never had 100 % of the technologists accept a system, except for this one.”
Marc Ferro, Operations Manager Imaging Service, West Palm Beach VA Medical Center, Florida, USA *Results may vary.
Your DRF high performance bariatrics room benets
• Offers exceptional utilization with xed digital detectors in the
table and the vertical stand
• Its 17" x 17" (43 cm x 43 cm) xed detector coverage is especially
suited to bariatric patients
• Grid Controlled Fluoroscopy (GCF) enables penetration of obese
patients with superb image quality
14
6-7
8-9
DRF value room
Lift your DRF rooms to
new levels of versatility
Philips premium DRF now offers even more efcient room utilization. You’ll have more
exibility with the wireless portable detector which you can also use in a tray for xed
exams. Go beyond one room and share the wireless portable detector with other
DRF rooms, DR rooms or mobile DR units. Combined with SkyFlow, the wireless
portable detector can be used for gridless bedside chest exposures, enhancing workow.
Plus, experience more comfort with the enhanced ceiling suspension.

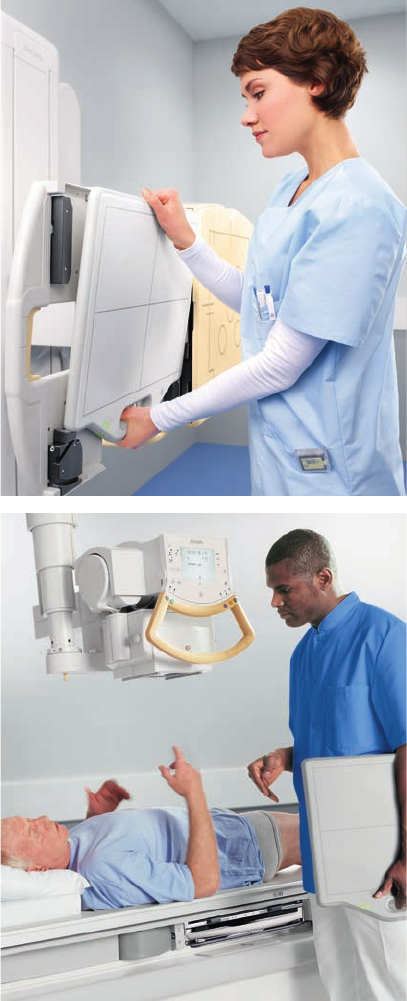

Flexible wireless portable detector
Whether used in the wireless tray or for free exams, each
wireless portable detector boasts premium Cesium Iodide
(CsI) detector technology for superb image quality with
excellent dose efciency and high detector quantum efciency
(DQE). Its robust design and smooth rounded edges promote
easy handling. As an option, you can cover accidental detector
damage and nancial risk by extending your Philips service
agreement. The additional SkyFlow option enhances workow
through gridless imaging for bed chest examinations.
Cost efcient detector sharing
By sharing the wireless portable detector you’ll achieve
more cost efciency and exibility at the same time. Share
it between the Philips EasyDiagnost Eleva DRF rooms,
the Philips DigitalDiagnost DR rooms, and the Philips
MobileDiagnost wDR digital mobile unit. You may also
use a shared detector as a back-up or upgrade your
existing solutions with more wireless portable detectors
later on.

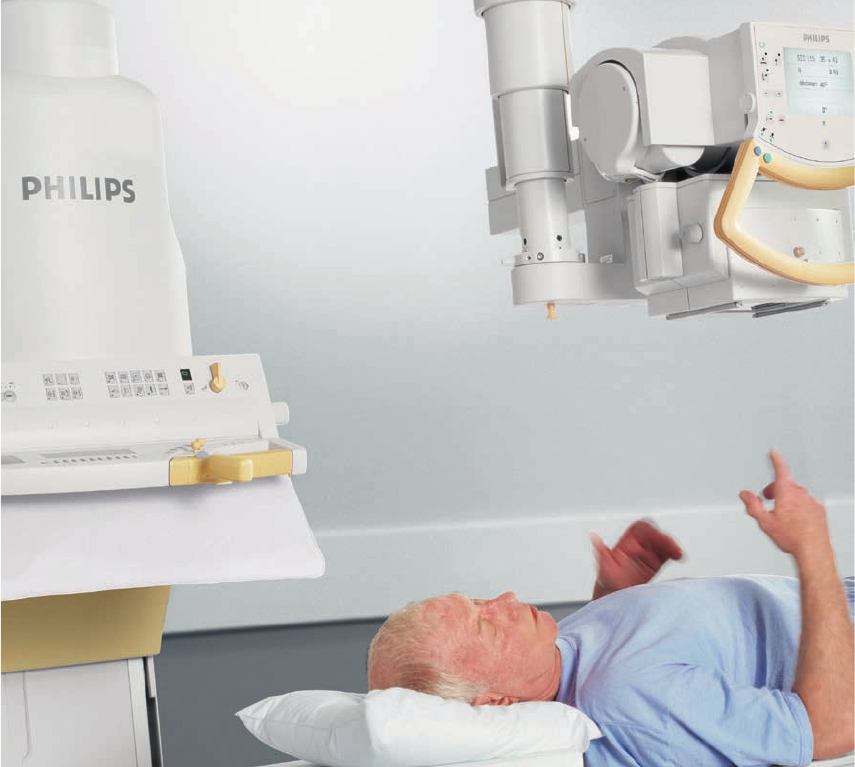

Comfortable ceiling suspension
The enhanced ceiling suspension makes exams easy for
technologists and patients. With its long vertical movement
range of 1.65 m (5’5.2”) you’ll execute lower leg exams
without additional tools like a chair or step stool. All functions
relevant to the exams are available, allowing you to work
close to the patient. The handle of the tube has a single
handed break release while the tube control features an
easy-to-read LCD screen.
Philips Healthcare is part of
Royal Philips Electronics
How to reach us
www.philips.com/healthcare
healthcare@philips.com
Asia
+49 7031 463 2254
Europe, Middle East, Africa
+49 7031 463 2254
Latin America
+55 11 2125 0744
North America
+1 425 487 7000
800 285 5585 (toll free, US only)
© 2016 Koninklijke Philips N.V.
All rights are reserved.
Philips Healthcare reserves the right to make changes in specications and/or to discontinue any product at any time without notice or
obligation and will not be liable for any consequences resulting from the use of this publication.
Printed in The Netherlands.
4522 991 20111 * JUN 2016
Please visit www.philips.com/uoroscopy

Navigation menu
