MR Systems

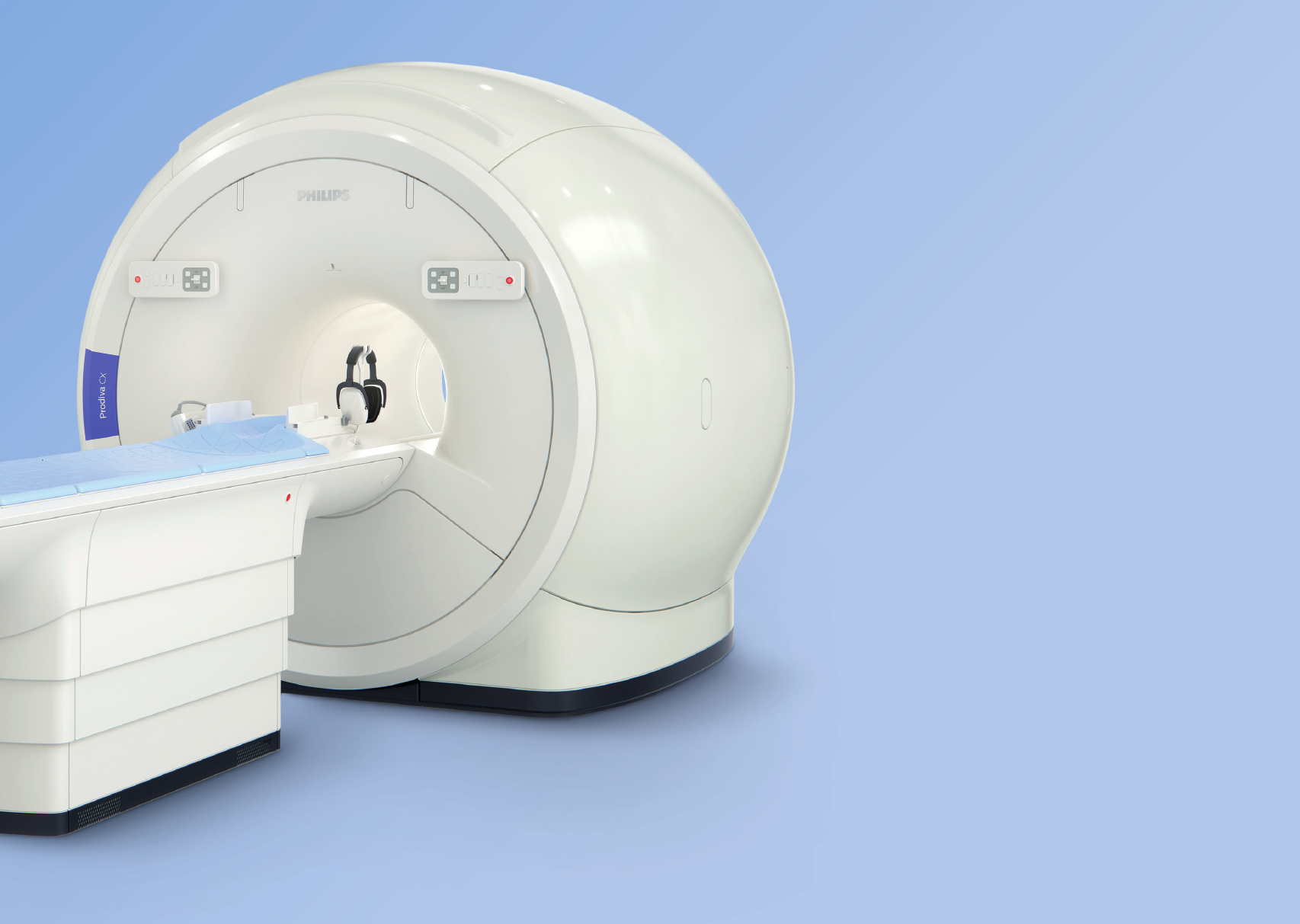

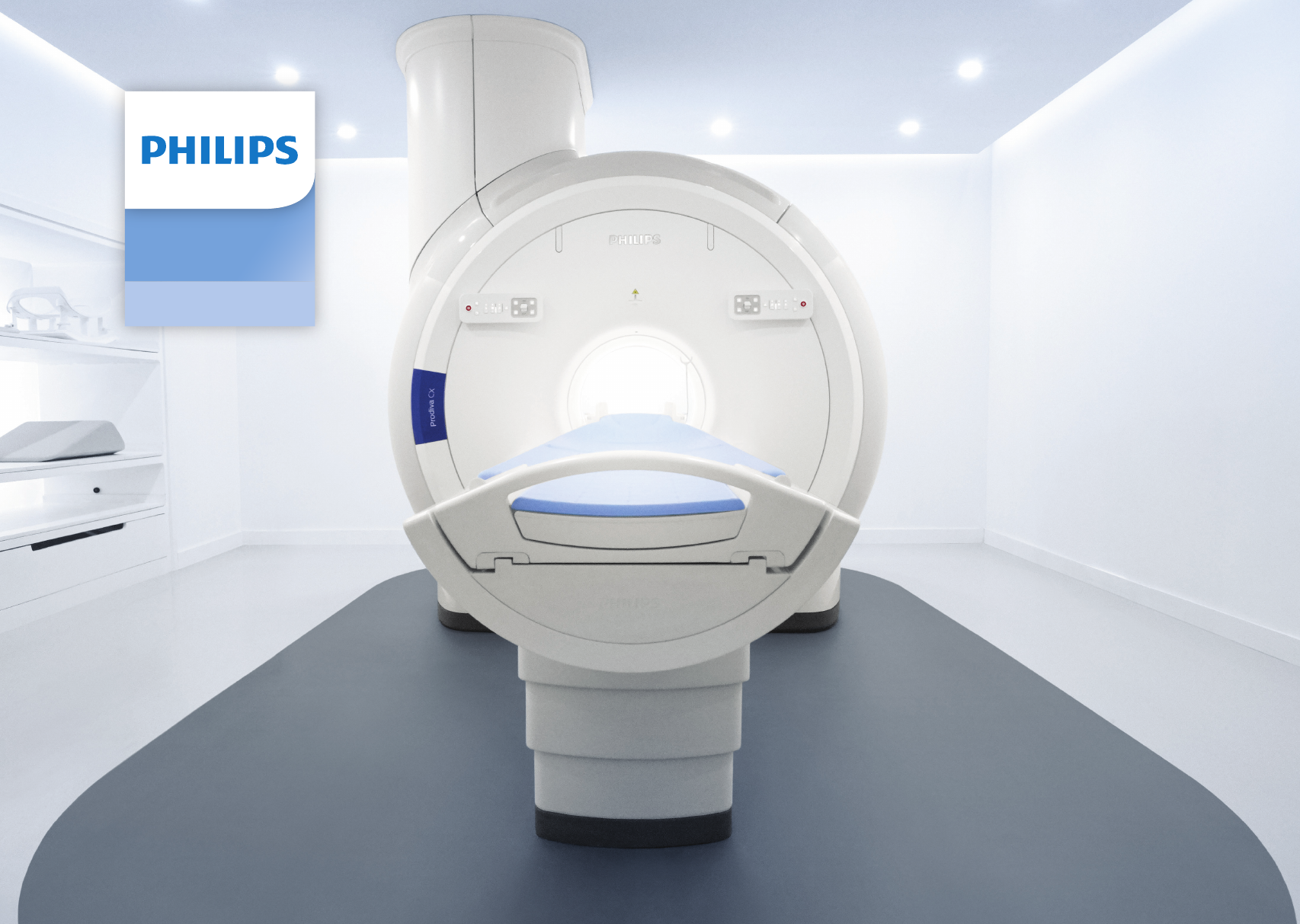

Prodiva 1.5T CX
Your possibilities.
Enhanced.
2
Philips Prodiva 1.5T CX
Support your clinical decisions by leveraging our imaging solutions built on
proven dStream digital broadband technology, present in over 2000 installations
worldwide. Accelerate patient throughput with a simplied Breeze Workow.
An intuitive user interface enhanced by highly guided and standardized
examination procedures helps you perform routine MRI exams from day one.
And with low installation and siting expenses, continuous uptime support
and easy upgrades, you can continue to enhance your possibilities.
Enhance
your clinical perfomance
with digital technology
Long scan times, movement artifacts,
fat suppression – all of these can aect
your clinical performance. Use our
exclusive dStream digital broadband
technology and our imaging solutions
to overcome these common issues you
face in MRI exams.
Enhance
your throughput
with simplied, highly guided workow
When your system is easy to use,
productivity soars. Our Breeze
Workow reduces the number of
positioning steps and simplies coil
handling to increase your patient
throughput from day one.
Prodiva 1.5T CX
2
3
Enhance
the value of your investment
with low total cost of ownership
The initial cost of your MR system is just
one aspect that contributes to a protable
investment. Our integral approach
to cost control, easy installation and
proactive support is designed to help you
control costs and get a greater return on
investments.
3
With Philips Prodiva 1.5T
CX you can enhance
your clinical possibilities
through our unique digital
technology and our
powerful imaging solutions
2 ComforTone will be available with Prodiva 1.5T
in Q4 of 2017.
Prodiva 1.5T CX
4
Get consistent and high quality imaging
with dStream digital broadband
dStream digital broadband technology and our
imaging solutions help you grow your MR practice
to new heights. Digitizing the signal in the coil
captures the MR signal in its most pure form,
increasing SNR to enhance the image quality
or reduce the exam time.
Quickly master routine imaging
It’s easy for every operator to quickly master
routine imaging with our smart automation and
Breeze Workow. The system automates many
standard tasks, such as table positioning and
coil selection, to streamline results for routine
imaging. Breeze Workow cuts positioning steps
by up to 34% 1 to speed up exams and so you can
potentially increase your patient volume.
Expand your clinical reach
Prodiva 1.5T CX delivers access to a wide range
of advanced applications for brain, body, MSK,
oncology and cardiac examinations. Now you
can attract new referrals and generate additional
revenue.
Robust techniques for routine high-quality
imaging
Prodiva 1.5T CX gives you access to imaging
techniques such as fat suppression, motion
correction and metal artifact reduction to
overcome some of the most common issues that
result in inconclusive exams and re-scans.
Quietly promote patient acceptance
ComforTone 2 is a unique noise reduction technology
available for a wide range of applications. By reducing
acoustic noise to near ambient, it will help promote
patient comfort and acceptance.
1 Based on an internal study comparing workow
with the Achieva MR system
Enhance
with digital technology
your clinical performance
5
6
Prodiva 1.5T CX
Spine
Neuro
C-Spine SAG T1w TSE
L-Spine TRA T1w TSE
Brain 3D ToF MIP
Posterior Triangle COR 3D STIRBrain TRA T2w TSE Brain TRA T1w IR Brain TRA T2w FLAIR Brain TRA SWIp MIP PC Venogram
Brain DWI b1000
C-Spine SAG T2w TSE
L-Spine TRA T2w TSE L-Spine SAG T1w TSE L-Spine SAG T2w mDIXON TSE
Body
Liver TRA T2w MultiVane TSE SPIR
Liver TRA mDIXON Quant
Liver TRA T2w Ssh TSE
Liver TRA mDIXON dyn
7
MSK
Cardiac
Shoulder COR PDw TSE
Wrist COR PDw TSE
Hips COR T2w TSE
Heart 2CH b-TFE Cine Heart SA T1w TSE BB Heart SA STIR BB Heart SA b-TFE Cine
Ankle SAG PDw TSE SPAIR Knee SAG PDw TSE Knee SAG PDw TSE SPAIR
Elbow COR T1w TSE Knee TRA T2w TSE
Body
Prostate T2, T1 & SPAIR
Liver TRA T2w MultiVane TSE
Uterus SAG T2w MultiVane TSE
Liver TRA T1w OP IP FFE
Enhance
with simplied, highly guided workow
your throughput
Prodiva 1.5T CX
8
Accelerate workow by reducing the number
of positioning steps

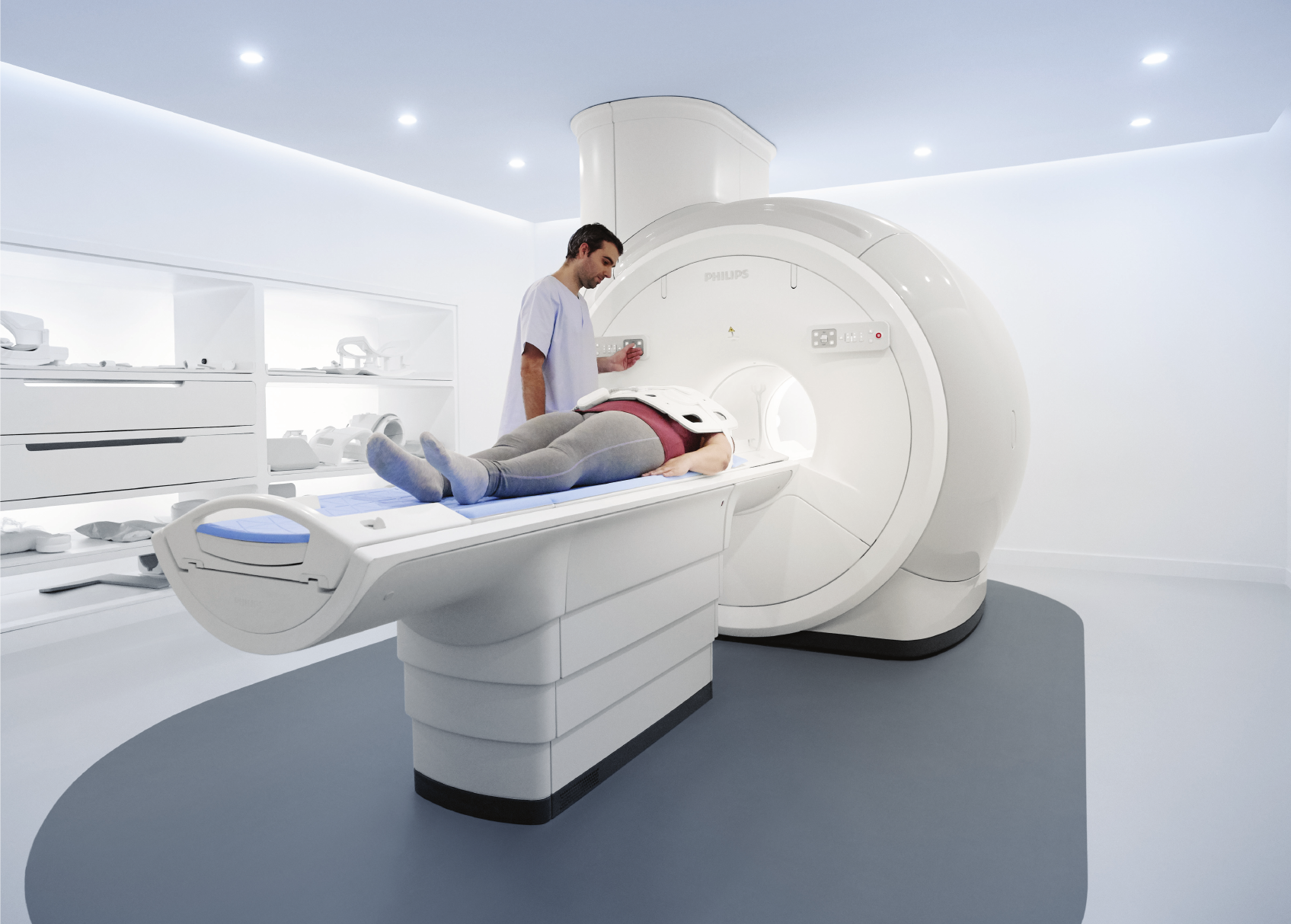

The Breeze Workow reduces the number of
positioning steps by up to 34% 1 and enables you to
accelerate your daily exam workow. Patient set-up
is intuitive and takes minimal coil handling thanks
to the Breeze Workow.
Patient handling and set up time faster by
up to 79% 2
Spend less time on patient handling and coil set
up with Breeze Workow. Short cables, small
connectors and compact electronics make coil set
up fast and easy.
Patient anatomies dier, our exible coils
adapt to their body shape
Breeze Anterior coils are thin and exible, and
they can be quickly and easily tted around each
patient’s body shape for fast, ecient, comfortable
scanning.
Breeze Workow includes
Prodiva 1.5T CX is designed to help increase
patient throughput right from day one using
simplied Breeze Workow and the highly
guided and standardized examinations.
Breeze connect
Mini connectors
Fewer bulky electronics
Integrated NVS in the table
Breeze coil handling
Ultra light anterior coils
Short cables
1 Based on internal study comparing workow with Achieva. 2 Based on an internal study comparing workow in a mix of brain,
spine, MSK and body applications with the Achieva MR system.
Ambient Experience: creating a positive
patient and sta experience
The unique Ambient Experience in-bore Connect
allows your patients a personalized environment.
From the moment a patient enter into the scanner,
through the completion of exam, In-bore Connect
helps patients to remain relaxed, follow directions
such as breath hold instructions and get active
feedback on scan progress.
9
10
Prodiva 1.5T CX
A smart way to standardize your examinations
Getting up to speed is fast and easy thanks
to our smart user interface. It provides simple,
standard guidance to help promote greater
eciency and reproducibility for procedures.
The SmartExam feature automates many of your
exams to streamline workow and enhance exam
consistency.
SmartStart moves the
table to isocenter
SmartSelect
automatically detects
and selects the coil and
coil elements which
maximize the SNR in
the selected area
SmartLine performs
intelligent background
processing of multiple
image datasets in
parallel with image
acquisition, e.g.
volume view, diusion,
perfusion, accelerating
exam time
SmartExam* lets you
position slices on the
target anatomy with
just a single mouse
click. It is optionally
available for brain,
spine, shoulder and
knee exams
SmartLink simplies
planning, viewing
and processing of
multi-sequence,
multi-station exams,
treating them as one
volume
*SmartExam will be
available with Prodiva 1.5T
in Q4 of 2017.
Enhance
with simplied, highly guided workow
your throughput
11
Enhance
the value of
your investment
with low total cost of ownership
Prodiva 1.5T CX
12
Enhance
the value of
your investment
with low total cost of ownership
Prodiva 1.5T CX is designed
to help you control costs
and maintain uptime to
generate a greater return
on investments.
13

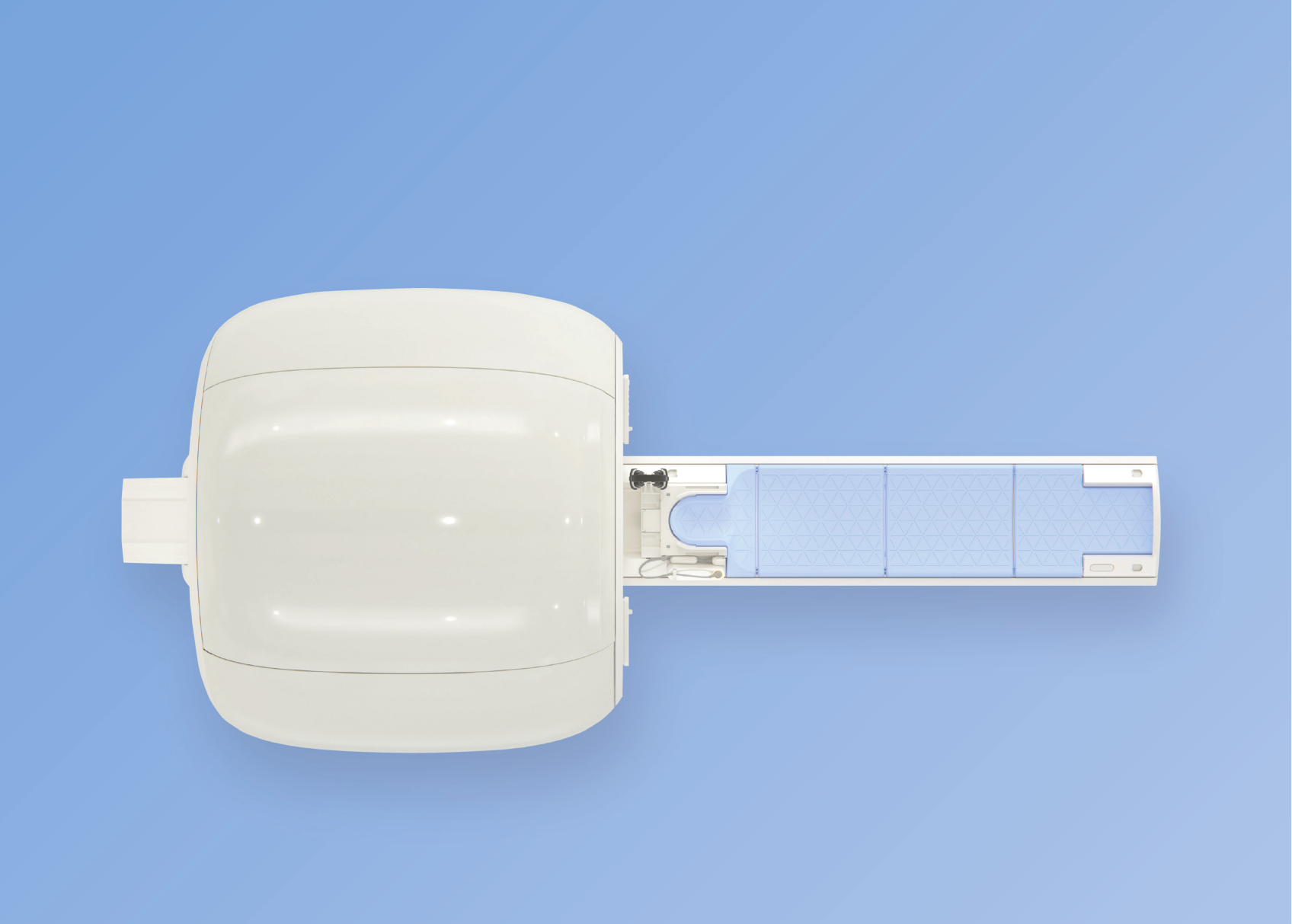

Reduce the need for costly remodelling
To allow your new MR to be sited in an existing
room, Prodiva 1.5T CX features a small fringe eld
on a lightweight magnet. This can reduce the need
to make costly renovations, such as removing walls,
raising ceilings or reinforcing oors.
Keep transport and installation costs low
Save time and money on transport and installation
with the unique compact design of this system.
It is made to easily move through standard hospital
corridors and doorways without widening them.
You can easily t it in rooms with standard ceilings
since it oers a low ceiling height upon installation.
Prodiva can be installed even
where many other MRI systems
cannot 1
Conserve precious helium
The HeliumSave zero-boil-o technology is
designed to eliminate Helium losses even in normal
operation 2 under regular scanning conditions.
Reduce energy costs
PowerSave technology combines ecient design
with smart power management to help keep
energy bills consistently low.
Maintain high uptime by resolving potential
system issues
Benet from improved uptime with the support
of Philips Customer Service. Our advanced remote
service infrastructure continuously monitors,
noties and resolves system issues before they
become critical to your daily routine 3.
MRI investment strategy aligned with
your budget
We oer dierent service agreements with Prodiva
matching your budget requirements and the
capabilities of your in-house service engineers.
1 Other MR refers to 60 cm 1.5T whole body MRI systems.
2 Normal operation is dened as typical scanning performed
with uninterrupted availability of electricity, magnet cooling and
excluding service actions.
3 Dependent on contract entitlement and local availability.

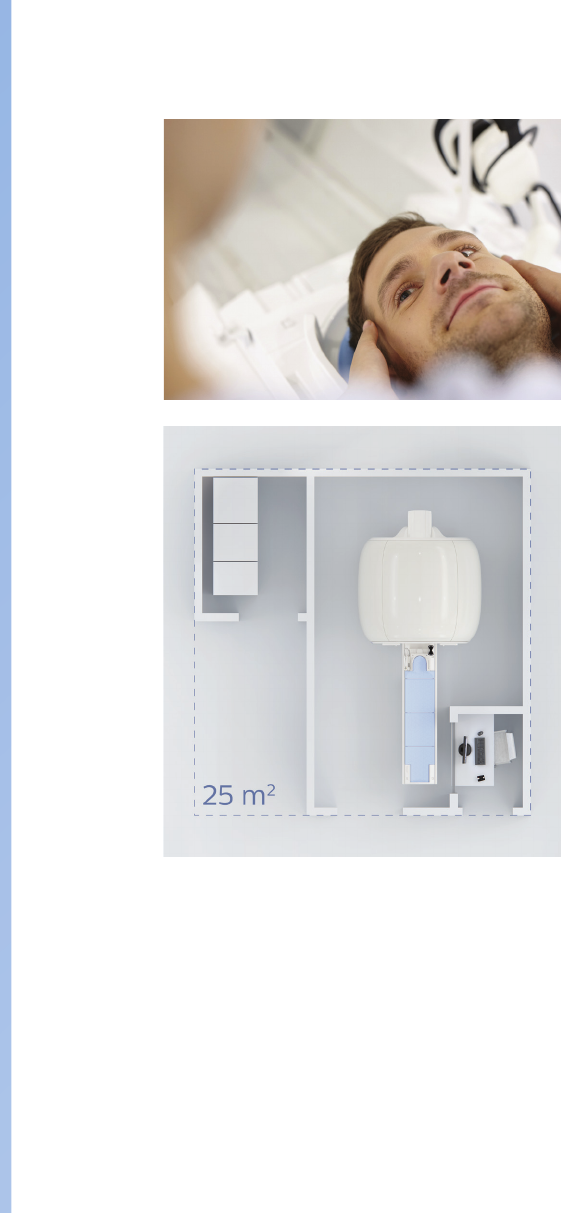

Console room in this illustration is outside of the 5 Gauss
line.
Minimum site layout is for illustration purposes only.
For detailed site planning please contact your Philips
representative.
From the very beginning, Philips has always had one thing at the heart of our company –
our mission to improve people’s lives through meaningful innovation. This mission inspires us
to work with you to nd the shortest path to the best care at the lowest cost. It drives us to create
technology that makes a dierence – to those who run our MR systems, those who read the
images, and those patients who benet from condent diagnosis.
Philips is dedicated to improving and saving lives through innovation.
In radiology, we develop our solutions in partnership with clinicians and customers. Your patients
can have better, more personalized care, while you make the best use of time and budget.
We partner with you to drive clinical performance, enhance patient and user experience, and
ensure economic value, within and beyond the walls of your enterprise.
14
Prodiva 1.5T CX
15
that matters to you
Innovation
This material is not for distribution in the USA.
4522 991 18831 * MAR 2017
