Philips Ingenia 1.5T CX
magnetic resonance system
Accelerate performance with
digital clarity and speed
452299103791.indd 1 09/07/14 14:57
| Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX2
452299103791.indd 2 09/07/14 14:57
Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX | 3
From the very beginning, Philips has always had one
thing at the heart of our company – our mission to
improve people’s lives through meaningful innovation.
This mission inspires us to work with you to nd the
shortest path to the best care at the lowest cost. It
drives us to create technology that makes a difference –
to those who run our MR systems, those who read
the images, and those patients who benet from
condent diagnoses.
Philips is dedicated to improving and saving lives through
innovation in radiology. We develop our solutions in
partnership with clinicians and customers. Your patients
can have better, more personalized care, while you
make the best use of time and budget. We partner with
you to drive clinical performance, enhance patient and
user experience, and ensure economic value, within and
beyond the walls of your enterprise.
Drive clinical performance
Our technical advances in image quality and anatomical intelligence are focused on clinical reality.
We innovate to make a difference in people’s health.
Enhance patient and user experience
We deliver patient comfort by reducing examination times and creating soothing environments.
We provide patient-centric imaging to support rst-time-right imaging results.
Ensure economic value
To help you maximize your MR investment, we design our systems to pay off quickly
and return dividends for a long time, through upgrade programs, extensive service offerings,
and low operating costs.
Innovation that
matters to you
Philips Ingenia 1.5T CX
452299103791.indd 3 09/07/14 14:57
| Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX4
452299103791.indd 4 09/07/14 14:57
MR challenges
The diversity of patients who need MR
studies continues to grow, as do the clinical
indications for MR imaging. Your MR system
must help you address the imaging needs of
patients from pediatrics to geriatrics, from
tiny, premature infants to obese patients.
You must be able to achieve diagnostic
quality for nearly every anatomy and disease
state. And you must do so ef ciently, to
minimize exam length and speed time to
treatment.
As focus shifts to value-driven healthcare,
you also must assess how to maximize
the impact of technology and practices to
achieve better quality outcomes per health
care cost.
The imperative: outstanding MR
Amid these changes, there is one constant
– your imperative to provide patients with
outstanding MR services. That’s why Philips
has designed Ingenia CX with features that
help you do more, in less time. With Ingenia
CX, you can complete exams quickly.
You can gain access to impactful imaging
techniques, developed in collaboration
with leading institutions and radiologists.
You can offer patients a comfortable
scanning experience. Most importantly,
you can reassure your patients that they
are being imaged with state-of-the-art
digital technology that opens the door to
personalized care.
Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX | 5
Designed to meet
your needs
dStream digital broadband MR
The established digital broadband MR
platform, dStream enables you to get more
information, more consistently in the same
time by delivering premium image quality
with digital clarity and speed. The high
purity signal increases SNR, expanding
your imaging options.
452299103791.indd 5 09/07/14 14:57
Drive clinical performance
Premium SNR with dStream
Ingenia CX is the only Philips 60 cm system to be equipped with
powerful, broadband dStream technology. dStream digitizes the
signal in the coil, eliminating noise infl uences typical of analog
pathways to capture the MR signal where it is at its purest. The
ber-optic connection from the coil to the image reconstructor
enables lossless broadband data transmission. This results in SNR
gains of 10-40%.
Premium speed with dS SENSE
When dStream coils are combined with SENSE to create dS SENSE, the
result is astounding. Suddenly, conventional parallel imaging – once the gold
standard for speed – seems leisurely in its pace. Because dS SENSE makes
nearly every exam faster, you can image with fewer or shorter breathholds,
drastically cut imaging time, drastically reduced artifacts – or even add more
slices if you need more information. dS SENSE also includes quick, fully
integrated reference scans that are planned automatically.
Premium fat-free with mDIXON
Inconsistent fat suppression can lead to inconclusive exams, second-
guessing, rescans and retakes. So Philips developed mDIXON, a fat
suppression innovation that is both consistent and fast. A Philips exclusive,
mDIXON provides improved fat suppression when compared to standard
spectral fat suppression techniques (e.g. SPIR). Furthermore, our mDIXON
TSE fat-free technology is 30% faster and up to 30% sharper (less blurring)
than any other DIXON TSE technique available in the industry.
Premium motion-free with MultiVane XD
Sometimes making innovation matter to you means expanding
its use. MultiVane, which has intrinsically reduced sensitivity to
motion, was originally developed for use in the brain. Now, it
eliminates motion artifacts in livers and knees as well, giving you an
elegant solution to the vexing problem of in-plane motion.
Premium IQ de ned as IQ obtained with dStream compared to Achieva, Premium speed as dS SENSE speed compared to SENSE, and Premium Fat-free as mDIXON-TSE
fat-free compared to standard 3-echo DIXON-TSE, Premium motiion-free as compared to standard motion corrections.
6| Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX
Digital clarity and speed
Ingenia CX helps you maximize diagnostic information, every time, within the available
time slot. Digital, broadband dStream technology combines with industry leading dS SENSE
acceleration and impactful imaging techniques like mDIXON and MultiVane XD to enable fast
imaging and superb motion and fat suppression in almost all procedures.
452299103791.indd 6 09/07/14 14:57
7Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX |
Key bene ts
Achieve new level of clinical
performance by solving the
common MR challenges of
speed, fat suppression, and
motion control.
452299103791.indd 7 09/07/14 14:57
Expanding applications, growing referral value
Advanced Imaging
Offering advanced diagnostic capabilities is good for
patients, who benet from access to the latest tools,
and good for your practice, as it gains a reputation
among referrers as the place to turn to solve diagnostic
challenges.
Our advanced imaging solutions deliver capabilities that
are ready for mainstream practice, providing information
that aids insight into:
• Cerebrovascular disease or traumatic brain injury
• Neurodegenerative and psychiatric diseases,
including dementia
• Cancer detection and characterization anywhere
in the body
• Monitoring and guiding of treatments
• Image guided interventions ranging from localized
biopsies to localized treatment
• Staging of lifestyle diseases such as fatty liver disease
• Post-infarct treatment analysis and risk assessment for
ischemic heart patients
mDIXON-Quant Fatty Liver Disease assessment
with MR, non-invasive, fast, robust and high quality.
Fat fraction and T2 Star map
8| Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX
Trends such as a growing prevalence of neurodegenerative disease, improved
personalization of treatment in oncology, and an increased level of ischemic and non-
ischemic heart disease open new opportunities for MR.
452299103791.indd 8 09/07/14 14:57
With our IntelliSpace Portal Philips brings
brilliant focus to your screen from any source
Work where you want, without compromise.
IntelliSpace Portal provides access to images
and processing from almost any PC – in the
department, in your of ce, and even in your
home. With advanced visualization and analytics
at your ngertips, you can review and diagnose
ef ciently and with con dence.
Leverage intelligence, integration, and
interpretation on every case
IntelliSpace Portal contains a powerful
combination of intelligence, integration, and
interpretation in a secure, real-time, and
collaborative platform, so you can access,
create, and disseminate actionable information
throughout the enterprise.
This multimodality advanced visualization and
analysis solution gives you measurement and
quanti cation capabilities to support diagnostic
objectiveness and consistency. It supports MR,
CT, molecular imaging, and ultrasound images,
so you can view all images that are relevant to a
diagnosis.
Clinical applications include:
• Calculating MR diffusion
• Assessing MR T1 perfusion
• Assessing MR neuro perfusion
• Calculating MR subtraction
• Calculating MR echo accumulation
• Full FOV MR images with MobiView
• Assessing cartilage quality
9Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX |
452299103791.indd 9 09/07/14 14:57
| Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX1010 | Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX
3D BrainView FLAIR, dS-SENSE factor 5, isotropic 1.1mm3 in 4:34 minutes.
Source slice sagittal and axial MPR
3D BrainView T1W TSE, dS-SENSE factor 5, isotropic 1.2mm3 in 4:55 minutes.
Source slice sagittal and axial MPR
Sagittal T2W TSE,
0.8x1.0x3.0mm in 3:36min
mFFE, 0.8x0.8x3.0mm
in 4:43 minutes
T1W TSE, 0.7x0.9x3.0mm
in 4:55 minutes
Axial DWI of the spinal cord
with b=600 in 3:30 minutes
OrthoViewer- combining data on IntelliSpace Portal,
anatomical data, segmentation and ber tracts
pCASL, non-contrast brain perfusion
3.5x3.5x6.0mm in 3:39 minutes
SWIp, high SNR Susceptibility Weighted
imaging 0.8x0.8x1.0mm in 5:08 minutes
MultiVaneXD, Premium motion compensation
with dS SENSE in 2:32 minutes
2 Station Total Spine, T1W TSE
1.8x2.2x4.0 mm in 5:50 minutes
Thoracic spine, sagittal T2W TSE in 3:14 minutes, axial 3D T2W TSE in 4:32 minutes
452299103791.indd 10 09/07/14 14:57
1111Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX |
Axial DWI of the spinal cord
◄
mDIXON T2W
TSE, fast and
robust fat-free
imaging, T2W fat
free and T2W
image in one
single scan of 4:25
minutes
►
3D T2W DRIVE,
high resolution
0.7mm3 in
6 minutes
◄
Distortion free
Diffusion imaging of
the inner
ear with DWI TSE
in 4:57 minutes
mDIXON T1W TSE post contrast, fast and robust fat-free
imaging, fat free T1W in 3:33 minutes
►
Medium SPIR fat
suppression, PDW
in 1:55 minutes
◄
Cartilage
assessment on
the IntelliSpace
Portal
mDIXON T1W TSE, fast and robust fat-free imaging, T1W fat free and T1W image in single scan of 3:54 minutes
►
Off-center fat
suppression,
T2W SPAIR in
3:47 minutes
◄
Axial PDW TSE
combining
dS Flex M and dS
Posterior coil
elements in
3:42 minutes
◄
Off-center imaging,
PDW TSE,
2mm slices in 3:30
minutes
MultiVaneXD, Premium motion compensation
452299103791.indd 11 09/07/14 14:57
12 | Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX

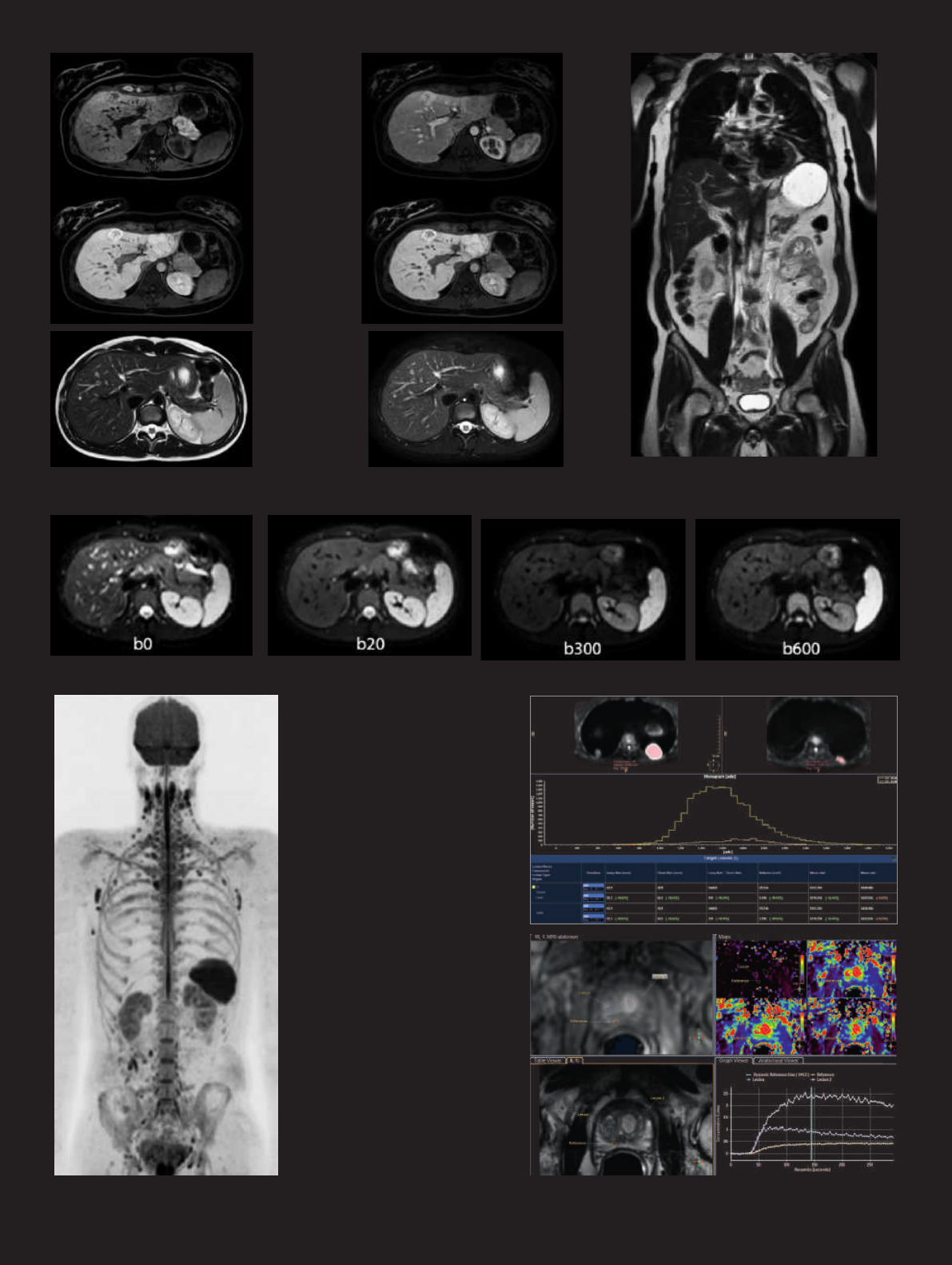

Diffusion imaging of the whole liver, 4 b-values in 3:09 minutes
◄
Oncology screening,
Head to thighs
DWIBS in 8 minutes
►
Multi-modality
Tumor Tracking,
monitoring tumor
response over time
on the IntelliSpace
Portal
►
Permeability analysis
on the IntelliSpace
Portal
MultiVaneXD, high
resolution motion
free imaging. Left:
free-breathing T2W
TSE in 1:30 minutes,
right: free-breathing
T2W SPAIR TSE
1:32 minutes
4-Phase dynamic
Liver imaging
with mDIXON
FFE, 17 second
breath hold
Two Station total Torso coverage with single dSTorso
coil, T2W TSE in 3:30 minutes
452299103791.indd 12 09/07/14 14:57
13Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX |
Cine and BlackBlood imaging with dS-SENSE, cine: 9 seconds, BlackBlood 12 seconds
Fast Total Body Imaging, T2W TSE in 5 minutes
►
MRA of the
Aorta with
CENTRA and
dS-SENSE in one
breath-hold
◄
Carotid MRA
with CENTRA
and dS-SENSE in
1:14 minutes
►
MR Cardiac on
IntelliSpace Portal,
easy and fast cardiac
function assessment
►
StarQuant, visual
assessment of
myocardial tissue
characteristics
with T2* and R2*
mapping
452299103791.indd 13 09/07/14 14:57
14 | Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX
Key bene ts
iPatient brings consistency
and ef ciency to MR imaging.
Enhance patient and
user experience
In control of patient comfort
Ingenia CX’s iPatient includes optional accessories
and hardware that are designed for speci c patient
types, to increase patient comfort. Digital coil design
greatly reduces coil weights and leads to less patient
repositioning in many exams, and many coils are
adjustable for a custom coil t.
iPatient enables imaging with fewer coils, and reduces
coil positioning and set-up time. An integrated posterior
coil is all you need for 60% of routine exams. When
In control of personalized patient-centric imaging
FlexConnect makes it possible to connect coils
single-handedly, and provides auto-eject for easy table
undocking when the exam is nished.
Ingenia CX features iPatient, an advanced platform that puts you in control of
personalized, patient-centric imaging. Encompassing everything from planning to coils to
processing, iPatient adapts to patient variability in behavior, condition and anatomy and
physiology to deliver a comfortable patient experience and exam ef ciency.
combined with the anterior coil, you can easily image
anatomies from above the shoulder to the toe. All coils
can be connected with just one hand.
We also offer pediatric accessories to make scanning
comfortable for your smallest patients, and a table that
can accommodate patients up to 250 kg (550 lbs) for
your larger patients. The ambient light ring on the magnet
façade and adjustable, in-bore lighting enhance scanning
comfort, as does the reduction of patient-perceived (in
bore) gradient acoustic noise by more than 80%.
452299103791.indd 14 09/07/14 14:58
Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX | 15
* optional
FlexTrak dockable patient
transport system*
Table with integrated
posterior coil
FlexCaddy coil
storage cart.*
Anterior coil frame* to support the anterior coil, avoiding direct contact Lightweight conforming coils for enhanced patient comfort and operator handling
Flexible, lightweight and easy-to-position FlexCoverage Anterior coil Philips Ambient technology* supports to put patients at ease
452299103791.indd 15 09/07/14 14:58
16 | Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX
Patient variability has a signicant effect on the
robustness of imaging techniques. Patient behavior,
condition, and anatomical and physiological variations
can disrupt an otherwise highly efcient MR
department. iPatient controls patient variability,
delivering patient-adaptive imaging and improving
throughput by up to 30%.
You can personalize imaging by selecting the ExamCard
that best matches the patient condition. You can create
your own ExamCards, or choose one shared by other
Philips MR customers.
In addition to driving clinical performance, mDIXON
and MultiVaneXD also help you personalize imaging
for certain patient conditions. mDIXON enables
fat-free imaging of obese patients, and MultiVaneXD
helps you achieve high quality images even for
patients who can’t stay still or hold their breath.
Additional techniques for personalized imaging are
metal artifact reduction sequences (MARS), whose
low sensitivity to metal artifacts can help you image
patients with metal prostheses or implants, and time
-efficient 3D imaging, which allows reconstruction in
any direction so that imaging outcome is independent
of patient/anatomy variability.
In control of personalized imaging
452299103791.indd 16 09/07/14 14:58
17Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX |
In control of image quality
Imaging workow eliminates repetitive tasks
iPatient eliminates up to 50% of repetitive tasks. At the touch of a button,
the table moves to the isocenter and the system starts the exam. The
SmartSelect feature automatically determines which coils and elements
should be activated to produce the highest SNR for the selected eld-of-
view. Then, the SmartExam feature positions slices on the target anatomy,
reducing operator input to as little as a single mouse click.*
While images are being acquired, iPatient saves time by performing
intelligent background processing (such as volume view, diffusion,
perfusion etc.) of multiple image datasets. In addition, it simplies
the planning, viewing and processing of multi-sequence, multi-station
exams, treating multi-station exams as one volume.
By automating repetitive tasks and incorporating best practices into
ExamCards, iPatient enhances exam consistency. In fact, Smart Exam
automation assists in delivering reproducible planning results in more
than 70% of procedures.*
*SmartExam is optionally available for brain, spine, shoulder,
knee and breast imaging.
452299103791.indd 17 09/07/14 14:58
18 | Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX
Ensure economic value
Expandability and channel independence
With Ingenia CX, you never have to worry about
upgrading your RF receive channels to keep up with
advances in coil technology. Because digitization occurs
in the RF coil, the channels available are determined by
the coils, rather than the system. This enables plug-
and-play expansion of clinical capabilities without major
hardware upgrades, resulting in lower lifecycle costs and
improved economic value.
PowerSave
PowerSave technology adapts gradient energy
consumption to the system status to reduce
power consumption, saving money and sparing the
environment. PowerSave is one result of Philips’
continuous drive to improve the sustainability of
its products. Additionally, Ingenia CX’s 60 cm bore
decreases energy consumption by up to 10% when
compared to wide bore.
Utilization services
Philips Utilization Services provides you with actionable
insights into your department’s operations and
workfl ow. Rapid workfl ow improvement consultancy
projects based on insights from Philips Utilization
Services have shown stunning results, with productivity
increases of 10% or more, drastically reducing waiting
lists and improving patient services and staff satisfaction.
First-rate care
Our global network of skilled personnel and worldwide
spare parts availability helps maintain high uptime that
supports you in delivering reliable imaging services
to your patients. Recent independent reports ranked
Philips MR as best-in-class in medical equipment and
infrastructure in composite user satisfaction ratings.
The most cost-effective dStream system available, the Ingenia CX comes with Philips
services and offerings that enhance the value of your MR system.
Manage your
investment
Philips SmartPath is our long-
term promise to give you easy
access to the latest innovations
throughout the life cycle of your
imaging system.
• Optimize: software and hardware updates to help
increase your system performance.
• Enhance: new functionality, clinical innovations and
workfl ow ef ciencies to expand your capabilities.
• Transform: conversion or full replacement of existing
systems to next-generation solutions helps you maintain
your competitive edge and high quality of patient care.
452299103791.indd 18 09/07/14 14:58
Accelerate performance with digital clarity and speed | Philips Ingenia 1.5T CX | 19
Key bene ts
The Ingenia CX gives you all
the advantages of dStream and
iPatient at an attractive price,
plus access to Philips education
and skilled service personnel.
452299103791.indd 19 09/07/14 14:58
© 2014 Koninklijke Philips N.V. All rights reserved.
Philips Healthcare reserves the right to make changes in speci cations and/or to discontinue any product at any time
without notice or obligation and will not be liable for any consequences resulting from the use of this publication.
Printed in The Netherlands
4522 991 03791 * JUL 2014
Philips Healthcare is part of Royal Philips
How to reach us:
www.philips.com/healthcare
healthcare@philips.com
Product information:
www.philips.com/ingeniacx
This material is not for distribution in the USA
452299103791.indd 20 09/07/14 14:58
