See further.
Go beyond.

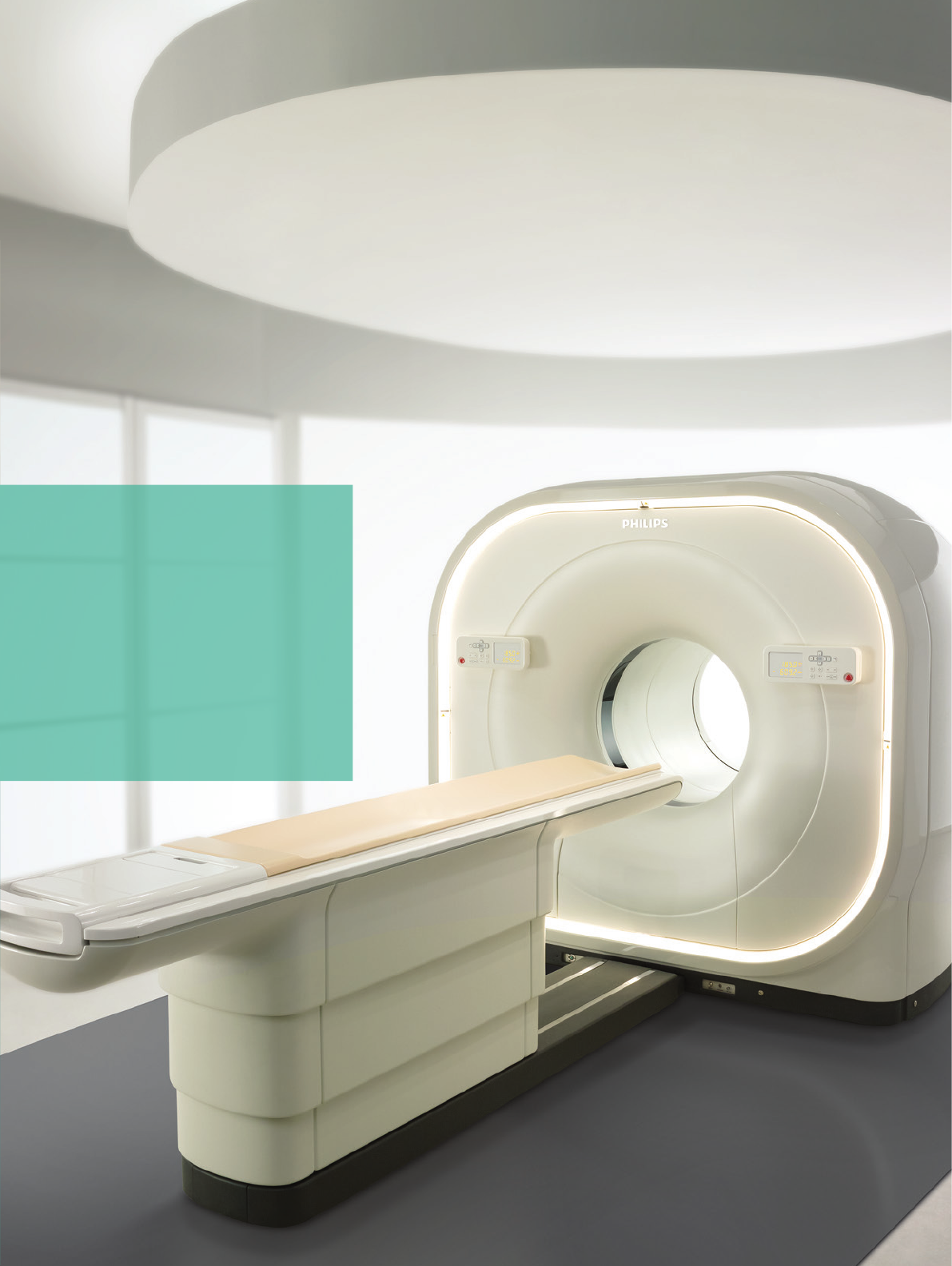

Vereos PET/CT
Advanced Molecular
Imaging
2
Analog PET scan* Digital PET scan
Digital PET sensitivity gain up to ~2x greater than analog.
2
See what you’ve been
missing with the world’s
only digital PET/CT
The Vereos PET/CT takes a leap forward by giving you
improved contrast and superb SUV quantitation. It positions
you to go beyond the current limitations in PET/CT imaging
and improve patient care.
* GEMINI TF 16
Sample images acquired in a clinical study of the Vereos PET/CT system at University Hospitals Cleveland. Investigational device limited by law
to investigational use.
Analog PET scan* Digital PET scan
Digital PET volumetric resolution
up to ~ 2x greater than analog.*
3
Digital Photon
Counting
At the core of the Vereos revolution
is our proprietary Digital Photon
Counting (DPC) technology.
Compared to analog*, our DPC
technology improves performance
in three key parameters:
≈ 2x volumetric resolution
≈ 2x sensitivity gain
≈ 2x quantitative accuracy
See more with
a faster Time-of-Flight
Seeing further requires faster Time-of-Flight (TOF) performance. Vereos PET/CT
has it, providing you greater sensitivity gain than analog systems.* This data,
which is a result of the improved sensitivity gain, enables you to achieve
improved image quality. Our faster TOF performance can also help you manage
examination time, giving you quick exams and fast results.
* GEMINI TF 16
Sample images acquired in a clinical study of the Vereos PET/CT system at University Hospitals Cleveland. Investigational device limited by law
to investigational use.
4
See your clinical role expand
Philips supports your clinical excellence and your role as a partner
with other clinicians in improving patient care. Vereos PET/CT can
help you take your diagnostic confidence to the next level.
Digital PET
Accurate quantitation using Vereos
PET/CT can enhance your position
as a preferred site for clinical referrals
by offering:
• Enhanced collaboration
• Enhanced treatment planning
• Increased diagnostic confidence
Vereos PET/CT can also help you
improve workflow efficiency and
patient management through:
• Fast workflows
• Fast scans using shortest bore
in the industry
• High image quality at low dose
(with iDose4 Premium Package)
* Preliminary performance data subject to change.
Sample images acquired in a clinical study of the Vereos PET/CT system at University Hospitals Cleveland. Investigational device limited
by law to investigational use.
Vereos* specifications
Number of detectors 23,040
System spatial resolution 4.1 mm
Eective system sensitivity 22.0 kcps/MBq
Eective system sensitivity/cm >1,304 cps/MBq
Eective peak NECR 650 kcps @ 50 kBq/mL
Maximum trues >675 kcps
System timing resolution 325 ps
Quantitative accuracy +/- 5%
Philips exclusive Digital Photon
Counting (DPC) technology
Our revolutionary
digital breakthrough
in PET imaging
DPC converts scintillation
light directly to a digital signal,
with zero analog noise.
DPC reduces the traditional tradeoffs
between sensitivity gains and
resolution gains.
DPC compared to analog* enables:
• Faster TOF
• Faster timing resolution
• Faster post-processing
and image fusion
• Faster throughput
and workflow
* GEMINI TF 16
Resolution gains
Our DPC technology is the only
true digital detection technology
available in the industry. The system
uses 1:1 coupling of scintillators to
digital detectors. That means spatial,
timing, and energy resolution is
improved throughout the entire multi-
dimensional field of view, for improved
volumetric resolution.
≈ 2x volumetric resolution
Sensitivity gains
Our DPC technology converts light
directly to a digital signal. Because
there is virtually no noise introduced in
this conversion, the system improves
the signal-to-noise ratio which enables
improved sensitivity. Coupled with
fast timing resolution, image contrast
improves leading to potentially
enhanced lesion detectability.
≈ 2x sensitivity gain
Quantitative gains
Our DPC technology provides a linear
count rate performance, which makes
the peak count rate higher. An increased
rate plus fast timing resolution capabilities
gives an improvement in quantitative
accuracy. The imaging chain maintains
digital data integrity through the
entire imaging chain. Add to that our
reconstruction, and you get outstanding
images with fast post-processing.
≈ 2x quantitative accuracy
5
Analog* Digital 1.1 coupling
Scintillation
photon
Analog
PMT
DPC
tile
Crystal
array
6
O-MAR improves visualization in the presence of large metal orthopedic implants. Superb diagnostic CT detail,
fast scanning, low radiation dose.
Patient-centric
workflow
iPatient ExamCards provide easy
PET/CT acquisition setup. Customized
ExamCards may be created to suit
your preference.
Without O-MAR With O-MAR
See how your patients benefit
• iPatient: iPatient offers personalized patient-centric
workflow built for iterative reconstruction techniques
and high image quality at low dose levels to drive
confidence and consistency 24/7.
• iDose4 Premium Package: iDose4 improves image
quality* through artifact prevention and increased spatial
resolution at low dose. O-MAR reduces artifacts caused
by large orthopedic implants. Together they produce
high image quality with reduced artifacts.
• Fast scanning: Patients spend less time in scanner.
• Short bore length: Less time in bore may enhance
patient comfort.
• Gentle lighting: An improved industrial design contributes
to your patients’ peace of mind.
Your patients can benefit from the revolutionary Vereos PET/CT system.
6
* Improved image quality is defined by
improvements in spatial resolution and/or noise
reduction as measured in phantom studies.
Go beyond
in your practice
Expand your leadership as far as your vision takes
you in molecular imaging and personalized medicine.
Vereos PET/CT positions
you to expand your
PET imaging capabilities
beyond FDG in areas
such as:
• Shorter half-life tracers
• Neurodegenerative disorders
• Targeted radiotherapy
• Personalized molecular medicine
7
©2016 Koninklijke Philips N.V. All rights are reserved.
Philips reserves the right to make changes in
specifications and/or to discontinue any product at
any time without notice or obligation and will not be
liable for any consequences resulting from the use
of this publication. Trademarks are the property of
Koninklijke Philips N.V. or their respective owners.
www.philips.com/VereosPETCT
Printed in the Netherlands.
4522 991 18491 * MAY 2016
The images and descriptions contained herein provide technical specifications and optional features which may not be included with the standard
system configuration. Contact your local Philips Representative for complete specific system details.
Some or all of the products, features, and accessories shown or described herein may not be available in your market.
Please contact your local Philips Representative for availability.
