Philips HDRW720/00 DVD Recorder/Hard Disk With FlexTime And I.LINK Digital Input User Manual Leaflet Hdrw720 00 Pss
User Manual: Philips HDRW720/00 Leaflet DVD Recorder/Hard Disk HDRW720/00 | PhilipsHDRW720/00
Open the PDF directly: View PDF
.
Page Count: 3
Philips
DVD Recorder/Hard Disk
with FlexTime and i.LINK
digital input

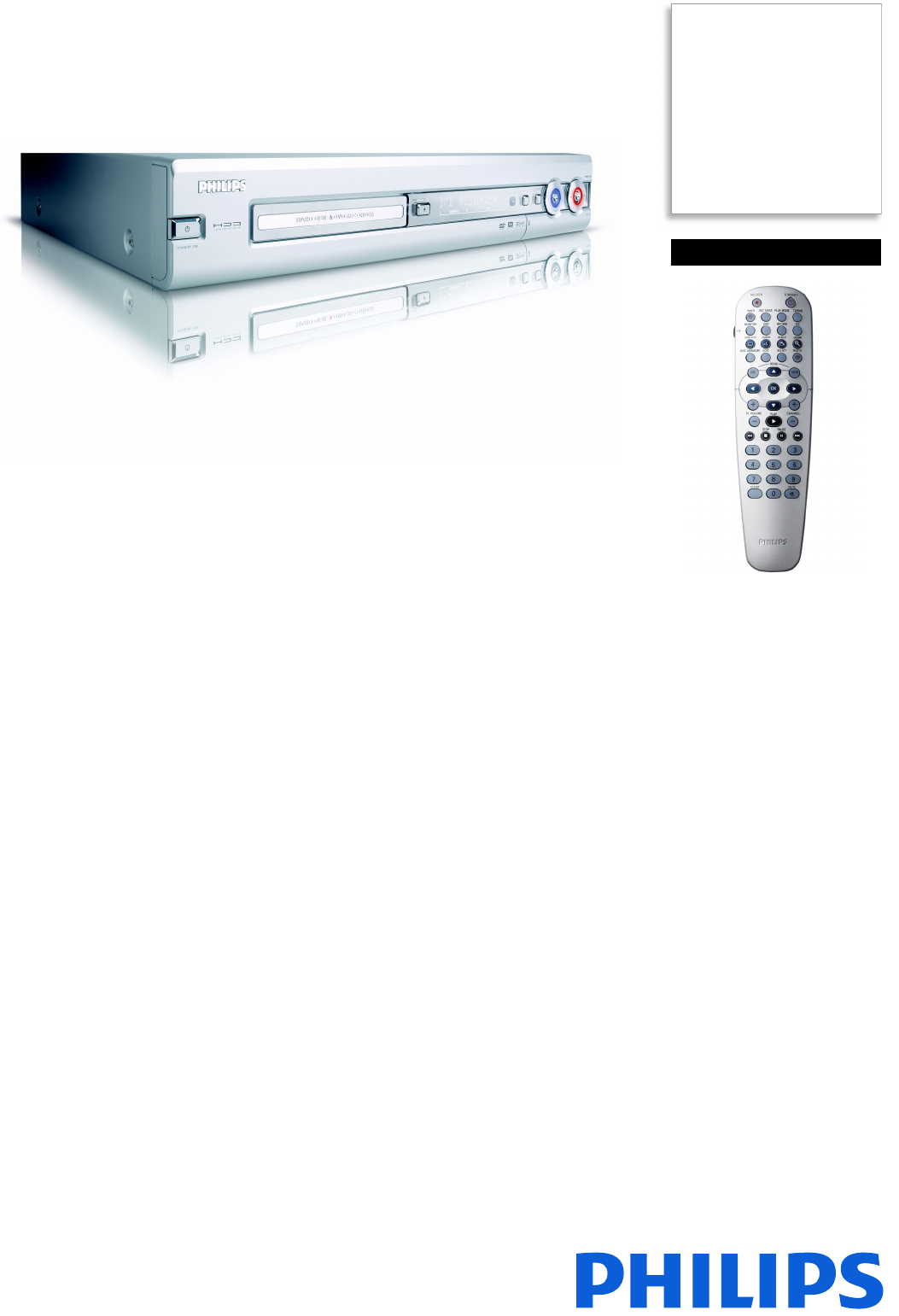

HDRW720
DVD Recorder/Hard Disk
Record today on Hard Disk and preserve for life
Record anything without having to worry ever again where to store it. Keep what you like
in lasting digital quality on DVD
The perfect recording solution
• Record up to 130 hours of TV on the 80GB hard disk
• High-speed archiving from HDD to DVD at up to 20x speed
• One Touch Pause Live TV freezes the action instantly
• Instant Replay for reliving a live TV moment with one touch
• FlexTime to watch the beginning while you record the end
TV Recording made simple!
• Guide Plus+ electronic on-screen TV guide
• Infrared control for recording from set-top box
Preserve your favorite memories on DVD
• Smart chaptering adds scene-based chapter markers via i.LINK
• i.LINK digital input for perfect digital camcorder copies
Share your favorite recordings
• Your DVDs will play on existing DVD players and drives
• Always compatible recordings: with DVD+R/RW discs
HDRW720/00
Highlights
DVD Recorder/Hard Disk with FlexTime and i.LINK digital input
80 GB hard disk
Record up to 130 hours of TV on the 80GB
hard disk
High-Speed archiving:20x speed
High speed archiving lets you make a copy of a
recording from Hard Disk to DVD in a fraction
of the original recording time. Once the
program is stored on HDD you can copy it to
DVD+R/RW at maximum speed.
One Touch Pause Live TV
Pause Live TV puts you in absolute control.
Once the recorder is turned on, a large built-
in memory automatically starts recording the
program you are watching -- allowing you to
pause, replay or save the program, anytime. If
you need to take a break, you can pause your
'live' TV program with just one touch of a
button, and resume watching when it suits you.
Instant Replay
With Instant Replay, you can relive magic
movie moments and super sports scenes -
anytime you want. At the touch of a button,
the hard disk will replay the last 30 seconds.
Skipping backwards further requires nothing
more than pressing the button again.
FlexTime
With FlexTime you can watch a program while
it’s still being recorded, thanks to the extreme
speed of a Hard Disk. You can also watch a
different program from the Hard Disk while
it’s recording something else.
Guide Plus+ on-screen TV guide
GUIDE Plus+ is an Electronic Program Guide –
a free on-screen TV Guide that shows what’s
on TV for the next couple of days and lets you
program the timer of the DVD Recorder with
the push of a button.
Set-top box infrared control
The Sat Mouse is a special accessory that lets a
DVD Recorder control external satellite
receivers. It sends infra-red remote control
commands in order to switch the satellite
receiver on and select the correct channel.
Smart chaptering
Smart chaptering detects scene cuts (time/date
changes) in the DV original to ensure the
chapters in the DVD copy are lined up exactly.
i.LINK digital input
Also known as IEEE 1394 and FireWire, i.Link
carries all audio and video signals via a single
cable digitally, with no loss in picture and sound
quality. With i.Link digital video input, you can
copy your home videos in their original digital
picture quality.
Two-Way Compatibility
DVD Recorders can play regular DVD-Video
discs, but equally important is that DVD+R and
DVD+RW discs recorded on them can be
played on existing DVD-Video players.
Always compatible recordings
Always compatible recordings: with DVD+R/
RW discs
Issue date 2014-02-06
Version: 7.0.8
12 NC: 8622 810 11654
EAN: 87 10895 80024 2
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
HDRW720/00
Specifications
DVD Recorder/Hard Disk with FlexTime and i.LINK digital input
Picture/Display
• A/D converter: 9 bit, 27 MHz
• D/A converter: 10 bit, 54 MHz
• Color cabinet: precission silver
Sound
• A/D converter: 24 bit, 96 kHz
• Crosstalk (1kHz): 105 dB
• D/A converter: 24 bit, 96 kHz
• Dynamic Range (1kHz): 90 dB
• Signal/noise ratio: 105
Video Playback
• Compression formats: MPEG1, MPEG2
• Playback Media: CD, CD-R, CD-RW, DVD,
DVD+RW, DVD+R, DVD-RW (Video mode),
DVD-R, DVD-Video, MP3-CD, SVCD, Video CD
• Disc Playback Modes: A-B Repeat, Chapter repeat,
Disc Menu, Fast Backward, Fast Forward,
Framestep Forward, Pause, PBC, Resume Playback
from Stop, Search forward/reverse, Shuffle Play,
Slow Motion, Title Repeat, Zoom
•DVD Region.: 2
• Video disc playback system: NTSC, PAL
Video Recording
• Audio compression: Dolby Digital
• Compression formats: MPEG2
• Max recording time on DVD: 8 hr
• Recording enhancements: Chapter Marker
Insertion, Divide, Erase, Manual Chapter Marking,
One Touch Record (OTR), Program Name
Recording, Safe Record, Selectable Index Pictures,
Station ID Recording
• Recording Modes: M1: 60 minutes, M2: 120
minutes, M2x: 150 minutes, M3: 180 minutes, M4:
240 minutes, M6: 360 minutes, M8: 480 minutes
• Recording system: NTSC, PAL
Audio Playback
• CD Playback Enhancements: Introscan, Next/
Previous Track, Repeat, Shuffle
• Compression format: Dolby Digital, DTS, MP3,
MPEG2 Multichannel, PCM
• Playback Media: CD, CD-R, CD-RW, MP3-CD
• Disc Playback Modes: Fast Forward/Backward,
Next/Previous Album Search, Next/Previous
Track Search
• File systems supported: ISO-9660
• ID3-tag support
• Loader Type: Motorised, Tray
•MP3 sample rates: 32, 44.1, 48 kHz
Storage Media
• Extra Hard Disk Technology: Pause Live TV,
Simultaneous Record & Playback
• Hard Disk Capacity: 80 GB
• HDD recording enhancements: Instant Jump,
Instant Replay, Time Shift Buffer, Time Status Bar
• HDD to DVD copying: high-speed (direct copy)
• HDD video recording capacity: 128 hr
• Recording media: DVD+R, DVD+RW
• Recording speed: upto 20x on DVD+R/+RW
Tuner/Reception/Transmission
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL, SECAM
• Video Playback: NTSC, PAL, SECAM
Connectivity
• Ext 1 Scart: CVBS in/out, Audio in/out, RGB out, S-
video out
• Ext 2 Scart: CVBS in/out, Audio in/out, S-video in,
RGB in, Decoder
• Front / Side connections: Audio L/R in, i.LINK DV
in (IEEE1394, 4-pin), S-video in, Video in
• Other connections: Analog audio Left/Right out,
Antenna IEC75, Component Video out Interlaced,
Composite video (CVBS) out, Digital coaxial out,
Digital optical out, IR mouse, S-Video out
Convenience
• Child Protection: Child Lock
• Compass GUI: HDD part Yes, DVD+RW no
• User convenience: Electronic Programming Guide,
Menu Languages
• Disc Library: Up to 9000 titles, Up to 999 discs
• Display Type: FTD
• Drop proof: 76 cm
• Ease of Installation: Autoinstall, Automatic Channel
Install(ACI), Automatic Tuning System (ATS)
• Ease To Experience: Demo Mode
• Electronic Program Guide: GUIDE Plus+
• Front Controls: Cursor up/down/left/right, FF/
NEXT, Guide, HDD, OK, Open/Close, play,
Record, RWD/PREV, stop
• Language support: tbc
• On-Screen Display languages: Danish, Dutch,
English, Finnish, French, German, Italian,
Norwegian, Portuguese, Spanish, Swedish
• Pre-set Channels: 99
• Programmable Events: 12
• Programming Period: 1 month
• Programming/Timer Enhancements: Automatic
Satellite Recording, Daily/Weekly Repeat Program,
IR Set Top Box Control, Manual Timer, One
Touch Recording, ShowView, VPS/PDC recording
control
• Remote Control: Multi-brand
•Remote control: Zappa+
• Remote control type: RC19046006
Accessories
• Included accessories: AC Power Cord, Batteries
for remote control, Coax RF antenna cable, Full
SCART cable, IR extender cable, Quick start guide,
Remote Control, Safety & warranty booklet, User
Manual
• Included batteries: 2x Longlife AA
•Printed User Guide
•Quick start guide
• Registration card: European version
•Remote control: Zappa+
Green Specifications
• Packaging material: Carton
• User manual: Recycled paper
Dimensions
• Carton dimensions (WxDxH) inch: 22.4 x 16.5 x
7.2
• Carton dimensions (WxDxH): 570 x 420 x 182
mm
• Product dimension (WxDxH) inch: 17.1 x 13.2 x
3.0
• Product dimensions (WxDxH): 435 x 335 x 76 mm
• Product weight: 5.3 kg
• Product weight (lb): 000
• Temperature range (operation): 0°C to 40°C
• Weight incl. Packaging: 8 kg
Power
• Power consumption: 38 W W
• Power supply: 200-240 V, 50Hz
• Standby power consumption: 3
•
