Philips HTS7200/98 1_HTS7200_98_EN User Manual 使用者手冊 Hts7200 98 Dfu Eng

User Manual: Philips HTS7200/98 使用者手冊 2.1 家庭影院 HTS7200/98 | PhilipsHTS7200/98

Open the PDF directly: View PDF PDF.
Page Count: 42

HTS7200
Register your product and get support at
www.philips.com/welcome
EN User manual
MS-MY Manual pengguna
ZH-TWԚ͂ʹ˫ 
ZH-CNႬ߀൱Ҭ 
1_HTS7200_98_EN2.indd Sec3:1 8/3/2009 3:06:37 PM
2
1_HTS7200_98_EN.indd Sec3:2 7/20/2009 1:28:16 PM
1
6 Adjust sound 28
Control the volume 28
Change treble and bass 28
Select surround sound 28
Select preset sound 28
7 Adjust settings 29
Video Setup 29
Audio Setup 30
Preference Setup 31
EasyLink Setup 32
Advanced Setup 33
8 Update software 35
Update software via network 35
Update software via USB 35
9 Speci cations 36
10 Troubleshooting
37
11 Glossary
39
Contents
1 Important 2
Safety and important notice 2
Trademark notice 2
Care 3
2 Your product 4
Feature highlights 4
Product overview 5
3 Connect 8
Place the product 8
Connect video cables 8
Connect speaker cables to speakers 10
Connect speakers and subwoofer 10
Connect radio antenna 11
Connect audio cables/other devices 11
Connect LAN 14
Connect power cord 14
4 Get started 15
Insert the remote control batteries 15
Find the correct viewing channel 15
Use the Home menu 16
Select menu display language 16
Set up network 16
Use Philips EasyLink 17
5 Play 19
Play a disc 19
Play video 20
Play music 23
Play photo 24
Play from USB device 25
Play from portable media player 26
Play from radio 26
English
EN
1_HTS7200_98_EN.indd Sec1:1 7/20/2009 1:28:16 PM
2
Macrovision copyright
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. patents
and other intellectual property rights
owned by Macrovision Corporation and
other rights owners. Use of this copyright
protection technology must be authorized
by Macrovision Corporation, and is intended
for home and other limited viewing uses only
unless otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
Recycle notice
This electronic equipment contains a large
number of materials that can be recycled
or reused if disassembled by a specialized
company. If you are disposing of an old
machine, please take it to a recycling center.
Please observe the local regulations regarding
disposal of packaging materials, exhausted
batteries and old equipment.
Trademark notice
HDMI, and HDMI logo and High-De nition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
1 Important
Safety and important notice
Warning
Risk of overheating! Never install the product •
in a con ned space. Always leave a space
of at least 4 inches around the product for
ventilation. Ensure curtains or other objects
never cover the ventilation slots on the
product.
Never place the product, remote control or •
batteries near naked  ames or other heat
sources, including direct sunlight.
Only use this product indoors. Keep this
•
product away from water, moisture and liquid-
lled objects.
Never place this product on other electrical
•
equipment.
Keep away from this product during lightning
•
storms.
Where the mains plug or an appliance
•
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Visible and invisible laser radiation when open.
•
Avoid exposure to beam.
Copyright
The making of unauthorized copies of
copy-protected material, including computer
programmes,  les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
EN
1_HTS7200_98_EN.indd Sec1:2 7/20/2009 1:28:16 PM
3
Java and all other Java trademarks and logos
are trademarks or registered trademarks of
Sun Microsystems, Inc. in the United States
and/or other countries.
BONUSVIEW™
‘BD LIVE’ and ‘BONUSVIEW’ are trademarks
of Blu-ray Disc Association.
‘AVCHD’ and ‘AVCHD’ logo are trademarks
of Matsushita Electric Industrial Co., Ltd and
Sony Corporation.
‘x.v.Colour’ is a trademark of Sony Corporation.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks.
Care
Caution
Never use solvents such as benzene, thinner, •
cleaners available commercially, or anti-static
sprays intended for discs.
Clean discs
Wipe the disc with a micro  bre cleaning cloth
from the centre to the edge in a straight line
movement.
LASER RADIATION
DO NOT VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS
CLASS 1M LASER PRODUCT
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, inc.
DivX, DivX Ultra Certi ed, and associated
logos are trademarks of DivX, Inc. and are
used under license.
Of cial DivX® Ultra Certi ed product.
Plays all versions of DivX ® video (including
DivX ® 6) with enhanced playback of DivX®
media  les and the DivX® Media Format.
Plays DivX® video with menus, subtitles and
audio tracks.
‘DVD Video’ is a trademark of DVD Format/
Logo Licensing Corporation.
‘Blu-ray Disc’ and ‘Blu-ray Disc’ logo are
trademarks.
Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic and the double-D
symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535; & other U.S. and worldwide
patents issued & pending. DTS is a registered
trademark and the DTS logos, Symbol, DTS-
HD and DTS-HD Advanced Digital Out are
trademarks of DTS, Inc. © 1996-2008 DTS,
Inc. All Rights Reserved.
English
EN
1_HTS7200_98_EN.indd Sec1:3 7/20/2009 1:28:16 PM
4
BD-Live
Connect this product to the movie studios
website via the LAN port to access a variety
of up-to-date content (e.g. refreshed previews
and exclusive special features). You can also
enjoy next generation possibilities, such as
ringtone/wallpaper downloads, peer-to-peer
interactions, live events and gaming activities.

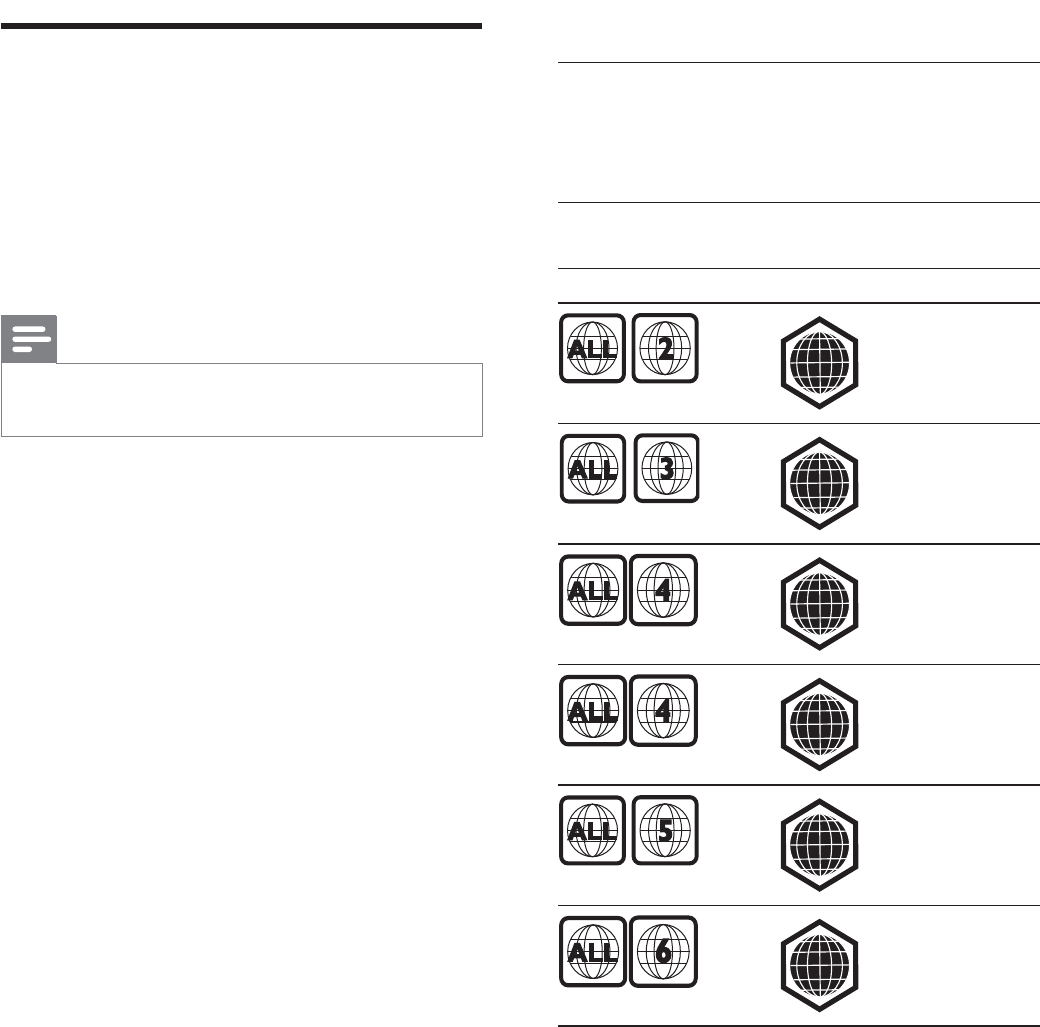

Region codes
You can play discs with the following region
codes.
Region
code
Country
DVD BD
Europe,
United
Kingdom
Asia Paci c,
Taiwan, Korea
Latin America
Australia,
New Zealand,
Russia, India
China
B
A
A
B
C
C
2 Your product
Congratulations on your purchase, and
welcome to Philips! To fully bene t from the
support that Philips offers, register your product
at www.philips.com/welcome.
Feature highlights
Philips EasyLink
Your product supports Philips EasyLink, which
uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI connectors
can be controlled by a single remote control.
Note
Philips does not guarantee 100% •
interoperability with all HDMI CEC devices.
High-De nition entertainment
Watch high-de nition content disc with
HDTV (High De nition Television). Connect
it through a high speed HDMI cable (1.3 or
category 2). You can enjoy excellent picture
quality up to 1080p resolution with the frame
rate of 24 frames per second with progressive
scan output.
BONUSVIEW/PIP (Picture-in-Picture)
This is a new function of BD-Video that
plays the primary video and secondary video
simultaneously. Blu-ray players with Final
Standard Pro le or Pro le 1.1 specs can play
Bonus View features.
EN
1_HTS7200_98_EN.indd Sec1:4 7/20/2009 1:28:16 PM
5
i Disc compartment
j MP3 LINK jack
Connect a portable audio player.
k USB jack
Connect a USB supported device.
Product overview

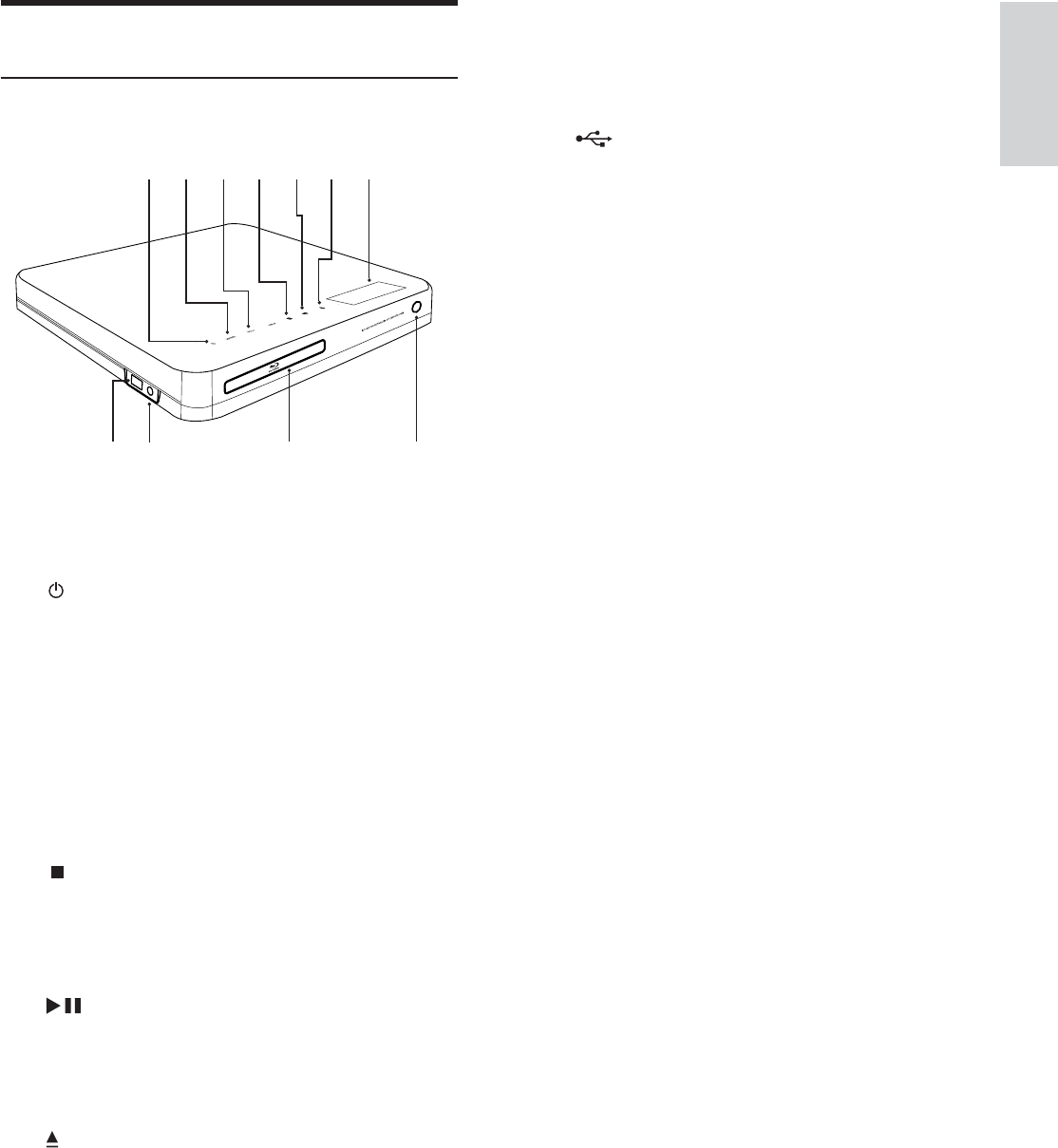

Main unit
a ( Standby-On )
Turn on the Home Theater System or
switch to standby mode.
b SOURCE
Select a media to play or listen to audio
from the connected device.
c VOL +/-
Increase or decrease volume.
d ( Stop )
Stop play.•
Press and hold to erase the preset •
radio station.
e ( Play/Pause )
Start, pause or resume play.•
In radio mode, automatically tune •
radio stations during  rst-time setup.
f
( Open/Close )
Open or close the disc compartment.
g Display panel
h IR sensor
Detect signals from the remote control.
Point the remote control directly at the
sensor.
ab
ijk
cdefg
h
English
EN
1_HTS7200_98_EN.indd Sec1:5 7/20/2009 1:28:16 PM
6
c Source buttons
• DISC / POP-UP MENU : Switch to
disc source. Access to disc menu
during play.
• RADIO : Switch to FM radio.
• USB : Switch to the connected USB
device.
• AUDIO SOURCE : Select an audio
input.
Display Device connected to
AUX1 AUDIO IN-AUX1
AUX2 AUDIO IN-AUX2
COAX IN DIGITAL IN-COAXIAL
OPTI IN DIGITAL IN-OPTICAL
MP3 LINK MP3 LINK
d Color buttons
Blu-ray discs only: Select a task or option.
e ( Home menu )
Access the home menu.
f OPTIONS
Access options for the current activity or
selection.
g ( Navigation buttons )
Navigate menus.
h OK
Con rm an entry or selection.
i INFO
Display information about what is playing.
j ( Play )
Start or resume play.
k ( Pause )
Pause play.•
Move the paused picture one step •
forward.
l ( Stop )
Stop play.•
Press and hold to erase the preset •
radio station.

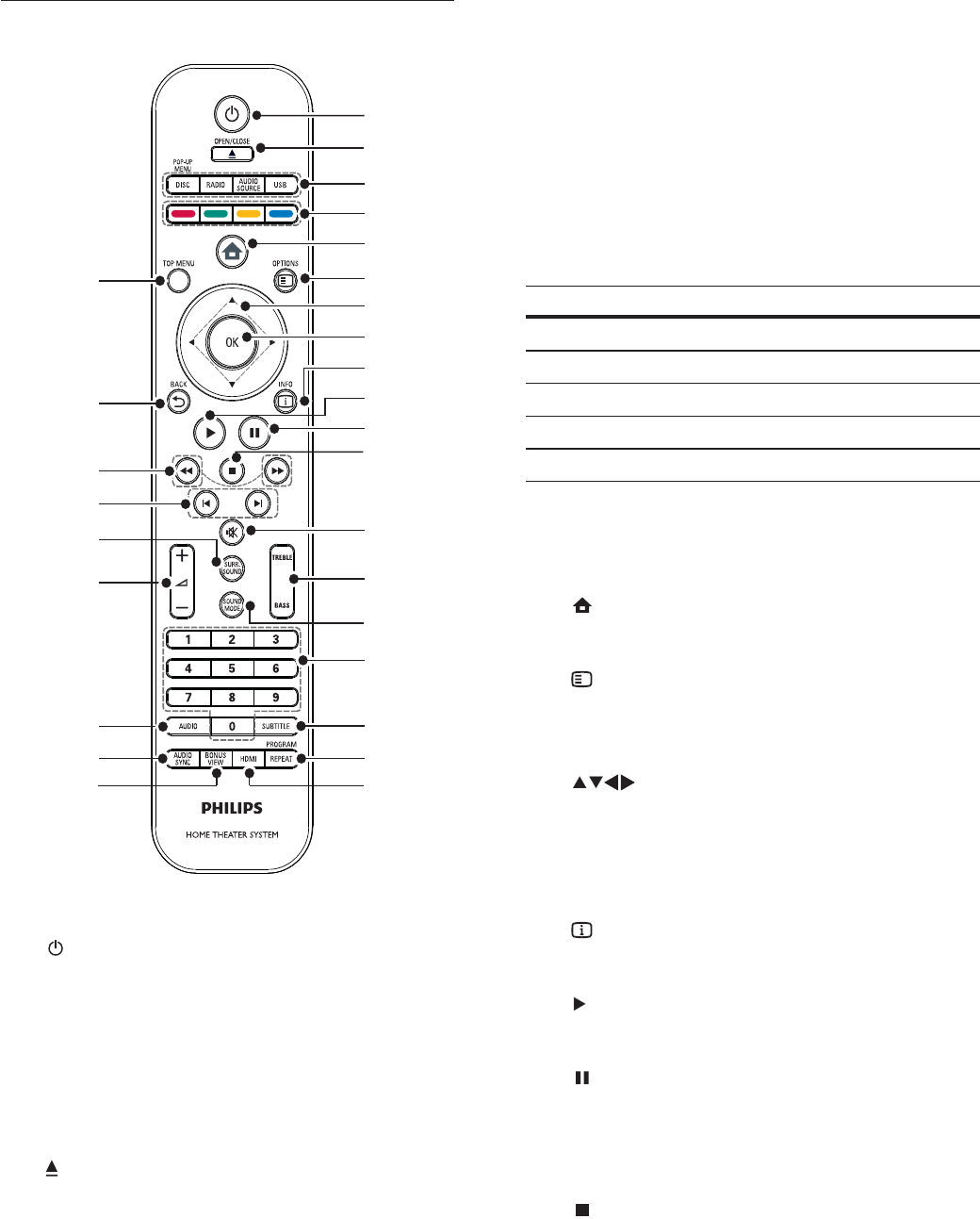

Remote control
a ( Standby-On )
Turn on or switch the home theater •
to standby mode.
When EasyLink is enabled, press •
and hold for at least three seconds
to turn all connected HDMI CEC
compliant devices to standby.
b
OPEN/CLOSE
Open or close the disc compartment.
a
b
d
c
|
e
f
g
h
k
l
m
n
o
p
q
r
s
t
i
j
u
v
w
x
y
z
{
EN
1_HTS7200_98_EN.indd Sec1:6 7/20/2009 1:28:16 PM
7
y / ( Previous/Next )
In video mode, skip to previous or •
next title, chapter or track.
In radio mode, select a preset radio •
station.
z / ( Fast Backward / Fast Forward )
Fast backward or fast forward. Press
repeatedly to change the search speed.
{ BACK
Return to a previous menu screen.
| TOP MENU
Access the main menu of a video disc.
m ( Mute )
Mute or restore audio output.
n TREBLE / BASS
Change treble or bass. Use with +/- .
o SOUND MODE
Select a sound mode.
p Numeric buttons
Select an item or setting.
q SUBTITLE
Select a subtitle language for video.
r REPEAT / PROGRAM
Toggle between various repeat or •
shuf e modes.
In radio mode, press to start manual •
radio preset; press and hold to start
automatic radio preset.
s HDMI
Select the video resolution of HDMI
output from the home theater.
t BONUS VIEW
Blu-ray discs only: Enable or disable the
Bonus View/Picture-In-Picture feature.
u AUDIO SYNC
Synchronize audio with video. Use with
+/- .
v AUDIO
In video mode, toggle between audio •
languages.
In radio mode, toggle between •
stereo and mono.
w +/- ( Volume +/- )
Increase or decrease volume.
x SURR. SOUND
Switch audio output to multi-channel •
surround or stereo mode.
For HTS7200 only: Switch audio •
output to DOLBY Virtual speaker or
Stereo mode.
English
EN
1_HTS7200_98_EN.indd Sec1:7 7/20/2009 1:28:17 PM
8

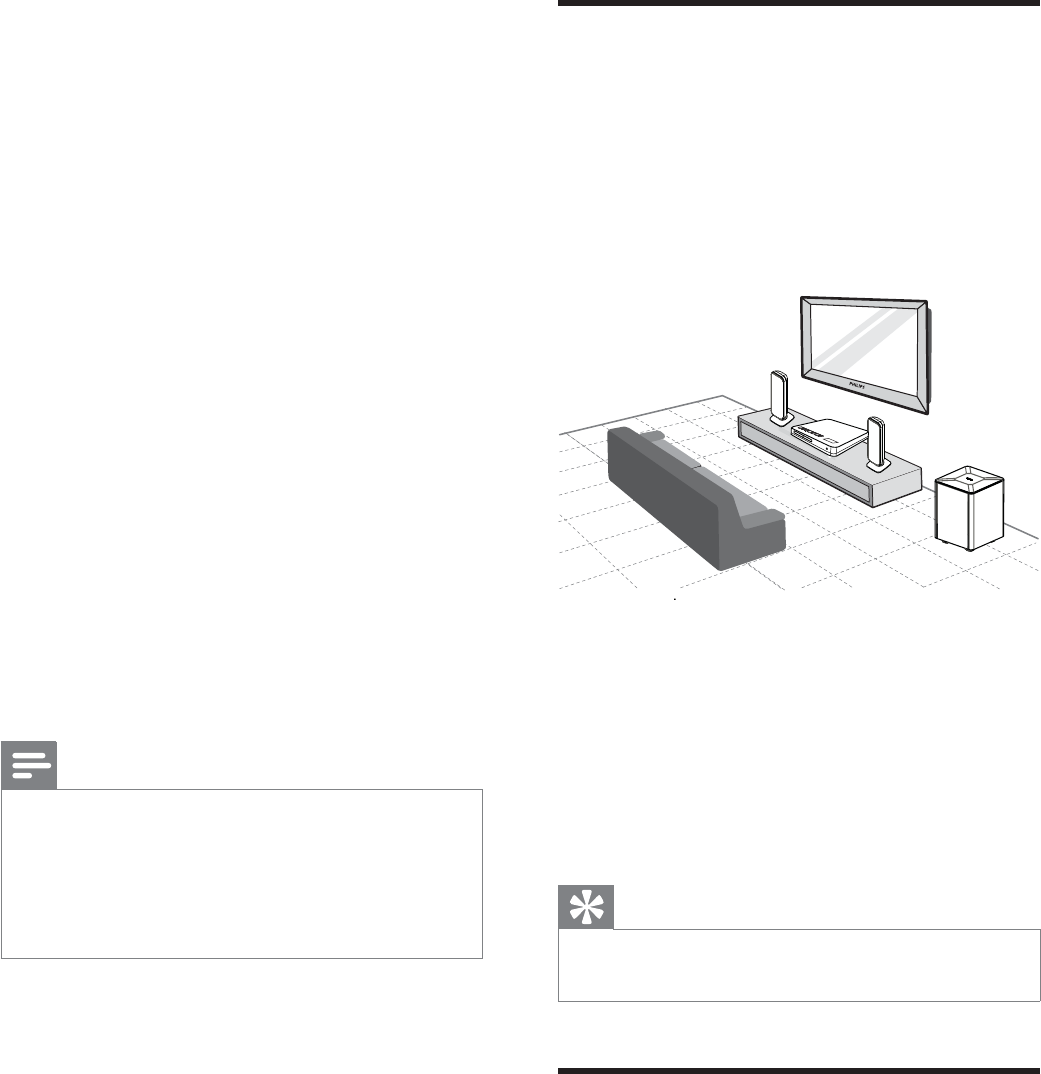

Place the product
Place the product where it cannot be •
pushed, pulled over or knocked down.
Do not place it in an enclosed cabinet.
Be sure that you have full access to the •
power cord for easy disconnection of the
product from the power supply.
1 Place the home theater near your TV.
2 Place the speakers system at normal
listening height and parallel to your
listening area.
3 Place the subwoofer in the corner of the
room or at least 1 meter/3 feet away
from your TV.
Tip
To reduce interference or noise, place the •
home theater away from radiation devices.
Connect video cables
Connect this Home Theater System to TV to
view disc play. Select the best video connection
that the TV can support.
Option 1: Connect to the HDMI jack (for •
a HDMI, DVI or HDCP-compliant TV).
Option 2: Connect to the component •
video jacks (for a standard TV or
Progressive Scan TV).
Option 3: Connect to the video (CVBS) •
jack (for a standard TV).
FRONT
RIGHT
FRONT
LEFT
SUBWOOFER
3 Connect
Make the following connections to use your
Home Theater System. For a comprehensive
interactive guide, see www.connectivityguide.
philips.com.
Basic connections:
Video•
Speakers and subwoofer•
Power•
Optional connections:
Radio antenna•
Audio•
Audio from TV•
Audio from cable box/recorder/•
game console
Other devices•
Portable media player•
USB device•
LAN (Network)•
Note
Refer to the type plate at the back or bottom •
of the product for identi cation and supply
ratings.
Before you make or change any connections,
•
ensure that all devices are disconnected from
the power outlet.
EN
1_HTS7200_98_EN.indd Sec1:8 7/20/2009 1:28:17 PM
9

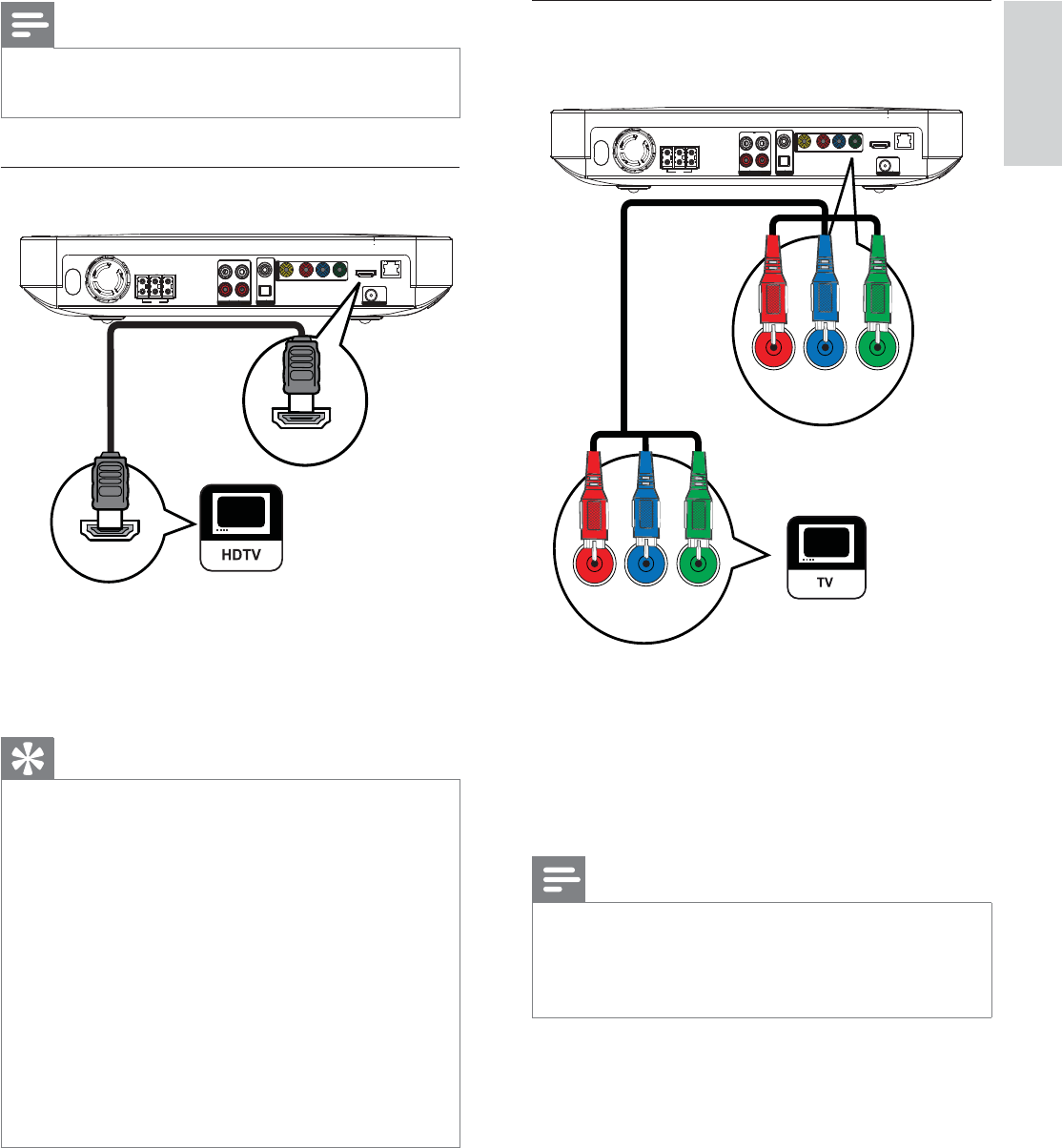

Option 2: Connect to the component
video jack
1 Connect the component video cable
(not supplied) to the Y Pb Pr jacks on
this Home Theater System and the
COMPONENT VIDEO input jacks on the
TV.
Note
The component video input jack on the TV •
might be labeled as Y Pb Pr , Y Cb Cr or YUV .
This type of connection provides good picture
•
quality.
PbPr Y
PbPr Y
Note
You must connect this Home Theater System •
directly to a TV.
Option 1: Connect to the HDMI jack
1 Connect the HDMI cable to the HDMI
OUT jack on this Home Theater System
and the HDMI input jack on the TV.
Tip
If the TV has a DVI connector only, connect via •
an HDMI/DVI adaptor. Connect an audio cable
for sound output.
You can optimize the video output. Press
•
HDMI repeatedly to select the best resolution
the TV can support.
To play back the digital video images of a BD-
•
video or DVD-video via an HDMI connection,
it is necessary that both the Home Theater
System and the display device support a
copyright protection system called HDCP
(high-bandwidth digital content protection
system).
This type of connection provides best picture
•
quality.
HDMI OUT
HDMI IN
English
EN
1_HTS7200_98_EN.indd Sec1:9 7/20/2009 1:28:17 PM
10

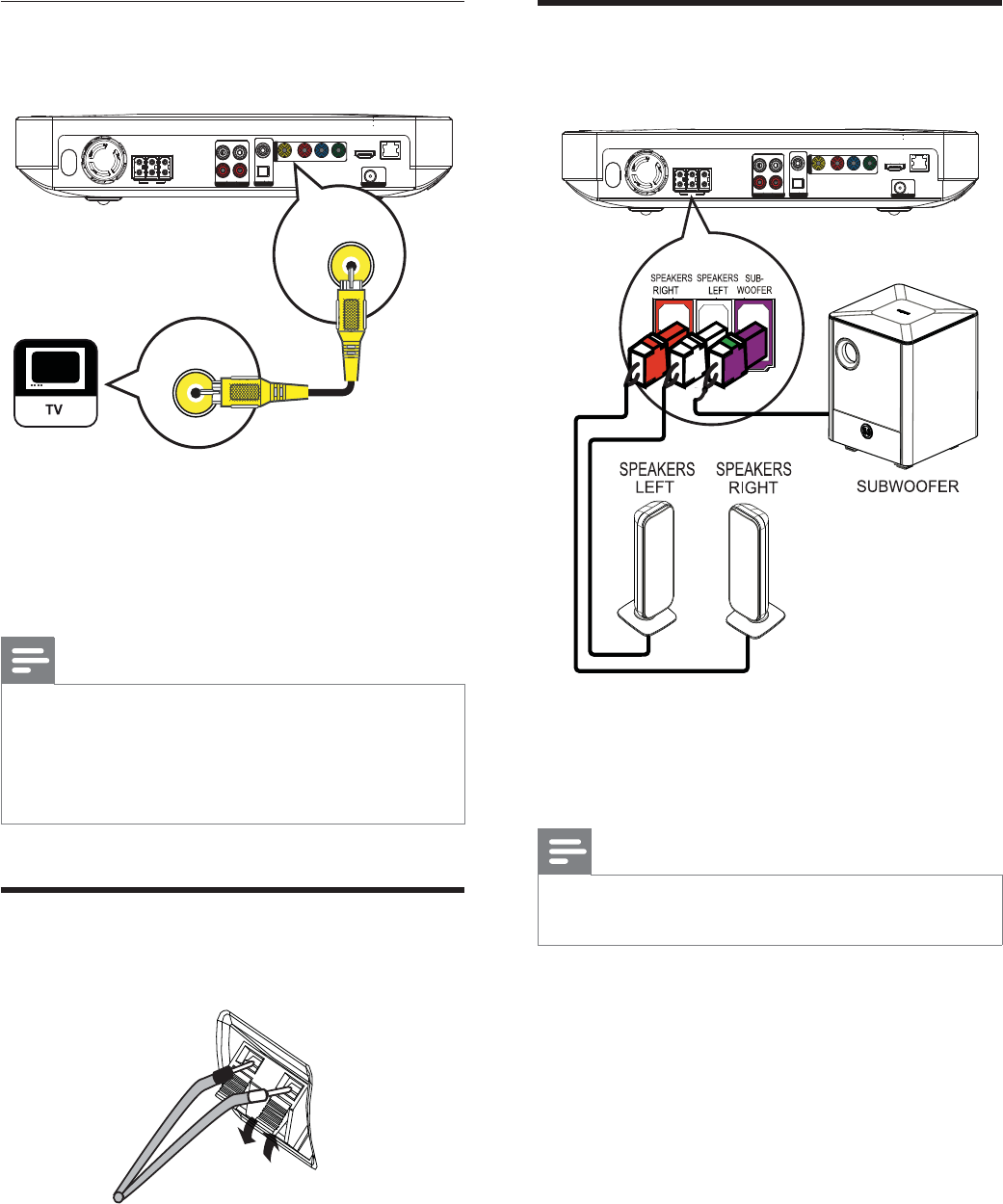

Connect speakers and
subwoofer
1 Connect the speakers and subwoofer to
the matching jacks on this Home Theater
System.
Note
Ensure that the colors of the plugs and jacks •
are matched.
Option 3: Connect to the Video
(CVBS) jack
1 Connect a composite video cable (not
supplied) to the VIDEO jack on this
Home Theater System and the VIDEO
input jack on the TV.
Note
The video input jack on the TV might be •
labeled as A/V IN , VIDEO IN , COMPOSITE
or BASEBAND .
This type of connection provides standard
•
picture quality.
Connect speaker cables to
speakers
1 Match the color of the cable to the
terminal tab.
2 Press the terminal tab down and insert
the stripped end of the speaker cable,
then release.
VIDEO
VIDEO OUT
VIDEO IN
EN
1_HTS7200_98_EN.indd Sec1:10 7/20/2009 1:28:17 PM
11
Connect audio cables/other
devices
Route the audio from other devices to this
Home Theater System to enjoy audio play with
multi-channel surround capabilities.
Connect audio from TV
(also used for EasyLink control)
1 Connect the audio cables (not supplied)
to the AUDIO IN-AUX1 jacks on this
Home Theater System and the AUDIO
output jacks on the TV.
Note
To listen to the audio output from this •
connection, press AUDIO SOURCE
repeatedly until ‘AUX1’ is displayed on the
display panel.
AUDIO OUT
AUX 1
AUDIO IN

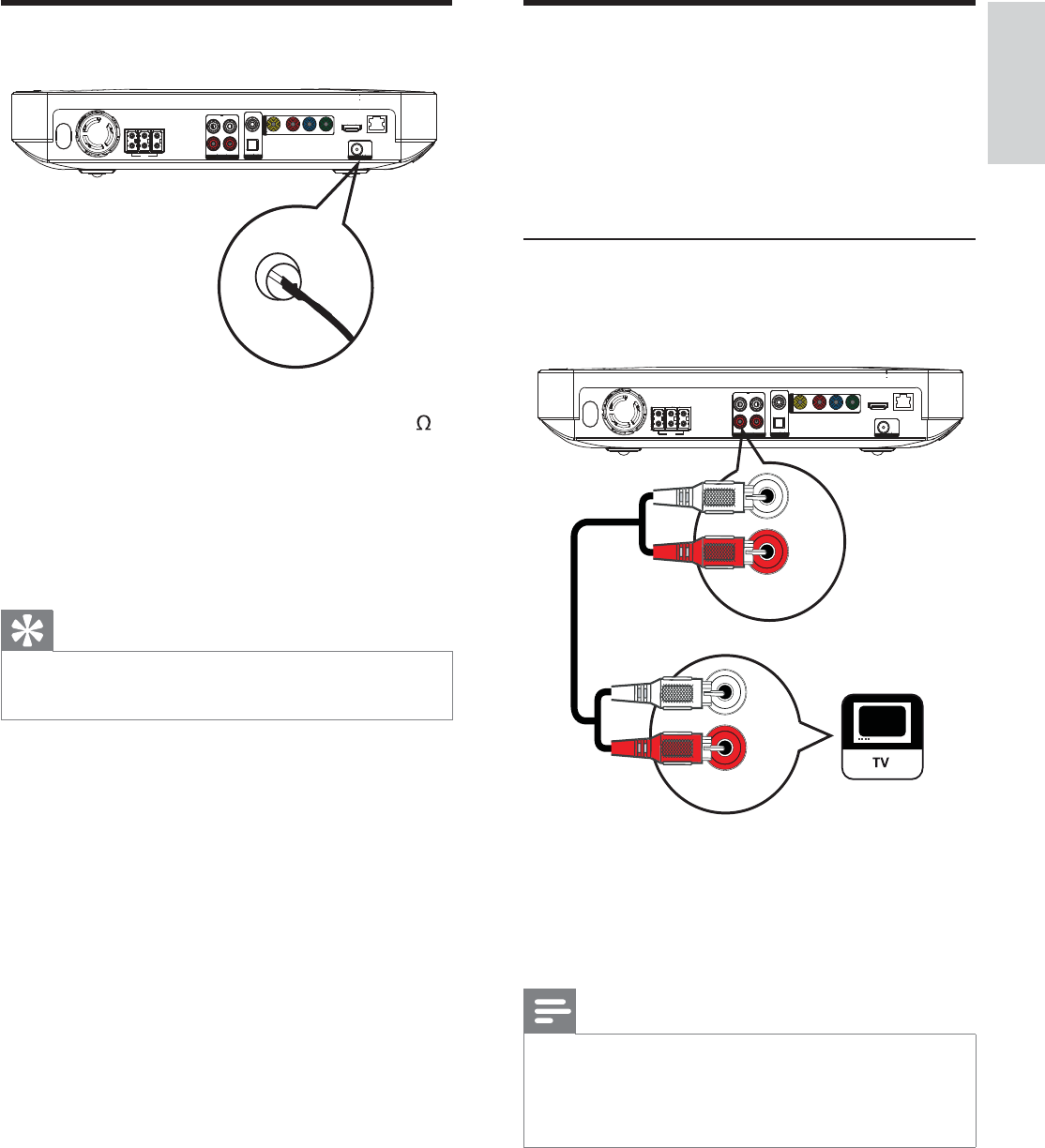

Connect radio antenna
1 Connect the FM antenna to the FM75
jack on this Home Theater System
(for some models, this cable is already
connected).
2 Extend the FM antenna and  x its ends to
the wall.
Tip
For better FM stereo reception, connect to an •
external FM antenna.
FM (75 Ω)
ANTENNA
English
EN
1_HTS7200_98_EN.indd Sec1:11 7/20/2009 1:28:17 PM
12
Connect to coaxial jack
1 Connect a coaxial cable (not supplied)
to the DIGITAL-IN-COAXIAL jack
on this Home Theater System and the
COAXIAL/DIGITAL output jack on the
device.
Note
To listen to the audio output from this •
connection, press AUDIO SOURCE
repeatedly until ‘COAX IN’ is displayed on the
display panel.
COAXIAL
DIGITAL OUT
COAXIAL
DIGITAL IN

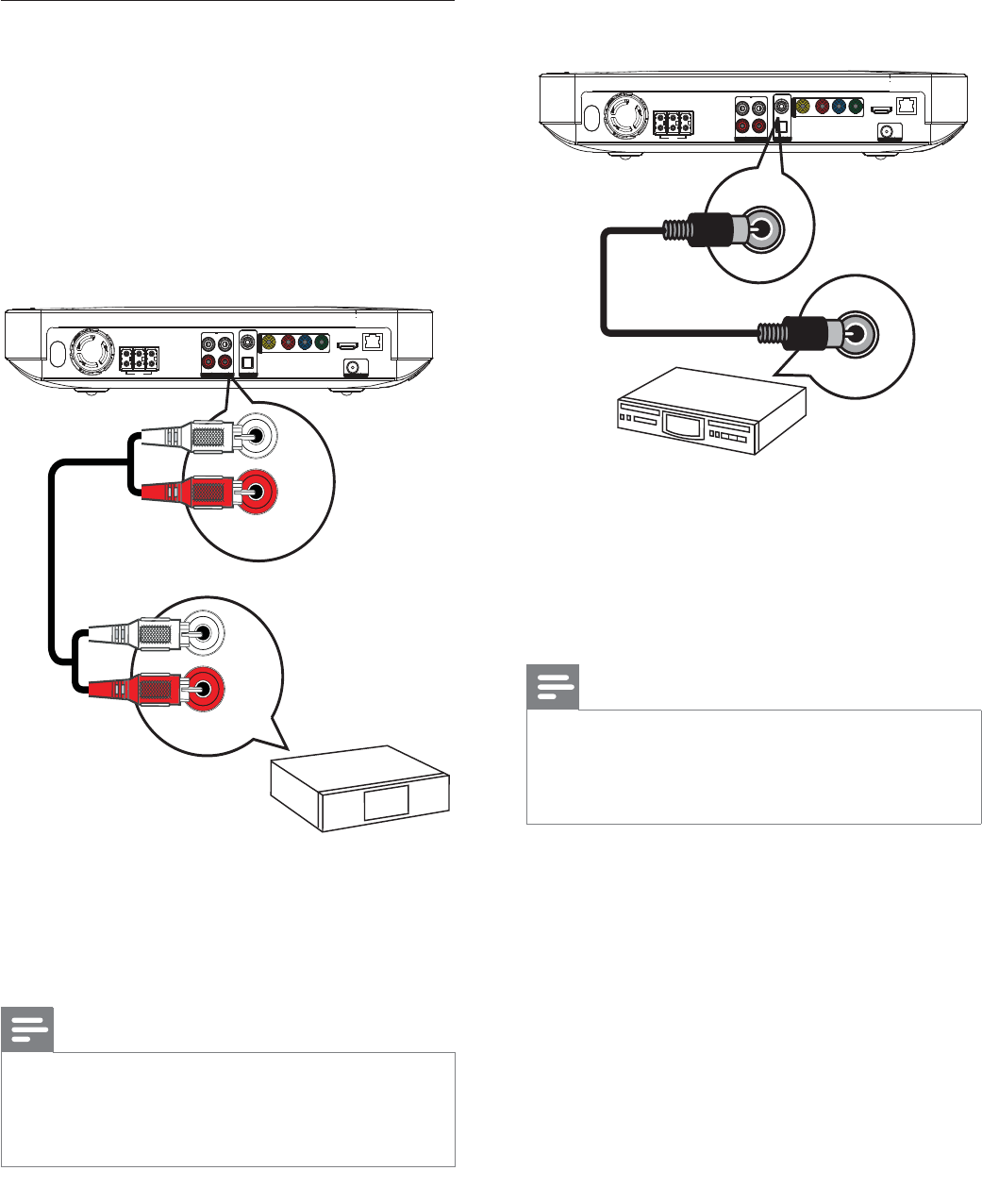

Connect audio from a cable box,
recorder or games console
You can choose to connect to analog or digital
jacks depending on the device capabilities.
Connect to analog jacks
1 Connect the audio cables (not supplied)
to the AUDIO IN-AUX2 jacks on this
Home Theater System and the AUDIO
output jacks on the device.
Note
To listen to the audio output from this •
connection, press AUDIO SOURCE
repeatedly until ‘AUX2’ is displayed on the
display panel.
AUDIO OUT
AUX 2
AUDIO IN
EN
1_HTS7200_98_EN.indd Sec1:12 7/20/2009 1:28:17 PM
13

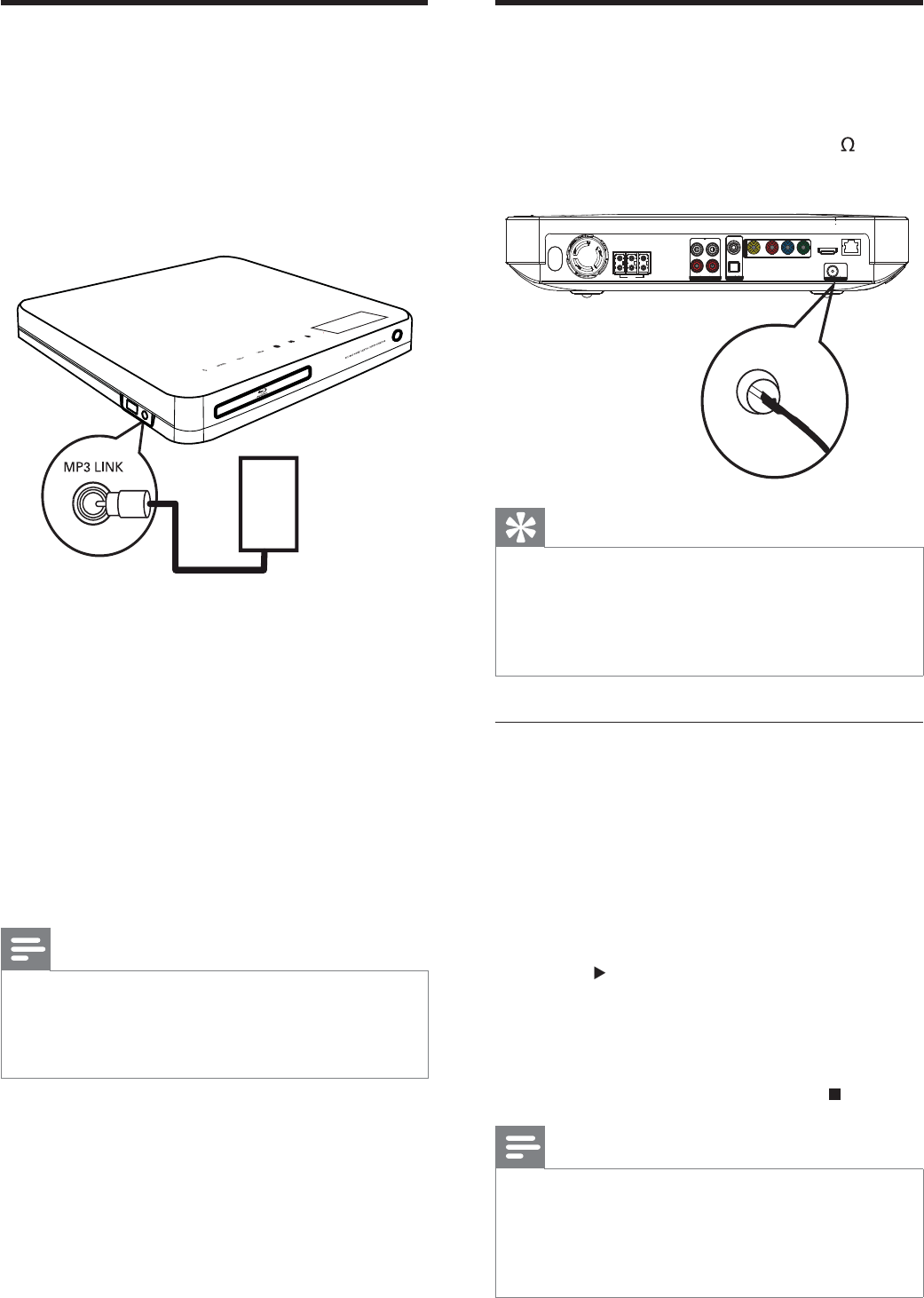

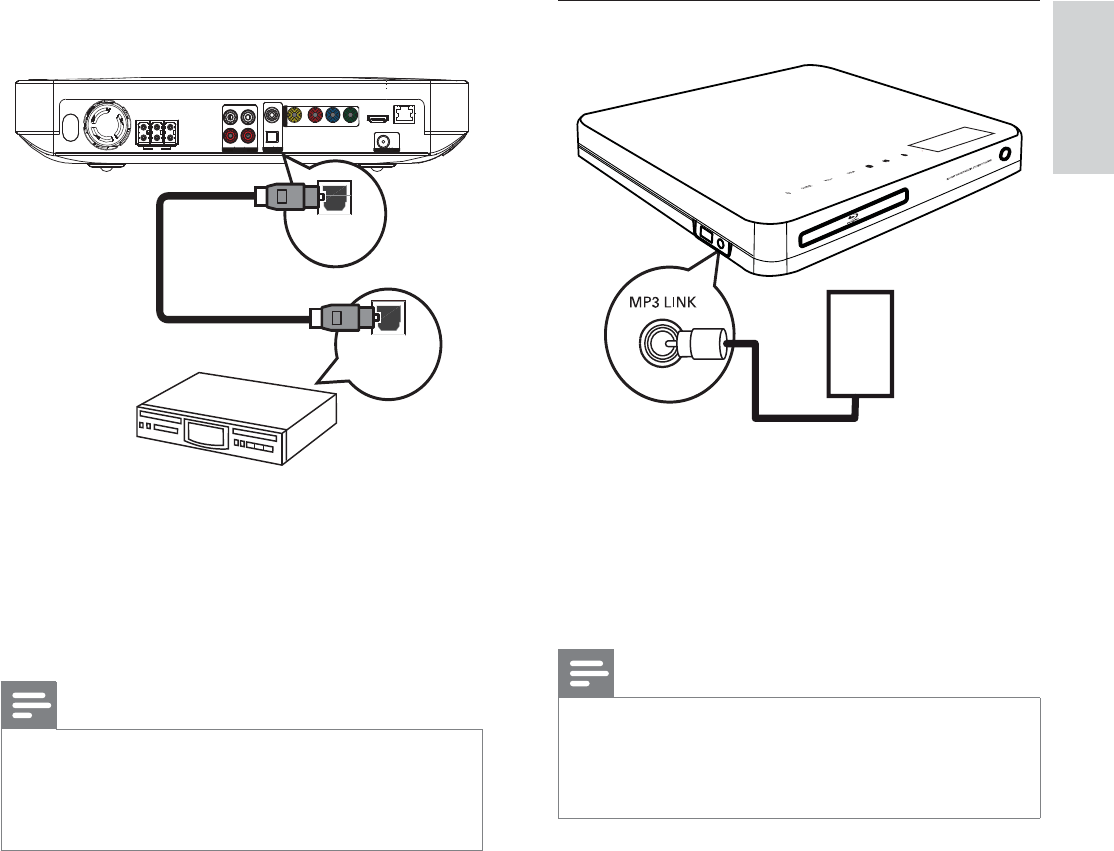

Connect portable media player
1 Connect a 3.5mm stereo audio cable (not
supplied) to the MP3 LINK jack on this
Home Theater System and the phone
jack on the portable media player (such as
MP3 player).
Note
To listen to the audio output from this •
connection, press AUDIO SOURCE
repeatedly until ‘MP3 LINK’ is displayed on the
display panel.
MP3
Connect to optical jack
1 Connect an optical cable (not supplied)
to the DIGITAL-IN - OPTICAL jack
on this Home Theater System and the
OPTICAL/SPDIF output jack on the
device.
Note
To listen to the audio output from this •
connection, press AUDIO SOURCE
repeatedly until ‘OPTI IN’ is displayed on the
display panel.
DIGITAL IN
OPTICAL
DIGITAL OUT
OPTICAL
English
EN
1_HTS7200_98_EN.indd Sec1:13 7/20/2009 1:28:17 PM
14

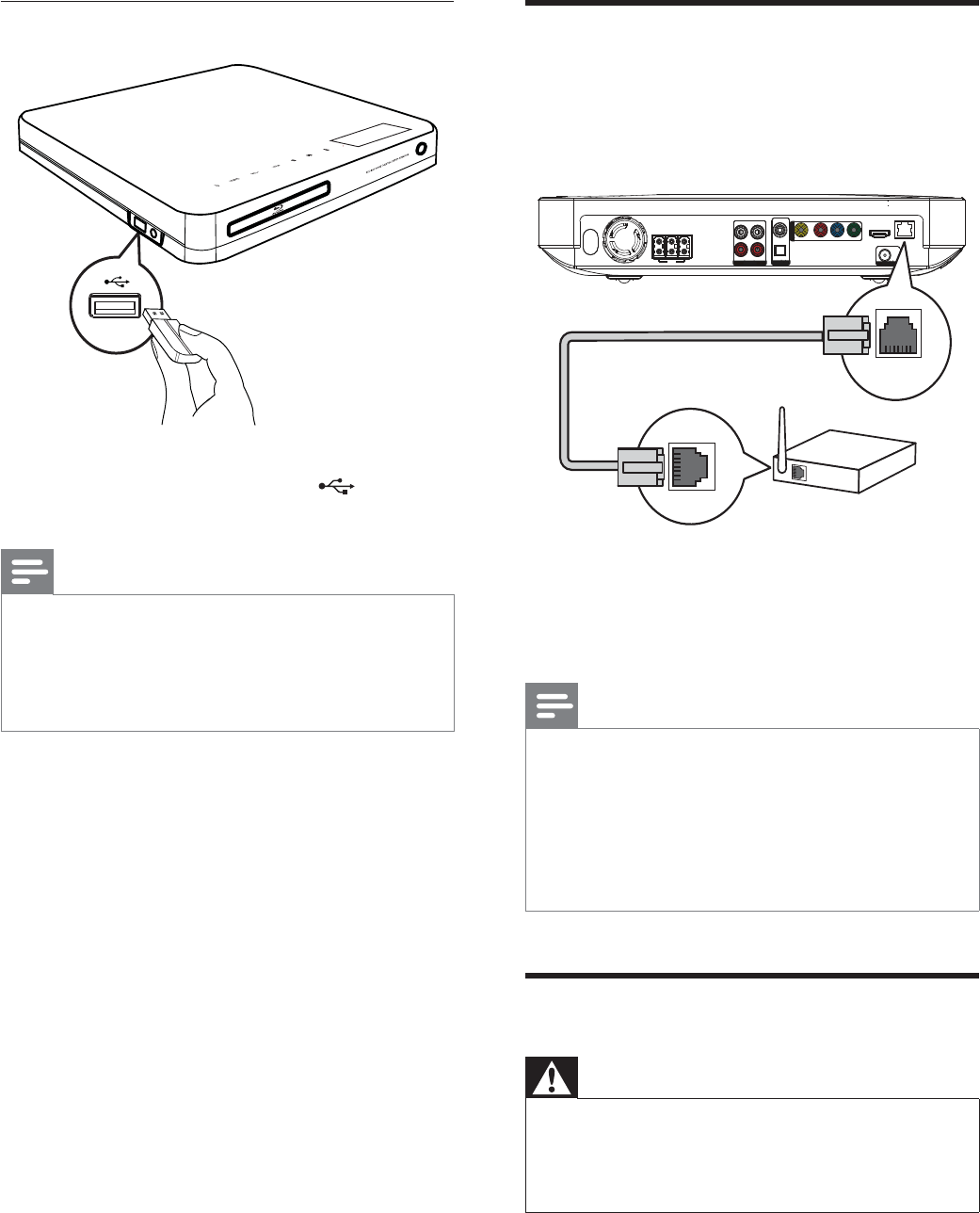

Connect LAN
Connect this Home Theater System to the
network for software updates and enjoy BD-
Live applications.
1 Connect the network cable (not
supplied) to the LAN jack on this Home
Theater System and the LAN jack on the
broadband modem or router.
Note
Use an RJ45 straight cable. Do not use a •
crossover cable.
Internet access to Philips website for software
•
update may not be allowed, depending on
the router you use or the Internet Service
Provider’s policy. Contact your Internet
Service Provider for more information.
Connect power cord
Warning
Risk of product damage! Ensure that the •
power supply voltage corresponds to the
voltage printed on the back or the underside
of the product.
1 Connect the power cord to the power
outlet when all the required connections
are done.
This product is ready to be set up for »
use.
LAN
BROADBAND
Connect USB device
1 Connect the USB device to USB jack
on this Home Theater System.
Note
This Home Theater System can only play/view •
MP3, WMA, DivX (Ultra) or JPEG les that are
stored on such devices.
Press
• USB to access the content and play the
les.
EN
1_HTS7200_98_EN.indd Sec1:14 7/20/2009 1:28:17 PM
15
Navigate through the menu
1 Point the remote control directly at the
remote sensor on the product and select
the desired function.
2 Press the following buttons on the
remote control to navigate through the
on-screen menus.
Button Action
Move up or down
Move left or right
OK Con rm a selection
Enter numbers
Access to the Home
menu.
Find the correct viewing
channel
1 Press ( Standby ) to turn on this
product.
2 Press DISC to switch to disc mode.
3 Turn on the TV and switch to the correct
video-in channel in one of the following
ways:
Go to the lowest channel on your •
TV, then press the Channel Down
button until you see the Philips or
the Home menu screen.
Press • SOURCE button repeatedly
on the remote control of your TV.
Tip
The video-in channel is between the lowest •
and highest channels and may be called
FRONT, A/V IN, VIDEO, HDMI etc. See the
TV user manual on how to select the correct
input on the TV.
4 Get started

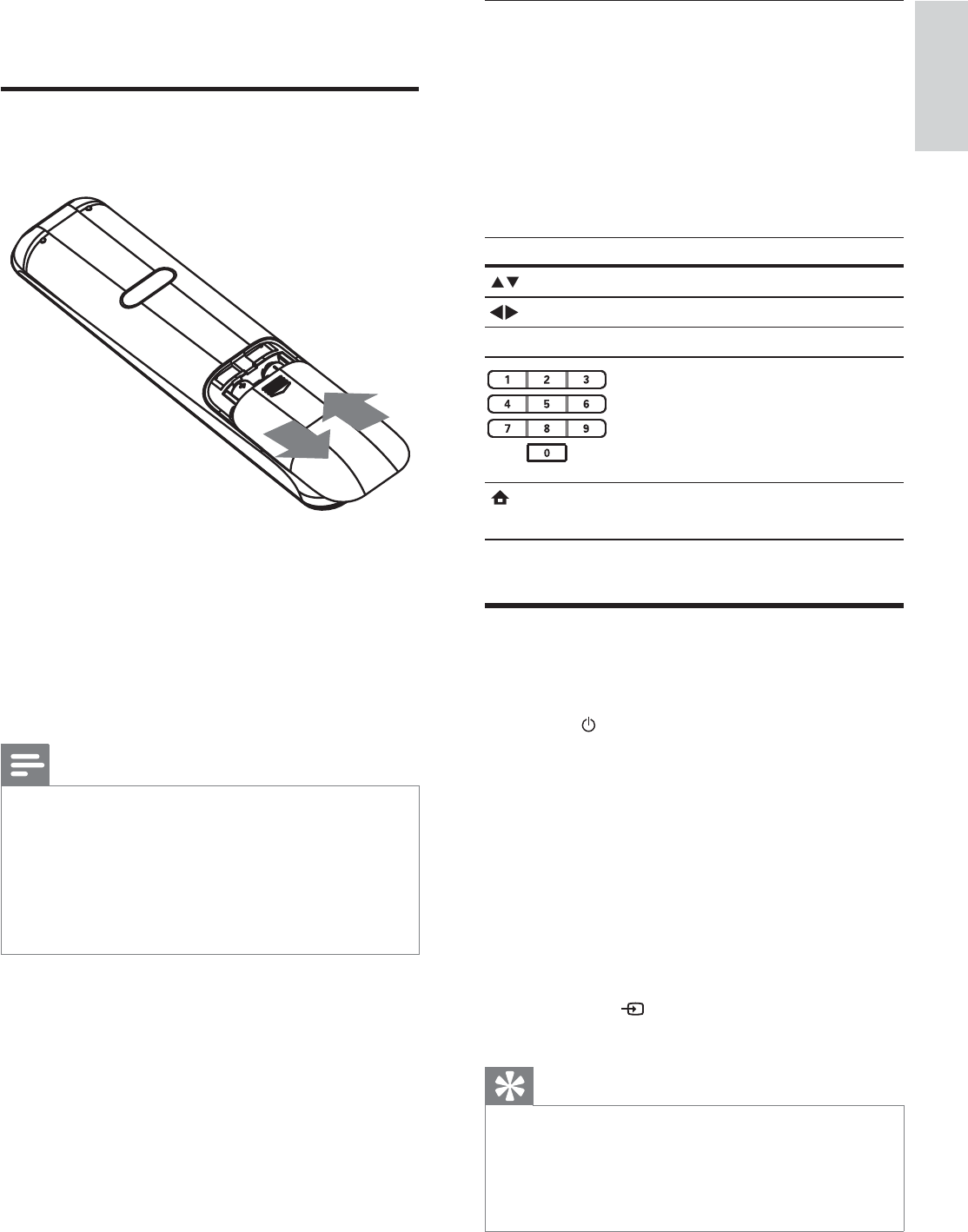

Insert the remote control
batteries
1 Slide the battery cover off the back of the
remote control.
2 Insert the 2 supplied batteries (AAA). Be
sure the + and - ends of the batteries line
up with the markings inside the case.
3 Slide the cover back into position.
Note
Do not mix batteries (old and new or carbon •
and alkaline, etc.).
Remove batteries if they are exhausted or if
•
the remote control is not to be used for a long
time.
Batteries contain chemical substances, they
•
should be disposed of properly.
English
EN
1_HTS7200_98_EN.indd Sec1:15 7/20/2009 1:28:17 PM
16
Tip
You can set the default language for DVD disc, •
see (‘Adjust settings’ > ‘Video Setup’ > [Disc
Menu] ).
Set up network
Follow the steps below to help you set up the
network connection for software updates and
enjoy BD-Live applications.
1 Connect the home theater to a
broadband modem or router.
2 Turn on your TV and switch to the
correct source for the home theater.
3 Press , select [Settings] , and then press
OK .
4 Select [Advanced Setup] > [Network] >
[Next] .
5 Press OK .
The home theater connects to the »
internet. If connection fails, select
[Retry] , then press OK .
6 Select [Finish] , then press OK to exit.
Note
Use a RJ45 straight cable. Do not use a cross •
cable.
Note
Loading BD-Live content from the internet •
may take some time, depending on the  le size
and the speed of the internet connection.

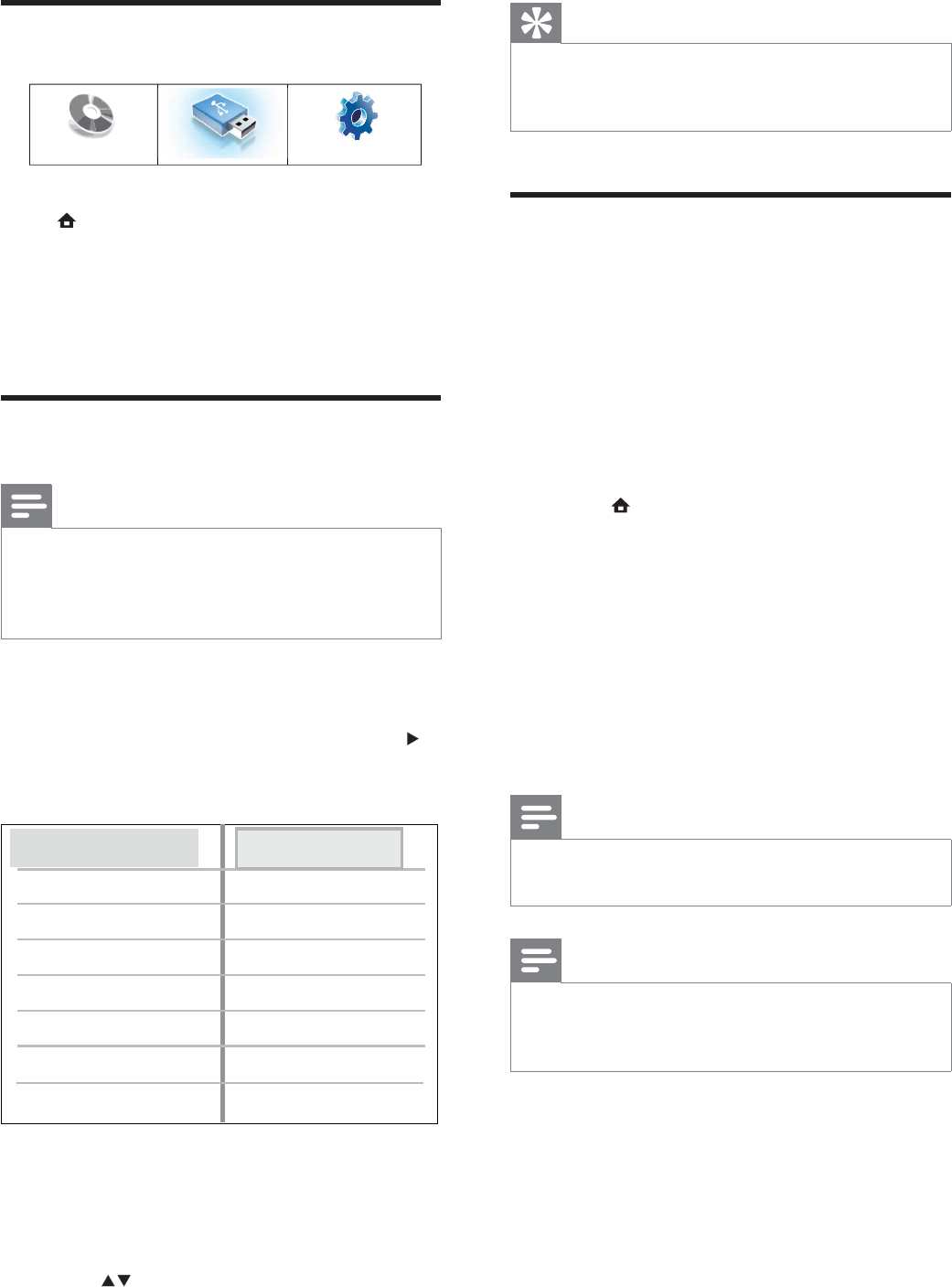

Use the Home menu
Press ( Home menu ).
Select • [Play Disc] to start disc play.
Select • [USB] to view the USB contents.
Select • [Settings] to access the setup
menu.
Select menu display language
Note
Skip this setting if this product is connected •
to a HDMI CEC compliant TV. It switches
automatically to the same OSD menu language
as per your TV setting.
1 In the Home menu, select [Settings] and
press OK .
2 Select [Preference Setup] , then press .
3 Select [OSD Language] , then press OK .
Parental Control
OSD Language
Screen Saver
Display Panel
Auto Standby
PBC
Change PIN
Sleep Timer
English
ࡩ฼ᇓ໗
ᐥ᛽ɻʼ
Melayu
The language options are different •
depending on your country or
region. It may not correspond to the
illustration shown here.
4 Press to select a language, then press
OK .
Play Disc USB Settings
EN
1_HTS7200_98_EN.indd Sec1:16 7/20/2009 1:28:18 PM
17
System Audio Control
When you play a device which its audio
output is routed to this Home Theater
System, this Home Theater System
switches to the corresponding audio source
automatically.
To use one-touch audio, map the connected
devices correctly to the audio input jacks of
this Home Theater System.
Audio Input Mapping
When you map the connection between
other devices and the audio input jacks of
this Home Theater System, you can enjoy
the System Audio Control (one-touch audio)
feature.
Map the devices to the audio inputs
Note
Before you start, ensure that the audio output •
of the HDMI TV and other HDMI devices have
been connected to the audio input jacks on
this Home Theater System.
1 Press , select [Settings] , then press OK .
2 Select [EasyLink Setup] , then press .
• [One Touch Play] and [One Touch
Standby] functions are turned on by
default.
3 Select [System Audio Control] > [On] .
Video Setup
Advanced Setup
Audio Setup
Preference Setup
EasyLink Setup
One Touch Play
EasyLink
One Touch Standby
On
On
System Audio Control Off
Audio Input Mapping
On
Use Philips EasyLink
Your product supports Philips EasyLink, which
uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI connectors
can be controlled by a single remote control.
Note
Philips does not guarantee 100% •
interoperability with all HDMI CEC devices.
1 Turn on the HDMI CEC operations on
the TV and other connected devices. See
TVs/devices manual for details.
2 You can now enjoy the following Philips
EasyLink controls.
EasyLink
Turn off or turn on all EasyLink features.
One-touch play
When you press PLAY on the remote
control, the TV (if supports one-touch
play) and the Home Theater System will be
turned on. Disc play starts if there is a disc
in the Home Theater System and the TV
automatically switches to the correct channel
to show the video content.
One-touch standby
When you press and hold ( Standby ) on
the remote control, this Home Theater
System and all the connected HDMI CEC
devices (if supports one-touch standby)
switch to standby mode simultaneously.
English
EN
1_HTS7200_98_EN.indd Sec1:17 7/20/2009 1:28:19 PM
18
4 Read the on-screen instructions and
press OK to select [Continue] .
The Home Theater System scans and »
displays the valid devices.
5 Press OK to select [Continue] .
6 Select a connected device on the left of
the menu, then press .
7 Select the connector that is used for the
device, then press OK .
Repeat steps 6~7 to map other »
devices.
8 Press to exit the menu.
Update audio mapping from
connected devices
If you have already mapped audio from
connected devices, you can use this procedure
to update your mapping.
1 Press , select [Settings] , then press OK .
2 Select [EasyLink Setup] > [Audio Input
Mapping] , then press OK .
3 Select a connected device then press .
4 Select the connector that is used for the
device then press OK .
5 Repeat steps 4~5 to map other
connected devices.
Aux2
Aux1
Coaxial
Optical
Philips TV
DVD player
Recorder
EN
1_HTS7200_98_EN.indd Sec1:18 7/20/2009 1:28:19 PM
19

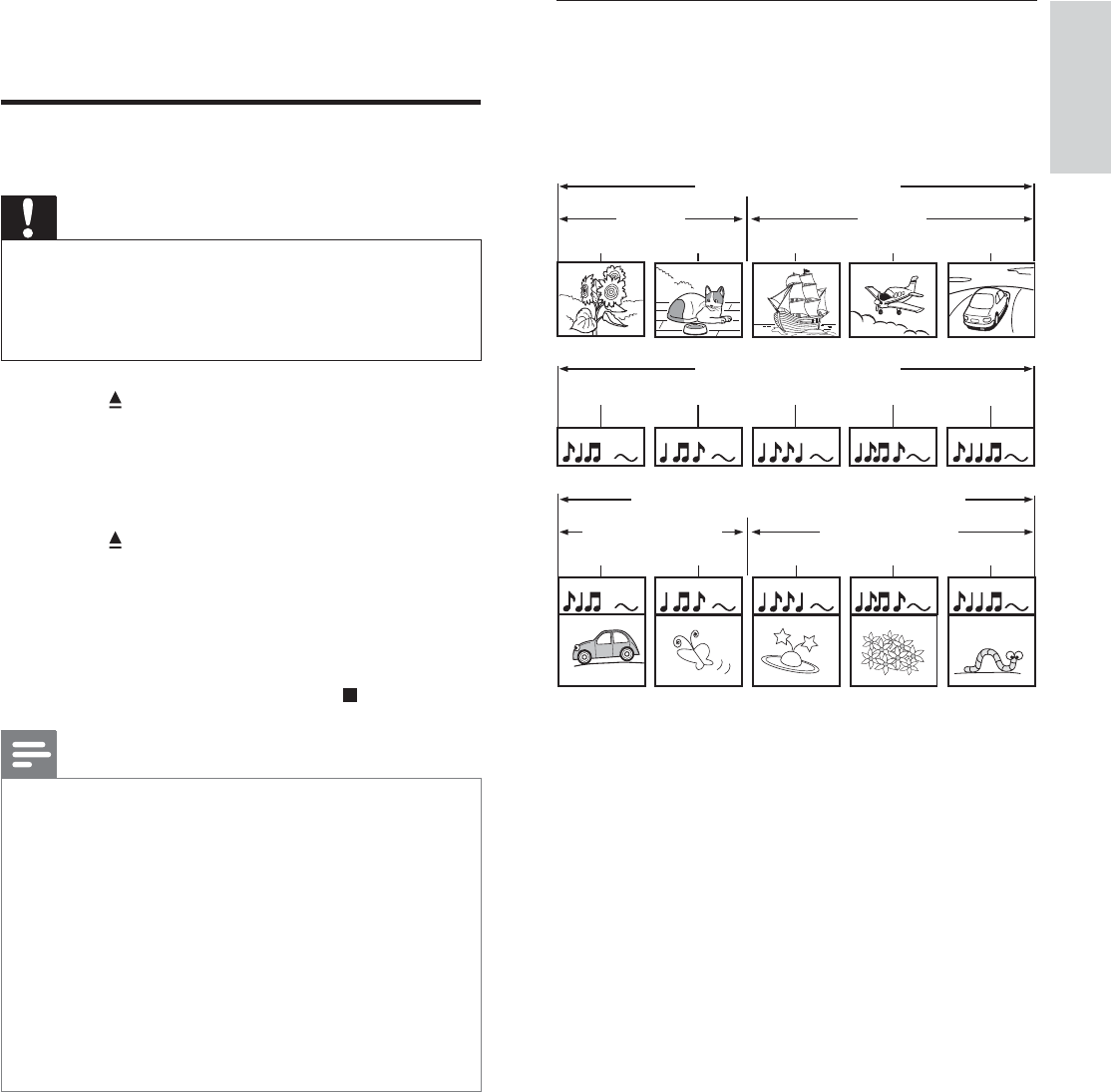

Information on disc contents
The contents of a disc are generally divided
into sections or folders (groups of titles/ les)
as shown below.
‘Folders’ refers to the groups of  les.•
‘Tracks’ refers to the contents recorded •
on the audio CD.
‘Files’ refers to the contents on a disc •
which are recorded in MP3, Windows
Media™ Audio/Video, or JPEG  le
format.
BD-video, DVD-video
title 1
title 2
chapter 2
chapter 1 chapter 3
chapter 2
chapter 1
track 2track 1 track 5track 4track 3
Audio CD
MP3, Windows Media™ Audio, JPEG
folder (group) 1 folder (group)
2
file 3file 2
file 1 file 2
file 1
5 Play
Play a disc
Caution
Never place any objects other than discs into •
the disc compartment.
Never touch the disc optical lens inside the
•
disc compartment.
1 Press to open the disc compartment.
2 Insert a disc with its label facing up.
For double-sided disc, load the side •
to play faces up.
3 Press to close the disc compartment
and start disc play.
To view disc play, turn on the TV to •
the correct viewing channel for this
Home Theater System.
To stop disc play, press • .
Note
Check the types of discs supported, (see •
‘Speci cations’ > ‘Playback media’).
If the password entry menu is displayed, enter
•
the password before you can play the locked
or restricted disc (see ‘Adjust settings’ >
‘Preference Setup’ > [Parental Control] ).
If you pause or stop a disc, the screen saver
•
appears after 10 minutes of inactivity. To
deactivate the screen saver, press any buttons.
After you pause or stop a disc and no buttons
•
are pressed within 30 minutes, this product
automatically switches to standby mode.
English
EN
1_HTS7200_98_EN.indd Sec1:19 7/20/2009 1:28:19 PM
20
Change video play
1 Play a title.
2 Use the remote control to change the
video play.
Button Action
AUDIO Selects an audio language or
channel.
SUBTITLE Selects a subtitle language for
video.
REPEAT Selects or turns off repeat or
shuf e mode.
Repeat options vary •
depending on the disc type.
For VCDs, repeat play is •
only possible when the PBC
mode is turned off.
INFO Displays the current status or
the disc information.
OPTIONS
Accesses options for the current
activity or selection.
Change the play options •
here without interrupting
disc play. For example,
Zoom, Time Search.
BONUS
VIEW
Turns on or off the secondary
video in a small screen window
during play (applicable only to
BD-video that supports the
BONUSVIEW or Picture-In-
Picture feature).
Note
Some operations may not work with some •
discs. See the information accompanying the
disc for details.

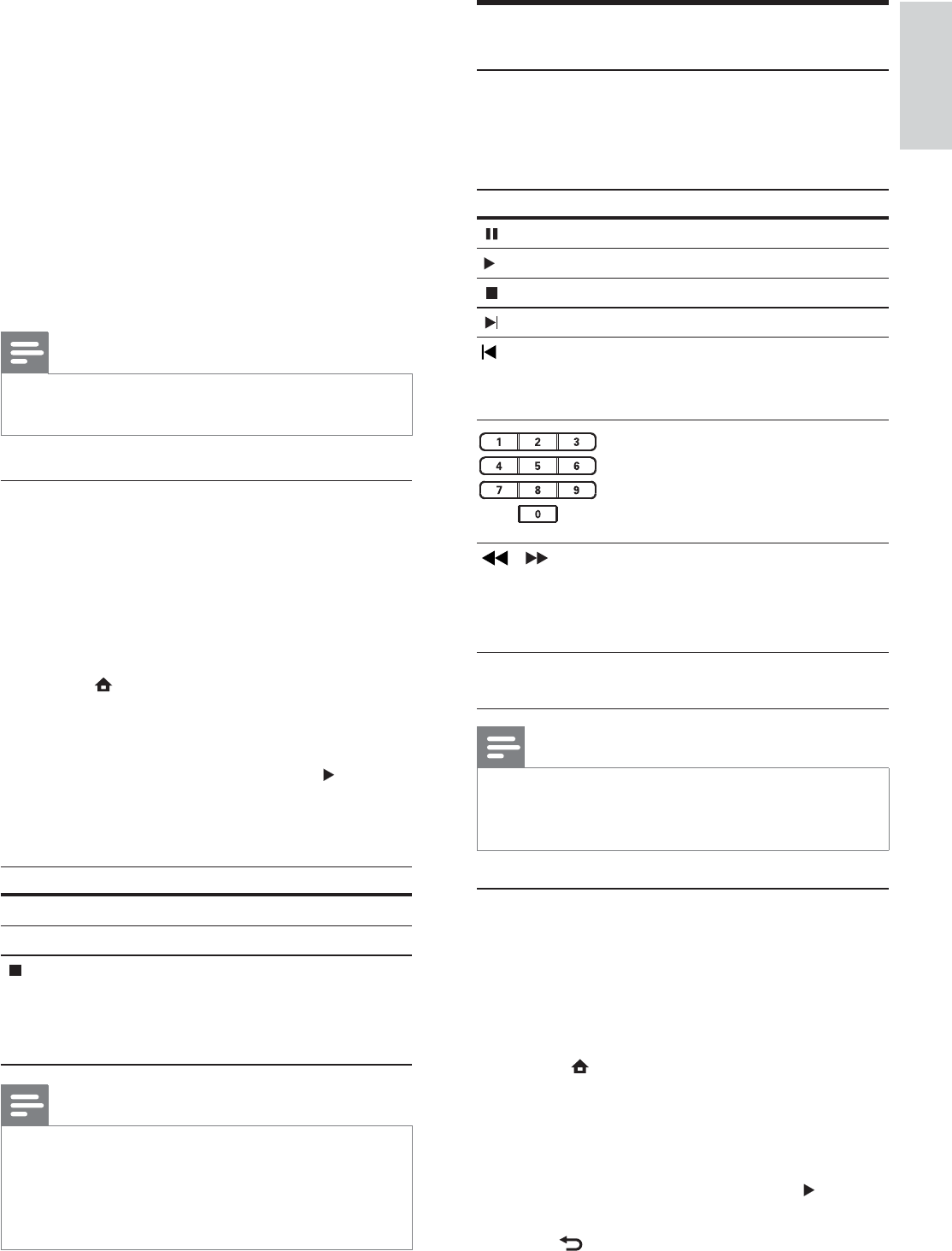

Play video
Control video play
1 Play a title.
2 Use the remote control to control the
title.
Button Action
Pauses play.
( Play ) Starts or resumes play.
Stops play.
Home menu is •
displayed.
Skips to the next title or
chapter.
Skips to the beginning
of the current title or
chapter. Press twice to
jump to the previous title
or chapter.
/ Searches fast-forward
(right) or fast-backward
(left). Press repeatedly to
change the search speed.
In pause mode, slow •
motion backward or
forward play.
Note
Disc play always resumes from the point •
where it was last stopped. To start play from
the beginning, press OK while the message is
displayed.
For BD disc with Java application, the resume
•
function is not available.
EN
1_HTS7200_98_EN.indd Sec1:20 7/20/2009 1:28:19 PM
21

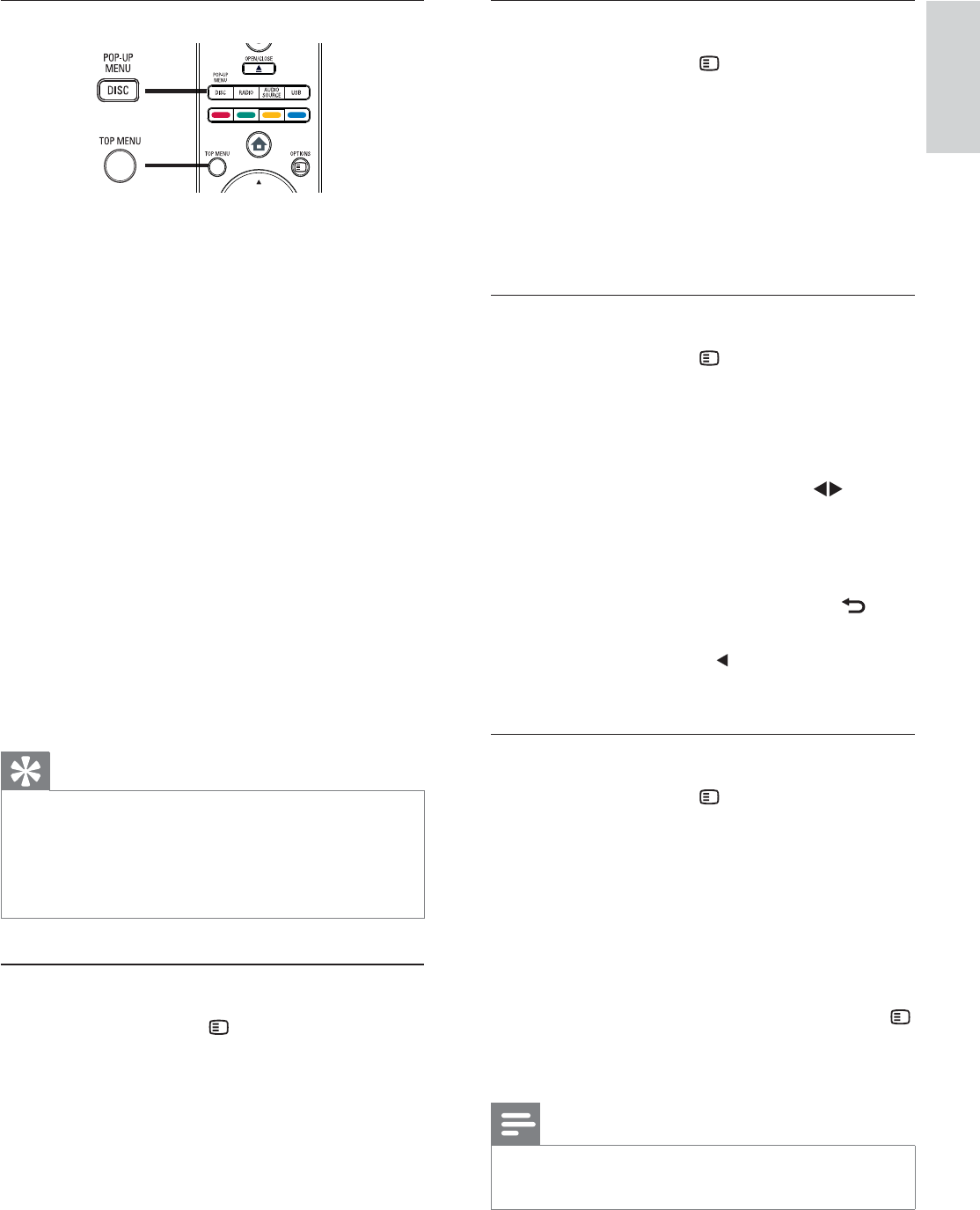

Quick skip to a speci c time
1 During play, press OPTIONS .
The play options menu is displayed. »
2 Select [Time Search] in the menu, then
press OK .
3 Press the Numeric buttons to change
the time where you want to skip to, then
press OK .
Zoom in/out
1 During play, press OPTIONS .
The play options menu is displayed. »
2 Select [Zoom] in the menu, then press
OK .
3 Press the Navigation buttons ( ) to
select a zoom factor, then press OK .
4 Press the Navigation buttons to pan
through the zoomed picture.
To cancel zoom mode, press •
BACK to display the zoom factor
bar, then press repeatedly until
zoom factor [X1] is selected.
Repeat play for a speci c section
1 During play, press OPTIONS .
The play options menu is displayed. »
2 Select [Repeat A-B] in the menu, then
press OK to set the starting point.
3 Forward the video play, then press OK to
set the ending point.
Repeat play starts. »
To cancel repeat play mode, press •
OPTIONS , select [Repeat A-B] and
press OK .
Note
The marked section for repeat play is only •
possible within a track/title.
Display menu
BD-video disc
• TOP MENU stops the video play and
shows the disc menu. This feature is disc-
dependent.
• POP-UP MENU accesses to the BD-
video disc menu without interrupting disc
play.
DVD-video disc
• DISC MENU displays disc information
and guides you through the available
functions in the disc.
• TOP MENU displays the contents in the
disc.
VCD/SVCD disc:
• DISC MENU displays the content of the
disc.
Tip
If the PBC setting is off, the VCD/SVCD skips •
the menu and starts play from the  rst title.
To display the menu before play, turn on the
PBC setting (see chapter ‘Adjust settings’ >
‘Preference Setup’ > [PBC] ).
Select title/chapter
1 During play, press OPTIONS .
The play options menu is displayed. »
2 Select [Titles] or [Chapters] in the menu,
then press OK .
3 Select the title or chapter number, then
press OK .
English
EN
1_HTS7200_98_EN.indd Sec1:21 7/20/2009 1:28:20 PM
22
Play BD-video
Blu-ray video disc has a larger capacity and
supports features such as high-de nition
videos, multi-channel surround sounds,
interactive menus and so on.
1 Insert a BD-video disc.
2 Press , select [Play Disc] and press OK .
3 Play start automatically or select a play
option in the menu and press OK .
During play, you can press • TOP
MENU to display additional
information, features or content
stored in the disc.
During play, you can press • POP-UP
MENU to display the disc menu
without interrupting disc play.

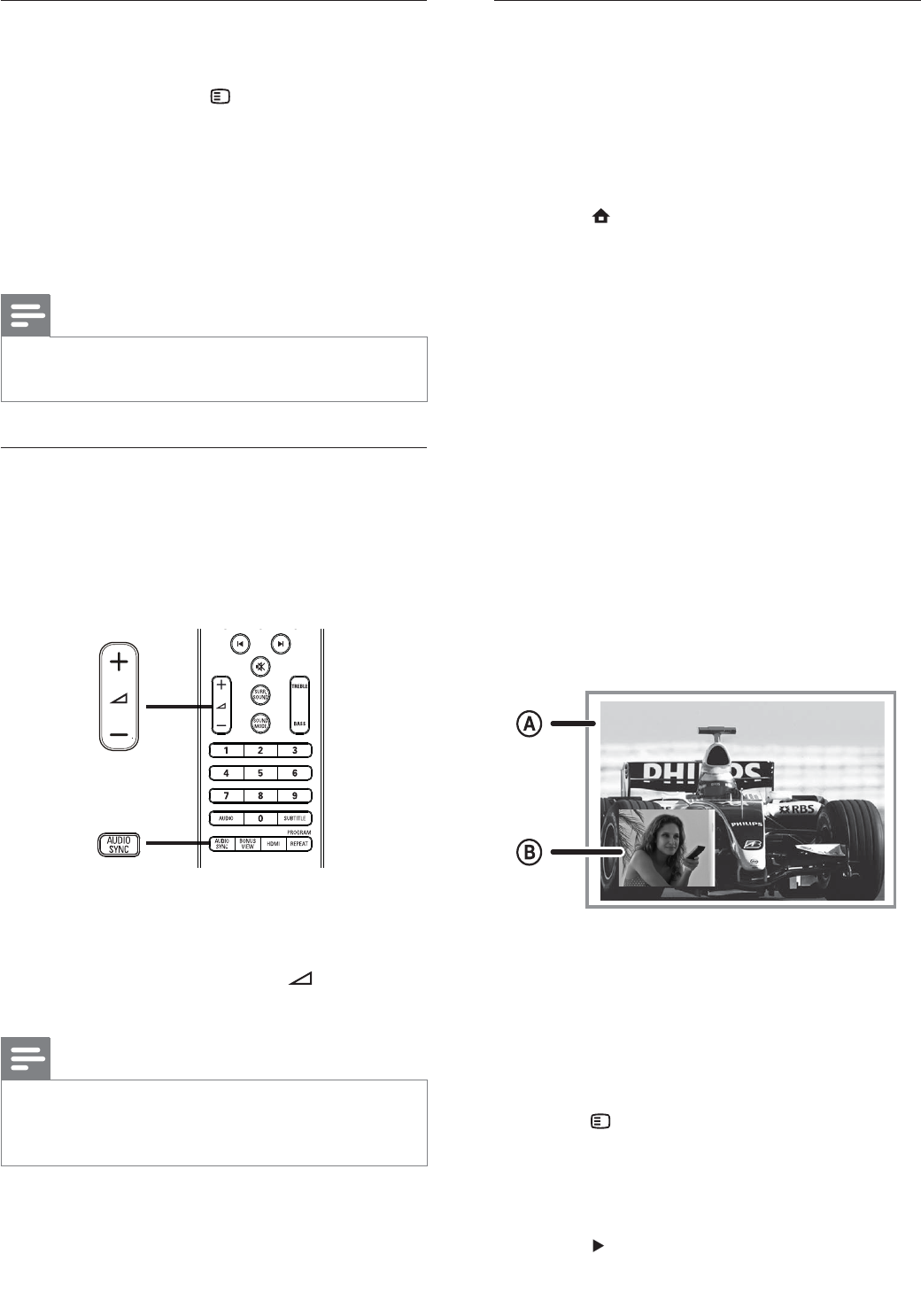

Enjoy BONUSVIEW
Blu-ray discs that support the Bonus View
feature (also known as Picture-In-Picture) allow
you to view special content such as a director’s
commentary, while watching the main feature.
A Primary video
B Secondary video
1 Press BONUS VIEW to turn on the
secondary video window.
2 Press OPTIONS .
The play options menu is displayed. »
3 Select [2nd Audio Language] or [2nd
Subtitle Language] in the menu, then
press .
4 Select the language to play, then press OK .
View video play from different camera
angles
1 During play, press OPTIONS .
The play options menu is displayed. »
2 Select [Angle List] in the menu, then
press OK .
3 Select an angle option, then press OK .
Play changes to the selected angle. »
Note
Applicable only to discs that contain multi- •
angle scenes.
Sync audio output with video play
If the video play is slower than the audio
output (sound does not match with the
pictures), you can delay the audio output to
match the video.
1 Press AUDIO SYNC .
‘AUDIO SYNC’ is displayed. »
2 Within ve seconds, press +/- to set
the delay time for audio output.
Note
If the volume control is not used within  ve •
seconds, it resumes normal volume control
function.
EN
1_HTS7200_98_EN.indd Sec1:22 7/20/2009 1:28:20 PM
23
Play music
Control a track
1 Play a track.
2 Use the remote control to control the track.
Button Action
Pauses play.
( Play ) Starts or resumes play.
Stops play.
Skips to the next track.
Skips to the beginning of the
current track. Press twice to
jump to the previous track.
Selects an item to play.
/ Searches fast-forward (right)
or fast-backward (left). Press
repeatedly to change the
search speed.
REPEAT Selects or turns off repeat or
shuf e mode.
Note
For some commercial audio discs, disc play •
always resumes from the point where it was last
stopped. To start play from  rst track, press OK .
Play MP3/WMA music
MP3/WMA is a type of highly compressed
audio  le ( les with .mp3, .wma extensions).
1 Insert a disc or USB that contains the
MP3/WMA music.
2 Press , select [Play Disc] or [USB] , then
press OK .
A contents menu is displayed. »
3 Select a folder, then press OK .
4 Select a track to play, then press ( Play ) .
To return to the main menu, press •
BACK .
Enjoy BD-LIVE
(applicable only to BD Live enabled BD-Video)
Additional contents such as movie trailers,
subtitles, etc., can be downloaded to the
external storage (USB) on this Home Theater
System. Special video data may be played back
while they are being downloaded.
When the disc supporting BD-Live is played
back, the Home Theater System or disc’s ID can
be sent to the content provider via the internet.
Services and functions to be provided differ
depending on the disc.
Note
Use a USB  ash drive with at least 1GB of free •
space to store the downloaded  les.
Play DivX® video
DivX video is a digital media format that retains
high quality despite a high rate of compression. You
can enjoy DivX video on the certi ed product.
1 Insert a disc or USB that contains the
DivX videos.
2 Press , select [Play Disc] or [USB] , then
press OK .
A contents menu is displayed. »
3 Select a title to play, then press ( Play ).
4 Use the remote control to control the
video play.
Button Action
AUDIO Selects an audio language or channel.
SUBTITLE Selects a subtitle language for video.
Stops play.
For DivX Ultra video, press •
this button again to display
the contents menu.
Note
You can only play DivX videos that were rented •
or purchased with the DivX registration code
of this player (see ‘Adjust Settings’ > ‘Advanced
Setup’ > [DivX® VOD Code] ).
You can play DivX video  les of up to 4GB.
•
English
EN
1_HTS7200_98_EN.indd Sec1:23 7/20/2009 1:28:20 PM
24
Control photo play
1 Play photo slideshow.
2 Use the remote control to control the
photo.
Button Action
Rotates the photo anti-
clockwise.
Rotates the photo clockwise.
Flips the photo upside down.
Flips the photo left-to-right
(mirror image).
Stops play.
OPTIONS Accesses options for the
current activity or selection.
For example, Zoom.
Note
Some operations may not work with some •
discs or les.
Set slideshow interval and animation
1 During play, press OPTIONS .
The play options menu is displayed. »
2 Select [Duration per slide] in the menu,
then press OK .
3 Select the duration per slide, then press
OK .
4 Select [Slide Animation] in the menu,
then press OK .
5 Select the type of slide animation effect
you want to apply, then press OK .
Note
For disc recorded in multiple sessions, only the •
rst session is played.
This product does not support MP3PRO audio
•
format.
If any special characters are present in the MP3
•
track name (ID3) or album name, it might not
be displayed correctly on the screen because
these characters are not supported.
Some WMA  les are protected by Digital
•
Rights Management (DRM), it cannot be
played on this product.
Folders/ les that exceed the supported limit of
•
this product will not be displayed or played.
Play photo
Play photo as slideshow
You can play JPEG photos ( les with .jpeg or
.jpg extensions).
1 Insert a disc or USB that contains the
JPEG photos.
2 Press , select [Play Disc] or [USB] , then
press OK .
A contents menu is displayed. »
3 Select the folder/album you want to play.
To select a photo, press the •
Navigation buttons .
To display the selected photo and •
start slideshows, press OK .
4 Press ( Play ) to start slideshow play.
Note
You may require longer time to display the disc •
content on the TV due to the large number
of songs/photos compiled onto one disc/USB
device.
This product can only display digital camera
•
pictures according to the JPEG-EXIF format,
typically used by almost all digital cameras.
It cannot display Motion JPEG and pictures
in formats other than JPEG, or sound clips
associated with pictures.
Folders/ les exceed the supported limit of this •
product will not be displayed or played.
EN
1_HTS7200_98_EN.indd Sec1:24 7/20/2009 1:28:20 PM
25
Play from USB device
Play or view MP3, WMA/WMV, DivX (Ultra) or
JPEG  les on the following USB devices:
ash drive•
memory card reader•
HDD (external power source needed)•
Digital camera•
1 Connect a USB device to the USB
jack.
2 Press , select [USB] , then press OK .
A contents menu is displayed. »
3 Select a  le to play, then press ( Play ).
Play starts (see ‘Play music, Play photo, »
Play video’ for details).
To stop play, press • or remove the
USB device.
Note
If the device does not  t into the USB jack, •
connect it through a USB extension cable.
Not all digital cameras are supported. Digital
•
cameras that require PC program installation
are not supported.
NTFS (New Technology File System) data
•
format not supported.
/
Play musical slideshow
Play MP3/WMA music  les and JPEG
photo les simultaneously to create musical
slideshow. The MP3/WMA and JPEG  les
must be stored on the same disc or USB
device.
1 Play MP3/WMA music.
2 Press BACK to return to the main
menu.
3 Navigate to the photo folder/album and
press OK to start slideshow play.
Slideshow begins and continues till the »
end of the photo folder or album.
Audio continues to play until the end »
of the disc.
To stop slideshow play, press • .
To stop music play, press • again.
English
EN
1_HTS7200_98_EN.indd Sec1:25 7/20/2009 1:28:20 PM
26
Play from radio
Check if the FM antenna has been connected
to this Home Theater System. If not, connect
the supplied FM antenna to the FM75 jack
and  x its ends to the wall.
Tip
For the best reception, place the antenna away •
from your TV or other sources of radiation.
For even better reception of FM stereo,
•
connect an external FM antenna (not
supplied).
First time tuning
When you access to radio mode for the  rst
time, follow the instruction to install the radio
stations.
1 Press RADIO .
’AUTO INSTALL ... PRESS PLAY’ is »
displayed.
2 Press ( Play ).
All detected radio stations are stored. »
Once complete, it tunes to the  rst »
preset radio station.
To stop auto tuning, press • .
Note
This Home Theater System can store up to a •
maximum of 40 radio stations.
If auto installation is not activated or less
•
than 5 radio stations are stored, you will be
prompted to install the radio stations again.
FM (75 Ω)
ANTENNA
Play from portable media
player
Simply connect your portable media player (e.g.
MP3 player) to this Home Theater System to
enjoy superb sound quality from your music
collections.
1 Connect a 3.5mm stereo audio cable
(not supplied) from the MP3 LINK jack
on this Home Theater System to the
‘headphone’ jack on the portable media
player.
2 Press AUDIO SOURCE repeatedly until
‘MP3 LINK’ is displayed.
3 Start play on your portable media player.
To stop play, press • STOP on the
portable media player.
Note
Control playback is only possible on the •
portable media player.
Stop play on the portable media player before
•
you switch to other play media/source.
MP3
EN
1_HTS7200_98_EN.indd Sec1:26 7/20/2009 1:28:20 PM
27
Search and store radio stations
individually
1 Press RADIO .
2 Press / .
It starts searching until a radio station »
is detected.
3 Repeat step 2 until you tune to the radio
station you wish to store.
To  netune the radio frequency, •
press / .
4 Press PROGRAM .
The preset station number blinks. »
If no action is carried out within 20 »
seconds after the above step, it exits
the preset mode.
5 Press / (or the Numeric buttons ) to
select a preset number to store.
6 Press PROGRAM to con rm.
Listen to radio
1 Press RADIO .
2 Use the remote control to control the
radio.
Button Action
Selects a preset radio station.
Tunes the radio frequency up or
down.
Press and hold this button to
erase the current radio station
from the preset list.
The preset number for •
other radio stations remain
unchanged.
Reinstall all the radio stations
1 Press RADIO .
2 Press and hold PROGRAM for more than
5 seconds.
All previously stored radio stations are »
replaced.
Note
Check the radio antenna connection if no •
stereo signal is detected or less than 5 stations
are detected during radio installation.
English
EN
1_HTS7200_98_EN.indd Sec1:27 7/20/2009 1:28:20 PM
28
Option Description
DOLBY VS Dolby Virtual surround
sound
STEREO Stereo sound from two
front speakers.
Note
This product also contains the capability to •
decode 5.1 DTS-Digital Surround.
Select preset sound
Select prede ned sound modes to suit your
video or music.
1 Press SOUND MODE repeatedly to
cycle through the available sound modes.
Sound mode Description
ACTION /
ROCK
Enhanced low and high-range.
Ideal for action movies and
rock or pop music.
DRAMA /
JAZZ
Clear mid and high-range. Ideal
for drama movies and jazz
music.
CONCERT /
CLASSIC
Neutral sound. Ideal for live
concerts and classical music.
SPORTS Moderate mid-range and
surround effects for clear
vocals and the atmosphere of a
live sport venue.

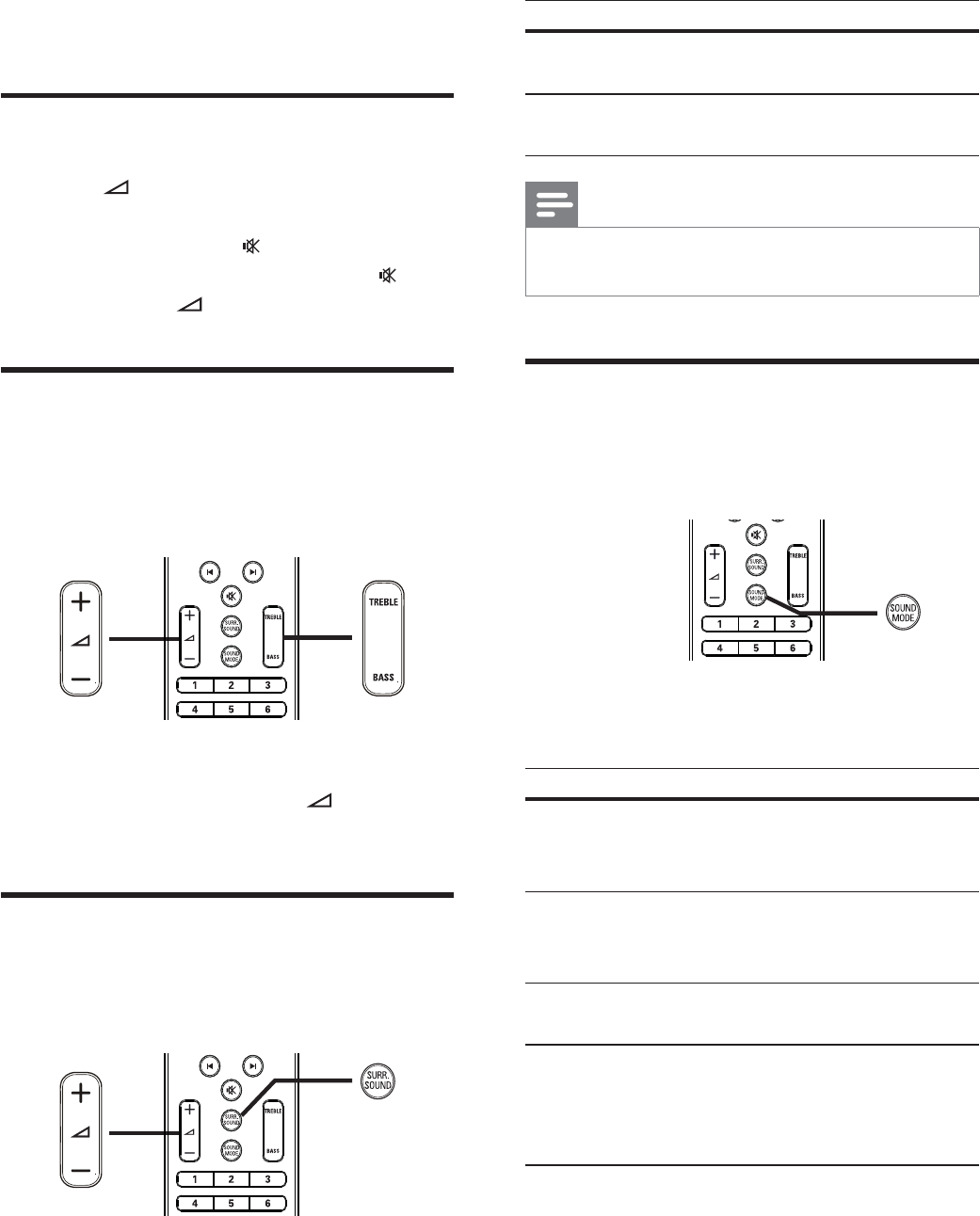

6 Adjust sound
Control the volume
1 Press +/- to increase or decrease the
volume.
To mute, press • .
To restore the volume, press • again
or press + .
Change treble and bass
Change the high frequency (treble) or low
frequency (bass) settings of the Home Theater
System to suit your video or music.
1 Press TREBLE or BASS .
2 Within ve seconds, press +/- to
increase or decrease treble or bass.
Select surround sound
Experience an immersive audio experience with
surround sound modes.
1 Press SURR. SOUND repeatedly to
select the virtual speaker or stereo
sound.
EN
1_HTS7200_98_EN.indd Sec1:28 7/20/2009 1:28:20 PM
29
[Disc Menu]
Selects the language for disc menu.
Note
If the language you have set is not available on •
the disc, the disc uses its own default language.
For some discs, the subtitle/audio language can
•
only be changed from the disc menu.
[TV Display]
Selects one of the following display formats
which the disc can support.
• [4:3 Panscan] – For 4:3 screen TV: full-
height display with the trimmed sides.
• [4:3 Letterbox] – For 4:3 screen TV:
wide-screen display with black bars on
the top and bottom of the screen.
• [16:9 Widescreen] – For wide-screen TV:
display ratio 16:9.
[HDMI Video]
Selects the HDMI video output resolution
that is compatible with your TV display
capability.
• [Auto] - Detects and selects the best
supported video resolution automatically.
• [Native] - Sets to original video
resolution.
• [480i/576i] , [480p/576p] , [720p] , [1080i] ,
[1080p] , [1080p/24Hz] - Selects a video
resolution setting that best supported by
the TV. See the TV manual for details.
Note
If the setting is not compatible with your TV, a •
blank screen appears. Wait for 15 seconds for
auto recover or press HDMI repeatedly until
the picture appears.

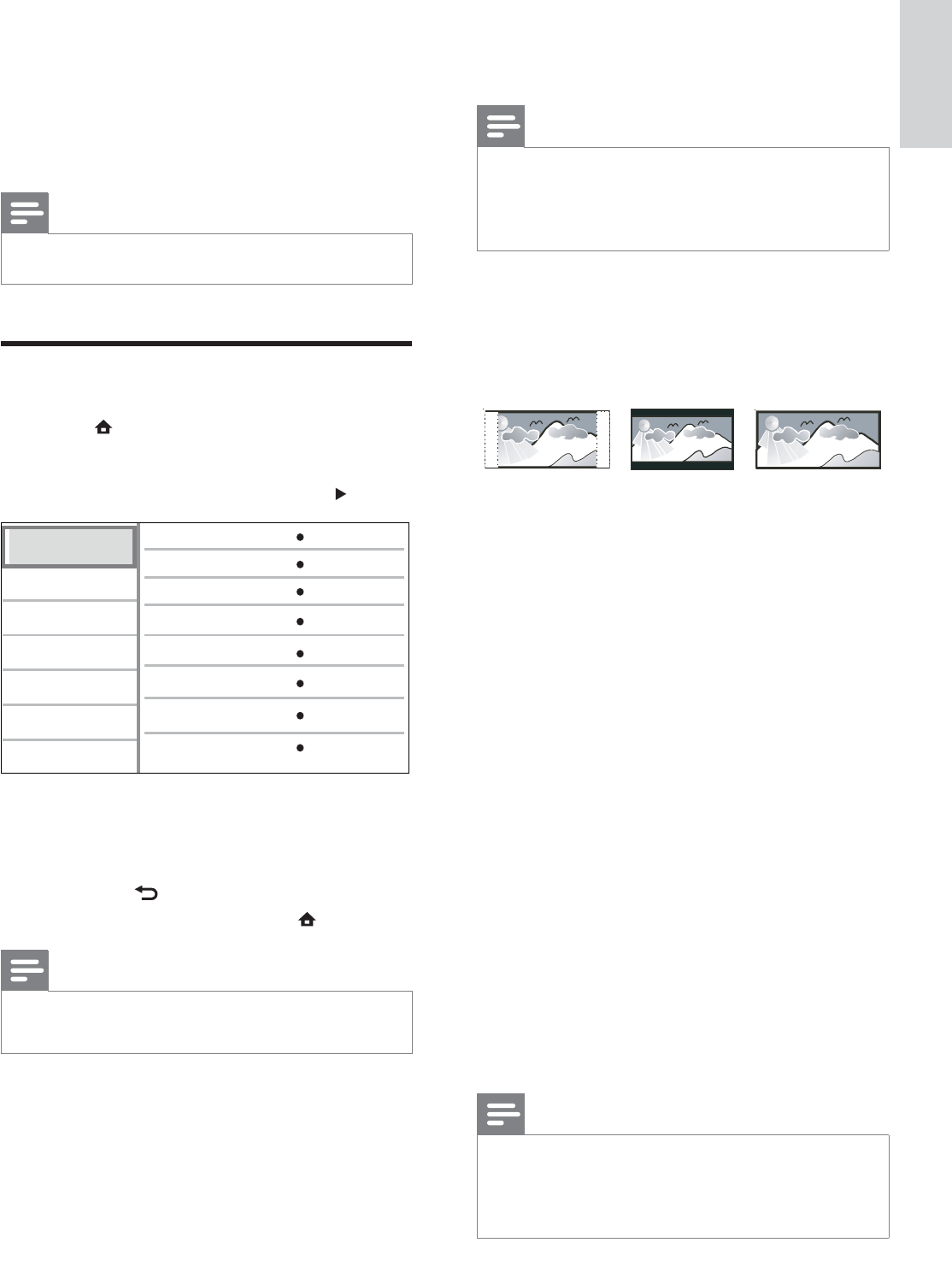

4:3 Letter Box (LB)
4:3 Pan Scan (PS) 16:9 (Wide Screen)
7 Adjust settings
You can customize various kinds of settings as
you prefer. Refer to the following instructions to
navigate through the setup menus.
Note
You cannot change a setting that is grayed out. •
Video Setup
1 Press .
2 Select [Settings] , then press OK .
3 Select [Video Setup] , then press .
4 Select an option, then press OK .
5 Select a setting, then press OK .
To return to the previous menu, •
press BACK .
To exit the menu, press • .
Note
See the explanations of the above options in •
the following pages.
[Audio]
Selects the default audio language for disc play.
[Subtitle]
Selects the default subtitle language for disc play.
Video Setup
Advanced Setup
Audio Setup
Preference Setup
EasyLink Setup
Subtitle
Audio
Disc Menu
TV Display
HDMI Video
HDMI Deep Color
Component Video
Picture Settings
Off
English
English
16:9 Widescreen
Auto
Auto
480i/576i
Standard
English
EN
1_HTS7200_98_EN.indd Sec1:29 7/20/2009 1:28:20 PM
30
Audio Setup
1 Press .
2 Select [Settings] , then press OK .
3 Select [Audio Setup] , then press .
4 Select an option, then press OK .
5 Select a setting, then press OK .
To return to the previous menu, •
press BACK .
To exit the menu, press • .
Note
See the explanations of the above options in •
the following pages.
[Night Mode]
Makes loud sound level softer and soft sound
level louder so that you can watch the disc at
a low volume, without disturbing others.
• [On] – For quiet viewing at night.
• [Off] – For surround sound with a full
dynamic range.
Note
Applicable only to Dolby encoded DVD-video •
or BD-video.
HDMI Audio
Night Mode
Video Setup
Advanced Setup
Audio Setup
Preference Setup
EasyLink Setup
Off
Auto
[HDMI Deep Color]
This feature is available only when the display
device is connected by a HDMI cable, and
when it supports deep color feature.
• [Auto] - Switches on automatically if the
connected display device supports HDMI
deep color.
• [On] - Enjoys vivid images in over a
billion colors on Deep Color enabled TV.
Outputs 12 bit color that reduces the
posterization efffect.
• [Off] - Outputs standard 8 bit color.
[Component Video]
Selects the Component video output
resolution that is compatible with the TV
display capability.
• [480i/576i] , [480p/576p] , [720p] , [1080i]
- Selects a video resolution setting that
best supported by the TV. See the TV
manual for details.
Note
If the setting is not compatible with the TV, a •
blank screen appears. Wait for 15 seconds for
auto recovery.
[Picture Settings]
Selects a prede ned set of picture color
settings.
• [Standard] – Original color setting.
• [Vivid] – Vibrant color setting.
• [Cool] - Soft color setting.
• [Action] – Sharp color setting. It
enhances the details in the dark area.
Ideal for action movies.
• [Animation] – Contrast color setting.
Ideal for animated pictures.
[Black Level]
Improves black color contrast.
• [Normal] - Standard black level.
• [Enhanced] - Enhances black level.
EN
1_HTS7200_98_EN.indd Sec1:30 7/20/2009 1:28:21 PM
31
[OSD Language]
Selects the default on-screen menu language.
Note
If this product is connected to a HDMI CEC •
compliant TV using a HDMI cable, it switches
automatically to the same menu display
language as per your TV setting.
[Parental Control]
Restricts access to discs that are unsuitable
for children. These types of discs must be
recorded with ratings.
To access, enter your last set password or
‘ 0000 ’ using the keyboard on the TV.
Note
Rated discs above the level you set in • [Parental
Control] require a password to be played.
The ratings are country-dependent. To allow
•
all discs to play, select ‘ 8 ’ for DVD-video and
BD-Video.
Some discs have ratings printed on them but
•
are not recorded with ratings. This function
has no effect on such discs.
[Screen Saver]
Turns off or on the screen saver mode. Helps
to protect the TV screen from being damaged
due to over exposure to static image for too
long.
• [On] - Sets the screen saver to appear
after 10 mins of inactivity (for example, in
pause or stop mode)
• [Off] - Disables screen saver mode.
[HDMI Audio]
Selects the HDMI audio output when you
connect this Home Theater System and the
TV/audio device with a HDMI cable.
• [As Source] – The audio format is not
converted. A secondary audio track on a
Blu-ray disc might not be available.
• [Auto] – Detects and selects the best
suppported audio format automatically.
• [Off] - Disables audio from the TV.
Preference Setup
1 Press .
2 Select [Settings] , then press OK .
3 Select [Preference Setup] , then press .
4 Select an option, then press OK .
5 Select a setting, then press OK .
To return to the previous menu, •
press BACK .
To exit the menu, press • .
Note
See the explanations of the above options in •
the following pages.
Video Setup
Advanced Setup
Audio Setup
Preference Setup
EasyLink Setup
OSD Language
Parental Control
Screen Saver
Display Panel
Auto Standby
PBC
Change PIN
English
On
100%
On
On
Sleep Timer Off
Off
English
EN
1_HTS7200_98_EN.indd Sec1:31 7/20/2009 1:28:21 PM
32
EasyLink Setup
1 Press .
2 Select [Settings] , then press OK .
3 Select [EasyLink Setup] , then press .
4 Select an option, then press OK .
5 Select a setting, then press OK .
To return to the previous menu, •
press BACK .
To exit the menu, press • .
Note
See the explanations of the above options in •
the following pages.
[EasyLink]
Your product supports Philips Easylink, which
uses the HDMI CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI connectors
can be controlled by a single remote control.
• [On] - Enables EasyLink features.
• [Off] - Disables EasyLink features.
[One Touch Play]
When you press PLAY on the remote control,
the TV (if supports one-touch play) and the
Home Theater System will be turned on. Disc
play starts if there is a disc in the Home Theater
System and the TV automatically switches to
the correct channel to show the video content.
• [On] - Enables one-touch play feature.
• [Off] - Disables one-touch play feature.
Video Setup
Advanced Setup
Audio Setup
Preference Setup
EasyLink Setup
One Touch Play
EasyLink
One Touch Standby
On
On
System Audio Control Off
Audio Input Mapping
On
[Change PIN]
Sets or changes the password.
1) Press the Numeric buttons to enter the
password or your last set password. If you
forget the password, enter ‘ 0000 ’, then press
OK .
2) Enter the new password.
3) Enter the same password again.
4) Move to [Con rm] in the menu and press
OK .
[Display Panel]
Selects the brightness level of the front panel
display.
• [100%] - Brightest
• [70%] - Medium
• [40%] - Dimmest
[Auto Standby]
Turns off or turns on standby switching mode.
It is an energy saving feature.
• [On] - Switches to standby after 30
minutes of inactivity (for example, in
pause or stop mode).
• [Off] - Disables auto standby mode.
[PBC]
Turns off or on the content menu of VCDs/
SVCDs with PBC (playback control) feature.
• [On] - Displays index menu when you
load a disc for play.
• [Off] - Skips the menu and start play
from the  rst title.
[Sleep Timer]
Switches to standby automatically after a
delay.
• [Off] – Disables the sleep timer.
• [15 Minutes] , [30 Minutes] , [45 Minutes] ,
[60 Minutes] – Selects a delay.
EN
1_HTS7200_98_EN.indd Sec1:32 7/20/2009 1:28:21 PM
33
Advanced Setup
1 Press .
2 Select [Settings] , then press OK .
3 Select [Advanced Setup] , then press .
4 Select an option, then press OK .
5 Select a setting, then press OK .
To return to the previous menu, •
press BACK .
To exit the menu, press • .
Note
See the explanations of the above options in •
the following pages.
[BD-Live Security]
You can restrict internet access when BD-
R/RE disc is used.
• [On] - Internet access is prohibited for all
BD-Live contents.
• [Off] - Internet access is permitted for all
BD-Live contents.
[Network]
Sets up connection to external network for
software download and BD-Live applications.
It guides you through a step-by-step network
installation procedure.
Note
There is more detailed description available, •
see ‘Getting Started’ > ‘Set up network’.
Video Setup
Advanced Setup
BD Live Security
Network
Software Download
Clear Local Storage
DivX® VOD Code
Version Info.
Restore Factory Settings
Audio Setup
Preference Setup
EasyLink Setup
Off
[One Touch Standby]
When you press and hold ( Standby ) on the
remote control, this Home Theater System
and all the connected HDMI CEC devices
(if supports one-touch standby) switch to
standby mode simultaneously.
• [On] - Enables one-touch standby
feature.
• [Off] - Disables one-touch standby
feature.
Note
When • [Off] is selected, the Home Theater
System cannot be switched to standby by a
remote control from the TV or other devices.
[System Audio Control]
When you play a device which its audio
output is routed to this Home Theater
System, this Home Theater System
switches to the corresponding audio source
automatically.
• [On] - Enables system audio control
feature. Then proceed to [Audio Input
Mapping] to scan and map all the
connected devices.
• [Off] - Disables system audio control
feature.
[Audio Input Mapping]
Maps the connection between other devices
and the audio input jacks of this Home
Theater System. Only the detected devices
will be displayed for mapping.
Note
You need to enable the • [System Audio
Control] before you can map the audio input.
English
EN
1_HTS7200_98_EN.indd Sec1:33 7/20/2009 1:28:21 PM
34
[Version Info.]
Displays the software version of this Home
Theater System.
Tip
This information is required when you want •
to  nd out if a newest software version is
available at the Philips website that you may
download and install on this Home Theater
System.
[Restore Factory Settings]
Resets all the settings of this product to
factory default, except for [Parental Control]
setting.
[Software Download]
Updates the software of this product (if a
newer version is available on Philips website)
to enhance playability.
• [USB] - Downloads software via USB.
• [Network] - Downloads software via
network.
Note
There is more detailed description available, •
see ‘Additional Information’ > ‘Upgrade
Software’.
[Clear Local Storage]
Deletes the content of the BD-Live storage
folder on the USB  ash drive.
Note
Local storage is a folder (BUDA) located on •
the connected USB  ash drive.
[DivX® VOD Code]
Displays the DivX® registration code.
Tip
Enter this product’s DivX registration code •
when you rent or purchase video from www.
divx.com/vod. The DivX videos rented or
purchased through the DivX® VOD (Video
On Demand) service can be played only on
the device to which it is registered.
EN
1_HTS7200_98_EN.indd Sec1:34 7/20/2009 1:28:21 PM
35
Update software via USB
1 Go to www.phillips.com/support to check
the latest software version available for
this Home Theater System.
2 Create a folder named ‘UPG’ in the root
of a USB  ash drive.
3 Download the software onto the ‘UPG’
folder of the USB  ash drive.
4 Unzip the downloaded software in the
‘UPG’ folder.
5 Insert the USB  ash drive to this Home
Theater System.
6 At Home menu, select [Settings]
> [Advanced Setup] > [Software
Download] > [USB] .
7 Follow the instruction on the TV to
con rm update operation.
Once software update is complete, »
this Home Theater System turns off to
standby automatically.
8 Disconnect the power cord for a few
seconds and connect again to reboot the
Home Theater System.
Note
Do not turn off the power or remove the USB •
when software updating is in progress as it
may damage the Home Theater System.
8 Update software
To check for new updates, compare the current
software version of your home theater with
the latest software version (if available) on the
Philips web site.
1 Press .
2 Select [Settings] , then press OK .
3 Select [Advanced Setup] > [Version
Info.] , then press OK .
Update software via network
1 Prepare the network connection, see
chapter ‘Getting Started’ > ‘Set up
network’ for detailed information.
2 At Home menu, select [Settings]
> [Advanced Setup] > [Software
Download] > [Network] .
3 Follow the instruction on the TV to
con rm update operation.
Once software update is complete, »
this Home Theater System turns off to
standby automatically.
4 Disconnect the power cord for a few
seconds and connect again to reboot the
Home Theater System.
English
EN
1_HTS7200_98_EN.indd Sec1:35 7/20/2009 1:28:22 PM
36
USB
Compatibility: Hi-Speed USB (2.0)•
Class support: UMS (USB Mass Storage •
Class)
File system: FAT16, FAT32•
Main Unit
Power supply: 110-127V/220-240V; ~50-•
60Hz switchable
Power consumption: 100 W•
Standby power consumption: < 0.8 W •
Dimensions (WxHxD): 360 X 72 X 345 •
(mm)
Weight: 4.2 kg•
Speakers
System: full range satellite•
Speaker impedance: 4 ohm•
Speaker drivers: 2 x 3” woofer + 2” •
tweeter
Frequency response: 150 Hz ~ 20 kHz•
Dimensions (WxHxD): 130 x 362 x 130 •
(mm)
Weight: 1.8 kg•
Subwoofer
Impedance: 3 ohm•
Speaker drivers: 165 mm (6.5”) woofer•
Frequency response: 45 Hz ~ 5 kHz•
Dimensions (WxHxD): 295 x 375 x 295 •
(mm)
Weight: 6.3 kg•
Laser Speci cation
Laser Type: •
BD Laser Diode: InGaN/AIGaN•
DVD Laser Diode: InGaAIP•
CD Laser Diode: A IGaAs•
Wave length: •
BD: 405 +5nm/-5nm•
DVD: 650 +5nm/-10nm•
CD: 790 +10nm/-20nm•
Output power: •
BD: Max. ratings: 20mW•
DVD: Max. ratings: 7mW•
CD: Max. ratings: 7mW•
9 Specifications
Note
Speci cation and design are subject to change •
without notice
Playback media
BD-Video, BD-R, BD-RE, DVD-Video, •
DVD+R/+RW, DVD-R/-RW, DVD+R/-R
DL, CD-R/CD-RW, Audio CD, Video CD/
SVCD, Picture CD, MP3-CD, WMA-CD,
DivX (Ultra)-CD, USB  ash drive.
Ampli er
Total output power: 440 W RMS •
(±0.5dB)
Frequency response: 40 Hz ~ 20 kHz•
Signal-to-noise ratio: > 65 dB (A-weighted)•
Input sensitivity:•
AUX 1/2: 400 +/-100mV•
MP3 LINK: 250 +/-100mV•
Video
Signal system: PAL / NTSC•
Component video output: 480i/576i, •
480p/576p, 720p, 1080i
HDMI output 480p, 576p, 720p, 1080i, •
1080p, 1080p24
Audio
S/PDIF Digital audio input:•
Coaxial: IEC 60958-3•
Optical: TOSLINK•
Sampling frequency:•
MP3: 32 kHz, 44.1 kHz, 48 kHz•
WMA: 44.1 kHz, 48 kHz•
Constant bit rate:•
MP3: 112 kbps - 320 kbps•
WMA: 48 kbps - 192 kbps•
Radio
Tuning range: FM 87.5-108 MHz (50/100 kHz)•
Signal-to-noise ratio: FM 50 dB•
Frequency response: FM 180 Hz ~ 10 •
kHz / ±6dB
EN
1_HTS7200_98_EN.indd Sec1:36 8/3/2009 1:41:45 PM
37
No picture.
Ensure that the TV is switched to the •
correct source for this home theater.
No picture on HDMI connection.
If the connected device is not HDCP- •
compliant, you cannot transmit picture
through an HDMI connection. Use
composite or component video
connection.
Check if the HDMI cable is faulty. Replace •
a new HDMI cable.
If this happens when you change the •
HDMI video resolution, press HDMI
repeatedly until the picture appears.
No picture on the Component (Y Pb Pr)
connection.
If the HDMI video connection is set to •
[Auto] or [1080p/24Hz] , there is no
video output through the component
connection. Change the HDMI video
setting or remove the HDMI connection.
No high-de nition video signal on the TV.
Make sure that the disc contains high-•
de nition video.
Make sure that the TV supports high-•
de nition video.
10 Troubleshooting
Warning
Risk of electric shock. Never remove the •
casing of the product.
To keep the warranty valid, never try to repair
the product yourself.
If you have problems using this product, check
the following points before you request service.
If you still have a problem, register your product
and get support at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of your product. The
model number and serial number are on the
back or bottom of your product. Write the
numbers here:
Model No. __________________________
Serial No. ___________________________
Main unit
The buttons on this home theater do not
work.
Disconnect the home theater from the •
power outlet for a few minutes, then
reconnect.
English
EN
1_HTS7200_98_EN.indd Sec1:37 7/20/2009 1:28:22 PM
38
Play
Disc cannot be played.
Ensure that this product supports the •
disc. See ‘Speci cations’.
Ensure that this product supports the •
region code of the DVD or BD.
For DVD±RW or DVD±R, ensure that •
the disc is nalized.
Clean the disc. •
Data  les (JPEG, MP3, WMA) cannot be
played or read.
Ensure that the data  le was recorded in •
the UDF, ISO9660 or JOLIET format.
Ensure that the JPEG  le extention is.jpg, •
.JPG, .jpeg or .JPEG.
Ensure that the MP3/WMA  le extension •
is .mp3 or .MP3, and .wma or .WMA for
windows Media™ Audio.
DivX video  les cannot be played.
Ensure that the DivX video  le is complete. •
Ensure that the  le name extension is •
correct.
The contents of the USB  ash drive cannot
be read.
The USB  ash drive format is not •
compatible with this product.
Drive is formatted with different  le •
system which is not supported by this
product (e.g. NTFS).
‘No entry’ sign appears on the TV.
The operation is not possible.•
Unable to access BD-Live feature.
Check the network connection or ensure •
that the network has been set up.
Clear local storage, internal memory (if •
any) or USB  ash drive.
Ensure that the BD disc supports BD Live •
feature.
Sound
No sound.
Make sure that the audio cables are •
connected and select the correct input
source (for example, AUDIO SOURCE ,
USB ) for the device you want to play.
No sound on HDMI connection.
If the connected device is not HDCP- •
compliant or is only DVI-compatible, you
cannot transmit sound through an HDMI
connection. Use an analog or digital audio
connection.
Make sure that the •[HDMI Audio] setting
is turned on.
No sound from TV program.
Connect an audio cable from the audio •
input on this home theater to the audio
output on your TV. Then press AUDIO
SOURCE repeatedly to select the correct
audio source.
No surround sound effect from the speakers.
Press • SURR. SOUND to select a correct
surround sound setting.
Ensure that the source you play is •
recorded or broadcast in surround
sound (Dolby Digital, etc). Sound cannot
transmit through HDMI connection if
the connected device is non-HDCP
compliant or only DVI-compatible. Make
an analog or digital audio connection.
EN
1_HTS7200_98_EN.indd Sec1:38 7/20/2009 1:28:22 PM
39
D
DivX Video
DivX® is a digital video format created by
DivX, Inc. This is an of cial DivX Certi ed
device that plays DivX video. Visit www.divx.
com for more information and software tools
to convert your  les into DivX video.
DivX Video-On-Demand
This DivX Certi ed ® device must be
registered in order to play DivX Video-on-
Demand (VOD) content. To generate the
registration code, locate the DivX VOD
section in your device setup menu. Go to
vod.divx.com with this code to complete the
registration process and learn more about
DivX video.
Dolby Digital
A surround sound system developed by Dolby
Laboratories that contains up to six channels
of digital audio (front left and right, surround
left and right, center and subwoofer.)
Dolby Pro Logic IIx
As advanced, matrix decoding technology that
expands any two channel or multi-channel 5.1
audio to 7.1 channel playback, resulting in a
surround sound experience.
Dolby TrueHD
Dolby TrueHD is a very high quality audio
format that reproduces the studio master
audio.
DTS
Digital Theatre Systems. A surround sound
system for providing 5.1 channels of discrete
digital audio in consumer electronics products
and software content. It is not developed by
Dolby Digital.
DTS-HD
DTS- HD is a high-quality, sophisticated audio
format used in movie theaters. Previous DTS
Digital Surround-compatible equipment can
play DTS-HD as DTS Digital Surround audio.
BD-Video supports up to 7.1-channel output.
11 Glossary
A
AVCHD
AVCHD is a new format (standard) for high
de nition video cameras that can be used to
record and play high-resolution HD images.
B
BD-J
Some BD-Video discs contain Java
applications, and these applications are called
BD-J. You can enjoy various interactive
features in addition to playing normal video.
Blu-ray Disc (BD)
Blu-ray Disc is a next generation optical video
disc capable of storing  ve times more data
than a conventional DVD. The large capacity
makes it possible to bene t from the features
such as high-de nition videos, multichannel
surround sound, interactive menus and so on.
BONUSVIEW
This is a BD-Video (Final Standard Pro le or
Pro le 1.1) that supports interactive content
encoded on the disc, such as picture-in-
picture. This means you can play the primary
video and secondary video simultaneously.
English
EN
1_HTS7200_98_EN.indd Sec1:39 7/20/2009 1:28:22 PM
40
M
MP3
A  le format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
P
PBC
Playback Control. A system where you
navigate through a Video CD/Super VCD with
on-screen menus that are recorded onto the
disc. You can enjoy interactive playback and
search.
W
WMA
Windows Media™ Audio. Refers to an
audio compression technology developed by
Microsoft Corporation. WMA data can be
encoded with Windows Media player version
9 or Windows Media player for Windows XP.
Files are recognized by their  le extension
‘.wma.’
H
HDCP
High-bandwidth Digital Content Protection.
This is a speci cation that provides a secure
transmission of digital contents between
different devices (to prevent unauthorized
copyright.)
HDMI
High-De nition Multimedia Interface (HDMI)
is a high-speed digital interface that can
transmit uncompressed high de nition video
and digital multichannel audio. It delivers high
quality picture and sound quality, completely
free from noise. HDMI is fully backward-
compatible with DVI.
As required by the HDMI standard,
connecting to HDMI or DVI products without
HDCP (High-bandwidth Digital Content
Protection) will result in no Video or Audio
output.
J
JPEG
A very common digital still picture format.
A still-picture data compression system
proposed by the Joint Photographic Expert
Group, which features small decrease in image
quality in spite of its high compression ratio.
Files are recognized by their  le extension
‘.jpg’ or ‘.jpeg.’
L
LAN (Local Area Network)
A group of linked devices in a company,
school or home. Indicates the boundaries of a
particular network.
Local storage
This storage area is used as destination for
storing additional contents from BD-Live
enabled BD-Video.
EN
1_HTS7200_98_EN.indd Sec1:40 7/20/2009 1:28:22 PM
