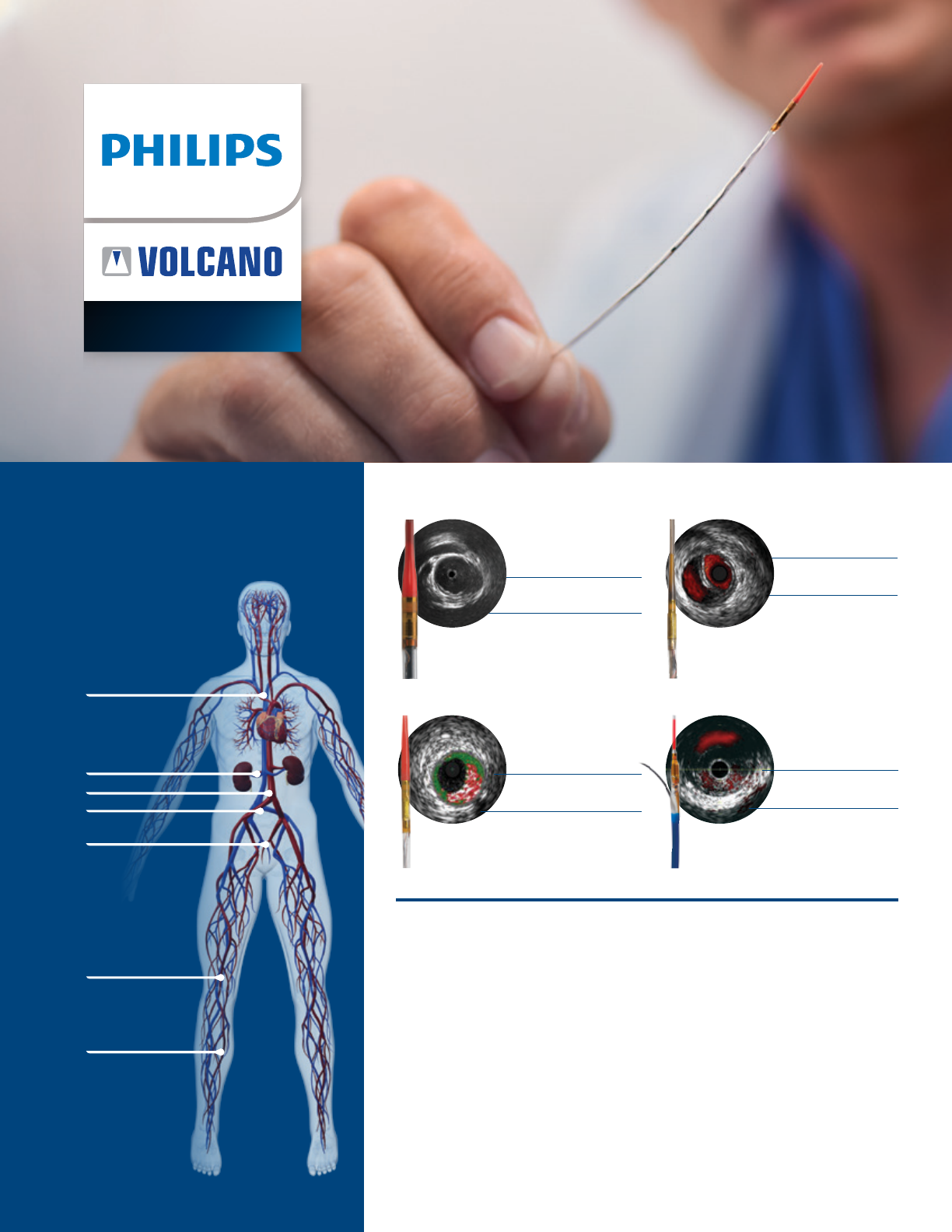

Peripheral
A full line of
peripheral IVUS catheters
to help guide your
treatment strategies
• % Stenosis
• Calcium and
thrombus
• Real time vessel
diameters
• Length of stenosis
• Dissection
• Position of wire
in true or false lu-
men
• Location of side
branches (without
using contrast)
• Completeness
of treatment
IVUS allows assessment of:
Visions PV .035
catheter
with centimeter markers
0.035” guide wire
compatible
60 mm max imaging
diameter
Visions PV .014P
RX catheter
0.014” guide wire
compatible
20 mm max imaging
diameter
Visions PV .018
catheter
0.018” guide wire
compatible
24 mm max imaging
diameter
Below the knee
Choose your catheter
based on imaging diameter
and wire compatibility needed
Subclavian artery
Popliteal artery
Renal artery
Aorta and IVC
Illiac vein and arteries
Supercial femoral artery
Pioneer Plus
catheter
0.014” guide wire
compatible
20 mm max imaging
diameter
Ordering information and technical specications
Visions PV .035 catheter
88901
Min sheath: 8.5 F
PIM connector
Shaft markers Guide wire exit port
≤ 0.018" (0.46 mm)
Transducer 3.5 F
Tip O.D.
0.030”
135 cm
3.4 F
95 cm
31 cm
Visions PV .018 catheter
86700
Min sheath: 6 F
Visions PV .014P RX catheter
014R
Pioneer Plus catheter
PPLUS120
Min sheath: 5 F
Min sheath: 6 F
PIM connector
Brachial and femoral
shaft markers
Guide wire
exit port
≤ 0.014"
(0.36 mm)
Transducer
3.5 F
Tapered tip
O.D. 0.019”
150 cm
3.3 F
100 cm
24 cm hydrophilic coating
Needle
depth
markers
Needle
stop ring
with lock
Needle deployment
with autolock ring
Needle guide
wire lumen
Connector for IVUS console
Handle
Extended
nitinol
needle
IVUS
tranducer
PIM connector
Y-connector Transducer 8.2 F
Tip O.D.
≤0.055”
90 cm working length
Guide wire exit port
≤ 0.038" (0.97 mm)
30 cm GlyDx hydrophilic coating
25 RO markers 1 cm apart
1 cm 1 cm 1 cm
1 mm5 mm
12 mm
1.5 mm
Imaging plane
1 cm1 cm
6.5 mm1.5 mm
