Azurion accessories
2
Contents
4 Mattress
Long cardio mattress
5 Neuro mattress
Arm support board
6 Height-adjustable arm support
Set of elbow supports
7 Shoulder support board
Head support
8 Neuro head holder
Neuro wedge
9 Patient straps
Ratchet compressor
10 Peripheral X-ray lter
Drip stand
11 Table accessory rail (EU version)
Accessory rail + cable extension kit
12 Additional table accessory rail (US version)
Table base accessory rail
13 Table accessory rail clamps
Table clamp
14 Handgrip and clamp set
Cerebral lter
15 Radiation shield
Table-mounted radiation shield

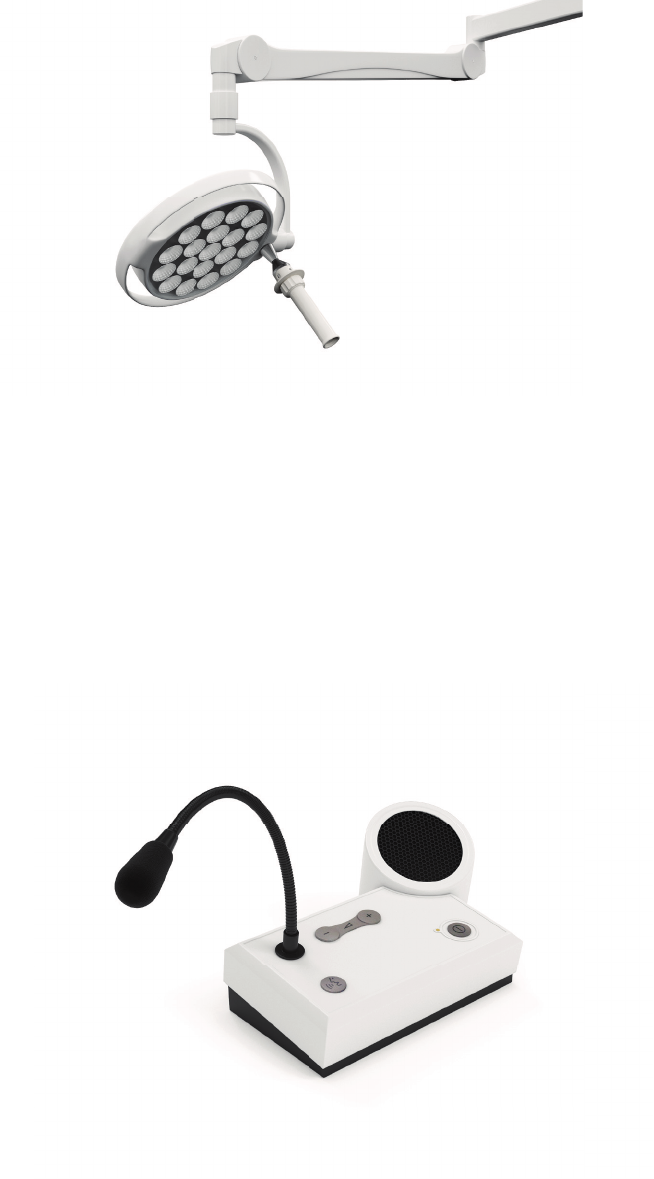

16 Exam light
Intercom (control room)
17 Pan handle
DVD writer
3
Mattress (blue and yellow)
FCV0246
Key benefi ts:
• Enhances patient comfort
• Adapts to the shape of the patient’s body
To enhance patient comfort, the infl atable, latex free mattress
is placed on the tabletop for every procedure. It is 7 cm thick
and adapts to the shape of the patient’s body. The pressure
within the mattress is evenly distributed so that it recovers its
original shape quickly.
Dimensions of the mattress:
Length: 2100 mm
Width: 500 mm
Height: 70 mm
Radius: 150 mm
Long cardio mattress (blue and yellow)
FCV0510
Key benefi ts:
• Enhances patient comfort
• Adapts to the shape of the patient’s body
To enhance patient comfort during cardio exams, the
infl atable, latex free mattress can be used. It is extra-long to
accommodate the patient on the tabletop, and adapts to the
shape of the patient’s body. The pressure within the mattress
is evenly distributed so that it recovers its original shape
quickly.
Dimensions of the mattress:
Length: 3165 mm
Width: 500 mm
Height: 70 mm
Radius: 150 mm
4
Neuro mattress (blue and yellow)
FCV0247
Key benefi ts:
• Enhances patient comfort
• Adapted shape at the head end
• Conforms to the shape of the patient’s body
To enhance patient comfort during neuro procedures, the
infl atable, latex free mattress is placed on the tabletop for
every procedure. The shape is adapted at the head end to
accommodate neuro accessories and allow free access to the
patient’s head. It is 7 cm thick and conforms to the shape of
the patient’s body. The pressure within the mattress is evenly
distributed so that it recovers its original shape quickly.
Dimensions of the mattress:
Length: 2000 mm
Width: 440/500 mm
Height: 70 mm
Radius: 150 mm

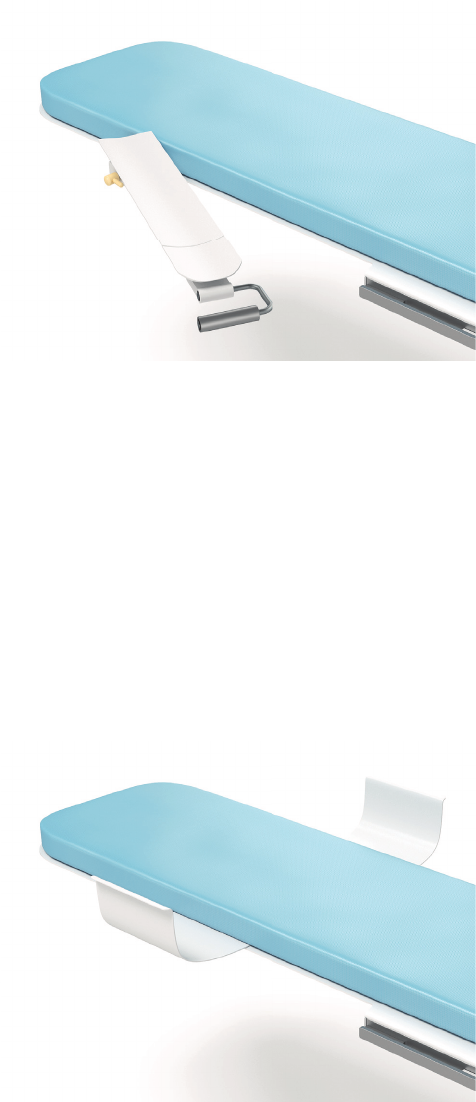

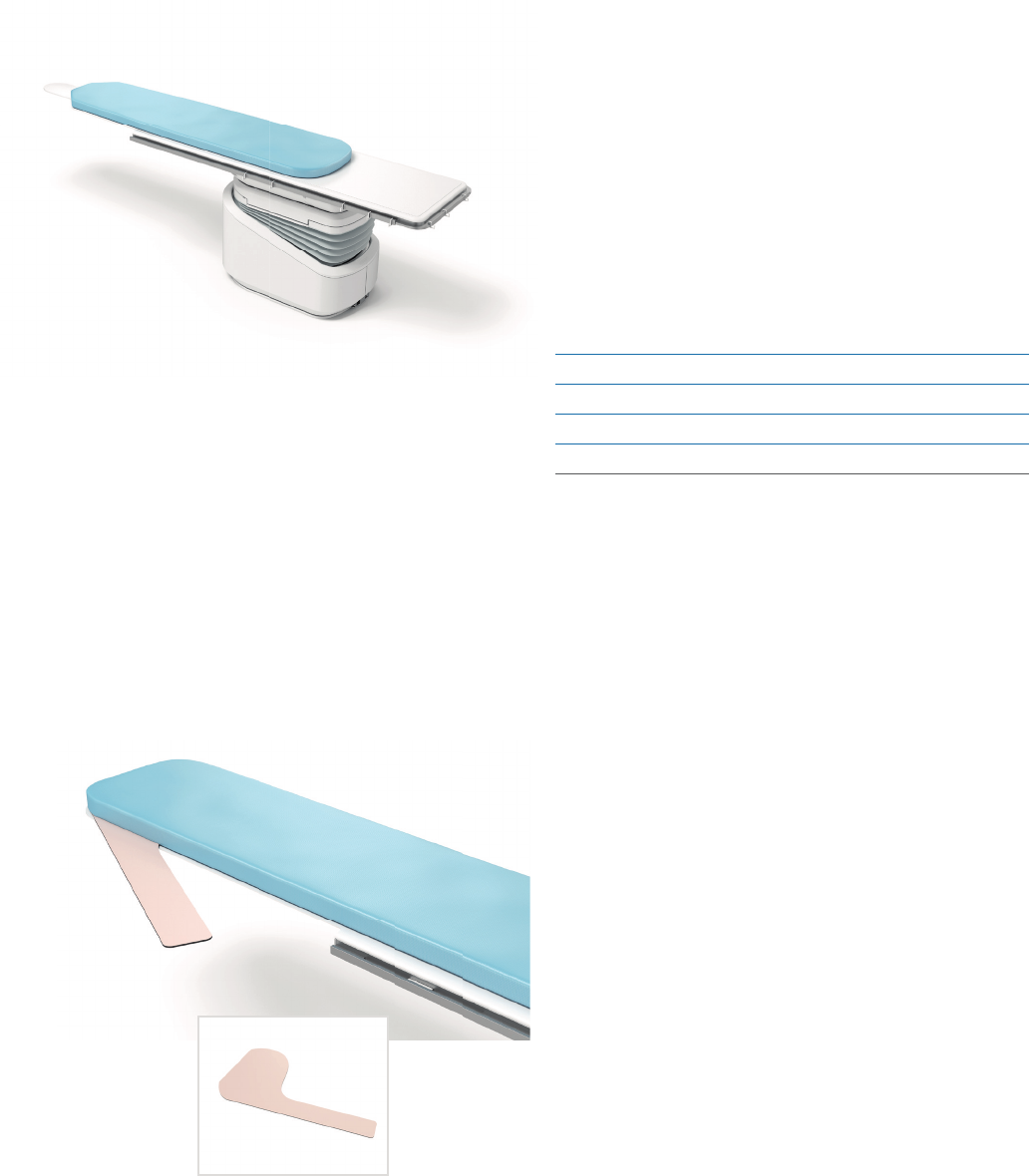

Arm support board
FCV0258
Key benefi ts:
• Enhance patient comfort during catheter usage
Arm support board is used to support the patient’s arm
during brachio-cephalic catheterization procedures. It
can be attached to the table top. The support is made of
X-ray transparent material and includes a mattress pad to
enhance patient comfort.
5
Height adjustable arm support
NCVD092
Key benefi ts:
• Enhance patient comfort during catheter usage
This arm support is used to support the arm during venous
digital subtraction angiography (DSA) in order to manage
blood fl ow. It can be attached to the table top. The support is
made of X-ray transparent material and includes a mattress
pad to enhance patient comfort. The xation clamp and pivot
mechanism are not made of X-ray transparent material.
Set of elbow supports
FCV0248
Key benefi ts:
• Enhances comfort for patient’s arms
These elbow supports are designed to support the patient’s
elbows in order to place the arms comfortably during
examinations and also to prevent the patient’s arms from
hanging over the side of the table.
6

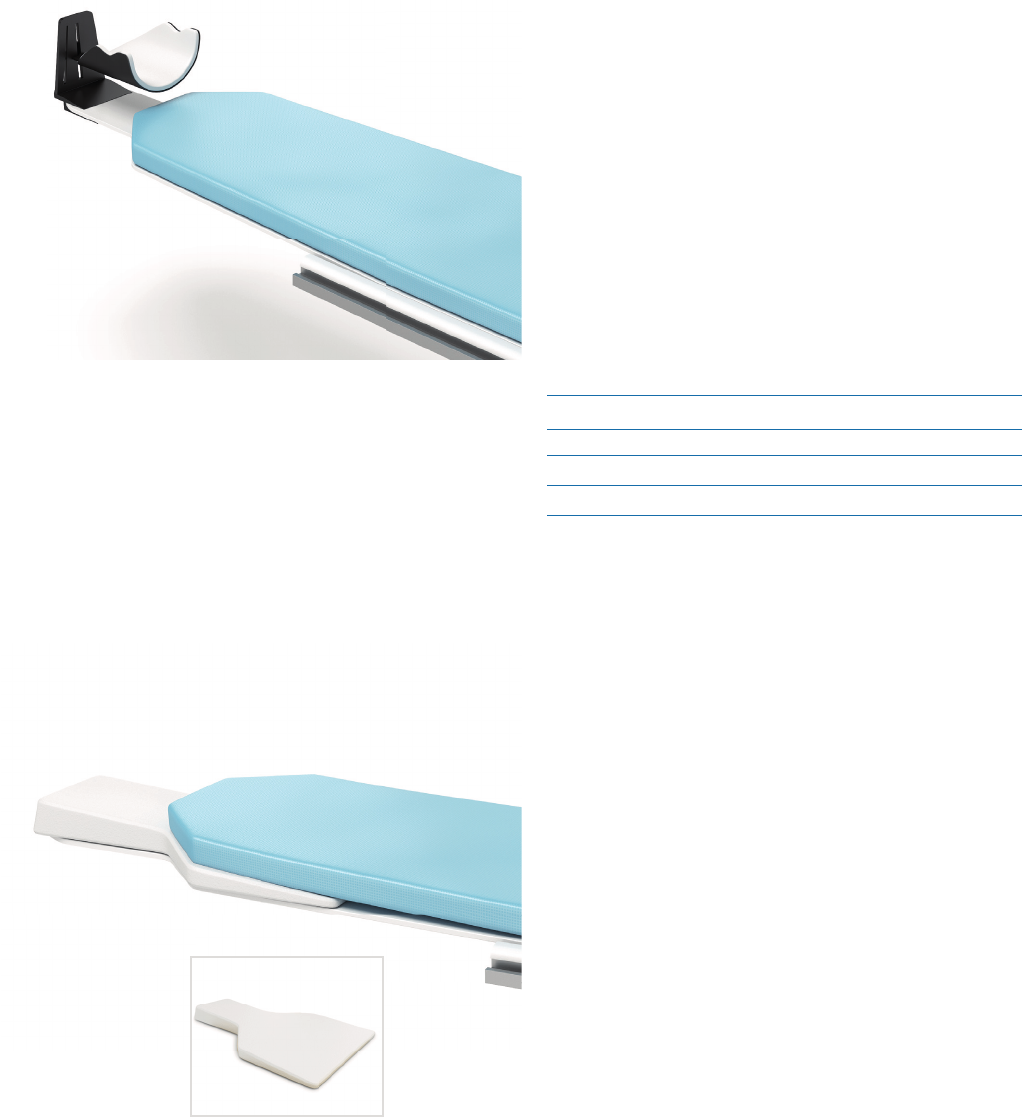

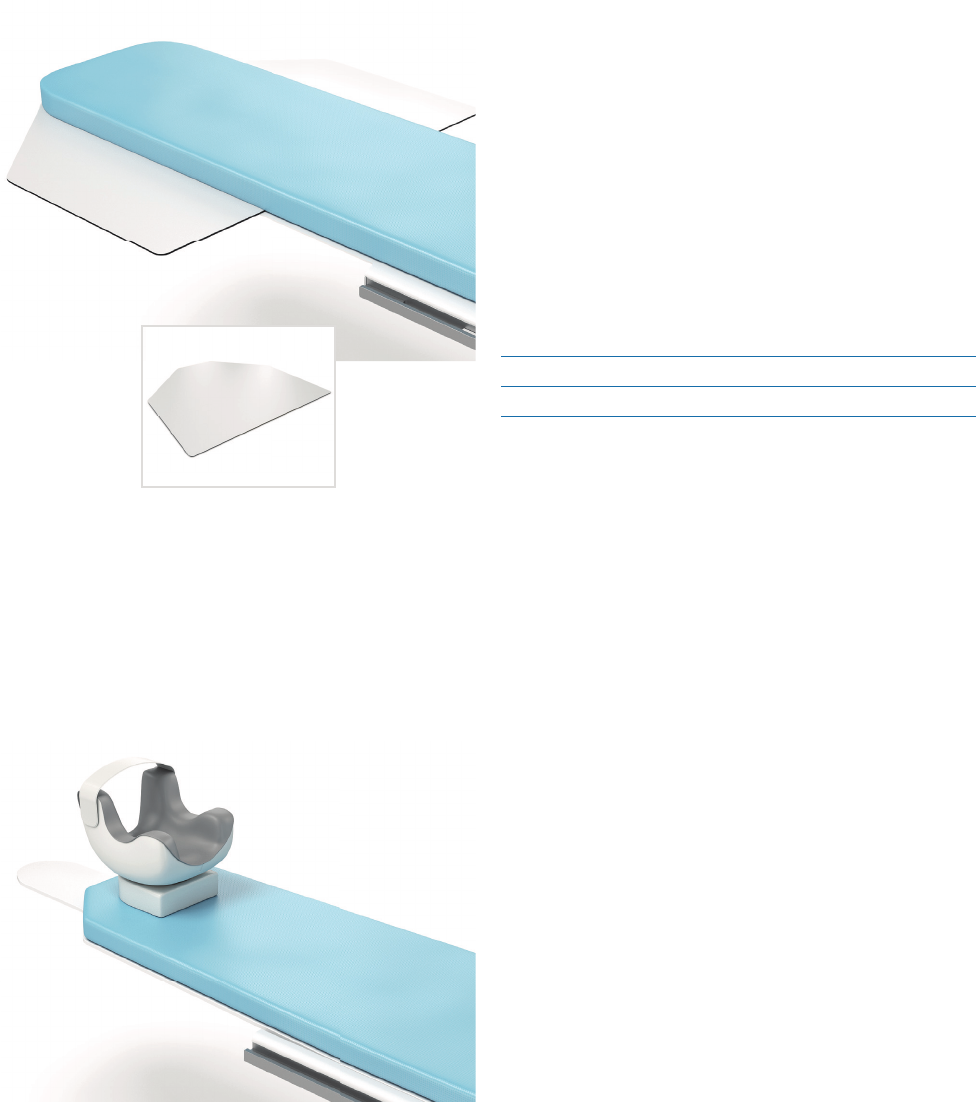

Shoulder support board
NCVD093
Key benefi ts:
• Enhance patient comfort during catheter usage
To support both the arms of the patient during brachio-
cephalic catheterization procedures, the shoulder support
board is used. It can be attached to the tabletop. It also
provides room for placing catheterization instruments. The
support is a fl at radio translucent board that is placed under
the patient, and part of it protrudes to the left or right side of
the tabletop to support the arm.
Specifi cations
Size: 100 x 85 cm
Material: carbon- ber reinforced material
Head support
FCV0251
Key benefi ts:
• Enhance patient comfort
• Reduce image artifacts
During procedures, patient movements can cause imaging
artifacts. The head support is used to keep head movements
to a minimum. It is designed to enhance patient comfort
during the examination and reduce motion artifacts
on images.
7
Neuro head holder
FCV0706
Key benefi ts:
• Enhance patient comfort
• Reduce image artifacts
During procedures, patient movements can cause imaging
artifacts. The neuro head holder is designed to position and
immobilize the head, improve patient comfort and image
quality. It can be rotated, angulated, and adjusted in height
to the desired position. The unique clamp assembly enables
the patient’s head to be turned left or right without changing
the height, to facilitate easy patient transfer. The aluminum
equivalence of the neuro head holder is between 1.0 and 0.5
mm for excellent X-ray translucency.
Specifi cations
The neuro head holder consists of:
Head support
Inlay
2 head straps
The neuro head holder is compatible with all X-ray system
tables and table tops (excluding OR tables)
Neuro wedge
FCV0272
Key benefi ts:
• Enhance neuro image quality
The neuro wedge is used to position the head in
the iso-center of the imaging eld during neuro
radiology examinations.
8

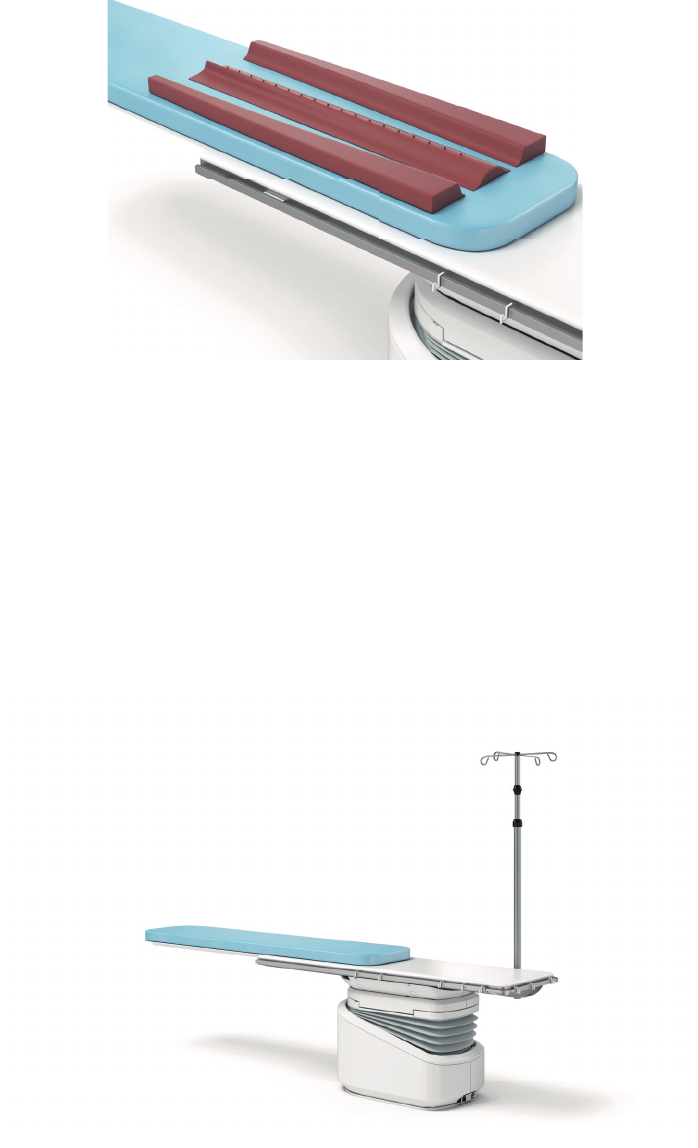

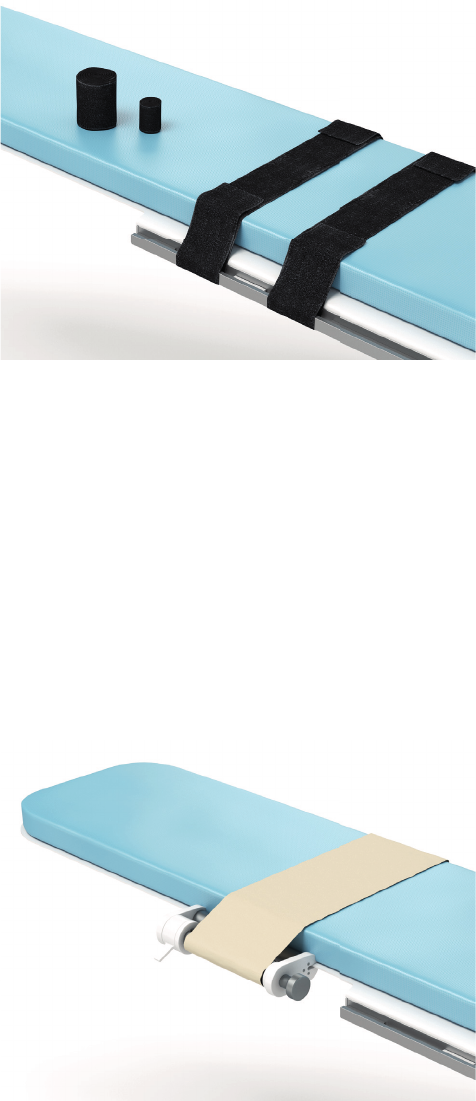

Patient straps
FCV0250
Key benefi ts:
• Prevent the patient from sliding during table tilt/
cradle movements
During table tilt/cradle movements, the patient straps
prevent the patient from sliding off the table. If required, the
patient straps can be washed and/or sterilized.
Ratchet compressor
NCVA099
Key benefi ts:
• Decrease motion artifacts on images
Patient movement can cause motion artifacts in images.
The ratchet compressor is used to immobilize the patient
on the table and thereby decrease motion artifacts on
images. It can be easily attached to the side of the table.
The ratchet winding mechanism is attached to one side of
the table. The quick release lever lets you easily pass the
compression band over the patient and under the table for
symmetrical compression.
9
Peripheral X-ray fi lter
NCVA101
Key benefi ts:
• Obtain uniform density of lower peripheral areas
To help clinicians obtain consistent images of lower
peripheral anatomy, this option provides a set of fl exible
X-ray lters. They provide uniform density in angiographic
examinations of the lower peripheral area.
Drip stand
FCV0257
Key benefi ts:
• Support infusion bags during examinations
The drip stand is provided to hold two infusion bags next
to the examination table for patients or examinations that
require fl uids. The drip stand can be attached to the rail
accessory clamp and adjusted to the necessary height.
10

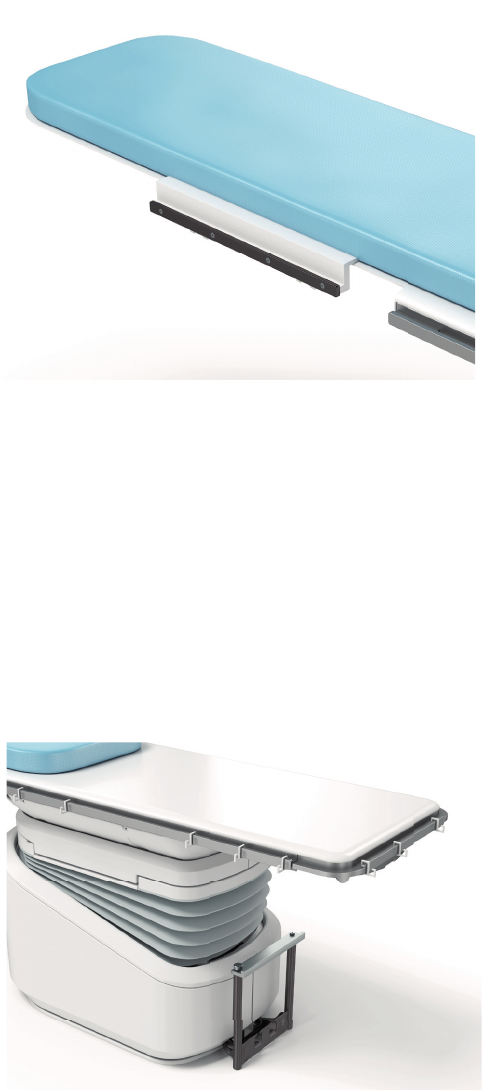

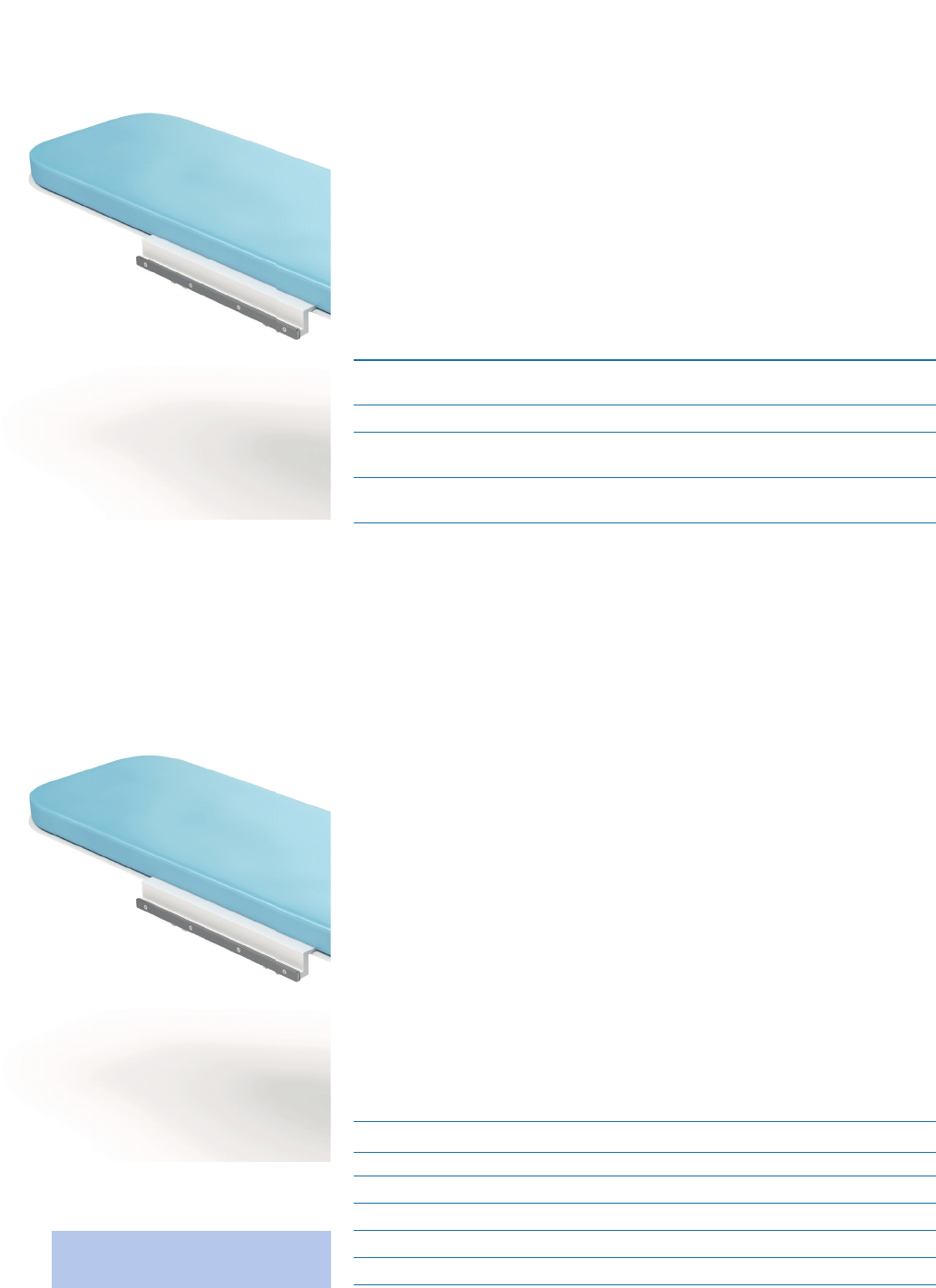

Table accessory rail (EU version)
FCV0816
Key benefi ts:
• Extend the length of the OP rail to t cardio and neuro tabletops
• Position operating modules and/or accessories conveniently
• Work comfortably at the head end of the table
To provide more fl exibility when working at the head end of the cardio and neuro
tabletops, the auxiliary OP (operation pro le) rail can be extended by 500 mm
with the additional OP rail. This rail is used to position operating modules and/
or accessories closer to the head end of the tabletop. This allows the user to work
comfortably when performing pacemaker implantations, venous jugular catheter
insertions, and other procedures near the patient’s head.
Specifi cations
The additional OP rail can be mounted on either side of the tabletop where no OP
rails are mounted
The OP rail has the same pro le and dimensions as the current standard OP rail
The maximum load (downwards) on the additional OP rail is 100 N (F=100N),
determined by the tabletop of the patient table
The maximum mechanical moment on the additional OP rail is 40Nm downwards
and 20Nm upwards (this is limited by the tabletop of the patient table)
Accessory rail + cable extension kit*
FCV0817
Key benefi ts:
• Extend the length of the OP rail to t cardio and neuro tabletops
• Position operating modules and/or accessories conveniently
• Work comfortably at the head end of the table
To provide more fl exibility when performing procedures, the additional OP rail
accessory with cable extension kit is equipped with everything needed to mount
operating modules and/or accessories next to the tabletop.
The additional OP rail can be mounted on either side of the tabletop where no
OP rails are mounted. The additional OP rail is compatible with AD5 and AD7
Table (cardio and neuro) patient tabletops. The OP rail has the same pro le and
dimensions as the current standard OP rail. The maximum load (downwards) on
the additional OP rail is 100 N (F=100N), the maximum mechanical moment on the
additional OP-Rail is 40Nm downwards and 20Nm upwards, determined by the
tabletop of the patient table.
Specifi cations
This option includes the following items:
One additional OP rail (mechanical) of 500 mm
Cable extension set for OP rail
Extension cable for control module, 1.3 meters long
One connection box to connect the user interface cables to the module cables
An extension for the table op rail of 500 mm
* Image of cable extension kit is
not available
11
Additional table accessory rail
(US version)
FCV0815
Key benefi ts:
• Position operating modules and/or
accessories conveniently
• Work comfortably at the head end of the table
Work comfortably at the head end of the table
To provide more fl exibility when working at the head end of
the table, the auxiliary OP (operation pro le) rail can be used
to position operating modules and/or accessories closer to
the head end of the tabletop. This allows the user to work
comfortably when performing pacemaker implantations,
venous jugular catheter insertions, and other procedures
near the patient’s head. This version of the OP rail is
designed for use in the US only.

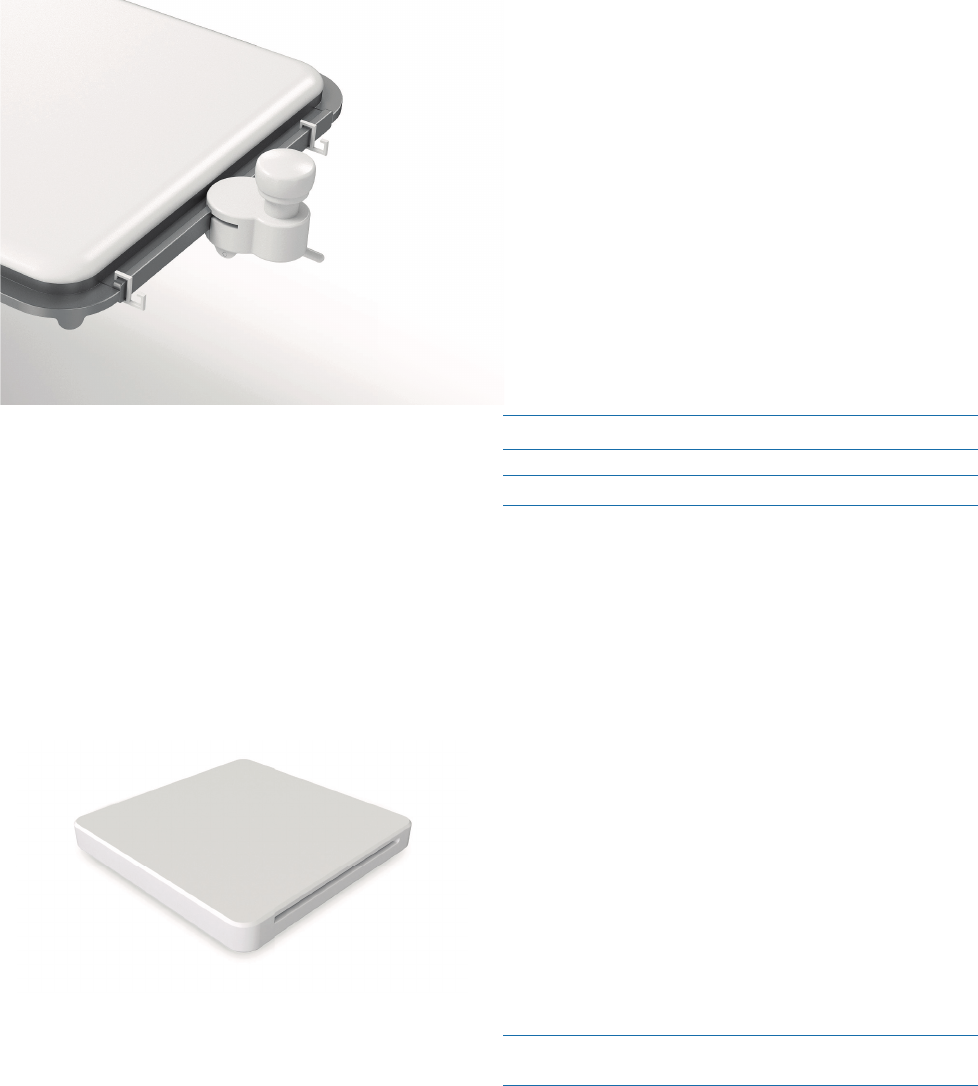

Table base accessory rail
NCVC425
Key benefi ts:
• Position operating modules and/or
accessories conveniently
• Work comfortably at the head end of the table
To provide more fl exibility when working at the head end of
the table, the auxiliary OP (operation pro le) rail can be used
to position operating modules and/or accessories closer to
the head end of the tabletop. This allows the user to work
comfortably when performing pacemaker implantations,
venous jugular catheter insertions, and other procedures
near the patient’s head.
12

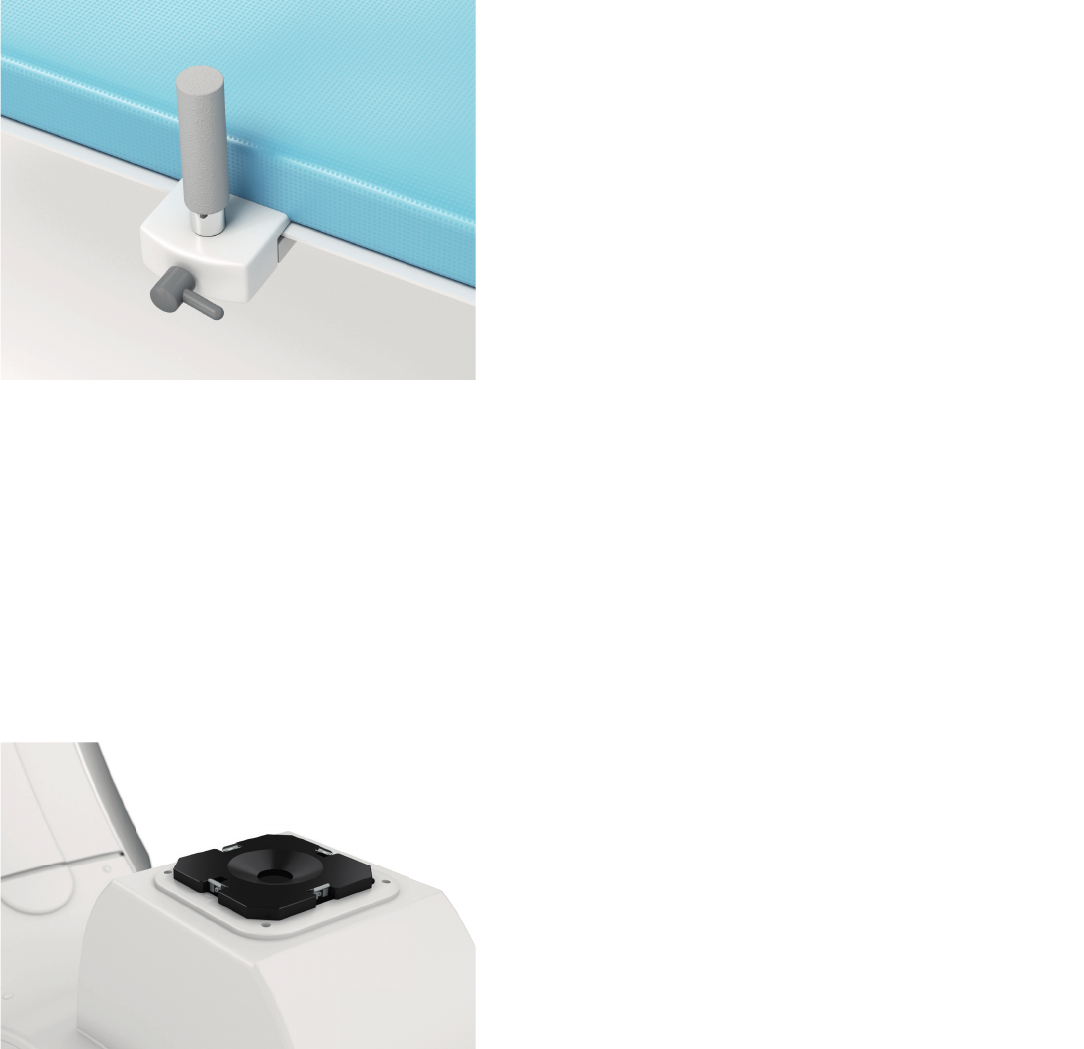

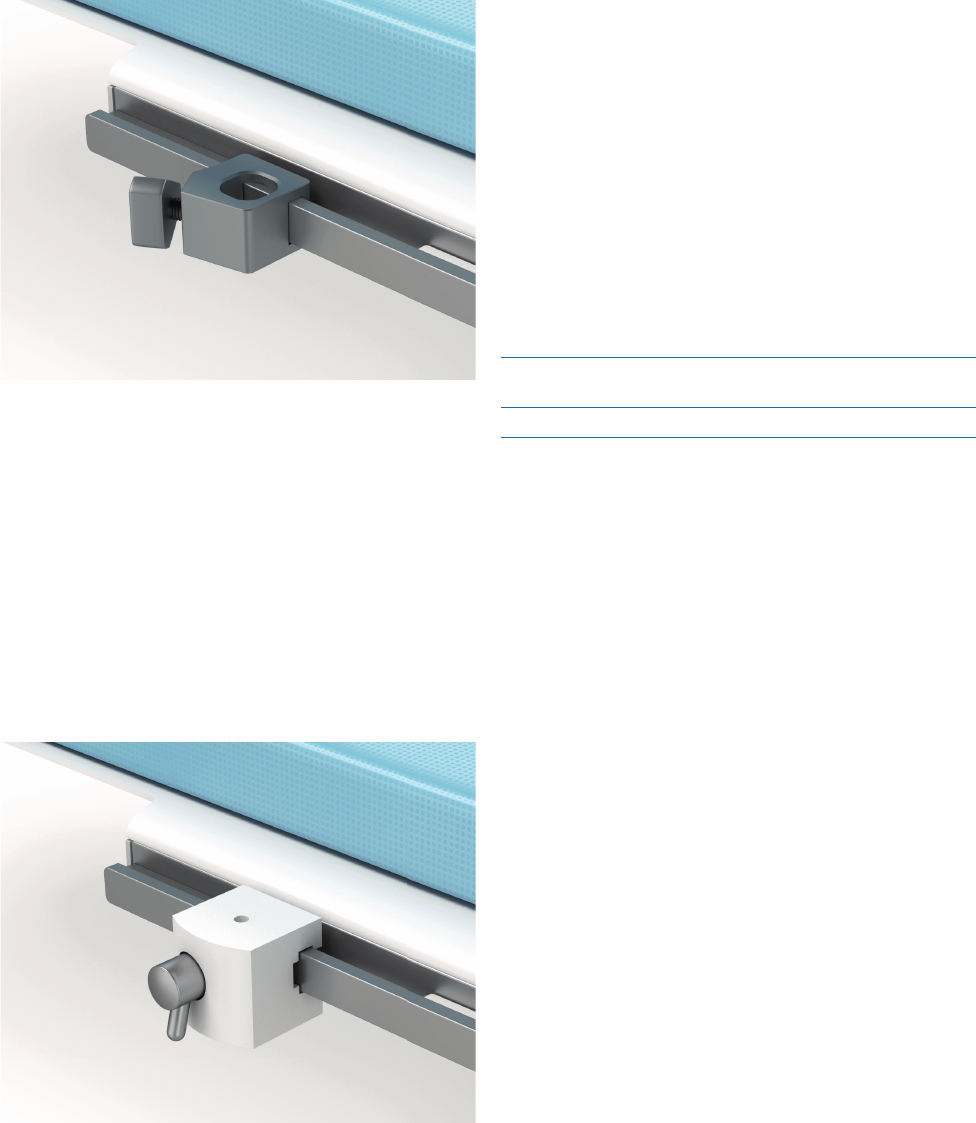

Table accessory rail clamps
FCV0256
Key benefi ts:
• Position accessories conveniently
During surgical and interventional procedures, it is
sometimes useful to attach accessories to the auxiliary
OP (operation pro le) Rail. A set of three OP accessory rail
clamps can be attached to the table. Accessories, such
as a retractor, sheet holder, and others can be inserted
and secured in the hole of the clamps. This gives the user
convenient access to accessories as they are working.
Specifi cations
Compatible with both Angio Diagnost 5 and
Angio Diagnost 7 table
Set of 3 clamps
Table clamp
FCV0249
Key benefi ts:
• Easily mount accessories on patient table
Table top clamp for mounting on CV patient table. The table
clamp is attached to the sides of the tabletop and is used to
mount accessories on the tabletop.
Quantity: 1x
13
Handgrip and clamp set
FCV0252
Key benefi ts:
• Enhance patient comfort and safety
During procedures, two handgrips are available to enhance
patient safety and comfort. They must be used as safety
backups during a tilt/cradle movement. They can be
attached to both sides of the tabletop using the tabletop
accessory clamps.
Cerebral fi lter
FCV0271
Key benefi ts:
• Enhance neuro image quality
To improve image quality for cerebral angiography
procedures, the cerebral lter assembly can be tted to
the X-ray tube housing. This prevents direct radiation from
reaching the Flat Detector entrance screen and thus helps to
improve the overall image quality.
14

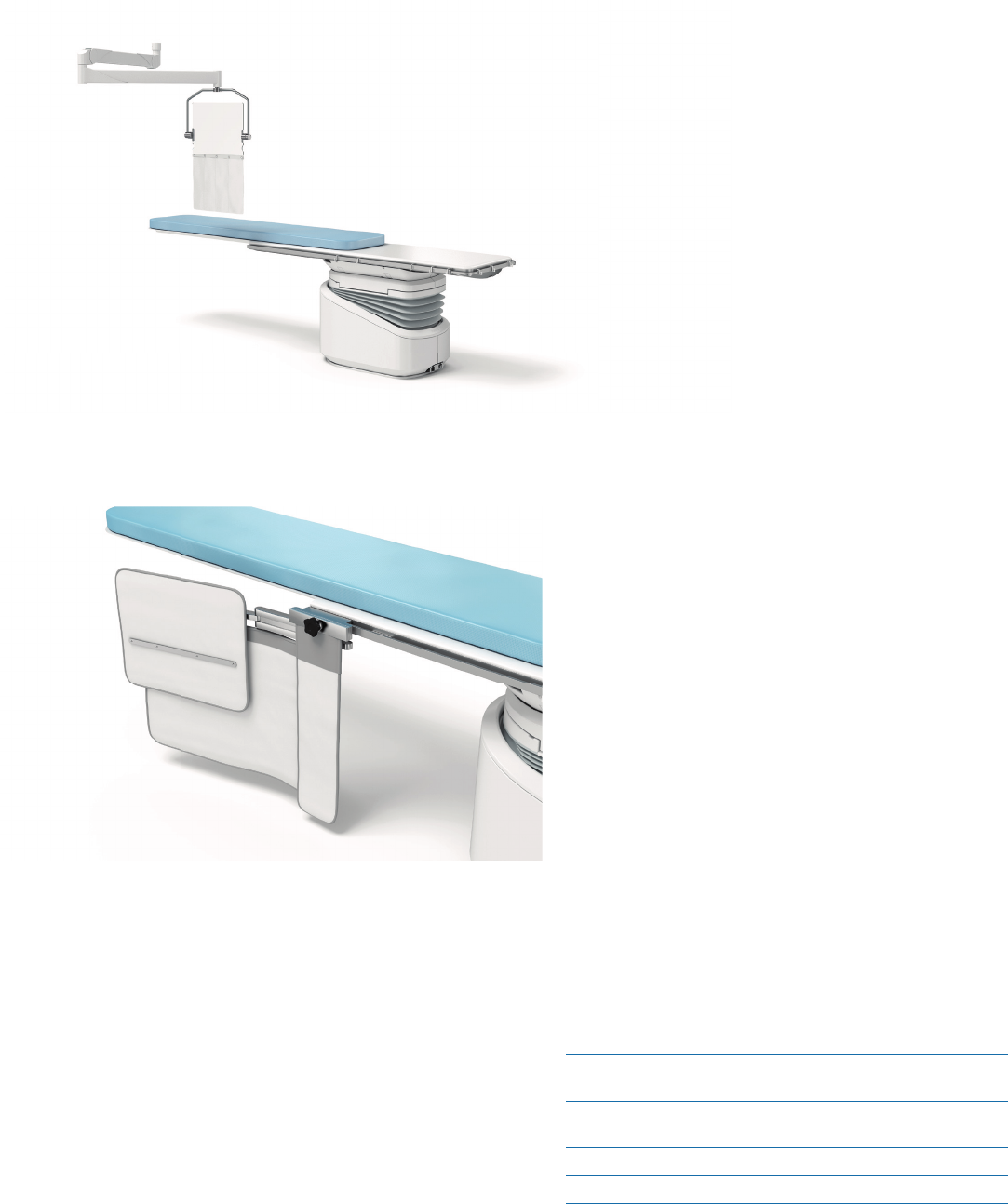

Radiation shield
FCV0628
Key benefi ts:
• Transparent ceiling mounted shield can be easily
positioned where needed
• Can be used in combination with lower body radiation
shield
Radiation shields can provide substantial protection from
scatter radiation during interventions. The ceiling mounted
radiation shield is designed to protect the eyes and upper
body of the physician and staff against scatter radiation
during procedures. The transparent ceiling mounted shield is
equipped with a two section suspension arm for mounting on
the monitor ceiling carriage. This allows the shield to be easily
positioned where needed. It can be used in combination with
the table mounted lower body radiation shield.
Specifi cations
Lower shield measuring 70 cm high x 80 cm wide
curved shape, 0.5 mm Pb equivalence
Upper shield measuring 40 cm high x 50 cm wide 0.5 mm
Pb equivalence
Mounting clamp
Docking device for wall mounting
Table mounted radiation shield
FCV0625
A table-mounted radiation shield for additional protection of
physician and staff against scatter radiation
Key benefi ts:
• Transparent ceiling mounted shield can be easily
positioned where needed
• Can be used in combination with lower body
radiation shield
Radiation shields can provide substantial protection from
scatter radiation during interventions. The table mounted
radiation shield is designed to off er additional protection
for the physician and staff against scatter radiation during
procedures. The shield consists of two protective parts: a
lower shield and an upper shield.
The shields can be mounted to either the right or left table
accessory rails. Each radiation shield can be easily pivoted
into the required working position and parked underneath
the tabletop to facilitate patient preparation. The upper
shield can be positioned upright to provide protection, or
can be folded down for free access to the patient.
15
Intercom
NCVA082
Key benefi ts:
• Enhance communication between exam room and
control room
The remote intercom is used to communicate between the
examination and control room. A separate intercom can
be connected to the system and placed in the preferred
working position in the control room or examination room.
The listen function can be selected separately on each
intercom. Activating the talk function on a selected intercom
automatically disables this function on the other intercom.
Exam light
NCVA052
Key benefi ts:
• Provides high intensity illumination of treatment area
• Handgrip can be sterilized and used with a
disposable cover
During cardio vascular and neuro vascular procedures,
a bright light is sometimes used to better distinguish
pathology. The exam light is designed to provide high
intensity illumination at 60,000 Lux of the entire treatment
area. Its handgrip allows the light beam to be easily
positioned and focused. The handgrip can be removed for
sterilization and used with a disposable cover.
16
Pan handle
NCVD094
Key benefi ts
• Flexible positioning during cardio and neuro procedures
The pan handle is an optional extension of the control
possibilities for fl oating movements of the table top in
cardio vascular and neuro systems. Flexible positioning
during cardio and neuro procedures To allow more fl exible
positioning during cardio and neuro procedures, the
pan handle option can be used to perform fl oating table
movements. The pan handle provides a solid grip of the
tabletop and can release and apply the tabletop brakes. It
can be attached anywhere along the tabletop and accessory
rails without aff ecting the fl oating range.
Specifi cations
Pan handle with cable and connector
Table-top attachment clamp
Accessory-rail attachment clamp
DVD writer
NCVD097
Key benefi ts
• Store images and information on DVDs for easy sharing
To provide fl exible storage options, a DVD writer is available
with the Philips X-ray system. Procedural images and
information can be stored on DVDs and used for archiving,
training and presentations.
Specifi cations
Export and import of X-ray images and X-ray runs to DVD
and/or from DVD Pan handle with cable and connector
17
Part Number Accessory Name Azurion 3 F12
(722063)
Azurion 3 F15
(722064)
Azurion 7 F12
& 7 C12 (722078)
Azurion 7 F20 &
7 C20 (722079)
Azurion 7 B12/12
(722067)
Azurion 7 B20/12
& 7 B20/15
(722068)
FCV0246 Mattress*
FCV0510 Long cardio mattress*
FCV0247 Neuro mattress*
FCV0258 Arm support board*
NCVD092 Height-adjustable arm support*
FCV0248 Set of elbow supports*
NCVD093 Shoulder support board*
FCV0251 Head support*
FCV0706 Neuro head holder*
FCV0272 Neuro wedge*
FCV0250 Patient straps*
NCVA099 Ratchet compressor*
NCVA101 Peripheral X-ray lter
FCV0257 Drip stand*
FCV0816 Table accessory rail (EU version)*
FCV0817 Accessory rail + cable extension kit*
FCV0815 Additional table accessory rail
(US version)*
NCVC425 Table base accessory rail *
FCV0256 Table accessory rail clamps *
FCV0249 Table clamp*
FCV0252 Handgrip and clamp set*
FCV0271 Cerebral lter
FCV0628 Radiation shield
FCV0625 Table-mounted radiation shield
NCVA052 Exam light
NCVA082 Intercom
NCVD094 Pan handle*
NCVD097 DVD writer
* Not compatible with OR tables
18
How to order
We strive to make your ordering experience with Philips
Healthcare easy and ecient. Please contact your
local service representative or the Philips Healthcare
commercial oce for further assistance.
Part Number Accessory Name Azurion 3 F12
(722063)
Azurion 3 F15
(722064)
Azurion 7 F12
& 7 C12 (722078)
Azurion 7 F20 &
7 C20 (722079)
Azurion 7 B12/12
(722067)
Azurion 7 B20/12
& 7 B20/15
(722068)
FCV0246 Mattress*
FCV0510 Long cardio mattress*
FCV0247 Neuro mattress*
FCV0258 Arm support board*
NCVD092 Height-adjustable arm support*
FCV0248 Set of elbow supports*
NCVD093 Shoulder support board*
FCV0251 Head support*
FCV0706 Neuro head holder*
FCV0272 Neuro wedge*
FCV0250 Patient straps*
NCVA099 Ratchet compressor*
NCVA101 Peripheral X-ray lter
FCV0257 Drip stand*
FCV0816 Table accessory rail (EU version)*
FCV0817 Accessory rail + cable extension kit*
FCV0815 Additional table accessory rail
(US version)*
NCVC425 Table base accessory rail *
FCV0256 Table accessory rail clamps *
FCV0249 Table clamp*
FCV0252 Handgrip and clamp set*
FCV0271 Cerebral lter
FCV0628 Radiation shield
FCV0625 Table-mounted radiation shield
NCVA052 Exam light
NCVA082 Intercom
NCVD094 Pan handle*
NCVD097 DVD writer
19
© 2017 Koninklijke Philips N.V. All rights reserved.
Specications are subject to change without notice.
www.philips.com
4522 991 28871 * JUL 2017
