Hospital

respiratory care

Confidence

in your patient’s comfort

Philips Respironics patient interfaces and circuits for noninvasive ventilation

Philips Respironics masks are designed

to support enhanced NIV. From comfort

for your patients to ease of use for you,

our interfaces are specially designed to

meet the rigors of acute care environments.

Delivering exceptional NIV

2

3

Total face masks 4

Oro-nasal masks 8

Nasal masks 16

Packs and accessories 20

Circuits and connections 28

Trilogy accessories 30

Table of contents

4

Total face masks

Total face masks allow

quick fitting and eliminate

nasal bridge challenges

by sealing around the

perimeter of the face,

where patients have less

pressure sensitivity and

smoother facial contours.

Mask selection criteria

• Rapid application

• Mouth breather

• Facial abnormalities

• Lack of teeth

5

Philips Respironics Total multi-use

Description Quantity Product number Part number

Total face mask 1 302433 989805609231

Total face mask head strap 1 1003052 453561517111

Total face mask head strap 9 1010609 989805610031

Key benefits

• Clear, unobstructed view

• Perimeter facial contact increases comfort

and simplifies fitting

• Digital Auto-Trak compatibility enhances

NIV performance

Philips Respironics Total

For headgear, see page 25

Total

6

Philips Respironics PerforMax single-use

Description Quantity Product number Part number

PerforMax with EE leak 2 elbow, small*†11061619 989805627831

PerforMax with EE leak 2 elbow, large†11061620 989805627841

PerforMax with EE leak 2 elbow, extra large†11080426 989805634831

PerforMax with EE leak 2 elbow, small*†10 1052535 989805611281

PerforMax with EE leak 2 elbow, large†10 1052536 989805611291

PerforMax with EE leak 2 elbow, extra large†51080424 989805634811

PerforMax with SE standard elbow, small*†11061621 989805627851

PerforMax with SE standard elbow, large†11061622 989805627861

PerforMax with SE standard elbow, extra large†11080517 989805634841

PerforMax with SE standard elbow, small*†10 1052547 989805611301

PerforMax with SE standard elbow, large†10 1052548 989805611311

PerforMax with SE standard elbow, extra large†51080425 989805634821

Key benefits

• Available for patients 7 years or older

and > 20 kg (40 lb)

• Perimeter facial contact increases comfort

and simplifies fitting

• Clear, unobstructed view

Philips Respironics PerforMax single-use

Compatible with a leak 2 entrainment elbow (EE),

standard elbow (SE), and bronchoscopy elbow (BE)

For accessories, see page 24

For headgear, see page 25

PerforMax EE leak 2

* Intended for use by patients 7 years or older and > 20 kg (40 lb)

† Not available in all markets, please contact your Philips sales consultant.

7

Philips Respironics PerforMax multi-use

Description Quantity Product number Part number

PerforMax with EE leak 2 and SE elbow, small* 1 mask/4 headgear 1052553 989805611361

PerforMax with EE leak 2 and SE elbow, large 1 mask/4 headgear 1052554 989805611371

PerforMax with EE leak 2 and SE elbow, extra large 1 mask/4 headgear 1080420 989805634771

PerforMax with EE leak 2, small* 1 mask/4 headgear 1052555 989805611381

PerforMax with EE leak 2, large 1 mask/4 headgear 1052556 989805611391

PerforMax with EE leak 2, extra large 1 mask/4 headgear 1080421 989805634781

PerforMax with SE standard elbow, small* 1 mask/4 headgear 1052568 989805611401

PerforMax with SE standard elbow, large 1 mask/4 headgear 1052569 989805611411

PerforMax with SE standard elbow, extra large 1 mask/4 headgear 1080422 989805634791

PerforMax with EE leak 2 and SE elbow, small* 1 mask/1 headgear 1044385 989805611091

PerforMax with EE leak 2 and SE elbow, large 1 mask/1 headgear 1044386 989805611101

PerforMax with EE leak 2 and SE elbow, extra large 1 mask/1 headgear 1080423 989805634801

Key benefits

• Available for patients 7 years or older

and > 20 kg (40 lb)

• Perimeter facial contact supports comfort

and simplifies fitting

• Clear, unobstructed view

Philips Respironics PerforMax multi-use

Compatible with a leak 2 entrainment elbow (EE),

standard elbow (SE), and bronchoscopy elbow (BE)

For accessories, see page 24

For headgear, see page 25

PerforMax SE

* Intended for use by patients 7 years or older and > 20 kg (40 lb)

8

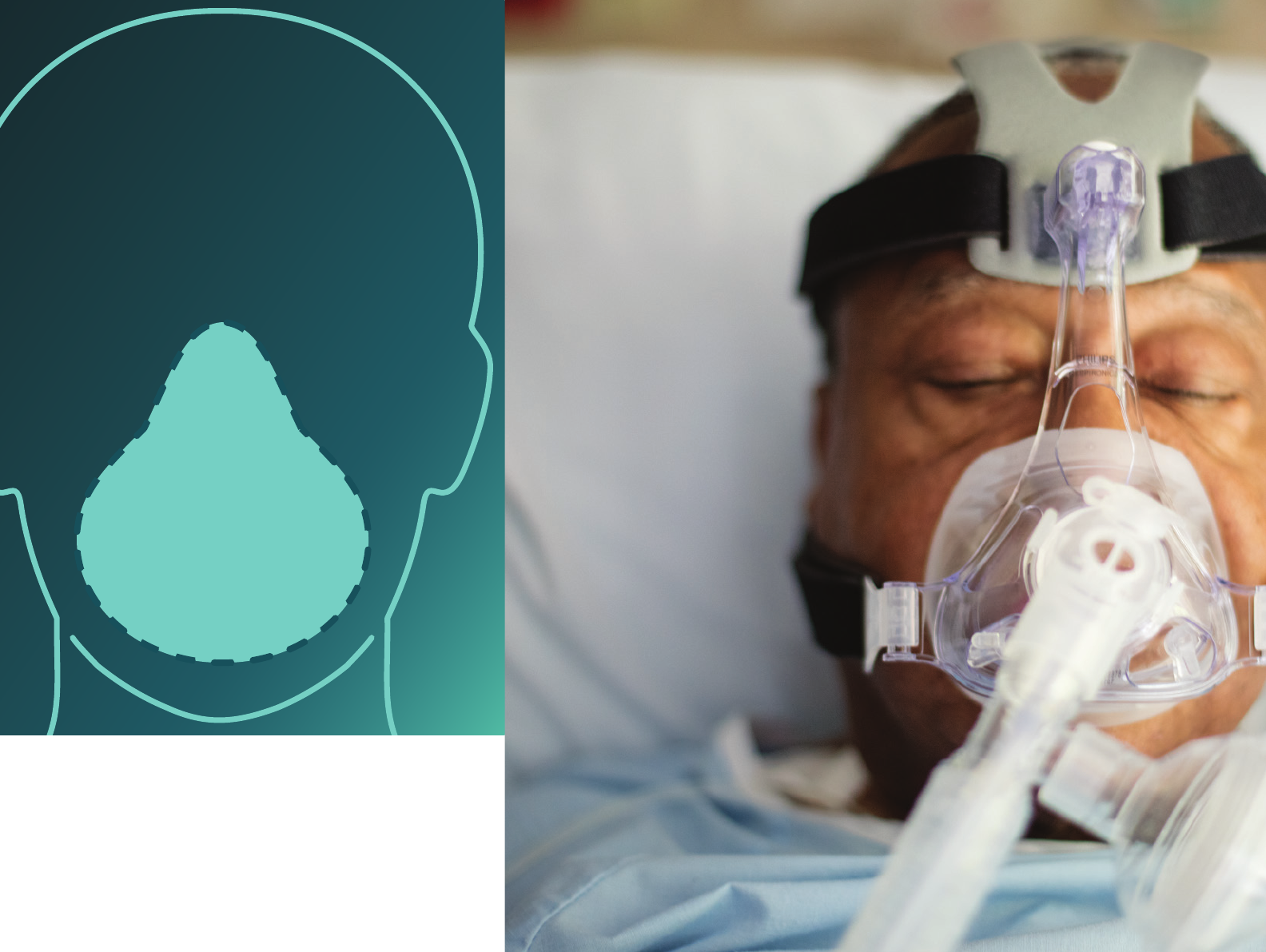

Oro-nasal masks

Oro-nasal masks are the standard

of care for hospital NIV, and the

Philips Respironics family includes

a comprehensive selection of

systems with features that address

patient comfort, mask fitting,

and ventilator compatibility.

Mask selection criteria

• Mouth breather

• Long-term NIV

• Two cushion styles

for mask rotation

Patient comfort

made easy

CapStrap headgear provides

excellent stability and simplifies

initial setup by keeping the mask

in place while you adjust the

patient’s straps. When you need

to interrupt treatment for oral care

and medications, the CapStrap

headgear allows quick removal

and simple reapplication. CapStrap

headgear is available on several

Philips Respironics masks:

• AF541

• AF531

• AF811

• PerformaTrak

9

Philips Respironics AF541

Description Quantity Product number Part number

AF541 with EE leak 1 elbow, CapStrap headgear, small* 10 1120925 989805653931

AF541 with EE leak 1 elbow, CapStrap headgear, medium* 10 1120926 989805653941

AF541 with EE leak 1 elbow, CapStrap headgear, large 10 1120927 989805653951

AF541 with EE leak 1 elbow, CapStrap headgear, extra large 10 1120928 989805653961

AF541 with EE leak 2 elbow, CapStrap headgear, small* 10 1120935 989805654011

AF541 with EE leak 2 elbow, CapStrap headgear, medium* 10 1120936 989805654021

AF541 with EE leak 2 elbow, CapStrap headgear, large 10 1120937 989805654031

AF541 with EE leak 2 elbow, CapStrap headgear, extra large 10 1120938 989805654041

AF541 with SE standard elbow, CapStrap headgear, small* 10 1120945 989805654091

AF541 with SE standard elbow, CapStrap headgear, medium* 10 1120946 989805654101

AF541 with SE standard elbow, CapStrap headgear, large 10 1120947 989805654111

AF541 with SE standard elbow, CapStrap headgear, extra large 10 1120948 989805654121

AF541 with EE leak 1 elbow, four-point headgear, small* 10 1120920 989805653891

AF541 with EE leak 1 elbow, four-point headgear, medium* 10 1120921 989805653901

AF541 with EE leak 1 elbow, four-point headgear, large 10 1120922 989805653911

AF541 with EE leak 1 elbow, four-point headgear, extra large 10 1120923 989805653921

AF541 with EE leak 2 elbow, four-point headgear, small* 10 1120930 989805653971

AF541 with EE leak 2 elbow, four-point headgear, medium* 10 1120931 989805653981

AF541 with EE leak 2 elbow, four-point headgear, large 10 1120932 989805653991

AF541 with EE leak 2 elbow, four-point headgear, extra large 10 1120933 989805654001

AF541 with SE standard elbow, four-point headgear, small* 10 1120940 989805654051

AF541 with SE standard elbow, four-point headgear, medium* 10 1120941 989805654061

AF541 with SE standard elbow, four-point headgear, large 10 1120942 989805654071

AF541 with SE standard elbow, four-point headgear, extra large 10 1120943 989805654081

AF541 size A under-the-nose cushion 10 1120980 989805654271

AF541 size B under-the-nose cushion 10 1120981 989805654281

AF541 size C under-the nose cushion 10 1120982 989805654291

Bronchoscopy elbow 51120984 989805654301

AF541 discharge kit, CapStrap headgear, small/medium 5 1120986 989805654311

AF541 discharge kit, CapStrap headgear, large/extra large 5 1120988 989805654331

AF541 discharge kit, four-point headgear, small/medium 51120987 989805654321

AF541 discharge kit, four-point headgear, large/extra large 51120989 989805654341

Philips Respironics AF541

AF541 with four-point headgear, EE leak 1

Key benefits

• The under-the-nose cushion can be used

to off load mask pressure at bridge of nose

• Push-button forehead pad adjustment,

easy-to-use CapStrap headgear,

and snap-in-place elbows and talon

clips contribute to efficient workflow

• Discharge kit configures mask to work

with home NIV systems

• CleanClip system supports your infection

control efforts

• Discharge kit for patient transition

to lower acuity setting

For accessories, see page 24

For headgear, see page 25

* Intended for use by patients 7 years or older and > 20 kg (40 lb)

10

Philips Respironics AF531 with CapStrap single-use

Description Quantity Product number Part number

AF531 with EE leak 1 elbow, CapStrap headgear, small* 1 1061727 989805628611

AF531 with EE leak 1 elbow, CapStrap headgear, medium 1 1061728 989805628621

AF531 with EE leak 1 elbow, CapStrap headgear, large 1 1061729 989805628631

AF531 with EE leak 1 elbow, CapStrap headgear, small* 10 1072627 989805628731

AF531 with EE leak 1 elbow, CapStrap headgear, medium 10 1072628 989805628741

AF531 with EE leak 1 elbow, CapStrap headgear, large 10 1072629 989805628751

AF531 with SE standard elbow, CapStrap headgear, small* 1 1061730 989805628641

AF531 with SE standard elbow, CapStrap headgear, medium 1 1061731 989805628651

AF531 with SE standard elbow, CapStrap headgear, large 1 1061732 989805628661

AF531 with SE standard elbow, CapStrap headgear, small* 10 1072630 989805628761

AF531 with SE standard elbow, CapStrap headgear, medium 10 1072631 989805628771

AF531 with SE standard elbow, CapStrap headgear, large 10 1072632 989805628781

AF531 with EE leak 1/NE nebulizer elbow, CapStrap headgear, small* 10 1072636 989805635001

AF531 with EE leak 1/NE nebulizer elbow, CapStrap headgear, medium 10 1072637 989805635011

AF531 with EE leak 1/NE nebulizer elbow, CapStrap headgear, large 10 1072638 989805635021

Key benefits

• CapStrap headgear provides an excellent

fit and simple reapplication

• Supports your infection control efforts

with the CleanClip system

• You can adapt one mask to multiple

ventilators with interchangeable elbows

Philips Respironics AF531

Compatible with a leak 1 or leak 2 entrainment elbow (EE),

EE NIVO elbow (EE/NE), standard elbow (SE), SE NIVO elbow (SE/NE),

and bronchoscopy elbow (BE)

For accessories, see page 24

For headgear, see page 25

AF531 with CapStrap

* Intended for use by patients 7 years or older and > 20 kg (40 lb)

AF531 EE leak 1 elbow

11

Philips Respironics AF531 with four-point headgear single-use

Description Quantity Product number Part number

AF531 with EE leak 1 elbow, four-point headgear, small** 1 1061718 989805628521

AF531 with EE leak 1 elbow, four-point headgear, medium 1 1061719 989805628531

AF531 with EE leak 1 elbow, four-point headgear, large 1 1061720 989805628541

AF531 with EE leak 1 elbow, four-point headgear, small** 10 1072621 989805628671

AF531 with EE leak 1 elbow, four-point headgear, medium 10 1072622 989805628681

AF531 with EE leak 1 elbow, four-point headgear, large 10 1072623 989805628691

AF531 with SE standard elbow, four-point headgear, small** 1 1061721 989805628551

AF531 with SE standard elbow, four-point headgear, medium 1 1061722 989805628561

AF531 with SE standard elbow, four-point headgear, large 1 1061723 989805628571

AF531 with SE standard elbow, four-point headgear, small** 10 1072624 989805628701

AF531 with SE standard elbow, four-point headgear, medium 10 1072625 989805628711

AF531 with SE standard elbow, four-point headgear, large 10 1072626 989805628721

AF531 with EE leak 1 nebulizer elbow, four-point headgear, small** 10 1061633 989805634971

AF531 with EE leak 1 nebulizer elbow, four-point headgear, medium 10 1061634 989805634981

AF531 with EE leak 1 nebulizer elbow, four-point headgear, large 10 1061635 989805634991

Philips Respironics AF531

AF531 with four-point headgear, EE leak 1

* Bronchoscopy elbow sold separately, see page 24

** Intended for use by patients 7 years or older and > 20 kg (40 lb)

AF531 Bronchoscopy elbow* AF531 SE standard elbow

Key benefits

• Supports your infection control efforts

with the CleanClip system

• You can adapt one mask to multiple

ventilators with interchangeable elbows

For accessories, see page 24

For headgear, see page 25

12

Philips Respironics AF531 with leak 2 elbow single-use

Description Quantity Product number Part number

AF531 with EE leak 2 elbow, four-point headgear, small* 1 1061724 989805628581

AF531 with EE leak 2 elbow, four-point headgear, medium 1 1061725 989805628591

AF531 with EE leak 2 elbow, four-point headgear, large 1 1061726 989805628601

AF531 with EE leak 2 elbow, four-point headgear, small* 10 1100393 989805645651

AF531 with EE leak 2 elbow, four-point headgear, medium 10 1100394 989805645661

AF531 with EE leak 2 elbow, four-point headgear, large 10 1100395 989805645671

AF531 with EE leak 2 elbow, CapStrap headgear, small* 10 1100390 989805645621

AF531 with EE leak 2 elbow, CapStrap headgear, medium 10 1100391 989805645631

AF531 with EE leak 2 elbow, CapStrap headgear, large 10 1100392 989805645641

Philips Respironics AF531 with leak 2 elbow

AF531 EE leak 2

* Intended for use by patients 7 years or older and > 20 kg (40 lb)

Key benefits

• Leak built into the mask

• Can be used without an additional

exhalation port

• Available with four point headgear

and CapStrap headgear

• Convenient ten-packs

For accessories, see page 24

For headgear, see page 25

13

Philips Respironics AF811 single-use

Description Quantity Product number Part number

AF811 oro-nasal mask EE, CapStrap headgear, small 1 1063047 989805626321

AF811 oro-nasal mask EE, CapStrap headgear, medium 1 1063016 989805626311

AF811 oro-nasal mask EE, CapStrap headgear, large 1 1063015 989805626301

AF811 oro-nasal mask EE, CapStrap headgear, small 5 1063053 989805626381

AF811 oro-nasal mask EE, CapStrap headgear, medium 5 1063052 989805626371

AF811 oro-nasal mask EE, CapStrap headgear, large 5 1063051 989805626361

AF811 oro-nasal mask SE, CapStrap headgear, small 1 1063050 989805626351

AF811 oro-nasal mask SE, CapStrap headgear, medium 1 1063049 989805626341

AF811 oro-nasal mask SE, CapStrap headgear, large 1 1063048 989805626331

AF811 oro-nasal mask SE, CapStrap headgear, small 5 1063056 989805626411

AF811 oro-nasal mask SE, CapStrap headgear, medium 5 1063055 989805626401

AF811 oro-nasal mask SE, CapStrap headgear, large 5 1063054 989805626391

Philips Respironics AF811

AF811 EE

Key benefits

• Cushion uses a gel pad with a silicone flap

for increased comfort

• CapStrap headgear system simplifies mask application

and routine patient care

• Available in three sizes to fit a wide patient population

Entrainment elbow (EE)

Also available with standard elbow (SE)

For headgear, see page 25

14

Philips Respironics PerformaTrak single-use

Description Quantity Product number Part number

PerformaTrak oro-nasal mask EE leak 1, four-point headgear, small 11012573 989805610111

PerformaTrak oro-nasal mask EE leak 1, four-point headgear,

medium

11012574 989805610121

PerformaTrak oro-nasal mask EE leak 1, four-point headgear, large 11012635 989805610151

PerformaTrak oro-nasal mask EE leak 1, four-point headgear, small 10 1018589 989805610481

PerformaTrak oro-nasal mask EE leak 1, four-point headgear,

medium

10 1018590 989805610491

PerformaTrak oro-nasal mask EE leak 1, four-point headgear, large 10 1018591 989805610501

PerformaTrak oro-nasal mask SE, four-point headgear, small 11012639 989805610191

PerformaTrak oro-nasal mask SE, four-point headgear, medium 11012640 989805610201

PerformaTrak oro-nasal mask SE, four-point headgear, large 11012641 989805610211

PerformaTrak oro-nasal mask SE, four-point headgear, small 10 1018605 989805610581

PerformaTrak oro-nasal mask SE, four-point headgear, medium 10 1018606 989805610591

PerformaTrak oro-nasal mask SE, four-point headgear, large 10 1018595 989805610541

PerformaTrak oro-nasal mask with CapStrap EE, small 10 1019492 989805610691

PerformaTrak oro-nasal mask with CapStrap EE, medium 10 1019498 989805610701

PerformaTrak oro-nasal mask with CapStrap EE, large 10 1019507 989805610711

PerformaTrak oro-nasal mask with CapStrap SE, small 10 1019540 989805610811

PerformaTrak oro-nasal mask with CapStrap SE, medium 10 1019541 989805610821

PerformaTrak oro-nasal mask with CapStrap SE, large 10 1019542 989805610831

Philips Respironics PerformaTrak multi-use

Description Quantity Product number Part number

PerformaTrak oro-nasal mask EE leak 1, four-point headgear, small 11022980 989805610871

PerformaTrak oro-nasal mask EE leak 1, four-point headgear,

medium

11023022 989805610881

PerformaTrak oro-nasal mask EE leak 1, four-point headgear, large 11023023 989805610891

PerformaTrak SE oro-nasal mask, four-point-headgear, small 11023025 989805610901

PerformaTrak SE oro-nasal mask, four-point-headgear, medium 11023026 989805610911

PerformaTrak SE oro-nasal mask, four-point-headgear, large 11023027 989805610921

PerformaTrak four-point headgear assembly with forehead pad 51022453 989805610861

Philips Respironics

PerformaTrak

PerformaTrak

Key benefits

• Dual-density foam forehead pads provide patient

comfort and mask stability

• With only three sizes, clinicians can quickly fit

a wide range of patients

• Swivel clips simplify reapplication by reducing

the need to refit after removal

Entrainment elbow (EE)

Also available with standard elbow (SE)

For headgear, see page 25

15

Philips Respironics AF421

Description Quantity Product number Part number

AF421 with EE leak 1 elbow, small* 10 pack 1106170 989805648331

AF421 with EE leak 1 elbow, medium 10 pack 1106171 989805648341

AF421 with EE leak 1 elbow, large 10 pack 1106172 989805648351

AF421 with EE leak 1 elbow, extra large 10 pack 1106173 989805648361

AF421 with SE standard elbow, small* 10 pack 1106174 989805648371

AF421 with SE standard elbow, medium 10 pack 1106175 989805648381

AF421 with SE standard elbow, large 10 pack 1106176 989805648391

AF421 with SE standard elbow, extra large 10 pack 1106177 989805648401

AF421 with EE leak 2 elbow, small* 10 pack 1106178 989805648411

AF421 with EE leak 2 elbow, medium 10 pack 1106179 989805648421

AF421 with EE leak 2 elbow, large 10 pack 1106180 989805648431

AF421 with EE leak 2 elbow, extra large 10 pack 1106181 989805648441

Accessory, AF421 forehead pad (3/4 in, 19.1 mm) 10 pack 1118318 989805652341

RP, S/M AF421 headgear with clips 5 pack 1109915 989805648851

RP, L/XL AF421 headgear with clips 5 pack 1109916 989805648861

RP, AF421 sizing gauge 25 pack 1109917 989805648871

Philips Respironics AF421

* Intended for use by patients 7 years or older and > 20 kg (40 lb)

Key benefits

• Supports your infection control efforts with CleanClip

• Oral access feature for oral care

• Leak symbols for ease of ventilator setup

• Available with EE leak 1, SE standard elbow,

and EE leak 2 elbow for wide ventilator application

• Available in four sizes to fit a wide patient population

AF421 with four-point headgear, SE AF421 EE leak 1 AF421 EE leak 2

16

Nasal masks

When chronically ill patients enter

the hospital in respiratory distress,

they typically want an NIV interface

as comfortable as what they use

at home. They want an unobtrusive

system to maintain quality of

life during their hospital stay.

Mask selection criteria

• Oral access

• Long-term NIV

1717

Philips Respironics PerformaTrak

Description Quantity Product number Part number

PerformaTrak single-use nasal mask, CapStrap headgear, petite 10 1048709 989805611181

PerformaTrak single-use nasal mask, CapStrap headgear, small 10 1048708 989805611171

PerformaTrak single-use nasal mask, CapStrap headgear, medium/large 10 1048710 989805611191

Key benefits

• CapStrap headgear provides an excellent

fit and simple reapplication

• With only three sizes, clinicians can quickly

fit a wide range of patients

• Hook-n-loop grab tabs allow quick, easy

removal and adjustment of headgear

Philips Respironics PerformaTrak

For headgear, see page 25

PerformaTrak with CapStrap

18

Philips Respironics Contour Deluxe single-use

Description Quantity Product number Part number

Contour Deluxe nasal mask, four-point headgear, petite 5 1016980 989805610311

Contour Deluxe nasal mask, four-point headgear, small 5 1016697 989805610291

Contour Deluxe nasal mask, four-point headgear, medium/large 5 1016695 989805610271

Contour Deluxe nasal mask, four-point headgear, small 10 1016698 989805610301

Contour Deluxe nasal mask, four-point headgear, medium/large 10 1016696 989805610281

Key benefits

• Dual-density foam forehead pads provide

patient comfort and mask stability

• With only three sizes, clinicians can quickly

fit a wide range of patients

• Hook-n-loop grab tabs allow quick,

easy removal and adjustment of headgear

Philips Respironics Contour Deluxe

For headgear, see page 25

Contour Deluxe

19

Key benefits

• Easy sizing and fitting

• Complete kit for quick setup

• Clear field of vision

• Cradle style nasal cushion

Philips Respironics AP111

For headgear, see page 25

AP111

Philips Respironics AP111 single-use

Description Quantity Product number Part number

AP111 interface with cradles* leak 3 1 1062128 989805626481

AP111 interface with cradles* leak 3, circuit, and main flow filter 1 1062130 989805626491

AP111 interface with cradles* leak 3, circuit, and main flow filter 5 1062132 989805626501

* Each Philips Respironics AP111 interface includes all four cushion sizes

Small Medium Large Large/Narrow

Procedure packs

and accessories

Get everything you need in one bundle

with our procedure packs, designed to

simplify the ordering process and help

you work more efficiently.

These accessories help you customize

your care to suit each individual patient,

large or small.

20

21

Procedure packs

Description Quantity Product number Part number

AF531 mask with EE leak 1 nebulizer elbow (no nebulizer),

CapStrap headgear, and FEP circuit with main flow filter (#1)

Small* 51072642 989805634651

Medium 51072643 989805634661

Large 51072644 989805634671

AF531 mask with EE leak 1 entrainment elbow, four-point

headgear, and FEP circuit with main flow filter†

Small* 51072639 989805626511

Medium 51072640 989805628811

Large 51072641 989805628821

AF811 gel mask with EE leak 1 entrainment elbow, CapStrap

headgear, and FEP circuit with main flow filter and exhalation filter†

Small 51074839 989805633171

Medium 51074838 989805633161

Large 51074837 989805633151

AF811 gel mask with EE leak 1 entrainment elbow, CapStrap

headgear, and FEP circuit with main flow filter†

Small 51074061 989805633201

Medium 51074060 989805633191

Large 51074059 989805633181

PerformaTrak mask with EE leak 1 entrainment elbow,

four-point headgear, and FEP circuit with main flow filter†

Small 51074055 989805633111

Medium 51074054 989805633101

Large 51074053 989805633091

PerformaTrak mask with EE leak 1 entrainment elbow,

CapStrap headgear, and FEP circuit with main flow filter†

Small 51074058 989805633141

Medium 51074057 989805633131

Large 51074056 989805633121

* Intended for use by patients 7 years or older and > 20 kg (40 lb)

† Not illustrated

Note: FEP – Filter Exhalation Port

1

22

Procedure packs (continued)

Description Quantity Product number Part number

PerformaTrak mask, NIV circuit (9624C) with main flow

filter, O2 enrichment port†

Small 10 1004228 989805618031

Medium 10 1004229 989805618041

Large 10 1004253 989805618051

PerformaTrak mask, heated single limb circuit with main

flow filter, auto-feed humidification chamber†

Small 10 1004198 989805618001

Medium 10 1004199 989805618011

Large 10 1004227 989805618021

Starter packs

Description Quantity Product number Part number

Philips EE starter kit, oro-nasal and full face, multi-use †1074044 989805626551

PerformaTrak EE, small/medium/large mask 3

PerformaTrak with CapStrap headgear, EE, small/medium/

large mask

3

AF811 with CapStrap headgear, EE, small/medium/large mask 3

PerforMax multi-use, EE/SE, four-point headgear, small/large 2

NIV circuit with DEP filter and main flow filter 10

Philips basic start kit, oro-nasal (1 mask) †1074050 989805626611

PerformaTrak SE, small/medium/large mask 3

† Not illustrated

23

Aerogen Pro-X controllers

and systems

NIVO Pro-X controller kits*

Description Quantity Product number Part number

NIVO Pro-X controller kit – Eng EU

(English, EU plug)

11079421 989805634331

NIVO Pro-X controller kit – Northern EU

(German, French, Dutch, Italian)

11082693 989805634471

NIVO Pro-X controller kit – Southern EU

(Spanish, Italian, Portuguese, Greek)

11082694 989805634481

NIVO Pro-X controller kit – Scand EU

(Norwegian, Swedish, Danish)

11082695 989805634491

NIVO Pro-X controller kit – UK/IE (English) 11079422 989805634341

NIVO Pro-X controller kit – AU/NZ

(English)

11079423 989805634351

NIVO Pro-X controller kit – English/INTL

(English)

11079424 989805634361

NIVO Pro-X controller kit – INTL

(Spanish, Italian, Portuguese, Greek)

11082696 989805634501

NIVO controller and

system components

* Pro-X nebulizer kit includes #1, 2, 3, and 5 shown above

** NE elbow can be added to an existing AF531 or mask can be purchased with NE elbow installed.

1AC/DC adapter Power source or charge controller

2Pro-X control module Can use AC/DC adapter or internal battery

(up to 45 minutes)

3Equipment mount Use for pole or humidifier slot mounting configuration

4AF531 mask** Mask to be used

5Control module cable Connect controller to NIVO nebulizer

6Nebulizer elbows (NE) Entrainment elbow (EE) or standard elbow (SE)

with nebulizer port

7NIVO nebulizer Aerosol generator

1

2

3

4

5

6

7

3

24

Mask accessories

Philips Respironics AF531 accessories and replacement parts

Description Quantity Product number Part number

EE leak 1 entrainment elbow* 1 1072645 989805628841

EE leak 1 entrainment elbow* 5 1072646 989805628831

EE leak 1 nebulizing elbow (no nebulizer)* 11072649 989805634531

EE leak 1 nebulizing elbow (no nebulizer)* 51072650 989805634541

SE nebulizing elbow (no nebulizer)* 1 1076755 989805634561

SE nebulizing elbow (no nebulizer)* 5 1076754 989805634551

NIVO nebulizer 51076302 989805634301

CapStrap headgear with clips 1 1072654 989805628871

AF531 sizing gauge 25 1078287 989805628901

Swivel 17041 453561517051

RP-PMax and AF531 headgear clips 2 1060913 989805649921

Nasogastric sealing pad 10 452040 453561517091

CleanClip bracket assembly 11076430 989805627181

CleanClip bracket thumb screw 1 1076197 989805629911

Bronchoscopy elbow* 11072651 989805635091

Bronchoscopy elbow* 51072652 989805635101

Philips Respironics AF541 accessories and replacement parts

Description Quantity Product number Part number

AF541 over-the-nose cushion, small 10 1120960 989805654131

AF541 over-the-nose cushion, medium 10 1120961 989805654141

AF541 over-the-nose cushion, large 10 1120962 989805654151

AF541 over-the-nose cushion, extra large 10 1120963 989805654161

EE leak 1 elbow with NIVO port** 5 1120967 989805654171

EE leak 2 elbow with NIVO port** 5 1120968 989805654181

SE standard elbow with NIVO port** 5 1120969 989805654191

AF541 EE leak 1, without cushion,

four-point headgear

5 1120975 989805654201

AF541 EE leak 1, without cushion,

CapStrap headgear

51120976 989805654211

AF541 four-point headgear with

forehead pad, small/medium

51120970 989805654221

AF541 four-point headgear with

forehead pad, large/extra large

51120971 989805654231

AF541 CapStrap headgear, small/medium 5 1126500 989805654251

AF541 CapStrap headgear, large/extra large 51120972 989805654241

AF541 sizing gauge 25 1120977 989805654261

AF541 size A under-the-nose cushion 10 1120980 989805654271

AF541 size B under-the-nose cushion 10 1120981 989805654281

AF541 size C under-the nose cushion 10 1120982 989805654291

Bronchoscopy elbow 51120984 989805654301

AF541 discharge kit, CapStrap headgear,

small/medium

51120986 989805654311

AF541 discharge kit, four-point headgear,

small/medium

51120987 989805654321

AF541 discharge kit, CapStrap headgear,

large/extra large

51120988 989805654331

AF541 discharge kit, four-point headgear,

large/extra large

51120989 989805654341

Philips Respironics PerforMax accessories

and replacement parts

Description Quantity Product number Part number

EE leak 2 entrainment elbow* 1 1045313 989805611111

EE leak 2 entrainment elbow* 5 1072647 989805628851

Bronchoscopy elbow* 11072651 989805635091

Bronchoscopy elbow* 51072652 989805635101

SE standard elbow* 1 1043210 989805611081

SE standard elbow* 5 1072648 989805628861

** Elbow – Snap/Squeeze type: Push for audible click to install and squeeze tabs to remove.

Refer to instructions with compatible mask or elbow for proper usage. Snap/Squeeze type

used on AF541 mask.

* Elbow – Conical type: Push and twist to install. Pull and twist to remove. Refer to instructions with

compatible mask or elbow for proper usage. Conical type elbows used on AF531, PerforMAX and

PerforMAX pediatric mask.

25

8 10

9

4 72 1

3

5 6

Headgear

Image Description Size Compatibility Quantity Product number Part number

1CapStrap headgear with ball and socket clips Adult (one size) AF811, PerformaTrak 51019543 989805610841

1CapStrap headgear with clips Adult (one size) AF531 11072654 989805628871

2 Four-point headgear with ball and socket clips Adult (one size) AF811, PerformaTrak 11015788 989805610221

3Four-point headgear, no clips Petite AF811, PerformaTrak Contour Deluxe 5 1018472 989805610351

3Four-point headgear, no clips Adult (one size) AF811, PerformaTrak Contour Deluxe 5 1007365 989805609961

4Four-point headgear Adult (one size) Total 11003052 453561517111

4Four-point headgear Adult (one size) Total 91010609 989805610031

5Four-point headgear Adult (one size) Vinyl nasal 10 312106 989805609291

6Four-point headgear with crown strap, clips Small PerforMax 51051857 989805611231

6Four-point headgear with crown strap, clips Large PerforMax 51051816 989805611221

6Four-point headgear with crown strap, clips Extra large PerforMax 51080518 989805634851

6Four-point headgear with crown strap, clips Small PerforMax 91045325 989805611131

6Four-point headgear with crown strap, clips Large PerforMax 91045314 989805611121

6Four-point headgear with crown strap, clips Extra large PerforMax 91080519 989805634861

6Four-point headgear with crown strap, clips Small AF531 1 1072655 989805628891

6Four-point headgear with crown strap, clips Large AF531 11072656 989805628881

6Four-point headgear with crown strap, clips Extra large AF531 51083188 989805634751

7Two-point headgear with chin strap Adult (one size) AP111 5 1062134 453561516551

8AF421 forehead pad kit with two pads 10 mm AF421 10 1119366 989805652521

*Four-point headgear assembly with forehead pad Adult (one size) PerformaTrak multi-use only 51022453 989805610861

9AF541 four-point headgear with forehead pad Small/Medium AF541 51120970 989805654221

9AF541 four-point headgear with forehead pad Large/Extra large AF541 51120971 989805654231

10 AF541 CapStrap headgear Small/Medium AF541 5 1126500 989805654251

10 AF541 CapStrap headgear Large/Extra large AF541 51120972 989805654241

* Image not shown

26

Circuit and mask components and accessories

Image Description Quantity Product number Part number

1Plateau exhalation valve (reusable) 1 302312 989805617941

2Plateau exhalation valve diaphragm 5302310 989805609221

3Whisper Swivel II 1 332113 989805617951

4Disposable exhalation port with filter exhalation port with swivel (no filter) 10 1065775 453561517211

4a Replacement port caps (silicone) 51061825 453561517201

4b Disposable exhalation port with filter exhalation port and proximal pressure line (7 ft, 2.1 m) 10 1116891 989805652291

4b Disposable exhalation port with filter exhalation port and proximal pressure line (7 ft, 2.1 m) 1 1116892 989805652301

5Disposable exhalation port 10 312149 989805609391

6Oxygen enrichment attachment 1312710 989805609421

6Oxygen enrichment attachment 10 312010 989805609241

7Bacteria/virus filter (single use) 11014047 989805618161

7Bacteria/virus filter (single use) 10 342077 989805609521

8Proximal airway filter 1 1002362 453561517101

9Tube management clip 21039967 453561517351

1

7

2

8

3

9

4, 4a 4, 4b

5 6

27

Circuit and mask components and accessories

Image Description Quantity Product number Part number

10 Swivel replacement kit (22 mm male-male) 1 7041 453561517051

11 CleanClip bracket assembly 11076430 989805627181

11 CleanClip bracket thumb screw 1 1076197 989805629911

12 Nasogastric tube sealing pad 10 452040 453561517091

13 PerforMax sizing gauge, small, large, and extra large 1 1095097 989805648901

14 Replacement ball and socket 21009723 989805652511

13 14

10 11 12

* Image not shown

Circuits and connections

Philips offers a variety of single-use

circuits, including heated-wire and

non-heated-wire options, to accompany

our noninvasive ventilation systems.

28

29

Circuits

Image Description Product

number

Part number Quantity V60 BiPAP

Vision

Trilogy

202

BiPAP

Focus

BiPAP

S/T-D

1Invasive circuit with exhalation port, water trap and temperature probe ports, proximal

airway filter and humidifier coupling tube, hanger, and hose clips

652002 989805609681 10 • • •

1Invasive circuit with exhalation port, water trap and temperature probe ports, proximal

airway filter and humidifier coupling tube, hanger, and hose clips

652001 989805609671 20 • • •

2Noninvasive circuit with main flow filter, disposable swivel exhalation port with filter

port and filter, proximal pressure line, hanger, and hose clips

1065830 989805621311 10 • • • •

3Noninvasive circuit with main flow filter, disposable swivel exhalation port with filter

port, proximal pressure line, hanger, and hose clips (exhalation filter not included)

1065832 989805621321 10 • • • •

4Noninvasive circuit with disposable swivel exhalation port with filter port, proximal

pressure line, hanger, and hose clips (main flow and exhalation filters not included)

1069210 989805634871 10 • • • •

5Noninvasive circuit with disposable exhalation port, proximal pressure line, hanger,

and hose clips

582073 989805609611 10 • • • •

6BiPAP S/T-D circuit with exhalation port, proximal pressure line, hanger, and hose clips 312107 989805609301 10 •

7Tubing 6 ft (22 mm) (no dep, proximal pressure line, or hanger) 532316 989805647181 1

Humidification circuits and accessories

Description Quantity Product number Part number

Auto-feed humidification chamber 24 1035609 989805619481

Heated single-limb circuit with main flow filter 10 8624C 989805619521

Heated single-limb circuit with main flow filter, auto-feed humidification chamber 10 1045770 989805619511

Dry circuits and accessories

Description Quantity Product number Part number

NIV circuit with main flow filter 10 9624 989805619411

NIV circuit with main flow filter, O2, enrichment port 10 9624C 989805619531

1

6

2 3 4

5 7

Easy to use and maintain

• Trilogy circuits can be used for a variety

of pediatric and adult patient applications

• Passive circuits for NIV applications

• Active exhalation valve for IV application

• Circuits are available in packs of 10 and 20

Trilogy accessories

The innovative technology of Trilogy sets

it apart from the rest. The support, service,

and upkeep behind it keep it there.

30

31

The ability to use either

an active valve or passive

exhalation port gives you

the flexibility to choose the

best available circuit and

interface for your patient.

Trilogy’s unique passive

exhalation port reduces

extra tubing connections.

Circuit adapters

Image Description Compatibility Product number Part number

1Active exhalation valve with PAP assembly 1065659 – 1/pk 989805628221

2 Proximal flow sensor

(Trilogy202)

1050408 – 1/pk

1050534 – 10/pk

989805621211

989805645511

3Disposable swivel passive

exhalation port

1084428 – box of 10

1084429 – box of 20

989805643161

989805646961

4Flexible trach adapter

with 15 mm cuff

Connects to the flow sensor

or the active exhalation valve

1073863 – box of 10

1073903 – box of 20

989805633921

989805633941

5Flexible trach adapter

with 22 mm cuff

Connects to Whisper Swivel II and swivel

and fixed disposable exhalation ports

1073902 – box of 10

1073904 – box of 20

989805633931

989805633951

Miscellaneous

Image Product Product number Part number

6Oxygen inlet adapter – 2/pk 1040390 989805647691

7Tube port adapter, active PAP 1061398 989805621291

Trilogy support arm system

Image Product Product number Part number

8Tubing hanger (22 mm) – 1/pk 311107 989805648891

*Support arm 332497 989805617961

*Support arm mount assembly 1052863 989805605731

* Image not shown

1 32 4 5

6 7 8

32

Trilogy disposable circuits

Image Description Components Quantity Product number Part number

1Adult passive circuit with fixed

exhalation port

Passive exhalation port. Patient tube: 6 ft length, 22 mm diameter

with 22 mm cuff.

Box of 10

Box of 20

1069467

1069468

989805621551

989805621561

2Adult passive circuit with swivel

design exhalation port

Passive exhalation port. Patient tube: 6 ft length, 22 mm diameter

with 22 mm cuff.

Box of 10

Box of 20

1073228

1073236

989805633861

989805633911

3* Adult passive circuit with water trap Standard 90° degree elbow adapter. Passive fixed exhalation port.

Temperature probe port. Patient tube, 2 ft length, 22 mm diameter

with 22 mm cuff. Water trap. Humidifier connection tube, 2 ft length,

22 mm diameter with 22 mm cuff.

Box of 10

Box of 20

1069443

1069444

989805621531

989805621541

4* Adult passive circuit, heated wire Passive swivel exhalation port. Temperature probe port. Heated wire

patient tube, 5 ft length, 22 mm diameter with 22 mm cuff. Heated wire

adapter. Humidifier connection tube, 2 ft length, 22 mm in diameter

with 22 mm cuff.

Box of 10

Box of 20

1073227

1073235

989805646441

989805646481

5 Adult active circuit, no water trap Standard 90° elbow trach adapter. Active exhalation valve.

Exhalation tubing. Proximal pressure tubing. Patient tube, 6 ft length,

22 mm diameter with 22 mm cuff. Tube management clips.

Box of 10

Box of 20

1073223

1073232

989805633841

989805633881

6* Adult active circuit, heated wire Standard 90° elbow trach adapter. Active exhalation valve. Exhalation

tubing. Proximal pressure tubing. Heated wire patient tube, 5 ft length,

22 mm diameter with 22 mm cuff, with heated wire connector. Heated wire

adapter. Temperature probe port. Humidifier connection tube, 2 ft length,

15 mm diameter with 22 mm cuff. Tube management clips.

Box of 10

Box of 20

1073222

1073231

989805646421

989805646461

* Chamber not included

1

4

2

5

3

6

33

Trilogy disposable circuits

Image Description Components Quantity Product number Part number

7Pediatric passive circuit with water trap Passive fixed exhalation port. Patient tube, 6 ft length, 15 mm diameter

with 22 mm cuff and water trap.

Box of 10

Box of 20

1069445

1069446

453561517231

453561517241

8* Pediatric passive circuit with water trap Passive swivel exhalation port. Patient tube, 2.5 ft length, 15 mm diameter

with 22 mm cuff. Temperature probe port. Water trap. Humidifier

connection tube, 2 ft length, 15 mm diameter with 22 mm cuff.

Box of 10

Box of 20

1073224

1073233

989805633851

989805633901

9* Pediatric passive circuit, heated wire Passive swivel exhalation port. Heated wire patient tube, 5 ft length,

15 mm diameter with 22 mm cuff, with heated wire connector. Heated wire

adapter. Temperature probe port. Humidifier connection tube, 2 ft length,

15 mm diameter with 22 mm cuff.

Box of 10

Box of 20

1073225

1073234

989805646431

989805646471

10* Pediatric active circuit with water trap Standard 90° elbow trach adapter. Active exhalation valve. Exhalation

tubing. Proximal pressure tubing. Patient tube, 2.5 ft length, 15 mm

diameter with 22 mm cuff. Temperature probe port. Water trap.

Humidifier connection tube, 2 ft length, 15 mm diameter with 22 mm cuff.

Tube management clips (one shown).

Box of 10

Box of 20

1073220

1073229

989805633831

989805633871

11* Pediatric active circuit, heated wire Standard 90° elbow trach adapter. Active exhalation valve. Exhalation

tubing. Proximal pressure tubing. Heated wire patient tube, 5 ft length,

15 mm diameter with 22 mm cuff, with heated wire connector. Heated wire

adapter. Temperature probe port. Tube management clips. Humidifier

connection tube, 2 ft length, 15 mm diameter with 22 mm cuff.

Box of 10

Box of 20

1073221

1073230

989805646411

989805646451

12 MPV (mouthpiece ventilation) circuit,

single use

Bacteria filter, 22 mm x 15 mm reducer cuff, 6 ft length, 15 mm tubing,

coupler, miniature and angled mouthpiece.

Box of 10 1102866 989805646981

* Chamber not included

7

10

8

11

9

12

34

Notes

35

Notes

©2016 Koninklijke Philips N.V. All rights are reserved.

Philips reserves the right to make changes in

specifications and/or to discontinue any product at

any time without notice or obligation and will not be

liable for any consequences resulting from the use

of this publication. Trademarks are the property of

Koninklijke Philips N.V. or their respective owners.

www.philips.com/NIVmasks

Printed in the Netherlands.

4522 991 16521 * AUG 2016
