Simplicity and
versatility
Respironics Trilogy 202 portable ventilator
Please visit www.philips.com/trilogy202
© 2010 Koninklijke Philips Electronics N.V. All rights are reserved.
Philips Healthcare reserves the right to make changes in specications and/or to discontinue any product at any time without
notice or obligation and will not be liable for any consequences resulting from the use of this publication.
Auto-Trak, AVAPS, DirectView, Trilogy 100, and Trilogy 202 are trademarks of Respironics, Inc. and its afliates.
Printed in the U.S.A 4522 962 58751 * FEB 2010
Philips Healthcare is part of
Royal Philips Electronics
How to reach us
www.philips.com/healthcare
healthcare@philips.com
fax: +31 40 27 64 887
Asia
+852 2821 5888
Europe, Middle East, Africa
+49 7031 463 2254
Latin America
+55 11 2125 0744
North America
+1 425 487 7000
800 285 5585 (toll free, US only)
Large screen with intuitive menu
navigation allows for rapid settings
and changes for a wide range of
patients
12388_RIUS_Trilogy_Hospital_6pp_Brochure_v10.indd 1 03/02/2010 16:17

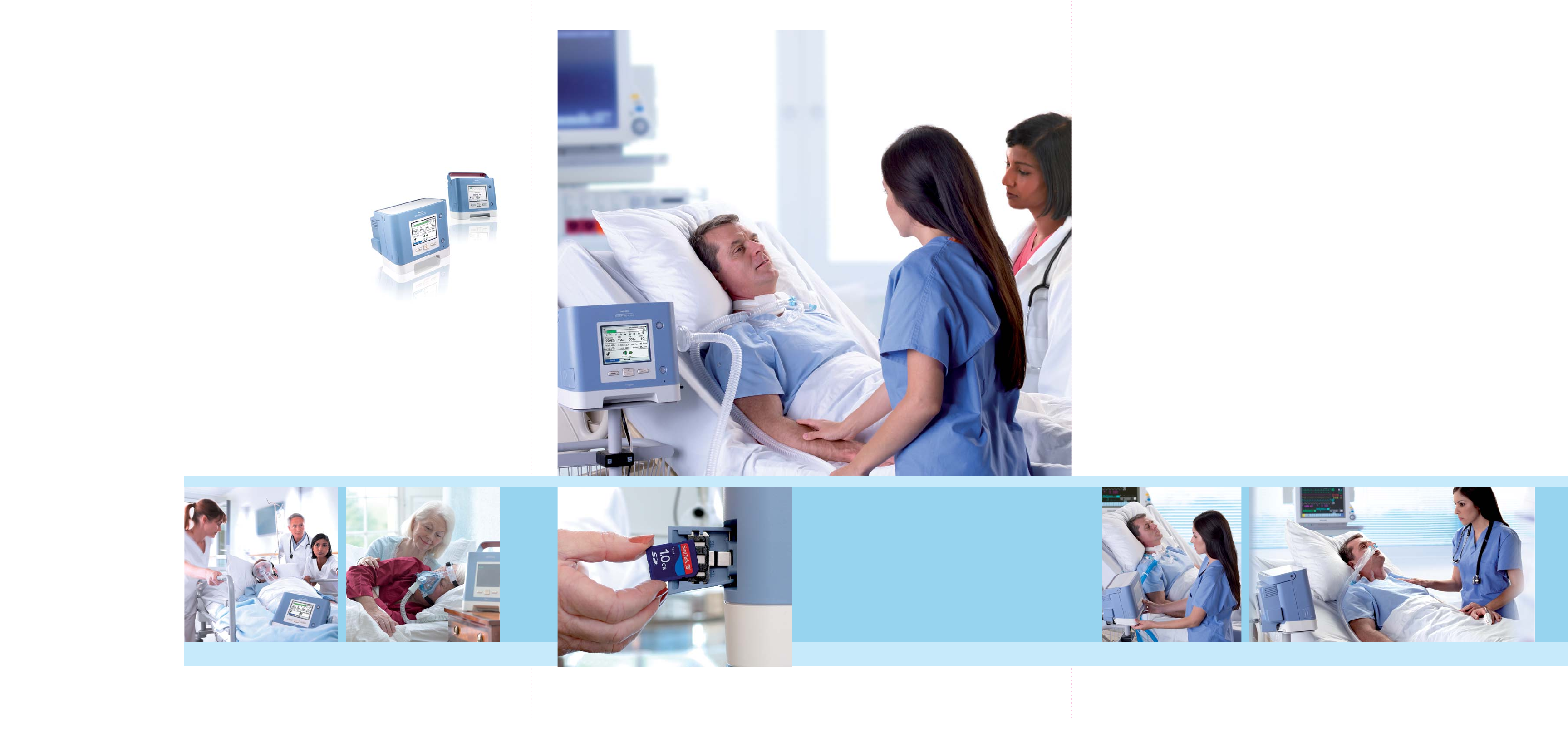

Trilogy 202 intra-hospital transport exibility Trilogy 100 ventilator for home-bound patients Intuitive menu for quick changes Passive circuit allows a simpler setup
The Trilogy 202 is both a volume-control and pressure-control ventilator for
invasive and noninvasive ventilation. The versatile breath delivery and setup
options free you from burdensome equipment exchanges, providing greater
continuity of care for your patients. Because the Trilogy 202 has the unique
ability to compensate for leaks in both pressure and volume control modes,
using simpler passive circuits may support signicant time and cost savings.
With one simple setting change, the Trilogy 202 supports either active or passive
exhalation breathing circuits to accommodate changes in circuit preference.
Intra-hospital transport
The Trilogy 202 allows freedom of
movement. With a 3-hour internal battery
and optional 3-hour detachable battery,
you’ll have sufcient power for intra-hospital
transports – with plenty of time for any
delays or detours. It weighs only 5.6 kg and
has an integrated carrying handle for safe
and convenient handling during intra-hospital
transports.
Hospital to home transition
In addition to sharing a common user
interface, all home and hospital Trilogy
ventilators offer identical ventilation modes
and breathing circuit congurations. Now
your home-bound patients will receive
the same nely tuned ventilatory support
they received in the hospital. Furthermore,
stored data from the home or the hospital
can be downloaded for review and evaluated
for meaningful trends.
Support many needs
with a single ventilator
Detailed data and remote settings
A secure digital (SD) card stores historical
ventilatory data so that you can review
treatment trends using our DirectView
software.
• Breath-by-breath waveforms
• Short-term and long-term trends
• Statistics and usage patterns
Simply versatile
Synchrony
The Auto-Trak algorithm improves
patient-ventilator synchrony by
adjusting to changing breathing
patterns and dynamic leaks. The
auto-adaptive triggering, cycling, and
leak adjustments may help reduce
the time clinicians spend adjusting
thresholds and re-tting masks.
Leak compensated volume modes
Trilogy 202 offers all the conventional
volume-control modes: AC, SIMV
(with or without PS), and CV. The
Trilogy 202 has the unique ability
to compensate for leaks in a volume
control mode. This means more
consistent tidal volume delivery
even during NIV or when cuff leaks
are present.
Setup
Whether you are in a sub-acute or
chronic care environment, setup is
simple with the Trilogy 202. The color
screen and intuitive menu navigation
allow rapid settings and changes
for a wide range of patients. The
integrated blender provides oxygen
administration from 21 – 100%. And
for patients who may wean during
the day and rest at night, Trilogy 202
supports two different treatment
prescriptions.
Trilogy 202 ventilator
Trilogy 100 ventilator
