TABLE OF CONTENTS

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING.

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC

EQUIPMENT CONTAINING HIGH VOLTAGES.

Published by BCU Monitors Printed in Taiwan Copyright reserved Subject to modification Mar. 14 , 2003 GB 3138 106 10264

17" Auto Scan Colour Monitor Chassis:V30

Description Page

Important Safety Notice-------------------------------- 2

Technical data ------------------------------------------- 3

Installation------------------------------------------------ 4

On-screen Display (OSD)--------------------------5 ~ 8

OSD Lock/Unlock, Burn In, Service mode-----9 ~ 12

Wiring Diagram ---------------------------------------- 14

Mechanical Instructions -------------------------- 15,16

Warning and Notes ---------------------------------- --17

Electrical Instructions---------------------------- 18~20

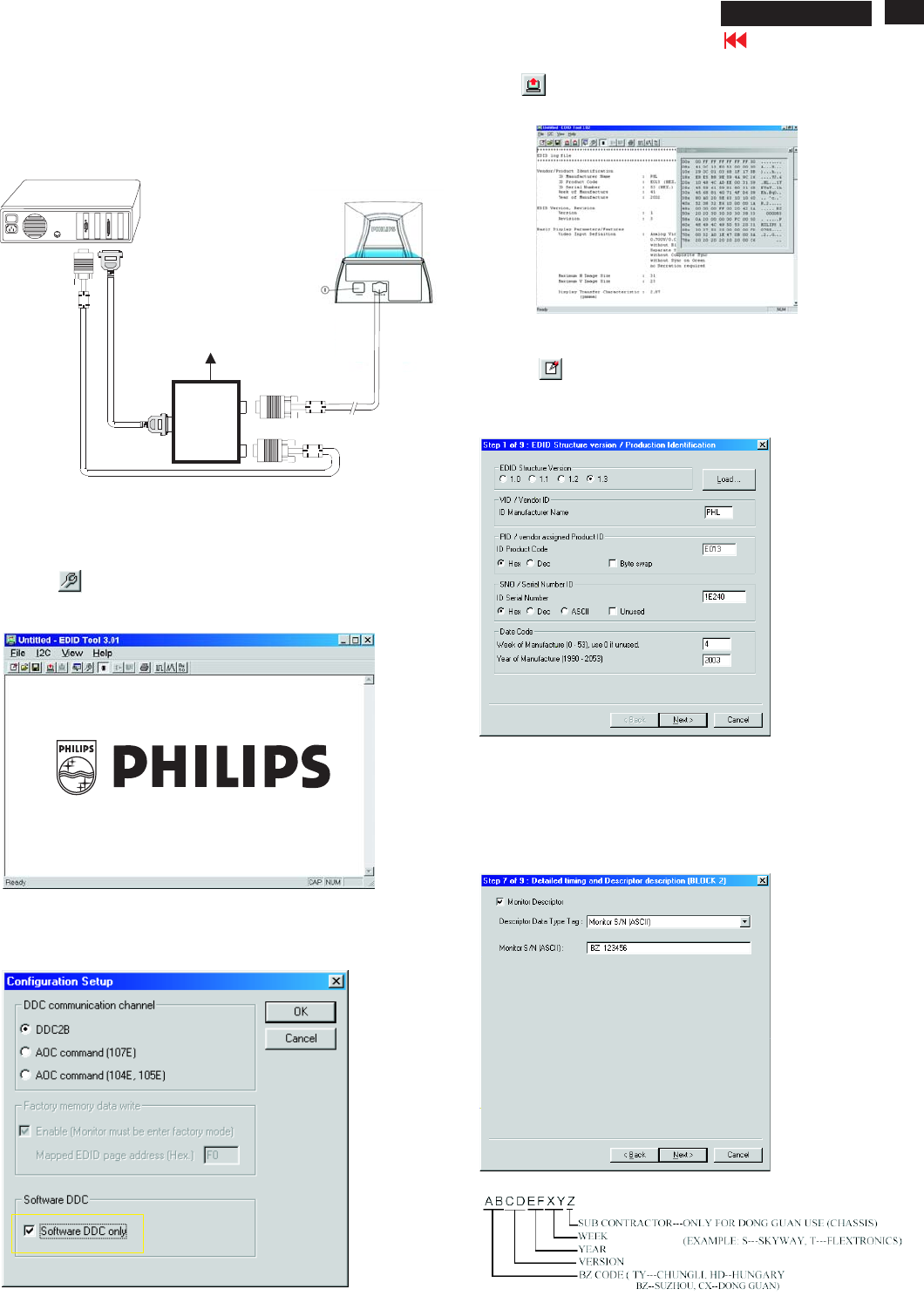

DDC Instructions ----------------------------------21~28

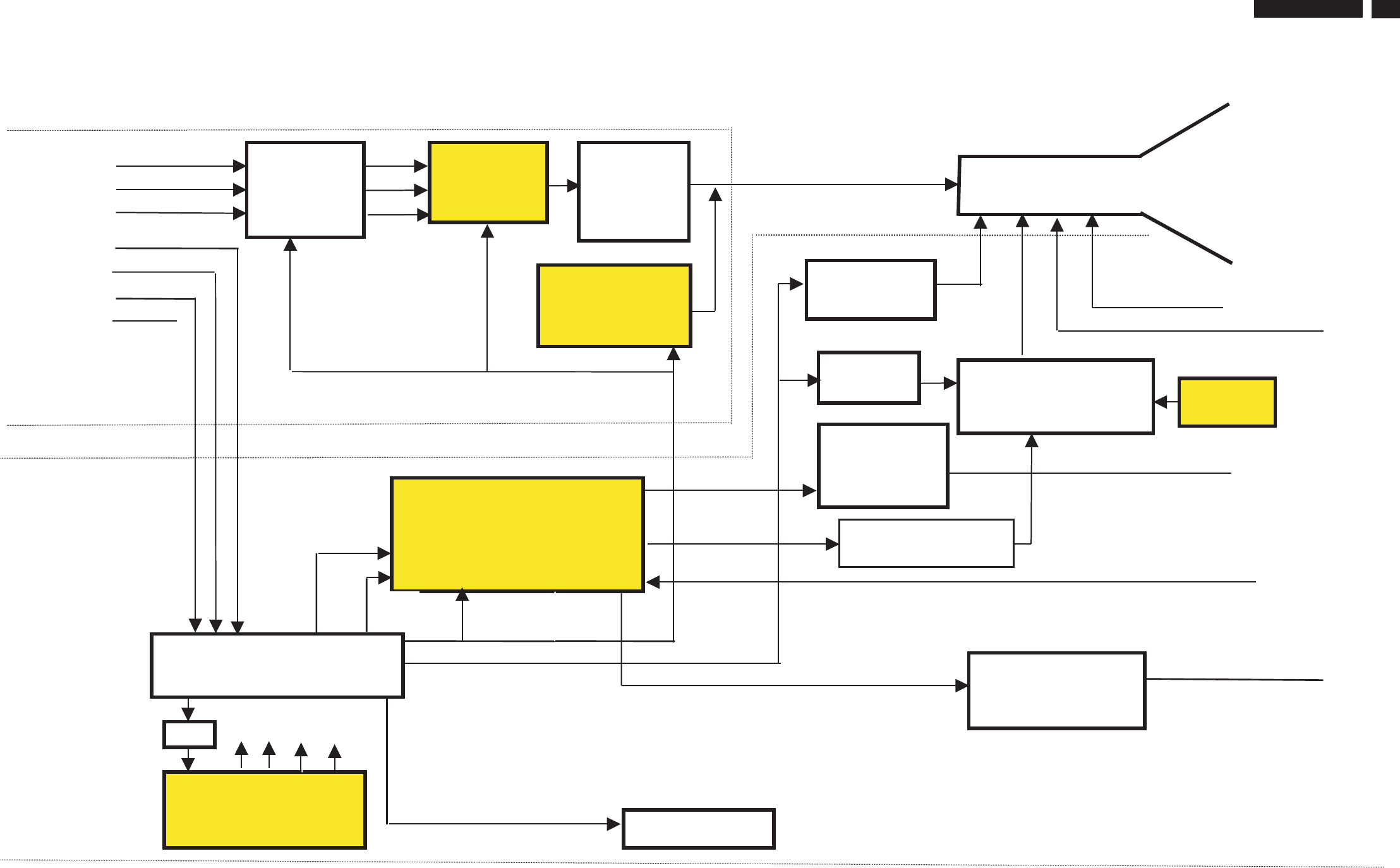

Block Diagram------------------------------------------ 29

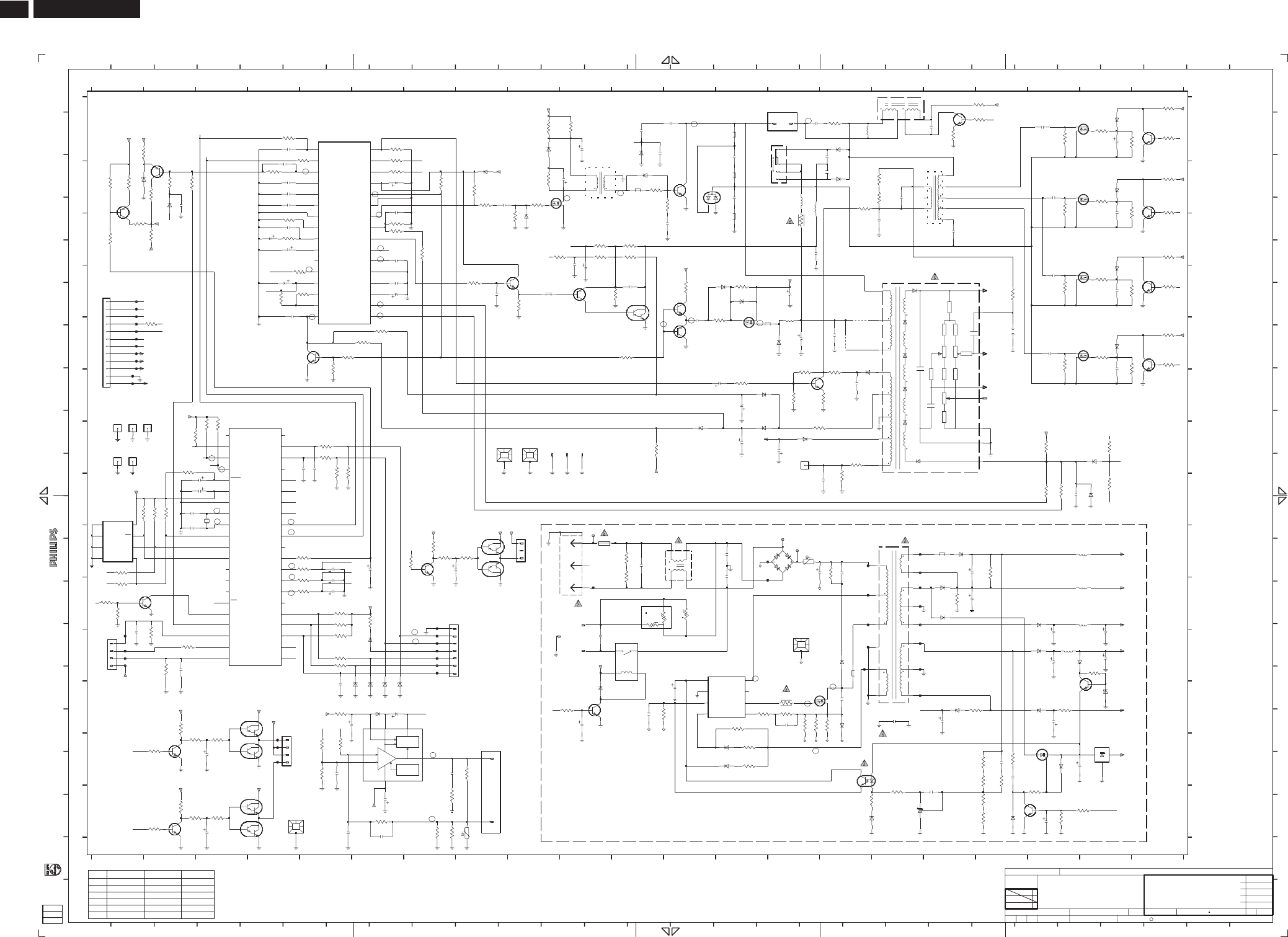

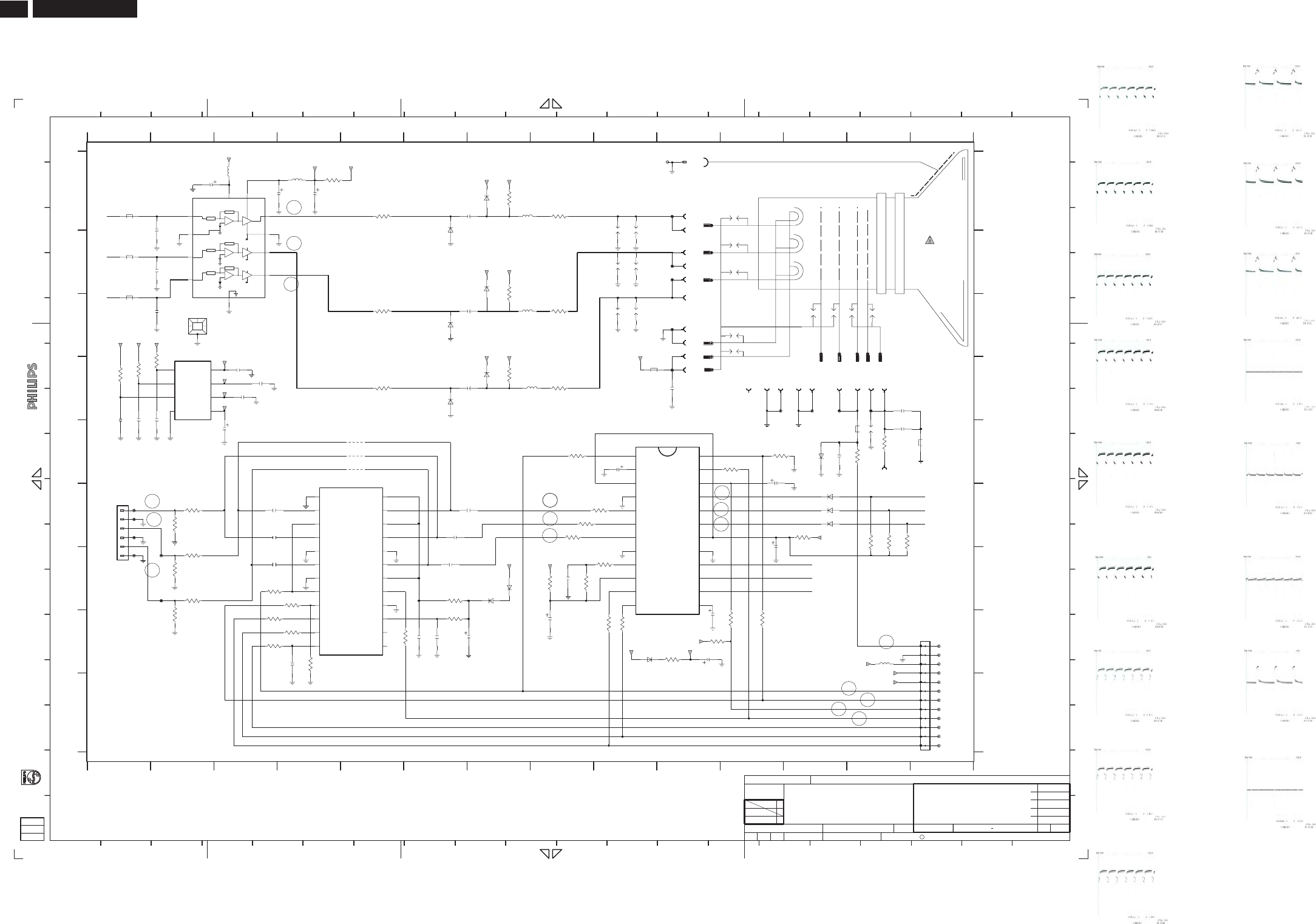

Circuitry schematic diagrams(Main) ----------30~ 33

Description Page

Circuitry schematic diagrams(Audio) --------34~ 36

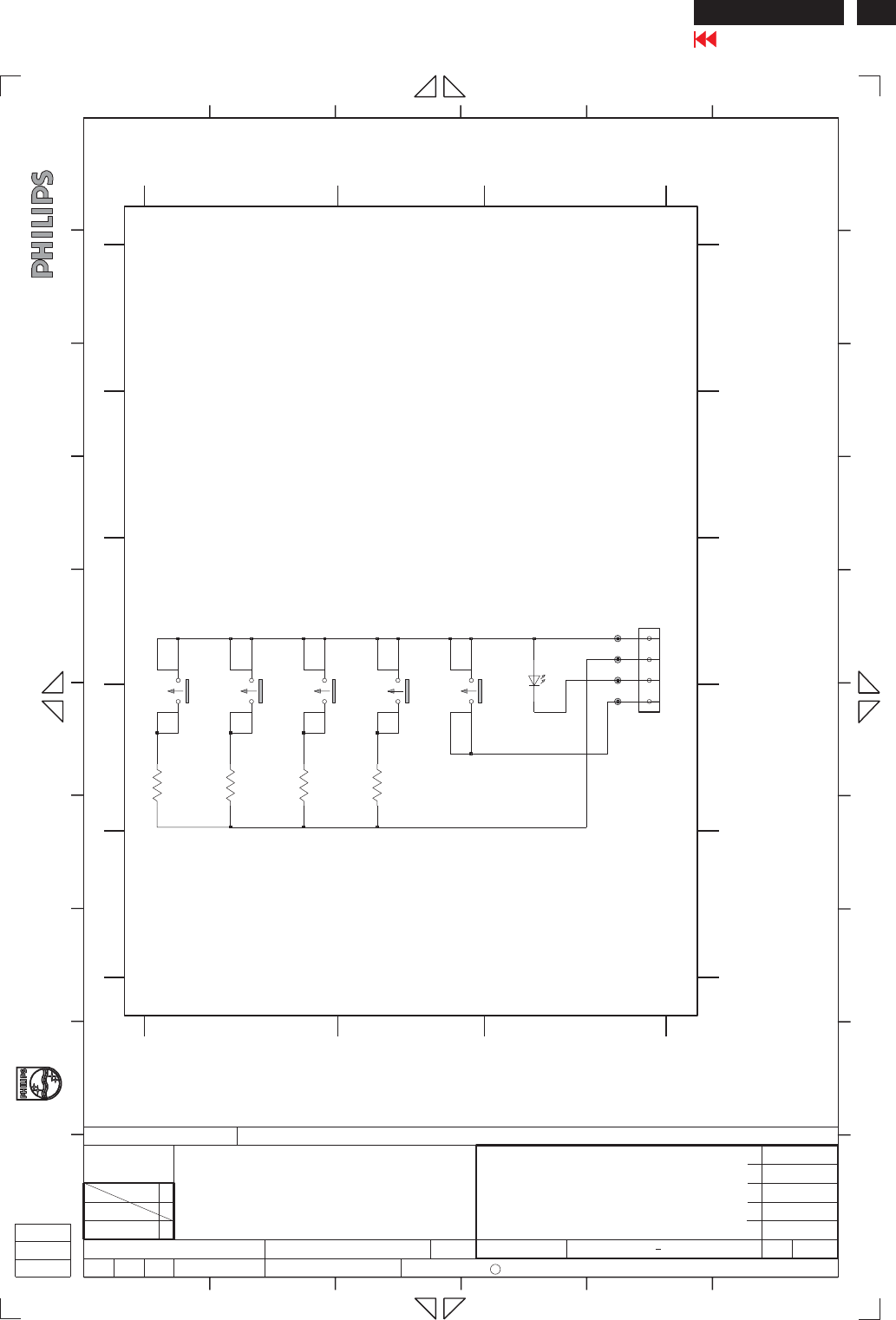

Circuitry schematic diagrams(Key ) ---------- 37, 38

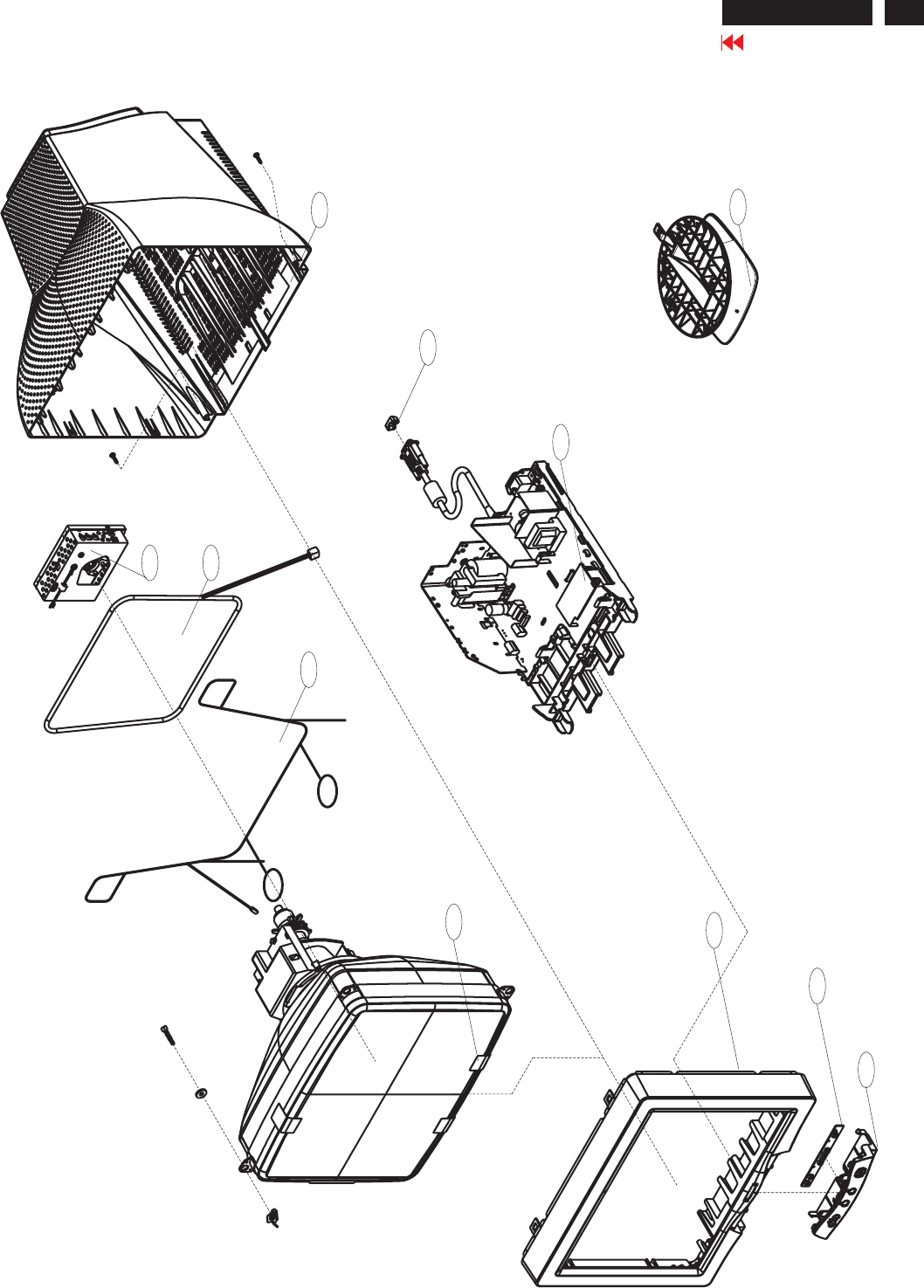

Exploded View -----------------------------------------39

Recommend Parts List -------------------------------40

Spare Parts List------------------------------------41,42

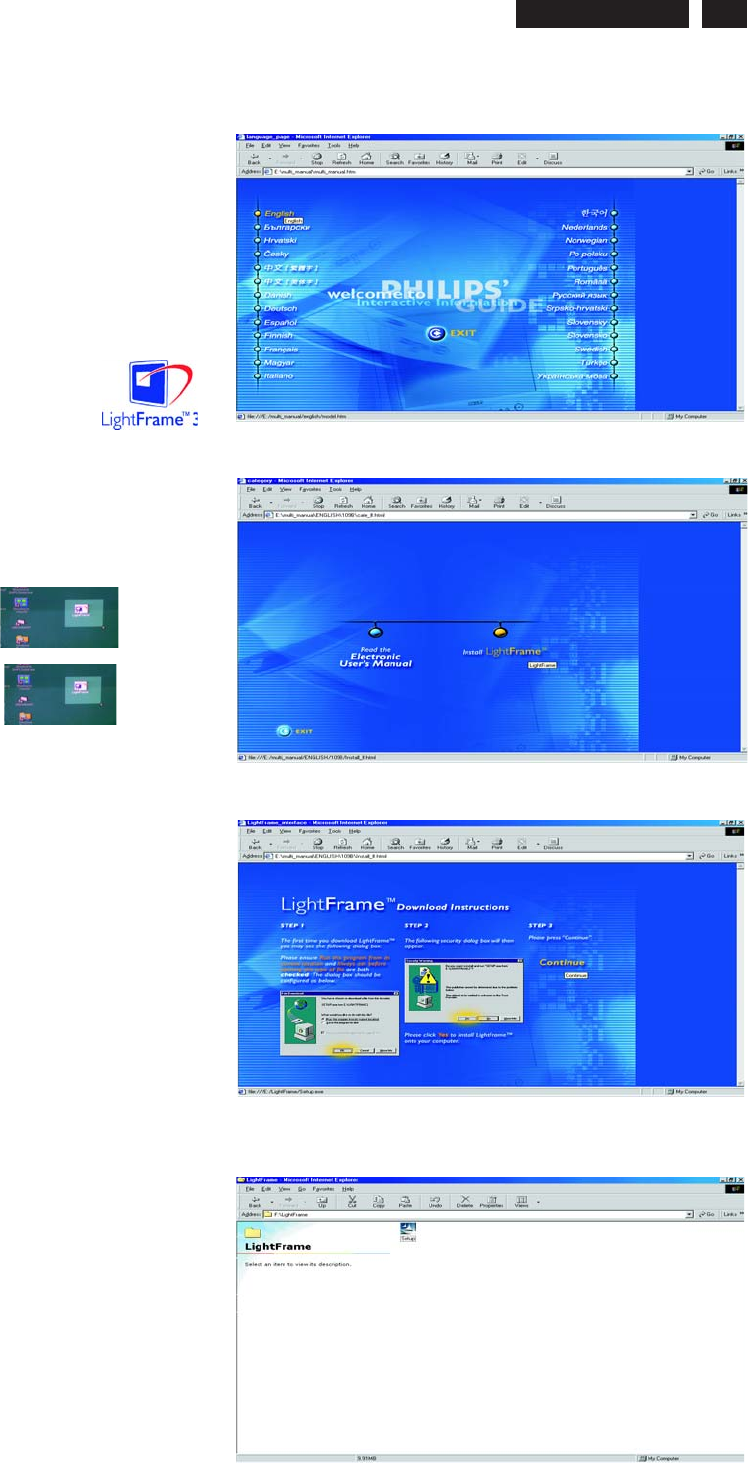

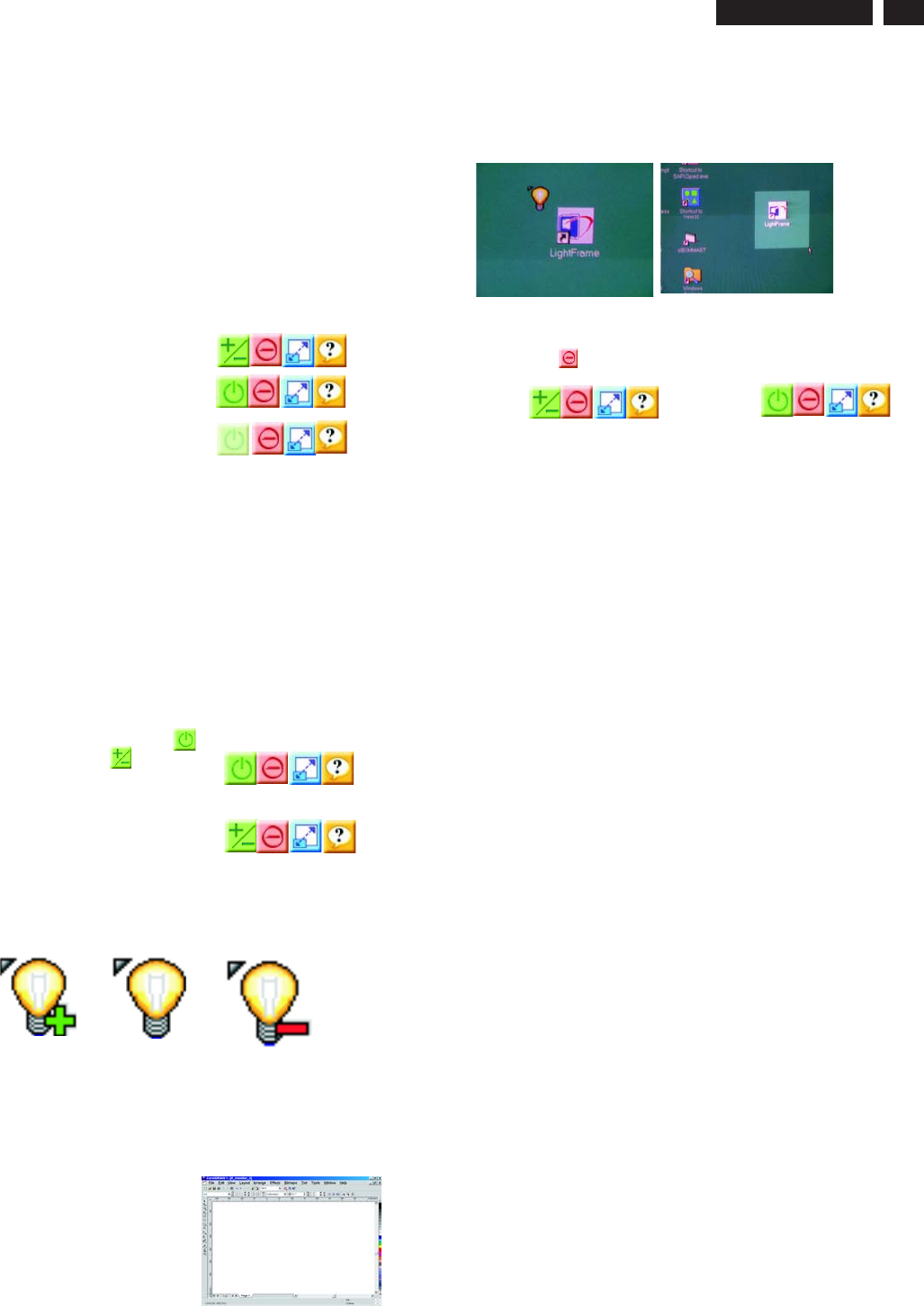

Light Fram for Windows------------------------- 81~84

Repair Tips --------------------------------------------- 85

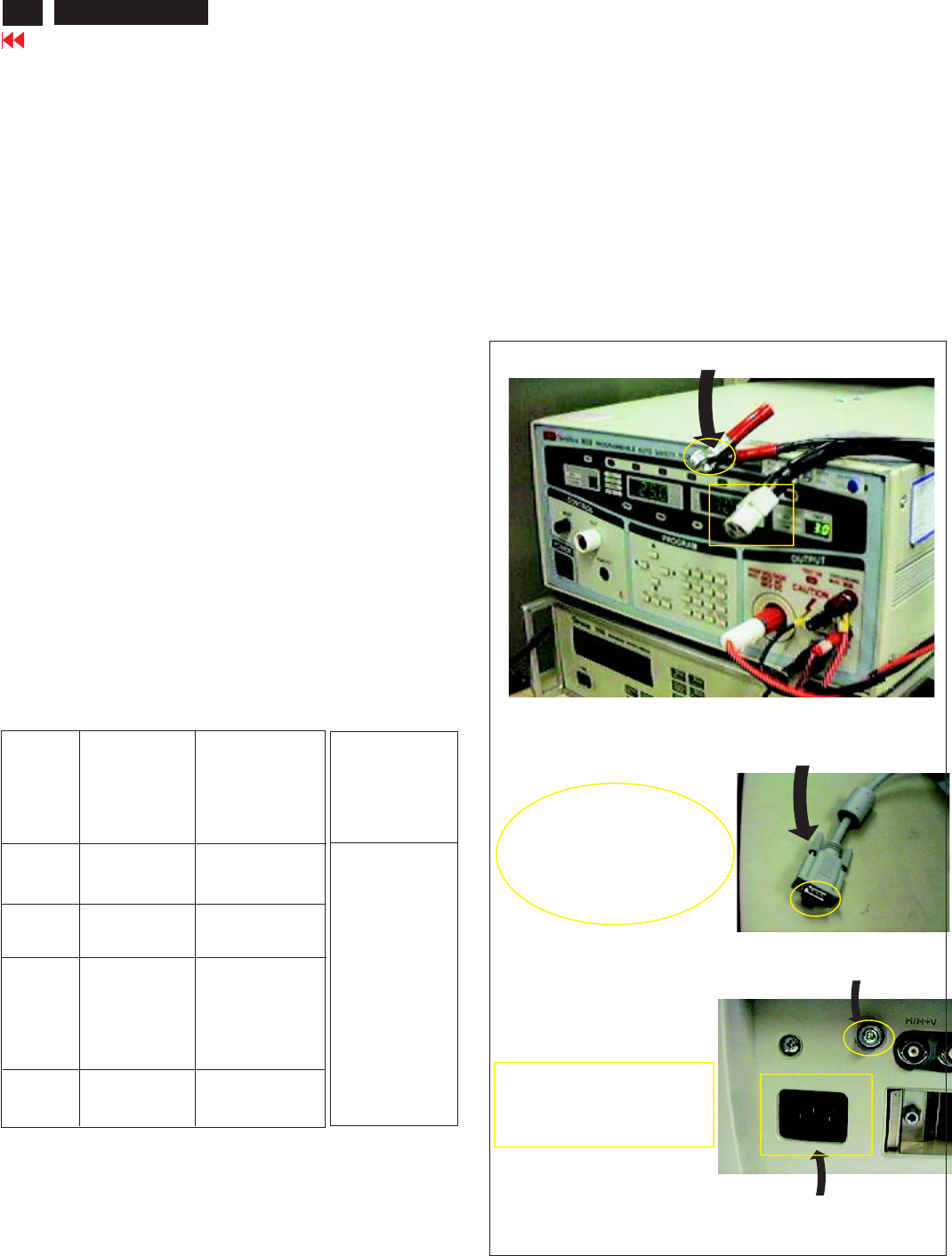

Safety Test Requirements----------------------------86

General Product Specification ----------------43~72

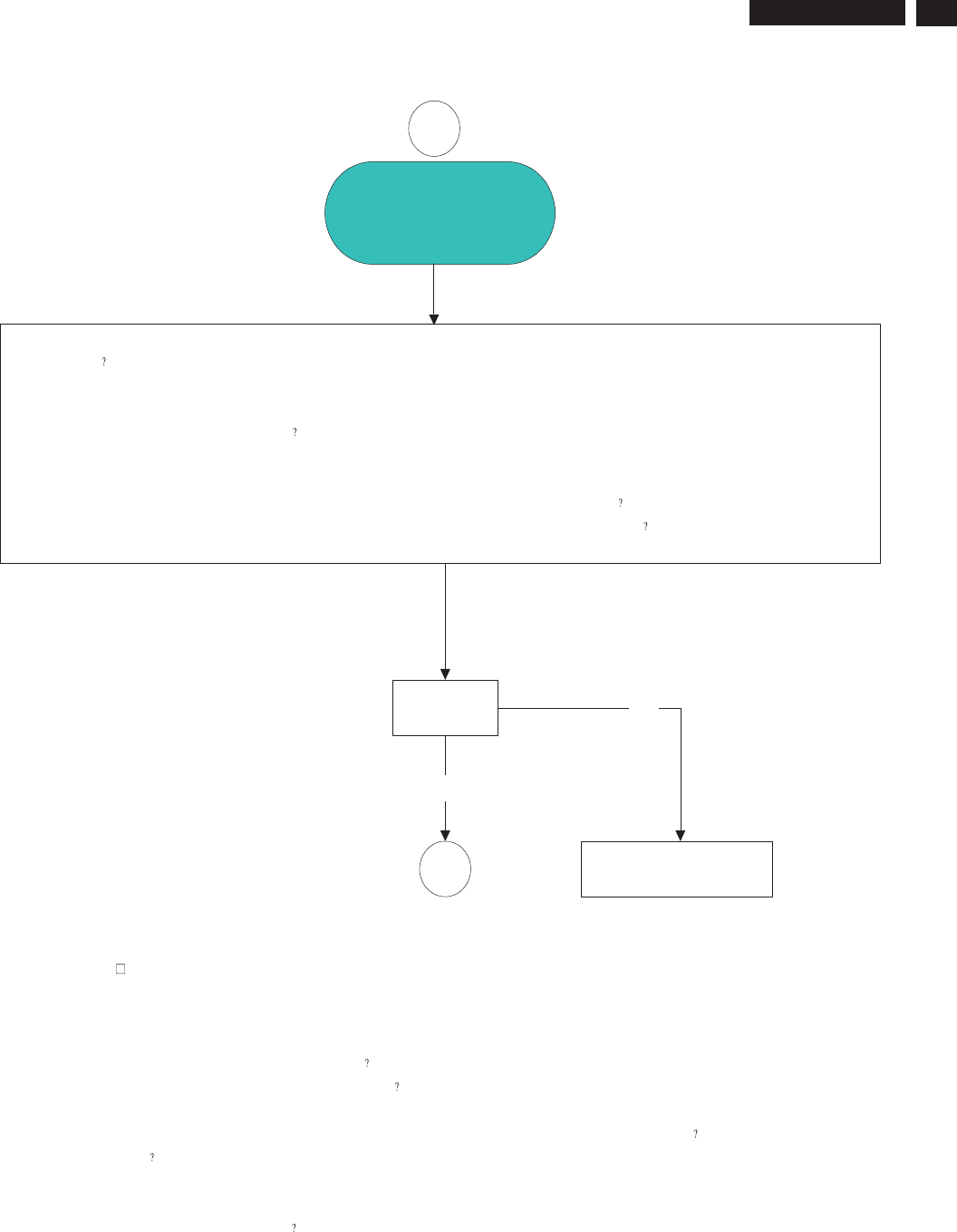

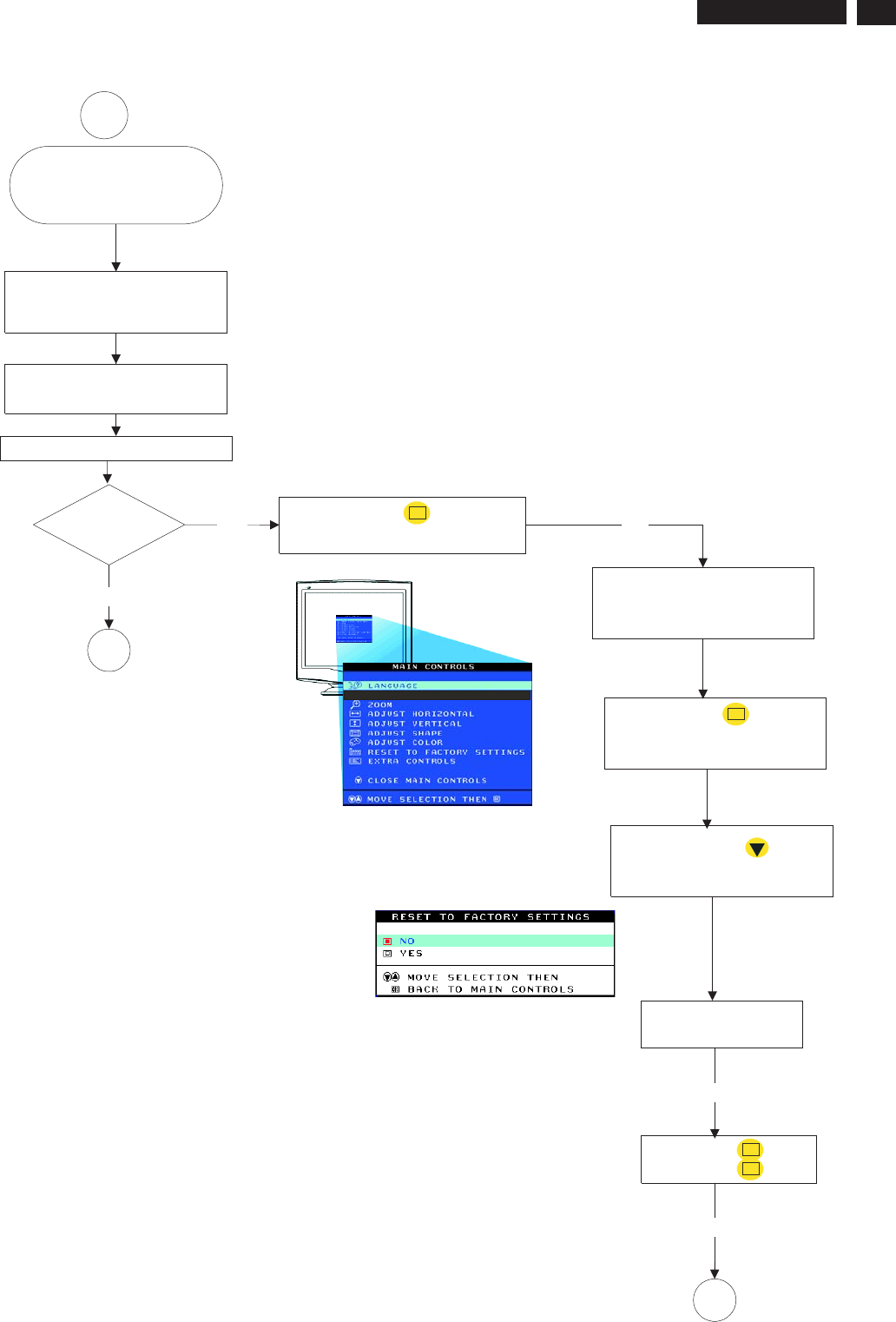

Repair Flow Chart-------------------------------- 73~80

General Troubleshooting Guide ------------- 87~109

REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES

MODEL : V30 107T50/00

S

Important Safety Notice

2

FOR PRODUCTS CONTAINING LASER :

Invisible laser radiation when open.

AVOID DIRECT EXPOSURE TO BEAM.

Use of controls or adjustments or

performance of procedures other than

those specified herein may result in

hazardous radiation exposure.

The use of optical instruments with this

product will increase eye hazard.

DANGER-

CAUTION-

CAUTION-

TO ENSURE THE CONTINUED RELIABILITY OF THIS

PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR

PART NUMBERS IN THE PARTS LIST SECTION OF THIS

SERVICE MANUAL.

Proper service and repair is important to the safe, reliable

operation of all PHILIPS Consumer Electronics Company**

Equipment. The service procedures recommended by

PHILIPS and described in this service manual are effective

methods of performing service operations. Some of these

service operations require the use of tools specially designed

for the purpose. The special tools should be used when and

as recommended.

It is important to note that this manual contains various

CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service

personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to

understand that these CAUTIONS and NOTICES ARE NOT

EXHAUSTIVE. PHILIPS could not possibly know, evaluate

and advise the service trade of all conceivable ways in which

service might be done or of the possible hazardous

consequences of each way. Consequently, PHILIPS has not

undertaken any such broad evaluation. Accordingly, a

servicer who uses a service procedure or tool which is not

recommended by PHILIPS must first satisfy himself

thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

* * Hereafter throughout this manual, PHILIPS Consumer

Electronics Company will be referred to as PHILIPS.

Critical components having special safety characteristics are

identified with a by the Ref. No. in the parts list and

enclosed within a broken line*

(where several critical components are grouped in one area)

along with the safety symbol on the schematics or

exploded views.

Use of substitute replacement parts which do not have the

same specified safety characteristics may create shock, fire,

or other hazards.

Under no circumstances should the original design be

modified or altered without written permission from Philips.

Philips assumes no liability, express or implied, arising out of

any unauthorized modification of design.

Servicer assumes all liability.

WARNING

* Broken Line

Go to cover page

107T5107T5

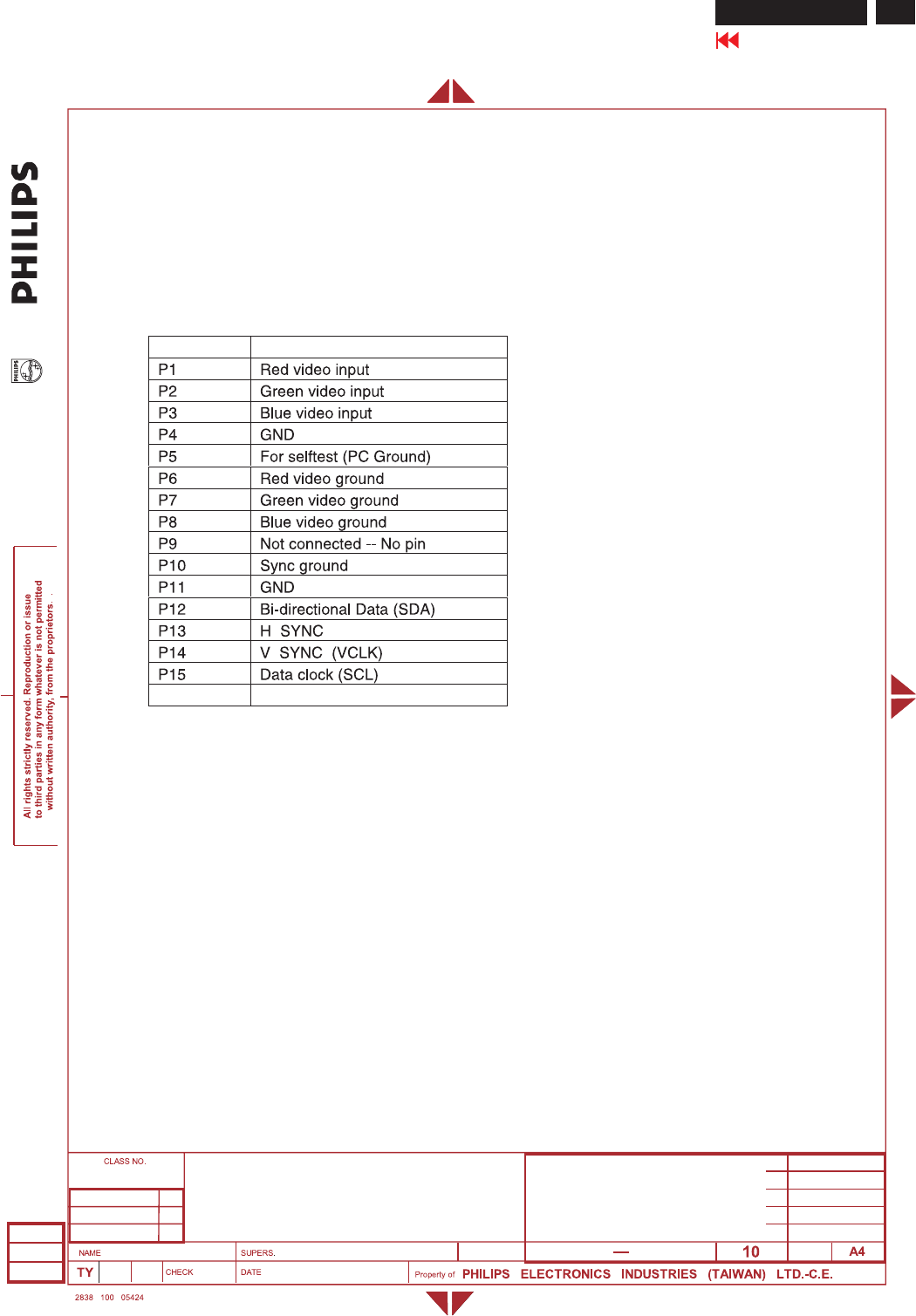

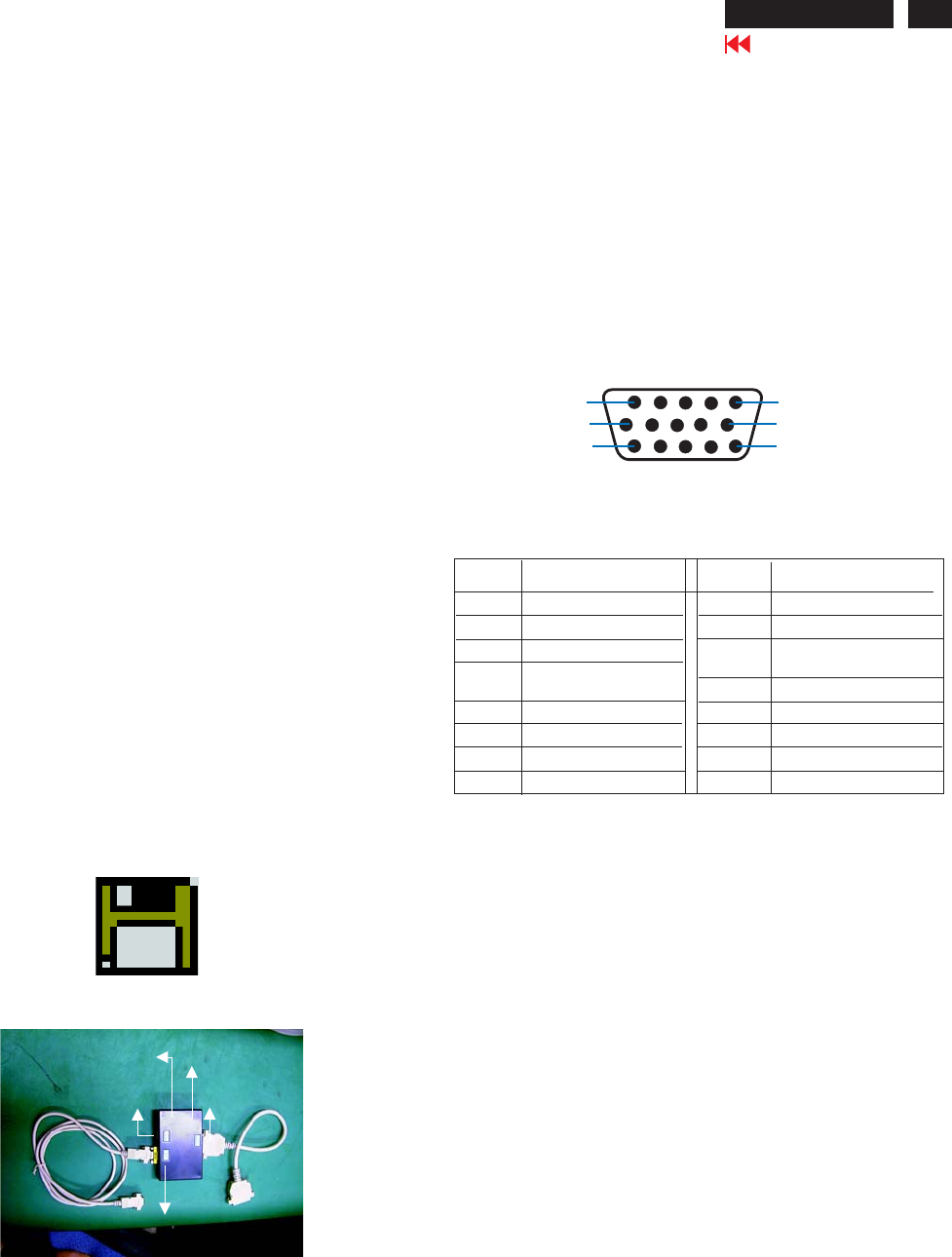

:The 15-pin D-sub connector(male) of the signal cable

Assignment Assignment

Pin No. Pin No.

Gnd

Gnd

Blue video input

2

7

6

4

5

3

19

12

11

14

13

15

10

Red video ground

Blue video ground

Green video ground

For self-test

+5V DDC

Gnd

Data clock line(SCL)

V.Sync(VCLK for DDC)

H.Sync /H

Bidirectional Data

Green video input

Red video input

3

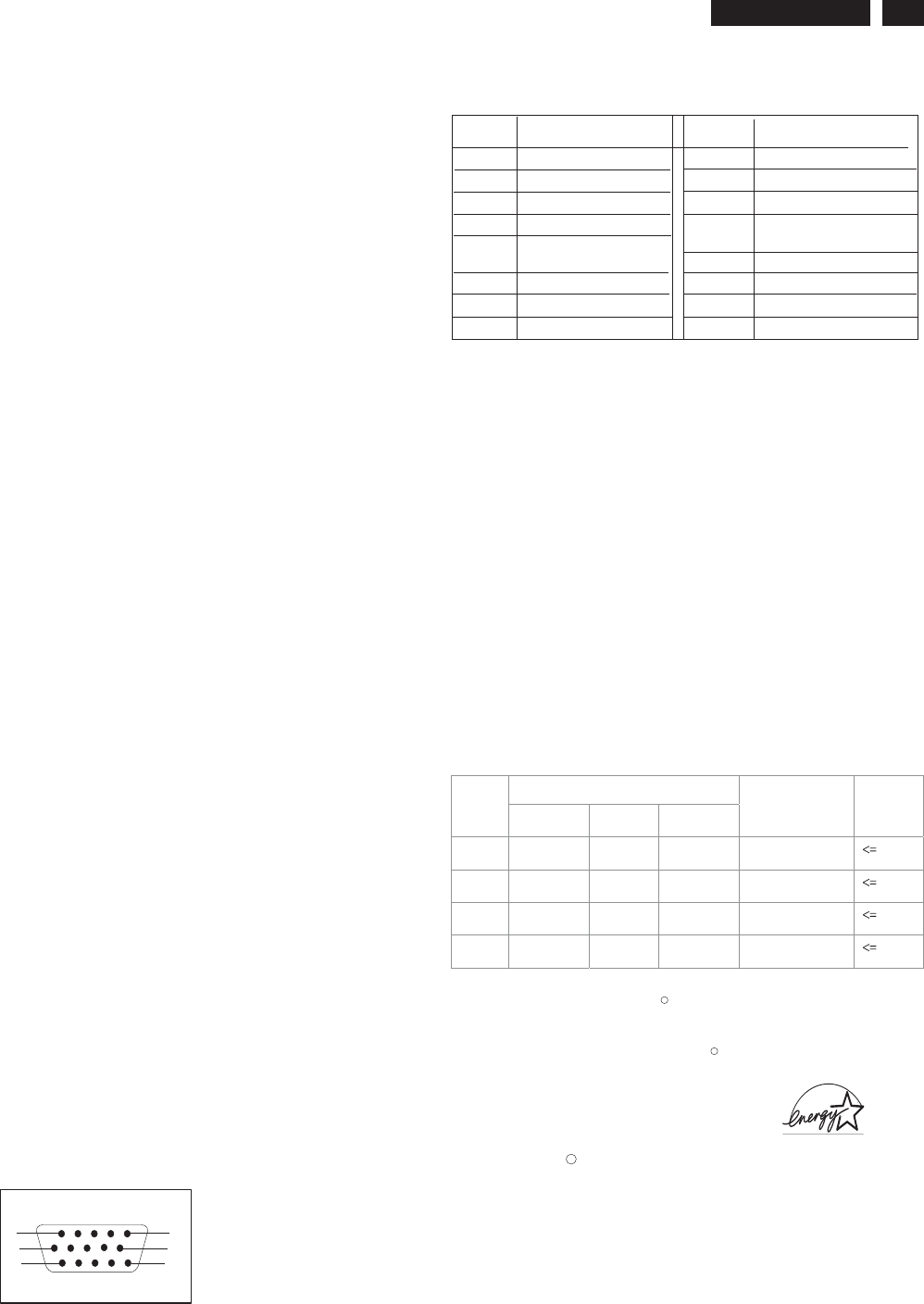

Technical Data

9Go to cover page

8

Pin assignment :

Automatic Power Saving

Data Storage

Factory preset modes:

This monitor has 8 factory-preset modes as indicated in the

Technical Specification*

ENERGY STAR is a U.S. registered mark. AS AN ENERGY STAR

PARTNER, DELL Computer Corporation HAS DETERMINED THAT

THIS PRODUCT MEETS THE ENERGY STAR GUIDELINES FOR

ENERGY EFFICIENCY.

R

This monitor is ENERGY STAR compliant.

this product meets the ENERGY STAR guidelines for energy

Efficiency

1

10

6

11 15

5

Dimensions : 17 inch

Pitch : 0.25

Deflection angle : 90 degrees

Glass : dark

Light transmission : 50%(CPT), 52.8%(LG), 52.6%(SDI),

Surface : AGARAS

Implosion protection : CRT is provided with P-mini-rim-band.

Black matrix : Yes

Phosphor : P22

EHT : 25 KV (Ib=0)

CRT source : CPT, LG, SDI

Horizontal scanning : 30 - 71 KHz

Vertical scanning : 50 - 160 Hz

Input signals

Video : Analog level

Sync. : Separate sync. with TTL level

Polarity : Positive or negative

Signal input level

Video : 0.7 Vp-p 75 ohms

Sync : TTL level

Impedance

Video : Terminated with 75 ohms

Sync : Terminated with 4.7K ohms pull down resistors

Video amplifiers

Dot Rate : 108 Mhz

Operating limits

Temperature : 0C to 40C

Humidity : 10 to 90% (W/O condensation)

Air pressure : 700 ~ 1100 mbar

Non-operating limits (storage)

Temperature : -25C to 65C

Humidity : 5 to 95 % (W/O condensation)

Altitude : 300 to 1100 mbar

Carton box

A-1 Size (with pedestal)

496(W)416(H)556(D)

A-2 Carton paper : double wall AB flute corrugate

board, color brown

Bursting : 19.3 kgf/cm min

Compression : 600 kgf min

White color adjustment

Based on the 1931 CIE chromatic diagram (x,y) coordinates

of white display on screen center should be:

For 9300 K X = 0.283 0.015 Y = 0.297 0.015

For 6500 K X = 0.313 0.015 Y = 0.329 0.015

For sRGB X = 0.313 0.015 Y = 0.329 0.015

Scanning

2

Factory preset modes : 8

Resolution H. freq. V. freq. H. V.

1. 720 x 400 31.5 KHz 70Hz (VGA) - +

2. 640 x 480 31.47 KHz 60Hz (VGA) - -

3. 640 x 480 43.3 KHz 85Hz (VESA) - -

4. 800 x 600 46.9 KHz 75Hz (VESA) + +

5. 800 x 600 53.674KHz 85Hz (VESA) + +

6. 1024 x 768 60.0 KHz 75Hz (VESA) + +

7. 1024 x 768 68.7 KHz 85Hz (VESA) + +

8. 1280 x 1024 64.0 KHz 60Hz (VESA) + +

Signal

H-Sync V-Sync Video

Compliance

Requirement

Power

On Active Active Active Mandatory 75w

Off Inactive Active Blanked Mandatory 2w

Off Active Inactive Blanked Mandatory 2w

Off Inactive Inactive Blanked Mandatory 2w

R

R

107T5

Front control & OSD

4

9Go to cover page

Power button switches your monitor on.

OK button which when pressed will take you to the OSD

controls

Contrast hotkey. When the "-" button is pressed,

the adjustment controls for the CONTRAST will show up.

Brightness hotkey. When the "+" button is pressed,

the adjustment controls for BRIGHTNESS will show up.

"-" and "+" buttons, are used for adjusting the OSD of your

Monitor.

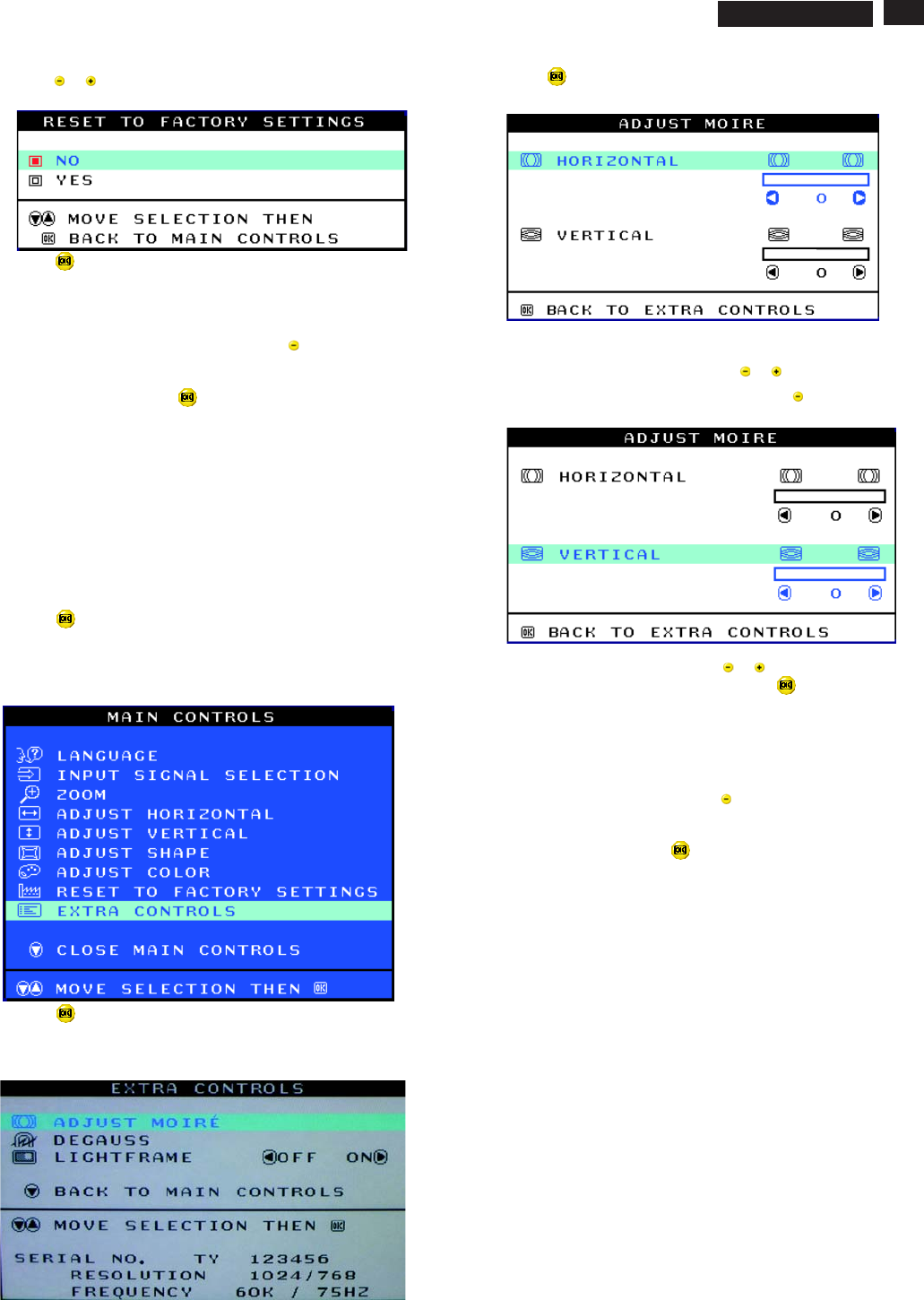

Description of the On Screen Display

What is the On-Screen Display?

Basic and simple instruction on the control keys.

This is a feature in all Philips monitors which allows an end-user to

adjust screen performance of monitors directly though an on-screen

instruction window. The user interface provides user-friendliness and

ease-of-use when operating the monitor.

On the front controls of your monitor, once you press the button, the

On Screen Display (OSD) Main Controls window will pop up and you

can now start making adjustments to your monitor's various features.

Use the the keys to make your adjustments within.

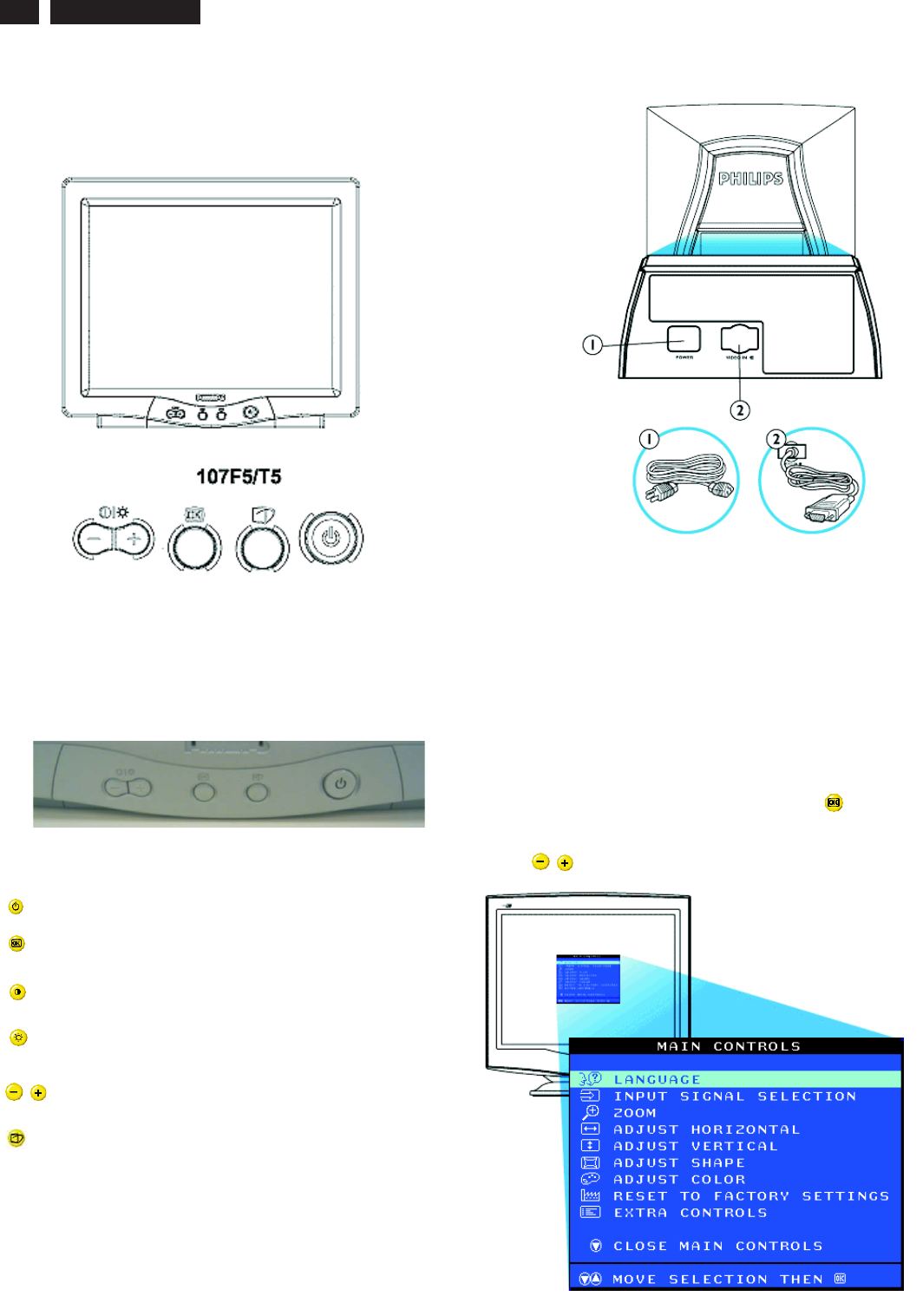

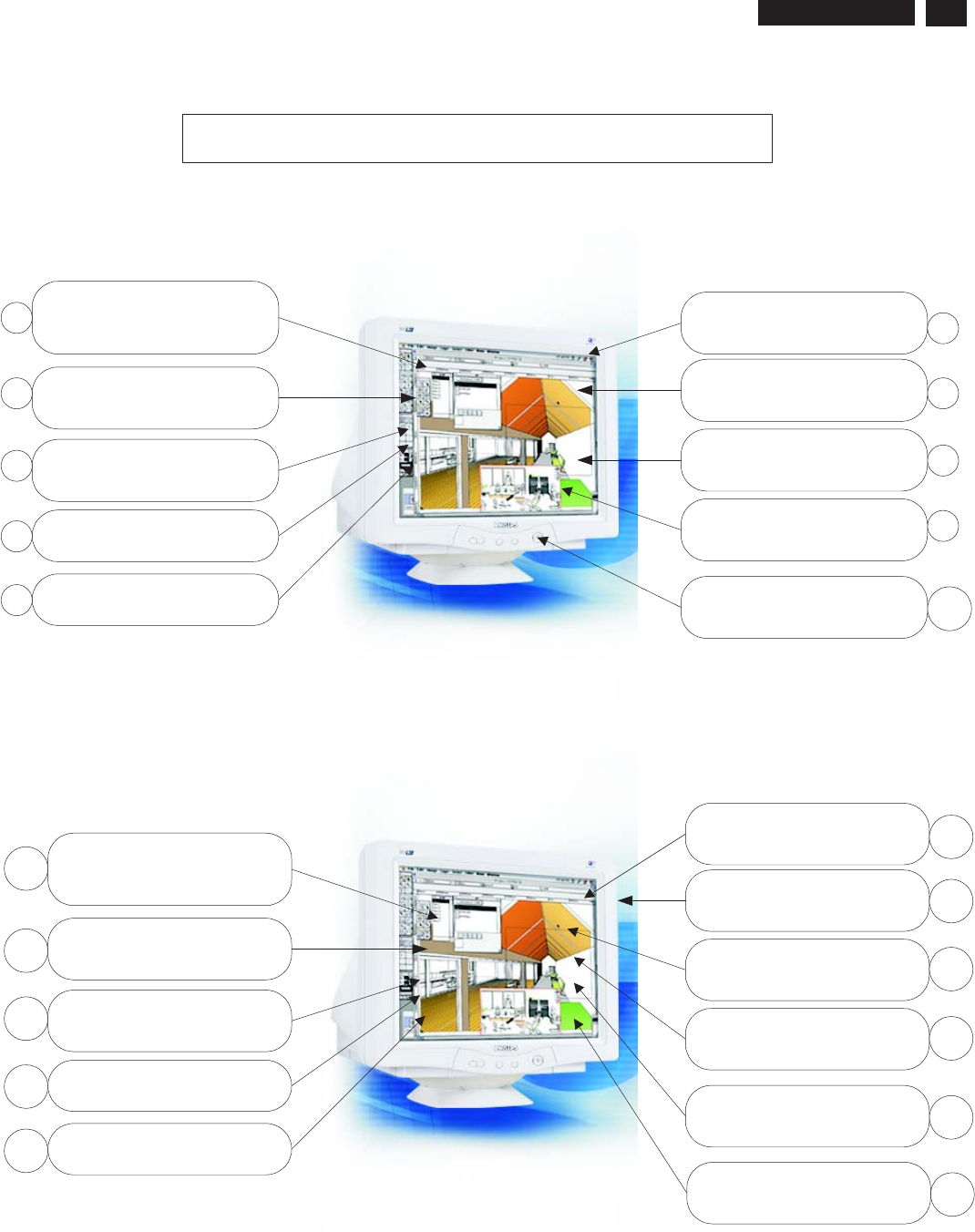

Rear view

1. Power in - attach power cable here.

2. Video In - this is a cable which is already attached to your monitor.

Connect the other end of the cable to your PC.

Front View

LightFrame hotkey. When the button is pressed, the adjustment

controls for LightFrame will show up.

Front control

107T5

5

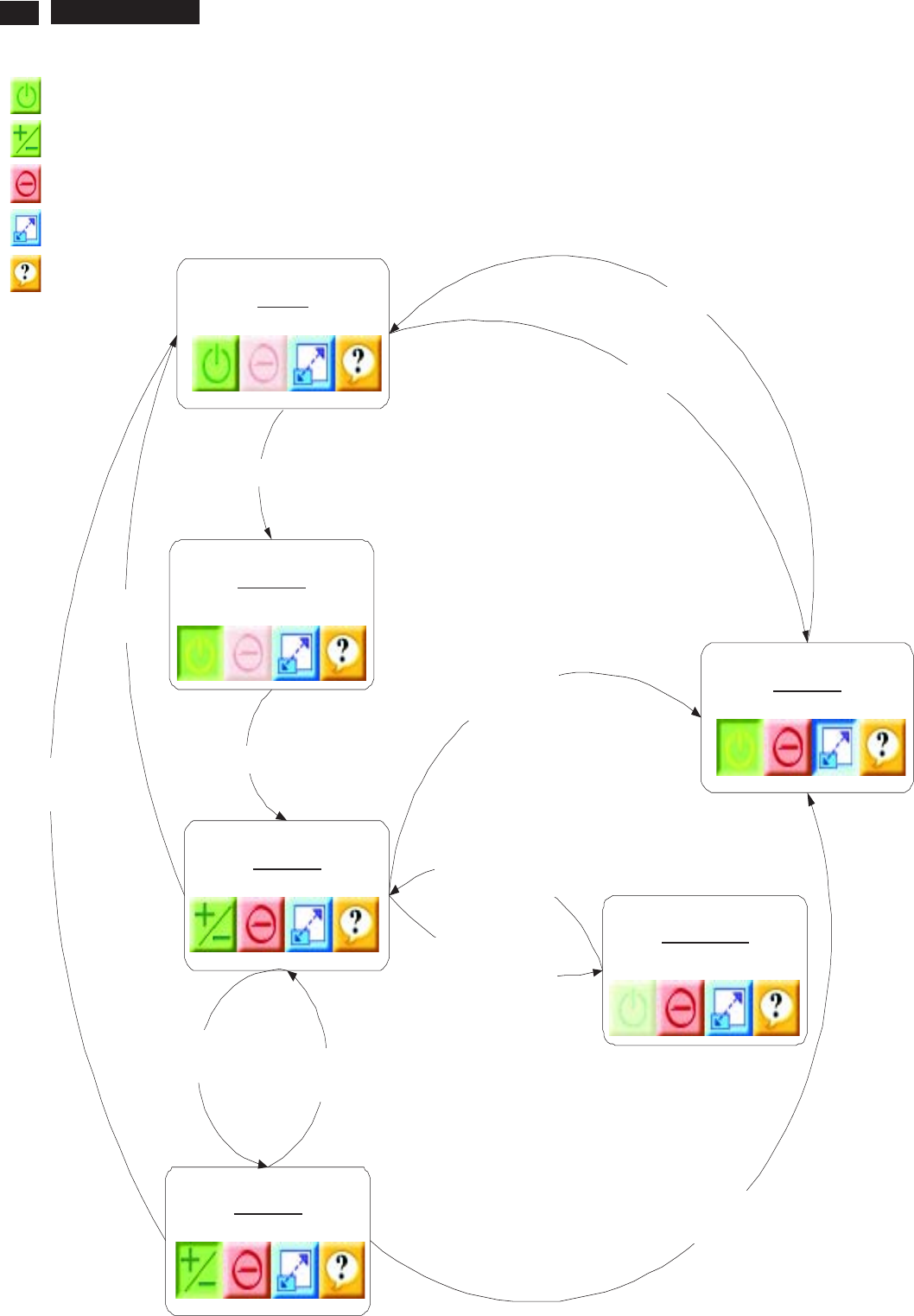

OSD menu tree

The OSD Tree

Below is an overall view of the structure of the On-Screen

Display. You can use this as reference when you want to

later on work your way around the different adjustments.

9Go to cover page

107T5

6OSD Adjustments

9Go to cover page

The OSD Controls

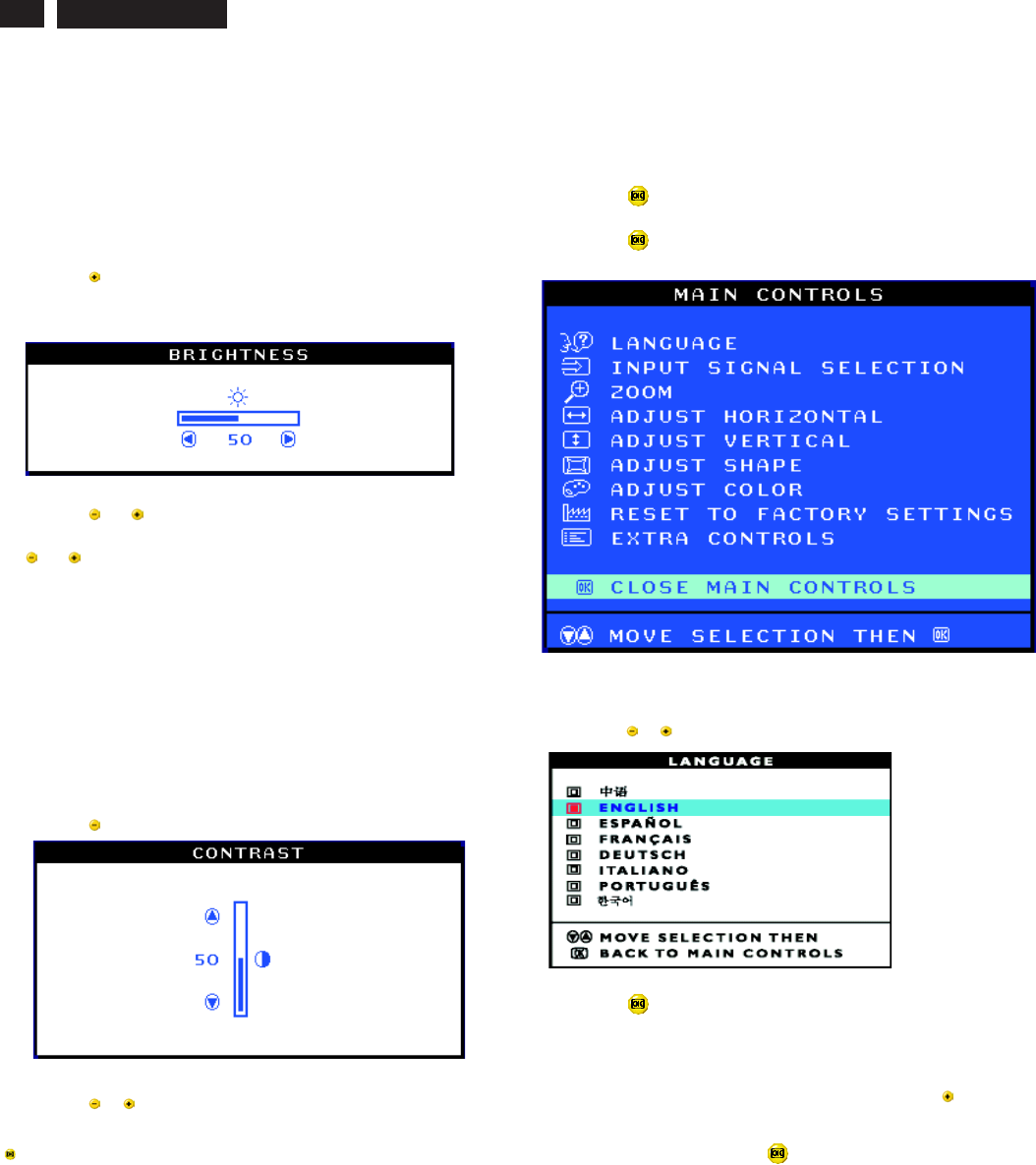

BRIGHTNESS

To adjust your screen's brightness, follow the steps below. Brightness is

the overall intensity of the light coming from the screen. A 50%

brightness is recommended.

1) Press the button on the monitor. The BRIGHTNESS window

appears.

2) Press the or button to adjust the brightness.

3) When the brightness is adjusted to the level desired, stop pressing

the or button and after three seconds the BRIGHTNESS window

will disappear with the new adjustment saved.

After the BRIGHTNESS window has disappeared, to

continue to the CONTRAST window, follow the steps under CONTRAST.

CONTRAST

To adjust your screen's contrast, follow the steps bellow. Contrast is the

difference between the light and dark areas on the screen. A 100%

contrast is recommended.

1) Press the button on the monitor. The CONTRAST window appears.

2) Press the or button to adjust the contrast.

3) When the contrast is adjusted to the level desired, stop pressing the

Button and after three seconds the CONTRAST window will

disappear with the new adjustment saved.

After the CONTRAST window has disappeared, to

continue to the MAIN CONTROLS, follow the steps under LANGUAGE

Smart Help

Smart Help

LANGUAGE

The ON SCREEN DISPLAY shows its settings in one of eight languages.

The default is English, but you can select French, Spanish, German,

Italian, Simplify-Chinese, Korea, Brazilian or Portuguese.

1) Press the button on the monitor. The MAIN CONTROLS window

appears. LANGUAGE should be highlighted.

2) Press the button again. The LANGUAGE window appears.

3) Press the or button until the desired language is highlighted.

4) Press the button to confirm your selection and return to MAIN

CONTROLS window. CLOSE MAIN CONTROLS will be highlighted...

After returning to MAIN CONTROLS...

...tocontinue to INPUT SIGNAL SELECTION, press the button until

INPUT SIGNAL SELECTION is highlighted. Next, follow steps3-5

under INPUT SIGNAL SELECTION.

...toexit completely, press the button

Smart Help

107T5

7

OSD Adjustments (Continued)

9Go to cover page

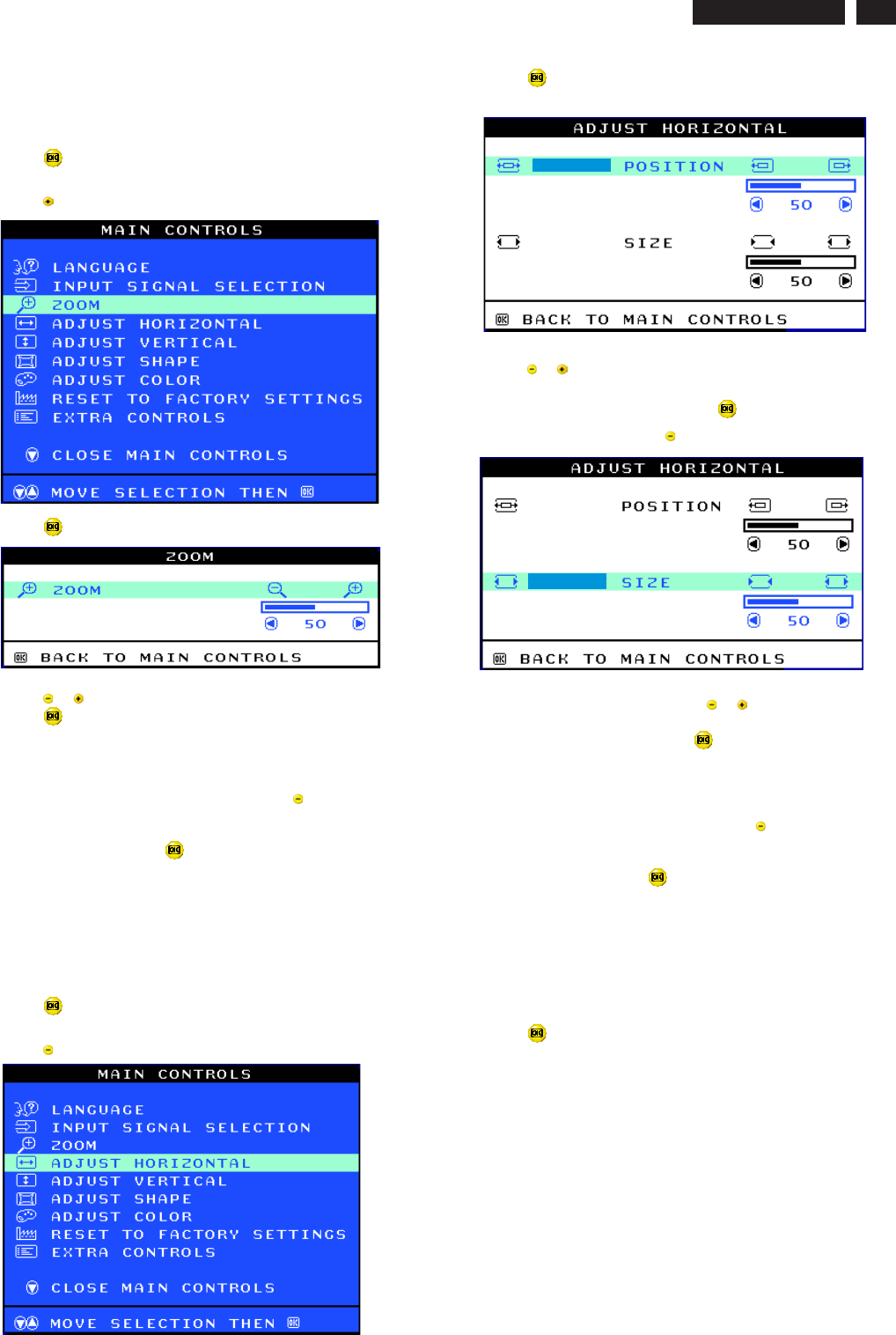

ZOOM

ADJUST HORIZONTAL

ZOOM increases or decreases the size of the images on your screen.

To adjust the ZOOM follow the steps below.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

2) Press the button until ZOOM is highlighted.

3) Press the button. The ZOOM window appears.

4) Press the or button to adjust ZOOM.

5) Press the button to confirm your selection and return to the MAIN

CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

After returning to MAIN CONTROLS...

...tocontinue to ADJUST HORIZONTAL, press the button until

ADJUST HORIZONTAL is highlighted. Next, follow steps3-7under

ADJUST HORIZONTAL.

...toexit completely, press the button

ADJUST POSITION under ADJUST HORIZONTAL shifts the image on

your screen either to the left or right. Use this feature if your image does

not appear centered. ADJUST SIZE under ADJUST HORIZONTAL

expands or controls the image on your screen, pushing it out toward the

left and right sides or pulling it in toward the center.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

2) Press the button until ADJUST HORIZONTAL is highlighted.

Smart Help

3) Press the button. The ADJUST HORIZONTAL window appears.

ADJUST POSITION should be highlighted.

4) Press the or button to move the image to the left or right.

5) When the position is adjusted, press the button to return to MAIN

CONTROLS window, or press the to highlight ADJUST SIZE.

6) To adjust the horizontal size, press the or button.

7) When the size is adjusted, press the button to return to MAIN

CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

After returning to MAIN CONTROLS...

...tocontinue to ADJUST VERTICAL, press the button until ADJUST

VERTICAL is highlighted. Next, start with step 3 under ADJUST

VERTICAL and follow the directions.

...toexit completely, press the button

ADJUST POSITION under ADJUST VERTICAL shifts the image on

your screen either up or down. Use this feature if your image does not

appear centered. ADJUST SIZE under ADJUST VERTICAL expands or

controls the image on your screen, pushing it out toward the top or

bottom or pulling it in toward the center.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

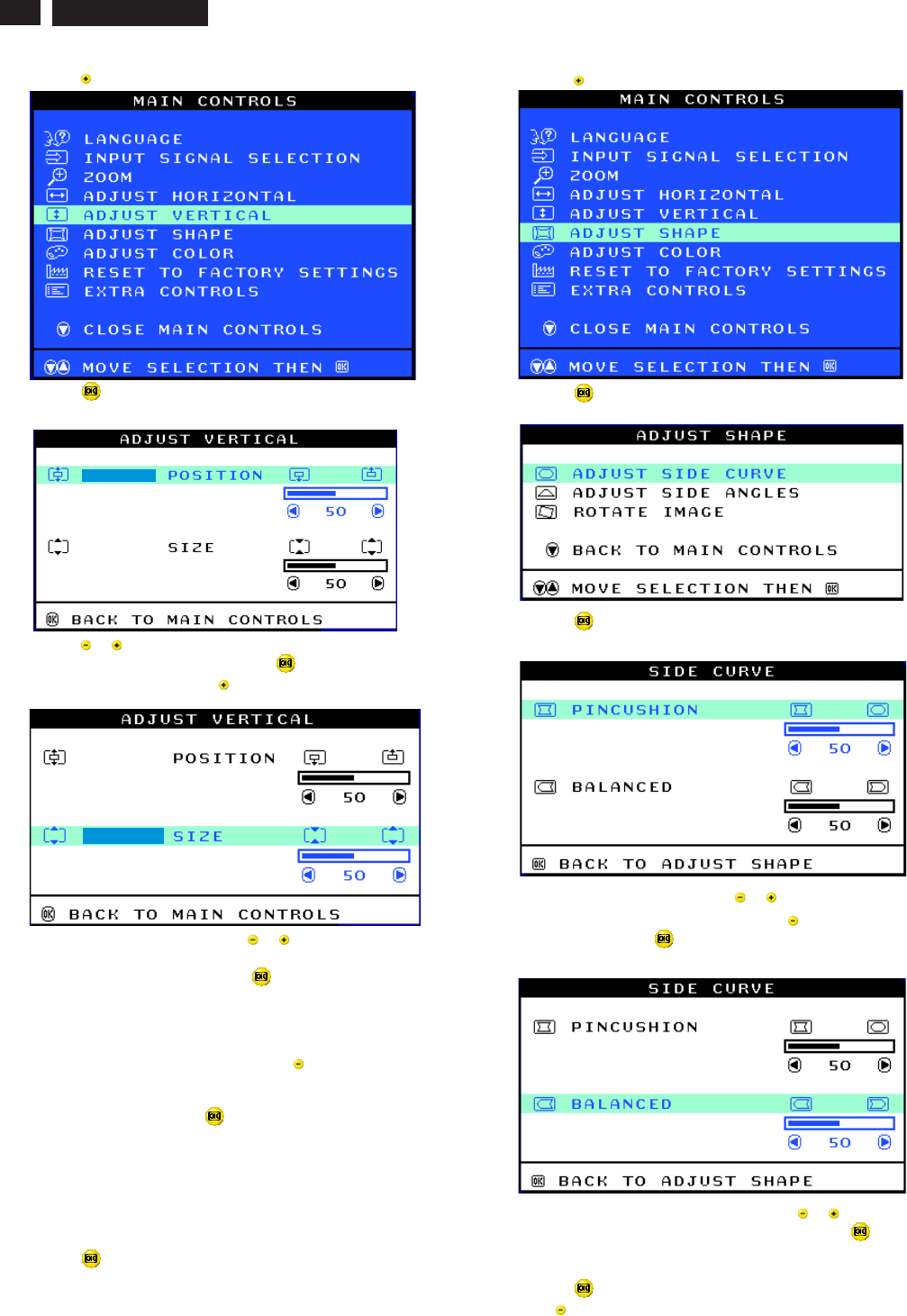

ADJUST VERTICAL

Smart Help

107T5

8

9Go to cover page

OSD Adjustments (Continued)

2) Press the button until ADJUST VERTICAL is highlighted.

3) Press the button. The ADJUST VERTICAL window appears.

ADJUST POSITION should be highlighted.

4) Press the or button to move the image up or down.

5) When the position is adjusted, press the button to return to MAIN

CONTROLS window, or press the button to highlight ADJUST SIZE.

6) To adjust the vertical size, press the or button.

7) When the size is adjusted, press the button to return to MAIN

CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

After returning to MAIN CONTROLS...

...tocontinue to ADJUST SHAPE, press the button until ADJUST

SHAPE is highlighted. Next, start with step 3 under ADJUST SHAPE

and follow the directions.

...toexit completely, press the button

ADJUST SHAPE

ADJUST SIDE CURVE

ADJUST SIDE CURVE under ADJUST SHAPE allows you to adjust two

of the five preset options. These two options are PINCUSHION and

BALANCED pincushion. Note: use these features only when the picture

is not square.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

Smart Help

2) Press the button until ADJUST SHAPE is highlighted.

3) Press the button. The ADJUST SHAPE window appears.

ADJUST SIDE CURVE should be highlighted.

4) Press the button. The SIDE CURVE window appears.

PINCUSHION should be highlighted.

5) To adjust the pincushion, press the or button.

6) When the pincushion is adjusted, press the button to highlight

BALANCED or press the button to return to the ADJUST SHAPE

window.

7) To adjust the balanced pincushion, press the or button.

8) When the balanced pincushion is adjusted, press the button to

return to the ADJUST SHAPE window. BACK TO MAIN WINDOWS will

be highlighted.

9) Press the button to return to the MAIN CONTROLS window, or

press the button until ADJUST SIDE ANGLES is highlighted.

107T5

9

Smart Help After returning to MAIN CONTROLS...

...to continue to ADJUST SIDE ANGLES, start with step 5 under

ADJUST SIDE ANGLES and follow the directions.

...to exit completely, press the button twice.

...to adjust only the BALANCED pincushion, follow steps1-4above,

then press the button, and follow steps7-9.

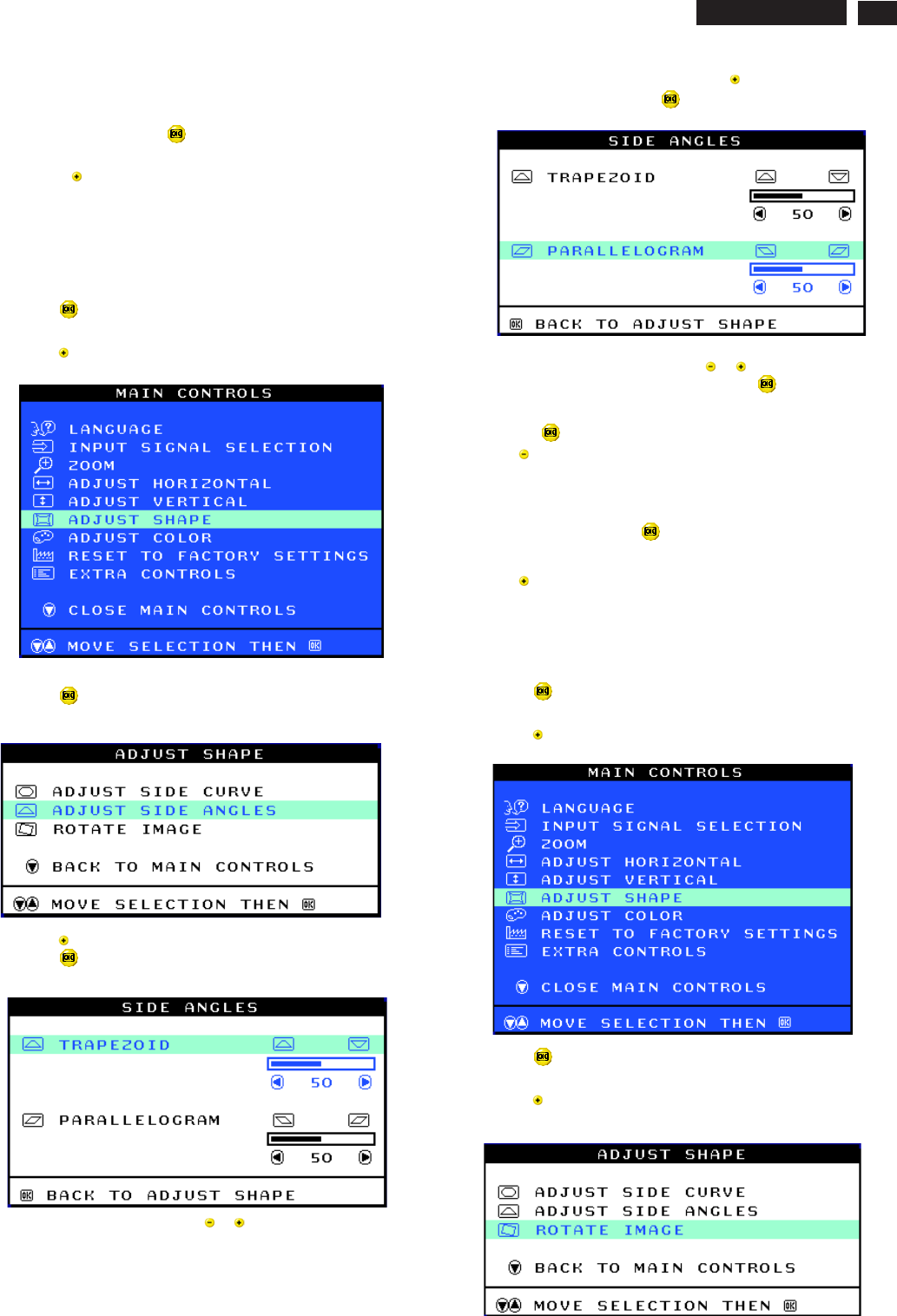

ADJUST SIDE ANGLES under ADJUST SHAPE allows you to adjust

two of the five preset options. These two options are TRAPEZOID and

PARALLELOGRAM. Note: use these features only when the picture is

not square.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

2) Press the button until ADJUST SHAPE is highlighted.

3) Press the button. The ADJUST SHAPE window appears.

ADJUST SIDE CURVE should be highlighted.

4) Press the button to highlight ADJUST SIDE ANGLES.

5) Press the button. The SIDE ANGLES window appears.

TRAPEZOID should be highlighted.

6) To adjust the trapezoid, press the or button.

ADJUST SIDE ANGLES

7) When the trapezoid is adjusted, press the button to highlight

PARALLELOGRAM or press the button to return to the ADJUST

SHAPE window.

8) To adjust the parallelogram, press the or button.

9) When the parallelogram is adjusted, press the button to return to

the ADJUST SHAPE window. BACK TO MAIN WINDOWS will be

highlighted.

10) Press the button to return to the MAIN CONTROLS window, or

press the button until ROTATE IMAGE is highlighted.

After returning to MAIN CONTROLS...

...to continue to ROTATE IMAGE, start with step 5 under ROTATE

IMAGE and follow the directions.

...to exit completely, press the button twice.

...to adjust only the PARALLELOGRAM, follow steps1-4above, then

press the button, and follow steps 7 -9

ROTATE IMAGE under ADJUST SHAPE allows you to adjust one of

the five preset options. These two options are PINCUSHION and

BALANCED pincushion. Note: use this feature only when the picture is

not square.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

2) Press the button until ADJUST SHAPE is highlighted.

3) Press the button. The ADJUST SHAPE window appears.

ADJUST SIDE CURVE should be highlighted.

4) Press the arrow until ROTATE IMAGE is highlighted.

ROTATE IMAGE

Smart Help

9Go to cover page

OSD Adjustments (Continued)

107T5

10

9Go to cover page

OSD Adjustments (Continued)

5) Press the button. The ROTATE IMAGE window appears. ROTATE

should be highlighted.

6) To adjust the rotation, press the or button.

7) When the rotation is adjusted, press the button to return to the

ADJUST SHAPE window. BACK TO MAIN CONTROLS should be

highlighted.

8) Press the button to return to MAIN CONTROLS.

After returning to MAIN CONTROLS...

...tocontinue to ADJUST COLOR, press the button until ADJUST

COLOR is highlighted. Next, start with step 3 under ADJUST COLOR

and follow the directions.

...to exit completely, press the button twice.

ADJUST COLOR

Your monitor has two preset options you can choose from. The first

option is for GENERAL USE, which is fine for most applications. The

second option is for GAMES, which is for playing computer games.

When you select one of these options, the monitor automatically adjusts

itself to that option. There is also a third option, USER PRESET, which

allows you to adjust the colors on your screen to a setting you desire.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

2) Press the button until ADJUST COLOR is highlighted.

3) Press the button. The ADJUST COLOR window appears.

Smart Help

4) Press the or button to highlight 9300K for GENERAL USE,

6500K for GAMES, or USER PRESET.

5) Once you have highlighted GENERAL USE or GAMES, press the

button to confirm you selection and return to the MAIN CONTROLS

window. CLOSE MAIN CONTROLS will be highlighted.

6a) If USER PRESET is highlighted, press the button to highlight RED.

Next, press the LEFT CURSOR or RIGHT CURSOR button to adjust the

color red.

6b) When finished with RED, press the button to highlight GREEN.

Next, press the or button to adjust the color green.

6c) When finished GREEN, press the button to highlight BLUE.

Next, press the or button to adjust the color blue.

6d) When all adjustments are complete, press the button to confirm

your adjustments and return to the MAIN CONTROLS window. CLOSE

MAIN CONTROLS will be highlighted.

After returning to MAIN CONTROLS. . .

...tocontinue to RESET TO FACTORY SETTINGS, press the button

until RESET TO FACTORY SETTINGS is highlighted. Next, start with

step 3 under RESET TO FACTORY SETTINGS.

...toexit completely, press the button.

RESET TO FACTORY SETTINGS returns everything in all the windows

to factory presets.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

2) Press the button until RESET TO FACTORY SETTINGS is

highlighted.

3) Press the button. The RESET TO FACTORY SETTINGS window

appears.

RESET TO FACTORY SETTINGS

Smart Help

107T5

11

OSD Adjustments (Continued)

9Go to cover page

ADJUST MOIRE

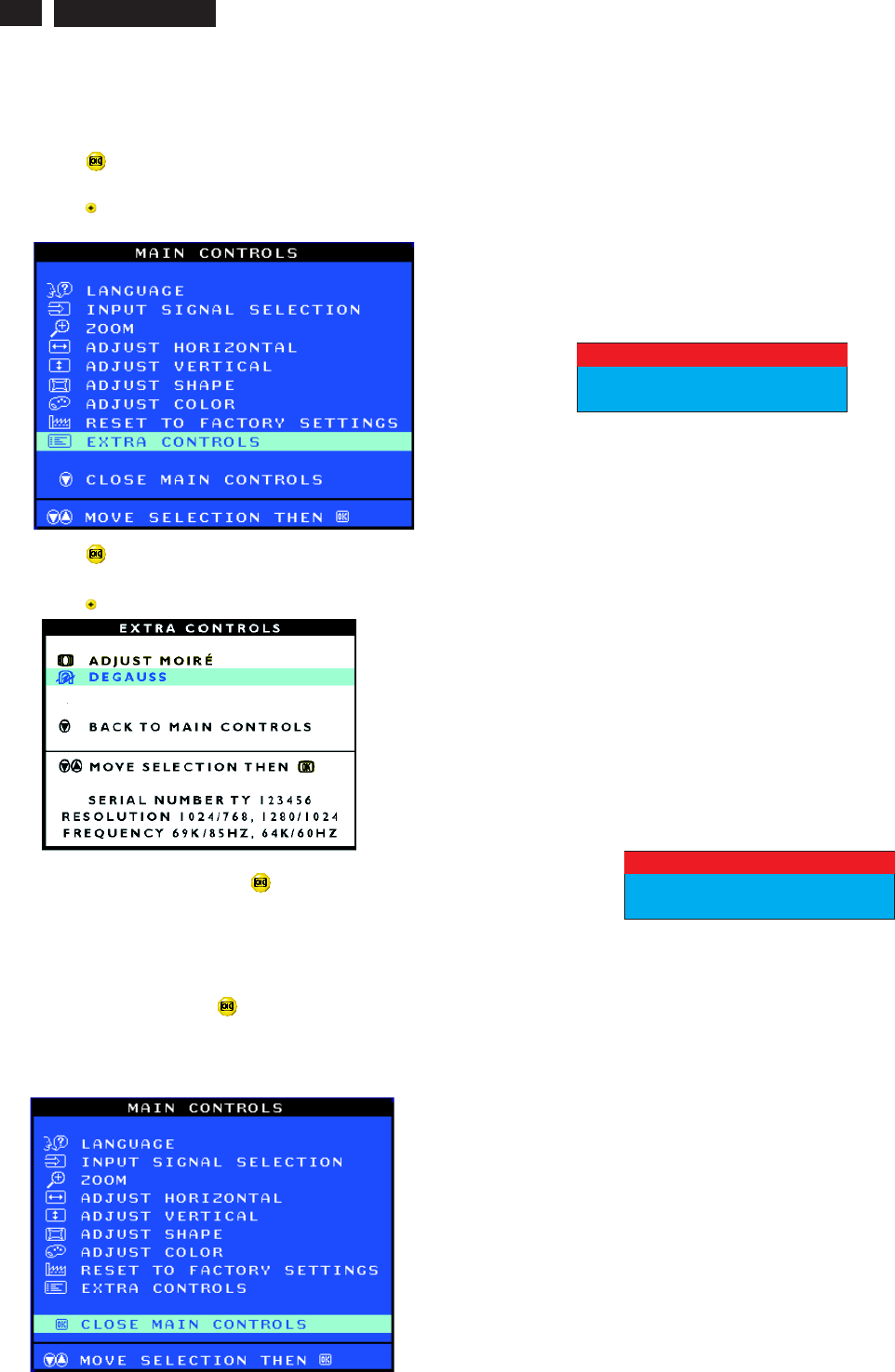

EXTRA CONTROLS is a set of three features, including ADJUST

MOIRE. Moire is a fringe pattern arising from the interference between

two superimposed line patterns. To adjust your moire, follow the steps

below. Note: Use only if necessary. By activating ADJUST MOIRE,

sharpness can be affected.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

2) Press the DOWN CURSOR button until EXTRA CONTROLS is

highlighted.

3) Press the button. The EXTRA CONTROLS window appears. will

be highlighted.ADJUST MOIRE will

4) Press the button. The ADJUST MOIRE window appears.

HORIZONTAL will be highlighted.

5) To adjust the horizontal moire, press the or button.

4) Press the or button to select YES or NO. NO is the default. YES

returns all settings to their original factory adjustments.

5) Press the button to confirm your selection and return to the MAIN

CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.

After returning to MAIN CONTROLS...

...tocontinue to EXTRA CONTROLS, press the button until EXTRA

CONTROLS is highlighted. Next, start with step 3 under EXTRA

CONTROLS.

...toexit completely, press the button.

EXTRA CONTROLS

Smart Help

6) When the horizontal moire is adjusted, press the button to highlight

VERTICAL.

7) To adjust the vertical moire, press the or button.

8) When the vertical moire is adjusted, press the button to return to

the EXTRA CONTROLS window. BACK TO MAIN CONTROLS will be

highlighted.

Smart Help After returning to MAIN CONTROLS...

...tocontinue to DEGAUSS, press the button until is

highlighted. Next, start with step 3 under EXTRA CONTROLS,

DEGAUSS.

...toexit completely, press the button.

DEGAUSS

107T5

12 OSD Adjustments (Continued), Troubleshooting

9Go to cover page

Smart Help After returning to MAIN CONTROLS...

...toexit completely, press the button.

CLOSE MAIN CONTROLS

Monitor Specific Troubleshooting

Self-Test Feature Check (STFC)

NO SIGNAL INPUT

Your monitor provides a self-test feature that allows you to check

whether your monitor is functioning properly. If your monitor and

computer are properly connected but the monitor screen remains

dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.

If the monitor is functioning properly, you will see a OSD

message as shown in the following illustration:

This box also appears during normal system operation if the

video cable becomes disconnected or damaged. This box

will remain on for one minute, go off five seconds, then on for

one minute, and will repeat cycle.

1. Turn off your monitor and reconnect the video cable;

then turn on both your computer and the monitor.

2. While in self-test mode, the LED remains green and the

pattern remains on and stationary.

If your monitor screen still remains dark after you use the

previous procedure, check your video controller and computer

system; your monitor is functioning properly.

If there is something wrong with the input signal, a message

appears on the screen although the power indicator LED is

still on. The message may indicate that the monitor is NO

SIGNAL INPUT or that you need to check the signal cable.

NO SIGNAL INPUT

ATTENTION

CHECK SIGNAL CABLE

ATTENTION

DEGAUSS

EXTRA CONTROLS is a set of three features, including DEGAUSS.

Degaussing removes electromagnetic build up that may distort the color

on your screen.

1) Press the button on the monitor. The MAIN CONTROLS window

appears.

2) Press the button until EXTRA CONTROLS is highlighted.

3) Press the button. The EXTRA CONTROLS window appears.

ADJUST MOIRE will be highlighted.

5) To degauss your screen, press the button. Your screen will be

degaussed, then the MAIN CONTROLS window will reappear. CLOSE

MAIN CONTROLS will be highlighted.

4) Press the button until DEGAUSS is highlighted.

107T5

To access factory mode

1. Turn off monitor (don't turn off PC)

2. Press '" " and " " simultaneously on the front control

panel,then press " ",wait till the OSD menu with characters

V30 107T5 V0.48 20021218 (below OSD menu)" come on the

screen of monitor.

3. If OSD menu disappears on the screen of monitor, press " "

again (anytime), then the OSD menu comes on the screen again.

4. Using " " : to select OSD menu.

5. Using " " : to increase or decrease the setting.

6. Using " " to access/confirm the selection.

7. After alignment of factory mode, turn off monitor (if you do not turn

off monitor, the OSD menu is always at the factory mode), then

turn on monitor again (at this moment, the OSD menu goes back

to user mode).

To leave factory mode

13

Lock/Unlock, Factory Mode, Burn In, Service Mode

9Go to cover page

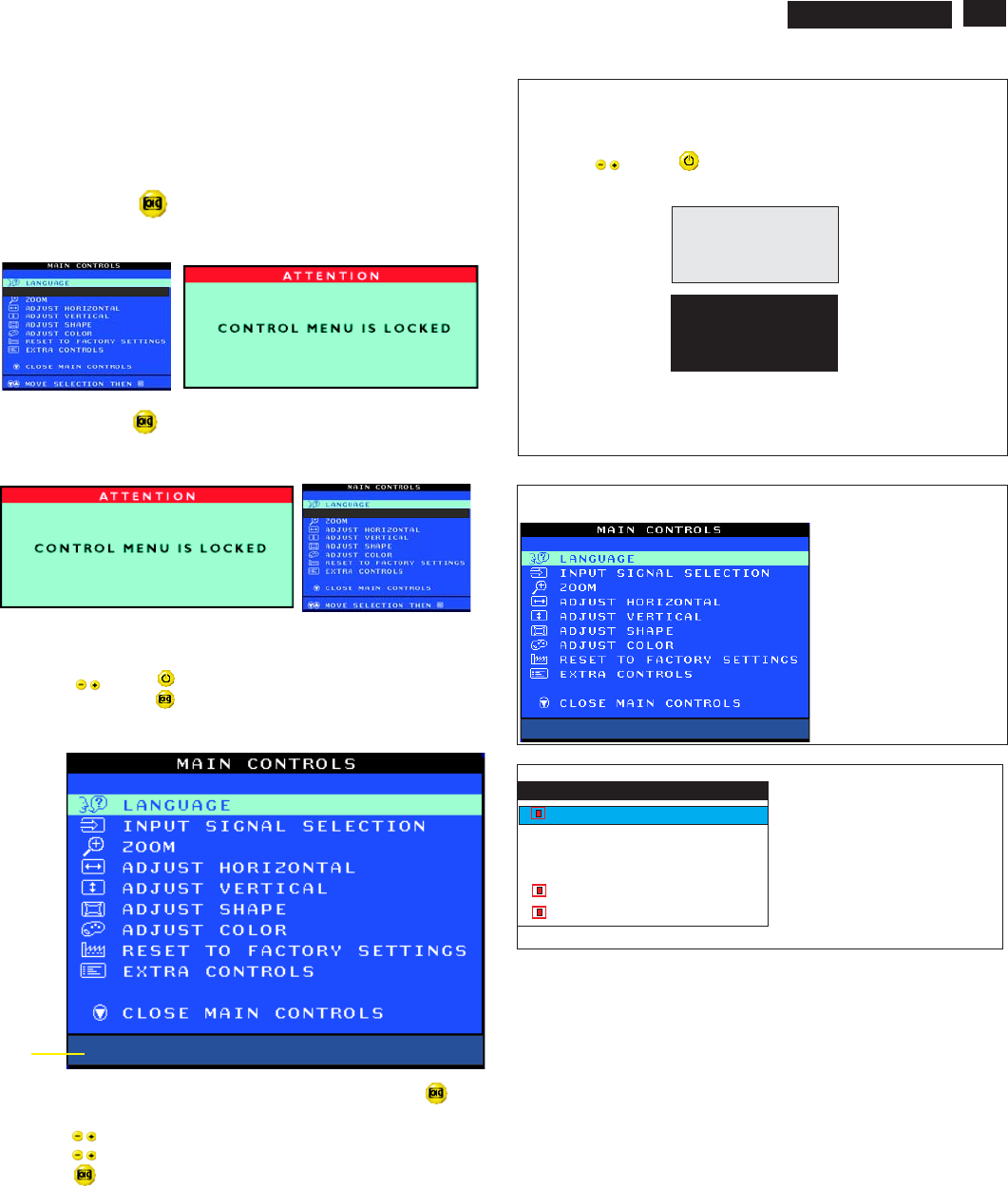

OSD Lock

Switch on OSD lock feature:

Switch off OSD lock feature:

OSD lock is a feature which disables the OSD controls. It can be used

when the monitor is set up for demonstration purposes or when

adjustment of the OSD is not desirable.

Press and hold the button continuously for 15 seconds.

Release the button when the message

"CONTROL MENU IS LOCKED" appears.

Press and hold the button continuously for 15 seconds or until the

message window "CONTROL MENU IS LOCKED" disappears, and

"MAIN CONTROLS" appears.

To access BURN IN mode

Reconnect the video cable, then return to normal image.

First of all, monitor displays an image.

1. Disconnect the video cable (interface cable).

2. Turn off monitor

3. Press '" " and " " simultaneously on the front control

panel,then the BURN IN mode comes on the screen of monitor

as below.

50 seconds around

5 seconds around

repeatly

4.

SERVICE MODE (Indication-Factory mode)

MODEL SELECT

02060

V30 107T5 V0.48 20021218

------------------------>

02060: stands for

1. using 10 hours already.

2. turn on/off 10 times.

3. using several hours

+ turn on/off monitor.

Default setting of MODEL SELECT (Do not change it.)

MODEL SELECT

107T5

107B5

RESERVE

RESERVE

RESERVE

SWDDC

MODEL SELECT

V30 107T5 V0.48 20021218

Factory

Mode

Indicator

LF 3

107T5

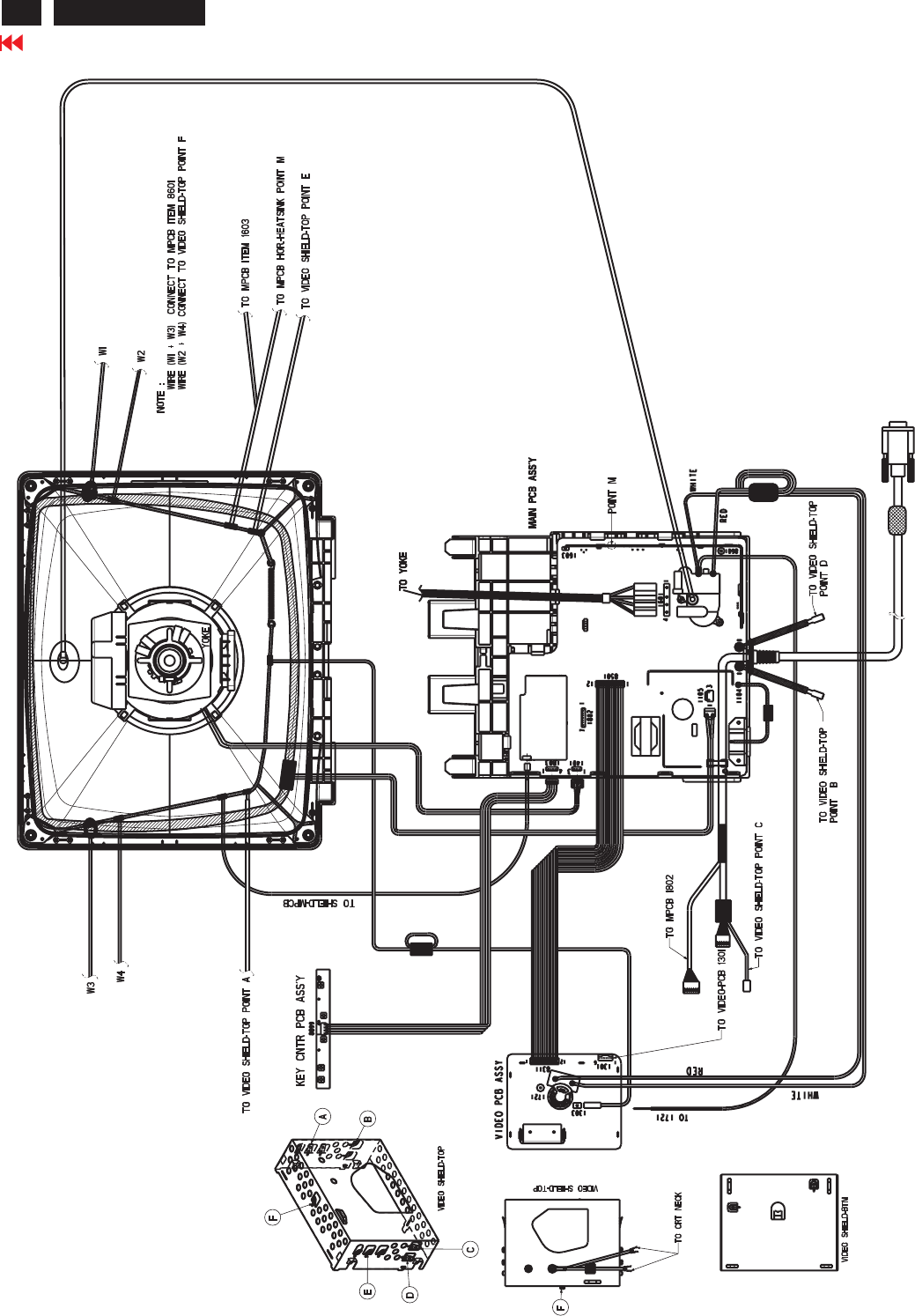

Wiring Diagram

14

Go to cover page

107T5

9Go to cover page

15

Mechanical Instructions

0. General

2. Video panel

3.Main board connector in Fig. 4

To be able to perform measurements and repairs on the "circuit

boards", these unit should placed in the service position first.

-Remove 2 screws as shown

-Remove back cover as shown

-Remove pedestal as shown

-Disconnect york wire

-Disconnect rotation connector

-Disconnect control board connector

-Remove Screw for fixed I/F cable

-Remove signal connector

-Remove degaussing wire connector

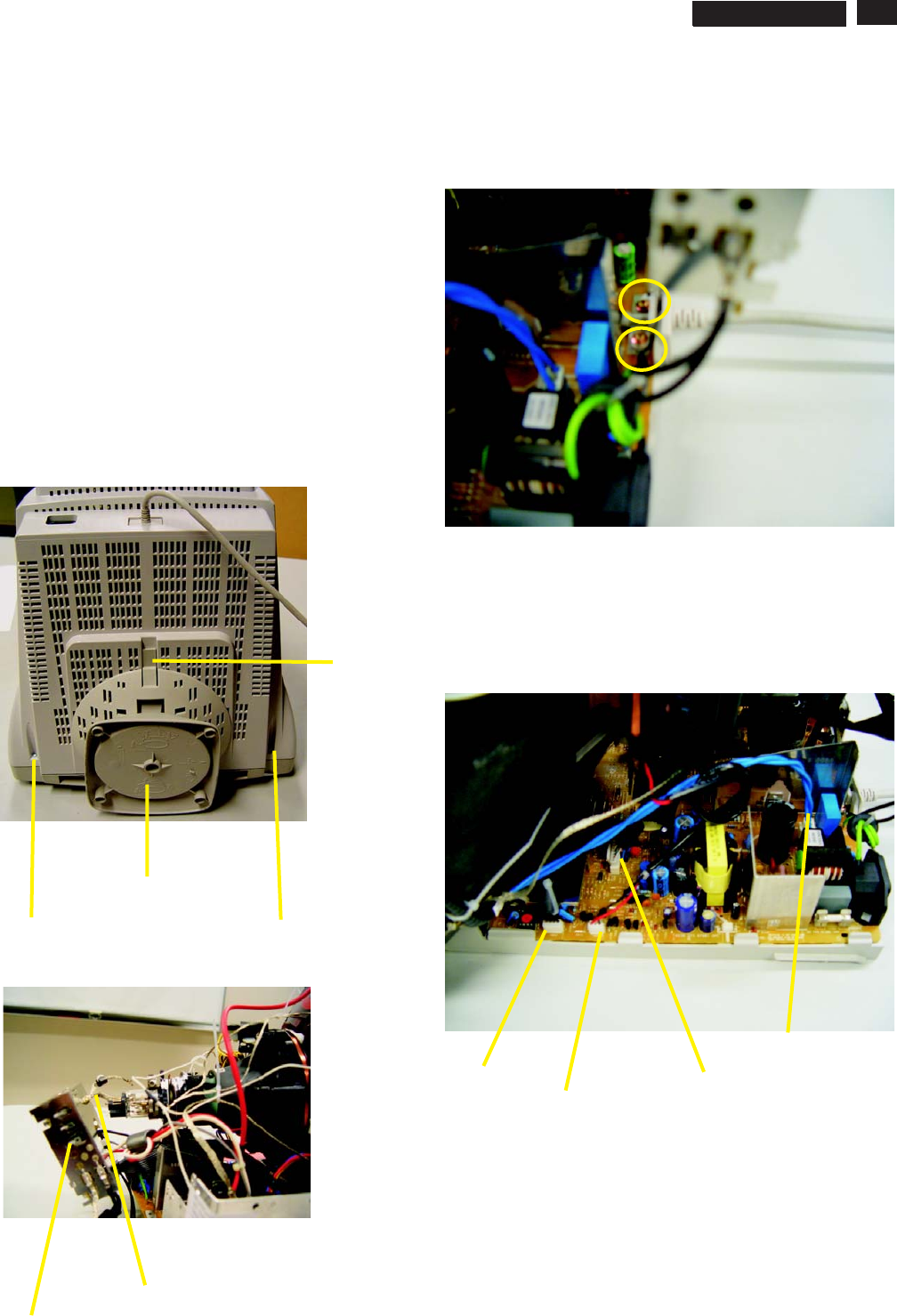

1.Remove the rear cover in Fig. 1.

- Disconnect the wire between metal shield of Video panel and

CRT neck as shown in Fig. 2.

- Disconnect the CRT ground from Video panel.

- Remove screw grounding and grounding wire in Fig. 3.

Fig. 1

Screw Screw

Pedestal ass'y

Video Panel

CRT grouding wirel

Fig. 2

Clip

Fig. 3

Fig. 4

screw - grounding

Control connector Signal connector

Degaussing wire connector

Rotation connector

===============>

107T5

Go to cover page

16 Mechanical Instructions

4. Main panel with Bottom Tray

-Remove 2 screws for disconnect the Bottom tray as Fig. 5.

-Pull the bottom tray from fig. 6

to fig. 7.

on press right and left side clip

Reconnect connectors, some wires and panels (chassis),

service position can be available for DC/AC measurement

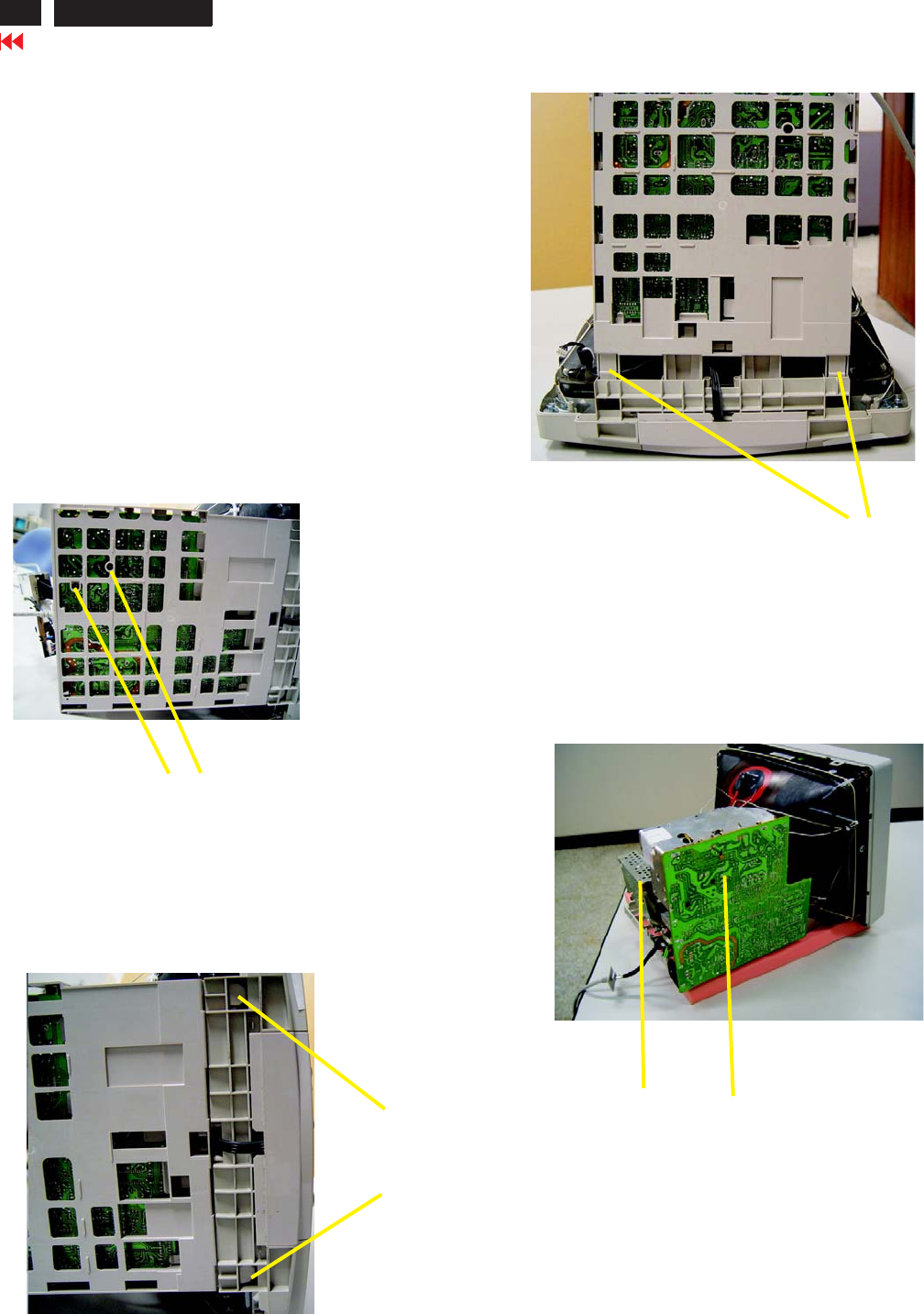

as shown in Fig. 8.

5. SERVICE POSITION

Fig. 6

Fig. 7

Fig. 5

Press CLIP

Screw

Pull-up

=======>

Main panel

Video panel

Fig. 8 SERVICE POSITION

107T5

17

Go to cover page

Warning and Notes

Fig.1

V

Warnings

1

2

0V

3 ESD

4

5

6

7

8

9

10.

11.

. Safety regulations require that the unit should be returned

in its original condition and that components identical to

the original components are used. The safety components

are indicated by the symbol .

. In order to prevent damage to ICs and transistors, all

high-voltage flash-overs must be avoided. In order to

prevent damage to the picture tube, the method shown

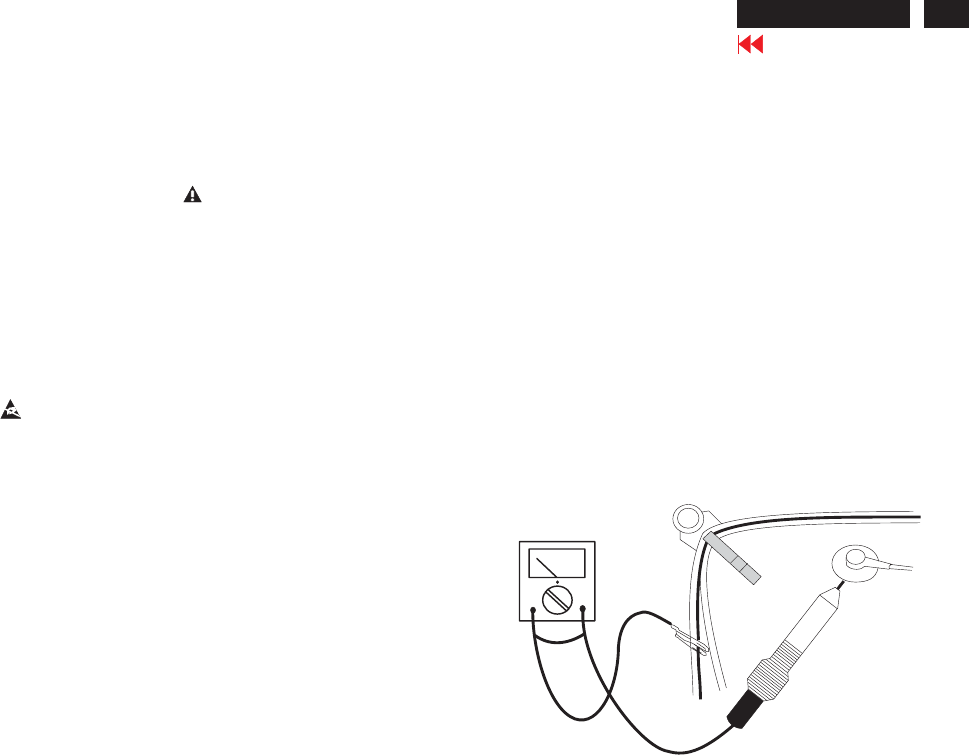

in Fig. 1 should be used to discharge the picture tube.

Use a high-voltage probe and a multimeter (position DC-V).

Discharge until the meter reading is (after approximately

30 seconds).

.

All ICs and many other semiconductors are sensitive to

electrostatic discharges (ESD). Careless handling during

repair can drastically shorten their life. Make sure that

during repair you are connected by a pulse band with

resistance to the same potential as the ground of the unit.

Keep components and tools also at this same potential.

. When repairing a unit, always connect it to the AC Power

voltage via an isolating transformer.

. Be careful when taking measurements in the high-voltage

section and on the picture tube panel.

. It is recommended that saferty goggles be worn when

replacing the picture tube.

. When making adjustments,use plastic rather than metal tools.

This will prevent any short-circuit or the danger of a

circuit becoming unstable.

. Never replace modules or other components while the

unit is switched on.

. Together with the defleciton unit, the picture tube is used

as an integrated unit. Adjustment of this unit during repair

is not recommended.

After repair, the wiring should be fastened in place with

the cable clamps.

All units that are returned for service or repair must pass

the original manufactures safety tests.

Notes

The direct voltages and waveforms are average voltages.

They have been measured using the Service test software

and under the following conditions :

- Mode : 640 * 480 (31.5kHz / 60Hz)

- Signal pattern : grey scale

- Adjust brightness and contrast control for the

mechanical mid-position (click position)

The picture tube panel has printed spark gaps.

Each spark gap is connected between an electrode of the

picture tube and the Aquadag coating.

The semiconductors indicated in the circuit diagram(s)

and in the parts lists are completely interchangeable per

position with the semiconductors in the unit, irrespective

of the type indication on these semiconductors.

1.

2.

3.

107T5

Electrical Instructions

X

Go to cover page

18

1. General point

==========

OSD MENU :

LANGUAGE

ZOOM

ADJUST HORIZONTAL

ADJUST VERTICAL

ADJUST SHAPE

ADJUST COLOR

RESET TO FACTORY SETTING

EXTRA CONTROLS

MODEL SELECT

CLOSE MAIN CONTROLS

2. Pre warm-up

========

1.1 During alignment and measurement supply a distortion

free AC-mains voltage to the apparatus via an isolating

transformer with a low internal resistance.

1.2 All voltages have to be measured or applied with respect

to ground, unless otherwise stated. Note: Not all heatsinks

are grounded, avoid using heatsinks as ground.

1.3 The term "Linear RGB" is meant the 0.7 Vpp video with

separate SYNC ( TTL Level ). Reference factory preset

mode timings (format of pattern generator CHROMA-2135)

are shown in TABLE 1 to TABLE 8. Preload timing

TABLE 9 to TABLE 22.

1.4 Any external voltage source should have low internal

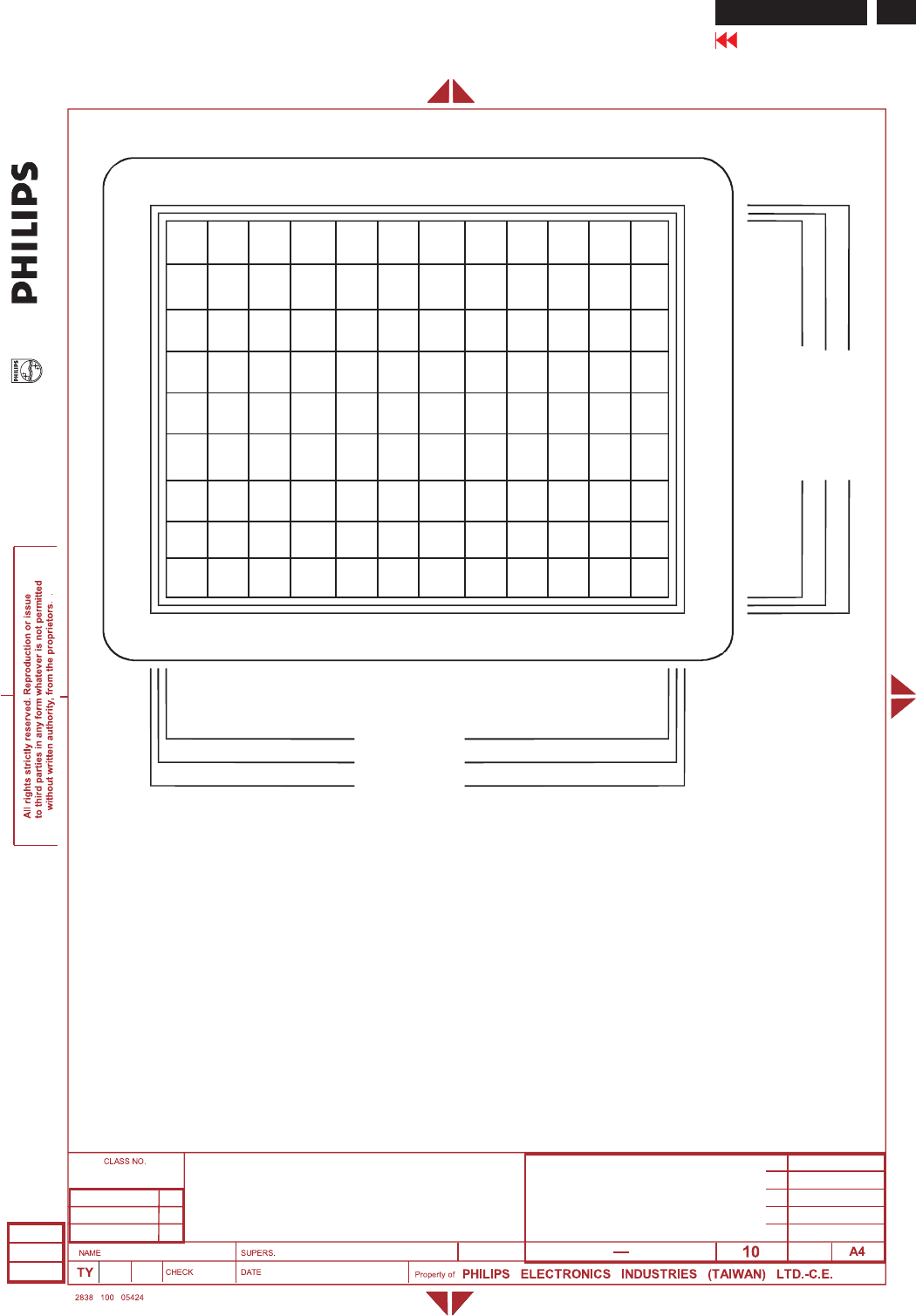

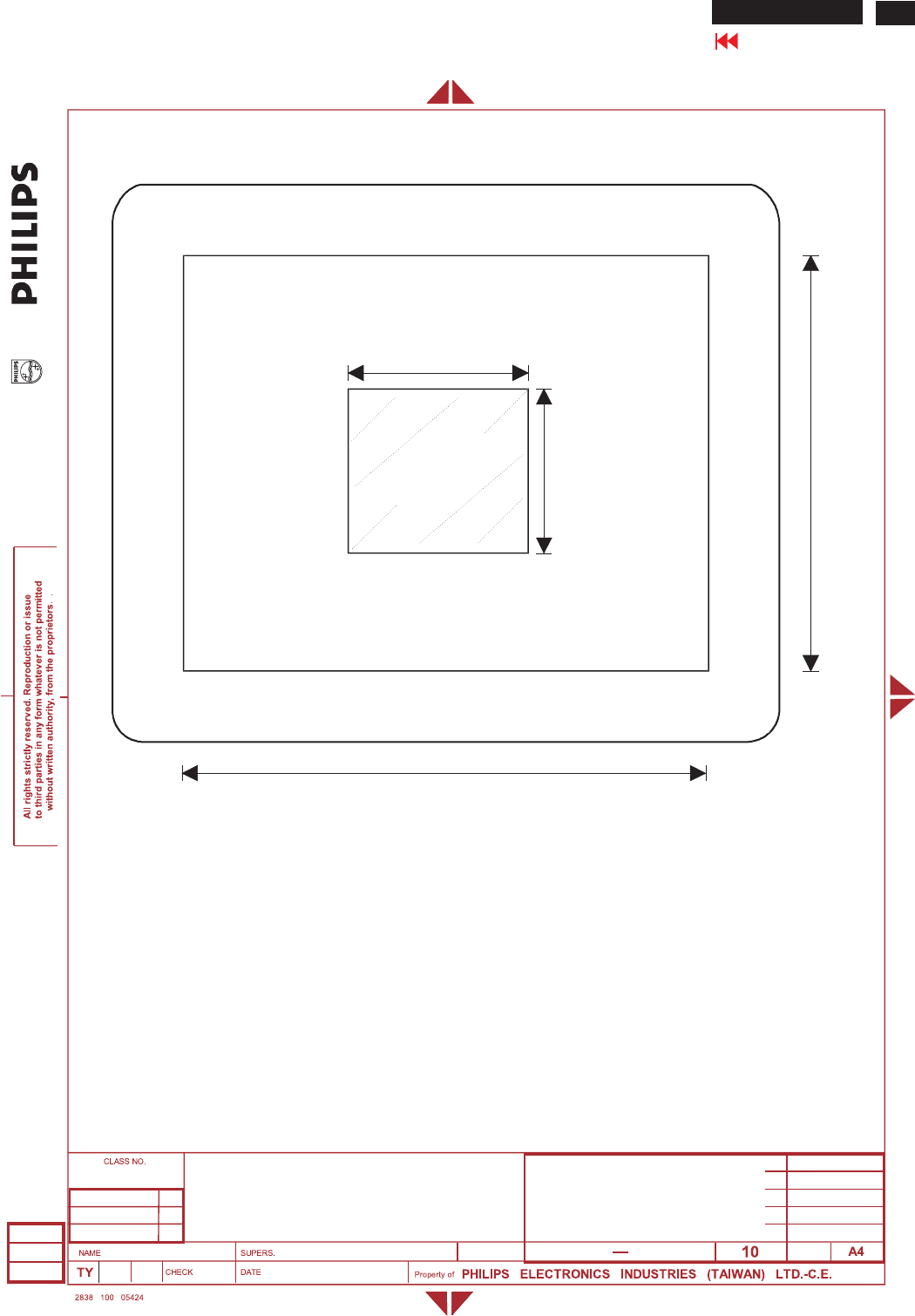

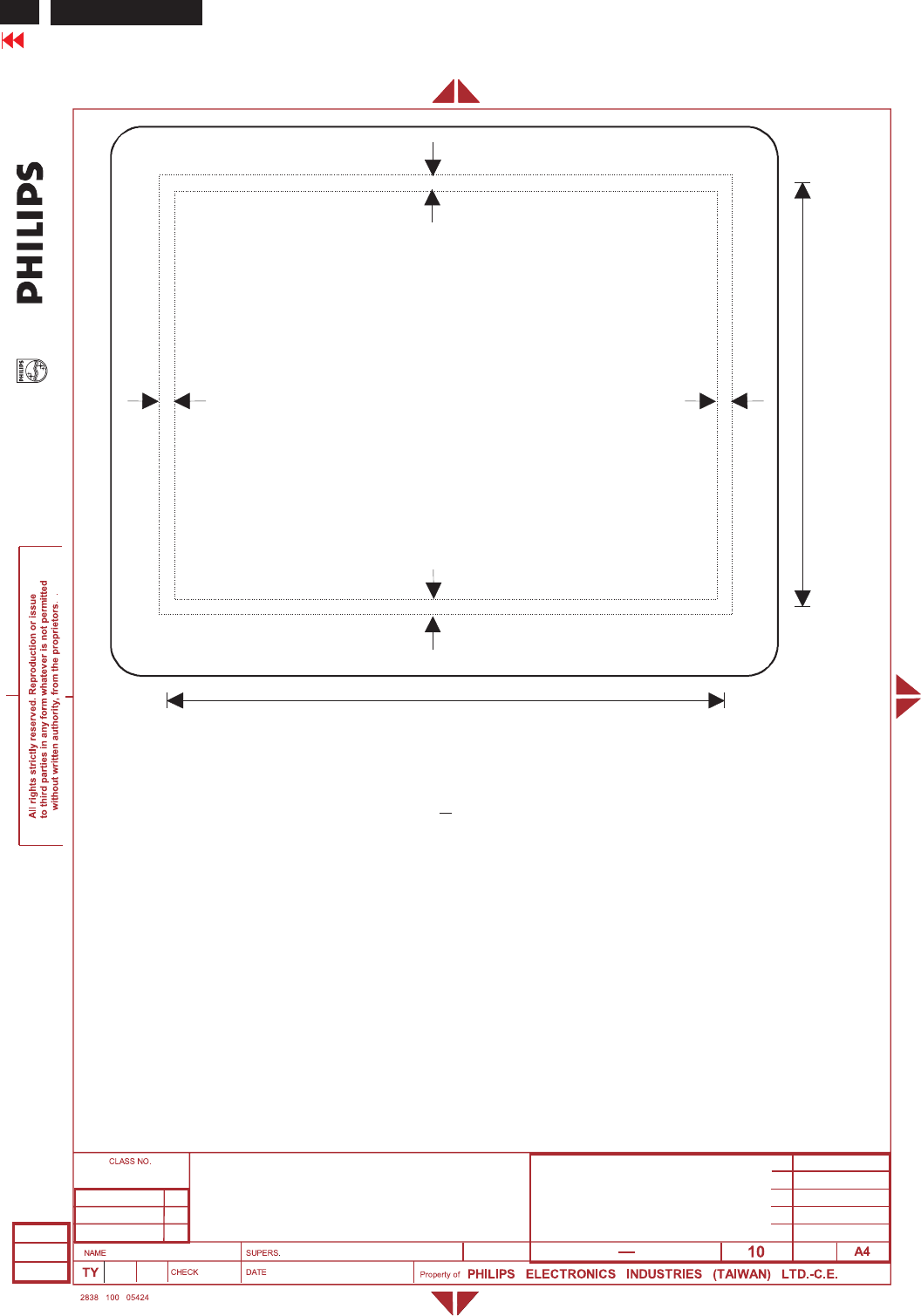

impedance.

1.5 The alignment has to be done in room temperature 25 5C.

1.6 Digit control buttons for

- POSITION

- SIZE

- POSITION

- SIZE

- ADJUST SIDE CURVE

- PINCUSHION

- BALANCE

- ADJUST SIDE ANGLES

- TRAPEZOID

- PARALLELOGRAM

- ROTATE IMAGE

- 3colour temperatures (9300K, 6500K, SRGB)

- 1 user preset independent RGB adjustment

- ADJUST MOIR

- HORIZONTAL

- VERTICAL

- DEGAUSSING

2.1 Align in pre-warmed condition at least 30 minutes during

Manufacturing.

==

3. Main chassis alignment

==================

.

4. General conditions for aging and alignment

================================

3.1 Power supply adjustment :

All supply voltages were fixed and adjustment is

unnecessary. (Check the voltages on Chassis line)

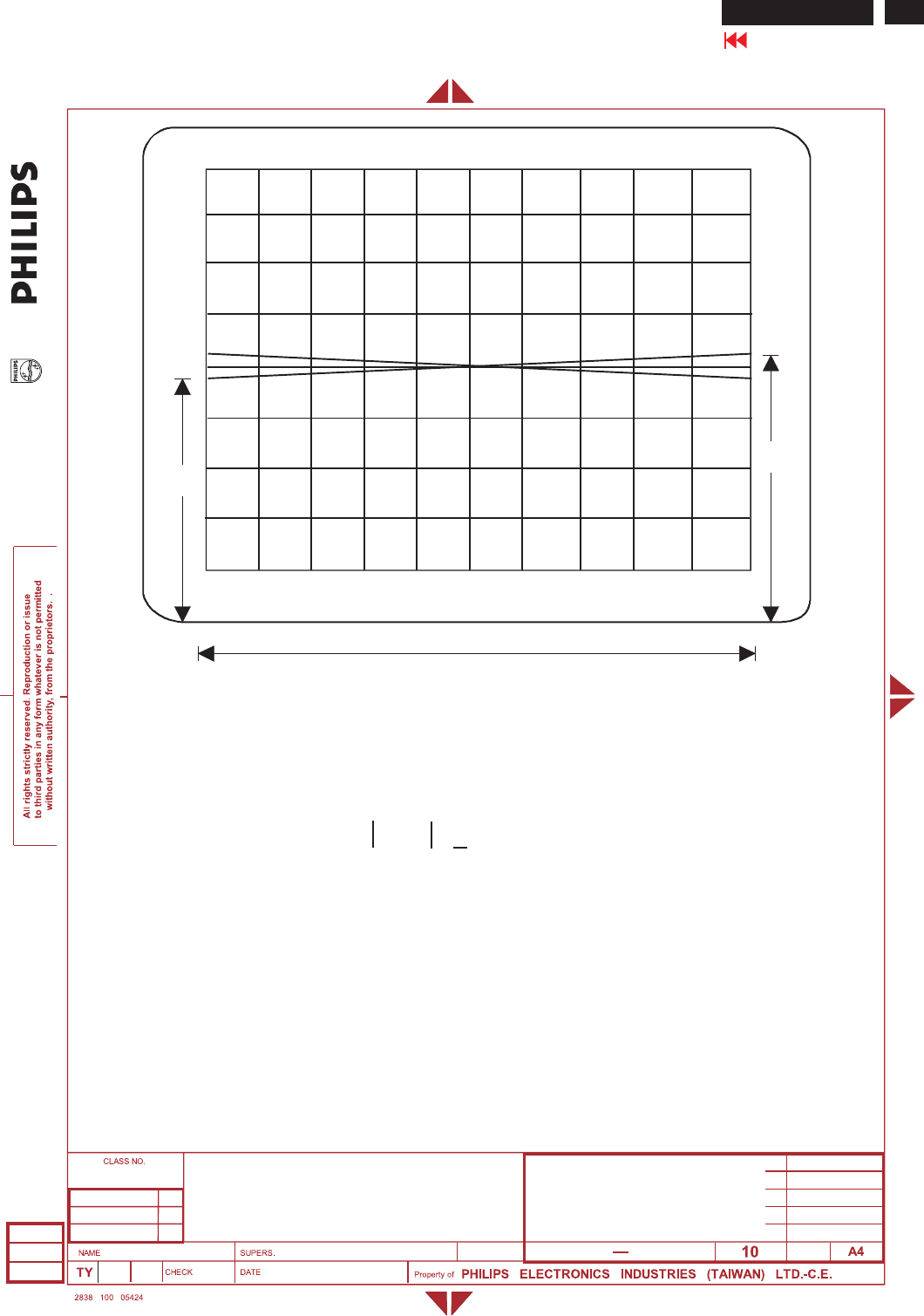

3.2 Apply a VGA 31.5KHz/480 lines cross-hatch signal.

3.2.1 Adjust BPLUS of factory setting to obtain the

anode voltage 25.0KV+/-1KVat zero beam current

3.3 Monitor the following auxiliary voltages.

+5 source across 7153 Pin out and GND +5V 0.15 VDC

+6 source across C2154 +6.2V 0.2 VDC

+12 source across C2155 +12.6V 0.4 VDC

-12 source across C2156 -12.5V 0.4 VDC

+82 source across C2153 +82.0V 1.5 VDC

+190 source across C2152(+toGnd) +190.5V 3.0 VDC

-96 source across C2630 -96V 6.0 VDC

4.1 Aging/burn-in:Use low mains AC supply (90Vac) for monitor

first power on test.Pre-adjust the Focus till cross hatch

pattern can be clearly visible then enter the agingmode.

(Press both Up and Down keys, and then switch-on the

monitor with signal cable disconnected.)

4.2 During all alignments, supply a distortion free AC mains

voltage to the monitor set via an isolating transformer with

low internal impedance.

4.3 All measurements are carried out at nominal mains voltage,

unless otherwise stated.

4.4 Align in pre-warmed condition, at least 30 minutes warm-up

with nominal light output.

4.5 Purity, geometry and subsequent alignments should be

carried out in a magnetic cage with correct magnetic field.

Northern Hemisphere:H=0, V= 450mG,Z=0

Southern Hemisphere:H=0, V=-500mG,Z=0

Equatorial Support :H=0,V= 0mG,Z=0

4.6 All voltages are to be measured or applied with respect to

ground , unless otherwise stated.Attention : Not all

heatsinks are GND, avoid using heatsinks as ground.

4.7 The white balance and purity has to be adjusted in dully

lighted room.

4.8 All alignments have to be done in a room with a temperature

Of 25 10 C.

4. Alignment of Vg2, cut-off point, white tracking

================================ =

In factory, alignments are done via I C on the I/F cable

DDC bus , but the set can also be manually aligned.

Enter factory mode by pressing both Up and Down

keys while power-on. Select factory.

====

5.1 EEPROM data has to be pre-set according to software

approval sheets, sheet-139,

sheet-140: (loaded beforehand with average values of

mode pre-set data and mode pre-set selection bytes.) The

following table is for reference only.Optimum values should

be determined by Factory(ME) for every production batch.

2

107T5

Electrical Instructions

X

Go to cover page

19

107T5

CRT

Item

Condition/Description CPT DAC

value

LG

DAC value

SDI

DAC value

9300/6500/sRGB

Bias

Nominal Cut -off setting 127 127 127

9300/6500/sRGB Gain Nominal Gain setting 185 185 185

sRGB contrast sRGB contrast 255 255 255

sRGB bright sRGB brightness 127 127 127

Corner -T, B Fh < 36KHz 134, 122 134, 126 136, 124

Corner -T, B 36KHz <Fh < 52KHz 134, 122 130, 126 130, 124

Corner -T, B 52KHZ < Fh <65KHz 140, 122 126, 126 130, 124

Corner -T, B Fh > 65KHz 140, 120 126, 126 128, 124

Pin Correction -T, B Top/Bottom pin correction 120, 126 122, 122 120, 120

Pin Correction -S, W S/W shape pin correction 130, 144 136, 130 130, 144

V-offset V-raster centering 65 60 90

V-gain V size control range for user 180 180 200

Sub-contrast 9300 peak light output adjust 220 220 220

Sub-brightness Brightness control range limit 160 160 160

Linearity -H Fh <33.00KHz 170 175 180

Linearity -H 33.00KHz <Fh <36.00KHz 140 140 165

Linearity -H 36.00KHz <Fh <40.00KHz 125 130 150

Linearity -H 40.00KHz <Fh <45.00KHz 105 115 115

Linearity -H 45.00KHz <Fh <52.00KHz 90 95 90

Linearity -H 52.00KHz <Fh <55.00KHz 80 90 85

Linearity -H 55.00KHz <Fh <60.50KHz 70 80 80

Linearity -H 60.50KHz <Fh <66.00KHz 65 75 70

Linearity -H Fh >66.00 KHz 60 60 60

Linearity -V Vertical S -correction 50 50 50

Range-UserH H size control range for user 75 75 75

Range-Sub Zoom control range for user 55 55 55

B+ Adjusted for Anode voltage 89 89 89

ABL 9300 full white light o/p adjust 110 120 135

EHT comp -H, V Fh <33.00KHz 132, 114 132, 116 132, 114

EHT comp -H, V 33.00KHz <Fh <36.00KHz 124, 114 130, 114 124, 114

EHT comp -H, V 36.00KHz <Fh <40.00KHz 122, 116 126, 116 122, 114

EHT comp -H, V 40.00KHz <Fh <45.00KHz 120, 116 124, 116 120, 116

EHT comp -H, V 45.00KHz <Fh <52.00KHz 114, 116 118, 118 114, 116

EHT comp -H, V 52.00KHz <Fh <55.00KHz 112, 116 118, 118 112, 116

EHT comp -H, V 55.00KHz <Fh <60.50KHz 112, 116 116, 118 112, 116

EHT comp -H, V 60.50KHz <Fh <66.00KHz 112, 118 114, 118 112, 118

EHT comp -H, V Fh >66.00 KHz 114, 118 114, 118 114, 118

V-Linbal Vertical top/bottom linearity 140 140 140

V-Focus Vertical focus amplitude 100 100 180

OSD Contrast OSD Contrast 255 255 255

LF-Brigh LightFrame Brightness 333

LF-Sharp LightFrame Sharpness 333

Moiré setting -H All modes 000

Moiré setting -V All modes 000

Electrical Instructions

X

Go to cover page

20

107T5

5.2 External degaussing Remove ferromagnetic measuring

equipment, Iron tablet, etc., in the neighbourhood of the

apparatus within half a meter. Position the set in E-W

direction and degauss well via external degaussing coil.

Slowly increase the distance between the picture tube and

Degaussing coil, keeping the coil in parallel with the

Screen of CRT. When the distance is more than 2m, turn

of f The degaussing current.

5.3 Adjustment mode: 68.7KHz/85Hz with correctly adjusted

video size 306x230mm. Use color-analyzer

(Minolta CA-100) to adjust cut-off and white balance.

Before alignment, set initial data as item 5.1 and

brightness set to 50%.

Setup A: 100x100mm white block , 0.7Vpp input video

signal, contrast at 0%, 9300 mode Calibrate CA100, Low

9300 RGB=100 x=0.283, y=0.297, Y=0.10FL 0.05FL

Setup B: 100x100mm white block , 0.7Vpp input video

signal, contrast at 100%, 9300 mode Calibrate Ca100,

High 9300 RGB=100 x=0.283, y=0.297, Y=41FL 1FL

Setup C: 100x100mm white block , 0.7Vpp input video

signal, contrast at 0%, 6500 mode Calibrate CA100, Low

6500 RGB=100 x=0.313, y=0.329, Y=0.10FL 0.05FL

Setup D: 100x100cm white block , 0.7Vpp input video signal,

contrast at 100%, 6500 mode Calibrate CA100, High 6500

RGB=100 x=0.313, y=0.329, Y=36FL 1FL

Setup E: 100x100mm white block , 0.7Vpp input video signal,

contrast at 0%, sRGB mode Calibrate CA100, Low sRGB

RGB=100 x=0.313, y=0.329, Y=0.10FL 0.05FL

Setup F: 100x100cm white block , 0.7Vpp input video signal,

contrast at 100%, sRGB mode Calibrate CA100, High

sRGB RGB=100 x=0.313, y=0.329, Y=36FL 1FL

Setup G: Full white (306x230mm), 0.7Vpp input video signal,

contrast at 100% , 9300 mode Calibrate CA100, High 9300

RGB=100 x=0.313, y=0.329, Y=30FL 1FL

5.3.1 Setup A, manually rotate Vg2 pot-meter on LOT until

brightness reaches 100 scale.

5.3.2 Setup A, adjust RGB cut-off (I C) for all colors at 100 7

scale, 9300 mode. (x=0.283, y=0.297, Y=0.10 0.05FL)

5.3.3 Setup B, adjust RGB gain (I C) for all colors at 100 2 scale,

9300 mode. (x=0.283, y=0.297, Y=41 0.5 FL)

5.3.4 Repeat 5.3.2, 5.3.3 (RGB cut-off and gain) to get both low

and high 9300 scales at 100. (0.10FL 0.05FL for low

scale; 41FL 1FL for high scale. x/y tolerance 0.005)

5.3.5 Setup C, adjust RGB cut-off (I C) for all colors at 100 7

scale, 6500 mode. (x=0.313, y=0.329, Y=0.10FL 0.05FL)

5.3.6 Setup D, adjust RGB gain (I C) for all colors at 100 2

scale, 6500 mode. (X=0.313, y=0.329, Y=36FL 1FL)

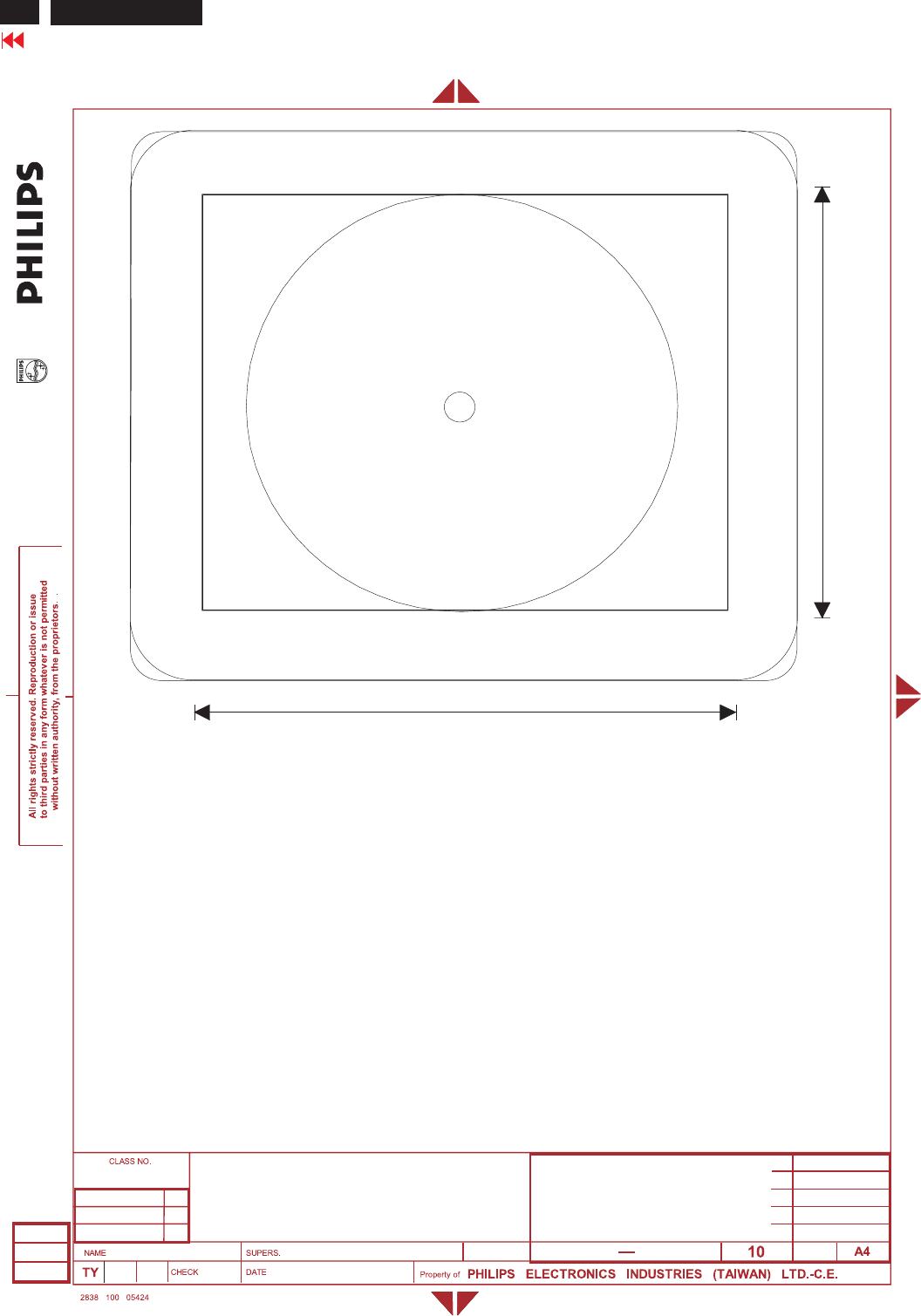

White alignment measurement equipment set-ups:

Adjustment procedure:

2

2

2

2

5.3.7 Repeat 5.3.5, 5.3.6 (RGB cut-off and gain) to get both low

and high 6500 scales at 100. (0.10FL 0.05FL for low scale;

36FL 1FL for high scale. x/y tolerance 0.005)

4.3.8 Setup E, adjust RGB cut-off (I C) for all colors at 100 7

scale, sRGB mode.

(x=0.313, y=0.329, Y=0.10FL 0.05FL)(same values as

6500 mode)

4.3.9 Setup F, adjust RGB gain (I C) for all colors at 100 2 scale,

sRGB mode.

(x=0.313, y=0.329, Y=36FL 1FL)(same values as 6500

mode)

5.3.10 sRGB brightness at 50%. Adjust sRGB contrast (I C) to get

Y=23FL 1FL for full white pattern.

(0.10FL 0.05FL for low scale, 23FL 1FL for high scale.

x/y tolerance 0.005)

5.4 Setup G, adjust ABL (I C) for 30FL 0.5FL, 9300 mode.

The above alignment method may be changed, as long as

the final results are the same.

(The above method has least amount of adjustment and

iteration steps.)

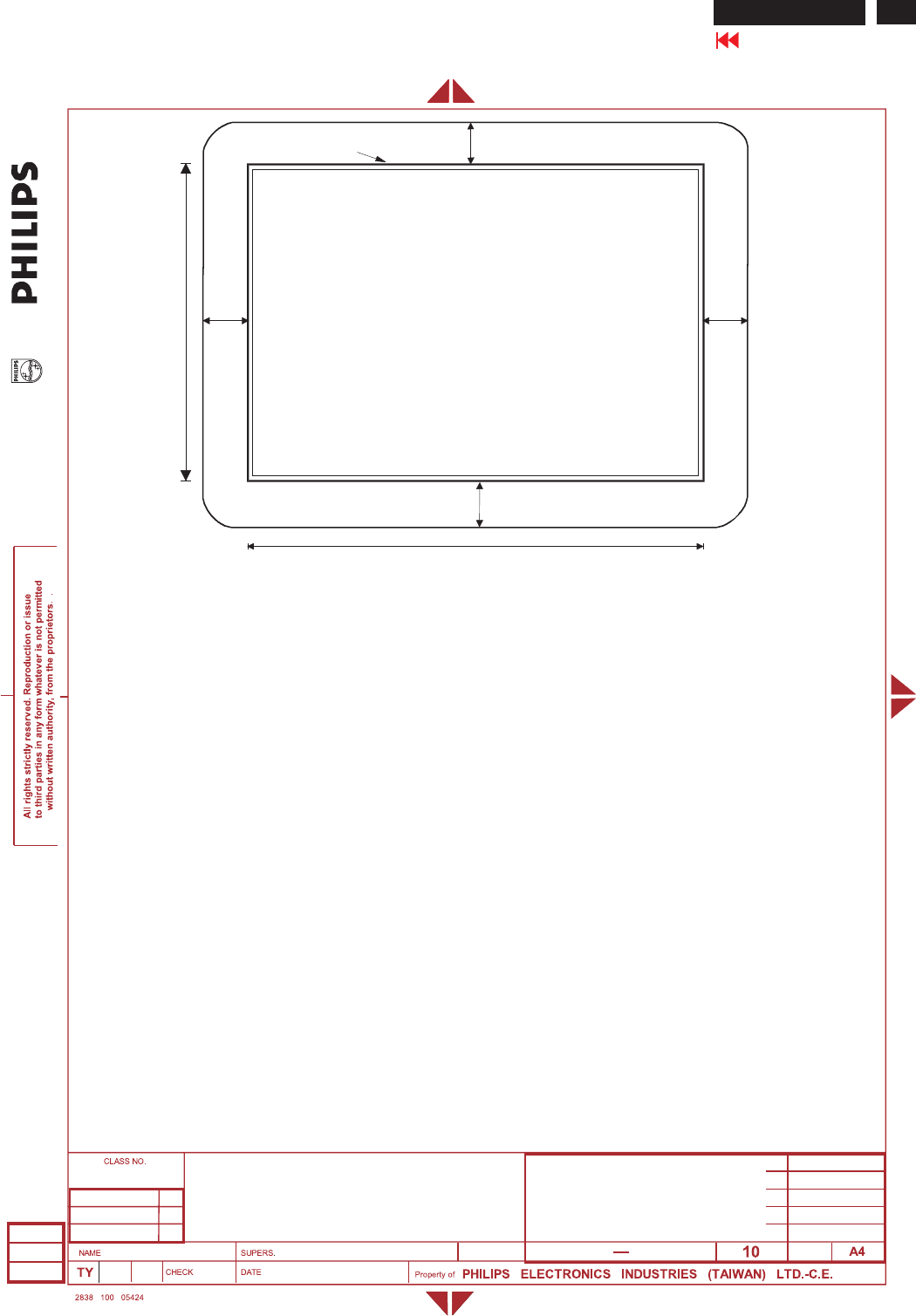

6.1 Alignment of primary geometry

2

2

2

2

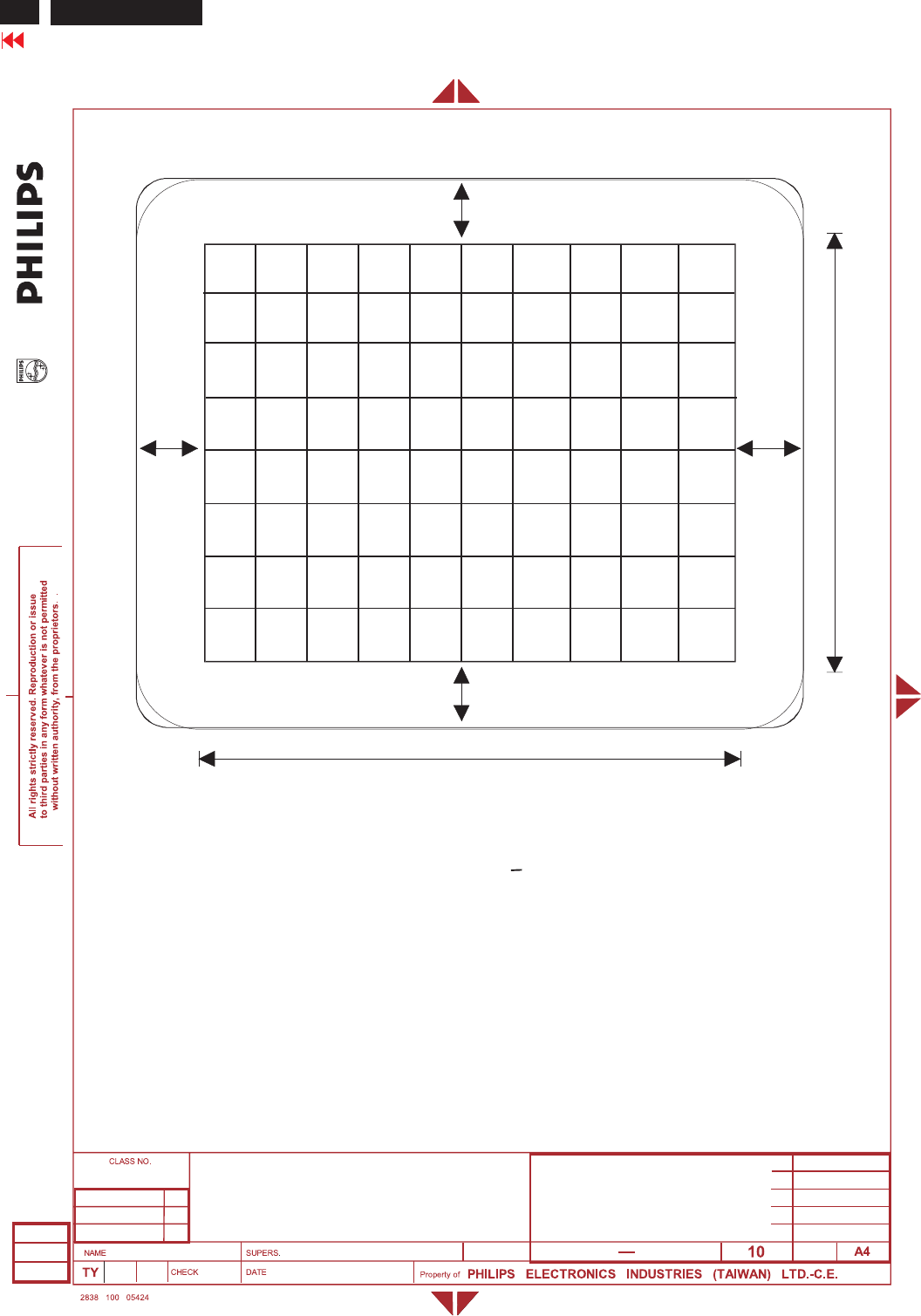

6. Adjustment of the picture geometry

=========================

6.1.1 Apply Timing 7 (64KHz/60Hz, 1280x1024) with black video

signal, set V-position at 50%, set H and V-size for visible

raster edges at all sides.

(RGB cut-off can be increased temporarily to make raster

visible. After adjustment, restore RGB cut-off to original

values.) Slide switch 1603 for centered raster in horizontal

Direction. Adjust V-offset (I C) for centered raster in

vertical direction.

Apply Timing 8 (68.7kHz / 85Hz) with crosshatch signal and

start geometry alignment.

6.1.2 Adjust the Horizontal Size to 306mm.

6.1.3 Adjust the Horizontal Position for centered video.

6.1.4 Adjust the Vertical Size to 230 mm.

6.1.5 Adjust Vertical Position for centered video

6.1.6 Adjust picture tilt for correct TOP/BOTTOM lines.

(Picture tube should be mounted without tilt w.r.t. cabinet)

6.1.7 Adjust pincushion to get optimum vertical line.

6.1.8 Adjust trapezoid to get optimum vertical line.

6.1.9 Adjust balanced pincushion to get optimum vertical line.

6.1.10 Adjust the parallelogram to get optimum vertical line.

6.1.11 If needed, adjust the top / bottom corner control to get

optimum corner geometry.

Top and bottom corner only affect top and bottom 60mm of

the vertical lines.

(6.1.7, 6.1.8, 6.1.9 and 6.1.10 may need to be readjusted.)

6.1.12 Store the adjusted result and exit OSD.

(The values for pincushion, trapezoid, balance pincushion

and parallelogram can be copied to the other pre-set

modes to shorten alignment time.)

6.2 Other pre-set mode geometry adjustment

Use following procedure for all pre-set modes (except

68.7kHz/85Hz) (Timing Table1-8)

6.2.1 Adjust the Horizontal Size to 306mm.

6.2.2 Adjust the Horizontal Position to center position.

2

6.2.3 Adjust the Vertical Size to 230 mm.

6.2.4 Adjust the Vertical Position for correctly centred vertical

video.

6.2.5 Adjust pincushion to get optimum vertical line.

6.2.6 Adjust trapezoid to get optimum vertical line.

6.2.7 Adjust balanced pincushion to get optimum vertical line.

6.2.8 Adjust the parallelogram to get optimum vertical line.

(6.2.5, 6.2.6, 6.2.7 and 6.2.8 may need some iteration.)

6.2.9 Store the set result and exit OSD.

6.3 Other pre-load modes can be visible inside the bezel.

With full white pattern display at timing 68Khz /85Hz

1024x768, set brightness at 50% and adjust contrast to 25

FL at the center of the screen.

and adjust H and V focus pot-meters which are located at

flyback transformer, until H- and V-line focus is optimal over

the entire screen.

Apply full white pattern and adjust contrast till luminance

around 15FL. 1/3 area with minor moiré can be acceptable.

If needed, use moir cancellation function and adjust the

H- moir or V-moir to cancel the moiré defect, then save

at factory.

The DDC HEX data (refer to sheet-190) should be written

into the DDC by EEPROM writer or equivalent method.

The finished product should have the following default

Settings: Contrast: 100%, Brightness: 50%, Color: 9300,

Language: English(Chinese),

Power Save: On (Remark : Every mode is independent for

eset to factory setting.))

REFERENCE PATTERN GENERATOR : CHROMA 2135

* According to VESA version 1.0 release 0.6p

7 Focus adjustment

=============

8

8 Adjustment of Moir

================

9 Loading DDC code

=================

10 Default settings

==============

TIMING FOR V30 GS4 107T5 71K MODEL

X

Go to cover page

21

107T5

DDC Instructions

1. General

3. Pin assignment

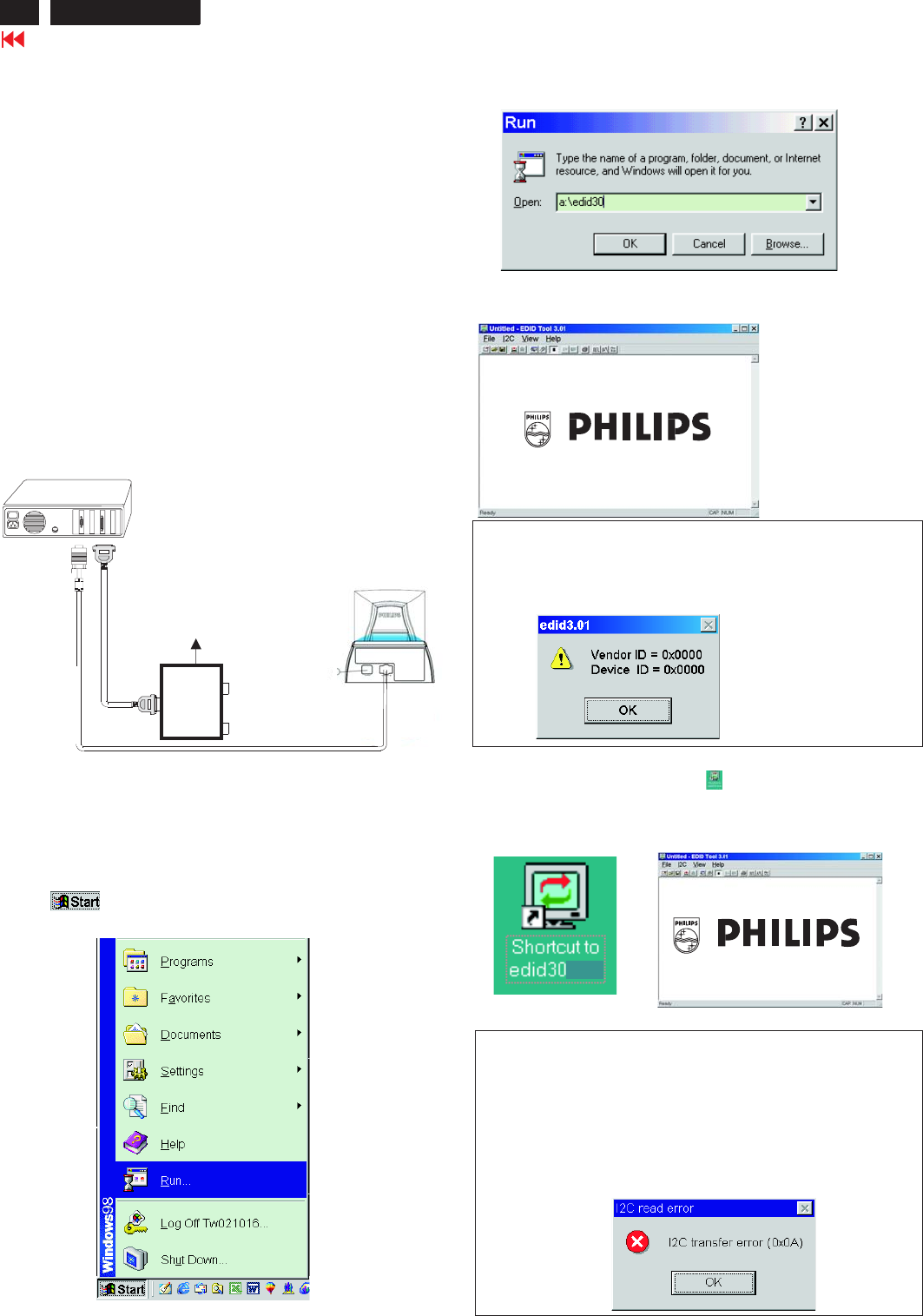

Fig. 2 Alignment Kits

To Monitor

DC 8V~12V

Video Card

Video Card

To Printer

Power indicator

A. 15-pin D-Sub Connector

DDC Data Re-programming

In case the main EEPROM with which store all factory

settings were replaced because a defect,repaired monitor the serial

numbers have to be re-programmed.

It is advised to re-soldered the main EEPROM from

the old board onto the new board if circuit board have been replaced, in

this case the DDC data does not need to be re-programmed.

Additional information

Additional information about DDC (Display Data Channel) may be

obtained from Video Electronics Standards Association (VESA).

Extended Display Identification Data(EDID) information may be also

obtained from VESA.

DDC EDID structure

For the monitor : Standard Version 3.0

Structure Version 1.2

1. An i486 (or above) personal computer or compatible.

2. Microsoft operation system Windows 95/98.

4. Software DDC Alignment kits (4822 310 11184) shown as Fig. 2.

The kit contents: a. Alignment box x1

b. Printer cable x1

c. D-Sub cable x1

Note: The EDID301.EXE (Release Version 1.58, 20000818)is a

windows-based program, which cannot be run in MS-DOS.

Software DDC

with Software DDC

3. EDID301.EXE program (3138 106 10103) shown as Fig. 1

2. System and equipment requirements

Diskette with EDID301.EXE

EDID301.EXE

Figure 1

Ver:1.58

The 15-pin D-sub connector (male) of the signal cable

on the 3rd row for DDC feature :

1

10

6

11 15

5

Assignment Assignment

Pin No. Pin No.

Ground

Ground

Blue video input

2

7

6

8

4

5

3

19

12

11

14

13

15

10

Red video ground

Blue video ground

Green video ground

for selftest(PC ground)

Not connected - no.pin

Sync. Ground

Data clock line(SCL)

V.Sync(VCLK)

H.Sync

Bi-directional data(SDA)

Green video input

Red video input

X

Go to cover page

22

107T5

DDC Instructions

4. Configuration and procedure

There is no Hardware DDC (DDC IC) anymore. Main EEPROM stores

all factory settings and DDC data (EDID code) which is so called

Software DDC. The following section describes the connection and

procedure for Software DDC application. The main EEPROM can be re-

probrammed by enabling "factory memory data write" function on the

DDC program (EDID301.EXE).

Step 3: Installation of EDID301.EXE

Method 1: Start on DDC program

Start Microsoft Windows.

1. Insert the disk containing EDID301.EXE program into floppy disk

drive.

2. Click , choose Run at start menu of Windows 95/98 as

shown in Fig. 4.

Fig. 4

*** INITIALIZE ALIGNMENT BOX ***

In order to avoid that monitor entering power saving mode due to

sync will cut off by alignment box, it is necessary to initialize

alignment box before re-programming DDC Data. Following steps

show you the procedures and connection.

Step 1

Step 2

: Supply 8~12V DC power source to the Alignment box by

plugging a DC power cord or using batteries.

: Connecting printer cable and video cable of monitor as

shown in Fig.3.

4. Click button. The main menu appears (as shown in Fig. 6).OK

This is for initialize alignment box.

Fig. 6

Fig. 5

Fig. 7

Note 1: If the connection is improper, you will see the following error

message (as shown in Fig. 7) before entering the main menu.

Meanwhile, the (read EDID) function will be disable. At this time,

please make sure all cables are connected correctly and fixedly,

and the procedure has been performed properly.

3. At the submenu, type the letter of your computer's floppy disk drive

followed by :EDID301 (for example, A:\EDID301, as shown in Fig. 5).

Method 2: After create a shortcut of EDID301.EXE

This is for initialize alignment box.

: Double click EDID301 icon (as shown in Fig. 8) which is

on the screen of Windows Wallpaper.

Bring up main menu of EDID301 as shown in Fig. 9.

Fig. 9

Note 2: During the loading, EDID301 will verify the EDID data which just

loaded from monitor before proceed any further function, once

the data structure of EDID can not be recognized, the following

error message will appear on the screen as below. Please

confirm following steps to avoid this message.

1. The data structure of EDID was incorrect.

2. DDC IC that you are trying to load data is empty.

3. Wrong communication channel has set at configuration setup

windows.

4. Cables loosed or poor contact of connection.

Fig. 8

1

Fig. 3

Rear view of the monitor

~

~

PC

To printer port (LTP1)

DC Power

8~12 V

Printer

Port

To video card

To

Monitor

To PC Video cable

X

Go to cover page

23

107T5

DDC Instructions

Fig. 13

Re-programming EEPROM (Software DDC)

Step 1: After initialize alignment box, connecting all cables and

box as shown in Fig. 10

Fig. 11

Fig. 12

Step 2: Read DDC data from monitor

1-1 Click the left key of Mouse, or hit any key on the keyboard,

then the characters disappear from the screen.

1-2 Click icon as shown if Fig. 11 from the tool bar to bring up

the "Configuration Setup" windows as shown in Fig. 12.

2. Select the DDC2B as the communication channel.

Select " " & fill out " " for Mapped EDID page address

as shown in Fig. 12.

Enable F0

Step 3: Modify DDC data (verify EDID version, week, year)

1. Click (new function) icon from the tool bar, bring up

Step 1 of 9 as shown in Fig. 14 .

EDID301 DDC application provides the function selection and

text change (select & fill out) from Step 1 to Step 9.

Step 4: Modify DDC data (Monitor Serial No.)

Next

Next Finish

1. Click till the Step 7 of 9 window appears as shown in Fig. 15.

2. Fill out the new Serial No. (for example, TY 503960, TY 123456).

3. Click till the last step window appears, then click to exit

the Step window.

3. Click OK button to confirm your selection.

4. Click icon (Read EDID function) to read DDC EDID data from

monitor. The EDID codes will display on screen as shown in Fig. 13.

Fig. 14

Fig. 15

~

~

PC

To video card

To printer port (LTP1)

DC Power

8~12 V

Printer

Port

To

Monitor

To PC

Video cable

Fig. 10

Rear view of the monitor

X

Go to cover page

24

107T5

DDC Instructions

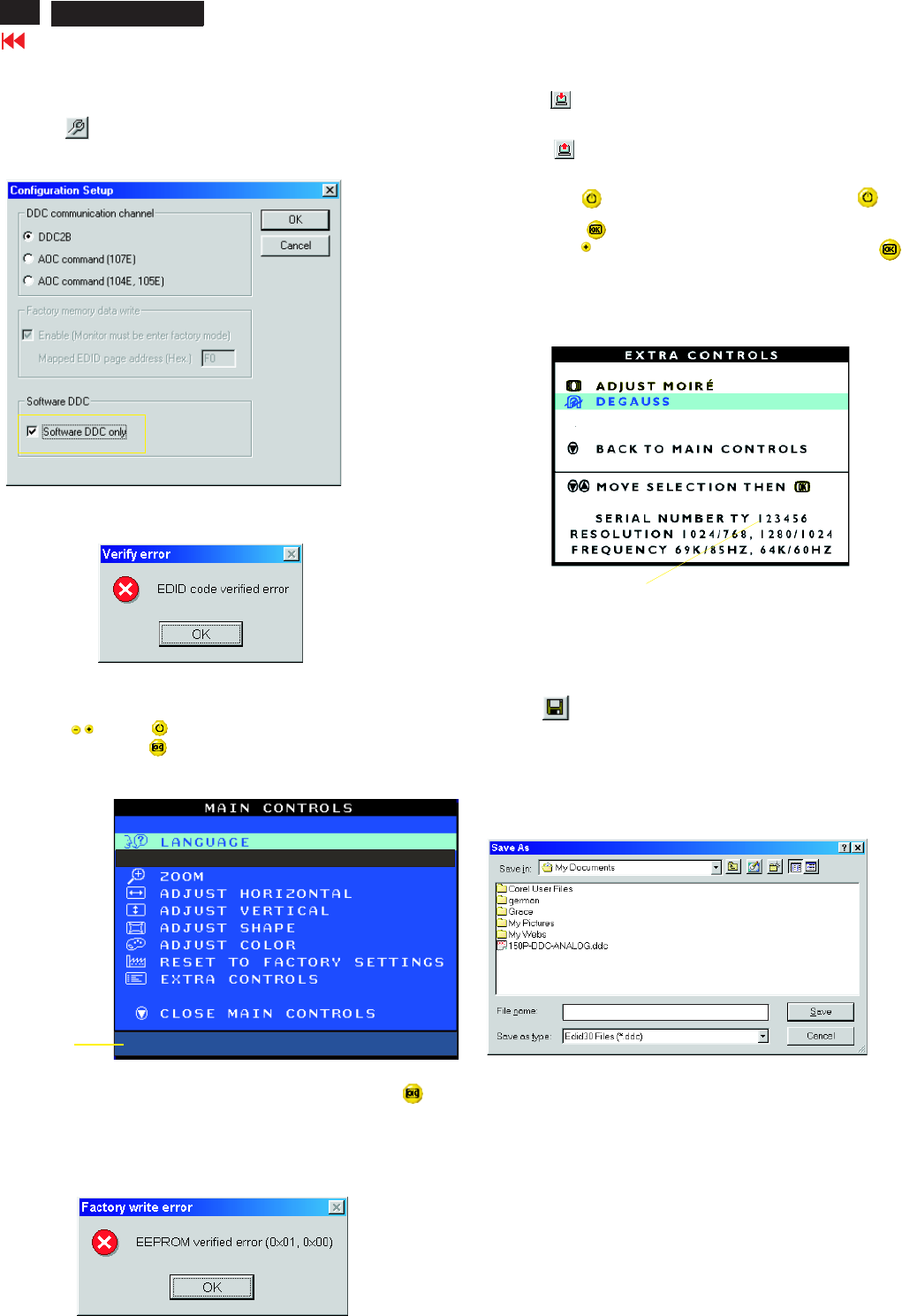

Fig. 16

Fig. 18

Step 8: Save DDC data

Sometimes, you may need to save DDC data as a text file for using

in other IC chip. To save DDC data, follow the steps below:

1. Click (Save) icon (or click "file"-> "save as") from the tool bar

and give a file name as shown in Fig. 19.

The file type is EDID301 file (*.ddc) which can be open in WordPad.

By using WordPad, the texts of DDC data & table (128 bytes, hex

code) can be modified. If DDC TEXTS & HEX Table are completely

correct, it can be saved as .ddc flie to re-load it into EEPROM for

DDC Data application.

Step 5: **Configuration Setup & Enter Factory Mode **

for "write EDID data"

1. Click icon from the tool bar to bring up the Configuration Setup

windows again. Then, select "Software DDC only" as shown in

Fig. 16. Click "OK".

Step 6: Write DDC data

1. Click (Write EDID) icon from the tool bar to write DDC data.

Bring up "Writing 0%~100%, ready" a progressing bar on the left

down corner.

2. Click (Read EDID) to confirm it.

Step 7: Confirm Serial Number in User Mode

1. Press the button to turn off the monitor. Press the button

again to turn on the monitor.

2. Press the button to bring up the OSD Main Menu.

3. Press the button to select Extra Controls, press the

button to confirm your selection.

4. Confirm the Serial Number "123456" is updated

as shown in Fig. 18.

Fig. 19

If you do not select "Software DDC only", when you execute

"write EDID", it will bring up an error message as below.

If you do not access "Factory mode", when you execute

"write EDID", it will bring up an error message as below.

To access factory mode

1. Turn off monitor (don't turn off PC)

2. Press " " and " " simultaneously on the front control

panel,then press " ",wait till the OSD menu with characters

V30 10T5 P V2.01 20030110 (below OSD menu)" come on the

screen of monitor.

If OSD menu disappears on the screen of monitor, press " "

again (anytime), then the OSD menu comes on the screen again.

Fig. 17

MODEL SELECT

V30 107T5 P V.2.01 20030110

Factory

Mode

Indicator

2. Click .Save

107T5 V30

X

Go to cover page

25

107T5

DDC Instructions

Fig. 20

Fig. 22

Fig. 23

Fig. 21

Step 10: Exit DDC program

Pull down the File menu and select Exit as shown in Fig. 21.

(EDID Tool 3.01)

Step 9: Load DDC data

Open

1. Click from the tool bar.

2. Select the file you want to open as shown in Fig. 20.

3. Click .

4. Access "Factory Mode" and enable "Software DDC only" as shown

in Fig. 17 & Fig. 16.

5. Write EDID (click ).

Note1 : In User Mode: Read DDC data only

Software

DDC only was disabled

Before read EDID code, please confirm that the

as shown in Fig. 22.

Note2:InFactory Mode: Read/Write DDC data

Software DDC only was enabled

Before Read/Write EDID code, please confirm that the

as shown in Fig. 23.

If you do not disable "Software DDC only", when you execute

"read EDID", it will bring up an error message as below.

X

Go to cover page

26

107T5

Hex Data of DDC2B

**********************************************************************

EDID log file for CPT tube

**********************************************************************

Vendor/Product Identification

ID Manufacturer Name : PHL

ID Product Code : E013 (HEX.)

ID Serial Number : 1E240 (HEX.)

Week of Manufacture : 4

Year of Manufacture : 2003

EDID Version, Revision

Version : 1

Revision : 3

Basic Display Parameters/Features

Video Input Definition : Analog Video Input

0.700V/0.000V (0.70Vpp)

without Blank-to-Black Setup

Separate Sync

without Composite Sync

without Sync on Green

no Serration required

Maximum H Image Size : 31

Maximum V Image Size : 23

Display Transfer Characteristic : 2.86

(gamma)

Feature Support (DPMS) : Standby

Suspend

Active Off

Display Type : RGB color display

Color Characteristics

Red X coordinate : 0.631

Red Y coordinate : 0.329

Green X coordinate : 0.276

Green Y coordinate : 0.6

Blue X coordinate : 0.143

Blue Y coordinate : 0.057

White X coordinate : 0.283

White Y coordinate : 0.297

Established Timings

Established Timings I : 720 x 400 @70Hz (IBM,VGA)

640 x 480 @60Hz (IBM,VGA)

640 x 480 @72Hz (VESA)

640 x 480 @75Hz (VESA)

800 x 600 @60Hz (VESA)

Established Timings II : 800 x 600 @72Hz (VESA)

800 x 600 @75Hz (VESA)

832 x 624 @75Hz (Apple,Mac II)

1024 x 768 @60Hz (VESA)

1024 x 768 @70Hz (VESA)

1024 x 768 @75Hz (VESA)

Manufacturer's timings :

Standard Timing Identification #1

Horizontal active pixels : 640

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #2

Horizontal active pixels : 800

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #3

Horizontal active pixels : 1024

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #4

Horizontal active pixels : 1280

Aspect Ratio : 5:4

Refresh Rate : 60

Standard Timing Identification #5

Horizontal active pixels : 640

Aspect Ratio : 4:3

Refresh Rate : 100

Standard Timing Identification #6

Horizontal active pixels : 800

Aspect Ratio : 4:3

Refresh Rate : 100

Standard Timing Identification #7

Horizontal active pixels : 1280

Aspect Ratio : 4:3

Refresh Rate : 60

Standard Timing Identification #8

Horizontal active pixels : 1152

Aspect Ratio : 4:3

Refresh Rate : 75

Detailed Timing #1

Pixel Clock (MHz) : 25.18

H Active (pixels) : 640

H Blanking (pixels) : 160

V Active (lines) : 350

V Blanking (lines) : 99

H Sync Offset (F Porch) (pixels) : 16

H Sync Pulse Width (pixels : 96

V Sync Offset (F Porch) (lines) : 37

V Sync Pulse Width (lines) : 2

H Image Size (mm) : 306

V Image Size (mm) : 230

H Border (pixels) : 0

V Border (lines) : 0

Flags : Non-interlaced

: Normal Display, No stereo

: Digital Separate sync.

: Negative Vertical Sync.

: Positive Horizontal Sync.

Monitor Descriptor #2

Serial Number : BZ 123456

Monitor Descriptor #3

Monitor Name : PHILIPS 107T5

Monitor Descriptor #4

Monitor Range Limits

Min. Vt rate Hz : 50

Max. Vt rate Hz : 160

Min. Horiz. rate kHz : 30

Max. Horiz. rate kHz : 71

Max. Supported Pixel : 110

No secondary GTF timing formula supported.

Extension Flag : 0

Check sum : 7D (HEX.)

**********************************************************************

EDID data (128 bytes)

*********************************************************************

0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00

8: 41 9: 0c 10: 13 11: e0 12: 40 13: e2 14: 01 15: 00

16: 04 17: 0d 18: 01 19: 03 20: 68 21: 1f 22: 17 23: ba

24: e8 25: 9e 26: a8 27: a1 28: 54 29: 46 30: 99 31: 24

32: 0e 33: 48 34: 4c 35: ad 36: ee 37: 00 38: 31 39: 59

40: 45 41: 59 42: 61 43: 59 44: 81 45: 80 46: 31 47: 68

48: 45 49: 68 50: 81 51: 40 52: 71 53: 4f 54: d6 55: 09

56: 80 57: a0 58: 20 59: 5e 60: 63 61: 10 62: 10 63: 60

64: 52 65: 08 66: 32 67: e6 68: 10 69: 00 70: 00 71: 1a

72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 42 79: 5a

80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36

88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50

96: 48 97: 49 98: 4c 99: 49 100: 50 101: 53 102: 20 103: 31

104: 30 105: 37 106: 54 107: 35 108: 00 109: 00 110: 00 111: fd

112: 00 113: 32 114: a0 115: 1e 116: 47 117: 0b 118: 00 119: 0a

120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 74

X

Go to cover page

27

107T5

Hex Data of DDC2B

**********************************************************************

EDID log file for LG tube

**********************************************************************

Vendor/Product Identification

ID Manufacturer Name : PHL

ID Product Code : E013 (HEX.)

ID Serial Number : 1E240 (HEX.)

Week of Manufacture : 4

Year of Manufacture : 2003

EDID Version, Revision

Version : 1

Revision : 3

Basic Display Parameters/Features

Video Input Definition : Analog Video Input

0.700V/0.000V (0.70Vpp)

without Blank-to-Black Setup

Separate Sync

without Composite Sync

without Sync on Green

no Serration required

Maximum H Image Size : 31

Maximum V Image Size : 23

Display Transfer Characteristic : 2.83

(gamma)

Feature Support (DPMS) : Standby

Suspend

Active Off

Display Type : RGB color display

Color Characteristics

Red X coordinate : 0.636

Red Y coordinate : 0.327

Green X coordinate : 0.278

Green Y coordinate : 0.6

Blue X coordinate : 0.145

Blue Y coordinate : 0.064

White X coordinate : 0.283

White Y coordinate : 0.297

Established Timings

Established Timings I : 720 x 400 @70Hz (IBM,VGA)

640 x 480 @60Hz (IBM,VGA)

640 x 480 @72Hz (VESA)

640 x 480 @75Hz (VESA)

800 x 600 @60Hz (VESA)

Established Timings II : 800 x 600 @72Hz (VESA)

800 x 600 @75Hz (VESA)

832 x 624 @75Hz (Apple,Mac II)

1024 x 768 @60Hz (VESA)

1024 x 768 @70Hz (VESA)

1024 x 768 @75Hz (VESA)

Manufacturer's timings :

Standard Timing Identification #1

Horizontal active pixels : 640

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #2

Horizontal active pixels : 800

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #3

Horizontal active pixels : 1024

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #4

Horizontal active pixels : 1280

Aspect Ratio : 5:4

Refresh Rate : 60

Standard Timing Identification #5

Horizontal active pixels : 640

Aspect Ratio : 4:3

Refresh Rate : 100

Standard Timing Identification #6

Horizontal active pixels : 800

Aspect Ratio : 4:3

Refresh Rate : 100

Standard Timing Identification #7

Horizontal active pixels : 1280

Aspect Ratio : 4:3

Refresh Rate : 60

Standard Timing Identification #8

Horizontal active pixels : 1152

Aspect Ratio : 4:3

Refresh Rate : 75

Detailed Timing #1

Pixel Clock (MHz) : 25.18

H Active (pixels) : 640

H Blanking (pixels) : 160

V Active (lines) : 350

V Blanking (lines) : 99

H Sync Offset (F Porch) (pixels) : 16

H Sync Pulse Width (pixels) : 96

V Sync Offset (F Porch) (lines) : 37

V Sync Pulse Width (lines) : 2

H Image Size (mm) : 306

V Image Size (mm) : 230

H Border (pixels) : 0

V Border (lines) : 0

Flags : Non-interlaced

: Normal Display, No stereo

: Digital Separate sync.

: Negative Vertical Sync.

: Positive Horizontal Sync.

Monitor Descriptor #2

Serial Number : BZ 123456

Monitor Descriptor #3

Monitor Name : PHILIPS 107T5

Monitor Descriptor #4

Monitor Range Limits

Min. Vt rate Hz : 50

Max. Vt rate Hz : 160

Min. Horiz. rate kHz : 30

Max. Horiz. rate kHz : 71

Max. Supported Pixel : 110

No secondary GTF timing formula supported.

Extension Flag : 0

Check sum : 9B (HEX.)

**********************************************************************

EDID data (128 bytes) for LG tube

**********************************************************************

0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00

8: 41 9: 0c 10: 13 11: e0 12: 40 13: e2 14: 01 15: 00

16: 04 17: 0d 18: 01 19: 03 20: 68 21: 1f 22: 17 23: b7

24: e8 25: f6 26: 28 27: a2 28: 53 29: 47 30: 99 31: 25

32: 10 33: 48 34: 4c 35: ad 36: ee 37: 00 38: 31 39: 59

40: 45 41: 59 42: 61 43: 59 44: 81 45: 80 46: 31 47: 68

48: 45 49: 68 50: 81 51: 40 52: 71 53: 4f 54: d6 55: 09

56: 80 57: a0 58: 20 59: 5e 60: 63 61: 10 62: 10 63: 60

64: 52 65: 08 66: 32 67: e6 68: 10 69: 00 70: 00 71: 1a

72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 42 79: 5a

80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36

88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50

96: 48 97: 49 98: 4c 99: 49 100: 50 101: 53 102: 20 103: 31

104: 30 105: 37 106: 54 107: 35 108: 00 109: 00 110: 00 111: fd

112: 00 113: 32 114: a0 115: 1e 116: 47 117: 0b 118: 00 119: 0a

120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: 9b

X

Go to cover page

28

107T5

Hex Data of DDC2B

**********************************************************************

EDID log file for SDI tube

**********************************************************************

Vendor/Product Identification

ID Manufacturer Name : PHL

ID Product Code : E013 (HEX.)

ID Serial Number : 1E240 (HEX.)

Week of Manufacture : 4

Year of Manufacture : 2003

EDID Version, Revision

Version : 1

Revision : 3

Basic Display Parameters/Features

Video Input Definition : Analog Video Input

0.700V/0.000V (0.70Vpp)

without Blank-to-Black Setup

Separate Sync

without Composite Sync

without Sync on Green

no Serration required

Maximum H Image Size : 31

Maximum V Image Size : 23

Display Transfer Characteristic : 2.9

(gamma)

Feature Support (DPMS) : Standby

Suspend

Active Off

Display Type : RGB color display

Color Characteristics

Red X coordinate : 0.645

Red Y coordinate : 0.316

Green X coordinate : 0.265

Green Y coordinate : 0.606

Blue X coordinate : 0.143

Blue Y coordinate : 0.058

White X coordinate : 0.283

White Y coordinate : 0.297

Established Timings

Established Timings I : 720 x 400 @70Hz (IBM,VGA)

640 x 480 @60Hz (IBM,VGA)

640 x 480 @72Hz (VESA)

640 x 480 @75Hz (VESA)

800 x 600 @60Hz (VESA)

Established Timings II : 800 x 600 @72Hz (VESA)

800 x 600 @75Hz (VESA)

832 x 624 @75Hz (Apple,Mac II)

1024 x 768 @60Hz (VESA)

1024 x 768 @70Hz (VESA)

1024 x 768 @75Hz (VESA)

Manufacturer's timings :

Standard Timing Identification #1

Horizontal active pixels : 640

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #2

Horizontal active pixels : 800

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #3

Horizontal active pixels : 1024

Aspect Ratio : 4:3

Refresh Rate : 85

Standard Timing Identification #4

Horizontal active pixels : 1280

Aspect Ratio : 5:4

Refresh Rate : 60

Standard Timing Identification #5

Horizontal active pixels : 640

Aspect Ratio : 4:3

Refresh Rate : 100

Standard Timing Identification #6

Horizontal active pixels : 800

Aspect Ratio : 4:3

Refresh Rate : 100

Standard Timing Identification #7

Horizontal active pixels : 1280

Aspect Ratio : 4:3

Refresh Rate : 60

Standard Timing Identification #8

Horizontal active pixels : 1152

Aspect Ratio : 4:3

Refresh Rate : 75

Detailed Timing #1

Pixel Clock (MHz) : 25.18

H Active (pixels) : 640

H Blanking (pixels) : 160

V Active (lines) : 350

V Blanking (lines) : 99

H Sync Offset (F Porch) (pixels) : 16

H Sync Pulse Width (pixels) : 96

V Sync Offset (F Porch) (lines) : 37

V Sync Pulse Width (lines) : 2

H Image Size (mm) : 306

V Image Size (mm) : 230

H Border (pixels) : 0

V Border (lines) : 0

Flags : Non-interlaced

: Normal Display, No stereo

: Digital Separate sync.

: Negative Vertical Sync.

: Positive Horizontal Sync.

Monitor Descriptor #2

Serial Number : BZ 123456

Monitor Descriptor #3

Monitor Name : PHILIPS 107T5

Monitor Descriptor #4

Monitor Range Limits

Min. Vt rate Hz : 50

Max. Vt rate Hz : 160

Min. Horiz. rate kHz : 30

Max. Horiz. rate kHz : 71

Max. Supported Pixel : 110

No secondary GTF timing formula supported.

Extension Flag : 0

Check sum : F1 (HEX.)

**********************************************************************

EDID data (128 bytes) for SDI tube

**********************************************************************

0: 00 1: ff 2: ff 3: ff 4: ff 5: ff 6: ff 7: 00

8: 41 9: 0c 10: 13 11: e0 12: 40 13: e2 14: 01 15: 00

16: 04 17: 0d 18: 01 19: 03 20: 68 21: 1f 22: 17 23: be

24: e8 25: 0d 26: b8 27: a5 28: 51 29: 43 30: 9b 31: 24

32: 0e 33: 48 34: 4c 35: ad 36: ee 37: 00 38: 31 39: 59

40: 45 41: 59 42: 61 43: 59 44: 81 45: 80 46: 31 47: 68

48: 45 49: 68 50: 81 51: 40 52: 71 53: 4f 54: d6 55: 09

56: 80 57: a0 58: 20 59: 5e 60: 63 61: 10 62: 10 63: 60

64: 52 65: 08 66: 32 67: e6 68: 10 69: 00 70: 00 71: 1a

72: 00 73: 00 74: 00 75: ff 76: 00 77: 20 78: 42 79: 5a

80: 20 81: 20 82: 31 83: 32 84: 33 85: 34 86: 35 87: 36

88: 0a 89: 20 90: 00 91: 00 92: 00 93: fc 94: 00 95: 50

96: 48 97: 49 98: 4c 99: 49 100: 50 101: 53 102: 20 103: 31

104: 30 105: 37 106: 54 107: 35 108: 00 109: 00 110: 00 111: fd

112: 00 113: 32 114: a0 115: 1e 116: 47 117: 0b 118: 00 119: 0a

120: 20 121: 20 122: 20 123: 20 124: 20 125: 20 126: 00 127: f1

29

9Go to cover page

107T5

Function Block of V30 107T5

R

G

B

H

SDA

SCL

V

Self-

test

PREAMP

with OSD

NT6812

ROTATION

BC516+BC517

H-OUTPUT/

BU2527AF/DM32F5

/TIP122

VERTICAL

OUTPUT STAGE

TDA8172

VIDEO

HORIZONTZL & VERTICAL

SYNC PROCESSOR

& B+ CONTROLLER

TDA 9112A

KEY

CONTROL

&

LED

MICRO-PROCESSOR

MCU WT62P2

SWITCH MODE

POWER SUPPLY

TEA1507

OFF

DEGAUSSING

EEPROM

M24C04

-BN6

S-CAP

SWITCH

DC

O/P MAIN

BOARD

AC

INPUT MIC I/P (30-71KHz)

H

V

I2C control

EHT Compensation

H-Driver

BSN254A

EHT

G1, G2

FOCUS

FOCUS

LOT

CF2091

LIGHT

FRAME IC

TDA4823

I2C

BUCK

CONVERTER

MTP5P25

DC

RESTORATION

LM2480

I2C

VIDEO

OUTPUT

STAGE

STV9556

R/G/B CRT

30

107T5

9Go to cover page

Schematic Diagram of Main board

+t

Rs

Rp

+t

COM

/PWM7

/HOUT

/VOUT

/PWM13

/PWM12

/PWM11

/PWM10

/PWM9

/PWM8

/SCL1

/SAD1

/AD0

/AD1

/AD2

/CLAMP

/3V3

/HFI

/HFO

/SDA2

/SCL2

/PAT

/SOGIN

/AD3

/PWM4

/PWM5

/PWM6

F2

G2

EHT

White

Red

Grey

F1

C

POWER

AMPLIFIER

_

+

FLYBACK

GENERATOR

THERMAL

PROTECTION

2252

2255

2633

2637

3408

3409

910N 250V MPS 820N 250V MPS 820N 250V MPS

330N 400V MPSA 300N 400V MPSA 300N 400V MPSA

270P 2KV X7R

270P 2KV X7R

330P 2KV X7R

330P 2KV X7R

330P 2KV X7R

330P 2KV X7R

2R2 1/2W

2R2 1/2W

2R2 1/2W

7102 K13

7103 L10

7105 M16

7151 L19

7503 C1

7262 A20

7263 B20

7264 D20

7266 E20

7602 D9

7603 D10

7604 E11

7605 B12

7606 A17

7613 D12

6603 B11

6604 B8

6605 B12

6606 A15

6607 B15

6608 A11

6609 G20

6611 D13

7615 E13

7616 F15

7801 F4

6251 A20

V30-107T5 CRT Deviation list *

REF. LG Tube SDI Tube CPT Tube

E

8813 F2

8814 G1

8815 G1

9625 E15

9626 E15

S001 E18

6803 L6

6804 L6

7154 N19

7155 N16

7252 A21

7253 B21

7254 D21

7256 E21

N

F1 D1

F2 D1

F3 D1

F4 E1

F5 E1

F6 E1

F7 E1

7405 M2

7406 L3

7407 M3

7401 N7

2R2 1/2W

2R4 1/2W

2R4 1/2W

6805 L7

7101 L15

6159 M19

6160 N18

6161 N16

6162 L17

7504 E5

7601 C9

6502 B2

6503 F13

6504 B2

6507 G13

6601 C9

6602 A9

6612 F15

6613 G14

6614 E14

7802 H1

6252 B20

6253 D20

8812 F1

C

D

[R]

N

A

B

1/2W

+350V

[R] STANDS FOR COMPONENT RESERVED.

7152 M19

7153 M20

H

I

J

K

L

M

10 11 12 13 14 15 16 17

F8 E1

F9 E1

F10 E1

7408 N2

7402 J7

7403 I8

7404 I8

7614 E12

6158 L19

8910

6255 E20

6401 L6

19 20 21

A

B

C

D

E

123

6615 D13

7803 J2

8501 F1

8601 H14

8811 F1

1/2W

1/2W

[R]

1/2W

DDC5V

1%

F

G

[R]

1%

1%

9

F23 K7

F24 K7

F25 K7

F26 K7

F27 I10

F29 J10

F30 I14

F31 I14

18 19 20

F11 F1

7409 N3

7410 N3

7501 A5

7502 B2

RMU

567

BEAD

BEAD

1/2W

13 14 15 16 17 18

F44 K16

F45 K16

F46 L16

1101 J10

1102 I10

1103 K11

1104 K10

1105-A J10

F

G

H

4

6616 G12

6617 H20

6801 K6

6802 L6

1/2W

DDCSCL

1/4W

[R]

1/2W

1/2W 1%

PB: 57271

F17 M4

F18 M4

F19 M4

F20 J7

F21 K7

F22 K7

1605 G10

1801 H3

1802 J7

1803 K1

2101 I11

2103 I13

2104 I13

2105 I14

F32 I14

F33 J14

F34 J15

21

F12 F1

F13 K1

F14 K1

F15 K1

1%

BEAD

1%

[R]

1%

2154 K19

2155 K19

2156 L19

11 12

[R]

POWER SUPPLY

F40 I16

F41 J16

F42 J16

F43 J16

2252 A19

2255 C17

2256 B20

2257 B19

2261 D20

2262 D19

2271 E20

2272 E19

1105-B K10

1109 B13

1401 I9

I

5678

-200V

[R]

1/2W

2W

1%

F16 K1

1/2W 1%

1/4W

1/2W

1/2W

1604 G10

2505 C4

2506 C4

2507 C4

2508 B4

2509 D4

2511 F13

2512 D4

2513 B6

2106 K10

2107 I15

2108 L15

F35 J15

1234

+800V

RMU

2151 L17

2152 I17

2153 J17

2605 D8

2606 D11

2607 C12

BEAD

[R]

2160 M19

2161 N17

2162 N19

2163 K20

2164 K20

2251 A20

2616 D10

2617 B8

2618 E15

2625 F15

2626 F13

2627 C10

2628 E12

2629 E14

2401 L5

2402 L6

2403 M5

1402 L4

J

K

L

M

AC +1000V

1/2W

-200V

MPSA

[R]

2802 H2

2803 H2

1%

1/2W

2410 M3

2411 N3

2501 A4

2502 B4

2503 B4

2504 B4

2814 K1

2815 I6

3101 I11

3102 I11

3103 I15

3104 L14

3105 L13

3106 L14

2514 B6

2515 C6

2516 D6

2109 L14

F36 I15

F37 K15

F38 K15

F39 I16

1/2W

1/2W

[R]

Hin

2604 B2

1/2W

1%

1/4W

2157 M18

2158 M18

2610 B13

2611 A14

2612 A15

2613 B15

2614 C14

2615 A17

3154 K20

3155 N16

3156 N16

3157 M18

3158 M18

3159 M18

3160 N19

3161 N18

2630 G14

2631 H19

2632 A11

2404 N6

1601-A A14

1601-C M8

1601-D N8

1603 G9

1/4W

1W

1/2W

1/4W

[R]

SB: 57251x1

1%

[R]

2W

1/2W

2806 G5

2807 I5

2808 I5

2809 J5

2810 L5

2813 K2

[R]

3257 B21

3258 B20

3259 B19

3261 B20

3264 B21

3266 D20

3267 D19

3107 L14

3108 L14

3109 L15

2517 D6

2110 L12

2111 L11

2112 L16

2113 L10

[R]

[R]

[R]

[R]

[R]

3504 B2

3505 B2

3506 B4

2804 I2

2805 G5

1/2W

1/4W

1/4W

MAIN PCB

DDCSDA

1/2W

3515 E6

3516 E5

3517 E6

3518 B1

3519 B1

3520 A6

3521 A6

3522 B6

3268 D20

3269 C21

3272 D21

3110 L13

2405 N5

2406 N6

2408 M7

2409 I7

1/2W

[R]

1/2W

1%

+1200V

3603 C9

3604 B9

3606 B9

3115 I14

3116 J12

3403 M5

3404 N6

3406 N7

3407 M8

3408 N7

3409 N7

3615 D11

3616 C14

3617 A15

3618 A18

3619 A18

3620 A17

3621 C11

3622 H20

3419 N2

3420 N3

3421 N3

3251 A21

2634 A11

2636 A12

2637 B16

2801 H2

1/2W

+70V

+160V

1%

3503 C2

3638 E13

3640 F13

3641 F14

[R]

1/2W

3509 C4

3510 C4

3511 E2

3512 D5

3513 D5

3514 D4

3657 B15

3658 D18

3801 G2

3802 H2

3803 H2

3804 H2

3805 I1

3806 J1

3523 C6

3524 C6

3526 C1

3281 E20

3111 M13

3112 M13

3113 L12

3114 L10

[R]

[R]

Vin

1/2W

1/2W

3817 K5

3818 K5

3819 K2

3401 L5

3402 M5

3609 C10

3610 C10

3611 C11

3612 C10

3613 D8

3614 D9

3828 I5

4101 K14

4401 N4

4601 G9

4602 G8

5101 I12

5102 K15

5103 I17

3623 E11

3624 G15

3625 H15

3422 I7

3252 A20

3253 A20

3254 A19

3256 A21

[R]

+1200V

3632 B7

3633 D12

3636 D13

selftest

[R]

H-yoke

3507 A4

3508 A5

3644 F15

3648 G19

3652 H19

3653 H19

3655 B16

3656 B16

5612 E14

5613 D9

5671 B17

6101 I14

6102 K15

6103 L15

6104 M13

6105 M13

3807 G5

3808 G5

3809 I5

3527 C1

3282 E19

3283 E20

3284 E21

3286 E21

1/2W

1/4W

[R]

3815 K2

3816 J6

3607 B11

3608 B12

3822 G3

3823 J1

3824 J1

3825 G3

3826 G5

3827 G5

E

D

C

B

A

5151 I20

5152 J20

5153 J20

3626 G15

3423 M2

3424 N2

3501 A2

3502 B2

3W

1/2W

V-yoke

1/4W

1/2W

3642 F14

3643 F15

5606 B14

5607 B14

5608 A15

5609 A15

5610 D16

5611 E14

12 13 14 2827262524

6106 L10

6151 I17

6152 J17

3810 J5

3528 E5

3529 C7

3601 B8

3602 B8

[R]

P

O

N

3820 K2

3821 G3

7654321 28

5154 K19

3627 A9

3628 G11

3629 A10

3631 G20

1/2W

123

5604 B13

5605 C13

S

R

Q

P

O

N

M

L

6153 J17

3811 J5

3812 J5

3813 J5

3814 K5

T

S

R

Q

E

D

C

K

J

I

H

G

F

A

owner.

is prohibited without the written consent of the copyright

All rights reserved. Reproduction in whole or in parts

toestemming van de auteursrechthebbende.

gedeeltelijk, is niet toegestaan dan met schriftelijke

Alle rechten voorbehouden. Verveelvuldiging, geheel of

14

5156 I16

5601 B10

5602 B11

5603 A13

18171615

T

27262423222120

K

4567891011

B

2322

6154 J19

6155 K19

6156 K19

6157 L20

15

I

H

G

F

1716

13

M

L

[R]

*

*

*

**

*

21201918

1211 19

2608 A13

2609 D14

3117 L19

3118 M18

3119 L18

3124 K11

3152 I18

3153 J17

3410 N8

3412 I7

3413 I7

3414 I8

3415 M5

3416 L2

3417 M3

3418 M3

3162 N18

3163 N19

3164 N20

1098

TO VIDEO BOARD 8311

TOCTRLBD8899

TO I / F CABLE

TO ROTATION

25

J

+6

[R]

[R]

[R]

[R]

[R]

[R]

[R]

[R]

[R]

[R]

[R]

[R]

[R]

[R]

2518 G13

2601 H15

2602 B10

2603 A10

1/2W

GND

1/2W

1/2W

1/2W

2633 C16

[R]

1/4W

8601

1

3424

3821

8K2

7604

TIP122

5153

100u

3812

4K7

6105

BAV21

+5

3617

100R

BZX79-B5V6

6804

3632

1K

3251

3K3

+6

F37

F4

+12

D9R0MC

3124

3

2

1

S001

Sparkgap 1.8 mm

+12

F24

3801

3K3

BC548C

7254

2151

4u7 100

BAV21

6607 3K3

BC516

7410

15R

3104

3257

8811

1

+83

3631

10K

7153

L78L05ACZ

GND2

IN

1

OUT

3

2106

2n2

2103

250

6803

BZX79-B5V6

2271

SB140

6154

3820

22K

4M7

3642

3284

2155

1000u

16

3641

39K

10n

2618

100

100MHZ

5103

100MHZ

3281

5612

3604

47R

MPSA44

7616

6155

BYV27-200

22K

F10

15R

3616

3611

100K

3657

250

22u

2609

7101

SSS7N60B

3809

10K

25

10u

2511

25

2u2

2251

7256

EGP20G

6614

3511

1K5

4K7

3802

3619

1K

3mH

5611

3286

100n

2617

50

470K

3102

JFE63931

1603

1

U

4601

TBC338-40

7103

150n

2607

100

F39

22K

3653

1

2

3

4

5

6

7

3404

2K2

100n

2261

50

1802

26041

10K

3413

5152

100u

1001u

2602

+6

100MHZ

5602

6401

SBYV27-200

4K7

3506

100R

3422

7407

BZX55-B5V6

6802

3154

2K2

F13

10n

250

2112

2n2

7405

250

2613

33K

3261

3608

10R

9625

3256

22K

100u

5609

3415

3K9

2257

250330n

3157

100K

3272

22K

7603

BC558C

1N4148

6617

1104

JFE632011

7614

BC328-40

5608

HL2455H-057N

2

3

4

5

+6

220p

2108

2000

50

2804

22p

100n

100

2515

F26

10K

3505

7601

+5

6601

1N4148

3266

22R

BSN254A

3113

1K

6255

3401

2R2

7504

PH2369

5601

1

3

42

3805

100R

F5

SCK104

3115

1604

JFE63931

1

2815

2u2 50

3158

2K2

220n

2109

100

254u7

2626

1K

3624

100

2503

10n

3515

180K

3613

1K

6106

1N4148

BAV21

6608

22n

2810

50

10K

3528

3602

1K

3504

3825

8K2

2632

3n3

4K7

+12

3827

4K7

50

R43

3108

F8

GBU4K

6101

3621

27K

IRF540

3517

470K

6507

BAV21

7262

3254

150K

BAV21

6616

6603

SB140

7266

3626

1R

3628

56K

F29

+12

14mH

5101

2

3

41

10n

2631

100

47K

3823

3116

PDB9R0MP6B7

100R

3807

3103

47K

3111

360K

F7

2156

6502

BZX79-C2V4

16

470u

3114

10K

100R

3818

7406

1101

AC-INLET

45

GND

2

1

L

3

N

100R

3806

3640

1K8

3418

+12

3414

1K

7803

BC548C

+12

3152

150K

10K

3828

2616

10u

16

12K

3824

4u7

2518

100

2000

2637

270p

F27

+12

3603

10K

1600

3119

150R

4n7

2608

100MHZ

5102

100

100u

2153

6158

RGP10D

3252

33K

8K2

3822

10n

2157

250

+6

3808

100R

100K

3503

680n

2101

275

F32

1N4148

6160

1647u

2802

+83

F33

3419

3509

4K7

470R

3623

R

4602

12

3804

4K7

2517

47u 16

+12

F30

2601

500

F45

F20

100p

2411 2410

RGP10D

6604

F42

3514

12K

3403

2K2

7151

TBC338-40

3520

10K

F41

3408

2R2

3m7

5606

68K

3622

12M

1801

61S1208

6159

1N4148

3106

56K

RGP10D

6156

3155

47R

7502

BF423

3526

22n

2813

50

3527

25

10u

2507

F11

1

SS019P1230AJ

1109

5

G1

6

G2

1

23

4

1105-A

A

1

G2

K

3

50

2604

4n7

100

2408

330n

470n 100

2516

BT169B

7152

16

1000u

2154

3814

4K7

100u

5151

15K

3163

F19

6102

BYD33J

3606

8K2

+12

22R

3258

2505 10n 100

50

2403

1n

100p 50

6609

1N4148

3522

100R

2501

13

14

16

2

3

4

5

6

7

8

6151

BYV36C

5156

SRW35EC-T85V118

1

10

11

12

3512

10K

3519

BAV21

6615

100n

2514

50

3105

470R

10n

2612

250

2

3

4

220p

2634

2000

8

6

DRIVER

2GND 7

NC

5

SENSE

1VCC

JFE63173

1803

1

3416

TEA1507

7102

3CTRL

4DEMAG

DRAIN

9626

3417

3513

5K6

F46

6611

BZX79-C15

3410

TTC05501JIA

4

6252

BYD33J

100n 100

2502

JFE63935

1601-D

F14

1n 50

2405

6104

BAV21

F18

3501

3K3

+12

F1

3110

680K

7253

BC548C

F9

3518

100K

3529

7503

+5

10K

3648

2K2

3815

1n 100

2504

160

10u

2630

2627

3811

16

470u

2404

F15

3

4

5

6

7

8

9

+6

42061

8501

1

10

11

12

2

BC517

7403

BC516

7404

5n6

2625

2105

100u 450

+12

1000

22n

2406

50

2163

47u 16

2513

100u 16

3407

270R

3627

SDT112DM

1103

1

2

3

4

240R

3162

4K7

3826

3420

6152

BYD33J

10n

2107

250

6613

RGP10G

3817 100R

630

22K

3264

3n3

2610

6605

DMV32F5

L

4101

12

IRF540

7263

G1

180K

3656

F17

3803

4K7

250

2262

150n

3107

R43

400

2255

330n

7264

IRF630B

1

2

3

3253

22R

1401

JFE63172

22K

1N4148

6504

3644

680R

3636

33n

2111

100

3816

10R

32

3269

3K3

TCET1103G

71051

4

JFE63935

1601-C

3

6805

BZX79-B5V6

37

38

PD5

PWM0

4

PWM1

3

PWM2

2

PWM3 39

RESET

5

VDD

6

VIN 41

2R2

3117

PB3

PB4

11

PB5

10

PC0 24

PC1 23

PC2 22

PC3

21

PC4

20

PC5

19

PC6

18

PC7

17

PD0 33

PD1 34

PD2 35

PD3 36

PD4

7

HIN 40

IRQ

16

OSCI

9

OSCO

8

25

PA0

PA1 26

PA2 27

PA3 28

PA4 29

PA5 30

PA6 31

PA7 32

PB0

15

PB1

14

PB2

13

12

+5

7801

6148-K420PH-62A

D+

1D- 42

GND

F25

3402

12K

1102

T4AH

+6

3164

10K

250V

3625

F16

22K

TBC338-40

7606

F12

3652

3658

2K2

BC548C

7402

-12

16

470u

2401

3601

1K

F34

5605

100MHZ

50

2161

22n

6602

RGP10G

5603

100MHZ

3160

1K

25

BYD33J

6253

E1

2

E2

3SCL 6

SDA

5

VCC 8

VSS

4

WC 7

2409

2u2

4

5

6

7

8

9

M24C16-BN6

7802

1E0

5610

DFBTPH0213D770-

1

11

14

16

2

3

4K7

3516

1105-B

3

470p

2606

50

1R

3406

BAV21

6162

10

4700u

2160

1

+83

330K

3643

1601-A

6606

BAV21

150K

3655

TDA8172

7401

3

FBgen

4

GND

5

Output

6

Vb

1Vin1

7Vin7

2

Vs

SB140

6801

+12

K

3

R

BC548C

7602

1

7155

TL431ACZ-AP

2

A

1

JFE63931

1605

47p

2805

50

36123609

3161

2K7

3610

4K7

3268

33K

3421

F35

130

F2

2003-01-07

11

V30SETNAMECHN

CLASS_NO

SUPERS.

1

NAME

DATECHECK

3138 178 6492

107T51/00

MAIN BOARD (LG)

A1

RGP10D

6103

32003-01-07

KC Huang/Dabby Tai

TYT12-

2003-01-10

KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000

3259

150K

22p

2803

50

3638

150R

16

47u

2164

3156

1K

7408

47u

2162

16

100n

2615

50

3615

2K4

F43

50

47u

2402

32

Vfocus

Vgnd 21

19

Voscf

23

Vout

13

Vref

2

Vsync

25

Xray

7613

TBC338-40

Hflyb

7

Hgnd

Hoscf

4

26

Hout

10

HposSS

1

Hsync

9

PLL1f

5

PLL2C

8

Ro

30

SCL

31

SDA

20

Vagc

3

Vblnk

22

Vcap

29

Vcc

18

Veht

TDA9112A

7501

14

Bcomp

28

Bout

15

Breg

16

Bsens

6

Co

24

EWout

27

GND

11

HVDyCor

17

Heht

12

15K

3523

BC548C

7154

22n

2611

100

G1

BYV36C

6153

47u 16

2509

BYD33J

6251

BC517

7409

3153

150K

3607

1R2

1

3109

R43

16

10u2801

8812

25

100MHZ

5613

7615

2SJ512

D

G

S

2506 2u2

120K

3118

3510

4K7

3614

4K7

3521

100R

502508 100n

F36

+83

3

4

254u72809

1402

1

2

F3

BC548C

7252

3819

470R

F40

3101

470K

1

6612

BYD33J

50

2806

1n

8815

47u

2110

3282

9

2000

2636

220p

25

10

2

3

4

6

7

8

3283

5671

SRW19ES-T36V005

5K6

3810

-100

F22

F23

502u22807

2000

2633

270p

50

4K7

3813

2R2

3409

100n

2605

5154

100u

2152

47u 160

2113

910n

2252

250

BZX79-C7V5

6161

+12

2603

470R

3508

2512

100

100

4u7

8813

1

+12

3n3

+190

-12

5K6

3502

F6

1

180R

3629

500

2158

100p

8814

F44

F21

3524 24K

F38

3412

3K3

6503

BAV21

3267

150K

250

2104

2n2

2808 4u7 25

6157

47R

+12

BZX79-C8V2

BU2527AF

7605

3507

5607

120uH

50

2814

22n

+12

100MHZ

5604

2

3159

3K9

F31

2

3618

5R6

U

4401

1

3112

1R

+190

2272

-100

10n

2628

250

3633

47R

25022u

2629

50

2256

100n

+6

+5

5R6

3620

63

3u3

2614

3423

Vref

SDA

Hflb

Hflb

Hflb

Hsize

Hsize

5VS

Vref

VidABL

Vref

ABL

VidABL

HS

Q4

Q3

Q1

SCL

ROT

5VS

Q2

CON-H

CON-V

ROT

Q1

Q2

Q3

Q4

HS

VS

off

degauss

VE

Vfly

Lin

SCL

SDA

Vout

Lin

ABL

SCL

SDA

Vfly

Vref

Degauss

off

VS

Vout

CON-V

CON-H

VE

0

1

2

3

10

9

8

6

7

5

4

27

28

13

12

11

14

15

16

17

18

19 20

21

22 23

25

24 26

32

31

30

34

31

9Go to cover page

107T5

0.0.0.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

32

107T5

9Go to cover page

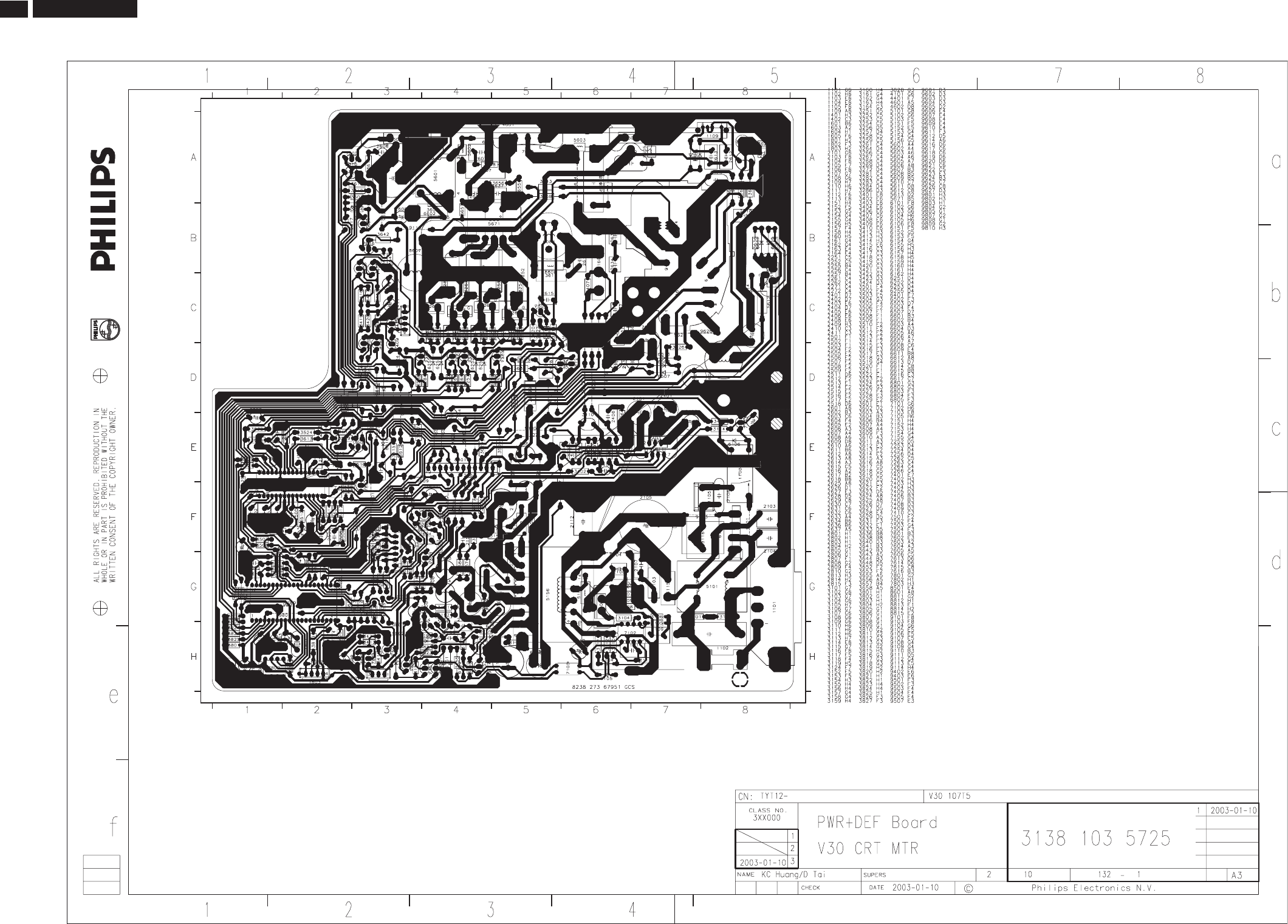

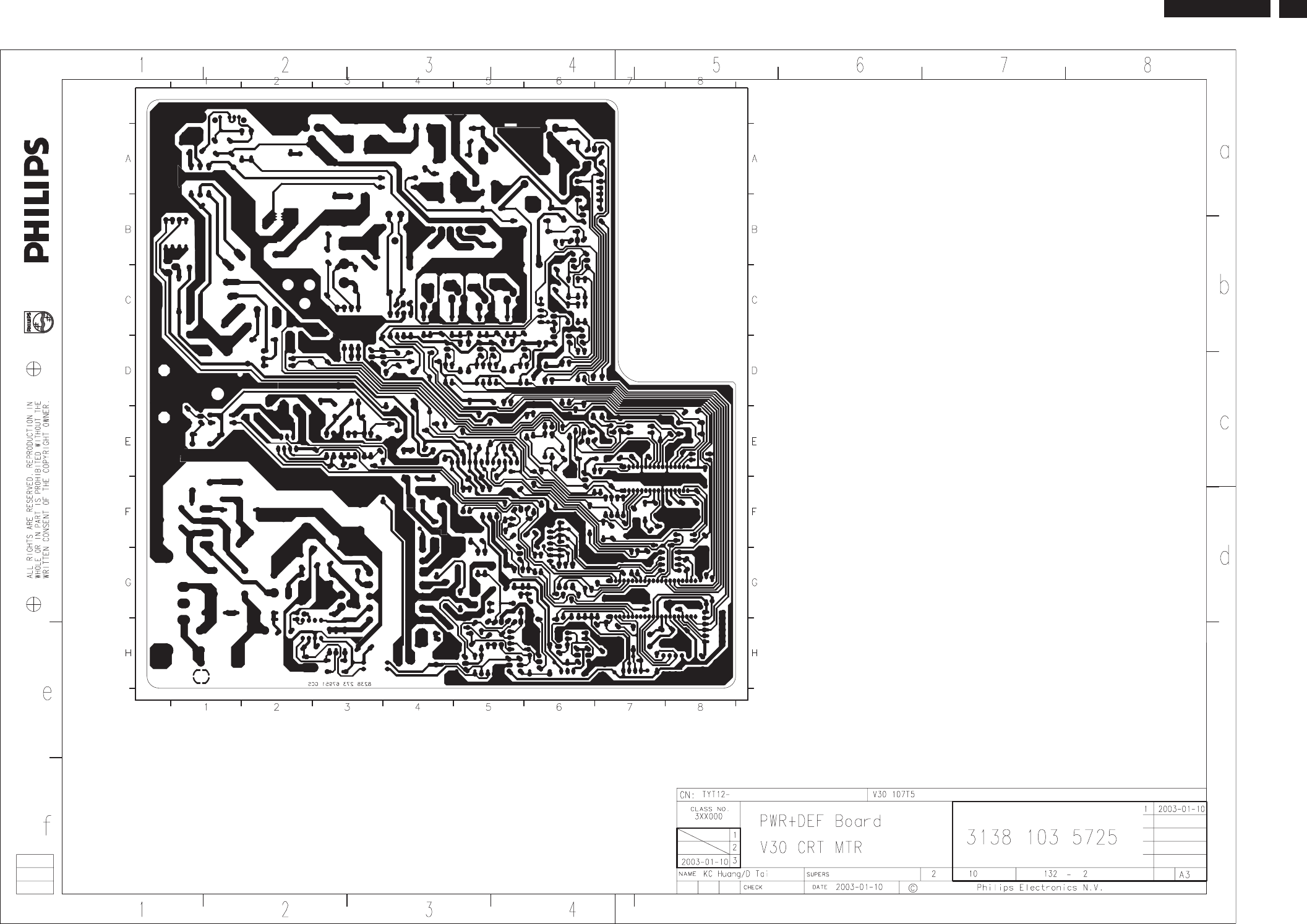

C. B. A. of Main board

33

9Go to cover page

107T5

C. B. A. of Main board

34

107T5

9Go to cover page

Schematic Diagram of Video board

C

GNDP

Vref

Vref GNDP

VDD

VDD

Vref

2

+83

+6

8311 H14

9311 E5

9312 E5

9313 E5

L

18

H-FLB

VS

O

N

12

16

1

GND

F2

ABL

B-IN

1/4W

G2

G2G1 F1

E

9

B

6333 G7

6334 F12

6335 F12

6336 F12

6361 H9

6712 C6

6713 D6

6714 B6

6721 A7

6722 B7

15

L

8

13

14

(R)

193 10

6723 D7

6726 E12

7311 E4

7331 E10

7701 A2

7702 C2

3313 F9

3314 F8

3315 F8

3316 G3

3317 G4

3318 H3

3319 H4

3320 H3

3321 G6

3322 H6

Alle rechten voorbehouden. Verveelvuldiging, geheel of

A

15

1 19

P

4

3324 H5

K

5707 E14

5711 C7

5712 A7

5713 D8

5721 D9

5726 E13

6332 G7

2718 D7

2719 D2

2720 D1

2721 D10

2722 A9

2723 B9

2724 C9

2726 E12

2727 D13

2728 E13

M

126

R-IN

GND

owner.

1/2W

5

1/2W

G

3301 F2

gedeeltelijk, is niet toegestaan dan met schriftelijke

VE

3304 G2

3305 H2

3306 G2

3307 H9

3308 E13

3309 H4

3311 H10

2331 E9

2333 G8

2334 H8

2336 H10

2340 G11

2345 E11

2701 A2

2702 B2

2703 C2

2704 A2

17

G-IN

M

87

J

toestemming van de auteursrechthebbende.

P

3330 E11

3331 F12

2707 A4

2708 E3

2711 A7

2712 D3

2713 D3

2714 D3

2715 C7

1712-E D13

1712-F B10

1712-G D10

1712-H C10

1712-I A10

1712-J D12

1721 E13

2301 H10

2311 F3

2312 F3

D

B

11 17

1/4W

G

3

3302 F2

3303 G2

2314 H4

2321 H6

2322 H6

2323 H6

2325 G6

2326 F6

2327 F7

F29 D13

F30 A10

1301 F1

1303 A10

1711-A D13

1711-B B10

1711-C D13

1711-D B10

1711-E C10

1711-F C10

B

HS

C

O

A

K

D

2705 D1

2706 A4

1711-G A10

1711-H D12

1711-I D11

1712-A D11

1712-B D11

1712-C D12

1712-D C10

F

G

H

I

A

B

C

D

E

F

SCL

(R)

20

1/2W

20

E

GND

F13 I14

F14 I14

F15 I14

F16 I14

F17 I14

G1

2313 G3

F22 B10

F23 B10

F24 C10

F25 D10

F26 D12

F27 D12

F28 D12

234567891011

I

F

2

+12

H

I

91 0

F

6

13 14

A

B

C

D

E

F6 G1

F7 H14

F8 H14

F9 H14

S1 E13

U1 B9

U2 A9

U3 C9

F10 H14

F11 I14

F12 I14

13

All rights reserved. Reproduction in whole or in parts

(R)

123456

F18 I14

F21 A10

9 1011121314

1

18

C

G

4

1/2W

GND

78

J

14

N

G

12

H

I

F1 F1

F2 F1

F3 G2

F4 F1

F5 G2

16

5

H

R

SDA

(R)

GND

is prohibited without the written consent of the copyright

3714 A8

3715 D5

3716 D8

3719 D2

3720 B7

3723 D1

3727 D1

3729 E13

3730 D7

4000 C2

5301 H13

5701 A3

5702 A4

5704 A1

5705 B1

7

1/2W

R

G

B

R

G

B

R

B

G

1/2W

5706 C1

3332 G9

3333 G8

3334 H11

3335 H9

3336 E8

3337 G8

3340 F13

3341 F13

3342 F13

3345 E11

3351 H11

3361 H10

3701 A4

3710 A7

3711 C5

3712 C8

3713 A5

11

VIDEO PCB

SB: 57261x1

3304

75R

[R]

[R] STANDS FOR COMPONENT RESERVED ONLY.

PB: 57271

TO I/F CABLE

TO MAIN BD 8501

1/2W

1/2W

75R

3302

9312

500

2726

470p

100MHZ

5726

2000

2727

2n2

3322

4R7

6722

BAV21

50

2314

22n

Sparkgap 0.7 mm

9313

3341

2K2

U1

3334

4K7

100R

3324

S1

Sparkgap 1.8 mm

5301

1u8

15K

3330

100R

3345

RGP10D

6361

5701

1u8

F4

1u8

5702

100MHZ

9311

5705

5707

100MHZ

6713

BAV21

75R

3303

F15

F16

F22

F14

150R

3712

2721

100n

CC

2326

100n

5K6

3332

1711-A

5

50

F24

6723

BAV21

3351

10K

2704

47u 16

HBLK

5R_IN

21

R_OUT

12 SCL

11 SDA

1VBLK

9VCO

3VDD_1

18

VDD_2

BAV21

6335

10 5V_PLL

22

ABL

7

B_IN

19

B_OUT

2CAP_A

13

CAP_D

23

CLAMP

16

DA1

15

DA2

14

DA3

17

GND_2

4GND_A

8

GND_PLL

6

G_IN

20

G_OUT

24

+12

NT6812K7331

1712-C

6

3701

47R

20

VSSa2

3301

75R

17

H

9HFL

12 INT

2Ri 23

Ro

11 SCL

10 SDA

7Test

8V

3VBL

15

VDD

18

VDDa1

22

VDDa2

24

VDDref

5VSSa1

7311

TDA4823PS_V1

14

ACI

13

ACW

6Bi 19

Bo

16

GND

1GNDref

4Gi 21

Go

10n

2728

2000

1712-F

9

6332

RGP10D

DSP-201M-D04F

2724

1711-E

9

2334

47u

16

+5

3307

100R

U2

3305

75R

+6

F27

+6

Sparkgap 0.7 mm

2707

10u 100

100

2706

1u

F7

1712-H

11

5706

100MHZ

CHECK

3138 178 6369

107T51/00

VIDEO BOARD

A2

32003-01-07

KC huang/Debby Tai

TYT12-

130

2003-01-10

KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000

2003-01-07

11

V30SETNAMECHN

CLASS_NO

SUPERS.

1

NAME

DATE

F6

+5

2722

DSP-201M-D04F

2311

100n

6712

BAV21

5713

0u68

50

5

6

7

8

9

1711-B

6

8311

1

10

11

12

2

3

4

50

1711-C

7

Bbias_in

3Bbias_out 6

GND

4

Gbias_in

2Gbias_out 7

Rbias_in

1Rbias_out 8

Vcc 5

100n

2312

R

4000

7702

LM2480NA

F17

220R

3316

1712-B

5

1712-A

1

0R

3331

2336

BAV21

6336

+12

25

22u

F25

47R

3315

1711-I

13

F26

+83A

15K

3729

50

2702

22p 22p

2701

50

+5

F5

6721

BAV21

3319

100R

1712-I

12

+83A

3337

4R7

1711-F

10

U3

Sparkgap 0.7 mm

+83A

F21

CC

+83

22p

2703

50

3318

100R

10

OUT2

9

OUT3

3

VCC VDD

7

270K

3720

STV9556

7701

GNDA

58

GNDP

6

GNDS

1IN1

IN2

2

4IN3

11

OUT1

3361

1R

F1

+6

3309

15K

AA

1712-D

7

150R

3714

F12

F13

1712-E

8

2715

1u 50

3321

4R7

100n

2713

100

100

2712

100n

F3

DA2

100MHZ

5721

6334 BAV21

F11

2720

100n

F10

15K

3317

50

0u68

57125704

100MHZ

5711

0u68

1711-G

11

1721

1

47R

3313

47R

3314

1712-J

13

50

100n

2327

3713

120R

F9

3340

2K2

75R

3306

+5

F29F28

2K2

3342

100n

2322

50

BAV21

6714

16

3730

270K

2u2

2345

50

2340

100u

50

100n

2325

3335

100R

3320

100R

2723

DSP-201M-D04F

F18

6333

1N4148

1

2331

47u

16

100n

2705

50

1303

AA

+83

50

2321

100n

501u

2711

3716

150R

1301

26040

1

2

3

4

5

6

F8

120R

3711

10

50

1u

2718

1712-G

3311

1711-D

8

3308

1K5

F2

3710

270K

1647u

2301

+5

12

50

2313

100n

100

2708

1u

1711-H

2333

100n

F30

390K

3333

100

+83A

50

2719

100n

BB

F23

BB

DA1

+83A

RGP10D

6726

120R

3715

16

3336

220R

100

2714

100n

2323

47u

3723

15K

DA3

15K

3719

G1

R

G

B

15K

3727

DA3

DA2

DA1

R

B

G

G1

11

10

09

0

1

2

33

4

5

8

7

6

12

13

14

15

16

0.

2.

3.

4.

5.

6.

7.

8.

1.

9.

10.

11.

12.

13.

14.

15.

16.

35

9Go to cover page

107T5

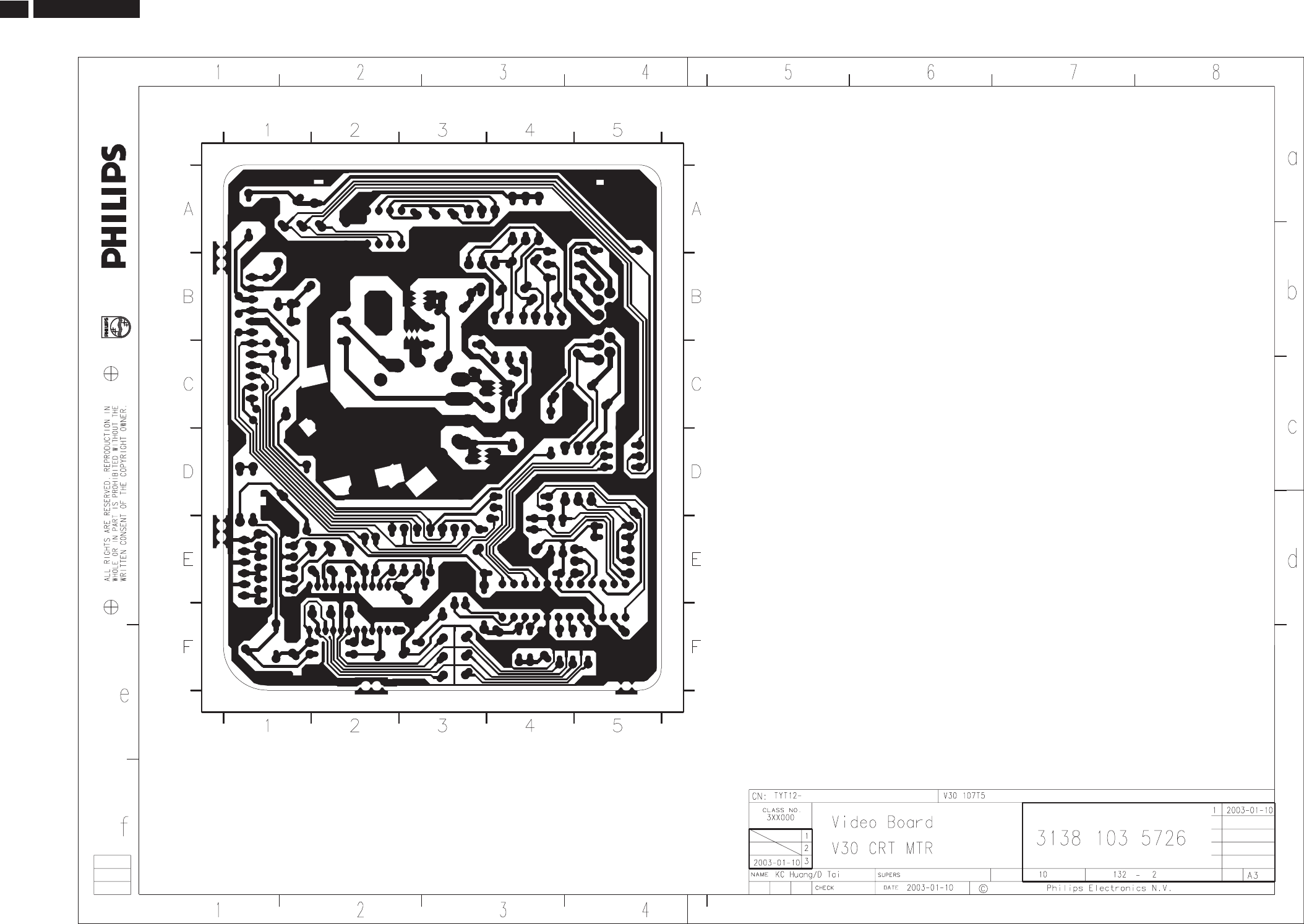

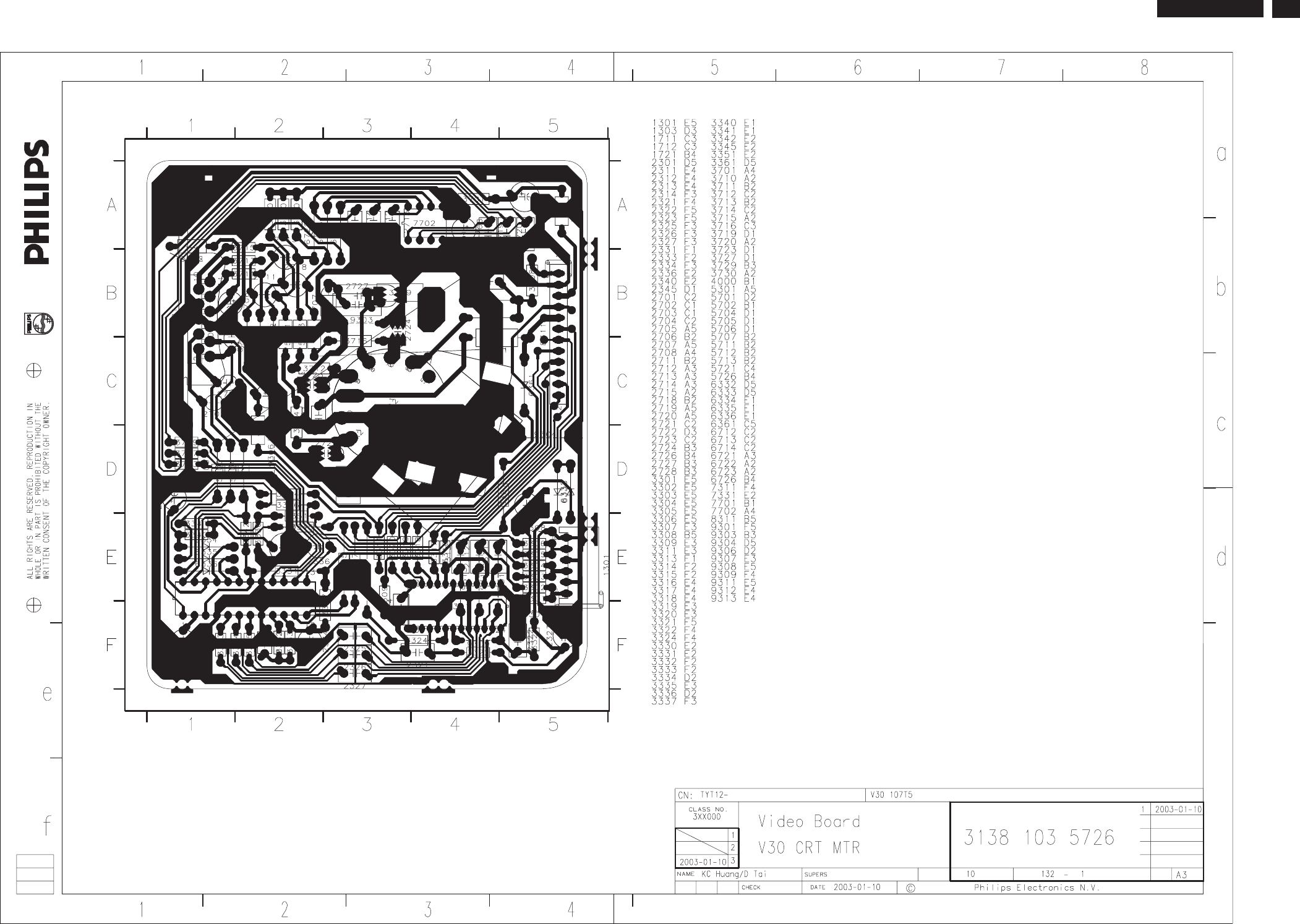

C. B. A. of Video board

36

107T5

9Go to cover page

C. B. A. of Video board

X

Go to cover page

37

107T5

Schematic Diagram of Control board

C

Left

A

2

J

1894 D2

1895 D3

3891 D1

3892 D1

4

3456

I

1/2W

I

H

G

F

E

F4 D3

1891 D1

3

1/2W

1/2W

1/2W

OK Right

CONTROL PCB

SB: 57231 x1

PB: 57271

TO MAIN BD 1803

Alle rechten voorbehouden. Verveelvuldiging, geheel of

A

B

C

D

E

1

gedeeltelijk, is niet toegestaan dan met schriftelijke

3893 D1

3894 D2

6891 C3

8899 C3

D

E

B

is prohibited without the written consent of the copyright

1

POWER

LF

1892 D1

1893 D2

All rights reserved. Reproduction in whole or in parts

toestemming van de auteursrechthebbende.

J

H

A

B

C

D

E

F1 C3

F2 C3

F3 C3

[R] STANDS FOR COMPONENT RESERVED.

21

65

F4

1%

1%

1%

1%

23

123

A

B

C

F

G

D

C

owner.

F3

3

F1

F2

CONTROL BOARD

107T51/00 3138 178 6374

CHECK DATE

NAME

1

SUPERS.

CLASS_NO

CHN SETNAME V30

11

2003-01-03 KONINKLIJKE PHILIPS ELECTRONICS N.V. 2000

2003-01-03

TYT12-

Roland/Ivy Su

2003-01-03

2

3

4

130 A4

1

2

3

4

1894

1

L-34GD

6891

8899

JFE3309V

4

1892

1

2

3

4

1893

1

2

3

3891

12K

3893

47K

3892

18K

1

2

3

4

3894

100K

1895

1

2

3

4

1891

X

Go to cover page

38

107T5

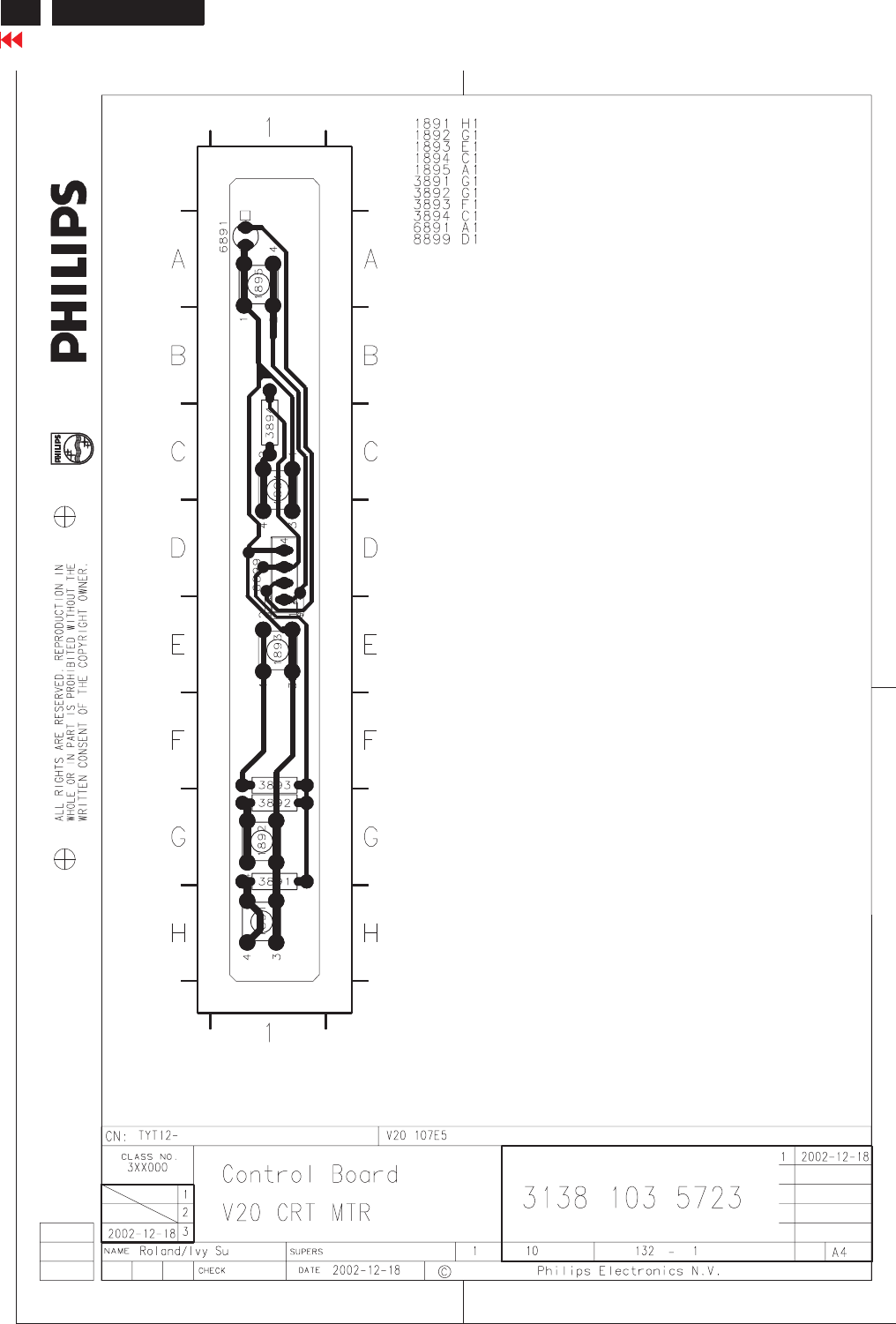

C. B. A. of Control board

Exploded View

107T5

39

Go to cover page

1

313812753481

FRONT CABINET ASSY 3

313812753281

PEDESTAL ASSY

4

313812753491

CHIN ASSY

42

313810460121

BACK COVER

57

313810440571

HOUSING COVER

1050

930191390323

CRT M41QEE903X04(HU) (LGPD) B

1051

313817865011

MB-1 ASSY (LG)

1052

313817863691

VB ASSY-107T5

1053 313817863741

C/B ASSY (107T5)

5007

313818876411

COIL CORNER TDC304

8055

313818876691

CBLE EARTH 460/270 CRT 107T5

444

107T5

40

Go to cover page

Recommend Parts List

Model : V30 107T50/00 863900012717

1 313812753481 FRONT CABINET ASSY

3 313812753281 PEDESTAL ASSY

42 313810460121 BACK COVER

4 313812753491 CHIN ASSY

450 313810662011 CARTON

451 313810661831 CUSHION-TOP

452 313810661841 CUSHION-BTM

454 313810656581 PE BAG

601 313811704781 E-D.F.U. ASSY

1161 243807098118 MAINSCORD (220V)-1.5M -CM3000

1162 313818876531 CORD SUB-D 15/1M45/6+7 PIN GY

1102 242208600208 FUSE 5X20 HT 4A 250V IEC B

1103 242213207402 RELAY 1P 12V 10/80A SDT-SS L

1711 242250080083 SOC CRT V 9P F 12P 14-17KV Y

1801 243854300061 RES XTL 12MHZ 30P HC49/U B

5007 313818876411 COIL CORNER TDC304

5101 313816872811 LINE FILTER (143Y1R5)

8055 313818876691 CBLE EARTH 460/270 CRT 107T5

7102 935267356112 IC TEA1507P/N1 (PHSE) L

7103 933953420676 TRA SIG TBC338-40 (TOSJ) A

7105 932214014667 OPT CP TCET1103(G) (VISH) L

7152 933826850126 THYRIS BT169B (PHSE) A

7153 932208234676 IC L78L05ACZ (ST00) A

7154 932209011673 TRA SIG BC548C (KEC0) A

7155 932208697676 IC TL431ACZ-AP S (ST00) A

7262 932212802687 FET POW IRF540 (ST00) L

7264 932217995687 FET POW IRF630B (FSC0) L

7311 935270542112 IC TDA4823PS/V1 (PHSE) L

7331 932219319682 IC NT6812K (NOVA) L

7403 933567130126 TRA SIG BC517 (PHSE) A

7404 933567120126 TRA SIG BC516 (PHSE) A

7501 932219219682 IC TDA9112A (ST00) L

7502 932214472676 TRA SIG BF423 (KEC0) A

7504 933450090126 TRA SIG PH2369 (PHSE) A

7601 934003960126 FET SIG BSN254A (PHSE) A

7603 932210142676 TRA SIG BC558C (KEC0) A

7614 933179570126 TRA SIG BC328-40 (PHSE) A

7616 934025870126 TRA SIG MPSA44 (PHSE) A

7702 932216674682 IC LM2480NA (NSC0) L

7801 823827444721 CPU,IC

7802 932212662682 IC M24C16-BN6 (ST00) L (OSD IC)

Model : V30 107T50/00 863900012717

Accessories

Main Panel

Main Panel

Various

1 313812753481 FRONT CABINET ASSY

3 313812753281 PEDESTAL ASSY

4 313812753491 CHIN ASSY

42 313810460121 BACK COVER

1050 930191390323 CRT M41QEE903X04(HU) (LGPD)

B

450 313810662011 CARTON

451 313810661831 CUSHION-TOP

452 313810661841 CUSHION-BTM

454 313810656581 PE BAG

601 313811704781 E-D.F.U. ASSY

1161 243807098118 MAINSCORD (220V)-1.5M -CM3000

1162 313818876531 CORD SUB-D 15/1M45/6+7 PIN GY

1051 313817865011 MB-1 ASSY (LG)

1052 313817863691 VB ASSY-107T5

1053 313817863741 C/B ASSY (107T5)

1051 313817865011 MB-1 ASSY (LG)

2109 203830250125 CAP POL MEF 100V S 220N PM10

A

2110 203803527303 ELCAP KM 25V S 47U PM20 A

2111 203830250103 CAP MPOL 100V S 33N PM5 A

2112 202055490158 CERSAF CD 250V S 2N2 PM20 B

2151 203803521701 ELCAP GS 100V S 4U7 PM20 A

2152 202202000717 ELCAP GS 160V S 47U PM20 B

2153 203803521706 ELCAP GS 100V S 100U PM20 B

2154 203803521217 ELCAP GS 16V S 1000U PM20 B

2155 823827444641 ELE CAP 1000U/16V 105 DEGREE

C

2156 203803511222 ELCAP REA 16V S 470U PM20 A

2157 203830250229 CAP MPOL 250V S 10N PM5 A

2158 202055790142 CER2 DC B 500V S 100P PM10 A

2160 202202000716 ELCAP GS 10V S 4700U PM20 B

2161 202055290834 CER2 DC F 50V S 22N P8020 A

2162 203803521206 ELCAP GS 16V S 47U PM20 A

2163 203803521206 ELCAP GS 16V S 47U PM20 A

2164 203803521206 ELCAP GS 16V S 47U PM20 A

2251 203803521301 ELCAP GS 25V S 2U2 PM20 A

2252 203830100333 CAP MPP MPS 250V S 910N PM5

B

2255 203830100427 CAP MPP MPSA 400V S 330N PM5

B

2256 225279508453 CER2 DC Y5V 50V 100N P8020 A

2257 203830100229 CAP MPP MPS 250V S 330N PM5

B

2261 225279508453 CER2 DC Y5V 50V 100N P8020 A

2262 203830100223 CAP MPP MPS 250V S 150N PM5

B

2401 203803527205 ELCAP KM 16V S 470U PM20 A

2402 203803527504 ELCAP KM 50V S 47U PM20 A

2403 202055290807 CER2 DC B 50V S 1N PM10 A

2404 203803527205 ELCAP KM 16V S 470U PM20 A

2405 202055290807 CER2 DC B 50V S 1N PM10 A

2406 202055290834 CER2 DC F 50V S 22N P8020 A

2408 203830250098 CAP MPOL 100V S 330N PM10 A

2409 203803521301 ELCAP GS 25V S 2U2 PM20 A

2501 202055290794 CER2 DC B 50V S 100P PM10 A

2502 203830250212 CAP MPOL 100V S 100N PM5 A

2503 203830250089 CAP MPOL 100V S 10N PM10 A

2504 203830150173 CAP PP PPN 100V S 1N PM5 A

2505 203830250089 CAP MPOL 100V S 10N PM10 A

2506 203803521301 ELCAP GS 25V S 2U2 PM20 A

2507 203803521303 ELCAP GS 25V S 10U PM20 A

2508 225279508453 CER2 DC Y5V 50V 100N P8020 A

2509 203803521206 ELCAP GS 16V S 47U PM20 A

2511 203803521303 ELCAP GS 25V S 10U PM20 A

2512 203830150191 CAP PP PPN 100V S 3N3 PM2 A

2513 203803521207 ELCAP GS 16V S 100U PM20 A

2514 225279508453 CER2 DC Y5V 50V 100N P8020 A

2515 203830250212 CAP MPOL 100V S 100N PM5 A

2516 203830250099 CAP MPOL 100V S 470N PM10 A

2517 203803521206 ELCAP GS 16V S 47U PM20 A

2518 203803521701 ELCAP GS 100V S 4U7 PM20 A

2601 225260808011 CER2 DC X7R 500V S 100P PM10

A

2602 203803511701 ELCAP REA 100V S 1U PM20 A

2603 203803521701 ELCAP GS 100V S 4U7 PM20 A

2604 202055290816 CER2 DC B 50V S 4N7 PM10 A

2605 225279508453 CER2 DC Y5V 50V 100N P8020 A

2606 202055290803 CER2 DC B 50V S 470P PM10 A

2607 203830250121 CAP MPOL 100V S 150N PM10 A

2608 203830100119 CAP PPS 1K6V S 4N7 PM5 B

2609 202202000729 ELCAP GS 250V S 22U PM20 B

2610 203830100109 CAP PP PPN 630V S 3N3 PM5 B

2611 203830250093 CAP MPOL 100V S 22N PM10 A

2612 203830250229 CAP MPOL 250V S 10N PM5 A

2613 203830250229 CAP MPOL 250V S 10N PM5 A

2614 203803523601 ELCAP BP BP 63V S 3U3 PM10 B

2615 225279508453 CER2 DC Y5V 50V 100N P8020 A

2616 203803521201 ELCAP GS 16V S 10U PM20 A

2617 225232512104 CER2 ML X7R 50V S 100N PM10 A

2618 203830250089 CAP MPOL 100V S 10N PM10 A

2625 225264133527 CER2 DC Z5U 1KV S 5N6 PM20 B

2626 203803521302 ELCAP GS 25V S 4U7 PM20 A

2628 203830150301 CAP PP PPN 250V S 10N PM5 A

2629 203803513904 ELCAP RGA 250V S 22U PM20 B

2630 203803513803 ELCAP RGA 160V S 10U PM20 B

2631 203830250089 CAP MPOL 100V S 10N PM10 A

2632 202055290814 CER2 DC B 50V S 3N3 PM10 A

2633 225260214266 CER2 DC X7R 2KV S 270P PM10 A

2634 225260214216 CER2 DC X7R 2KV S 220P PM10 A

2636 225260214216 CER2 DC X7R 2KV S 220P PM10 A

2637 225260214266 CER2 DC X7R 2KV S 270P PM10 A

2801 203803521201 ELCAP GS 16V S 10U PM20 A

2802 203803521206 ELCAP GS 16V S 47U PM20 A

2803 202055290594 CER1 DC NP0 50V S 22P PM5 A

2804 202055290594 CER1 DC NP0 50V S 22P PM5 A

2805 202055290598 CER1 DC NP0 50V S 47P PM5 A

2806 202055290807 CER2 DC B 50V S 1N PM10 A

2807 203801750222 ELCAP RE 50V S 2U2 PM20 R

2808 203803521302 ELCAP GS 25V S 4U7 PM20 A

2813 202055290834 CER2 DC F 50V S 22N P8020 A

2814 202055290834 CER2 DC F 50V S 22N P8020 A

2815 203801750222 ELCAP RE 50V S 2U2 PM20 R

3101 231291514704 RST MFLM MBB0207 A 470K PM1

A

3102 231291514704 RST MFLM MBB0207 A 470K PM1

A

3103 313810050511 MET FLM RST RSS2T 47K 6E

3104 212020200021 RST FUSE RFU1/3 A 15R PM5 A

3105 213810113471 RST CRB CFR-12 A 470R PM5 A

3106 213810113563 RST CRB CFR-12 A 56K PM5 A

3107 213811273437 RST CRB CFR-25 A 0R43 PM5 A

3108 213811273437 RST CRB CFR-25 A 0R43 PM5 A

3109 213811273437 RST CRB CFR-25 A 0R43 PM5 A

3110 213811273684 RST CRB CFR-25 A 680K PM5 A

3111 213811273364 RST CRB CFR-25 A 360K PM5 A

3112 212211000298 RST MFLM MF1/2WS A 1R PM1 A

3113 213810113102 RST CRB CFR-12 A 1K PM5 A

3114 213810113103 RST CRB CFR-12 A 10K PM5 A

3115 213866000027 NTC DC SCK-104 S 10R PM15 B

3116 212266300024 PTC 270V S 9R PM20 B

3117 212211000304 RST MFLM MF1/2WS A 2R2 PM1

A

3118 231291511204 RST MFLM MBB0207 A 120K PM1

A

3119 213810113151 RST CRB CFR-12 A 150R PM5 A

3152 231291511504 RST MFLM MBB0207 A 150K PM1

A

3153 231291511504 RST MFLM MBB0207 A 150K PM1

A

3154 213810113222 RST CRB CFR-12 A 2K2 PM5 A

3155 213810113479 RST CRB CFR-12 A 47R PM5 A

3156 213810113102 RST CRB CFR-12 A 1K PM5 A

3157 231291511004 RST MFLM MBB0207 A 100K PM1

A

3158 212211000365 RST MFLM MF1/2WS A 2K2 PM1

A

3159 213810113392 RST CRB CFR-12 A 3K9 PM5 A

3160 213810113102 RST CRB CFR-12 A 1K PM5 A

3161 212211000367 RST MFLM MF1/2WS A 2K7 PM1

A

3162 212211000339 RST MFLM MF1/2WS A 240R PM1

A

3163 213810113153 RST CRB CFR-12 A 15K PM5 A

3164 213810113103 RST CRB CFR-12 A 10K PM5 A

3251 213810113332 RST CRB CFR-12 A 3K3 PM5 A

3252 213810113333 RST CRB CFR-12 A 33K PM5 A

3253 213810113229 RST CRB CFR-12 A 22R PM5 A

3254 213810113154 RST CRB CFR-12 A 150K PM5 A

3256 213810113223 RST CRB CFR-12 A 22K PM5 A

3257 213810113332 RST CRB CFR-12 A 3K3 PM5 A

3258 213810113229 RST CRB CFR-12 A 22R PM5 A

3259 213810113154 RST CRB CFR-12 A 150K PM5 A

3261 213810113333 RST CRB CFR-12 A 33K PM5 A

3264 213810113223 RST CRB CFR-12 A 22K PM5 A

3266 213810113229 RST CRB CFR-12 A 22R PM5 A

3267 213810113154 RST CRB CFR-12 A 150K PM5 A

3268 213810113333 RST CRB CFR-12 A 33K PM5 A

3269 213810113332 RST CRB CFR-12 A 3K3 PM5 A

3272 213810113223 RST CRB CFR-12 A 22K PM5 A

3401 212211000304 RST MFLM MF1/2WS A 2R2 PM1

A

3402 212211000385 RST MFLM MF1/2WS A 12K PM1

A

3403 212211000365 RST MFLM MF1/2WS A 2K2 PM1

A

3404 212211000365 RST MFLM MF1/2WS A 2K2 PM1

A

3405 212211000317 RST MFLM MF1/2WS A 15R PM1

A

3406 212211000298 RST MFLM MF1/2WS A 1R PM1 A

3407 212211000341 RST MFLM MF1/2WS A 270R PM1

A

3408 212211000304 RST MFLM MF1/2WS A 2R2 PM1

A

3409 212211000304 RST MFLM MF1/2WS A 2R2 PM1

A

3410 212261200062 NTC DC TTC-501 S 500R PM5 A

3412 213810113332 RST CRB CFR-12 A 3K3 PM5 A

3413 213810113103 RST CRB CFR-12 A 10K PM5 A

3414 213810113102 RST CRB CFR-12 A 1K PM5 A

3415 213811273392 RST CRB CFR-25 A 3K9 PM5 A

3422 213810113102 RST CRB CFR-12 A 1K PM5 A

3501 213810113332 RST CRB CFR-12 A 3K3 PM5 A

3502 213811273562 RST CRB CFR-25 A 5K6 PM5 A

3503 231291511504 RST MFLM MBB0207 A 150K PM1

A

3504 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3505 213810113103 RST CRB CFR-12 A 10K PM5 A

3506 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3507 213810113479 RST CRB CFR-12 A 47R PM5 A

3508 213810113471 RST CRB CFR-12 A 470R PM5 A

3509 212211000374 RST MFLM MF1/2WS A 4K7 PM1

A

3510 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3511 213810113152 RST CRB CFR-12 A 1K5 PM5 A

3512 213810113103 RST CRB CFR-12 A 10K PM5 A

3513 213810113562 RST CRB CFR-12 A 5K6 PM5 A

3514 213810113123 RST CRB CFR-12 A 12K PM5 A

3515 231291511804 RST MFLM MBB0207 A 180K PM1

A

3516 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3517 213811273474 RST CRB CFR-25 A 470K PM5 A

3520 213810113103 RST CRB CFR-12 A 10K PM5 A

3521 213810113101 RST CRB CFR-12 A 100R PM5 A

3522 213810113101 RST CRB CFR-12 A 100R PM5 A

3523 212211000387 RST MFLM MF1/2WS A 15K PM1

A

3524 212211000393 RST MFLM MF1/2WS A 24K PM1

A

3528 213810113103 RST CRB CFR-12 A 10K PM5 A

3529 231291511004 RST MFLM MBB0207 A 100K PM1

A

3601 212211000356 RST MFLM MF1/2WS A 1K PM1 A

3602 213811273102 RST CRB CFR-25 A 1K PM5 A

3603 213810113103 RST CRB CFR-12 A 10K PM5 A

3604 213810113479 RST CRB CFR-12 A 47R PM5 A

3606 212010592167 RST MOX 2W RSS S 8K2 PM5 B

3607 212010592402 RST MOX 3W RSS S 1R2 PM5 B

3608 212211000315 RST MFLM MF1/2WS A 10R PM1

A

3610 212211000374 RST MFLM MF1/2WS A 4K7 PM1

A

3611 212211000392 RST MFLM MF1/2WS A 22K PM1

A

3613 213810113102 RST CRB CFR-12 A 1K PM5 A

3614 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3615 212211000365 RST MFLM MF1/2WS A 2K2 PM1

A

3616 212020200021 RST FUSE RFU1/3 A 15R PM5 A

3617 212010592155 RST MOX 2W RSS S 100R PM5 B

3618 212211000312 RST MFLM MF1/2WS A 5R6 PM1

A

3619 213810113102 RST CRB CFR-12 A 1K PM5 A

3620 212211000312 RST MFLM MF1/2WS A 5R6 PM1

A

3621 213810113273 RST CRB CFR-12 A 27K PM5 A

3622 213810113683 RST CRB CFR-12 A 68K PM5 A

3623 213810113471 RST CRB CFR-12 A 470R PM5 A

3624 213811273102 RST CRB CFR-25 A 1K PM5 A

3626 213811273108 RST CRB CFR-25 A 1R PM5 A

3628 212211000403 RST MFLM MF1/2WS A 56K PM1

A

3629 212010592403 RST MOX 1W RSS S 180R PM5 B

3631 213810113103 RST CRB CFR-12 A 10K PM5 A

3632 212211000356 RST MFLM MF1/2WS A 1K PM1 A

3633 213811273479 RST CRB CFR-25 A 47R PM5 A

3636 213810113223 RST CRB CFR-12 A 22K PM5 A

3638 213810113151 RST CRB CFR-12 A 150R PM5 A

3640 213810113182 RST CRB CFR-12 A 1K8 PM5 A

3641 213810113393 RST CRB CFR-12 A 39K PM5 A

3642 213810500438 RST MGL RMU14 A 4M7 PM1 A

3643 213810500431 RST MGL RMU14 A 330K PM1 A

3644 213810113681 RST CRB CFR-12 A 680R PM5 A

3648 213810113103 RST CRB CFR-12 A 10K PM5 A

3652 213810113223 RST CRB CFR-12 A 22K PM5 A

3653 213810113223 RST CRB CFR-12 A 22K PM5 A

3655 231291511504 RST MFLM MBB0207 A 150K PM1

A

3656 231291511804 RST MFLM MBB0207 A 180K PM1

A

3657 213810113104 RST CRB CFR-12 A 100K PM5 A

3658 212211000365 RST MFLM MF1/2WS A 2K2 PM1

A

3801 213810113332 RST CRB CFR-12 A 3K3 PM5 A

3802 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3803 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3804 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3806 213810113101 RST CRB CFR-12 A 100R PM5 A

3807 213810113101 RST CRB CFR-12 A 100R PM5 A

3808 213810113101 RST CRB CFR-12 A 100R PM5 A

3809 213810113103 RST CRB CFR-12 A 10K PM5 A

3810 213810113562 RST CRB CFR-12 A 5K6 PM5 A

3812 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3813 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3814 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3815 213810113222 RST CRB CFR-12 A 2K2 PM5 A

3816 213810113109 RST CRB CFR-12 A 10R PM5 A

3817 213810113101 RST CRB CFR-12 A 100R PM5 A

3818 213811273101 RST CRB CFR-25 A 100R PM5 A

3819 213811273471 RST CRB CFR-25 A 470R PM5 A

3820 212211000392 RST MFLM MF1/2WS A 22K PM1

A

3823 213810113473 RST CRB CFR-12 A 47K PM5 A

3824 213810113123 RST CRB CFR-12 A 12K PM5 A

3825 213810113822 RST CRB CFR-12 A 8K2 PM5 A

107T5 41

Go to cover page

Spare Parts List

107T5

42

Go to cover page

Spare Parts List

3826 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3827 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3828 213810113103 RST CRB CFR-12 A 10K PM5 A

3829 213810113472 RST CRB CFR-12 A 4K7 PM5 A

5007 313818876411 COIL CORNER TDC304

5101 313816872811 LINE FILTER (143Y1R5)

5102 243853598058 IND FXD BEAD EMI 100MHZ 80R A

5103 243853598058 IND FXD BEAD EMI 100MHZ 80R A

5151 242253600036 IND FXD TSL0808 S 100U PM10 A

5152 242253600036 IND FXD TSL0808 S 100U PM10 A

5153 242253600036 IND FXD TSL0808 S 100U PM10 A

5154 242253600036 IND FXD TSL0808 S 100U PM10 A

5156 313818876731 TFM SMT LAYER SRW35EC-T85V1

1

5601 313818870361 DRIVER XFMR (HJC-S0738A)

5602 313816872631 BEAD COIL

5603 313816872631 BEAD COIL

5604 313816872631 BEAD COIL

5605 313816872631 BEAD COIL

5606 242253600037 IND FXD TSL0808 S 3700U PM5 A

5607 313818876741 COI CHOKE 120UH 190mOHM DR1

4

5608 313816878191 LINEARITY COIL

5610 313818876771 TFM LOT LAYER 11mm WIRE

5611 313818871121 DRUM CHOKE

5612 243853598058 IND FXD BEAD EMI 100MHZ 80R A

5613 243853598058 IND FXD BEAD EMI 100MHZ 80R A

5671 313818875111 TFM POW DAF SRW19ES-T36V005

6101 932215736682 BRIDGE GBU4K (PAJI) B

6102 933723420133 DIO REC BYD33J A (PHSE) A

6103 933751660673 DIO REC RGP10D A (GI00) A

6104 933189210133 DIO SIG BAV21 A (PHSE) A

6105 933189210133 DIO SIG BAV21 A (PHSE) A

6106 933083990133 DIO SIG 1N4148 A (PHSE) A

6151 933730980133 DIO REC BYV36C A (PHSE) A

6152 933723420133 DIO REC BYD33J A (PHSE) A

6153 933730980133 DIO REC BYV36C A (PHSE) A

6154 933957760673 DIO REC SB140 A (GI00) A

6155 932210346673 DIO REC SBYV27-200 A (GI00) A

6156 933751660673 DIO REC RGP10D A (GI00) A

6157 933117770133 DIO REG BZX79-C8V2 A (PHSE) A

6158 933751660673 DIO REC RGP10D A (GI00) A

6159 933083990133 DIO SIG 1N4148 A (PHSE) A

6160 933083990133 DIO SIG 1N4148 A (PHSE) A

6161 933117760133 DIO REG BZX79-C7V5 A (PHSE) A

6162 933189210133 DIO SIG BAV21 A (PHSE) A

6251 933723420133 DIO REC BYD33J A (PHSE) A

6252 933723420133 DIO REC BYD33J A (PHSE) A

6253 933723420133 DIO REC BYD33J A (PHSE) A

6332 933751660673 DIO REC RGP10D A (GI00) A

6401 932210346673 DIO REC SBYV27-200 A (GI00) A

6502 933414680133 DIO REG BZX79-C2V4 A (PHSE) A

6503 933189210133 DIO SIG BAV21 A (PHSE) A

6504 933083990133 DIO SIG 1N4148 A (PHSE) A

6507 933189210133 DIO SIG BAV21 A (PHSE) A

6601 933083990133 DIO SIG 1N4148 A (PHSE) A

6602 933493960673 DIO REC RGP10G A (GI00) A

6603 933957760673 DIO REC SB140 A (GI00) A

6604 933751660673 DIO REC RGP10D A (GI00) A

6606 933189210133 DIO SIG BAV21 A (PHSE) A

6607 933189210133 DIO SIG BAV21 A (PHSE) A

6608 933189210133 DIO SIG BAV21 A (PHSE) A

6609 933083990133 DIO SIG 1N4148 A (PHSE) A

6611 933117830133 DIO REG BZX79-C15 A (PHSE) A

6612 933723420133 DIO REC BYD33J A (PHSE) A

6613 933493960673 DIO REC RGP10G A (GI00) A

6614 932205787673 DIO REC EGP20G A (GI00) A

6615 933189210133 DIO SIG BAV21 A (PHSE) A

6616 933189210133 DIO SIG BAV21 A (PHSE) A

6617 933083990133 DIO SIG 1N4148 A (PHSE) A

6801 933957760673 DIO REC SB140 A (GI00) A

6802 933166820133 DIO REG BZX79 B5V6 A (PHSE) A

6803 933166820133 DIO REG BZX79 B5V6 A (PHSE) A

6804 933166820133 DIO REG BZX79 B5V6 A (PHSE) A

6805 933166820133 DIO REG BZX79 B5V6 A (PHSE) A

6806 933166820133 DIO REG BZX79 B5V6 A (PHSE) A

7102 935267356112 IC TEA1507P/N1 (PHSE) L

7103 933953420676 TRA SIG TBC338-40 (TOSJ) A

7105 932214014667 OPT CP TCET1103(G) (VISH) L

7151 933953420676 TRA SIG TBC338-40 (TOSJ) A

7152 933826850126 THYRIS BT169B (PHSE) A

7153 932208234676 IC L78L05ACZ (ST00) A

7154 932209011673 TRA SIG BC548C (KEC0) A

7155 932208697676 IC TL431ACZ-AP S (ST00) A

7252 932209011673 TRA SIG BC548C (KEC0) A

7253 932209011673 TRA SIG BC548C (KEC0) A

7254 932209011673 TRA SIG BC548C (KEC0) A

7262 932212802687 FET POW IRF540 (ST00) L

7263 932212802687 FET POW IRF540 (ST00) L

7264 932217995687 FET POW IRF630B (FSC0) L

7402 932209011673 TRA SIG BC548C (KEC0) A

7403 933567130126 TRA SIG BC517 (PHSE) A

7404 933567120126 TRA SIG BC516 (PHSE) A

7501 932219219682 IC TDA9112A (ST00) L

7502 932214472676 TRA SIG BF423 (KEC0) A

7504 933450090126 TRA SIG PH2369 (PHSE) A

7601 934003960126 FET SIG BSN254A (PHSE) A

7602 932209011673 TRA SIG BC548C (KEC0) A

7603 932210142676 TRA SIG BC558C (KEC0) A

7606 933953420676 TRA SIG TBC338-40 (TOSJ) A

7613 933953420676 TRA SIG TBC338-40 (TOSJ) A

7614 933179570126 TRA SIG BC328-40 (PHSE) A

7616 934025870126 TRA SIG MPSA44 (PHSE) A

7801 823827444721 CPU,IC

7802 932212662682 IC M24C16-BN6 (ST00) L

7803 932209011673 TRA SIG BC548C (KEC0) A

Audio Panel

1052 313817863691 VB ASSY-107T5

2101 203831000014 CAP MPP 275V S 680N PM10 B

2103 202055490163 CERSAF NSB 250V S 2N2 PM20 B

2104 202055490163 CERSAF NSB 250V S 2N2 PM20 B

2105 202202000725 ELCAP LP 450V S 100U PM20 B

2107 203830150301 CAP PP PPN 250V S 10N PM5 A

2108 225260214216 CER2 DC X7R 2KV S 220P PM10 A

2301 203803521206 ELCAP GS 16V S 47U PM20 A

2311 225279508453 CER2 DC Y5V 50V 100N P8020 A

2312 225279508453 CER2 DC Y5V 50V 100N P8020 A

2313 225279508453 CER2 DC Y5V 50V 100N P8020 A

2314 202055290834 CER2 DC F 50V S 22N P8020 A

2321 225279508453 CER2 DC Y5V 50V 100N P8020 A

2322 225279508453 CER2 DC Y5V 50V 100N P8020 A

2323 203803521206 ELCAP GS 16V S 47U PM20 A

2325 225279508453 CER2 DC Y5V 50V 100N P8020 A

2326 225279508453 CER2 DC Y5V 50V 100N P8020 A

2327 225279508453 CER2 DC Y5V 50V 100N P8020 A

2331 203803527201 ELCAP KM 16V S 47U PM20 A

2333 225232626104 CER2 ML X7R 100V S 100N PM10

A

2334 203803527201 ELCAP KM 16V S 47U PM20 A

2336 203803527301 ELCAP KM 25V S 22U PM20 A

2340 203803527202 ELCAP KM 16V S 100U PM20 A

2345 823827444651 ELE CAP 2U2/50V 105 DEGREE C

2701 202055290594 CER1 DC NP0 50V S 22P PM5 A

2702 202055290594 CER1 DC NP0 50V S 22P PM5 A

2703 202055290594 CER1 DC NP0 50V S 22P PM5 A

2704 203803527201 ELCAP KM 16V S 47U PM20 A

2705 225279508453 CER2 DC Y5V 50V 100N P8020 A

2706 203803513708 ELCAP RGA 100V S 1U PM20 A

2707 203803521702 ELCAP GS 100V S 10U PM20 A

2708 203803513708 ELCAP RGA 100V S 1U PM20 A

2711 202203600002 ELCAP BP NK 50V S 1U PM20 A

2712 225232626104 CER2 ML X7R 100V S 100N PM10

A

2713 225232626104 CER2 ML X7R 100V S 100N PM10

A

2714 225232626104 CER2 ML X7R 100V S 100N PM10

A

2715 202203600002 ELCAP BP NK 50V S 1U PM20 A

2718 202203600002 ELCAP BP NK 50V S 1U PM20 A

2719 225279508453 CER2 DC Y5V 50V 100N P8020 A

2720 225279508453 CER2 DC Y5V 50V 100N P8020 A

2721 225232626104 CER2 ML X7R 100V S 100N PM10

A

2726 202055790146 CER2 DC B 500V S 470P PM10 A

2727 225261214226 CER2 DC Y5P 2KV S 2N2 PM10 A

3301 213810113759 RST CRB CFR-12 A 75R PM5 A

3302 213810113759 RST CRB CFR-12 A 75R PM5 A

3303 213810113759 RST CRB CFR-12 A 75R PM5 A

3304 213810113759 RST CRB CFR-12 A 75R PM5 A

3305 213810113759 RST CRB CFR-12 A 75R PM5 A

3306 213810113759 RST CRB CFR-12 A 75R PM5 A

3307 213810113101 RST CRB CFR-12 A 100R PM5 A

3308 212211000361 RST MFLM MF1/2WS A 1K5 PM1

A

3309 213810113153 RST CRB CFR-12 A 15K PM5 A

3313 213810113479 RST CRB CFR-12 A 47R PM5 A

3314 213810113479 RST CRB CFR-12 A 47R PM5 A

3315 213810113479 RST CRB CFR-12 A 47R PM5 A

3316 213810113221 RST CRB CFR-12 A 220R PM5 A

3317 213810113153 RST CRB CFR-12 A 15K PM5 A

3318 213810113101 RST CRB CFR-12 A 100R PM5 A

3319 213810113101 RST CRB CFR-12 A 100R PM5 A

3320 213810113101 RST CRB CFR-12 A 100R PM5 A

3321 213810113478 RST CRB CFR-12 A 4R7 PM5 A

3322 213810113478 RST CRB CFR-12 A 4R7 PM5 A

3324 213810113101 RST CRB CFR-12 A 100R PM5 A

3330 213810113153 RST CRB CFR-12 A 15K PM5 A

3331 213810100369 RST JUMP CR-12 A MAX 0R01 A

3332 213810113562 RST CRB CFR-12 A 5K6 PM5 A

3333 213810113394 RST CRB CFR-12 A 390K PM5 A

3334 213810113472 RST CRB CFR-12 A 4K7 PM5 A

3335 213810113101 RST CRB CFR-12 A 100R PM5 A

3336 213810113221 RST CRB CFR-12 A 220R PM5 A

3337 213811273478 RST CRB CFR-25 A 4R7 PM5 A

3340 213810113222 RST CRB CFR-12 A 2K2 PM5 A

3341 213810113222 RST CRB CFR-12 A 2K2 PM5 A

3342 213810113222 RST CRB CFR-12 A 2K2 PM5 A

3345 213810113101 RST CRB CFR-12 A 100R PM5 A

3351 213810113103 RST CRB CFR-12 A 10K PM5 A

3361 213810113108 RST CRB CFR-12 A 1R PM5 A

3701 213811273479 RST CRB CFR-25 A 47R PM5 A

3710 231291512704 RST MFLM MBB0207 A 270K PM1

A

3711 213810113121 RST CRB CFR-12 A 120R PM5 A

3712 212211000338 RST MFLM MF1/2WS A 220R PM1

A

3713 213810113121 RST CRB CFR-12 A 120R PM5 A

3714 212211000338 RST MFLM MF1/2WS A 220R PM1

A

3715 213810113121 RST CRB CFR-12 A 120R PM5 A

3716 212211000338 RST MFLM MF1/2WS A 220R PM1

A

3719 213810113153 RST CRB CFR-12 A 15K PM5 A

3720 231291512704 RST MFLM MBB0207 A 270K PM1

A

3723 213810113153 RST CRB CFR-12 A 15K PM5 A

3727 213810113153 RST CRB CFR-12 A 15K PM5 A

3729 212010128153 RST CMP ERC12 A 15K PM10 A

3730 231291512704 RST MFLM MBB0207 A 270K PM1

A

5301 242253597608 IND FXD SPT0305 A 1U8 PM10 R

5701 242253597608 IND FXD SPT0305 A 1U8 PM10 R

5702 242253597608 IND FXD SPT0305 A 1U8 PM10 R

5704 313816872631 BEAD COIL

5705 313816872631 BEAD COIL

5706 313816872631 BEAD COIL

5707 313816872631 BEAD COIL

5711 313817874201 COIL 0.68UH PM10

5712 313817874201 COIL 0.68UH PM10

5713 313817874201 COIL 0.68UH PM10

5721 243853598058 IND FXD BEAD EMI 100MHZ 80R A

5726 313816872631 BEAD COIL

6333 933256030673 DIO SIG 1N4148 A (VISH) A

6334 933189210133 DIO SIG BAV21 A (PHSE) A

6335 933189210133 DIO SIG BAV21 A (PHSE) A

6336 933189210133 DIO SIG BAV21 A (PHSE) A

6361 933751660673 DIO REC RGP10D A (GI00) A

6712 933189210133 DIO SIG BAV21 A (PHSE) A

6713 933189210133 DIO SIG BAV21 A (PHSE) A

6714 933189210133 DIO SIG BAV21 A (PHSE) A

6721 933189210133 DIO SIG BAV21 A (PHSE) A

6722 933189210133 DIO SIG BAV21 A (PHSE) A

6723 933189210133 DIO SIG BAV21 A (PHSE) A

6726 933751660673 DIO REC RGP10D A (GI00) A

7311 935270542112 IC TDA4823PS/V1 (PHSE) L

7331 932219319682 IC NT6812K (NOVA) L

7702 932216674682 IC LM2480NA (NSC0) L

1053 313817863741 C/B ASSY (107T5)

Control Panel

3891 212211000385 RST MFLM MF1/2WS A 12K PM1

A

3892 212211000389 RST MFLM MF1/2WS A 18K PM1

A

3893 212211000401 RST MFLM MF1/2WS A 47K PM1

A

3894 231291511004 RST MFLM MBB0207 A 100K PM1

A

6891 932218424682 LED VS L-34GD (KIEL) B

43

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 1590

V30 GS4 107T5 71KHz General Specification (Sheet 590)

============================================

FEATURES / BENEFITS

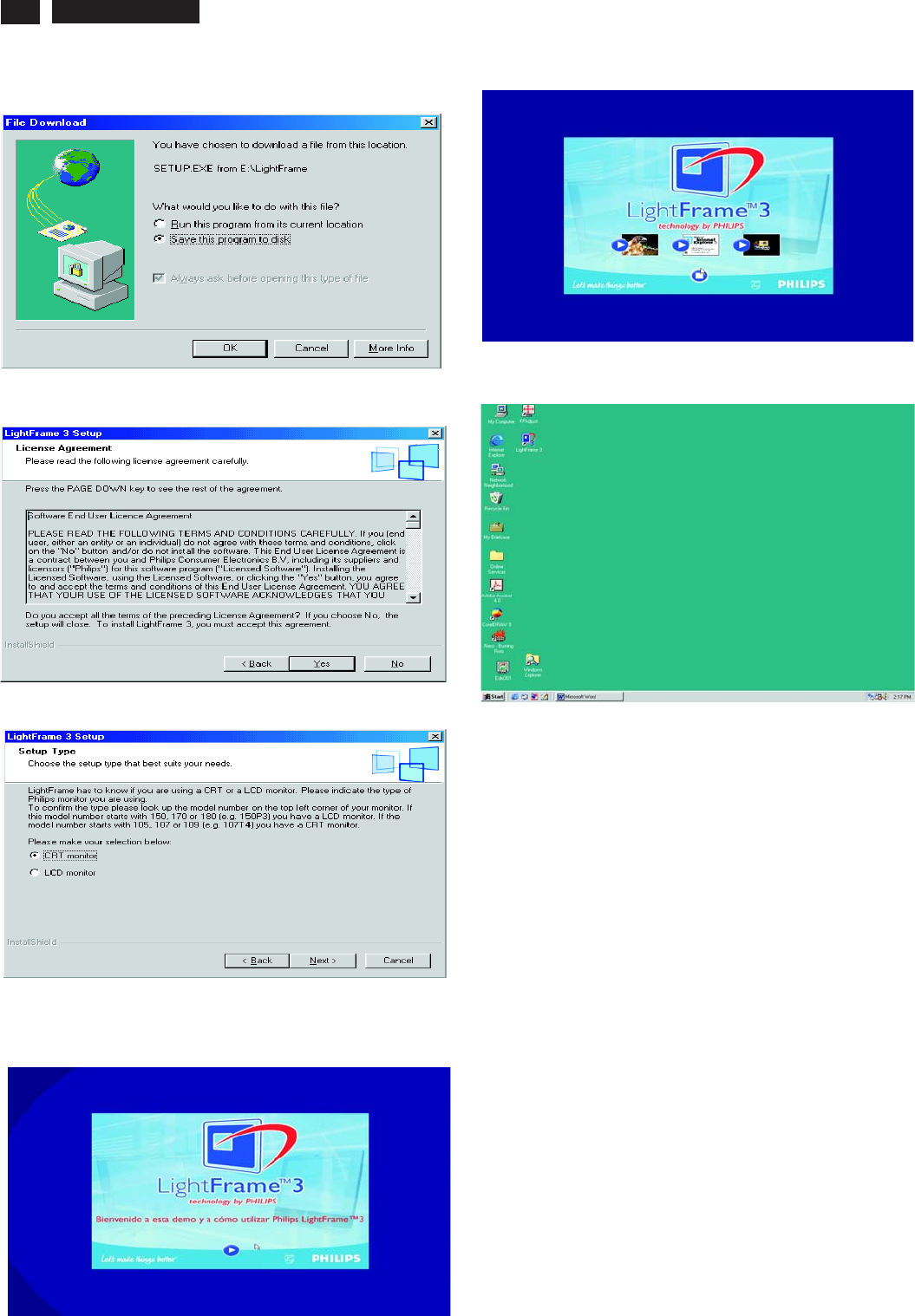

- LightFrame

Brightness and sharpness boost on user selectable windows. User interface

application for Windows 95/98/NT/2000 and MacOS 8/9. Supported languages:

English, French, German, Italian, Spanish, Portuguese, Dutch, Chinese(S),

Chinese(C),

Korean (for Windows version).

- EXTREMELY HIGH MTBF (OVER 75K HRS, EXCLUDING CRT)

- PROFESSIONAL LOOK, WITH NON-FLAMMABLE CABINET (94V-0)

- USER'S CONTROLS

. FRONT MOUNTED CONTROLS FOR EASY ACCESS

- BETTER DISPLAY PERFORMANCE

. FINER CRT DOT PITCH (0.25 MM)

. FULL SCREEN SIZE APPLICATION

. REAL MULTI-FREQ.

- POWER SAVING MANAGEMENT SYSTEM

- MAXIMIZED CONTAINER LOADING

- VESA DDC2B

- LOW EMISSION MPRII/TCO99/TCO95 (optional)

44

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 2590

INDEX

=========

1.0 Introduction

2.0 General description

2.1 General condition

3.0 Electrical characteristics

3.1 Signal interface

3.1.1 Input requirements

3.1.2 Signals input

3.1.3 Factory preset modes

3.2 Timing requirements

3.2.1 Horizontal scanning

3.2.2 Vertical scanning

3.3 Power supply

3.4 Power saving management system

3.5 CRT description

3.6 RGB amplifier

3.6.1 Video amplifier

3.6.2 Brightness and Contrast

3.7 Variation of image size

3.8 Degaussing

3.9 Phosphor protection

3.10 Low emission requirements (MPRII/TCO99/TCO95)

3.11 Display data channel : DDC2B (VESA STANDARD)

4.0 Display

4.1 Display resolution

4.2 Image size

4.3 Image centering deviation

4.4 Picture shift control range

4.5 Picture tilt

4.6 Geometrical distortion

4.7 Image non-linearity

4.8 Mis-covergence

4.9 Focus check

4.10 Luminance uniformity

4.11 White color adjustment

4.12 Color tracking on full white pattern

4.13 Purity

4.14 Moiré

4.15 Blemish

45

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 3590

5.0 Mechanical characteristics

5.1 User controls (at front)

5.2 Connector and cables

5.2.1 Power Cord

5.2.2 Signal Cable

5.3 Tilt and swivel base

6.0 Environmental characteristics

6.1 Susceptibility of display to external environment

6.1.1 Operation limits

6.1.2 Transportation packages

6.2 Display disturbance from external environment

6.2.1 ESD disturbances

6.3 Display disturbance to external environment

6.3.1 Ionizetic radiation

6.3.2 EMI/EMS

7.0 Safety tests

7.1 Dielectric strength

7.2 Resistance for protective earthing

7.3 Leakage current

7.4 Grounding

8.0 Certifications

8.1 Safety

8.2 EMI

8.3 Fulfil approbation requirements

9.0 Reliability

9.1 Mean time between failures

10.0 Quality assurance requirements

10.1 Acceptance test

11.0 Service ability

46

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 4590

This document is related to the 17" AUTOSCAN (VGA above and Max. resolution

1280X1024 by 60HZ refresh) color monitor for world-wide destination.

The AUTOSCAN analog color monitor is specified as a display peripheral within

an IBM PC, PS/2 ,VGA and advance VGA compatible system.

The AUTOSCAN analog color monitor is to operate at horizontal line rates

between 30 to 71 KHz and refreshment rate between 50 to 160 Hz, can be applied to all

RGB analog computers within this scanning frequencies.

The AUTOSCAN analog color monitor is intended to be a finished product,

basically a display device mounted inside a plastic enclosure which provides the aesthetic

mechanical, ergonomic and safety requirements.

2.1 General condition

The unit will produce a usable image after switching-on, measurements are to be carried out

with a full stabilized set after 30 minutes warm-up at room temperature of 25° C.

Repetitive power on/off cycles are allowed though should be avoided within 4 sec.

3.1 Signal interface

The AUTOSCAN analog color display has an analog video interface to operates at a

multi-frequencies timing in several display modes.

3.1.1 Input requirements

A. Input signals

Video : Analog level

Sync. : Separate sync. with TTL level

Polarity : Positive or negative

B. Signal input level

Video : 0.7 Vp-p 75 ohms (for individual of R,G and B signals must not

deviate 0.015 Vp-p from each other for balance of white pattern)

Sync : TTL level

(between 0 and 0.6 V to be considered as low level, between 2.3 and 5.0 V as

high level)

C. Impedance

Video : Terminated with 75 ohms

Sync : Terminated with 4.7K ohms pull down resistors.

1.0 Introduction

2.0 General description

3.0 Electrical characteristics

47

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 5590

3.1.2 Signals input

The input video signals are applied to the display device through a video cable which is

fixed to the monitor (standard cable length 1.45M).

Video input cable :

15 pin D-shell male connector type AMP 211350-1(3 rows) or equivalent, with pin

assignment as follows :

Pin assignment of 15P D-SUB connector

Pin nbr. Assignment

3.1.3 Factory preset modes:

Factory preset modes : 8

Resolution H. freq. V. freq. H. V.

1. 720 x 400 31.5 KHz 70Hz (VGA) - +

2. 640 x 480 31.47 KHz 60Hz (VGA) - -

3. 640 x 480 43.3 KHz 85Hz (VESA) - -

4. 800 x 600 46.9 KHz 75Hz (VESA) + +

5. 800 x 600 53.67 KHz 85Hz (VESA) + +

6. 1024 x 768 60.0 KHz 75Hz (VESA) + +

7. 1024 x 768 68.7 KHz 85Hz (VESA) + +

8. 1280 x 1024 64.0 KHz 60Hz (VESA) + +

48

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 6590

Factory preload modes : 14

Resolution H. freq. V. freq.

9. 640 x 350 31.5 KHz 70 Hz

10. 640 x 350 37.9 KHz 85 Hz

11. 640 x 480 37.5 KHz 75 Hz

12. 640 x 480 37.9 KHz 72.8Hz

13 640 x 480 50.6 KHz 100 Hz

14. 720 x 400 37.9 KHz 85 Hz

15. 800 x 600 37.9 KHz 60 Hz

16. 800 x 600 48.1 KHz 72 Hz

17. 800 x 600 63.9 KHz 100 Hz

18. 832 x 624 49.7 KHz 75 Hz

19. 1024 x 468 48.4 KHz 60 Hz

20. 1024 x 768 56.5 KHz 70 Hz

21. 1152 x 864 67.5 KHz 75 Hz

22. 1280 x 960 60 KHz 60 Hz

3.2 Timing requirements

The AUTOSCAN color monitor must be capable of displaying standard

resolutions within the vertical(refresh) frequency range of 50 to 160 Hz and horizontal

scanrangeof30–71KHz.

49

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 7590

TIMING FOR V30 GS4 107T5 71K COLOR MONITOR

REFERENCE PATTERN GENERATOR : CHROMA 2135

* According VESA version 1.0 release 0.6p

Factory preset modes

TABLE 1: 31.469 KHz/70.087 Hz, 720 X 400, pixel=28.325 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 31.774 us Total size = 14.268 ms

Display size = 25.422 us Display size = 12.711 ms

Rear porch = 1.907 us Rear porch = 1.112 ms

Sync width = 3.813 us Sync width = 0.064 ms

Sync polarity = - Sync polarity = +

TABLE 2: 31.469KHz/59.940 Hz, 640 X 480, pixel=25.175 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 31.778 us Total size = 16.683 ms

Display size = 25.422 us Display size = 15.253 ms

Rear porch = 1.907 us Rear porch = 1.049 ms

Sync width = 3.813 us Sync width = 0.064 ms

Sync polarity = - Sync polarity = -

TABLE 3: 43.269KHz/85.008 Hz, 640 X 480, pixel=36.000 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 23.111 us Total size = 11.764 ms

Display size = 17.778 us Display size = 11.093 ms

Rear porch = 2.222 us Rear porch = 0.578 ms

Sync width = 1.556 us Sync width = 0.069 ms

Sync polarity = - Sync polarity = -

50

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 8590

TABLE 4: 46.875 KHz/75 Hz, 800 X 600, pixel=49.500 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 21.333 us Total size = 13.333 ms

Display size = 16.162 us Display size = 12.800 ms

Rear porch = 3.232 us Rear porch = 0.448 ms

Sync width = 1.616 us Sync width = 0.064 ms

Sync polarity = + Sync polarity = +

TABLE 5: 53.674 KHz/85.061 Hz, 800 X 600, pixel=56.250 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 18.631 us Total size = 11.756 ms

Display size = 14.222 us Display size = 11.179 ms

Rear porch = 2.702 us Rear porch = 0.503 ms

Sync width = 1.138 us Sync width = 0.056 ms

Sync polarity = + Sync polarity = +

TABLE 6: 60.03 KHz/75 Hz, 1024 X 768, pixel=78.750 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 16.660 us Total size = 13.328 ms

Display size = 13.003 us Display size = 12.795 ms

Rear porch = 2.235 us Rear porch = 0.466 ms

Sync width = 1.219 us Sync width = 0.050 ms

Sync polarity = + Sync polarity = +

TABLE 7: 63.981 KHz/60 Hz, 1280 X 1024, pixel=108 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 15.630 us Total size = 16.661 ms

Display size = 11.852 us Display size = 16.005 ms

Rear porch = 2.296 us Rear porch = 0.594 ms

Sync width = 1.037 us Sync width = 0.047 ms

Sync polarity = + Sync polarity = +

51

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 9590

TABLE 8: 68.677 KHz/85 Hz, 1024 X 768, pixel=94.500 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 14.561 us Total size = 11.765 ms

Display size = 10.836 us Display size = 11.183 ms

Rear porch = 2.201 us Rear porch = 0.524 ms

Sync width = 1.016 us Sync width = 0.044 ms

Sync polarity = + Sync polarity = +

Factory preload modes

TABLE 9: 31.469KHz/70.087 Hz, 640 X 350, pixel=25.175MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 31.778 us Total size = 14.268 ms

Display size = 25.422 us Display size = 11.122 ms

Rear porch = 1.907 us Rear porch = 1.907 ms

Sync width = 3.813 us Sync width = 0.064 ms

Sync polarity = + Sync polarity = -

TABLE 10: 37.861KHz/85.08 Hz, 640 X 350, pixel=31.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 26.413 us Total size = 11.754 ms

Display size = 20.317 us Display size = 9.244 ms

Rear porch = 3.048 us Rear porch = 1.585 ms

Sync width = 2.032 us Sync width = 0.079 ms

Sync polarity = + Sync polarity = -

TABLE 11: 37.5KHz/75 Hz, 640 X 480, pixel=31.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 26.667 us Total size = 13.333 ms

Display size = 20.317 us Display size = 12.8 ms

Rear porch = 3.810 us Rear porch = 0.427 ms

Sync width = 2.032 us Sync width = 0.08 ms

Sync polarity = - Sync polarity = -

52

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 10590

TABLE 12: 37.861KHz/72.809 Hz, 640 X 480, pixel=31.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 26.413 us Total size = 13.735 ms

Display size = 20.317 us Display size = 12.678 ms

Rear porch = 4.064 us Rear porch = 0.739 ms

Sync width = 1.270 us Sync width = 0.079 ms

Sync polarity = - Sync polarity = -

TABLE 13: 50.625 KHz/100.049 Hz, 640 X 480, pixel=40.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 19.752 us Total size = 9.995 ms

Display size = 15.802 us Display size = 9.481 ms

Rear porch = 1.975 us Rear porch = 0.435 ms

Sync width = 1.580 us Sync width = 0.059 ms

Sync. polarity = - Sync. polarity = -

TABLE 14: 37.927 KHz/85.039 Hz, 720 X 400, pixel=35.5 MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 26.366 us Total size = 11.759 ms

Display size = 20.282 us Display size = 10.546 ms

Rear porch = 3.042 us Rear porch = 1.107 ms

Sync width = 2.028 us Sync width = 0.079 ms

Sync. polarity = - Sync. polarity = +

TABLE 15: 37.879 KHz/60.317 Hz, 800 X 600, pixel=40MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 26.400 us Total size = 16.579 ms

Display size = 20.000 us Display size = 15.840 ms

Rear porch = 2.200 us Rear porch = 0.607 ms

Sync width = 3.200 us Sync width = 0.106 ms

Sync. polarity = + Sync. polarity = +

53

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 11590

TABLE 16: 48.077 KHz/72.188 Hz, 800 X 600, pixel=50MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 20.800 us Total size = 13.853 ms

Display size = 16.000 us Display size = 12.480 ms

Rear porch = 1.280 us Rear porch = 0.478 ms

Sync width = 2.400 us Sync width = 0.125 ms

Sync. polarity = + Sync. polarity = +

TABLE 17: 63.92KHz/100 Hz, 800 X 600, pixel=67.5MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 15.644 us Total size = 9.997 ms

Display size = 11.852 us Display size = 9.387 ms

Rear porch = 2.370 us Rear porch = 0.548 ms

Sync width = 0.948 us Sync width = 0.047 ms

Sync. polarity = + Sync. polarity = +

TABLE 18: 49.714KHz/74.534 Hz, 832 X 624, pixel=57.27MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 20.115 us Total size = 13.417 ms

Display size = 14.528 us Display size = 12.552 ms

Rear porch = 3.911 us Rear porch = 0.784 ms

Sync width = 1.118 us Sync width = 0.060 ms

Sync. polarity = - Sync. polarity = -

TABLE 19: 48.363 KHz/60.004 Hz, 1024 X 768, pixel=65MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 20.677 us Total size = 16.666 ms

Display size = 15.754 us Display size = 15.880 ms

Rear porch = 2.462 us Rear porch = 0.600 ms

Sync width = 2.092 us Sync width = 0.124 ms

Sync. polarity = - Sync. polarity = -

54

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 12590

TABLE 20: 56.476KHz/70.069 Hz, 1024 X 768, pixel=75MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 17.707 us Total size = 14.272 ms

Display size = 13.653 us Display size = 13.599 ms

Rear porch = 1.920 us Rear porch = 0.513 ms

Sync width = 1.813 us Sync width = 0.106 ms

Sync. polarity = - Sync. polarity = -

TABLE 21: 67.5 KHz/75Hz, 1152 X 864, pixel=108MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 14.815 us Total size = 13.333 ms

Display size = 10.667 us Display size = 12.8 ms

Rear porch = 2.370 us Rear porch = 0.474 ms

Sync width = 1.185 us Sync width = 0.044 ms

Sync polarity = + Sync polarity = +

TABLE 22: 60.0 KHz/60 Hz, 1280 X 960, pixel= 108MHz

Horizontal Vertical

Frame border = 0 Frame border = 0

Total size = 16,667 us Total size = 16.667 ms

Display size = 11.852 us Display size = 16.000 ms

Rear porch = 2.889 us Rear porch = 0.600 ms

Sync width = 1.037 us Sync width = 0.050 ms

Sync polarity = + Sync polarity = +

55

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 13590

3.2.1 Horizontal scanning

Scanning frequency : 30 - 71 KHz

H-shift range : ±10 mm Min. (for preset modes only)

3.2.2 Vertical scanning

Scanning frequency : 50 - 160 Hz

V-shift range : ±10 mm min. (for preset modes only)

3.3 Power supply

The display device maintains the specified performance in the range described as below :

Type Mains current Mains Voltage Mains freq.

230V version 1.5A Max. 90 - 264 VAC 60 +/- 3 Hz

Power consumption : 75 Watts Max.

Power cord length : 1.5M

Powercordtype :3leadplugpowercord

with protective earth plug or IBM hooded

3.4 Power saving management system

Signal

H-Sync V-Sync Video

Compliance

Requirement

Power

On Active Active Active Mandatory <= 75w

Off Inactive Active Blanked Mandatory <= 2 w

Off Active Inactive Blanked Mandatory <= 2 w

Off Inactive Inactive Blanked Mandatory <= 2 w

3.5 CRT Description

This display unit employs a high resolution CRT complying with the following specifications :

Dimensions : 17 inches flat/square screen

Pitch : 0.25mm dotted with black matrix

Deflection angle : 90 degrees

Light transmission : 50%(CPT), 52.8%(LG), 52.6%(SDI)

Face treatment : AGARAS

Implosion protection : By P-Mini-rim-band.

EHT : 25.0 ±1KV(Ib=0)

Visible screen area : 325.1 mm x 243.8 mm

CRT Source : CPT, LG, SDI

56

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 14590

3.6 RGB Amplifier

3.6.1 Video amplifiers

Dot Rate : 108 MHz

Over / undershoot : 15% Max. (Transient response)

Sag : 5% Max. (pulses of 0.70H)

Black level shift : 5% Max.

3.6.2 Brightness and Contrast

Reference mode 68.7 KHZ/85 HZ full white pattern.

DISPLAY LIGHT OUTPUT

Light output

Brightness Contrast (full white)

Minimum Minimum not visible

Center Maximum 30 ±5FL.

100mmx100mm block

Brightness at center and contrast at maximum light output is 41+/-6 FL.

sRGB : When sRGB mode is selected, the light output (Full white pattern) shall be 23 +/-

3FL regardless of main contrast and brightness controls. Adjusting contrast or brightness

will auto exit sRGB mode and go to 6500K mode.

3.6.3 Raster light output

Apply 68.7KHz/85Hz mode with no video pattern, set brightness at center(50%) and

contrast control at minimum(0%).

The light output on the screen center should be < 0.2FL.

3.7 Variation of image size ( For preset modes only )

Due to brightness change : £1.0 %

Long term (Static) : <1.50mm on left/right side

(See Fig.7) <1.20mm on top/bottom side

Duetoaging

(25°C, 300 hrs) : £1.0 %

Due to mains voltage

variation ( ±10% ) : £1.0 %

3.8 Degaussing

An automatic degaussing circuit is provided which requires no intervention.

The degaussing shall be activated and work effectively at the time of switch-on

or switch-on again or pressing the manual degaussing key after the degaussing

circuit has been switched off for longer than 30 minutes

(The PTC should be completely cooled off).

57

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 15590

3.9 Phosphor protection

The display device is sufficiently protected against the burning of phosphors in

case of repetitive power cycling or absence of horizontal deflection.

3.10 Low emission requirements (MPRII/TCO99/TCO95)

---------------------------------------------------------

Items Band I Band II

ELF(rms) VLF(rms)

Alternating Electric MPRII < 25 V/M MPRII < 2.5 V/M

Field TCO < 10 V/M TCO < 1.0 V/M

Magnetic Field MPRII < 250 nT MPRII < 25 nT

TCO< 200 nT TCO < 25 nT

Electrostatic

Potential < +/- 500 V

Band I : 5 to 2K HZ.

Band II : 2K to 400K HZ.

Test procedure according to low emission and E.S.P. test method.

3.11 Display data channel : DDC2B (VESA STANDARD)

The DDC HEX Data (refer sheet 190) should be written into the

DDC IC (24LC21 or equivalent)

4.0 Display image (CRT facing east)

The monitor is aligned in a magnetic cage having the

following magnetic field components :

Northern Hemisphere : H = 0, V = 450 mG, Z = 0

Southern Hemisphere : H = 0, V = -500 mG, Z = 0

Equatorial : H = 0, V = 0 mG, Z = 0

Conditions for visual testing, unless otherwise stated:

Input video signal - 700 mVpp cross hatch

Brightness control - center(50%)

Contrast control - maximum(100%)

4.1 Display resolutions

See 3.1.3

58

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 16590

4.2 Image size (For preset modes only)

The dimensions of guaranteed display area to be measured along the picture center of

horizontal and vertical axis of the screen as listed below: (preset modes only, refer to fig. 1)

Width : 306 ±3mm

Height : 230 ±3mm

4.3 Image centering deviation (For preset modes only)

With respect to fig. 2, the target relationships are the following :

|A- B| £5 mm |C- D| £5mm

Note : This centering is adjustable by the end-user.

4.4 Picture shift control range (For preset modes only)

H-shift range : ±10 mm min.

V-shift range : ±10 mm min.

4.5 Picture tilt

With respect to Fig. 3, Tilt to be measured on extremes of center line from bezel.

|A- B| : £2mm

4.6 Geometrical distortions (For preset modes only)

It is acceptable that pincushion, trapezoid, rhomboid,

rotation and various waves distortions must remain within

the limits of tolerance as in Fig. 4,

whereA=B=2.0mm.

C = D = 2.0 mm.

The waviness of any vertical or horizontal shall be less than 1.0 mm over a 50 mm distance.

4.7 Image non-linearity (For preset modes only)

Apply cross-hatch pattern with

12 equal blocks along horizontal axis,

9 equal blocks along vertical axis. (see Fig. 1)

Overall : £10 %

Adjacent : £6 % (For 64kHz mode H £8%)

X. max. - X. min.

H. non-linearity = x 100%

X. Max.

Y. max. - Y. min.

V. non-linearity = x 100%

Y. Max.

59

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 17590

4.8 Mis-convergence

The maximum convergence error to be measured on a white spot or white display line to

represents the maximum distance between the energy centers of any two primary colors

(See Fig. 6). For 31.5kHz modes B Zone : 0.4mm.

CONVERGENCE SPEC.

Zones 0.25 mm CRT

Zone C 0.15 mm

Zone A 0.25 mm

Zone B 0.35 mm

4.9 Focus check ( 68.7 KHZ / 85 HZ )

Adjust brightness control to center(50%) and contrast control to get 25 FL

at full white pattern, then generate “me”characters to cover the entire picture.

The characters should be clearly identified in all display area. (See Fig. 8)

4.10 Luminance uniformity

condition : With full white pattern, set contrast control at maximum(100%)

and brightness control at center(50%).

Brightness of the center of the display is 30 FL+/-5.

The Max. deviation over the screen should not exceed 25% .

4.11 White color adjustment

Based on the 1931 CIE chromatic diagram (x,y) coordinates

of white display on screen center should be:

For 9300°K X = 0.283 ±0.015

Y=0.297±0.015

For 6500°K X = 0.313 ±0.015

Y=0.329±0.015

For sRGB X = 0.313 ±0.015

Y=0.329±0.015

Check conditions : Set brightness control at center(50%) and contrast at

maximum(100%).

For sRGB mode sRGB contrast is at Factory value.

4.12 Color tracking on full white pattern

Adjust for the luminance output from 3 to 30 FL by pressing the contrast control key

(brightness control at 50%). The color co-ordinates should not deviate more than

the following tolerance when compare to display center:

X= X (center) ±0.015

Y= Y (center) ±0.015

60

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 18590

4.13 Purity

Test patterns : Full white / Red / Green / Blue.

Conditions : As stated in item 4.0, the purity must be checked under specific

destinations of earth magnetic environments and the monitor

must be well degaussed.

After warming-up time of 30 min. , no color stains may occur in the above four patterns.

4.14 Moiré

Condition: Display a full white pattern. At any preset mode ,

the display size must be set as Fig.1.

The clouding effect must not rise to disturbing levels in anywhere of the screen with

luminance setting from 15 to 30 FL.

4.15 Blemish

Blemish shall be in accordance with CRT specification.

5.0 Mechanical characteristics

5.1 User controls

-Power ON/OFF key

-LightFrame key

- 3 Key digital user control (OSD)

5.2 Connectors and cables

5.2.1 Power cord type : 3 leads plugable power cord with protective earthed plug or IBM Hooded

Length : 1.5 m ±50 mm (excluding connector)

Safety requirements : See following.

Approval

Countries Mains plug Wire Connector

Germany VDE VDE VDE

Switzerland -- SVE SVE

Belgium CEBEC -- --

Sweden SEMKO SEMKO SEMKO

Finland EI -- EI

Norway NEMKO NEMKO --

Denmark DEMKO DEMKO DEMKO

Italy OVE -- OVE

Netherlands KEMA KEMA KEMA

U.K. ASTA HAR ASTA

U.S.A. UL UL UL

Canada CSA CSA CSA

Australia SAA SAA SAA

61

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 19590

5.2.2 Signal cable

Length of video : 1.45 m ±50 mm flying with 15 pin PS/2

D-shell socket

5.3 Tilt and swivel base

Tilt angle : 5°forward and 13°backward

Swivel rotation : 90°leftward or rightward

6.0 Environmental characteristics

The following sections to define the interference and susceptibility condition limits that

might occur between external environment and the display device.

6.1 Susceptibility of display to external environment

6.1.1 (A) Operating limits

Temperature : 0°Cto40°C

Humidity : 10 to 90% (W/O condensation)

Air pressure : 700 ~ 1100 mbar

( B) Non-operating limits (storage)

Temperature : -25°Cto65°C

Humidity : 5 to 95 % (W/O condensation)

Altitude : 300 to 1100 mbar

6.1.2 Transportation packages

A) Carton box

A-1 Size (with pedestal)

496(W)´416(H)´556(D)

A-2 Carton paper : double wall AB flute corrugate

board, color brown

Bursting : 19.3 kgf/cm2min

Compression : 600 kgf min

B) Transportation conditions

B-1 Container loading (separated pedestal)

Container size

40’ 20’ 40’High Cube

W/ Pallet W/ Pallet W/ Pallet

Q’ty

Yes No Yes No No

Layers 5 5 5 5 6

Sets / Layer 4 4 4 4 4

Sets / Block 20 20 20 20 24

Blocks / Container 24 24 10 10 24

Total Sets 480 480 200 200 576

62

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 20590

B-2 Transportation standards

EU / Asia versions U.S.A. version

Standards PHILIPS's UN-D1400 NSTA

Height 61 cm 61 cm

Sequence -10 C for 16 hours, 1 corner

1 corner, 3 faces 3 edges

Right/Back/Top faces 6 faces

Left/Front/Bottom faces

(only for reference)

Drop

test Result - Electrical function OK.

- Mechanical function OK.

- No serious damage in set.

Sequence a . 5~200Hz. 0.25G operating random

vibration 30 min/axis, 3 axes

b. 5~200Hz. 0.73 packing random

- vibration 30 min/axis, 3 axes

Vibration

test

Result - Electrical function OK.

- Mechanical function OK.

- No serious damage in set.

For design evaluation only.

Half sine shock : 100G, <3m sec. 6 shocks

Shock Temp. : 23°C

test Humidity : 60 %

Air pressure : 100 kpa

Standard : Mechanical Guideline

6.2 Display disturbances from external environment

6.2.1 ESD Disturbances

According to EN55024 (also refer to EN61000-4-2 for detail).

6.3 Display disturbances to external environment

The disturbances induced by the display and tolerated

by the environment are defined as follows :

6.3.1 Ionizetic radiation

Completely fulfill International Commission of

Radio logical Protection (ICRP) requirement 0.5 mR/Hr.

Actually the set can reach 0.1 mR/Hr.

6.3.2 EMI/EMS

Can comply with FCC part 15,DOC C108.8 and EN55022 B Emission.

EN55024 Immunity; EN61000-3-2 Current Harmonics; EN61000-3-3 Flicker.

EMS EN61000-4-3 (80% 1KHz AM modulation) Picture jitter £2mm.

63

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 21590

7.0 Safety tests

7.1 Dielectric strength (Hi-pot test)

According to IEC 60950, UL 1950 and CSA 22.2 No. 950

7.2 Resistance for protective earthing

According to IEC 60950

7.3 Leakage current

According to IEC 60950, UL 1950 and CSA22.2 No. 950

7.4 Grounding

According to IEC 60950, UL 1950 and CSA22.2 No. 950

8.0 Certifications

8.1 Safety

The monitors comply with the following safety standards:

- IEC 60950

- UL 1950

- DHHS 21 CFR, subchapter J

- CSA-22.2 NO. 950

- EK1-ITB 2000

8.2 EMI (Electromagnetic Interference)

The monitor comply with the following EMI standards :

- EN55022 B Emission

-FCCPart 15

- DOC C108.8

8.3 Fulfil approbation requirements

Destination basis, set can fulfil following requirements:

Countries Safety EMI

Germany TUV, GS CE

Sweden SEMKO ----

Norway NEMKO ----

Denmark DEMKO ----

Finland FIMKO ----

U.S.A. UL, DHHS FCC

Canada CSA DOC

Taiwan ---- BSM1

64

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 22590

9.0 Reliability

9.1 Mean time between failures

MTBF to be calculated according to Military standard

MIL-HDBK-217C.

MTBF ³75,000 Hours (Excluding CRT)

TOTAL HRS (POWER ON) X TOTAL SETS

PRACTICE of MTBF = -------------------------------------------------------

NBR. OF FAILURE SETS

10.0 Quality assurance requirements

10.1 Acceptance test

According to MIL-STD-105D level II,

AQL : 0.4 (Major)

: 1.0 (Minor)

Customer acceptance : UAW 0377/40

criteria

11.0 Service ability

The service ability of this monitor should fulfil the requirements which are prescribed in

UAW-0346 and must be checked with the check list UAT - 0361

65

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 23590

303 mm

309 mm

306 mm

230 mm

FIG-1 IMAGE DIMENSION

227 mm

233 mm

66

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 24590

FIG-2 IMAGE CENTERING

306 mm

230 mm

|A-B| AND |C-D| < 5 mm

D

AB

C

67

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 25590

FIG-3 IMAGE ROTATION

306 mm

A-B < 2 mm

B

A

68

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 26590

FIG-4 IMAGE GEOMETRY

306 mm

230 mm

A

B

C

D

A=B=C=D < 2.0 mm

69

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 27590

MEASUREMENT AREA

306 mm

230 mm

100 mm

100 mm

FIG-5 CONTRAST AND BRIGHTNESS

ZONE A

ZONE B

70

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 28590

306 mm

230 mm

FIG-6 MISCONVERGENCE

ZONE A

ZONE B

ZONE C

71

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 29590

306 mm

AB

C

D

SLOW FLASHING WHITE PATTERN

STATIC BORDER

230 mm

DA < 1.50 mm

DB < 1.50 mm

DC < 1.20 mm

DD < 1.20 mm

(Dmeasured between

flash on / off)

Figure 7

Static EHT regulation distortion pattern

72

107T5

GENERAL PRODUCT SPECIFICATION

Go to cover page

17" V30 GS4 107T5-71K CMTR

TYPE : 107T51/00

BRAND : PHILIPS

2003-01-07

Wayne Lin

2003-01-07

30 30590

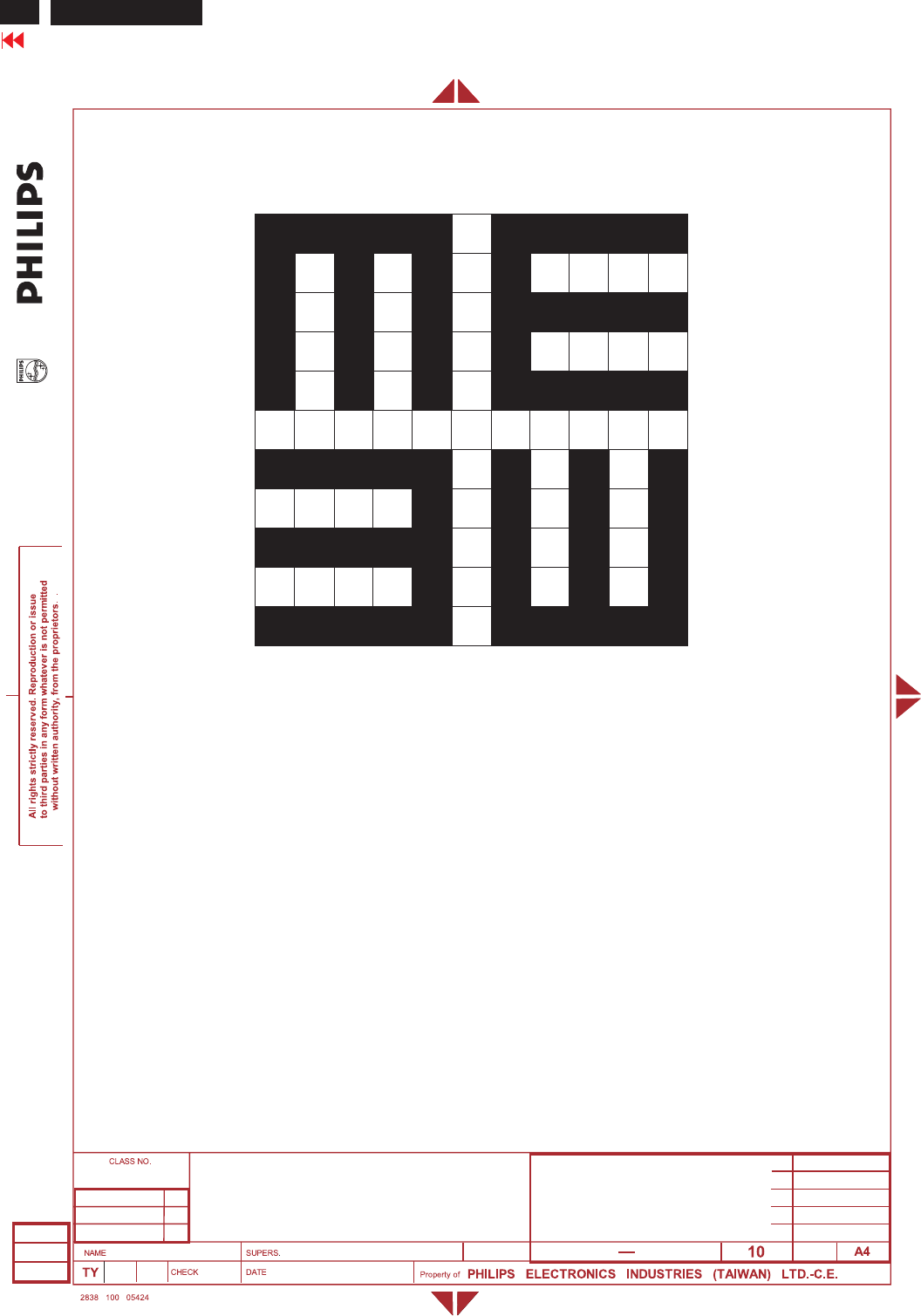

Figure 8

Focus check character

Repair Flow Chart

A. Power Supply Failure

1. Sympton :

no startup sound

LED light off

check 7102 pin8

100V<pin8<380V

check 7102

pin1 > 2V

Ok

NO

check 7102

pin 5=2.4V

check

1102/6101/

7101/2105

Ok

replace 7102

NO

check 7102

pin6 output ?

OVP possibly active

check 6105

2. Sympton :

hicup mode with

startup sound or

blinking LED

OCP possibly active

check 3109

3105,

check 7102

pin 1 < 13.5V

check 7105

open circuit

Ok

replace 7102

check

3113/

3104/7101

Ok NO

OK

No

replace 5156

No

check 7102

pin 5

Ok

Turn power off

check the resistance for

all output voltages+190,

83,12,-12,+6.0,+5,

check 6151~6158 short?

replace 5156

check

7155/7152/7154

No

OK

7102 pin4 DEMAG

possibly active

short 7154 pinC

check CPU pin 22

Ok

check

6105

check

pin6>8V

9Go to cover page

73

107T5

Repair Flow Chart (Continued)

B.Video

Repair Flow

check 7331

Pin24 HFLB

1.Sympton :

(with white pattern)

no picture

green LED on

check

EHT=25KV

rough check for R,G, B

1. video input= 0.7V

2. 7331video output =2.5V

3. 7701 video output > 35Vpp

check DC restoration

7722,7732,7752

7721,7731,7751

check 7331 pin22

2V< ABL < 5V

check 7331

pin 7,6,5

input swing

check 7701

pin 1, 2, 4

input swing

Ok

replace 7701

Ok

replace IF

cable

No

replace 7331

check

VG1 < -150V

Ok

No

check blanking

7501 pin3

check heater

= + 6.3V Ok

check Xray prot.

7501 pin25

No

check

R,G,B output

30<2722<80

30<2723<80

30<2724<80

Ok

2.Sympton :

no video (or dim),

only raster with/without retrace line

green LED on

check Vg1

Vg1 = -30V

check cathod

+83V,

Ok

check blanking

7501 pin3

No turn down Vg2

check 7701

pin 9,10,11

output swing

3. Sympton :

no OSD or

OSD out of sync.

H.V.check 7331

check

VG2 > 450V

Ok

9Go to cover page

V30 107T5

74

Ok

C. Horizontal deflection

output repair flow :

1. Sympton :

without

H-deflection.

2. Sympton :

East /West

corr.

check Hsync

7501 pin28

check

190V

check Hsync

7501 pin26

check Hsync

7605 base

check Hsync

7615 drain

check Hsync

7601 base

refer 7501 check list

or replace 7501

No

Ok

check

6611,7613,7614

Ok

No

replace 5156

4. Sympton :

Rotation

check

3618

enter factory mode

check linearity data

in eeprom

check 7402

check

3620

7606

check 7501

Pin24

parabola exist

check

7602 ~ 7604

parabola exist

check 2614

parabola

exist

3. Sympton :

H-linearity

(full freq. range)

replace 5608

check

7403,7404

refer 7501

check list

5. Sympton :

H_dc shift

check

1601

check

7501 pin 32

enter OSD

function

disable morier

check

7616collector

check

3616

6. Sympton :

Focus

check cpu

7801

pin 30

check cpu

7801 pin4

control range

check

3422

check

5671

9Go to cover page

Repair Flow Chart (Continued) 107T5

75

Repair Flow Chart (Continued)

9Go to cover page

107T5

D. Vertical Deflection Failure

check

3401,3402

3403

good

basic check

+12/-12V

Sympton :

one horizontal line

V_size is abnormal

too large/small

check 7501

Pin22,pin13 ramp

exist ?

check

6401

good?

check

7401

No

Ok

check

7401

Ok

No

check

7501

check

3407~3409 Ok

No

76

Repair Flow Chart (Continued)

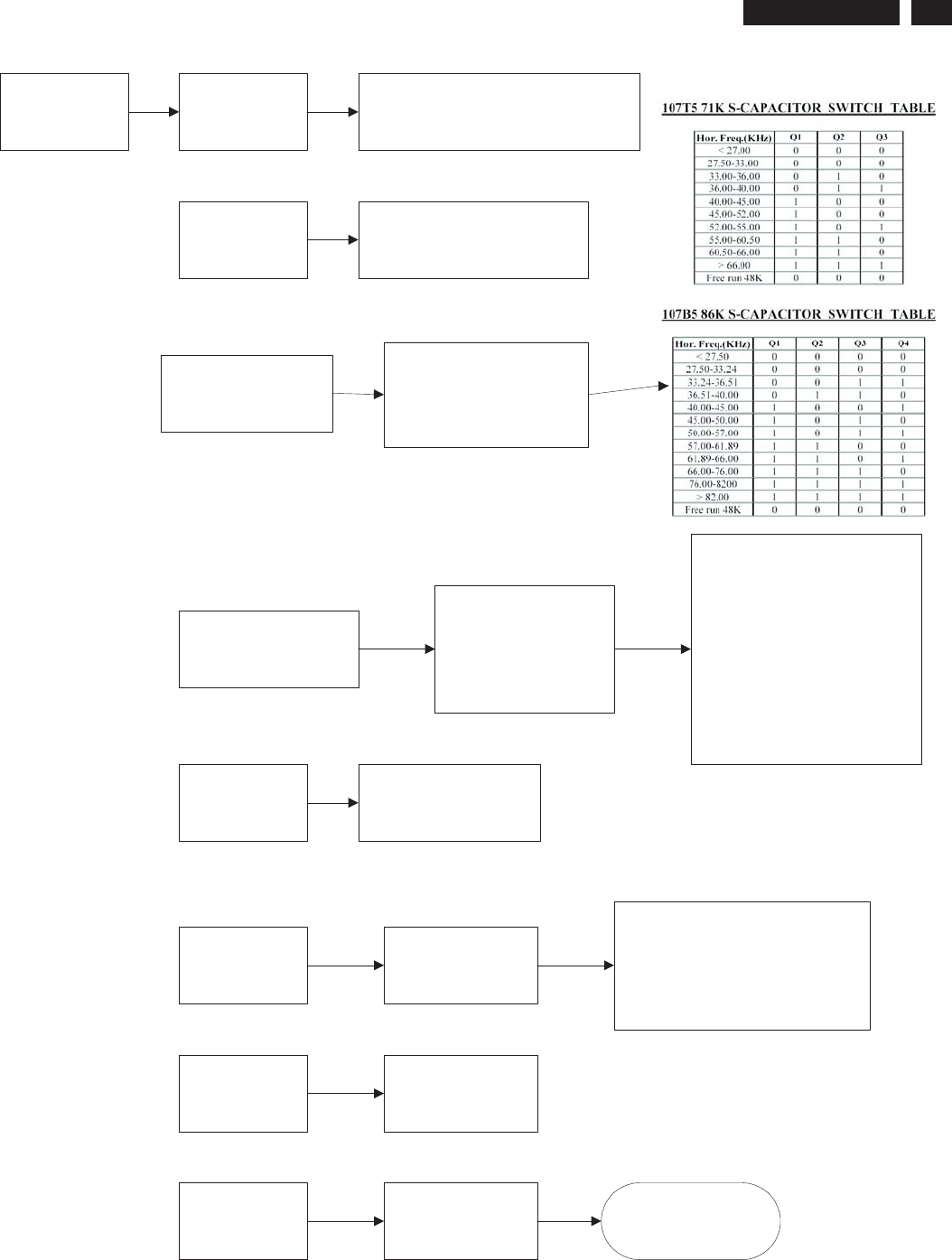

E. CPU

check list

check cpu pin6= 5V

pin9/pin8=12MhZ

pin7=gnd

power saving pin22

Normal hi

Standby low

Off low

33,34,40,41

Hsync / Vsync

Vblank

check sync.

Hsync_in=pin40

Vsync_in=pin41

Hsync_out=pin34

Vsync_out=pin33

Basic Check

check Q1-Q2

Pin 35~28

low:0

hi :1

10,11, (Q2,Q1)

S-cap switch

1 . Normal

Fhout=Fhin

Fvout=Fvin

2. Self test

Hout=48Khz

Fvout=72Hz

3.sync out of rang

Fhin>72.8kHz,<28kHz

Fvin>168Hz, <45Hz

check pin 3

Normal=vblank Pulse

Blank=Hi

20 LED driver

H size compensation for

the load variance

31. H-EHT

pin 22 OFF

check

from 0V to 5V

5, Reset check

2801 / 3801

check

active=hi

no active=low

23. Degauss

9Go to cover page

107T5

77

Repair Flow Chart (Continued)

9Go to cover page

107T5

24. Selftest

check pin24

1.no H/V sync & IF cable pin5 floating - show msg.

2.H/V sync exist & IF cable pin5 to ground - normal

3.H/V sync non-exist & IF cable pin5 to gnd -power saving

4.After 1892&1893 pressed on, then power on

(1895) with IFcable pin5 =L -factory mode

5.After 1892&1893 pressed on, then power on

(1895) without IFcable pin5=H -burn in mode

check idle status

sda=pin25=hi

scl=pin26=hi

25,26. DDC bus

check idle status

sda=pin32=hi

scl=pin31=hi

31,32. IIC bus

check key Power, Ok, LF,

Brightness and contrast keys

23. Keypad

check

output from 0V to 5V

4. Rotation

check 3891~3894

EEPROM

check 7802 pin 7

Low : write enable

Hi : write disable

check

7802 M24C16

7501 TDA9112A

7331 NT6812K

check

output from 0V to 5V

29. ABL

30. H-linearity

check

output from 0V to 5V

78

9Go to cover page

Repair Flow Chart (Continued) 107T5

F. TDA9112A

Check List

24.EWDRV

26. HDRV

1,2

Vsync,Hsync

23,13 Vref/Vout

pin3 = Vblk = floating

Pin5 = Hpll2 = 0V

pin6 = HDRV = floating

pin8 = BDRV = flaoating

pin12 = Vout1 = floating

pin13 = Vout2 = floating

pin16 = CLBL= Hi

if active

Check 6806

Check pin 12

pulse

25. Xray

(from LOT)

12. HFLB

(from H.defl)

to H_deflection.

7601 base

Vcc=pin29

gnd =pin7=pin27=0v

to H_deflection

east/west control

7602 base

differential input

to 7401 pin 1, 7

the input sync from

cpu pin 33,34

79

Repair Flow Chart (Continued)

9Go to cover page

107T5

30K<freq.<71KHz

5. PLL2

Pin9 determin the

pll1 loop filter

pin 8,6,4 H-Freq

working range

50Hz< freq. <160Hz

9,8,6,4

PLL1,RO,CO, Hoscf

Pin20 determin the AGC

Pin19,pin22 determin frequency

19,20,22

Voscf,Vagc,Vcap

18 EHT_compen. compensate for the V_size

owing the load variation

1.compare pin 12 and control the phase of HDRV

2.softstart 14, 15, 16,

compensate for the H_size owing the load variation17 EHT_compen.

32. Focus to 7616 for the V dynamic focus

Vblk pin is floating while pll1(pin26) is

unlock in searching mode

17. Vblk

30. IIC scl = hi

31 IIC sda = hi

the initial sequence of IIC IC

7501,7331,

80

LightFrame for Windows

Introduction

Definitions

Compatibility

Language Selection

Installation

Philips LightFrame feature enriches the experience of pictures and

video on a Philips CRT (picture tube) monitor. This highlighting is done

by boosting the brightness and sharpness on a selected region of the

monitor screen. Since high brightness and sharpness are not preferred

for most standard Windows applications, this special feature will only be

active in certain circumstances. So that you can control these

circumstances, a special program and icons will be installed in your

Windows operating systems.

Philips LightFrame will only work with monitors that have been built to

use this software. Earlier Philips monitors or other manufacturers

monitors will not work with this special software. It is recommended that

you install this software only on a Philips monitor designed to use it.

These monitors can be identified by the LightFrame logo

on the front of the monitor.

This software is not designed for use with LCD flat screen monitors.

LightFrame will work with true Windows-based programs and DOS-

based programs that operate in a Windows environment. It will not work

with DOS-based programs operating only in a DOS environment.

The following list contains definitions for frequently used words.

:The selected window on which LightFrame

is active.

: The selected rectangle (area) on which

LightFrame is active.

This version of LightFrame is compatible with

Windows 95

Windows 98

Windows ME Millennium Edition

Windows NT

Windows 2000 Professional Edition

Windows XP

While English is the default language of LightFrame, the User Interface

can be set up to operate in Dutch, French, German, Italian, Portuguese,

or Spanish.

1) To install LightFrame, place the CD in the CD-ROM drive.

2) Next, when the menu of items on the CD appears on your screen,

click on 'Install LightFrame'.

3) Now, follow the on-screen prompts to properly install the program.

The software checks to see if you have a compatible monitor. You

must say yes to the license agreement for the software to install.

4) After installation, LightFrame automatically loads and the icon

appears in the taskbar.

LightFrame is installed in the Start menu, under Programs. Unless

otherwise selected during installation, LightFrame is installed in

“C:\Program Files\Philips\LightFrame. A shortcut is installed in the

StartUp folder and on the desktop. (If needed, LightFrame can be

operated manually from the StartUp folder.)

If LightFrame detects that your monitor is not LightFrame compatible,

an message appears on the monitor screen. See Error Message

number 1 under the heading Error Messages. If you see this message,

you can select to abort or continue the installation. However, if you

continue the installation, LightFrame will probably not work on

the monitor.

Notes

Notes

Highlighted window

Highlighted area

<---

1. Put CD-ROM into CD-ROM Drive,

bring up Fig 1.

2. Click one of languages (for example : English)

on the screen,bring up, click Light Frame icon as

3. Click LightFrame,

bring up, click Continue icon as Fig.3

4. Click Next,

bring up, Light Frame setup file as Fig.4

Fig 1.

Fig 2

Fig 3

Fig 4

81

9Go to cover page

<---

<---

107T5

LightFrame for Windows (Continued)

82

9Go to cover page

M30 107S2 GS_3

Uninstall

Should you need to remove the LightFrame software, please follow

these steps.

1) First, click on the Start Menu.

2) Next, highlight Settings.

3) Then, click on Control Panel.

4) Now, click on Add/Remove Programs

5) Finally, select LightFrame from the list and then click on the

Add/Remove button.

5. Click Yes,

bring up Fig.5

6. Click Next,

bring up Fig.6

7. Click Next,

bring up Fig.7

Fig 5

Fig 6

Fig 7

8. Click Next,

bring up Fig8 & Fig 9

9. Click Finish,

bring up LightFrame 3, Fig. 10 on the desktop.

Fig 8

Fig 9

Fig 10

--------------->

107T5

LightFrame for Windows (Continued)

83

9Go to cover page

Operating LightFrame

Icon and Colors

How To Activate LightFrame

After installation, LightFrame starts up automatically whenever the

computer is started. At system start up, LightFrame checks the selected

resolution of the monitor and if the monitor is LightFrame capable.

An icon of a monitor represents LightFrame on your desktop. This icon

appears as a shortcut on the Windows desktop. LightFrame has three (3)

modes of operation: Active, Inactive, and Suspended. The same icon

with a different color in its center represents each mode.

Active = The taskbar as below.

Inactive = The taskbar as below.

Suspended = The taskbar as below.

An active window must be 100% visible, i.e. it must be on top of all other

windows or areas. If any part of another window or area overlaps a

highlighted window, LightFrame automatically suspends operation. Once

that window or area is removed and the original highlighted window is on

top again, LightFrame automatically re-engages and the icon regains its

bright green center.

An active window must also be 100% on the monitors viewing area. If

part of a highlighted window moves off the monitors viewing area,

LightFrame automatically goes into the Suspended mode. If part of a

window is off the viewing area, you will not be able to use LightFrame on

that window.

Only one window or area at a time can be highlighted.

1) Click on the LightFrame icon Fig. A in the systemtray. The icon

will be changed to Fig.B.

Fig.A

Fig.B

2) Guide the mouse to the window you want displayed. As you move the

mouse, the cursor changes to a small arrow with a light bulb.

3a) Click on the window you want to have highlighted. The brightness

and sharpness are automatically adjusted.

LightFrame

Notes

3b) If you want to highlight only an area of a window, click on the left

mouse button and drag the cursor over the area to be highlighted while

holding the mouse button. A rectangle forms around the area. When the

area is encompassed by the rectangle, release the mouse button and

the area becomes highlighted.

To deactivate, click on the LightFrame icon in the System Tray of the

Taskbar. Click Icon, as Fig.1and Taskbar will be changed to Fig. 2

and LightFrame is deactivated.

Fig.1 Fig.2

Note

If a highlighted window is closed before LightFrame is deactivated,

LightFrame is automatically deactivated.

How to Deactivate LightFrame

107T5

LightFrame for Windows (Continued)

84

9Go to cover page

LF Idle

LF active

Full screen

LF active

Select first target

LF active

Add/remove selections

LF active

First target selected

User selects first target

User clicks on button

User clicks

add/remove buttonUser (de)selects

targets

User clicks

off button

User clicks full screen button

User clicks off or full screen

On button

Add/remove button

Off button

Full screen button

Help button

User clicks full

screen button

User clicks

off button

User clicks full

screen button

LF suspend

All highlighted areas are

overlapped by other

application

Overlap or

minimize situation

Overlap removed or

window restored

LightFrame 3 State and transition diagram

Combined with Control bar appearance

107T5

0. Warning

1. Servicing of SMDs (Surface Mounted Devices)

All ICs and many other semi-conductors are susceptible to

electrostatic discharges (ESD). Careless handling during

repair can reduce life drastically. When repairing, make sure

that you are connected with the same potential as the mass

of the unit via a wrist wrap with resistance. Keep components

and tools also at the same potential !

- Oxidation on the terminals of SMDs results in poor soldering.

Do not handle SMDs with bare hands.

- Avoid using storage places that are sensitive to oxidation

such as places with sulphur or chlorine gas, direct sunlight,

high temperatures or a high degree of humidity. The

capacitance or resistance value of the SMDs may be

affected by this.

- Rough handling of circuit boards containing SMDs may

cause damage to the components as well as the circuit

boards. Circuit boards containing SMDs should never be

bent or flexed. Different circuit board materials expand and

contract at different rates when heated or cooled and the

components and/or solder connections may be damaged

due to the stress. Never rub or scrape chip components as

this may cause the value of the component to change.

Similarly, do not slide the circuit board across any surface.

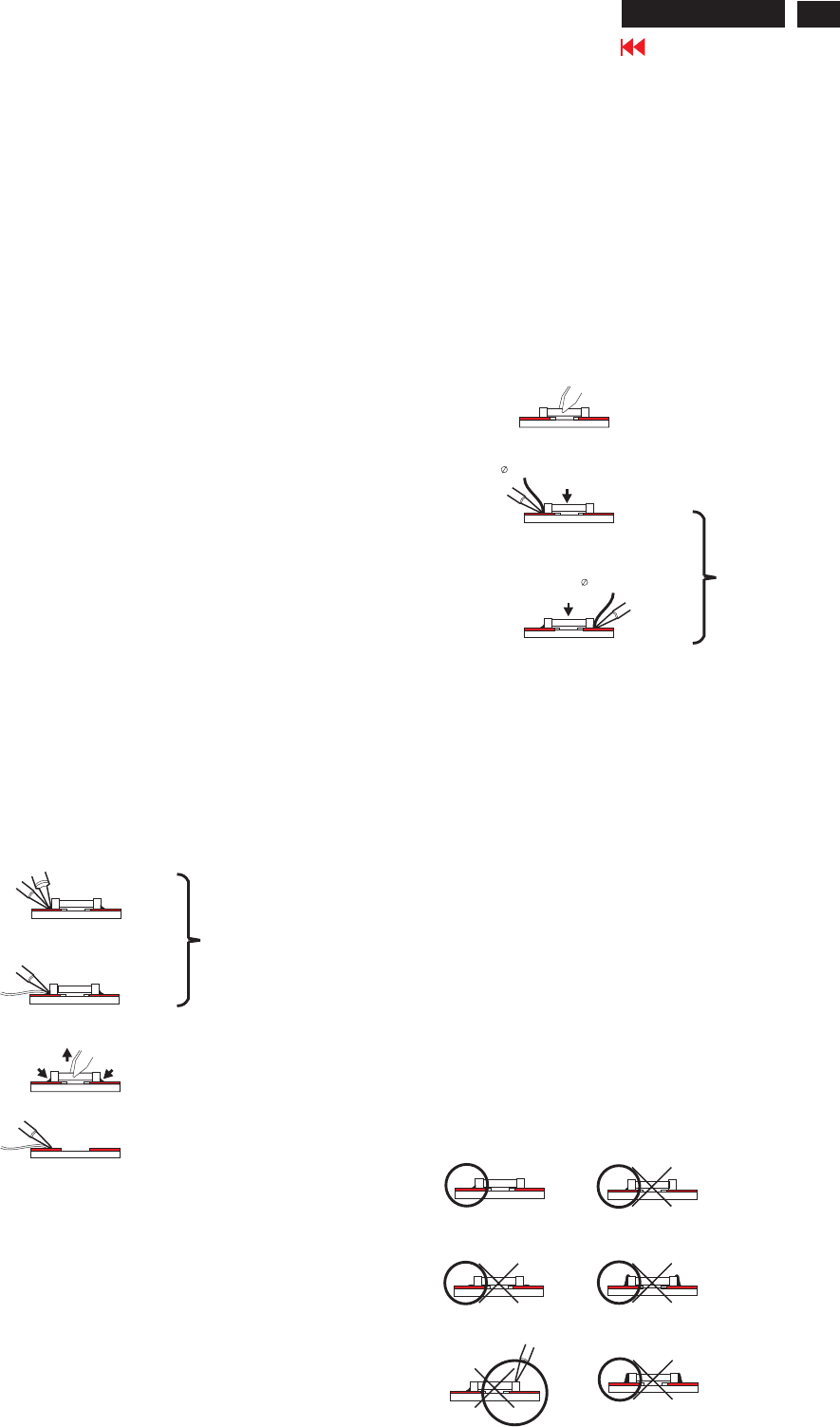

- Heat the solder (for 2-3 seconds) at each terminal of the

chip. By means of litz wire and a slight horizontal force,

small components can be removed with the soldering iron.

They can also be removed with a solder sucker (see Fig.

1A)

- While holding the SMD with a pair of tweezers, take it off

gently using the soldering iron's heat applied to each

terminal (see Fig. 1 B).

- Remove the excess solder on the solder lands by means of

litz wire or a solder sucker (see Fig. 1C).

- When handling the soldering.iron. use suitable pressure and

be careful.

- When removing the chip, do not use undue force with the

pair of tweezers.

- The soldering iron to be used (approx. 30 W) should

1.1 General cautions on handling and storage

1.2 Removal of SMDs

1.3 Caution on removal

preferably be equipped with a thermal control (soldering

temperature: 225 to 250 C).

- The chip, once removed, must never be reused.

o

1.4 Attachment of SMDs

- Locate the SMD on the solder lands by means of tweezers

and solder the component on one side. Ensure that the

component is positioned correctly on the solder lands (see

Fig.2A).

- Next complete the soldering of the terminals of the

component (see Fiq. 2B).

- When soldering the SMD terminals, do not touch them

directly with the soldering iron. The soldering should be

done as quickly as possible, care must be taken to avoid

damage to the terminals of the SMDs themselves.

- Keep the SMD's body in contact with the printed board when

soldering.

- The soldering iron to be used (approx. 30W)should

preferably be equipped with a thermal control (soldering

temperature: 225 to 250 C).

- Soldering should not be done outside the solder land.

- Soldering flux (of rosin) may be used, but should not be

acidic.

- After soldering, let the SMD cool down gradually at room

temperature.

- The quantity of solder must be proportional to the size of the

solder land. If the quantity is too great, the SMD might

crack or the solder lands might be torn loose from the

printed board (see Fig. 3).

2. Caution when attaching SMDs

o

SOLDERING

IRON

RIGHT

Fig. 3 Examples

DISMOUNTING

VACUUM PISTON

4822 395 10159

SOLDERING

IRON

e.g. WELLER

SOLDER TIP PT -H7

SOLDERING

IRON

SOLDER WICK

4822 321 40042

SOLDERING

IRON

SOLDER WICK

e.g. A PAIR OF TWEEZERS

HEATING

HEATING

Fig. 1

A

B

C

e.g. A PAIR OF TWEEZERS

SOLDER

0.5 - 0.8 mm

SOLDER

0.5 - 0.8 mm

SOLDERING

IRON

SOLDERING TIME

< 3 sec/side

SOLDERING

IRON

PRESURE

PRESURE

MOUNTING

Fig. 2

B

A

Repair Tips

Go to cover page

85

107T5

2.2.1 The test with AC voltage is only for production purpose,

Service center shall use DC voltage.

2.2.2

2.2.3

2.2.4 The grounding blade or pin of mains plug must be

conducted with accessible metal parts.

The minimum test duration for Quality Control Inspector

must be 1 minute.No breakdown during the test.

The test voltage must be maintained within the specified

voltage + 5%.

All units that are returned for service or repair must pass the

original manufactures safety tests. Safety testing requires both

and testing.Hipot Ground Continuity

HI-POT TEST INSTRUCTION

1. Application requirements

2. Test method

1.1 All mains operated products must pass the Hi-Pot test as

described in this instruction.

1.2 This test must be performed again after the covers have

been refitted following the repair, inspection or modification

of the product.

2.1 Connecting conditions

2.1.1 The test specified must be applied between the parallel-

blade plug of the mainscord and all accessible metal

parts of the product.

2.1.2 Before carrying out the test, reliable conductive

connections must be ensured and thereafter be

maintained throughout the test period.

2.1.3 The mains switch(es) must be in the "ON" position.

2.2 Test Requirements

All products should be HiPot and Ground Continuity tested as

follows:

Test 2820VDC 1700VDC Test current:

voltage (2000VAC) (1200VAC) 25A,AC

Test time:

Test time 3 seconds 1 second 3 seconds(min.)

(min.) Resistance

required:

Trip set at 100 uA 5 mA <=0.09+R ohm,

current for Max. R is the

(Tester) limitation; set resistance of

at 0.1 uA for the mains cord.

Min. limitation

Ramp set at 2

time seconds

Condition HiPot Test for HiPot Test for Ground Continuity

products where products where Test requirement

the mains input the mains input is

range is Full 110V AC(USA

range(or 220V type)

AC)

3. Equipments and Connection

4. Recording

3.1. Equipments

For example :

- ChenHwa 9032 PROGRAMMABLE AUTO SAFETY

TESTER

- ChenHwa 510B Digital Grounding Continuity Tester

- ChenHwa 901 (AC Hi-pot test), 902 (AC, DC Hi-pot test)

Withstanding Tester

3.2. Connection

Hipot and Ground Continuity testing records have to be kept for

a period of 10 years.

* Turn on the power switch of monitor before Hipot and

Ground Continuity testing.

Connect the "video cable"

or "grounding screw"

to the CLIP on your tester.

Video cable

(Rear view of monitor)

Connect the power cord

to the monitor.

Grounding screw

Power outlet

(ChenHwa 9032 tester)

Clip

Clip

Safety test requirements

86

Go to cover page

107E5

General Troubleshooting Guide 87

9Go to cover page

107T5

General Troubleshooting Guide

No Display,

but LED is ON

or LED is amber (yellow)

Monitor drivers

(inf file)

Degaussing

1

2

4

Focus

3

5Picture distortion

(Geometry)

6

7

9

8

10

Unstable Picture/

Picture Flickers

H/V Rolling,

H/V Sync.

Picture too bright

Picture too dim

No Power /

LED is off

Moire

OSD main

menu locked

Missing Color

Shimmering /

Jitter/Video Noise

Color Purity

11

12

13

14

15

20

CustoMax

Colorific

USB

16

17

18

19

Power management

function is not active

A buzzing sound

when powering on

21

Picture too

Large or Small

Note : Not all described feature are applicable for all monitors.

88

9Go to cover page

General Troubleshooting Guide

NO DISPLAY,

but LED is ON

or LED is amber(yellow)

NO

Make sure of the state of the computer

(Turn on).

Press the keyboard or operate the mouse.

END

Is picture displayed

normally?

It is need to check and

repair the monitor.

Amber Green

NO

Is the ATTENTION

picture displayed? CHECK SIGNAL CABLE

NO SIGNAL INPUT

LED

Amber? or Green?

Power off the monitor and then on.

Restart PC.

END

Is picture displayed

normally?

YES

It is need to check and

repair the monitor.

NO

YES

Make sure the correct signal is input.

Check contrast level

is not minimized.

(Press Contrast button,

increase value to 100.)

END

Is picture displayed

normally?

YES

OK

NO

1. Make sure the correct signal is input.

2. Press the keyboard or operate the mouse.

3. Make sure of the range of the

input frequency and then set the computer.

END

Is picture displayed

normally?

YES

It is need to check and

repair the monitor.

NO

YES

YES

YES

1

107T5

General Troubleshooting Guide

Press the OK button

Bring up "MAIN CONTROLS" window

It is need to check and

repair the monitor.

NO YES

OK

Select "RESET TO FACTORY

SETTINGS"

Press the OK button

Bring up "RESET TO FACTORY

SETTINGS" window

OK

Make sure of the signal cable connection.

Make sure of the state of the computer

(Turn on).

Press the keyboard or operate the mouse.

Is picture displayed

normally?

END

NO

Picture is too bright

or dark

YES

YES

END

Is picture displayed

normally?

YES

Press the DOWN button

to select "YES"

Press the OK button

Press the OK button

OK

OK

YES

2

89

9Go to cover page

107T5

General Troubleshooting Guide

For Windows 95

Plug & Play is not

active normally

for Windows 95/98/2000/Me or later

Philips' monitors build in VESA DDC2B feature to support Plug & Play

requirement for Windows 95/98/2000/Me . You can install the information file ( .inf)

in order to select your Philips monitor from "Monitor" dialog box in Windows

95/98/2000/Me to activate Plug & Play application. The installation procedure

based on

Windows '95 OEM Release 2 , 98 , Me and 2000 is specified as follows,

(In case of connecting the monitor to the PC compliant with

VESA standard with the designated signal cable, the PC reads

display pixels, frequency, and color feature of this monitor to

optimise the picture for the monitor automatically.)

DDC : Abbreviation for Display Data Channel

** Windows NT 4.0 does not inquire driver (inf file) for monitors.**

For Windows 98 For Windows Me For Windows 2000

1. Start Windows '95

2. Click the 'Start' button,

point to 'Setting',

and then click 'Control Panel'.

3. Double Click the 'Display' Icon.

4. Choose the 'Settings' tab

then click 'Advanced...'.

5. Choose 'Monitor' button,

point to 'Change...'

then click 'Have Disk...'.

6. Click 'Browse...' button then

choose the appropriate drive

F: ( CD-ROM Drive)

then click 'OK' button.

7. Click the 'OK' button then

choose your monitor model

and click the 'OK'.

8. Click 'Close' button.

1. Start Windows 98

2. Click the 'Start' button,

point to 'Setting', and then

click 'Control Panel'.

3. Double Click the 'Display' Icon.

4. Choose the 'Settings' tab

then click 'Advanced...'.

5. Choose 'Monitor' button,

point to 'Change...'

then click 'Next'

6. Choose "Display a list of all

the drivers in a specific location,

so you can select the driver

you want." then click 'Next'

and then click 'Have Disk...'.

7. Click 'Browse...' button

then choose the appropriate

drive F: ( CD-ROM Drive)

then click 'OK' button.

8. Click the 'OK' button then

choose your monitor model

and click the 'Next' button

then click 'Next' button.

9. Click 'Finish' button

then the 'Close' button.

1. Start Windows Me

2. Click the 'Start' button,

point to 'Setting',

and then click 'Control Panel'.

3. Double Click the 'Display' Icon.

4. Choose the 'Settings' tab

then click 'Advanced...'.

5. Choose 'Monitor' button,

then click 'Change...' button.

6. Choose "Specify the location

of the driver(Advanced)"

and click the 'Next' button.

7. Choose "Display a list of all

the drivers in a specific location,

so you can select the driver

you want." then click 'Next'

and then click 'Have Disk...'.

8. Click 'Browse...' button then

choose the appropriate drive

F: ( CD-ROM Drive)

then click 'OK' button.

9. Click the 'OK' button then

choose your monitor model

and click the 'Next' button

then click 'Next' button.

10. Click 'Finish' button

then the 'Close' button.

1. Start Windows 2000

2. Click the 'Start' button,

point to 'Setting', and then

click 'Control Panel'.

3. Double Click the 'Display' Icon.

4. Choose the 'Settings' tab

then click 'Advanced...'.

5. Choose 'Monitor'

- If the 'Properties' button

is inactive, it means your

monitor is properly configured.

Please stop installation.

- If the 'Properties' button is active.

Click 'Properties' button.

Please follow next step

continually.

6. Click 'Driver' and then

click on 'Update Driver...'

then click on the 'Next' button.

7. Choose "Display a list of the

known drivers for this device so

that I can choose a specific driver

then click 'Next' and

then click 'Have disk...'.

8. Click 'Browse...' button then

choose the appropriate

drive F: ( CD-ROM Drive).

9. Click the 'Open' button,

then click the 'OK' button.

10. Choose your monitor model and

click the 'Next' button

then click 'Next' button.

11. Click 'Finish' button

then the 'Close' button.

If you can see the

"Digital Signature Not Found" window

then click the 'Yes' button.

If your Windows 95/98/2000/Me version is different or you need more detail

installation

information, please refer to Windows 95/98/2000/Me user's manual.

3

90

9Go to cover page

107T5

General Troubleshooting Guide

It is need to check and

repair the monitor.

OK

END

NO

Power management

function is not active

Verify the PC is compliant with VESA.

In case all of the video signals of PC are

not off, power management function is

not active normally. [Repeat to power on

and off (power management).]

There are accelerator boards not

complied with VESA.

YES

4

91

9Go to cover page

107T5

General Troubleshooting Guide

It is need to check and

repair the monitor.

OK

END

NO

A buzzing sound

when powering on

This sound is caused when the auto degaussing circuit is active.

This buzzing sound is normal when the monitor is first turned on.

This sound may be louder during the winter months and during

initial power on.

YES

5

92

9Go to cover page

107T5

General Troubleshooting Guide

NO POWER

/ LED is off

Is cabinet of

monitor damaged

by

being dropped?

The monitor may have become

faulty due to excessive shock.

Insure that unit is plugged into a

known good power source

(Move a good radio to plug into the

power source to test it.)

Power off the monitor and then on.

POWER LED

ON?

END

It is need to check and

repair the monitor.

It is need to check and

repair the monitor.

NO YES

POWER LED

ON?

END

YES

NO

1. Is the correct AC power cord

connected?

2. Is AC power outlet active?

YES

YES

NO

6

YES

YES

93

9Go to cover page

107T5

General Troubleshooting Guide

END

Is picture displayed

normally?

YES

It is need to check and

repair the monitor.

Select "RESET TO FACTORY

SETTINGS"

Press the OK button

Bring up "RESET TO FACTORY

SETTINGS" window

OK

Press the DOWN button

to select "YES"

Press the OK button

Press the OK button

OK

OK

YES

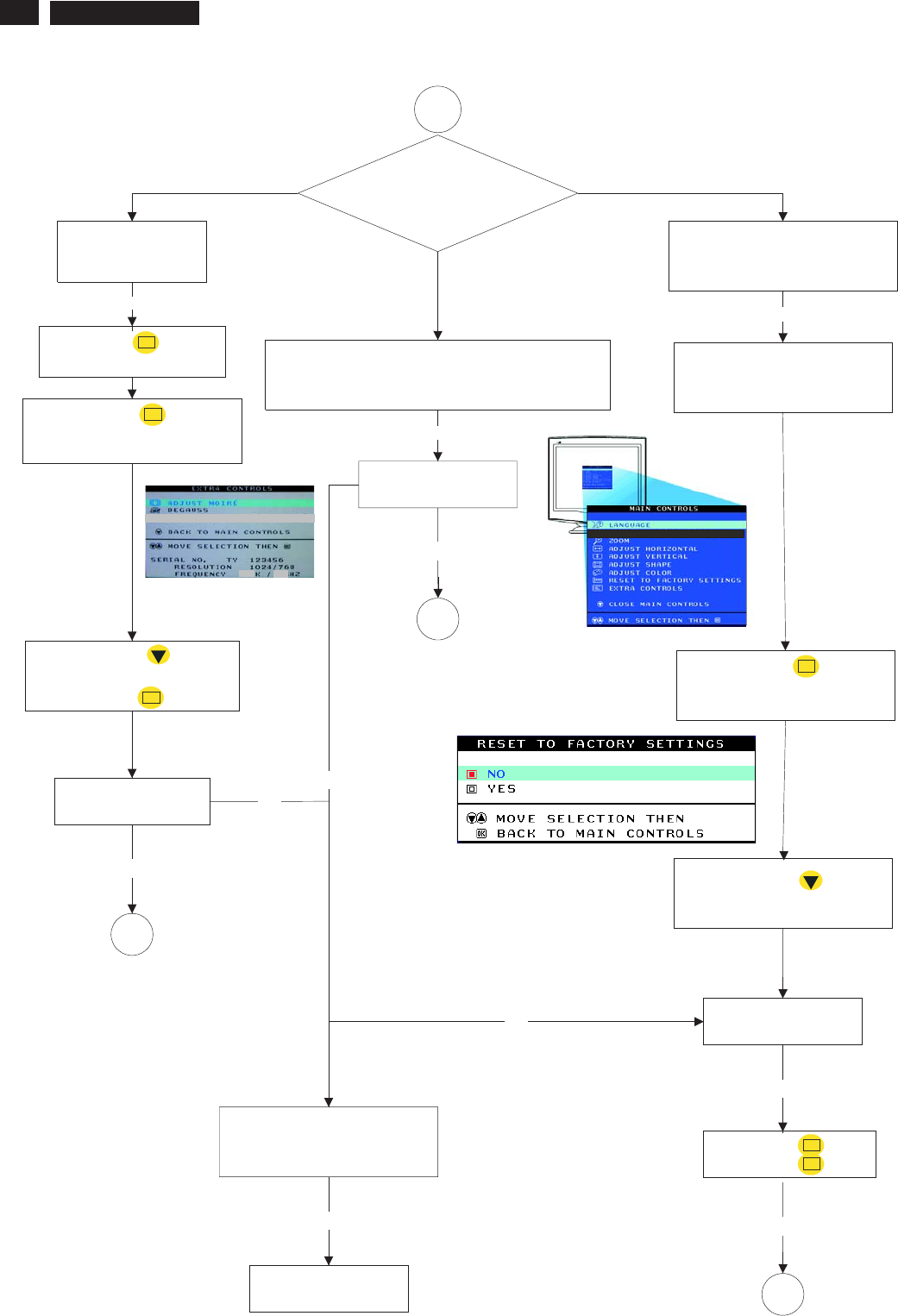

Color has

irregularity

Are there any stray fields such as magnetic and

speaker near the monitor?

Keep any stray magnetism away from the computer.

END

Is picture displayed

normally?

YES

YES

Have you changed the

tilt or swivel angle

of the monitor?

Did you adjust the red,

green, and blue colors?

YES

Press OK " " button

Select "EXTRA CONTROLS"

Press the OK button

Bring up "EXTRA CONTROLS"

window

OK

Is picture displayed

normally?

Press the DOWN button

to select "DEGAUSS",

then press OK " " button

OK

YES

END

YES

* Keep any stray magnetism

away from the computer.

* Reset to Factory settings.

* Press "DEGAUSS" selection.

NO

NO

NO

Unsuccessful

OK

7

69 85

94

9Go to cover page

107T5

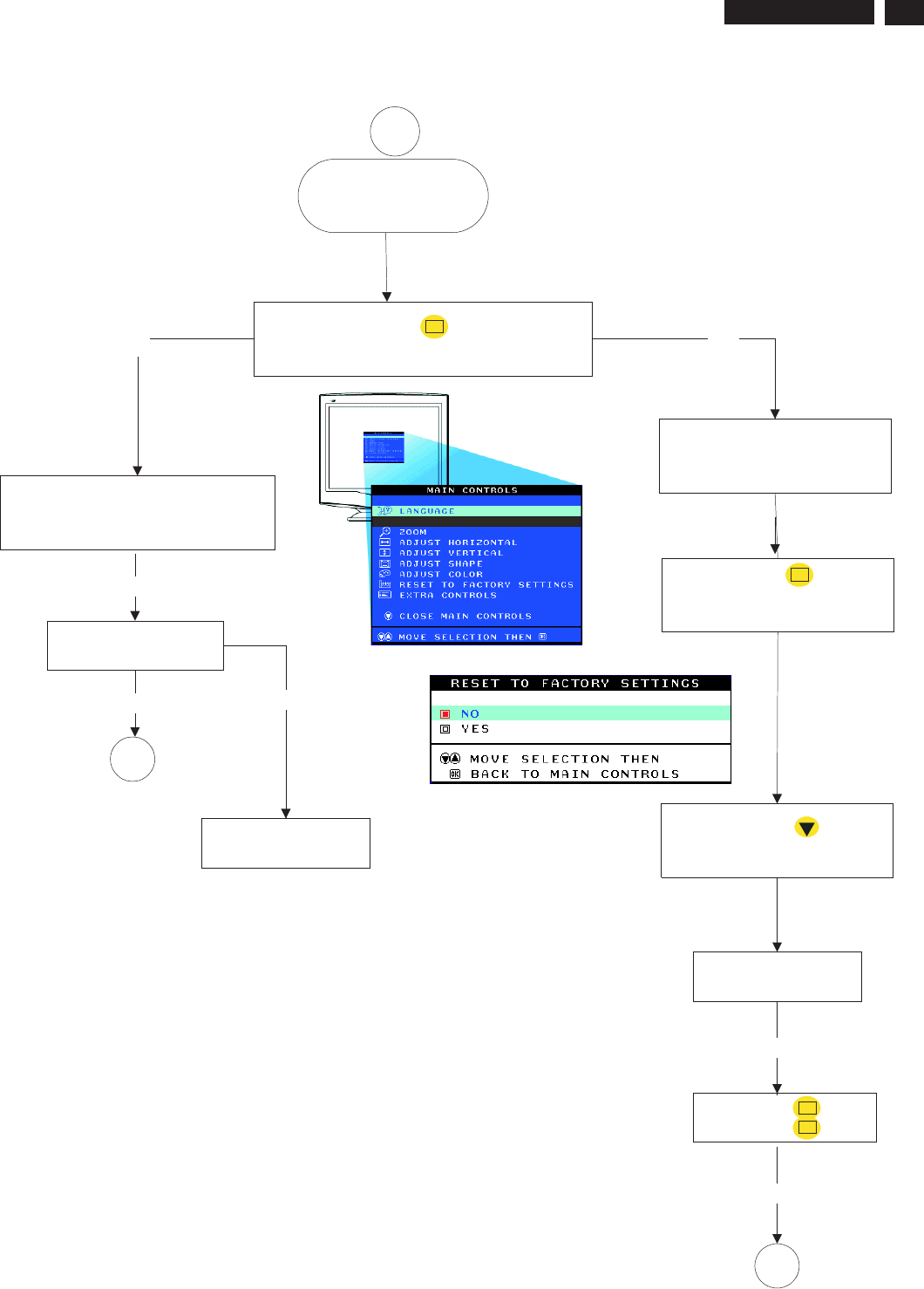

General Troubleshooting Guide

Press the OK button

Bring up "MAIN CONTROLS" window

END

Is picture displayed

normally?

YES

OK

Select "RESET TO FACTORY

SETTINGS"

Press the OK button

Bring up "RESET TO FACTORY

SETTINGS" window

OK

Press the DOWN button

to select "YES"

Press the OK button

Press the OK button

OK

OK

YES

Is it possible to make adjustment by

using the On Screen Display ?

Press "OK" button, then bring up

"MAIN CONTROLS" window.

Adjust Horizontal, Vertical or Shape.

END

Picture distortion is

not adjusted

normally.

YES YES

7

Is picture

displayed

normally

YES

95

9Go to cover page

107T5

General Troubleshooting Guide

It is need to check and

repair the monitor.

OK

END

NO

Picture is not stable

1. No picture is displayed for a few seconds in changing

resolution (in changing display pixels) such as picture

disappearing in a moment, etc.. This is normal function

to mask unstability in changing picture.

2. In case of picture moving :

Picture moves due to the degaussing device working

after Select "DEGAUSS" (OSD screen) and press the

OK button (front control of montor), but it is normal.

In another case, magnetism can cause picture moving.

In case there is any magnetics such as high capacity

transformers, large current power lines, and electric

equipments near the monitor, keep them away from

the monitor.

9

96

9Go to cover page

107T5

General Troubleshooting Guide

Adjust each resolution

according to user's guide.

END

Need to change

display size and

adjust distortion

10

97

9Go to cover page

107T5

General Troubleshooting Guide

It is need to check and

repair the monitor.

OK

END

NO

Color Patterns visible

on the screen

Are Moire color fringes visible with some images?

(e.g. Windows shutdown screen)

Moire is the phenomenon interference fringes are

visible on the screen. It occurs due to the

interference between the regular pattern of video

and phosphors layout pattern of CRT, and it is not

a fault but fringe of light and darkness (or colored fringe).

Adjust MOIRE (Horizontal or Vertical).

The moire level on the screen can be reduced.

YES

11

98

9Go to cover page

107T5

General Troubleshooting Guide

It is need to check and

repair the monitor.

OK

END

NO

MOIRE

YES

: Moir is a natural effect or phenomenon of CRT that has the appearance of a wavy pattern

which is repetitive and superimposed on the screen as ripple images. , not just Philips monitor had.

These are a few suggestions to help for reducing or minimizing the effect.

- Some monitors have a Moir cancellation feature, activate it to the on position

or adjust the Moire cancellation function via the OSD manipulation on the monitor.

- Change resolution to the recommended standard for the specific monitor size.

- Change Window viewing pattern/scheme to a pattern where the moir is less visible.

- Change horizontal and vertical size to optimize the reduction of the moir effect.

MOIR

A fringe pattern arising from the interference between two superimposed line patterns.

In a monitor it comes from the interference between the shadow mask pattern

and the video information (video moir , and between the shadow mask

and the horizontal line pattern (scan moir . It shows itself as wavy patterns

on the screen and becomes more noticeable as monitor resolution increases.

Since the video signals varies continuously, little can be done about video moir

Scan moir depends on the horizontal scanning frequency and can be alleviated

by appropriate choice of this frequency. Autoscan (MultiSync) monitors, however,

which operate over a range of scanning frequencies,

may sometimes exhibit moir in certain video modes.

Several sources can act as a catalyzer to produce Moire. They are : The CRT,

shadow mask, the electron beam spot size, the resolution, video patterns,

and the horizontal and vertical size.

11

99

9Go to cover page

107T5

General Troubleshooting Guide

Please contact your

dealer/reseller for

more information.

OK

END

NO

OSD MAIN MENU

LOCKED

YES

Press and hold the OSD menu key for about 10 seconds ,

until picture displays "OSD MAIN MENU UNLOCKED"

100

9Go to cover page

107T5

General Troubleshooting Guide

Shimmering/

Jitter/Video Noise

Turn on monitor with a display or

image for 30 minutes (due to drift).

Jitter or Noise still present ?

YES

NO

NO

END Try moving the monitor to another

location to see if problem goes away.

Jitter or Noise disappear.

Environment problem

END

YES 1. Try system with

another monitor.

2. Try monitor with

another system.

Monitor related ?

Jitter or Noise disappear.

END

YES

NO

Video system

problem

It is need to check and

repair the monitor.

Power off any monitor that

is within 2 or 3 feet away.

Remove any unshielded

speakers away from the

monitor.

Make sure there are no

flourescent light fixtures

close to the monitor.

Try to keep monitor

away from large metal

structures, power poles,

fans and metal carts.

Check for other devices

that may be causing

magnetic interference.

END

Is picture displayed

normally?

YES

NO

13

101

9Go to cover page

107T5

General Troubleshooting Guide

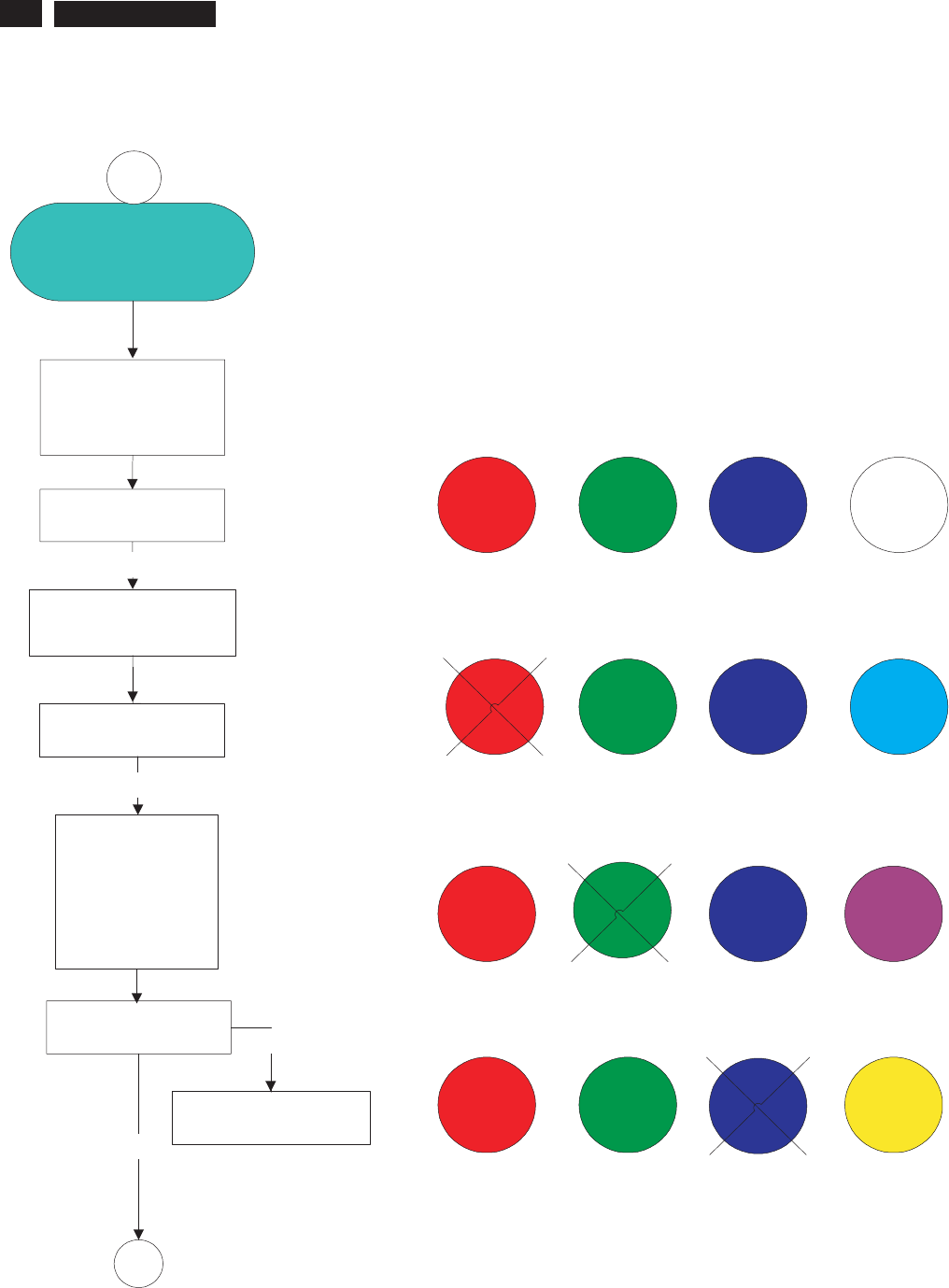

Missing Color

GREENRED BLUE WHITE

Purple

Magenta or Purple Color means that

the green gun is missing.

Cyan

Cyan Color means that the red gun

is missing.

Yellow

Yellow Color means that the blue gun

is missing.

There are 2 easy ways to determine the Missing color problem.

1. View an image that is supposed to be "White".

If one of the colors (RGB) is not functioning.

White can not be produced.

2. View an image that supposed to contain Red, Green and Blue.

Color problems will be apparent when one or more of these

colors can not be displayed.

++=

RED GREEN BLUE

++=

RED BLUE

++=

GREEN

GREENRED

++=

BLUE

1. Turn off monitor.

2. Disconnect video

cable.

3. Turn on monitor.

Is picture displayed

normally?

It is need to check and

repair the monitor.

Colors on warning

signal OK ?

YES

Check video cable for

bent pins, reseat it.

END

YES

Signal cable pins

OK ?

YES

1. Try system with

another monitor.

2. Try monitor with

another system.

3. Try changing in

the application.

NO

14

102

9Go to cover page

107T5

General Troubleshooting Guide

Color Purity

Turn on monitor with a full image

for 30 minutes (due to drift).

Color Purity or Blotchy or Streaky

YES

Press Degauss button (or via the OSD manipulation)

or Turn unit "OFF" then "ON" to degauss.

Does degaussing resolve ?

YES

END

It is need to check and

repair the monitor.

END

YES

Check for magnetic interference

and try to remove.

Try moving the monitor to see if

problem goes away.

Is picture displayed

normally?

YES

NO

NO

Note the location of "problem

area" (Color impurity)

Observe the "problem area"

while turning the monitor 90

degrees left of center and

right of center.

Does the "problem area"

move on the screen as you

are turning the monitor ?

NO

Environment related ?

YES Monitor related ?

Power off any monitor that

is within 2 or 3 feet away.

Remove any unshielded

speakers away from the

monitor.

Make sure there are no

flourescent light fixtures

close to the monitor.

Try to keep monitor

away from large metal

structures, power poles,

fans and metal carts.

Check for other devices

that may be causing

magnetic interference.

END

Is picture displayed

normally?

YES

NO

15

103

9Go to cover page

107T5

General Troubleshooting Guide

OK NO

Power management

function is not active

Verify the PC is compliant with VESA.

In case all of the video signals of PC are

not off, power management function is

not active normally. [Repeat to power on

and off (power management).]

There are accelerator boards not

complied with VESA.

YES

END

It is need to check and

repair the monitor

16

104

9Go to cover page

107T5

General Troubleshooting Guide

It is need to check and

repair the monitor.

OK

END

NO

A buzzing sound

when powering on

This sound is caused when the auto degaussing circuit is active.

This buzzing sound is normal when the monitor is first turned on.

This sound may be louder during the winter months and during

initial power on.

YES

17

105

9Go to cover page

107T5

General Troubleshooting Guide

Please contact your

dealer/reseller for

more information.

OK

END

NO

18

CustoMax

YES

CustoMax is proprietary Philips software

that allows user to control parameter (e.g. Size , Color , Geometry )

in place of the buttons on the front of the monitor.

To install and run the CustoMax., you must have a USB compatible system

and have a USB connection on the rear of your monitor.

- Check Monitor Type

- Check PC & Video card

- Check USB port

- Check USB hub

- Check USB cable

- Check USB device

- Check Customax version

(Brilliance - 105,

Brilliance - 107,

CustoMax 2.01)

Features:

CustoMax for monitors is a software program for adjusting the screen geometry, color quality,

image quality and hardware and software settings of your display.

106

9Go to cover page

107T5

General Troubleshooting Guide

Colorific

19

Colorific is a color matching software that helps user match the monitor

and printer to fulfill the requirement of WYSIWYG (what you see is what you get ) .

The Colorific software is the property of Sonnetech ,Ltd.

Only certain Philips monitor Models are equiped with the software.

If you have special interesting , please hit the web site "http:\www.colorific.com".

The compatibily problem with Windows :

Colorific 4.2 or below issued before Sept 98 cannot run in Win98.

Colorific 4.24 (CM5800) manufactured before May 1998 and issued by Feb 98 can support Win 98.

Colorific4.3 can fully support in Win 98

107

9Go to cover page

107T5

General Troubleshooting Guide

USB

USB = Universal Serial Bus

USB automatically determines resources (like driver software and bus bandwidth)

required by peripherals.

USB makes necessary resources available without user intervention.

It is designed to meet Microsoft Plug and Play (PnP) specification, meaning users can install,

and hot-swap devices without long installation procedures and reboots.

It allows 127 devices to run at the same time on the bus.

USB bus provides two types of data transfer speed -- 1.5Mbps and 12Mbps

and it can provide a maximum of 500mA of current to devices attached on the bus.

Universal means all peripherals share the same connector.

Serial simply defines devices can daisy chain together.

Universal Serial Bus 1.1, the de facto external connectivity standard for Mac and PC,

has picked up the speed after its slow adoption by peripheral manufacturers, users and PC OEMs.

USB 2.0 :

Drafted by Compaq, Hewlett Packard, Intel, Lucent, Microsoft, NEC and Philips,

USB Specification version 2.0 will increase device data throughout

up to 480Mbps, 40 times faster than USB 1.1 devices.

20

108

9Go to cover page

107T5

General Troubleshooting Guide

Please contact your

dealer/reseller for

more information.

OK

END

NO

Picture too Large

or Small

YES

21

: Reset monitor via OSD menu maniputlation

: Adjust the Horz(width) and.or Vert size (height) in the On Screen Display.

: Change monitor timing to work at the recommended resolution.

109

9Go to cover page

107T5
