Sleep and home

respiratory care

Product and solutions

catalog

Table of contents

Sleep therapy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Masks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Oxygen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Home ventilation. . . . . . . . . . . . . . . . . . . . . . . . . 70

Airway clearance. . . . . . . . . . . . . . . . . . . . . . . . . 80

RDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Sleep diagnostics . . . . . . . . . . . . . . . . . . . . . . . 106

Pro-Tech sensors. . . . . . . . . . . . . . . . . . . . . . . . 130

Medical education. . . . . . . . . . . . . . . . . . . . . . . 148

Value-added programs . . . . . . . . . . . . . . . . . . 154

DreamStation supports long-term patient use

while creating new efficiencies for your business.

Sleep therapy

Natural. Comfortable. Sleep.

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

DreamWear

Like wearing nothing at all

The open-face design provides superb comfort, allowing freedom of movement

and the ability to choose your most comfortable sleep position. DreamWear is

designed to be unlike any mask you’ve experienced.

• Users rate DreamWear more comfortable, more stable, easier to use and

more appealing than their prescribed mask.

• Unique in-frame air-ﬂow and an innovative air tube connection at the top of

the head.

• Light, soft and ﬂexible material.

22015 User Preference Questionnaire, data on ﬁle.

DreamMapper

Take charge of your sleep.

As a mobile app and online software, DreamMapper helps keep you motivated to

take charge of treating your sleep apnea.

• See daily feedback on your progress.

• Set and track custom goals, and unlock achievements.

• Find guidance and informational videos to help you stay committed.

• Receive notiﬁcations about your therapy and DreamMapper compatible* equipment.

*To see which CPAP and BiPAP devices are compatible with DreamMapper, visit sleepapnea.com/mydreammapper.

The Dream family

At Philips Respironics, we know that good, sound sleep is vitally important at

every age — to your work, your play, your physical and emotional well-being.

That’s why we designed the Dream family to help make treating your sleep

apnea easy and comfortable. So you get the kind of sleep you need to help

you feel more like yourself every day.

Discover the whole story on the innovative, easy-to-use and comfortable Dream family.

Visit sleepapnea.com/dream

Sleepapnea.com offers tips and advice on our product, videos of patient success stories, and provides more information about the Dream family.

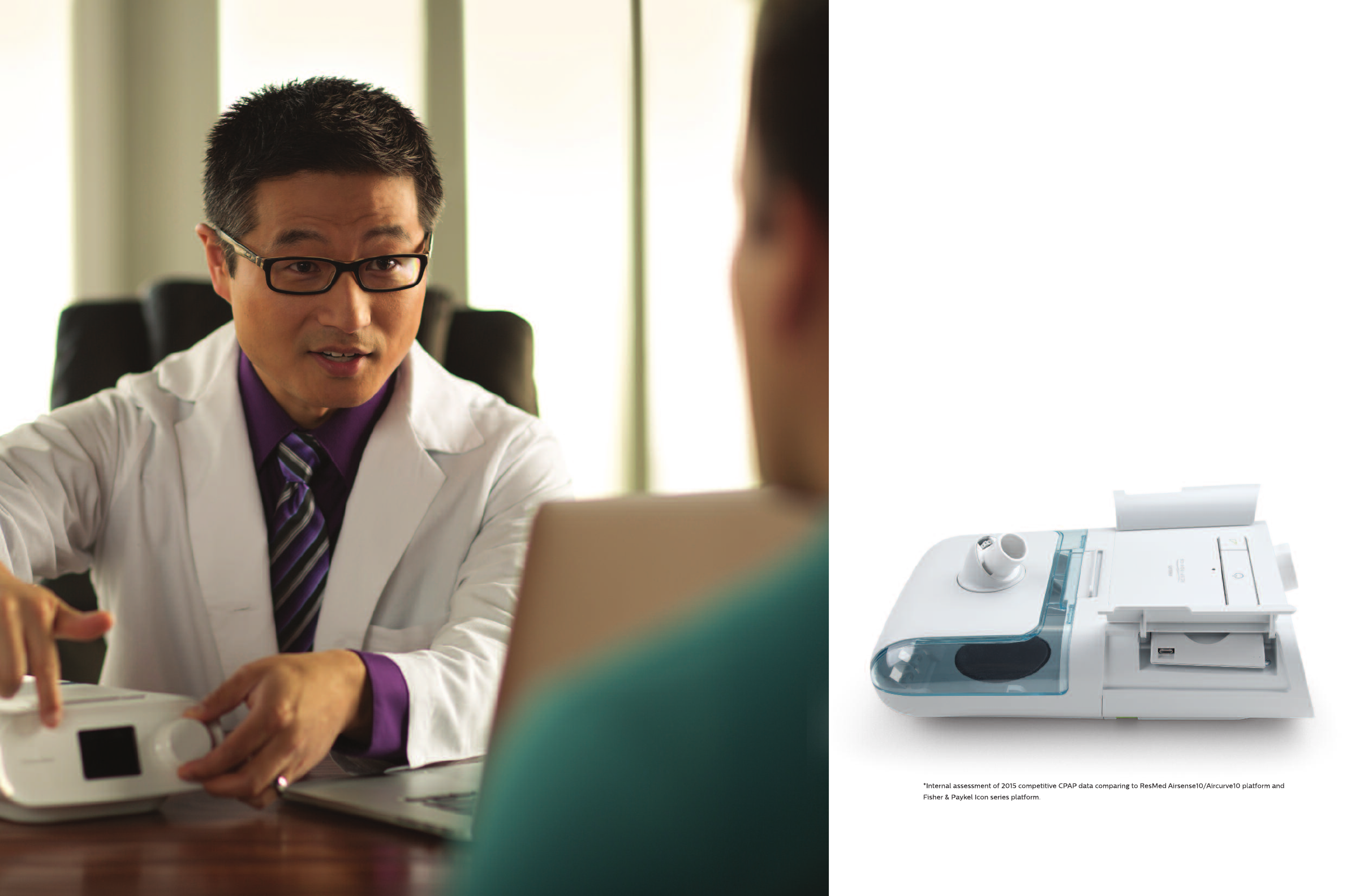

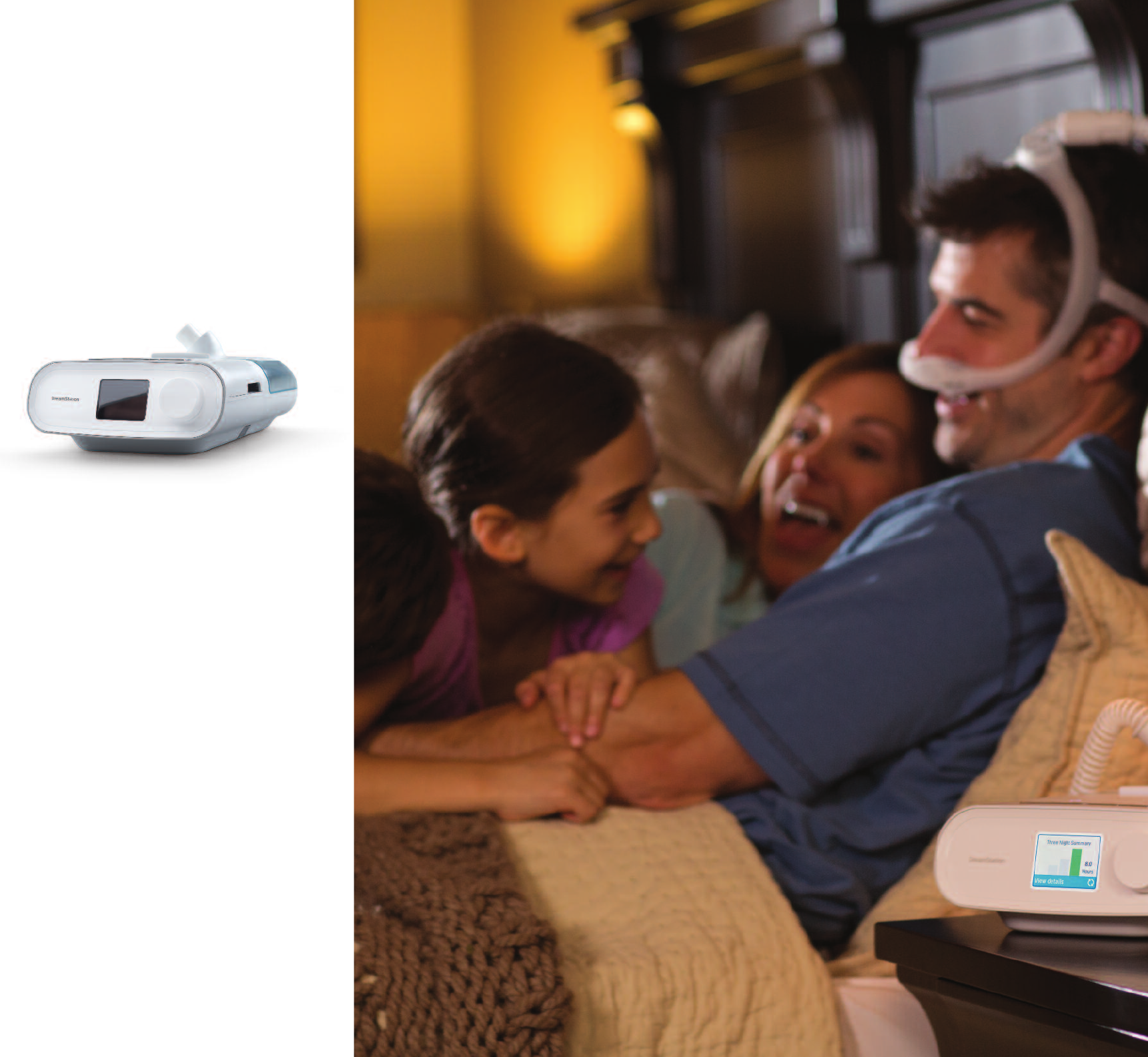

DreamStation

Natural. Comfortable. Sleep.

With easy-to-navigate menus, a sleek, compact design and quiet operation,

DreamStation makes it simple to start, customize and continue your obstructive

sleep apnea (OSA) therapy.

• Controls and interface at the front of the unit for enhanced visibility on your

nightstand.

• Colorful, easy-to-use display with icon-based navigation and daily feedback.

• Most comprehensive suite of connectivity options available among the leading

CPAP brands.

1Internal assessment of 2015 competitive CPAP data comparing to ResMed Airsense10/Aircurve10 platform

and Fisher & Paykel Icon series platform.

DreamStation

Acclimating patients in the early

days of therapy

EZ-Start can help patients gradually adapt to their prescribed

level of therapy using an innovative pressure acclimation

algorithm with automatic, personalized adjustments to CPAP

pressure over the ﬁrst 30 days.

SmartRamp allows users to fall asleep to lower pressures than

standard ramp mode. The air pressure remains low until the

patient experiences an obstructive respiratory event. Then

SmartRamp responds with our patented auto algorithm to

resolve the patient’s apneas.

Make progress every day

Each morning patients are greeted with Daily Progress

Feedback — a summary of how far they’ve come to help

motivate them to stick with their therapy. The intuitive, color

display shows a simple trend of their nightly hours of use,

followed by a summary of their last 30 days of good nights

with more than 4 hours of use.

Sleep therapy success at your

patients’ ﬁngertips

Bluetooth® is included in every DreamStation device for easy

connectivity to the DreamMapper patient self-management

tool. DreamMapper helps patients take an active role in their

sleep management by providing daily therapy progress, helpful

troubleshooting videos, and goal-setting tools. Patients can

stay engaged and get the information they need fast, without

having to use your staff’s time to resolve common issues.

An Encore performance

DreamStation connects to our powerful EncoreAnywhere

patient compliance management software. EncoreAnywhere is

HIPAA compliant and makes it easy and eﬃcient for sleep

professionals to manage patient compliance and therapy.

Focus your time where it belongs

EncoreAnywhere features Adherence Proﬁler. It’s an optional,

intuitive tool that helps you identify patients according to their

probability of achieving adherence, helping focus your staff’s

time on the patients that have the greatest likelihood of

success.

Natural.

Comfortable.

Sleep.

DreamStation supports long-term patient use

while creating new eﬃciencies for your business.

Powerful patient-driven design

DreamStation was designed with feedback from

hundreds of patients to provide a simpler CPAP

experience to help both new and experienced

patients use therapy long-term. A suite of intuitive

tools can be customized by healthcare professionals

to choose the solution that’s right for each patient.

DreamStation quality comes through

• 63% quieter than its closest competitor*

• Durable, easy-to-connect, top-mount tubing connections for an

exceptional customer experience

• Assembled in USA

*Based on the average change in sound level during simulated patient breathing, across a range of pressure,

expiratory relief, and humidiﬁer conditions.

Only DreamStation offers Bluetooth®

, Cellular and

Wi-Fi connectivity options. By providing the most

comprehensive suite of connectivity choices among

leading CPAP brands*, you can choose the options

that are most cost effective. DreamStation’s

innovative design has the capability to adapt as

technologies continue to advance.

Making it easy to reach your patients

• Cellular provides data on a daily basis and one hour after the patient

has turned the device off

• Wi-Fi delivers more data to clinicians more often and provides coverage

even in weak cellular areas

• Bluetooth is included in every device for easy connectivity with

DreamMapper and Alice NightOne

Creating eﬃciencies

that make a difference

More cost-effective

connectivity options

*Internal assessment of 2015 competitive CPAP data comparing to ResMed Airsense10/Aircurve10 platform and

Fisher & Paykel Icon series platform.

10 11

Insight driven

innovation

US Canada HCPCS

Part number Part number

DreamStation Auto CPAP

DreamStation Auto CPAP DSX500S11 CAX500S12 E0601

(Device only)

DreamStation Auto CPAP DSX500H11 CAX500H12 E0601,

w/HT humidiﬁer and standard tube E0562

DreamStation Auto CPAP DSX500T11 CAX500T12 E0601,

w/HT humidiﬁer and heated tube E0562,

A4604

DreamStation CPAP Pro

DreamStation CPAP Pro DSX400S11 CAX400S12 E0601

(Device only)

DreamStation CPAP Pro DSX400H11 CAX400H12 E0601,

w/HT humidiﬁer and standard tube E0562

DreamStation CPAP Pro DSX400T11 CAX400T12 E0601,

w/HT humidiﬁer and heated tube E0562,

A4604

DreamStation CPAP

DreamStation CPAP DSX200S11 CAX200S12 E0601

(Device only)

DreamStation CPAP DSX200H11 CAX200H12 E0601,

w/HT humidiﬁer and standard tube E0562

DreamStation CPAP DSX200T11 CAX200T12 E0601,

w/HT humidiﬁer and heated tube E0562,

A4604

Your DreamStation

CPAP Options

Philips Respironics revolutionized sleep therapy

by introducing bi-level positive airway pressure

technology to treat obstructive sleep apnea.

Emulating natural breathing with pressure relief at

inhalation and exhalation, this proven technology

does more than provide highly effective therapy –

it delivers a level of comfort that can mean the

difference between compliance and non-compliance

for patients having diﬃculty adapting to traditional

CPAP therapy.

Your DreamStation

bi-level options

Therapy for your noncompliant,

nontolerant CPAP patients

US Canada HCPCS

Part number Part number

DreamStation Auto BiPAP

DreamStation Auto BiPAP DSX700S11 CAX700S12 E0470

(Device only)

DreamStation Auto BiPAP DSX700H11 CAX700H12 E0470,

w/HT humidiﬁer and standard tube E0562

DreamStation Auto BiPAP DSX700T11 CAX700T12 E0470,

w/HT humidiﬁer and heated tube E0562,

A4604

DreamStation BiPAP Pro

DreamStation BiPAP Pro DSX600S11 CAX600S12 E0470

(Device only)

DreamStation BiPAP Pro DSX600H11 CAX600H12 E0601,

w/HT humidiﬁer and standard tube E0562

DreamStation BiPAP Pro DSX600T11 CAX600T12 E0470,

w/HT humidiﬁer and heated tube E0562,

A4604

14 15

Part number CA Part number

Humidiﬁcation

DreamStation humidiﬁer

DreamStation water chamber

RP-DS Humidiﬁer Dry Box Assembly

RP-DS Humidiﬁer Flip Lid Seal

RP-DS Humidiﬁer Dry Box Inlet Seal

Power supply

DreamStation 80-watt power supply

Power cord

Tubes

15mm Std Tube – DreamStation - RP

15mm Heated Tube

Filters

Pollen ﬁlter, reusable (1 per pack)

Ultra-ﬁne ﬁlter, disposable (1 per pack)

Ultra-ﬁne ﬁlter, disposable (2 per pack)

Ultra-ﬁne ﬁlter, disposable (6 per pack)

Miscellaneous

Link module

Nonin SpO2, assembly

Reuseable ﬁnger sensor (clip)

Oximetry ﬁnger sensor, adult, ﬂex

Flexiwrap, sens tape, adult, 25/pk

Reuseable ﬁnger sensor (soft), medium

Reuseable ﬁnger sensor (soft), small

Modems

Cellular modem, oximetry capable

Cellular modem, Non-oximetry

Wi-Fi accessory, oximetry capable

Wi-Fi accessory, Non-oximetry

DreamStation

accessories

DSXH

1122520

1120668

1120617

1120613

1118499

1005894

PR15

HT15

1122446

1122447

1122518

1122519

1120293

1121694

936

953

954A

1062050

1062051

100600C

100605C

100700W

100705W

EUXH

1122520

1120668

1120617

1120613

1118499

1005894

PR15

HT15

1122446

1122447

1122518

1122519

1120293

1121694

936

953

954A

1062050

1062051

100610C

100605C

100710W

100705W

16 17

US Canada HCPCS

Part number Part number

BiPAP autoSV Advanced, 30cm DS960XS CA961XS E0471

BiPAP autoSV Advanced DS960XHS CA961XHS E0471

with humidiﬁer, 30cm

BiPAP autoSV Advanced DS960XTS CA961XTS E0471

with Heated Tube humidiﬁer, 30cm

BiPAP autoSV Advanced

Targets: complex, central, mixed sleep apneas, and

Cheyne-Stokes respiration patients

• Clinically proven servo ventilation algorithm

• Auto EPAP for a patient’s changing needs

• Real time access to patient data via modems

• Advanced event detection

• Bi-Flex for comfort

• Encore data management and reporting

• New patient waveform reports

• Optional integrated oximetry available

Your System One advanced therapy options

BiPAP autoSV Advanced

Therapy for your most complicated patients

The BiPAP autoSV Advanced system helps you

support optimal patient management – for patients

with Complex Sleep Apnea or Periodic Breathing

(such as Cheyne-Stokes respiration). It also includes

virtually all of the features and programs that make

System One the most prescribed sleep therapy

system by US sleep centers.1

1. Needham & Company 3Q15 Sleep Center Survey, August 2015

2. Javaheri, et al, Clinical Application of ASV Devices, Chest 2014 Sep;146(3):858-68.

Aligned with System One sleep therapy technology,

the BiPAP AVAPS noninvasive ventilator provides the

comfort of pressure ventilation and the consistent

eﬃcacy of assured tidal volume. Adapting

automatically to changing patient needs, BiPAP

AVAPS incorporates advanced technologies that help

simplify patient care.

Part number HCPCS

DS1160S BiPAP AVAPS E0471

DS1160HS BiPAP AVAPS with humidifier E0471, E0562

DS1160TS BiPAP AVAPS, Heated Tube E0471, E0562,

humidifier A4604

CA1161X (Canada) BiPAP AVAPS

CA1161XTS (Canada) BiPAP AVAPS

Heated Tube core package

BiPAP AVAPS

Automatically adapts to a patient's changing needs

To learn more visit www.philips.us/bipapavaps

18 19

Description Part number HCPCS

Humidification

System One 60 Series humidifier DS6H, IN6H (Canada) E0562

System One 60 Series Heated Tube humidifier DS6T, IN6T (Canada) E0562, A4604

(Includes 80 watt power supply and Heated Tube)

Water chamber (includes both 50 and 60 Series lids) 1063785 A7046

Heated Tube humidifier upgrade kit 6T-CONVKIT A4604

Power supplies

60 watt power supply (for H and HS models) 1091398

80 watt power supply (for TS model only) 1091399

Power cord 1005894

Tubing

System One Heated Tube SYS1HT15 A4604

System One Performance Tube (15mm) 1074400 A7037

Performance Tubing (22mm) 1032907 A7037

Filters

Pollen (foam) filter, reusable (1 per pack) 1035443 A7039

Pollen (foam) filter, reusable (2 per pack) 1029330 A7039

Ultra-fine filter, disposable (1 per pack) 1063096 A7038

Ultra-fine filter, disposable (2 per pack) 1035442 A7038

Ultra-fine filter, disposable (6 per pack) 1029331 A7038

Miscellaneous

Device side panel 1099592

Carrying case 1063857

Data management accessories

Data cards and accessories

SD card (10 pack) 1063859

SD card mailer (10 pack) 1065146

SD card cover (attached to device) 1063858

SD card reader 1047300

Modems

Wired flow modem 100200W A9279

Wired flow modem monthly service 100201W

Wireless flow modem 100200C, 100210C (Canada)

Wireless flow modem monthly service 100201C

Broadband oximetry modem and router 100200E A9279

Broadband oximetry modem 100205E

Modem oximetry accessories

Oximetry sensor Various part numbers

Travel accessories

Shielded DC cord 1097568

DC battery adapter cable 532209

Shielded 12VDC power cord system 1099011

(includes shielded DC cord and battery adapter cable)

Universal portable battery pack 1028869

System One sleep therapy accessories

20 21

DreamStation travel case

The DreamStation travel case* gives patients

a convenient, compact, and discreet way to

travel with their DreamStation sleep therapy

system and supplies.

PAP accessories

to meet your patients’ needs

Components

The case accommodates the Philips Respironics

DreamStation sleep therapy system (blower only, no

humidiﬁer), the patient’s mask and tubing, a 65W power

supply w/ USB port, and a removable luggage strap.

Speciﬁcations

Dimensions: 10.42" (26.46 cm) x 3.94" (10 cm) x 13.78" (35 cm)

Mask

Tubing

Power supply

cord

Power supply

with

USB port

DreamStation

without

humidiﬁer

Luggage strap Detachable

shoulder strap

Discover new ways to enhance your patients’ therapy

experience by offering a wide variety of convenient PAP

accessories. Carrying these accessories can enable you to:

• Keep in contact with patients and build lasting relationships

for future opportunities

• Help patients enjoy a better quality of life with accessories

that allow them to conveniently travel with their sleep

therapy system and easily and discreetly store it at home

• Create a retail revenue opportunity and attract additional

patients to your business

Beneﬁts for patients

• The hard-fabric case provides added peace of

mind that the sleep therapy system will be

protected during travel.

• The included power supply offers travel convenience.

• The USB port on the 65W power supply reduces

the need for an additional charger.

• Molded insert liner designed to help the patient

thoroughly pack the PAP device components.

*DreamStation, mask, and tubing not included

**Without humidiﬁer

Ordering information Part number

Travel case, 65W power supply w/USB port 1120135

Travel case, 65W power supply w/USB port, 1124301

5/case

Convenient

The case includes a DreamStation 65W power supply that is lighter and

smaller than the DreamStation 80W power supply. The included USB port

powers the DreamStation** system and can be used to charge items such

as a smartphone and other electronic devices during travel.

Compact

The lightweight, hard-fabric case offers an ideal combination of

protection and portability. Its individual compartments accommodate the

DreamStation** system and neatly organizes the supplies. An included

mesh pouch holds the tubing securely in place.

Discreet

The case is designed to make traveling with sleep therapy

equipment less cumbersome. A molded insert liner helps the

patient thoroughly pack the PAP system components. The

case can be easily attached to a roller suitcase and its

zip top helps facilitate airport screening. On a plane,

it easily ﬁts in the overhead bin or under the seat.

22 23

Components

The briefcase accommodates most PAP therapy devices and

accessories and standard-size laptop computers.

Speciﬁcations

Dimensions: 16.14" w (40.99 cm) x 13.58" h (34.49 cm) x 7.87" d (19.99 cm)

Color: Black

PAP travel briefcase with

detachable laptop bag

The travel briefcase features two bags that conveniently zip

together into one carry-on. The therapy system and accessories

ﬁt snugly and securely into customizable compartments on one

side of the case, while the laptop and its accessories ﬁt securely

into the ample-sized pockets of the other side. There’s even

space for books, magazines, and other small travel items.

The PAP travel briefcase* gives patients an all-inone

carrying option that accommodates most PAP

therapy systems and humidiﬁers, a laptop, and other

small items. It makes it easy and eﬃcient to travel

with a sleep therapy system.

Beneﬁts for patients

• Its compartments protect the sleep therapy system

and accessories during travel.

• Its zip top facilitates easy airport screening

process.

• It ﬁts within the FAA maximum carry-on size.

• The lightweight case offers easy portability.

• It’s designed to easily attach to a roller

suitcase.

Removable

laptop bag

Detachable

shoulder strap

DreamStation

with

humidiﬁer

Tubing

Power supply

Mask and tubing bedside organizer

The bedside organizer gives patients a way to conveniently store their

mask and tubing without cluttering a nightstand — both at home and

during travel. It also keeps the components dust-free and ready for use.

The organizer features a weighted ﬂap to allow it to hang over a nightstand or between

a patient’s mattress and box spring. It even features a zippered compartment

for the mask and tubing, making the organizer a great travel companion.

LiquiCell®nasal CPAP cushions

LiquiCell* is a thin, pliable cushion infused with ﬂuid that can be applied virtually anywhere on the face,

making it versatile. The cushion enhances comfort by acting as a barrier between the user’s face and the

mask. Gentle adhesive keeps the cushion securely in place.

*LiquiCell is a registered trademark of Birchwood Laboratories, Inc.

Beneﬁts for patients

• The organizer provides a clean, discreet place to store mask and tubing

while not in use.

• Its design looks right at home in the bedroom.

• It can be used on a nightstand or in between mattress and box spring.

Speciﬁcations

Dimensions: 7.99” (20.3 cm) x 10.94” (27.8 cm) x 3.74” (9.5 cm)

Color: Light gray

Ordering information Part number

PAP travel briefcase 1114784

Ordering information Part number

Bedside organizer 1122135

Bedside organizer, 10/case 1124224

Ordering information Part number

LiquiCell nasal CPAP cushions, pack of 30 1109097

*DreamStation, power supply and tubing not included

24 25

Sleep therapy device comparison and selection guide

Comfort features Encore data capture and reporting

DreamStation Modes Flex comfort Resistance Control Patterns of use Advanced event detection Flow waveform Reimbursement

CPAP devices

Auto CPAP CPAP C-Flex Standard Standard Standard Standard E0601

CPAP-Check C-Flex+

Auto-Trial A-Flex

Auto CPAP

CPAP Pro CPAP C-Flex Standard Standard Standard Standard E0601

CPAP-Check C-Flex+

Auto-Trial A-Flex

CPAP CPAP C-Flex N/A Standard N/A N/A E0601

REMstar SE CPAP Flex N/A Standard N/A N/A E0601

Bi-level devices

Auto BiPAP CPAP C-Flex Standard Standard Standard Standard RAD without back-up rate E0470

Bi-level Bi-Flex

Auto bi-level

BiPAP Pro CPAP C-Flex Standard Standard Standard Standard RAD without back-up rate E0470

Bi-level Bi-Flex

Ventilatory devices

BiPAP autoSV Advanced Auto servo Bi-Flex Standard Standard Standard Standard RAD with back-up rate E0471

BiPAP AVAPS CPAP, S, S/T, Bi-Flex Standard Standard Standard N/A RAD with back-up rate E0471

PC, T, AVAPS (only available in S mode)

BiPAP S/T CPAP, S, S/T Bi-Flex Standard Standard Standard N/A RAD with back-up rate E0471

Advanced event detection:

Patient events are detected and logged for review by the care team for optimal patient care.

Philips Respironics devices with advanced event detection detect, respond to (some models),

and log the following advanced events:

• Apnea Hypopnea Index (AHI) • Respiratory-related arousal (RERA)

• Snore • Flow limitation (FL)

• Leak • Vibratory snore (VS)

• Obstructive airway apnea (OA) • Large leak (LL)

• Clear airway apnea (CA) • Periodic breathing (PB)

• Hypopnea (H)

Any Philips Respironics device with advanced event detection gives you the ability to review the patient flow waveform report.

Philips Respironics Sleep Therapy

26 27

Target

Algorithm

Settings

OSA patients

Short-term

Auto patients2

Home sleep testing

patients2

OSA patients

Short-term

Auto patients2

Home sleep testing

patients2

OSA patients

non-responsive or

non-tolerant of CPAP

OSA and respiratory insufficiency

patients with central apnea, periodic

breathing such as Cheyne-Stokes

respiration (CSR), or complex apnea

OSA patients

non-responsive or

non-tolerant of CPAP

• Corresponding Flex

technology provides pressure

relief

• Three patient-adjustable

Flex settings

• Fixed CPAP pressure

• Trial period of breath-

by-breath auto algorithm

CPAP-Check algorithm2

• Flow-based proactive and reactive

intelligence

• Delivers lowest mean average

pressure levels

• Flow-based A-Flex pressure relief

during inspiratory and expiratory

phases

• Three patient-adjustable Flex settings

• Fixed IPAP and EPAP pressures

• Flow-based Bi-Flex pressure relief

during inspiratory and expiratory

phases

• Three patient-adjustable Flex settings

• Dynamic, breath-by-breath

adjustment of pressure support

• Peak flow targeted

• Intra-breath support

• Auto-titrating EPAP to alleviate the

obstructive component of SDB

• Automatically calculated back-up

rate in times of apnea

• Flow-based proactive and reactive

intelligence

• Delivers lowest mean average

pressure levels

• Flow-based Bi-Flex pressure relief

during inspiratory and expiratory

phases

• Three patient-adjustable Flex settings

Fixed CPAP 4-20 cm

Ramp time 0-45 min

Flex settings 1, 2, 3

Adaptive Humidity 0-5

Classic Humidity 0-5

Heated Tube 0-5

Humidity level 1,2,35

Min CPAP 4-20 cm

Max CPAP 4-20 cm

Ramp time 0-45 min

Flex settings 1, 2, 3

Adaptive Humidity 0-5

Classic Humidity 0-5

Heated Tube 0-5

Humidity level 1,2,3

EPAP 4-25 cm

IPAP 4-25 cm

Ramp time 0-45 min

Flex settings 1, 2, 3

Adaptive Humidity 0-5

Classic Humidity 0-5

Heated Tube 0-5

Humidity level 1,2,3

EPAPmin 4-25 cm4

EPAPmax 4-25 cm4

PSmin 0-26 cm

PSmax 0-26 cm

Max pressure 4-30 cm

Breath rate

(Off, Auto, 4-30 BPM)

Rise time 0-3

Ramp time 0-45 min

Flex settings 1,2,3

Adaptive Humidity 0-5

Classic Humidity C1-C5

EPAP 4-IPAP

IPAP 4-25 cm

maxIPAP=(minEPAP+3)-25

minEPAP=4-(maxIPAP-3)

PSmin 0-8 cm

PSmax PSmin-8cm

Ramp time 0-45 min

Flex settings 1, 2, 3

Adaptive Humidity 0-5

Classic Humidity 0-5

Heated Tube 0-5

Humidity level 1,2,3

Therapy system

OSA and respiratory insufficiency

patients with hypoventilation caused

by restrictive thoracic disorders, obesity

hypoventilation syndrome, central

apnea, and COPD

Pediatric and adult use

AVAPS, C-Flex, and Bi-Flex features

are not cleared for pediatric use

• Average volume assured pressure

support (AVAPS)

• Maintains target Vt

• Automatically adapts to disease

progressions and changing patient

needs

• Modes: CPAP, S, S/T, T, PC

• Three patient-adjustable

Bi-Flex settings

EPAP 4-30 cm

IPAP 4-30 cm

I-Time 0.5-3.0 sec, off

Breath rate 1-30 BPM, off

Rise time 1-3

Flex settings 1,2,3

Target Vt3 200-1500 ml

IPAPmin3 EPAP-IPAPmax

IPAPmax3 4-30 cm

Adaptive Humidity 0-5

Classic Humidity C1-C5

Heated Tube 1-5

Humidity level 1,2,3

DreamStation

CPAP Pro with C-Flex+

DSX40011 (S, H, T)1

CAX40012 (S, H, T)1 (Canada)

CPAP with C-Flex

DSX20011 (S, H, T)1

CAX20012 (S, H, T)1 (Canada)

REMstar SE with Flex

DS220 (S, H, T)1

CA221 (S, H, T)1

DreamStation

Auto CPAP with A-Flex

DSX50011 (S, H, T)1

CAX50012 (S, H, T)1(Canada)

DreamStation

BiPAP Pro with Bi-Flex

DSX60011 (S, H, T)1

CAX60012 (S, H, T)1 (Canada)

SystemOne

BiPAP autoSV

Advanced 30 cm

DS960 (XS, XHS, XTS)1

CA961 (XS, XHS, XTA)1 (Canada)

DreamStation

Auto BiPAP with Bi-Flex

DSX70011 (S, H, T)1

CAX70012 (S, H, T)1 (Canada)

SystemOne

BiPAP AVAPS

DS 1160 (S, HS, TS)1

CA 1161X (S, HS, TS)1

BiPAP S/T

DS1060 (S, HS, TS)

Not available in Canada

Therapy type

CPAP Auto-CPAP Bi-level without Auto Bi-level Servo-ventilation Bi-level with

back-up rate back-up rate

1S or XS = SD card capable

HS or XHS = System One humidifier and SD card capable

TS or XTS = System One Heated Tube humidifier and SD card capable

2CPAP Pro and Auto CPAP only (with Auto-Trial and CPAP-Check)

3AVAPS

4CA961 range is 4-20 cm

5REMstar SE has a fixed humidity level with Heated Tubing operation

Matching patients with the right therapy and products

Philips Respironics Sleep Therapy

28 29

Our complete line of nasal, full-face, minimal contact, and

pediatric masks reflect our commitment to innovation and

meeting patient and business needs.

Masks

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

30 31

DreamWear

Like wearing nothing at all

Key beneﬁts

• Tubing attachment located at the

top of the head to offer freedom of

movement during the night

• Prevents red marks, discomfort or

irritation in the nostrils or on the

nose bridge**

• Users rated DreamWear more stable,

more comfortable, and more

appealing than their prescribed mask*

• Soft, ﬂexible silicone frame and fabric

wraps provide a soft touch on the

patient’s cheek

Patients can sleep how they want with the freedom

and comfort of DreamWear. Do your patients have

trouble ﬁnding a comfortable sleeping position or

feel restricted by CPAP tubing? DreamWear is an

innovative mask created to give your patients the

choice to sleep how they want.

The best of pillows and nasal masks

DreamWear’s unique design offers many of the beneﬁts of nasal and pillows masks

to allow patients to have the best of both mask types. Allowing more freedom of

movement and more comfort than their prescribed mask, DreamWear patients feel

like they are not wearing a mask at all.*

Users told us that DreamWear gave them more freedom to move, had a better ﬁt than

their prescribed mask, and comes closest to making them feel like they don’t have

anything on their face during therapy.** *2015 Philips User Preference Questionnaire, data on ﬁle.

**Mask does not directly contact the bridge of the nose or nostrils Available in 4 sizes:

Part number HCPCS

DreamWear fit pack

1116700 DreamWear fit pack with headgear, A7034, A7035

medium frame, all cushion sizes

1116701 DreamWear fit pack without headgear, A7034

medium frame, all cushion sizes

DreamWear with headgear, small frame

1116685 Small A7034, A7035

1116686 Medium A7034, A7035

1116687 Large A7034, A7035

111668 Medium wide A7034, A7035

DreamWear with headgear, medium frame

1116680 Small A7034, A7035

1116681 Medium A7034, A7035

1116682 Large A7034, A7035

1116683 Medium wide A7034, A7035

DreamWear with headgear, large frame

1116690 Small A7034, A7035

1116691 Medium A7034, A7035

1116692 Large A7034, A7035

1116693 Medium wide A7034, A7035

DreamWear without headgear, small frame

1116710 Small A7034

1116711 Medium A7034

1116712 Large A7034

1116713 Medium wide A7034

DreamWear without headgear, medium frame

1116705 Small A7034

1116706 Medium A7034

1116707 Large A7034

1116708 Medium wide A7034

DreamWear without headgear, large frame

1116715 Small A7034

1116716 Medium A7034

1116717 Large A7034

1116718 Medium wide A7034

DreamWear replacement parts

1116740 Small nasal cushion A7032

1116741 Medium nasal cushion A7032

1116742 Large nasal cushion A7032

1116743 Medium wide nasal cushion A7032

1116750 Headgear A7035

116745 Small frame

1116746 Medium frame

1116747 Large frame

1116754 Fabric wraps

1116752 Sizing gauge

S M L MW

32 33

An idea whose time has come. The Amara View’s

incredible under-the-nose design makes it Philips'

only full-face mask that won’t cause red marks on the

bridge of your nose. Amara View is the only Philips

full-face mask that allows the user to wear glasses,

as intended, to read or watch TV.*

With its amazingly innovative design, only Philips Respironics can offer the smallest

and lightest choice with the widest ﬁeld of vision of all leading full-face masks.

Amara View covers less of a patient’s face than all leading full-face masks.*

*Internal testing; data on ﬁle

Part number HCPCS

Amara View

1090622 Amara View small mask with headgear A7030, A7035

1090623 Amara View medium mask with headgear A7030, A7035

1090624 Amara View large mask with headgear A7030, A7035

1090632 Amara View small mask without headgear A7030

1090633 Amara View medium mask without headgear A7030

1090634 Amara View large mask without headgear A7030

Amara View replacement parts

1090689 Amara View quick-release tube 00000

1090692 Amara View small cushion A7031

1090693 Amara View medium cushion A7031

1090694 Amara View large cushion A7031

1090696 Amara View headgear, large A7035

1090697 Amara View headgear, standard A7035

1090698 Amara View headgear clip, 2pk

1090699 Amara View sizing gauge

Amara View

High marks for performance,

no marks on the bridge of your nose

Key beneﬁts

• Innovative design prevents red marks, discomfort or irritation

on the nose bridge*

• The smallest and lightest† of all leading full-face masks

• Widest ﬁeld of vision of all leading full-face masks*

• Enables wearing glasses, reading, and watching TV

• Easy to use with one modular frame for all cushion sizes

• No bulky cushion and frame in front of your face and eyes

† Without quick release tube

34 35

Key beneﬁts

• Pico is the lightest and smallest

traditional nasal mask on the market.*

• Pico is small, light, and comfortable –

while providing a high level of

therapy.*

• Pico comfortably ﬁts more than 98%

of patients*

• Pico offers patients a simple-to-use

mask with an excellent seal that offers

the freedom to watch television and

read while wearing it.

Practical innovation

At Philips Respironics, we created Pico with a

deﬁnitive goal in mind — to create a truly appealing

traditional nasal mask that makes minimal contact

with the face and offers simplicity, comfort and seal.

These qualities make it an ideal choice for new and

existing sleep apnea patients who want minimal

disruptions to their lifestyle.

Clinicians rated Pico easier to use, set up, and obtain a seal than the leading

traditional nasal masks, making it ideal for your installed base optimization and

new patient set-ups.*

*Data on ﬁle. Internal Marketing Survey 2013.

Part number HCPCS

Pico

1104940 Pico nasal mask fitpack, small/medium, A7034, A7035

large, extra large, with headgear

1104915 Pico nasal mask, small/medium, with headgear A7034, A7035

1104916 Pico nasal mask, large, with headgear A7034, A7035

1104917 Pico nasal mask, extra large, with headgear A7034, A7035

1104918 Pico nasal mask, small/medium, without headgear A7034

1104919 Pico nasal mask, large, without headgear A7034

1104920 Pico nasal mask, extra large, without headgear A7034

Replacement parts

1104934 Pico headgear A7035

1104935 Pico headgear, reduced size A7035

1104936 Small/medium nasal cushion A7032

1104937 Large nasal cushion A7032

1104938 Extra large nasal cushion A7032

1104939 Pico sizing gauge A7032

1104933 Pico headgear clips

1104931 Pico quick release swivel

Pico

Pico nasal mask delivers performance for you

and your patients

Available in ﬁtpack and 3 sizes: S/M L XL

36 37

Gel frame

• Gel-padded frame and non-slip

headgear holds mask in place

• Reduces need for re-adjustment

• High-performance look

Fabric frame

• All fabric frame and headgear

enhances patient comfort

• Soft fabric experience for

better sleep

Nuance. A new choice.

Designed around patients

To learn more, visit http://www.theanswer.philips.com/nuance/

Part number HCPCS

Nuance

1105160 Nuance gel pillows mask, with headgear A7034, A7035

1106194 Nuance gel pillows mask, without headgear A7034

Nuance Pro

1105167 Nuance Pro gel pillows mask, with headgear A7034, A7035

1106195 Nuance Pro gel pillows mask, without headgear A7034

Replacement parts

1105176 Nuance headgear A7035

1105405 Nuance RS fabric frame

1105177 Nuance fabric frame

1105178 Nuance Pro headgear A7035

1105179 Nuance Pro frame

1105173 Nuance/Nuance Pro small gel cushion A7033

1105174 Nuance/Nuance Pro medium gel cushion A7033

1105175 Nuance/Nuance Pro large gel cushion A7033

1105180 Nuance/Nuance Pro swivel tube with exhalation A7045

Nuance

Nuance gel pillows platform

Key beneﬁts

• Choice between fabric or gel frame for comfort

• Non-slip headgear stays in place throughout the night

• Gel pillows provides excellent comfort and seal

• Lightweight, ﬂexible tubing

• Causes less nostril discomfort and irritation than the leading pillows mask

• Conforms to different size nostrils

We’re setting a new standard in nasal pillows masks.

Philips Respironics, one of the world leaders in gel

cushion technology, is bringing the comfort and

sealing power of gel to nasal pillows.

As one of the latest in our groundbreaking new line of masks, Nuance gel pillows

represent a choice for better sleep therapy for clinicians, home care providers

and patients.

As the ﬁrst and only gel pillows platform, Nuance is designed to help patients

succeed by providing a more comfortable and familiar feel. With the greater

comfort and seal of gel pillows, the ability to ﬁt many different size nostrils and

choice of a fabric or gel frame, Nuance is truly a great choice in nasal pillows masks.

38 39

Part number HCPCS

Wisp, fabric frame

1094051 Wisp mask with fabric frame, with headgear A7034, A7035

1094056 Wisp mask with fabric frame, without headgear A7034

Wisp, clear frame

1094050 Wisp mask with clear frame, with headgear A7034, A7035

1094055 Wisp mask with clear frame, without headgear A7034

Wisp youth

1109298 Wisp youth fabric, P, S/M, L cushions

with reduced size headgear

Wisp replacement parts

1094086 Petite cushion A7033

1094087 Small/medium cushion A7033

1094088 Large cushion A7033

1112031 Extra large cushion

1094080 Clear frame

1094081 Fabric frame

1094082 Wisp headgear A7035

1094078 Wisp headgear, large size A7035

1109307 Wisp headgear, reduced size

1094083 Wisp headgear clips

Compact design comfortably ﬁts more

than 98% of patients

Patients said they had a better quality

of sleep with Wisp over the leading

pillows and nasal masks during a 2012

patient preference trial.

Open ﬁeld of vision for a feeling of

greater independence – patients can

read and even wear their glasses

Tip of

the nose

cushion

design

Elbow

quick

release

tabs

Easy to

adjust with

simple

headgear

clips

Self-

adjusting

top strap with tube

holder loop

Reversible

fabric frame

soft suedette and

silky sateen -

also available in

a clear silicone

All three sizes in one package:

P SM L

Wisp

A combination of comfort, performance and style

Key beneﬁts

• Compact design for a natural ﬁt

• Soft and comfortable for a restful

night’s sleep

• Open ﬁeld of vision for a feeling of

independence

• Quick and easy to adjust for a superior

seal and personalized ﬁt

• Contemporary frame options to

complement your style

Developing solutions that meet the needs of a

rapidly changing industry calls for fresh thinking and

collaboration. At Philips Respironics we traveled

around the world asking clinicians, homecare providers,

and patients how we could improve their experience.

Clinicians wanted us to resolve the tradeoff between nasal and pillows masks,

homecare providers wanted a solution that could reduce operational complexity

by getting more patients served from one package, and patients wanted a better

overall mask experience that improved their lifestyle.

40 41

Available in ﬁtpack and 5 sizes: P S M MW L

TrueBlue brings our best technologies together in

one mask. Designed to push the limits of

performance and ﬁt, this mask sets the standard for

a good night’s sleep. The TrueBlue gel nasal mask

with Auto Seal technology is designed to deliver a

high degree of comfort, stability, and freedom of

movement with minimal adjustments. This intuitive

gel mask is designed for quick set-up and ﬁtting,

fewer callbacks, and easy lab titration.

Part number HCPCS

TrueBlue with headgear

1071800 Petite A7034, A7035

1071801 Small A7034, A7035

1071803 Medium A7034, A7035

1071804 Medium wide A7034, A7035

1071805 Large A7034, A7035

TrueBlue without headgear

1071806 Petite A7034

1071807 Small A7034

1071808 Medium A7034

1071809 Medium wide A7034

1071810 Large A7034

TrueBlue with headgear DuoPack (includes two same-size cushion sets)

1071818 Petite A7034, A7035, A7032

1071819 Small A7034, A7035, A7032

1071820 Medium A7034, A7035, A7032

1071821 Medium wide A7034, A7035, A7032

1071822 Large A7034, A7035, A7032

TrueBlue with headgear FitPack (includes cushions in two sizes)

1071816 Small and medium A7034, A7035

1071817 Medium wide and large A7034, A7035

TrueBlue replacement parts

1071861 Petite cushion and flap A7032

1071862 Small cushion and flap A7032

1071863 Medium cushion and flap A7032

1071864 Medium wide cushion and flap A7032

1071865 Large cushion and flap A7032

1071875 TrueBlue headgear A7035

1071874 TrueBlue headgear, reduced size A7035

1071888 TrueBlue gel forehead pad

1071877 TrueBlue talon clips (pack of 2)

TrueBlue

42 43

EasyLife

EasyLife nasal mask

With its Auto Seal technology, the

EasyLife nasal mask nearly eliminates

the need for manual mask adjustments.

Its innovative, lightweight design

features a unique dual-cushion

construction - the inner cushion creates

an instant, self-adjusting seal, while the

outer cushion provides comfortable

support. The only manual steps

necessary are intuitive headgear

adjustments, making fitting as easy

as possible.

Other headgear can be used with this mask including premium headgear,

RS premium headgear, deluxe headgear, and small deluxe headgear.

Part number HCPCS

EasyLife with headgear

1050000 Petite A7034, A7035

1050001 Small A7034, A7035

1050002 Medium A7034, A7035

1050003 Medium wide A7034, A7035

1050004 Large A7034, A7035

EasyLife without headgear

1050010 Petite A7034

1050011 Small A7034

1050012 Medium A7034

1050013 Medium wide A7034

1050014 Large A7034

EasyLife replacement parts

1050090 Petite cushion set* A7032

1050091 Small cushionn set* A7032

1050092 Medium cushion set* A7032

1050093 Medium wide cushion set* A7032

1050094 Large cushion set* A7032

1050087 EasyLife headgear A7035

1050086 EasyLife headgear, reduced size A7035

1050097 EasyLife Quick Clips (pack of 2) 1050097

*A cushion set includes one inner seal cushion and one outer support cushion.

ComfortGel Blue

Staying true to our acclaimed blue gel

masks, we’ve retained the globally

popular comfort and ﬂexibility features

you expect, while enhancing patient

comfort even further. With ComfortGel

Blue, we’ve minimized pressure points,

reduced noise, and redirected

exhalation air ﬂow away from the bed

partner. These and other enhancements

may help to create a better patient

experience and encourage greater

adherence.

Part number HCPCS

ComfortGel Blue with headgear

1070040 Petite A7034, A7035

1070039 Small A7034, A7035

1070038 Medium A7034, A7035

1070037 Large A7034, A7035

ComfortGel Blue without headgear

1070044 Petite A7034

1070043 Small A7034

1070042 Medium A7034

1070041 Large A7034

ComfortGel Blue with headgear DuoPack (includes two same-size cushion sets)

1070053 Small and medium A7034, A7035, A7032

ComfortGel Blue replacement parts

1070108 Petite cushion and flap A7032

1070107 Small cushion and flap A7032

1070106 Medium cushion and flap A7032

1070105 Large cushion and flap A7032

1070104 Petite cushion A7032

1070103 Small cushion A7032

1070102 Medium cushion A7032

1070101 Large cushion A7032

1033678 Premium headgear A7035

1059236 RS Premium headgear (smaller) A7035

1040114 Forehead pad

1009723 ComfortGel Blue Quick Clips (2 per pack)

44 45

Available in 4 sizes:

Silicone

Part number HCPCS

Amara with headgear

1090200 Petite (reduced size frame and headgear) A7030, A7035

1090201 Small (reduced size frame and headgear) A7030, A7035

1090226 Medium (reduced size frame) A7030, A7035

1090227 Large (reduced size frame) A7030, A7035

1090267 Amara silicone fit pack

(includes all four silicone cushions,

reduced size frame and headgear)

Amara without headgear

1090210 Petite (reduced size frame) A7030

1090211 Small (reduced size frame) A7030

1090215 Medium (reduced size frame) A7030

1090216 Large (reduced size frame) A7030

Amara replacement parts

1090290 Petite cushion A7031

1090292 Small cushion A7031

1090293 Medium cushion A7031

1090294 Large cushion A7031

1090296 Amara headgear, reduced size A7035

1090297 Amara headgear, standard A7035

1040114 Forehead pad

1071877 Talon headgear clips

1081899 Entrainment valve swivel

Gel

Part number HCPCS

Amara gel with headgear

1090400 Petite (reduced size frame and headgear) A7030, A7035

1090401 Small (reduced size frame and headgear) A7030, A7035

1090405 Medium (reduced size frame) A7030, A7035

1090406 Large (reduced size frame) A7030, A7035

1090467 Amara gel fit pack

(includes all four gel cushions,

reduced size frame and headgear)

Amara gel without headgear

1090410 Petite (reduced size frame) A7030

1090411 Small (reduced size frame) A7030

1090415 Medium (reduced size frame) A7030

1090416 Large (reduced size frame) A7030

Amara gel replacement parts

1090490 Petite cushion A7031

1090492 Small cushion A7031

1090493 Medium cushion A7031

1090494 Large cushion A7031

1090296 Amara headgear, reduced size A7035

1090297 Amara headgear, standard A7035

1040114 Forehead pad

1071877 Talon headgear clips

1081899 Entrainment valve swivel

Amara starter kits (includes gel mask with same size silicone cushion)

1106618 Petite A7030, A7035

1106619 Small A7030, A7035

1106620 Medium A7030, A7035

1106621 Large A7030, A7035

P S M L

Available in 4 sizes:

P S M L

To learn more, visit http://www.theanswer.philips.com/amara/

Amara

Performance, appeal, and simplicity at its best

Key beneﬁts

• Easy to ﬁt, assemble and use

• Smallest/lightest leading traditional

full-face mask

• 60% fewer parts than the leading

full-face mask

• Proven to ﬁt 95% of patients' faces

With gel and silicone options and our one “click”

design, Amara delivers performance and ease of use

for your patients. With the addition of a gel cushion

option, Philips Respironics has made the ingeniously-

simple Amara full face mask even more brilliant. Your

patients can now choose the type of comfort they

prefer in their cushion with gel or silicone options.

Amara offers an excellent seal with comfort and ease-of-use advantages to current

traditional leading full face offerings. Both the gel and silicone options are smaller

and lighter weight than the leading full face mask, and have 60% fewer parts.

Amara is lightweight with a simple one “click” design and cushion options that ﬁts

over 95% of faces.

46 47

FitLife

A solution for patients who have

difficulty wearing masks or who simply

prefer a clear line of sight. FitLife

addresses a number of patient issues.

Facial hair, dentures, nasal bridge

breakdown, facial irregularities, and

claustrophobia are issues that can

greatly impact the ability to establish

effective therapy and comfort. FitLife

quickly establishes a robust seal around

the less pressure-sensitive perimeter

of the face, while maintaining an

unrestricted view.

Part number HCPCS

FitLife with headgear

1060801 Small A7030, A7035

1060802 Large A7030, A7035

1089991 Extra large A7030, A7035

FitLife without headgear

1072530 Small A7030

1072531 Large A7030

1089992 Extra large A7030

FitLife replacement parts

1060807 FitLife headgear, small A7035

1060808 FitLife headgear, large A7035

1089990 FitLife headgear, extra large A7035

1060913 FitLife snap clips, 2 per pk.

7041 Mask swivel

1060809 Entrainment elbow A7045

ComfortGel Blue Full

ComfortGel Blue Full full-face mask

The design combines from very familiar

– and popular – components. Our

comfortable forehead cushion and

enhanced StabilitySelector combine

with our popular blue gel replaceable

cushion to create a level of comfort

and stability no other full-face mask

can approach. The unique sure seal

technology (SST) provides a membrane-

thin layer over the gel cushion to follow

the contours of the face better, allowing

wearers to quickly achieve the

comfortable seal they need.

Other headgear can be used with this

mask including premium headgear, RS

premium headgear, deluxe headgear,

and small deluxe headgear.

Part number HCPCS

1040135 ComfortGel Blue Full mask with premium A7030,

headgear, small A7035

1040136 ComfortGel Blue Full mask with premium A7030,

headgear, medium A7035

1040137 ComfortGel Blue Full mask with premium A7030,

headgear, large A7035

1062004* ComfortGel Blue Full mask with premium A7030,

headgear, extra large A7035

1002854 ComfortGel Blue Full mask DuoPack with A7030, A7035,

premium headgear, small plus small cushion A7031

1002855 ComfortGel Blue Full mask DuoPack with A7030, A7035,

premium headgear, medium plus medium cushion A7031

1002856 ComfortGel Blue Full mask DuoPack with A7030, A7035,

premium headgear, large plus large cushion A7031

1062005* ComfortGel Blue Full mask DuoPack with A7030, A7035,

premium headgear, extra large plus extra A7031

large cushion

Accessories HCPCS

1040568 ComfortGel Blue Full mask without headgear, small A7030

1040569 ComfortGel Blue Full mask without headgear, medium A7030

1040570 ComfortGel Blue Full mask without headgear, large A7030

1062003* ComfortGel Blue Full mask without headgear, A7030

extra large

1051032 ComfortGel Blue Full mask without headgear, A7030,

DuoPack, small plus small cushion A7031

1051033 ComfortGel Blue Full mask without headgear, A7030,

DuoPack, medium plus medium cushion A7031

1051034 ComfortGel Blue Full mask without headgear, A7030,

DuoPack, large plus large cushion A7031

1040798 ComfortGel Blue Full cushion, small A7031

1040799 ComfortGel Blue Full cushion, medium A7031

1040800 ComfortGel Blue Full cushion, large A7031

1062030* ComfortGel Blue Full cushion, extra large A7031

1040795 SST flap only, small A9999

1040796 SST flap only, medium A9999

1040797 SST flap only, large A9999

1062031* SST flap only, extra large A9999

1044861 ComfortGel Blue Full cushion and SST flap, small A7031

1044862 ComfortGel Blue Full cushion and SST flap, medium A7031

1044863 ComfortGel Blue Full cushion and SST flap, large A7031

1062032* ComfortGel Blue Full cushion and SST flap, extra large A7031

1040138 ComfortGel Blue Full premium headgear A7035

1040114 Premium forehead pad

1049398 Entrainment valve swivel

1040139 Ball-and-socket Quick Clips, blue, 2 per pk.

1010872 Port caps, 5 per pk.

1049507 Sizing gauge

48 49

Accessories/U.S. HCPCS codes

Accessories (cont.)

302175 Chin strap

1012911 Premium chin strap

302425 Deluxe chin strap

1032907 Lightweight CPAP tubing (6 ft.)

7212 Standard CPAP tubing (10 ft.)

1036425 Sizing gauge ring

Codes for nasal masks

A7034 Nasal mask only

A7035 Headgear

A7032 Nasal cushion replacement

Codes for full-face masks

A7030 Full-face mask only

A7035 Headgear

A7031 Full-face cushion replacement

Codes for nasal pillows masks

A7034 Nasal mask only

A7035 Headgear

A7033 Nasal pillow replacement

A7032 Nasal cushion replacement (OptiLife CradleCushion)

A7045 Exhalation port with swivel (GoLife PN 1078407)

OptiLife

OptiLife nasal mask

Features a headgear design with an

integrated chin support band that

allows it to be put on and adjusted with

little effort – and no buckles.

Part number HCPCS

OptiLife

1036800 OptiLife FitPack with headgear A7034,

and chin support band A7035

size P, S, M, L pillows cushions

1036801 OptiLife FitPack/DuoPack with headgear A7034,

and chin support band A7035,

size P, S, M pillows cushions and A7032

S, M CradleCushions

1036802 OptiLife FitPack/DuoPack with headgear A7034,

and chin support band A7035,

size M, L pillows cushions and A7032

M, L, LN CradleCushions

1036818 OptiLife mask sub-assembly

with headgear and chin support band

No cushions

Accessories HCPCS

1036819 OptiLife sub-assembly

No cushions or headgear

1036804 OptiLife FitPack, mask only A7034, A7035

size P, S, M, L pillows cushions

1036838 OptiLife pillows cushion, petite A7033

1036839 OptiLife pillows cushion, small A7033

1036840 OptiLife pillows cushion, medium A7033

1036841 OptiLife pillows cushion, large A7033

1036846 OptiLife CradleCushion, small A7032

1036847 OptiLife CradleCushion, medium A7032

1036848 OptiLife CradleCushion, large narrow A7032

1036849 OptiLife CradleCushion, large A7032

1036850 Headgear A7035

Includes chin support band

1039967 Tube management clips, 2 per pk.

1032007 Respironics pillows sizing gauges, 5 per pk.

1031154 Respironics pillows sizing gauges, 20 per pk.

*Requires addition of mask cushion for HCPCS A7034.

CradleCushion Pillows cushion

50 51

Philips Respironics Right Fit oxygen therapy products are intended

to give patients the freedom they want while helping homecare

providers reduce expenses and make the most of shrinking

reimbursements.

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

Oxygen

We built SimplyGo Mini to be tough. During

development, SimplyGo Mini was rigorously tested in

real world environments including impacts, vibrations,

and temperatures to deliver reliable performance day

in and day out.

Delivering more when you’re on the go

From a walk in the park to an overnight trip, SimplyGo Mini may help you remain

active and provide you with ﬂexibility while on the go.

Part number HCPCS

SimplyGo Mini System

System with standard battery - U.S.

1113601 Includes SimplyGo Mini portable oxygen concentrator, E1390/E1392

carrying case, one standard rechargeable Lithium Ion

battery, DC and AC power cords, accessory bag,

and user manual

System with extended battery - U.S.

1113602 Includes SimplyGo Mini portable oxygen concentrator, E1390/E1392

carrying case, one extended rechargeable Lithium Ion

battery, DC and AC power cords, accessory bag,

and user manual

SimplyGo Mini with standard battery bundles

1113601/1020000 Bundle w/EverFlo E1390/E1392

1113601/1020001 Bundle w/EverFlo OPI E1390/E1392

1113601/1020014 Bundle w/EverFlo Q E1390/E1392

1113601/1020015 Bundle w/EverFlo Q OPI E1390/E1392

SimplyGo Mini with extended battery bundles

1113602/1020000 Bundle w/EverFlo E1390/E1392

1113602/1020001 Bundle w/EverFlo OPI E1390/E1392

1113602/1020014 Bundle w/EverFlo Q E1390/E1392

1113602/1020015 Bundle w/EverFlo Q OPI E1390/E1392

Accessories

1116816 Standard lithium ion battery

1116817 Extended lithium Ion battery

1116819 SimplyGo Mini DC power supply - U.S.

1116818 SimplyGo Mini AC poewr supply - U.S.

1082664 SimplyGo Mini AC power cord - U.S.

1116830 SimplyGo Mini external battery charger - U.S.

1118724 User manual

Bags - Brown

1119897 SimplyGo Mini carry bag and strap, brown

1116824 SimplyGo Mini accessory bag, brown

1116836 SimplyGo Mini backpack, brown

Bags - Black

1119928 SimplyGo Mini carry bag and strap, black

1119893 SimplyGo Mini accessory bag, black

1119894 SimplyGo Mini backpack, black

Warranties

1120121 SimplyGo Mini 3-year system,

1-year sieve warranty

1122070 SimplyGo Mini 3-year system,

3-year sieve warranty

1120123 SimplyGo Mini 2-year sieve warranty extension

SimplyGo

Mini

A reliable, powerful choice in lightweight

portable oxygen concentrators.

54 55

The United States Federal

Aviation Administration (FAA)

has approved the SimplyGo for

in-ﬂight use on commercial

airliners.

Simple-

to-use

touch-pad

interface

Simple-

to-select

oxygen delivery

mode

Part number HCPCS

DreamWear fit pack

1068987 SimplyGo portable oxygen concentrator E1390, E1392

1068787, 1020000 SimplyGo portable oxygen concentrator E1390, E1392

with EverFlo non-OPI oxygen concentrator

1068787, 1020001 EverFlo OPI oxygen concentrator E1390, E1392

1068787, 1020015 EverFlo Q non-OPI oxygen concentrator E1390, E1392

1068787, 1020014 SimplyGo portable oxygen concentrator E1390, E1392

with EverFlo Q with OPI-oxygen concentrator

Accessories

1082663 SimplyGo carry case

1083692 SimplyGo DC power supply

1082661 SimplyGo AC power supply

1082664 SimplyGo AC power cord

1083693 SimplyGo airline power cord

1083696 SimplyGo accessory bag

1106598 SimplyGo shoulder strap

1083699 SimplyGo humidifier pouch

1101172 SimplyGo humidifier connecting tube kit

1101602 SimplyGo humidifier connecting tube and pouch

1082662 SimplyGo lithium ion battery with handle

900-103 Battery charger

1074885 Mobile cart

1083700 User manual

Warranties

1097623 SimplyGo two-year total warranty

1097577 SimplyGo three-year total warranty

1097778 SimplyGo five-year total warranty

SimplyGo portable oxygen concentrator

SimplyGo is the only portable oxygen concentrator (POC) to offer 2x more oxygen

than other POCs weighing 10 pounds or less. That means you can manage the

therapy and lifestyle needs of nearly all of your patients with just one POC.

Designed to be rugged and easy to use, SimplyGo is truly a new breed of

lightweight and attractive portable concentrator.

Lightweight

Simple-to-carry

anywhere,

anytime!

SimplyGo

Key beneﬁts

• Attractive, sleek design

• Easy-to-remove battery

• Intuitive, easy-to-read screen

• Convenient carrying case

• Handy fold-up cart

• Detachable accessory bag

SimplyGo is Philips ﬁrst oxygen concentrator that

offers the beneﬁts of a continuous ﬂow mode in a

lightweight, easy-to-carry design of 10 lbs or less.

No need to compromise between an effective oxygen therapy output for your

patients and the usual weight of the device. SimplyGo offers a solution that fulﬁlls

the needs of most of your oxygen-therapy patients. With SimplyGo, patients have

the ﬂexibility to be away for the day, for work, for a weekend or a long holiday.

Now one POC meets the portable

oxygen needs of nearly all of your

patients.

To learn more visit www.simplygo.respironics.com

56 57

Part number HCPCS

11076773 SimplyFlo oxygen concentrator E1390

(includes concentrator, AC power cord

and user manual

Accessories

1076830 SimplyFlo travel case

1082664 AC power cord

1082661 AC power supply

1076809 User manual

1076829 Humidifier bottle holder

1101172 Humidifier connecting tube kit

Warranties

1097623 SimplyFlo two-year total warranty

1097577 SimplyFlo three-year total warranty

Life made

simple

Key beneﬁts

• Weighs 8.5 pounds

• Provides .5 to 2 LPM continuous

ﬂow output

• Operates on AC power

(no internal battery)

• Uses less than 1/3 the electricity

of traditional stationary concentrators

• Simpliﬁes transport for travel or within

the home

• Helps nocturnal oxygen users maintain

an active lifestyle during the day

For nocturnal patients who may be refusing or resisting therapy because of the size,

weight and lifestyle disruptions that can accompany the use of traditional

concentrators, SimplyFlo weighs less than nine pounds and is designed to enhance

adherence. SimplyFlo is one of the smallest and lightest continuous ﬂow stationary

oxygen concentrators available. It operates on external power only and has no

internal battery. An optional travel accessory case allows oxygen patients to easily

transport SimplyFlo between locations.

Once again, Philips Respironics is bringing innovative

solutions to your business and your patients. With SimplyFlo,

Philips has created the smallest and lightest stationary

oxygen concentrator.

SimplyFlo represents a comprehensive option for nocturnal

patients who may be refusing or resisting therapy because of

the size, weight and lifestyle disruptions that can accompany

the use of traditional concentrators.

Designed to enhance adherence

For many patients new to therapy who only require nocturnal

treatment, the intimidating size, weight, and sound of a

traditional oxygen concentrator can be a large factor in their

rejection of therapy.

Until SimplyFlo, there has not been a more transportable

stationary concentrator designed to help nocturnal oxygen

patients.

Another solution for nocturnal patients

The optional travel accessory case allows patients to easily transport SimplyFlo

between locations.

SimplyFlo

stationary oxygen concentrator

58 59

EverFlo concentrator

Delivers a great performance and

demands so little in return. It’s small,

quiet, and designed to be easier and

less expensive to operate. Plus, EverFlo

reduces scheduled maintenance visits.

So now you can control oxygen therapy

costs and deliver all the features you

and your patients want with one 31-

pound concentrator that’s bound to be

the star of your business.

Part number HCPCS

1020000 EverFlo oxygen concentrator E1390

1020001 EverFlo oxygen concentrator with oxygen E1390

percentage indicator (OPI)

1039362 EverFlo oxygen concentrator, transfill E1390

1039363 EverFlo oxygen concentrator with OPI, transfill E1390

Units include a patient manual.

Accessories

Filters

1038831 Compressor intake filter

520 Micro disk filter

Tubing

1039642 Humidifier connector tube

Miscellaneous

H537-1 Stand-alone pediatric flow meter

H644 Integrated pediatric flow meter

528 Flow meter locking kit

H649 Caster brake kit

1038571 Warranty, two-year with compressor

EverFlo Q ultra quiet 40 decibel

stationary oxygen concentrator

Our compact, 31-pound EverFlo Q

is the first ultra-quiet concentrator

available at an affordable price. The

new EverFlo Q combines the small size,

light weight, and low maintenance

of our popular EverFlo oxygen

concentrator, with the added value of

a quiet sound level. With EverFlo Q,

you get the benefits of a quiet

concentrator without the burden of

paying a premium which is good for

you and your patients.

Part number HCPCS

1020015 EverFlo Q oxygen concentrator E1390

1020014 EverFlo Q oxygen concentrator with OPI E1390

1039365 EverFlo Q oxygen concentrator, transfill E1390

1039364 EverFlo Q oxygen concentrator with OPI, E1390

transfill

*Units include a patient manual.

Accessories

Filters

1038831 Compressor intake filter

520 Micro disk filter

Tubing

1039642 Humidifier connector tube

Miscellaneous

H537-1 Stand-alone pediatric flow meter

H644 Integrated pediatric flow meter

528 Flow meter locking kit

H649 Caster brake kit

1038571 Warranty, two-year with compressor

Concentrators

60 61

Part number HCPCS

1057100 UltraFill station 120V K0738

1057101 UltraFill system with 2 cylinders, 2,000 psi K0738

and a cylinder bag, 120V, Canada

1074932 UltraFill system with 2 cylinders, 2,000 psi K0738

and a cylinder bag, 120V

3,000 psi cylinders available for additional charge.

1039362 EverFlo 120V, transfill E1390

1039363 EverFlo 120V OPI, transfill E1390

1039365 EverFlo Q 120V, transfill E1390

1039364 EverFlo Q 120V OPI, transfill E1390

M10600-10 Millennium 120V, transfill E1390 (with

QF or QG

modifier)

M10605-10 Millennium 120V OPI, transfill E1390 (with

QF or QG

modifier)

Accessories

Cylinders

1065705 M4 cylinder, US, 2000 psi

1065706 M6 cylinder, US, 2000 psi

1065707 M9 cylinder, US, 2000 psi

1065708 MD15 cylinder, US, 2000 psi

1065709 ME24 cylinder, US, 2000 psi

1065710 M4 cylinder, Canada, 2000 psi

1065711 M6 cylinder, Canada, 2000 psi

1065712 M9 cylinder, Canada, 2000 psi

1065713 MD15 cylinder, Canada, 2000 psi

1065714 ME24 cylinder, Canada, 2000 psi

1065715 MB08 cylinder, US, 3000 psi

1065716 MC13 cylinder, US, 3000 psi

1065717 MD22 cylinder, US, 3000 psi

1065718 ME36 cylinder, US, 3000 psi

1065719 MB08 cylinder, Canada, 3000 psi

1065720 MC13 cylinder, Canada, 3000 psi

1065721 MD22 cylinder, Canada, 3000 psi

1065722 ME36 cylinder, Canada, 3000 psi

1113356 MB08 3000 PSI Cylinder with OCD

1113355 MC13 3000 PSI Cylinder with OCD

1113354 MD22 3000 PSI Cylinder with OCD

1113353 ME36 3000 PSI Cylinder with OCD

1116898 MB08 Cylinder with OCD, CANADA

1116899 MC13 Cylinder with OCD, CANADA

1116900 MD22 Cylinder with OCD, CANADA

1116901 ME36 Cylinder with OCD, CANADA

Miscellaneous

1065697 Chad Therapeutics, Bonsai oxygen conserving device

1065698 Chad Therapeutics, 3100 pediatric regulator

1065699 Chad Therapeutics, 4800 regulator

1065700 Chad Therapeutics, 3100 regulator

1065701 Small cylinder bag (M9/MC13)

1065702 Medium cylinder bag (M4/M6/MB08)

1065703 Large cylinder bag (MD15/MD22)

1065724 Cylinder cart (MD15/ME24/MD22/ME36)

1065696 UltraFill transfer tubing

UltraFill is an advanced home oxygen system that

combines a stationary oxygen concentrator, ﬁlling

station, and high-capacity cylinders to meet the needs

of a wide range of oxygen patients, including those who

are highly active or require continuous ﬂow oxygen.

UltraFill also has the needs of your business in mind

with features intended to save you money by using

existing inventory and lowering your operating costs.

UltraFill

Home oxygen ﬁlling system Patient-friendly design

• One-handed cylinder connect/

disconnect

• Patient can stop and restart ﬁlling

at their convenience

• Low noise level: 44dBa

• Cylinders can be topped off to

make partial ﬁlls

• Low power consumption: 110W

• Fill level indicator monitors cylinder

ﬁll level

62 63

Delivers up to 10 LPM of oxygen reducing the delivery

costs associated with 5 LPM and above oxygen

patients. The M10 is engineered to reduce the cost of

providing oxygen at higher liter ﬂow and has fewer

parts than any other concentrator on the market.

Fewer parts, combined with great reliability, help you

to reduce expenditures on accessories and

unnecessary inventory.

Part number HCPCS

M10600 Millennium 10-liter oxygen M10 concentrator E1390

M10600-80 Millennium 10-liter oxygen M10 concentrator,

Canada

M10605 Millennium 10-liter oxygen M10 concentrator E1390

with OPI, Canada

M10605-80 Millennium 10-liter oxygen M10 concentrator

with OPI, Canada

M10600-10 Millennium 10-liter oxygen concentrator, E1390

transfill

M10605-10 Millennium 10-liter oxygen concentrator E1390

with OPI, transfill

Both units include a patient manual.

Accessories

1014653 High flow starter kit A4615*,

Includes cannula, 25' tubing, connector A4616*

1014654 High flow nasal cannula A4615*

1017796 Inlet filter replacement kit

1017768 High flow oxygen tubing, 25' A4616*

1014655 Oxygen tubing connector

*Accessories are not separately billable to the Medicare program, with the

exception of replacement circuits. Consult your local Medicare DME MAC local

coverage determination (LCD) for details. Commercial insurance plans may

provide separate coverage for accessories. Consult insurance company policy

manual for more information.

Millennium M10

Concentrator

64 65

920 and 920M hand-held oximeters

The 920 and 920M oximeters are small,

easy-to-use hand-held devices that

deliver on-the-spot oximetry readings;

perfect for home use. The 920M has

the added capability of storing up to 18

hours of trend memory. Both oximeters

are intended for spot check use and can

be connected to an external printer.

WristOx2ambulatory digital pulse

oximeter

WristOx2is a wrist-worn pulse oximeter

that has been developed to deliver

readings and help reduce the diﬃculties

that can be associated with overnight

oximetry studies.

GO2pulse oximeter

The quality construction ﬁnger oximeter

allows your patients to take greater

control of their lives while creating a

new opportunity for your business.

Part number

920 Hand-held oximeter

920M Hand-held oximeter with memory

Both include a 936 adult finger clip sensor, six AA batteries, and a manual.

Accessories

Hand-held oximeter

100-0433-00 Battery door

927 Extension cable, 3'

1008130 Extension cable, 10'

924 Manual

1007332 Carrying case

Hand-held oximeter with memory

H920M-40 Profox software

Download cable sold separately.

1053371 Download cable

1019441 nVision software

Download cable sold separately.

100-0433-00 Battery door

See the replacement parts catalog for additional replacement parts.

Part number

1078606 WristOx23150, pulse oximeter with standard accessories

(reusable soft sensor, wrist bands, batteries, CD)

Accessories

1078747 Medium soft sensor, 8 pin (12”/0.3 m)

1078749 Adult flex sensor, 8 pin (12”/0.3 m)

1079107 Adult finger clip sensor, 8 pin (12”/0.3 m)

1084509 Sensor adapter, WristOx2, 3150 (8 to 9 pin)

1078748 Sensor adapter, WristOx 3100 (9 to 8 pin)

1078750 USB PC download cable for WristOx2

1079118 Wrist band, reusable (10”)

1091490 WristOx2, wrist band (8”)

1091489 WristOx2, wristband (6”)

Part number

1062232 GO2 finger oximeter

Accessories

1062965 Carrying case

1062966 Lanyard

920M Plus hand-held oximeter

with memory

The 920M Plus hand-held pulse

oximeter provides on-the-spot oximetry

readings, and is designed to be easy to

use for both healthcare professionals

and patients. The 920M Plus features

overnight recordings (72 hours of

memory), is compatible with virtually all

Respironics sensors, uses disposable or

rechargeable batteries, and interfaces

with Profox and nVISION software.

2500A hand-held oximeter with

memory and alarms

The 2500 hand-held oximeter is a small, versatile digital pulse oximeter for accurate

assessment of blood oxygen saturation and pulse rate. It is ideal for ambulatory

monitoring and overnight recordings. The 2500A has two-button operation, is

compact, has three power options, and features visual and audible alarms.

Compatible with nVision and Profox software.

Oximeters

Part number

920MP 920M Plus hand-held oximeter with memory

Includes 936 adult finger clip sensor, four AA batteries,

and a manual.

1028009 2500A hand-held oximeter downloadable with alarms

Accessories

Software

H920M-40 Profox software

Download cable sold separately.

1019441 nVision software

Download cable sold separately.

Sensors

1062051 Soft sensor, small 1M

1062050 Soft sensor, medium 1M

1062049 Soft sensor, large 1M

Miscellaneous

920MPC-NA 920MP rechargeable battery system, wall mount

Includes 920MPC charger stand, NiMH rechargeable

battery, power supply, and an operator manual.

1053371 Download cable

920MPC Charger stand only, replacement

1007355 920MP NiMH rechargeable battery

1007332 Carrying case

See the replacement parts catalog for additional replacement parts.

66 67

Part number

Gaskets

1007715 Gasket replacement kit

For use with all Millenniums.

1007716 Gasket replacement tool kit

For use with 600, 605, M600, and

M605 oxygen concentrators.

Humidifier Accessories

1083699 Humidifier pouch

1101172 SimplyGo humidifier connecting tube kit

1101602 SimplyGo humidifier connecting tube kit

and pouch

Miscellaneous

1118724 User Manual

H649 Caster brake kit

For use with EverFlo oxygen concentrators.

920MPC Charger stand

Power cord not included.

For use with 920M.

100-0339-00 External spring, single or 30 per case

For use with 950 oximeter.

100-0338-00 Gripping insert

For use with 950 oximeter.

1017984 Shoulder strap

For use with GoLox.

1062966 Lanyard, black, 20"

For use with GO2 oximeter

H654 Air inlet retainer kits, 10 per pk.

For use with 600 and 605 oxygen concentrators.

1001684 Flow signal conditioner kit

1019440 Reusable wristbands, 10 per pk.

For use with WristOx.

1019438 Reusable wristband extenders, 5", 10 per pk.

For use with WristOx.

1015581 Silicone grommets, 10 per pk.

For use with M10600, and M10605

oxygen concentrators.

Oxygen attachments

7314 Tubing adapters, 22mm x 22mm, 6 per pk.

312010 O2enrichment attachments, 10 per pk.

312710 O2enrichment attachment

1039642 Humidifier connector tube

Part number

Oxygen valves

302418 Pressure valve

302423 Pressure valves, 5 per pk.

1000348 Oxygen valve

Power Supplies

1116819 SimplyGo Mini DC Power Supply - U.S.

1116818 SimplyGo Mini AC power supply - U.S.

1082664 SimplyGo Mini AC power cord - U.S.

1116830 SimplyGo Mini External

Battery Charger - U.S.

1116816 Standard Lithium Ion battery

1116817 Extended Lithium Ion battery

1082662 Lithium Ion battery

1116830 SimplyGo Mini External Battery Charger - U.S.

1083692 SimplyGo DC power supply

1082661 SimplyGo AC power supply

1083693 SimplyGo Airline power cord

1082664 SimplyGo Mini AC power cord - U.S.

1113902 SimplyGo Mini Airline cable

900-102 Rechargeable li ion battery

For use with the EverGo oxygen concentrator.

900-103 Battery charger/recalibrator

For use with the EverGo oxygen concentrator.

For use with the SimplyGo and EverFlo.

900-121 Airline connector

For use with the EverGo oxygen concentrator.

1007355 920MP NiMH rechargeable battery

900-104 AC power cord

For use with the EverGo oxygen concentrator.

900-101 DC power cord

For use with the EverGo (serial number < 109500)

900-120 DC power cord

For use with the EverGo (serial number >= 109500)

H617 Power cord replacement kit, 60Hz

For use with all Millenniums.

900-105 AC power supply

For use with the EverGo oxygen concentrator.

008130 900-150 528 900-120 900-105 947

Oxygen accessories

Part number

Cannulas

1025655 Cannula, 4'. For use with ePOD.

1014653 High flow starter kit

Includes cannula, 25' tubing,

connector. For use with M10,

M10600, and M10605 oxygen

concentrators.

1014654 High flow nasal cannula

For use with M10, M10600, and

M10605 oxygen concentrators.

1017768 High flow oxygen tubing, 25'

For use with M10, M10600, and

M10605 oxygen concentrators.

1014655 Oxygen tubing connector

For use with M10, M10600, and

M10605 oxygen concentrators.

Carry Bags/Accessory Bags

1119897 SimplyGo Mini Carry Bag and Strap, Brown

1116824 SimplyGo Mini Accessory Bag, Brown

1116836 SimplyGo Mini Backpack, Brown

1119928 SimplyGo Mini Carry Bag and Strap, Black

1119893 SimplyGo Mini Accessory Bag, Black

1119894 SimplyGo Mini Backpack, Black

1082663 SimplyGo carrying case

1083696 SimplyG0 Accessory bag

1119897 SimplyGo Mini Carry Bag

and Strap, Brown

1116824 SimplyGo Mini Accessory Bag,

Brown

1116836 SimplyGo Mini Backpack, Brown

1119928 SimplyGo Mini Carry Bag and Strap,

Black

1119893 SimplyGo Mini Accessory Bag, Black

1119894 SimplyGo Mini Backpack, Black

900-107-02 Black carrying case, EverGo oxygen concentrator

900-250 Accessory case, EverGo oxygen concentrator

1018019 GoLox carrying case

1062965 GO2carrying case

1019439 WristOx ambulatory digital pulse oximeter

carrying case

1007332 Oximeter carrying case,

920, 920M, and 920MP oximeters.

Part number

Carts

1065724 UltraFill Cylinder Cart

(MD15/MD22/ME24/ME36)

1074885 SimplyGo Mobile cart

900-100 Mobile cart

For use with the EverGo and SimplyGo

oxygen concentrators.

Extension cables

927 Extension cable, 3'

For use with 920, 920M, and 930 oximeters.

1008130 Extension cable, 10'

For use with 920 and 920M oximeters.

Filters

1038831 Compressor intake filter

For use with EverFlo oxygen concentrators.

900-150 Air inlet filters, 6 per pk.

For use with EverGo oxygen concentrators.

520 Micro disk filterE

For use with EverFlo oxygen concentrators.

1017796 Inlet filter replacement kit

For use with M10, M10600, and

M10605 oxygen concentrators.

1015581 Kit, grommet, 10 pk.

H619 Air inlet filter replacement kits, 6 per pk.

For use with M600 and M605 oxygen

concentrators.

H620 Inlet filter replacement kits, 6 per pk.

For use with 600, 605, M600, and

M605 oxygen concentrators.

H621 Microdisk filter replacement kits, 6 per pk.

For use with all Millennium oxygen

concentrators.

H652 Filter cover for compressor kit

For use with 600, 605, M600, and

M605 oxygen concentrators.

H653 Filter felt for compressor kits, 6 per pk.

For use with 600, 605, M600, and

M605 oxygen concentrators.

Flow meters

H537-1 Stand-alone low flow meter kit

For use with EverFlo oxygen concentrators.

H644 Cabinet integrated pediatric flow meter kit

For use with 600, 605, and M600

(non-OPI units only) oxygen concentrators.

528 Locking flow meter kit

For use with 600, 605, M600, and

M605 oxygen concentrators.

1082784 5 LPM flow meter replacement kit

For use with 600, 605, M600, and

M605 oxygen concentrators.

68 69

Part number

Reusable sensors

1037296 Soft sensor, small, 1M

1037297 Soft sensor, medium, 1M

1037298 Soft sensor, large, 1M

Sensor cables

1019444 Sensor adapter cable. For use with WristOx.

Sensor tape

940 Double-sided tape for 934 sensor, 100 per pk.

941 Double sided tape for 935 and 953, 100 per pk.

942 Overwrap tape strips, 100 per pk.

947 Posey wrap for 935 and 953 sensor, 12 per pk. (pictured)

954A Adult FlexiWrap tape strips for 953 sensor, 25 per pk.

954N Pediatric small FlexiWrap tape strips for 935 sensor,

25 per pk.

Sensors

953 Adult sensor, 44 lbs. or more

Includes Flex sensor, 38mm, straight cable,

25 Hydrogel tape strips, and Posey wraps,

1 meter cable.

953-11 Adult sensor, 3 meter cable, 8'

934 Infant sensor, large toe, 4 to 44 lbs.

Includes Flex sensor, 34mm,

with FlexiWrap tape strips.

935 Pediatric small sensor, outstep of foot, 4 lbs. or less

Includes Flex Sensor, 38mm, right angle cable,

with 25 FlexiWrap tape strips and 12 Posey wraps.

936 Adult finger clip sensor, index finger, 66 lbs. or more

936P Pediatric finger clip sensor, index finger,

18 lbs. or more

948 Adult ear clip sensor, lobe of ear, 88 lbs. or more

951 Reflectance sensor middle forehead, 66 lbs. or more

1019522 Finger clip sensor, adult. For use with WristOx.

Ultrafill Cylinders

1113356 MB08 3000 PSI Cylinder with OCD

1113355 MC13 3000 PSI Cylinder with OCD

1113354 MD22 3000 PSI Cylinder with OCD

1113353 ME36 3000 PSI Cylinder with OCD

1116898 MB08 Cylinder with OCD, CANADA

1116899 MC13 Cylinder with OCD, CANADA

1116900 MD22 Cylinder with OCD, CANADA

1116901 ME36 Cylinder with OCD, CANADA

**Accessories are not separately billable to Medicare, except when used with

patient-owned equipment. Other payers may reimburse separately for these items.

Check with the specific payer.

Oxygen accessories (continued)

70 71

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

Lightweight, versatile, and easy to use, Philips Respironics

ventilation technologies are designed for use in the home,

hospital and alternative care sites and provide invasive and

noninvasive ventilator support for a wide range

of adult and pediatric patients.

Home

ventilation

72 73

Aligned with System One sleep therapy technology,

the BiPAP AVAPS noninvasive ventilator provides the

comfort of pressure ventilation and the consistent

eﬃcacy of assured tidal volume. Adapting

automatically to changing patient needs, BiPAP

AVAPS incorporates advanced technologies that help

simplify patient care.

Part number HCPCS

DS1160S BiPAP AVAPS E0471

DS1160HS BiPAP AVAPS with humidifier E0471, E0562

DS1160TS BiPAP AVAPS, Heated Tube E0471, E0562,

humidifier A4604

CA1161X (Canada) BiPAP AVAPS

CA1161XTS (Canada) BiPAP AVAPS

Heated Tube core package

BiPAP AVAPS

To learn more visit www.philips.us/bipapavaps

74 75

The BiPAP S/T noninvasive ventilator offers a

straightforward user interface and integrated heated

humidiﬁcation for easy setup and management.

Digital Auto-Trak automatically adjusts variable trigger

cycle thresholds enabling optimum patient/ventilator

synchrony while the optional System One Heated

Tube humidiﬁcation allows humidity levels to be

tailored to meet patient needs.

Part number HCPCS

DS1060S BiPAP S/T E0471

DS1060HS BiPAP S/T with humidifier E0471, E0562

DS1060TS BiPAP S/T with Heated Tube E0471, E0562,

humidifier A4604

Not available in Canada

Accessories (S/T and AVAPs devices)

Humidiﬁcation

DS6H System One 60 Series humidiﬁer E0562

IN6H (Canada)

DS6T System One 60 Series Heated Tube E0562, A4604

IN6T (Canada) humidiﬁer (includes 80 watt power

supply and Heated Tube)

1063785 Water chamber (includes both 50 A7046

and 60 Series lids) replacement only

6T-CONVKIT Heated Tube humidiﬁer upgrade kit A4604 –

Heated

Tubing

SYS1HT15 System One Heated Tube A4604

1074400 System One performance tubing (15mm) A7037

1032907 System One performance tubing (22mm) A7037

Filters

1035443 Pollen (foam) ﬁlter, reusable (1 pk) A7039

1029330 Pollen (foam) ﬁlter, reusable (2 pk) A7039

1063096 Ultra-ﬁne ﬁlter, disposable (1 pk) A7038

1035442 Ultra-ﬁne ﬁlter, disposable (2 pk) A7038

1029331 Ultra-ﬁne ﬁlter, disposable (6 pk) A7038

Miscellaneous

1099592 Device side panel

1063857 Carrying case

BiPAP S/T

To learn more visit www.philips.us/bipapst

76 77

Technologies that are designed to automatically

adjust to changing patient needs

Lightweight, versatile and easy to use, Trilogy ventilators are designed for use in

the home, hospital and alternative care sites and provide invasive and noninvasive

ventilator support for a wide range of pediatric and adult patients. They combine

Auto-Trak and AVAPS technologies with advanced ﬂow triggering and leak

compensation features that allow for a more sensitive delivery of therapy. Trilogy also

incorporates mouthpiece ventilation (MPV). A ‘kiss’ trigger detects when a patient

engages and disengages from the mouthpiece to deliver on-demand ventilation. It

combines with an optional MPV support system to enhance patient ease of use.

Part number HCPCS

1054260B Trilogy100 ventilator E0465 or

CA1054096B Trilogy100 ventilator, Canada E0466

1040005B Trilogy200 ventilator E0465 or

CA1032800B Trilogy200 ventilator, Canada E0466

Market-leading

versatility

To learn more visit www.philips.com/trilogy100

Key beneﬁts

• Mouthpiece ventilation (MPV)

• Pressure support up to 40 cm H2O

• AVAP-AE

• Adjustable AVAPS

• Auto-Trak and Sensitive Auto-Trak

• On-screen waveforms

Trilogy100 and Trilogy200

Part number HCPCS

Circuit adapters

1073902 Flexible trach adapter with 22 mm cuff

(connects to Whisper Swivel II and swivel and fixed disposable

exhalation ports), 10 pk

1073904 Flexible trach adapter with 22 mm cuff

(connects to Whisper Swivel II and swivel and fixed disposable

exhalation ports), 20 pk

1073863 Flexible trach adapter with 15 mm cuff

(connects to the flow sensor or the active exhalation valve), 10 pk

1073903 Flexible trach adapter with 15 mm cuff

(connects to the flow sensor or the active exhalation valve), 20 pk

1065659 Active exhalation valve with PAP assembly

1061398 Trilogy 200, universal active PAP tube adapter

1050408 Trilogy 200, proximal flow sensor

1050534 Trilogy 200 Proximal flow sensor, 10 pk

332113 Whisper Swivel II

312149 Disposable fixed exhalation port, 10 pk

1084428 Disposable swivel passive exhalation port, 10 pk

1084429 Disposable swivel passive exhalation port, 20 pk

1065775 Filtered exhalation port, 10pk

Carry cases

1033709 Trilogy travel carrying case

1040420 Trilogy carrying case, in-use

Battery packs

1072182 Detachable battery charger A4613

1043570 Trilogy detachable battery pack, dom/intl A4611

Filters

1029330 Trilogy filter, 2 pk

C06417 Filter, bacteria, 22 mm, single use

C06418 Filter, bacteria, 22 mm, single use, 50 pk

Stands

1047410 Trilogy small products roll stand

1094043 Trilogy circuit support arm

1074004 RP-mount plate, Trilogy roll stand

1074137 RP screw, MNT plate, Trilogy roll stand, 4 pk

Humidifiers

22135 Humidifier, Fisher & Paykel, MR410 E0550

1074174 Fisher & Paykel airway temperature probe

1074175 Fisher & Paykel heated hose humidifier adapter

Miscellaneous

1102862 MPV support system

1118840 MPV Replacement Straw Kit (10pk)

1040390 Trilogy, O2 quick-disconnect insert, 2 pk

1021671 Test lung

1045587 Inlet airpath assembly

Trilogy accessories are separately billable only when the ventilator is patient owned.

Under Medicare, all parts and accessories are included in the monthly rental of the device and are not

separately billable. Supplies may be separately billable for patient-owned ventilators. Consult the payer policy

manual for speciﬁc details.

Trilogy100 and Trilogy200

MPV circuit support system

An interlocking support system

combines with Trilogy’s breathing

circuit to make access easy for patients.

The support system can be attached to

various surfaces in many conﬁgurations

with the use of a clamp designed for

use on ﬂat or rounded surfaces. The

interlocking support circuit can be

adjusted to enhance comfort and

accessibility

Part number HCPCS

Remote alarm

1118941 Remote Alarm Includes: 50ft RJ9 cable, power supply,

9v battery and manual

1120633 Power Supply US

1114933 Remote Alarm Cable, RJ9, 50ft (15 m)

1114934 Remote Alarm, Cable, RJ9, 200ft (61 m)

34046 Remote Alarm Stand

Power cords

1044760 Power cord, C7-end, RA, FemEnd, 8ft, USA/Can

1069219 Power cord, C7-end, RA, FedEnd, 14 ft, USA/Can

Cables

1045290 Nurse call adaptor cable

1069979 ¼” to 2.5mm NC nurse call cable

1069980 ¼” to 2.5mm NO nurse call cable

1080247 RJ9 to ¼” nurse call cable alarm closed

1080248 RJ9 to ¼” nurse call cable alarm open

1080249 Nurse call RJ9 cable open ends

1080250 RJ9 to 2.5mm 3” female adapter cable

1047295 External battery cable A4612

1067424 Automotive DC power adapter A4612

Porting blocks

1054670 Trilogy100, exhalation port block, active

1040372 Trilogy100, exhalation port block, passive

1040370 Trilogy200, universal porting block

Reusable circuits

1052064 Trilogy active w/PAP exhalation circuit, adult A4618

1052065 Trilogy active w/PAP exhalation circuit, ped A4618

1052066 Trilogy passive exhalation circuit, adult A4618

1052127 Trilogy passive exhalation circuit, pediatric A4618

1068837 Triloyg200 active w/Flow sensor circuit, adult A4618

1068838 Trilogy200 active w/Flow sensor circuit, pediatric A4618

Adult circuits

1069467 Adult passive circuit with fixed exhalation port, 10 pk A4618

1069468 Adult passive circuit with fixed exhalation port, 20 pk A4618

1073228 Adult passive circuit with swivel design A4618

exhalation port, 10 pk

1073236 Adult passive circuit with swivel design A4618

exhalation port, 20 pk

1069443 Adult passive circuit with water trap, 10 pk A4618

1069444 Adult passive circuit with water trap, 20 pk A4618

1073227 Adult passive circuit, heated wire, 10 pk A4618

1073235 Adult passive circuit, heated wire, 20 pk A4618

1073223 Adult passive circuit, no water trap, 10 pk A4618

1073232 Adult passive circuit, no water trap, 20 pk A4618

1073222 Adult active circuit, heated wire, 10 pk A4618

1073231 Adult active circuit, heated wire, 20 pk A4618

1102866 MPV circuit, 10 pk A4618

Pediatric circuits

1073224 Pediatric passive circuit with water trap, 10 pk A4618

1073233 Pediatric passive circuit with water trap, 20 pk A4618

1073225 Pediatric passive circuit, heated wire, 10 pk A4618

1073234 Pediatric passive circuit, heated wire, 20 pk A4618

1073220 Pediatric active circuit with water trap, 10 pk A4618

1073229 Pediatric active circuit with water trap, 20 pk A4618

1073221 Pediatric active circuit, heated wire, 10 pk A4618

1073230 Pediatric active circuit, heated wire, 20 pk A4618

Wedge attached Wedge removed

80 81

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

For use by caregivers and patients, in the hospital or in the home,

CoughAssist T70 offers a gentle and more comfortable alternative

to traditional suctioning methods.

Airway clearance

82 83

Part number HCPCS

1098160 CoughAssist T70 E0482

1098159 CA E70 (Canada) E0482

Circuits

1090830 CA 70 series circuit, infant, 6 ft A7020

1090831 CA 70 series circuit, toddler, 6 ft A7020

1090832 CA 70 series circuit, adult small, 6 ft A7020

1090833 CA 70 series circuit, adult medium, 6 ft A7020

1090834 CA 70 series circuit, adult large, 6 ft A7020

1090835 CA 70 series circuit, trach, 6 ft A7020

1090836 CA 70 series circuit, mouthpiece, 6 ft A7020

1098403 CA 70 series circuit, infant, 9 ft A7020

1098404 CA 70 series circuit, toddler, 9 ft A7020

1098405 CA 70 series circuit, adult small, 9 ft A7020

1098407 CA 70 series circuit, adult medium, 9 ft A7020

1098408 CA 70 series circuit, adult large, 9 ft A7020

1098409 CA 70 series circuit, trach, 9 ft A7020

1098410 CA 70 series circuit, mouthpiece, 9 ft A7020

Masks

1046861 CoughAssist, facemask, adult large

1044187 CoughAssist, facemask, adult medium

1044188 CoughAssist, facemask, adult small

1044190 CoughAssist, facemask, infant

1044189 CoughAssist, facemask, toddler

Miscellaneous

1046860 CoughAssist, disposable filter

1099533 CoughAssist, mouthpiece

1098720 CA 70 series, water trap

1098655 CA 70 series, roll stand

1098656 CA 70 series, roll stand bracket

1059017 CA 70 series, foot pedal

1098884 CA 70 series, carrying case

1051801 SD card and case

1099035 CA 70 series, circuit retainer

1032584 Pollen filter, single pack

1043570 Trilogy detachable battery pack, dom/intl

1099036 CA 70 series, battery cover

1072182 Detachable battery charger

1099427 RP-power cord, 8 ft, C17, NEMA 1-15P

1067424 Trilogy/CoughAssist automotive DC power adapter

Accessories are not separately billable to the Medicare program, with the exception of replacement circuits.

Consult your local Medicare DME MAC local coverage determination (LCD) for details. Commercial insurance

plans may provide separate coverage for accessories. Consult insurance company policy manual for

more information.

To learn more about CoughAssist T70 visit www.philips.us/coughassistt70

Key beneﬁts

• Digital display and push button

controls

• AC, DC and optional battery power

options

• Cough-Trak automatic sensitivity

• DirectView data management

CoughAssist T70 is a noninvasive therapy that consistently removes secretions

in patients with an ineffective ability to cough. It clears secretions by gradually

applying a positive pressure (insuﬄation) to the airway and then rapidly shifting

to negative air pressure (exsuﬄation). This in-exsuﬄation shift in pressure creates

a high expiratory ﬂow that simulates a deep, natural cough. Instead of introducing

a suction catheter into the airway, air is delivered noninvasively through a

facemask, a mouthpiece, or through an adapter that allows the device to function

with an endotracheal or tracheostomy tube.

Clearly a better solution

84 85

Respiratory Drug Delivery provides innovative drug delivery

technologies for the treatment of respiratory diseases. Our

easy-to-use products include compressor nebulizer systems,

holding chambers, inspiratory muscle trainer, positive expiratory

pressure (PEP) device and peak flow meters.

Respiratory

drug delivery

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

86 87

Compact, lightweight and economical, the InnoSpire

Essence compressor nebulizer system combines with

proven SideStream technology to provide fast and

eﬃcient aerosol drug delivery.

Part number HCPCS

1099966 InnoSpire Essence with SideStream E0570

disposable nebulizer

1100312 InnoSpire Essence with SideStream E0570

disposable and reusable nebulizers

1100313 InnoSpire Essence with SideStream E0570

disposable and reusable nebulizers,

Tucker the Turtle mask, and carrying case

Innospire Essence

compressor nebulizer system

To learn more visit www.philips.us/essence

Accessories HCPCS

Filters

1114112 Replacement filter, 50 pk A7013

1102088 Replacement filter, 4 per pk A7013

Miscellaneous

1026568 Premium carrying case

1026641 Standard carrying case

1101452 InnoSpire carrying case

88 89

The InnoSpire Elegance compressor combined with

the SideStream nebulizer provides a powerful, high-

quality compressor nebulizer system that is durable,

easy to use, and easy to maintain. It provides the

freedom to move, helping your patients build solid

compliance behaviors – in a size that easily

ﬁts into their lives.

Part number HCPCS

1100134 InnoSpire Elegance with SideStream E0570

disposable nebulizer

1099969 InnoSpire Elegance with SideStream E0570

disposable and reusable nebulizers

1102828 InnoSpire Elegance with SideStream Plus E0570

Innospire

Elegance

compressor nebulizer system

To learn more visit www.philips.us/elegance

Accessories

Filters

1114112 Replacement filter, 50 pk A7013

1102088 Replacement filter, 4 per pk A7013

Miscellaneous

1026568 Premium carrying case

1026641 Standard carrying case

1101452 InnoSpire carrying case

For use with aerosol medications, InnoSpire Deluxe

incorporates built-in conveniences that encourage

adherence. It includes a convenient storage

compartment to hold extra medicine or nebulizer

supplies, the attached power cord tucks neatly into

the storage area, and a sturdy handle makes it easy

to carry. InnoSpire Deluxe is designed with

adherence in mind.

Part number HCPCS

1110063 InnoSpire Deluxe compressor with E0570

SideStream disposable nebulizer (6/cs)

1114112 Replacement filter, 50 pk A7013

1102088 Filter, 4 pk A7013

InnoSpire

Deluxe

compressor nebulizer system

92 93

Sami the Seal

compressor nebulizer system

The Sami the Seal pediatric compressor is shaped

like a seal to appeal to children, their parents, and

pediatricians, and to support aerosol therapy

compliance. The compressor partners with highly

eﬃcient SideStream nebulizers to provide fast and

friendly treatment to pediatric patients in the home.

Part number HCPCS

1082456 Sami compressor with SideStream disposable E0570

nebulizer and Tucker the Turtle mask

1082731 Sami compressor with SideStream disposable E0570

and reusable nebulizers and Tucker the Turtle mask

Accessories

1083128 Sami compressor replacement filter (5 pack) A7013

1044382 Tucker the Turtle pediatric face mask

(for use with SideStream reusable H5860

or SideStream disposable HS800)

94 95

Part number HCPCS

Compressor nebulizer systems

1109289 InnoSpire Mini compressor nebulizer standard E0570

1109290 InnoSpire Mini compressor nebulizer with battery E0570

Accessories/replacement parts

1110726 InnoSpire Mini rechargeable lithium ion battery

1109441 InnoSpire Mini AC power adapter

1109455 InnoSpire Mini 12V DC car adapter

1109488 InnoSpire Mini replacement air filter pack A7013

InnoSpire

Mini

compressor nebulizer system

InnoSpire Mini allows your patients to nebulize their

medications whenever they want and wherever they

may be. Compact, lightweight and reliable, it provides

independence for people who want to get the most

out of life.

An ideal traveling companion, InnoSpire Mini’s compact size allows for easy transport

while a breath-enhanced reusable nebulizer makes it easy to use. The SideStream Plus

reusable nebulizer provides fast, effective treatment and can be used to effectively

deliver most commonly prescribed aerosol medications.

Choose the time and place that’s right for you

An optional rechargeable lithium ion battery operates the InnoSpire Mini compressor

for up to 90 minutes between charges (and can be fully recharged in approximately

6 hours). A 12V DC adapter enables the compressor to be powered in autos, trucks,

boats and recreational vehicles. The compressor can also be powered by the traditional

110V AC wall outlet. InnoSpire Mini is compliant with selected FAA environmental

RTCA/DO-160-F standards for airborne equipment as well as the international basic

safety and essential performance standard IEC 60601-1 third edition and its

amendments.

Accessories include

• SideStream Plus high-eﬃciency, reusable nebulizer

• Optional rechargeable lithium ion battery

• 12V DC (car) adapter

• AC adapter

• Carrying case

• Spare ﬁlters

96 97

Sidestream nebulizers

SideStream disposable nebulizer

The SideStream disposable nebulizer offers fast, efficient, and economical drug

delivery. It provides consistent drug delivery time after time and can be used with

all commonly prescribed respiratory medications. The unique venturi design

offers fast drug delivery and short treatment times. It can be used for two weeks

before replacing.

Part number HCPCS

HS800 SideStream disposable nebulizer, 50 pk A7003

1028219 SideStream disposable cup, 50 pk A7004

1036160 SideStream disposable with adult mask, A7003, A7015

50 pk

1041906 SideStream disposable with pediatric mask, A7003, A7015

50 pk

SideStream reusable nebulizer

The unique venturi design offers fast drug delivery and short treatment times.

It can be used for six months before replacing.

Collis G.G. et al. Lance 1990:336:341

Part number HCPCS

HS860 SideStream reusable nebulizer, 10 pk A7005

HS860-050 SideStream reusable nebulizer, 50 pk A7005

SideStream Plus reusable nebulizer

The SideStream Plus breath-enhanced nebulizer features an easy-action

inspiratory valve that opens on inspiration to boost medication delivery and

closes on exhalation, preserving medication and reducing waste.Less pressure

is required to open the inspiratory valve, making treatments easier for pediatric

and elderly patients and its proven SideStream five-jet venturi design provides

a high respirable fraction and shortens treatment times. It can be replaced

every 6 months.

Part number HCPCS

HS870 SideStream Plus breath-enhanced nebulizer, A7005

10 pk

1110824 SideStream Plus breath-enhanced nebulizer, A7005

50 pack

Aeroneb Go

The Aeroneb® Go nebulizer is a fast,

eﬃcient, simple-to-use nebulizer

developed for the millions of patients

worldwide who require respiratory

therapy in and away from home.

The Aeroneb Go can be used by

pediatric as well as adult patients

and is ideal for conditions such as

asthma and chronic obstructive

pulmonary disease (COPD). The

Aeroneb Go aerosolizes clinician-

prescribed solutions for inhalation

that are approved for use with a

general purpose nebulizer.

Designed with convenience in mind

and to help users maintain normal

daily schedules, it is ultra-lightweight,

portable, quiet and is hassle-free

to set up and operate.

Part number

AG-AG4200-US Aeroneb Go Complete System: Contains nebulizer unit,

battery Pack, wall adapter, extra mouthpiece, mask elbow,

IFU, carrying case

AG-AG4100-US Aeroneb Go Convenience Unit: Contains nebulizer unit,

battery pack, extra mouthpiece, mask elbow, IFU, carrying case

Accessories

AG-AG4300 Aeroneb Go nebulizer handset

AG-AG4500 Aeroneb Go nebulizer handset + connector cable

AG-AG3010 Cap for nebulizer handset (50 pack)

AG-AG3090 Mask Adapter, Intl. 22M / 22F (50 pack)

AG-AG3040 Mouthpiece (50 pack)

AG-AG4060 Control module + connector cable

AG-AG4070 Connector cable (for control module)

AG-AG3410-US AC/DC mains adapter

AG-AG2110 Carrying case

98 99

Nebulizer Masks

SideStream masks

The SideStream mask is recommended for use with the SideStream high-efficiency

nebulizers. The reusable mask is contoured to fit the face. The pediatric mask is

recommended for ages five and under; the adult size for ages six and up.

Part number HCPCS

1025529 SideStream pediatric mask, 50 pk A7015

1025531 SideStream adult mask, 50 pk A7015

1052521 SideStream Plus adult mask A7015

SideStream pediatric eye-safe masks

Sami the Seal and Tucker the Turtle child-friendly masks are designed to appeal to

children and are constructed to reduce aerosol deposition in and around the eyes.

Used with SideStream nebulizers, Sami and Tucker pediatric masks are made of

soft, flexible material for comfort and fit.

Part number HCPCS

HS880 Sami the Seal pediatric mask (for use with A7015

SideStream Plus HS870 nebulizer only)

1044382 Tucker the Turtle pediatric mask A7015

Nebulizer Kits

SideStream replenishment nebulizer kit

These custom nebulizer kits are designed to provide a month replacement of

product in each package. Includes two complete SideStream disposable nebulizers

and two replacement nebulizer cups.

Part number HCPCS

1028125 SideStream custom nebulizer kits, A7003 and

25 pk A7004

100 101

Part number HCPCS

1077478 OptiChamber Diamond, 10 pk A4627

1079823 OptiChamber Diamond with A4627

LiteTouch small mask, 10 pk

1079826 OptiChamber Diamond with A4627

LiteTouch medium mask, 10 pk

1079827 OptiChamber Diamond with A4627

LiteTouch large mask, 10 pk

1098213 OptiChamber Diamond, 10 pk, Canada

1098214 OptiChamber Diamond with Lite Touch small mask,

10 pk, Canada

1098215 OptiChamber Diamond with LiteTouch medium mask,

10 pk, Canada

1098216 OptiChamber Diamond with LiteTouch large mask,

10 pk, Canada

ProChamber valved holding chamber

ProChamber is the professional model valved holding chamber for the acute

respiratory care setting. Its proven clinical performance and great value make

ProChamber the choice for the budget-conscious clinician.

Part number HCPCS

HS2003-050 ProChamber valved holding chamber, A4627

50 pk

OptiChamber

Diamond

antistatic valved holding chamber

Key features

• Intuitive, ergonomic design

• Low resistance expiratory valve

• Flexible pMDI adapter

• Detachable LiteTouch facemasks

with soft-seal technology

The “one for all” chamber

In the hospital or at home, its uniquely designed

stepped mouthpiece and detachable masks

make the OptiChamber Diamond suitable for

patients of all ages.

The chamber that ﬁts into your patients' lives

OptiChamber Diamond is smaller than most conventional VHCs and is

designed for patient comfort. Its stepped mouthpiece facilitates transfer from

pediatric mask to mouthpiece and its ﬂat bottom maintains stability when the

VHC is not in use.

102 103

Chambers, and asthma kits

AsthmaPACK

The AsthmaPACK adult and children’s personal asthma care kit for patient

adherence implements three key elements of the NAEPP asthma treatment

guidelines with one prescription-peak flow monitoring, MDI drug delivery, and

asthma education. One prescription will give your patients a comprehensive,

clinician-directed, patient- managed asthma plan with the tools needed to better

understand their asthma, monitor their conditions objectively, and take their

prescribed medications correctly and consistently.

Part number

1099014 Adult asthma care kit, 10 pk

1099015 Children’s asthma care kit, 10 pk

Kits include a peak flow meter, spacer, instructional video, and educational

self-help booklet.

AsthmaPACK children’s asthma care kit

AsthmaPACK children’s asthma care kit makes learning to manage asthma child’s

play. This just-for-kids kit makes learning fun with engaging cartoon characters and

age-appropriate devices. An exciting feature of this kit is the interactive bilingual

(English/Spanish) coloring and activity storybook, “Tucker Tackles Asthma.”

Part number

1099014 Adult asthma care kit, 10 pk

1099015 Children’s asthma care kit, 10 pk

Kits include a peak flow meter, spacer, instructional video, and educational

self-help booklet.

Holding chamber masks

LiteTouch valved holding chamber mask

LiteTouch with soft seal technology that attaches onto the mouthpiece of the

OptiChamber Diamond valved holding chamber (VHC). Gently touching the mask to

the face creates a cushion-like seal that quickly contours to the face, making it easy

to fit, especially for small children. Coupled with the Diamond VHC, LiteTouch’s

soft-seal technology minimizes leaks and helps to deliver optimum aerosol therapy

for asthma and other respiratory illnesses. It is not manufactured with BPA as

declared by our suppliers.

Part number

1082714 LiteTouch mask small, 10 pk

1082715 LiteTouch mask medium, 10 pk

1082716 LiteTouch mask, large, 10 pk

Silicon masks

Our detachable valved holding chamber masks for the ProChamber provide an

effective seal and conform to fit different facial geometries. Built-in reinforcements

help prevent the mask from collapsing and assist in maintaining a seal, especially

when your pediatric patients are not cooperative. Available in small (0 – 18

months), medium (1 – 6 years), and large (6 years +) sizes.

Part number

HS81111-010 OptiChamber small face mask, 10 pk

HS81211-010 OptiChamber medium face mask, 10 pk

HS81311-010 OptiChamber large face mask, 10 pk

104 105

Mouthpieces

Disposable and one-way valve safety mouthpieces

Mouthpieces help support your goals in reducing cross-contamination during

multi-patient screening with Personal Best, and AsthmaCheck peak flow meters.

The one-way valve prevents patients from inadvertently breathing in air through

their meters during PEFR testing.

Part number

HS715-100 Disposable pediatric plastic mouthpieces for all Respironics’

peak flow meters, 100 pk

HS757-100 Disposable mouthpieces for Personal Best, AsthmaMentor,

and AsthmaCheck, 100 pk

HS714-200 One-way valve safety mouthpieces for Personal Best,

and AsthmaCheck, 200 pk

Inspiratory muscle trainers and airway clearance

Threshold IMT

Provides consistent and specific pressure for inspiratory muscle strength and

endurance training, regardless of how quickly or slowly patients breathe. This

device incorporates a flow-independent, one-way valve to provide consistent

resistance and features an adjustable specific pressure setting (in cm H2O) to be set

by a healthcare professional. When patients inhale through Threshold IMT, a

spring-loaded valve provides resistance that exercises respiratory muscles through

conditioning.

Part number HCPCS

HS730-010 Threshold IMT, 10 pk E1399

Threshold PEP

Threshold PEP is used for airway clearance, bronchial hygiene, or as an alternative

to chest physical therapy. Threshold PEP incorporates a flow-independent, one-

way valve to ensure consistent resistance with adjustable specific pressure settings

(in cm H2O) which are set by the healthcare professional. When patients exhale

through Threshold PEP, the resistive load creates positive pressure that helps open

the airways and allows mucus to be expelled during “huff” coughing (forced

expiratory technique).

Part number HCPCS

HS735-010 Threshold PEP, 10 pk E1399

Peak ﬂow meters

AsthmaCheck

AsthmaCheck’s easy-grip handle directs hands away from the airflow path and is

designed for accurate measurements. Like all of our peak flow meters, it has a

built-in three-zone management system and an easy-to-read scale which is

suitable to all patients (60 – 810 l/min).

Part number HCPCS

HS740-012 AsthmaCheck, 12 pk A4614

Personal Best peak ﬂow meter

Wherever Personal Best goes – in the hospital, office, or home – it sets a new

standard for convenience, compliance, and confidence. And Personal Best goes

anywhere...easily. A lightweight, self-contained, portable design puts peak flow

monitoring at your fingertips – or your patients’ – all day long. Plus, a rugged,

sterilizable construction helps it stand up to the roughest use day after day.

Personal Best encourages compliance with its comfortable oval mouthpiece and

easy-to-use built-in handle. And it improves patient communication with its

high-legibility scale and NAEPP-endorsed three-zone management system.

Available in both full range (60 – 810 l/min) and low range (50 – 390 l/min).

Part number HCPCS

HS755-012 Personal Best full range peak flow meter, A4614

12 pk

HS756-012 Personal Best low range peak flow meter, A4614

12 pk

106 107

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

Sleep

diagnostics

Whether you're considering new PSG systems, home sleep testing

systems, titration systems, sensors, integrated scoring solutions

or other diagnostic tools, we can help you with our full line of

diagnostic products, services and solutions. When choosing our

diagnostic hardware, we include Sleepware G3 software, unlimited

software licensing, a lifetime of core software updates, a starter

sensor kit and more to help support and accommodate your

business needs.

108 109

Somnolyzer from Philips Respironics is a clinically-

validated, computer-assisted sleep scoring system

designed to help simplify and improve sleep study

scoring productivity, accuracy, and consistency. By

reducing the time sleep technicians spend on studies

– typically by half – they are free to work on other

important lab activities.

Somnolyzer

now integrated with Sleepware G3

More details about Somnolyzer include:

•Somnolyzer increases lab efficiency by reducing the time spent on manual scoring

Some technicians may find that they only need as little as 10-20 minutes for a

structured, high-quality expert review. Somnolyzer can analyze both PSG and HST

recordings.

•Integration with Sleepware enables real-time scoring

During an in-lab PSG study, Somnolyzer will provide real-time, high quality staging

and event scoring. As Somnolyzer applies staging and scoring, the night tech can

easily track an ongoing tally of sleep efficiency and sleep time as well as event

summaries such as RDI, AHI, and leg movements.

•Simple to interpret confidence trend or "traffic Light" system

Sleepware with Somnolyzer uses straightforward green, yellow, and red indicators to

show where it has high, medium or low confidence in its' scoring, allowing the expert

reviewer to focus their expertise on where it is needed

the most.

•Same scoring rules as human expert to allow for validity

Somnolyzer recognizes sleep characteristics — spindles, eye movements and delta

waves — and applies the same decision process to staging and event scoring as a

human expert would. The Somnolyzer's scores are indistinguishable from those of a

human scorer.

•Diminishes interscorer variability for increased reliability

Somnolyzer scoring, along with a structured expert review, diminishes inter-scorer

variability.

•Follows R&K and AASM standards to deliver excellent results

Patient results are compliant with the latest professional guidelines.

Somnolyzer is fully integrated within Sleepware G3, and is an available option with

a per-use license activation.

Description Part no.

Somnolyzer-G3 Act., Full, 20 uses 1121056

Somnolyzer-G3 Act., Full, 50 uses 1121057

Somnolyzer-G3 Act., Full, 150 uses 1121148

Somnolyzer-G3 Act., Full, 250 uses 1121149

Somnolyzer-G3 Act., Full, 500 uses 1121150

Somnolyzer-G3 Act., Full, 1000 uses 1121151

Somnolyzer-G3 Act., Full, 2000 uses 1121152

Somnolyzer-G3 Act., Resp Only, 20 uses 1121153

Somnolyzer-G3 Act., Resp Only, 50 uses 1121154

Somnolyzer-G3 Act., Resp Only, 150 uses 1121155

Somnolyzer-G3 Act., Resp Only, 250 uses 1121156

Somnolyzer-G3 Act., Resp Only, 500 uses 1121157

Somnolyzer-G3 Act., Resp Only, 1000 uses 1121158

Somnolyzer-G3 Act., Resp Only, 2000 uses 1121159

110 111

The LDx base station can be paired with either

the LDxS or LDxN Headbox, so your sleep lab

can have the right capability where and when

you need it. The LDxS is the perfect front-line

headbox for most sleep center needs, with 19 EEG

inputs. The LDxN Headbox offers 32 EEG inputs.

Both head boxes are easy-to-understand with

single keyhole inputs allowing staff to focus more

on patients and less on wires and equipment.

Alice 6 LDx base system,

North America

1063314

Includes:

• Alice 6 LDx base station

• AC power cord

• Auto-switching power supply

• Alice 6 communication cable

• Alice 6 user guide

• Headbox shoulder strap

(headbox not included)

• Unlimited site-licensing

• 2-year warranty

• Software updates for life

LDxS Headbox

1063552 North America

1063353 International

Alice 6 LDx

Sleep system

LDxN Headbox

1063476 North America

1063547 International

Alice 6 LDx base system,

International

1063315

Includes:

• Alice 6 LDx base station

• AC power cord

• Auto-switching power supply

• Alice 6 communication cable

• Alice 6 user guide

• Headbox shoulder strap

(headbox not included)

• Unlimited site-licensing

• 2-year warranty

• Software updates for life

To learn more visit www.philips.com/sleepdx

The Alice 6 LDEdiagnostic system provides

your busy lab with the base set of channels

needed to meet AASM standards while allowing

staff to focus more on patients and less on

equipment.

Alice 6 LDEbase system,

North America

1063311

Includes:

• Alice 6 LDE base station

• AC power cord

• Auto-switching power supply

• Alice 6 communication cable

• Alice 6 user guide

• Headbox shoulder strap

(headbox not included)

• Unlimited site-licensing

• 1-year warranty

• Software updates for life

LDEHeadbox

1063549North America

LDEHeadbox

1063550 International

Alice 6 LDE

Sleep system

Alice 6 LDEbase system,

International

1063312

Includes:

• Alice 6 LDE base station

• AC power cord

• Auto-switching power supply

• Alice 6 communication cable

• Alice 6 user guide

• Headbox shoulder strap

(headbox not included)

• Unlimited site-licensing

• 1-year warranty

• Software updates for life

To learn more visit www.philips.com/sleepdx

112 113

114 115

Description Part no.

LCD computer monitor, 20” 1013805

LCD computer monitor, 24” 1043655

Computer, desktop for Alice systems 1043167

Computer, laptop for Alice systems 1024624

Speakers for Alice PSG 1118288

CPU/laptop microphone for Alice PSG 1025779

Microphone kit, super-high gain 1097360

1013805 1043655 1043167 1024624 1118288 1025779

Computers/monitors

Description Part no.

Video camera (fixed focus, analog) 1016348

Axis Video Server (single port), 1071285

Analog video cable, 50 ft. 1021731

Analog video cable, 100 ft. 1021730

VideoEase CCTV balun 1026576

Modular CCTV power – through balun 1032204

Axis pan-tilt-zoom network camera 1117858

IR projector 1016349

Microphone kit, super high-gain 1097360

Speakers for Alice PSG 1094032

106347

1077297

1016348 1016349 1026576 1032204 1021731, 1021730

Video/audio

Description Part no.

CPAP therapy circuit interface kit, Alice 6 1082653

Headbox communication cable, Alice 6 1074689

Wall mounting kit, Alice 6 1082652

Shoulder strap for Alice 6 headbox 1078921

Alice 5 headbox wall mounting kit 1020266

Alice 5 headbox carrying pouch 1020584

Shoulder strap for Alice 5 headbox 1016343

Headbox communication cable, Alice 5 1024583

Sleepware G3 Getting Started Guide, English 1081398

Sleepware user guide, English 1016318

Sleepware user guide, English/International 1016319

Alice lab system accessories

Description Part no.

Sleepware G3, English only 1082462

Sleepware G3, Multi-language 1082463

HL7 inbound only interface 1069193

HL7 outbound only interface 1069194

HL7 bi-directional interface 1067148

Sleepware G3 with Somnolyzer software

One software platform that powers both our in-lab PSG systems and portable devices.

116 117

1016351

1007492 1021726, 1021727 8179

Description Notes Part no.

Headbox communication cable, Alice 6 1074689

Connecting cable CAT-5 patch, 50' Standard network patch cable H3150-50

Connecting cable CAT-5 patch, 100' Standard network patch cable H3150-100

Connecting cable CAT-5 cross-over, 50' Cable used for direct connections only, (i.e., PC to base station) H3151-50

Connecting cable CAT-5 cross-over, 100' Cable used for direct connections only, (i.e., PC to base station) H3151-100

Patient cable, Alice 5 Connects base station to headbox 1024583

Sub-mini adapter for auxiliary input cable 8158-10

Connecting cable auxiliary input, 10' 1016352

A/B aux input signal splitter 1016351

Reference electrode jumper cable 8179

H3150-50, H3150-100

8155

H3151-50, H3151-100 1024583 8158-10 1016352

Cables and network

Description Part no.

Network Switch, Gigabit, 16-port 1106684

1012148

Description Part no.

Photo detector 1050795

Hard shell carrying case includes: sensor case 1024582

Sensor case, sensors not included 1016309

Mouse pad 1016310

Power supply, 60W, 6.25 VDC 3-6 AMPS, Alice 6 1019280

Uninterruptible power supply 1091779

Power Cord, US domestic (used with Alice 5 and Alice 6) 1120187

Power Supply, (used with Alice 5 and Alice 6) 1019280

Power Supply and Power cord combined (used with Alice 5 and Alice 6) 10224477L

1024582 1016309 1016310 1016344

Miscellaneous accessories

Description Part no.

Alice 6 hardware setup guide, English 1078160

Alice 6 hardware setup guide, English/International 1078161

Alice 5 hardware setup guide, English 1016329

Alice 5 hardware setup guide, English/International 1016330

Manuals

118 119

Description Notes Part no.

zRIP, DuraBelt kit, adult, Alice 6 Kit contains: 2 ea. P/N 1073622 zRIP DuraBelt adult effort 1078925

belt and 2 ea. P/N P1133 wiresets

zRIP, DuraBelt kit, pediatric, Alice 6 Kit contains: 2 ea. P/N 1075970 zRIP DuraBelt pediatric effort belt 1078926

and 2 ea. P/N P1133 wiresets

zRIP Inductance Effort, Alice 5/LE Adult Kit contains: 2 ea. P/N 1073622 zRIP DuraBelt adult effort belts, 1076333

P1736 zRIP Alice 5 driver module, 2 ea. P/N P1133 wiresets

zRIP Inductance Effort, Alice 5/LE Pediatric Kit contains: 2 ea. P/N 1075970 zRIP DuraBelt pediatric effort belt, 1076334

P1736 zRIP Alice 5 driver module, 2 ea. P/N P1133 wiresets

zRIP effort belt, adult 1073622

zRIP effort belt, pediatric 1075970

zRIP effort belt, large 1075973

zRIP module, Alice 5 P1736R

zRIP wireset P1133

ezRIP adult kit, Alice 5/LE, 84” Kit contains: 1 abd ezRIP module, and 1 thx ezRIP module, 1099515

2 zRIP DuraBelts, adult

ezRIP module, abdomen, 1.5, 84”, Alice 5/LE 1094110

ezRIP module, thorax, 1.5, 84”, Alice 5/LE 1094111

CT2, adult, Alice 5 Piezo P1586

CT2, pediatric, Alice 5 Piezo P1587

1076333

1094111

P1736R 1073622 1075970 P1586, P1587 1094110

Sensors – effort

Sensors – oximetry

Description Part no.

Nonin Xpod SpO2module for Alice 6 1122672

SpO2Sensor (Finger Clip) 936

SpO2Sensor (Flex) 953

Adult Flexwrap (Disposable for use w/953 sensor, 25/pkg) 954A

Nonin Finger Soft Sensor,Large 1062049

Nonin Finger Soft Sensor, Medium 1062050

Nonin Finger Soft Sensor, Small 1062051

Disposable sensor, Adult, cloth, 24 ct 1070517

Disposable sensor, Ped, cloth, 24 ct 1070518

Disposable sensor, Infant, cloth, 24 ct 1070520

Description Notes Part no.

Thermistor airflow, adult, 1 channel, 249, Alice 6 1078754

Thermistor airflow, pediatric, 1 channel, 249, Alice 6 1078755

Thermistor airflow, pediatric small, 1 channel, 249, Alice 6 1078756

Thermistor, oral, adult, 249, Alice 6 1078757

Thermistor airflow, adult, 1 channel, 1.5mm, Alice 5 P1274

Thermistor airflow, pediatric, 1 channel, 1.5mm, Alice 5 P1336

Thermistor airflow, pediatric small, 1 channel, 1.5mm, Alice 5 P1337

Thermistor, oral, adult, 1.5mm, Alice 5 P1344

Pressure sensor, North America, Alice 6 1076590

Pressure sensor, International, Alice 6 1076592

PTAF Lite, Alice 5 P1304R

Nasal cannula, adult (Pro-Flow) 60 per pk P1259

Nasal cannula, adult (Pro-Flow) 10 per pk P1301

Nasal/oral cannula, adult (Pro-Flow Plus) 30 per pk P1295

Nasal/oral cannula, adult (Pro-Flow Plus) 5 per pk P1300

Nasal cannula, pediatric, small (Pro-Flow) 60 per pk P1267

Nasal cannula, pediatric, small (Pro-Flow) 10 per pk P1303

Nasal cannula, pediatric (Pro-Flow) 60 per pk P1263

Nasal cannula, pediatric (Pro-Flow) 10 per pk P1302

P1274 P1336 P1337 P1344 P1298 P1304R

P1259, P1301 P1295, P1300 P1267, P1303,

P1263, P1302

Sensors – air ﬂow

120 121

Description Notes Part no.

Body position sensor, 249, Alice 6 1078758

Body position sensor, 1.5mm, Alice 5 P1694

PLM sensor, 249, Alice 6 1078752

Actimeter, Alice 5 Connects to the wrist, detects body movement 1009963

Actimeter tape 10 yds per roll 1025751

P1694 1009963 1025751

Sensors – body movement

Description Part no.

ECG, 72", DOM pack of 5 lead wires, domestic 1075232

ECG, 72", DOM pack of 5 lead wires, international 1075233

Adult repositionable ECG electrodes 1016360

Infant ECG electrodes (1 pkg. of 3 electrodes) 1016361

Reference electrode jumper cable, 10 ft. 8179

EEG electrode cream 8051

EEG electrode prep 8052

EEG/EMG/EOG, 48", gold cup 1075294

EEG/EMG/EOG, 72", gold cup 1075397

EEG/EMG/EOG, 96", gold cup 1075398

EEG/EMG/EOG, 120", gold cup 1075399

EMG, 72", snap, 10 per pack 1075400

EMG, 96", snap, 10 per pack 1075401

EMG, 120", snap, 10 per pack 1075402

1016360

8052

1016361 1075397 1075402 8179 8051

Sensors – electrodes

Description Notes Part no.

Snore microphone, 249, Alice 6 1078753

Snore microphone, 1.5mm, Alice 5 P1716

Piezo snore sensor P1696

P1716, P1696, 1078753

Sensors – snore

Description Part no.

OmniLab Advanced + with Heated Tube humidifier 1111124

A Series humidifier 1111551

Water chamber (includes both 50 and 60 Series lids) 1063785

System One Heated Tube, Performance Tubing (22mm) 1032907

OmniLab Connect (for use with non Philips Respironics PSG systems) 1111076

OmniLab Direct (lab titration software) 1112033

Link Module 1061644A

Serial Cable DB9 Female to Male 6ft 1037268

With nine therapy modes, a quiet platform,

customizable reports, user-friendly features and

value-added beneﬁts, you’ll ﬁnd the OmniLab

Advanced + to be an ideal system for satisfying your

lab titration needs. Along with OmniLab Direct and

OmniLab Connect, the OmniLab Advanced + system

provides a cohesive, harmonized solution to help

you and your sleep technicians operate titration

studies eﬃciently, easily and intuitively.

OmniLab Advanced +

Multi-mode titration system and accessories

Description Part no.

Alice, LoFlo C5 Sidestream module 1097955

Alice LoFlo adapter cable 1098078

Sampling line, 10 pk 3474-00

Alice, LoFlo starter kit, 1101087

(LoFlo, sampling line 10 pk,

Alice LoFlo USB cable, and cannulas)

Cannula, Pro-Flow, nasal, adult 10 pk 1097345

Cannula, Pro-Flow, nasal, pediatric 10 pk 1097348

Cannula, Pro-Flow, nasal, pediatric, small 10 pk 1097349

Cannula, Pro-Flow, nasal, pediatric 60 pk 1097939

Cannula, Pro-Flow, nasal, pediatric, small 60 pk 1097940

LoFlo capnography sensor

LoFlo connects to an Alice PSG system with a single

USB connection and reduces the need to manage bulky

equipment and calibration settings while patients wait

to begin their sleep study.

The Alice NightOne home sleep testing (HST)

solution combines ease, comfort and reliability to

support your business, clinical and patient needs

when it comes to HST. With features and functions

designed with patients in mind, Alice NightOne

is up to two times more likely to result in an

acceptable study than competitive home

sleep testing devices.*

Note: Alice NightOne Provider manuals are available in various languages.

To order a manual, please contact customer service.

Alice NightOne

Home sleep testing

*Results of customer preference trial; data on file.

**Available in selected countries.

Key beneﬁts

• “Auto-on” feature

• RIP with integrated buckle design

• Unique “smart guide” patient setup

sequence

• Enhanced Good Study Indicator

• Body Position sensor built-in

• Powered by Sleepware G3 software

• Optional Cloud services

• Bluetooth connectivity to System

One or Dream Station therapy

devices to record therapy channels

Alice NightOne includes:

• Alice NightOne device

• Hard shell carrying case

• Nasal cannula sample pack

• zRIP effort belt

• Oximetry module

• SpO2sensor (sensor style selected upon order)

• USB cable

• Quick Start guide, user and provider manuals

• Sleepware G3 software

• Unlimited software updates and site licensing

• Two-year device warranty

Included is a choice of one of the following:

• 936 SpO2Sensor (Finger Clip)

• 953 SpO2Sensor (Flex)

• 954A Adult Flexwrap (Disposable for use

w/953 sensor, 25 pack)

• 1062049 Reusable Finger Sensor (Soft), Large

• 1062050 Reusable Finger Sensor (Soft), Medium

• 1062051 Reusable Finger Sensor (Soft), Small

Keep it simple for patients

• “Auto-on” feature: recording starts as soon as device is buckled

•“Smart guide” sequence:easily guides setup and indicates signal quality

•Helpful visual aids:tutorial video; step-by-step diagram

Description Part no.

Alice NightOne North America Wireless 1113277

Alice NightOne International Wireless 1114801

Alice NightOne International (without Bluetooth) 1114803

Replacement accessories

Thoracic effort belt, adult 1113310

Thoracic effort belt, large 1113311

Pro-Flow nasal cannula, adult, qty. 60 P1328-60

Carrying case 1117455

Case insert replacement kit 1114520

Quick Start guide, 10 pack 1113329

122 123

124 125

Description Part no.

Alice PDx device kit, (Domestic/US) 1043941

Alice PDx device kit, (International) 1043844

Alice PDx device kit, (Japan) 1047990

Alice PDx device kit, (China) 1047992

Alice PDx device kits (batteries, SpO2 probe, and SD card

reader, Sleepware also included)

Alice PDx is a portable at-home

diagnostic recording device for OSA

screening, follow-up, and diagnostic

assessment of cardio-respiratory sleep

disorders. The system satisﬁes the

AASM/CMS HST device guidelines

and enables basic screening to

comprehensive diagnostic evaluation.

The Good Study Indicator conveys the

amount of good quality data collected

overnight to help you avoid or reduce

the costs associated with retesting.

Alice PDx

Home sleep testing

Description Notes Part no.

ExG yoke, Alice PDx (US and Japan) Includes 1 ea. of P/N 1020971 and 1016339 1040808

ExG yoke, Alice PDx (International) Includes 1 ea. of P/N 1020971 and 1016339 1048415

EEG/EMG/EOG leads 72 in., qty 10 1016339

EEG/EMG/EOG leads 48 in., qty 10 1020971

1040809

Optional ExG expansion yoke

Description Notes Part no.

ECG yoke, Alice PDx (US) Includes 1 ea. of P/N 1040809 and 1040809

5 ea. of P/N 1016360 and Sleepware analysis

ECG yoke, Alice PDx (International) Includes 1 ea. of P/N 1041200 and 1040810

5 ea. of P/N 1016360 and Sleepware analysis

ECG yoke, Alice PDx (Japan) Includes 1 ea. of P/N 1041200 and 1048916

5 ea. of P/N 1016360 and Sleepware analysis

ECG lead set 5-wire, 30 in. (76 cm), Domestic/US 1041199

ECG lead set 5-wire, 30 in. (76 cm), International 1041200

Adult ECG electrodes (pkg. of 5 electrodes) 1016360

1040809, 1040810,

1048916

1041199 1041200 1016360

Optional ECG expansion yoke

Expansion cable

Description Notes Part no.

Alice PDx PLM Sensor Records movement, uses ExG/Actimeter port) 1069622

126 127

P1328-60 P1343 1043937 1069860 1047300

Description Notes Part no.

zRIP DuraBelt adult sensor kit, Alice PDx 1075969

Oral thermistor, Alice PDx P1379

SpO2extension cable 116888

SpO2sensor (finger clip) 936

SpO2sensor (flex) 953

Adult flexwrap (disposable for use w/953 sensor, 25/pkg) 954A

zRIP DuraBelt effort sensor, adult single belt 1073622

zRIP wireset, Alice PDx P1170

Alice PDx Thermistor, Airflow, Nasal Oral, Adult, Sensor P1388

Pro-Flow nasal cannula, adult, 16", 60 per case P1328-60

Pro-Flow Plus nasal/oral cannula, adult, 16", 30 per case P1343

CPAP titration kit, Alice PDx P1391

Alice PDx LM sensor Includes 1 ea. Alice PDx LM sensor, 1 Velcro strap PLM, 1069622

small (20cm/18"), and 1 Velcro strap PLM, large (41cm/16")

Alice PDx holster 1053280

Alice PDx carry case 1043937

Secure digital card 1GB (2 SD cards per package) 1069860

Lanyard (replacement support lanyard) 1053194

SD card reader 1047300

Nonin finger soft sensor, large 1062049

Nonin finger soft sensor, medium 1062050

Nonin finger soft sensor, small 1062051

Surgical tape (box of 12 rolls of 10 yards ea.) 1065281

Description Part no.

Alice PDx sleep therapy cable 1040805

Alice PDx SleepLink cable 1040806

Alice PDx MobileLink cable 1040807

SleepLink card 1059963

1075969

1062049, 1062050,

1062051

1065281

P1379 936 953 954A P1388

Alice PDx Sensors, Accessories and replacement parts Communication and therapy cables

Description Part no.

Alice PDx professional guide, (Domestic/US) 1059953

Alice PDx professional guide, (English International) 1050119

Alice PDx professional guide, (French) 1055341

Alice PDx professional guide, (Italian) 1055342

Alice PDx professional guide, (German) 1055343

Alice PDx professional guide, (Spanish) 1055344

Alice PDx professional guide, (Brazilian Portuguese) 1055345

Alice PDx professional guide, (Japanese) 1055346

Alice PDx Professional and User/Patient manuals are available in various languages, please call customer service to order.

Manuals – professional

Description Part no.

Alice PDx user/patient guide, (Domestic/US) 1059952

Alice PDx user/patient guide, (English International) 1050121

Alice PDx user/patient guide, (French) 1055347

Alice PDx user/patient guide, (Italian) 1055348

Alice PDx user/patient guide, (German) 1055349

Alice PDx user/patient guide, (Spanish) 1055350

Alice PDx user/patient guide, (Brazilian Portuguese) 1055351

Alice PDx user/patient guide, (Japanese) 1055352

Manuals – user/patient

Description Part no.

Sleepware G3, English only 1082462

Sleepware G3, Multi-language 1082463

HL7 inbound only interface 1069193

HL7 outbound only interface 1069194

HL7 bi-directional interface 1067148

Sleepware G3 with Somnolyzer software

One software platform that powers both our in-lab PSG systems and portable devices.

128 129

Description Part no.

Host software manual v2.0, Domestic 1026567

Host software manual v2.0, International English 1026566

Host software manual v2.0, French 1018899

Host software manual v2.0, German 1026564

Host software manual v2.0, Spanish 1026565

Manuals

Stardust 2 Sensors

Description Notes Part no.

Oximetry

Oximeter finger clip sensor Replaces Y sensor 1007199

Flexible finger oximetry Y probe kit Includes adult sensor tape 612054

Butterfly wrap, adult 10 per pk 1101838

1007199 612054 1101838

Description Notes Part no.

Airﬂow

Pro-Flow adult nasal cannula, 16” 60 per pk P1328-60

Pro-Flow Plus adult nasal/oral cannula, 16” 30 per pk P1343

Stardust PTAF Sensor Kit, description Includes 5 adult nasal cannulas, 16" P1396

Stardust PTAF Sensor P1340

P1396 P1340 P1328-60 P1343

Miscellaneous

Description Part no.

Pouch 1008312

Respironics screwdriver 1003510

1008312 1003510

Description Notes Part no.

Effort

ezRIP module, thorax, harwin, 26” 1094097

1094097

130 131

As a leader in the development, manufacturing, and

supply of sleep diagnostic sensors, we offer a full

line of high-performance, quality Pro-Tech sensors

to help you maintain low cost of ownership while

obtaining the data you need. Our sensor product

line includes durable and reliable sensors that

detect respiratory airflow, respiratory effort, snoring,

periodic limb movements, and sleep position.

Pro-Tech

sensors

• Designed to enhance nasal and oral signal transfer

• Soft and narrow nasal prongs help reduce nasal

resistance and increase patient comfort

• Incorporate narrow kink-resistant tubing to help

facilitate excellent response to high-frequency

signals such as snoring

• Hydrophobic, anti-microbial inline ﬁlter

• Pediatric and adult sizes

Description Part number

Pro-Flow, nasal, adult, 7', (60 per case), male luer lok P1259

Pro-Flow, nasal, adult, 7', (10 pack), male luer lok P1301

Pro-Flow, nasal, adult, 8.25", (60 per case), male luer lok P1306

Pro-Flow, nasal, adult, 8.25" (30 per case) P1308

Pro-Flow, nasal, adult, 16", (60 per case), male luer lok P1328-60

Pro-Flow, nasal, adult, 16", (5 pack), male luer lok P1390

Pro-Flow, nasal, adult, 7', (10 pack), no filter, male luer lok 1091077

Pro-Flow, nasal, adult, 7', (60 per case), no filter, male luer lok 1091078

Pro-Flow, nasal, pediatric, 7', (60 per case), male luer lok P1263

Pro-Flow, nasal, pediatric, 7', (10 pack), male luer lok P1302

Pro-Flow, nasal, pediatric, 16", (60 per case), male luer lok P1381

Pro-Flow, nasal, Cannula, 8.25" (30 per case), no filter P1334

Pro-Flow, nasal, pediatric small, 7', (60 per case), male luer lok P1267

Pro-Flow, nasal, pediatric small, 7', (10 pack), male luer lok P1303

Pro-Flow and

Pro-Flow Plus

Nasal cannulas

Pressure airﬂow

132 133

134 135

• Addresses monitoring of mouth-breathing patients

• Oral prong detects pressure changes in the mouth

• Pediatric and adult sizes

Description Part number

Pro-Flow Plus, nasal/oral, adult, 7', (30 per case), male luer lok P1295

Pro-Flow Plus, nasal/oral, adult, 7', (5 pack), male luer lok P1300

Pro-Flow Plus, nasal/oral, adult, 8.25", (30 per case), male luer lok P1308

Pro-Flow Plus, nasal/oral, adult, 8.25", (30 per case), P1334

no filter, male luer lok

Pro-Flow Plus, nasal/oral, adult, 1.1M, (10 per case), male luer lok P1319-10

Pro-Flow Plus, nasal/oral, adult, 16", (30 per case), male luer lok P1343

Pro-Flow Plus, nasal/oral, pediatric, 7', (30 per case), male luer lok P1354

Pro-Flow Plus

Nasal/oral cannulas

Pressure airﬂow (continued)

Description Part number

Pro-Flow MultiPurpose nasal cannulas

Pro-Flow MultiPurpose, nasal, adult, 7', (30 per case), P1350

male luer lok

Pro-Flow MultiPurpose, nasal, adult, 7', (5 pack), P1368

male luer lok

Pro-Flow MultiPurpose, nasal, pediatric, 7', (30 per case), P1346

male luer lok

Pro-Flow MultiPurpose, nasal, pediatric small, 7', P1348

(30 per case), male luer lok

Pro-Flow Plus MultiPurpose cannulas

Pro-Flow Plus MultiPurpose, nasal/oral, adult, 7', P1373

(30 per case), male luer lok

Pro-Flow Plus MultiPurpose, nasal/oral, pediatric, 7', P1366

(30 per case), male luer lok

Cannula accessories

Cannula adapter kit, female luer thread style on 1/8 inch tubing P1324

Double-port CPAP titration kit P1327

Kit contains: 12 cannula titration filters, 2 male luer loks,

2 circuit connection ports, small bore connecting tubing

CPAP titration kit, Alice PDx, connects CPAP circuit P1391

to PDx via male luer lok

Cannula or titration filter, (50 pack), P1107

male and female luer lok

Cannula or titration filter, (10 pack), P1109

male and female luer lok

Pro-Wrap, 100 Pro-Wrap per roll, no active sensor P1162

Pro-Flow sample pack, includes P1259 (qty: 2) P1258

and P1295 (qty: 2) Pro-Flow MultiPurpose and Pro-Flow

Plus MultiPurpose cannulas

• Designed to concurrently monitor

airflow and end-tidal CO2

• Provides ability to monitor three

parameters (airflow, snore, and EtCO2)

with one patient interface

• Can be used with most pressure

transducers and continuous sampling

capnographs

• Hydrophobic, anti-microbial inline

filter

• Pediatric and adult sizes

136 137

Description Part number

Reusable thermistor

Alice 3

Thermistor, 1 channel, nasal/oral, adult, P1246

2.5 connector

Thermistor 1 channel, nasal/oral, pediatric, P1298

2.5mm connector

Alice 4

Thermistor, 1 channel, nasal/oral, adult, P1286

LEMO triaxial connector

Alice 5

Thermistor, 1 channel, nasal/oral, adult, P1274

1.5mm connectors

Thermistor 1 channel, nasal/oral, pediatric, P1336

1.5mm connectors

Thermistor 1 channel, pediatric small, nasal bridgemount, P1337

1.5mm connectors

Alice 6

Thermistor, 1 channel, nasal/oral, adult, 1078754

249 connector (2-pin keyhole)

Thermistor, 1 channel, nasal/oral, pediatric, 1078755

249 connector (2-pin keyhole)

Thermistor 1 channel, pediatric small, nasal bridgemount, 1078756

249 connector (2-pin keyhole)

Thermistor, oral, adult, 249 connector 1078757

(2-pin keyhole)

Alice PDx

Thermistor airflow, nasal/oral, adult, P1388

Alice PDx, 2.5mm connector

Thermistor, oral, adult, Alice PDx, 2.5mm connector P1379

Other

Thermistor, 1 channel, nasal/oral, adult, Sandman SD20, P1364

220 connector (black)

Thermistor, 1 channel, nasal/oral, adult, P1274-249

Embletta, 249 connector (2-pin keyhole) (gray)

Thermistor, 1 channel, nasal/oral, pediatric, P1298-249

Embletta, 249 connector (2-pin keyhole) (gray)

Thermal airﬂow

Thermocouples and thermistors

• Compatible with most major PSG

systems

• Ability to monitor oral/nasal

separately and/or together with adult

and pediatric sizes and disposable

thermocouples

• Insulated tips

• Six-month warranty

Description Part number

Reusable thermocouple (cannula style)

Thermocouple 6" single element, adult, 1.5mm connectors P1221

Thermocouple nasal/oral airflow sensor, 1 channel, adult, P1222

1.5mm connectors

Thermocouple nasal/oral airflow sensor, 2 channel, adult, P1224

1.5mm connectors

Thermocouple airflow sensor, 1 channel, adult, binder connector P1757

Thermocouple airflow sensor, 1 channel, adult, binder connector P1758

Thermocouple nasal/oral airflow sensor, 1 channel, pediatric, P1223

1.5mm connectors

Thermocouple airflow sensor, 1 channel, pediatric, P1759

binder connector

Thermocouple airflow sensor, 1 channel, pediatric, P1760

binder connector

Thermocouple nasal airflow sensor, 1 channel, P1214

pediatric small, nasal bridgemount, 1.5mm connectors

Thermocouple airflow sensor, 1 channel, pediatric P1761

small, binder connector

Thermocouple airflow sensor, 1 channel, pediatric P1762

small, binder connector

Disposable thermocouple

Reusable wireset P1238

Disposable thermocouple nasal/oral airflow sensor, adult, P1242

(10 pack), 1.5mm connectors

138 139

Description Part number

Pressure sensor

Pressure sensor, domestic, Alice 6 1076590

Pressure sensor, international, Alice 6 1076592

PTAF Lite

PTAF Lite startup kit P1289

Kit contains: P1258: cannula sample pack; P1289: PTAF Lite

PTAF Lite for Alice 5 P1304R

PTAF2 and PTAF Lite accessories

Cannula titration filter (50 pack) P1107

Cannula titration filter (10 pack) P1109

Cannula adapter kit P1324

CPAP titration kit P1327

CPAP titration kit Alice PDx P1391

Cannula sample pack P1258

Pressure transducers

Thermocouples and thermistors

• Designed to generate accurate

respiratory signals

• Includes high-level and low-level

outputs, unﬁltered or ﬁltered airﬂow

output, snoring output, and remote-

control options

• Used in AC or DC conﬁgurations and

during CPAP titrations

• One-year warranty

The PTAF Lite is a small, lightweight

piezo-style pressure transducer used in

AC device conﬁgurations.

Description Part number

PTAF2

PTAF2 (kit contains: PTAF2 module, a 9V battery, P1287

and one P1258 cannula sample pack)

PTAF2 cables

High level cable, 7', 1/8 male connector P1078

High level cable, 7', 1/8 female connector P1079

High level cable, 7', 3/32 male connector P1080

High level cable, 7', 1/4 male connector P1081

High level cable, 7', 3.5mm connector P1138

Low level cable, 7', 3/32 male connector P1077

Low level cable, 7', 1.5mm connector P1075

140 141

Description Part number

zRIP DuraBelt startup kits (continued)

Other (continued)

zRIP DuraBelt kit, adult, QDC 1075968

Kit contains: 1 each P1176 abdomen cable,

1 each P1177 ribcage cable and

2 each 1073622 zRIP DuraBelts, adult

zRIP DuraBelt kit, pediatric, QDC 1075967

Kit contains: 1 each P1176 abdomen cable,

1 each P1177 ribcage cable and

2 each 1075970 zRIP DuraBelts, pediatric

zRIP modules

zRIP module, 1.5mm connectors P1732

zRIP SUM RT module, 1.5mm connectors P1753

zRIP module, Alice 5, 1.5mm connectors P1736R

zRIP DuraBelt effort sensors

zRIP DuraBelt adult, size: 24" - 74", 1073622

1.5mm panel mount black

zRIP DuraBelt adult, large, size: 45" - 123", 1075973

1.5mm panel mount black

zRIP DuraBelt, pediatric, size: 16" - 42", 1075970

1.5mm panel mount black

zRIP wiresets and cables

zRIP wireset, 249 connector (2-pin keyhole) P1133

zRIP wireset, Medcare, 249 connector (2-pin keyhole) P1137

zRIP wireset, Alice PDx, 249 connector (2-pin keyhole) P1170

zRIP cable abdomen, proprietary QDC connector P1176

zRIP cable ribcage, proprietary QDC connector P1177

Respiratory inductance plethysmography effort sensors

zRIP respiratory effort sensors and

zRIP DuraBelts

• Provide linear breathing movement

tracings with no false paradoxing

• Incorporate enhanced woven wire

and buckle design

• Offer comprehensive patient coverage

• Facilitate easy initial placement,

and easy middle-of-the-night

adjustments

• Fully washable

• Available in non-SUM and SUM RT

(breath-to-breath summation)

modules

• Replaceable batteries

• One-year warranty

Description Part number

zRIP DuraBelt startup kits

Alice 5

zRIP DuraBelt kit, adult, Alice 5 1076333

Kit contains: 1 each P1736R zRIP Alice 5,

2 each P1133 zRIP wiresets,

2 each 1073622 zRIP DuraBelts, adult

zRIP DuraBelt kit, pediatric, Alice 5 1076334

Kit contains: 1 each P1736R zRIP driver module,

2 each P1133 zRIP wiresets,

2 each 1075970 zRIP DuraBelts, pediatric

Alice 6

zRIP DuraBelt kit, adult, Alice 6 1078925

Kit contains: 2 each 1073622 zRIP DuraBelts, adult,

2 each P1133 zRIP wiresets

zRIP DuraBelt kit, pediatric, Alice 6 1078926

Kit contains: 2 each 1075970 zRIP DuraBelts, pediatric,

2 each P1133 zRIP wiresets

Alice PDx

zRIP DuraBelt kit, adult, Alice PDx 1075969

Kit contains: 2 each P1170 wiresets,

2 each 1073622 zRIP DuraBelt, adult

Other

zRIP DuraBelt kit, adult 1076329

Kit contains: 1 each P1732 zRIP driver module,

2 each P1133 zRIP wiresets,

2 each 1073622 zRIP DuraBelt, adult

zRIP DuraBelt kit, pediatric 1076330

Kit contains: 1 each P1732 zRIP driver module,

2 each P1133 zRIP wiresets,

2 each 1075970 zRIP DuraBelts, pediatric

zRIP DuraBelt Sum RT kit, adult 1076336

Kit contains: 1 each P1753 zRIP Sum RT driver module,

2 each P1133 zRIP wiresets,

2 each 1073622 zRIP DuraBelts, adult

zRIP DuraBelt Sum RT kit, pediatric 1076337

Kit contains: 1 each P1753 zRIP driver module,

2 each P1133 zRIP wiresets,

2 each 1075970 zRIP DuraBelts, pediatric

142 143

Description Part number

Piezo respiratory effort kits

Piezo 1 channel adult kit P1461R

Kit contains: 1 each P1420 adult Velcro® strap kit 1.5",

1 each P1460 piezo sensor 1.5", 1.5mm connectors

Piezo 2 channel plus adult kit P1463R

Kit contains: 2 each P1420 adult Velcro strap kit 1.5",

3 each P1460 piezo sensor 1.5", 1.5mm connectors

Piezo 1 channel pediatric kit P1483

Kit contains: 1 each P1416 pediatric Velcro strap kit 1.5",

1 each P1460 piezo sensor 1.5", 1.5mm connectors

Piezo 1 channel pediatric kit P1462R

Kit contains: 1 each P1448 pediatric Velcro strap kit 1",

1 each P1453 pediatric piezo sensor 1", 1.5mm connectors

Piezo 2 channel plus pediatric kit P1464R

Kit contains: 2 each P1448 pediatric Velcro strap kit 1",

3 each P1453 pediatric piezo sensor 1", 1.5mm connectors

Adult Velcro strap kit, 1.5" P1420

Kit contains: 1 each adult Velcro strap 1.5",

size 1, size 2, and size 3

Pediatric Velcro strap kit, 1.5" P1416

Kit contains: 1 each pediatric Velcro strap 1.5",

size 1, size 2, and size 3

Pediatric Velcro strap kit 1" P1448

Kit contains: 1 each pediatric Velcro strap 1",

size 1, size 2, size 3, and size 4

Piezo respiratory effort sensors

Piezo sensor, 1.5", adult, 1.5mm connectors P1460

Piezo sensor, 1" pediatric, 1.5mm connectors P1453

CT2 piezo sensor, adult, 1.5mm connectors P1582

CT2 piezo sensor, pediatric, 1.5mm connectors P1585

Stardust CT2 effort sensor, adult, harwin connector P1805

CT2 effort sensor, adult, Alice 5, 1.5mm connectors P1586

CT2, effort sensor, pediatric, Alice 5, 1.5mm connectors P1587

CT2, effort sensor, adult, Alice 4, LEMO triaxial connector P1804

CT2, effort sensor, adult, Embletta, P1800

249 connector (2-pin keyhole)

CT2, effort sensor, chest, adult, dark gray, 16", P1823

249 connector (2-pin keyhole)

Description Part number

Piezo respiratory effort accessories

CT2, 18" extension strap P1592

CT1 belt strap, adult, P1421

size 1, 1.5"w, 33.5"l

CT1 belt strap, adult, P1422

size 2, 1.5"w, 49"l

CT1 belt strap, adult, P1423

size 3, 1.5"w, 77"l

Respiratory inductance plethysmography effort sensors Piezo respiratory effort sensors

ezRIP combination module/wireset

sensor

• Low initial RIP investment

• Minimizes bedside module

congestion

• Easy conﬁgurability – the driver

module clips directly onto the zRIP

DuraBelt and legacy zRIP belt

• Non-replaceable batteries

• One-year warranty

Piezo respiratory effort sensors

• Sensor straps are easy to size on

most patients

• Low proﬁle of the sensor straps

enhances patient comfort

• Compatible with most PSG systems

• Plugs directly into standard AC

channels

• Latex free

• One-year warranty

Description Part number

ezRIP DuraBelt kits

ezRIP adult kit, 1.5mm, 84" 1099514

1 Abd, 1 Thx, 2 zRIP DuraBelts, adult

ezRIP adult kit, Alice 5/LE, 84" 1099515

1 Abd, 1 Thx, 2 zRIP DuraBelts, adult

ezRIP adult kit, 249, 84" 1099516

1 Abd, 1 Thx, 2 zRIP DuraBelts, adult

ezRIP adult kit, 249, 16"/20" 1099517

1 Abd, 1 Thx, 2 zRIP DuraBelts, adult

ezRIP adult, Stardust II kit 1099558

1 Thx, 1 zRIP DuraBelt, adult

ezRIP combination module/wireset (individual component)

KezRIP module, abdomen, 1.5mm, 84" 1094094

ezRIP module, thorax, 1.5mm, 84" 1094096

ezRIP module, abdomen, 1.5, 84", Alice 5/LE 1094110

ezRIP module, thorax, 1.5, 84", Alice 5/LE 1094111

ezRIP module, abdomen, 249, 84" 1094093

ezRIP module, thorax, 249, 84" 1094095

ezRIP module, abdomen, 249, 20" 1094920

ezRIP module, thorax, 249, 16" 1094921

ezRIP module, thorax, harwin, 26" 1094097

Understanding RIP signals vs. piezo signals

RIP Piezo

Directly reflects breathing activity of Indirectly reflects breathing

a patient activity of a patient

Sensor wire wraps around the patient Sensor (piezo) most commonly located

near the belt buckle

Belt only needs to be snug on the Belt needs to be pulled taut for an

patient for an accurate signal accurate signal

Gain settings do not change during Gain settings usually need to be

the night when the signal decreases altered during the night to capture

the signal

The signal decreasing reflects true The signal decreasing, or changing,

patient breathing effort can reflect “trapping” or artificial artifact

Thoracic belt placement is designed Belt placement can be anywhere in

to be more precise than piezo the thoracic area and pulled tight

144 145

Description Part number

Periodic limb movement (PLM)

PLM sensor, Alice 6, 249 connector (2-pin keyhole) 1078752

Piezo PLM, 1.5mm connectors P1697

Piezo PLM kit P1698R

Kit contains: 1 each P1697 PLM sensor,

1 each P1689 Velcro strap PLM large,

1 each P1690 Velcro strap PLM small

Piezo PLM 2 per kit P1699R

Kit contains: 2 each P1697 PLM sensor,

2 each P1689 Velcro strap PLM large,

2 each P1690 Velcro strap PLM small,

1 each, P1097 safety male jumper wireset

Periodic limb movement (PLM) accessories

Jumper, wireset, 1.5mm P1097

Velcro strap PLM, large P1689

Velcro strap PLM, small P1690

Body position sensors Periodic limb movement

Body position sensors

• Designed with patient comfort in mind

• Ability to identify the primary sleep positions (prone, supine, left, right, and

upright)

• Patient’s body position can be continuously monitored regardless of the amount

of movement

• Attaches to the thoracic respiratory effort belt easily and comfortably

• Compatible with most PSG systems

• One-year warranty

Periodic limb movement sensors

• Detect a patient’s leg or arm movement

• Designed to provide clean, reliable signals while providing exceptional patient

comfort

• Sensitive to subtle movements

• Do not require skin preparation prior to application

• Using kits, multiple sensors can be conﬁgured to combine PLM signals onto a

single channel

• Six-month warranty

Description Part number

Body position sensors

SPI (sleep position indicator) resistive, P1652

Cadwell, 8-8 modular plug

Body position sensor, DC with 3.5mm connector P1664

Body position sensor, DC with 1.5mm connector P1664-WS2074

Body position sensor, Alice 6, 249 connector (2-pin keyhole) 1078758

Body position sensor, Alice 5 , 1.5mm connectors P1694

Body position sensor, Alice 4, LEMO triaxial connector P1707

Body position sensor, Alice 3, LEMO connector P1706

Snore sensors and microphones

• The snore sensor, with its thin piezo crystal, is designed to provide an accurate,

reproducible signal

• The snore microphone is designed to provide a thin baseline and clear,

responsive signals

• Compatible with most PSG systems

• Six-month warranty for snore sensors

• Ninety-day warranty for snore microphone

Description Part number

Snore sensors and microphones

Piezo snore sensor, 1.5mm connector P1696

Snore sensor, Embletta, 249 connector (2-pin keyhole) P1718

Snore microphone, 1.5mm connector P1716

Snore microphone, Alice 6, 249 connector (2-pin keyhole) 1078753

146 147

Appendix: AASM scoring manual guidelines and Pro-Tech sensor application

AASM scoring manual (Version 2.3) guideline – adults Pro-Tech sensor

Thermal airflow

Adults VIII.1.A: “The sensor to detect absence Oronasal thermocouple P1222

of airflow...is an oronasal thermal sensor.”

Flow nasal pressure PTAF2 startup kit P1287

Adults VIII.1.B: “The sensor for detection of.... Nasal cannulas: adult (60 per case) P1259

hypopnea is a nasal air pressure transducer...”

Respiratory effort Respiratory Inductance Plethysmography:

Adults VIII.1.C: “The sensor for detection of respiratory zRIP DuraBelt kit, adult 1076329 or

effort is.... inductance plethysmography.” ezRIP adult kit, 1099514

AASM scoring manual (Version 2.3) guideline – children Pro-Tech sensor

Thermal airflow

Children VIII.1.A: “The sensor to detect absence of Oronasal thermocouple P1223

airflow....is an oronasal thermal sensor.”

Flow nasal pressure PTAF2 startup kit P1287

Children VIII.1.B: “The sensor for detection of.... Nasal cannulas: pediatric (60 per case) P1263

hypopnea is a nasal air pressure transducer...”

Respiratory effort Respiratory Inductance Plethysmography:

Children VIII.1.C: “The sensor for detection of respiratory zRIP DuraBelt kit, pediatric 1076330 or

effort is.... inductance plethysmography.” ezRIP module, abdomen, 1094094,

ezRIP module, thorax, 1094096 and

zRIP DuraBelt, pediatric, 1075970

Hypoventilation

Children VIII.1.E: “Acceptable methods for assessing Pro-Flow MultiPurpose Cannula:

alveolar hypoventilation.... end-tidal PCO2monitoring.” pediatric (30 per case) P1346

Enable EtCO2and pressure monitoring simultaneously

from both nostrils using one cannula.

148 149

For respiratory therapists, sleep technicians and nurses, Philips

Respironics CEU-accredited programs target noninvasive and

invasive ventilation, oxygen, and sleep therapy, and are focused

on your continuing education requirements.

To learn about additional training opportunities relating

to sleep apnea, visit our Partners in Training web site at

http://www.ganesco.com/philips-attendee/login.php.

Medical

education

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

CEU progams

Sleep

The Mask Experience

1 CEU, AARC, AAST, CA BRN

A lecture to learn how to select the best mask to improve

patient experience and adherence to the therapy.

• Describe the challenges the OSA patient has to be compliant

to his or her CPAP therapy

• Describe why your patient needs to be compliant to CPAP

therapy

• Identify the types of masks, and understand their beneﬁts

and drawbacks

• Identify how to choose the right mask to help your patient be

compliant to CPAP therapy

• Discuss the signiﬁcance of resupply

• Discuss recent research evidence

Fundamentals of Obstructive Sleep Apnea

1 CEU, AARC, AAST, CCMC, CA BRN

Understand the pathology and prevalence of OSA and learn

how to recommend appropriate diagnostic and treatment

options

• Restate the types of Sleep Disordered Breathing (SDB)

• Recognize the prevalence of SDB

• Identify and recommend appropriate diagnosis and

screening procedures

• Discuss various treatment and follow-up management

options.

Advanced Algorithms for SDB

1.5 CEU, AARC, AAST

Learn about leak and triggering technology, understand the

CPAP breathing algorithms and identify the breathing

algorithms for periodic breathing and respiratory insuﬃciency

• Restate the technology of auto adjusting expiratory pressure,

servo ventilation, volume assured pressure support

ventilation, automatic adjustment features, and comfort

features

• Describe the disease states that the algorithm should be

used for

Titration Guidelines for CPAP, Bi-level, Servo Ventilation and

volume assured pressure support ventilation

1.5 CEU, AARC, AAST

List the titration goals for OSA management, understand the

suggested protocols for titrations and review the titration

process.

• Describe a titration procedure for basic CPAP

• Describe a titration procedure for servo ventilation

• Describe a titration procedure for volume assured pressure

support ventilation.

Respiratory

Maximizing PAP Therapy through Advanced Techniques:

servoventilation and volume assured pressure support

ventilation

1 CEU, AARC, AAST

This course provides information to be able to identify the

proper disease state for the use of servo ventilation or volume

assured pressure support.

• Identify the link between OSA and CVD or OHS

• Describe the prevalence of OSA and CVD or OHS

• Describe the advanced techniques for treatment of OSA

and CVD or OHS patients

Servo ventilation for SDB

1 CEU, AARC, AAST

This will cover the current disease processes that can be

treated with servoventilation

• Recognize the breathing patterns treated with

servoventilation

• Identify the disease process that the breathing patterns are

seen in.

• Discuss the clinical studies that back up the servoventilation

treatment for these diseases.

Home Ventilation Workshop

2 CEU, AARC, CA BRN

Learn more about the operation of the Trilogy100 and

Trilogy200 life support ventilators.

• Describe the circuit options, breath types, modes, alarms,

features and troubleshooting.

• Review the unique mouthpiece ventilation mode.

Mechanical insuﬄation-exsuﬄation (MI-E) technique

Workshop

1 CEU, AARC

This workshop educates respiratory therapists on mechanical

insuﬄation-exsuﬄation (MI-E). The session will cover

indication, contraindications, operation procedure

recommended treatment practice and review of a clinical case

study.

• Describe the indications, contraindications and warnings/

cautions for the use of mechanical insuﬄation-exsuﬄation

(MI-E) techniques.

• Identify the advantages of the noninvasive use of

mechanical insuﬄation-exsuﬄation (MI-E) technique over

invasive airway clearance.

• Restate the details of a clinical case study

• Discuss the recommended treatment plan.

150 151

152 153

On line only

Bi-level Rescue Program

1 CEU, AARC, AAST

Self-directed monograph highlights bi-level therapy in OSA, bi-level rescue study

results, implementation and protocols.

• Describe the use of bi-level therapy as an option for patients

An Introduction to Sleep Diagnostic Equipment

3 CEU’s, AAST

Self-directed monograph with 3 chapters on nasal pressure ﬂow systems, pulse

transit time, and respiratory inductance plethysmography

• Identify the difference between various nasal pressure ﬂow systems, pulse transit

time, and respiratory inductance plethysmography

Mask Monograph

1 CEU, AARC, AAST

Self-directed monograph that focuses on choosing the right mask for the right patient

• Discuss how to choose the right mask to help your patient

be compliant to CPAP therapy

• Describe the different types of masks available and when they should be used

Motivational Enhancement therapy (MET)

1 CEU, AARC, AAST

Review MET as it relates to improving adherence to PAP treatment

• Describe the speciﬁc behavioral interventions and theories about behavioral

change

• Recognize when to intervene.

On Line Monographs at www.ganesco.com

CEU progams (continued)

Respiratory (continued)

COPD Management workshop: Reducing Readmissions

• Deﬁne Triple Aim Ideology in healthcare.

• Deﬁne the term “readmission”.

• Discuss conditions typically associated with increased readmission rates.

• Describe the key factors in COPD readmission.

• Discuss the IDEAL discharge system and General Assessment of Preparedness.

• Describe intervention and implementation of a reduced readmission program using

examples.

• Explain Plan-Do-Check-Act process with related to reduced readmission.

• Review and develop end-to-end treatment solutions (according to physician order)

for the COPD patient “new to the system” and “chronic and considered recidivism

for COPD hospitalization”.

COPD Management workshop: Part 2

• Discuss communication and education of a patient

• Recognize the common barriers found in adult learning and discuss strategies to

overcome them

• Discuss resources available for COPD Patients

• Discuss the different kind of medicines commonly used in COPD management

• Discuss the required elements of personalized medication care for COPD patients*

Value-

added

programs

Philips Respironics offers a broad array of programs aimed at

helping to maximize your growth and operational efficiencies.

From compliance and resupply to training and warranties, we

provide a spectrum of unique programs focused on facilitating

success for you and your patients.

Not all products are available in all countries. Check with Philips Respironics customer service or your local distributor.

154 155

Device programs

Flex Promise program

Our Flex Promise Program is Philips Respironics’ commitment

that if any patient is noncompliant on any of our Flex

technologies, upon return of the unit with Flex technology,

we will apply a 100% credit of the corresponding unit

purchase price toward the purchase of a Philips Respironics

bi-level device with Bi-Flex.

Bi-level Rescue program

This program is intended to help patients continue their

PAP therapy when they are not able to tolerate standard

treatment.

Extended Warranty program

The Extended Warranty supports all DreamStation devices

and adds three years of coverage to the standard two-year

warranty – providing ﬁve years of protection on a

DreamStation device or humidiﬁer against unexpected repair

costs and shortening the time the device is out of service.

DreamStation Non-warranty Service program

For devices not covered under warranty, the DreamStation

Non-warranty Service Program offers a simple two-tiered

approach to repair costs that helps to accelerate the return

of the repaired unit to the patient and reimbursement

turnaround times.

Mask programs

30-Day Mask Satisfaction Promise program

Your patient will be satisﬁed with our mask or we’ll replace it.

If a patient discontinues use of a program-approved mask in

favor of another mask during the ﬁrst 30 days of use, we will

replace the original mask at no charge. Certain terms and

conditions apply.

Ventilation programs

Ventilation Promise program

Progressive diseases like COPD and ALS have one thing in

common – a patient’s ventilator needs will change over time.

We want to make it easy for you to transition your patients to

higher level ventilator devices as their needs become more

challenging. To enable you to easily transition patients to

other devices as their diseases progress, the Ventilation

Promise Program will provide a credit equal to the purchase

price of any Philips Respironics’ System One device to be

applied toward the purchase of a BiPAP AVAPS or Trilogy

ventilator. Certain terms and conditions apply.

One COPD program

One COPD takes a patient-centric approach–based on

clinical research and backed by Philips devices, support,

and expertise. Technology, education, and connectivity all

work together to provide a seamless care experience geared

towards patient satisfaction, better patient care, and reduced

cost of care.

Customer programs

Cognitive Behavioral Therapy for Insomnia (CBTI)

This program provides sleep labs with a means to implement

a behavioral sleep medicine program or enhance their current

offerings without incurring the development cost and time

of doing it themselves. Additionally, it enables them to

implement an objective tool (Actiwatch) for therapeutic

assessment as an adjunct to traditional, subjective diaries.

Know How Webinars

The Philips Respironics Know How program is a series of

live and on-demand webinars that help to address key

business and clinical challenges and opportunities faced

by homecare providers and healthcare professionals.

Visit http://www.learningconnection.philips.com/en/sleep-

and-respiratory-care-education to learn more and to register

for the various sessions.

156 157

Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

RB 6/23/16 MCI 4107262 www.philips.com/respironics

Philips Catalog SRC 2015 2016 Product And Solutions MCI 4107262

View eCatalog SRC_2015-2016_Product_and_Solutions_Catalog_MCI_4107262 Sleep Apnea Care

Navigation menu

Versions of this User Manual:

Views

Navigation
