English
6

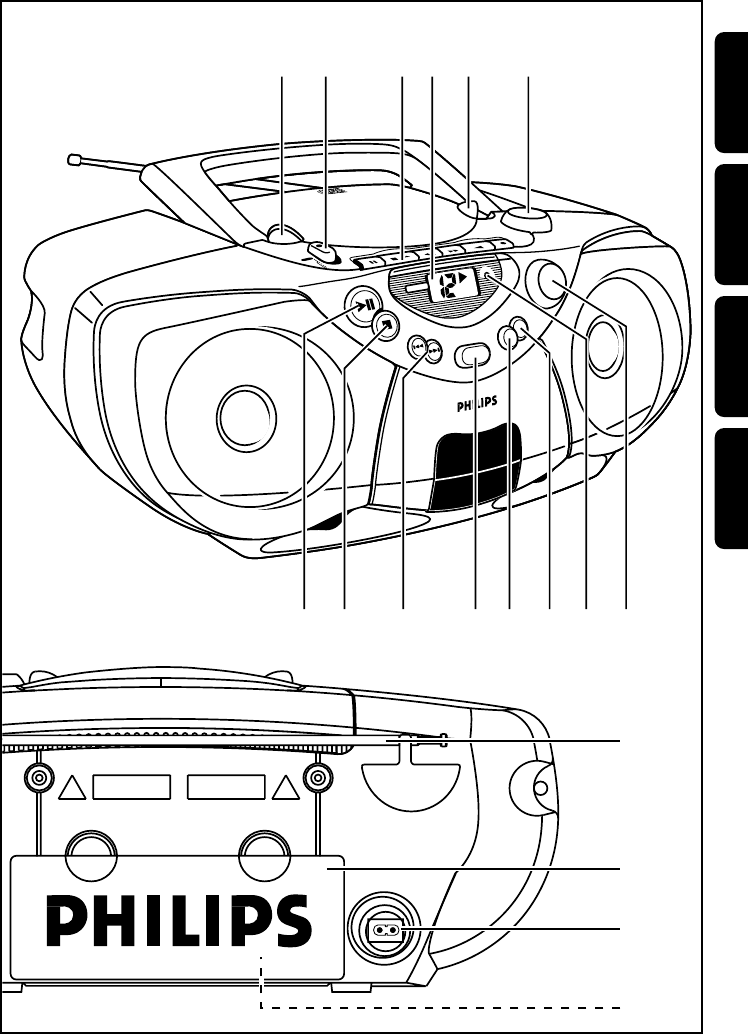

Top and front panels
1 LIFT TO OPEN – opens/ closes the CD
door
2 Source selector:CD,AM,FM,
TAPE/OFF
– selects CD source of sound,tuner
waveband or tape source of sound
– power on/ off switch
3 CASSETTE RECORDER:
PAUSE ;– pauses recording or playback
STOP•OPEN 9/ – stops the tape;opens
the cassette door
SEARCH 5or 6– fast rewinds / winds
the tape
PLAY 1– starts playback
RECORD 0– starts recording
4 CD display – shows the CD functions
5 TUNING
6 PLAY•PAUSE 2; – starts or pauses CD
playback
7STOP 9– stops CD playback;erases a
CD programme
8 SEARCH ∞,§
CD:skips or searches a passage/track
backwards or forward
9 DBB (Dynamic Bass Boost) –
enhances bass response
10 REPEAT – repeats a track/CD/
programme
11 PROGRAM – programmes and reviews
programmed track numbers;
12 BATT LOW – indicator lights up if
battery power running low
13 VOLUME – adjusts volume level
Back Panel
14 Telescopic aerial – to improve FM
reception
15 Battery door – open to insert 6 x 1.5V
R14/UM2/ C-cell batteries
16 AC MAINS – inlet for mains lead
17 Voltage selector – (inside the battery
compartment,not all versions) adjust the
selector to match the local mains.
Disconnect the mains lead if this selector
has to be reset.
Power Supply
Whenever convenient,use the power
supply if you want to conserve battery life.
Make sure you remove the plug from the
set and wall socket before inserting
batteries.
Batteries (not included)

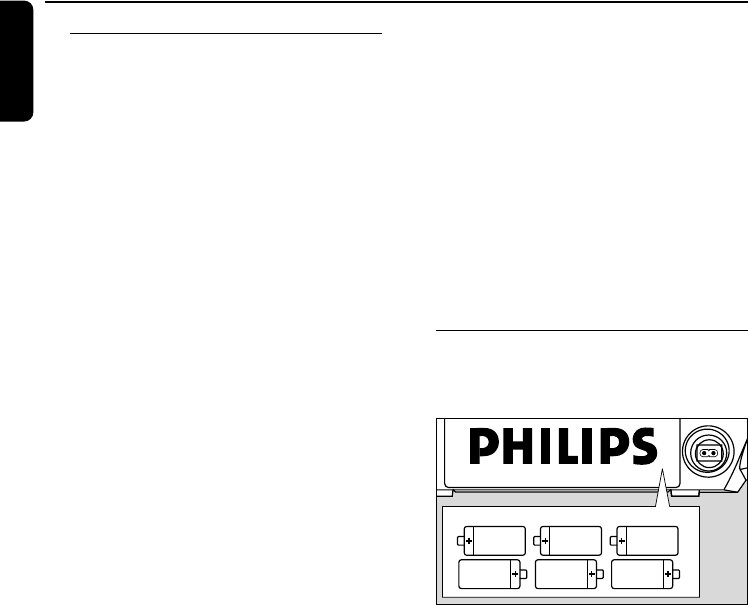

1Open the battery compartment and insert
six batteries, type R-14,UM-2 or C-cells,
(preferably alkaline) with the correct
polarity as indicated by the "+" and "–"
symbols inside the compartment.
2Close the compartment door, and make
sure the batteries are firmly and correctly in
place.The set is now ready to operate.
➜If BATT LOW lights up,battery power
is running low.The BATT LOW indicator
eventually goes out if the batteries are
too weak.
Controls Power Supply
A
C
M
A
I
N
S
~
6 x 1.5V R14/ UM2/ C CELL
XP AZ 1008/01/16 29-11-2000 15:29 Pagina 6
English
7
Batteries contain chemical substances,
so they should be disposed of properly.
Incorrect use of batteries can cause
electrolyte leakage and will corrode the
compartment or cause the batteries to
burst.Therefore:
• Do not mix battery types:e.g.alkaline with
carbon zinc. Only use batteries of the same
type for the set.
• When inserting new batteries, do not try to
mix old batteries with the new ones.
• Remove the batteries if the set is not to be
used for a long time.

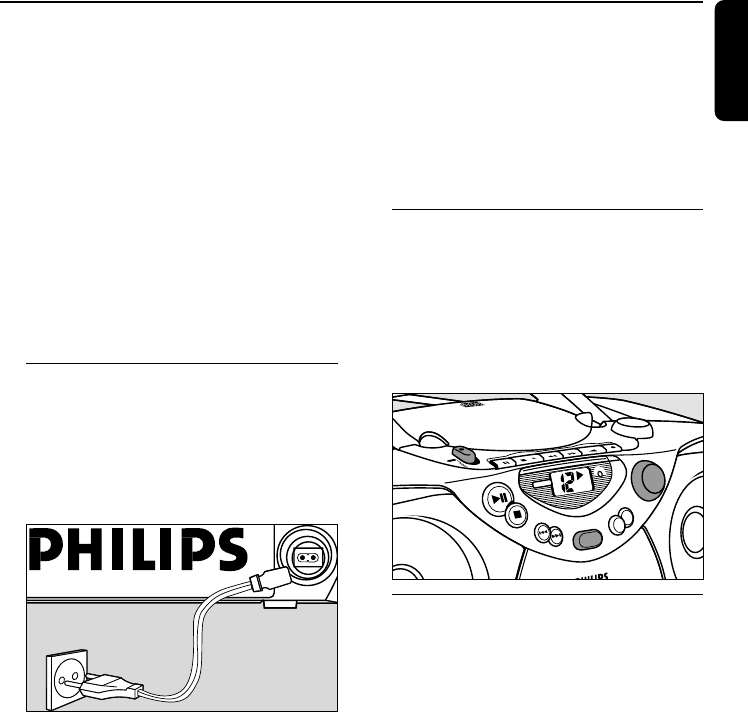

Using AC Mains
1 Check if the mains voltage, as shown on
the type plate located on the bottom
of the set,corresponds to your local
power supply.If it does not, consult your
dealer or service centre.
2 Connect the mains lead to the AC MAINS
inlet and the wall socket.The power supply
is now connected and ready for use.
3 If your set is equipped with a voltage
selector,located inside the battery
compartment,adjust the selector to match
the local mains.Disconnect the mains lead if
this selector has to be reset.
4 To switch off completely, unplug the mains
lead from the wall socket.
• Unplug the mains lead from the wall socket
to protect your set during heavy
thunderstorms.
The type plate is located on the
bottom of the set.
Switching power on/off:
Save energy
Whether you are using mains or battery
supply, to avoid unnecessary energy
consumption always adjust the source
selector to TAPE/OFF and check if the
cassette keys are released.
General operation
1 To select your sound source adjust the
source selector to CD,AM,FM or
TAPE/OFF.
2 Adjust the sound with the VOLUME and
DBB (Dynamic Bass Boost) controls.
3To switch off the set, adjust the source
selector to TAPE/OFF position and check
the cassette keys are released.
Power Supply
REPEAT
PROGRAM
B
A
T
T
.
L
O
W
TAP
OFF
MW
FM
CD
L
I
F
T
T
O
O
P
E
N
A
Z
1
0
0
8
C
D
R
A
D
I
O
C
A
S
S
E
T
T
E
R
E
C
O
R
D
E
R
C
D
S
Y
N
C
H
R
O
S
T
A
R
T
R
E
C
O
R
D
I
N
G
P
L
A
Y
S
T
O
P
•
O
P
E
N
P
A
U
S
E
S
E
A
R
C
H
S
E
A
R
C
H
S
E
A
R
C
H
S
T
O
P
D
Y
N
A
M
IC BASS
B
O
O
S
T
P
L
A
Y
/
P
A
U
S
E
DBB
P
R
O
G
R
A
M
R
E
P
E
A
T
V
O
L
U
M
E
N
E
P
O
O
T
T
F
I
L
TUNING
CD TRACK
A
~
XP AZ 1008/01/16 29-11-2000 15:29 Pagina 7
English
8

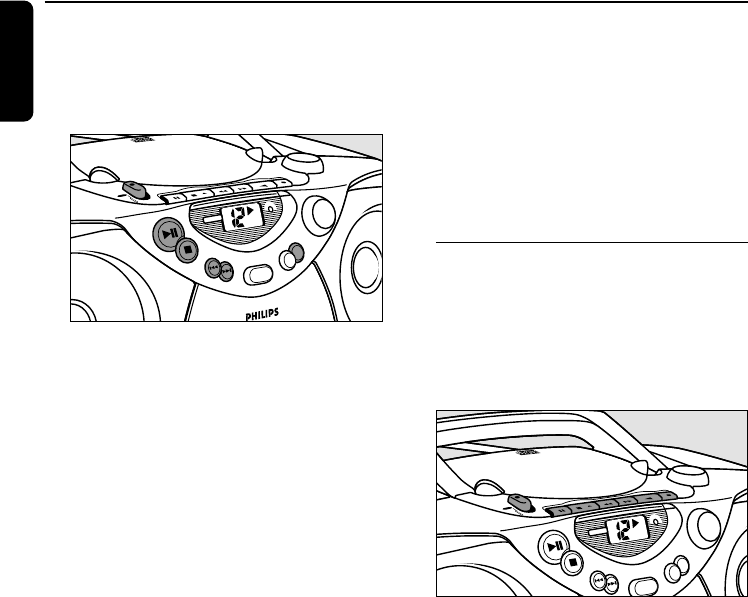

Radio reception
1 Adjust the source selector to AM or FM
to select your desired waveband.
2 Tur n TUNING to tune to a radio station.
To improve reception
– For FM,pull out the telescopic aerial. Incline
and turn the aerial. Reduce its length if the
signal is too strong (very close to a
transmitter).
– For AM the set is provided with a built-in
aerial so the telescopic aerial is not needed.
Direct the aerial by turning the whole set.
3To switch off the radio,adjust the source
selector to TAPE/OFF position and check
the cassette keys are released.
CD Player
Display indication for CD functions:
– --:flashes when CD source just selected
– In stop mode:total track number
– During CD playback:2and current
track number
REPEAT/ REPEAT ALL: when the
respective repeat mode is activated
– PROGRAM:when CD programme
active
– -- and PROGRAM:flashes when
programme memory full
– Er:no disc/ error in CD operation or
with the CD/ CD-(R) is blank or the disc
is not finalised (see Troubleshooting)
Playing a CD
1Adjust the source selector to CD.
2To open the CD door, lift the CD door at
the edge marked LIFT TO OPEN.
3Insert a CD or CD-(R) with the printed
side facing up and press the CD door gently
close.
4Press PLAY•PAUSE 2; on the set to
start playback.
5To pause playback press PLAY•PAUSE
2;.To resume,press PLAY•PAUSE 2;
again.
➜2flashes during pause
6To stop CD play,press STOP 9.
7To switch off the set, adjust the source
selector to TAPE/OFF position and check
the cassette keys are released.
Note:CD play will also stop when:
– you open the CD compartment;
– you select AM,FM or TAPE sound
source;
– the CD has reached to the end.
Radio CD-Player
REPEAT
PROGRAM
B
A
T
T
.
L
O
W
TAP
OFF
MW
FM
CD
L
I
F
T
T
O
O
P
E
N
A
Z
1
0
0
8
C
D
R
A
D
I
O
C
A
S
S
E
T
T
E
R
E
C
O
R
D
E
R
C
D
S
Y
N
C
H
R
O
S
T
A
R
T
R
E
C
O
R
D
I
N
G
P
L
A
Y
S
T
O
P
•
O
P
E
N
P
A
U
S
E
S
E
A
R
C
H
S
E
A
R
C
H
S
E
A
R
C
H
S
T
O
P
D
Y
N
A
M
IC BASS
B
O
O
S
T
P
L
A
Y
/
P
A
U
S
E
DBB
P
R
O
G
R
A
M
R
E
P
E
A
T
V
O
L
U
M
E
N
E
P
O
O
T
T
F
I
L
TUNING
CD TRACK
REPEAT
PROGRAM
B
A
T
T
.
L
O
W
TAP
OFF
MW
FM
CD
L
I
F
T
T
O
O
P
E
N
A
Z
1
0
0
8
C
D
R
A
D
I
O
C
A
S
S
E
T
T
E
R
E
C
O
R
D
E
R
C
D
S
Y
N
C
H
R
O
S
T
A
R
T
R
E
C
O
R
D
I
N
G
P
L
A
Y
S
T
O
P
•
O
P
E
N
P
A
U
S
E
S
E
A
R
C
H
S
E
A
R
C
H
S
E
A
R
C
H
S
T
O
P
D
Y
N
A
M
IC BASS
B
O
O
S
T
P
L
A
Y
/
P
A
U
S
E
DBB
P
R
O
G
R
A
M
R
E
P
E
A
T
V
O
L
U
M
E
N
E
P
O
O
T
T
F
I
L
TUNING
CD TRACK
XP AZ 1008/01/16 29-11-2000 15:29 Pagina 8
English
9

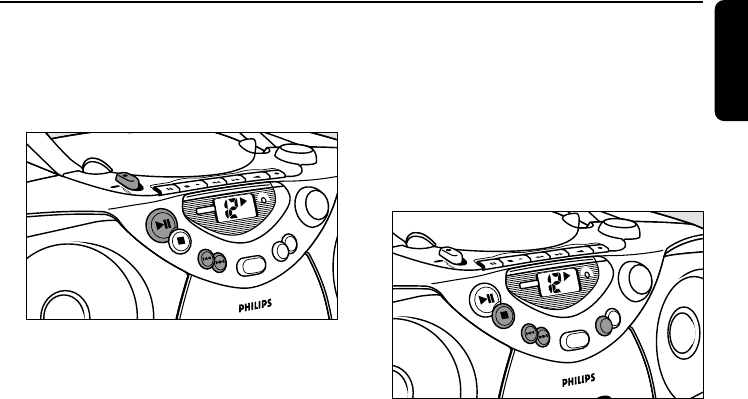

Selecting a different track
During playback you can use the
SEARCH buttons to select a particular
track.
• If you have selected a track number in the
stop or pause position,press
PLAY•PAUSE 2; to start playback.
• Press SEARCH §once briefly for the
next track, or press repeatedly until the
desired track number appears in the display.
• Press SEARCH ∞once briefly to return
to the beginning of a current track.
• Press SEARCH ∞more than once briefly
for a previous track.
Finding a passage within a track
1During playback,press and hold down
SEARCH ∞or §.
• The CD is played at high speed and low
volume.
2When you recognize the passage you want
release the SEARCH button.
➜Normal playback resumes.
Note:When searching within a final track and
you reach the end of the last track,the CD
goes to stop mode.
Repeat play modes
REPEAT can be selected or changed
during playback in the following sequence:
REPEAT – plays the current track
continuously
REPEAT ALL – plays the entire CD
continuously
1During playback,press REPEAT once or
more until the desired REPEAT mode is
shown.
• You can use SEARCH ∞or §to skip
tracks during the repeat modes.
• The REPEAT play options can be
combined and used with a programme: e.g.
REPEAT ALL PROGRAM– repeats the
entire CD programme.
2To return to normal playback press
REPEAT until the REPEAT modes are no
longer shown.
• You can also press STOP 9to quit the
play mode.
CD-Player
REPEAT
PROGRAM
B
A
T
T
.
L
O
W
TAP
OFF
MW
FM
CD
L
I
F
T
T
O
O
P
E
N
A
Z
1
0
0
8
C
D
R
A
D
I
O
C
A
S
S
E
T
T
E
R
E
C
O
R
D
E
R
C
D
S
Y
N
C
H
R
O
S
T
A
R
T
R
E
C
O
R
D
I
N
G
P
L
A
Y
S
T
O
P
•
O
P
E
N
P
A
U
S
E
S
E
A
R
C
H
S
E
A
R
C
H
S
E
A
R
C
H
S
T
O
P
D
Y
N
A
M
IC BASS
B
O
O
S
T
P
L
A
Y
/
P
A
U
S
E
DBB
P
R
O
G
R
A
M
R
E
P
E
A
T
V
O
L
U
M
E
N
E
P
O
O
T
T
F
I
L
TUNING
CD TRACK
REPEAT
PROGRAM
B
A
T
T
.
L
O
W
TAP
OFF
MW
FM
CD
L
I
F
T
T
O
O
P
E
N
C
D
R
A
D
I
O
C
A
S
S
E
T
T
C
D
S
Y
N
C
H
R
O
S
T
A
R
T
R
E
C
O
R
D
I
N
G
P
L
A
Y
S
T
O
P
•
O
P
E
N
P
A
U
S
E
S
E
A
R
C
H
S
E
A
R
C
H
S
E
A
R
C
H
S
T
O
P
D
Y
N
A
M
IC BASS
B
O
O
S
T
P
L
A
Y
/
P
A
U
S
E
DBB
P
R
O
G
R
A
M
R
E
P
E
A
T
V
O
L
U
M
E
N
E
P
O
O
T
T
F
I
L
TUNING
CD TRACK
XP AZ 1008/01/16 29-11-2000 15:29 Pagina 9
English
10

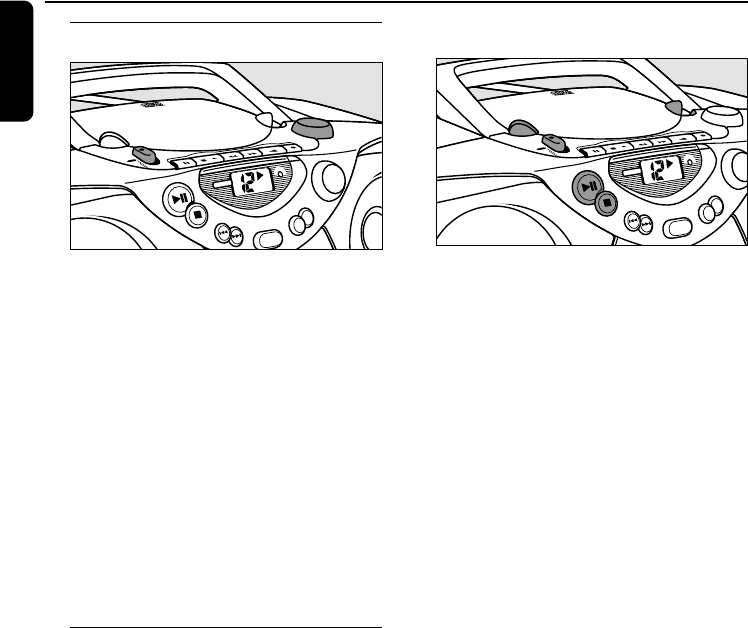

Programming track numbers
You may store up to 19 tracks in the
desired sequence.If you like, store any track
more than once.
1In the stop mode,press PROGRAM to
activate programme mode.
➜00 and PROGRAM flashes.
2Press SEARCH ∞or §for your desired
track.
➜Your selected track number and
PROGRAM flashes.
3Press PROGRAM to store the track.
➜00 and PROGRAM flashes,ready for your
next track selection.
4Repeat steps 2 to 3 to select and store all
desired tracks in this way.
➜-- and PROGRAM flashes in the display
if you attempt to programme more than
19 tracks.
5To play your programme,press
PLAY•PAUSE 2;.
Reviewing your programme
• In the stop mode,press PROGRAM
repeatedly to see your stored track
numbers.
Erasing a programme
You can erase the contents of the memory
by:
– opening the CD door;
– selecting AM,FM or TAPE sound
source;
– pressing STOP 9(twice during playback
or once in the stop position.)
➜Display:PROGRAM disappears.
CASSETTE RECORDER
Cassette playback
1Adjust the source selector to TAPE/OFF.
2Press STOP•OPEN 9/ to open the
cassette door and insert a recorded
cassette.
3Close the cassette door.
4Press PLAY 1to start playback.
5To pause playback press PAUSE ;.To
resume,press the key again.
6By pressing SEARCH 5or 6,fast
winding of the tape is possible in both
directions.To stop fast winding,press
STOP•OPEN 9/.
7To stop the tape, press STOP•OPEN 9/.
• The keys are automatically released at the
end of the tape,and the set is switched off,
except if PAUSE ;has been activated.
CD-Player Cassette Recorder
REPEAT
PROGRAM
B
A
T
T
.
L
O
W
TAP
OFF
MW
FM
CD
L
I
F
T
T
O
O
P
E
N
A
Z
1
0
0
8
C
D
R
A
D
I
O
C
A
S
S
E
T
T
E
R
E
C
O
R
D
E
R
C
D
S
Y
N
C
H
R
O
S
T
A
R
T
R
E
C
O
R
D
I
N
G
P
L
A
Y
S
T
O
P
•
O
P
E
N
P
A
U
S
E
S
E
A
R
C
H
S
E
A
R
C
H
S
E
A
R
C
H
S
T
O
P
D
Y
N
A
M
IC BASS
B
O
O
S
T
P
L
A
Y
/
P
A
U
S
E
DBB
P
R
O
G
R
A
M
R
E
P
E
A
T
V
O
L
U
M
E
N
E
P
O
O
T
T
F
I
L
TUNING
CD TRACK
REPEAT
PROGRAM
B
A
T
T
.
L
O
W
TAP
OFF
MW
FM
CD
L
I
F
T
T
O
O
P
E
N
A
Z
1
0
0
8
C
D
R
A
D
I
O
C
A
S
S
E
T
T
E
R
E
C
O
R
D
E
R
C
D
S
Y
N
C
H
R
O
S
T
A
R
T
R
E
C
O
R
D
I
N
G
P
L
A
Y
S
T
O
P
•
O
P
E
N
P
A
U
S
E
S
E
A
R
C
H
S
E
A
R
C
H
S
E
A
R
C
H
S
T
O
P
D
Y
N
A
M
IC BASS
B
O
O
S
T
P
L
A
Y
/
P
A
U
S
E
DBB
P
R
O
G
R
A
M
R
E
P
E
A
T
V
O
L
U
M
E
N
E
P
O
O
T
T
F
I
L
TUNING
CD TRACK
XP AZ 1008/01/16 29-11-2000 15:29 Pagina 10
English
11
General information on
recording
• Recording is permissible insofar as copyright or
other rights of third parties are not infringed.
• This deck is not suited for recording on
CHROME (IEC II) or METAL (IEC IV) type
cassettes.For recording, use only NORMAL
type cassettes (IEC type I) on which the
tabs have not been broken.
•The best recording level is set automatically.
Altering the VOLUME and DBB controls
will not affect the recording in progress.
• At the very beginning and end of the tape,
no recording will take place during the
7 seconds when the leader tape passes the
recorder heads.
• To protect a tape from accidental erasure,
have the tape in front of you and break out
the left tab.Recording on this side is no
longer possible.To record over this side
again,cover the tabs with a piece of
adhesive tape.

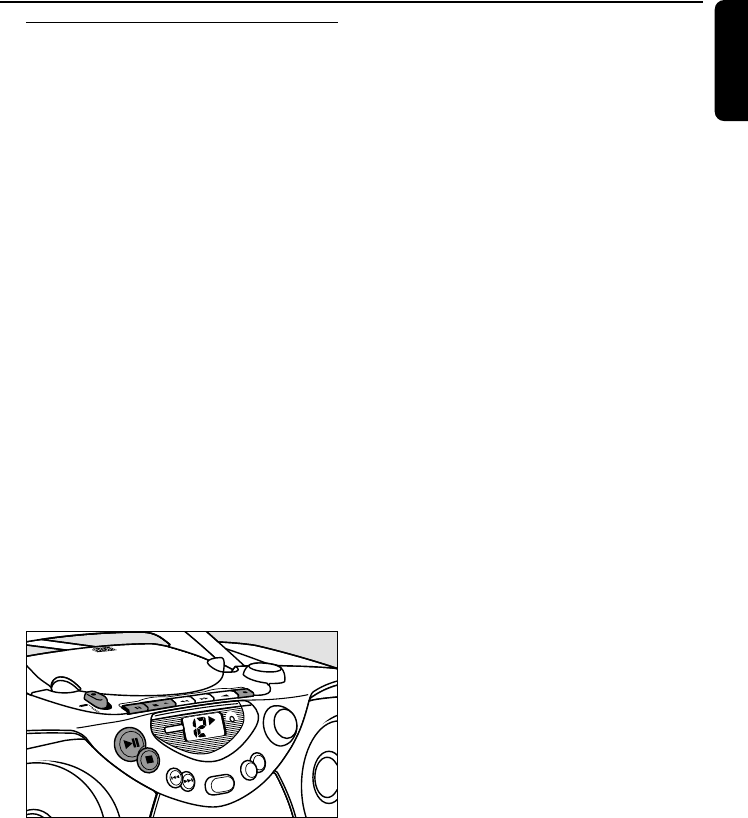

Synchro Start CD recording
1Select CD source.
2Insert a CD and if desired,programme
track numbers.
3Press STOP•OPEN 9/ to open the
cassette door.Insert a blank tape.
4Close the cassette door.
5Press RECORD 0to start recording.
• Playing of the CD programme starts
automatically from the beginning of the
programme. It is not necessary to start the
CD player separately.
6For brief interruptions press PAUSE ;.To
resume recording,press PAUSE ;again.
7To stop recording,press STOP•OPEN 9/.
➜The CD player goes to pause mode.
Press PLAY•PAUSE 2; to resume CD
playback,or press STOP 9to stop CD
play.
Selecting and recording a particular
passage
• During CD playback,press and hold down
the SEARCH buttons ∞or §on the set
to find your passage.
• Press PLAY•PAUSE 2; to put the CD
player on pause at the selected passage.
➜Recording will begin from this exact
point in the track when you press
RECORD 0.
Note:If you press RECORD 0during
playback,recording starts automatically from
the beginning of the current track.
Recording from the Radio
1Adjust the source selector to AM or FM to
select your desired waveband.
2Tune to the desired radio station (see
Radio reception).
3Press STOP•OPEN 9/ to open the
cassette door.Insert a blank tape.
4Close the cassette door.
5Press RECORD 0to start recording.
6For brief interruptions, press PAUSE ;.To
resume recording,press PAUSE ;again.
7To stop recording,
press STOP•OPEN 9/ .
Recording
REPEAT
PROGRAM
B
A
T
T
.
L
O
W
TAP
OFF
MW
FM
CD
L
I
F
T
T
O
O
P
E
N
A
Z
1
0
0
8
C
D
R
A
D
I
O
C
A
S
S
E
T
T
E
R
E
C
O
R
D
E
R
C
D
S
Y
N
C
H
R
O
S
T
A
R
T
R
E
C
O
R
D
I
N
G
S
E
A
R
C
H
S
T
O
P
D
Y
N
A
M
IC BASS
B
O
O
S
T
P
L
A
Y
/
P
A
U
S
E
DBB
P
R
O
G
R
A
M
R
E
P
E
A
T
V
O
L
U
M
E
N
E
P
O
O
T
T
F
I
L
TUNING
CD TRACK
P
L
A
Y
S
T
O
P
•
O
P
E
N
P
A
U
S
E
S
E
A
R
C
H
S
E
A
R
C
H
XP AZ 1008/01/16 29-11-2000 15:29 Pagina 11
English
12
Precautions &
General Maintenance
• Place the set on a hard and flat surface so
that the system does not tilt.
• Do not expose the set,batteries, CDs or
cassettes to humidity,rain, sand or excessive
heat caused by heating equipment or direct
sunlight.
• Do not cover the set.Adequate ventilation
with a minimum gap of 6 inches between
the ventilation holes and surrounding
surfaces is necessary to prevent heat build-
up.
• The mechanical parts of the set contain
self-lubricating bearings and must not be
oiled or lubricated.
• To clean the set, use a soft,slightly
dampened chamois leather.Do not use any
cleaning agents containing alcohol,
ammonia,benzene or abrasives as these
may harm the housing.

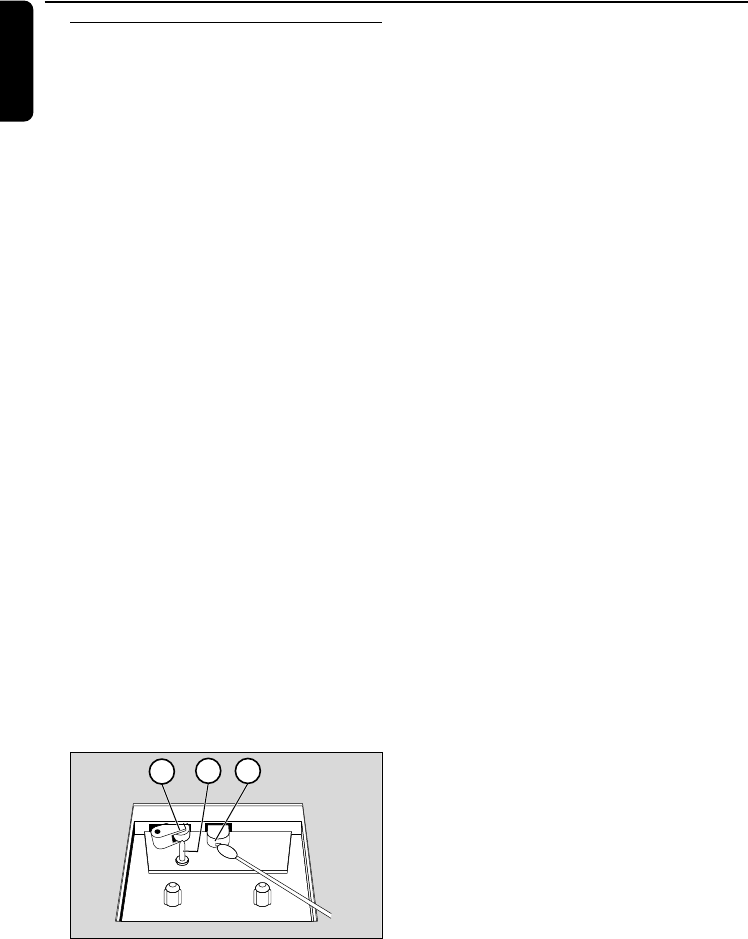

Tape deck maintenance
To ensure quality recording and playback of
the tape deck,clean parts A,Band C
shown in the diagram below,after approx.
50 hours of operation,or on average once
a month.Use a cotton bud slightly
moistened with alcohol or a special head
cleaning fluid to clean the deck.
1Open the cassette door by pressing
STOP•OPEN 9/.
2Press PLAY 1and clean the rubber
pressure roller C.
3Press PAUSE ;and clean the magnetic
heads A,and also the capstan B.
4After cleaning,press STOP•OPEN 9/.
– Cleaning of the heads can also be done by
playing a cleaning cassette through once.
CD player and CD handling
• The lens of the CD player should never be
touched!
• Sudden changes in the surrounding
temperature can cause condensation to
form and the lens of your CD player to
cloud over.Playing a CD is then not
possible. Do not attempt to clean the lens
but leave the set in a warm environment
until the moisture evaporates.
• Use only Digital Audio CDs.
• Always close the CD door to keep the CD
compartment dust-free.To clean,dust the
compartment with a soft dry cloth.
• To take a CD out of its box,press the
centre spindle while lifting the CD.Always
pick up the CD by the edge and replace
the CD back in its box after use to avoid
scratching and dust.
• To clean the CD,wipe in a straight line from
the centre towards the edge using a soft,
lint-free cloth.Do not use cleaning agents as
they may damage the disc.
•Never write on a CD or attach any stickers
to it.
Maintenance
AB
C
XP AZ 1008/01/16 29-11-2000 15:29 Pagina 12
English
13
If a fault occurs,first check the points listed below before taking the set for repair. Do
not open the set as there is a risk of electric shock.
If you are unable to remedy a problem by following these hints,consult your dealer or
service centre.
WARNING:Under no circumstances should you try to repair the set yourself,as this
will invalidate the guarantee.
Troubleshooting
Problem Solution
No sound – Adjust the VOLUME
No power – Mains lead not securely connected.
Connect AC mains lead properly
– Batteries exhausted /incorrectly inserted.
Insert (fresh) batteries correctly
Display does not function – Electrostatic discharge
properly/ No reaction to Switch off and unplug the set.Reconnect after a few
operation of any of the seconds.
controls
Er indication – No CD inserted,insert a CD
– CD badly scratched/ dirty.
Replace/ clean CD (see maintenance)
– CD-(R) is blank or the disc is not finalized.
Use a finalized CD-(R)
– Laser lens steamed up.
Wait until lens has cleared/acclimatized
CD playback does not work – CD badly scratched/ dirty.Replace/ clean CD (see
maintenance)
The CD skips tracks – CD damaged or dirty. Replace or clean CD.
– Programme is active.Quit programme mode
Poor cassette sound quality – Dust and dirt on the heads,etc.
Clean deck parts,see maintenance.
– Use of incompatible cassette types (METAL or
CHROME).Only use NORMAL (IEC I) for recording
Recording does not work – Cassette tab(s) may be broken.Apply a piece of
adhesive tape over the missing tab space.
XP AZ 1008/01/16 29-11-2000 15:29 Pagina 13

Navigation menu
