Defeat
darkness
Professional
LED Work Lights
RCH21
HDL10
When you’re repairing or maintaining vehicles, there’s
no room for errors. Our professional workshop lamps
feature powerful LEDs for intense white light and a
wide beam to illuminate every detail with pinpoint
precision. Designed to optimise clarity and vision, the
natural white light improves visual comfort for fatigue-
free working. So even when you’re working on the
toughest problems, or in the tightest spaces, you can
be sure you have the right tools for the job.
Defeat
darkness
RCH6 RCH6
PEN20
PEN20
PEN20
High power LEDs for maximum light performance
Our lamps feature powerful, high-quality LEDs for a
bright, intense light with maximum performance that
optimises clarity and vision.
Highest light output with white LED light
The white LED light has a high lumen output to
guarantee you have more visible light.
Wide beam angle with even light distribution
The wide beam of bright light is distributed evenly over
the illuminated area, giving you the optimum overview
and lighting every detail with pinpoint precision.
Natural white light (6000 K) for visual comfort
Our white LEDs have a color temperature of 6000 K.
They produce a natural white light that’s easy on the
eye, improving visual comfort and reducing eye strain
for fatigue-free working.
Extra robust with water, dirt and dust protection
In extreme environments you need tools that are up to
the job. Our lamps are water, dirt and dust protected to
IP54 and IP67 standards, so they shrug o whatever life
throws at them.
Durable housings that are impact and shock resistant
Designed for durability, they feature impact- and shock-
resistant housings that pass the IK07 and IK09 drop
tests with ying colors.
Highly resistant to grease and workshop solvents
They’re also highly resistant to the grease, chemicals
and solvents that are commonly used in workshops, so
you can place them anywhere, worry free.
Powerful LED light for
comfortable, safe
working
Extremely durable
with extra resistant housings
Work better with hands-free lighting
Hands-free lighting means you can work better too. Our
lamps come with clever hooks, clips, detachable cables
and magnets, so you can use two hands when you
working and improve your performance.
Shadow-free beams for optimal visibility
Wide and focused beams optimise visibility and
eliminate shadows, so our lamps are comfortable and
easy on the eye.
A versatile range that covers every garage need
The range of LED lamps provides the best light for every
workshop task, from brief inspections to maintenance
and repair work. From professional workshop LED
penlights and inspection lamps to rechargeable work
lamps and multi-directional lighting systems, we have the
right lamp for the job.
Long-lasting battery life from 5 to 11 hours
The batteries in all our lamps are designed to last
from 5 to 11 hours. So you can work a full day without
interruption and recharge them overnight, ready to start
work again the next day.
Hands-free working
The right lamp
for the job
AAA
IP
X4
20
lm
IP
54
IP
54
IK
07
120
lm
IP
54
IK
07
IP
54
IK
07
IP
54
IK
07
IP
54
IK
07
IP
54
IK
07
90
lm
IP
54
IK
07
IP
54
IK
07
IP
67
IK
09
IP
54
IK
07
AAA
IP
54
IK
07
100 / 50*130 200 / 100*145 130 / 70*150 240 / 120*350 / 150*330 330 / 150*900 2300/ 1200*1500/ 750*
HDL10 Penlight
Professional PEN20 Penlight
Premium RCH6 RCH10 RCH21 RCH31UV CBL10 CBL40 CBL50 PJH20 MDLS CRI
Professional LED inspection lamps MatchLine LED
Color check lamps
39360631
LPL29B1
Power supply
GOC
Order Entry
Pointer
Name
Beam
Light output
(lumens)
Mounting
Robustness
Grease
resistant
FindMe LED
38819031
LPL19B1
39631731
LPL42X1
39220394
LPL28RECHX1
39607231
LPL38X1
39060531
LPL20X1
39417731 (EU)
39452831 (UK)
39066731 (EU)
39450431 (UK)
LPL33X1
39419131
LPL34UVX1
39421431
LPL35X1
39062931
LPL22X1
UV leak
detector
LPL24X1
39609631
LPL39X1
39627066
LPL403MODX1
total illumination
50° 40° 80° 80° 90° 120° 90° 90° 120° 75° 75° 90° 360°
NewNew New New
Penlight ProfessionalHDL10
Penlight Professional
The portable inspection tool
LPL19B1
Very intense white light for optimal vision
• High quality LEDs with 130 lm light output
• Natural white light of 6000 K
Access very narrow cavities
• LED pointer on top: 20 lm
• Small and compact
Up to every inspection job
• Water and dust-proof: IP54
• Shock-resistant housing
• 11-hour battery autonomy
130
Lumen
HDL10
Professional LED headlamp
LPL29B1
100/50
Lumen
Dual light mode
• 100 lm Boost LED light for high-precision tasks
• 50 lm Eco LED light for a quick inspection
Wide beam angle
• 50° beam angle
• Long-lasting LED
Quality nishing
• 90° pivoting lamp head
• Adjustable headband
• Water resistant
• Powered with 3 x AAA Philips batteries
PEN20 Penlight Premium
PEN20
High-quality LUXEON® LED
rechargeable compact lamp
LPL42X1
High-quality white LED light
• Defeat darkness with bright and soft natural light
• High-quality LUXEON® LED light up to 200 lumens
• Lights up a large work area with 80° wide beam angle
Ultra-durable battery
• New battery lasts 5x longer than most rechargeable batteries
• Up to 4.5 hours of continuous light after 2-hour charge
High-resistance
• Robust casing is impact resistant to the IK07 standard
• Resistant to water and dust to IP54 standard
• Highly resistant to chemicals and workshop solvents
Hands-free lighting
• Work hands-free with built-in 80° swivel hook and magnet
Comfortable light for fatigue-free work
• High-power LUXEON® LEDs with 145 lm light output
• Natural white light of 6000 K
• Homogeneous, wide beam
See what remains hidden to others
• Strong LED pointer of 120 lm
• Robust, comfortable and hands-free
Rotatable clip holder with integrated magnet
• Robust aluminium housing with soft grip
Fast charging and consistent light output
• Latest battery technology delivers a great battery life
• Up to 6-hour battery autonomy
Penlight Premium
High-power LUXEON® Rebel
LED lamp in a compact format
LPL28RECHX1
145
Lumen
200
/100
Lumen
Display also available
RCH6
The Philips RCH6 LED inspection lamp
is designed for all quick inspection jobs.
Its compact design and 130 lm strong light
makes it extremely versatile.
And the headband (supplied) allows
full hands-free lighting.
Philips RCH6
RCH6
Compact pocket
& head lamp
LPL38X1
Superior bright light
• White LED light - 150lm
• Wide beam angle: up to 120°
Robust and resistant
• Robust protective housing: IP54 and IK07
Hands-free lighting
• Cordless, with rotating hook
• Easy-opening cap with strong magnet
RCH10
Cordless professional
lighting tool
LPL20X1
Pocket & head dual function
• Revolutionary design with pocket & head dual
application
• 90° pivoting headlamp
• Strong magnet on the back and headband for hands-
free use
• Find-Me red light when in stand-by mode
Superior bright light
• Defeat darkness with soft natural light
• High-power Philips LED light up to 130 lumens
(Boost) - 70 lm (Eco)
• Wide beam angle: 90°
Ultra- durable and fast charging battery
• New advanced battery - Long autonomy & super-fast
recharge
• 5x longer battery lifetime
High resistance
• Resistant to impacts & solvents - IK07 & IP54
130/70
Lumen
150
Lumen
RCH21 RCH31UV
High power white LED light
• Defeat darkness with soft natural light
• High power LED light: 240 lm Boost & 120 lm Eco
• Wide beam angle: 90°
High resistance
• Strong impact resistance - IK07
• Water, dust & solvents protected - IP54
Ultra-durable battery
• 5x longer lifetime with new battery
• Long autonomy – 6 hours
• Super-fast recharge – 1.5 hours
Handy and versatile
• 90° exible light module
• Hands-free: 360° retractable hook & strong magnet
• Find-Me red light when in stand-by mode
RCH21
Rechargeable lamp
with docking
LPL33X1
240/120
Lumen
High power white LED light
• High-power LED light: 350 lm Boost & 150 lm Eco
• Wide beam angle: 90°
• UV light leak detector
High resistance
• Strong impact resistance - IK07
• Water, dust & solvents protected - IP54
• Ultra-durable battery
• 5x longer lifetime with new battery
• Long autonomy – 8 hours
• Super-fast recharge – 2.5 hours
Handy and versatile
• 90° exible light module
• Hands-free: 360° retractable hook & strong magnet
• Find-Me red light when in stand-by mode
RCH31UV
UV Light Leak Detector
LPL34UVX1
350/150
Lumen
CBL10
Dual corded and cordless usage
• 6-metre cable
• Up to 2 hours of cordless usage
More light output
• High-power LED
• 100° beam angle
More eye comfort
• White LED light
• 6500 K
Powerful LED focus light
• With high-power LED
Hands-free lighting
• 360° clipping hook with magnet
High power white LED light
• High power LED light: 330 lumens
• Wide beam angle: 120°
High resistance
• Resistant to chemical & workshop solvents
• Strong impact resistance -IK07
• Water & dust protected -IP54
Compact & hands-free lighting
• 5m cable and 360° retractable hook
CBL10
Professional lighting tool
LPL35X1
CBL40
Professional multi-usage lamp
LPL22X1
330
Lumen
330
Lumen
CBL50 CBL50
900
Lumen
More light output
• High-power LED
• 100° beam angle
More eye comfort
• White LED light
• 6500 K
High resistance
• Robust aluminium housing
• Water and dust-proof
Hands-free lighting
• Adjustable telescopic mounting
CBL50
Professional bonnet lamp
LPL24X1

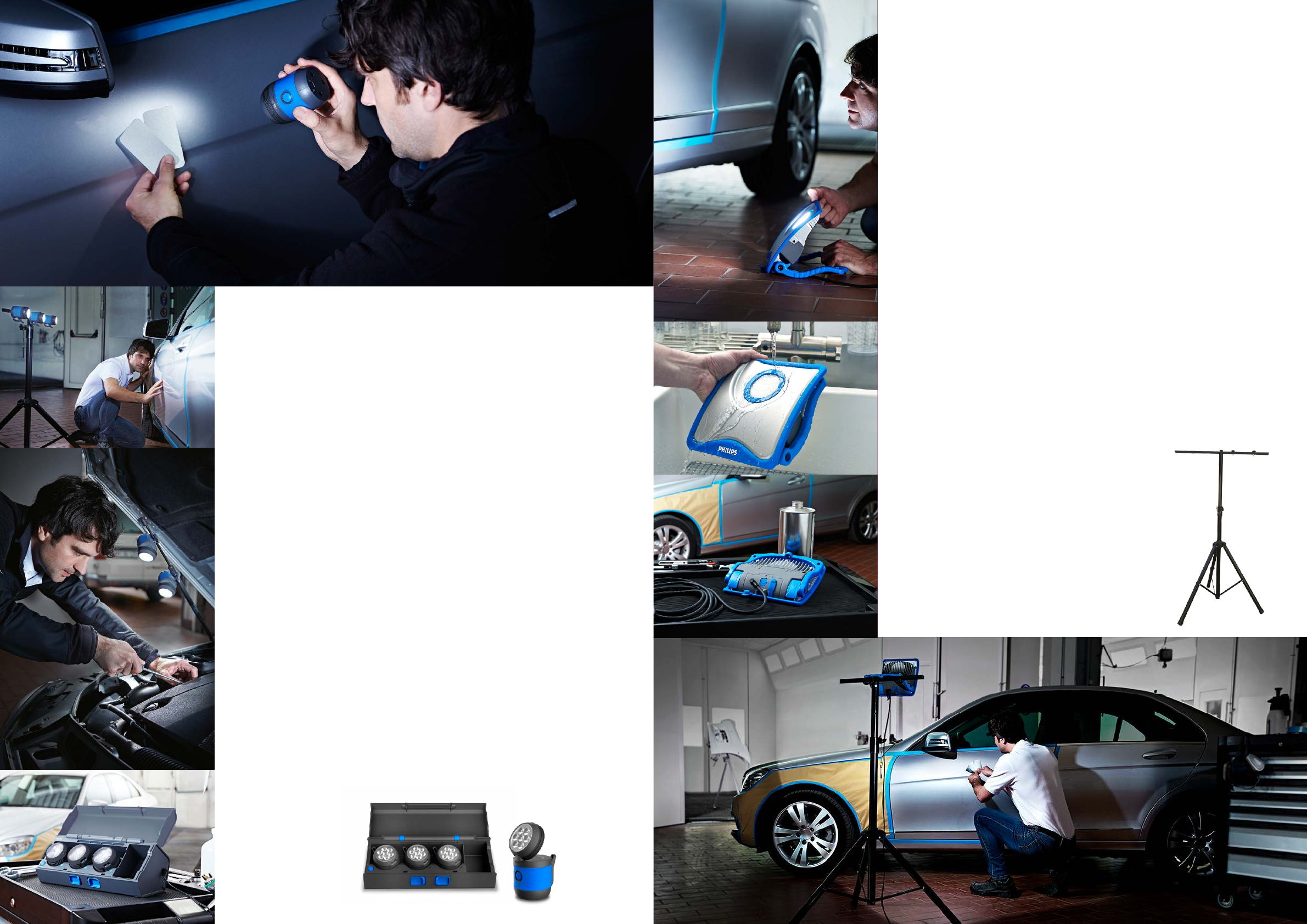

With MatchLine daylight,
see better, work better
True color match, designed for pros
Philips MatchLine provides powerful white light, high color rendering index and 6000K true daylight color
temperature. This means with the MatchLine, you can work on your paint, polish, cleaning or prep-zone as if you
were working outdoors on a bright sunny day.
And the lamp is not only designed to provide you with clearer vision; the softer white light is also gentler on your
eyes, reducing fatigue as you work.
What is the color rendering index?
The eect of a light source on color
appearance is expressed in the
color rendering index (CRI), on a
scale of 0-100. Natural outdoor light
has a CRI of 100 and is used as the
standard of comparison for any other
light source. The higher the Color
Rendering Index (CRI), the easier it
is to identify the right color.
Fitted with Lumileds LUXEON® LEDs,
the Philips MatchLine PJH20 delivers
light of CRI 92, perfect for color
recognition.
Philips MatchLine range
comes with two products and
accessories to provide dierent
lighting solutions for car painters.
3000K 4000K 5000K 6000K 7000K 8000K
Light Color
°Kelvin
Reasonable CRI Good CRI Excellent CRI
Others’ yellow light
Philips MatchLine, the rst white
daylight high CRI color check lamp
See all details and colors
as in white daylight
Philips MatchLine white light
PJH20
MDLS CRI
Perfect for quick color checks and larger paint jobs,
the Philips MatchLine MDLS CRI is an all-in-one LED work light.
Powerful white light from 3 separate modules gives 360° control
of light for true color matching and
a superior nish.
It is also a great tool for garage repair works!
True daylight match
• Easily match colors as if you were working in daylight
• CRI 92: best for tasks requiring the most accurate color match
Powerful light output
• Two-step light output: 1500lm (Boost) / 750lm
• 360° complete light coverage
• Matte lter
New advanced battery
• Advanced rechargeable battery
provides 5x the charges*
High resistance & versatile
• IK07 impact resistant
• IP54 water, dust and chemical resistant
• Clamping hook and magnet
• Dimensions of the 3-module packaging: 16.2 x 14.7 x 34 cm
MDLS 3-module
multi-directional color check
lamp for paint shop
Single spare part
is also available
The Philips MatchLine PJH20 LED work lamp is perfect for quick
color checks and larger paint shop work. Two bright light modes
will help you achieve a quality nish. And you can easily switch
between battery and cable power sources.
It is also a powerful lighting tool for other repair and maintenance
works!
True daylight match
• Easily match colors as if you were working in daylight
• CRI 92: best for tasks requiring the most accurate color match
Powerful light output
• Two-step light output: 2300lm (Boost) / 1200lm
• 90° wide beam angle
• Matte lter to reduce glare
New advanced battery
• Easily switch between rechargeable and cabled
power source
High resistance & versatile
• IK09 impact resistant
• IP67 water, dust and chemical resistant
• Mountable on tripod
LED color check
projector PJH20
Compatible tripod is
also available
*1500 charging
cycles instead of
standard 300
1st digit: solid particle protection
2nd digit: liquid ingress protection
IP Ingress Protection
Degree of protection provided against the intrusion
of solid objects, dust, accidental contact and water in
electrical equipment.
IK Impact Resistance
Degree of protection provided by enclosures for
electrical equipment against external mechanical
impacts.
IP Ingress Protection
1st digit: solid particle protection
Degree of protection provided against the intrusion
of solid objects, dust, accidental contact and water
in electrical equipment.
2nd digit: liquid ingress protection
IP 1X
> 50 mm
Premium
IP 2X
> 12,5 mm
Premium
IP 3X
> 2,5 mm
Premium
> 1 mm
IP 4X
Premium
Dust protected
IP 5X
Premium
Dust tight
IP 6X
IP X2
Dripping water
when tilted < 15°
Premium
IP X3
Spraying water
Premium
Splashing water
IP X4
Premium
Water jets
IP X5
Immersion < 1 m
IP X7
Powerful water jets
IP X6
1879_00_063_LFLT_Workshop_lamps_101x250_UK.indd 32 8/12/14 1:41 PM
IP X2
Dripping water
when tilted < 15°
Premium
IP X3
Spraying water
Premium
Splashing water
IP X4
Premium
Water jets
IP X5
Immersion < 1 m
IP X7
Powerful water jets
IP X6
IK Impact Resistance
Degree of protection provided by enclosures for
electrical equipment against external mechanical
impacts.
0,2
kg
Premiu m
m
75mm
0,15 J
IK 01
Premiu m
m
100mm
0,2
kg
0,2 J
IK 02
Premiu m
m
175mm
0.2
kg
0,35 J
IK 03
Premiu m
m
250mm
0.2
kg
0,5 J
IK 04
Premiu m
m
350mm
0,2
kg
0,7 J
IK 05
Premiu m
m
200m
m
0,5
kg
1 J
IK 06
Premiu m
m
400mm
0,5
kg
2 J
IK 07
295mm
1,7
kg
5 J
IK 08
200mm
5kg
10 J
IK 09
400m
m
5kg
20 J
IK 10
1879_00_063_LFLT_Workshop_lamps_101x250_UK.indd 33 8/12/14 1:41 PM
Compare our full range of professional inspection lamps
HDL10 Penlight
Professional PEN20 Penlight
Premium RCH6 RCH10 RCH21 RCH31UV CBL10 CBL40 CBL50 MDLS CRI PJH20 CRI
Light output
(Lumens) 50/100 lm 130 lm 100/200 lm 145 lm 70/130 lm 150 lm 120/240 lm 150/350 lm 330 lm 330 lm 900 lm 750/1500 lm 1200/2300 lm
Beam angle 50° 40° 80° 80° 90° 120° 90° 90° 120° 100° 100° 360° 90°
Boost mode
(Lumens) 100 lm - 200 lm - 130 lm - 240 lm 350 lm - - - 1500 lm 2300 lm
Pointer
(Lumens) - 20 - 120 - - - - - 90 - - -
Color
temperature
(Kelvin)
6000 6000 6000 6000 6000 6000 6000 6000 6000 6500 6500 6000 6000
Number of LEDs 5+1 6+1 -4+1 3 6 6 8 12 12+1 36 7 48
UV light -------✓-----
Impact protection
rating (IK) - - IK07 IK07 IK07 IK07 IK07 IK07 IK07 IK07 IK07 IK07 IK09
Ingress protection
ration (IP) IPX4 IP54 IP55 IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54
Rechargeable - - ✓✓✓✓✓✓ -✓-✓ ✓
Charging time
(hours) - - 1.5 hr 2 hrs 1 hr 4 hrs 1.5 hrs 2.5 hrs - - - 1lamp
1h/3lamp 2h 3.5h
Operating
time (hours) up to 10 hrs up to 11 hrs 6 hrs up to 6 hrs
2 hrs / 4hrs
in boost/
eco mode
up to 5 hrs up to 6 hrs up to 8 hrs - up to 2 hrs - 1h/2,5h 2h/4h
USB plug - - ✓✓✓ -✓ ✓ -----
Cable (meters) - - - - - - - - 5 m 6 m 5 m - 5m
Holder clip holder clip holder Clip holder clip holder,
80° rotatable Headband 360° rotata-
ble hook
360°
rotatable
hook
360°
rotatable
hook
360°
rotatable
hook
clip-on
hook, 360°
rotatable
Telescopic
holder Hook -
Magnet - - ✓✓✓✓✓✓ -✓-✓-
Power
consumption
(Watt)
1.6 W 1.6 W 1,8 W 5 W 2W 2.5 W 2 W 3 W 5 W 5 W 15 W 5W 20W
Operating line
voltage 4.5 V 4.5 V 100V-240V 100-240 V 100V-240V 100-240 V 100-240 V 100-240 V 100-240 V 100-240 V 100-240 V 3.2V 8.4V
Operating
temperature 0-40°C 0-40°C -20° - 60° -10-50°C -20° - 50° -10-40°C -20-50°C -20-50°C -10-50°C -10-40°C -10-40°C lamp
-20° to 60°
lamp
-20° to 60°
Produt weight 115 g 70 g 93 g 90 g 80 g 180 g missing missing 545 g 800 g 1000 g
1797g with-
out adaptor
(1 lamp223g)
1.35kg
Ordering information
Notes
Product Name Ordering Number Plug GOC EAN1 EAN3 Packaging
Quantity
HDL10 LPL29B1 - 39360631 8727900393606 8727900393699 6
Penlight Professional LPL19B1 - 38819031 8727900388190 8727900388206 6
PEN20 LPL42X1 - 39631731 8727900396317 8727900396324 6
PEN20 counter display LPL42XD - 39671366 8727900396713 8727900396720 1
Penlight Premium LPL28RECHX1 EU 39220394 8727900392203 8727900392210 4
RCH6 LPL32X1 EU 39607231 8727900396072 8727900396089 6
RCH10 LPL20X1 EU 39060531 8727900390605 8727900390612 6
RCH21 LPL33X1 EU 39417731 8727900394177 8727900394184 6
RCH21UK LPL33X1 UK 39452831 8727900394528 8727900394535 6
RCH31UV LPL34UVX1 EU 39419131 8727900394191 8727900394207 6
CBL10 LPL35X1 EU 39421431 8727900394214 8727900394221 6
CBL40 LPL22X1 EU 39062931 8727900390629 8727900390636 6
CBL50 LPL24X1 EU 39066731 8727900390667 8727900390674 6
CBL50UK LPL24X1 UK 39450431 8727900394504 8727900394511 6
PJH20 LPL39X1 EU 39609631 8727900396096 8727900396102 6
PJH20 TRIPOD LPL43X1 - 39634833 8727900396348 8727900396355 2
MDLS LPL403MODX1 EU/UK 39627066 8727900396270 8727900396287 1
MDLS Spare LPL41SPAREX1 - 39629433 8727900396294 8727900396300 2
Visit our website www.philips.com/automotive
www.philips.com/matchline

Navigation menu
