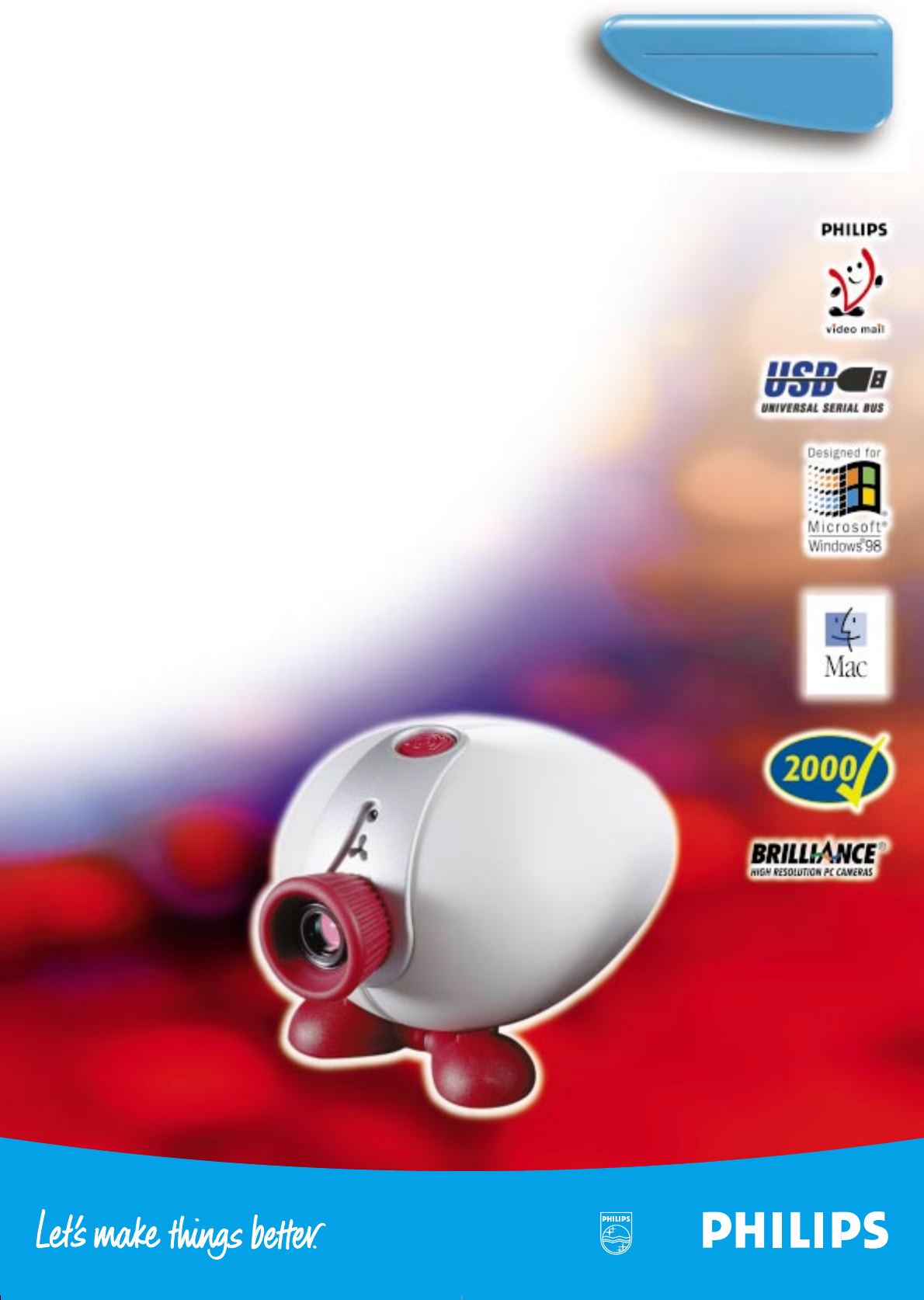

PC video camera
Vesta
Product description
• Experience the excitement of video e-mail, video chatting and video
conferencing with Philips PC Cameras
• Superior picture quality
Bring brilliant, blazing video to the desktop
• Capture high quality video
Up to 15 frames per second at VGA resolution
• Easy capturing snapshots
Just point and click with integrated snapshot button
• Integrated microphone for digital USB audio recording
• Super user friendly software for creating videomails, point-to-point or
Internet videoconferencing, image and video editing
• Award winning design
VESTA.qxd 24-08-1999 09:40 Pagina 1
PC video camera
Vesta
Applications
Philips PC Cameras come with a set of full featured Windows applica-
tions, all the necessary installation software and a TWAIN compatible
interface.
• Create your own video Email
Easily create and send videomail (video email) and digital images with
Philips Videomail software, featuring up to 100x file compression.
All you need to add is the Internet.
Any Windows PC can easily receive and view Philips Videomail. Just click
and play.
• Videoconferencing
Smith Micro VideoLInk lets you set-up videoconferencing point to point
(H.324) or via Internet (H.323).
• Photo editing
Ulead Photo Express provides the perfect balance of professionally
designed templates and easy to use editing tools for editing your photos
and images.
• Microsoft NetMeeting
NetMeeting lets you communicate with family and friends over the
Internet. NetMeeting's video, audio, and data conferencing are all based
on industry standards.
Models
Vesta
Max. resolution VGA
Framerate at max. resolution 15fps
Included applications
Videomail O
Video chatting O
Video conferencing O
Image editing O
Twain driver O
Physical specifications
• Mounting possibility Standard tripod
(not included)
• Power Supplied via USB cable
• Dimensions 72 x 60 x 100 mm (W x H x D)
• Temperature 0 - 45ºC
Optical
• Sensor 1/4” CCD
• Pixels 640 (H) x 480 (V)
• Min. Illumination < 1 lux
• Integrated lens 4.8 mm, F3.0
Resolution and framerate
Format Resolution Frame rate
Pixels (H) x (V) (Frames per second)
VGA 640 x 480 15
CIF 352 x 288 30
SIF 320 x 240 30
SSIF 240 x 180 30
QCIF 176 x 144 30
QSIF 160 x 120 30
SQCIF 128 x 96 30
Audio
• Integrated microphone
• Digital output via USB
• Supported audio formats: mono, 16 bit,
8 / 11.025 / 22.05 / 44 kHz
Plug and play compatibility
• Designed for Windows98
• Plugs directly into any free USB port
• MacOS 8.5x compatible
Camera controls
• Framerate / Image resolution
• Contrast
• Brightness
• Backlight compensation
• Color on/off
• White-balance
• Exposure control
System requirements
Minimum Recommended
• Processor Pentium 166 MHz Pentium II
Imac 233 MHz
• Memory (RAM) 16MB 32MB
• Free hard disk space 10MB *) 200MB **)
• # colors display 64k 16M
• Operating System Window98, MacOS 8.5x ***)
• 1 free USB port
• CD-ROM or DVD-ROM drive
• Sound playback capability
*) Excluding applications
**) Including all bundled applications
***) Macintosch drivers included
Technical specifications
All data subject to change without notice.
3122 321 83072
http://www.pcstuff.philips.com
All trademarks acknowledged.
Printed in The Netherlands.
Copyright ©1999 Philips Electronics N.V.
