Phonak TX6 Auditory Assistance Device User Manual P44811 Pho GB SmartLink Test

Phonak Inc Auditory Assistance Device P44811 Pho GB SmartLink Test

User Manual

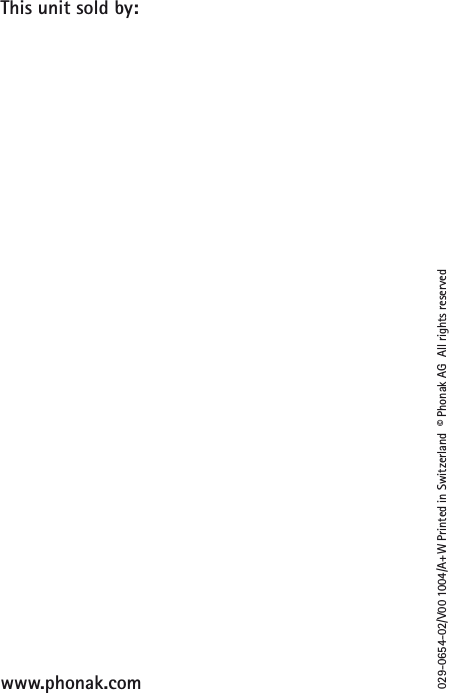

This unit sold by:www.phonak.com029-0654-02/V00 1004/A+W Printed in Switzerland © Phonak AG All rights reserved
SmartLink™SXUser Guide0682 !

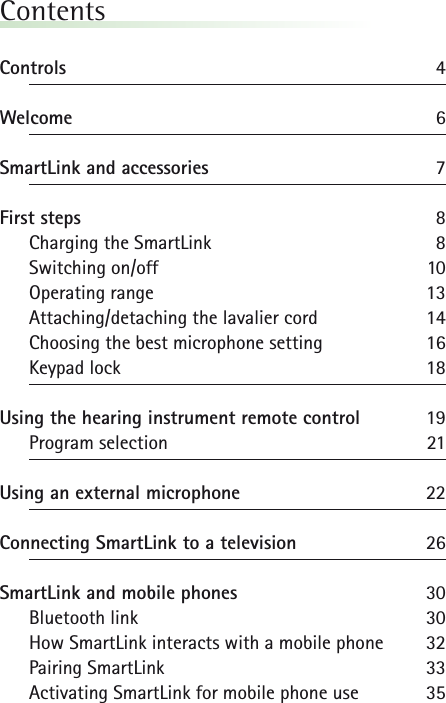

ContentsControls 4Welcome 6SmartLink and accessories 7First steps 8Charging the SmartLink 8Switching on/off 10Operating range 13Attaching/detaching the lavalier cord 14Choosing the best microphone setting 16Keypad lock 18Using the hearing instrument remote control 19Program selection 21Using an external microphone 22Connecting SmartLink to a television 26SmartLink and mobile phones 30Bluetooth link 30How SmartLink interacts with a mobile phone 32Pairing SmartLink 33Activating SmartLink for mobile phone use 35

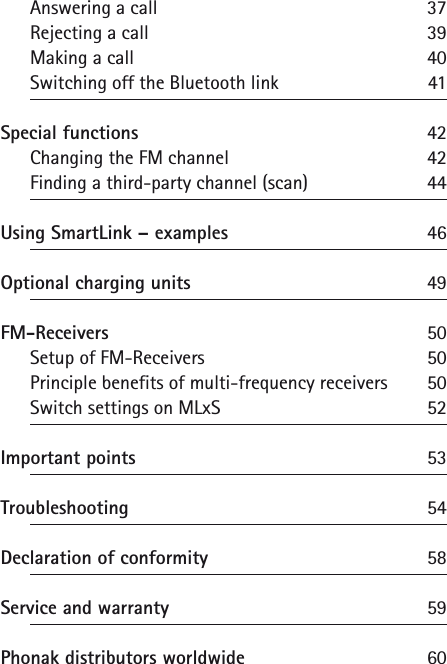

Answering a call 37Rejecting a call 39Making a call 40Switching off the Bluetooth link 41Special functions 42Changing the FM channel 42Finding a third-party channel (scan) 44Using SmartLink – examples 46Optional charging units 49FM-Receivers 50Setup of FM-Receivers 50Principle benefits of multi-frequency receivers 50Switch settings on MLxS 52Important points 53Troubleshooting 54Declaration of conformity 58Service and warranty 59Phonak distributors worldwide 60

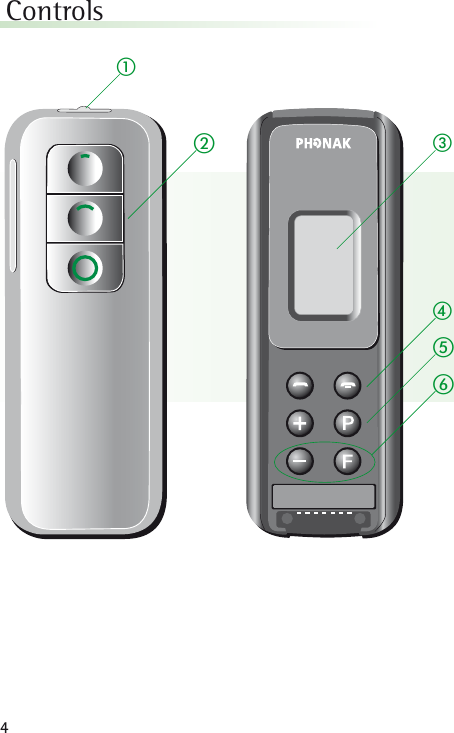

4Controlsቢባቤብቦቧ

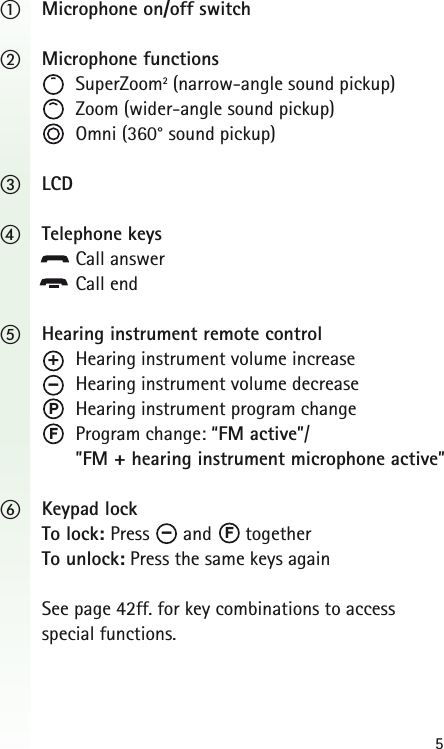

5ቢMicrophone on/off switchባMicrophone functionsSuperZoom2(narrow-angle sound pickup)Zoom (wider-angle sound pickup)Omni (360° sound pickup)ቤLCDብTelephone keysCall answerCall endቦHearing instrument remote controlHearing instrument volume increaseHearing instrument volume decreaseHearing instrument program changeProgram change: “FM active”/ ”FM + hearing instrument microphone active”ቧKeypad lockTo lock: Press and togetherTo unlock: Press the same keys againSee page 42ff. for key combinations to access special functions.PFF––+

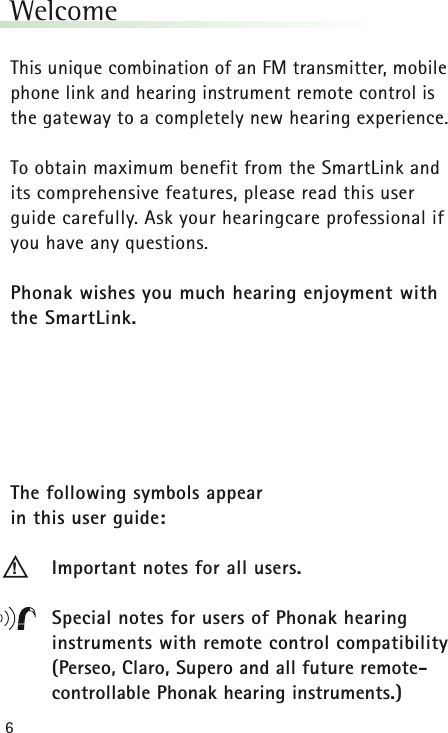

6WelcomeThis unique combination of an FM transmitter, mobilephone link and hearing instrument remote control is the gateway to a completely new hearing experience.To obtain maximum benefit from the SmartLink and its comprehensive features, please read this user guide carefully. Ask your hearingcare professional ifyou have any questions.Phonak wishes you much hearing enjoyment withthe SmartLink.The following symbols appear in this user guide:Important notes for all users.Special notes for users of Phonak hearing instruments with remote control compatibility(Perseo, Claro, Supero and all future remote-controllable Phonak hearing instruments.)!
7SmartLink and accessoriesቢSmartLinkባSmartLink home and travel caseቤSoft caseብAdapter for external connectionsቦLavalier cord with integrated antennaቧShort antennaቨAudio cableቩCharging unitቪMicroLink FM receiver *ቫAudio shoe **MicroLink receiver or audio shoe may differ, depending on thehearing instrument model.

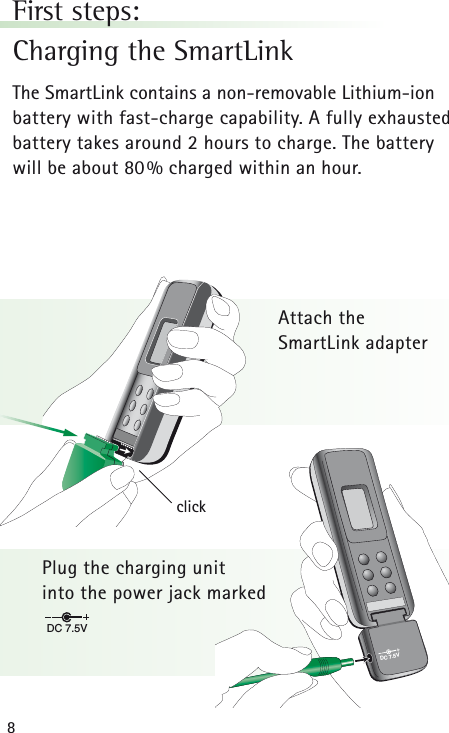

8DC 7.5VDC 7.5VclickFirst steps:Charging the SmartLinkThe SmartLink contains a non-removable Lithium-ionbattery with fast-charge capability. A fully exhaustedbattery takes around 2 hours to charge. The battery will be about 80% charged within an hour.Attach the SmartLink adapterPlug the charging unit into the power jack marked

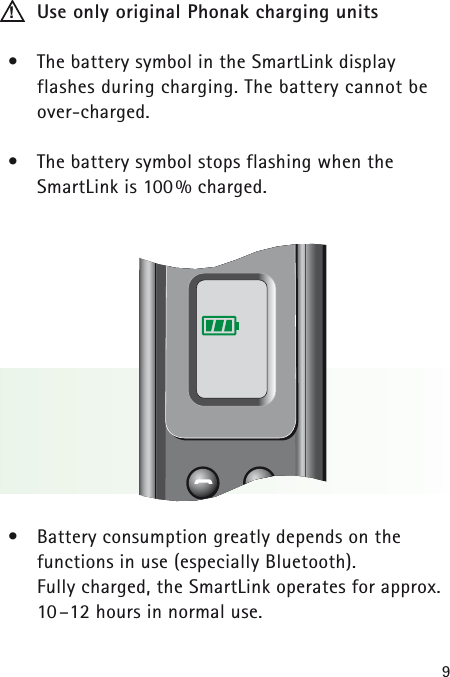

9Use only original Phonak charging units•The battery symbol in the SmartLink display flashes during charging. The battery cannot beover-charged.•The battery symbol stops flashing when the SmartLink is 100% charged.•Battery consumption greatly depends on the functions in use (especially Bluetooth). Fully charged, the SmartLink operates for approx.10–12 hours in normal use.!

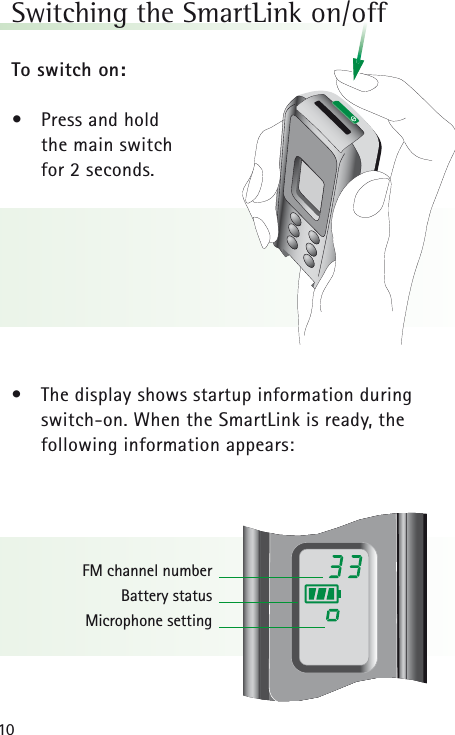

10Switching the SmartLink on/off To switch on:•Press and hold the main switch for 2 seconds.• The display shows startup information duringswitch-on. When the SmartLink is ready, the following information appears:FM channel numberBattery statusMicrophone setting

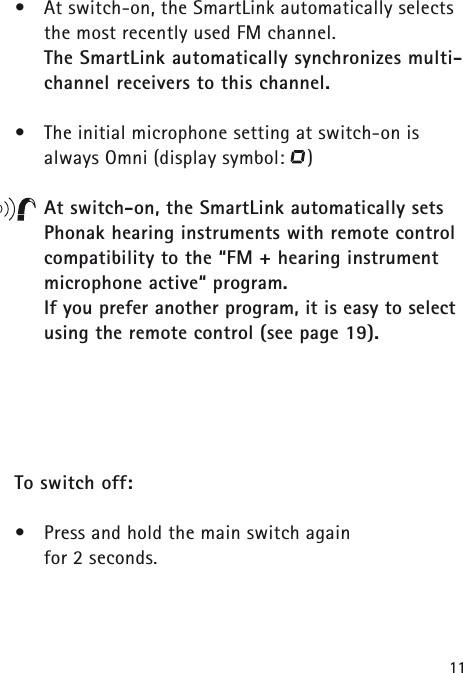

11•At switch-on, the SmartLink automatically selectsthe most recently used FM channel. The SmartLink automatically synchronizes multi-channel receivers to this channel.•The initial microphone setting at switch-on is always Omni (display symbol: )At switch-on, the SmartLink automatically sets Phonak hearing instruments with remote controlcompatibility to the “FM + hearing instrument microphone active“ program. If you prefer another program, it is easy to selectusing the remote control (see page 19).To switch off:•Press and hold the main switch again for 2 seconds.

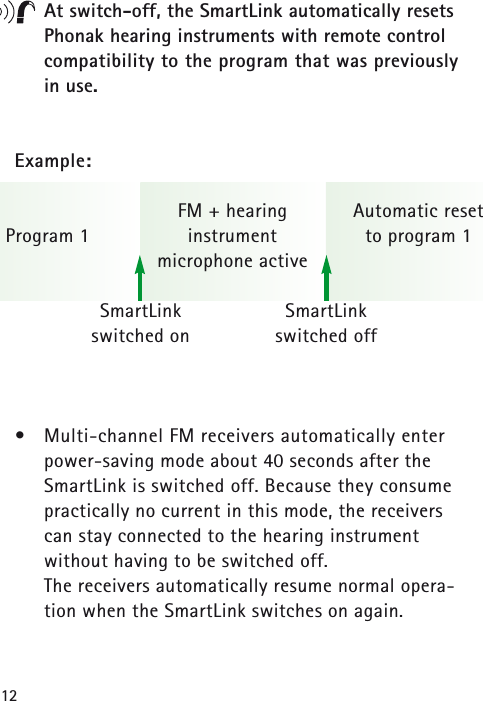

12At switch-off, the SmartLink automatically resetsPhonak hearing instruments with remote controlcompatibility to the program that was previouslyin use.Example:•Multi-channel FM receivers automatically enter power-saving mode about 40 seconds after theSmartLink is switched off. Because they consumepractically no current in this mode, the receiverscan stay connected to the hearing instrument without having to be switched off.The receivers automatically resume normal opera-tion when the SmartLink switches on again.Program 1SmartLinkswitched onSmartLinkswitched offAutomatic reset to program 1FM + hearinginstrumentmicrophone active

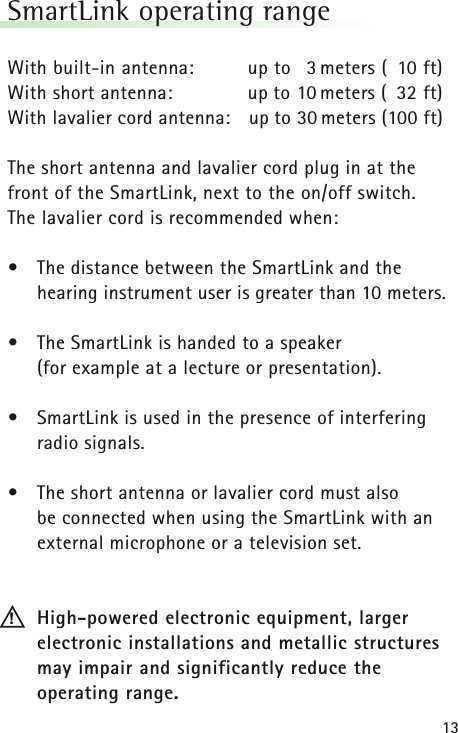

13SmartLink operating range With built-in antenna: up to 3 meters ( 10 ft)With short antenna: up to 10 meters ( 32 ft)With lavalier cord antenna: up to 30 meters (100 ft)The short antenna and lavalier cord plug in at the front of the SmartLink, next to the on/off switch. The lavalier cord is recommended when: •The distance between the SmartLink and the hearing instrument user is greater than 10 meters.•The SmartLink is handed to a speaker (for example at a lecture or presentation).•SmartLink is used in the presence of interfering radio signals.•The short antenna or lavalier cord must also be connected when using the SmartLink with an external microphone or a television set.High-powered electronic equipment, larger electronic installations and metallic structuresmay impair and significantly reduce the operating range.!

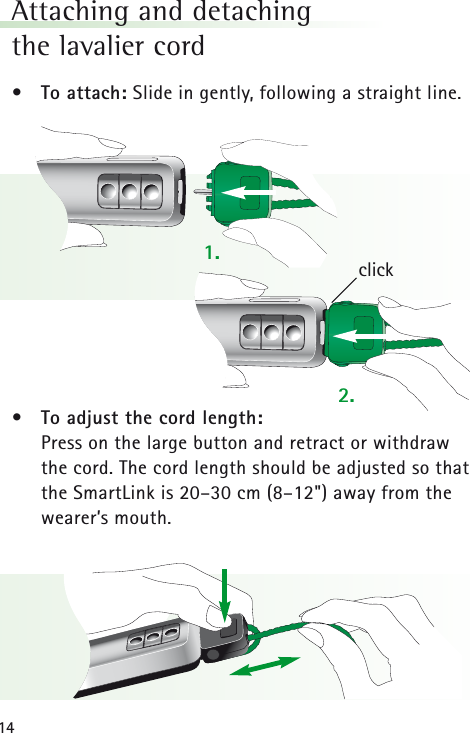

14Attaching and detachingthe lavalier cord • To attach: Slide in gently, following a straight line.• To adjust the cord length:Press on the large button and retract or withdrawthe cord. The cord length should be adjusted so thatthe SmartLink is 20–30 cm (8–12") away from thewearer’s mouth.click1.2.

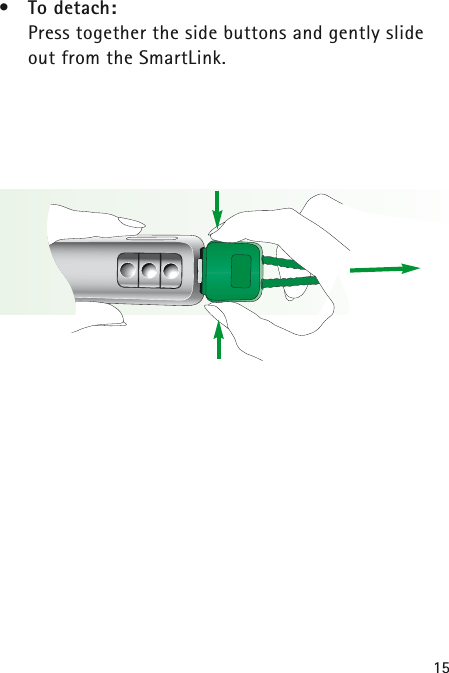

15• To detach:Press together the side buttons and gently slide out from the SmartLink.

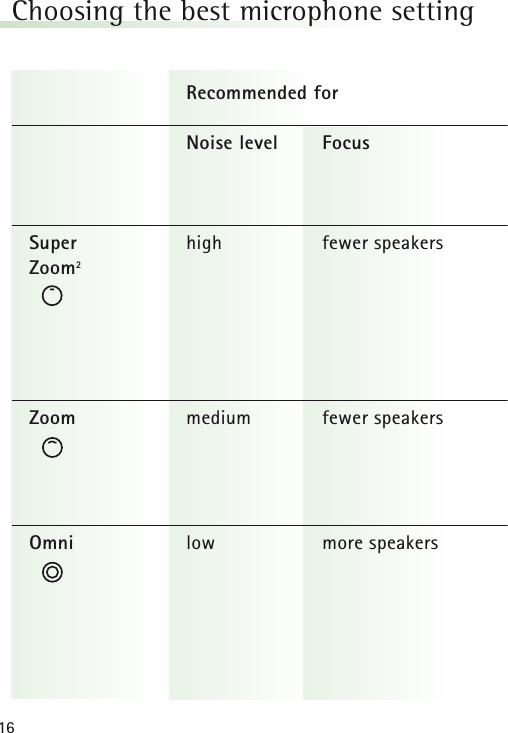

16Choosing the best microphone setting Recommended forNoise level FocusSuper high fewer speakersZoom2Zoom medium fewer speakersOmni low more speakers

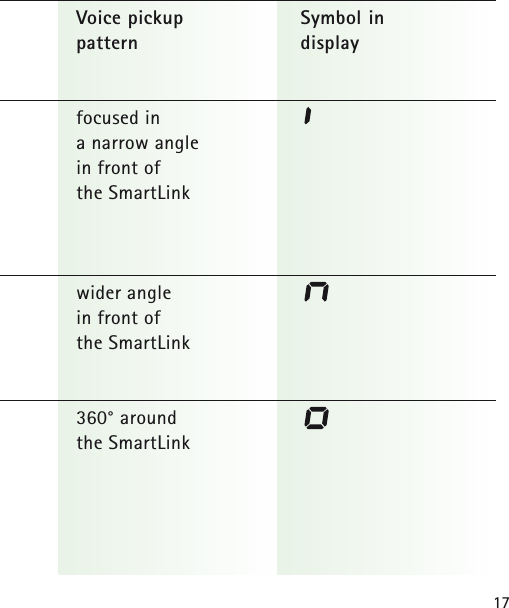

17Voice pickup Symbol in pattern display focused ina narrow anglein front ofthe SmartLinkwider angle in front of the SmartLink360° around the SmartLink

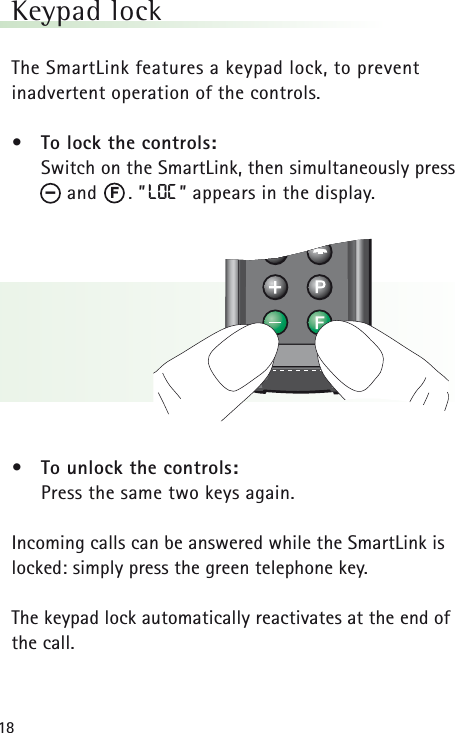

18Keypad lock The SmartLink features a keypad lock, to prevent inadvertent operation of the controls.• To lock the controls:Switch on the SmartLink, then simultaneously pressand . ”LOC ” appears in the display.• To unlock the controls:Press the same two keys again.Incoming calls can be answered while the SmartLink islocked: simply press the green telephone key.The keypad lock automatically reactivates at the end ofthe call.F–

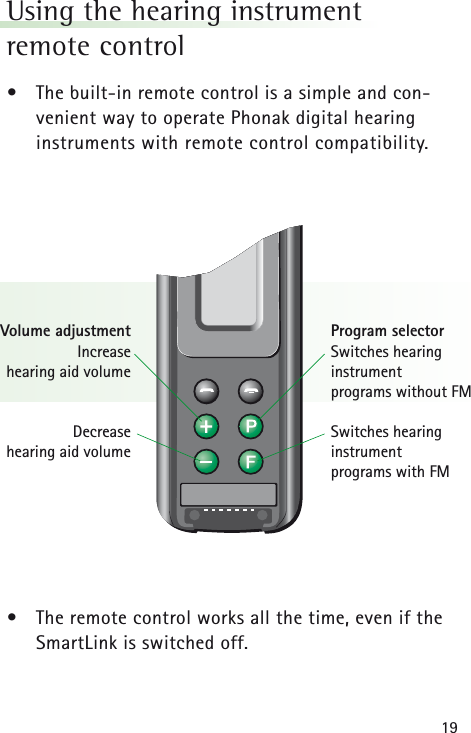

19Using the hearing instrument remote control •The built-in remote control is a simple and con-venient way to operate Phonak digital hearing instruments with remote control compatibility. •The remote control works all the time, even if theSmartLink is switched off.Program selectorSwitches hearing instrument programs without FMSwitches hearing instrument programs with FMVolume adjustmentIncrease hearing aid volumeDecrease hearing aid volume

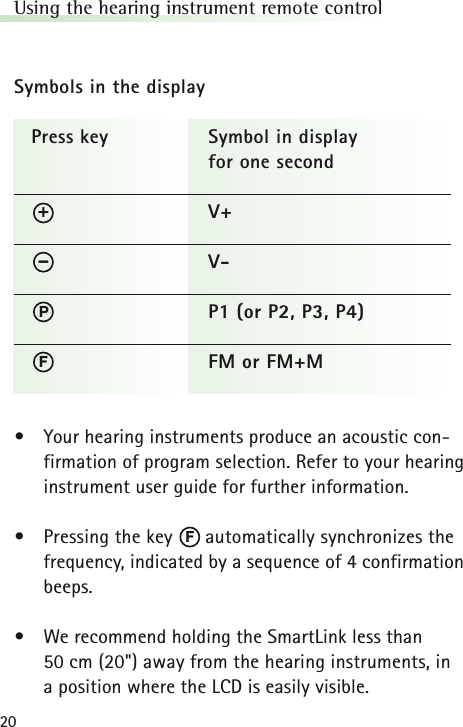

20Using the hearing instrument remote controlSymbols in the display•Your hearing instruments produce an acoustic con-firmation of program selection. Refer to your hearinginstrument user guide for further information.•Pressing the key automatically synchronizes thefrequency, indicated by a sequence of 4 confirmationbeeps.•We recommend holding the SmartLink less than 50 cm (20") away from the hearing instruments, in a position where the LCD is easily visible.Press key Symbol in display for one second V+V-P1 (or P2, P3, P4)FM or FM+MPF–+F

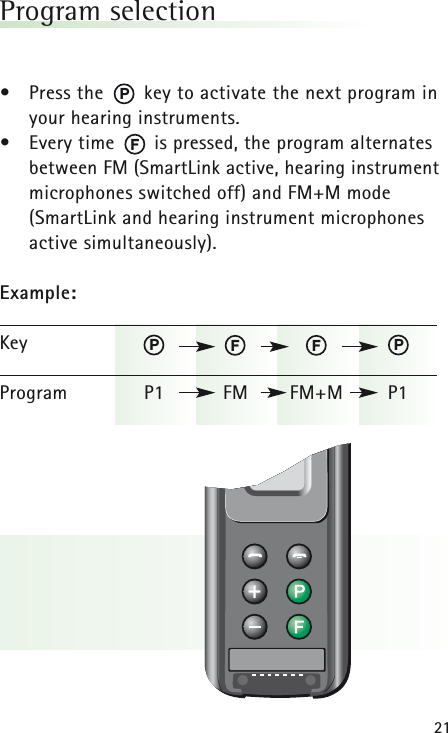

21Program selection •Press the key to activate the next program inyour hearing instruments.•Every time is pressed, the program alternatesbetween FM (SmartLink active, hearing instrumentmicrophones switched off) and FM+M mode(SmartLink and hearing instrument microphones active simultaneously).Example:KeyProgram P1 FM FM+M P1PFPPFF

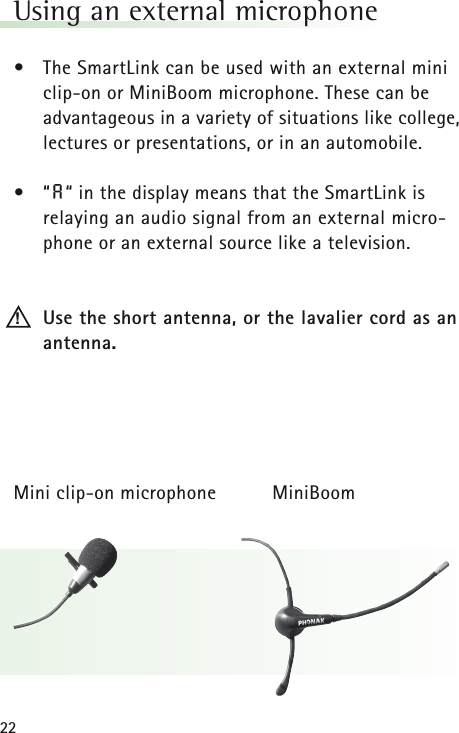

22Using an external microphone •The SmartLink can be used with an external miniclip-on or MiniBoom microphone. These can be advantageous in a variety of situations like college,lectures or presentations, or in an automobile.•“A“ in the display means that the SmartLink is relaying an audio signal from an external micro-phone or an external source like a television.Use the short antenna, or the lavalier cord as anantenna.Mini clip-on microphone MiniBoom!

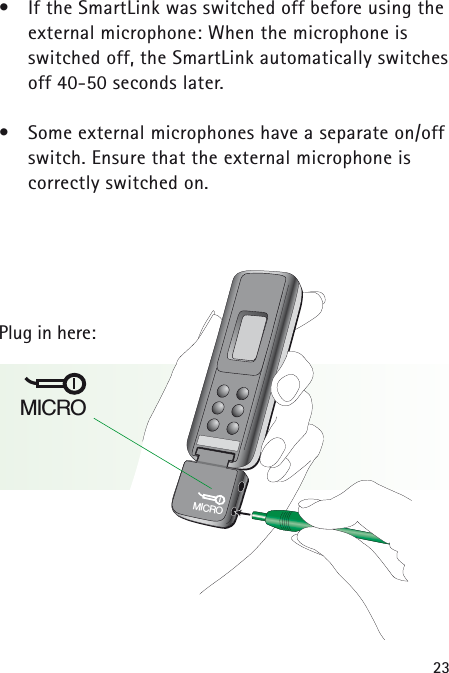

23•If the SmartLink was switched off before using theexternal microphone: When the microphone is switched off, the SmartLink automatically switchesoff 40-50 seconds later.•Some external microphones have a separate on/offswitch. Ensure that the external microphone is correctly switched on.Plug in here:MICROMICRO

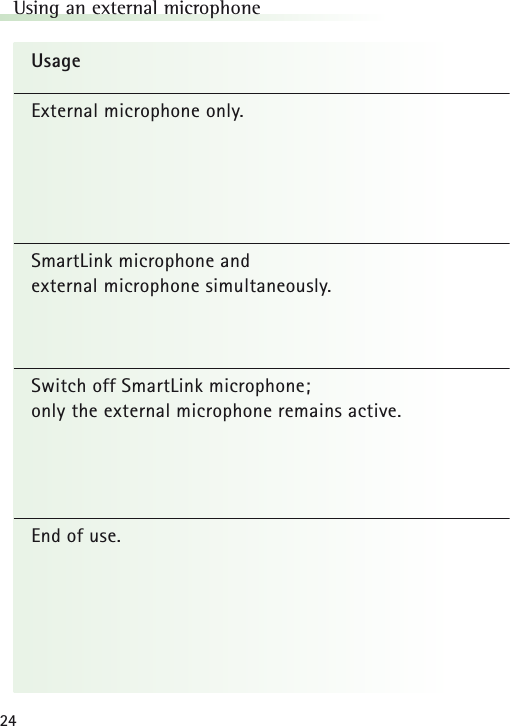

24UsageExternal microphone only.SmartLink microphone and external microphone simultaneously.Switch off SmartLink microphone; only the external microphone remains active.End of use.Using an external microphone

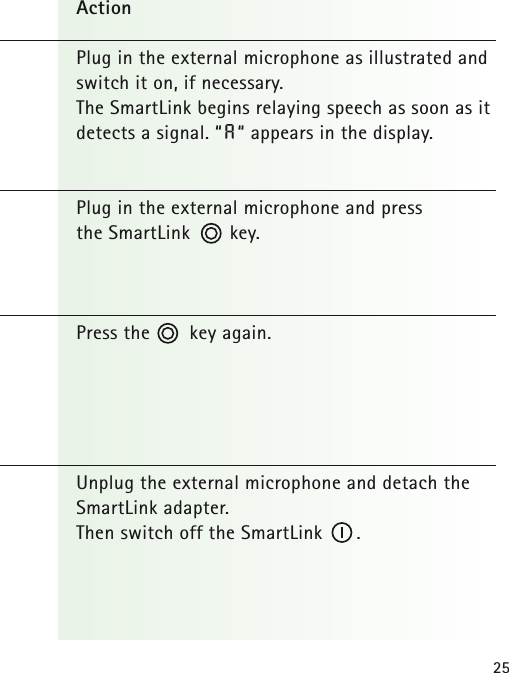

25ActionPlug in the external microphone as illustrated andswitch it on, if necessary. The SmartLink begins relaying speech as soon as itdetects a signal. “ A“ appears in the display.Plug in the external microphone and press the SmartLink key.Press the key again.Unplug the external microphone and detach theSmartLink adapter. Then switch off the SmartLink .

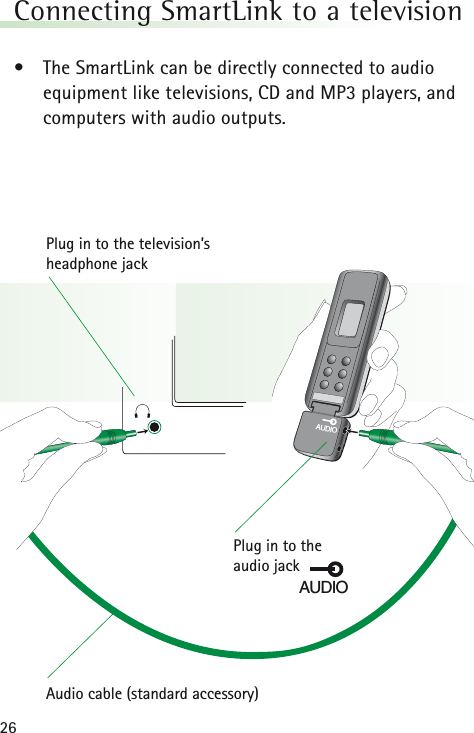

26Connecting SmartLink to a television •The SmartLink can be directly connected to audioequipment like televisions, CD and MP3 players, andcomputers with audio outputs.AUDIOPlug in to the television’s headphone jackAudio cable (standard accessory)Plug in to the audio jackAUDIO

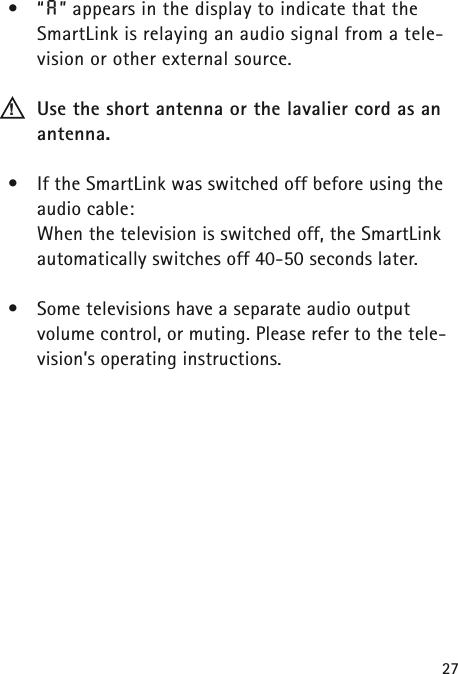

27•“A” appears in the display to indicate that theSmartLink is relaying an audio signal from a tele-vision or other external source.Use the short antenna or the lavalier cord as anantenna.•If the SmartLink was switched off before using theaudio cable: When the television is switched off, the SmartLinkautomatically switches off 40-50 seconds later.•Some televisions have a separate audio output volume control, or muting. Please refer to the tele-vision’s operating instructions.!

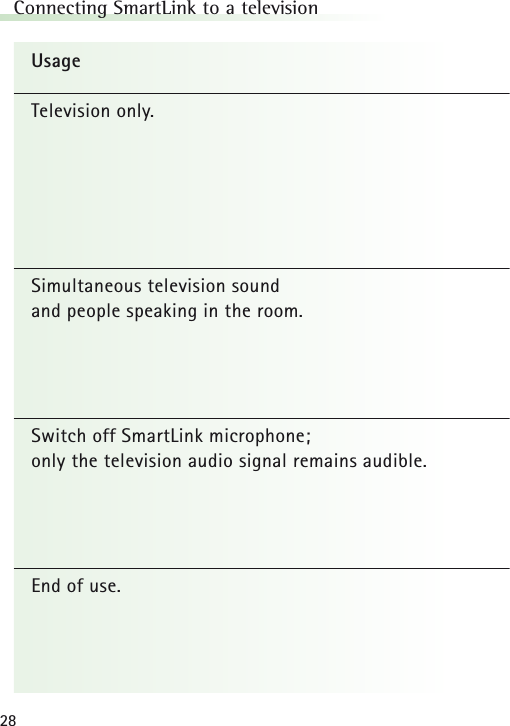

28UsageTelevision only.Simultaneous television sound and people speaking in the room.Switch off SmartLink microphone; only the television audio signal remains audible.End of use.Connecting SmartLink to a television

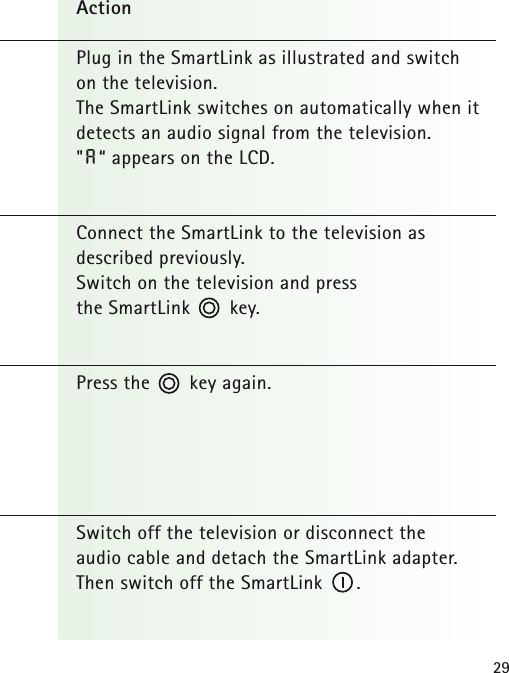

29ActionPlug in the SmartLink as illustrated and switch on the television.The SmartLink switches on automatically when itdetects an audio signal from the television."A“ appears on the LCD.Connect the SmartLink to the television as described previously.Switch on the television and press the SmartLink key.Press the key again.Switch off the television or disconnect the audio cable and detach the SmartLink adapter. Then switch off the SmartLink .

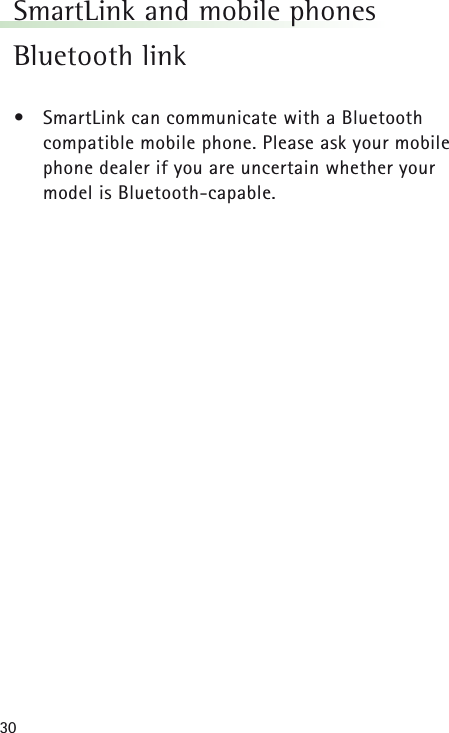

30SmartLink and mobile phonesBluetooth link•SmartLink can communicate with a Bluetooth compatible mobile phone. Please ask your mobilephone dealer if you are uncertain whether your model is Bluetooth-capable.

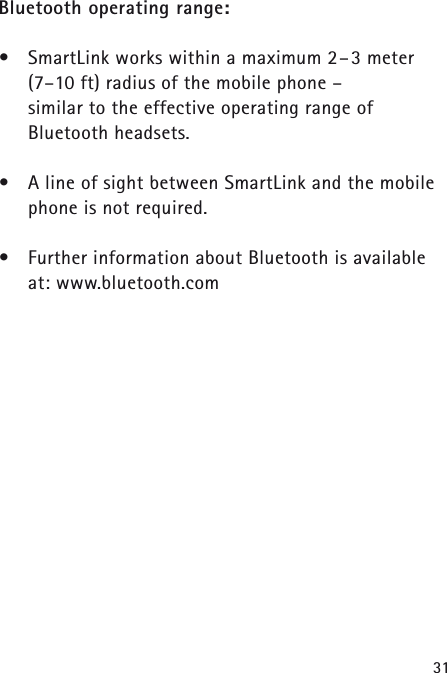

31Bluetooth operating range:•SmartLink works within a maximum 2–3 meter(7–10 ft) radius of the mobile phone –similar to the effective operating range of Bluetooth headsets.•A line of sight between SmartLink and the mobilephone is not required. •Further information about Bluetooth is available at: www.bluetooth.com

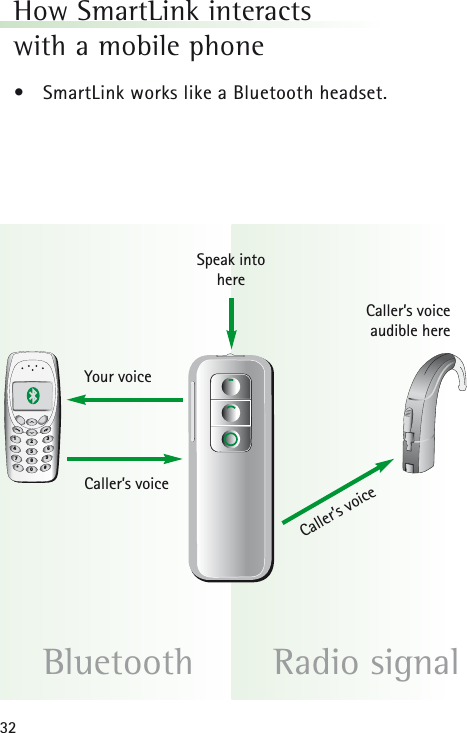

32How SmartLink interacts with a mobile phone •SmartLink works like a Bluetooth headset.Bluetooth Radio signal1234567890*#Your voiceSpeak into hereCaller’s voice audible hereCaller’s voiceCaller’s voice

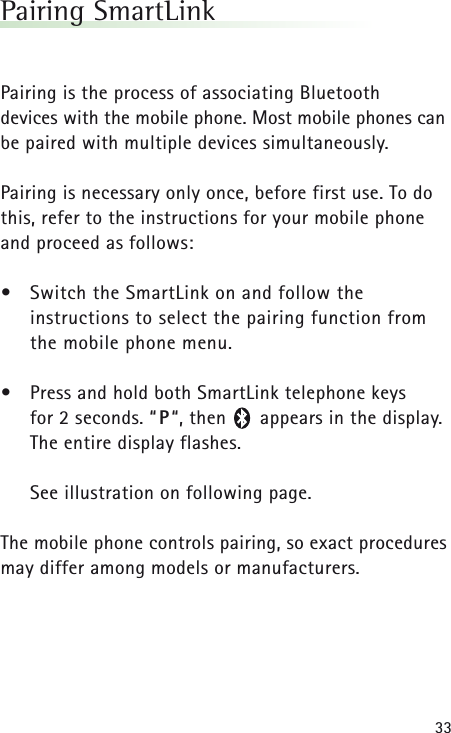

33Pairing SmartLinkPairing is the process of associating Bluetooth devices with the mobile phone. Most mobile phones canbe paired with multiple devices simultaneously.Pairing is necessary only once, before first use. To dothis, refer to the instructions for your mobile phoneand proceed as follows:•Switch the SmartLink on and follow the instructions to select the pairing function from the mobile phone menu.•Press and hold both SmartLink telephone keys for 2 seconds. “P“, then appears in the display. The entire display flashes.See illustration on following page.The mobile phone controls pairing, so exact proceduresmay differ among models or manufacturers.

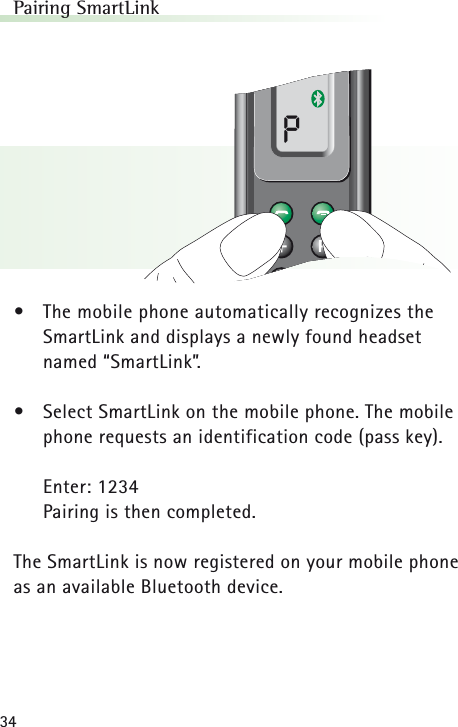

34Pairing SmartLink•The mobile phone automatically recognizes theSmartLink and displays a newly found headset named “SmartLink”.•Select SmartLink on the mobile phone. The mobilephone requests an identification code (pass key).Enter: 1234Pairing is then completed.The SmartLink is now registered on your mobile phoneas an available Bluetooth device.P

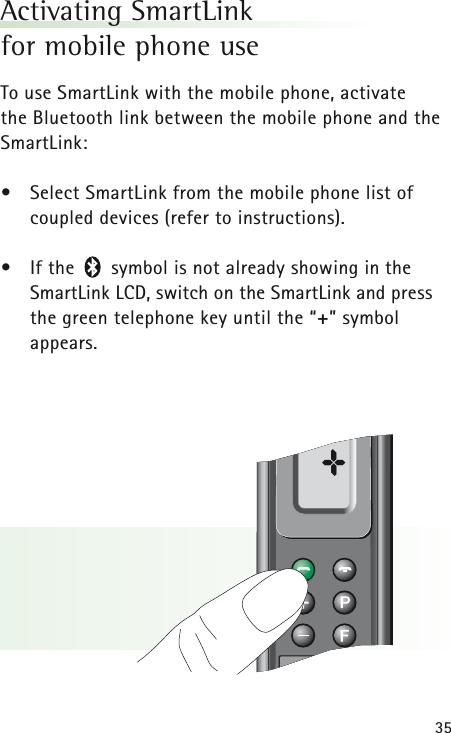

35Activating SmartLink for mobile phone useTo use SmartLink with the mobile phone, activate the Bluetooth link between the mobile phone and theSmartLink:•Select SmartLink from the mobile phone list of coupled devices (refer to instructions).•If the symbol is not already showing in theSmartLink LCD, switch on the SmartLink and pressthe green telephone key until the “+” symbol appears.±

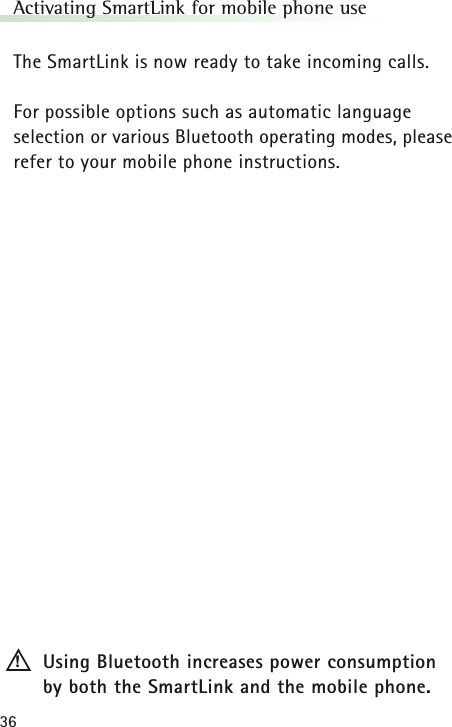

36Activating SmartLink for mobile phone useThe SmartLink is now ready to take incoming calls.For possible options such as automatic language selection or various Bluetooth operating modes, pleaserefer to your mobile phone instructions.Using Bluetooth increases power consumption by both the SmartLink and the mobile phone.!

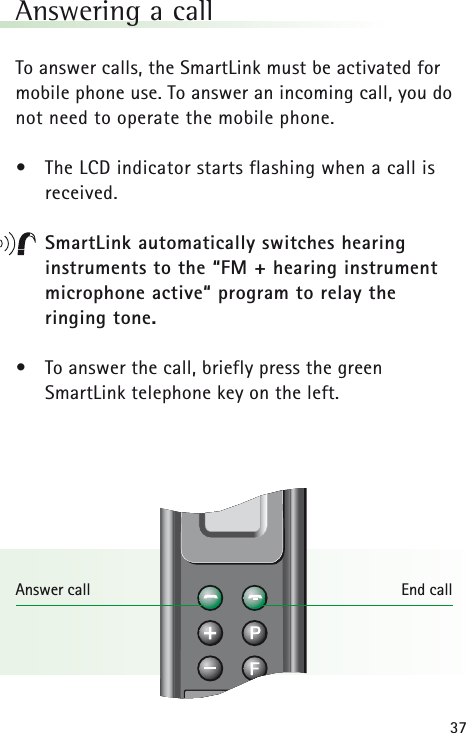

37Answering a callTo answer calls, the SmartLink must be activated formobile phone use. To answer an incoming call, you donot need to operate the mobile phone.•The LCD indicator starts flashing when a call is received.SmartLink automatically switches hearing instruments to the “FM + hearing instrument microphone active“ program to relay the ringing tone.•To answer the call, briefly press the green SmartLink telephone key on the left.Answer call End call

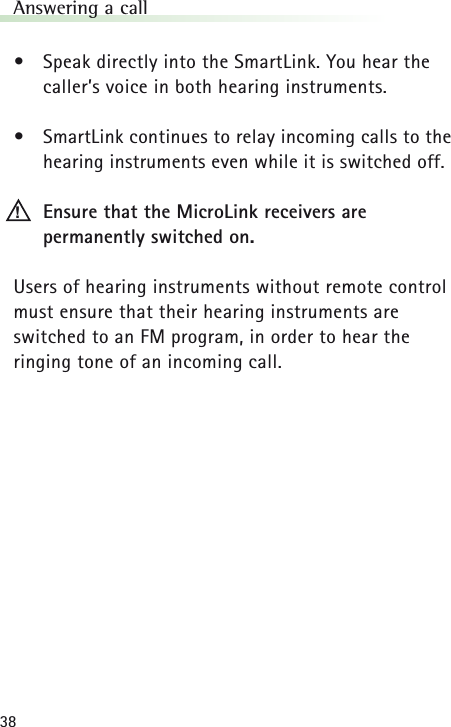

38Answering a call•Speak directly into the SmartLink. You hear the caller’s voice in both hearing instruments.•SmartLink continues to relay incoming calls to thehearing instruments even while it is switched off.Ensure that the MicroLink receivers are permanently switched on.Users of hearing instruments without remote controlmust ensure that their hearing instruments are switched to an FM program, in order to hear the ringing tone of an incoming call.!

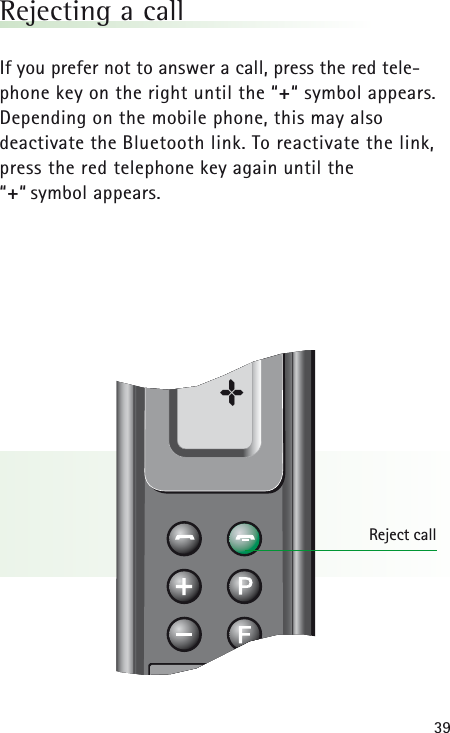

39Rejecting a callIf you prefer not to answer a call, press the red tele-phone key on the right until the “+“ symbol appears.Depending on the mobile phone, this may also deactivate the Bluetooth link. To reactivate the link,press the red telephone key again until the “+“ symbol appears.Reject call±

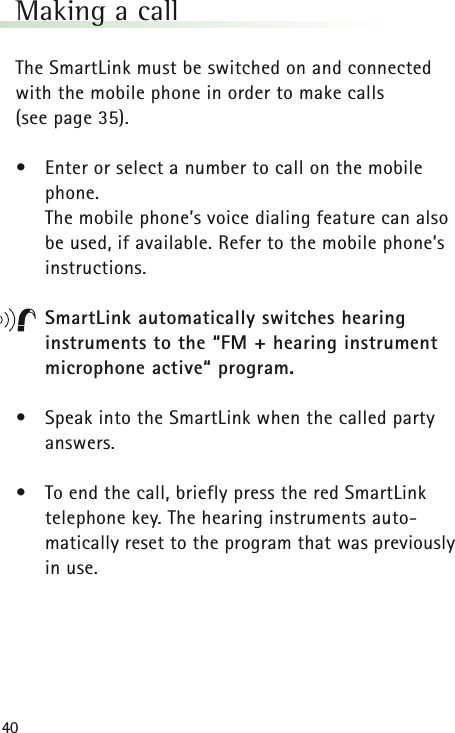

40Making a callThe SmartLink must be switched on and connected with the mobile phone in order to make calls (see page 35).•Enter or select a number to call on the mobilephone.The mobile phone’s voice dialing feature can also be used, if available. Refer to the mobile phone’s instructions.SmartLink automatically switches hearing instruments to the “FM + hearing instrument microphone active“ program.•Speak into the SmartLink when the called partyanswers.•To end the call, briefly press the red SmartLink telephone key. The hearing instruments auto-matically reset to the program that was previouslyin use.

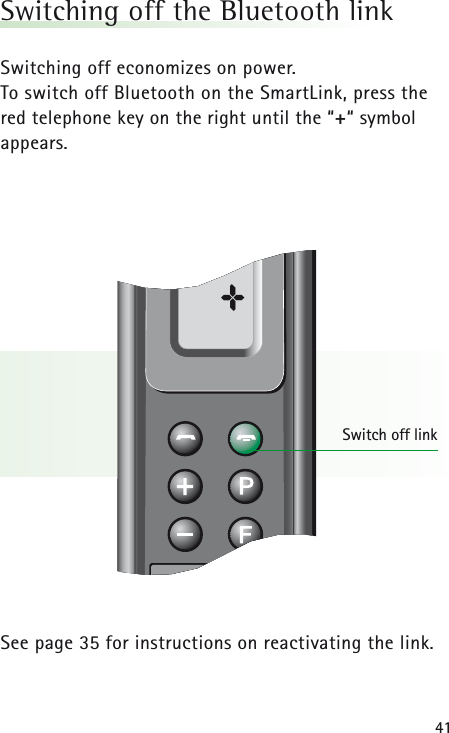

41Switching off the Bluetooth linkSwitching off economizes on power. To switch off Bluetooth on the SmartLink, press the red telephone key on the right until the “+“ symbol appears.See page 35 for instructions on reactivating the link.Switch off link±

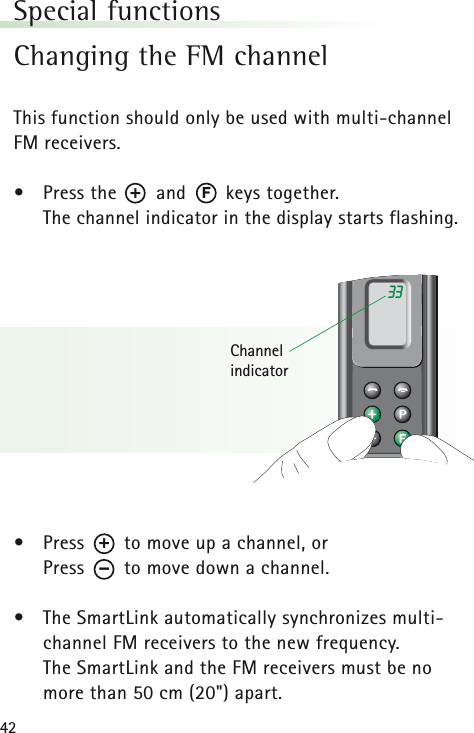

42Special functionsChanging the FM channelThis function should only be used with multi-channelFM receivers.•Press the and keys together. The channel indicator in the display starts flashing.•Press to move up a channel, orPress to move down a channel.•The SmartLink automatically synchronizes multi-channel FM receivers to the new frequency.The SmartLink and the FM receivers must be nomore than 50 cm (20") apart.33Channel indicatorF+–+

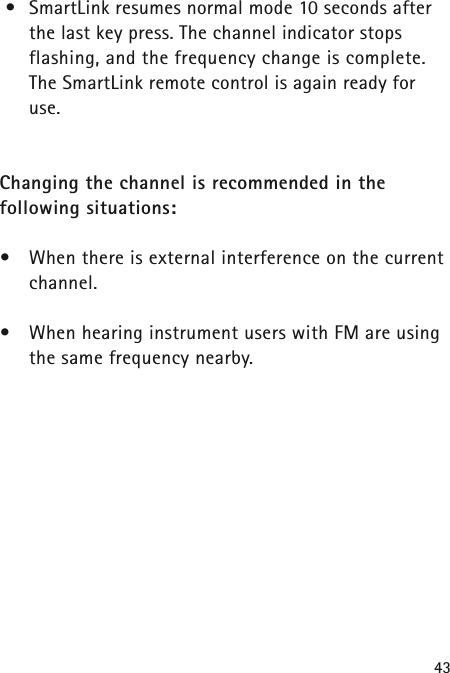

43•SmartLink resumes normal mode 10 seconds afterthe last key press. The channel indicator stops flashing, and the frequency change is complete. The SmartLink remote control is again ready for use.Changing the channel is recommended in the following situations:•When there is external interference on the currentchannel.•When hearing instrument users with FM are usingthe same frequency nearby.

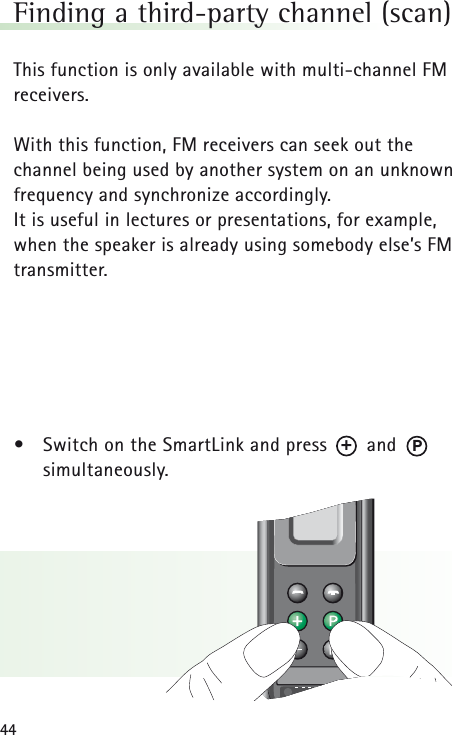

44Finding a third-party channel (scan)This function is only available with multi-channel FMreceivers.With this function, FM receivers can seek out the channel being used by another system on an unknownfrequency and synchronize accordingly. It is useful in lectures or presentations, for example,when the speaker is already using somebody else’s FMtransmitter.•Switch on the SmartLink and press and simultaneously.P+

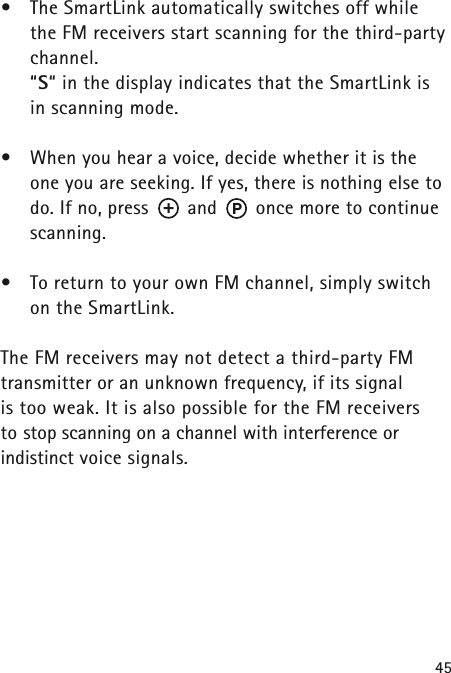

45•The SmartLink automatically switches off while the FM receivers start scanning for the third-partychannel.“S“ in the display indicates that the SmartLink is in scanning mode.•When you hear a voice, decide whether it is the one you are seeking. If yes, there is nothing else todo. If no, press and once more to continuescanning.•To return to your own FM channel, simply switch on the SmartLink.The FM receivers may not detect a third-party FMtransmitter or an unknown frequency, if its signal is too weak. It is also possible for the FM receivers to stop scanning on a channel with interference or indistinct voice signals.P+

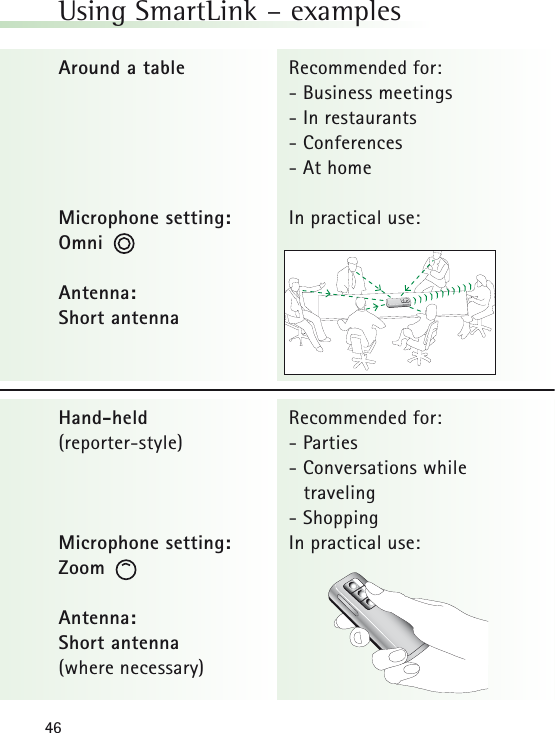

46Using SmartLink – examplesRecommended for:- Business meetings- In restaurants- Conferences- At homeIn practical use:Recommended for:- Parties- Conversations while traveling- ShoppingIn practical use:Around a tableMicrophone setting:OmniAntenna:Short antennaHand-held (reporter-style)Microphone setting:ZoomAntenna:Short antenna (where necessary)

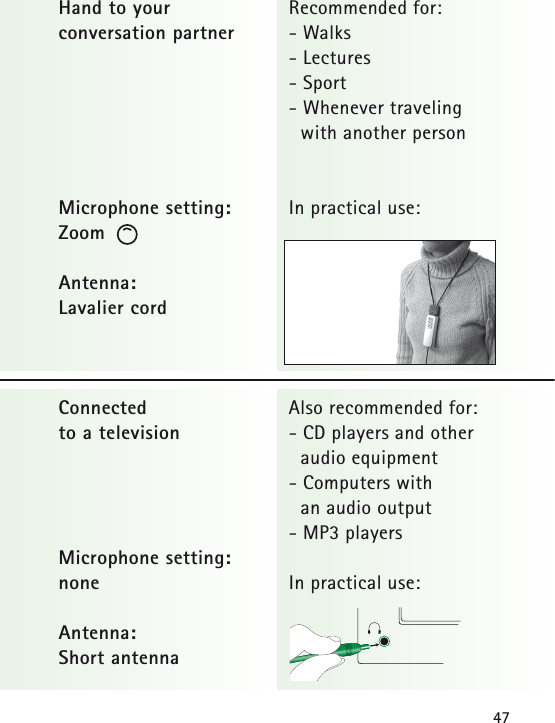

47Recommended for:- Walks- Lectures- Sport- Whenever traveling with another personIn practical use:Also recommended for:- CD players and otheraudio equipment- Computers with an audio output- MP3 playersIn practical use:Hand to your conversation partnerMicrophone setting:ZoomAntenna:Lavalier cordConnected to a televisionMicrophone setting:noneAntenna: Short antenna

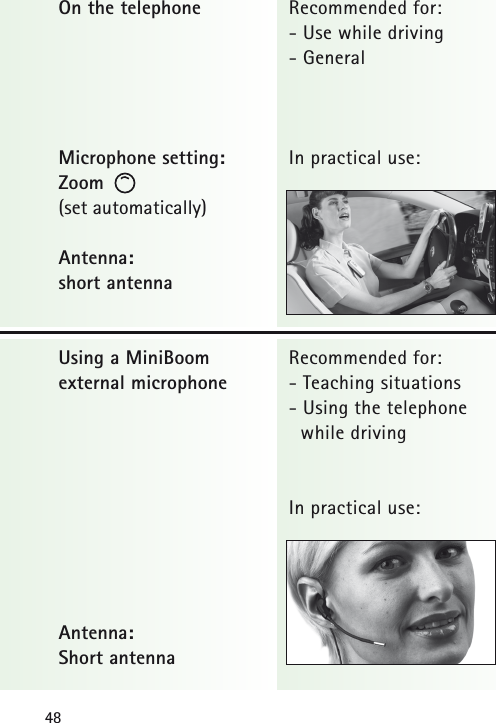

48Recommended for:- Use while driving- GeneralIn practical use:Recommended for:- Teaching situations- Using the telephonewhile drivingIn practical use:On the telephoneMicrophone setting:Zoom(set automatically)Antenna:short antennaUsing a MiniBoom external microphoneAntenna:Short antenna

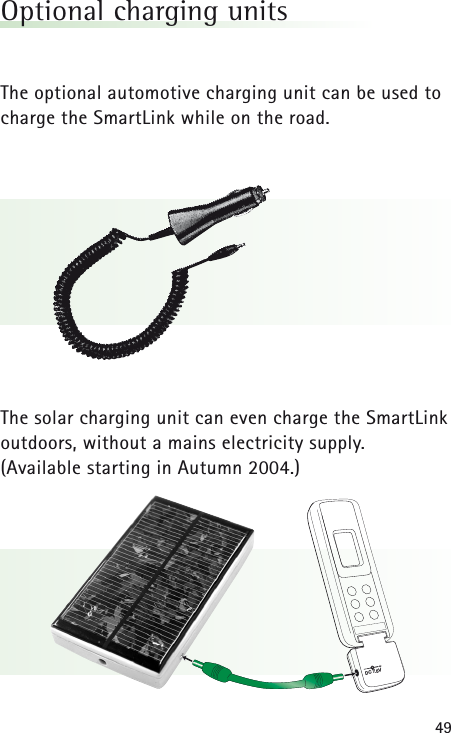

49Optional charging unitsThe optional automotive charging unit can be used tocharge the SmartLink while on the road.The solar charging unit can even charge the SmartLinkoutdoors, without a mains electricity supply. (Available starting in Autumn 2004.)DC 7.5V

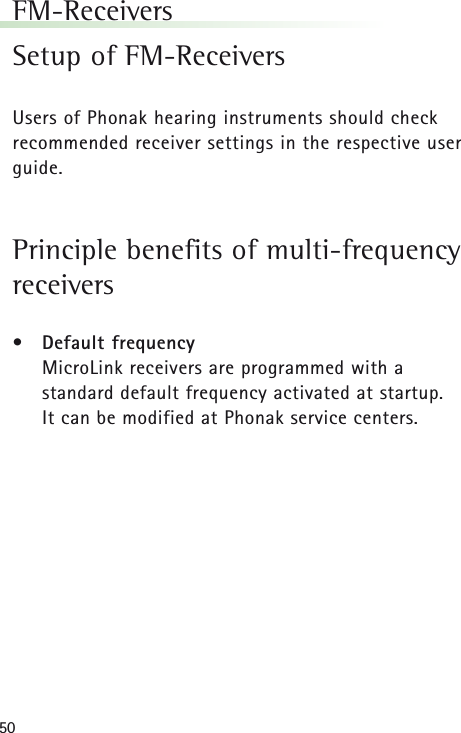

50FM-ReceiversSetup of FM-ReceiversUsers of Phonak hearing instruments should checkrecommended receiver settings in the respective userguide.Principle benefits of multi-frequencyreceivers•Default frequencyMicroLink receivers are programmed with a standard default frequency activated at startup. It can be modified at Phonak service centers.

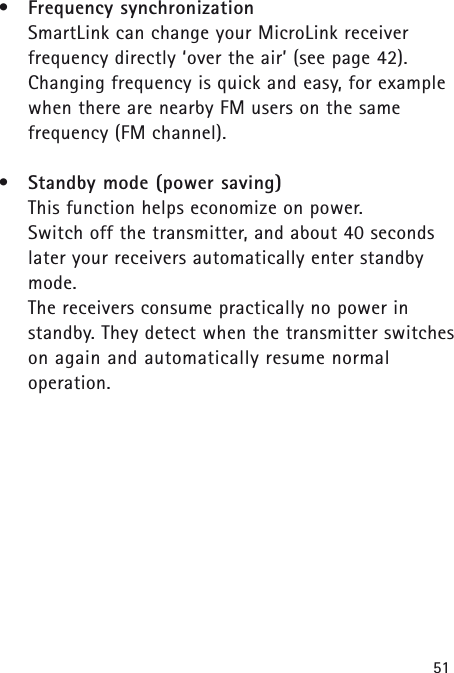

51•Frequency synchronizationSmartLink can change your MicroLink receiver frequency directly ‘over the air’ (see page 42).Changing frequency is quick and easy, for examplewhen there are nearby FM users on the same frequency (FM channel).•Standby mode (power saving)This function helps economize on power. Switch off the transmitter, and about 40 secondslater your receivers automatically enter standbymode. The receivers consume practically no power instandby. They detect when the transmitter switcheson again and automatically resume normal operation.

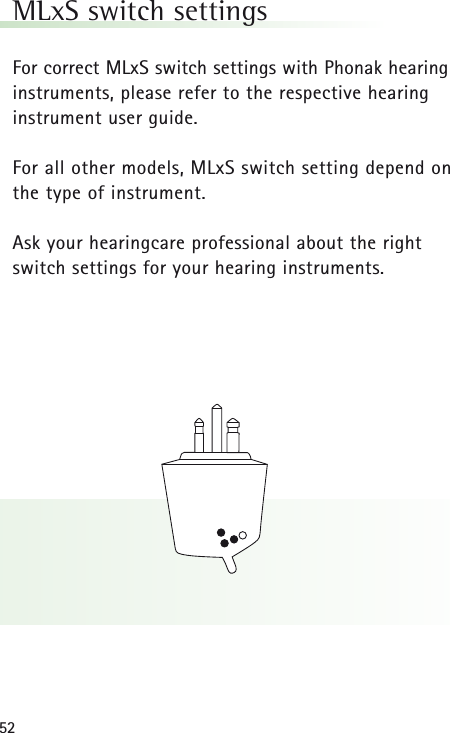

52MLxS switch settingsFor correct MLxS switch settings with Phonak hearinginstruments, please refer to the respective hearinginstrument user guide.For all other models, MLxS switch setting depend onthe type of instrument.Ask your hearingcare professional about the rightswitch settings for your hearing instruments.

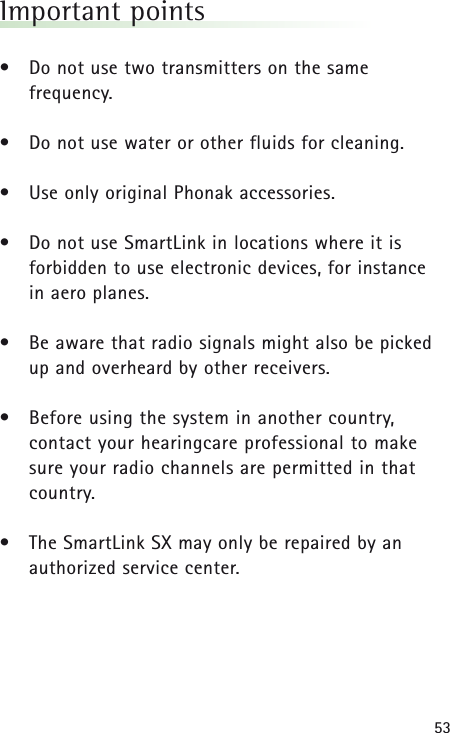

53Important points• Do not use two transmitters on the same frequency.• Do not use water or other fluids for cleaning.• Use only original Phonak accessories.• Do not use SmartLink in locations where it is forbidden to use electronic devices, for instance in aero planes.• Be aware that radio signals might also be picked up and overheard by other receivers.• Before using the system in another country, contact your hearingcare professional to make sure your radio channels are permitted in thatcountry.• The SmartLink SX may only be repaired by anauthorized service center.

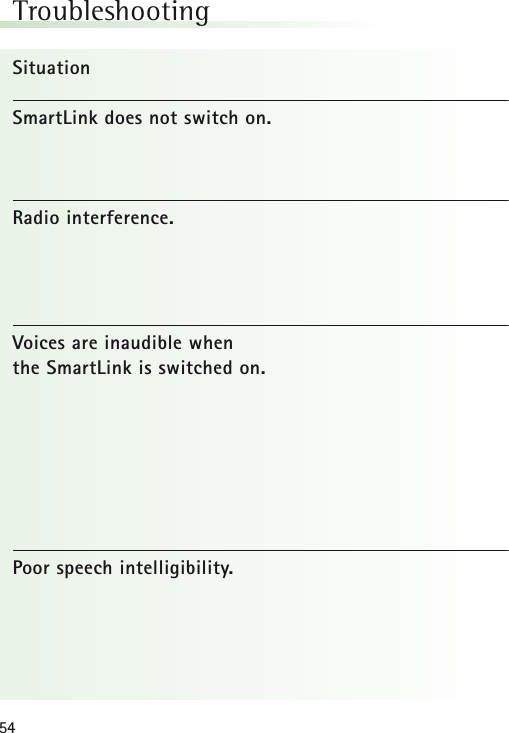

54TroubleshootingSituationSmartLink does not switch on.Radio interference.Voices are inaudible when the SmartLink is switched on.Poor speech intelligibility.

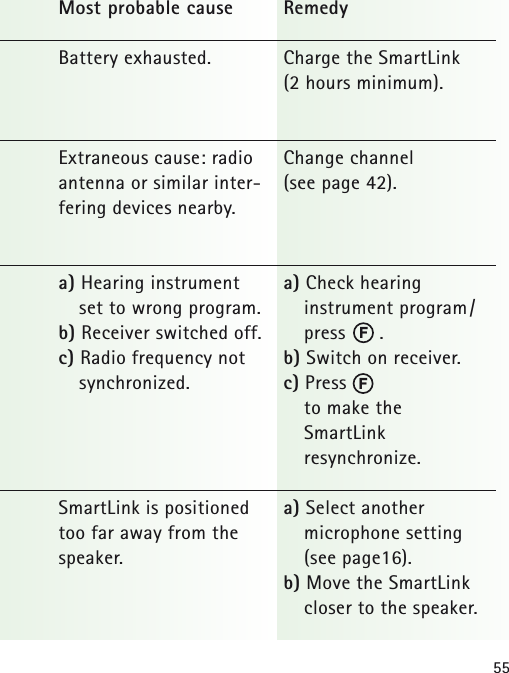

55RemedyCharge the SmartLink (2 hours minimum).Change channel (see page 42).a) Check hearing instrument program/press .b) Switch on receiver.c) Press to make the SmartLink resynchronize.a) Select another microphone setting (see page16).b) Move the SmartLink closer to the speaker.Most probable causeBattery exhausted.Extraneous cause: radioantenna or similar inter-fering devices nearby.a) Hearing instrument set to wrong program.b) Receiver switched off.c) Radio frequency notsynchronized.SmartLink is positionedtoo far away from thespeaker.FF

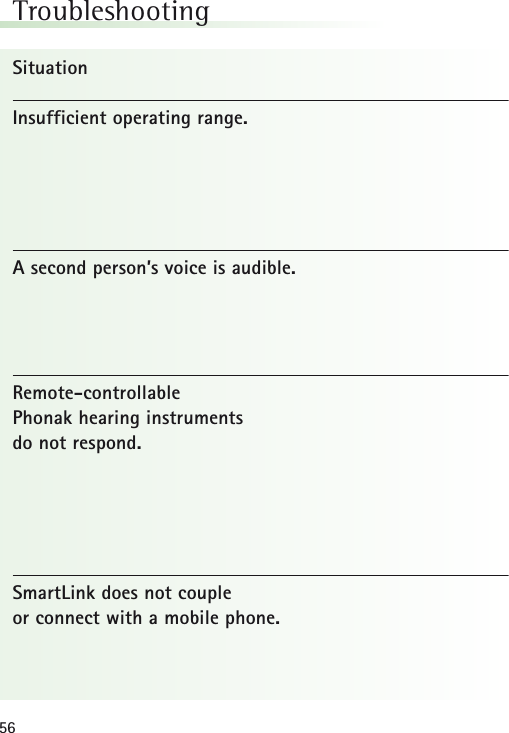

56TroubleshootingSituationInsufficient operating range.A second person’s voice is audible.Remote-controllable Phonak hearing instruments do not respond.SmartLink does not couple or connect with a mobile phone.

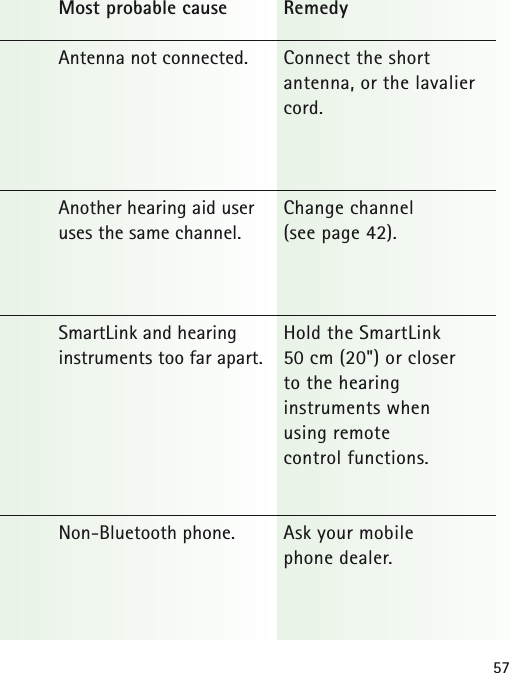

57RemedyConnect the short antenna, or the lavaliercord.Change channel (see page 42).Hold the SmartLink 50 cm (20") or closer to the hearing instruments when using remote control functions.Ask your mobile phone dealer.Most probable causeAntenna not connected.Another hearing aid useruses the same channel.SmartLink and hearing instruments too far apart.Non-Bluetooth phone.

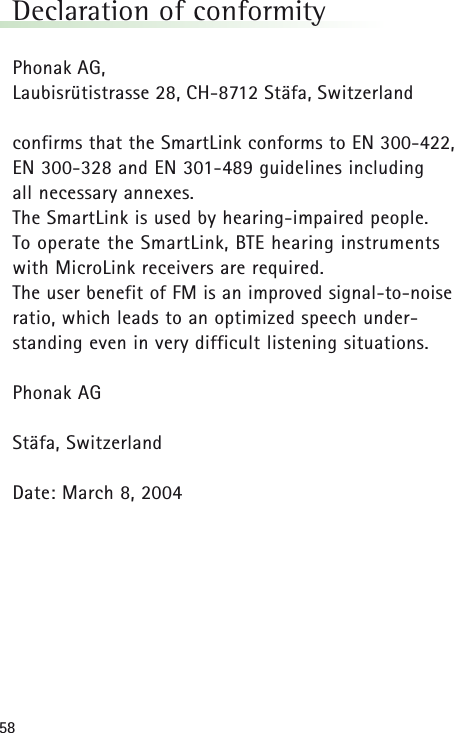

58Declaration of conformityPhonak AG,Laubisrütistrasse 28, CH-8712 Stäfa, Switzerland confirms that the SmartLink conforms to EN 300-422,EN 300-328 and EN 301-489 guidelines including all necessary annexes.The SmartLink is used by hearing-impaired people. To operate the SmartLink, BTE hearing instrumentswith MicroLink receivers are required. The user benefit of FM is an improved signal-to-noiseratio, which leads to an optimized speech under-standing even in very difficult listening situations.Phonak AGStäfa, SwitzerlandDate: March 8, 2004

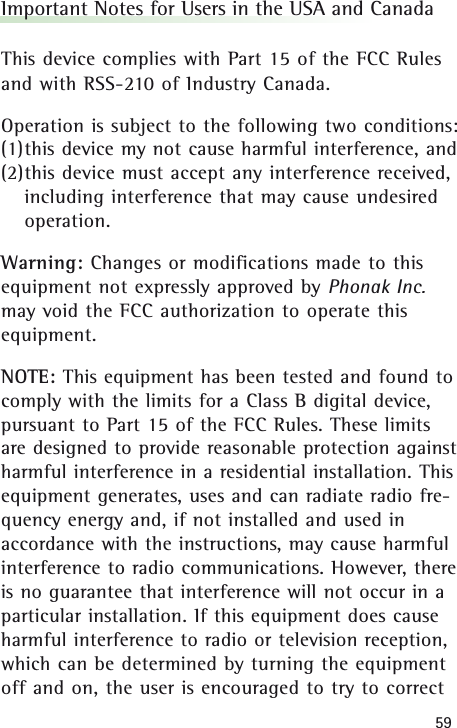

59Important Notes for Users in the USA and CanadaThis device complies with Part 15 of the FCC Rulesand with RSS-210 of Industry Canada.Operation is subject to the following two conditions:(1)this device my not cause harmful interference, and (2)this device must accept any interference received,including interference that may cause undesiredoperation.Warning: Changes or modifications made to thisequipment not expressly approved by Phonak Inc.may void the FCC authorization to operate thisequipment.NOTE: This equipment has been tested and found tocomply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limitsare designed to provide reasonable protection againstharmful interference in a residential installation. Thisequipment generates, uses and can radiate radio fre-quency energy and, if not installed and used inaccordance with the instructions, may cause harmfulinterference to radio communications. However, thereis no guarantee that interference will not occur in aparticular installation. If this equipment does causeharmful interference to radio or television reception,which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct

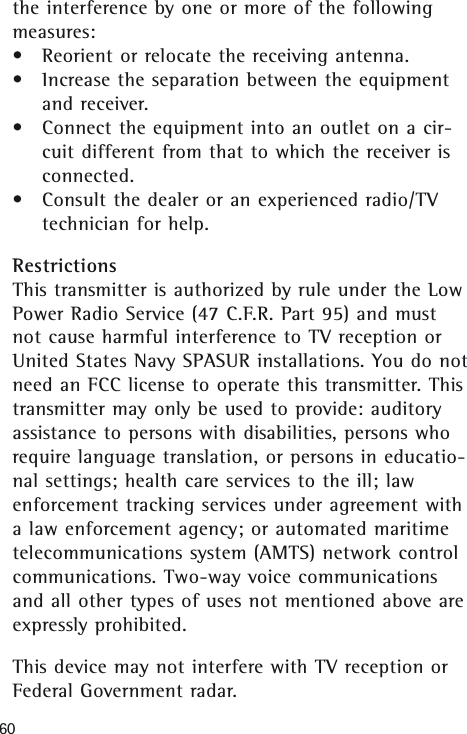

60the interference by one or more of the followingmeasures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipmentand receiver.•Connect the equipment into an outlet on a cir-cuit different from that to which the receiver isconnected.•Consult the dealer or an experienced radio/TVtechnician for help.RestrictionsThis transmitter is authorized by rule under the LowPower Radio Service (47 C.F.R. Part 95) and mustnot cause harmful interference to TV reception orUnited States Navy SPASUR installations. You do notneed an FCC license to operate this transmitter. Thistransmitter may only be used to provide: auditoryassistance to persons with disabilities, persons whorequire language translation, or persons in educatio-nal settings; health care services to the ill; lawenforcement tracking services under agreement witha law enforcement agency; or automated maritimetelecommunications system (AMTS) network controlcommunications. Two-way voice communicationsand all other types of uses not mentioned above areexpressly prohibited. This device may not interfere with TV reception orFederal Government radar.

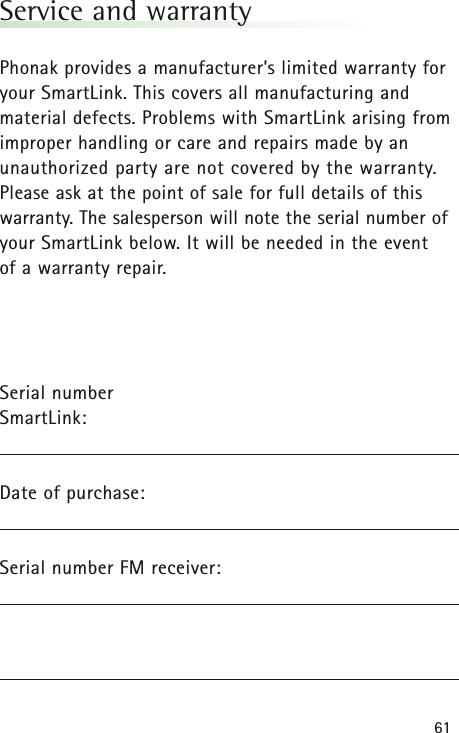

61Service and warrantyPhonak provides a manufacturer’s limited warranty foryour SmartLink. This covers all manufacturing andmaterial defects. Problems with SmartLinkarising fromimproper handling or care and repairs made by anunauthorized party are not covered by the warranty.Please ask at the point of sale for full details of thiswarranty. The salesperson will note the serial number ofyour SmartLinkbelow. It will be needed in the event of a warranty repair.Serial number SmartLink:Date of purchase:Serial number FM receiver:
62 0682 !Phonak distributors worldwideGroup companies: (detailed information on www.phonak.com)Australia Phonak Australasia Pty. Ltd.Baulkham Hills N. S. W. 2153Austria Hansaton Akustische Geräte GmbH5020 SalzburgBelgium Lapperre N.V., 1702 Groot-BijgaardenCanada Phonak Canada Limited, Mississauga, Ontario L5S 1V9Denmark Phonak Danmark A/S, Nitivej 102000 FrederiksbergFrance Phonak France SA, 69500 BronGermany Phonak GmbH, 70736 Fellbach-OeffingenItaly Phonak Italia S.r.l., 20159 MilanoJapan Phonak Japan Co., Ltd., Tokyo 101-0044Jordan Phonak Middle East, 11181 AmmanNetherlands Phonak B.V., 3439 ME NieuwegeinNew Zealand Phonak New Zealand Ltd.Takapuna, Auckland 9Norway Phonak AS, 0105 OsloSpain Phonak Iberica S.A., 03008 AlicanteSweden Phonak AB,117 34 StockholmSwitzerland Phonak AG, Phonak Schweiz, 8712 StäfaUnited Kingdom Phonak UK LimitedWarrington, Cheshire WA1 1PPUSA Phonak LLC, Warrenville, IL 60555-3927Independent A complete list of Phonak distributorsgeneral agents: is available at Phonak's Internet site: www.phonak.com. Please visit us or askyour hearingcare professional for information.Manufacturer: Phonak AG, Laubisrütistrasse 28CH-8712 Stäfa, Switzerland

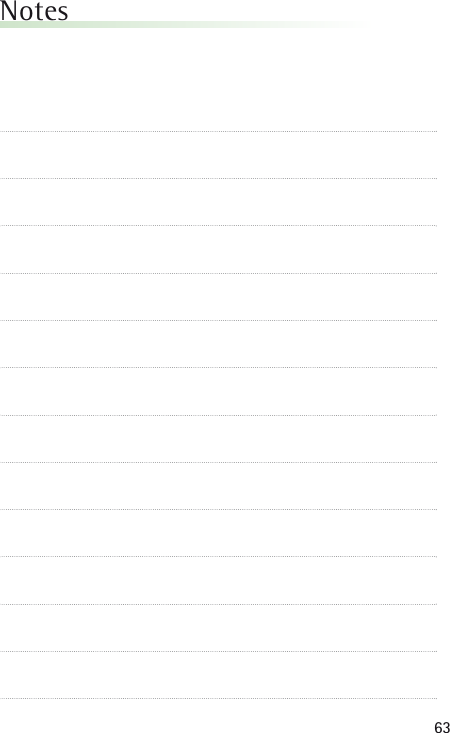

63Notes
64Notes
